Steel Machine Rollers & Accessories| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

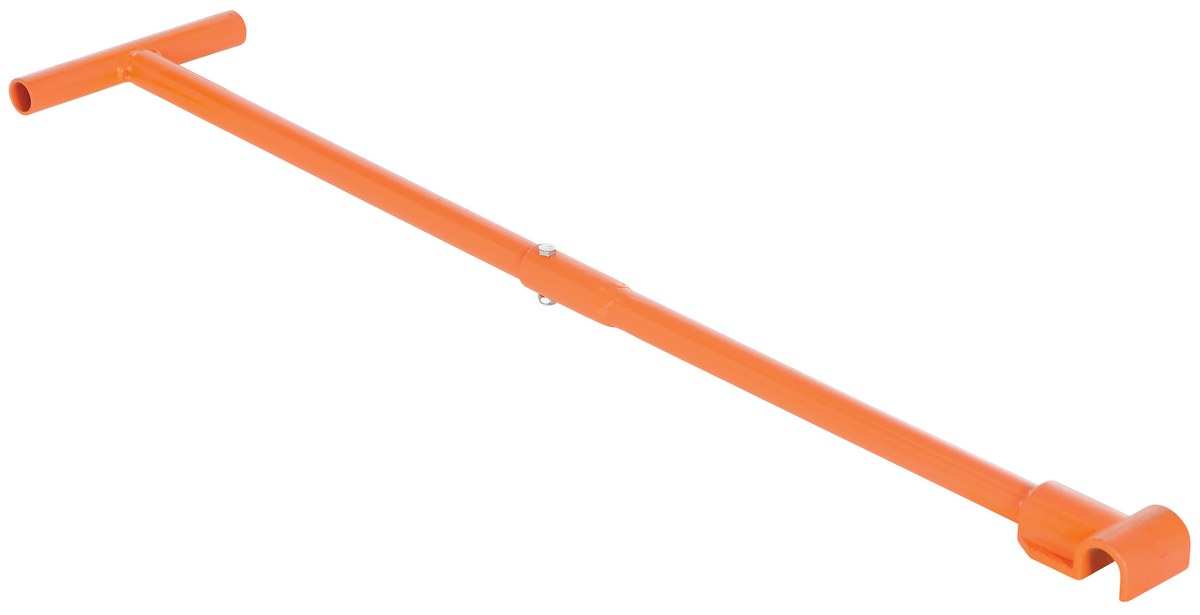

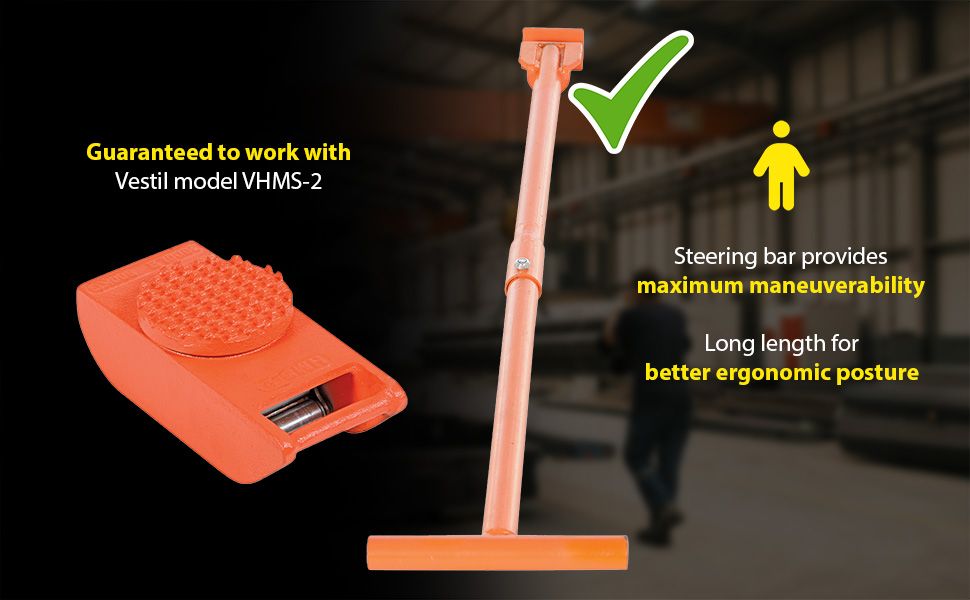

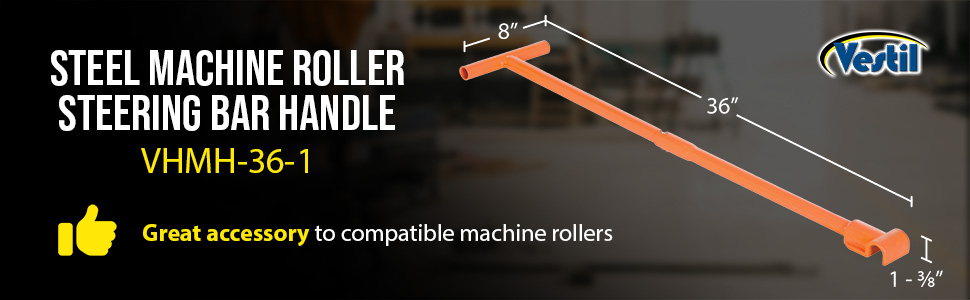

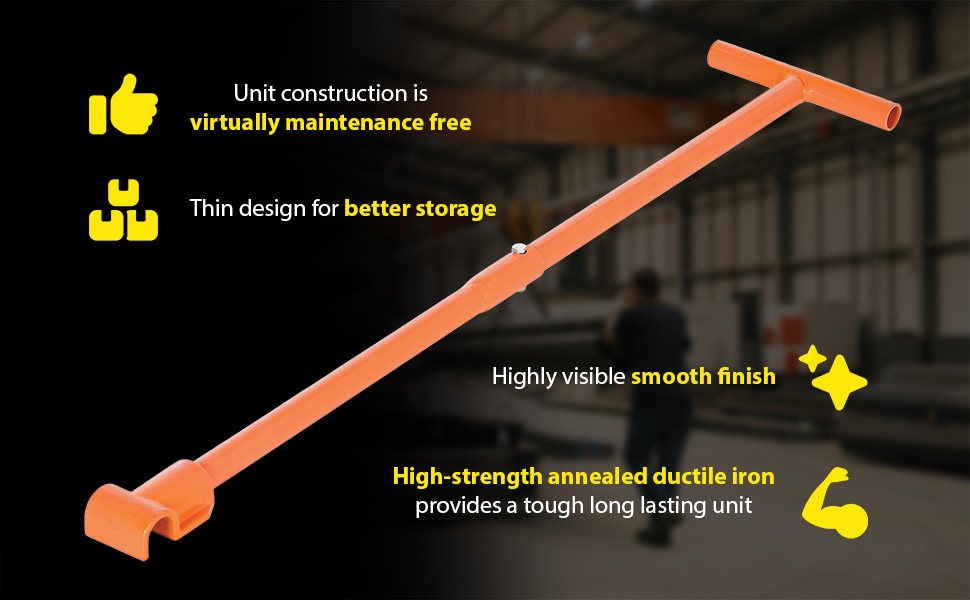

| VHMH-36-1 |  | 30 Days Limited Warranty | Steel Machine Roller Steering Bar Handle 36 In. Length For Use with VHMS-2 Orange | Component: Handle Handle Length (in.): 36 | 10 | ||

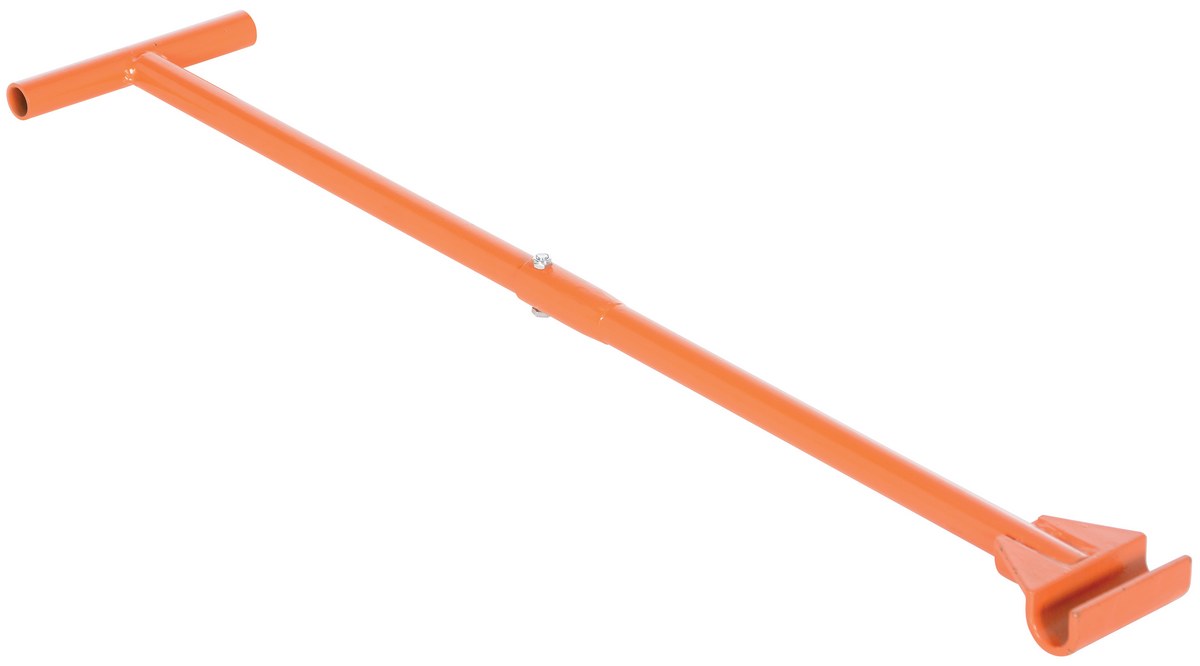

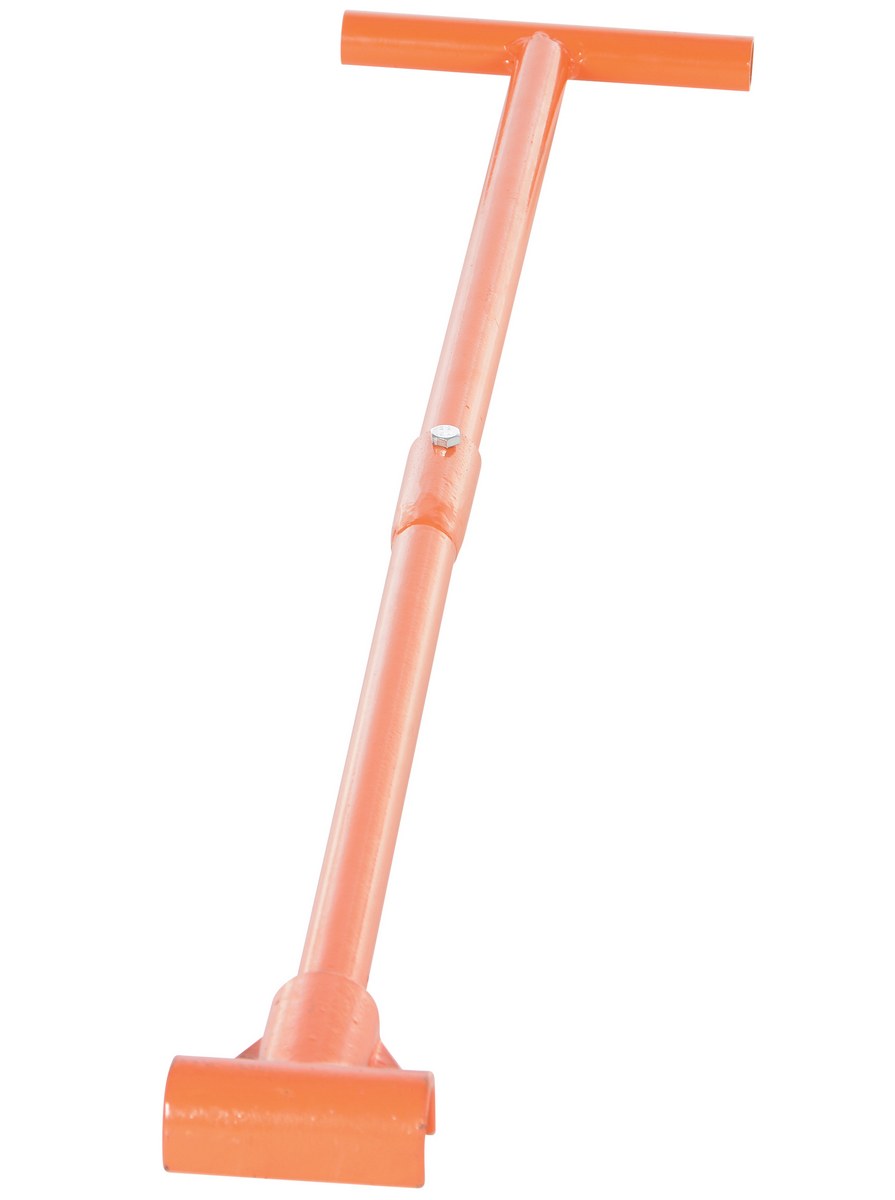

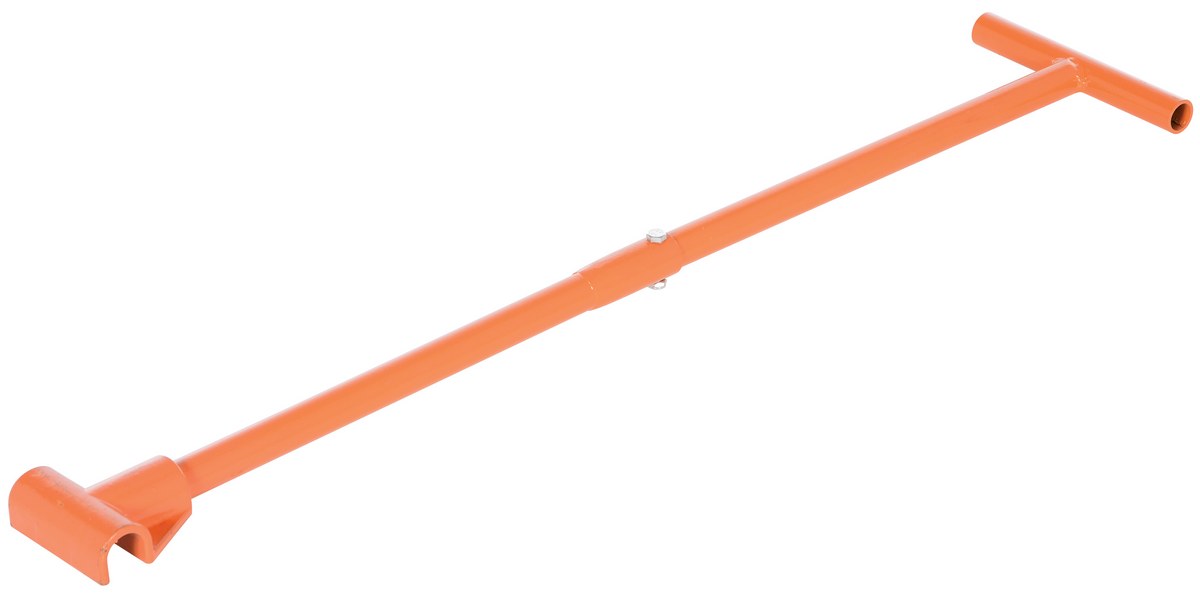

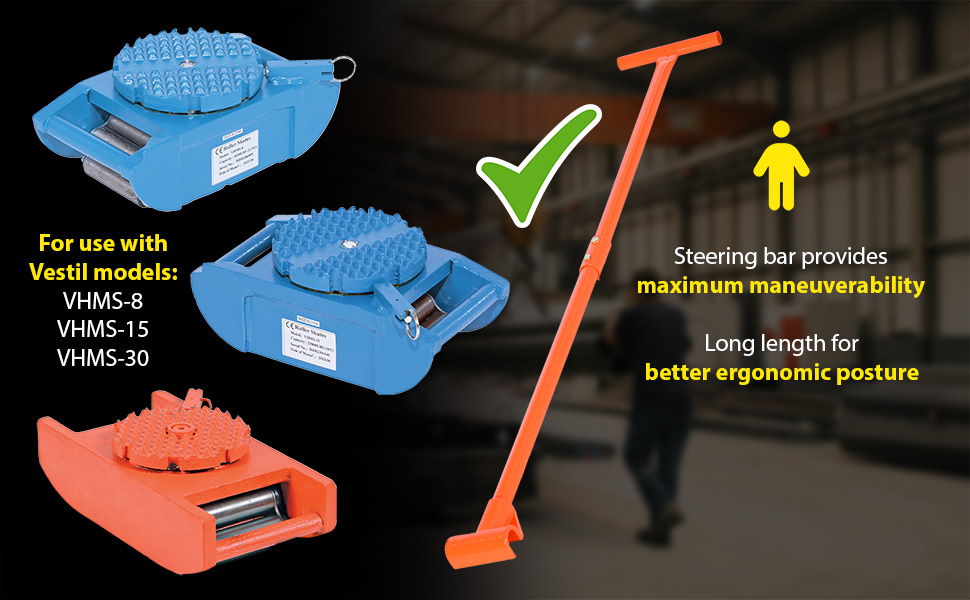

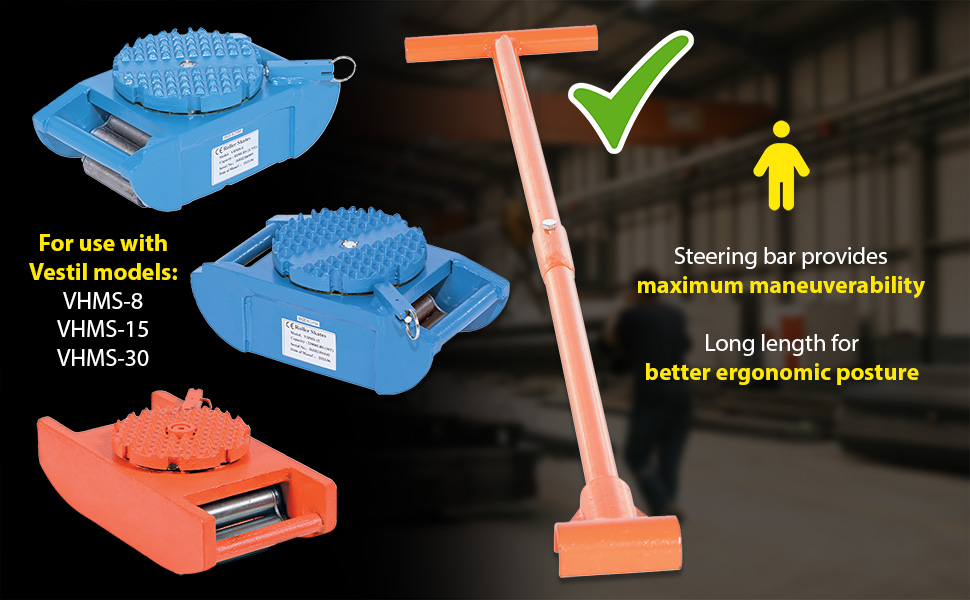

| VHMH-36-2 |  | 30 Days Limited Warranty | Steel Machine Roller Steering Bar Handle 36 In. Length For Use with VHMS-8, 15, and 30 Orange | Component: Handle Handle Length (in.): 36 | 15 | ||

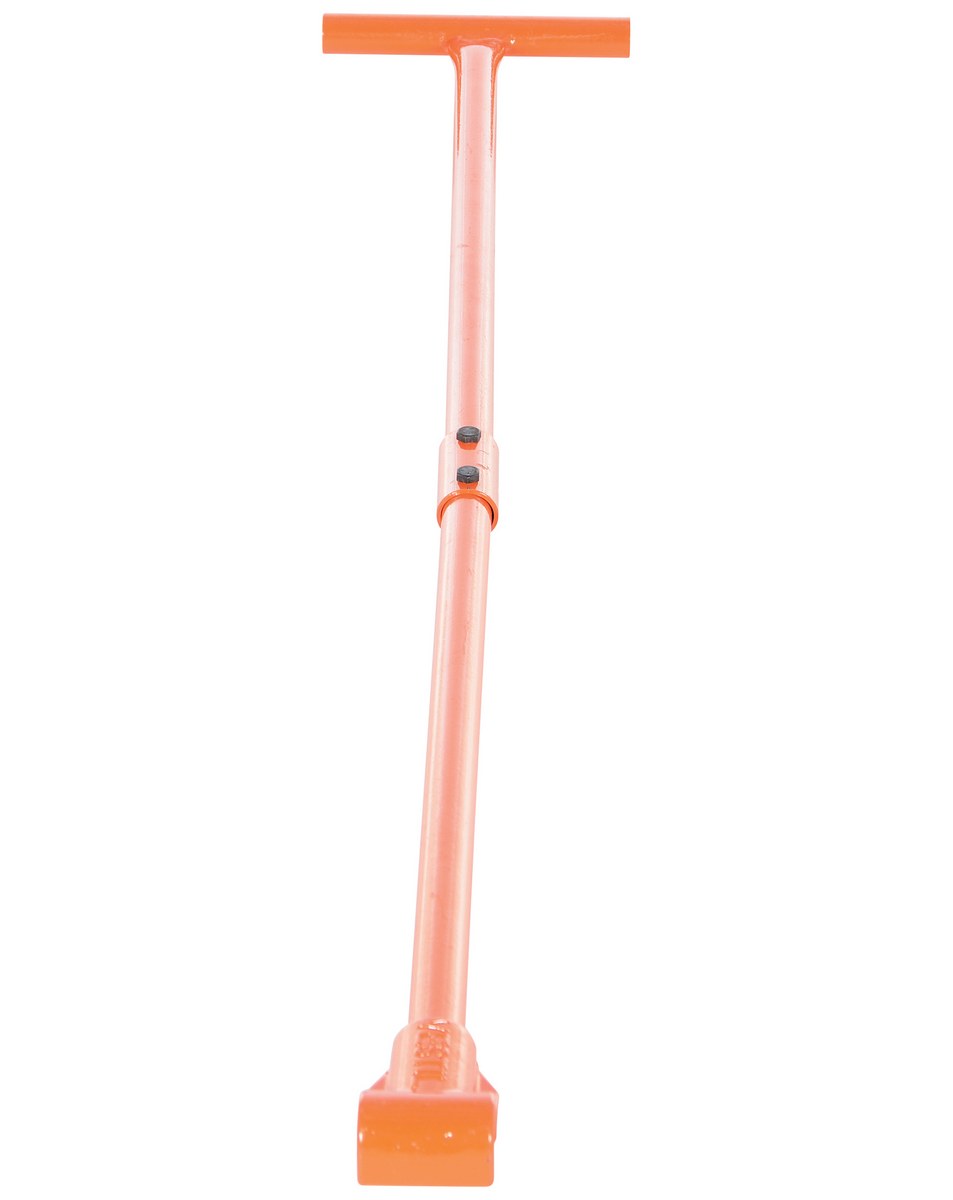

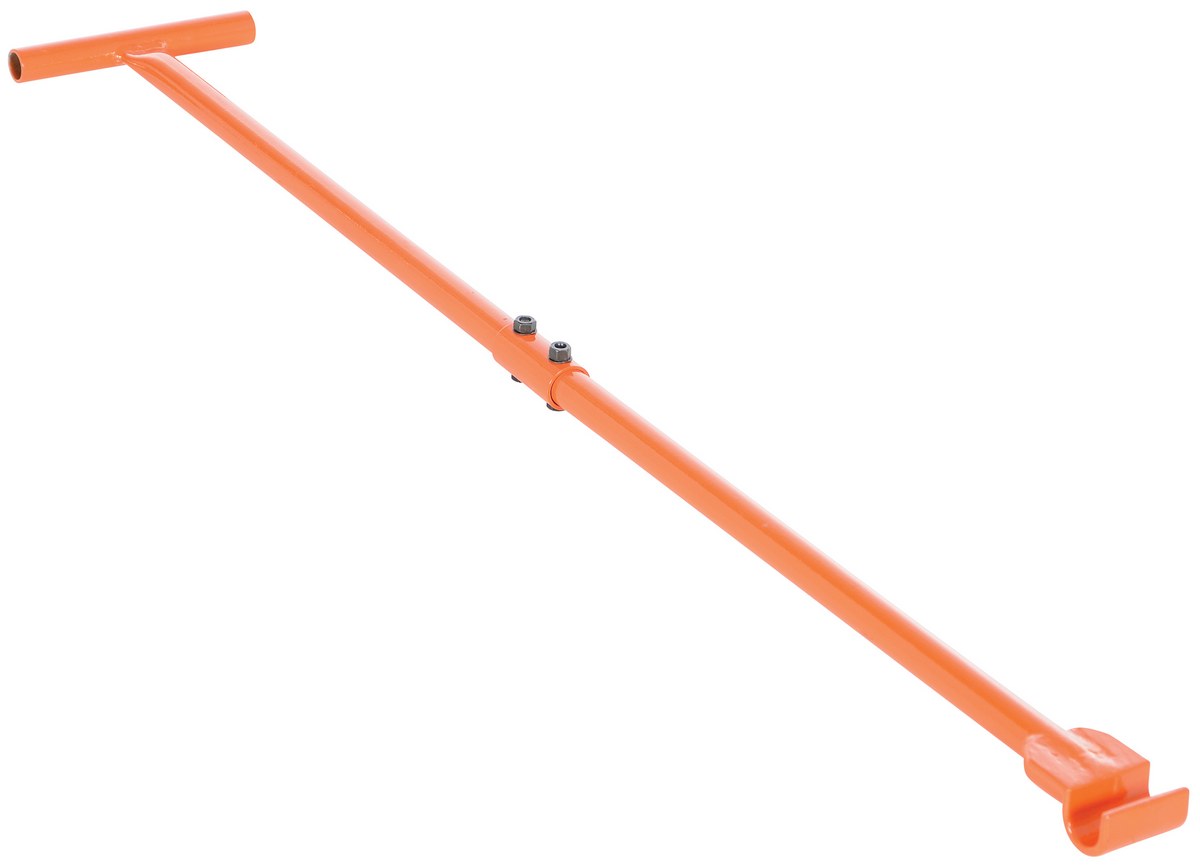

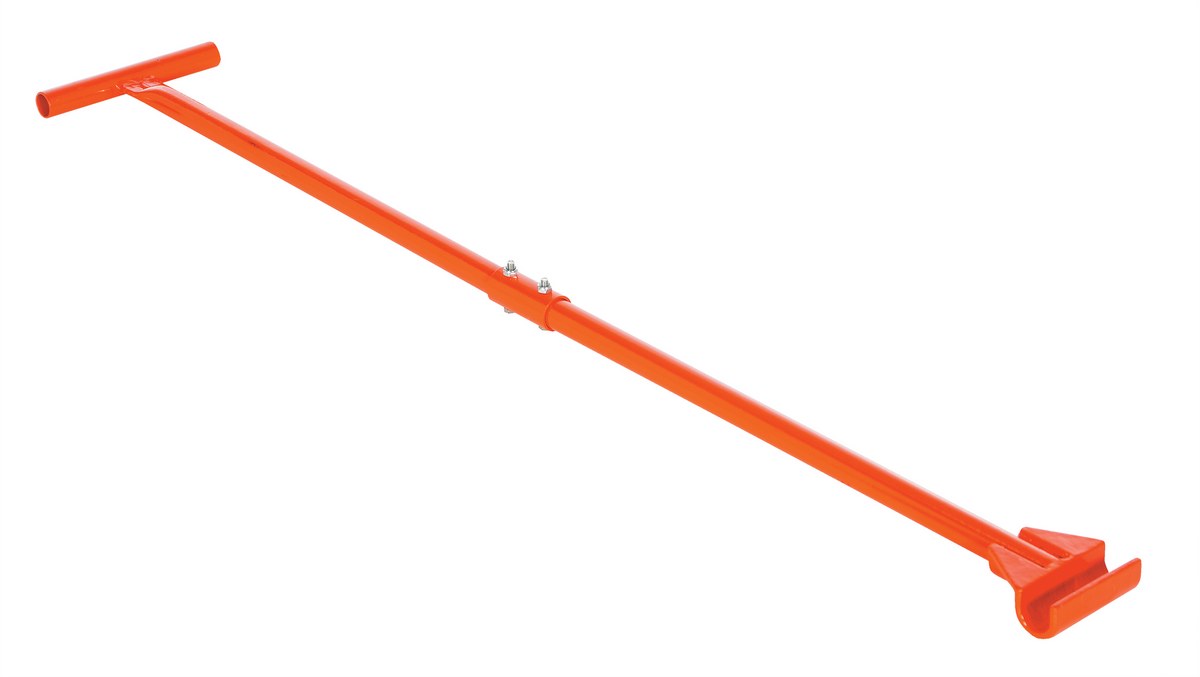

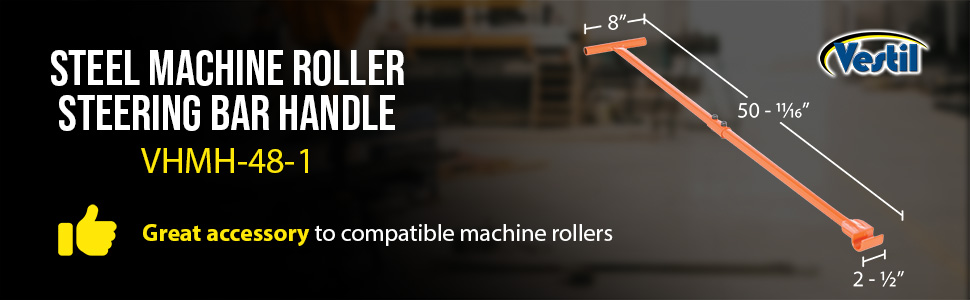

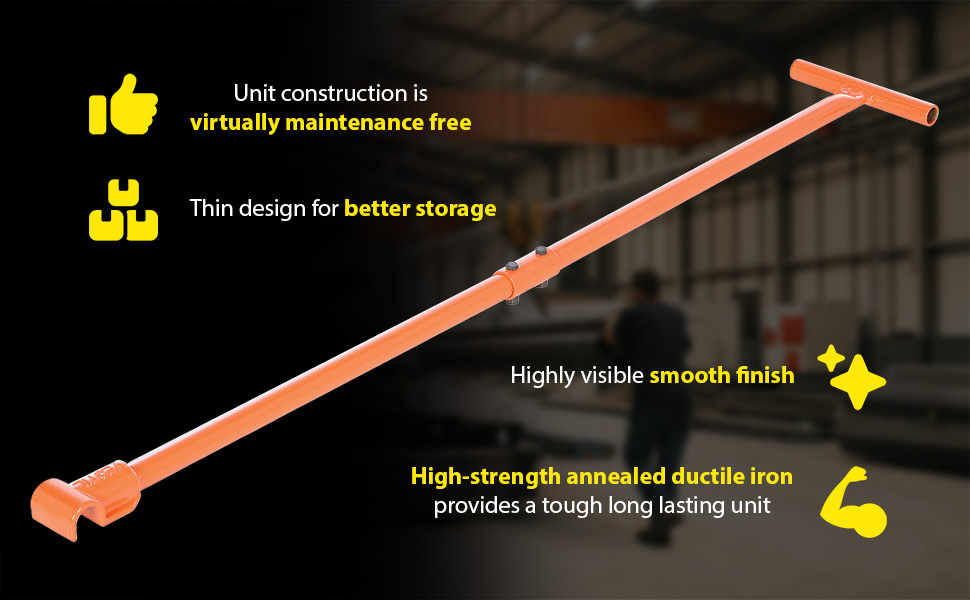

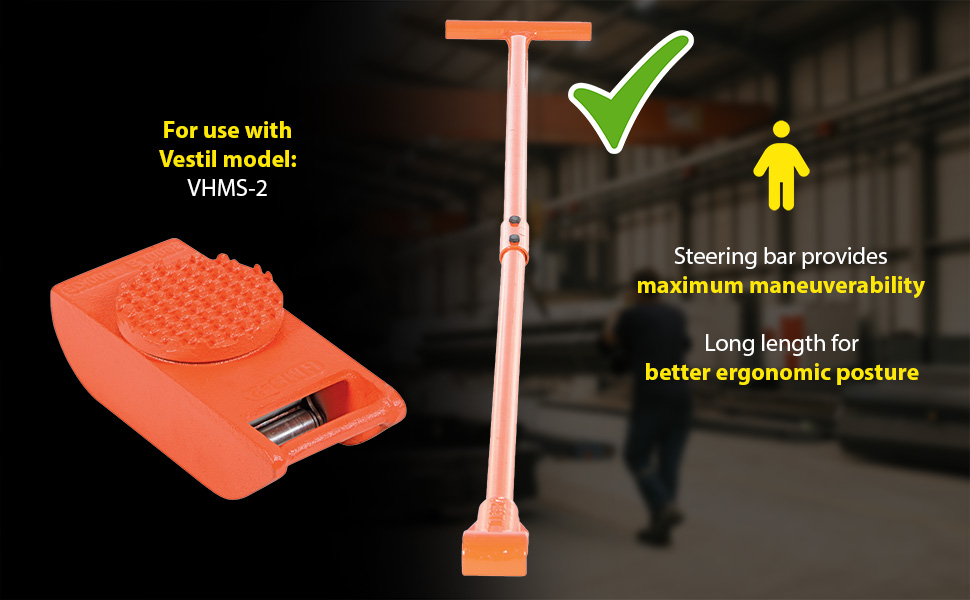

| VHMH-48-1 |  | 30 Days Limited Warranty | Steel Machine Roller Steering Bar Handle 48 In. Length For Use with VHMS-2 Orange | Component: Handle Handle Length (in.): 48 | 12 | ||

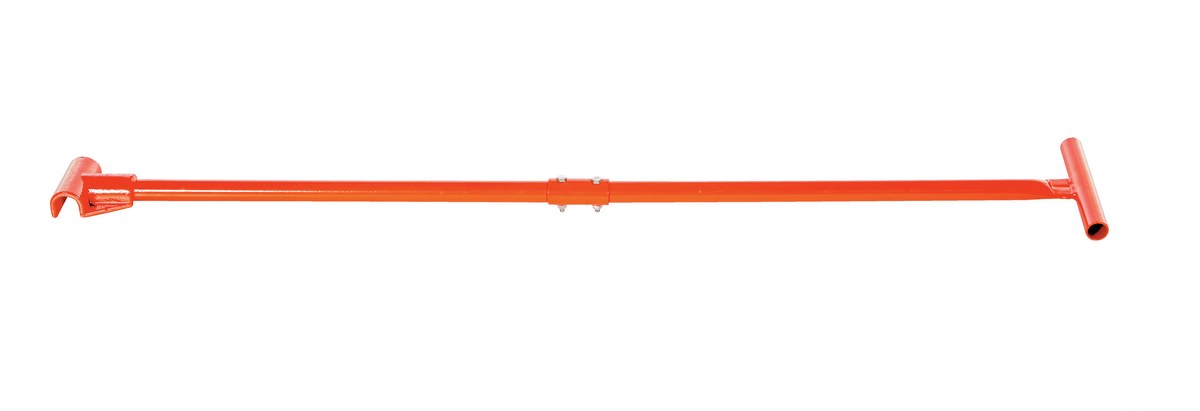

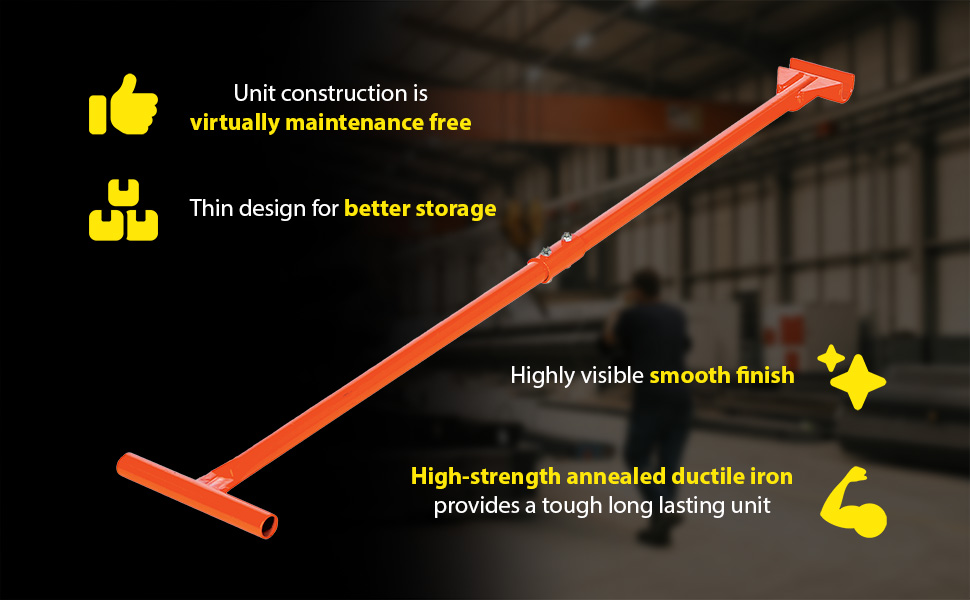

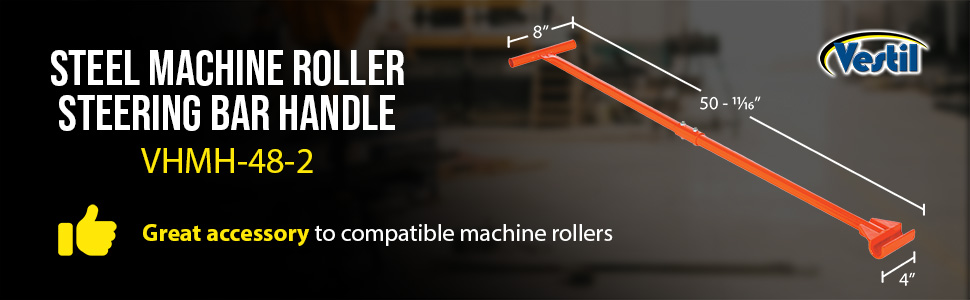

| VHMH-48-2 |  | 30 Days Limited Warranty | Steel Machine Roller Steering Bar Handle 48 In. Length For Use with VHMS-8, 15, and 30 Orange | Component: Handle Handle Length (in.): 48 | 17 | ||

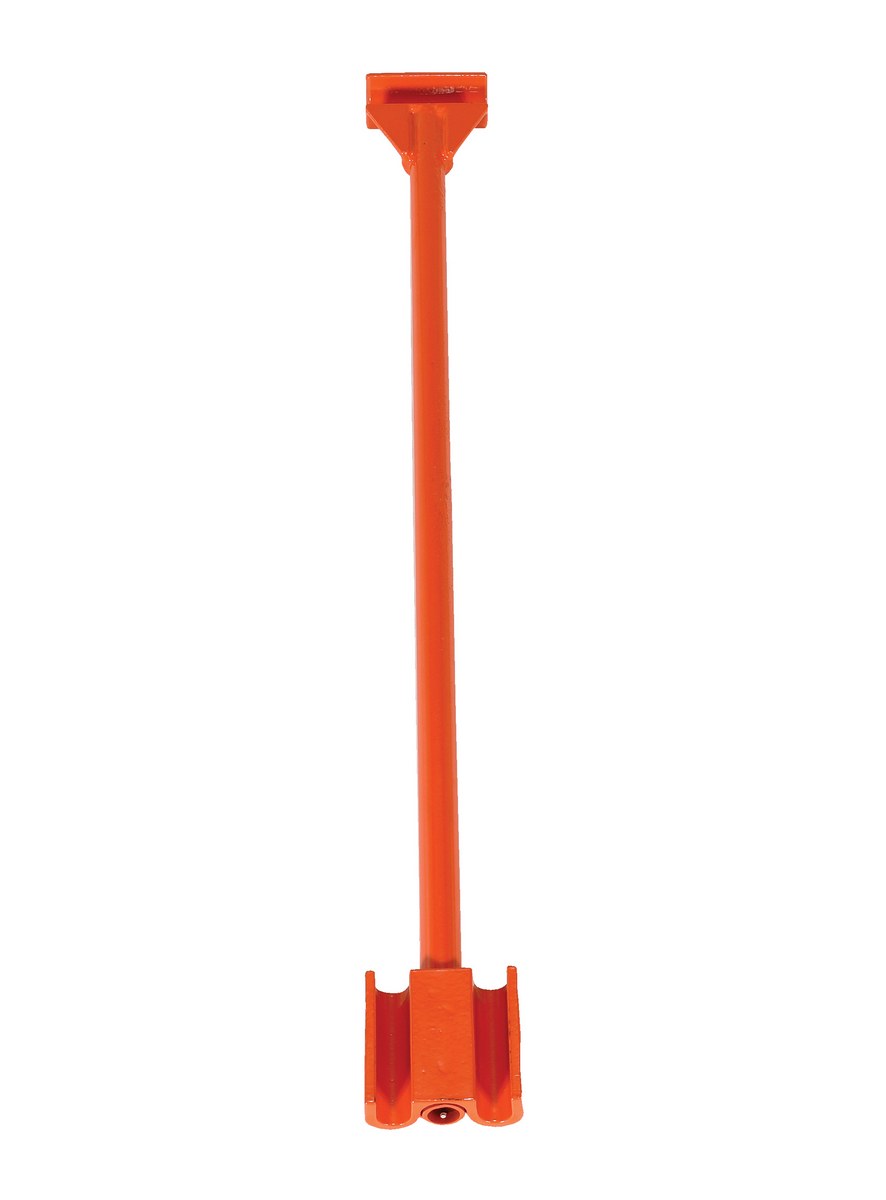

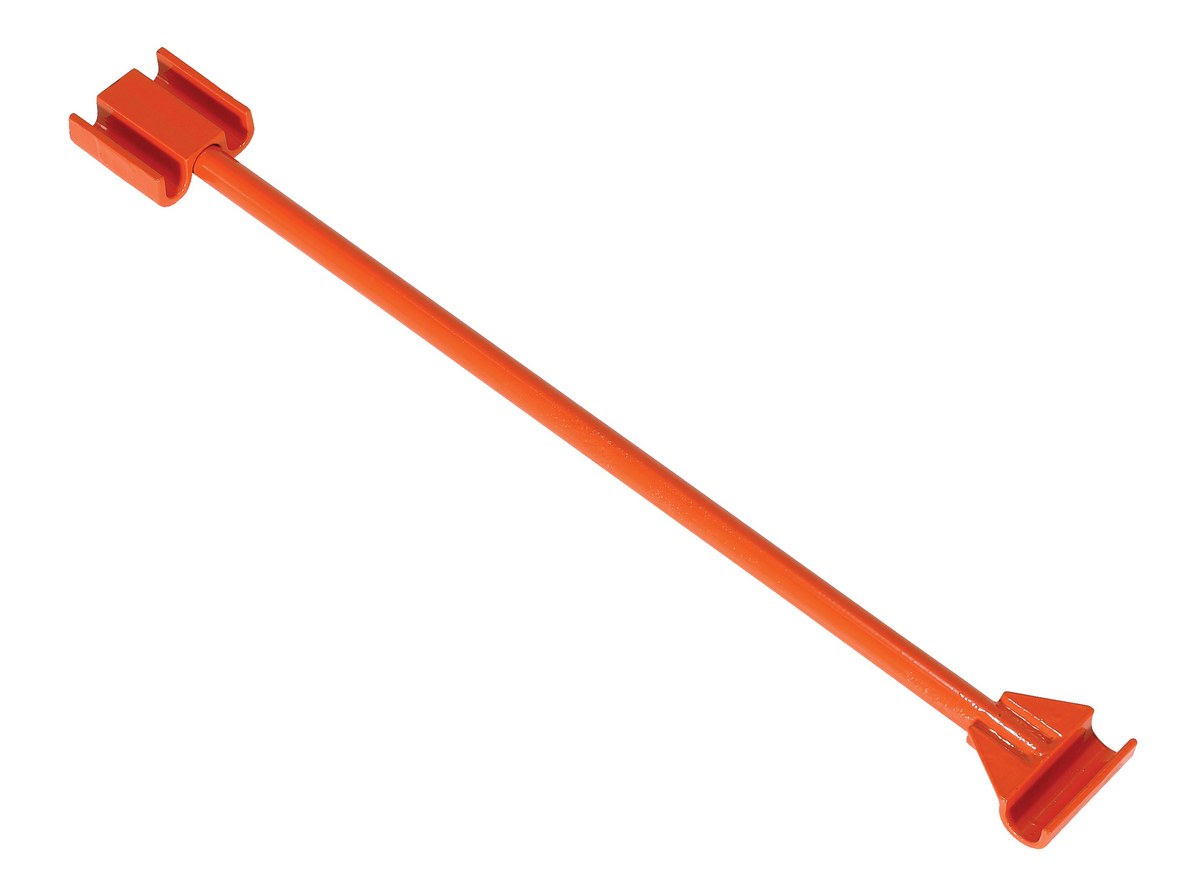

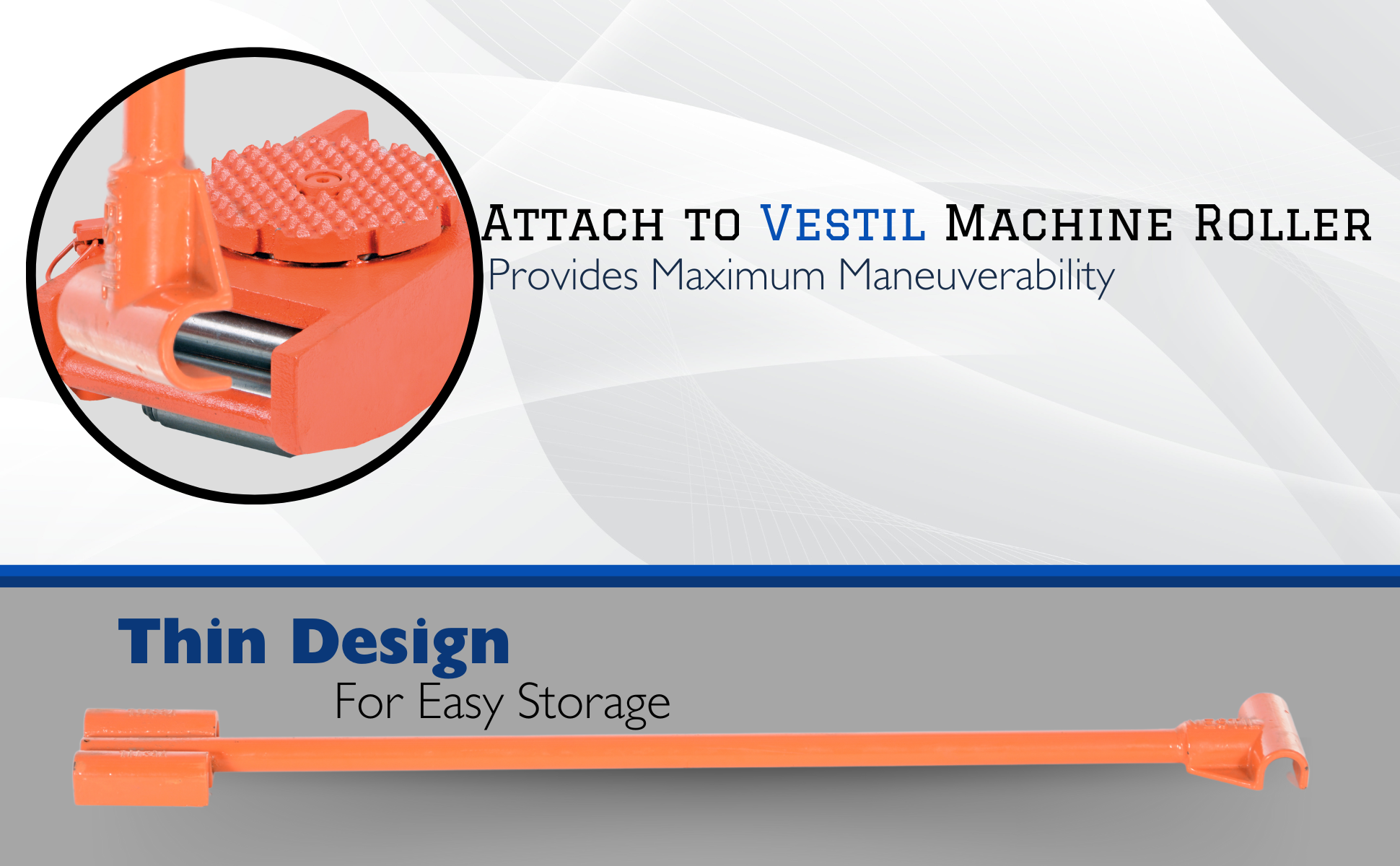

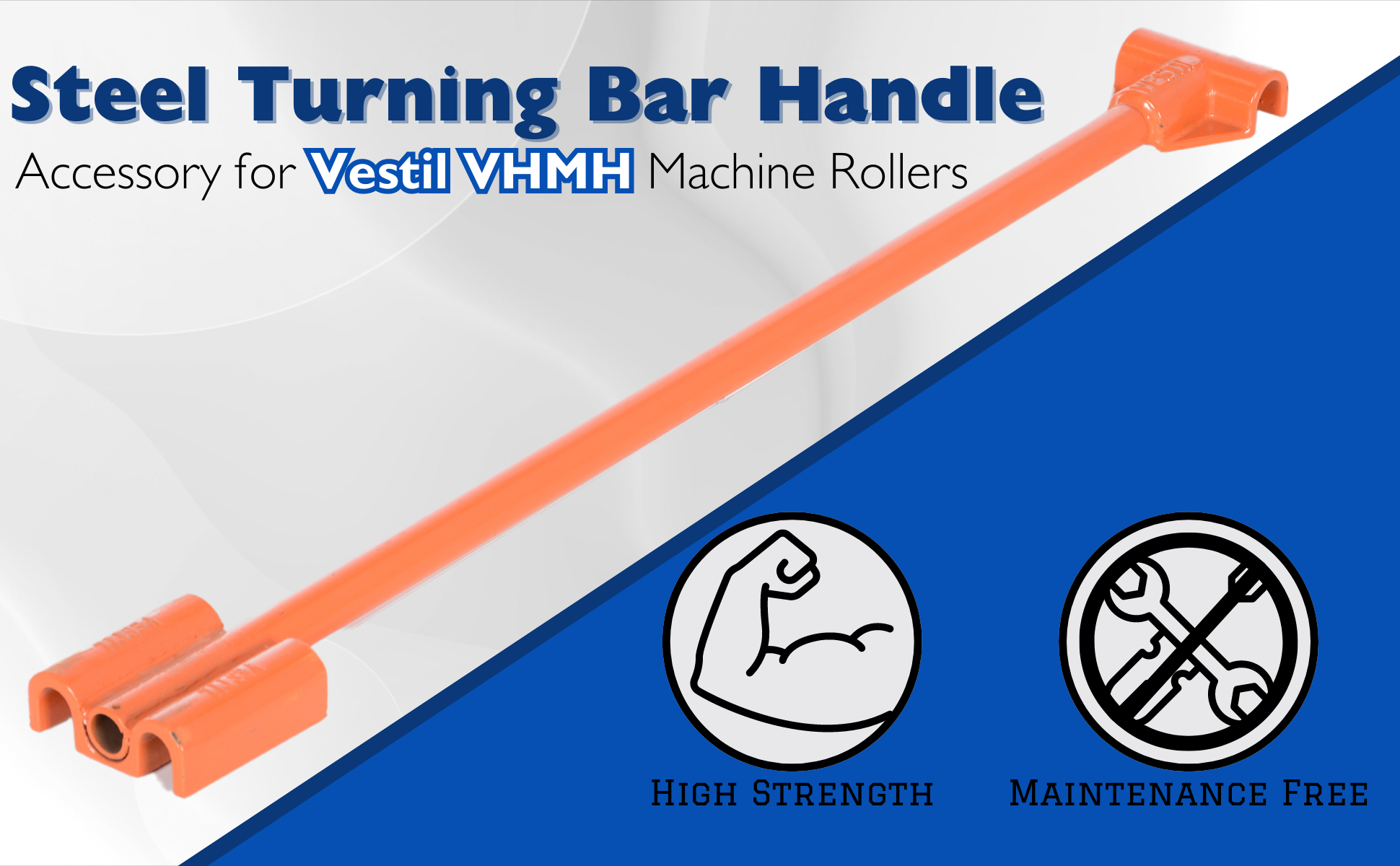

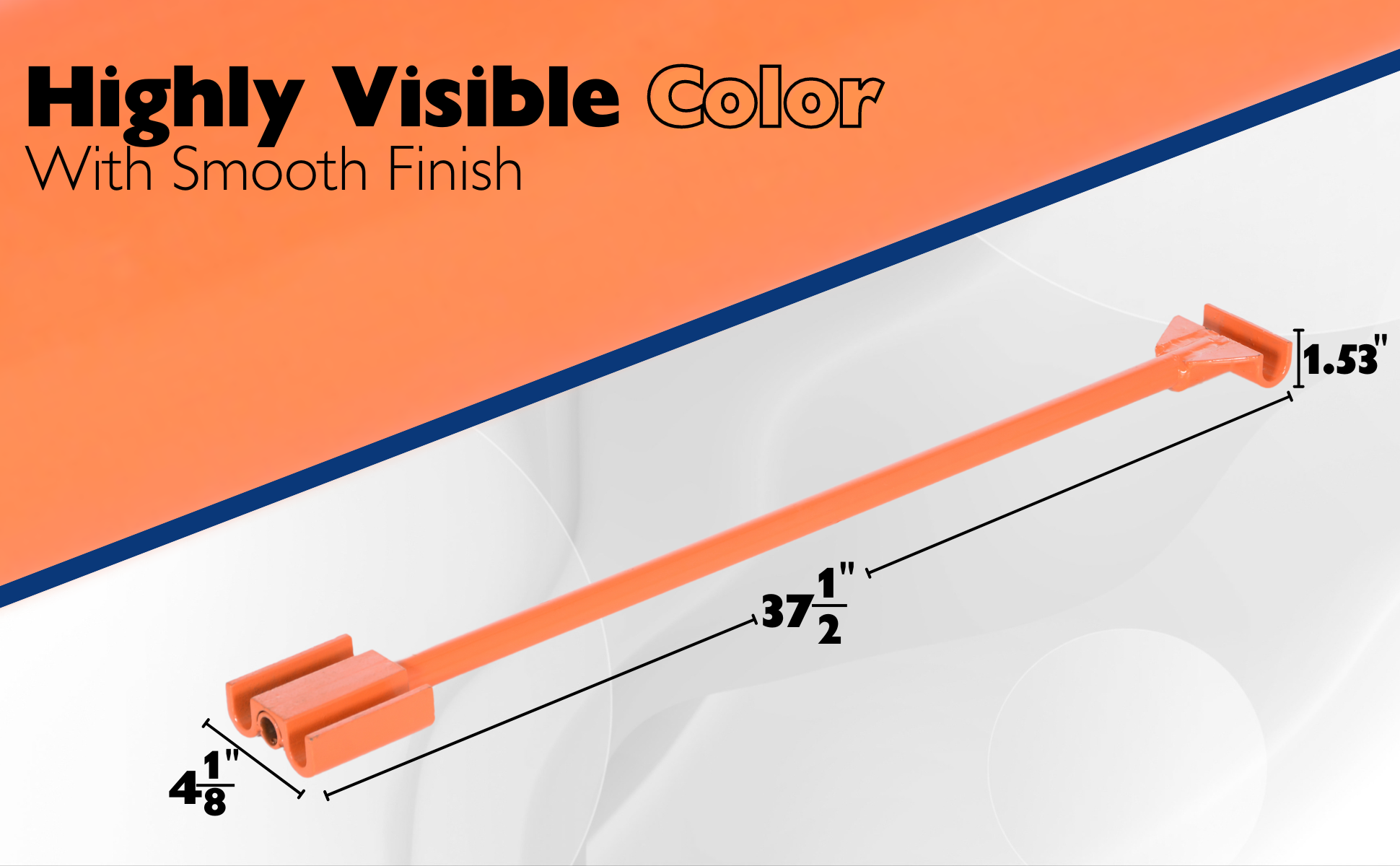

| VHMH-TB-2 |  | 30 Days Limited Warranty | Steel Turning Bar Handle For Use with VHMS-8, 15, and 30 Orange | Component: Turning Bar Handle Handle Length (in.): 36 | 18 | ||

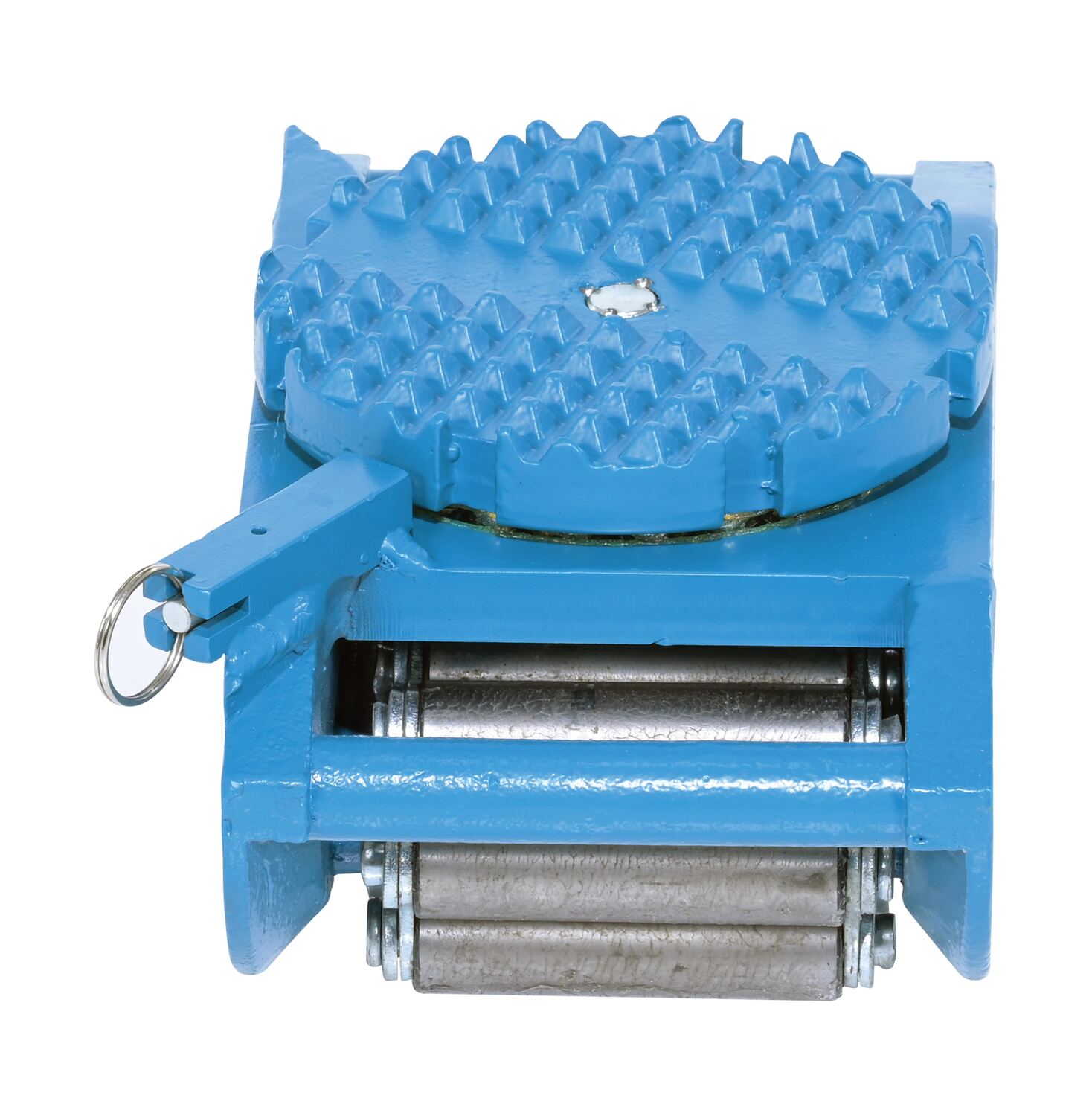

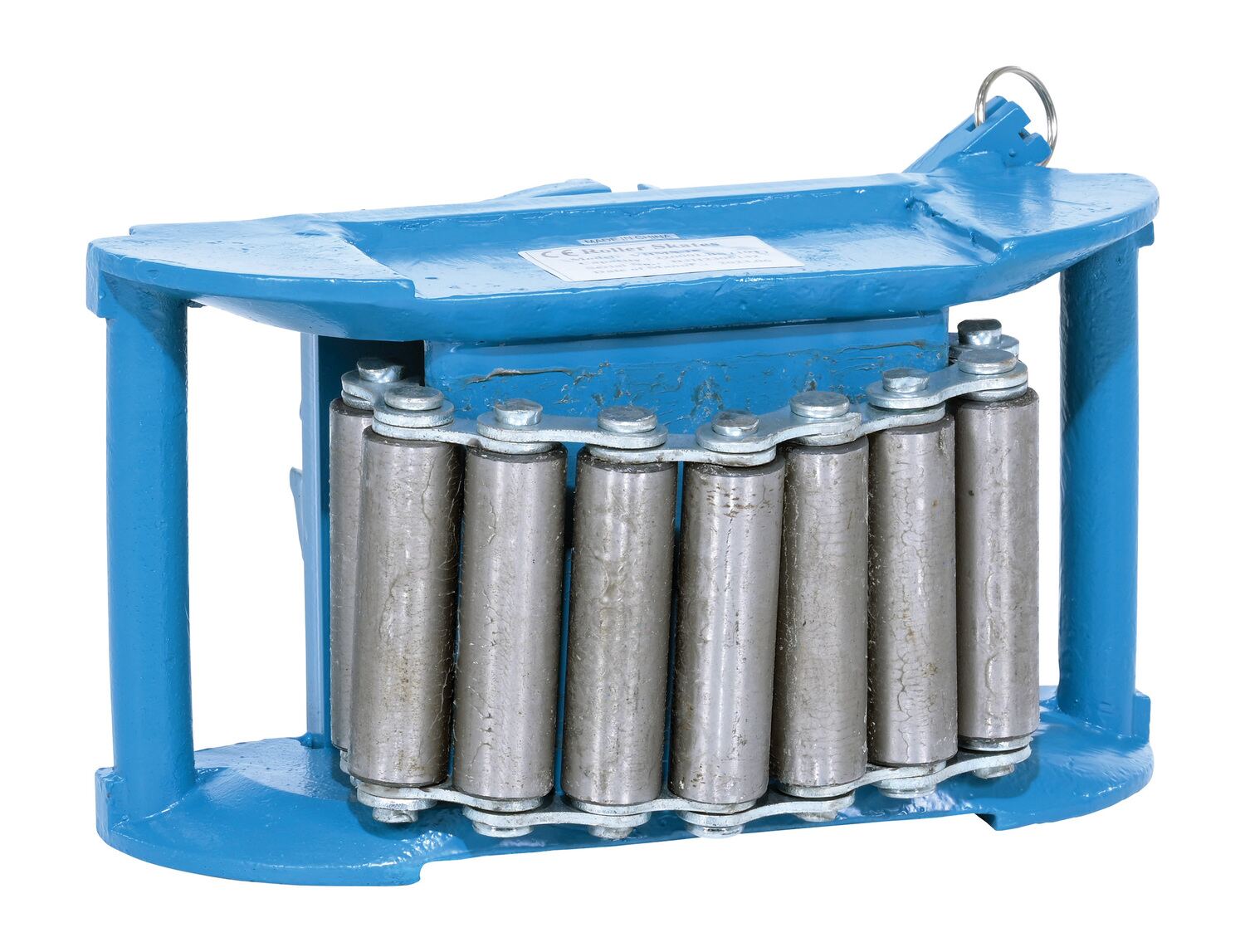

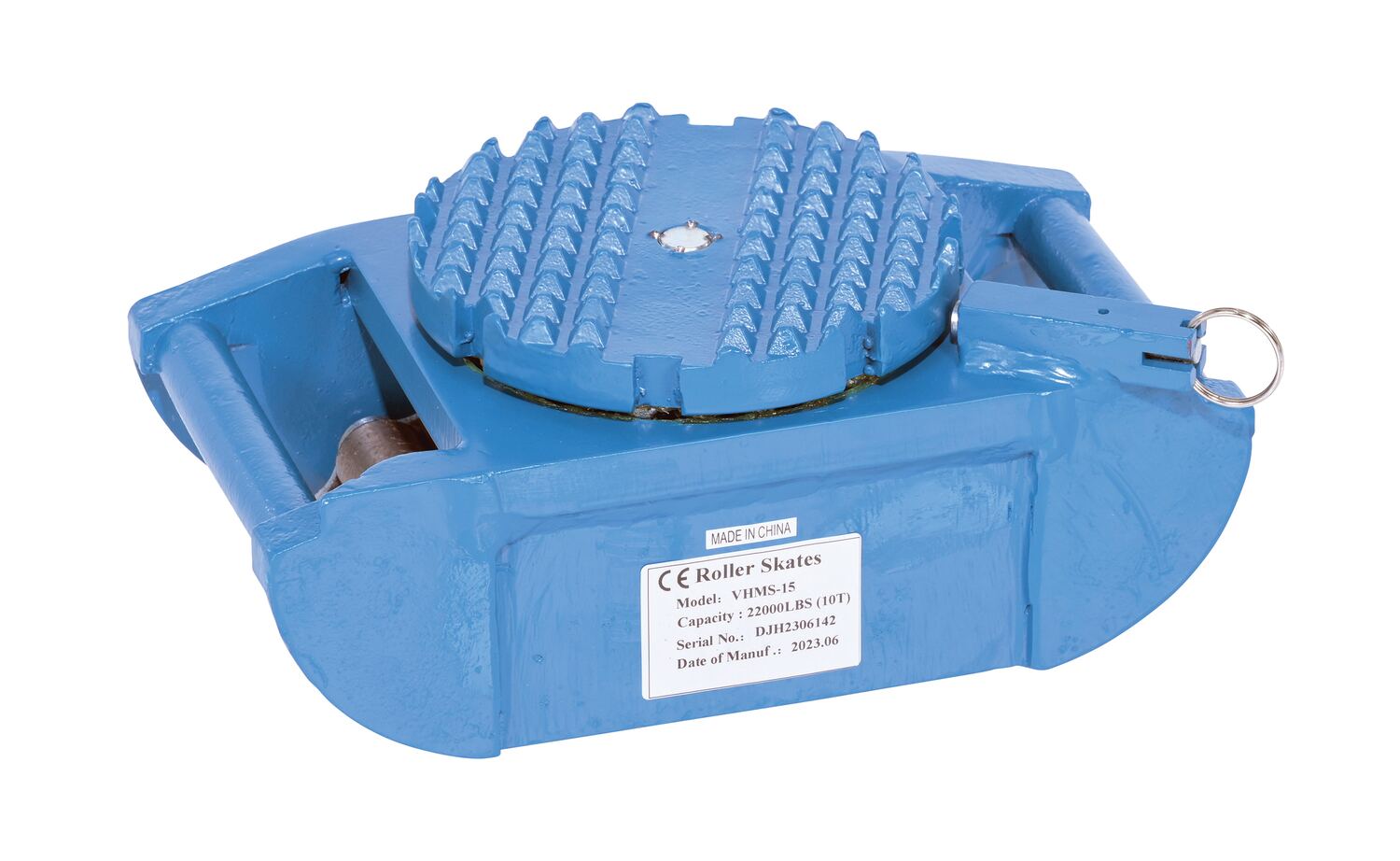

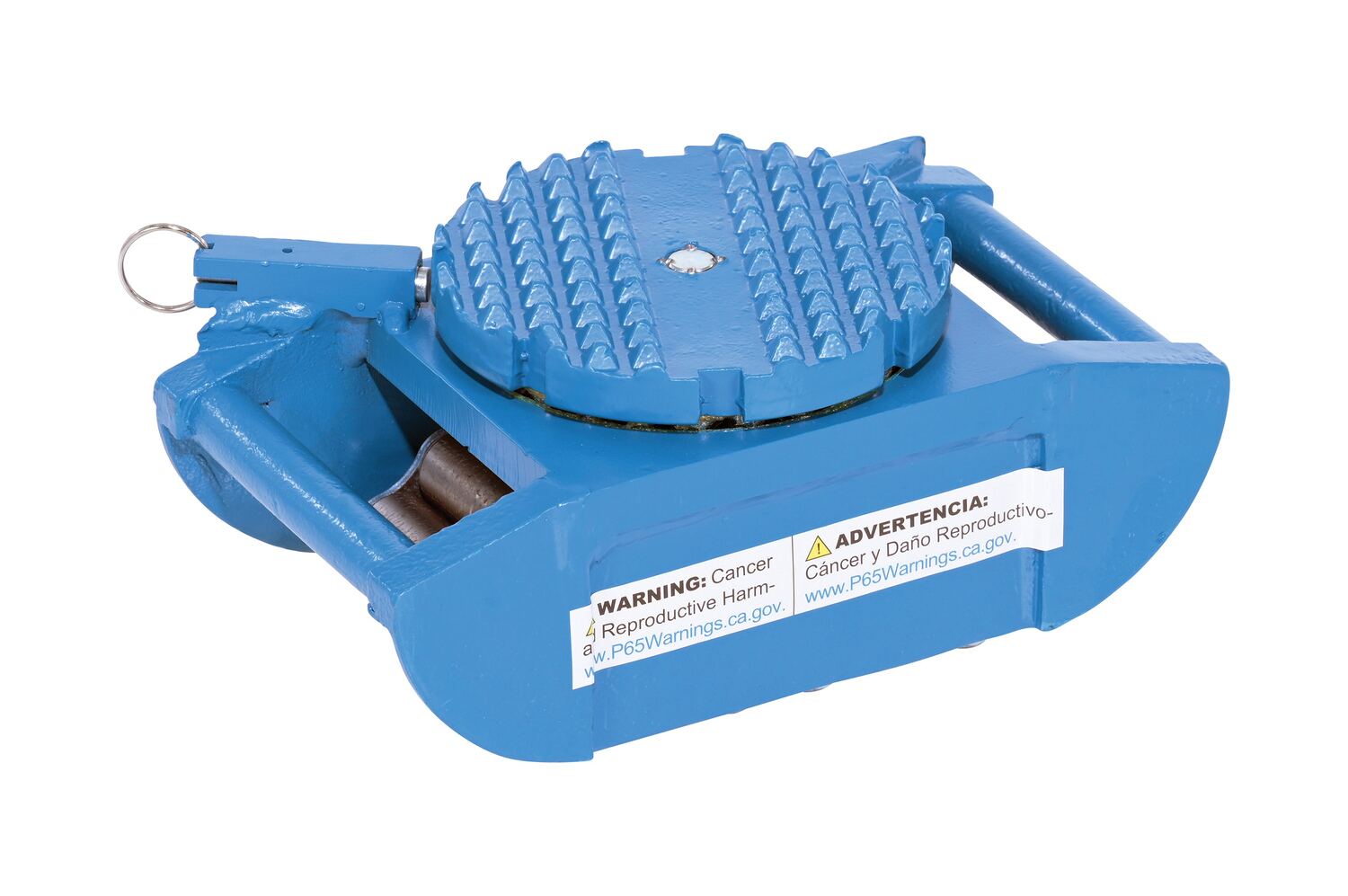

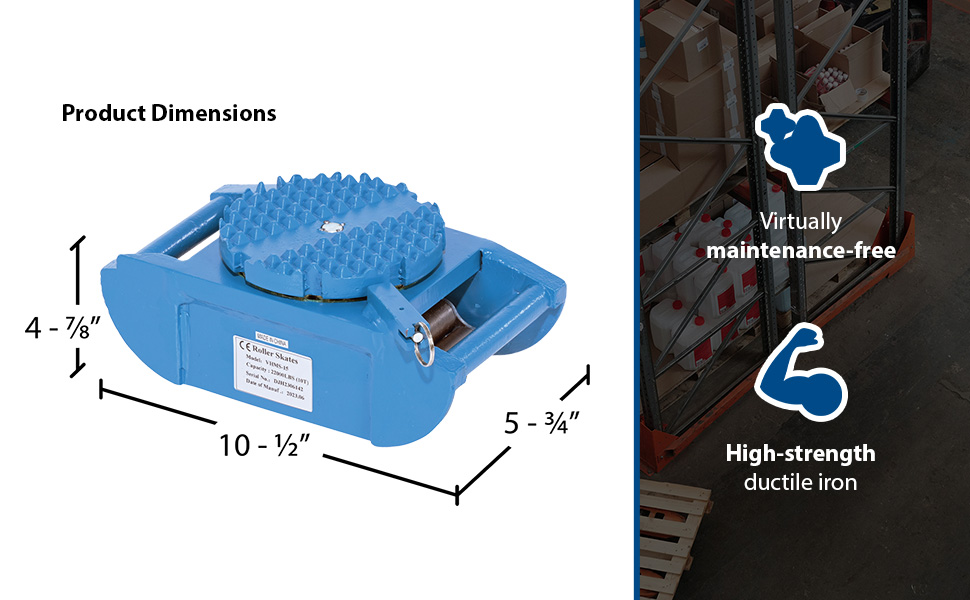

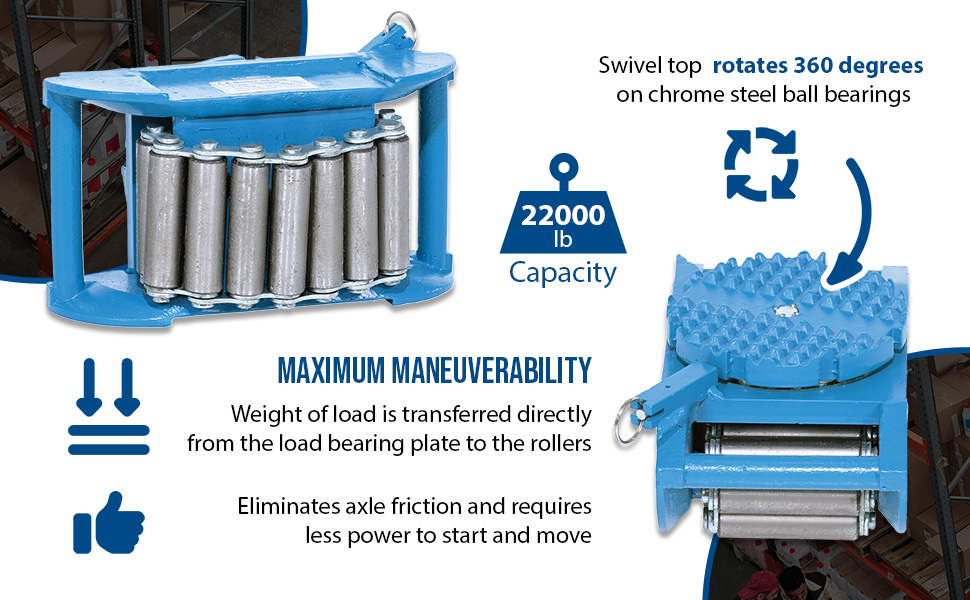

| VHMS-15 |  | 30 Days Limited Warranty | Steel Machine Roller 22,000 Lb. Capacity Blue | Uniform Capacity (lb.): 22000 Component: Machine Roller | 38 | ||

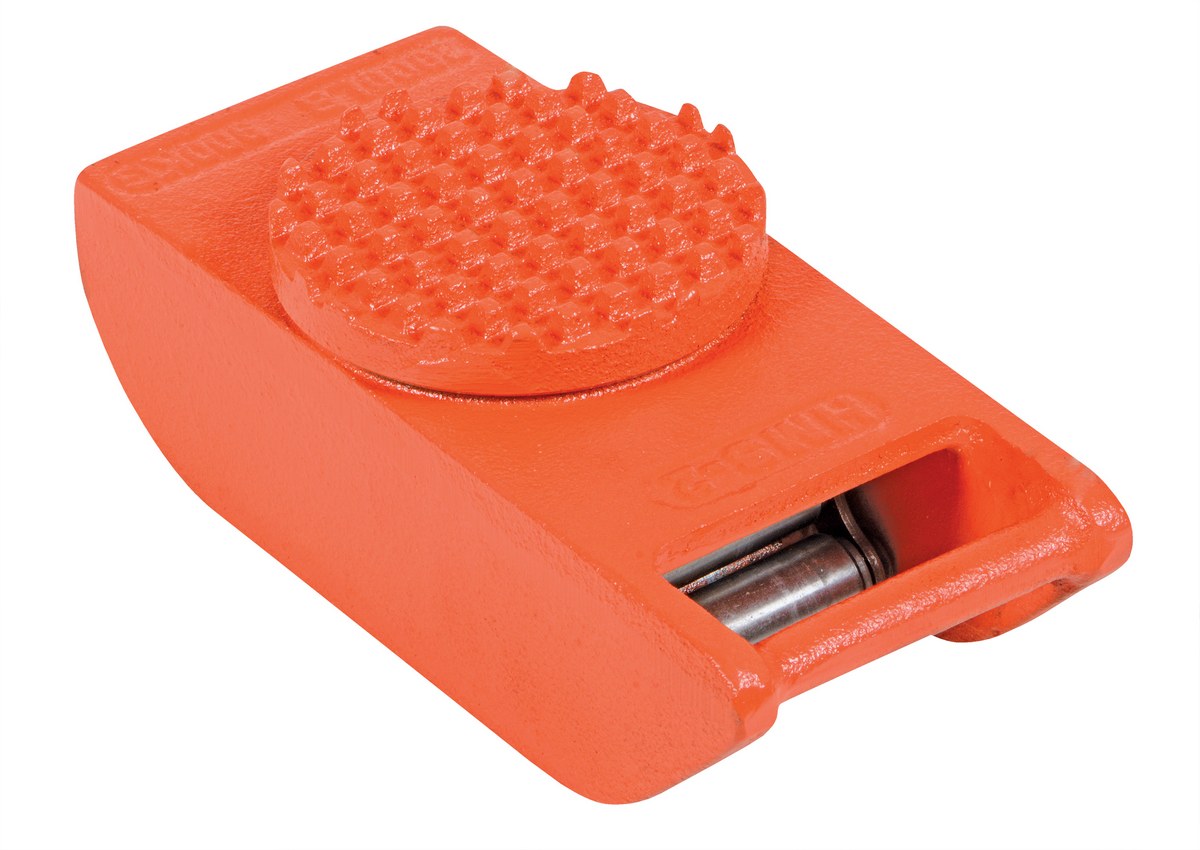

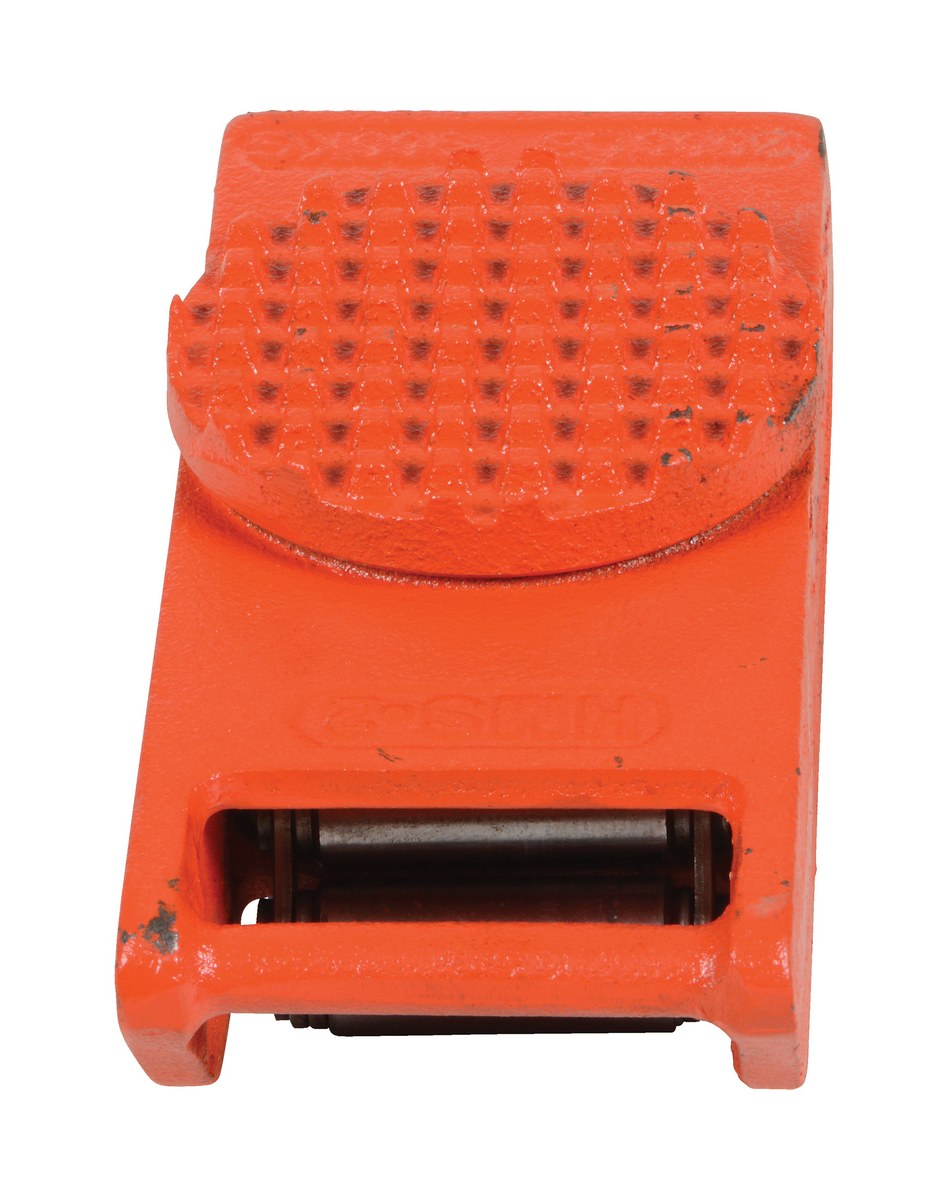

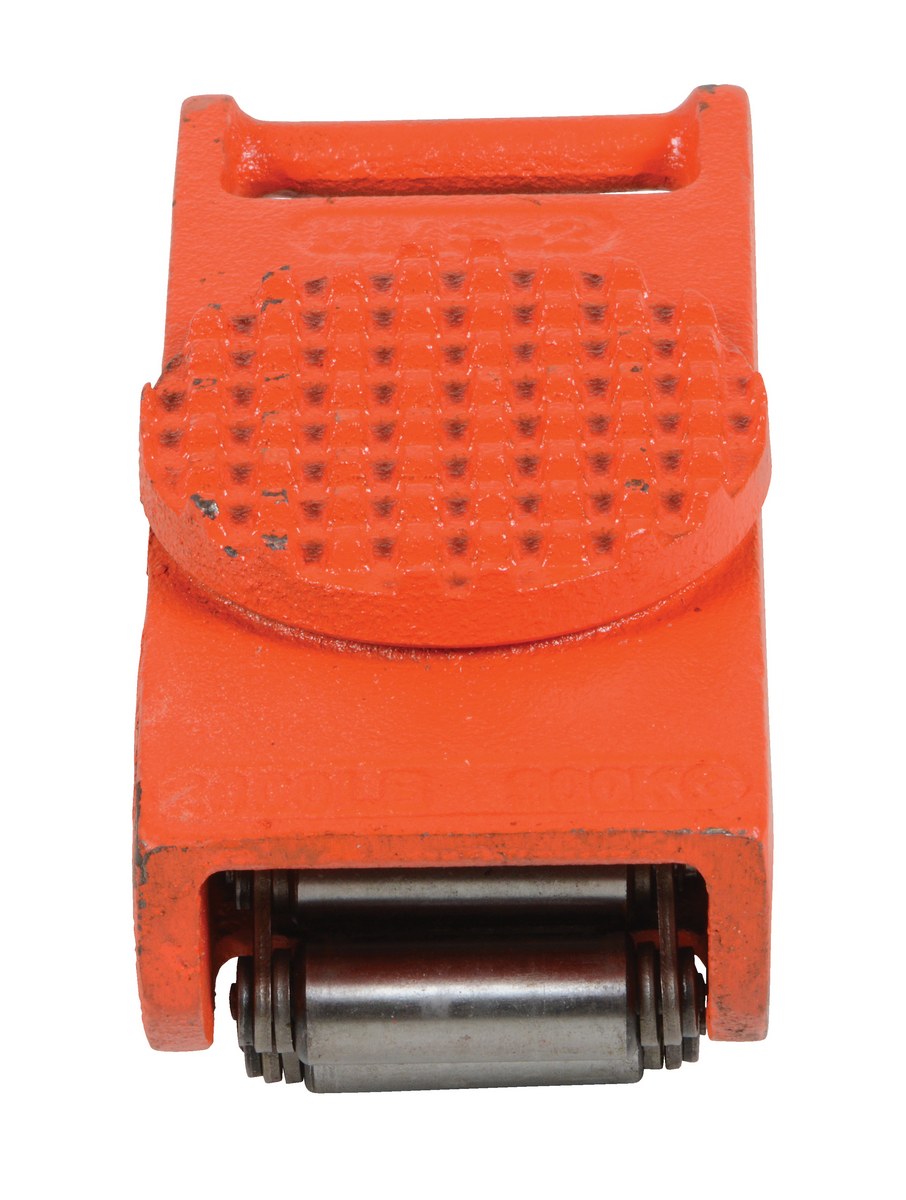

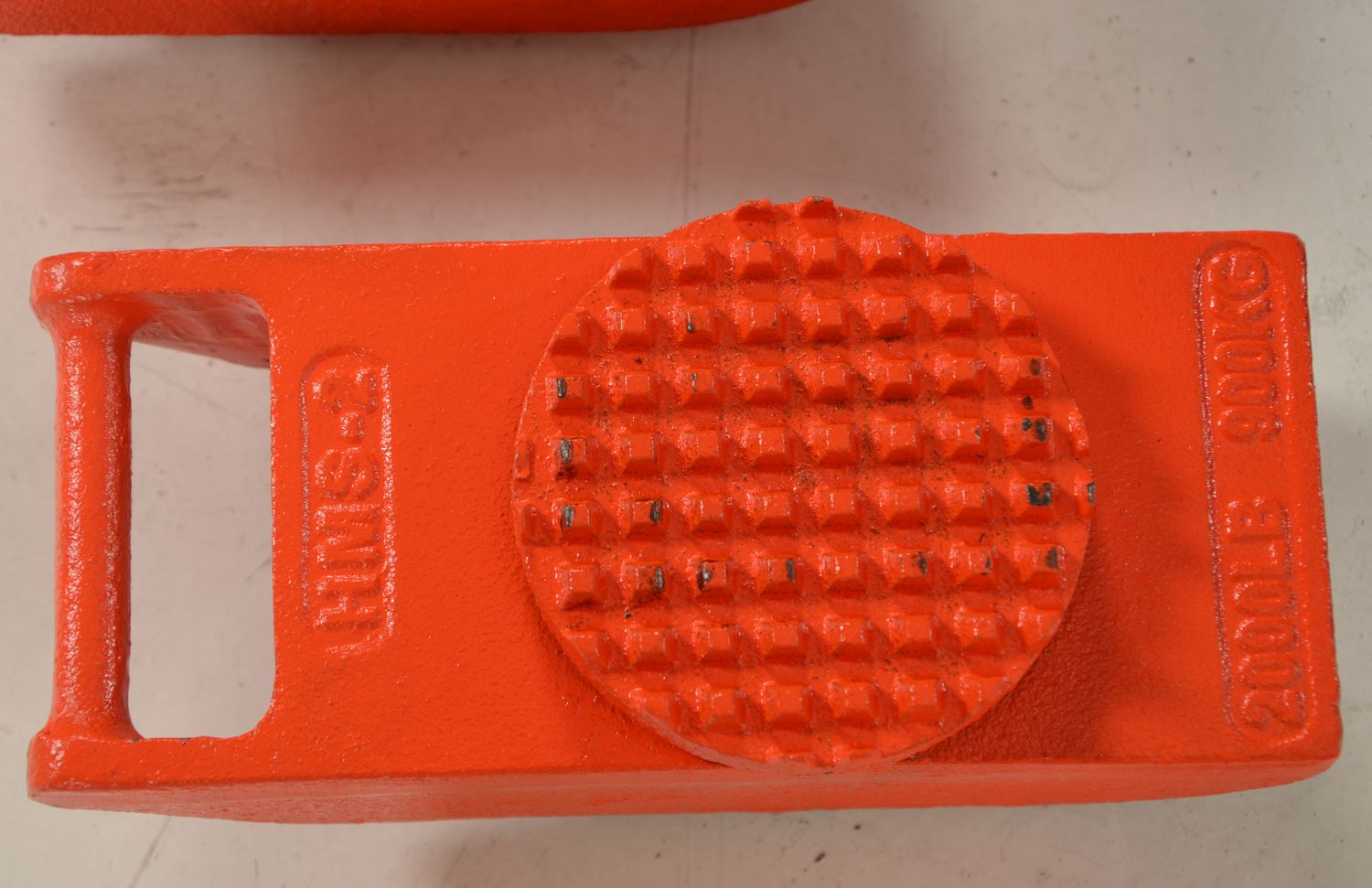

| VHMS-2 |  | 30 Days Limited Warranty | Steel Machine Roller 2,000 Lb. Capacity Orange | Uniform Capacity (lb.): 2000 Component: Machine Roller | 11 | ||

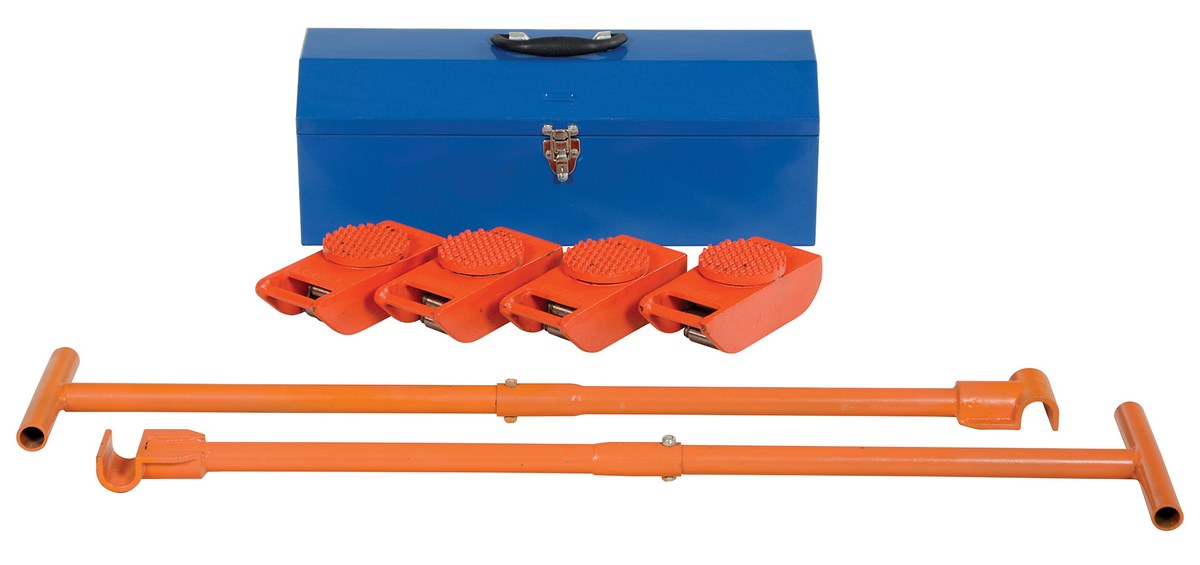

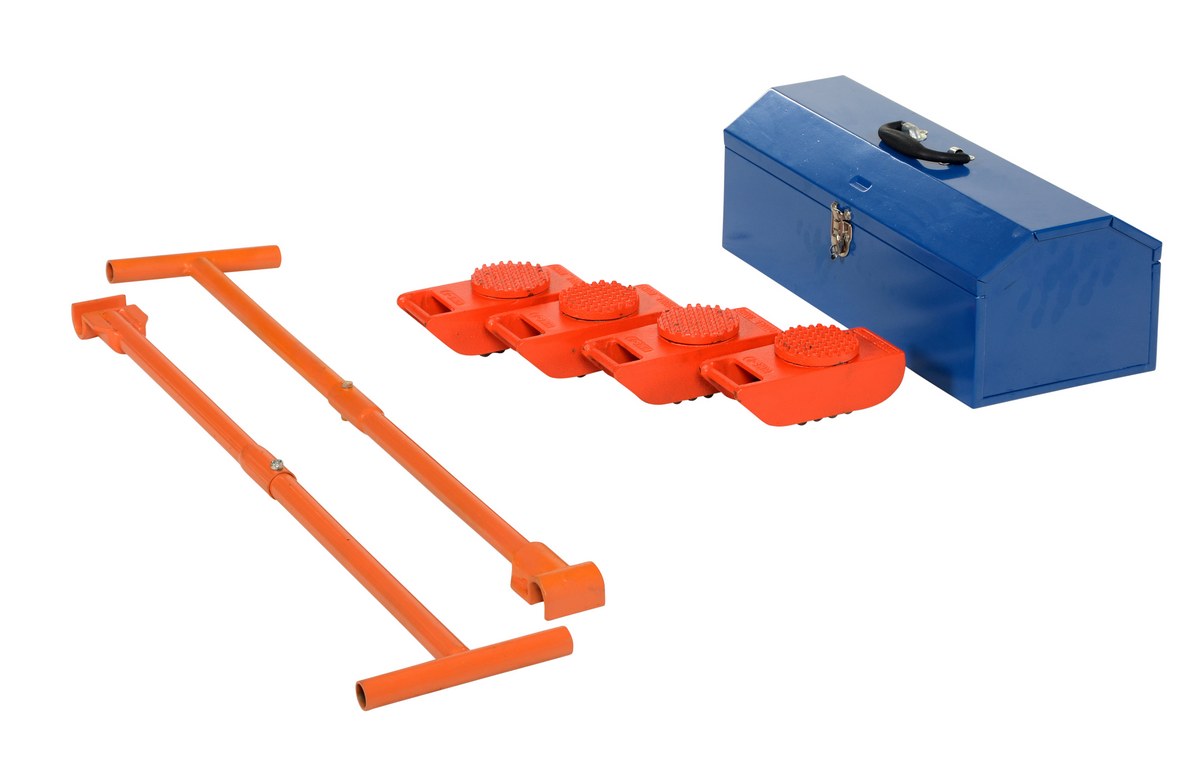

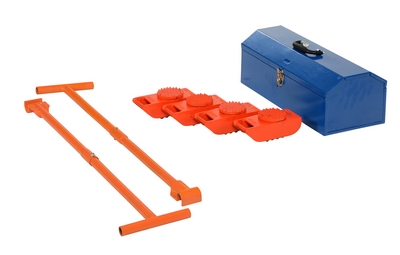

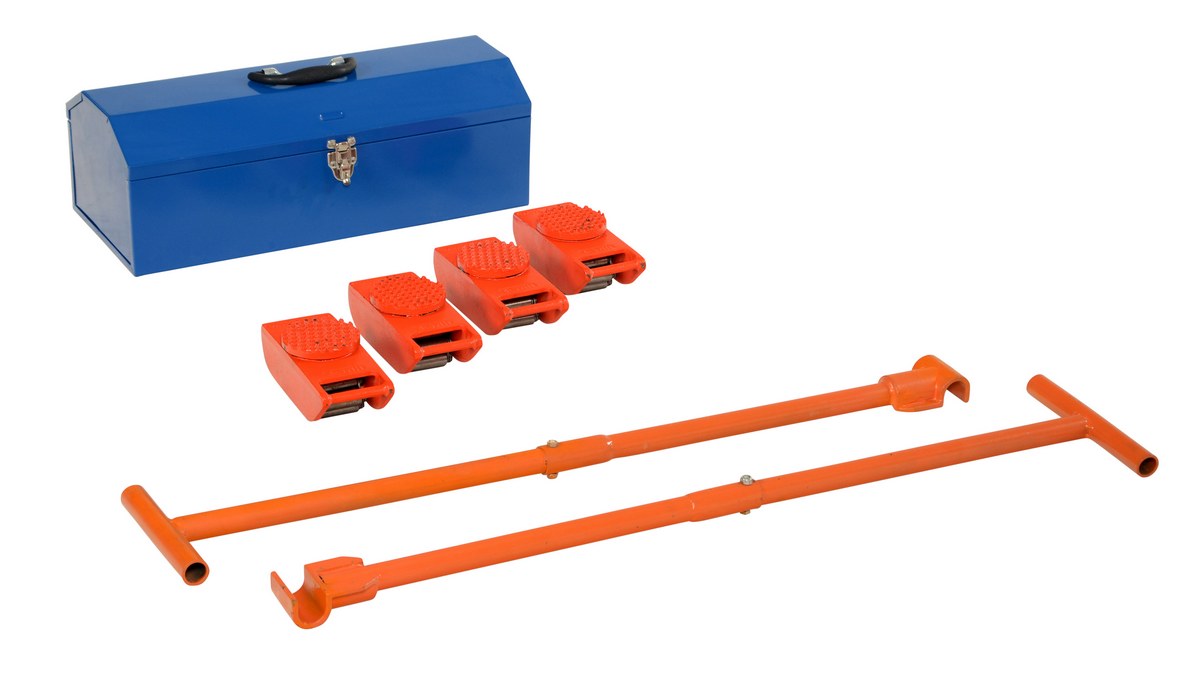

| VHMS-2-KIT |  | 30 Days Limited Warranty | Steel Machine Roller Kit 8,000 Lb. Capacity Orange | Comes With: (4) - VHMS-2 & (2) - VHMH-36-1 Steel Roller Height (in.): 3/4 | 272 | ||
| VHMS-30 |  | 30 Days Limited Warranty | Steel Machine Roller 33,000 Lb. Capacity Blue | Uniform Capacity (lb.): 33000 Component: Machine Roller | 51 | ||

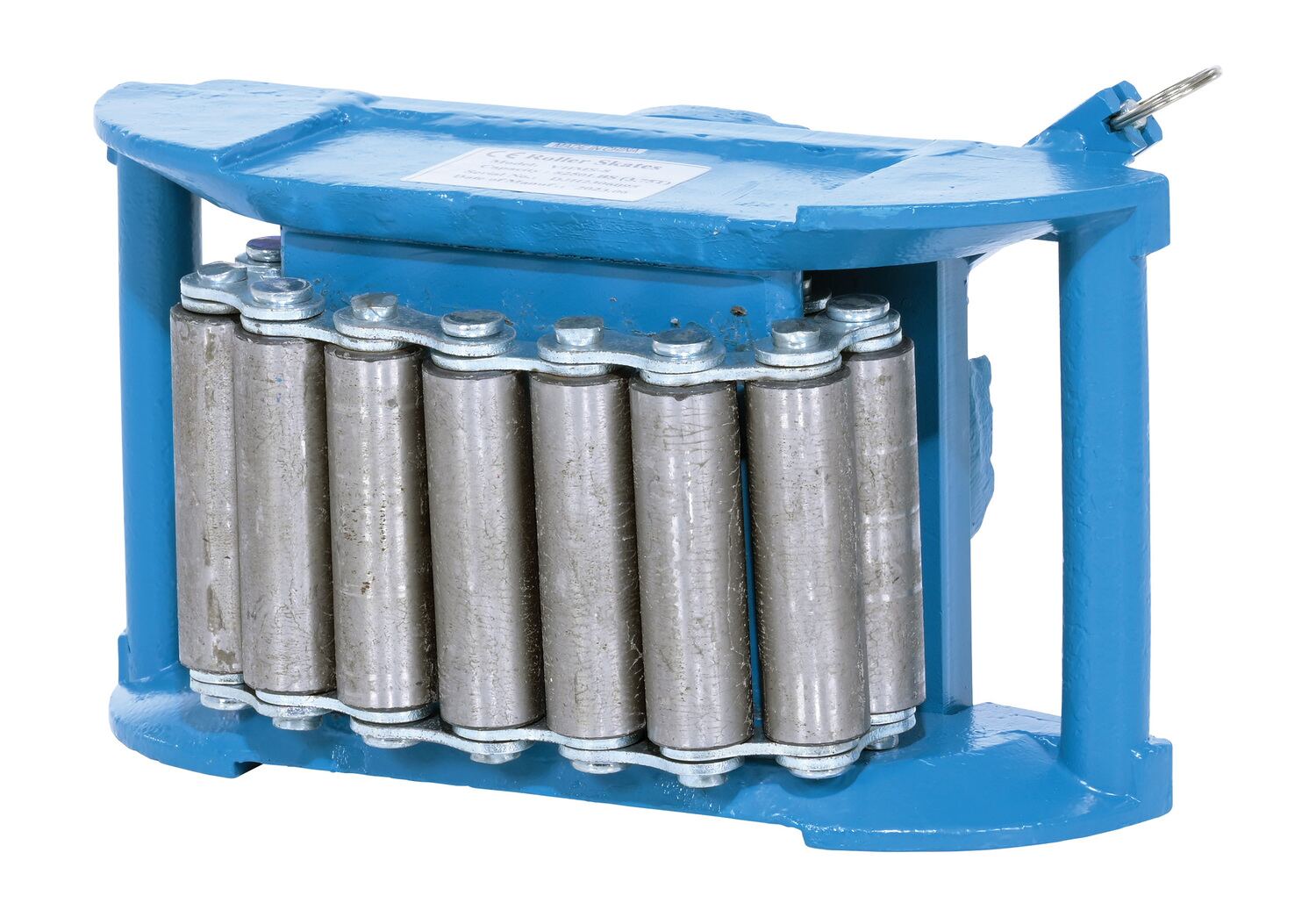

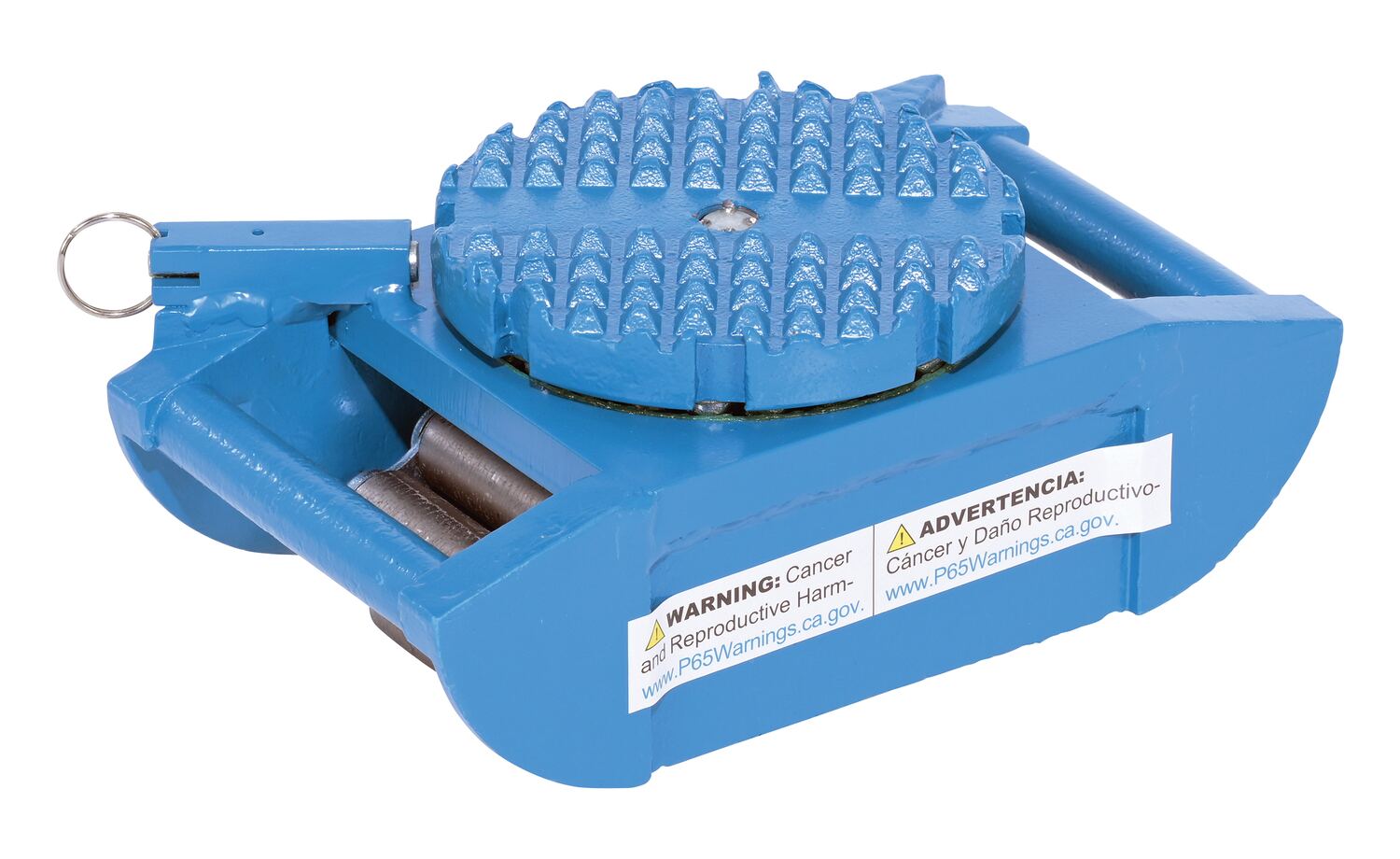

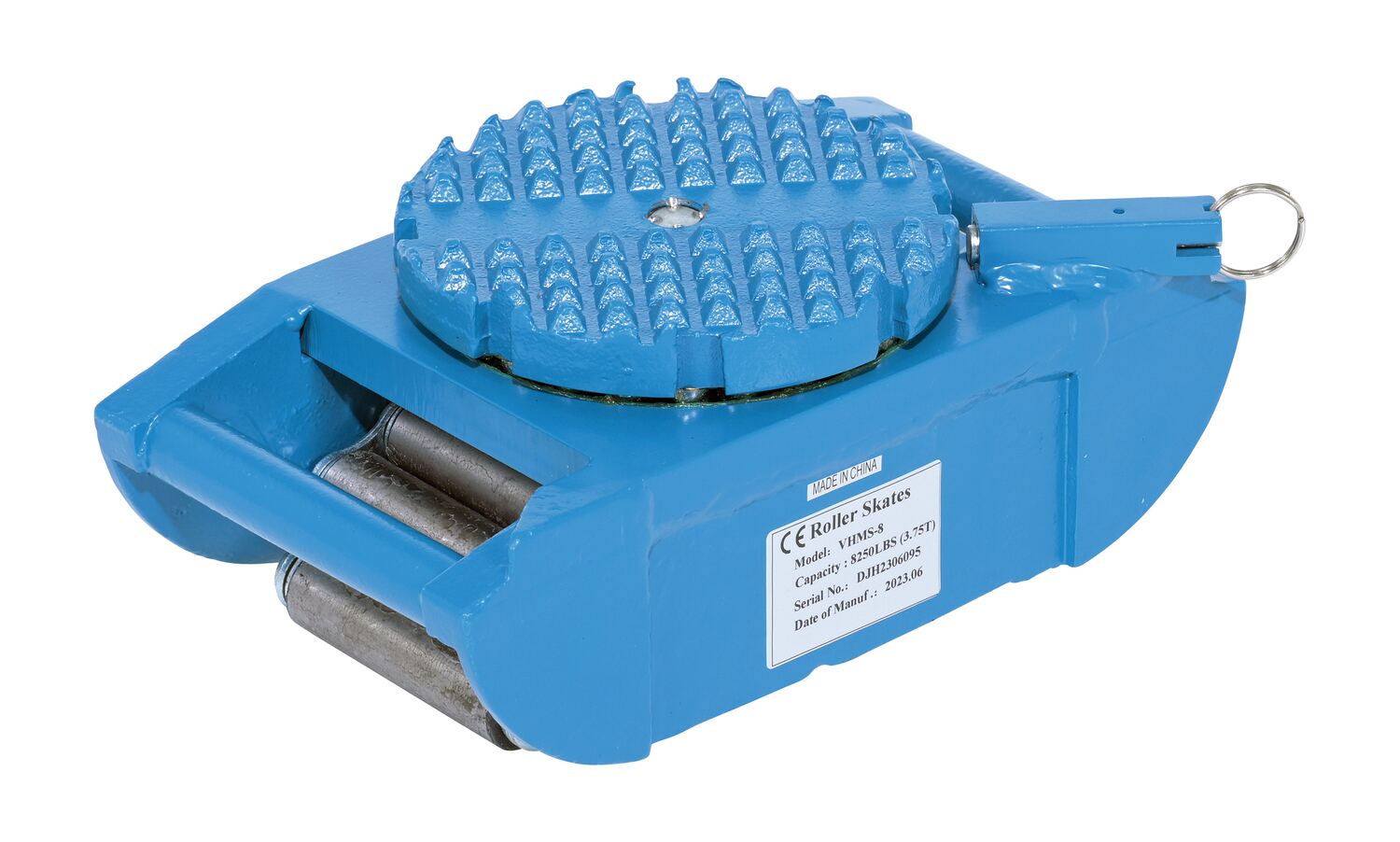

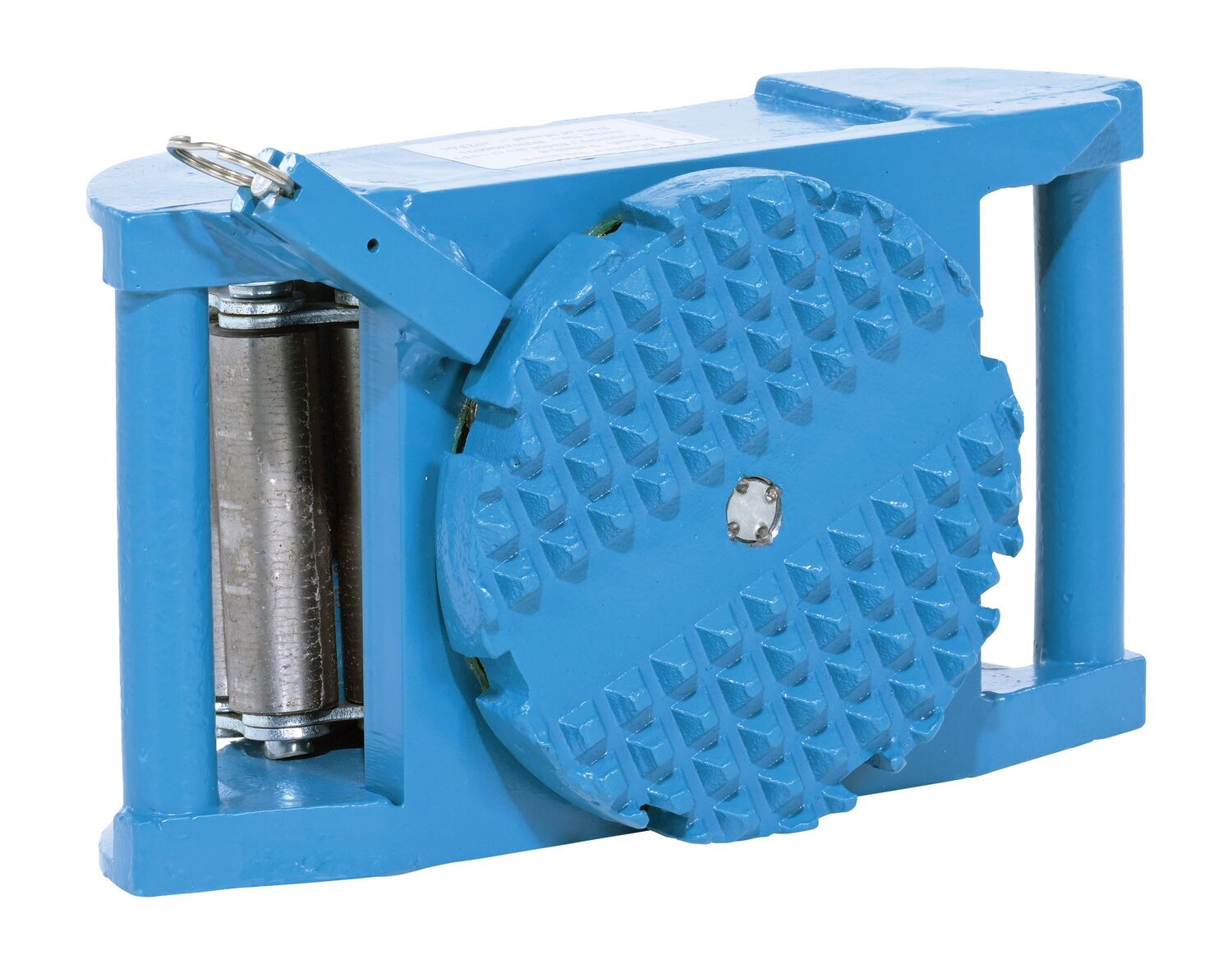

| VHMS-8 |  | 30 Days Limited Warranty | Steel Machine Roller 8,250 Lb. Capacity Blue | Uniform Capacity (lb.): 8250 Component: Machine Roller | 31 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: The width is 1".
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Steel Machine Rollers & Ac... |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||

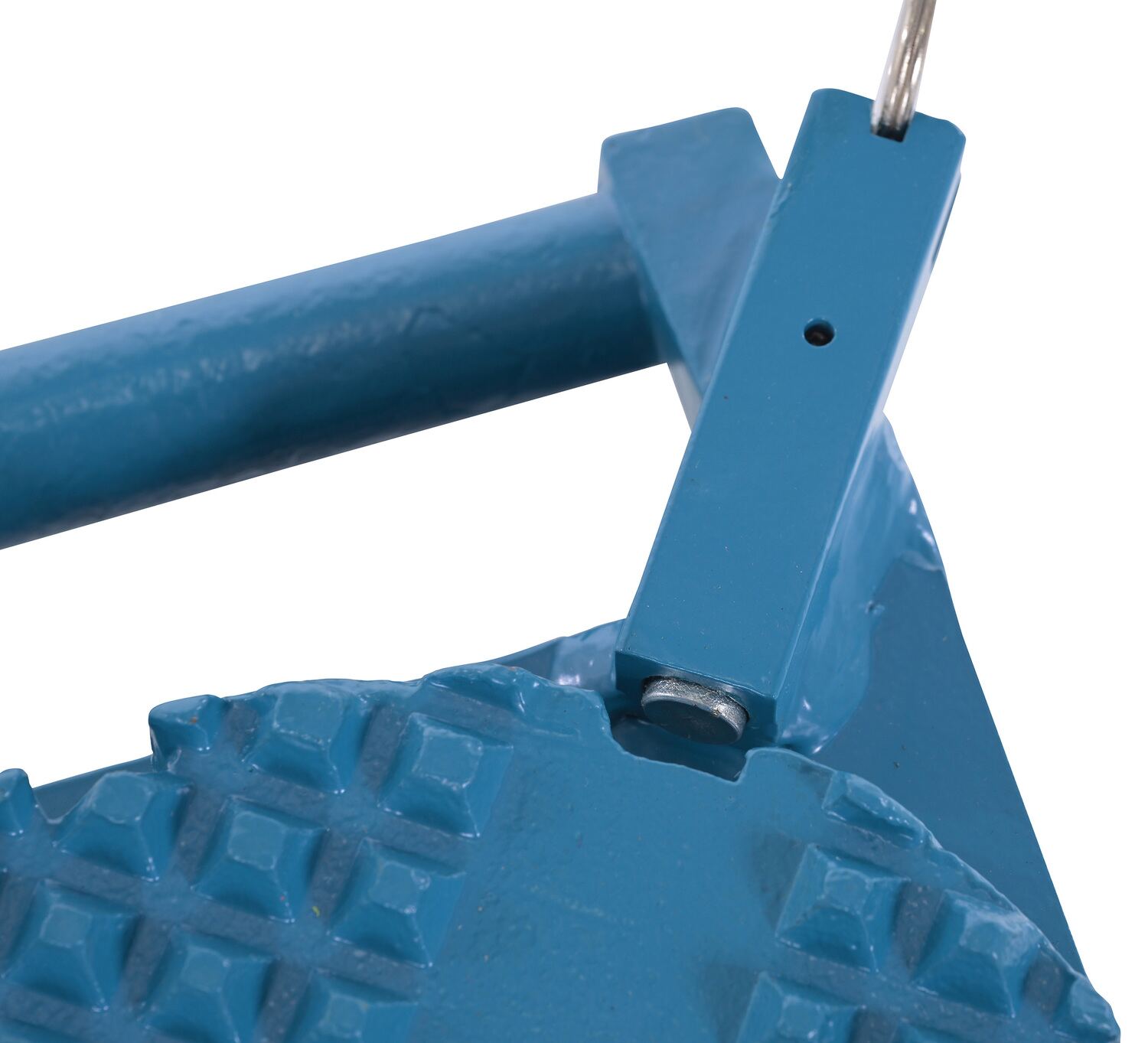

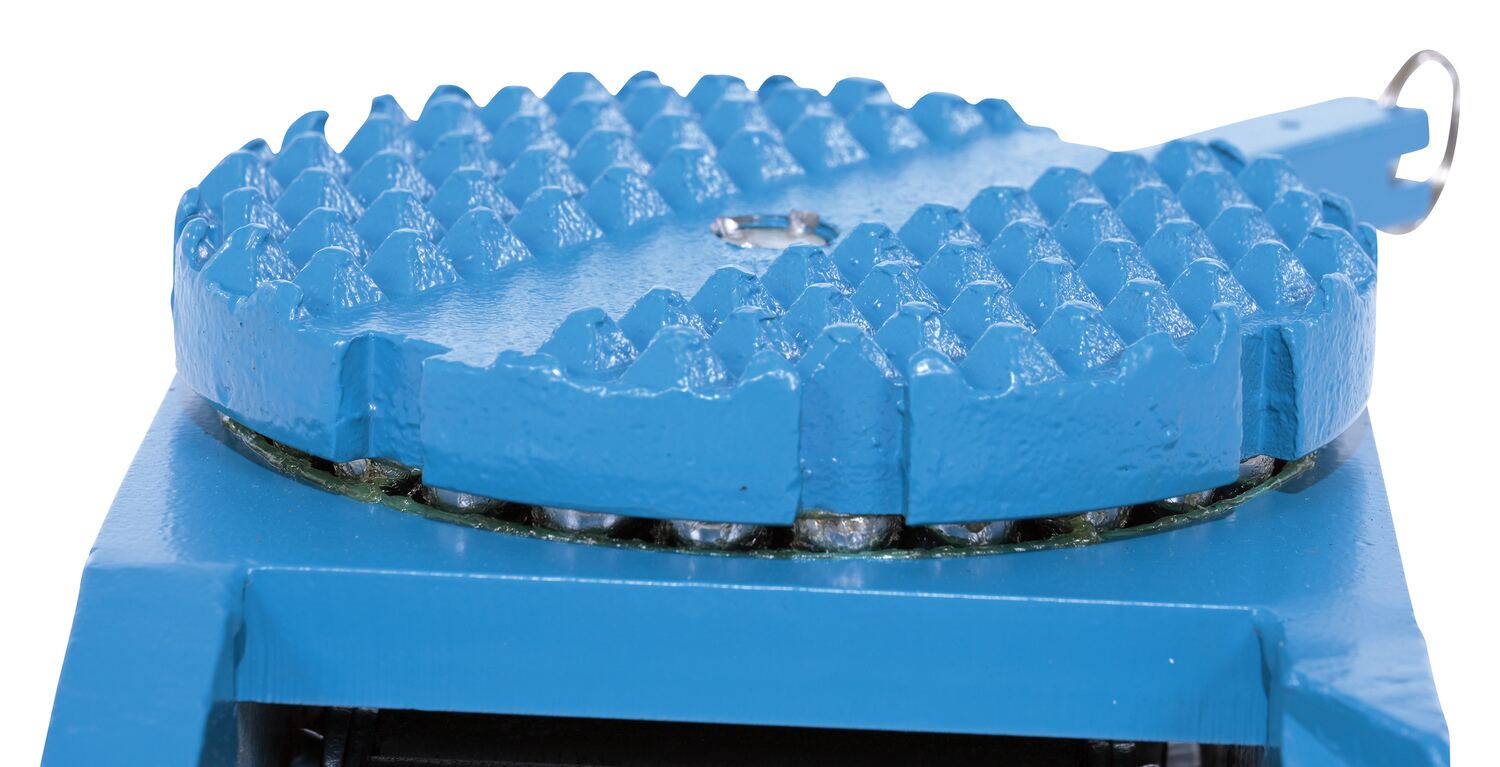

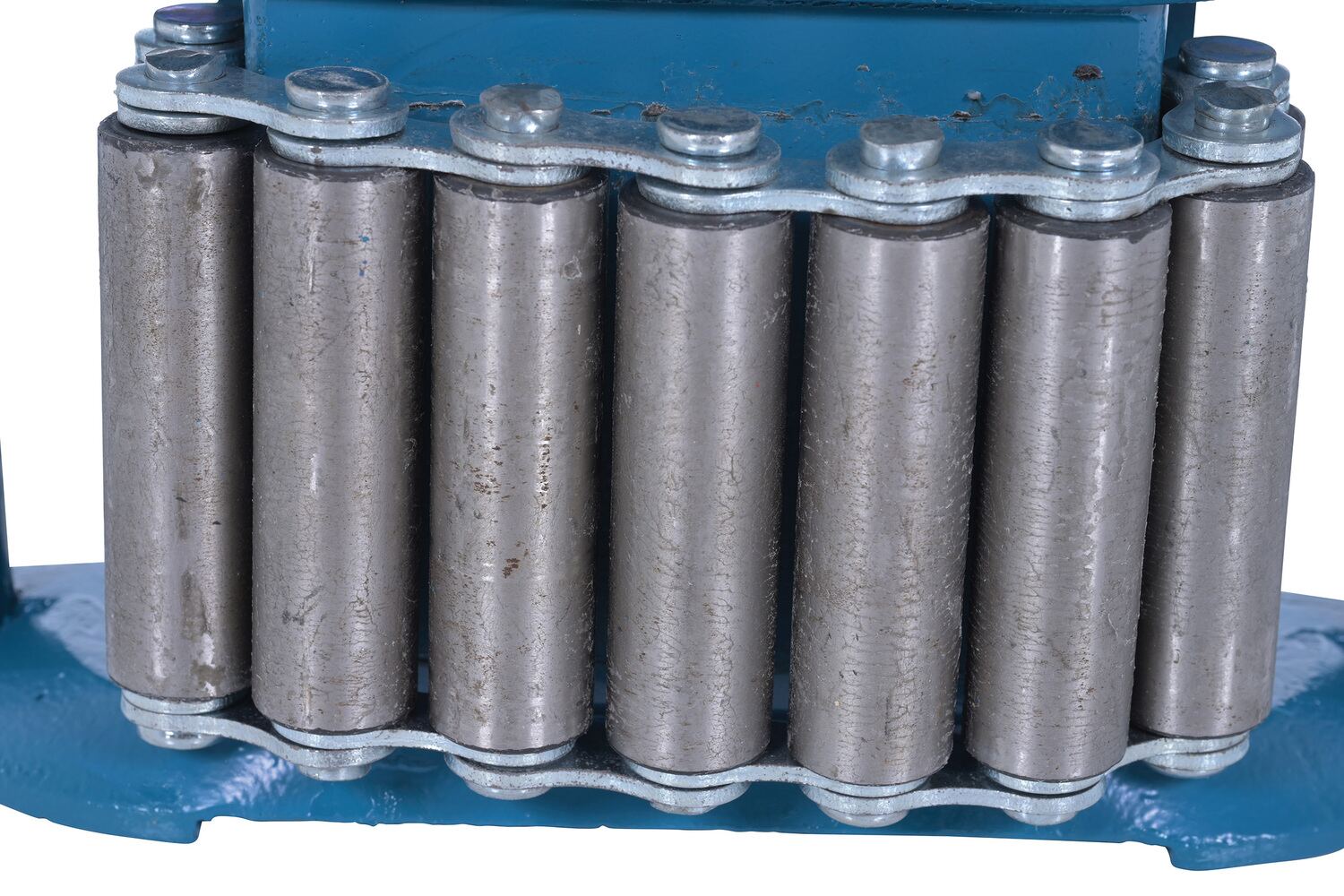

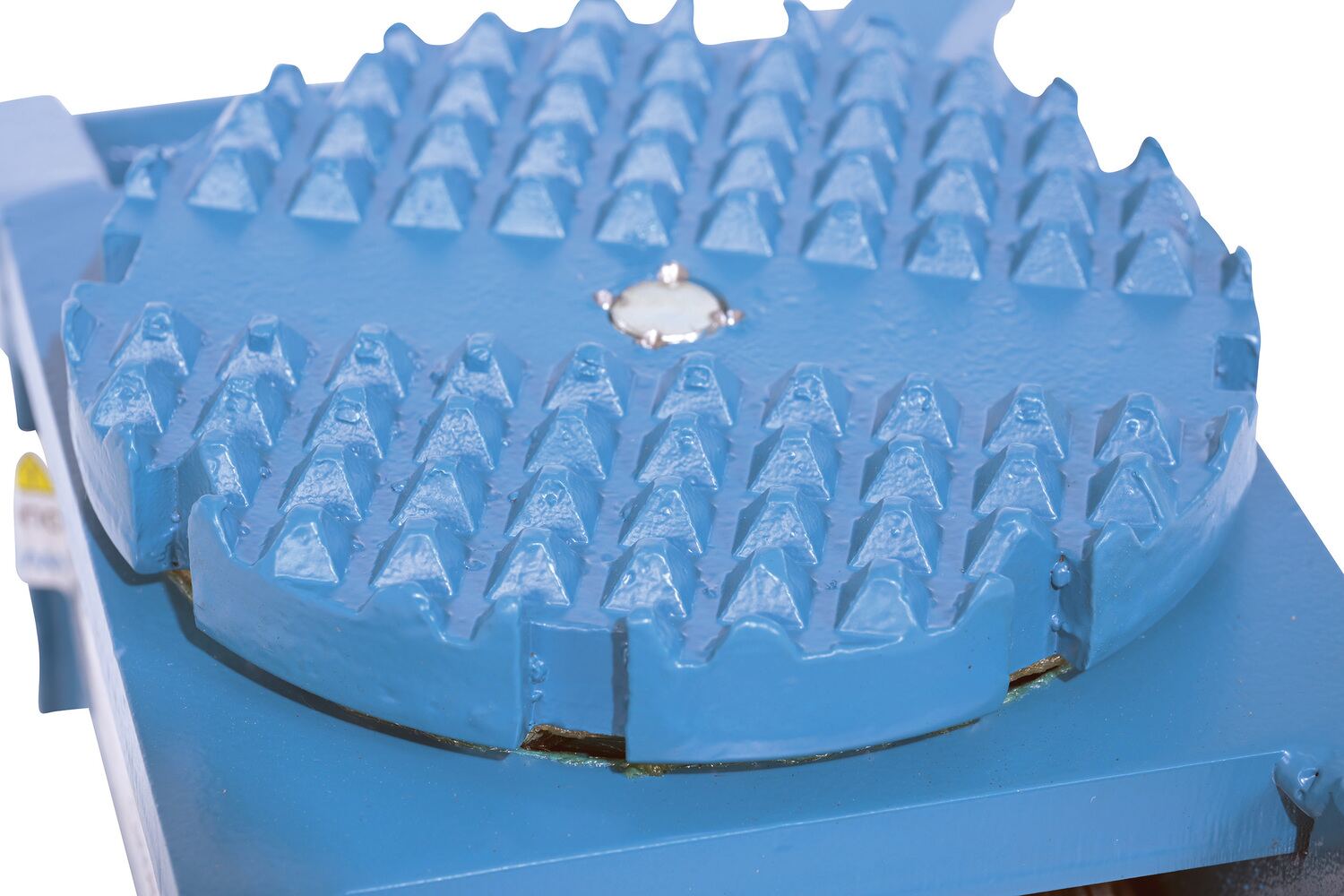

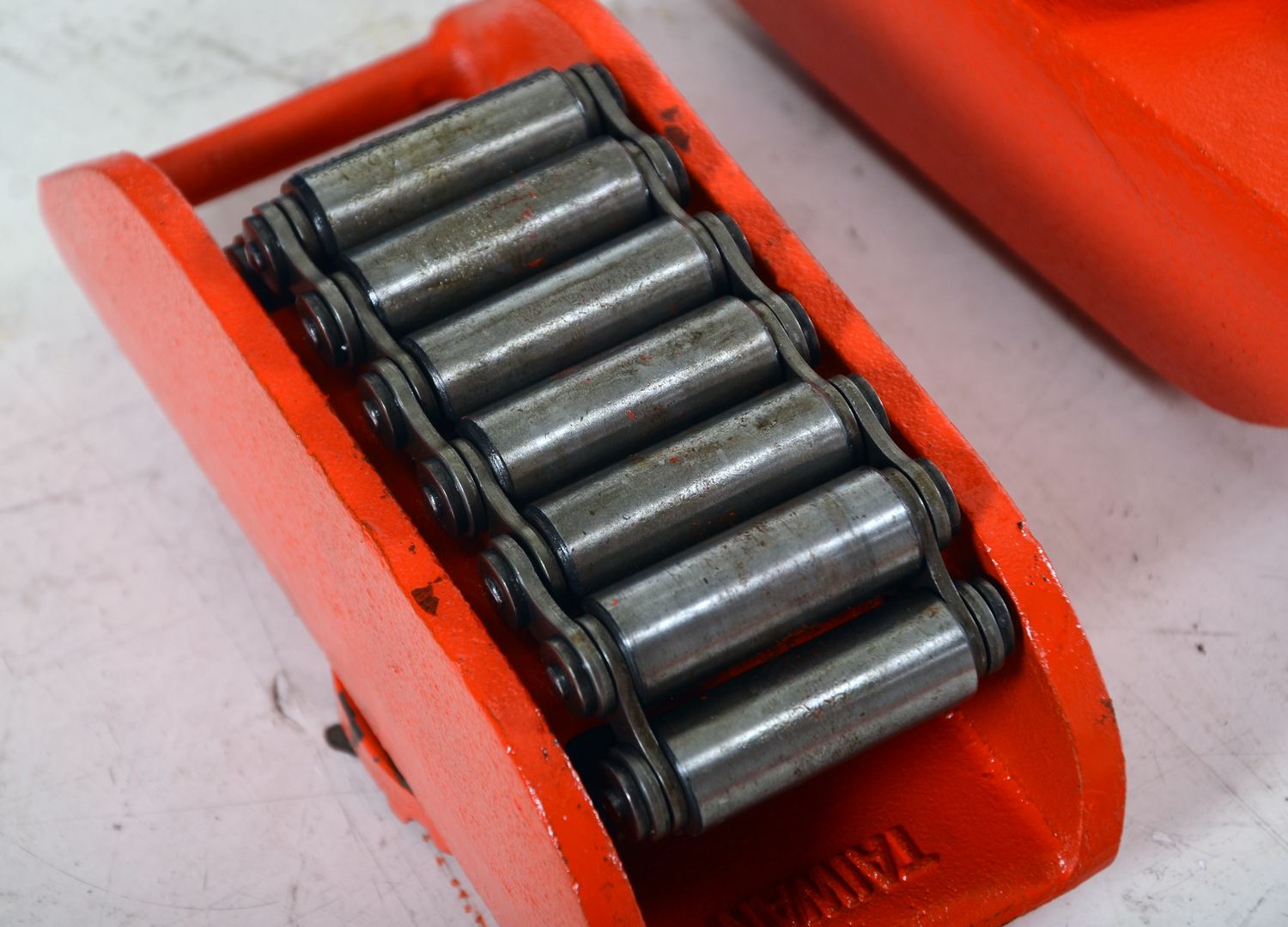

Made of high-strength annealed ductile iron, these Steel Machine Rollers have swivel tops that rotate 360 degrees on chrome steel ball bearings to allow for easier turning. The rollers form a "tank track" to revolve around a center load bearing plate in the frame to provide maximum maneuverability. The weight of the load is transferred directly from the load bearing plate to the rollers, eliminating axle friction and requiring less power to start and move. A spring loaded locking mechanism on the swivel tops, except on model VHMS-2, can be engaged in detents at 45 degrees intervals. These units are virtually maintenance free. Steering bars split in two and connect with sleeve for easy storage. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
