Integral Scale for Scissor Tables

Print Friendly

Model Chart
PDF's
Image Gallery
FEATURED Integral Scale for Scissor Tables

model: SCALE-MU-4848-5-BL

SCALE-MU-4848-5-BL_A.jpg SCALE-MU-4848-5-BL_B.jpg SCALE-MU-4848-5-BL_C.jpg SCALE-MU-4848-5-BL_D.jpg SCALE-MU-4848-5-BL_E.jpg More Images +
Integral Scale for Scissor Tables
SERIES: SCALE-MU   4Products
New Product Quick Ship Custom Fabrication

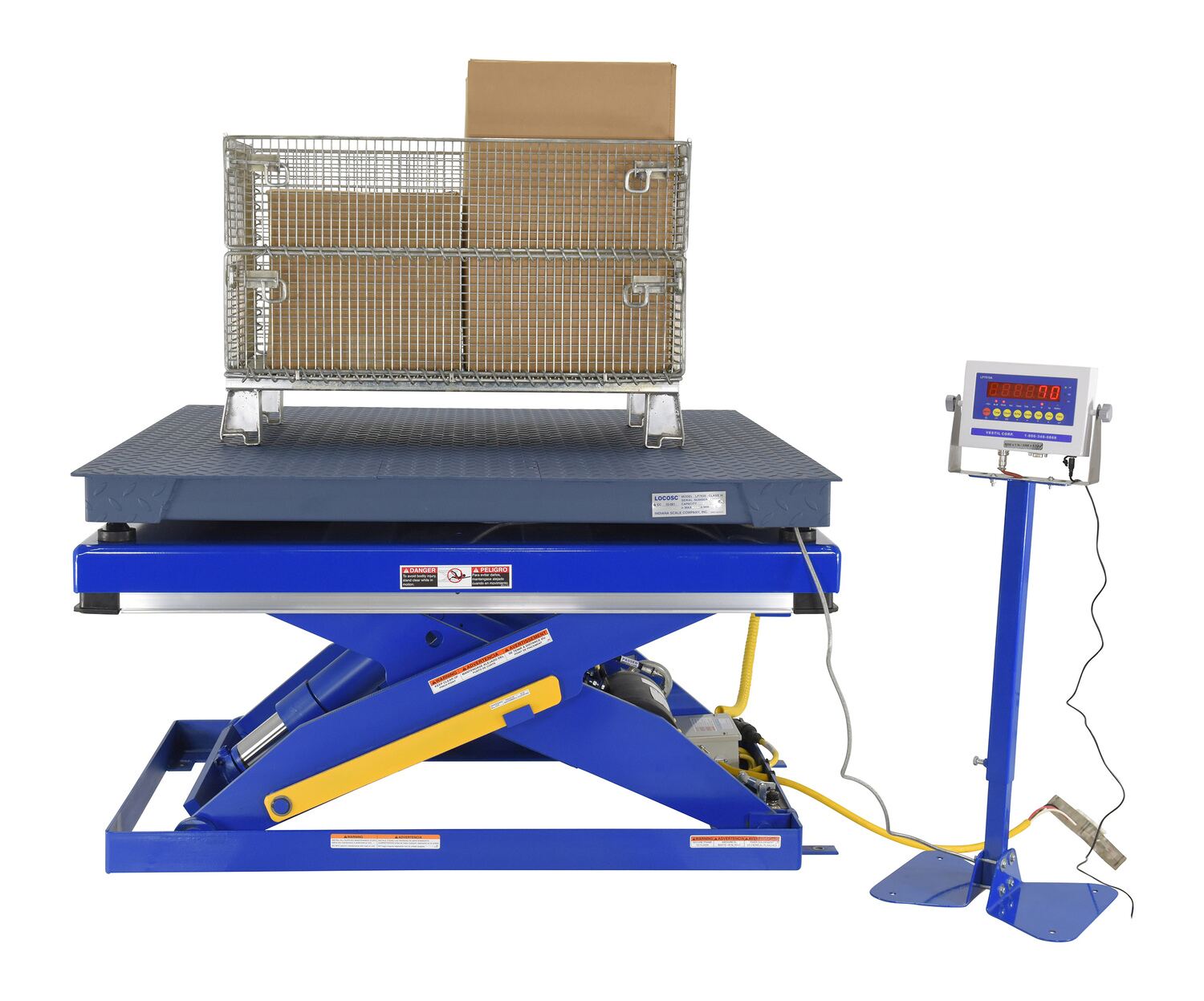

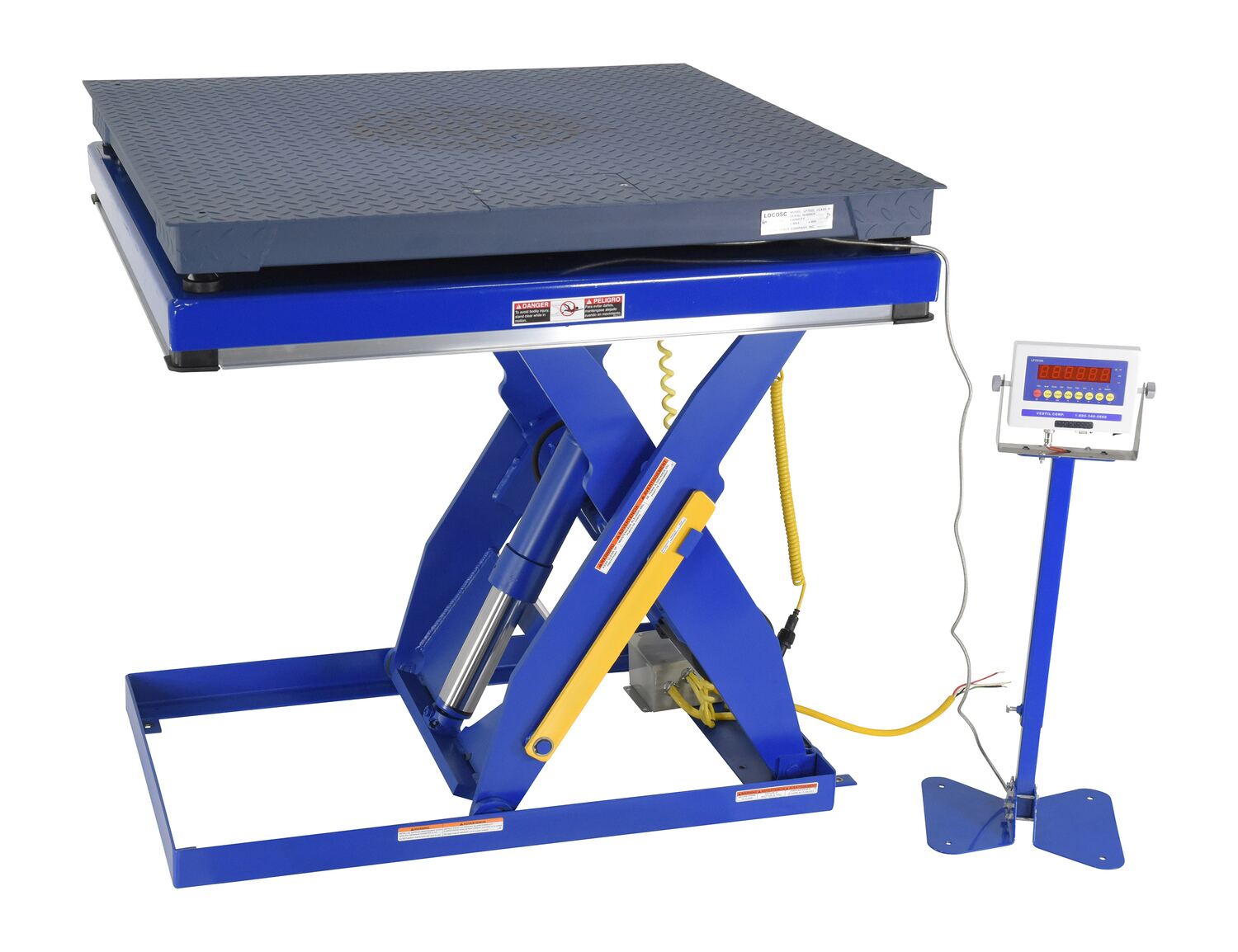

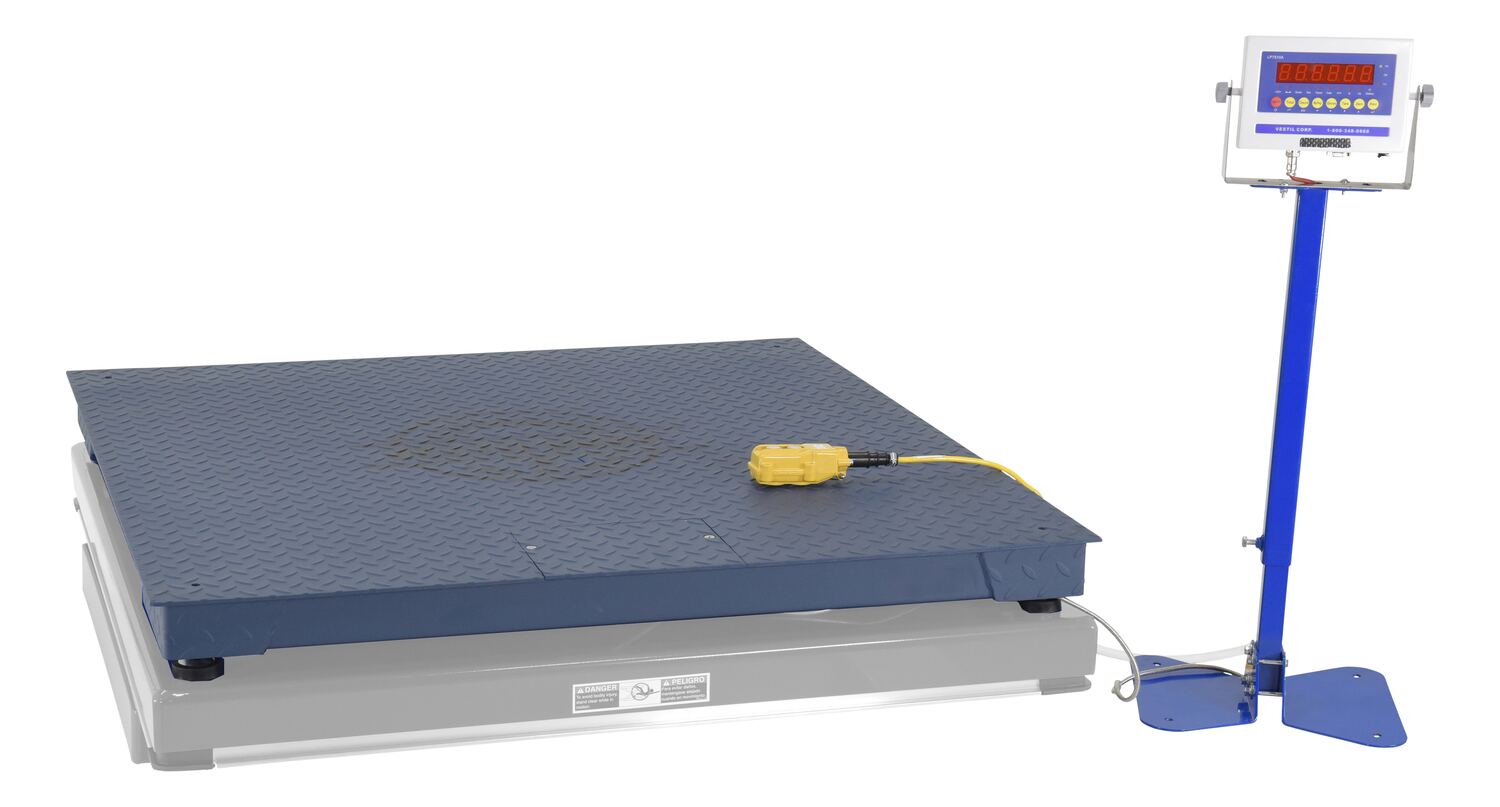

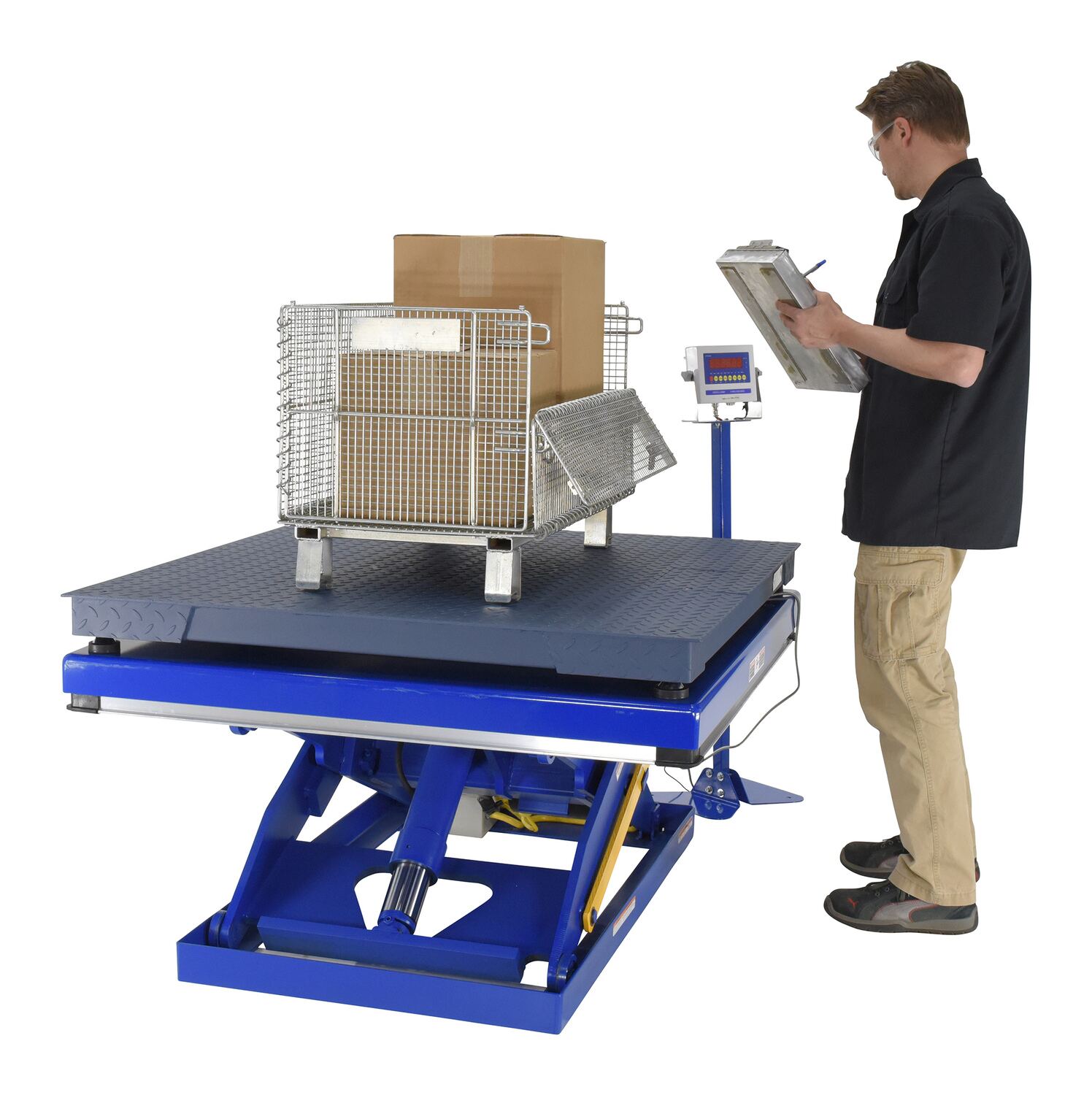

Creating efficient shipping and receiving areas just got easier! With the addition of a scale fixed directly onto the scissor lift surface, weighing and lifting products is significantly streamlined. The scale fits squarely onto the scissor lift platform with no overhang. A functional weight readout screen mounted to a stabilizing pedestal is also included. Approximately 4-1/4" is added to the overall height to the scissor lift table when scale is in place.

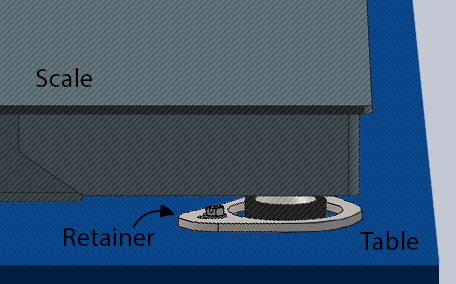

SCALE-MU-4848-5-BL_retainer.jpgNo holes or bolting required! Instead of the scale attaching directly to the scissor lift table, it sits within retainer brackets on the scissor lift table; this holds the scale safely in place. If the scale is purchased in conjunction with one of our tables, Vestil will install the retainers that hold the scale for your convenience! If purchasing the scale only, the retainers will have to be mounted by the customer.



Custom sizes available through special order. Contact Sales for details.

  • Validate number of pieces or parts
  • Know exactly how much weight is on your table
  • Bolt-on corner retainers
  • No holes or bolting required
  • Installs and removes in seconds
  • Expedite your shipping & palletizing process
  • Available in 36" x 36", 48" x 48", and 48" x 60" platform tops (rests on top of table)
  • Adds approximately 4-1/4" to overall height

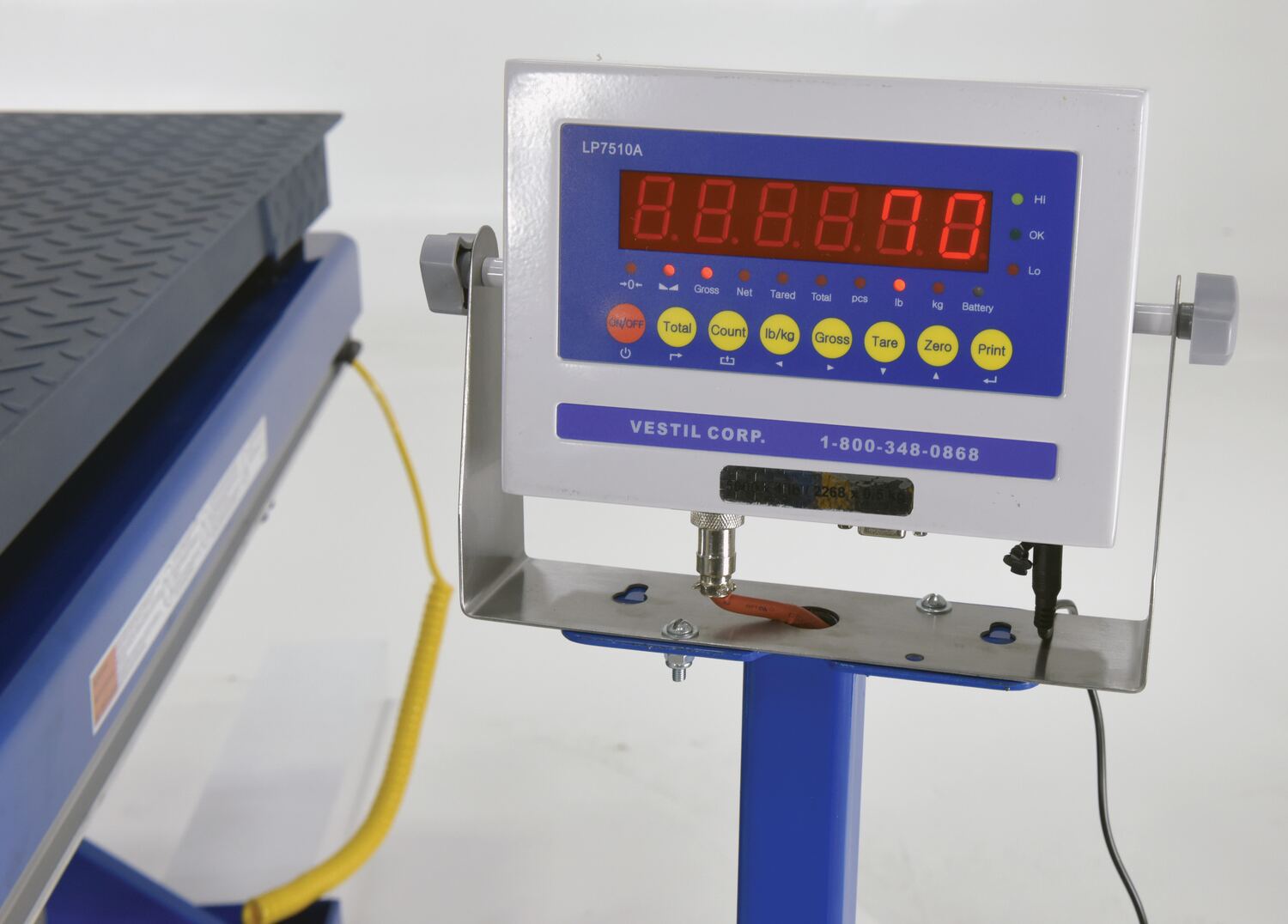

  • Scale functions: zero weight and tare weight
  • Weighing units: pounds or kilograms
  • The scale head pedestal is not included with the scale, however it is available separately
  • Maximum scale capacity of 5,000 lb.
  • Scissor table not included, if purchasing a scissor table, select the next higher capacity scissor table
Integral Scale for Scissor Tables

model: SCALE-MU-4848-5-BL

Model # Description Attributes Net Wt.
(lbs)

* The 3 SCALE-MU models replace EHLT-SCALE, EHLTD-SCALE, EHLTS-SCALE, EHLTSD-SCALE, & PST-SCALE

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

SCALE-MU-3636-5-BL
SCALE-MU-4848-5-BL
SCALE-MU-4860-5-BL
PDFs will open in a new window when clicked.

Owner's Manuals

1
SCALE-MU, MANUAL
Open Manual

Survey Sheets

0
No survey sheets for this product family.

Approval Drawings

3
SCALE-MU-3636-5-BL
Open Drawing
SCALE-MU-4848-5-BL
Open Drawing
SCALE-MU-4860-5-BL
Open Drawing

Testing Certificates

3
SCALE-MU-3636-5-BL
Open Certificate
SCALE-MU-4848-5-BL
Open Certificate
SCALE-MU-4860-5-BL
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Other PDFs

0
No other PDFs for this product family.

Related or Similar Products:

More From Lift & Tilt Tables





Integral Scale for Scissor Tables




Creating efficient shipping and receiving areas just got easier! With the addition of a scale fixed directly onto the scissor lift surface, weighing and lifting products is significantly streamlined. The scale fits squarely onto the scissor lift platform with no overhang. A functional weight readout screen mounted to a stabilizing pedestal is also included. Approximately 4-1/4" is added to the overall height to the scissor lift table when scale is in place.

SCALE-MU-4848-5-BL_retainer.jpgNo holes or bolting required! Instead of the scale attaching directly to the scissor lift table, it sits within retainer brackets on the scissor lift table; this holds the scale safely in place. If the scale is purchased in conjunction with one of our tables, Vestil will install the retainers that hold the scale for your convenience! If purchasing the scale only, the retainers will have to be mounted by the customer.



Custom sizes available through special order. Contact Sales for details.

  • Validate number of pieces or parts
  • Know exactly how much weight is on your table
  • Bolt-on corner retainers
  • No holes or bolting required
  • Installs and removes in seconds
  • Expedite your shipping & palletizing process
  • Available in 36" x 36", 48" x 48", and 48" x 60" platform tops (rests on top of table)
  • Adds approximately 4-1/4" to overall height
  • Scale functions: zero weight and tare weight
  • Weighing units: pounds or kilograms
  • The scale head pedestal is not included with the scale, however it is available separately
  • Maximum scale capacity of 5,000 lb.
  • Scissor table not included, if purchasing a scissor table, select the next higher capacity scissor table

Model # Description Attributes Net Wt.
(lbs)
SCALE-MU-3636-5-BL SCALE-MU-3636-5-BLSteel Integral Scissor Lift Table Scale Option 36 x 36 5000 Lb. Capacity BlueUniform Capacity (lb.): 5,000
Platform Size (in.): 36 x 36		228
SCALE-MU-4848-5-BL SCALE-MU-4848-5-BLSteel Integral Scissor Lift Table Scale Option 48 x 48 5000 Lb. Capacity BlueUniform Capacity (lb.): 5,000
Platform Size (in.): 48 x 48		341
SCALE-MU-4860-5-BL SCALE-MU-4860-5-BLSteel Integral Scissor Lift Table Scale Option 48 x 60 5000 Lb. Capacity BlueUniform Capacity (lb.): 5,000
Platform Size (in.): 48 x 60		399
