Product Family Overview

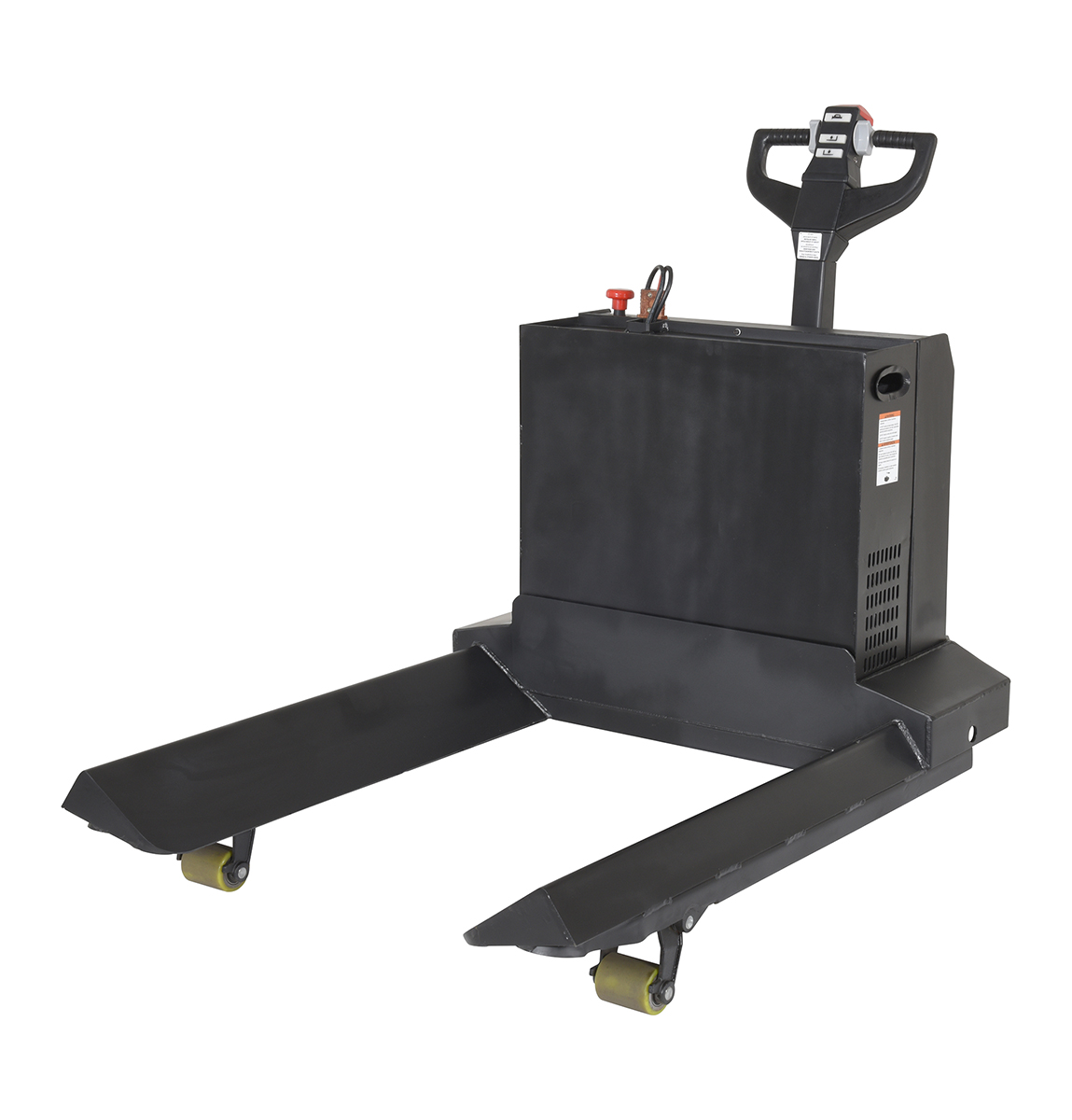

Electric Powered Roll Pallet Trucks
SERIES: EPT

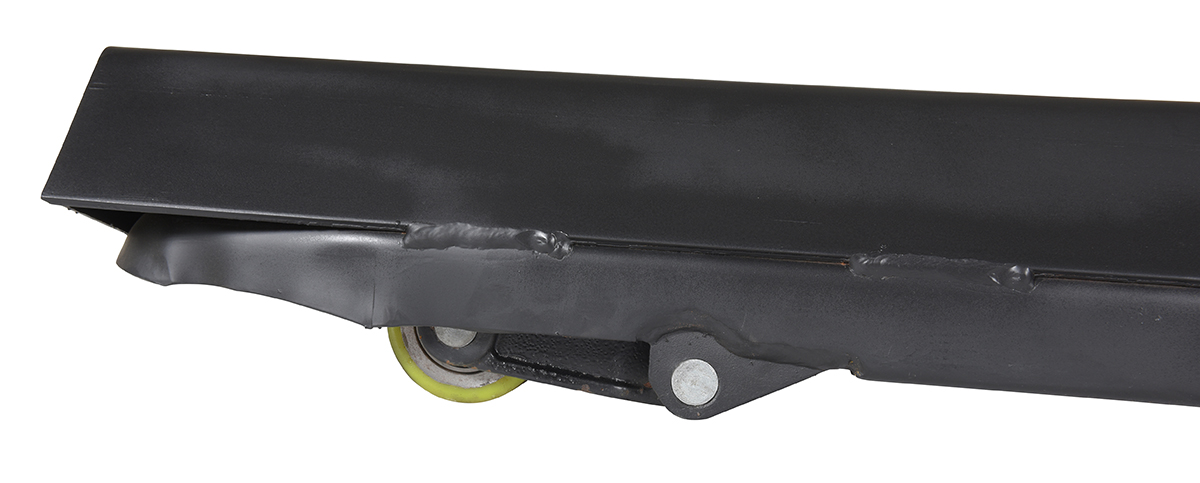

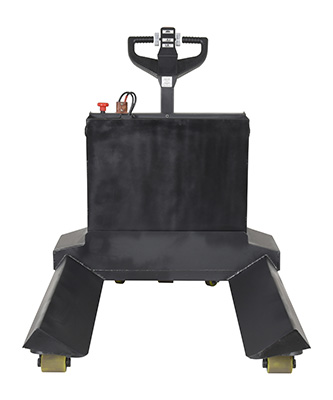

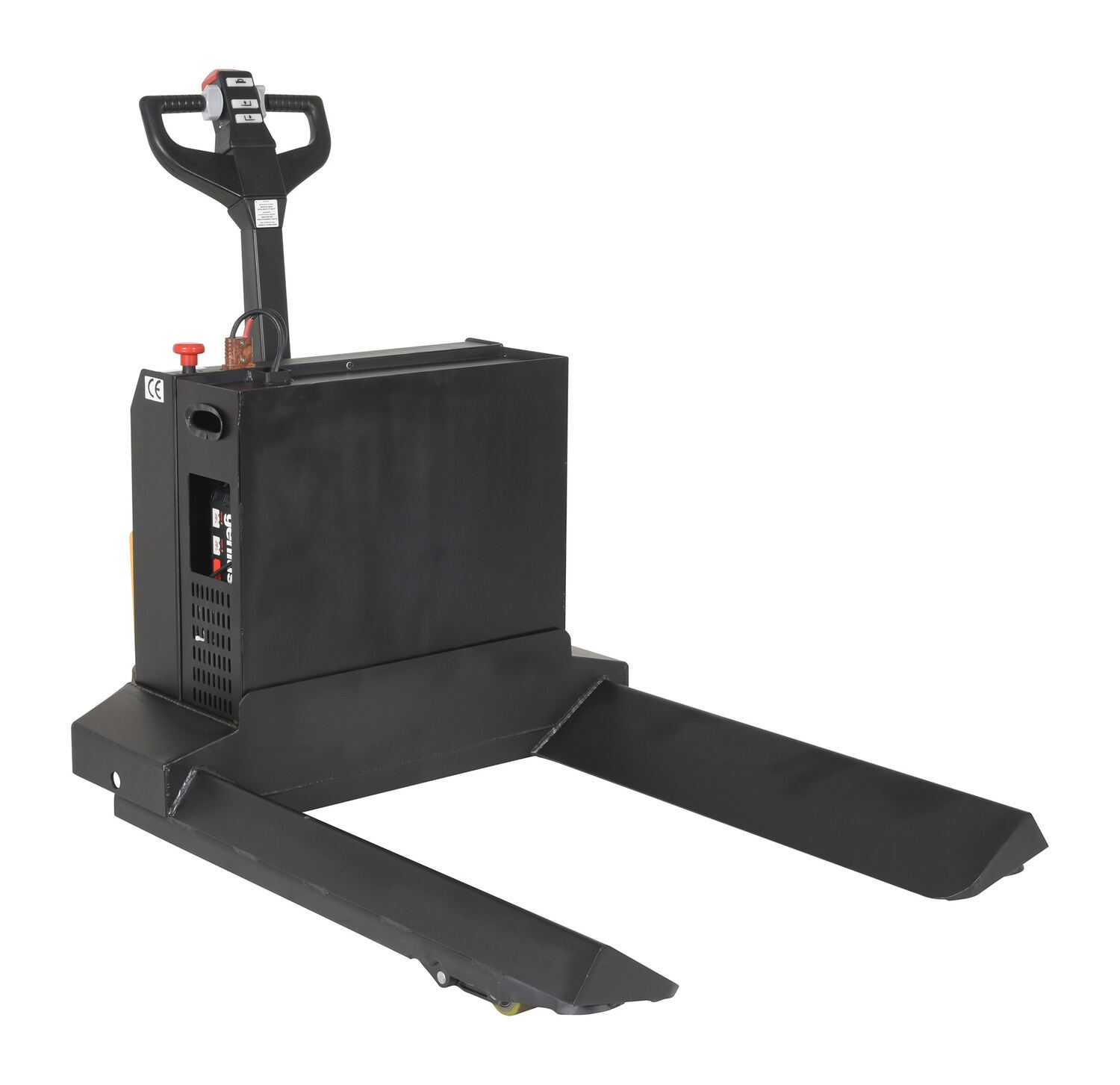

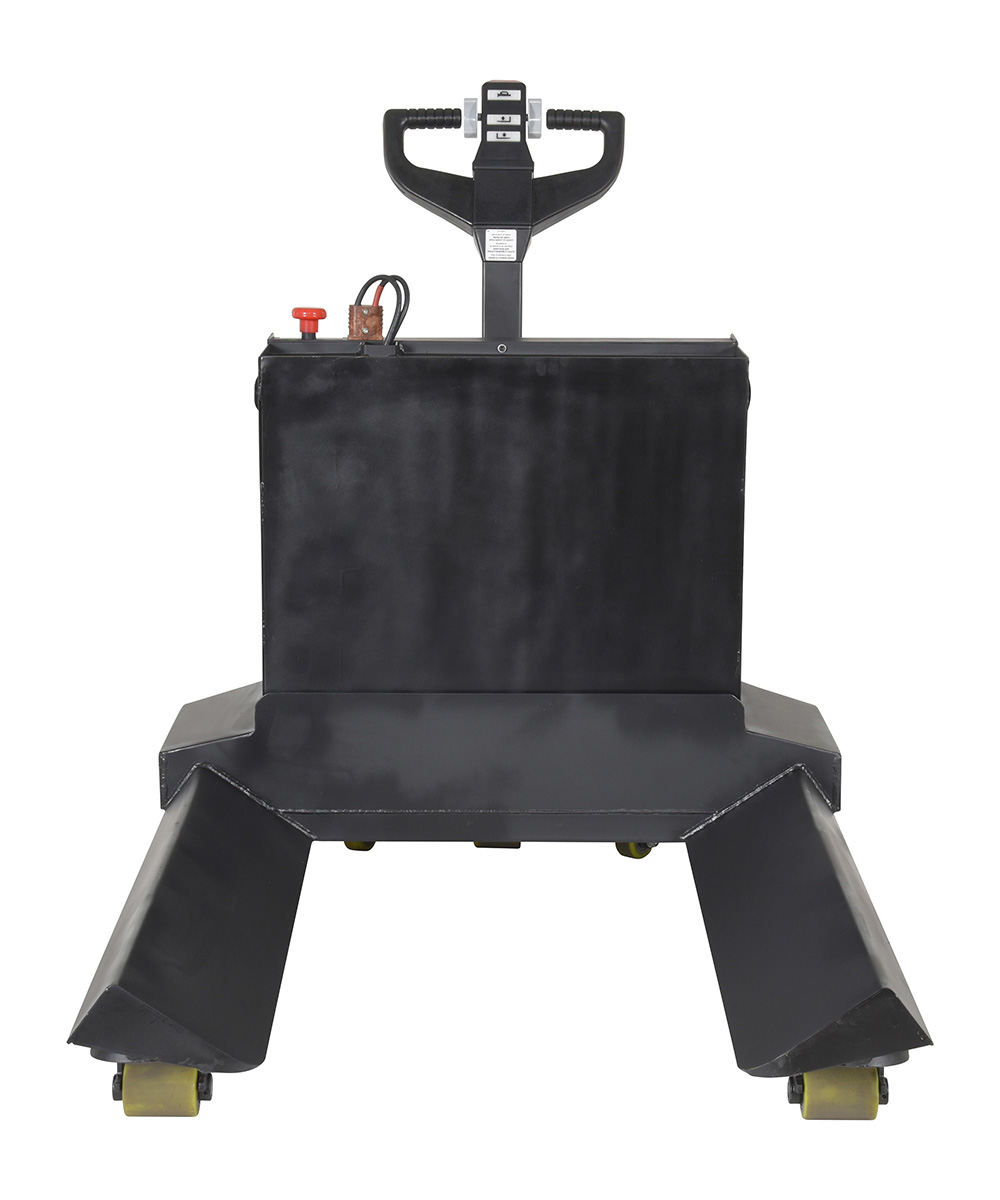

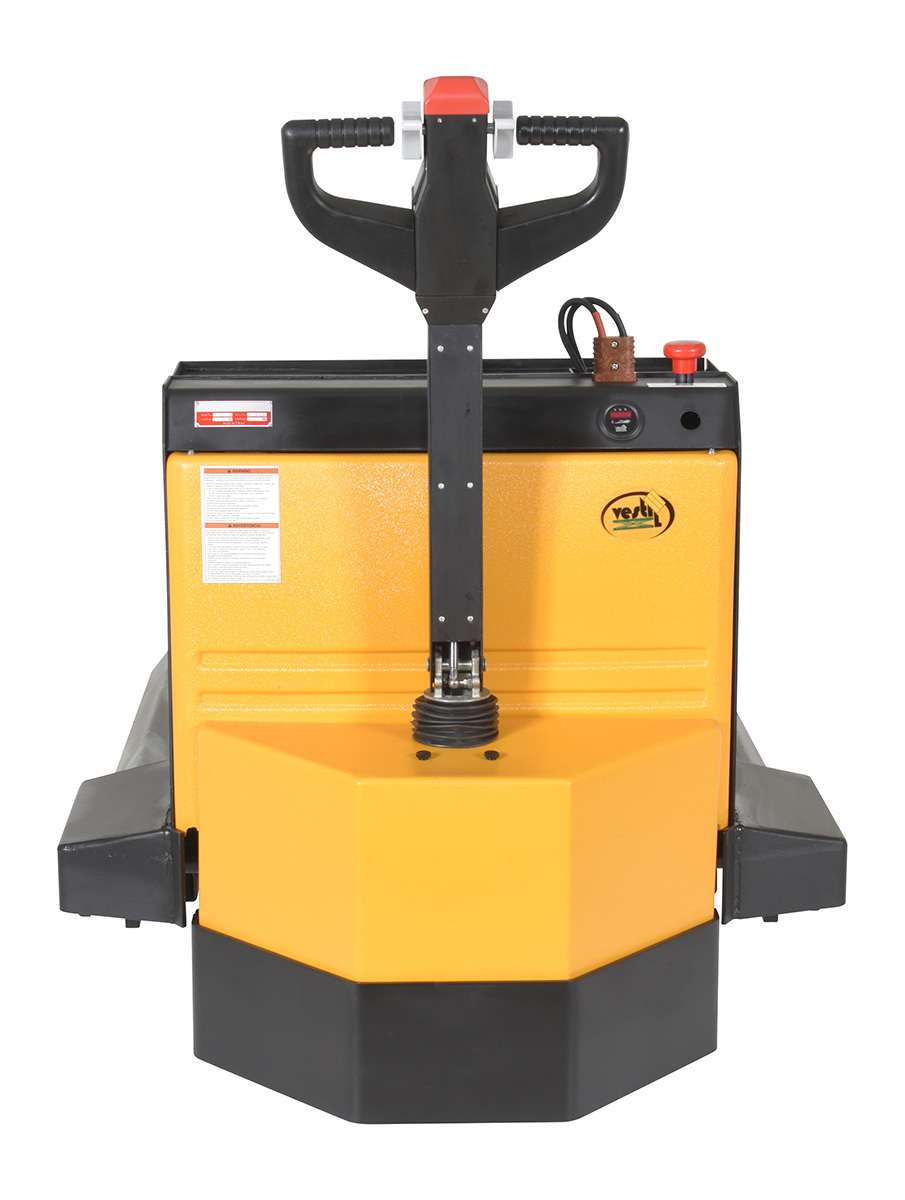

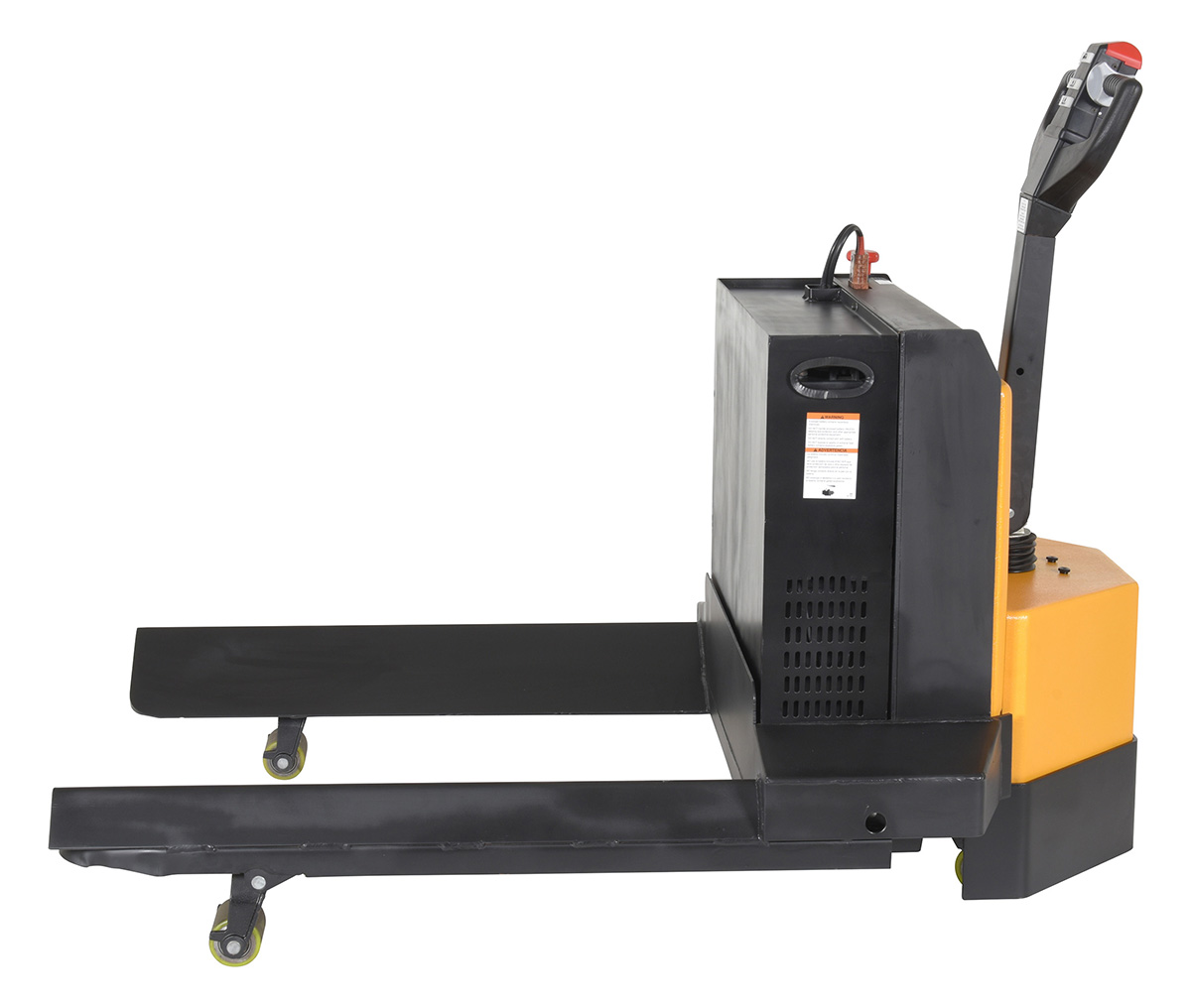

The Electric Powered Roll Pallet Trucks have an easy and quick operation. The unit raises and lowers loads with a push of a button. It can maneuver loads in warehouses and trailers. The reinforced welded forks have adjustable tie-rods that provide long service. The high-torque DC drive and lift motors handle heavy-duty jobs. The truck rolls smoothly on poly-on-steel, steer and load wheels. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. When the Proprietary Safety-enhancing Emergency Reverse function is actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after 1.5 seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 1.5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle. Fully-powered roll truck makes movement of rolls quick and easy. Includes fingertip RAISE and LOWER buttons for operator convenience. Safety belly reverse button improves worker safety. Easy-to-operate throttle for forward and reverse direction

The Electric Powered Roll Pallet Trucks have an easy and quick operation. The unit raises and lowers loads with a push of a button. It can maneuver loads in warehouses and trailers. The reinforced welded forks have adjustable tie-rods that provide long service. The high-torque DC drive and lift motors handle heavy-duty jobs. The truck rolls smoothly on poly-on-steel, steer and load wheels. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. When the Proprietary Safety-enhancing Emergency Reverse function is actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after 1.5 seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 1.5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. Includes an electromagnetic disc brake with automatic dead-man feature that activates when the user releases the handle. Fully-powered roll truck makes movement of rolls quick and easy. Includes fingertip RAISE and LOWER buttons for operator convenience. Safety belly reverse button improves worker safety. Easy-to-operate throttle for forward and reverse direction

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
EPT-4048-45-RL
EPT-4048-45-RL1 Year Limited WarrantySteel Electric Powered Roll Pallet Trucks 40 In. x 48 In. 4500 Lb. Capacity BlackOverall Fork Width (in.): 40
Overall Fork Length (in.): 48
1142
EPT-4548-45-RL
EPT-4548-45-RL1 Year Limited WarrantySteel Electric Powered Roll Pallet Trucks 45 In. x 48 In. 4500 Lb. Capacity BlackOverall Fork Width (in.): 40
Overall Fork Length (in.): 48
1192

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

EPT-4048-45-RL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Overall Fork Width (in.): 40
Overall Fork Length (in.): 48
Overall Fork Width (in.): 40
Overall Fork Length (in.): 48

EPT-4548-45-RL
Unit:
Size: W x L x H
Weight:
Limited Warranty
Overall Fork Width (in.): 40
Overall Fork Length (in.): 48
Overall Fork Width (in.): 40
Overall Fork Length (in.): 48

Electric Powered Roll Pallet Trucks PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


EPT-4548-45-RL

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPT-4048-45-RL
Hydraulic Oil SDS Sheet for: EPT-4548-45-RL

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: How long will the EPT-4548-45-RL run on a charge?

A: The pallet truck will run continuous for 3-4 hours. With intermittent use, the battery will last 7-8 hours.


Q: How long does it take to charge the battery.

A: The battery will charge in 8-10 hours.


Q: What is the inside dimension between the forks?

A: The inside dimension between the forks on the EPT-4048-45-RL is 22 3/4".
