FEATURED H Style Bump & Dump Hoppers

model: H-150-HD-BD

H Style Bump & Dump Hoppers

SERIES: H-BD 6Products

New Product

Powder Coat

Automatic Bumper Release Hoppers for Forklift Scrap Dumping

H-style bump and dump self-dumping hoppers provide fast, controlled material discharge for scrap, chips, waste, parts, and bulk materials. Designed for manufacturing plants, warehouses, fabrication shops, recycling areas, construction sites, and maintenance departments, these forklift hoppers help improve dumping efficiency while keeping operators at the fork truck controls.

Automatic Bump and Dump Operation

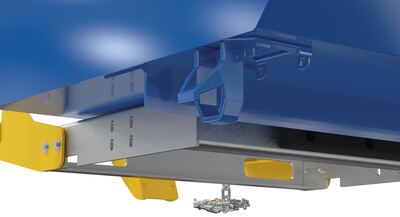

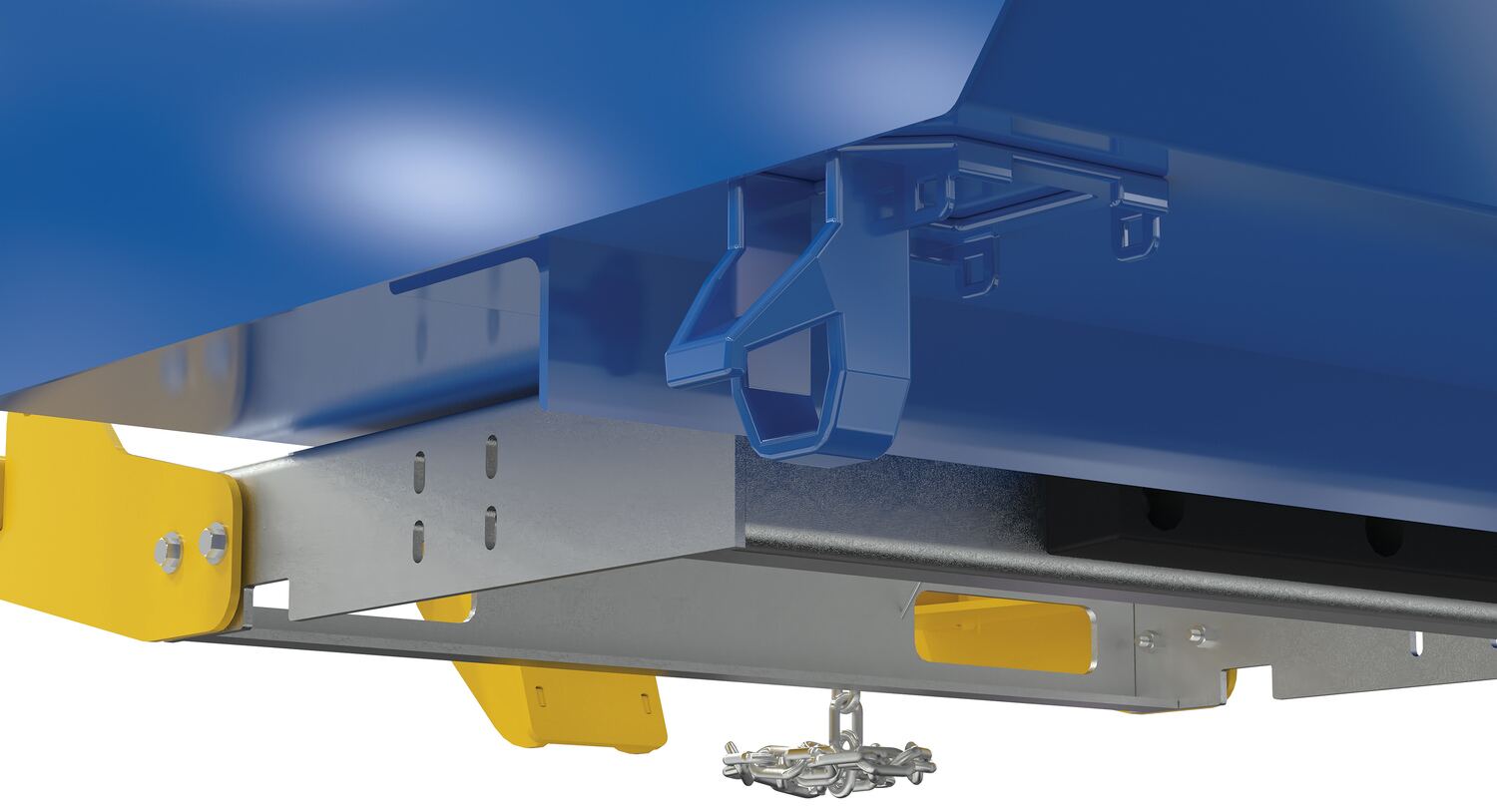

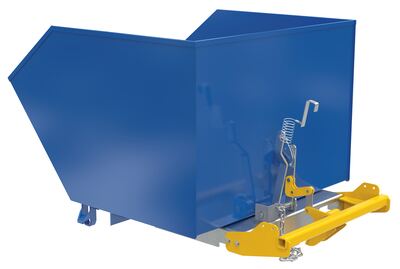

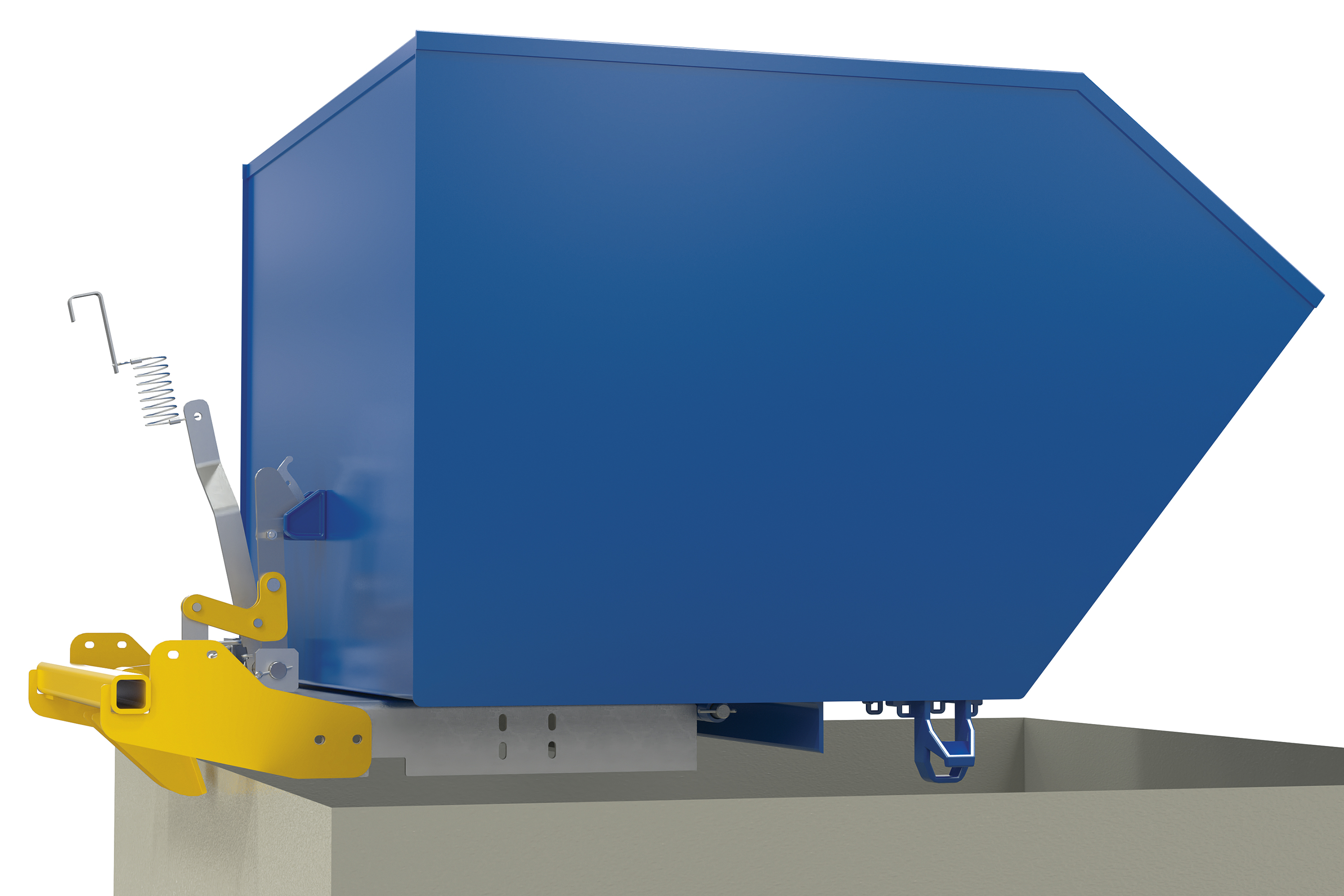

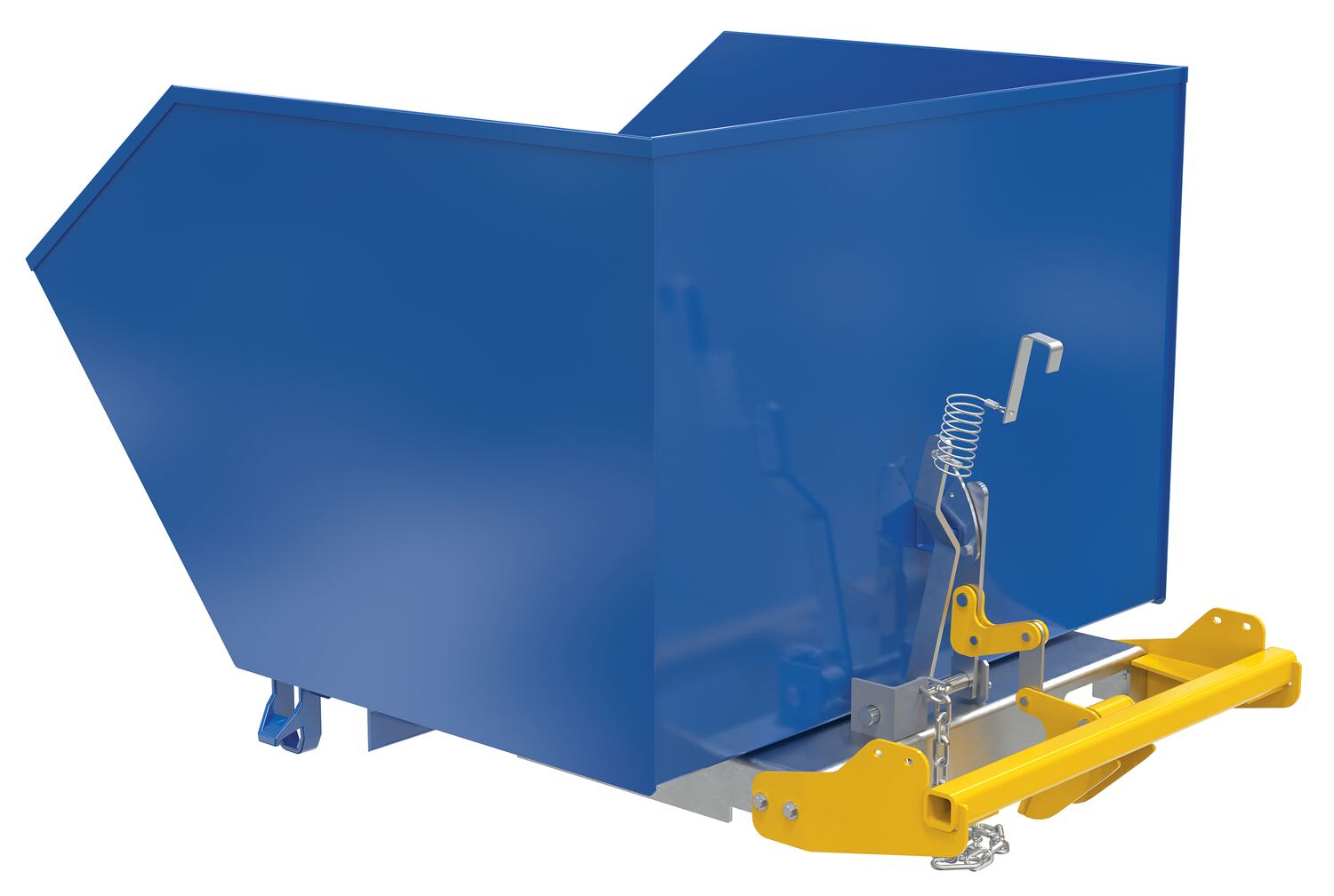

The bumper release design automatically activates dumping when the rear edge of the hopper contacts the dumpster or discharge point. A manual cable is also included, allowing the forklift operator to dump the hopper from the seat when needed. After dumping, the hopper returns to an upright and locked position.

Low Profile Steel Construction

The low profile design supports easier loading and better visibility during material handling. Capped fork pockets provide a secure lifting foundation, while a safety restraint helps secure the hopper to the fork truck during dumping. A cushioned rubber bump stop helps absorb impact during automatic release operation.

Duty Levels, Sizes, and Colors

This family includes 1 cubic yard and 1-1/2 cubic yard models in light duty 12 gauge, medium duty 10 gauge, and heavy duty 8 gauge steel construction. Capacities range from 2,000 lb. to 6,000 lb. Multiple color options are available to support facility organization, material identification, and safety programs.

Check Out Our NO Bump & Dump Version (H Series)!

Caster Options | Optional Lids

NOTE: Hopper Use Prohibitions

Hopper(s) must not be used by rough terrain lift trucks or telehandlers (boom trucks). ONLY use this hopper with high lift fork trucks having a vertical mast and carriage.
Hoppers must not be mounted on stackers or on manually operated or propelled lift trucks.
While a hopper is mounted on the forks of a high lift truck, only operate the truck on concrete or asphalt surfaces DO NOT operate the truck carrying this hopper on unimproved surfaces.

H Style Bump & Dump Hoppers

model: H-150-HD-BD

Automatic Bumper Release Hoppers for Forklift Scrap Dumping

H-style bump and dump self-dumping hoppers provide fast, controlled material discharge for scrap, chips, waste, parts, and bulk materials. Designed for manufacturing plants, warehouses, fabrication shops, recycling areas, construction sites, and maintenance departments, these forklift hoppers help improve dumping efficiency while keeping operators at the fork truck controls.

Automatic Bump and Dump Operation

The bumper release design automatically activates dumping when the rear edge of the hopper contacts the dumpster or discharge point. A manual cable is also included, allowing the forklift operator to dump the hopper from the seat when needed. After dumping, the hopper returns to an upright and locked position.

Low Profile Steel Construction

The low profile design supports easier loading and better visibility during material handling. Capped fork pockets provide a secure lifting foundation, while a safety restraint helps secure the hopper to the fork truck during dumping. A cushioned rubber bump stop helps absorb impact during automatic release operation.

Duty Levels, Sizes, and Colors

This family includes 1 cubic yard and 1-1/2 cubic yard models in light duty 12 gauge, medium duty 10 gauge, and heavy duty 8 gauge steel construction. Capacities range from 2,000 lb. to 6,000 lb. Multiple color options are available to support facility organization, material identification, and safety programs.

Check Out Our NO Bump & Dump Version (H Series)!

Caster Options | Optional Lids

NOTE: Hopper Use Prohibitions

Hopper(s) must not be used by rough terrain lift trucks or telehandlers (boom trucks). ONLY use this hopper with high lift fork trucks having a vertical mast and carriage.
Hoppers must not be mounted on stackers or on manually operated or propelled lift trucks.
While a hopper is mounted on the forks of a high lift truck, only operate the truck on concrete or asphalt surfaces DO NOT operate the truck carrying this hopper on unimproved surfaces.

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

For More Details of the Option Click the Red Model Button

Model	Image	Details	Icons	Wt.

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Owner's Manuals

1

Survey Sheets

0

No survey sheets for this product family.

Approval Drawings

6

Testing Certificates

6

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

SDS Sheets

0

No SDS sheets for this product family.

Label Page PDFs

6

Other PDFs

0

No other PDFs for this product family.

Check Out All Of Our Specialty Colors Available!

SODA RED
Suggested Use: Hazard
Model Suffix: -SR

WHITE
Suggested Use: Paper
Model Suffix: -WHT

BATTLE SHIP GRAY

BATTLE SHIP GRAY
Suggested Use: Metal
Model Suffix: -GY-SG

TRACTOR GREEN

TRACTOR GREEN
Suggested Use: Organic
Model Suffix: -GRN-T

BLUE (Standard)

BLUE (Standard Color)
Suggested Use: Plastic
Model Suffix: -

YELLOW
Suggested Use: Glass
Model Suffix: -YEL

ORANGE
Suggested Use: Corrosive Fluid
Model Suffix: -ORG-C

EARTH BROWN

EARTH BROWN
Suggested Use: Combustible Fluids
Model Suffix: -BRN-EB

KHAKI TAN
Suggested Use: User Defined
Model Suffix: -BRN-KT

SANDY BEIGE

SANDY BEIGE
Suggested Use: User Defined
Model Suffix: -BRN-SB

BUBBLE GUM PINK

BUBBLE GUM PINK
Suggested Use: User Defined
Model Suffix: -BG

BLACK - HIGH GLOSS

BLACK - HIGH GLOSS
Suggested Use: User Defined
Model Suffix: -BLK-HG

BLACK - SEMI-GLOSS

BLACK - SEMI-GLOSS
Suggested Use: User Defined
Model Suffix: -BLK-SG

HUNTER GREEN

HUNTER GREEN
Suggested Use: User Defined
Model Suffix: -GRN-H

SILVER LINING

SILVER LINING
Suggested Use: User Defined
Model Suffix: -SL

SKY BLUE
Suggested Use: User Defined
Model Suffix: -BL-S

MACHINE GRAY

MACHINE GRAY
Suggested Use: User Defined
Model Suffix: -GY-MG

Notice These swatches are a representation of the colors available, and may not be exact.

For a list of Model Numbers of each Color, Go down to the Model chart below and choose your color from the Alternate Colors Menu

Reference#: CF-5670 Dewatering Hoppers

Reference#: CF-5670 Dewatering Hoppers

Reference#: CF-5670 Dewatering Hoppers
Hopper with special holes drilled in the sides to allow liquid to drain out of the contained area.

Reference#: CF-6539 Steel Hopper Lids

Reference#: CF-6539 Steel Hopper Lids

Reference#: CF-6539 Steel Hopper Lids
Special Steel Hopper Lids for Hoppers

For more Specialty Designs similar to these... Click Here

Print Friendly

Related or Similar Products:

More From Hoppers

Portable Steel Hopper with Power Traction Drive

Portable Steel Hopper with Power Traction Drive

Drop Bottom Hopper

Drop Bottom Hopper

Steel Chute Hoppers

Steel Chute Hoppers

Triple-Bin Recycling Hopper

Triple-Bin Recycling Hopper

Self-Dumping Steel Hoppers with Fold Down Front

Self-Dumping Steel Hoppers with Fold Down Front

Fabric Hoppers

H Style Bump & Dump Hoppers

Automatic Bumper Release Hoppers for Forklift Scrap Dumping

H-style bump and dump self-dumping hoppers provide fast, controlled material discharge for scrap, chips, waste, parts, and bulk materials. Designed for manufacturing plants, warehouses, fabrication shops, recycling areas, construction sites, and maintenance departments, these forklift hoppers help improve dumping efficiency while keeping operators at the fork truck controls.

Automatic Bump and Dump Operation

The bumper release design automatically activates dumping when the rear edge of the hopper contacts the dumpster or discharge point. A manual cable is also included, allowing the forklift operator to dump the hopper from the seat when needed. After dumping, the hopper returns to an upright and locked position.

Low Profile Steel Construction

The low profile design supports easier loading and better visibility during material handling. Capped fork pockets provide a secure lifting foundation, while a safety restraint helps secure the hopper to the fork truck during dumping. A cushioned rubber bump stop helps absorb impact during automatic release operation.

Duty Levels, Sizes, and Colors

This family includes 1 cubic yard and 1-1/2 cubic yard models in light duty 12 gauge, medium duty 10 gauge, and heavy duty 8 gauge steel construction. Capacities range from 2,000 lb. to 6,000 lb. Multiple color options are available to support facility organization, material identification, and safety programs.

Check Out Our NO Bump & Dump Version (H Series)!

Caster Options | Optional Lids

NOTE: Hopper Use Prohibitions

Hopper(s) must not be used by rough terrain lift trucks or telehandlers (boom trucks). ONLY use this hopper with high lift fork trucks having a vertical mast and carriage.
Hoppers must not be mounted on stackers or on manually operated or propelled lift trucks.
While a hopper is mounted on the forks of a high lift truck, only operate the truck on concrete or asphalt surfaces DO NOT operate the truck carrying this hopper on unimproved surfaces.

Model #		Description	Attributes	Net Wt. (lbs)
H-100-HD-BD		Steel Heavy Duty Bump & Dump Hopper 1 Cubic Yard 6,000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Volume (cu. yd.): 1	422
H-100-LD-BD		Steel Light Duty Bump & Dump Hopper 1 Cubic Yard 2,000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Volume (cu. yd.): 1	385
H-100-MD-BD		Steel Medium Duty Bump & Dump Hopper 1 Cubic Yard 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Volume (cu. yd.): 1	403
H-150-HD-BD		Steel Heavy Duty Bump & Dump Hopper 1-1/2 Cubic Yard 6,000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Volume (cu. yd.): 1-1/2	496
H-150-LD-BD		Steel Light Duty Bump & Dump Hopper 1-1/2 Cubic Yard 2,000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Volume (cu. yd.): 1-1/2	392
H-150-MD-BD		Steel Medium Duty Bump & Dump Hopper 1-1/2 Cubic Yard 4,000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Volume (cu. yd.): 1-1/2	457
