Product Family Overview


Dock Shelters
SERIES: D-750

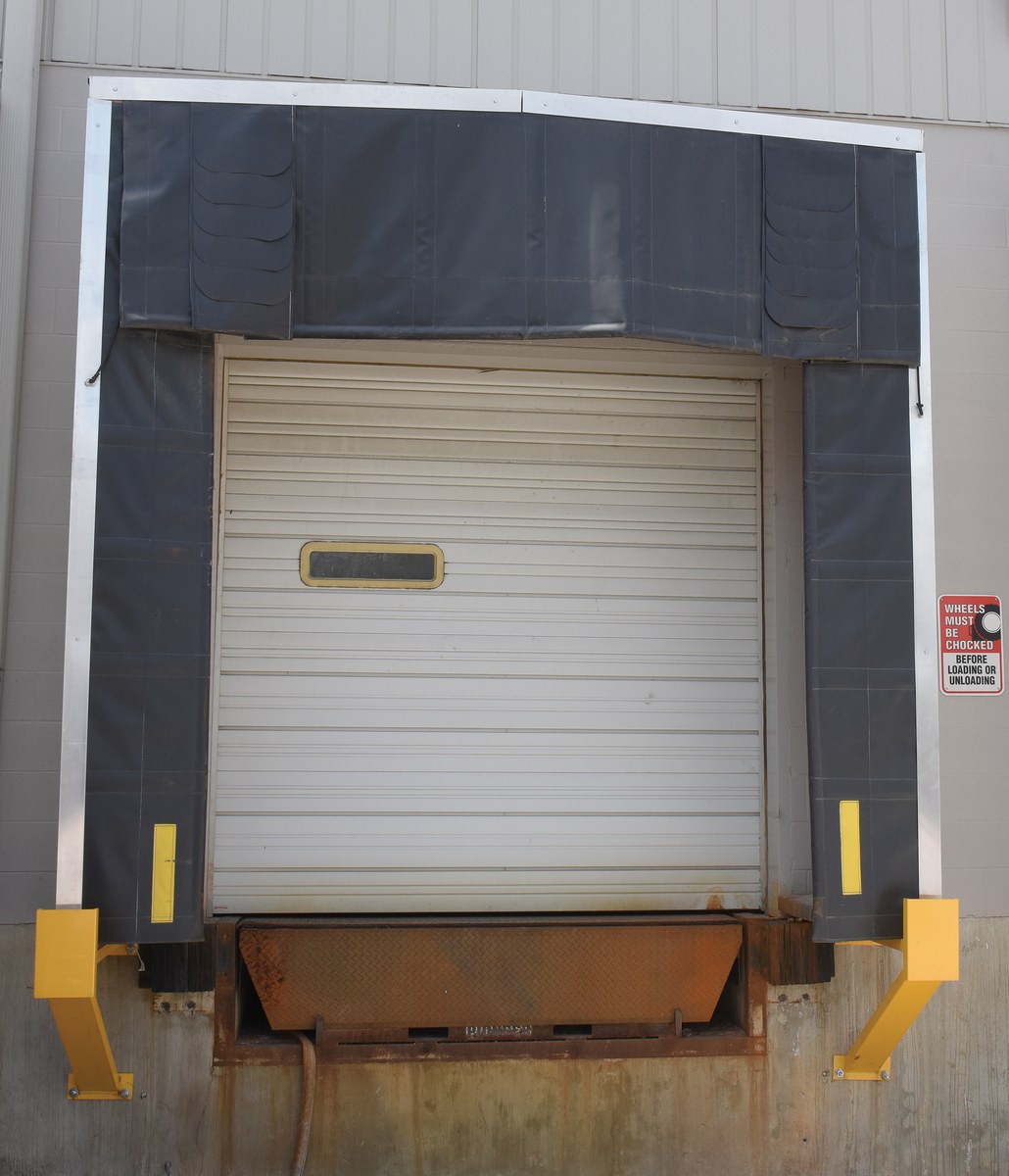

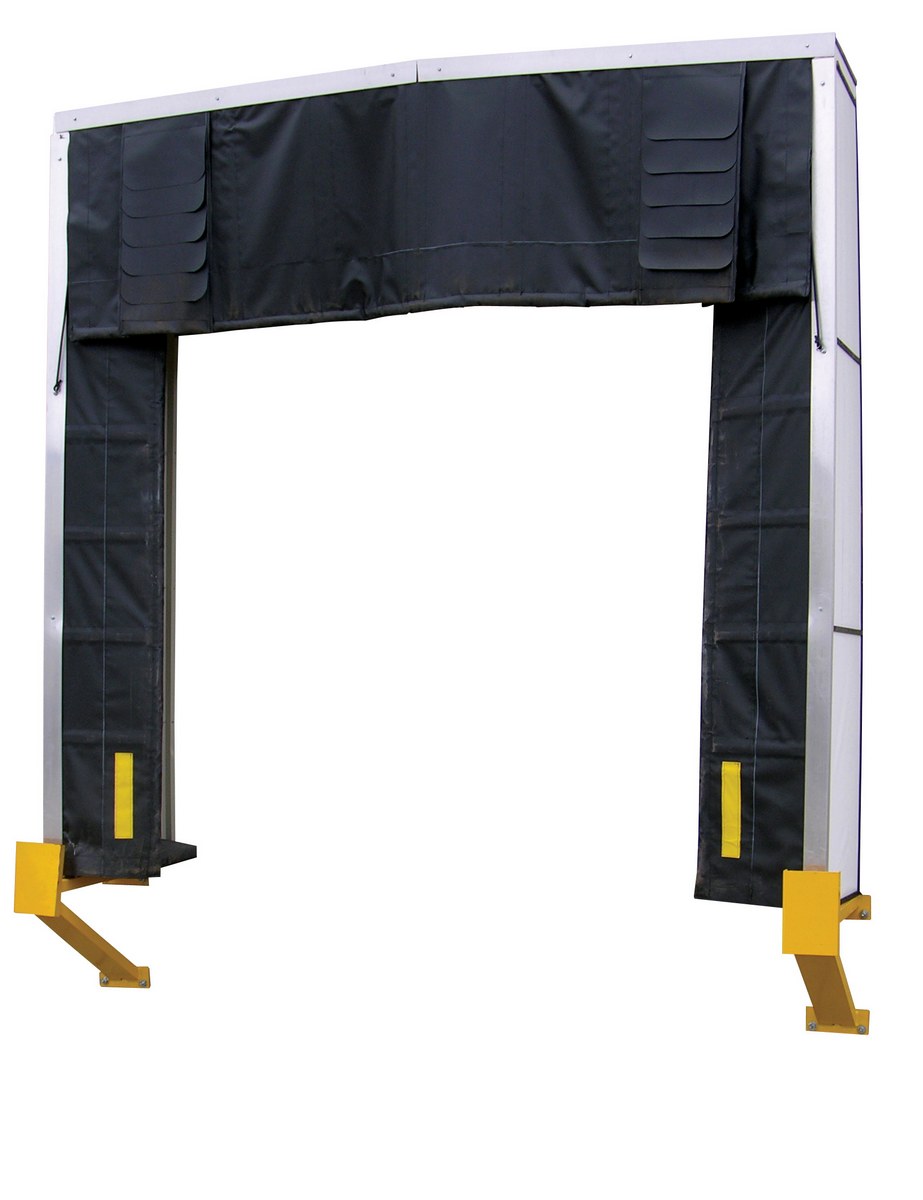

The Dock Shelter is used with doors up to 10'W x 10'H. The dock shelter reduces oversized doors to match truck openings. The long wear fabric is highly resistant to abrasion and tearing. Fiberglass staves are sewn into the flaps. Seal is formed along the sides and top of trailer when the vertical and top panels are pushed inward by the trailer. Recommend minimum 10" trailer penetration for a good seal. Supporting structure is made of 2" x 4" wolmanized lumber. The top header piece measures 132"W and contains a drop curtain which measures 36"H. Two vertical pieces measure 126" tall with vertical flaps measuring 21"W. When installed, the shelter will close the door opening down to 90"W x 90"H (between flaps). Includes two yellow steel guide protectors and foam-filled corner draft protector pads for extra sealing action. Units are non-returnable.

Dock Seals & Shelters Survey Sheet

  • Three foam-filled pads offer full dock protection
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
  • Mounting hardware and installation instructions make installation quick and easy

Heat Lost

The Dock Shelter is used with doors up to 10'W x 10'H. The dock shelter reduces oversized doors to match truck openings. The long wear fabric is highly resistant to abrasion and tearing. Fiberglass staves are sewn into the flaps. Seal is formed along the sides and top of trailer when the vertical and top panels are pushed inward by the trailer. Recommend minimum 10" trailer penetration for a good seal. Supporting structure is made of 2" x 4" wolmanized lumber. The top header piece measures 132"W and contains a drop curtain which measures 36"H. Two vertical pieces measure 126" tall with vertical flaps measuring 21"W. When installed, the shelter will close the door opening down to 90"W x 90"H (between flaps). Includes two yellow steel guide protectors and foam-filled corner draft protector pads for extra sealing action. Units are non-returnable.

Dock Seals & Shelters Survey Sheet

  • Three foam-filled pads offer full dock protection
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
  • Mounting hardware and installation instructions make installation quick and easy

Heat Lost

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
D-750-18 D-750-1890 Days Limited WarrantyVinyl Dock Shelter 18 In. 11 Ft. x 10.5 Ft. BlackProjection (in.): 18
Long Wear Fabric (oz.): 40
2466
D-750-24 D-750-2490 Days Limited WarrantyVinyl Dock Shelter 24 In. 11 Ft. x 10.5 Ft. BlackProjection (in.): 24
Long Wear Fabric (oz.): 40
2494
D-750-30 D-750-3090 Days Limited WarrantyVinyl Dock Shelter 30 In. 11 Ft. x 10.5 Ft. BlackProjection (in.): 30
Long Wear Fabric (oz.): 40
2518
D-750-36 D-750-3690 Days Limited WarrantyVinyl Dock Shelter 36 In. 11 Ft. x 10.5 Ft. BlackProjection (in.): 36
Long Wear Fabric (oz.): 40
2546

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

D-750-18
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 18
Long Wear Fabric (oz.): 40
Projection (in.): 18
Long Wear Fabric (oz.): 40

D-750-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 24
Long Wear Fabric (oz.): 40
Projection (in.): 24
Long Wear Fabric (oz.): 40

D-750-30
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 30
Long Wear Fabric (oz.): 40
Projection (in.): 30
Long Wear Fabric (oz.): 40

D-750-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Projection (in.): 36
Long Wear Fabric (oz.): 40
Projection (in.): 36
Long Wear Fabric (oz.): 40
For More Details of the Option Click the Red Model Button
Model Number Image PDFs Description
D-FHPFS Compliance Certificate Full height pleats, full height guide stripes
D-FHPS Compliance Certificate Full height pleats, standard guide (24" high)
D-AP Compliance Certificate Armor pleats, top 24" only
D-54OZ Compliance Certificate 54 ounce material - face only
D-18H Compliance Certificate 1818" header
D-SV Compliance Certificate Sloped verticals
D-BBF Compliance Certificate Bottom Bun
D-GS Compliance Certificate Full height guide stripes
D-12F Compliance Certificate 12" flap
D-KIT Compliance Certificate Six piece black vinyl patch kit (Dock Seals - D-150, D-350 and D-150/650 only)
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Dock Shelters PDF's will open in a new window when clicked.

Manuals


Survey Sheets


Approval Drawings

Testing Certificates


D-750-18

D-750-24

D-750-30

D-750-36

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products


Q: What is the difference between a Dock Seal Vs. a Truck Shelter?

A: A dock seal is traditionally designed to enclose a loading dock reducing its width to an optimal 7'6", while a truck shelter is designed to allow full access to the trailer without restricting the available space around the door. Truck shelters typically afford service to a wider range of trucks than a dock seal as well, due to the nature of the seal. When a vehicle docks with a shelter the curtains with spring steel stays slide along the side of the vehicle rather than compress like a dock seal.






Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Dock Shelters




The Dock Shelter is used with doors up to 10'W x 10'H. The dock shelter reduces oversized doors to match truck openings. The long wear fabric is highly resistant to abrasion and tearing. Fiberglass staves are sewn into the flaps. Seal is formed along the sides and top of trailer when the vertical and top panels are pushed inward by the trailer. Recommend minimum 10" trailer penetration for a good seal. Supporting structure is made of 2" x 4" wolmanized lumber. The top header piece measures 132"W and contains a drop curtain which measures 36"H. Two vertical pieces measure 126" tall with vertical flaps measuring 21"W. When installed, the shelter will close the door opening down to 90"W x 90"H (between flaps). Includes two yellow steel guide protectors and foam-filled corner draft protector pads for extra sealing action. Units are non-returnable.

Dock Seals & Shelters Survey Sheet

  • Three foam-filled pads offer full dock protection
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
  • Mounting hardware and installation instructions make installation quick and easy

Heat Lost



Model # Description Attributes Net Wt.
(lbs)
D-750-18 D-750-18Vinyl Dock Shelter 18 In. 11 Ft. x 10.5 Ft. BlackProjection (in.): 18
Long Wear Fabric (oz.): 40
208
D-750-24 D-750-24Vinyl Dock Shelter 24 In. 11 Ft. x 10.5 Ft. BlackProjection (in.): 24
Long Wear Fabric (oz.): 40
236
D-750-30 D-750-30Vinyl Dock Shelter 30 In. 11 Ft. x 10.5 Ft. BlackProjection (in.): 30
Long Wear Fabric (oz.): 40
260
D-750-36 D-750-36Vinyl Dock Shelter 36 In. 11 Ft. x 10.5 Ft. BlackProjection (in.): 36
Long Wear Fabric (oz.): 40
261

Options


Model Number Image PDFs Description
D-FHPFS Compliance Certificate Full height pleats, full height guide stripes
D-FHPS Compliance Certificate Full height pleats, standard guide (24" high)
D-AP Compliance Certificate Armor pleats, top 24" only
D-54OZ Compliance Certificate 54 ounce material - face only
D-18H Compliance Certificate 1818" header
D-SV Compliance Certificate Sloped verticals
D-BBF Compliance Certificate Bottom Bun
D-GS Compliance Certificate Full height guide stripes
D-12F Compliance Certificate 12" flap
D-KIT Compliance Certificate Six piece black vinyl patch kit (Dock Seals - D-150, D-350 and D-150/650 only)
