Product Family Overview


Tote-A-Loads
SERIES: TAL

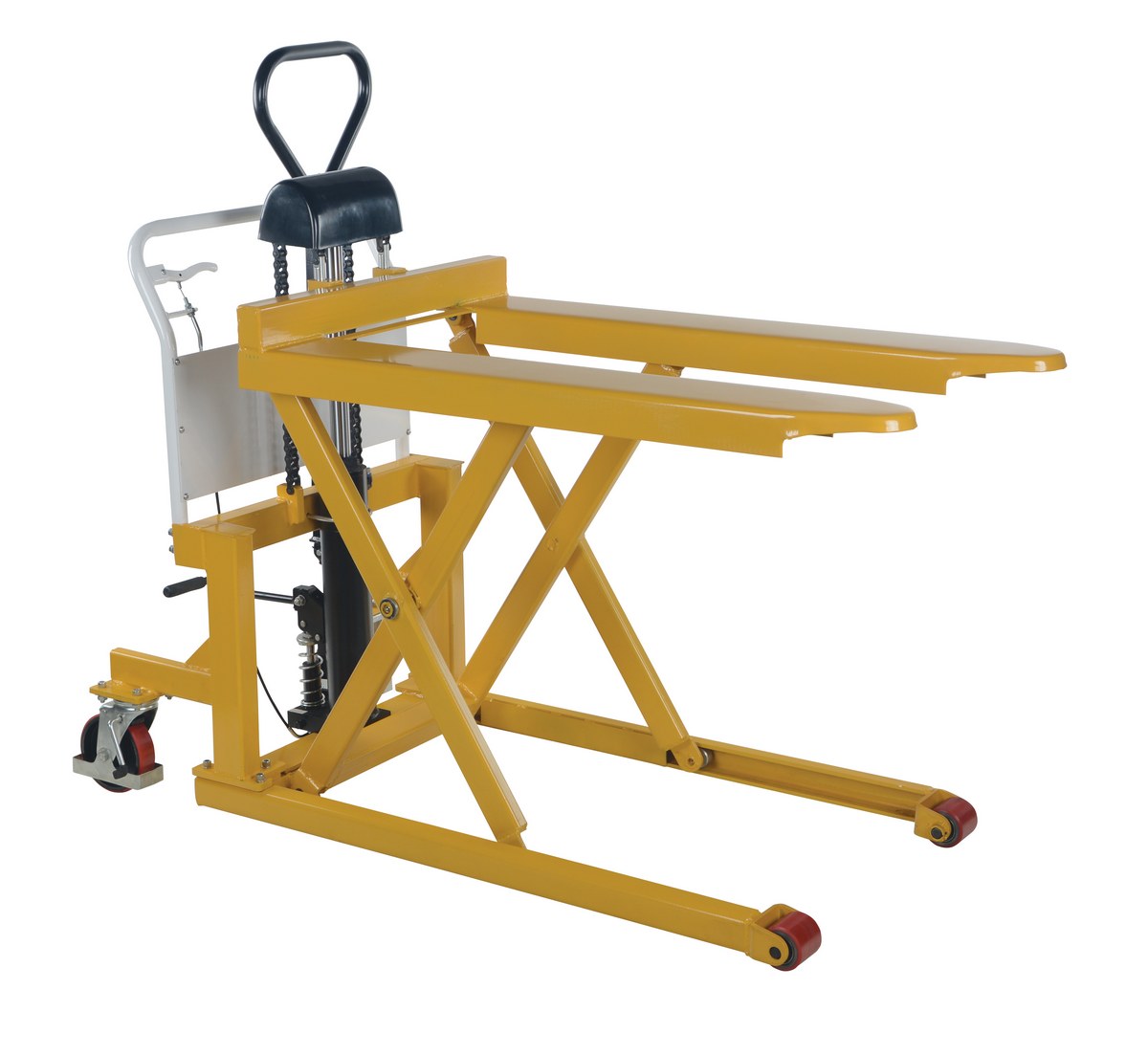

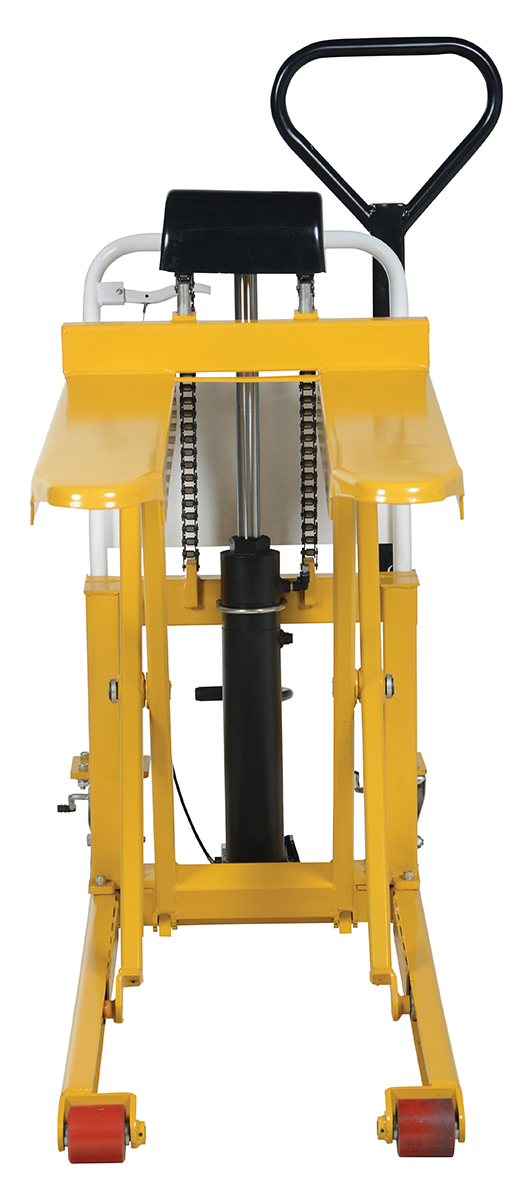

For models ending in -HD, the manually operated lift is easy to operate. The foot pump operated lift travels approximately 1/2" per stroke. To lower the -HD units, depress on the bicycle style grip located on the white push bar.

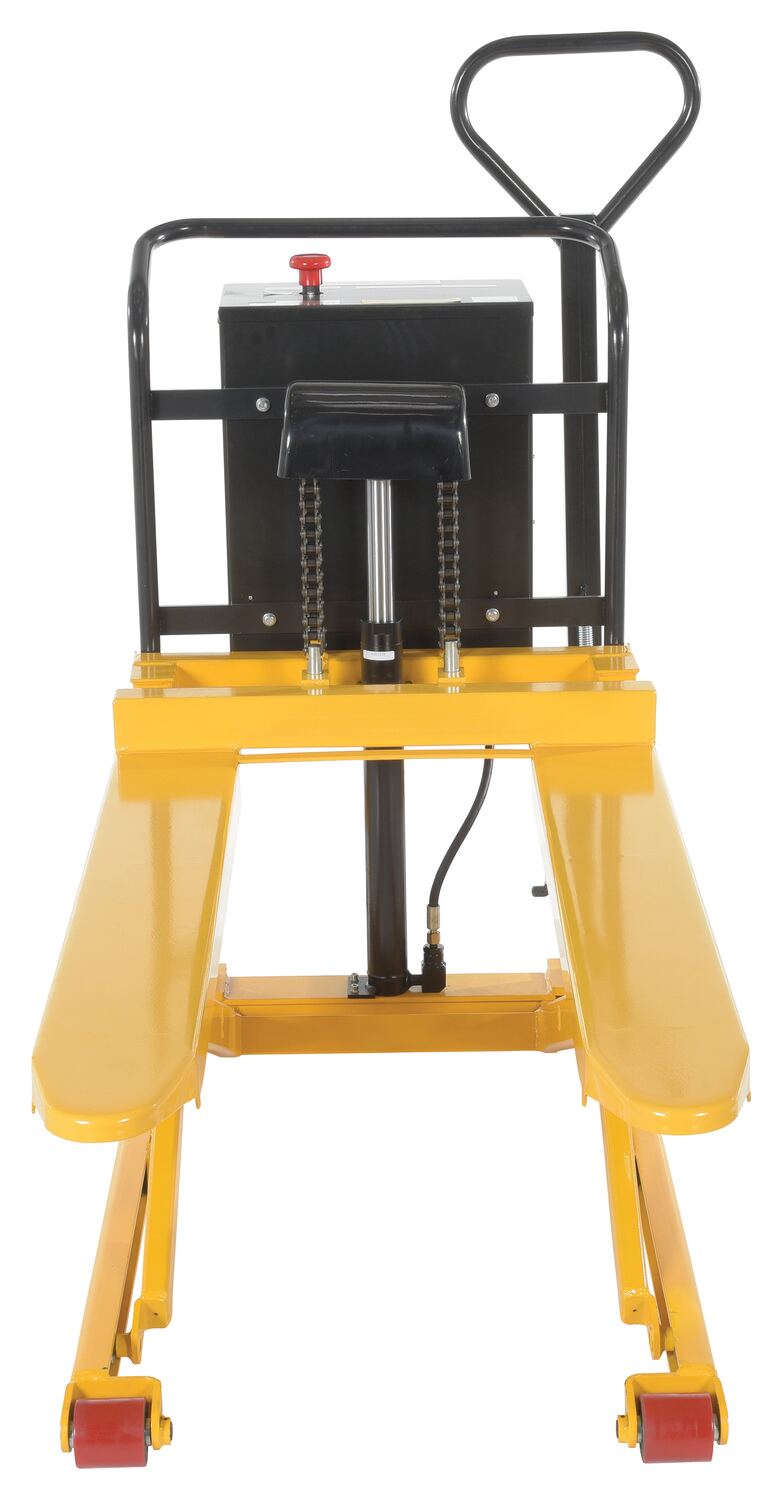

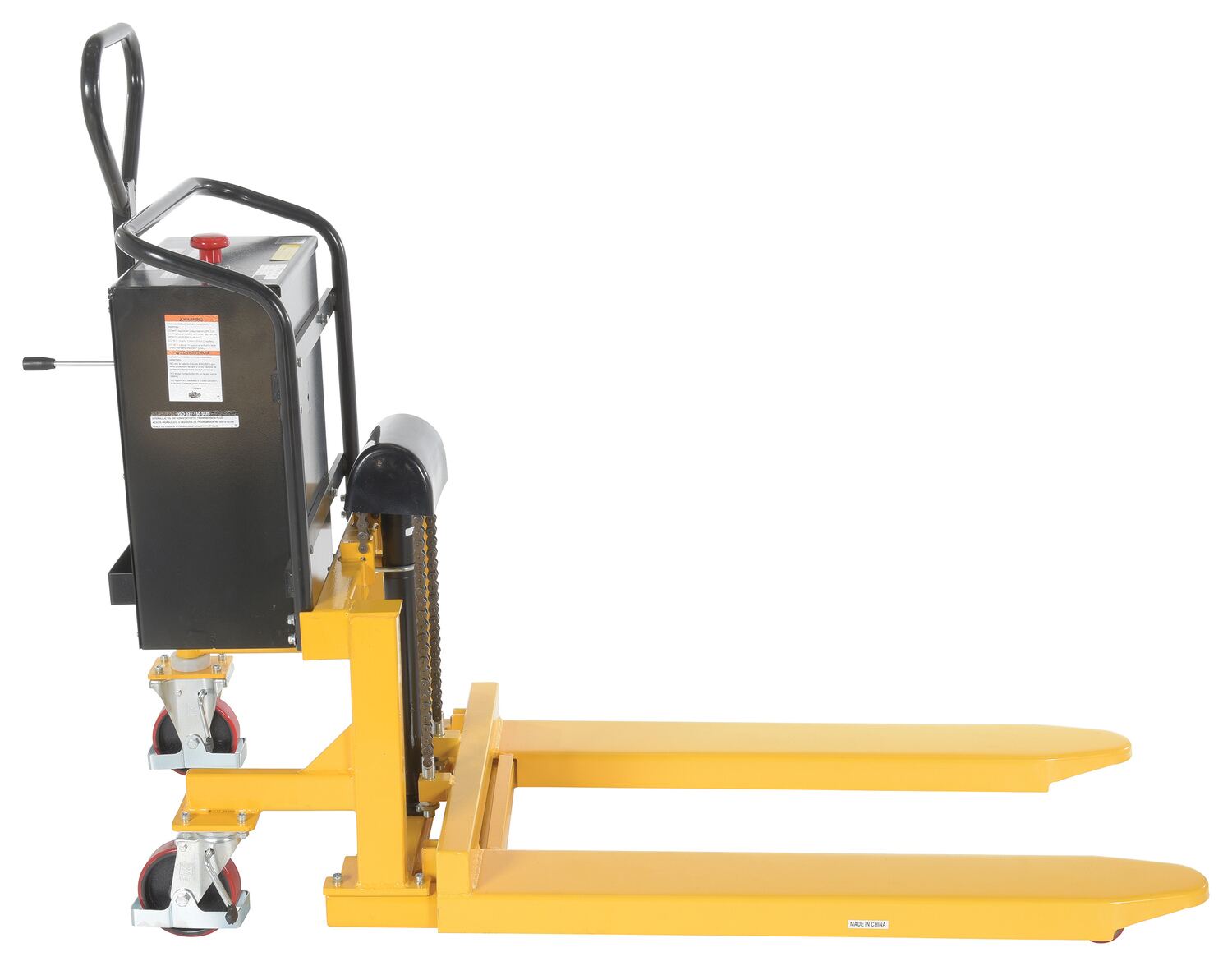

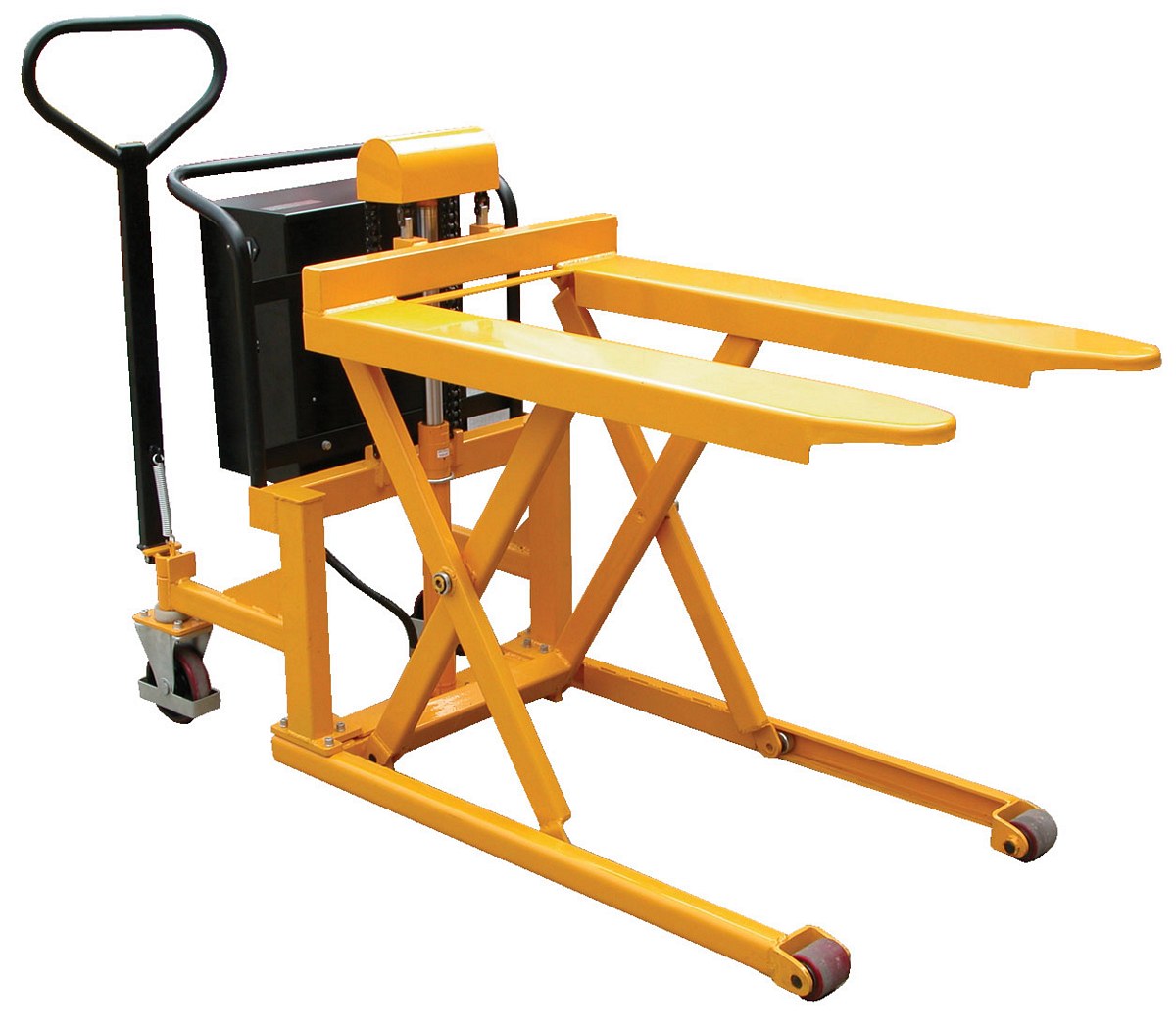

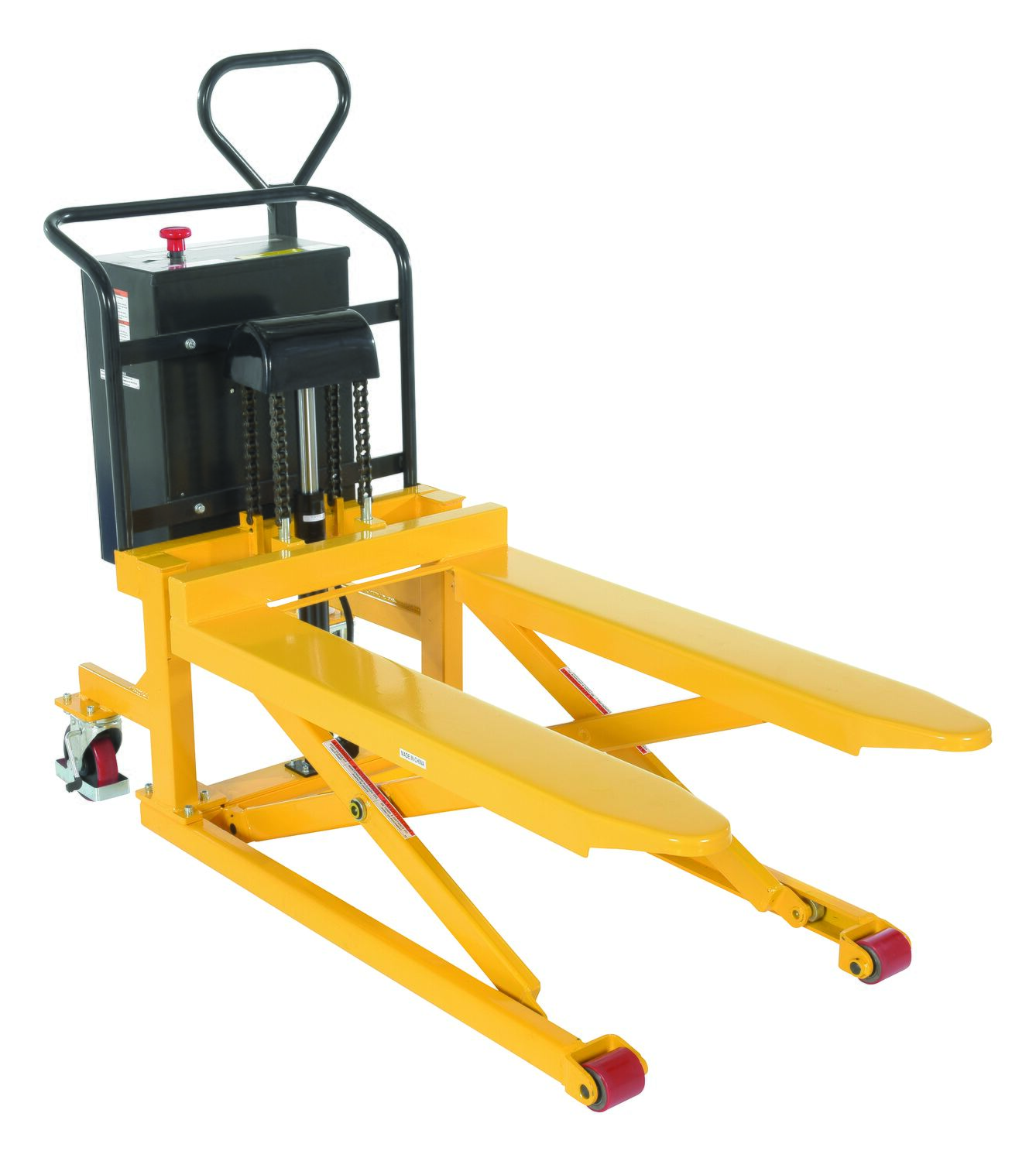

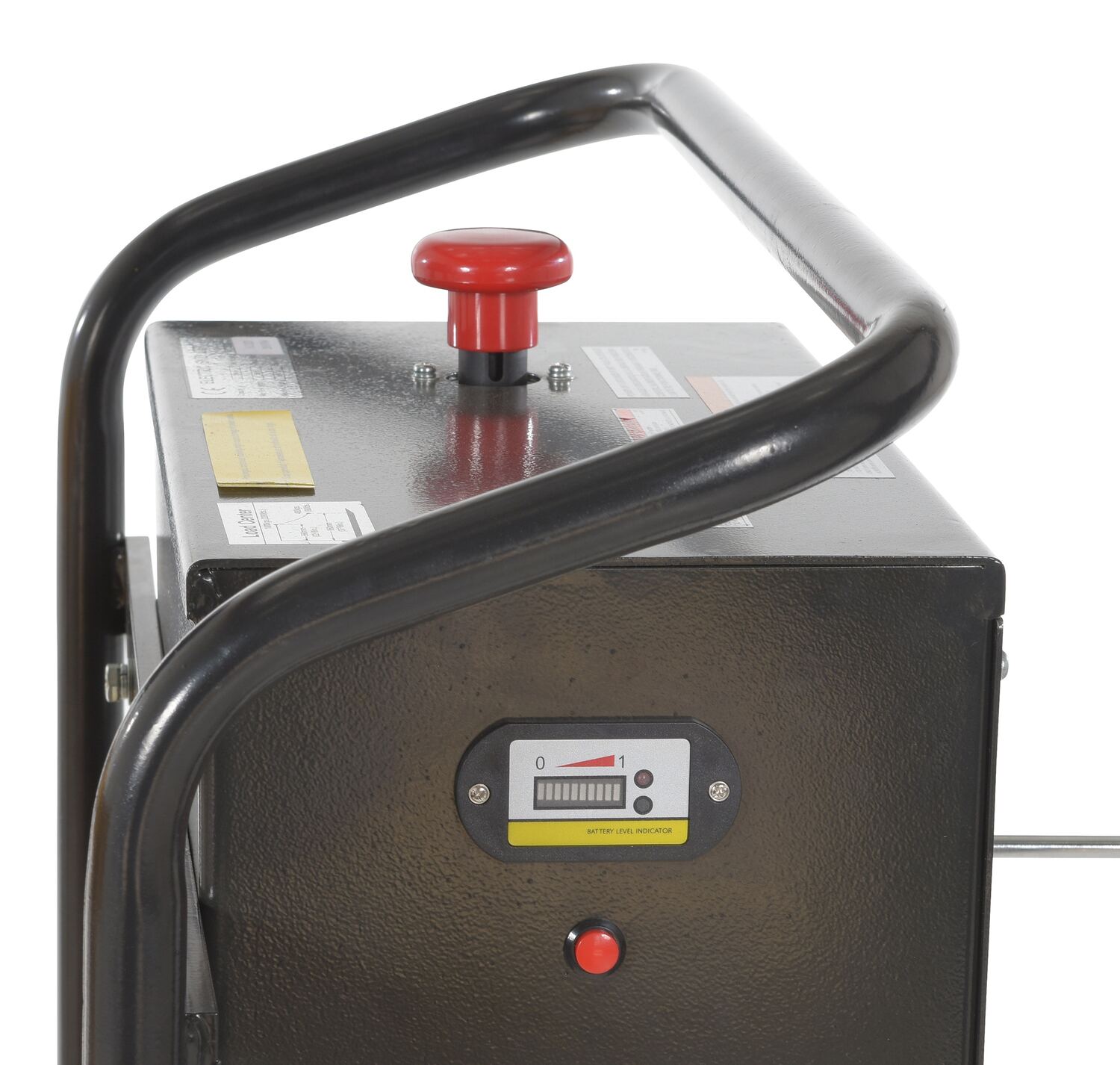

The battery operated lift on -DC unit's is ideal for positioning products at workstation height for increased productivity. -DC powered units include one (1) 12V battery, an on-board charger and battery charge indicator gauge. The up/down lever control is located on power unit.

  • Designed to lift open bottom skids, boxes, and baskets
  • Position products at work heights for increased productivity
  • Polyurethane swivel casters with brake are standard one all units
  • Open design is accessible from all three sides

For models ending in -HD, the manually operated lift is easy to operate. The foot pump operated lift travels approximately 1/2" per stroke. To lower the -HD units, depress on the bicycle style grip located on the white push bar.

The battery operated lift on -DC unit's is ideal for positioning products at workstation height for increased productivity. -DC powered units include one (1) 12V battery, an on-board charger and battery charge indicator gauge. The up/down lever control is located on power unit.

  • Designed to lift open bottom skids, boxes, and baskets
  • Position products at work heights for increased productivity
  • Polyurethane swivel casters with brake are standard one all units
  • Open design is accessible from all three sides

Additional Models In This Family

TAL-220-HD

model TAL-220-HD

TAL-260-HD

model TAL-260-HD

TAL-PLATE-21

model TAL-PLATE-21

TAL-PLATE-27

model TAL-PLATE-27

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
TAL-220-DC TAL-220-DC1 Year Limited WarrantySteel Tote-A-Load DC Powered Fork Size 21 In. x 43 In. 2,200 Lb. Capacity YellowUniform Capacity (lb.): 2200
Operation: 12 Volt DC Power
428

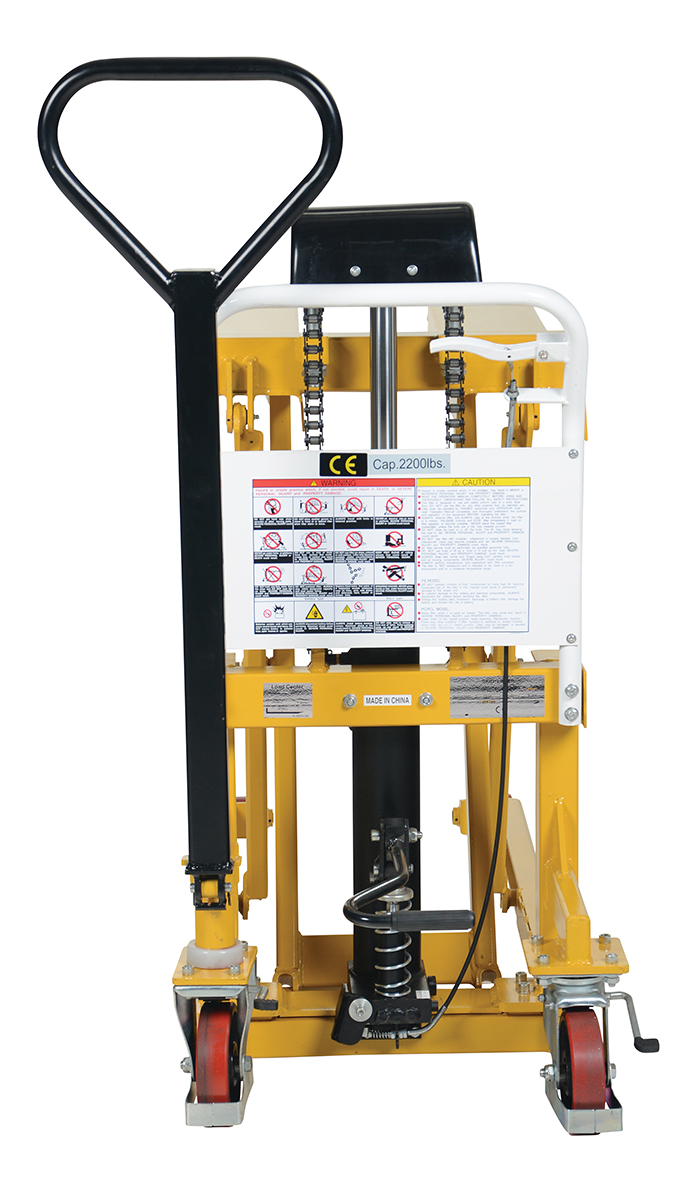

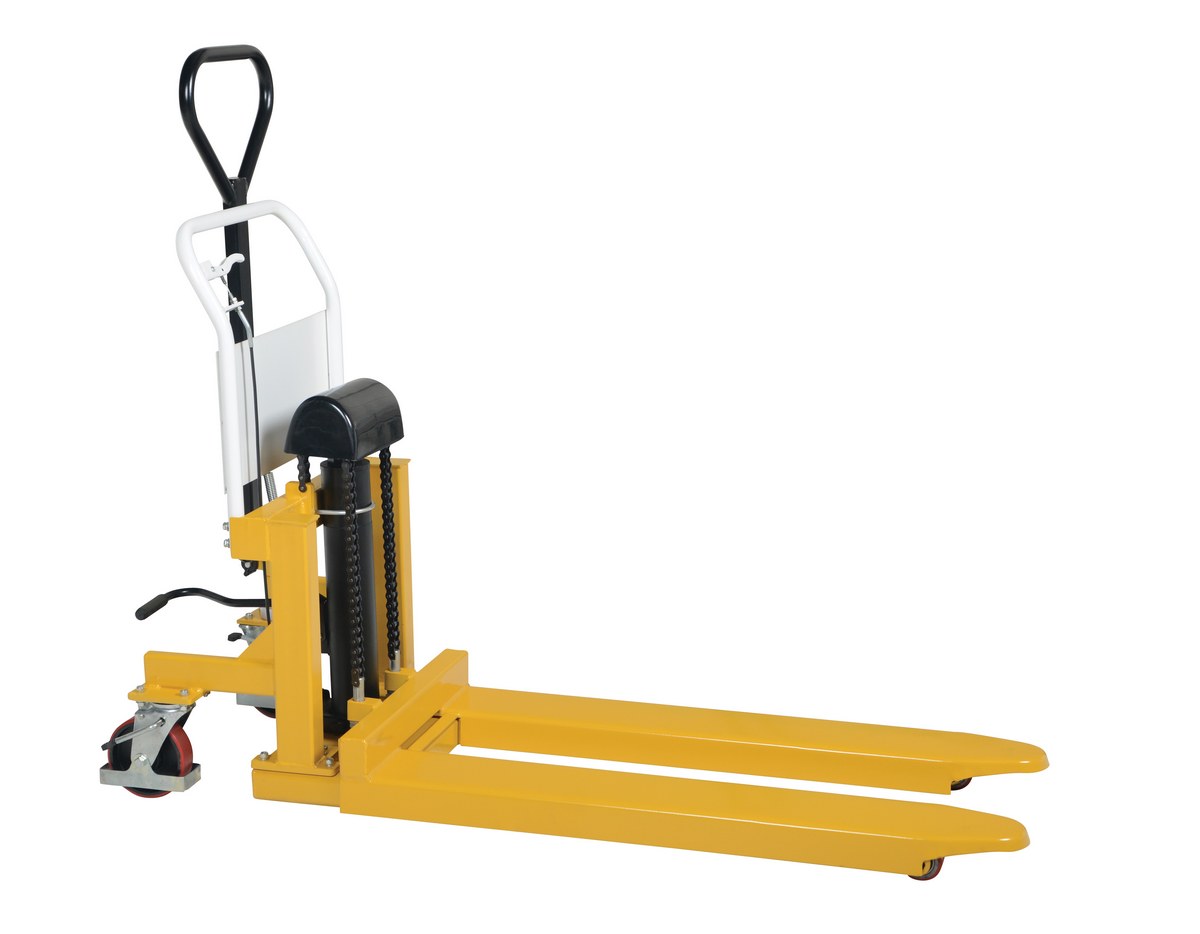

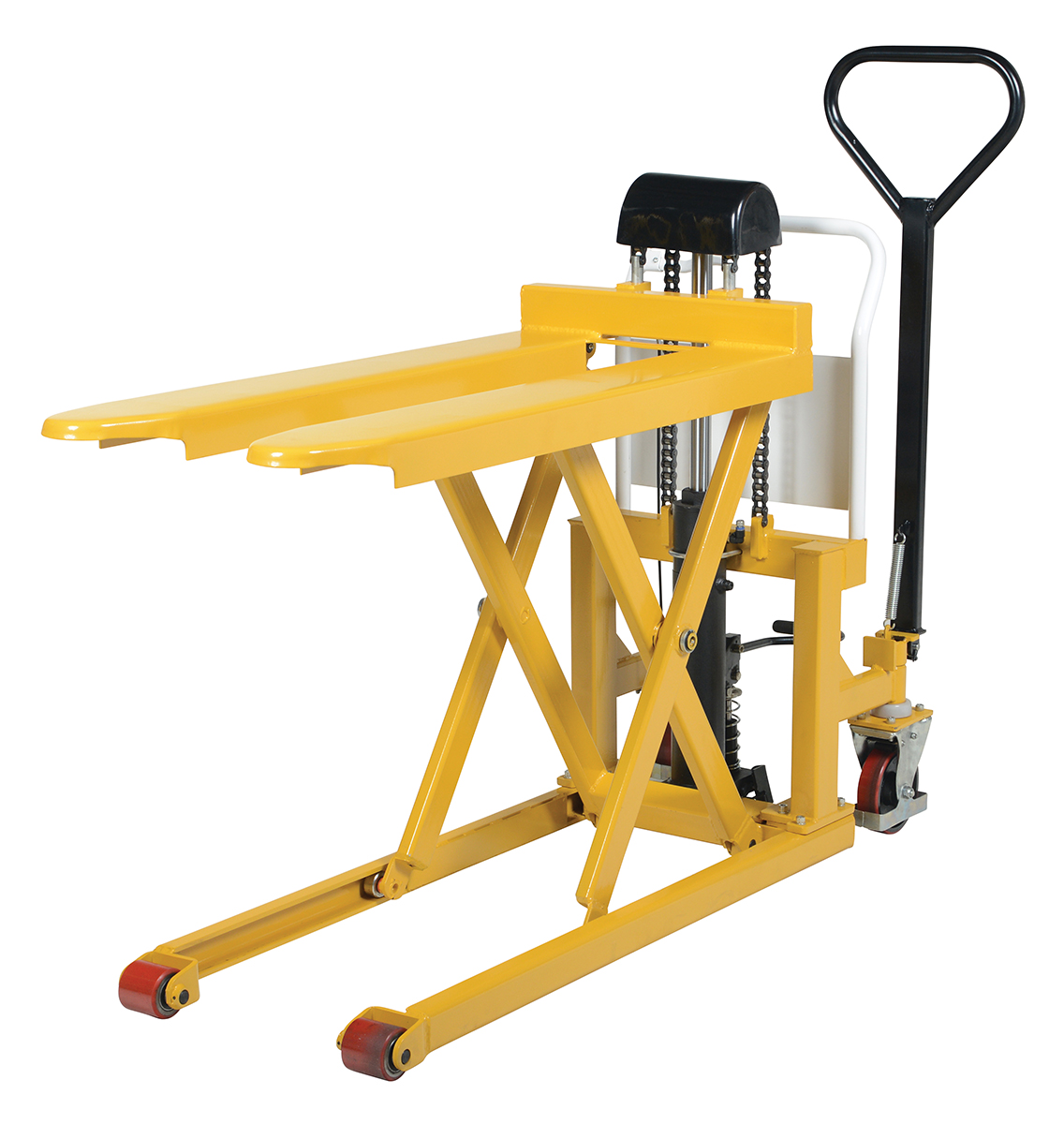

TAL-220-HD TAL-220-HD1 Year Limited WarrantySteel Tote-A-Load Ergonomic Foot Pump Hydraulic Power Fork Size 21 In. x 43 In. 2,200 Lb. Capacity YellowUniform Capacity (lb.): 2200
Operation: Foot Pump
356

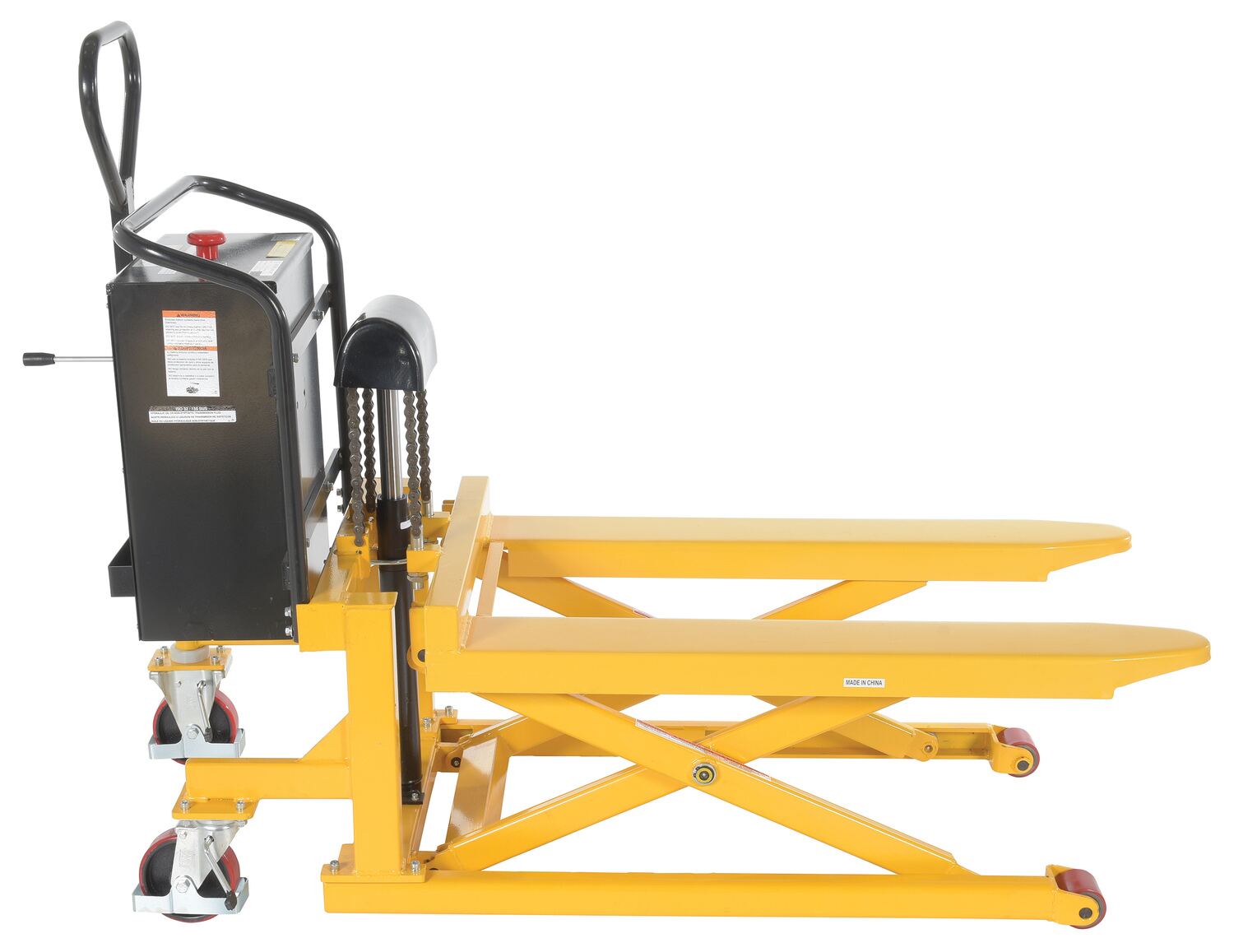

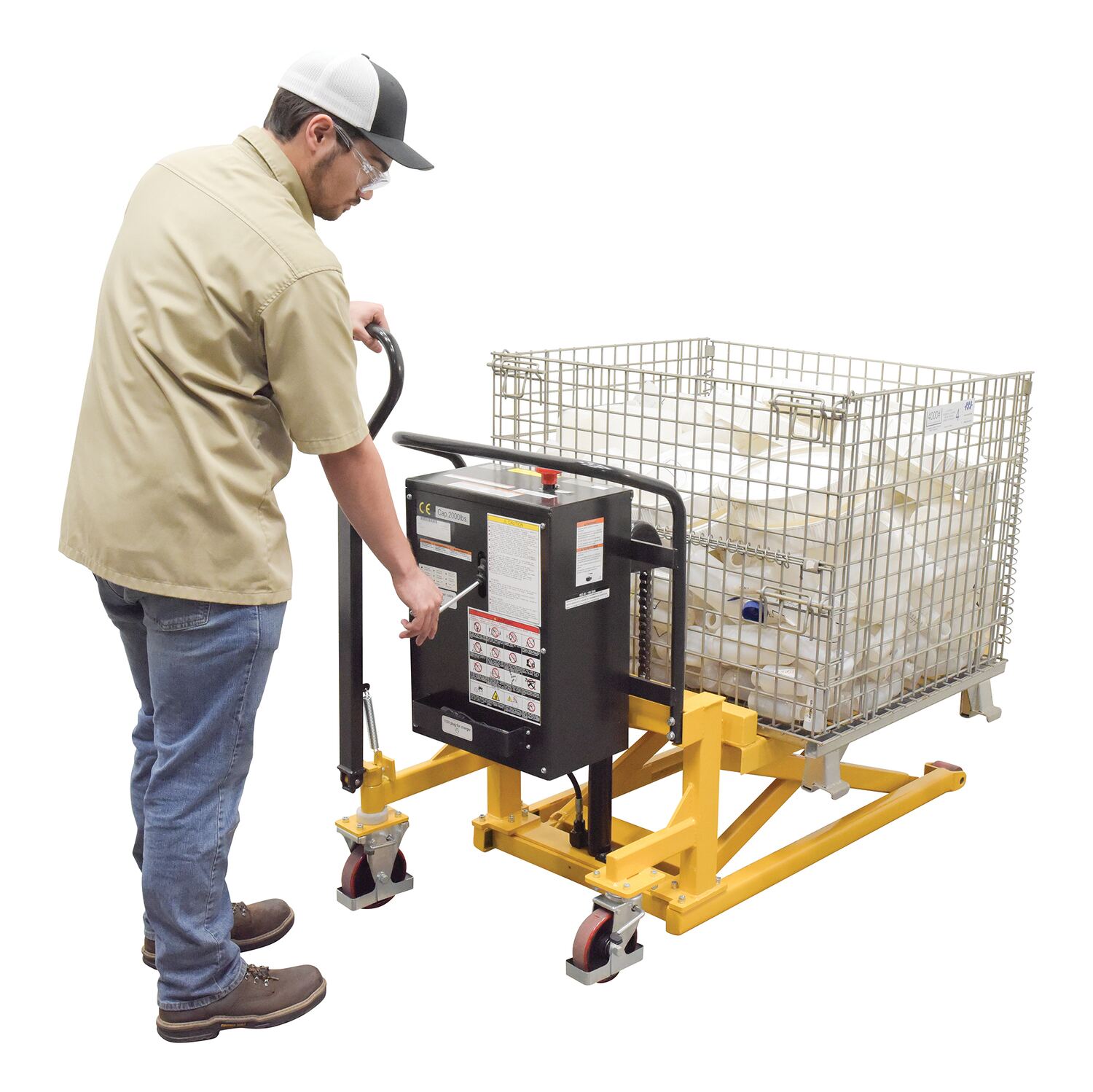

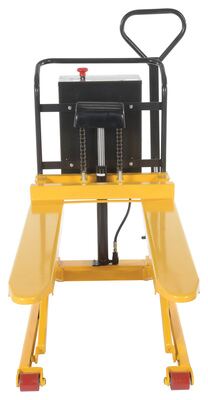

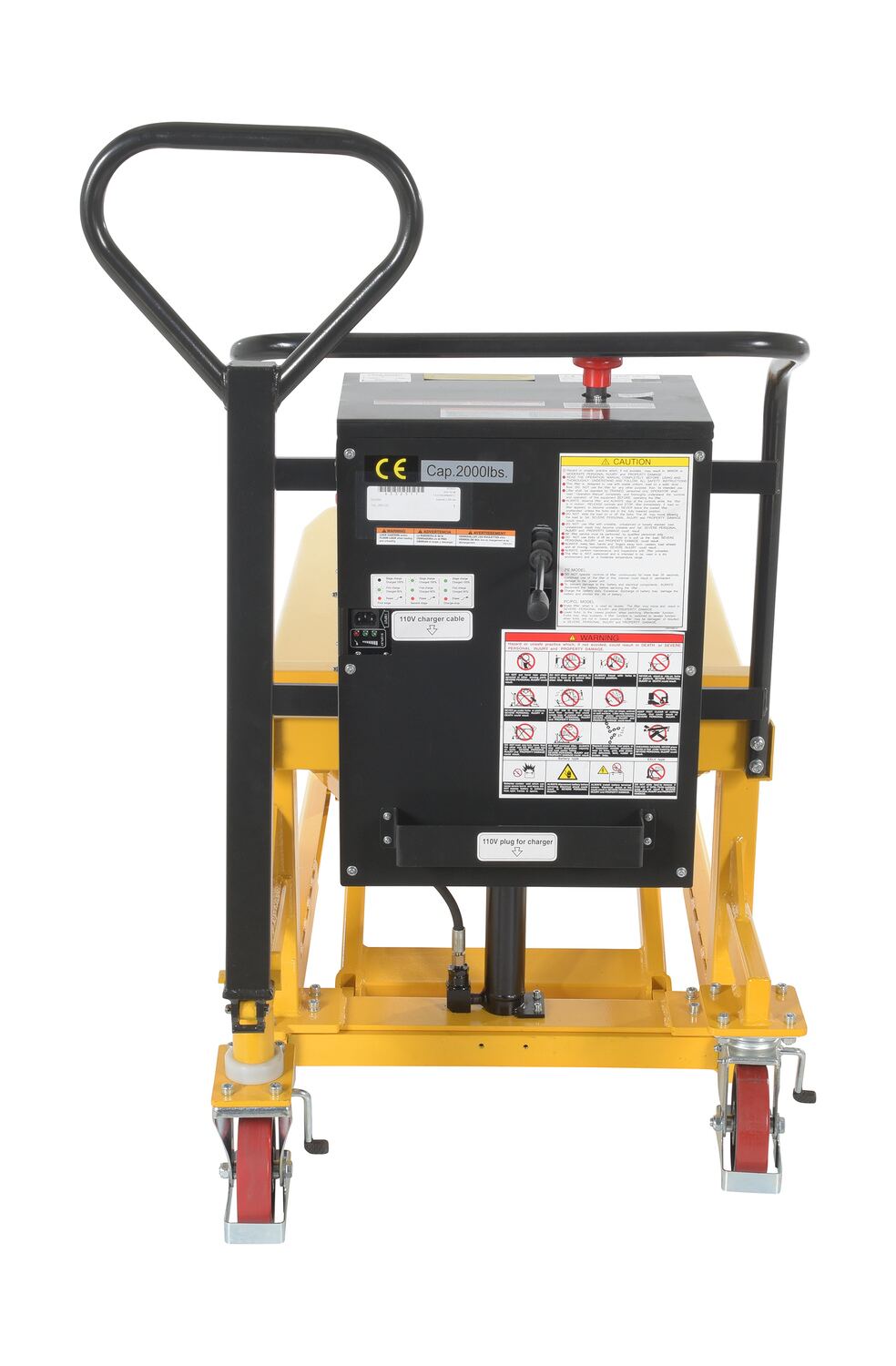

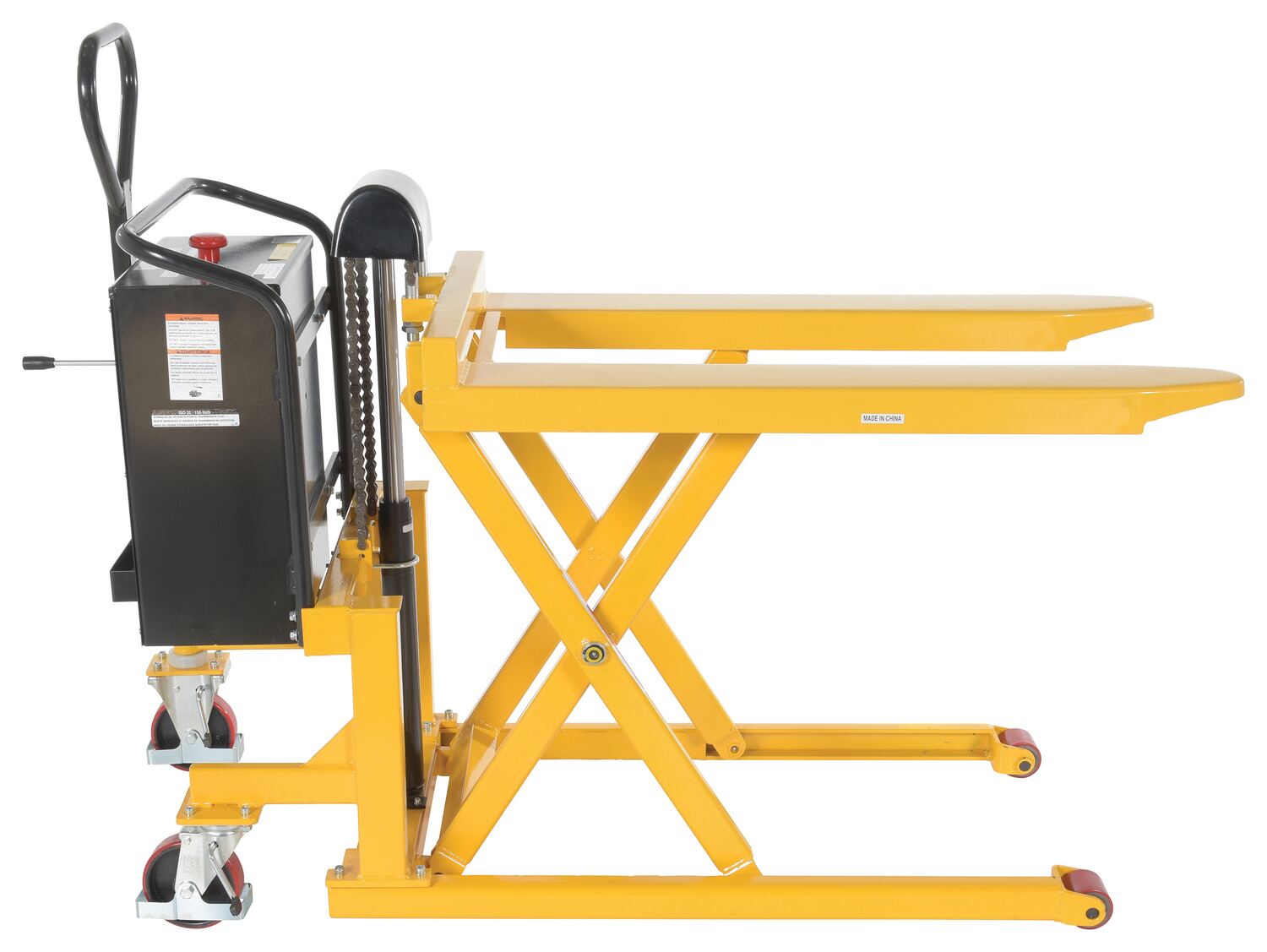

TAL-260-DC TAL-260-DC1 Year Limited WarrantySteel Tote-A-Load DC Powered Fork Size 27 In. x 43 In. 2,200 Lb. Capacity YellowUniform Capacity (lb.): 2200
Operation: 12 Volt DC Power
440
TAL-260-HD TAL-260-HD1 Year Limited WarrantySteel Tote-A-Load Ergonomic Foot Pump Hydraulic Power Fork Size 27 In. x 43 In. 2,200 Lb. Capacity YellowUniform Capacity (lb.): 2200
Operation: Foot Pump
385

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

TAL-220-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2200
Operation: 12 Volt DC Power
Uniform Capacity (lb.): 2200
Operation: 12 Volt DC Power

TAL-220-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2200
Operation: Foot Pump
Uniform Capacity (lb.): 2200
Operation: Foot Pump

TAL-260-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2200
Operation: 12 Volt DC Power
Uniform Capacity (lb.): 2200
Operation: 12 Volt DC Power

TAL-260-HD
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2200
Operation: Foot Pump
Uniform Capacity (lb.): 2200
Operation: Foot Pump
For More Details of the Option Click the Red Model Button

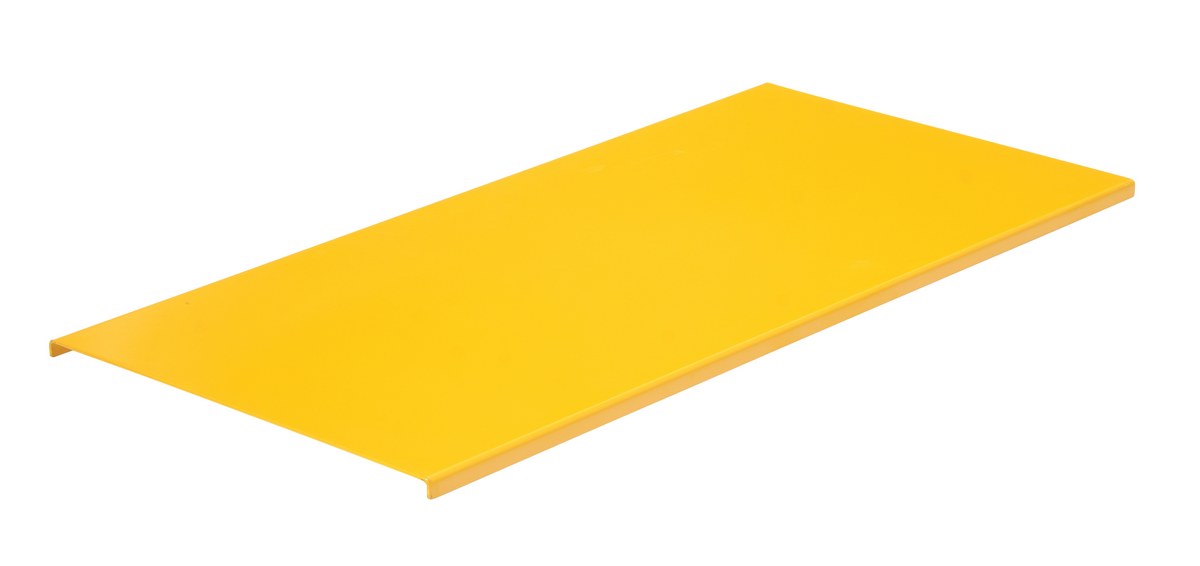

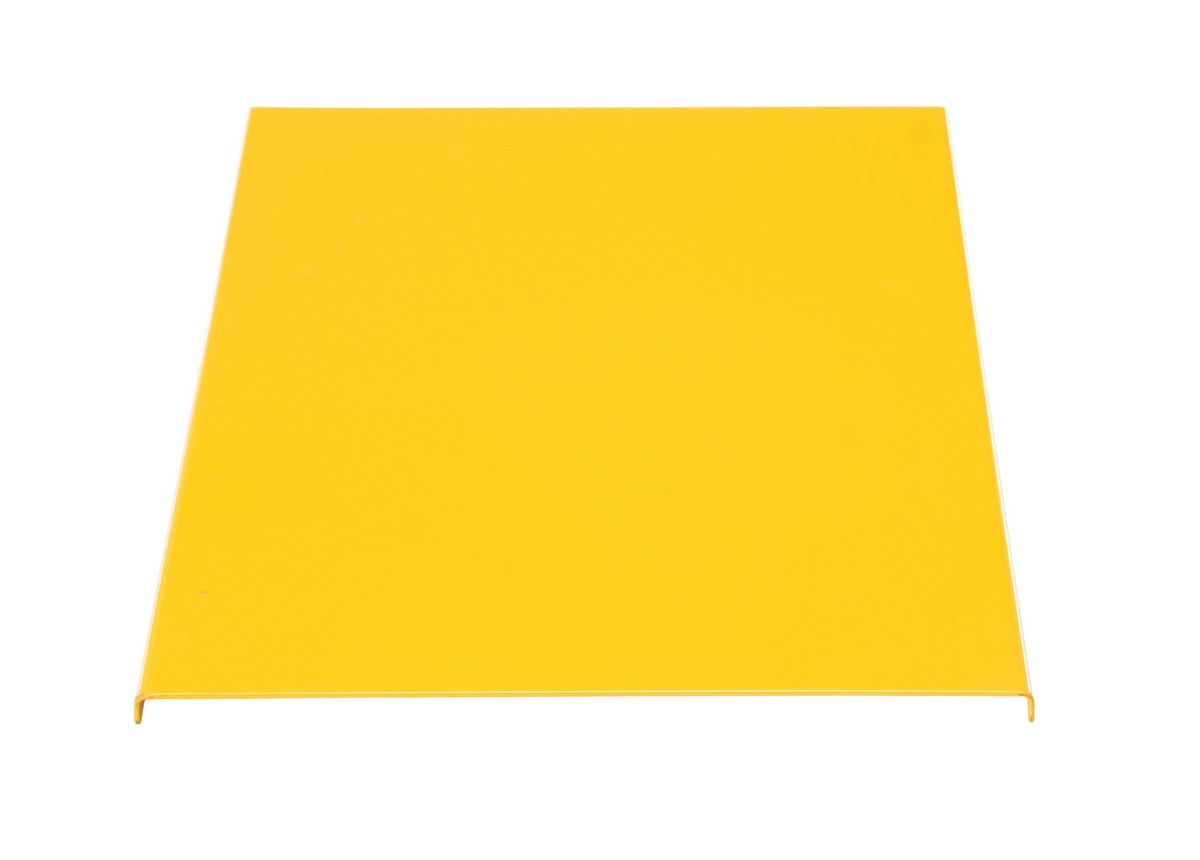

TAL-PLATE-21 TAL-PLATE-2130 Days Limited WarrantySteel Solid Platform 44 In. x 21-1/4 In. For Tote-A-Load Forks YellowWeight Capacity (lbs): 2200
Attachment Method: Bolt on
36

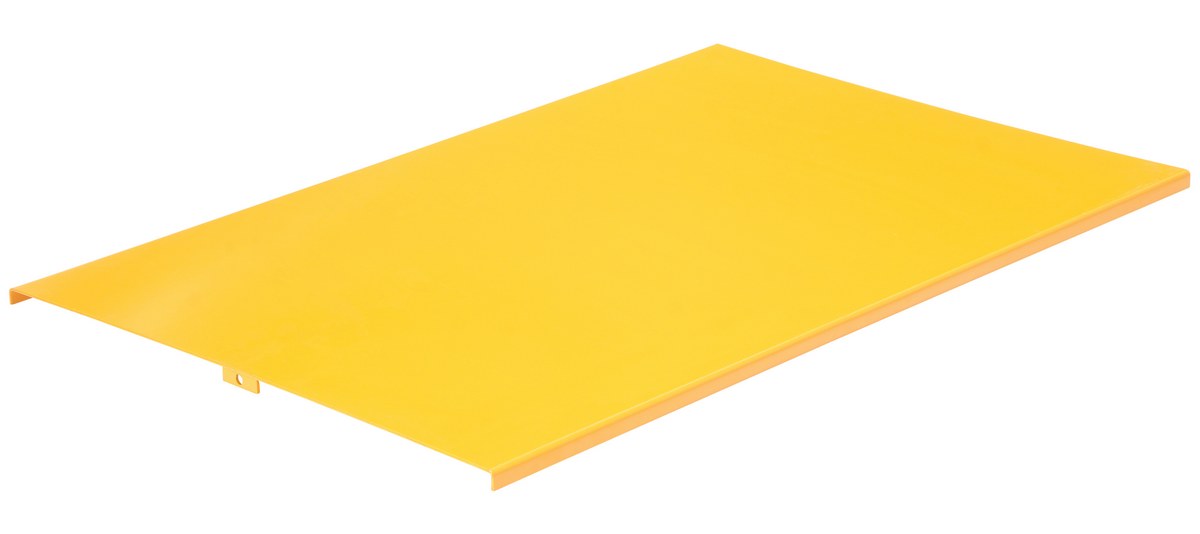

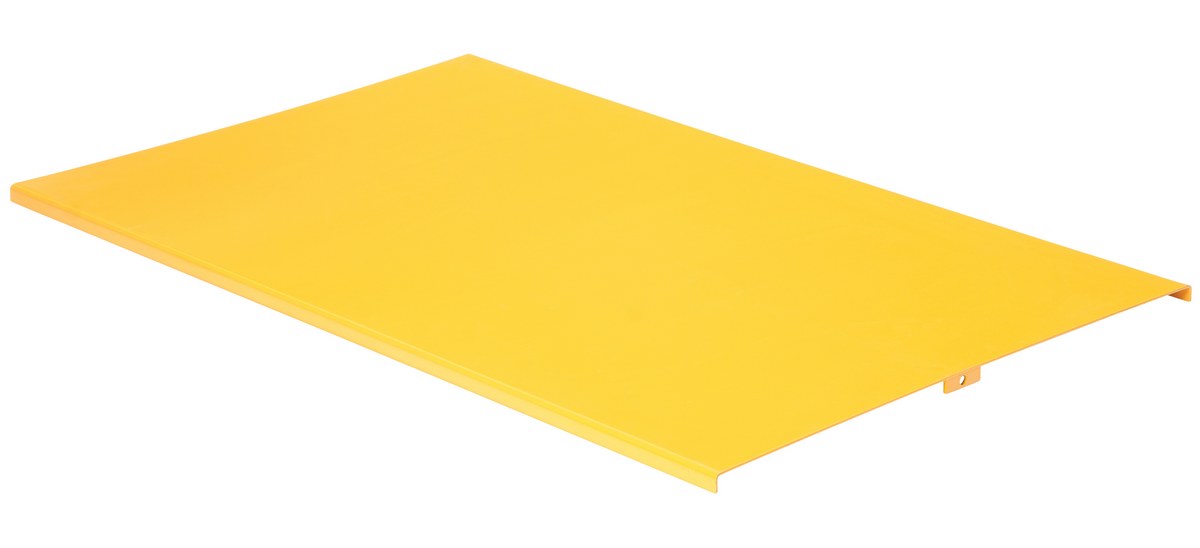

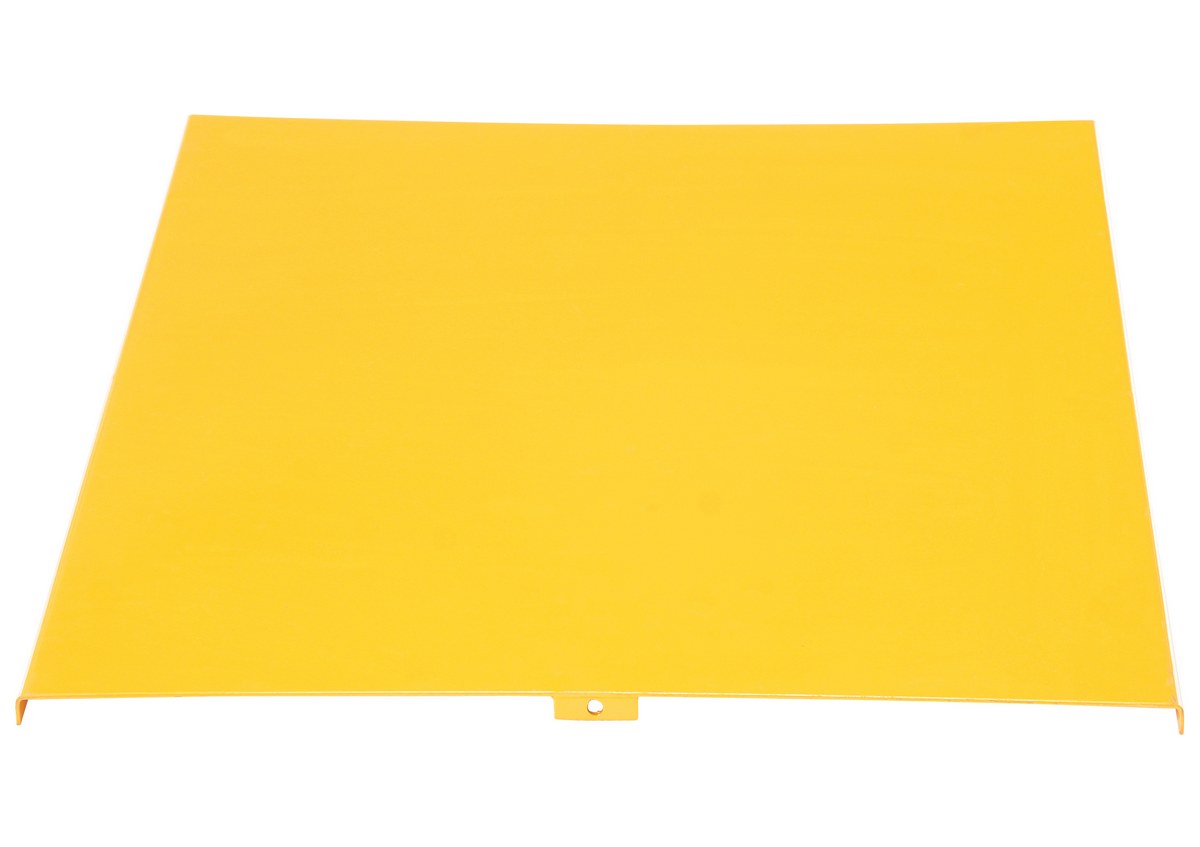

TAL-PLATE-27 TAL-PLATE-2730 Days Limited WarrantySteel Solid Platform 44 In. x 27-3/4 In. For Tote-A-Load Forks YellowWeight Capacity (lbs): 2200
Attachment Method: Bolt on
36

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Tote-A-Loads PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


TAL-220-DC

TAL-220-HD

TAL-260-DC

TAL-260-HD

TAL-PLATE-21

TAL-PLATE-27

SDS Sheets

Valve-Regulated Lead Acid Batteries SDS Sheet for: TAL-220-DC
Hydraulic Oil SDS Sheet for: TAL-220-DC
Hydraulic Oil SDS Sheet for: TAL-220-HD
Valve-Regulated Lead Acid Batteries SDS Sheet for: TAL-260-DC
Hydraulic Oil SDS Sheet for: TAL-260-DC
Hydraulic Oil SDS Sheet for: TAL-260-HD

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the thickness of the plate?

A: The plate is 1/8" thick.


Q: Can the TAL products be pushed while in the up position?

A: Yes they can be pushed when in the raised height position.
