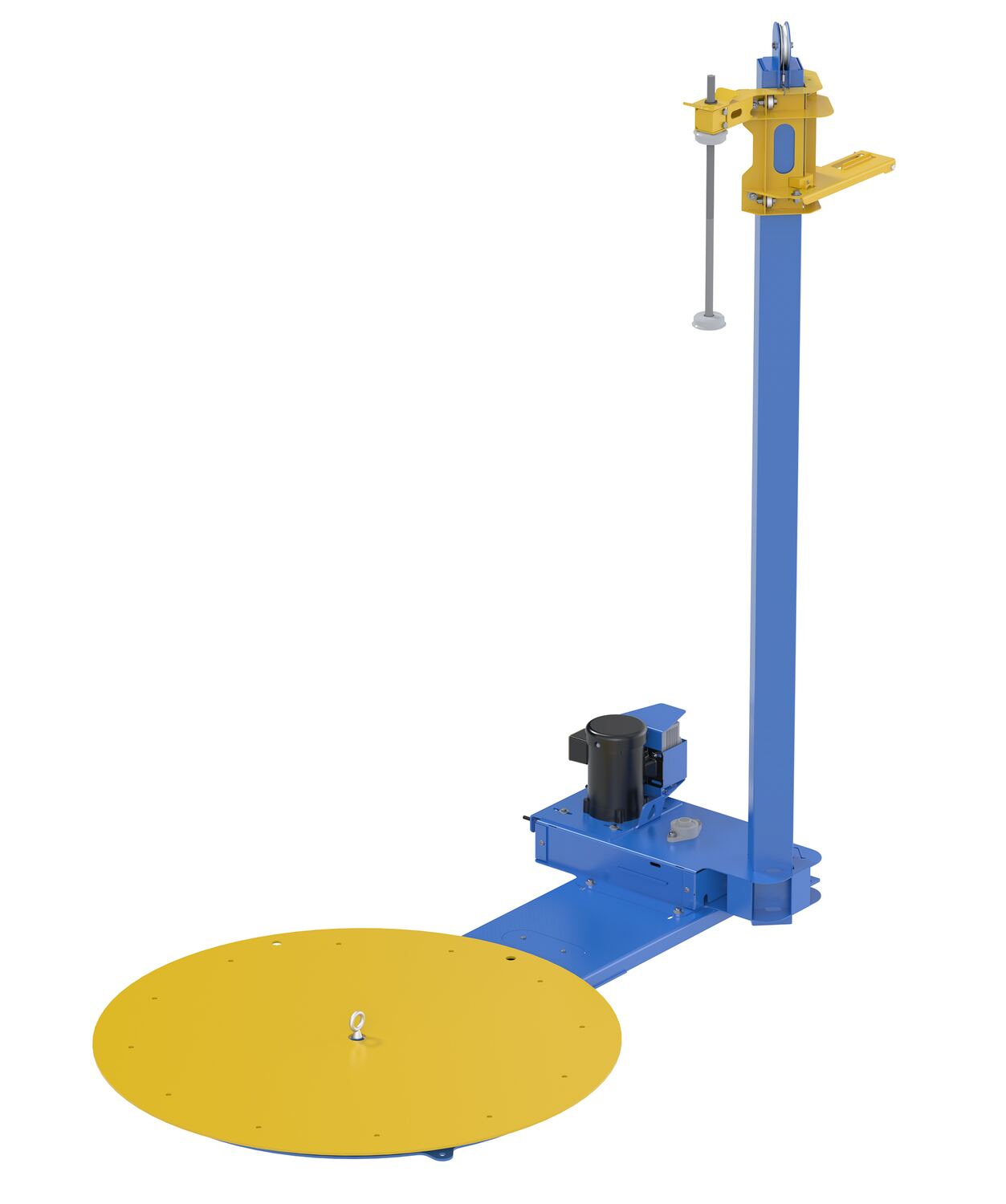

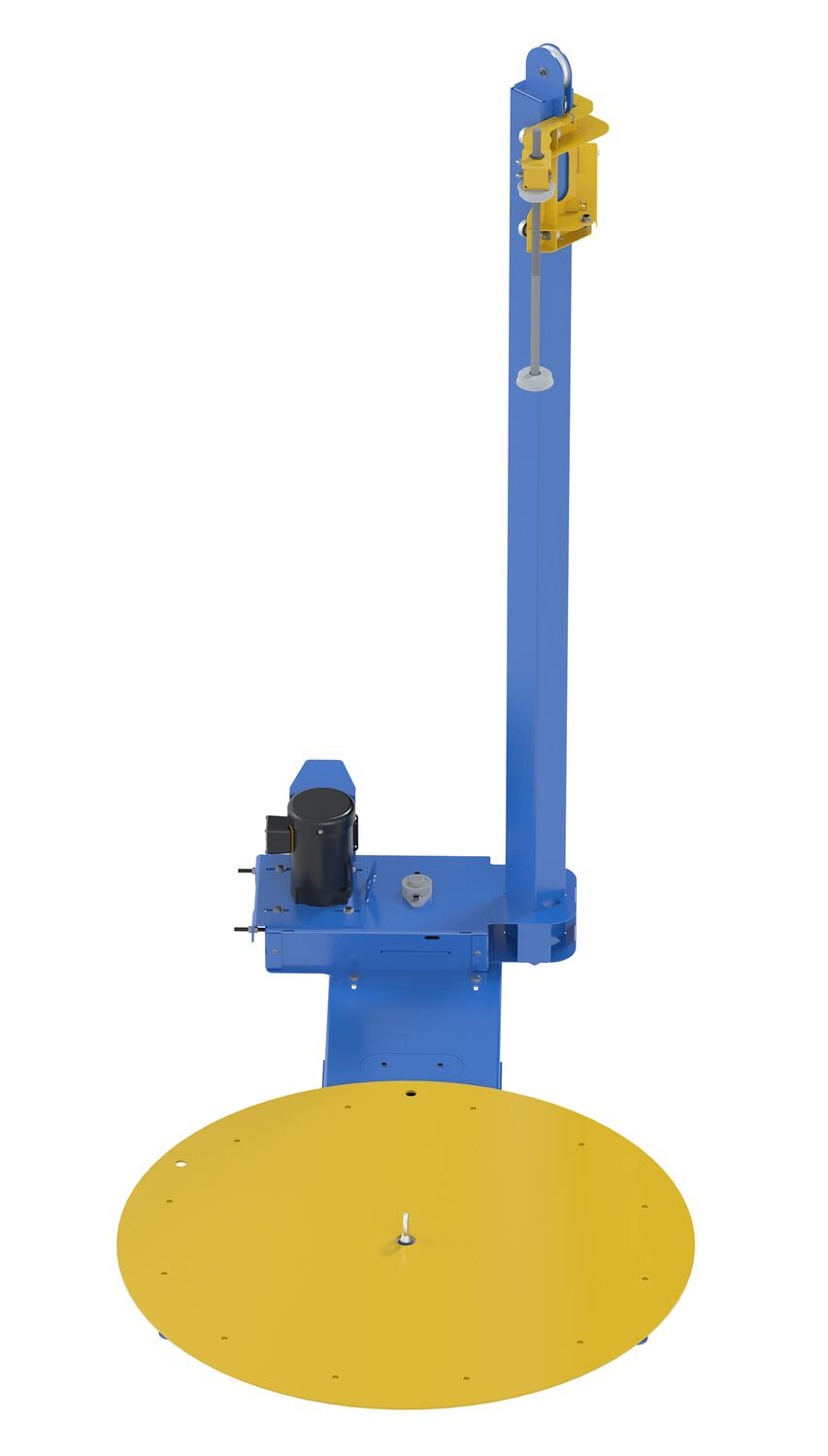

SWA-50_B.jpg SWA-50_A.jpg SWA-50_C.jpg
Powered Stretch Wrap Machines

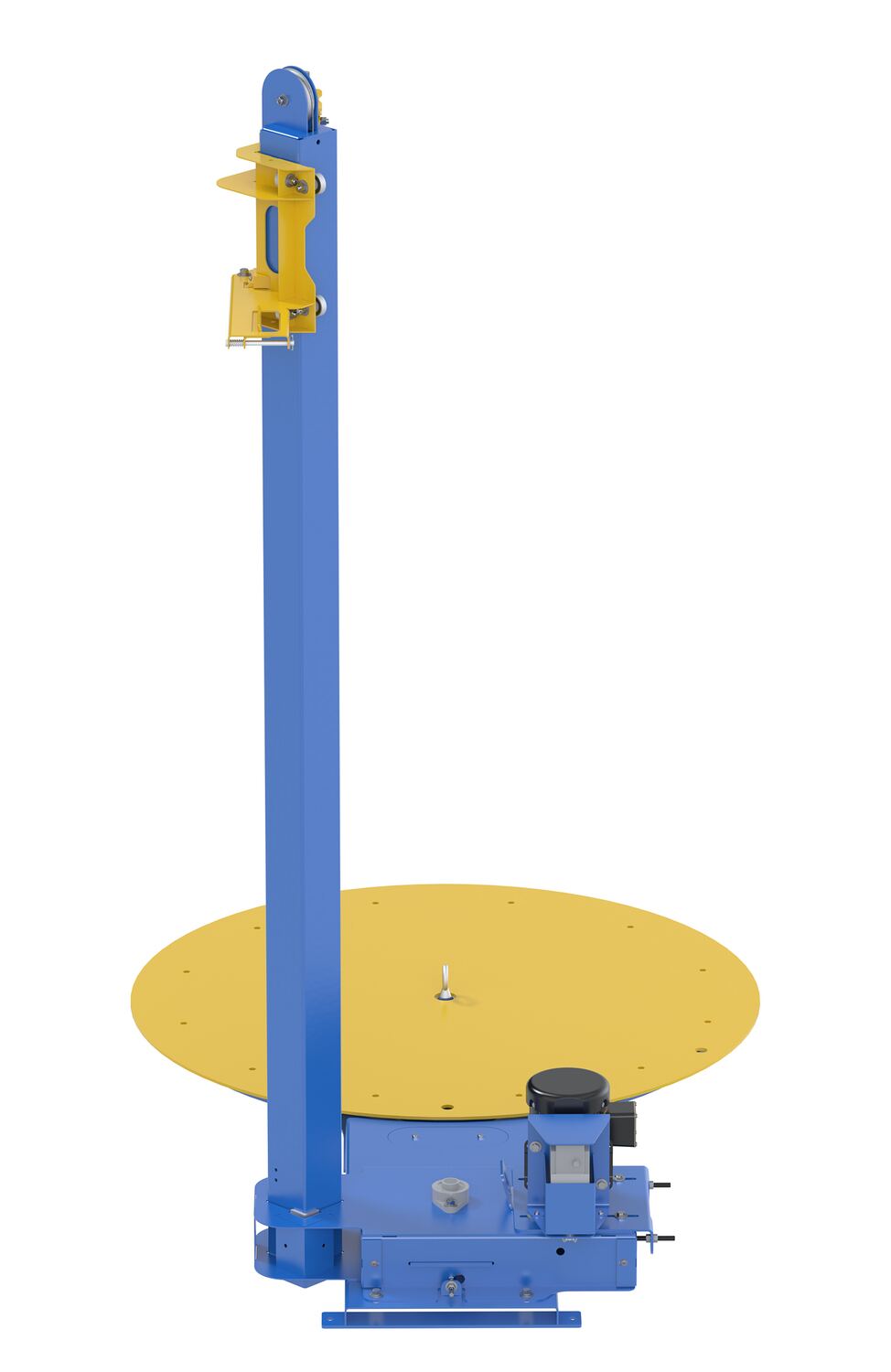

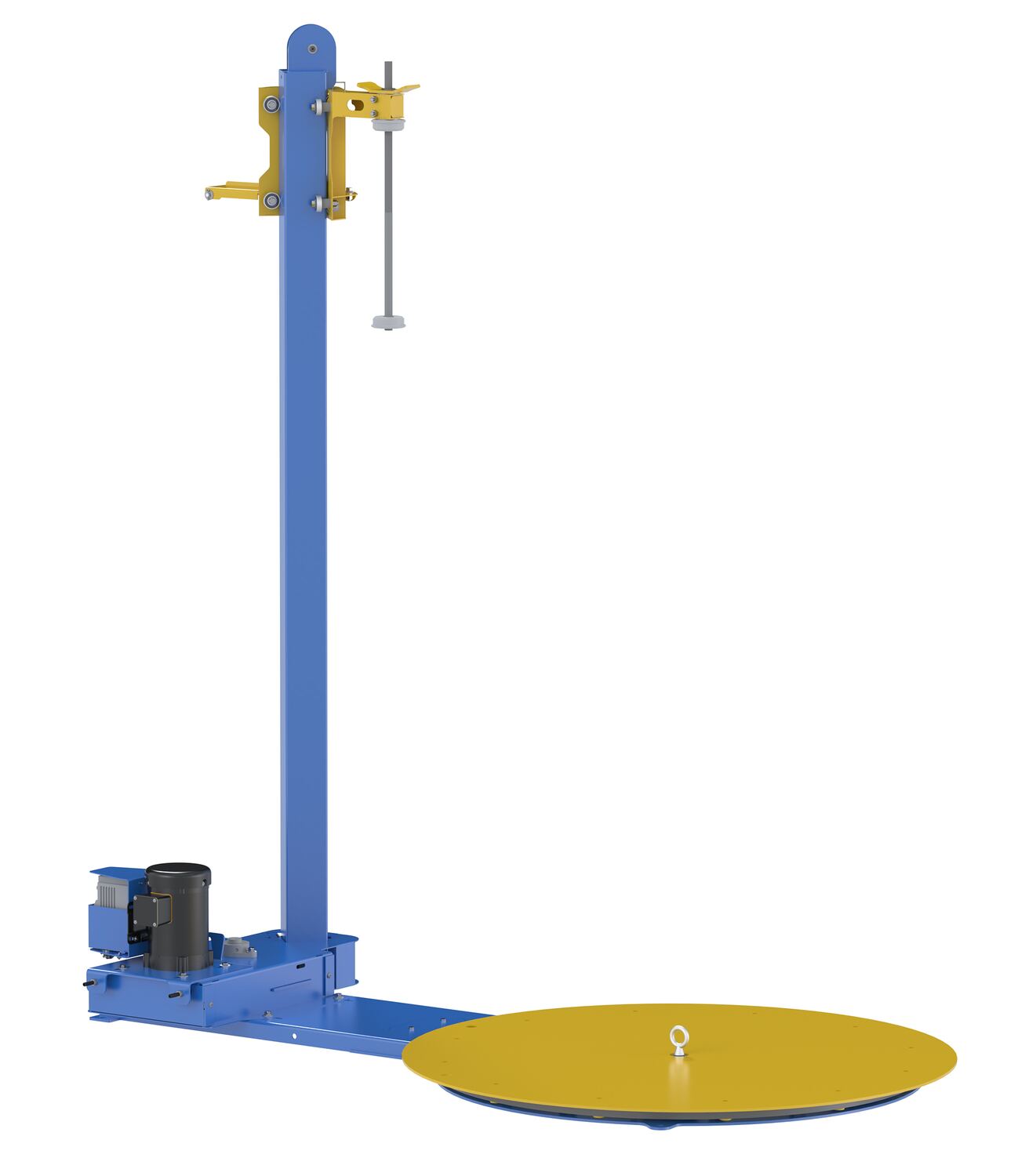

model: SWA-50



Featured Packaging Equipment


Pneumatic Strap Sealer
Medium Duty High Performance Auto-Wrap Stretch Wrap Machine
Strapping Carts
Stainless Steel Bench Scales - Legal for Trade
Low Profile Stretch Wrap Machine
Quick Wrapper
Aluminum Mini Carousels
Shrink Wrap Equipment
Polypropylene Woven Parts/Sand Bags
model chart

Product Family Overview

Print Friendly
Powered Stretch Wrap Machines
SERIES: SWA

The Powered Stretch Wrap Machine increases productivity in the shipping department or at the end of a production line. This unit is complete with a powered turntable (RPM is variable from 3 to 12) and counter-balanced stretch film mast. This Stretch Wrap Machine is easy to operate, simply depress the foot pedal and manually move the mast up and down. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. An easy-to-release, hand operated carriage-brake allows the carriage to move freely making film application fast and easy. The system will accept 10 (in.) to 20 (in.) material. The unit ships with mast disconnected-simply raise mast and clamp into place.

The standard manual film wrap delivery can be upgraded to 115V 1-phase AC powered mast option (PMO). The hand held control is used to raise/lower the film while the foot control is used to operate the turntable. Optional Approach Ramp allows the operator to load and unload the machine with a pallet truck.

  • Stretch wrap design increases shipping productivity
  • Simple depress foot pedal powers turntable
  • Manual mast allows user to wrap the needed areas
  • Steel construction provides a long lasting rugged use

The Powered Stretch Wrap Machine increases productivity in the shipping department or at the end of a production line. This unit is complete with a powered turntable (RPM is variable from 3 to 12) and counter-balanced stretch film mast. This Stretch Wrap Machine is easy to operate, simply depress the foot pedal and manually move the mast up and down. The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage assembly up and down on the vertical mast. An easy-to-release, hand operated carriage-brake allows the carriage to move freely making film application fast and easy. The system will accept 10 (in.) to 20 (in.) material. The unit ships with mast disconnected-simply raise mast and clamp into place.

The standard manual film wrap delivery can be upgraded to 115V 1-phase AC powered mast option (PMO). The hand held control is used to raise/lower the film while the foot control is used to operate the turntable. Optional Approach Ramp allows the operator to load and unload the machine with a pallet truck.

  • Stretch wrap design increases shipping productivity
  • Simple depress foot pedal powers turntable
  • Manual mast allows user to wrap the needed areas
  • Steel construction provides a long lasting rugged use

Other Stretch Wrap Machines

 Medium Duty Powered Stretch Wrap Machines Medium Duty High Performance Auto-Wrap Stretch Wrap Machine Powered Stretch Wrap Machines Low Profile Stretch Wrap Machine

Additional Models In This Family
view entire Image Gallery

SWA-50-R-4848

SWA-50-R-4848

SWA-50

SWA-50

SWA-70

SWA-70

SWA-50-R-4848

SWA-50-R-4848

SWA-5070LP-PMO-RF

SWA-5070LP-PMO-RF

SWA-5070LP-PMO

SWA-5070LP-PMO

SWA-5070LP-PMO-RF

SWA-5070LP-PMO-RF

SWA-5070LP-PMO

SWA-5070LP-PMO

SWA-CG

SWA-CG

SWA-70

SWA-70

SWA-5070LP-PMO

SWA-5070LP-PMO

SWA-5070LP-PMO-RF

SWA-5070LP-PMO-RF

SWA-COUNT

SWA-COUNT

SWA-COUNT

SWA-COUNT

SWA-5070LP-PMO-RF

SWA-5070LP-PMO-RF

Applications



Hotels

Trucking Companies

Warehouses

Train Stations

Superstores

Moving Companies

Postal Services

Packaging Areas

Loading Docks
model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
SWA-50 POPULAR SWA-501 Year Limited WarrantySteel Semi-Automatic Stretch Wrap Machine 50 In. Turntable Diameter 4,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 4,000
Turntable Diameter (in.): 50		615

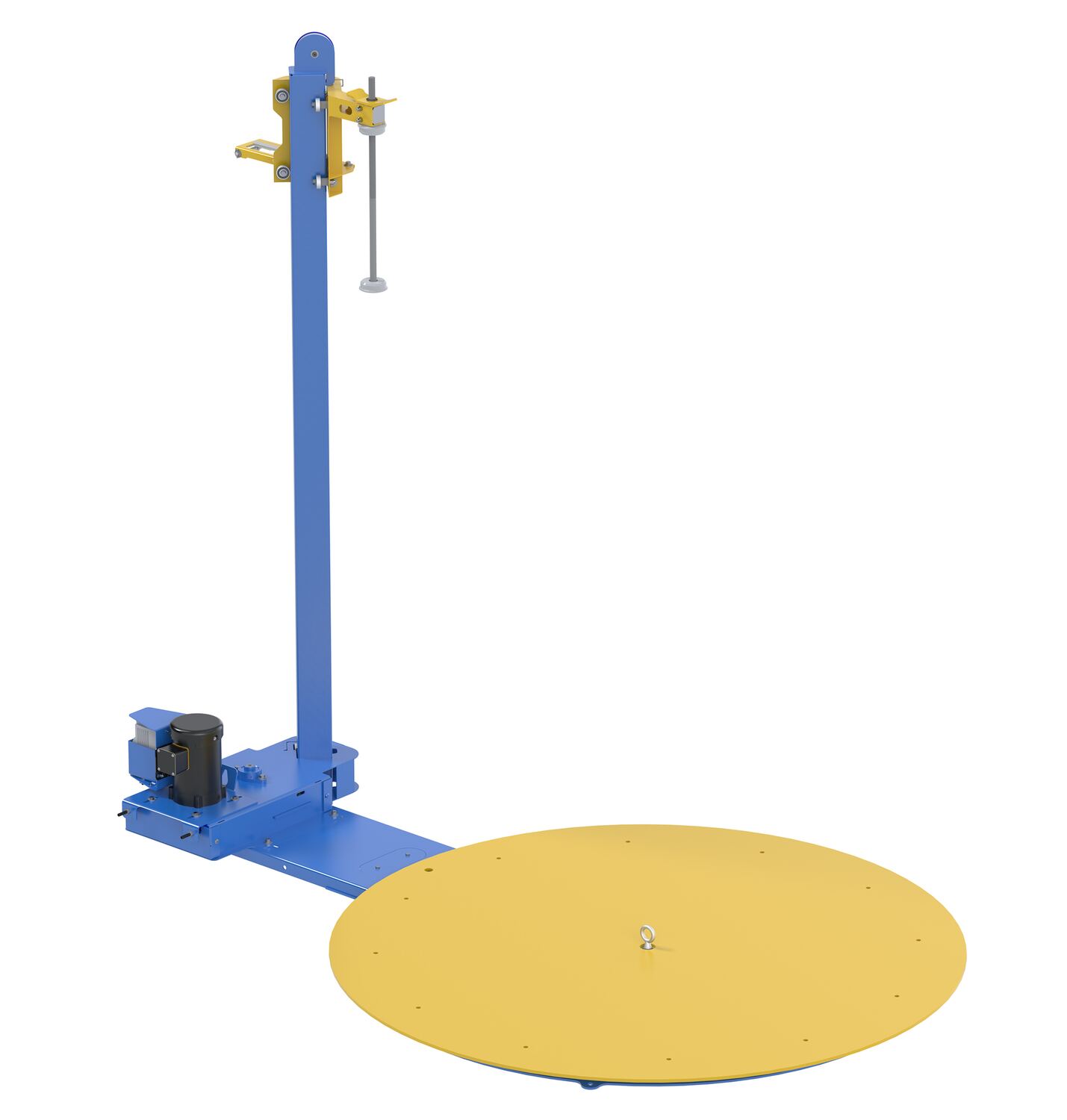

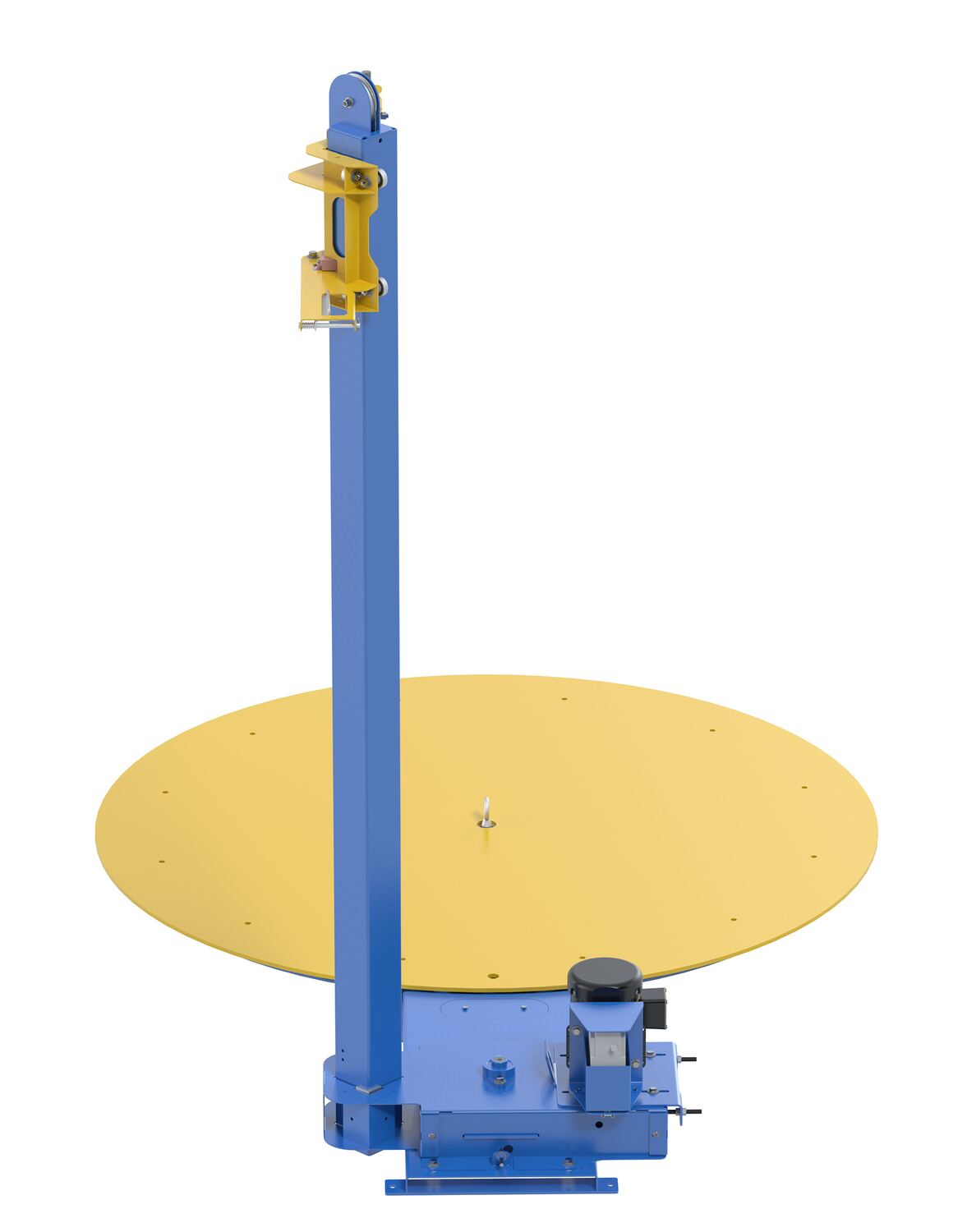

SWA-70 SWA-701 Year Limited WarrantySteel Semi-Automatic Stretch Wrap Machine 70 In. Turntable Diameter 4,000 Lb. Capacity Blue / YellowUniform Capacity (lb.): 4,000
Turntable Diameter (in.): 70		985

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SWA-50
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 50
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 50

SWA-70
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 70
Uniform Capacity (lb.): 4,000
Turntable Diameter (in.): 70
For More Details of the Option Click the Red Model Button
PMO-VCC-208/230-1 90 Days Limited WarrantyFactory Installed Voltage Change 208-230 Volt Single Phase For Power Mast UnitsDC Voltage: 208/230
Phase: 1
PMO-VCC-208/230-3 90 Days Limited WarrantyFactory Installed Voltage Change 208-230 Volt Three Phase For Power Mast UnitsDC Voltage: 208/230
Phase: 3
PMO-VCC-460-3 90 Days Limited WarrantyFactory Installed Voltage Change 460 Volt Three Phase For Power Mast UnitsDC Voltage: 460
Phase: 3

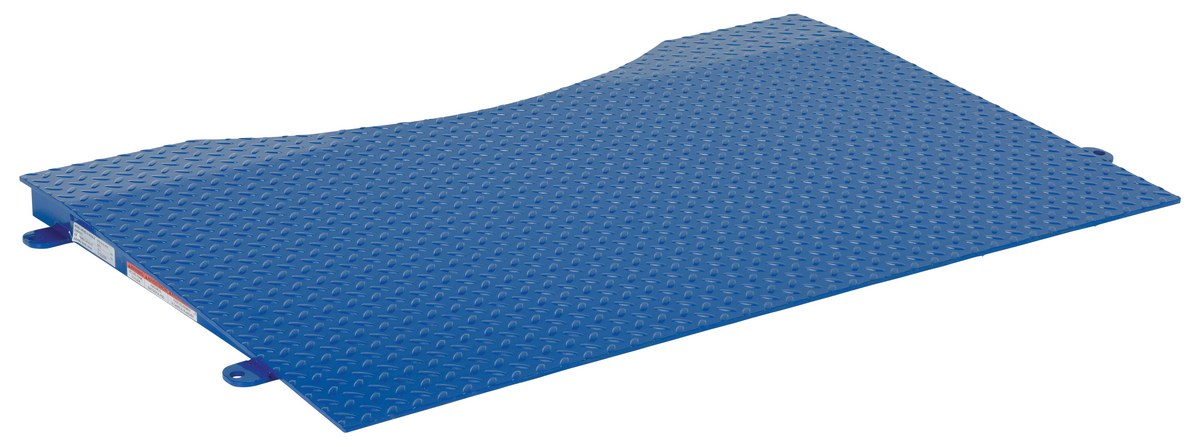

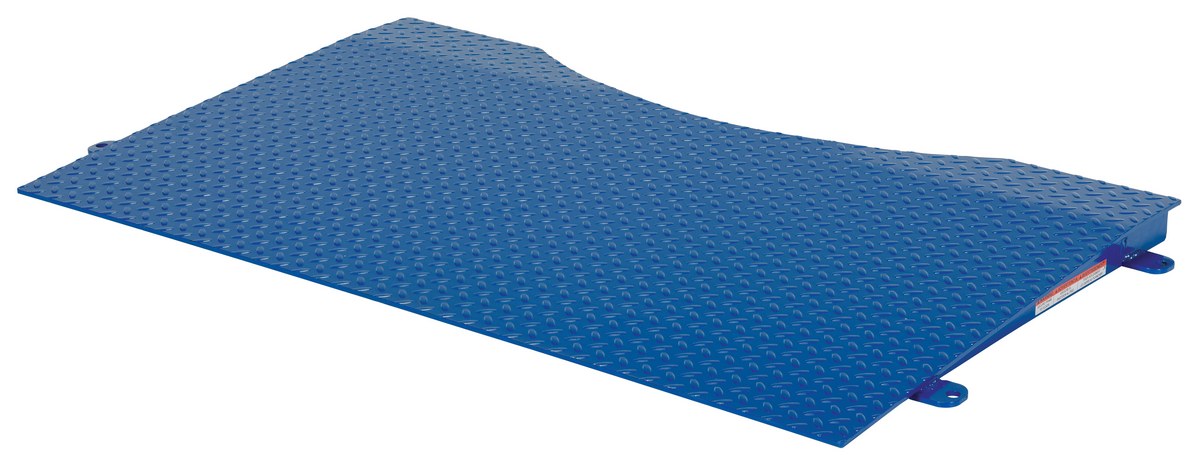

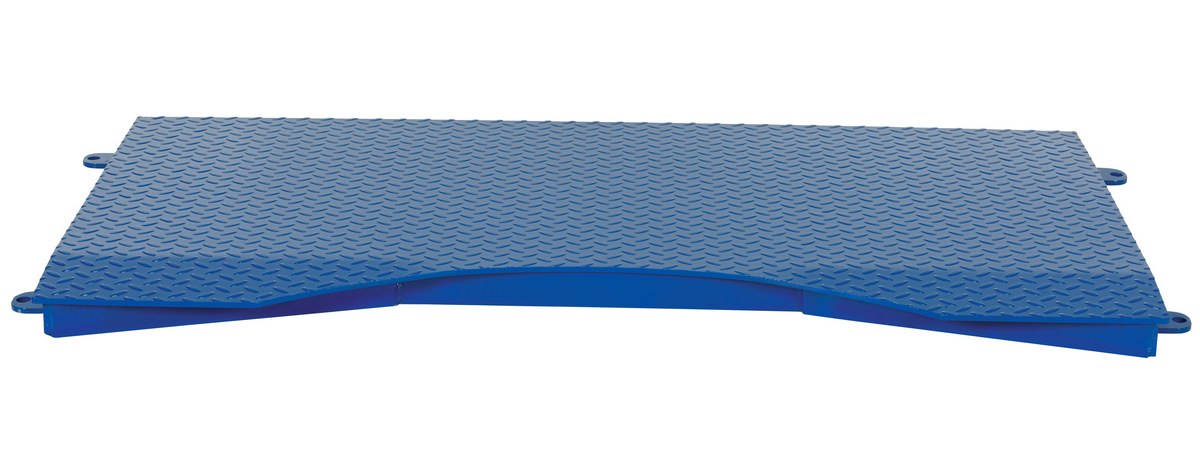

SWA-50-R-4848 SWA-50-R-484890 Days Limited WarrantySteel Approach Ramp 48 In. x 48 In. 4,000 Lb. Capacity Blue For Use With Model SWA-50Maximum Capacity (lb.): 4000
Usable Width (in.): 48		196

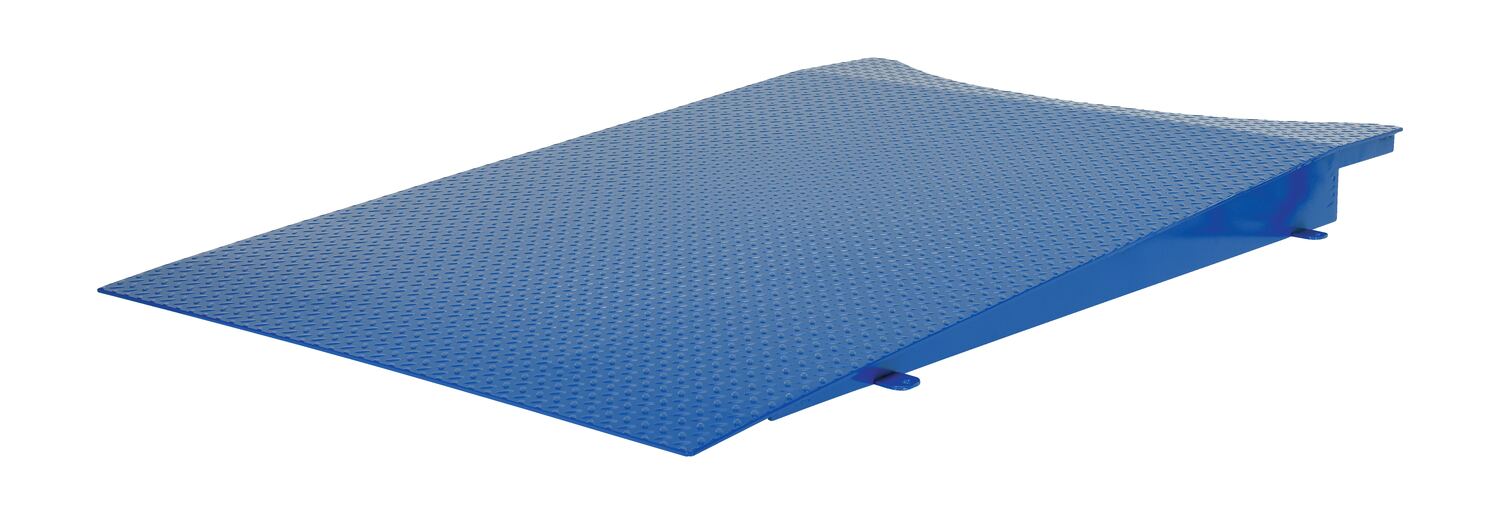

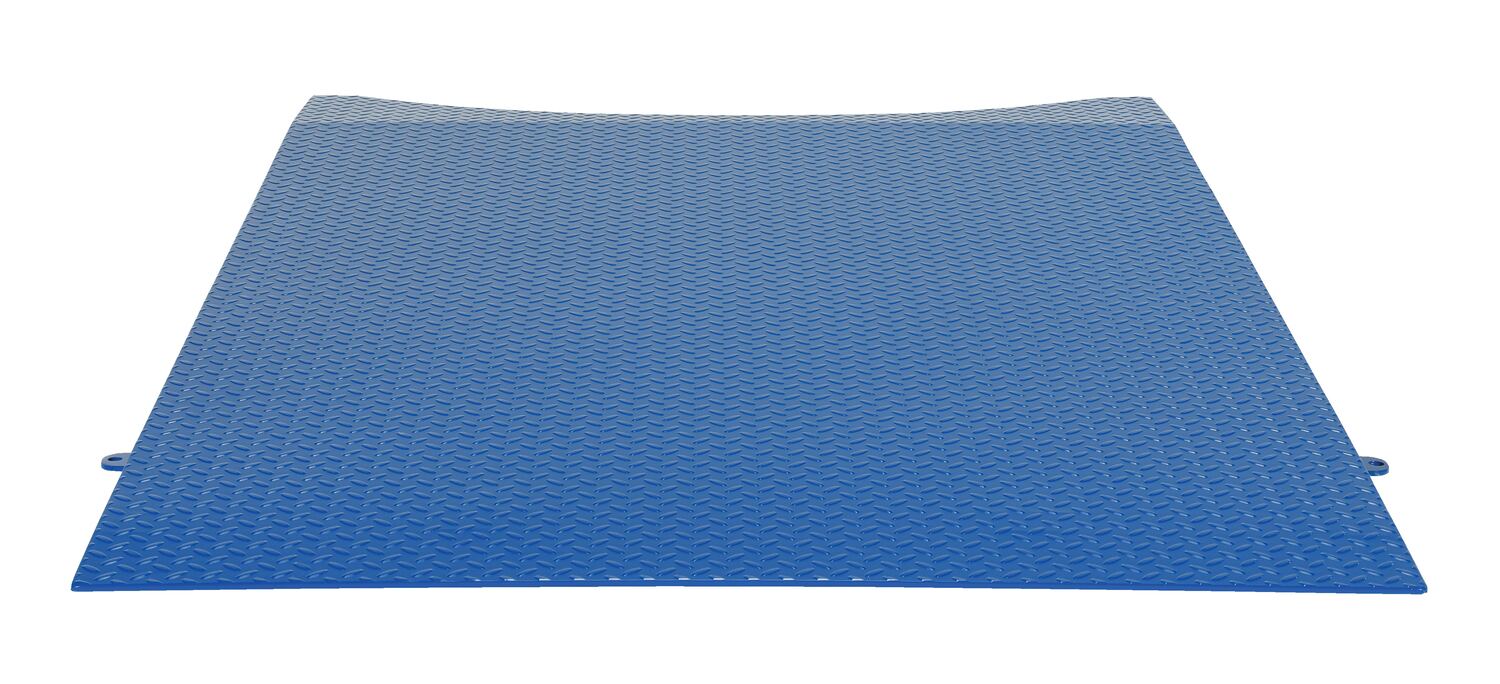

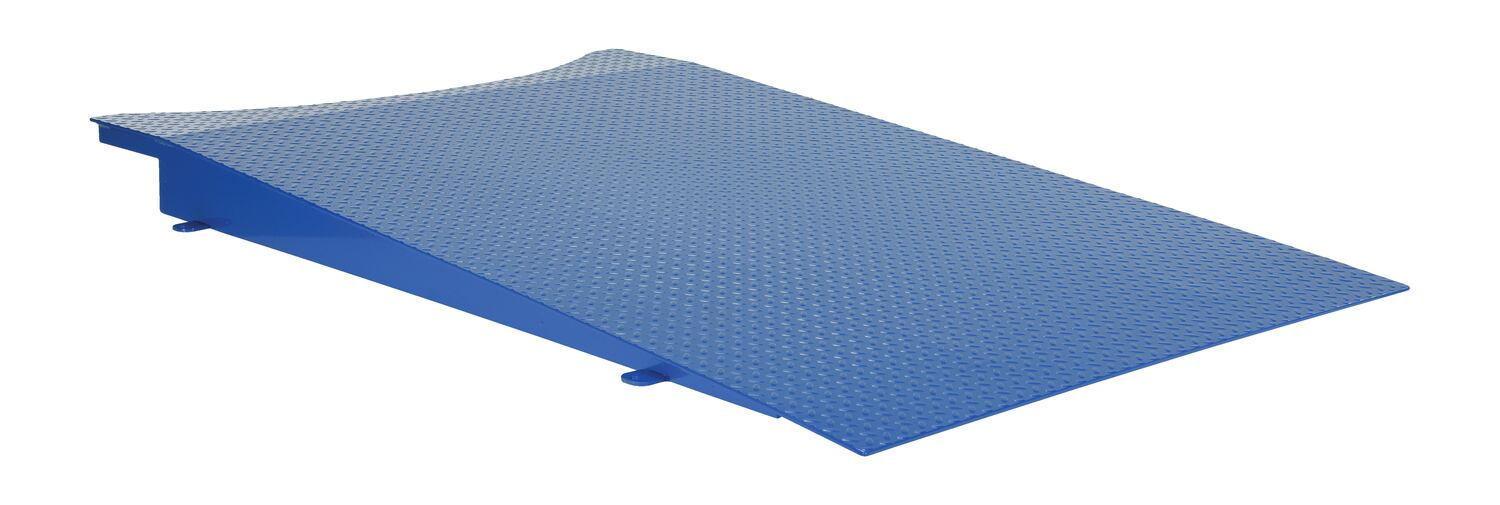

SWA-50-R-4860-SCL SWA-50-R-4860-SCL90 Days Limited WarrantySteel Approach Ramp 48 In. x 60 In. 4,000 Lb. Capacity Blue For Use With Model SWA-50 and SWA-50-ScaleMaximum Capacity (lb.): 4000
Usable Width (in.): 48		346
SWA-50-SCALE SWA-50-SCALE1 Year Limited WarrantyFactory Installed Digital Stretch Wrap Scale For Use With SWA-50Uniform Capacity (lb.): 5,000
Scale Height (in.): 3-1/2		680

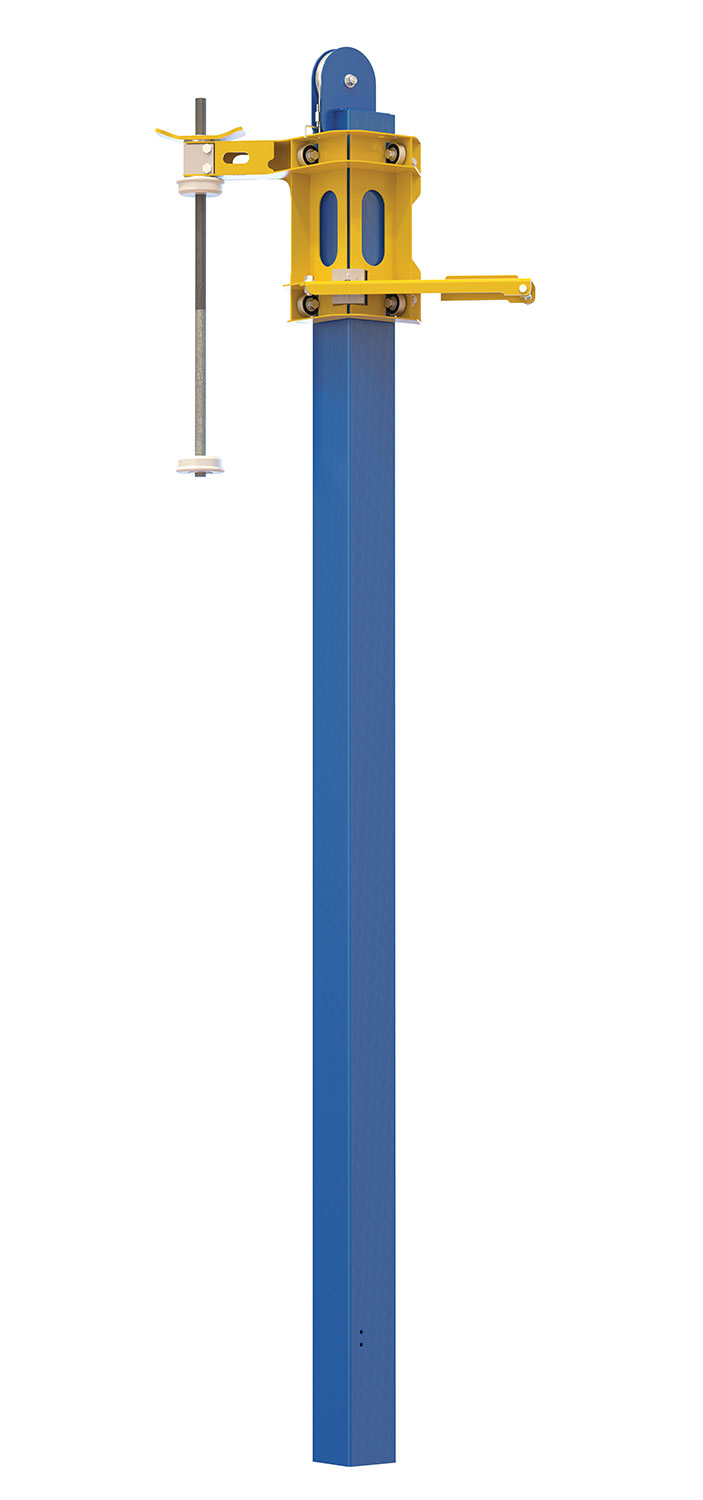

SWA-5070LP-M-RF SWA-5070LP-M-RF1 Year Limited WarrantySteel Manual Mast 84 In. Wrap Height Blue / Yellow For Use With Model SWA-50Wrap Height (in.): 84
153

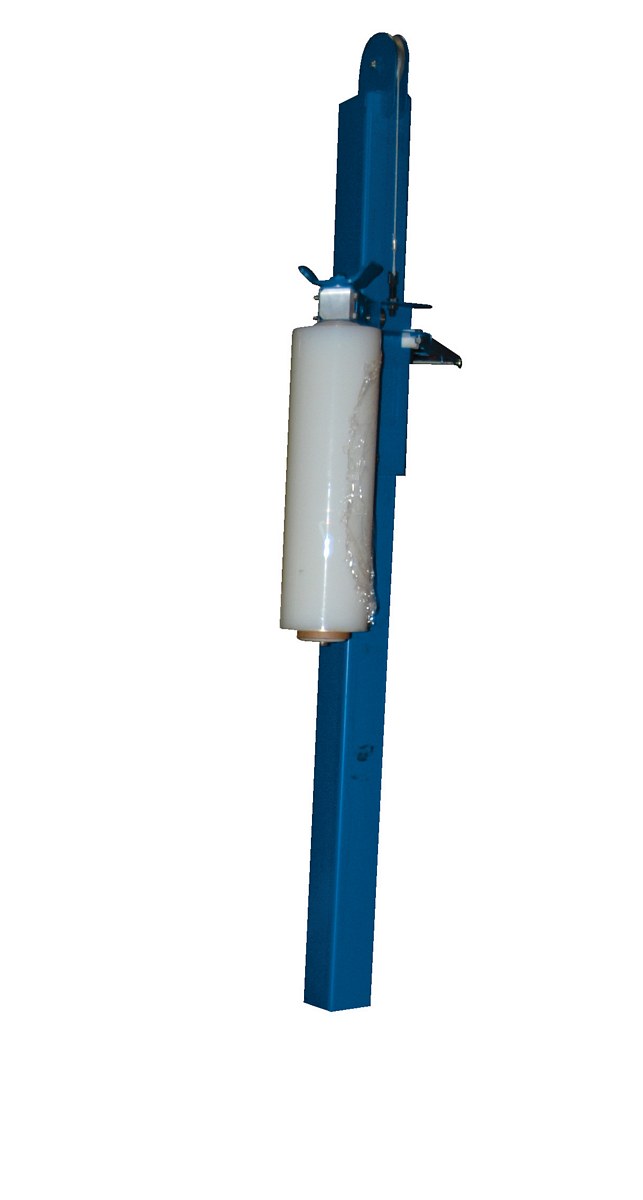

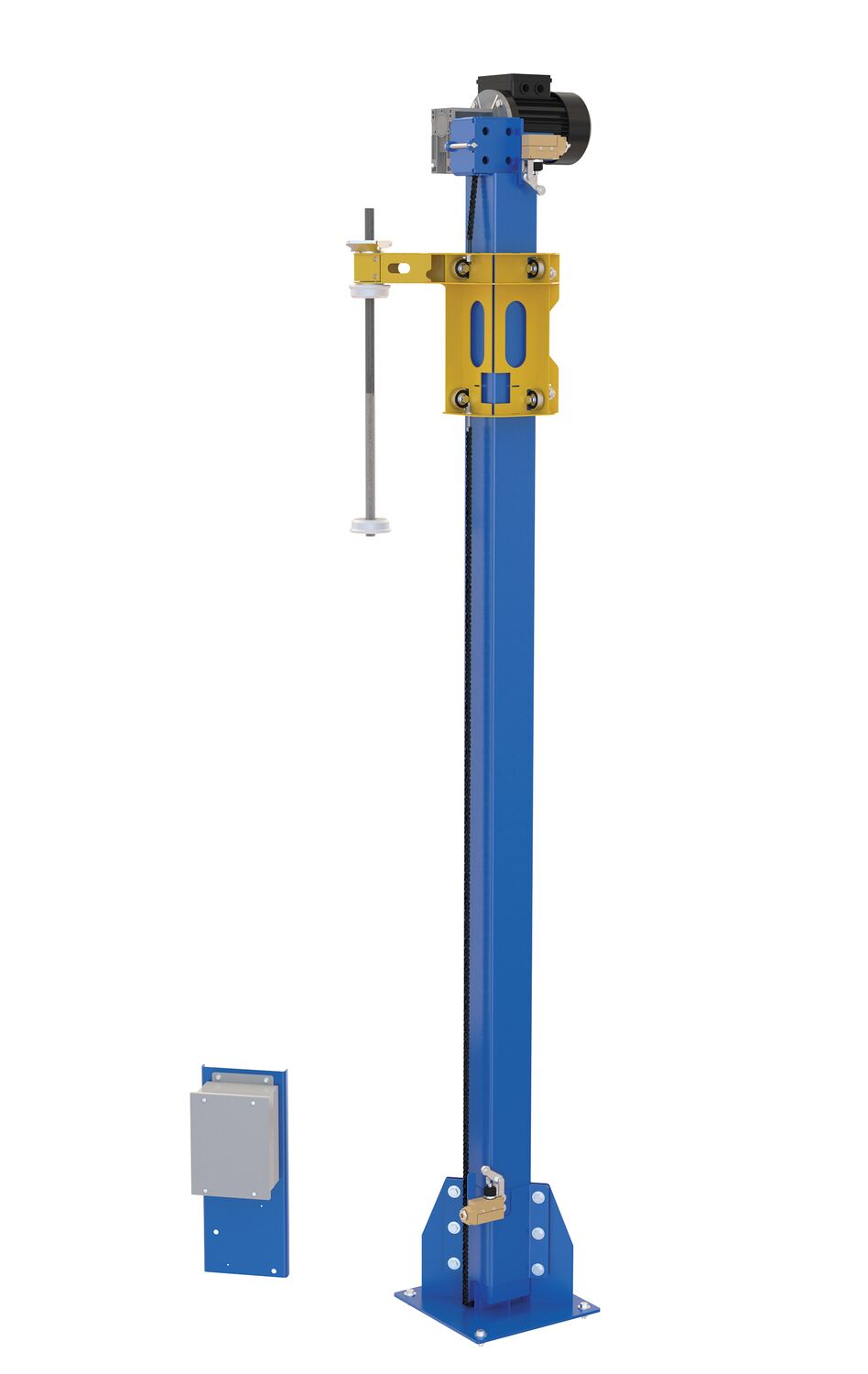

SWA-5070LP-PMO SWA-5070LP-PMO1 Year Limited WarrantyFactory Installed AC Powered 115 Volt Single Phase Unit For Stretch Wrap Machine SWA-50 And SWA-70Wrap Height (in.): 80-9/16
Motor Voltage/Phase: 115/1		183

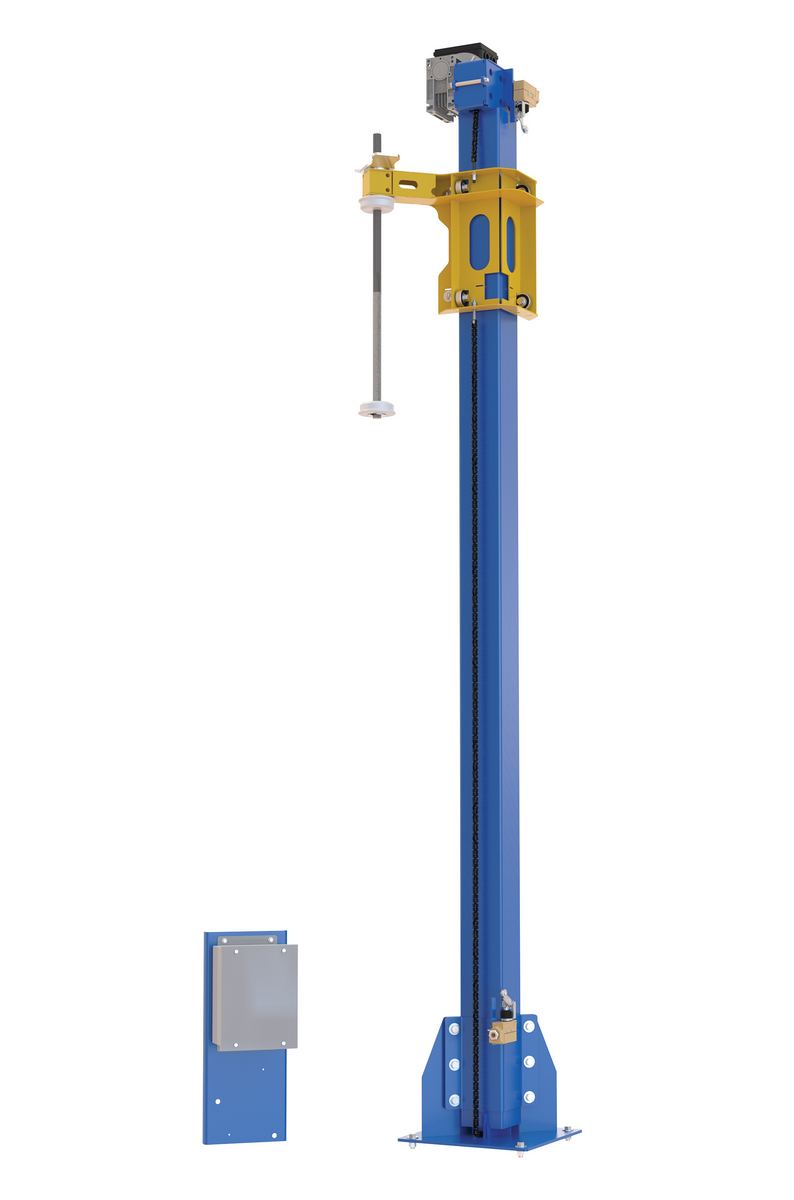

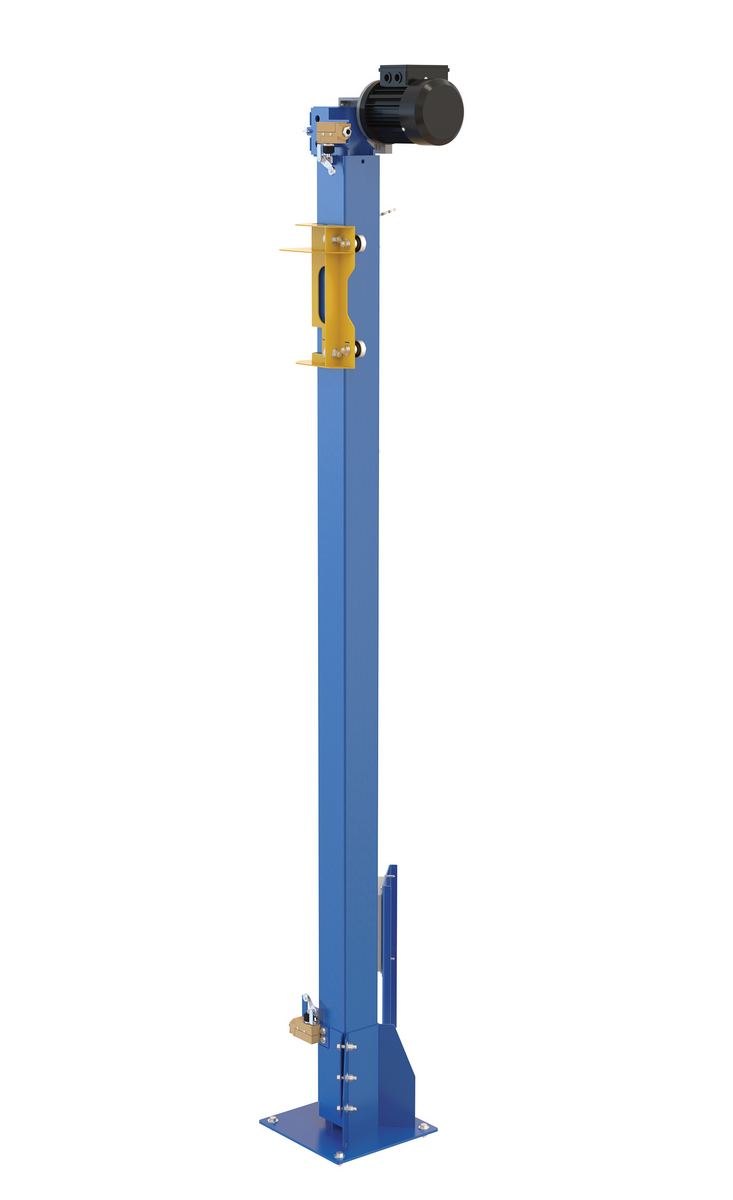

SWA-5070LP-PMO-RF SWA-5070LP-PMO-RF1 Year Limited WarrantySteel Retrofit Power Mast Wrap Machine 80-9/16 In. Wrap Height Blue / Yellow For Use With Model SWA-50Wrap Height (in.): 80-9/16
Motor Voltage/Phase: 115/1		183

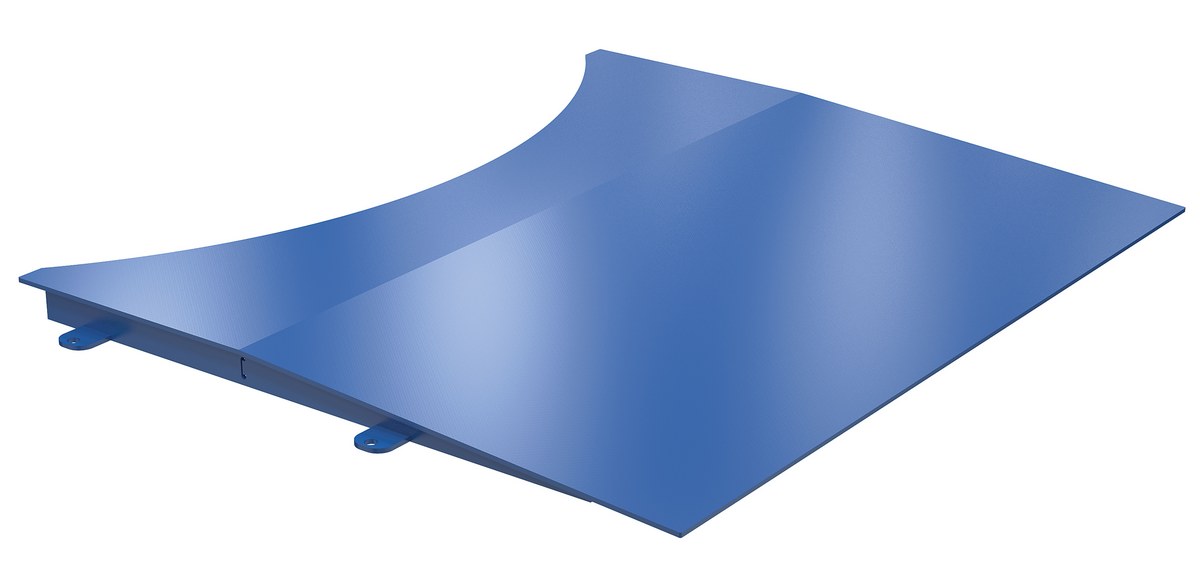

SWA-70-R-4848 SWA-70-R-484890 Days Limited WarrantySteel Approach Ramp 48 In. x 48 In. 4,000 Lb. Capacity Blue For Use With Model SWA-70Maximum Capacity (lb.): 4000
Usable Width (in.): 48		200

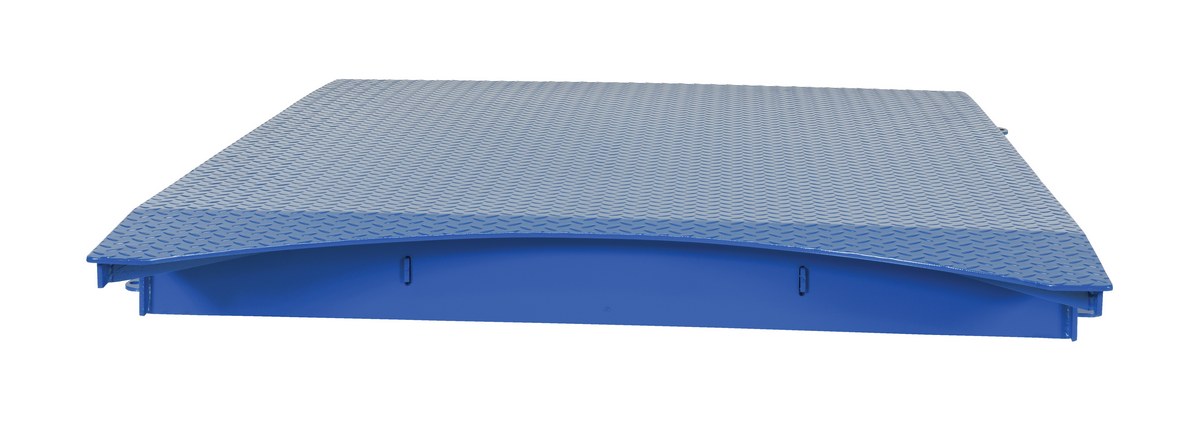

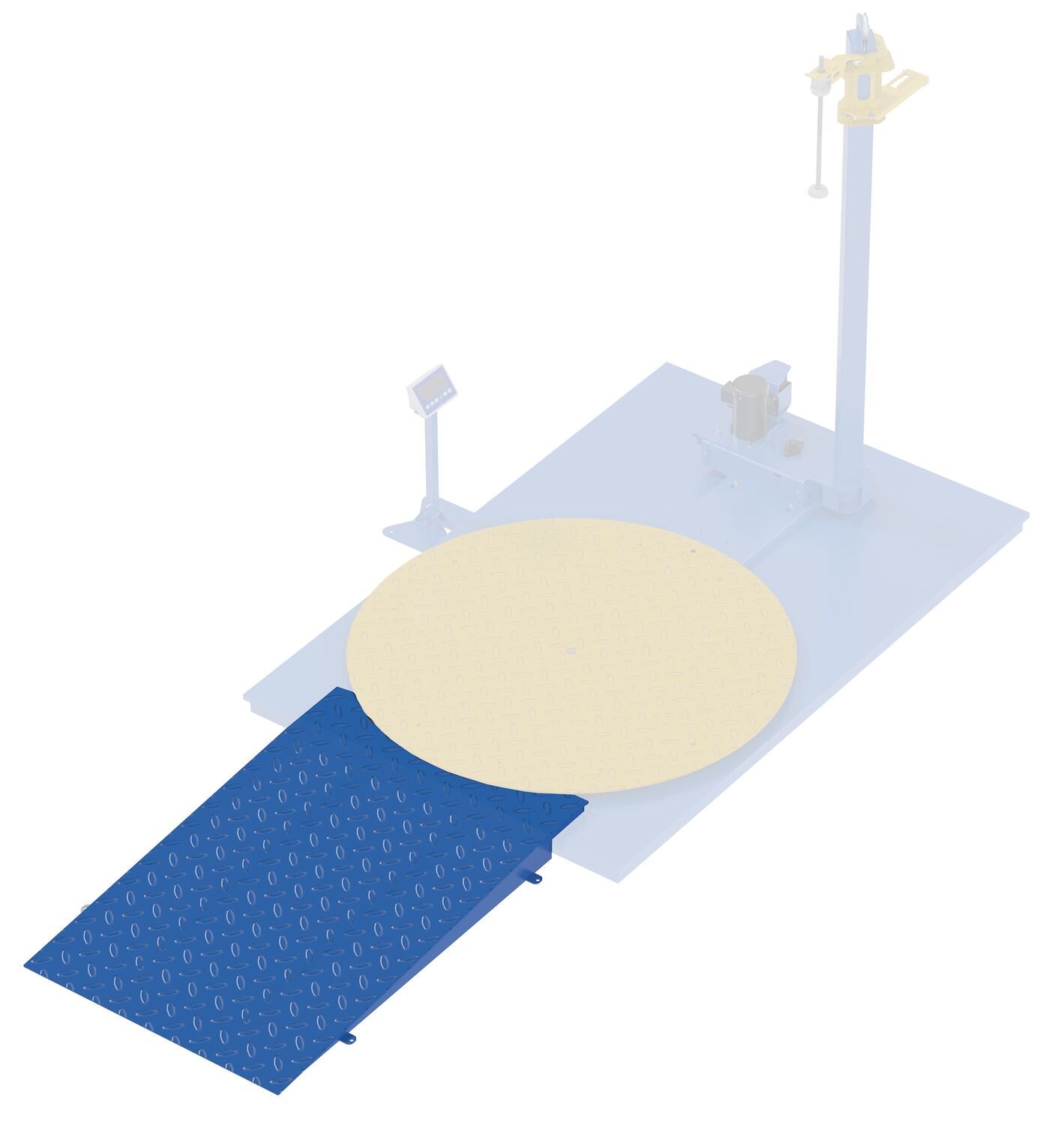

SWA-70-R-4860-SCL SWA-70-R-4860-SCL90 Days Limited WarrantySteel Approach Ramp 48 In. x 60 In. 4,000 Lb. Capacity Blue For Use With Model SWA-70 and SWA-70-ScaleMaximum Capacity (lb.): 4000
Usable Width (in.): 48		352

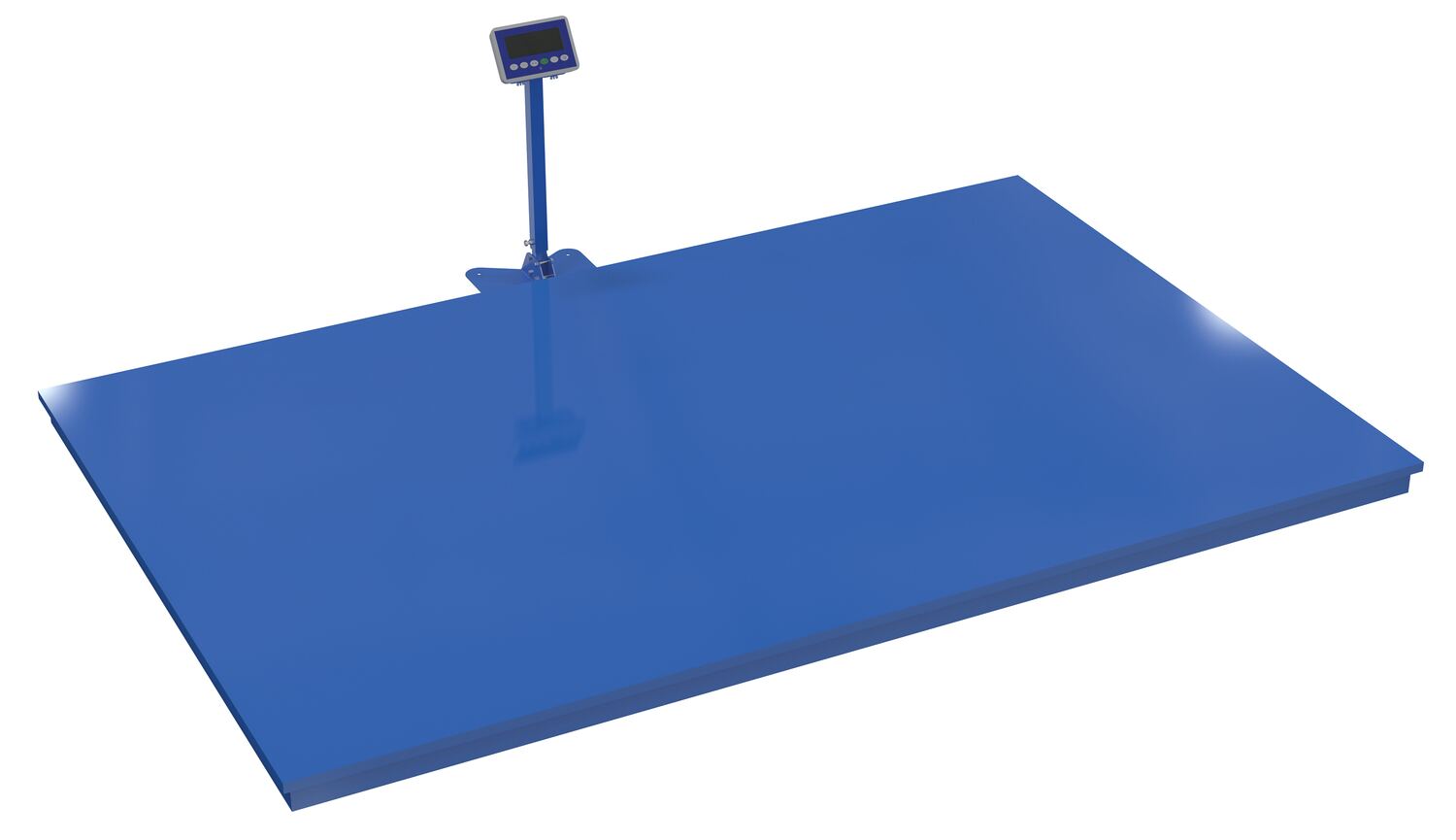

SWA-70-SCALE SWA-70-SCALE1 Year Limited WarrantyFactory Installed Digital Stretch Wrap Scale For Use With SWA-70Uniform Capacity (lb.): 10,000
Scale Height (in.): 3-1/2		884

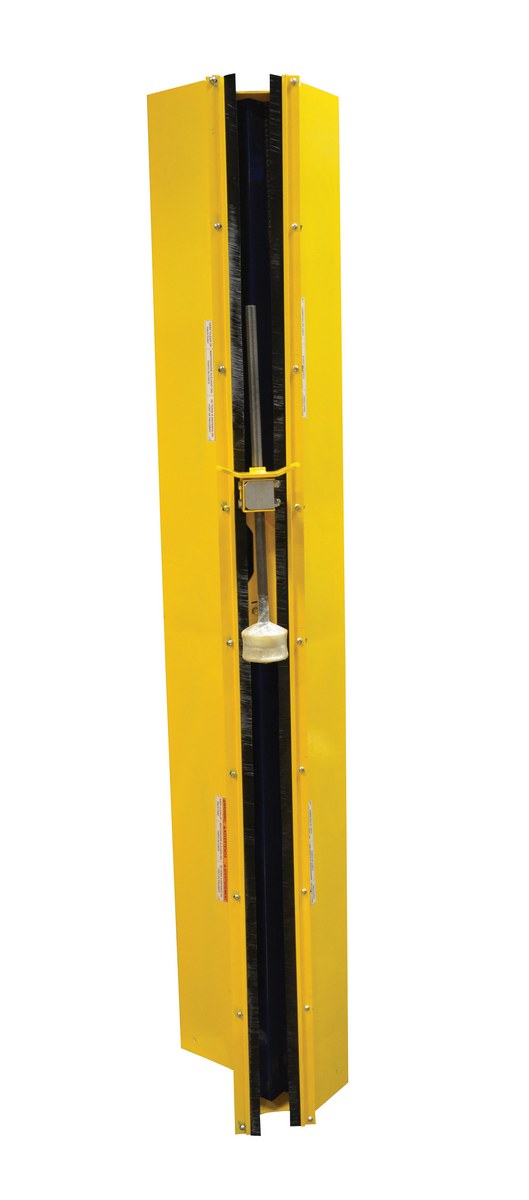

SWA-CG SWA-CG90 Days Limited WarrantySteel Stretch Wrap Power Mast Chain Guard Yellow-
110
SWA-COUNT SWA-COUNT90 Days Limited WarrantyFactory Installed Carousel Rotation Counter Weight For Stretch Wrap MachinesBrand / Model Compatibility: SWA-50, SWA-70, SWA-54, SWA-60, SWA-48, SWA-48-PMO
Additional Contents: Factory Installed		27
SWA-FILM SWA-FILM30 Days Limited WarrantyPolyethylene Stretch Wrap-Wrap Machine 6,000 Ft. Film Length 80 Gauge ClearGage: 80
Roll Film Length (ft.): 6000		42

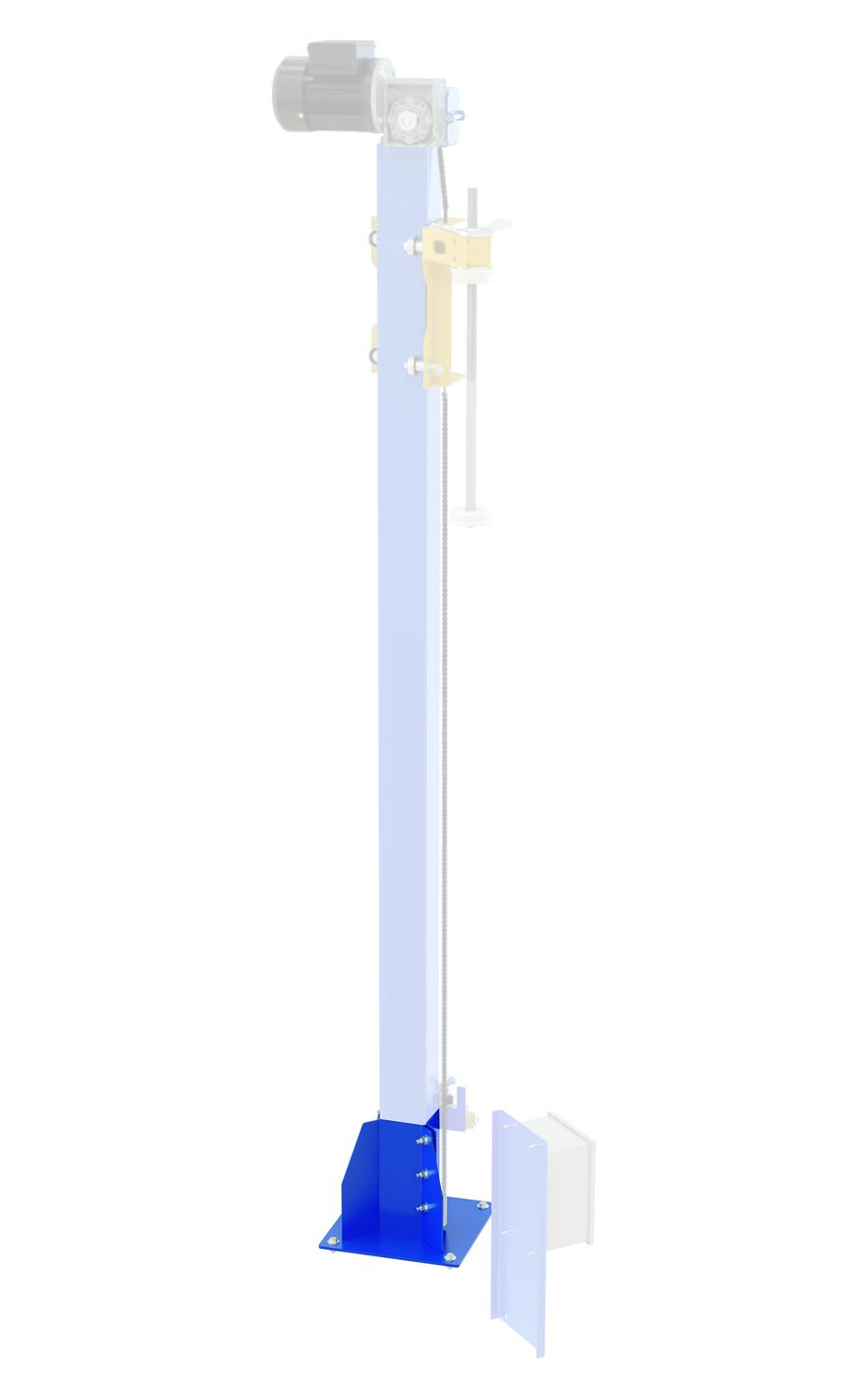

SWA-MST-FLR SWA-MST-FLR30 Days Limited WarrantySteel Floor Mounting Mast Bracket For Use With SWA ModelsMounting Holes Quantity/Diameter (in.): 4/3/8
21
SWA-NRTL-COMP 1 Year Limited WarrantyFactory Provided Nationally Recognized Testing Lab Certification For Stretch Wrap MachinesBrand / Model Compatibility: SWA-50, SWA-70, SWA-54, SWA-60, SWA-48, SWA-48-PMO
Additional Contents: Factory Installed		601
SWA-VCC-208/230-1 30 Days Limited WarrantyFactory Installed Voltage Change 208/230 Volt Single Phase For Stretch Wrap Machine UnitsDC Voltage: 208/230
Phase: 1
SWA-VCC-208/230-3 30 Days Limited WarrantyFactory Installed Voltage Change 208/230 Volt Three Phase For Stretch Wrap Machine UnitsDC Voltage: 208/230
Phase: 3
SWA-VCC-460-3 30 Days Limited WarrantyFactory Installed Voltage Change 460 Volt Three Phase For Stretch Wrap Machine UnitsDC Voltage: 460
Phase: 3
.
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Powered Stretch Wrap Machines PDF's will open in a new window when clicked.

Manuals


SWA-50, SWA-51-AR, SWA-70
Owners Manual

SWA Chain Guard Installation Instructi
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


SWA-50

SWA-50-R-4848

SWA-50-R-4860-SCL

SWA-50-SCALE

SWA-5070LP-M-RF

SWA-5070LP-PMO

SWA-5070LP-PMO-RF

SWA-70

SWA-70-R-4848

SWA-70-R-4860-SCL

SWA-70-SCALE

SWA-CG

SWA-MST-FLR

Testing Certificates


SWA-50

SWA-50-R-4848

SWA-50-R-4860-SCL

SWA-50-SCALE

SWA-5070LP-M-RF

SWA-5070LP-PMO

SWA-5070LP-PMO-RF

SWA-70

SWA-70-R-4848

SWA-70-R-4860-SCL

SWA-70-SCALE

SWA-CG

SWA-COUNT

SWA-FILM

SWA-NRTL-COMP

SDS Sheets

Hydraulic Oil SDS Sheet for: PMO-VCC-460-3
Hydraulic Oil SDS Sheet for: SWA-VCC-208/230-1
Hydraulic Oil SDS Sheet for: SWA-VCC-208/230-3
Hydraulic Oil SDS Sheet for: SWA-VCC-460-3

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: Does this stretch wrap machine have fork pockets so it can be moved?

A: No it does not. Please see the SWA-54 and the SWA-60 that include fork pockets.
