Vertical Plate Clamps with Chain| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

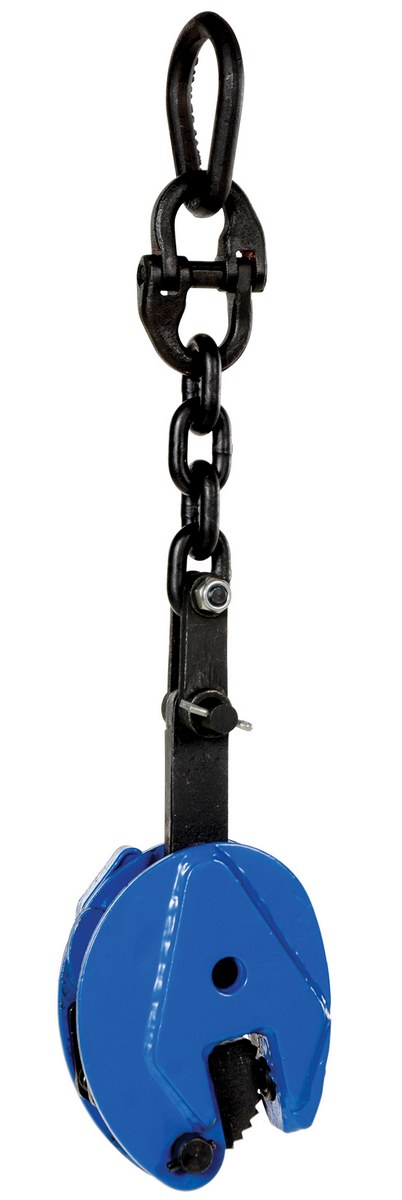

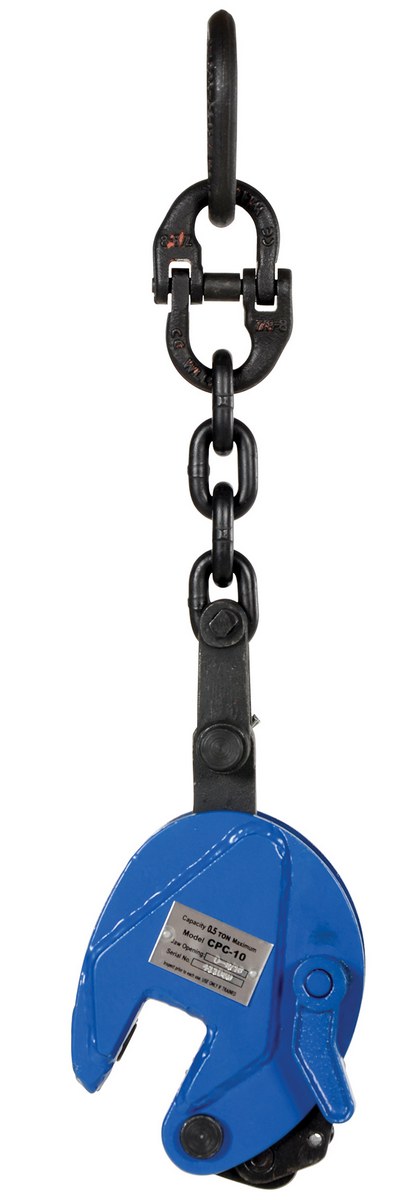

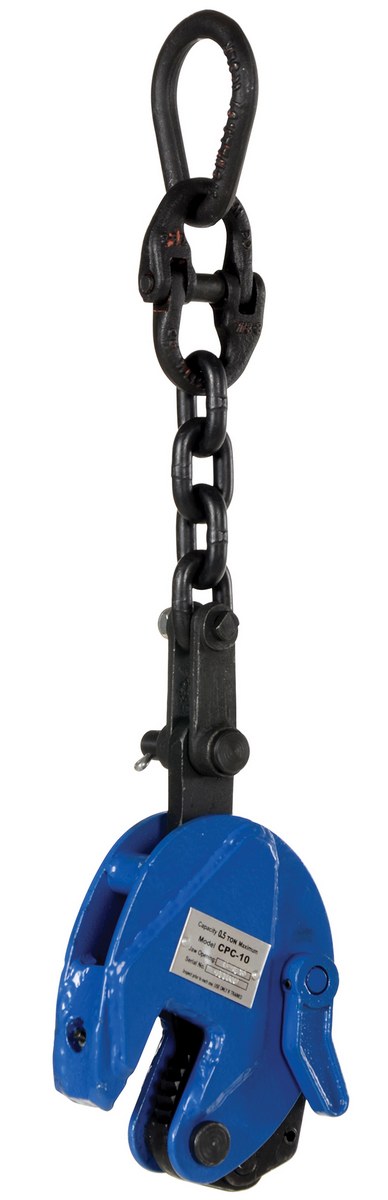

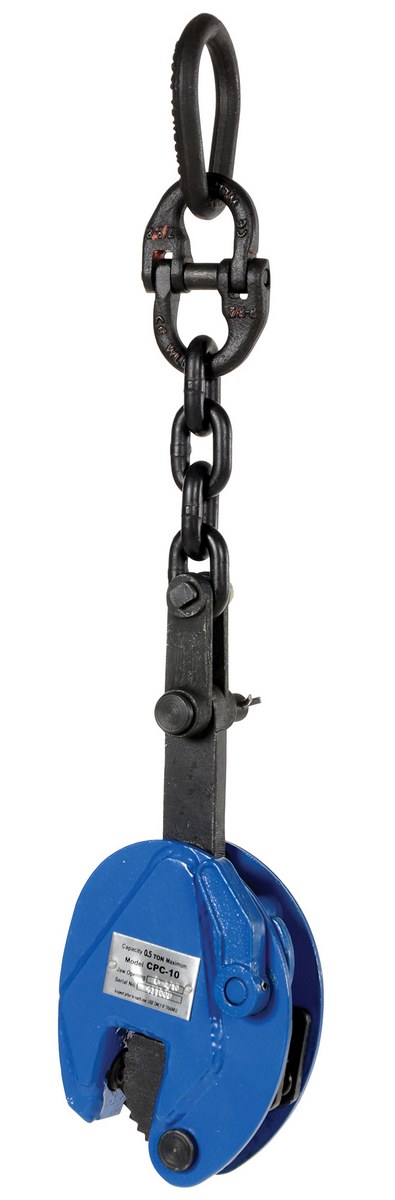

| CPC-10 |  | 90 Days Limited Warranty | Steel Vertical Plate Clamp with Chain 4 In. x 1-31/32 In. x 16-7/8 In. 1000 Lb. Capacity Blue | Min Uniform Plate Weight (lb.): 200 Uniform Working Load Limit (lb.): 1,000 | 6 | ||

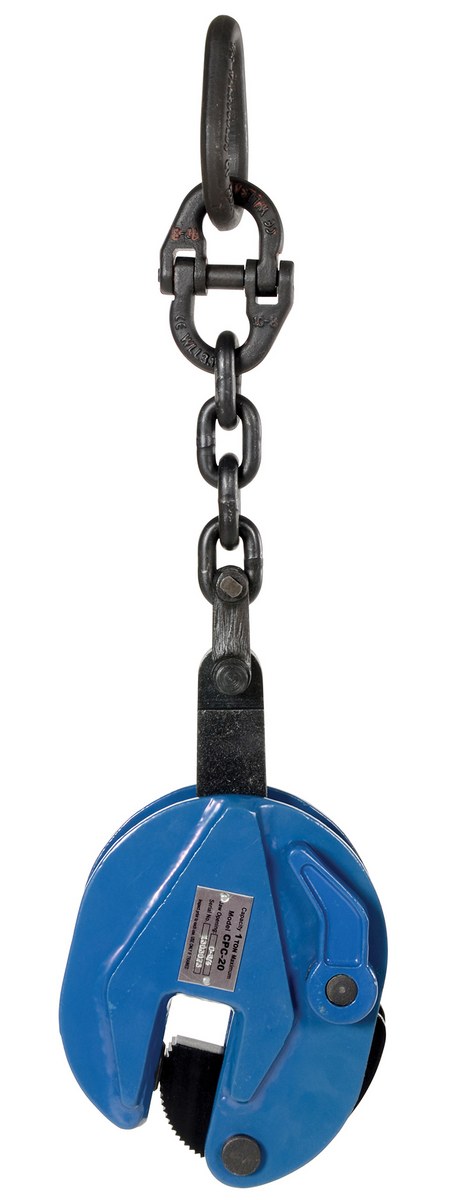

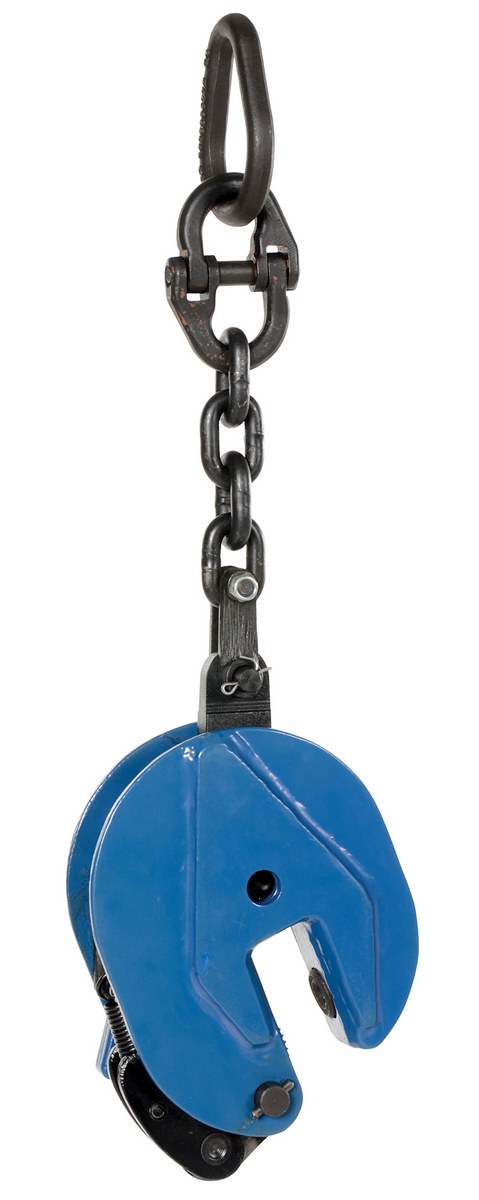

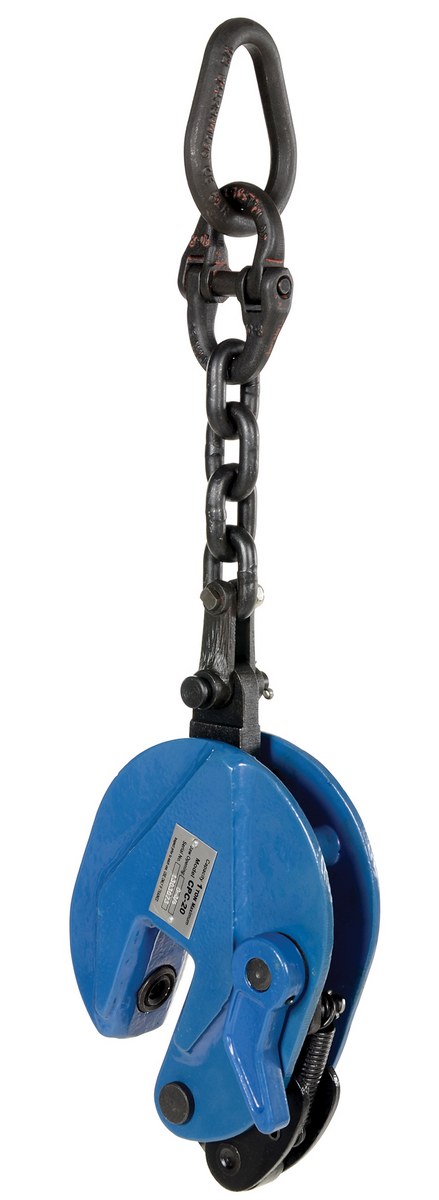

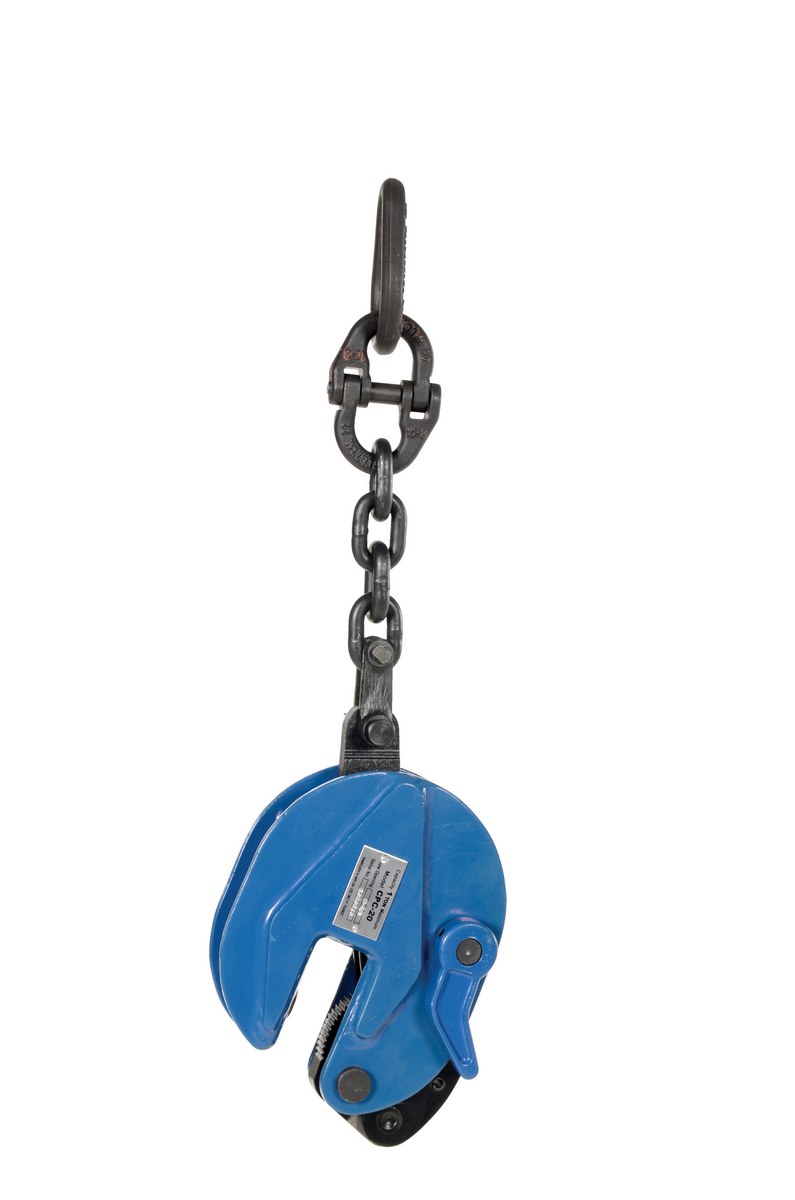

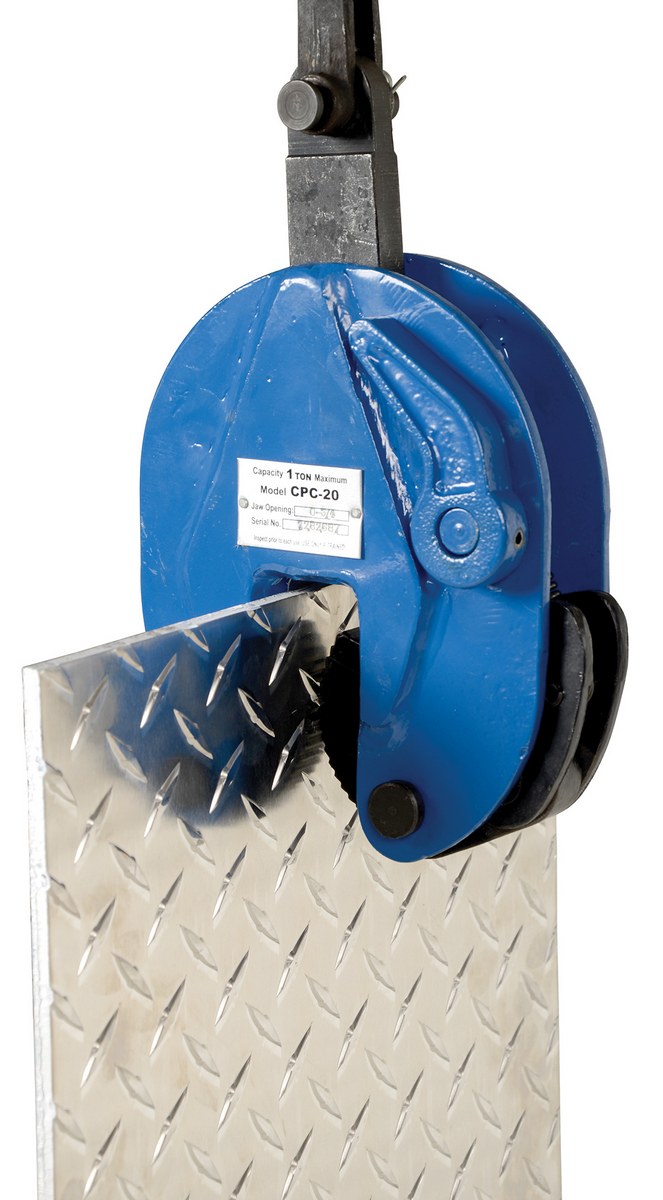

| CPC-20 |  | 90 Days Limited Warranty | Steel Vertical Plate Clamp with Chain 6-1/2 In. x 2-1/2 In. x 22 In. 2000 Lb. Capacity Blue | Min Uniform Plate Weight (lb.): 400 Uniform Working Load Limit (lb.): 2,000 | 14 | ||

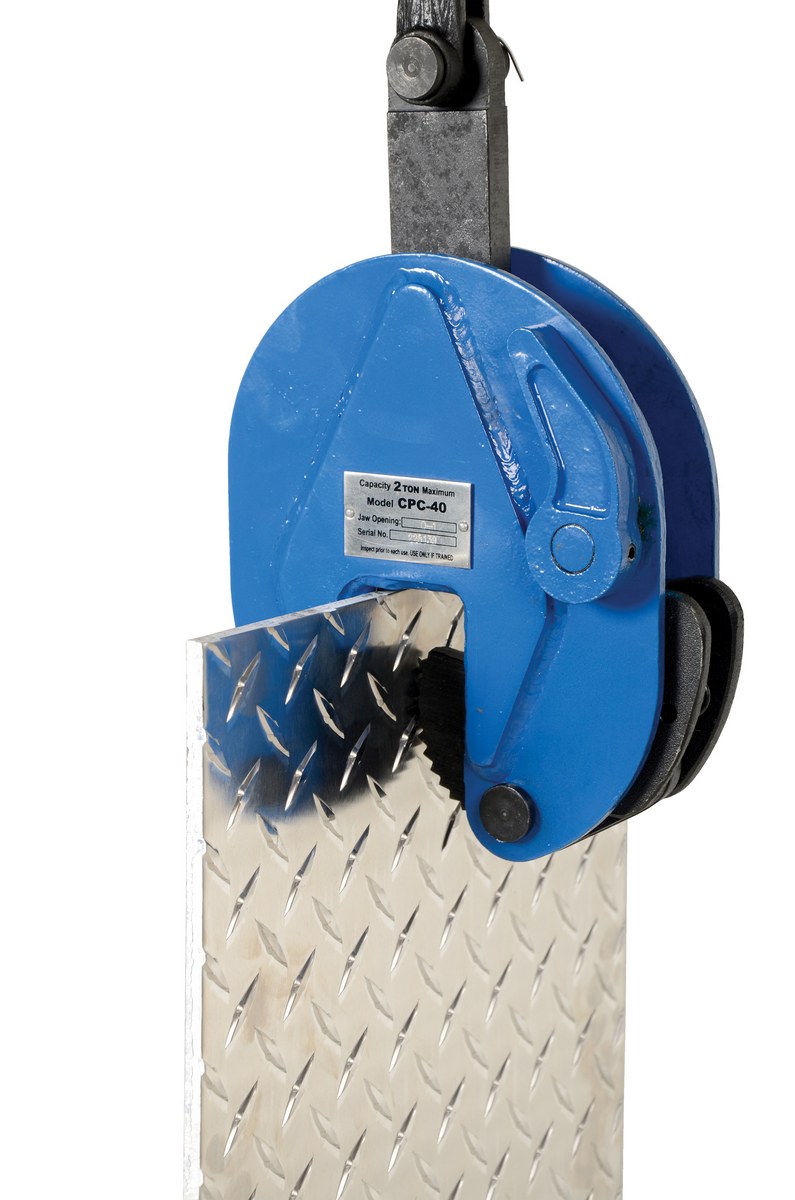

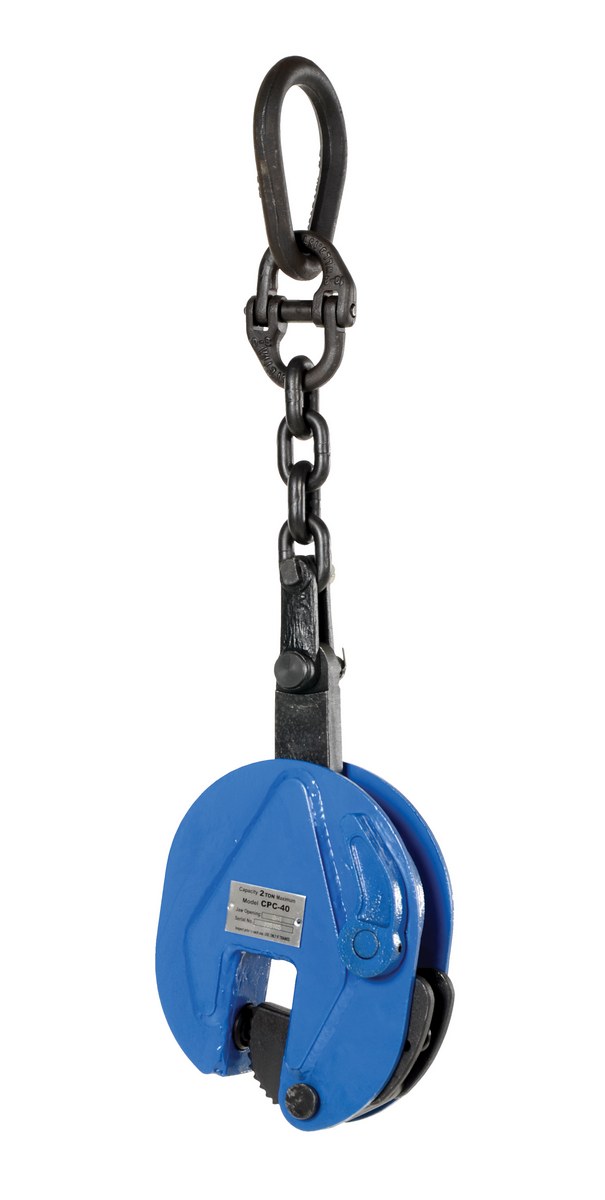

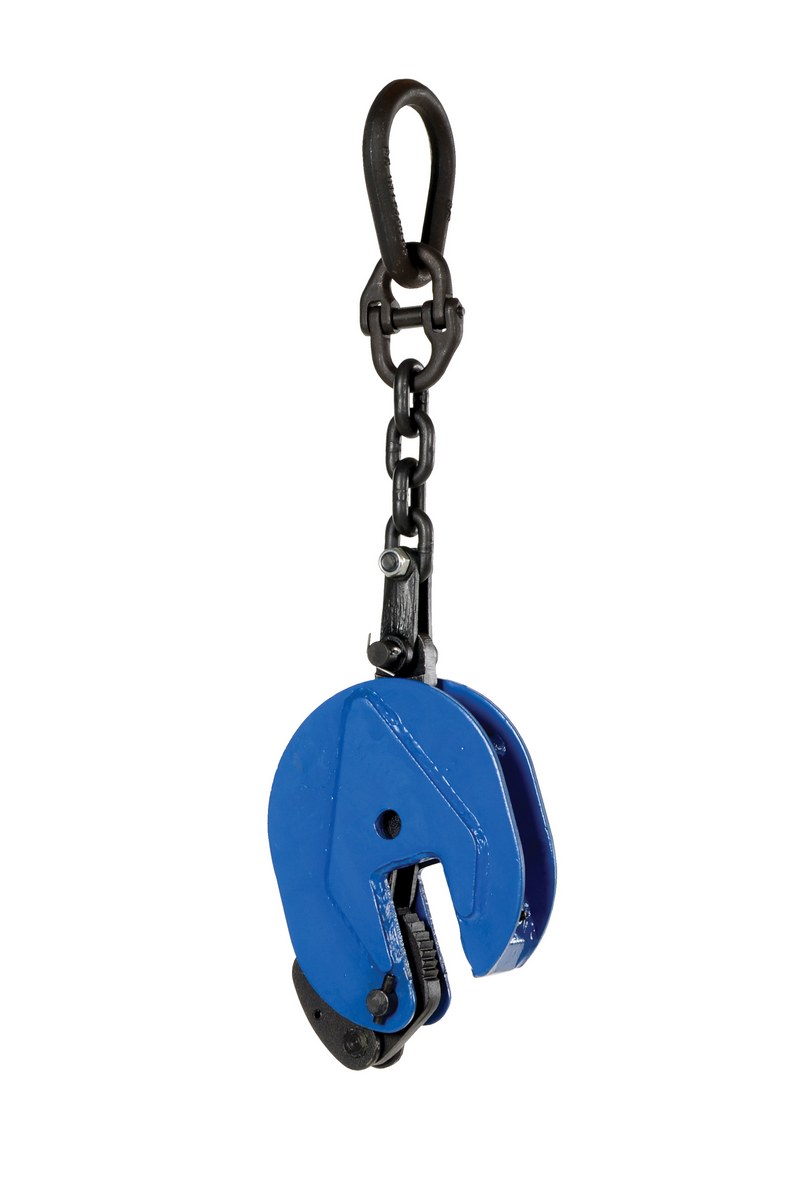

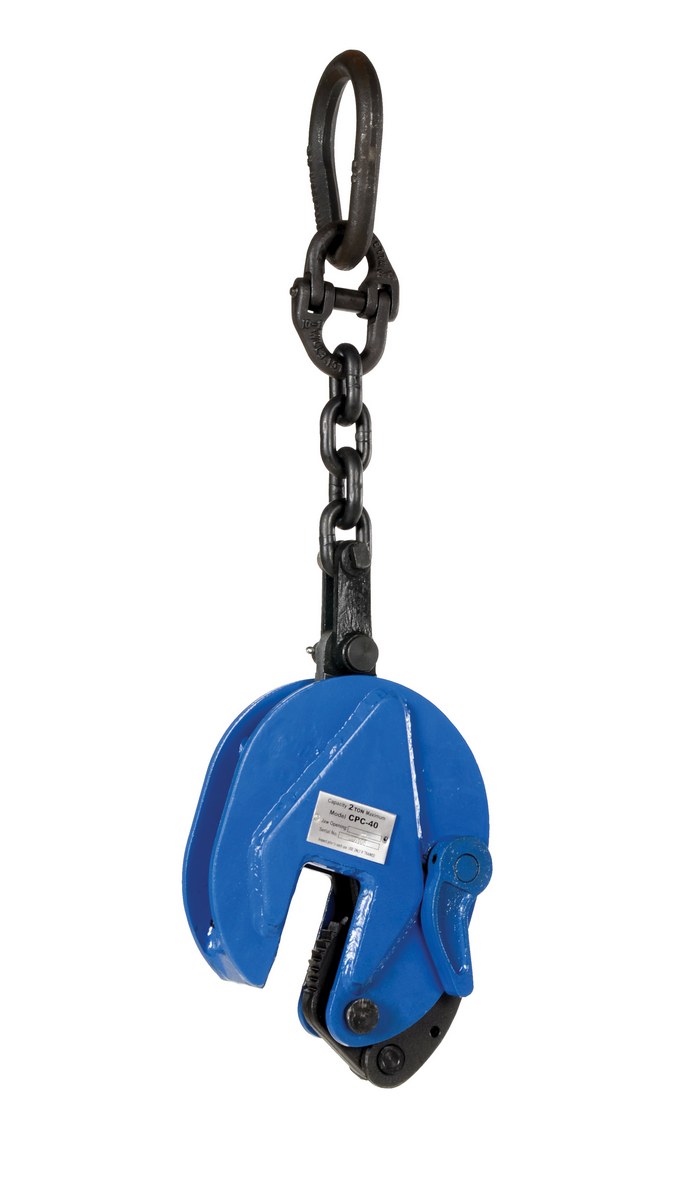

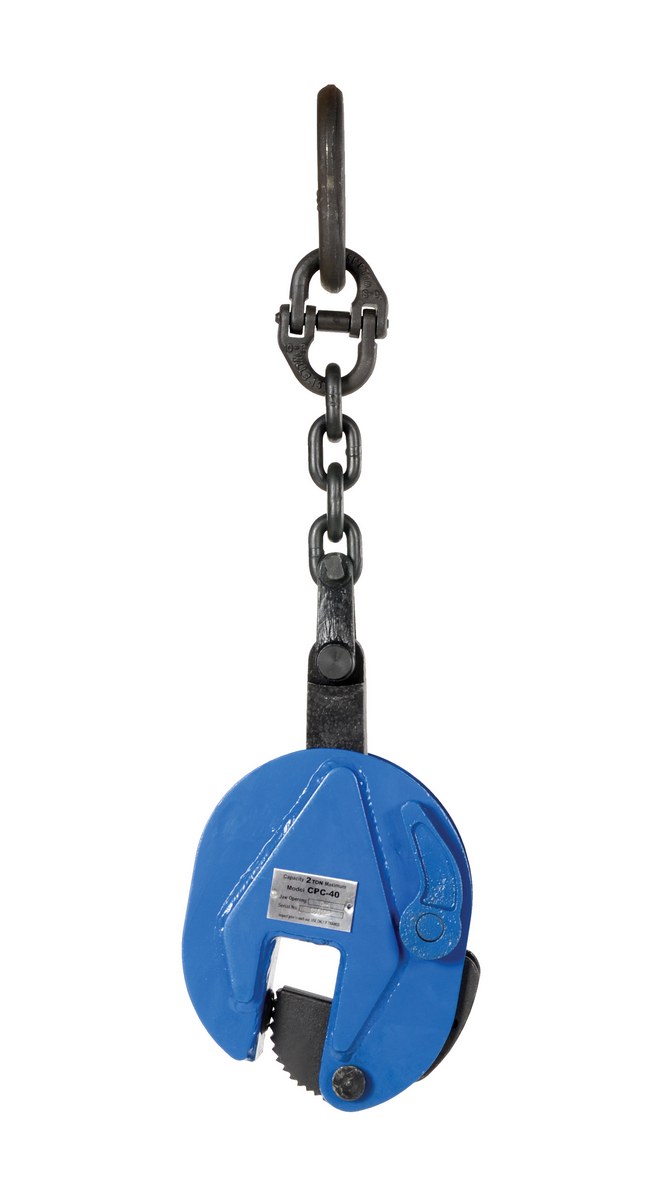

| CPC-40 |  | 90 Days Limited Warranty | Steel Vertical Plate Clamp with Chain 7 In. x 2-3/4 In. x 23-1/2 In. 4000 Lb. Capacity Blue | Min Uniform Plate Weight (lb.): 800 Uniform Working Load Limit (lb.): 4,000 | 17 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
|
||||||||||||||||||||||
Vertical Plate Clamps with Chain |
||||||||||||||||||||||
 |
||||||||||||||||||||||
Designed for lifting plate material in a vertical position. Lifting eye includes chain for greater versatility. Heavy-duty steel construction for years of reliable use. Meets ASME B30.20 specifications. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).
|
||||||||||||||||||||||
 |
||||||||||||||||||||||
|
||||||||||||||||||||||
