Steel Cross-Over Ladders
Product Family Overview

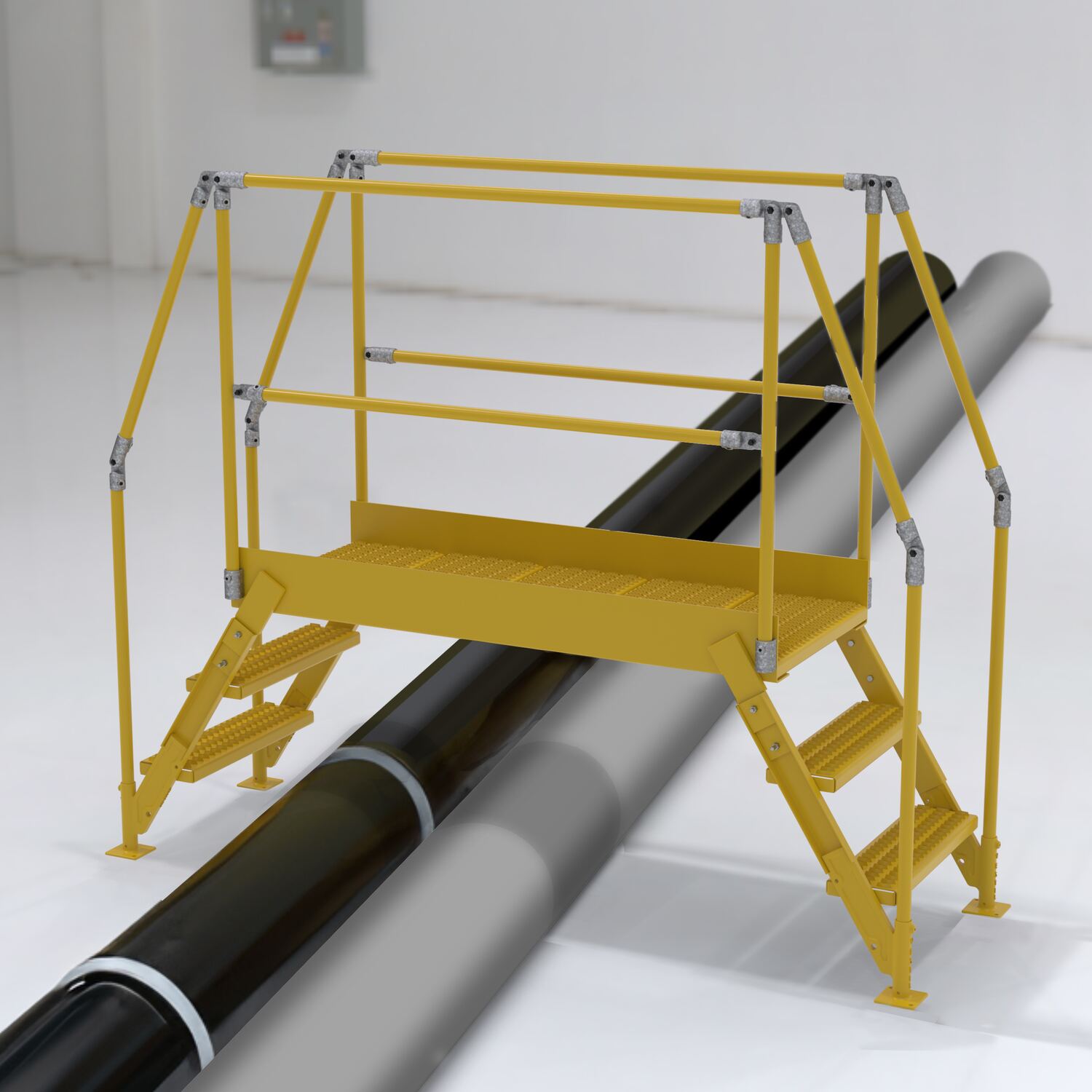

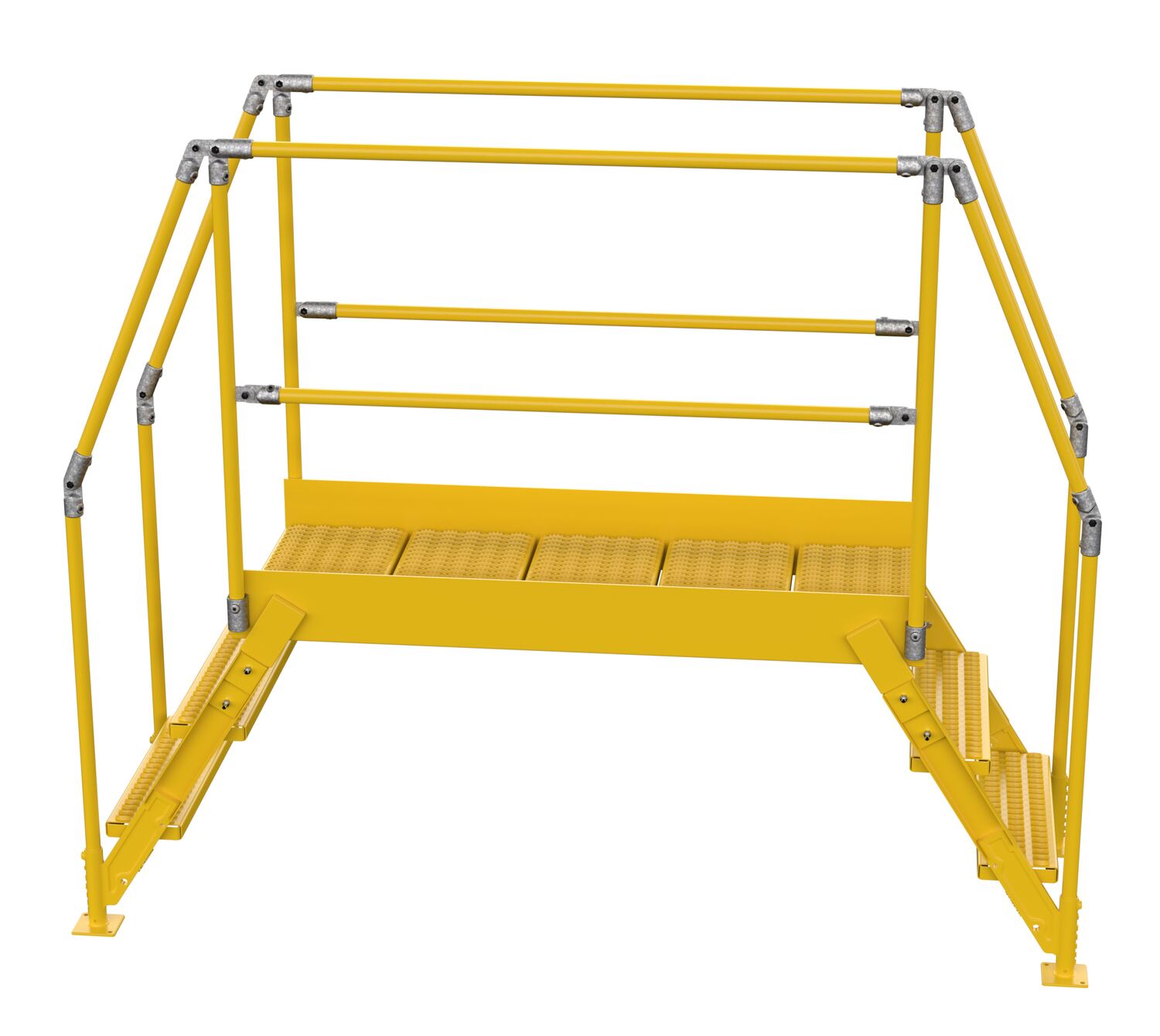

Steel Cross-Over LaddersMount where you need permanent access at crossover points. The upper platform features removable two sided 42-5/8" high handrail with 21" mid-rail and fixed 4" toeboards to prevent objects from rolling off. Serrated steps for extra grip and safety are 23-1/2" wide and 7" deep with a step spacing of 10". The angle of the steps is 58 degrees. The overall ladder width is 29-1/4". Ground legs include floor mounting pads. Units must be anchored to the floor. Units are all welded steel construction but can be knock-down for storage and shipping. Uniform capacity is 500 pounds. Meets ANSI A14.7 and OSHA 29 CFR 1910.24. Baked-in powder coat finish for added toughness.
- Meets OSHA 29 CFR 1910.23 and ANSI A14.7 standards
- Serrated steps for extra grip and safety
- 100% Welded steel construction offers rugged long lasting use
- Ground legs include cast mounting feet for safety and stability
Check out our Alternating Step Cross-Over Ladders.
| See Also... | |
 Aluminum Cross-Over Ladders |
 Galvanized Cross-Over Ladders |
Additional Models In This Family
COL-4-36-23
COL-5-46-23
COL-3-26-44
COL-3-26-44
COL-6-56-23
COL-6-56-14
COL-4-36-14
COL-5-46-44
COL-4-36-44
COL-3-26-23
COL-5-46-14
COL-6-56-33
COL-3-26-44
COL-3-26-14
COL-4-36-33
Model Specific Details
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) | ||||
|---|---|---|---|---|---|---|---|

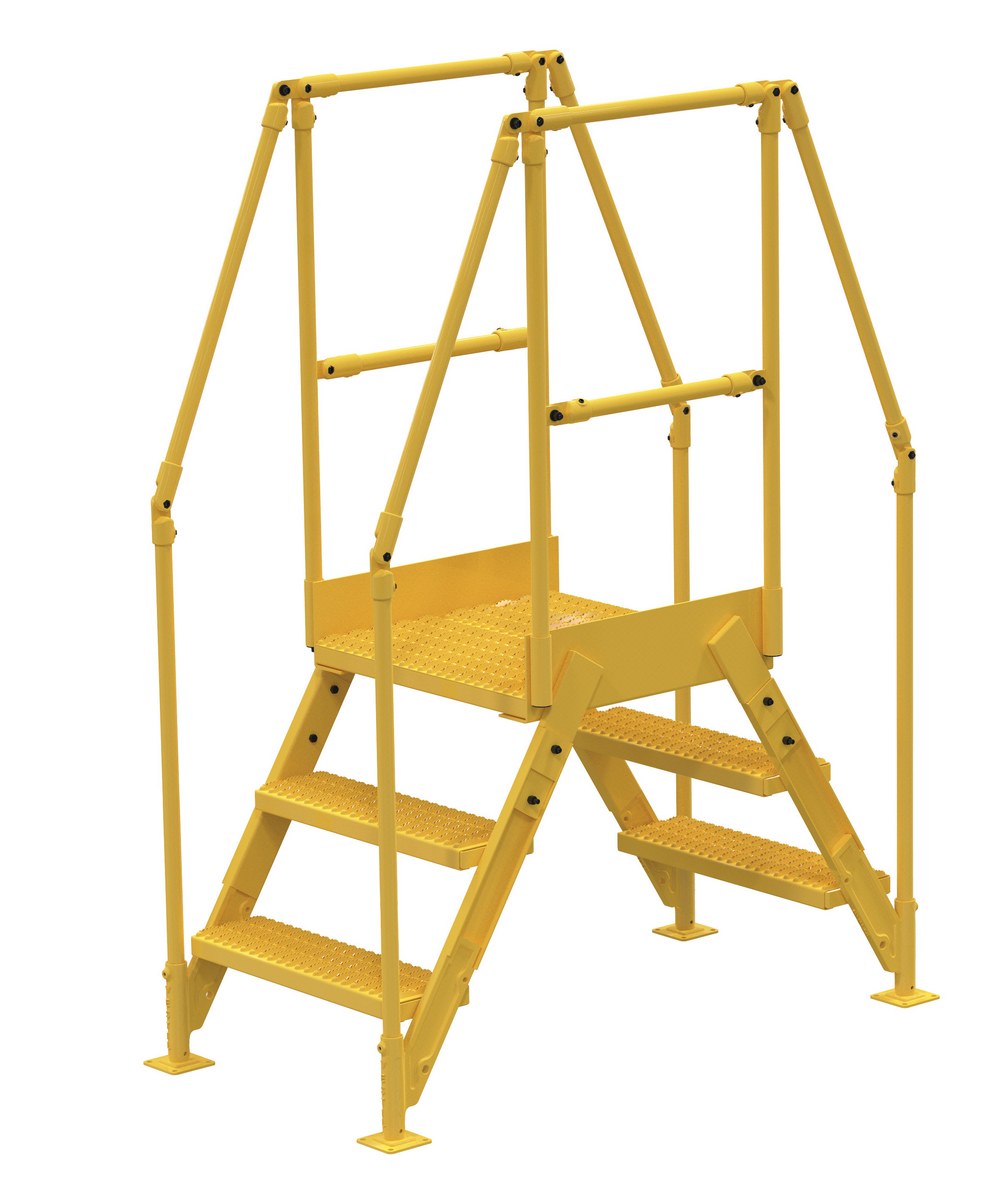

| COL-3-26-14 | | 1 Year Limited Warranty | Steel Crossover Ladder 3 Step 23-1/2 In. x 24 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 30 | 264 | ||

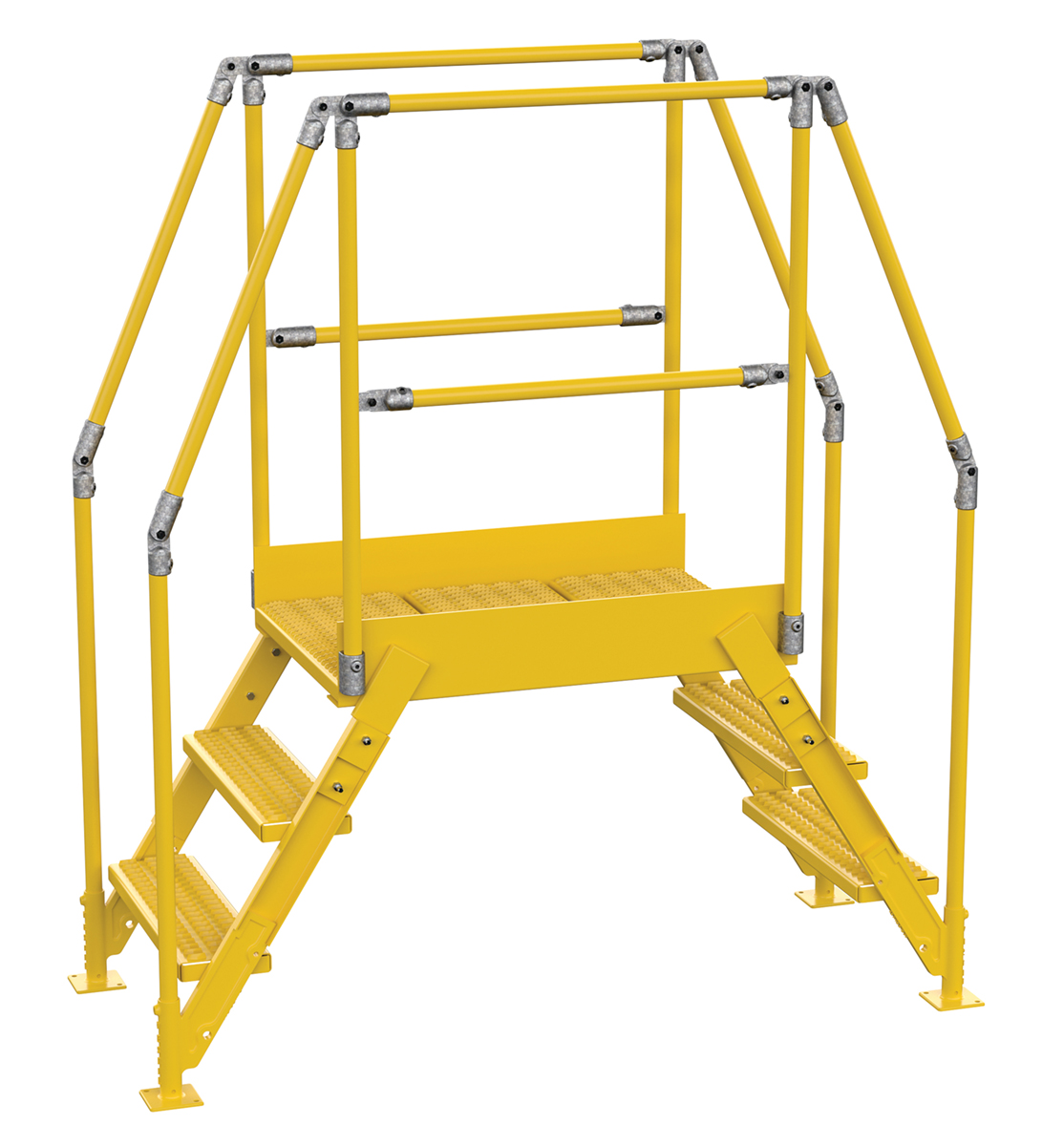

| COL-3-26-23 | | 1 Year Limited Warranty | Steel Crossover Ladder 3 Step 23-1/2 In. x 36 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 30 | 309 | ||

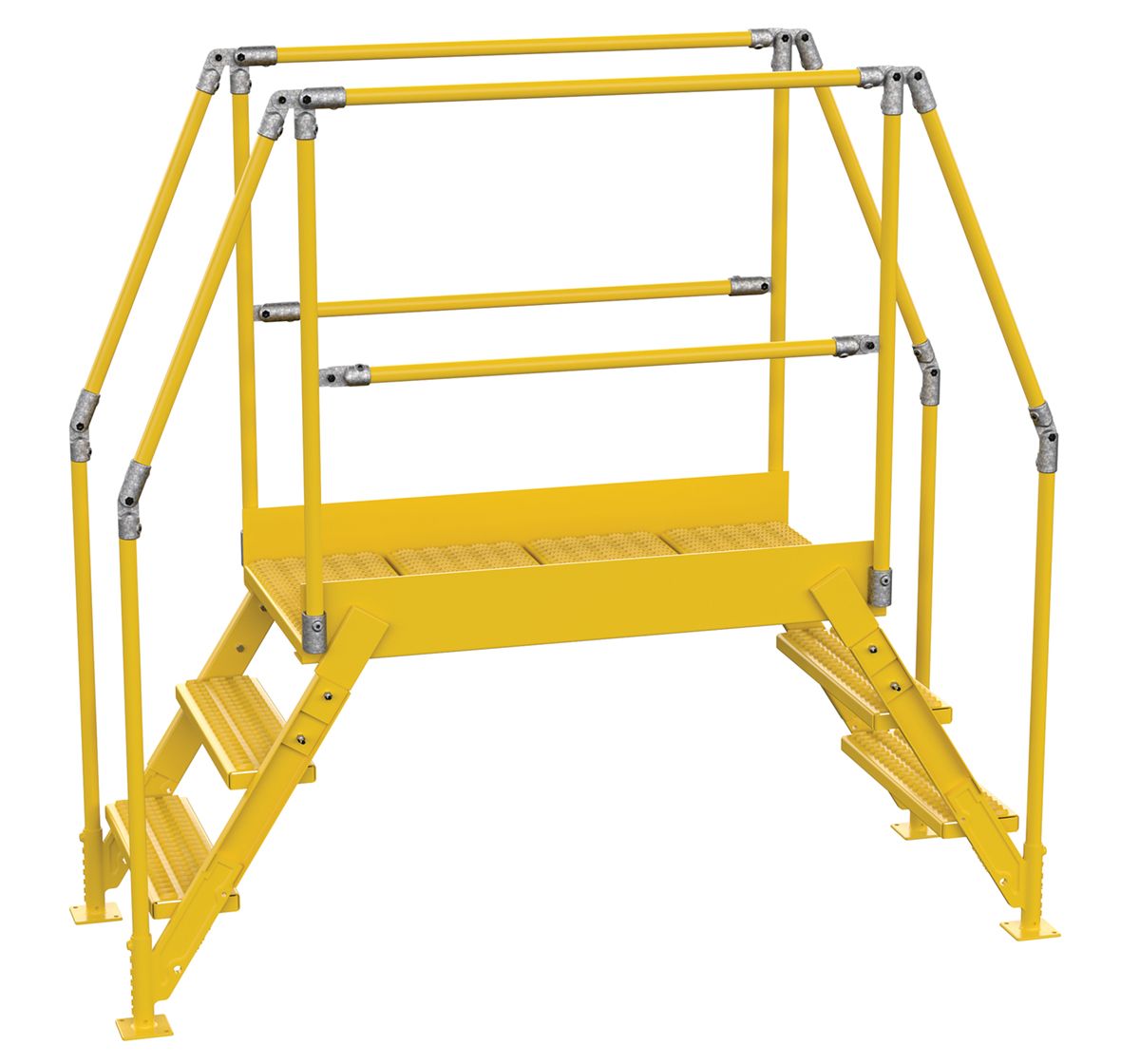

| COL-3-26-33 |  | 1 Year Limited Warranty | Steel Crossover Ladder 3 Step 23-1/2 In. x 48 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 30 | 328 | ||

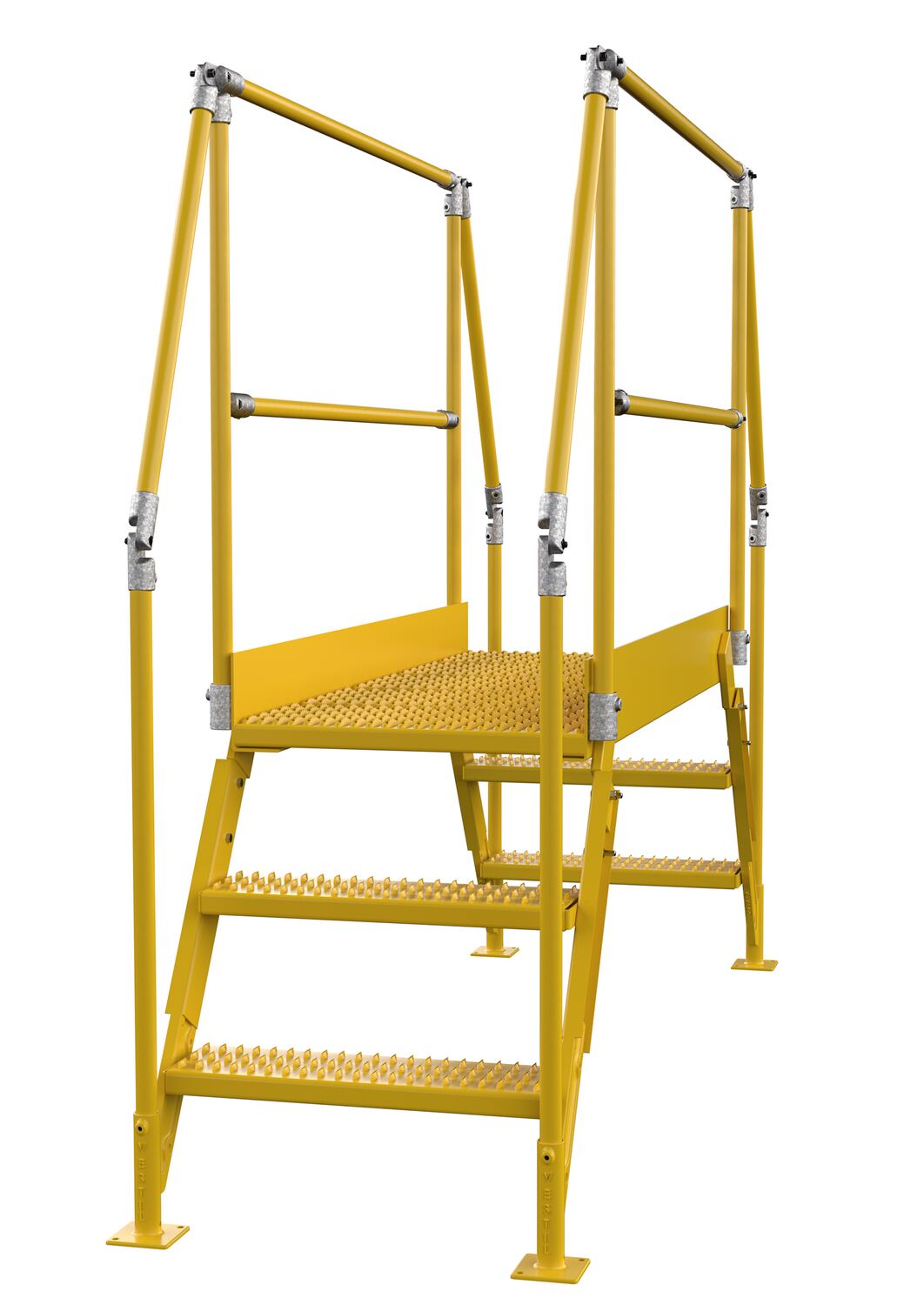

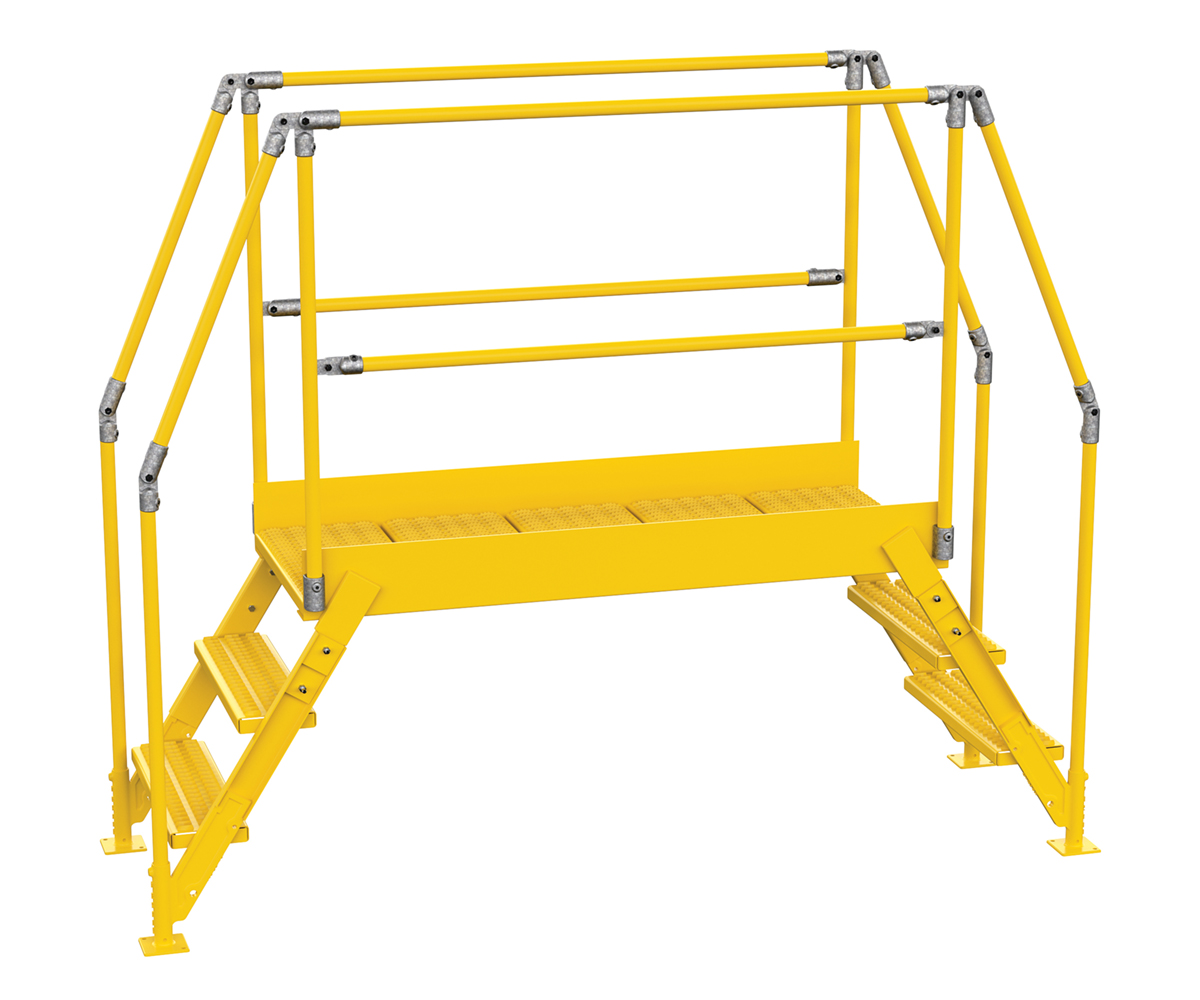

| COL-3-26-44 | | 1 Year Limited Warranty | Steel Crossover Ladder 3 Step 23-1/2 In. x 60 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 30 | 349 | ||
| COL-4-36-14 | | 1 Year Limited Warranty | Steel Crossover Ladder 4 Step 23-1/2 In. x 24 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 40 | 326 | ||

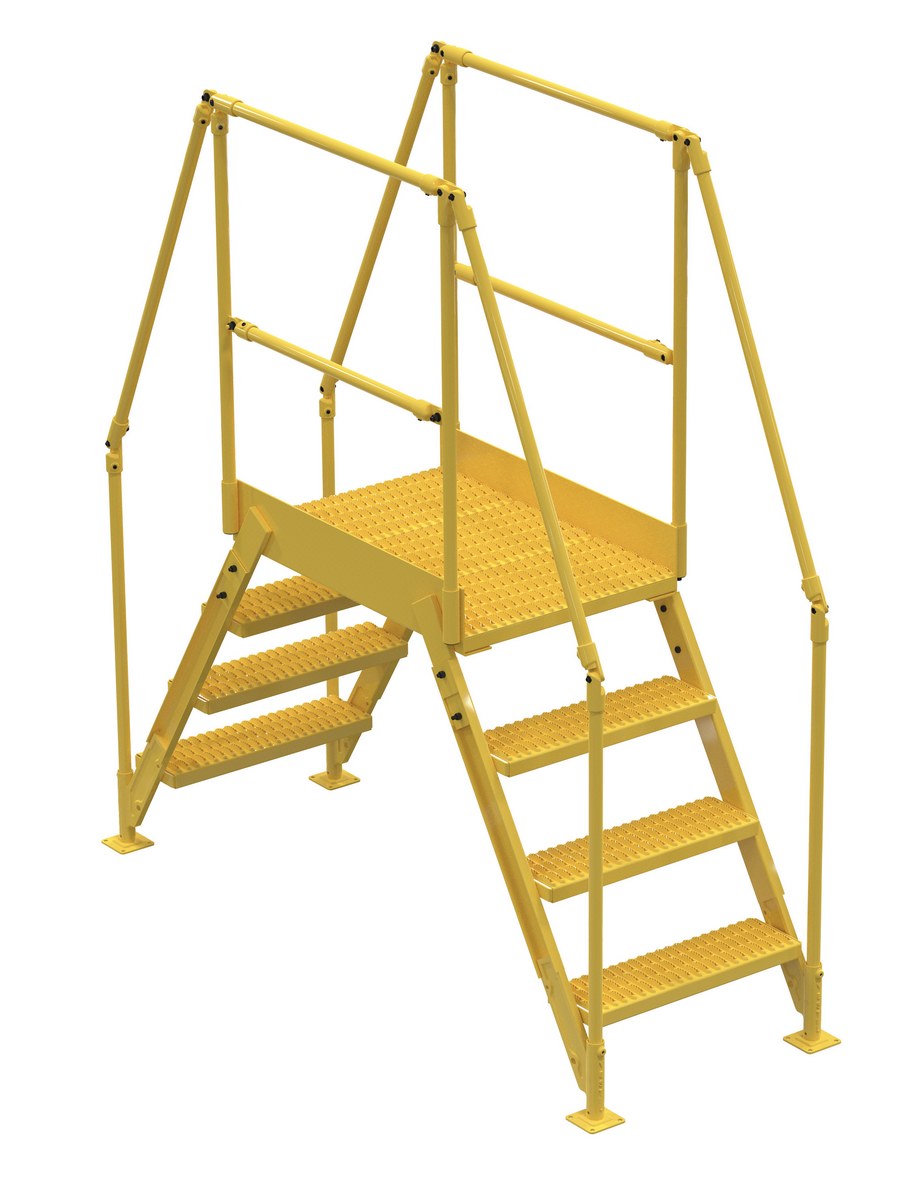

| COL-4-36-23 | | 1 Year Limited Warranty | Steel Crossover Ladder 4 Step 23-1/2 In. x 36 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 40 | 346 | ||
| COL-4-36-33 | | 1 Year Limited Warranty | Steel Crossover Ladder 4 Step 23-1/2 In. x 48 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 40 | 356 | ||

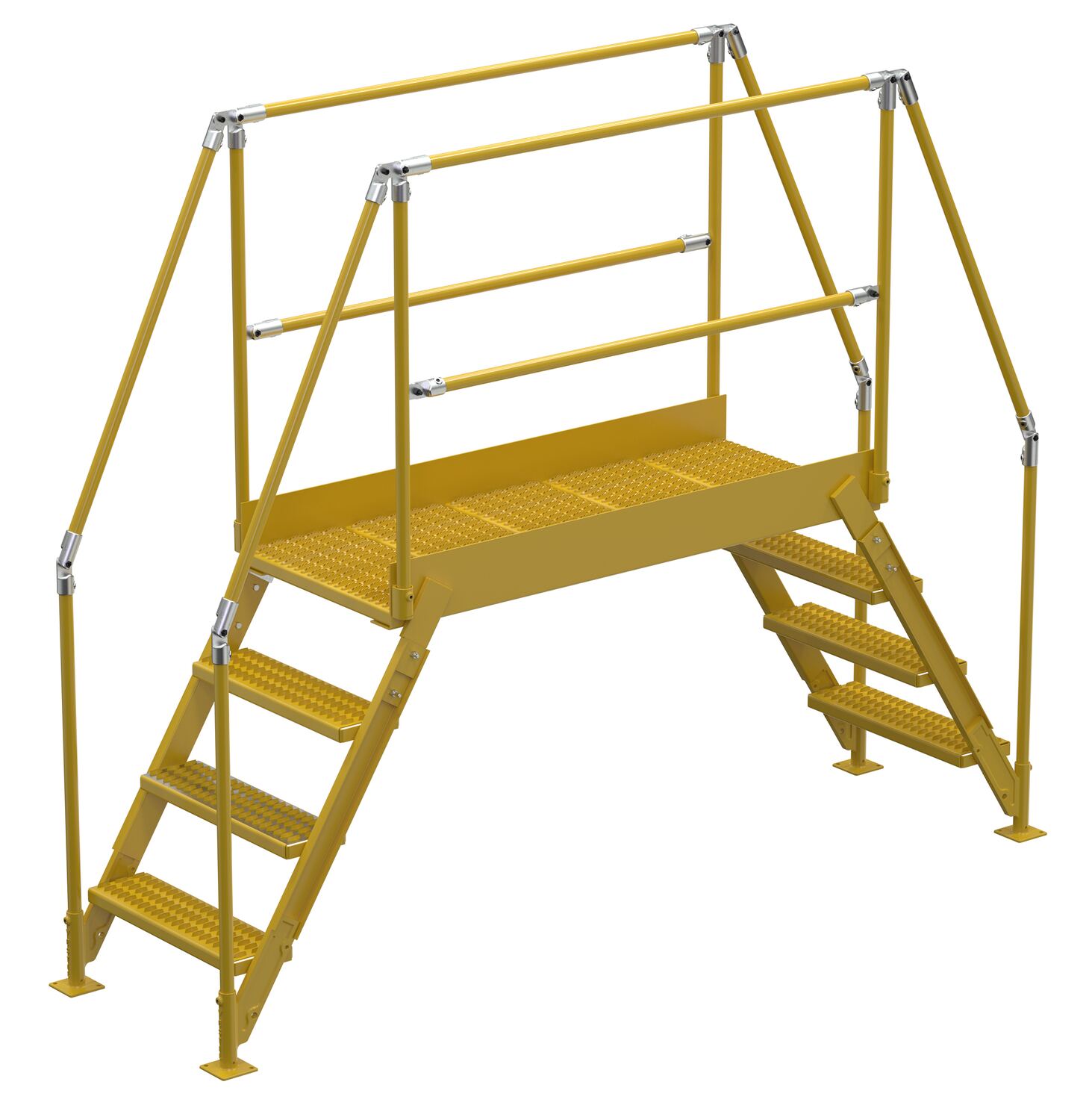

| COL-4-36-44 | | 1 Year Limited Warranty | Steel Crossover Ladder 4 Step 23-1/2 In. x 60 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 40 | 378 | ||

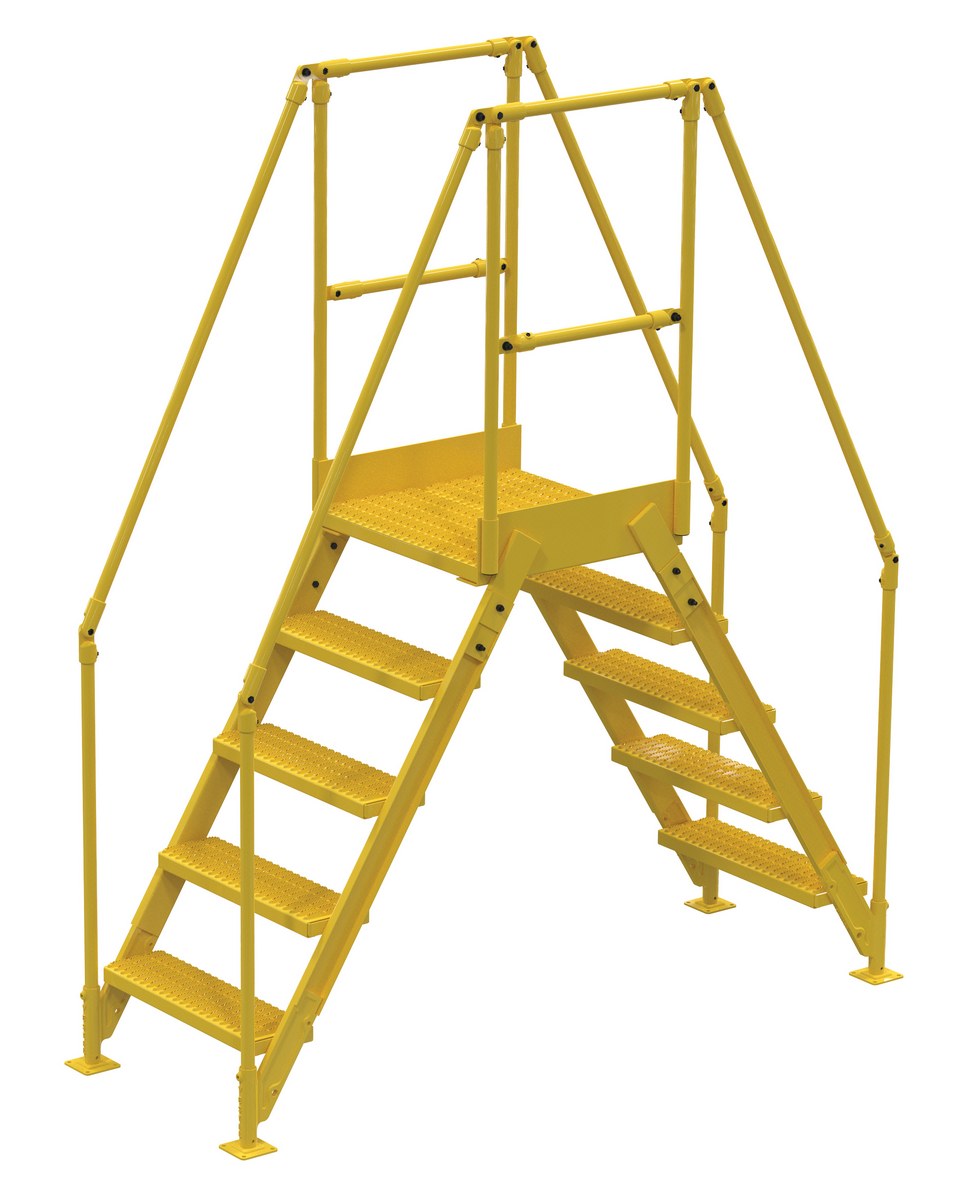

| COL-5-46-14 | | 1 Year Limited Warranty | Steel Crossover Ladder 5 Step 23-1/2 In. x 24 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 50 | 340 | ||

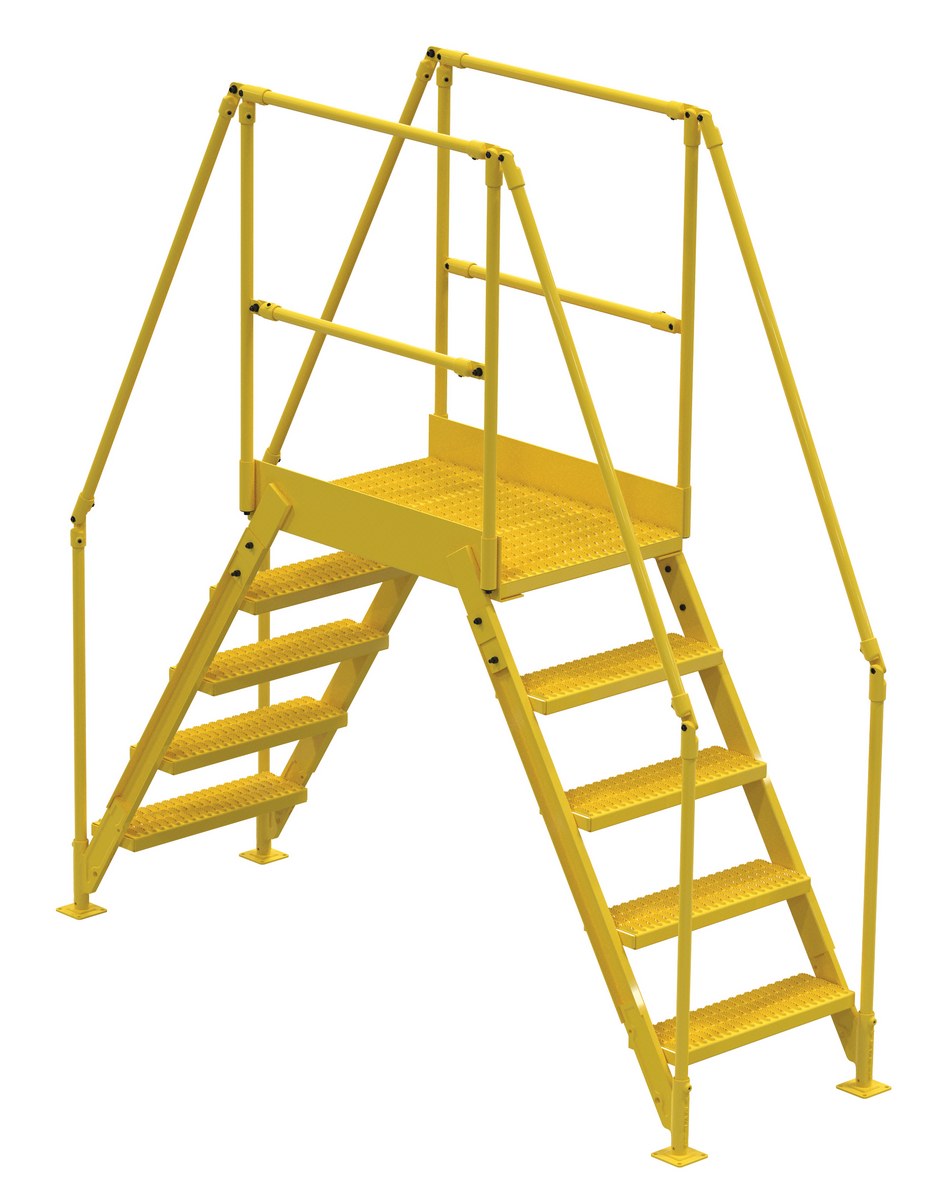

| COL-5-46-23 | | 1 Year Limited Warranty | Steel Crossover Ladder 5 Step 23-1/2 In. x 36 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 50 | 380 | ||

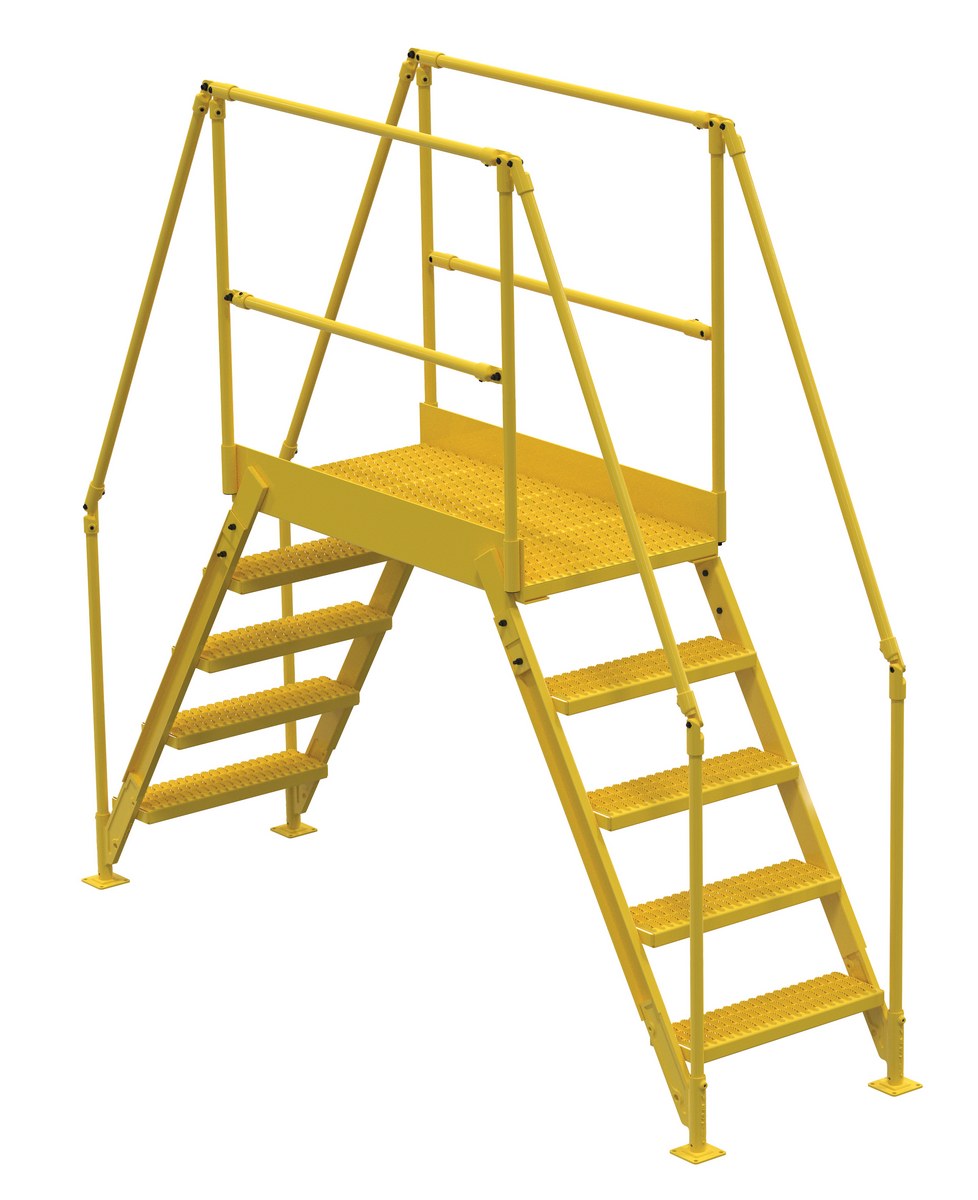

| COL-5-46-33 |  | 1 Year Limited Warranty | Steel Crossover Ladder 5 Step 23-1/2 In. x 48 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 50 | 420 | ||

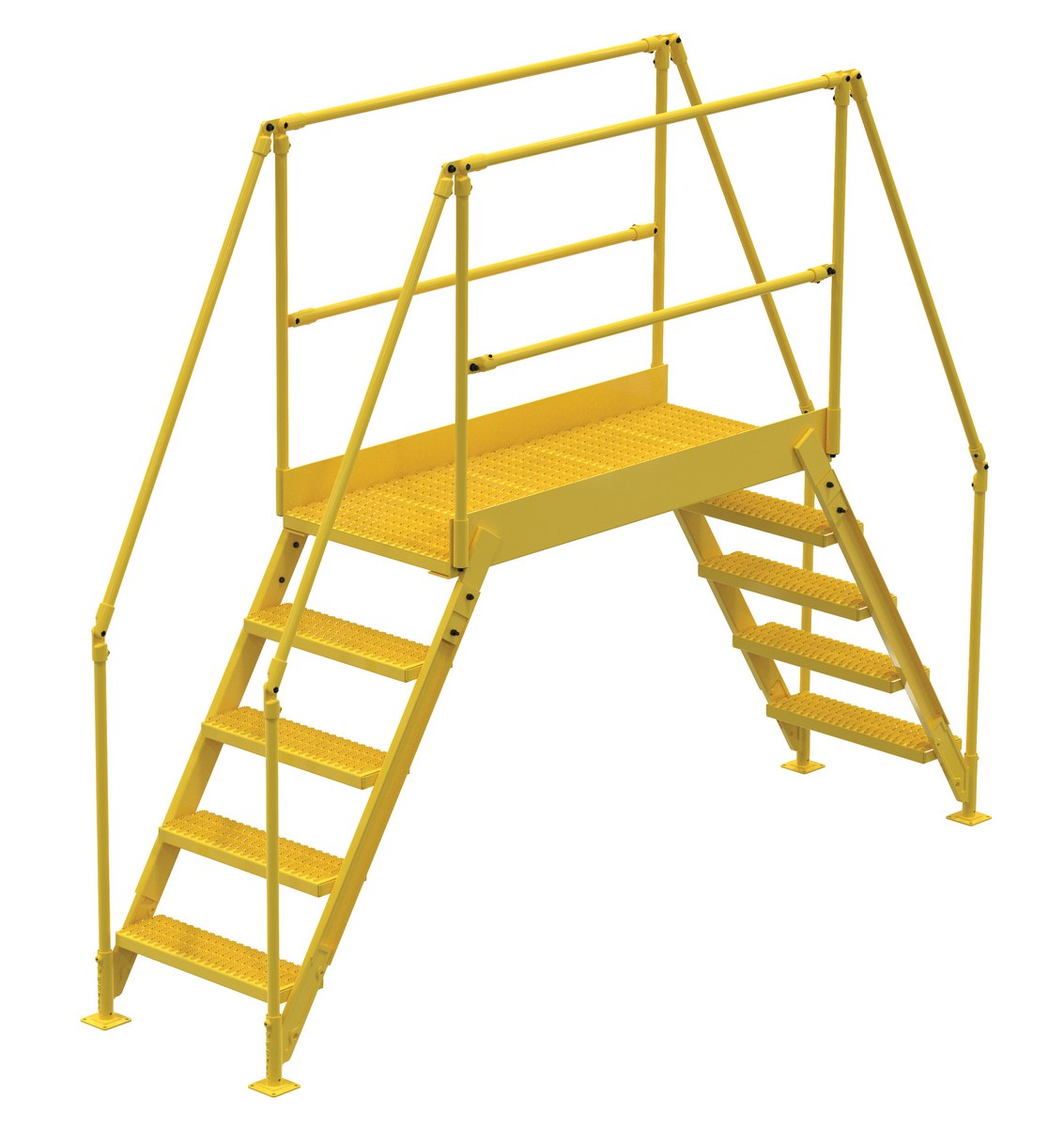

| COL-5-46-44 | | 1 Year Limited Warranty | Steel Crossover Ladder 5 Step 23-1/2 In. x 60 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 50 | 440 | ||

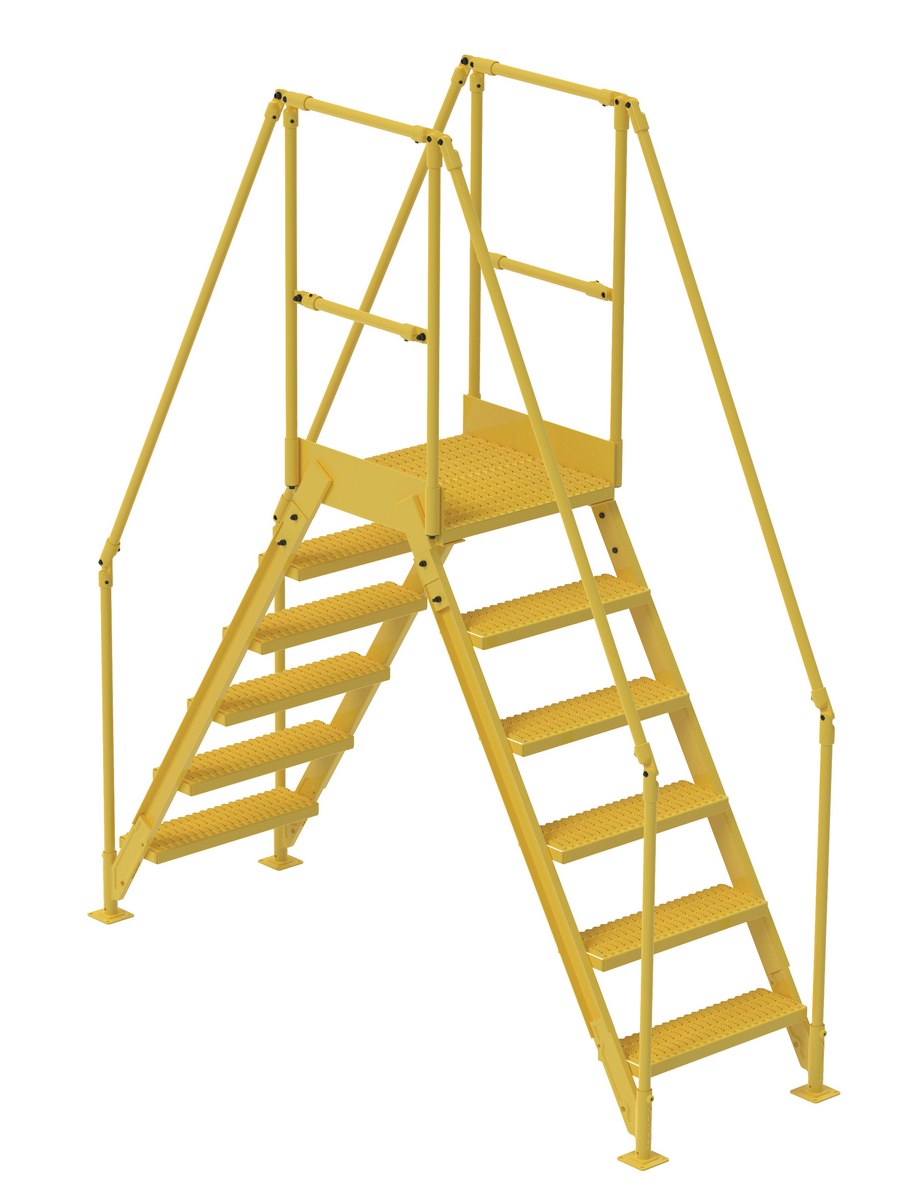

| COL-6-56-14 | | 1 Year Limited Warranty | Steel Crossover Ladder 6 Step 23.5 In. x 24 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 60 | 348 | ||

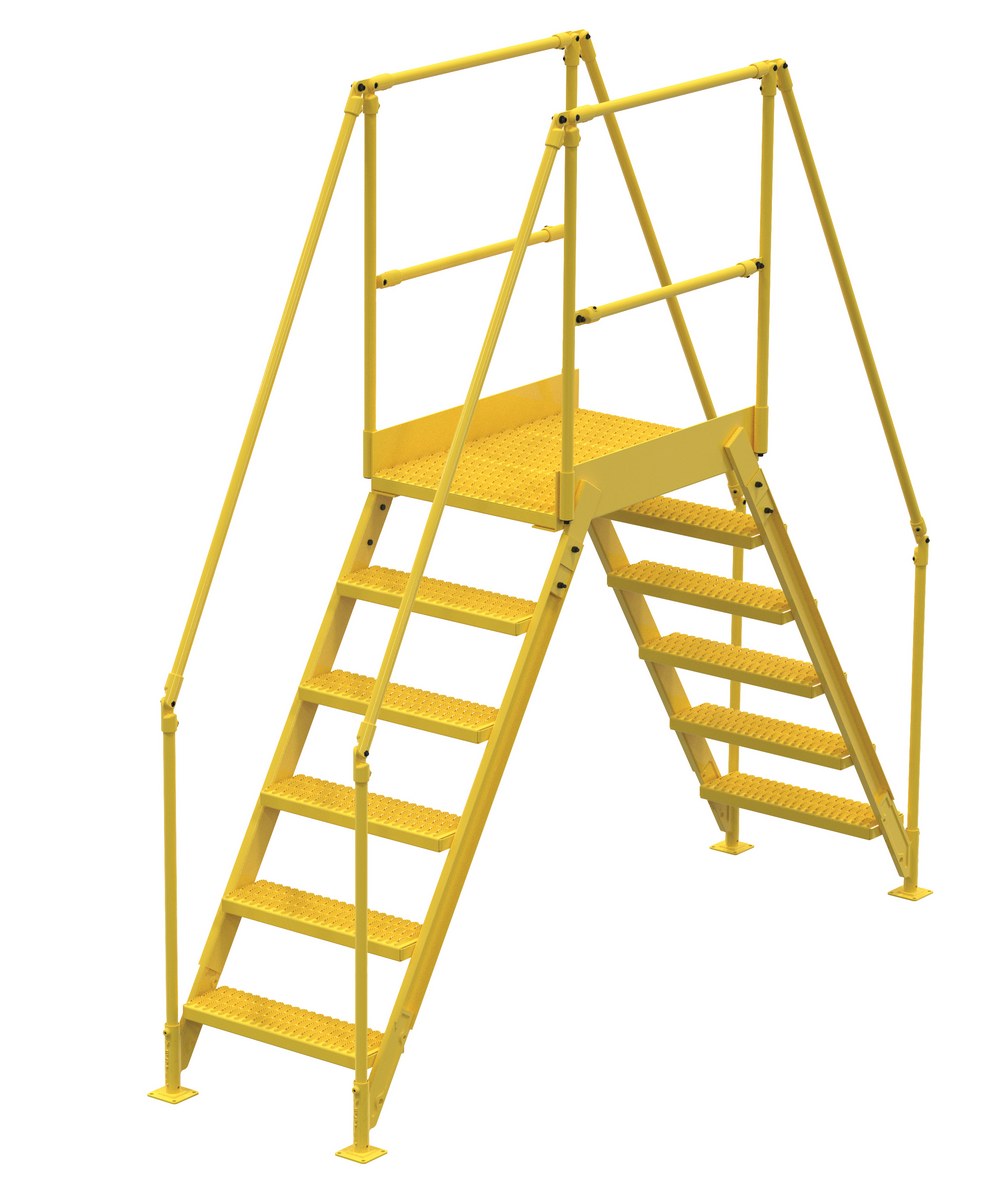

| COL-6-56-23 | | 1 Year Limited Warranty | Steel Crossover Ladder 6 Step 23.5 In. x 36 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 60 | 397 | ||

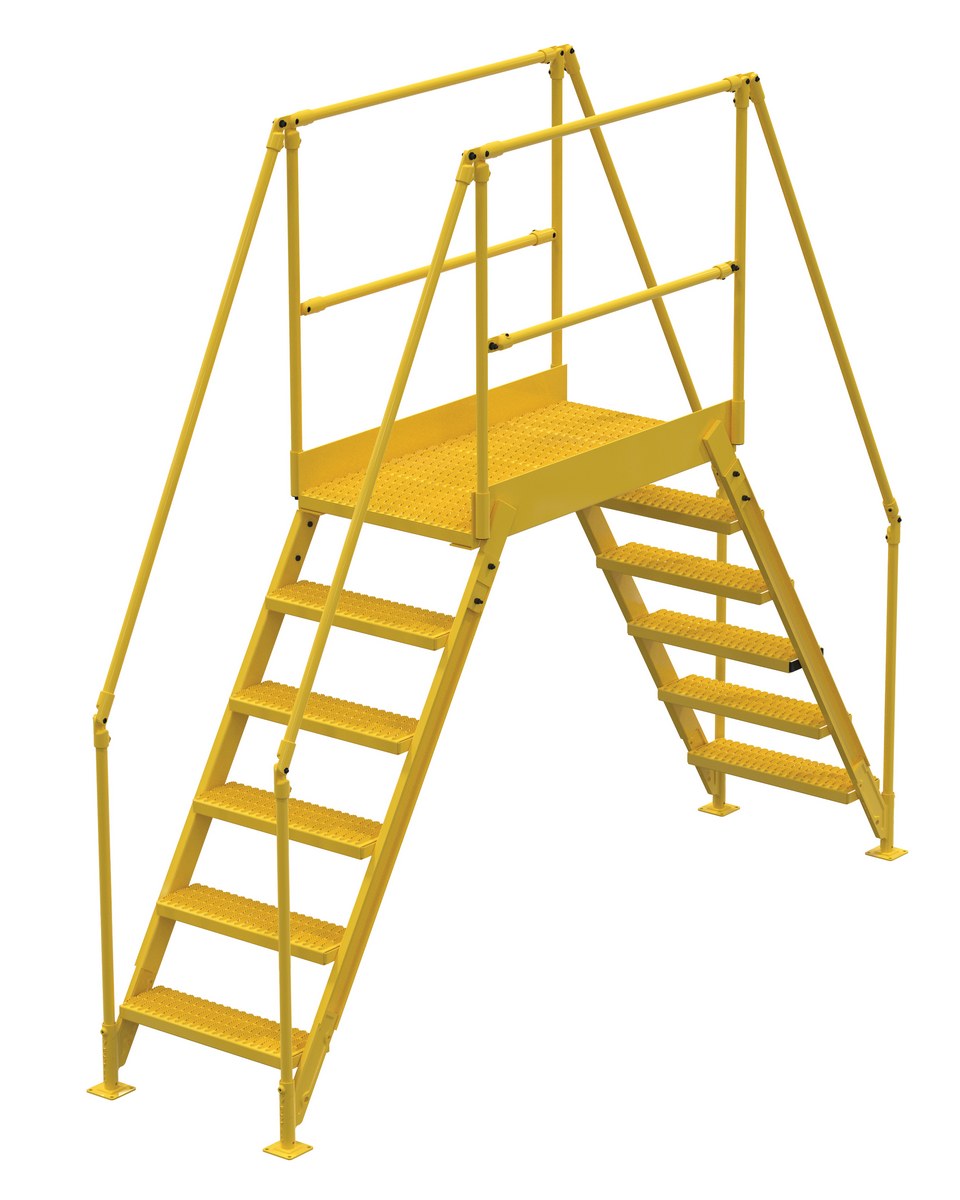

| COL-6-56-33 | | 1 Year Limited Warranty | Steel Crossover Ladder 6 Step 23.5 In. x 48 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 60 | 401 | ||

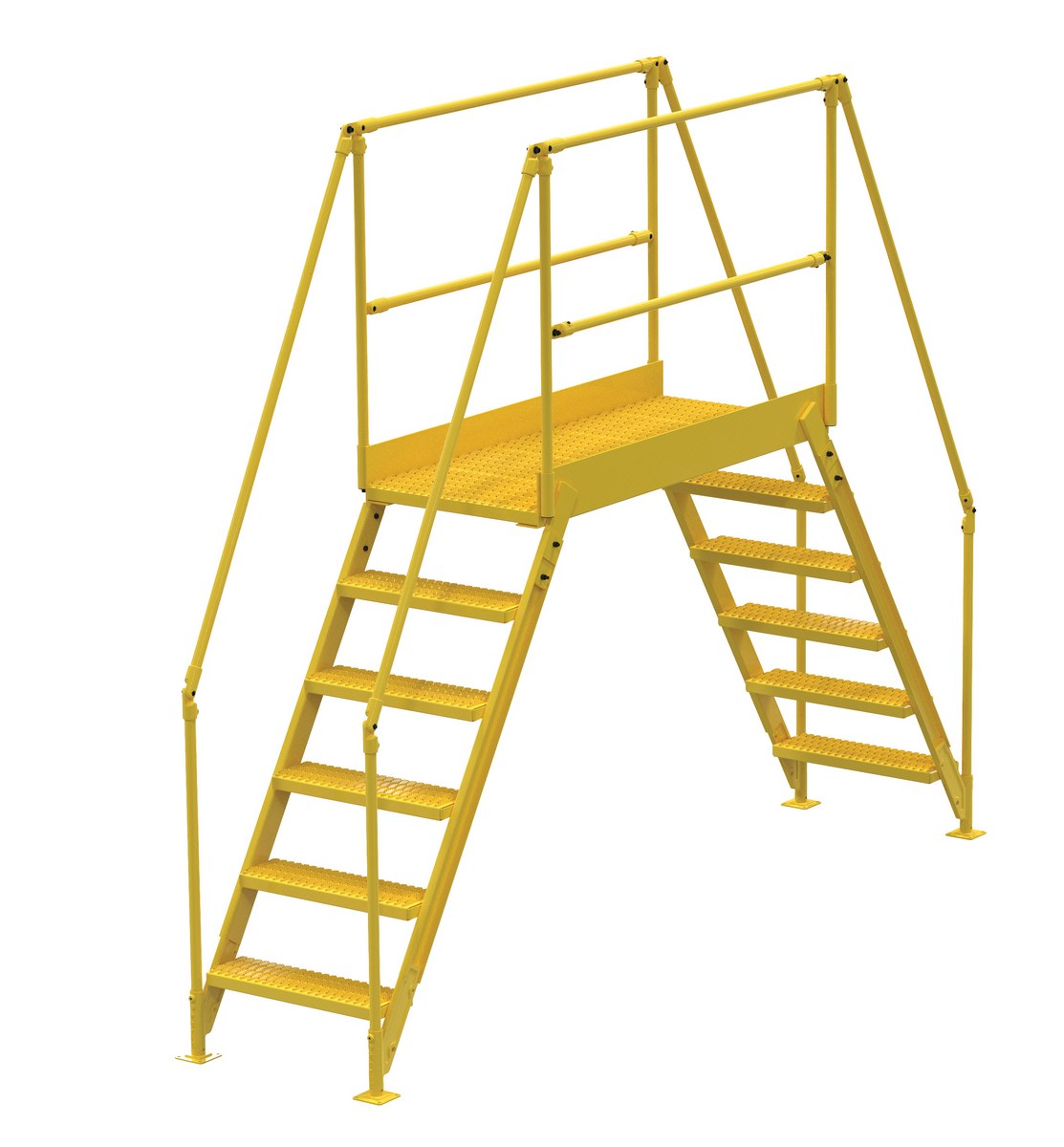

| COL-6-56-44 |  | 1 Year Limited Warranty | Steel Crossover Ladder 6 Step 23.5 In. x 60 In. 500 Lb. Capacity Yellow | Uniform Capacity (lb.): 500 Platform Height (in.): 60 | 460 |
Showing 1 to 16 of 16 entries
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
