FEATURED Portable Hydraulic Drum Carrier/Rotator/Booms

model: HDC-305-96

More Images +

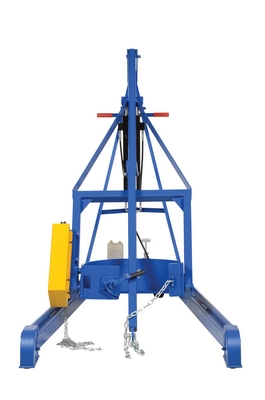

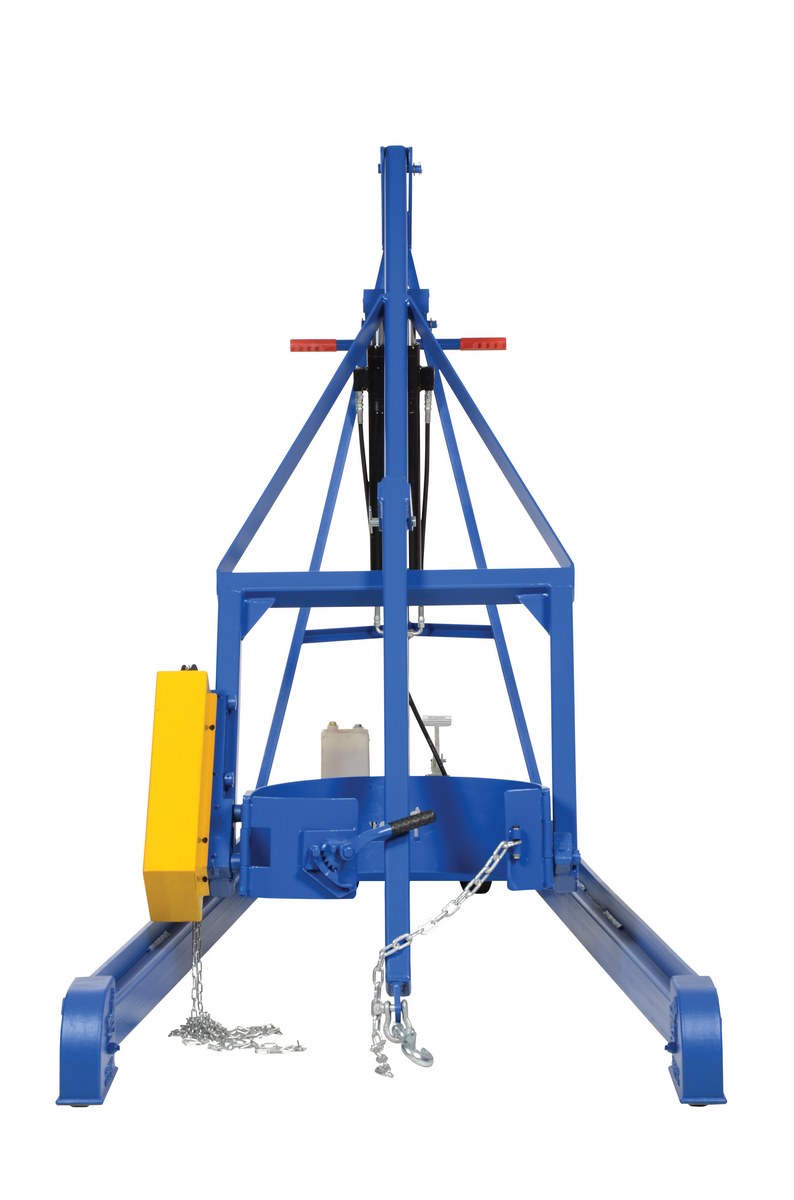

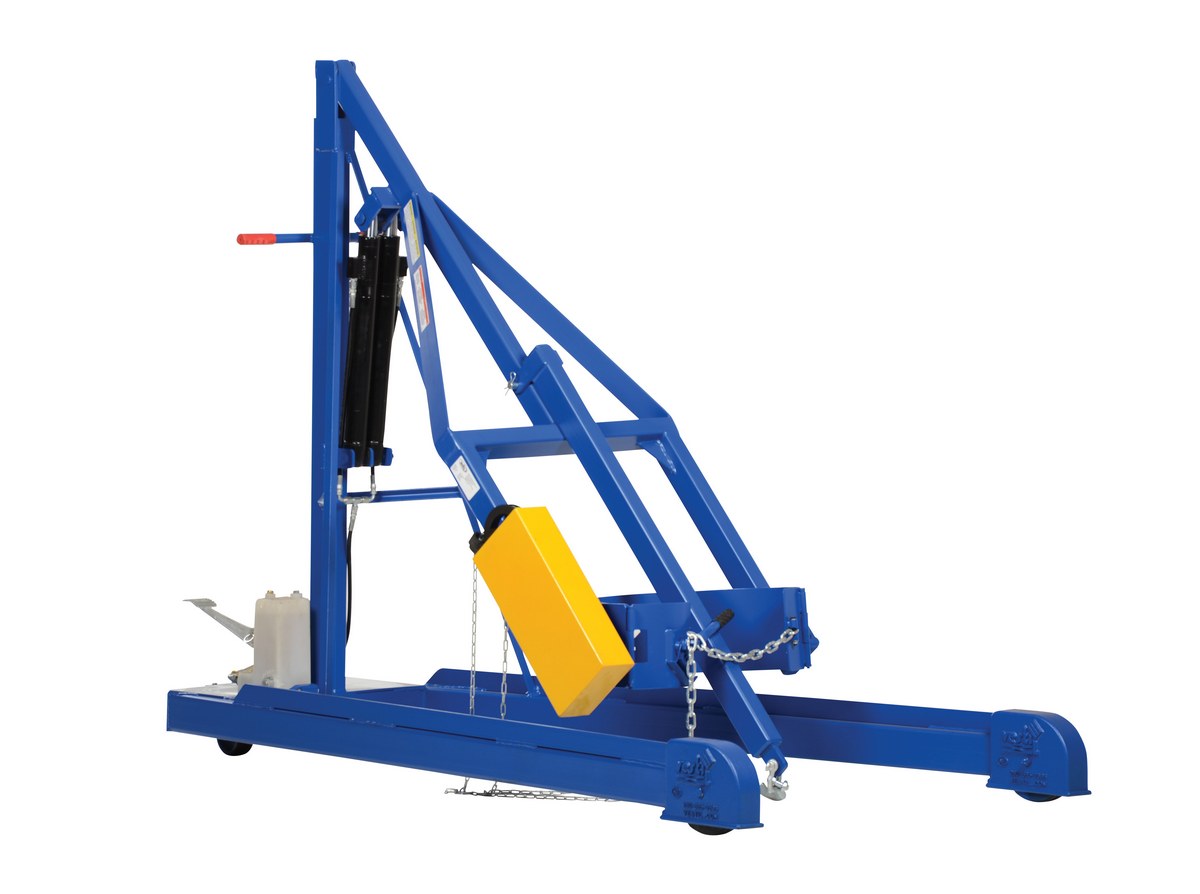

Portable Hydraulic Drum Carrier/Rotator/Booms

SERIES: HDC-305 17Products 5Options

Hydraulic Drum Carrier Rotators with Boom Attachment for 55 Gallon Drums

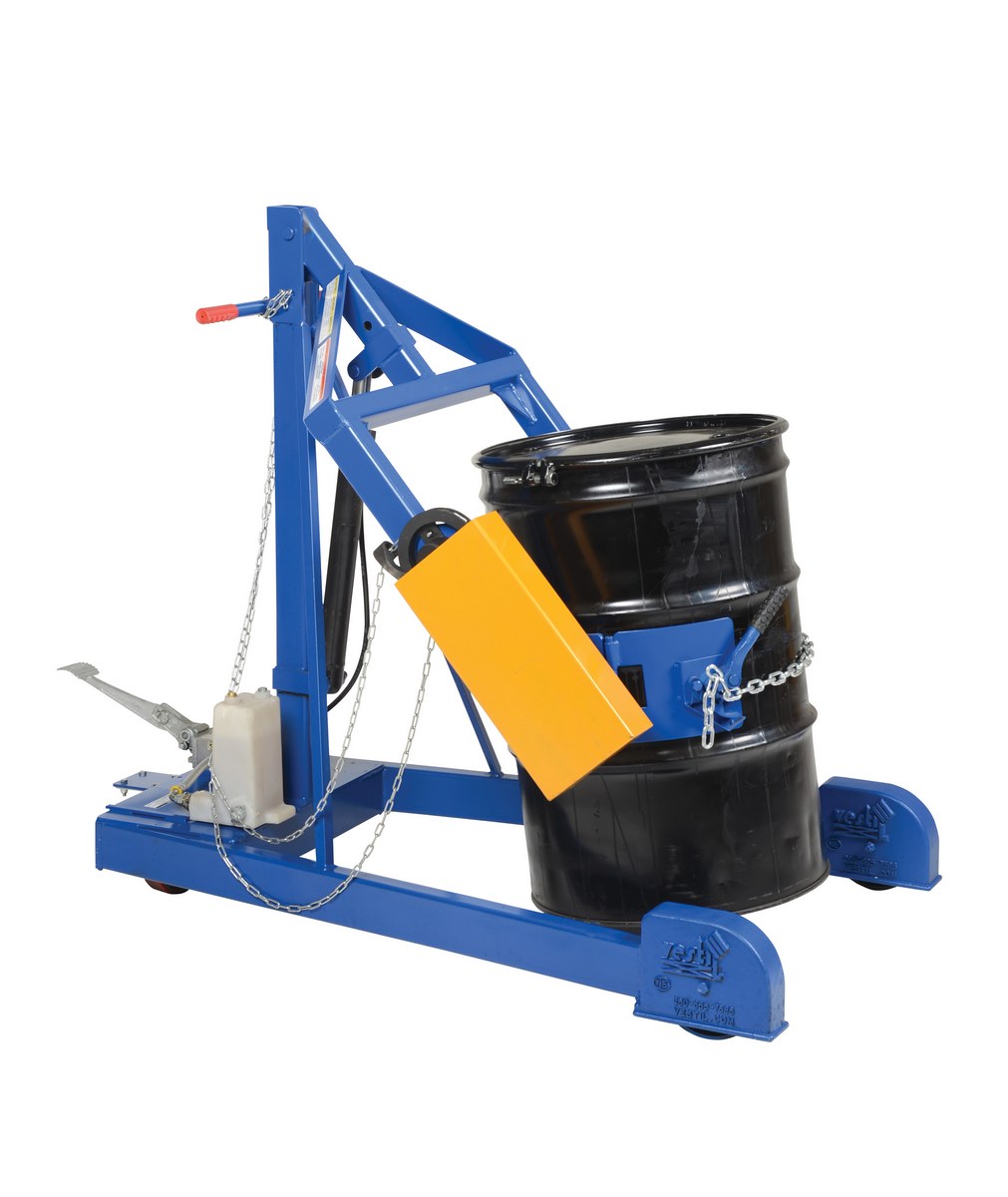

Portable hydraulic drum carrier, rotator, and boom units provide a versatile solution for lifting, transporting, rotating, dispensing, and positioning fully loaded 55 gallon steel drums. Designed for warehouses, production floors, maintenance departments, drum storage areas, and material handling facilities, these units help one operator handle heavy drums with better control and less manual effort.

Lift, Rotate, and Dispense

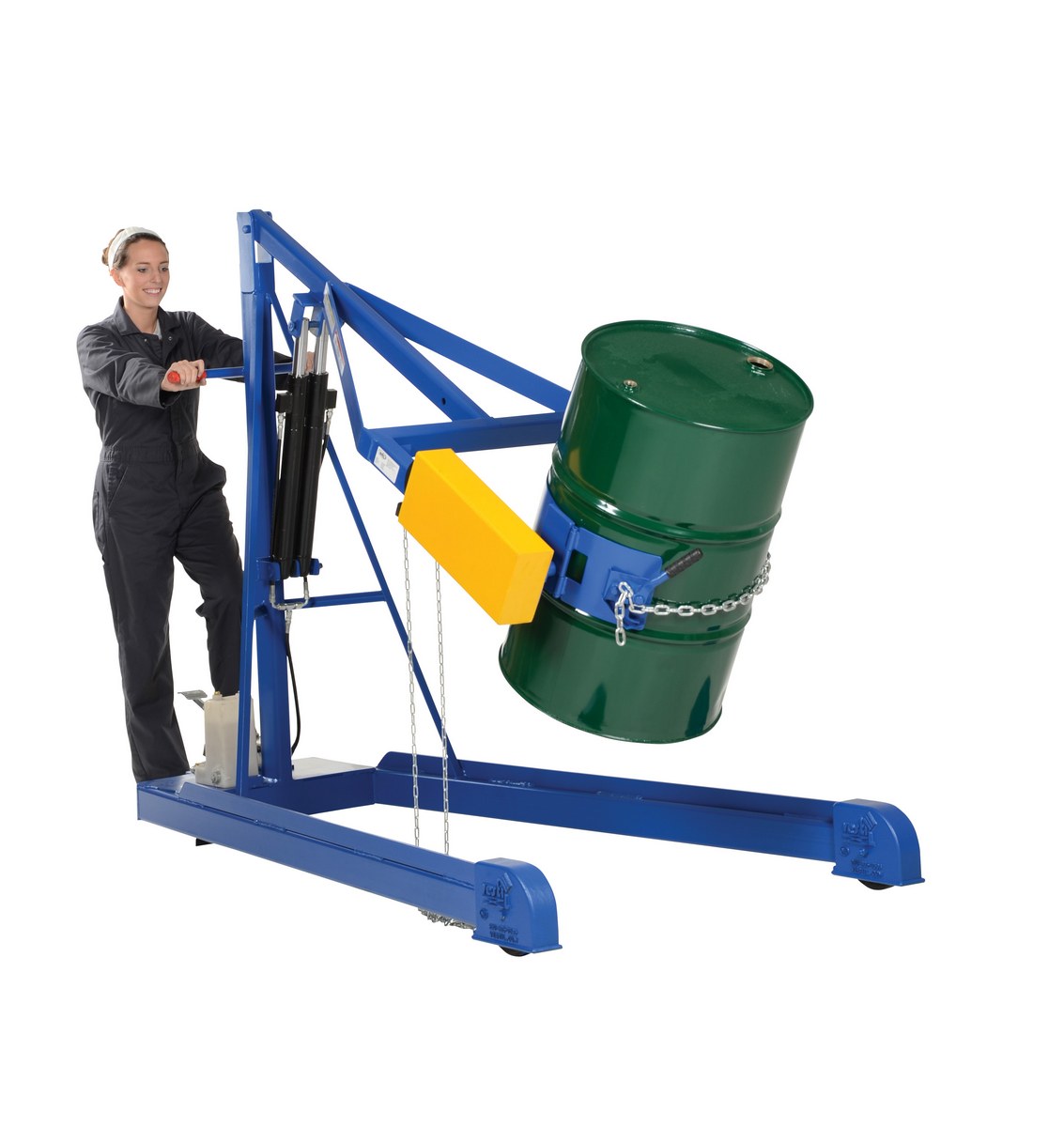

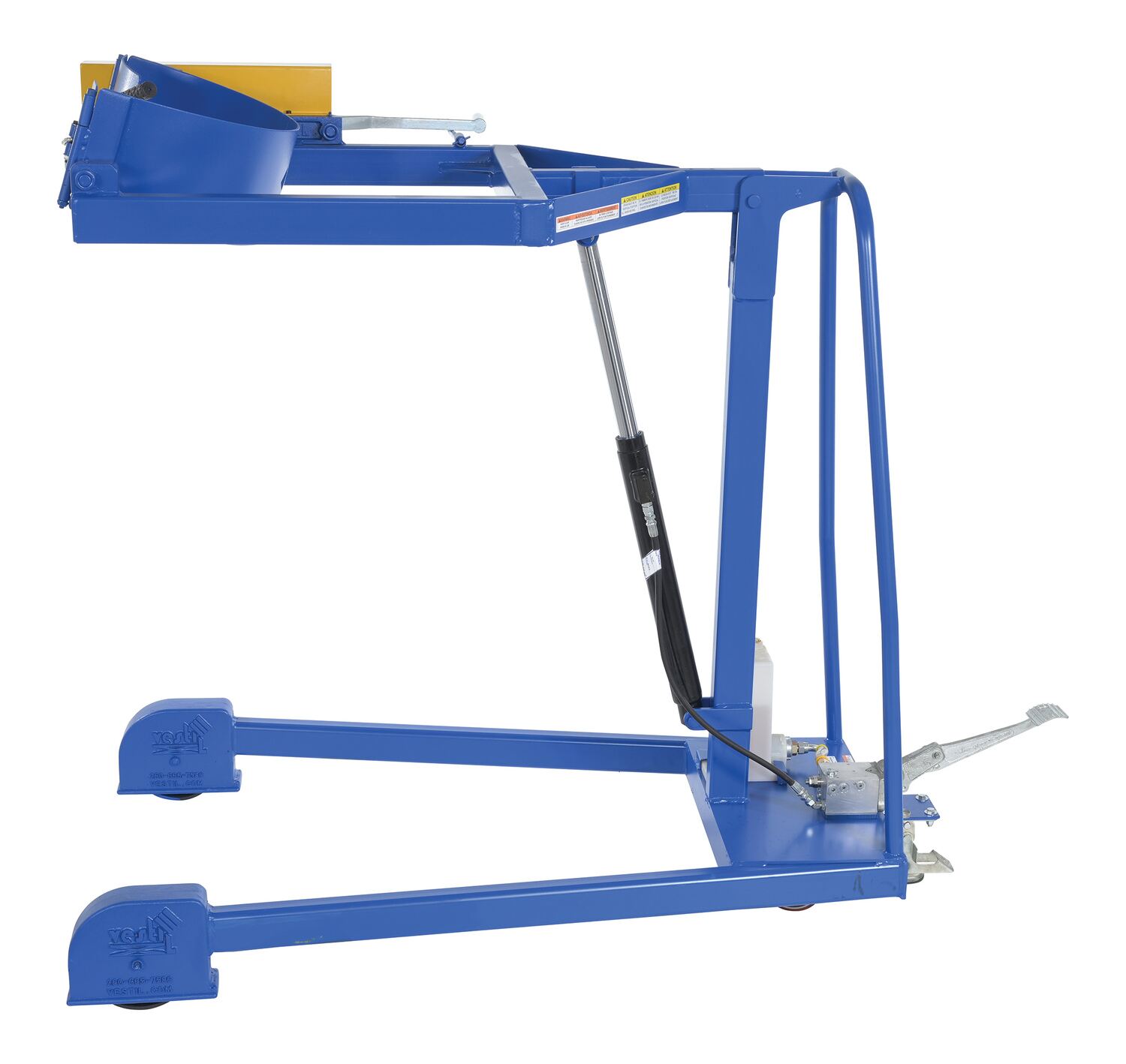

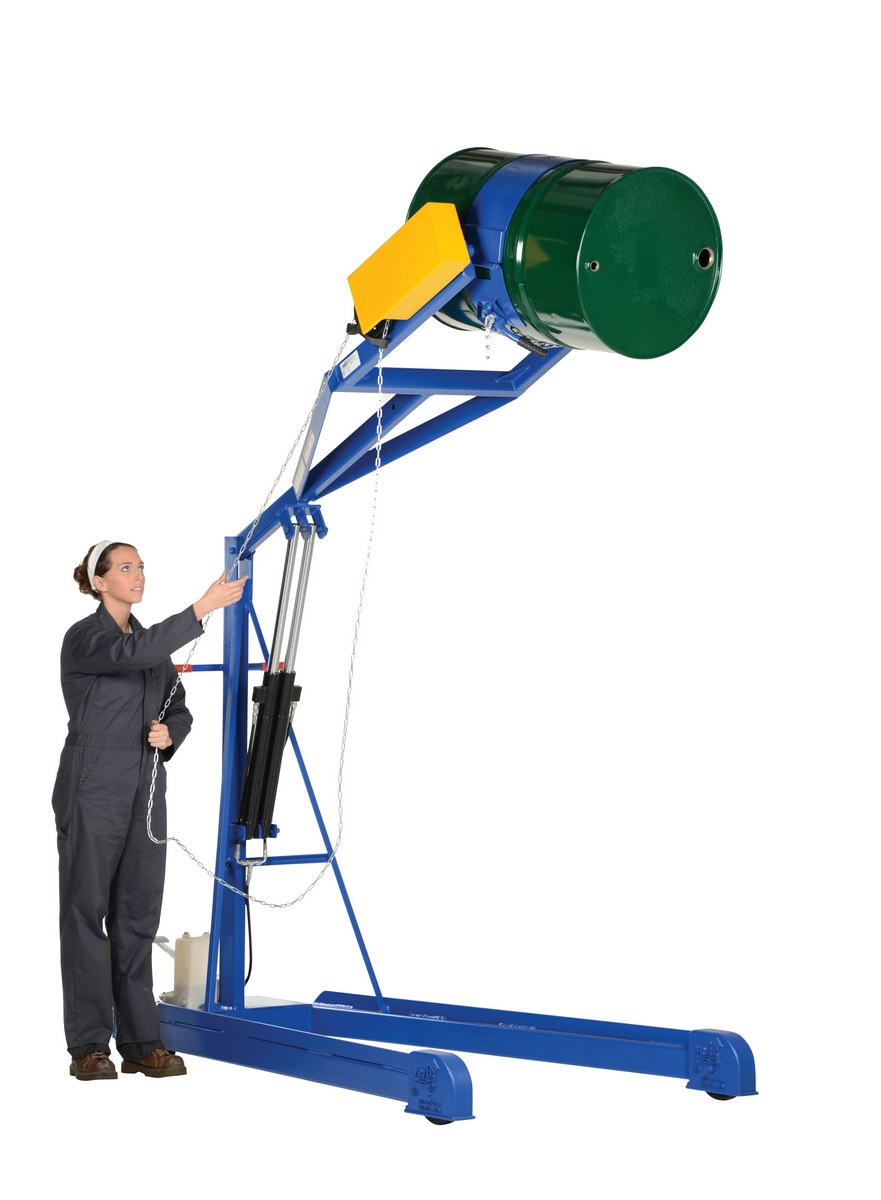

Each model supports 800 lb. capacity and provides 360 degree drum rotation for controlled pouring, dumping, and dispensing of fluid or semi-fluid loads. Lift heights range from approximately 59-11/16 inches to 97-9/16 inches, giving users options for different dumping heights, containers, and workstation layouts.

Manual, AC, and DC Power Options

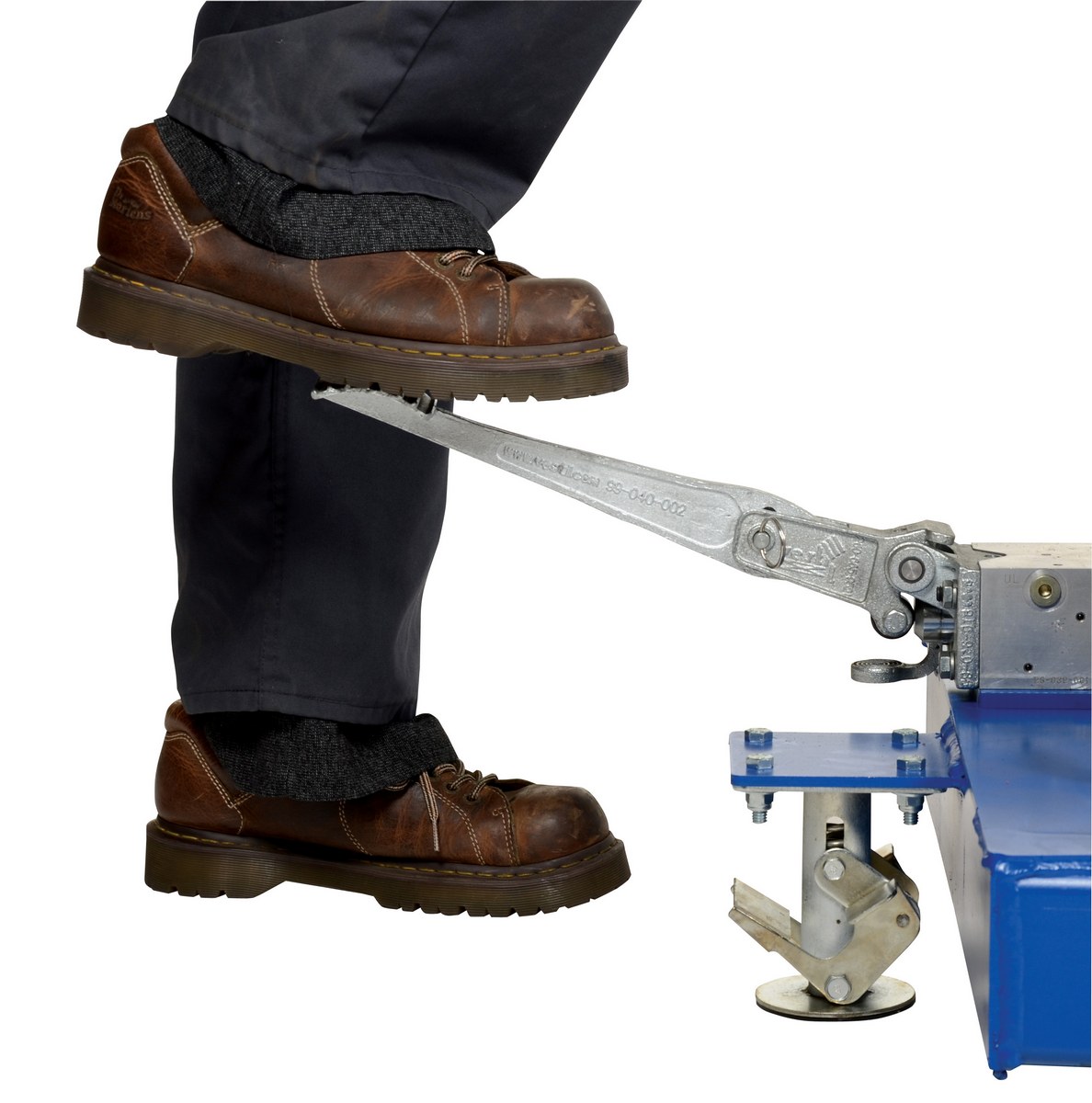

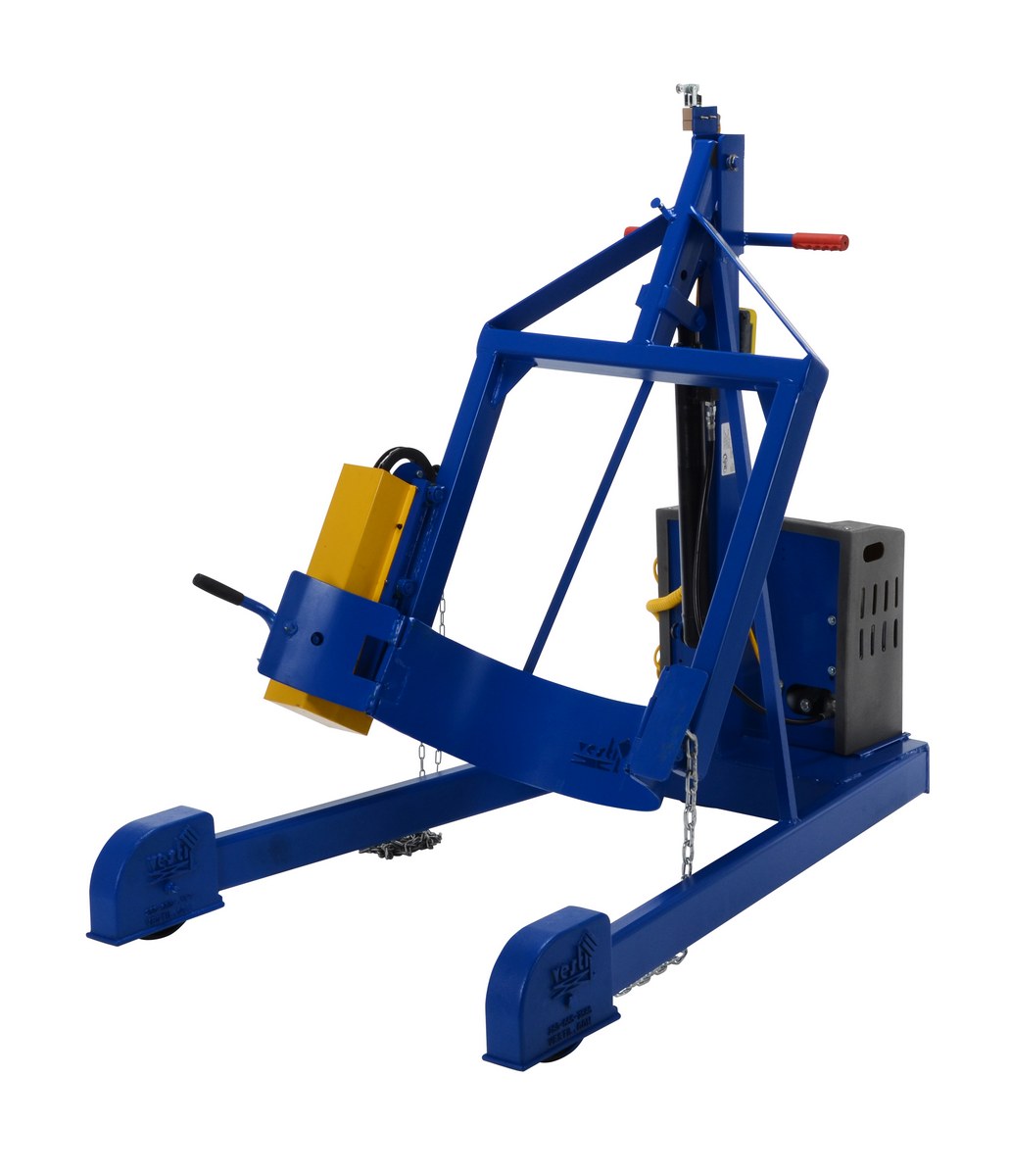

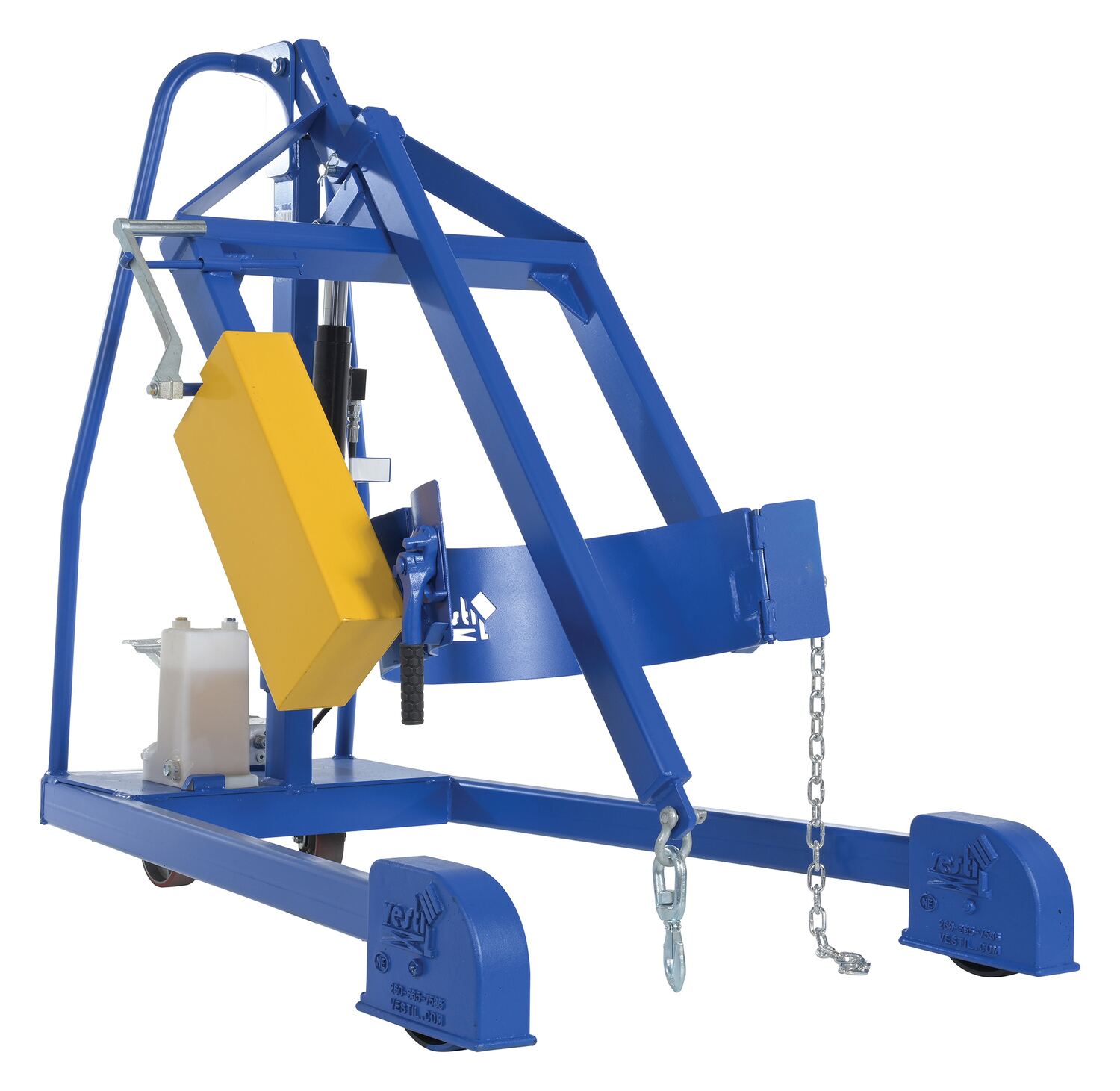

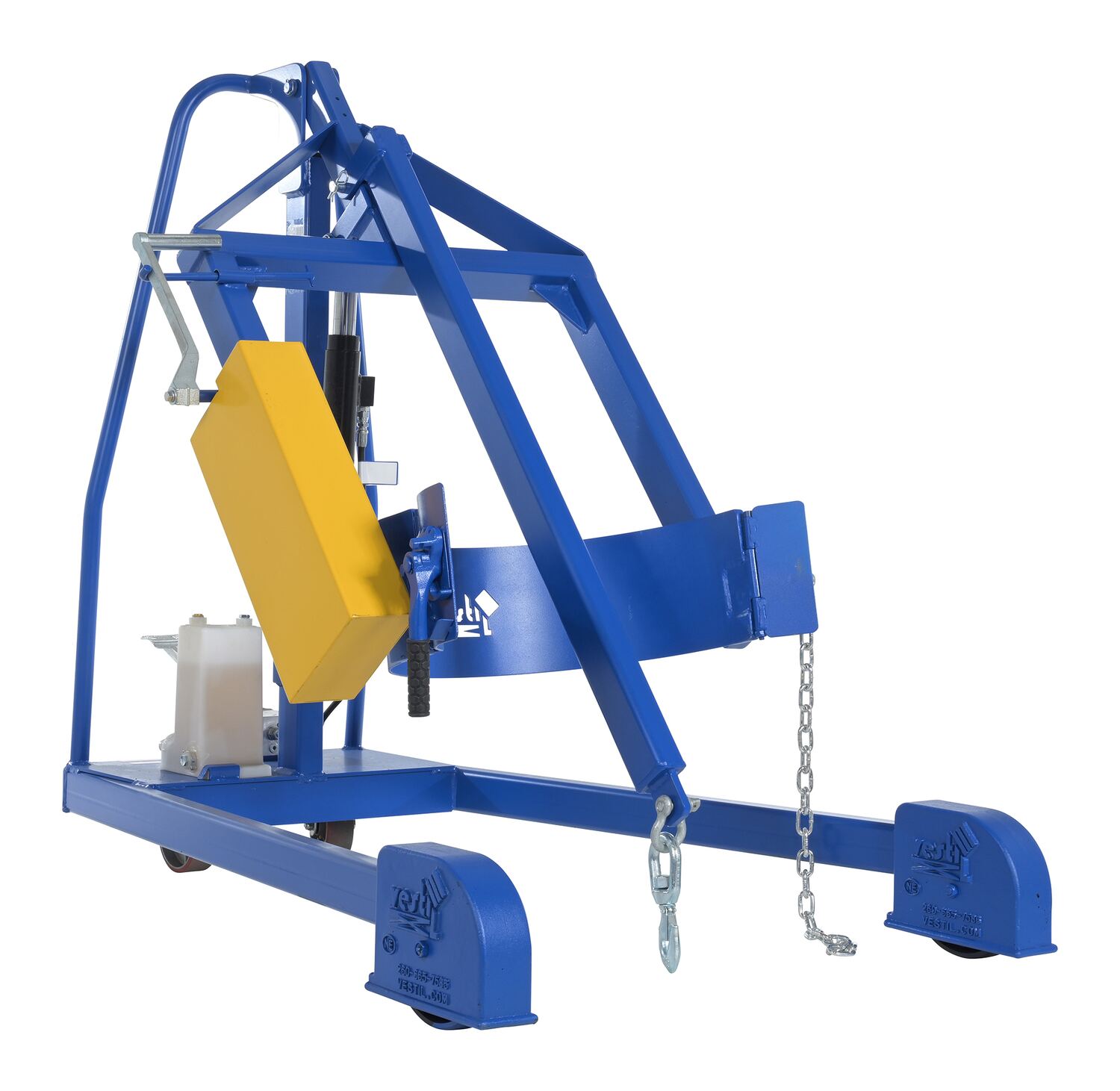

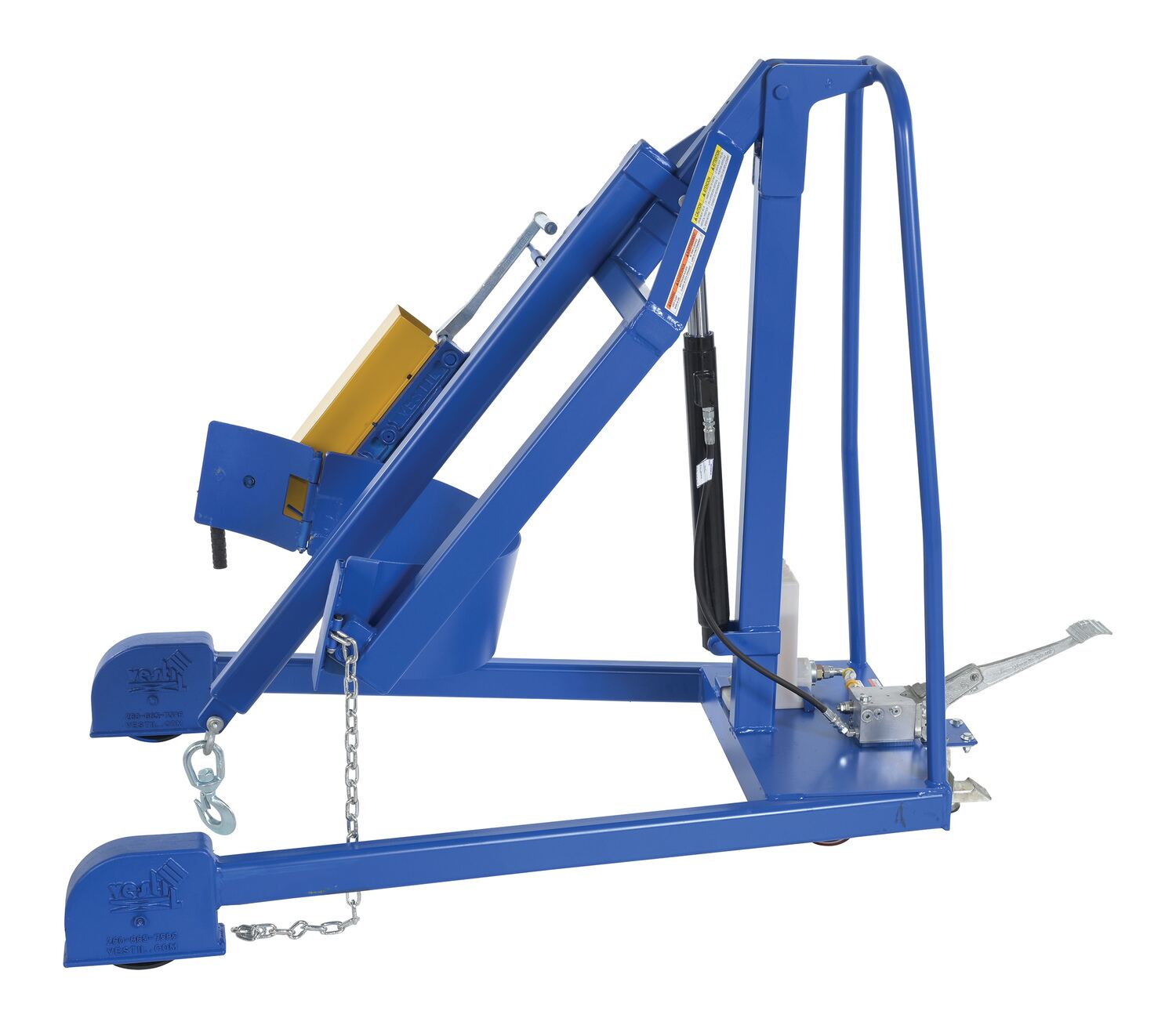

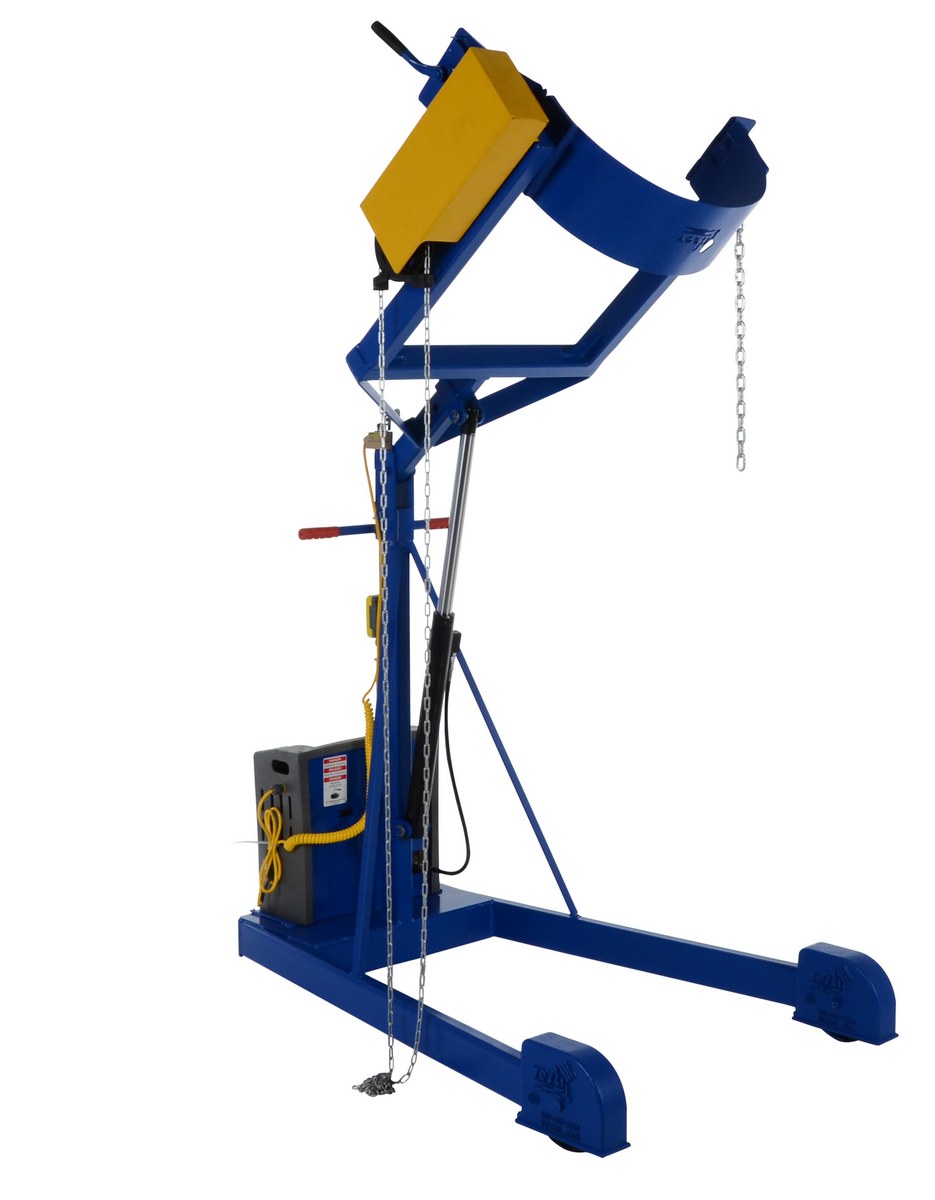

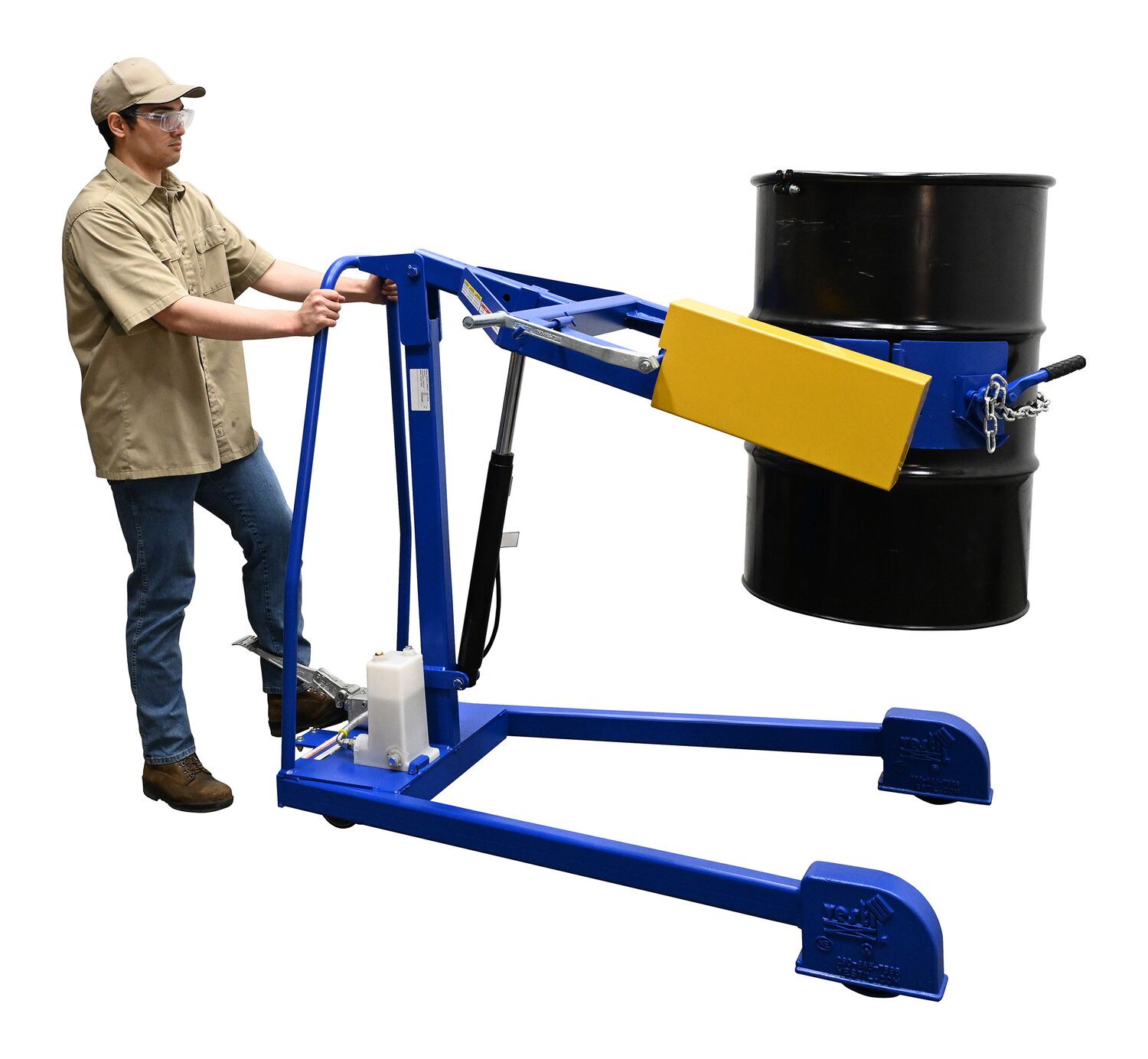

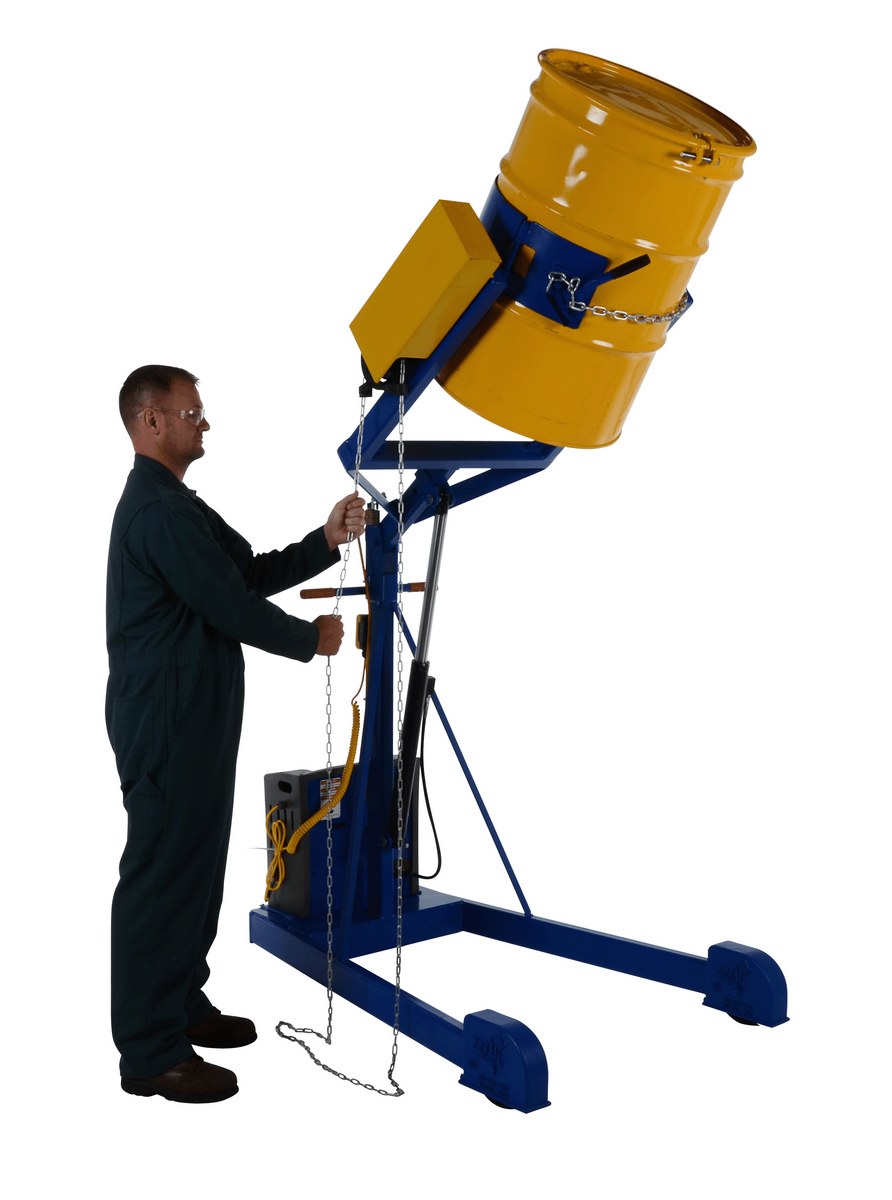

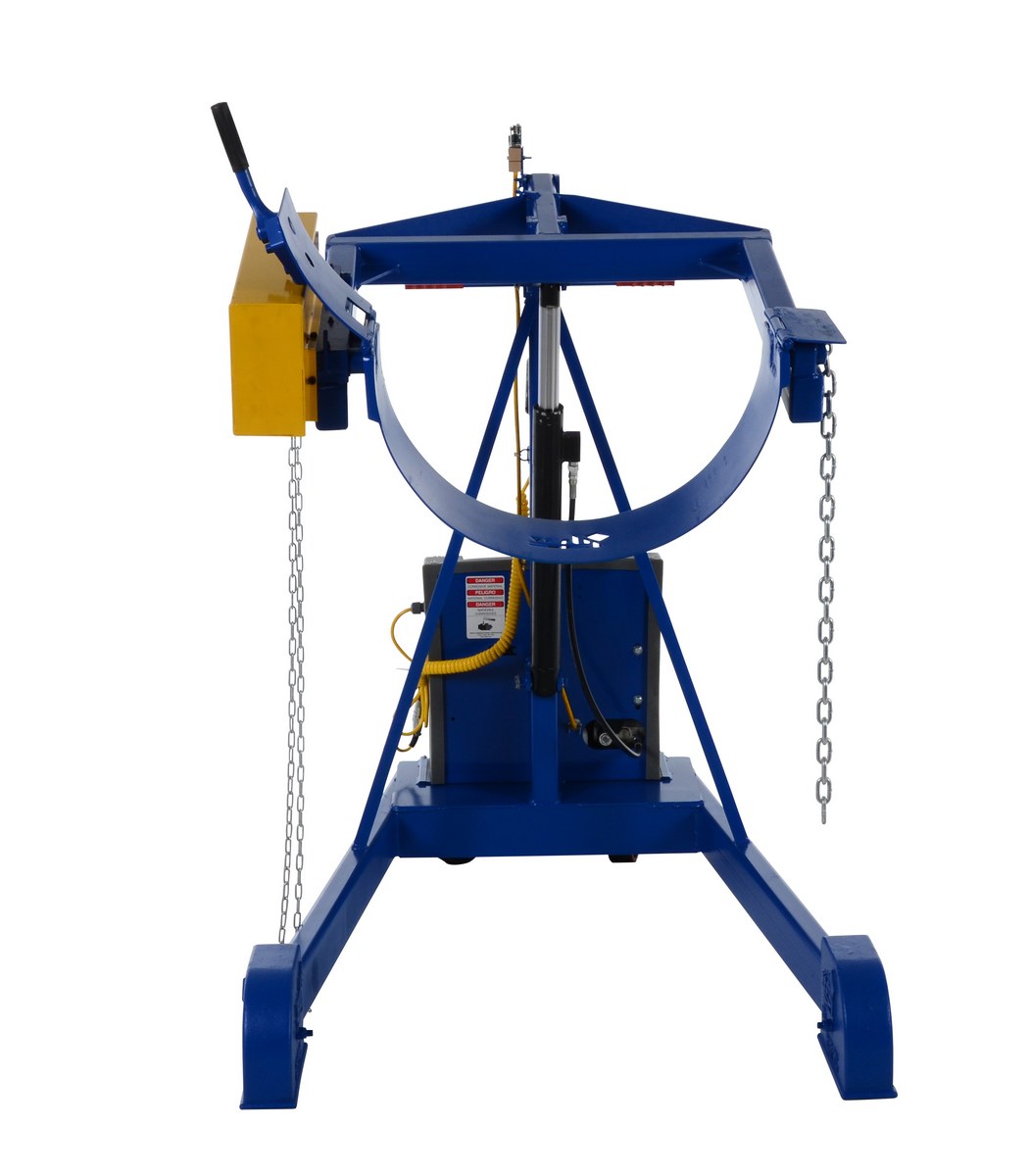

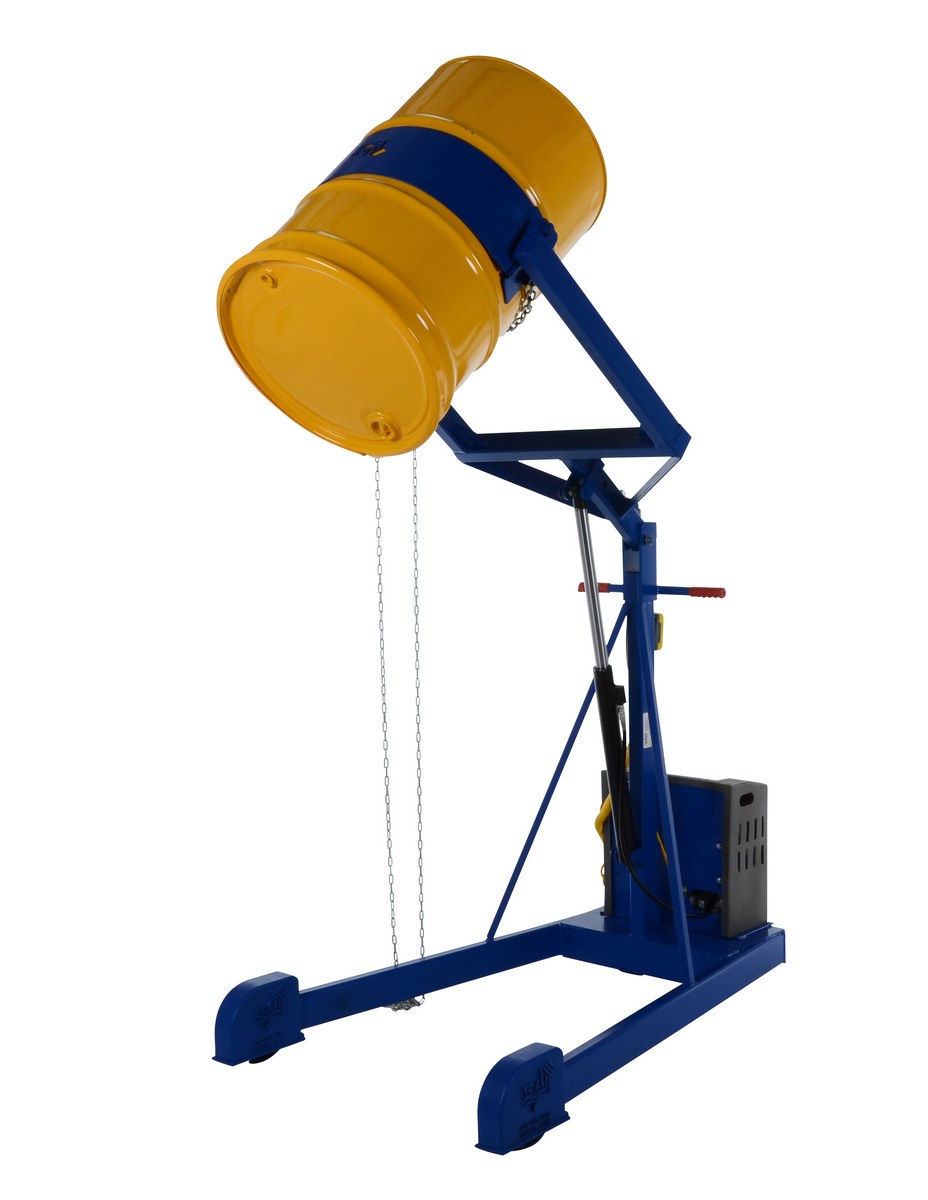

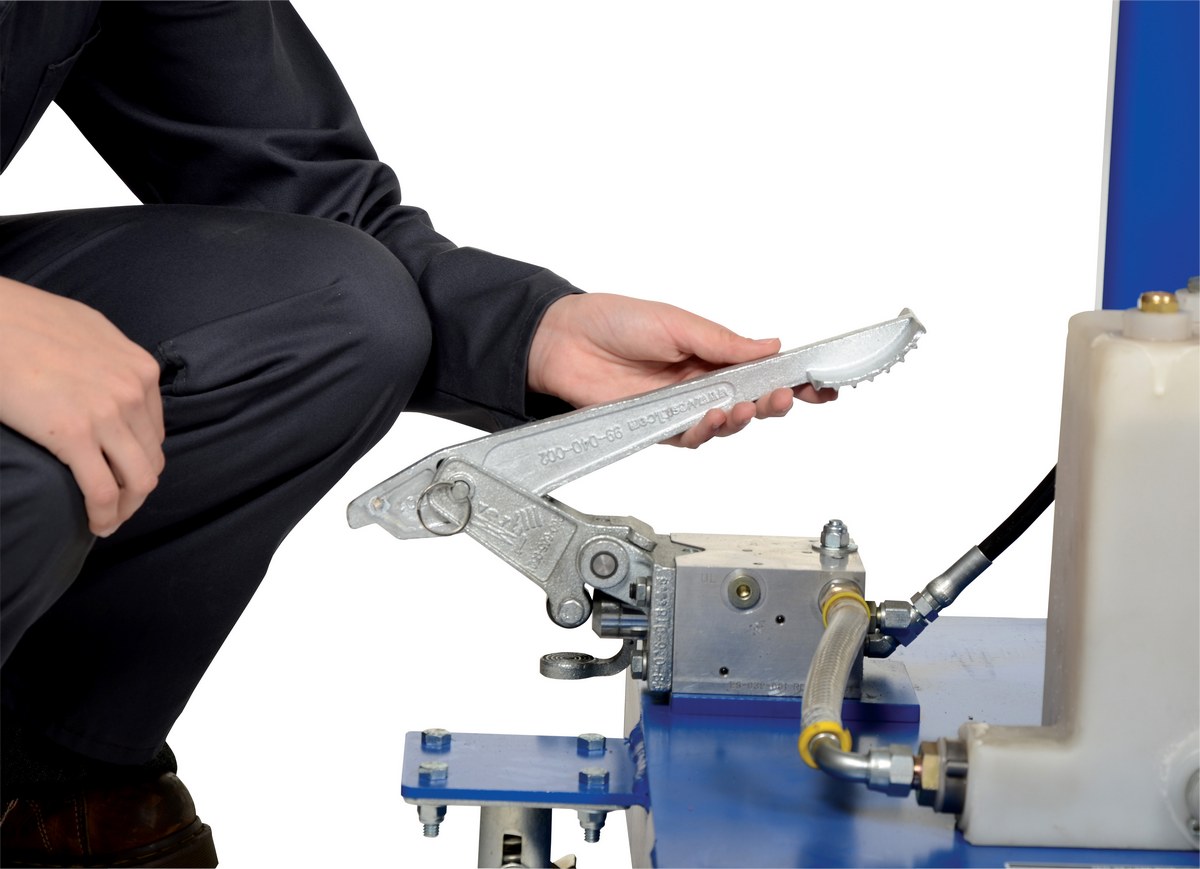

Models are available with manual foot pump hydraulic lift, AC powered lift, or DC powered lift. Drum rotation configurations include hand crank, pull chain, AC powered, and DC powered designs, allowing facilities to match the carrier to operating frequency, power availability, and operator preference.

Mobile Steel Construction

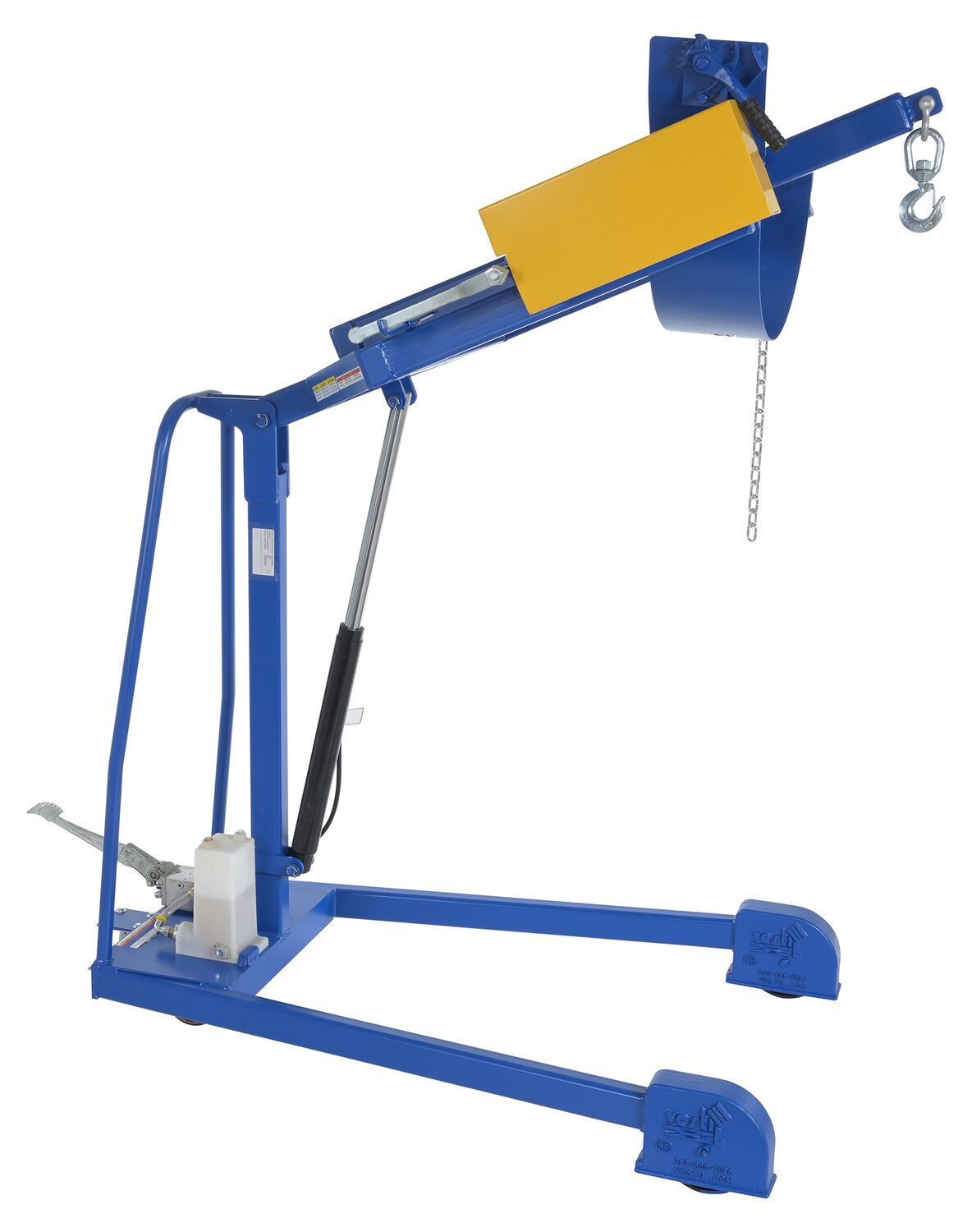

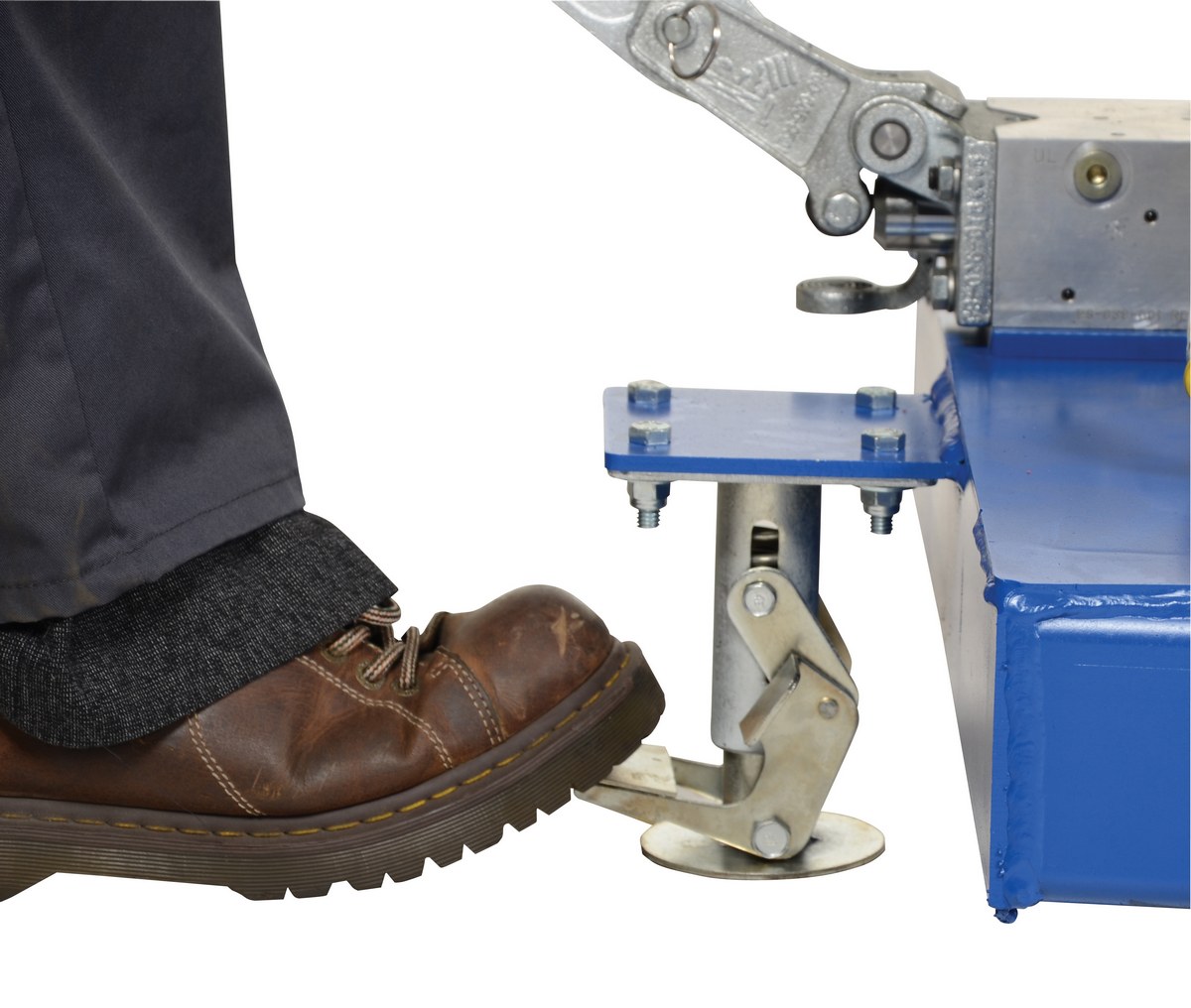

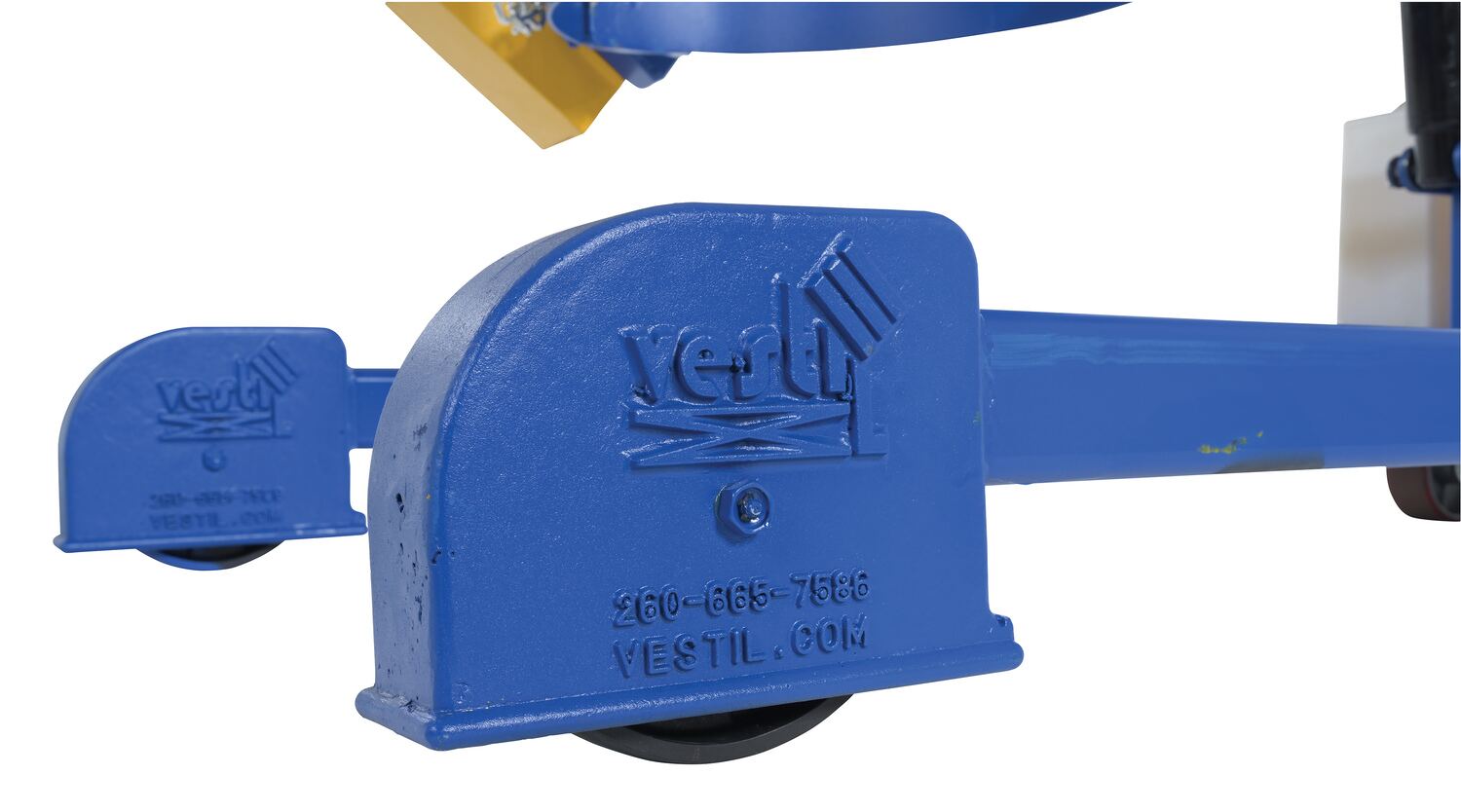

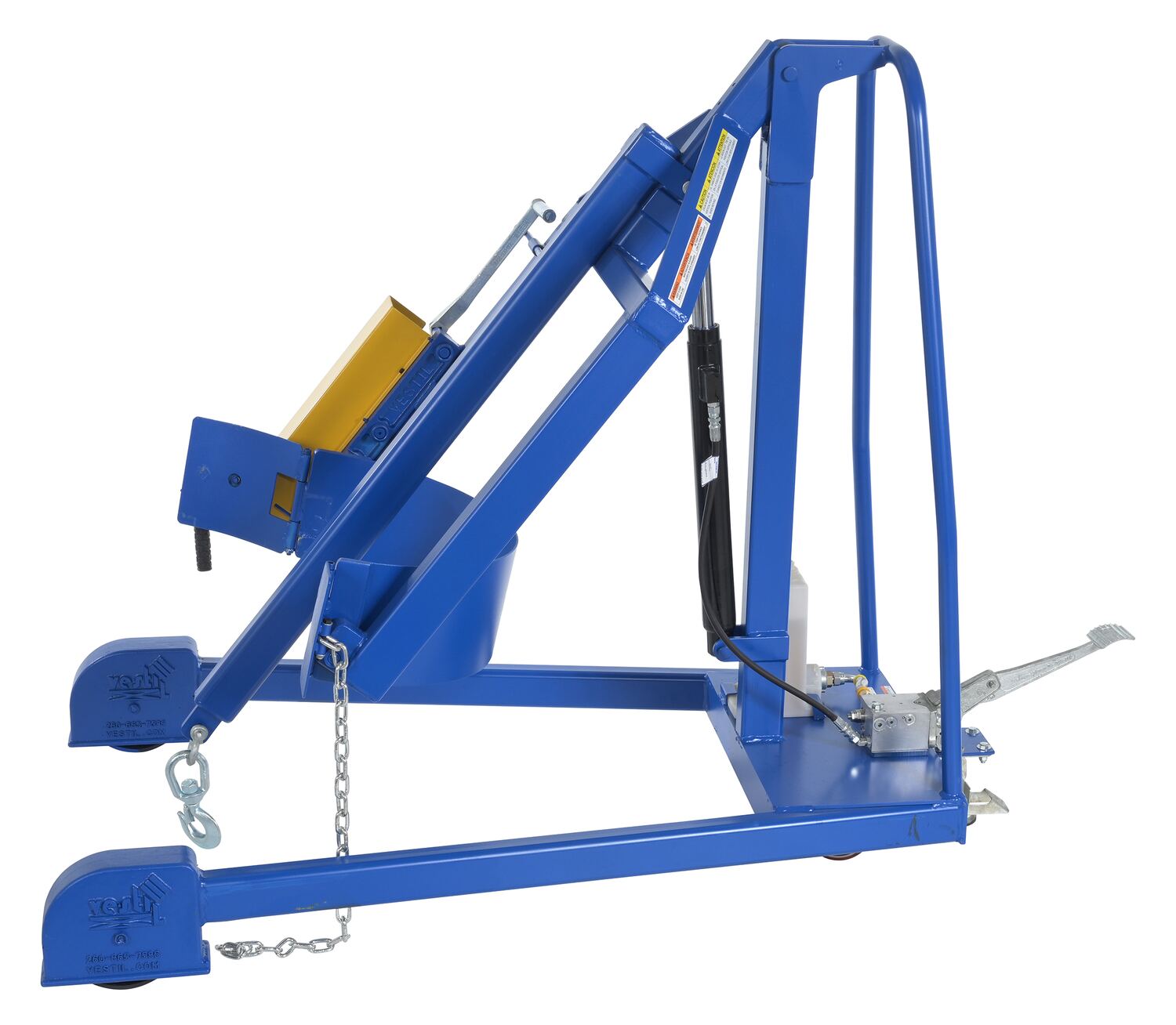

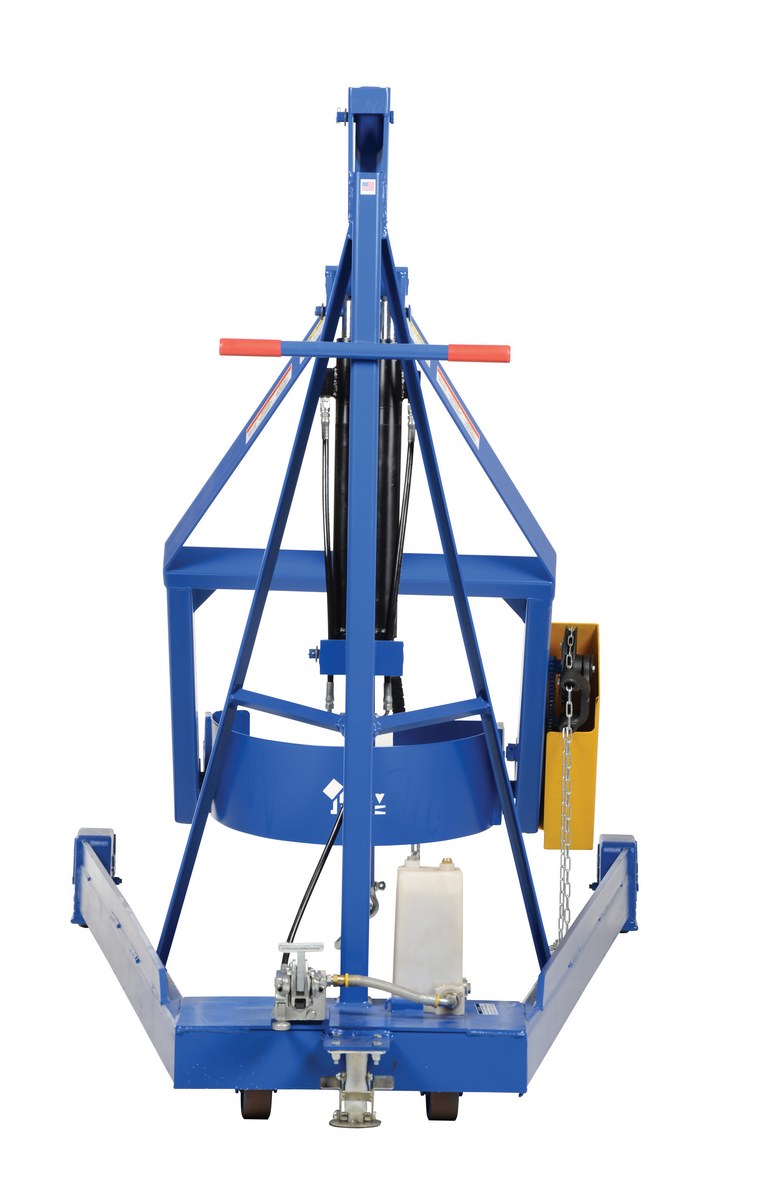

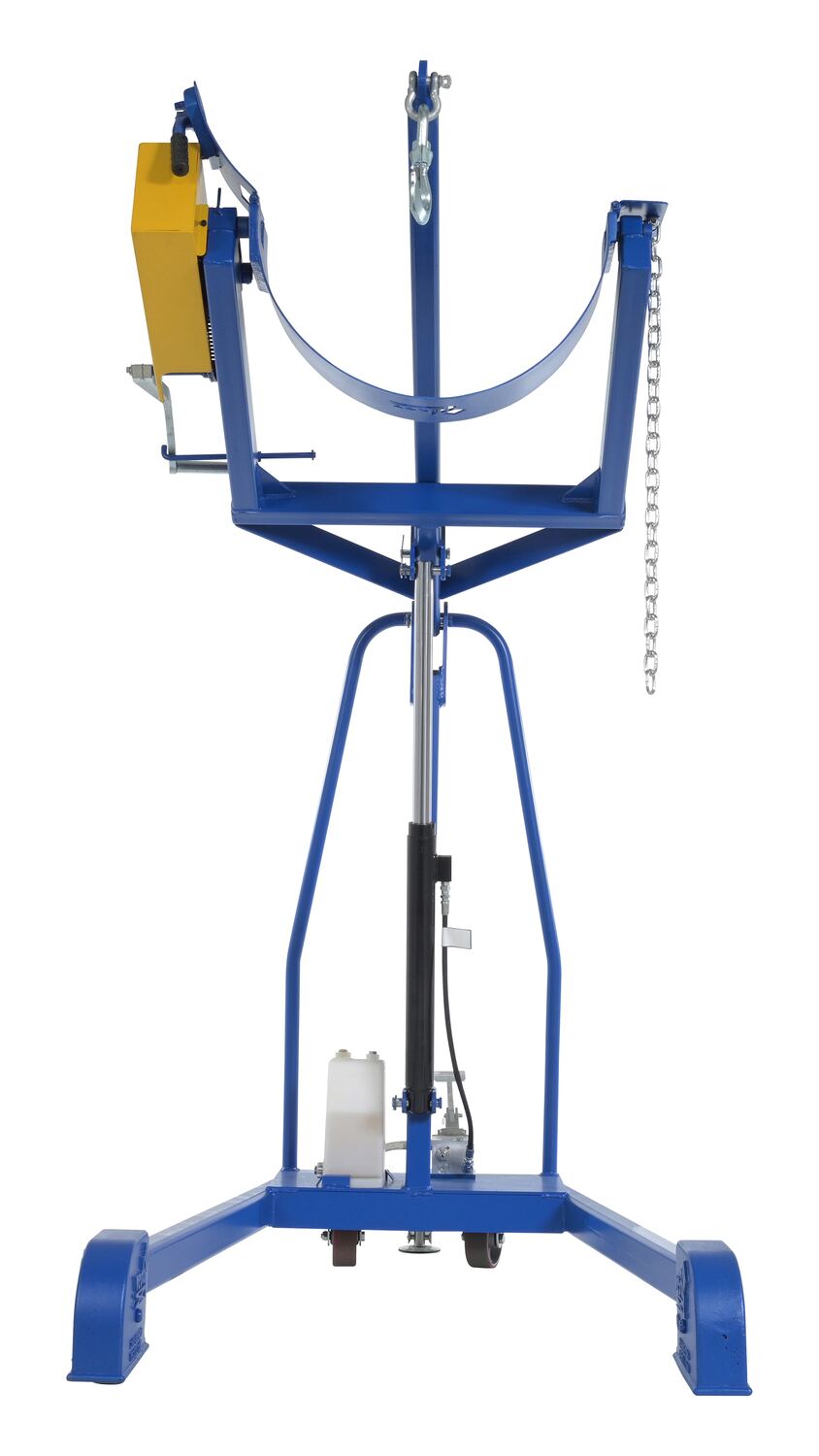

Heavy-duty welded steel construction, rear swivel casters, front rigid wheels, and a floor lock support stable handling and smooth movement between work areas. A lifting boom attachment mounts to the outriggers for lifting compatible objects with the hook, and Plastic and Fiber Drum adapters or power unit upgrades are available for select applications.

Portable Hydraulic Drum Carrier/Rotator/Booms

model: HDC-305-96

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

For More Details of the Option Click the Red Model Button

Model	Details	Icons	Wt.
HDC-AC	Factory Installed 115 Volt AC Power Unit For Hydraulic Drum …	90 Days Limited Warranty	36
HDC-AIR	Factory Installed Air/Oil Operated Power Unit For Hydraulic …	90 Days Limited Warranty	36
HDC-DC	Factory Installed 12 Volt DC Power Unit For Hydraulic Drum C…	90 Days Limited Warranty	54
HDC-R-DC	Factory Installed 24V DC Power Rotation For Hydraulic Drum C…	90 Days Limited Warranty	232
HDC-R-HC	Factory Installed Manual Rotation For Hydraulic Drum Carrier…	90 Days Limited Warranty
