Drum Grippers

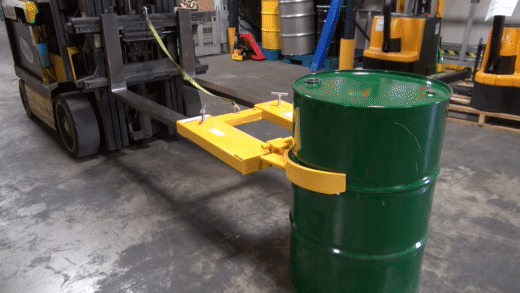

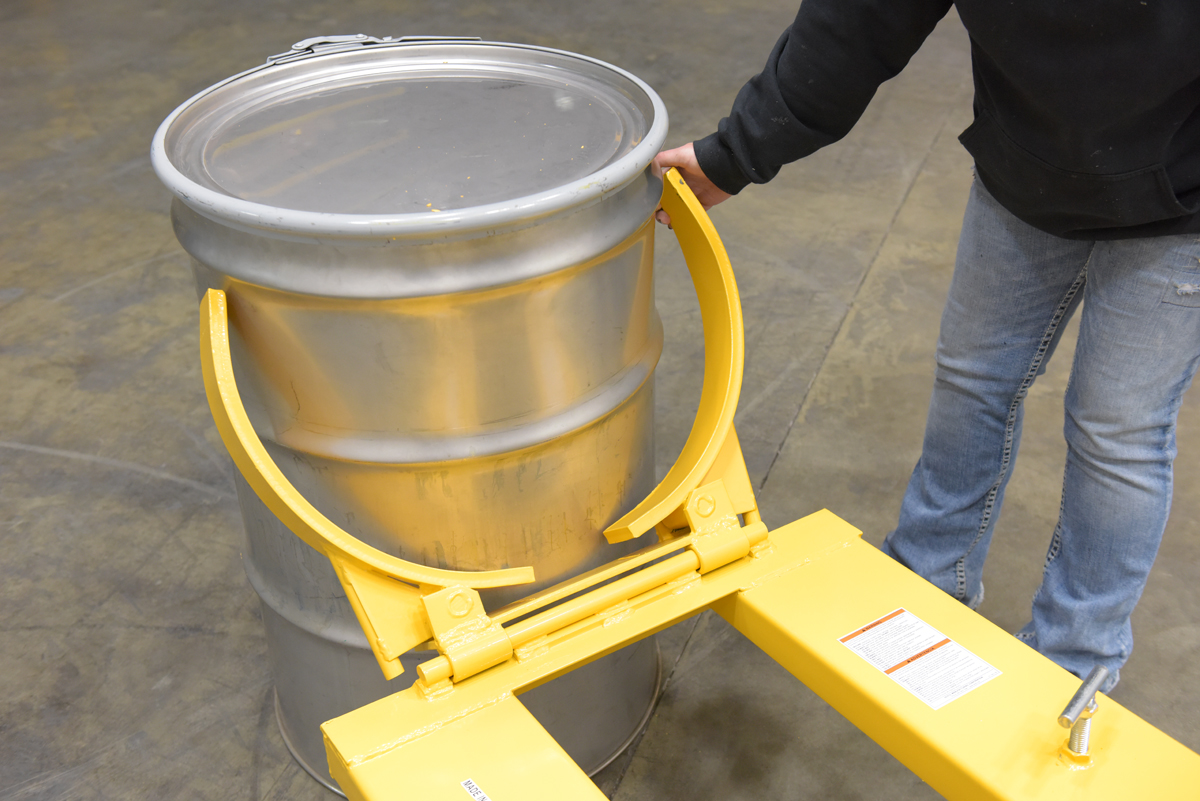

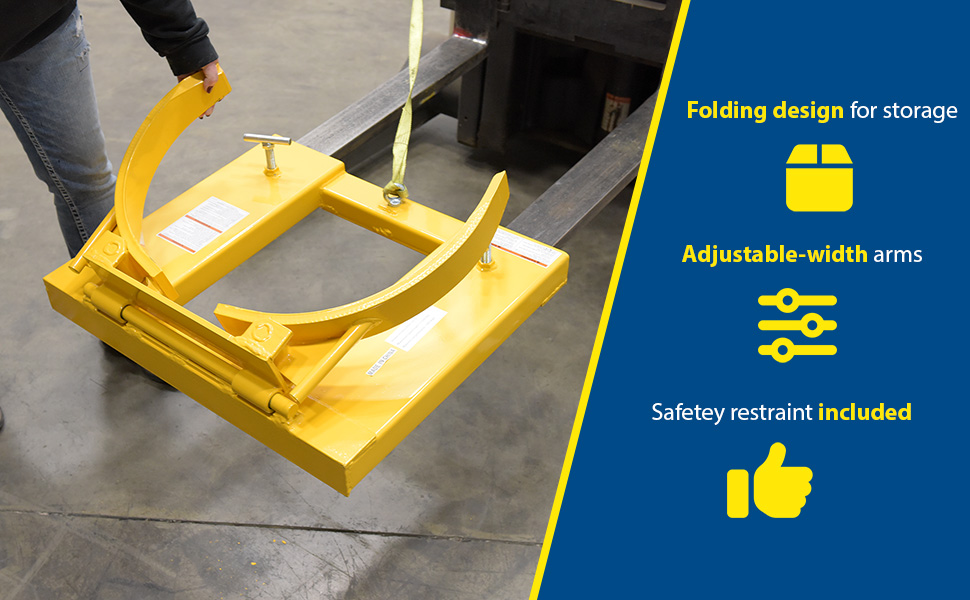

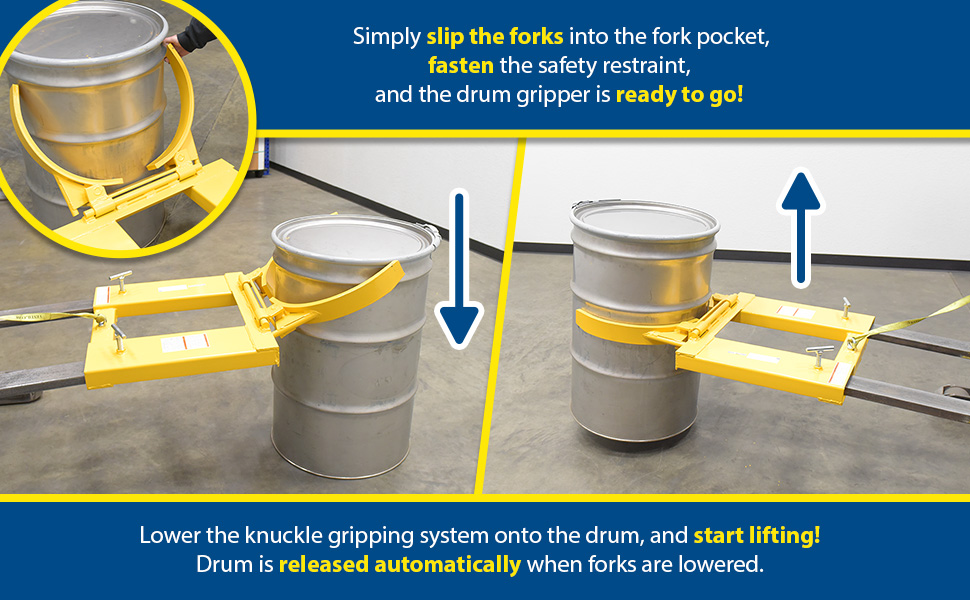

Drum GrippersThe Drum Gripper makes it easy to pick up one or two open head (with lid installed and secured) and closed head steel drums without leaving the seat of the fork truck. Simply slip the forks into the fork tubes, fasten the safety restraint and the Drum Gripper is ready to go. The knuckle gripping system is lowered around the drum, gripped tightly, and then lifted into the air. Drum is automatically released by lowering the forks. All models feature hinged folding design for storage. Safety restraint included. Welded steel construction with a baked-in powder-coated toughness.
Models DGS-A, DGD-A, and DGS-A-PSD features adjustable-width arms for use with both 30-gallon and 55-gallon steel and plastic drums (with top ring or top ridge). Safety restraint included. Welded steel construction with a baked-in powder-coated toughness.

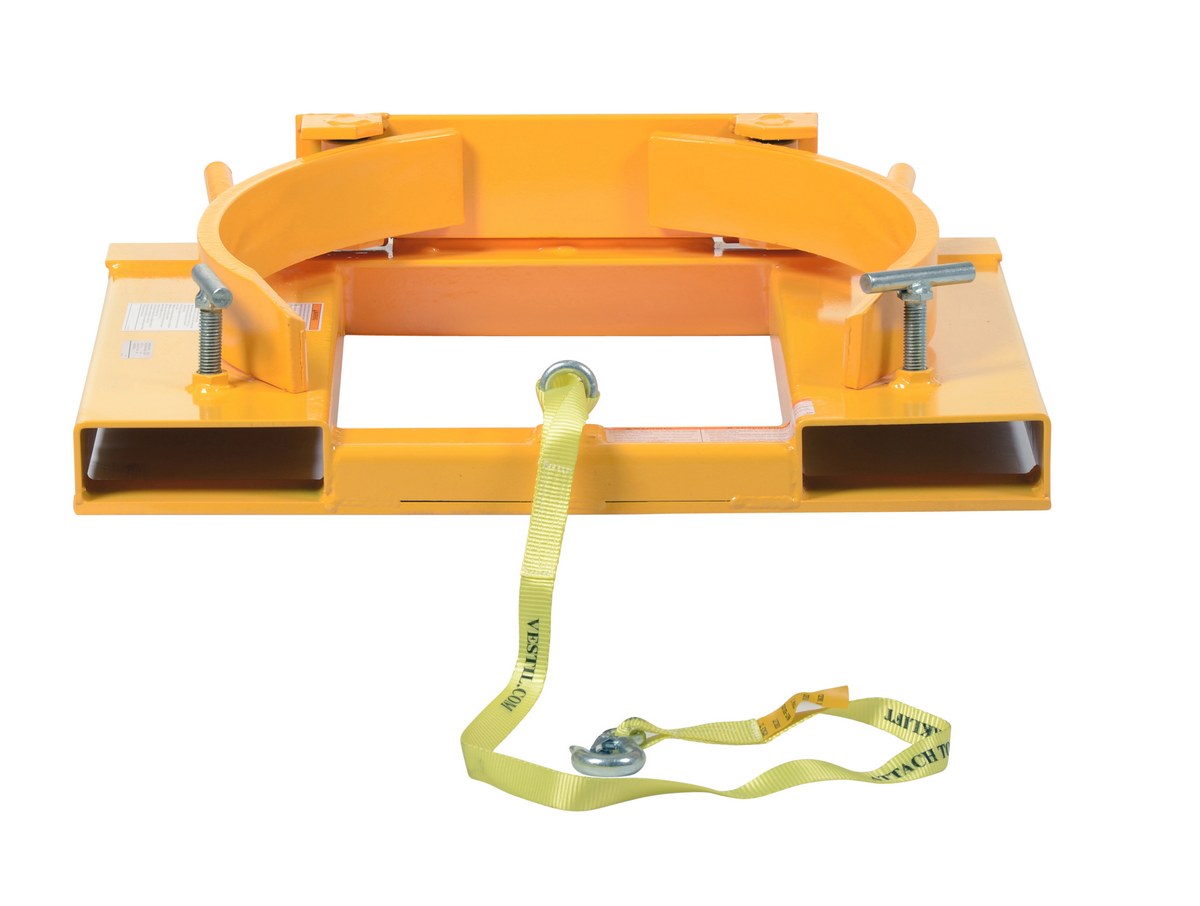

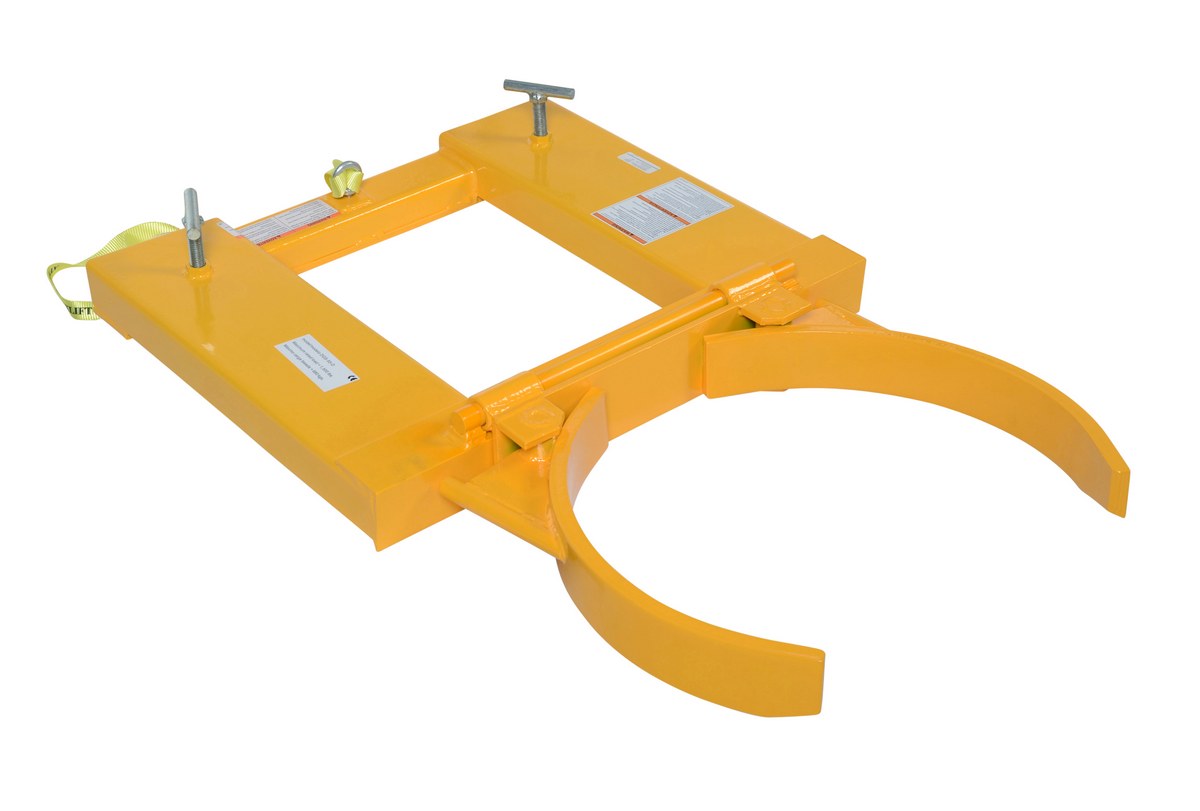

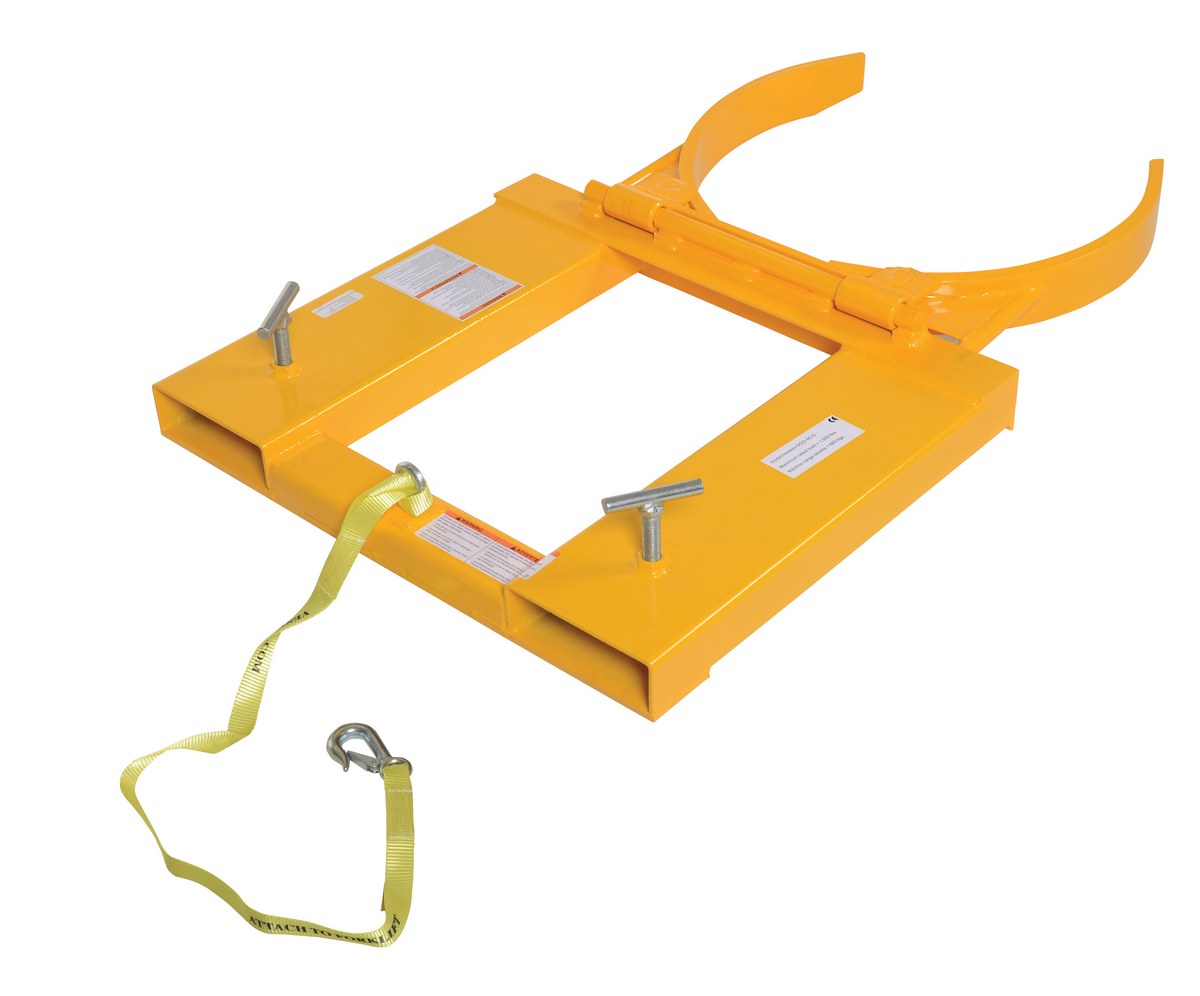

DGS-55-D

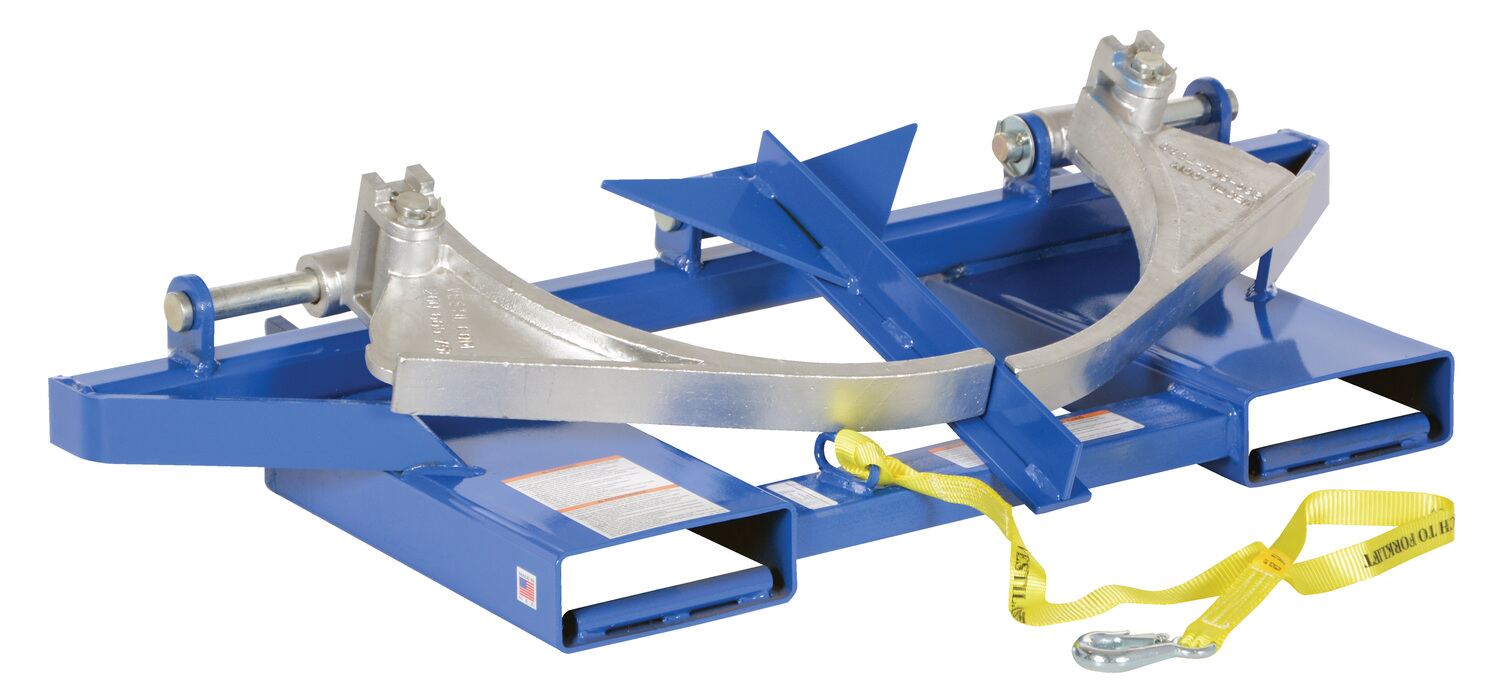

DGD-A
DGD-A
DGS-55-D-G
DGS-55-D
DGD-A

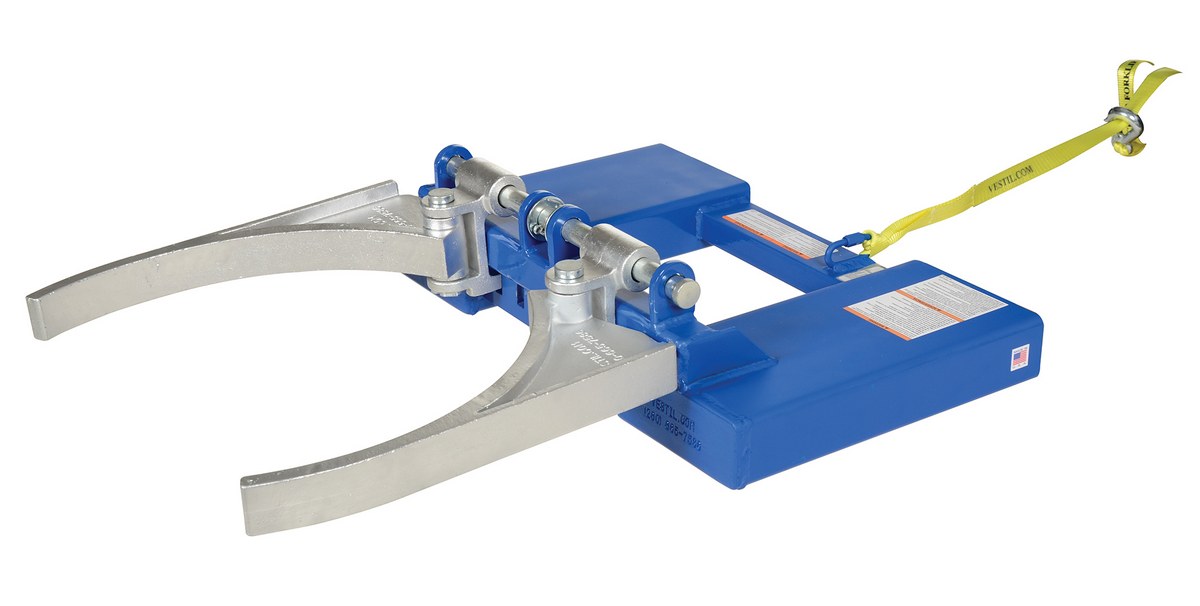

DGS-A

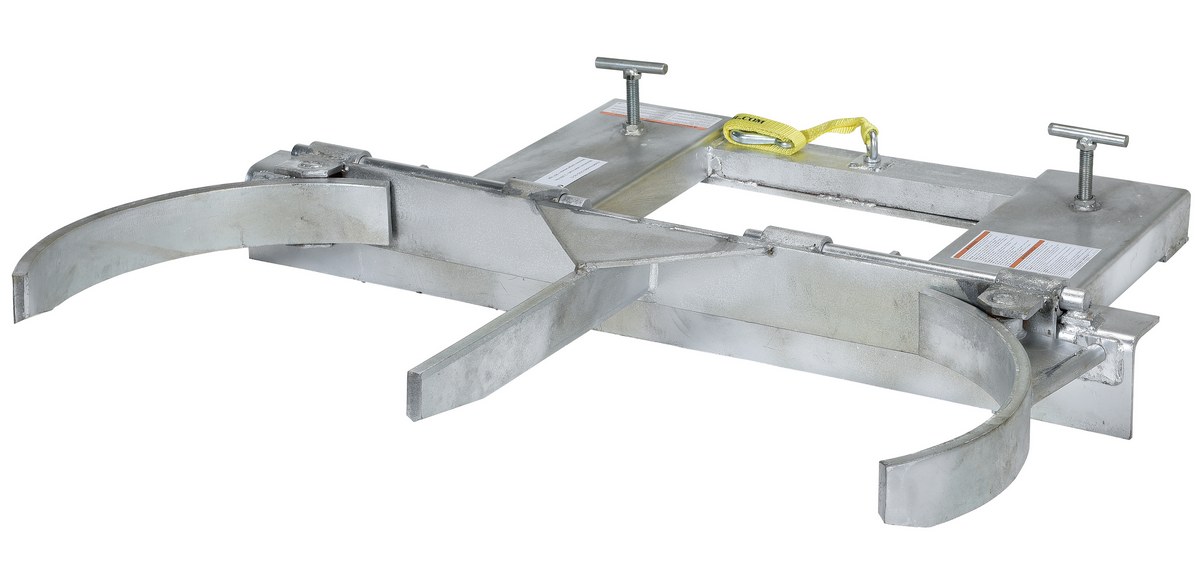

DGD-55-D-G
DGS-55-D-G
DGS-55-D
DGD-A
DGD-55-D-G
DGD-A
DGD-55-D-G
DGS-A
| Model # | Description | Attributes | Net Wt. (lbs) | ||||
|---|---|---|---|---|---|---|---|

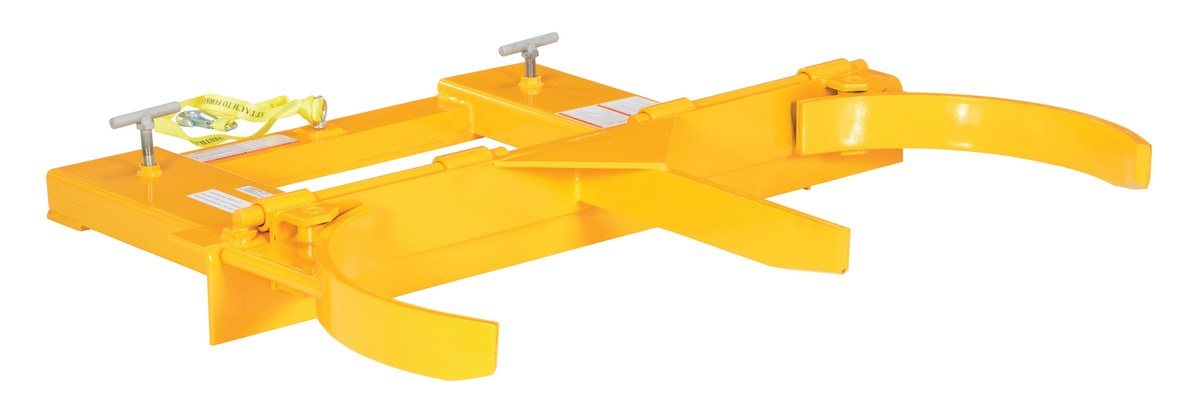

| DGD-55-D |  | 90 Days Limited Warranty | Steel Deluxe Double Drum Gripper 55 Gallon 43-5/8 In. x 46-1/4 In. x 9-3/8 In. 2000 Lb. Capacity Yellow | Uniform Capacity (lb.): 2,000 Accepts: (2) 55-gallon steel drums | 223 | ||

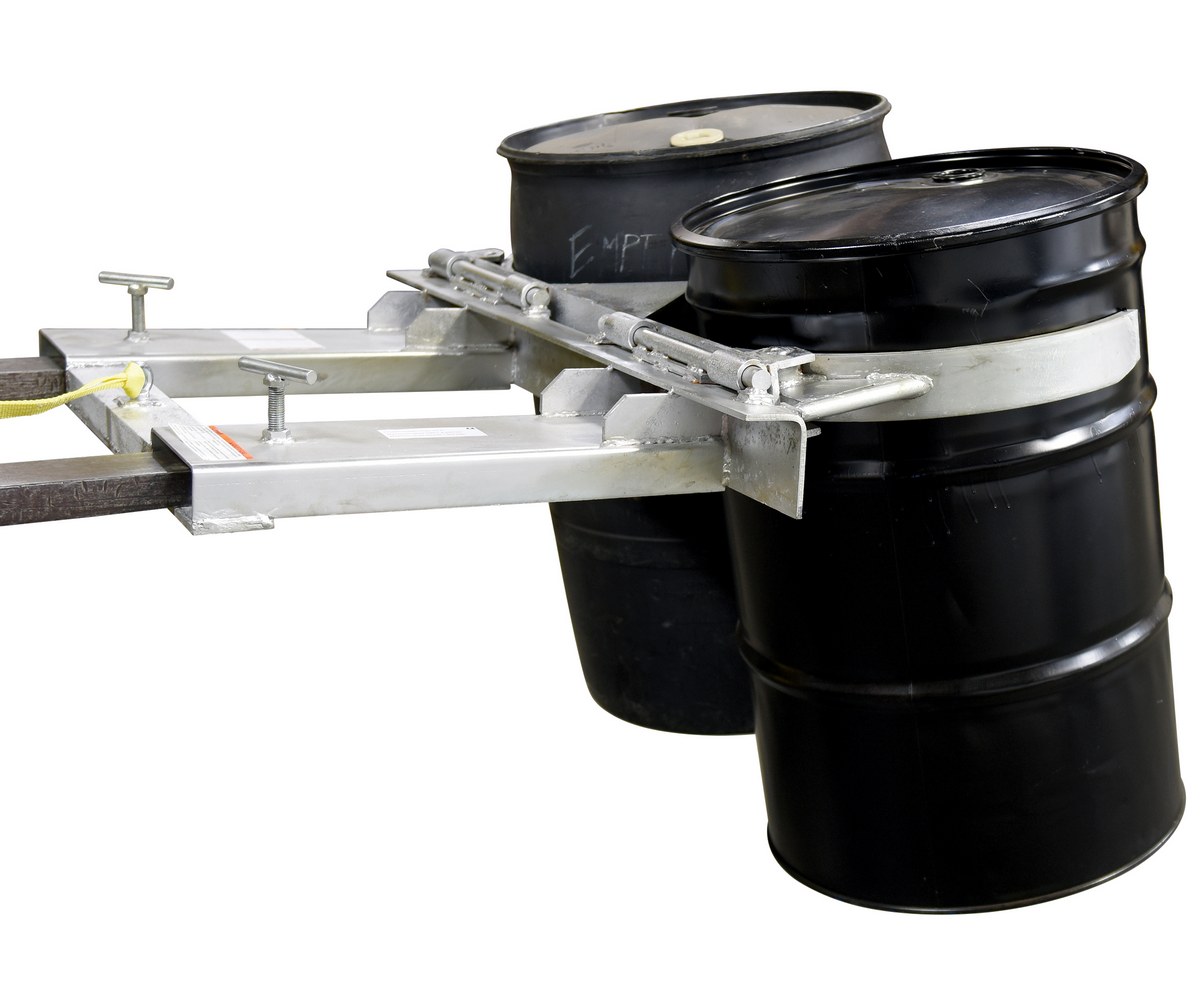

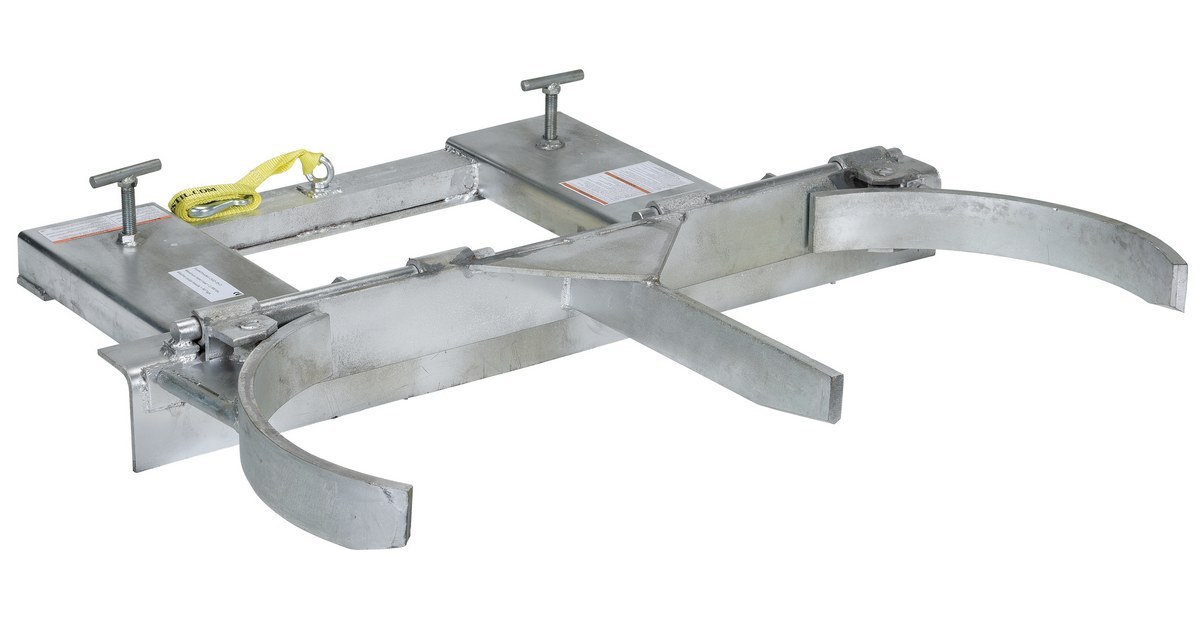

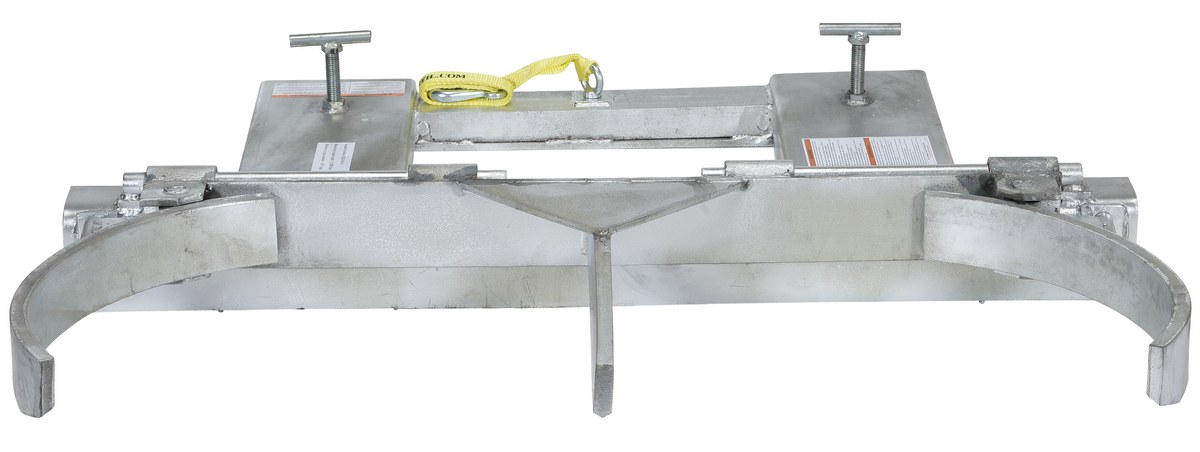

| DGD-55-D-G | | 90 Days Limited Warranty | Galvanized Steel Deluxe Double Drum Gripper 55 Gallon 43-5/8 In. x 46 In. x 9-1/2 In. 2000 Lb. Capacity Gray | Uniform Capacity (lb.): 2,000 Accepts: (2) 55-gallon steel drums | 258 | ||

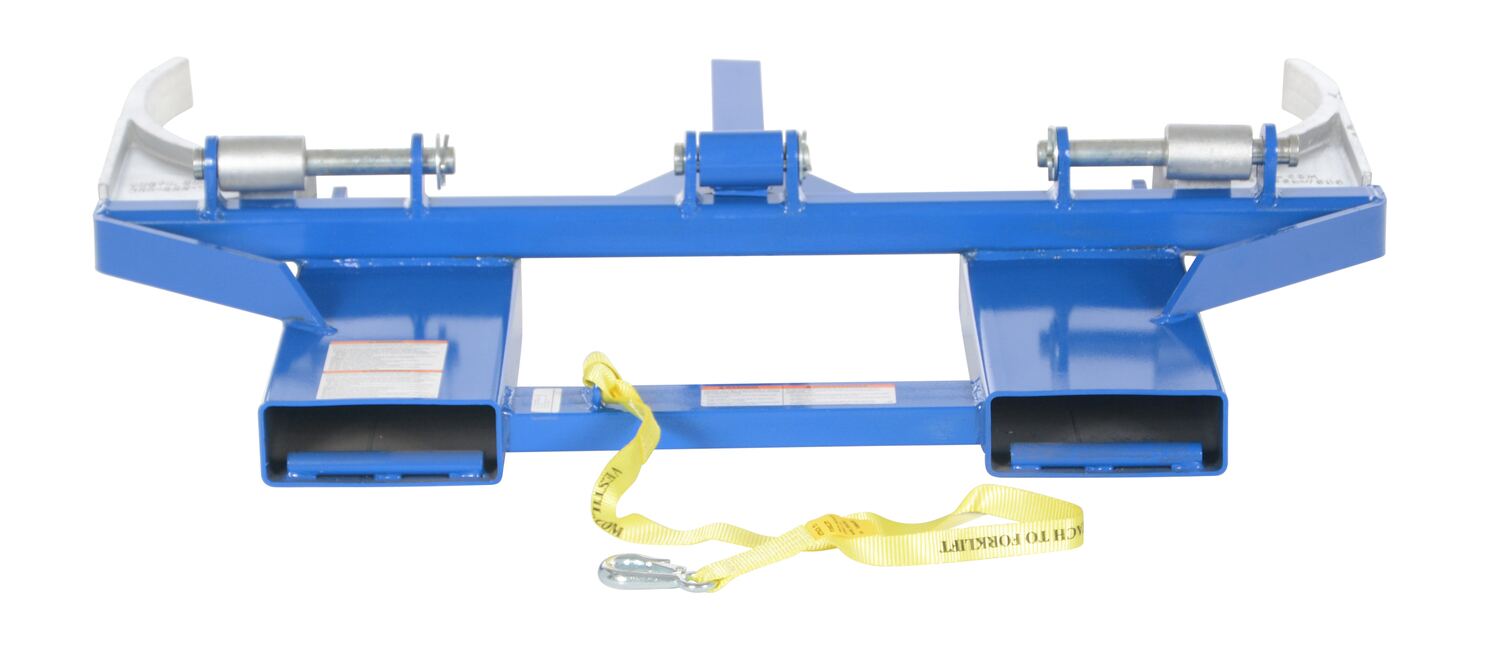

| DGD-A | | 90 Days Limited Warranty | Steel Adjustable Double Drum Gripper 35 In. x 45 In. x 7-1/2 In. 1500 Lb. Capacity Blue | Uniform Capacity (lb.): 1,500 Accepts: (2) 30 and/or 55-gallon steel drums | 211 | ||

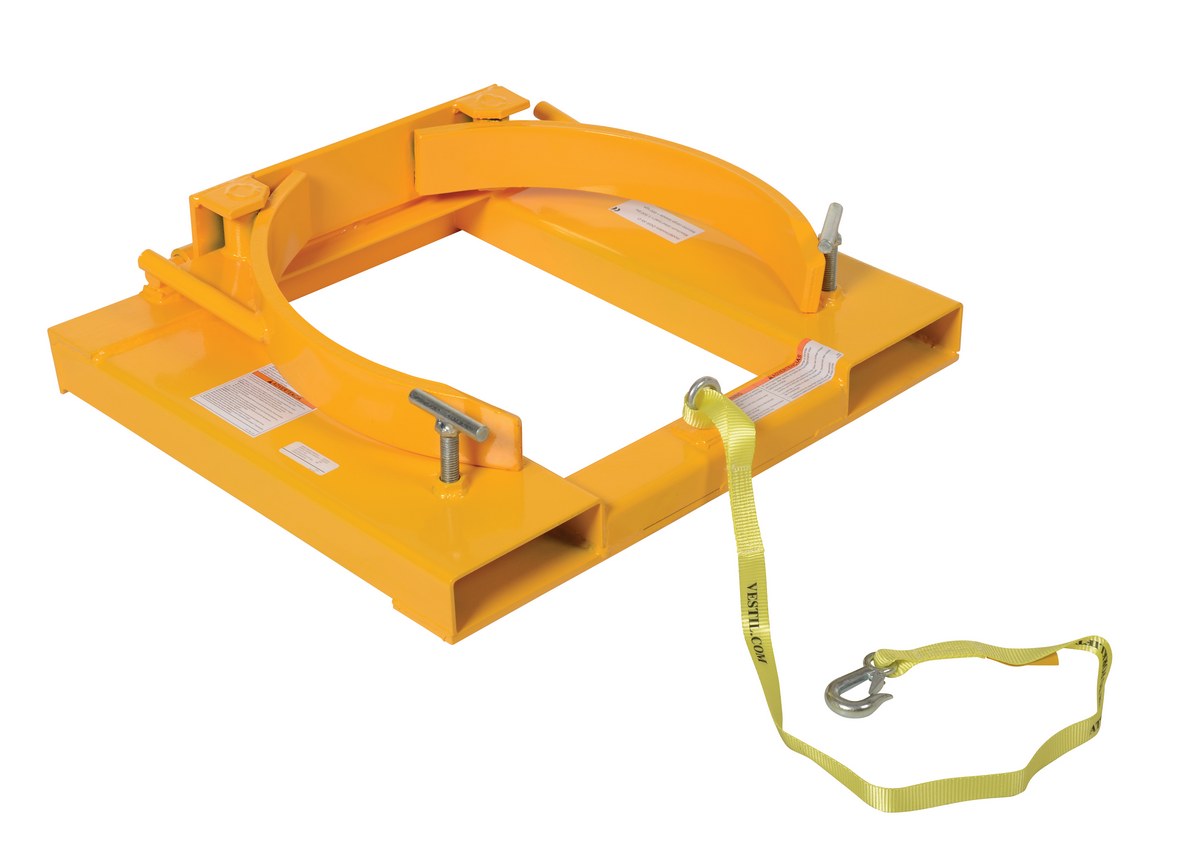

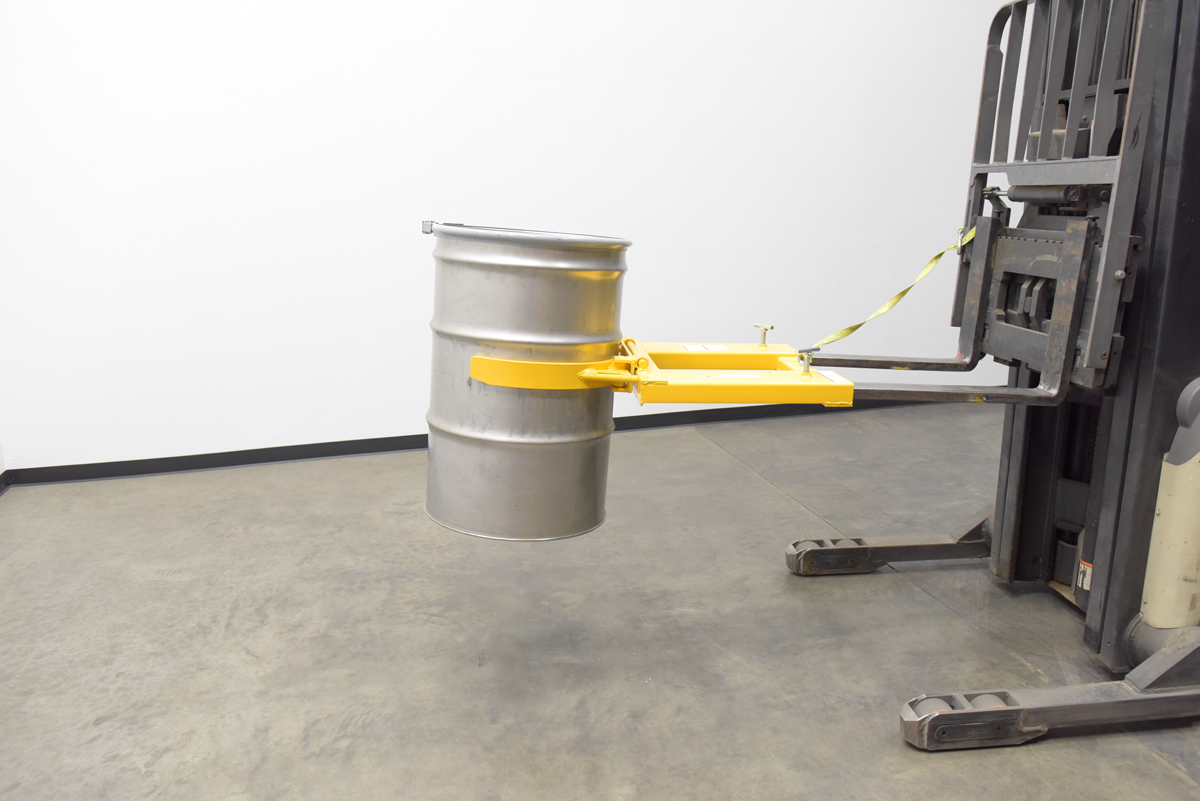

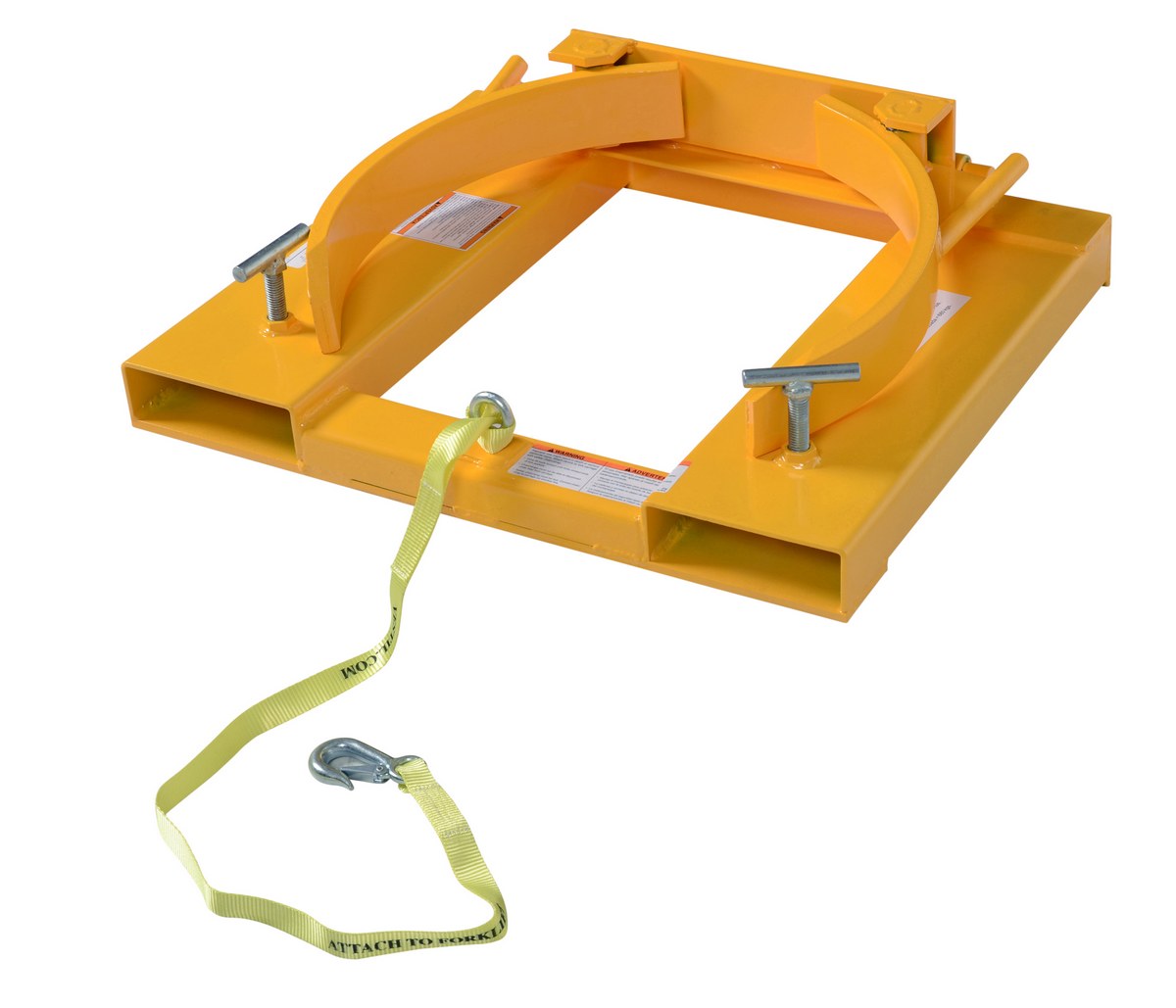

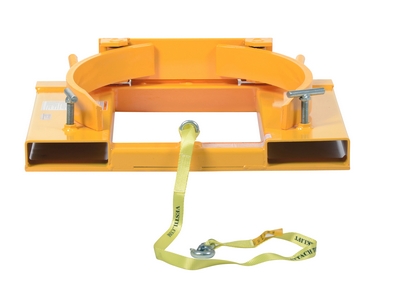

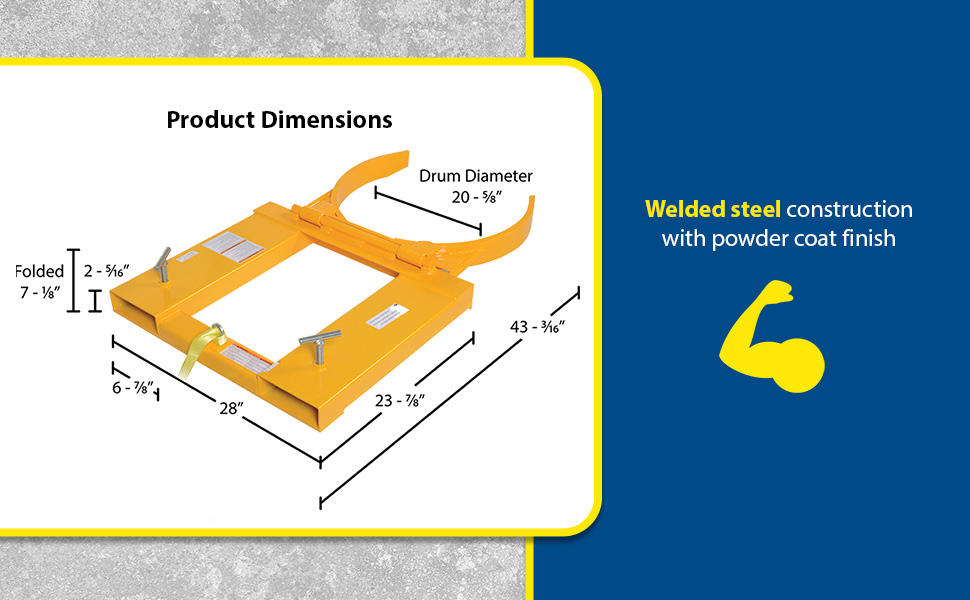

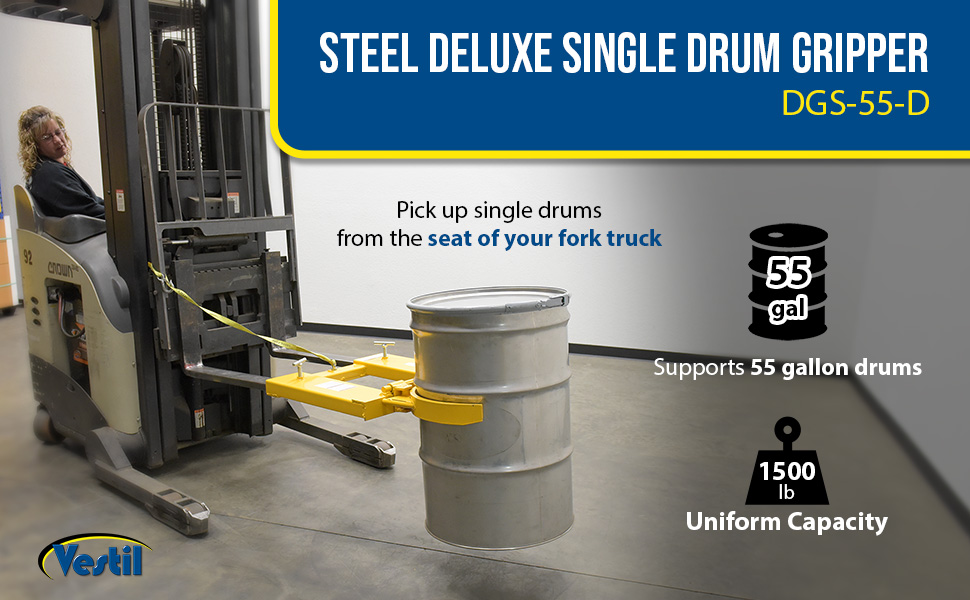

| DGS-55-D | POPULAR |  | 90 Days Limited Warranty | Steel Deluxe Single Drum Gripper 55 Gallon 43-3/16 In x 28 In x 7-1/8 In 1500 Lb. Capacity Yellow | Uniform Capacity (lb.): 1,500 Accepts: (1) 55-gallon steel drums | 110 | |

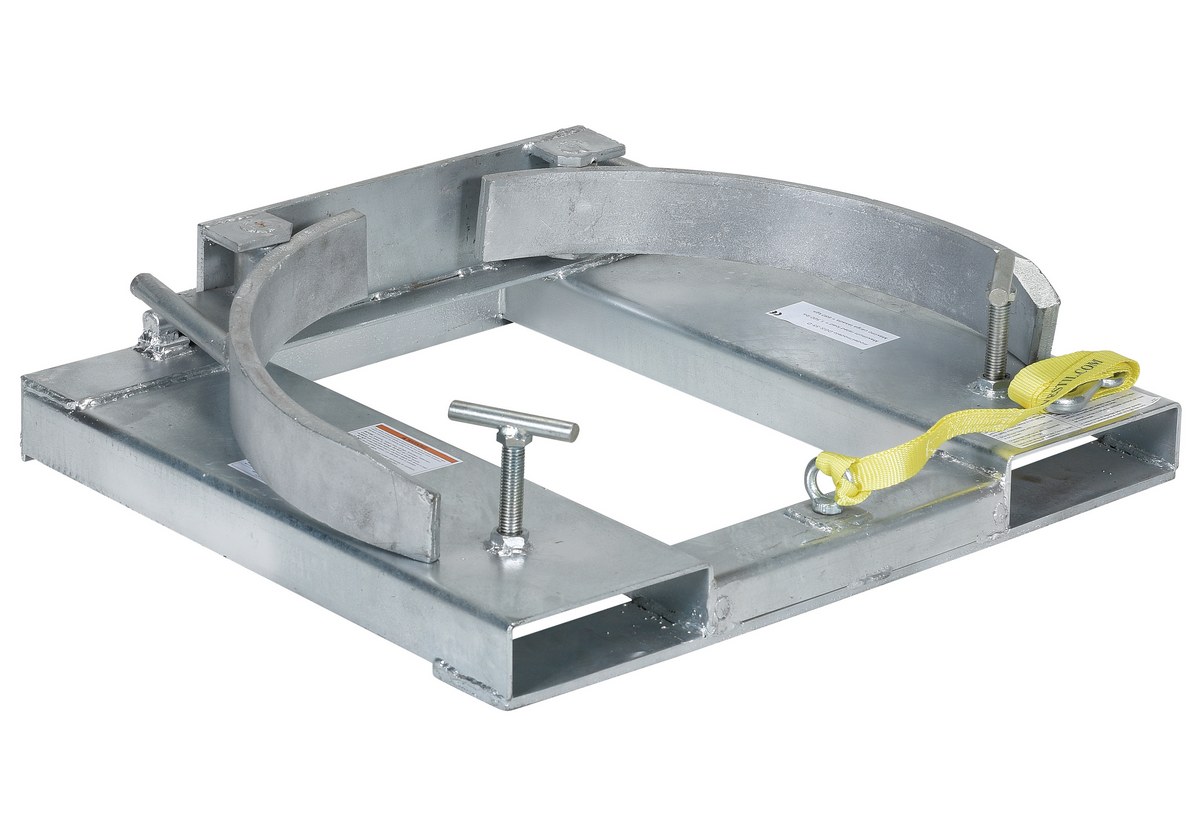

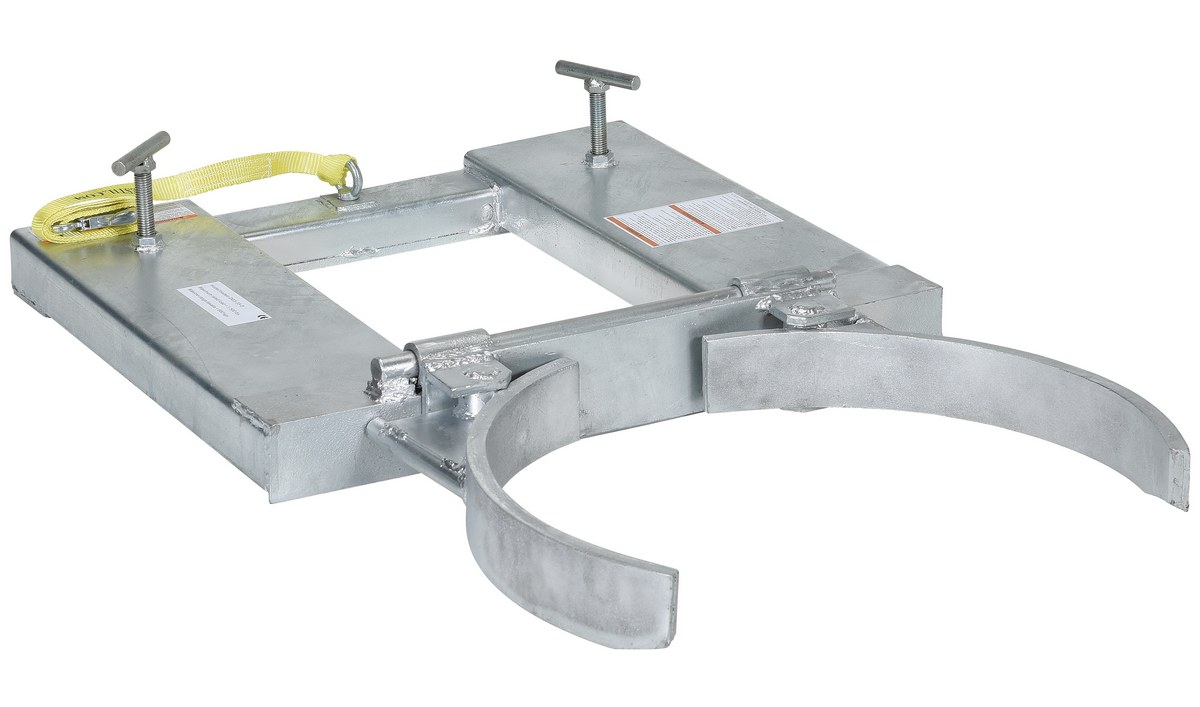

| DGS-55-D-G |  | 90 Days Limited Warranty | Galvanized Steel Deluxe Single Drum Gripper 55 Gallon 43-3/16 In. x 28 In. x 7-1/8 In. 1500 Lb. Capacity Gray | Uniform Capacity (lb.): 1,500 Accepts: (1) 55-gallon steel drums | 110 | ||

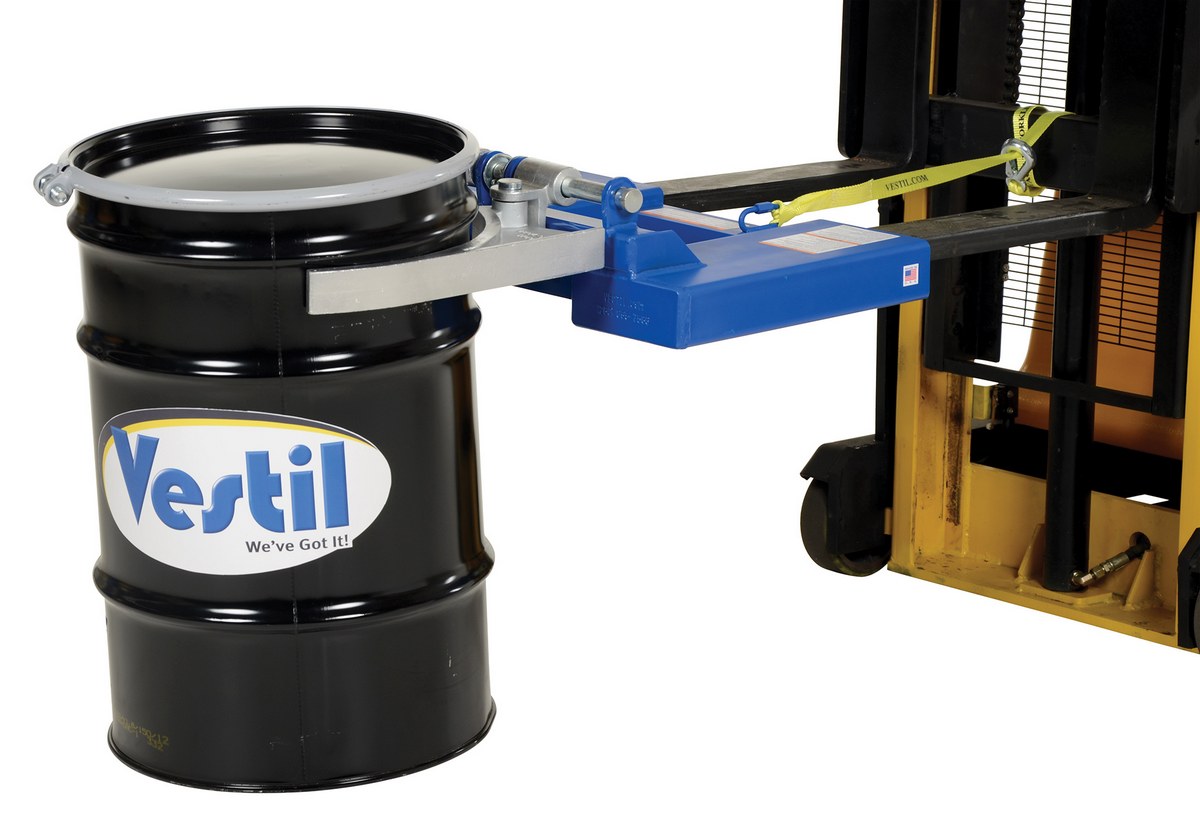

| DGS-A | | 90 Days Limited Warranty | Steel Adjustable Single Drum Gripper 35 In. x 27-3/4 In. x 7-1/2 In. 800 Lb. Capacity Blue | Uniform Capacity (lb.): 800 Accepts: (1) 30 or 55-gallon steel drums | 164 | ||

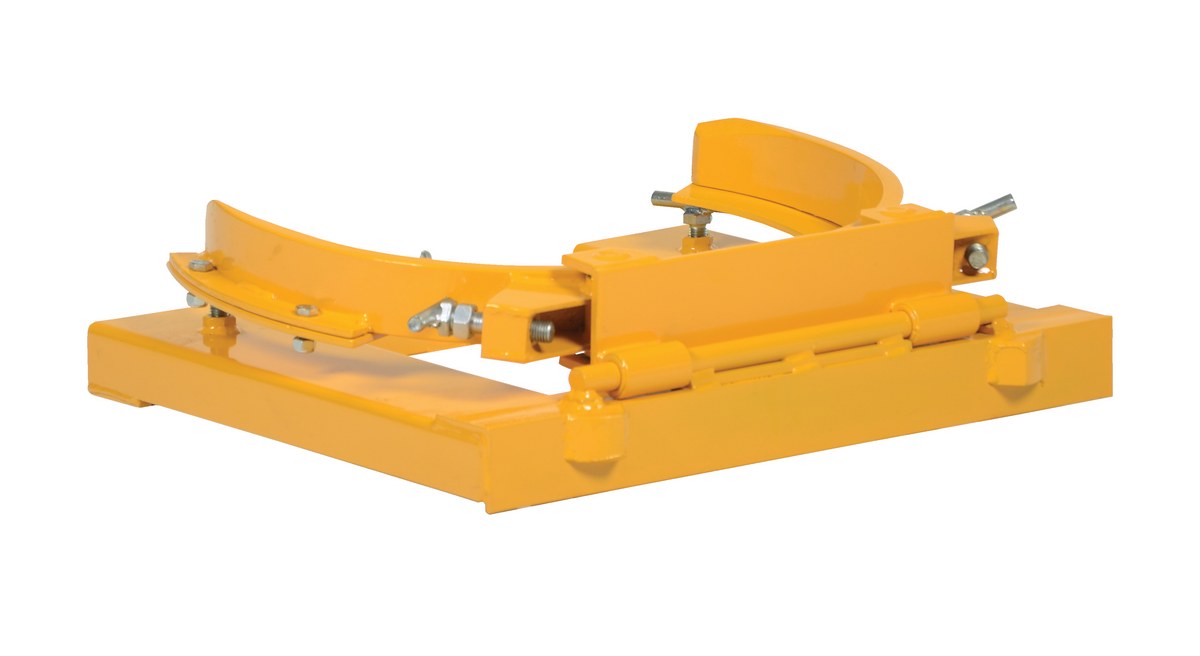

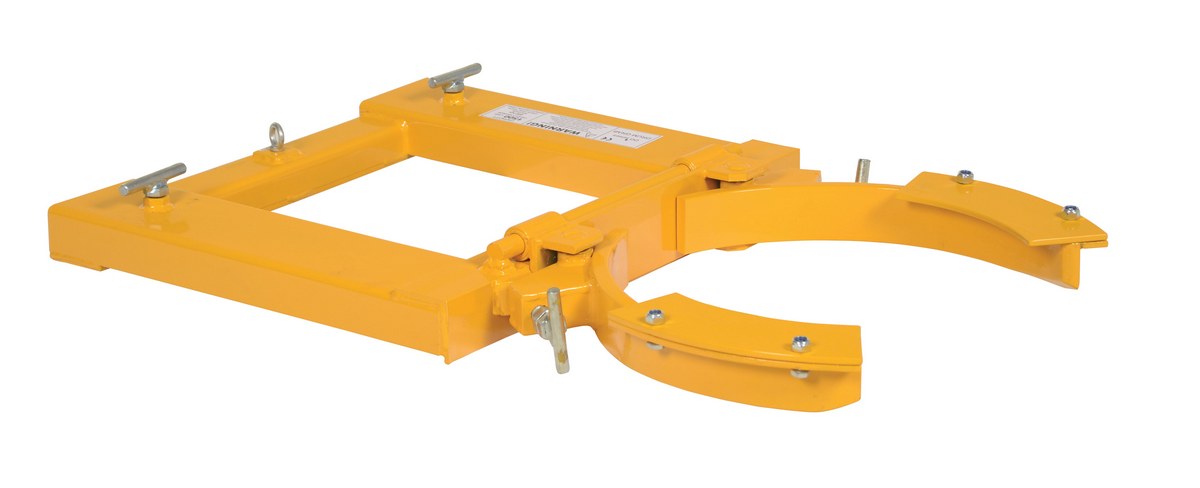

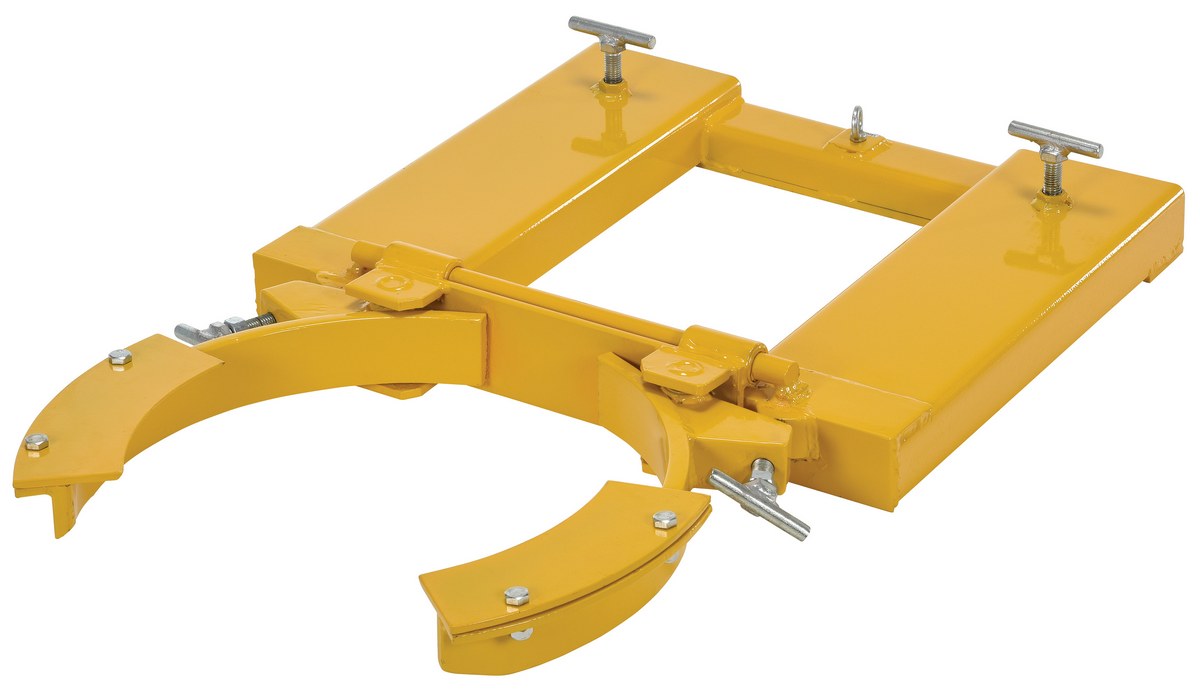

| DGS-A-PSD |  | 90 Days Limited Warranty | Steel Adjustable Single Drum Gripper 24 In. x 28 In. x 8 In. 1500 Lb. Capacity Yellow | Uniform Capacity (lb.): 1500 Fork Pocket Width (in.): 7 | 147 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: Yes, this product will still work with one drum, or with two drums.
A: The size of the fork pockets is 20.5" center to center.
Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date
|
||||||||||||||||||||||||||||||||||||||||||
Drum Grippers |
||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||
The Drum Gripper makes it easy to pick up one or two open head (with lid installed and secured) and closed head steel drums without leaving the seat of the fork truck. Simply slip the forks into the fork tubes, fasten the safety restraint and the Drum Gripper is ready to go. The knuckle gripping system is lowered around the drum, gripped tightly, and then lifted into the air. Drum is automatically released by lowering the forks. All models feature hinged folding design for storage. Safety restraint included. Welded steel construction with a baked-in powder-coated toughness. Models DGS-A, DGD-A, and DGS-A-PSD features adjustable-width arms for use with both 30-gallon and 55-gallon steel and plastic drums (with top ring or top ridge). Safety restraint included. Welded steel construction with a baked-in powder-coated toughness. |
||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
