Model Details

DL-31

Printer Friendly
DL-31

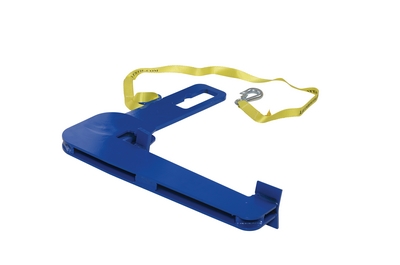

Steel Drum Lifter Fork/Chain 20-13/16 In x 4-1/16 In x 22-1/4 In 1500 Lb. Capacity Blue

When drums need to be raised, elevated, or maneuvered look to the drum lifter! The lifter is intended exclusively for closed & open-head drums with a secured lid installed. With so few moving parts within this design, there is no internal locking mechanism needed. The pressure applied throughout the lifting process helps to maintain the positioning of the lifter. Each lifter is built of steel and finished with a blue powder coat.

  • Lifter is designed to lift drum from top lip
  • Compatible for use with overhead chains or fork trucks
  • Accommodates 30 and 55 gallon steel drums
  • Restraint strap included to secure lifter in place
Total Ship Wt.(lbs.): 30 (only 1 package) Size: 4.0625"W x 20.8125"L x 22.25"H Color: Blue

Uniform Capacity (lb.): 1,500 Accepts: 30 & 55-gallon steel drums Fork/Hook Opening Width (in.): 5-1/2
Hook Opening Height (in.): 2-1/16

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: DL-31
DL-31

Steel Drum Lifter Fork/Chain 20-13/16 In x 4-1/16 In x 22-1/4 In 1500 Lb. Capacity Blue

When drums need to be raised, elevated, or maneuvered look to the drum lifter! The lifter is intended exclusively for closed & open-head drums with a secured lid installed. With so few moving parts within this design, there is no internal locking mechanism needed. The pressure applied throughout the lifting process helps to maintain the positioning of the lifter. Each lifter is built of steel and finished with a blue powder coat.

  • Lifter is designed to lift drum from top lip
  • Compatible for use with overhead chains or fork trucks
  • Accommodates 30 and 55 gallon steel drums
  • Restraint strap included to secure lifter in place
Dimensions: 4.0625"W x 20.8125"L x 22.25"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215013642 GTIN: 00691215013642
Warranty: -- Shipping Weight: 30 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (lb.): 1,500 Accepts: 30 & 55-gallon steel drums Fork/Hook Opening Width (in.): 5-1/2
Hook Opening Height (in.): 2-1/16
