Model Details

EHLTP-4864-1-60-A3

EHLTP-4864-1-60-A3

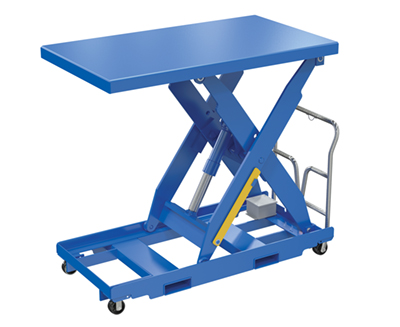

Steel Portable Lift Table 230 Volt 3 Phase 48 In. x 64 In. 1000 Lb. Capacity Blue

An electric hydraulic lift table is one of the most efficient ways to raise and lower heavy equipment and now, it's even better. With the addition of smooth rolling casters, the lift table is now easily portable to different areas and across a variety of surfaces. A removable handle for simple maneuvering is also included to enhance the workability of the unit. The casters and handle make a once steel constructed stationary unit accessible throughout the entire workplace.

  • Adjustable travel limit switch
  • Hand pendent included to keep a safe distance during use
  • Electric toe guard included for pinch point safety
  • Emergency safety-stop to ensure user protection
Total Ship Wt.(lbs.): 1500 (only 1 package) Size: 36"W x 67"L x 13"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 1000 Lowered Height (in.): 13 Raised Height (in.): 60
Platform Width (in.): 48 Platform Length (in.): 64 Voltage/Phase: 230/3
Fork Pocket Height (in.): 2-1/2 Fork Pocket Width (in.): 7-1/2 Fork Pocket Center (in.): 27
Caster Type: (2) Swivel w/brakes, (2) Rigid Caster Diameter/Width (in.): 4/2 Caster Material: GFN
Handle Height (in.): 36-1/2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHLTP-4864-1-60-A3


EHLTP-4864-1-60-A3

Steel Portable Lift Table 230 Volt 3 Phase 48 In. x 64 In. 1000 Lb. Capacity Blue

An electric hydraulic lift table is one of the most efficient ways to raise and lower heavy equipment and now, it's even better. With the addition of smooth rolling casters, the lift table is now easily portable to different areas and across a variety of surfaces. A removable handle for simple maneuvering is also included to enhance the workability of the unit. The casters and handle make a once steel constructed stationary unit accessible throughout the entire workplace.

  • Adjustable travel limit switch
  • Hand pendent included to keep a safe distance during use
  • Electric toe guard included for pinch point safety
  • Emergency safety-stop to ensure user protection
Dimensions: 36"W x 67"L x 13"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215327404 GTIN: 00691215327404
Warranty: -- Shipping Weight: 1500 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 1000 Lowered Height (in.): 13 Raised Height (in.): 60
Platform Width (in.): 48 Platform Length (in.): 64 Voltage/Phase: 230/3
Fork Pocket Height (in.): 2-1/2 Fork Pocket Width (in.): 7-1/2 Fork Pocket Center (in.): 27
Caster Type: (2) Swivel w/brakes, (2) Rigid Caster Diameter/Width (in.): 4/2 Caster Material: GFN
Handle Height (in.): 36-1/2
