Model Details

FE-5-72-P-LR

Printer Friendly
FE-5-72-P-LR

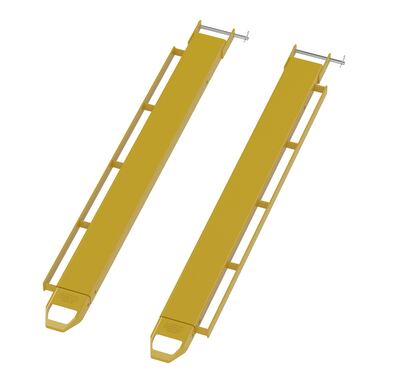

Steel Pin Style Fork Extensions with Load Rails 5" X 72" 4,000 Lb. Capacity Yellow

Lifting long, large items with standard forks can be a difficult and dangerous. To ease those burdens look for a pair of Vestil fork extensions, with tie down load rails. Let us explain the benefit of this unique style. From time to time securing items with tie downs is next to impossible. Fork extensions routinely have a smooth exterior with no built-in point to connect straps or other safety equipment. With this alternative design you will find tie down rails evenly spaced throughout the extension, giving the user the ability to pick and choose the best place to secure the load. Not only that, but the multiple rail feature eliminates the chances of the tie downs slipping or sliding beyond each segment. One of the best parts is just how easy these are able to be attached to existing forks. Simply remove the pin, lay the extension over the fork, and re-insert the pin behind the heel of the fork to secure the extension. Currently this design is only available in ‘pin style’. OSHA regulations require that extensions are no more than one-hundred and fifty (150) percent of the existing fork length.

  • Cast steel tips
  • 5/16" welded steel
  • 5-1/2" usable fork width
  • To be used with class 2 and class 3 forks only
Total Ship Wt.(lbs.): 150 (only 1 package) Size: 9.5"W x 75.625"L x 2.3125"H Color: Yellow Non-Returnable

Capacity Per Pair Evenly Distributed (lb.): 4000 Width (in.): 72 Overall Width With Retaining Pin (in.): 9-1/2
Usable Width (in.): 2 Overall Length (in.): 75-5/8 Usable Length (in.): 59-3/4
Fit for Fork Thickness (in.): 4 x 2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: FE-5-72-P-LR
FE-5-72-P-LR

Steel Pin Style Fork Extensions with Load Rails 5" X 72" 4,000 Lb. Capacity Yellow

Lifting long, large items with standard forks can be a difficult and dangerous. To ease those burdens look for a pair of Vestil fork extensions, with tie down load rails. Let us explain the benefit of this unique style. From time to time securing items with tie downs is next to impossible. Fork extensions routinely have a smooth exterior with no built-in point to connect straps or other safety equipment. With this alternative design you will find tie down rails evenly spaced throughout the extension, giving the user the ability to pick and choose the best place to secure the load. Not only that, but the multiple rail feature eliminates the chances of the tie downs slipping or sliding beyond each segment. One of the best parts is just how easy these are able to be attached to existing forks. Simply remove the pin, lay the extension over the fork, and re-insert the pin behind the heel of the fork to secure the extension. Currently this design is only available in ‘pin style’. OSHA regulations require that extensions are no more than one-hundred and fifty (150) percent of the existing fork length.

  • Cast steel tips
  • 5/16" welded steel
  • 5-1/2" usable fork width
  • To be used with class 2 and class 3 forks only
Dimensions: 9.5"W x 75.625"L x 2.3125"H Sell UOM: PR-Pair Color: Yellow
Material: Steel UPC: 691215376907 GTIN: 00691215376907
Warranty: -- Shipping Weight: 150 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: US
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Capacity Per Pair Evenly Distributed (lb.): 4000 Width (in.): 72 Overall Width With Retaining Pin (in.): 9-1/2
Usable Width (in.): 2 Overall Length (in.): 75-5/8 Usable Length (in.): 59-3/4
Fit for Fork Thickness (in.): 4 x 2
