ICRF-30-P

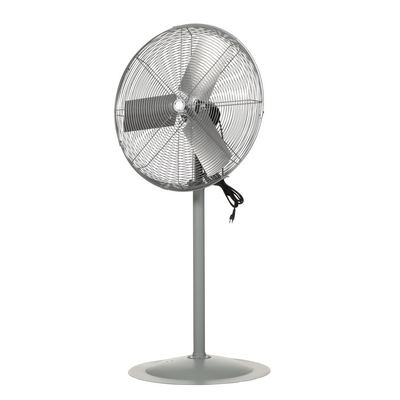

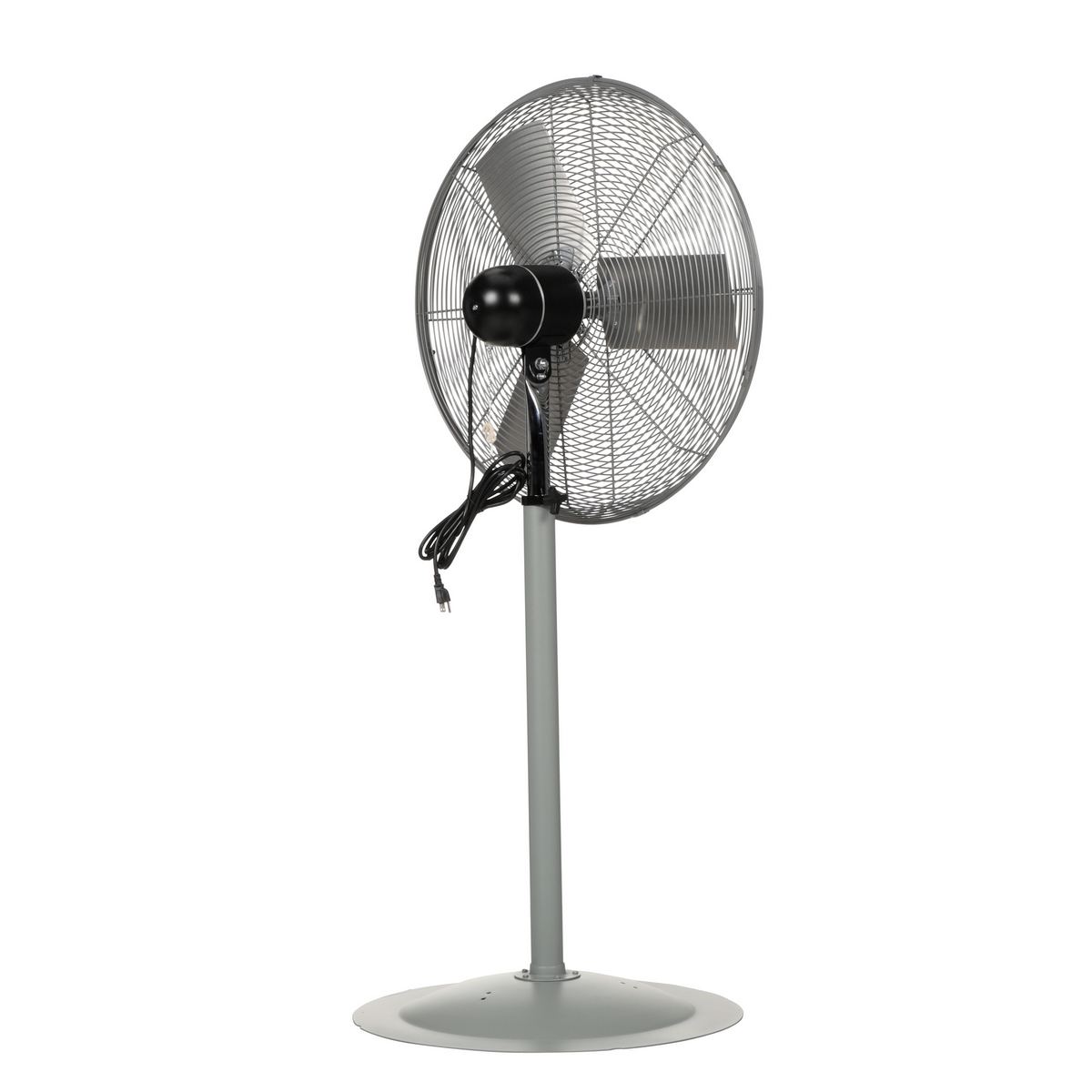

Steel Pedestal Circulatory Fan 94-3/4 In. Height Silver

The two speed, ball bearing, industrial duty circulatory fan is totally enclosed and permanently lubricated. Pull chain switch.

  • Oscillating design
  • Pull chain switch functionality
  • Meets OSHA standards and is et C/US listed
  • Use in industrial applications for optimal results
Total Ship Wt.(lbs.): 75 (only 1 package) Size: 27"W x 27"L x 94.75"H Color: Silver Non-Returnable

Cord Length (in.): 144 Conductor Cord: SJT type 3 Electric Motor Horsepower: 1/4
Blade Diameter (in.): 30 Mounting Style: Pedestal Amps High: 2.7
CFM High: 7900 CFM Low: 6000 Voltage/Phase: 115V/1PH
OSHA: 1910.212(a)(5) Lowered Height (in.): 72 Raised Height (in.): 108

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: ICRF-30-P
ICRF-30-P

Steel Pedestal Circulatory Fan 94-3/4 In. Height Silver

The two speed, ball bearing, industrial duty circulatory fan is totally enclosed and permanently lubricated. Pull chain switch.

  • Oscillating design
  • Pull chain switch functionality
  • Meets OSHA standards and is et C/US listed
  • Use in industrial applications for optimal results
Dimensions: 27"W x 27"L x 94.75"H Sell UOM: EA-Each Color: Silver
Material: Steel/Aluminum UPC: 691215024532 GTIN: 00691215024532
Warranty: -- Shipping Weight: 75 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Cord Length (in.): 144 Conductor Cord: SJT type 3 Electric Motor Horsepower: 1/4
Blade Diameter (in.): 30 Mounting Style: Pedestal Amps High: 2.7
CFM High: 7900 CFM Low: 6000 Voltage/Phase: 115V/1PH
OSHA: 1910.212(a)(5) Lowered Height (in.): 72 Raised Height (in.): 108
