TM-40-AIR

Printer Friendly
Available
TM-40-AIR
TM-40-AIR TM-40-AIR TM-40-AIR TM-40-AIR TM-40-AIR

Steel Tilt Master Reciprocating Air/Oil Power 4,000 Lb. Capacity Blue

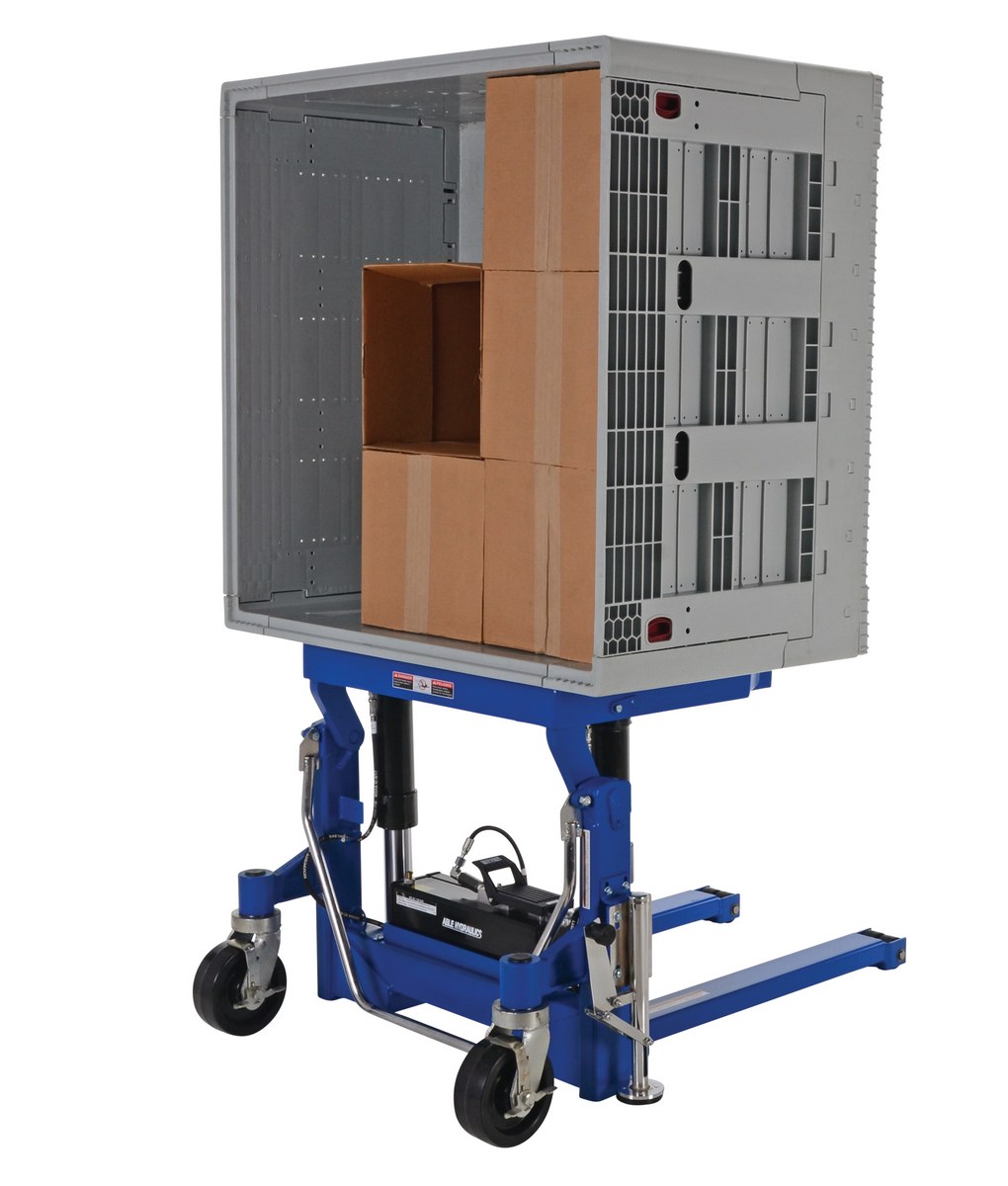

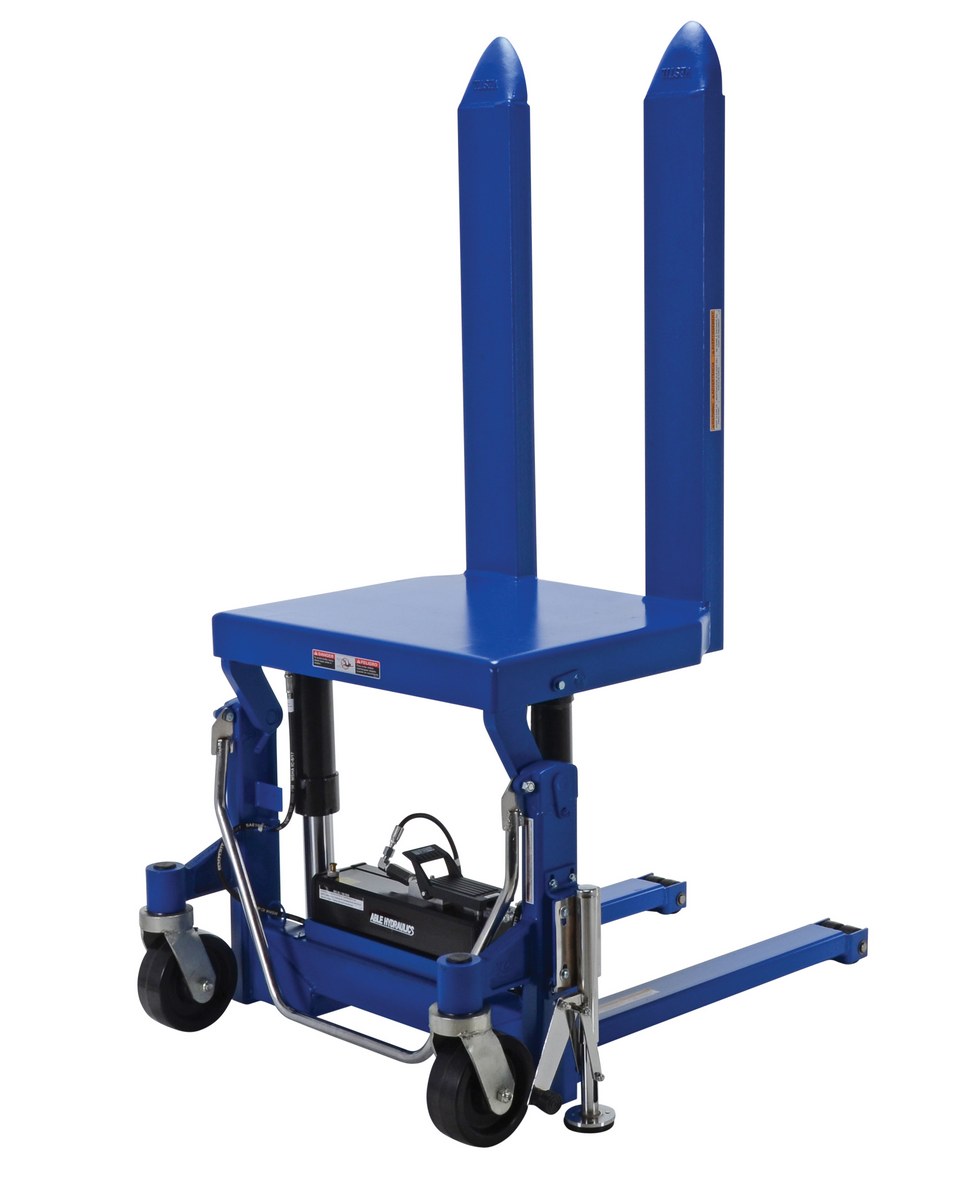

The tilt master lifts and positions filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty tilt master. The tilter will function as transporters by moving completed products from work station to work station without waiting for a fork truck. The lift has a thin profile to allow the user to get as close to the load as possible, a standard floor lock and rolls easily on the phenolic steering wheels. It is designed to be used with open bottom pallets or skids. The unit is powered by an air pneumatic motor.

  • Folding ergonomic handle
  • Two rigid and two swivel casters provide smooth and efficient mobility

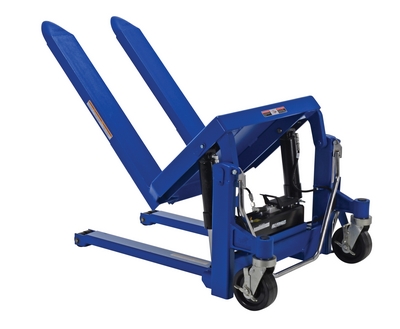

  • 90° Tilt angle allows for better ergonomic access
  • Heel/toe foot treadle allows quick lifting and lowering
Assembled Wt.(lbs.): 631 Assembled Size: 41.0625"W x 75.1875"L x 28.625"H

Total Ship Wt.(lbs.): 658 (only 1 package) Package 1 Size: 40"W x 64"D x 35"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 4,000 Fixed Fork Spacing (in.): 26 Operator Reach (in.): 7-1/4
Fork Width (in.): 6 Fork Length (in.): 38-1/8 Rotated Height (in.): 76-5/16
Lowered Fork Height (in.): 3-1/2 Maximum Tilt Degree: 90 Power: Reciprocating Air/Oil
Wheel Diameter (in.): 8 Wheel Width (in.): 3 Wheel Type: Phenolic
Folding Handle Length (in.): 20 Load Center (in.): 20 Level Height (in.): 28-5/8

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: TM-40-AIR
Available
TM-40-AIR

Steel Tilt Master Reciprocating Air/Oil Power 4,000 Lb. Capacity Blue

The tilt master lifts and positions filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty tilt master. The tilter will function as transporters by moving completed products from work station to work station without waiting for a fork truck. The lift has a thin profile to allow the user to get as close to the load as possible, a standard floor lock and rolls easily on the phenolic steering wheels. It is designed to be used with open bottom pallets or skids. The unit is powered by an air pneumatic motor.

  • Folding ergonomic handle
  • Two rigid and two swivel casters provide smooth and efficient mobility
  • 90° Tilt angle allows for better ergonomic access
  • Heel/toe foot treadle allows quick lifting and lowering
Dimensions: 41.0625"W x 75.1875"L x 28.625"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 658 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 4,000 Fixed Fork Spacing (in.): 26 Operator Reach (in.): 7-1/4
Fork Width (in.): 6 Fork Length (in.): 38-1/8 Rotated Height (in.): 76-5/16
Lowered Fork Height (in.): 3-1/2 Maximum Tilt Degree: 90 Power: Reciprocating Air/Oil
Wheel Diameter (in.): 8 Wheel Width (in.): 3 Wheel Type: Phenolic
Folding Handle Length (in.): 20 Load Center (in.): 20 Level Height (in.): 28-5/8
