TMS-40-AC

Printer Friendly
Available
TMS-40-AC
TMS-40-AC TMS-40-AC

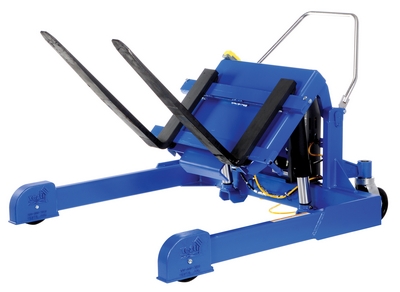

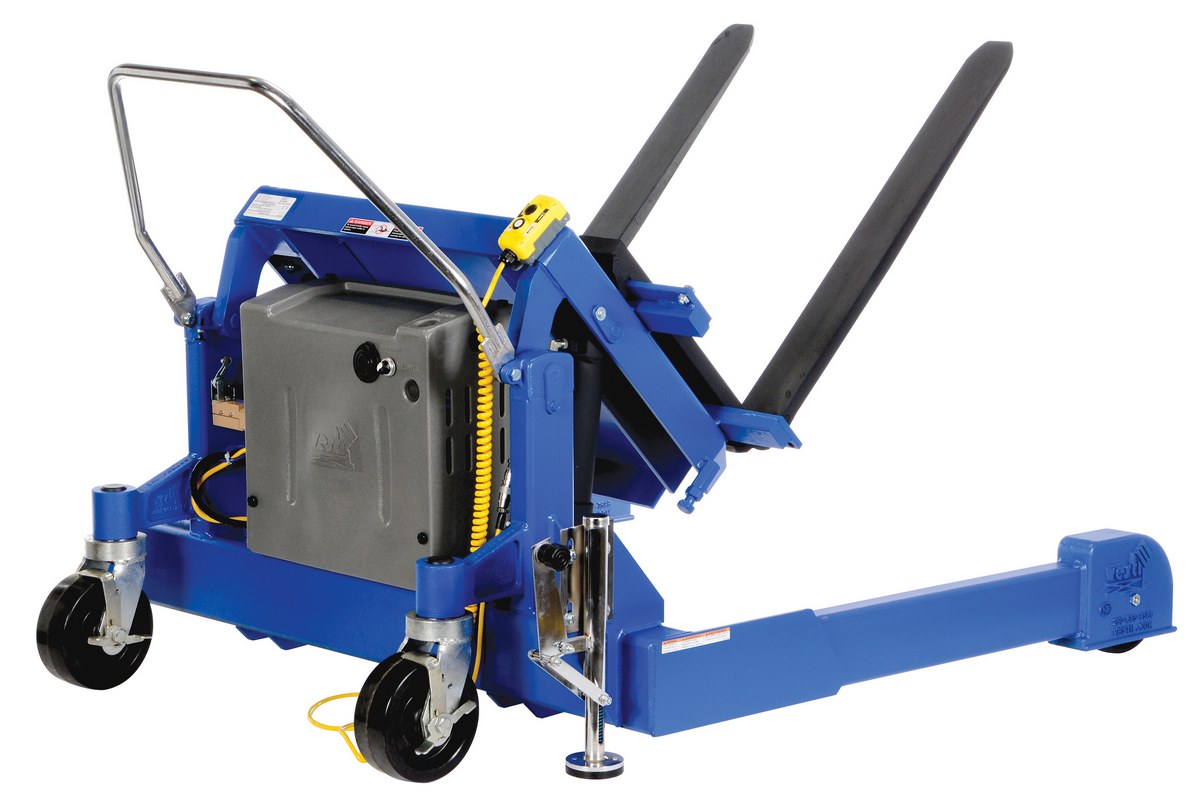

Steel Tilt Master Straddle AC Powered 4,000 Lb. Capacity Blue

The tilt master straddle lifts and positions filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty tilt master. The tilter will function as transporters by moving completed products from work station to work station without waiting for a fork truck. This lift has a thin profile to allow the user to get as close to the load as possible. The unit has a standard floor lock and rolls easily on the phenolic steering wheels. Lift is designed to be used with virtually any kind of container or pallet and is powered by an AC electric motor that.

  • Folding ergonomic handle
  • Two rigid and two swivel casters provide smooth and efficient mobility
  • 90 Degrees tilt angle allows for better ergonomic access
  • Push button hand control for quick lifting and lowering
Assembled Wt.(lbs.): 953 Assembled Size: 57.25"W x 73.1875"L x 29.25"H

Total Ship Wt.(lbs.): 953 (only 1 package) Package 1 Size: 64"W x 64"D x 35"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 4,000 Adjustable Fork Spacing (in.): 1/2 to 28-1/2 Straddle (in.): 49-5/16
Operator Reach (in.): 12-1/2 Fork Width (in.): 4 Fork Length (in.): 36
Rotated Height (in.): 72-1/8 Lowered Fork Height (in.): 3 Maximum Tilt Degree: 90
Power: 115V / 1 PH Wheel Diameter (in.): 8 Wheel Width (in.): 3
Wheel Type: Phenolic Folding Handle Length (in.): 20 Load Center (in.): 18
Level Height (in.): 29

Quickship Item?

Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: TMS-40-AC
Available
TMS-40-AC

Steel Tilt Master Straddle AC Powered 4,000 Lb. Capacity Blue

The tilt master straddle lifts and positions filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty tilt master. The tilter will function as transporters by moving completed products from work station to work station without waiting for a fork truck. This lift has a thin profile to allow the user to get as close to the load as possible. The unit has a standard floor lock and rolls easily on the phenolic steering wheels. Lift is designed to be used with virtually any kind of container or pallet and is powered by an AC electric motor that.

  • Folding ergonomic handle
  • Two rigid and two swivel casters provide smooth and efficient mobility
  • 90 Degrees tilt angle allows for better ergonomic access
  • Push button hand control for quick lifting and lowering
Dimensions: 57.25"W x 73.1875"L x 29.25"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 953 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 4,000 Adjustable Fork Spacing (in.): 1/2 to 28-1/2 Straddle (in.): 49-5/16
Operator Reach (in.): 12-1/2 Fork Width (in.): 4 Fork Length (in.): 36
Rotated Height (in.): 72-1/8 Lowered Fork Height (in.): 3 Maximum Tilt Degree: 90
Power: 115V / 1 PH Wheel Diameter (in.): 8 Wheel Width (in.): 3
Wheel Type: Phenolic Folding Handle Length (in.): 20 Load Center (in.): 18
Level Height (in.): 29
