Manual Built-In Carousel for Scissor Tables (-ROTATE)

Manual Rotating Carousel Options for Scissor Lift Table Workstations

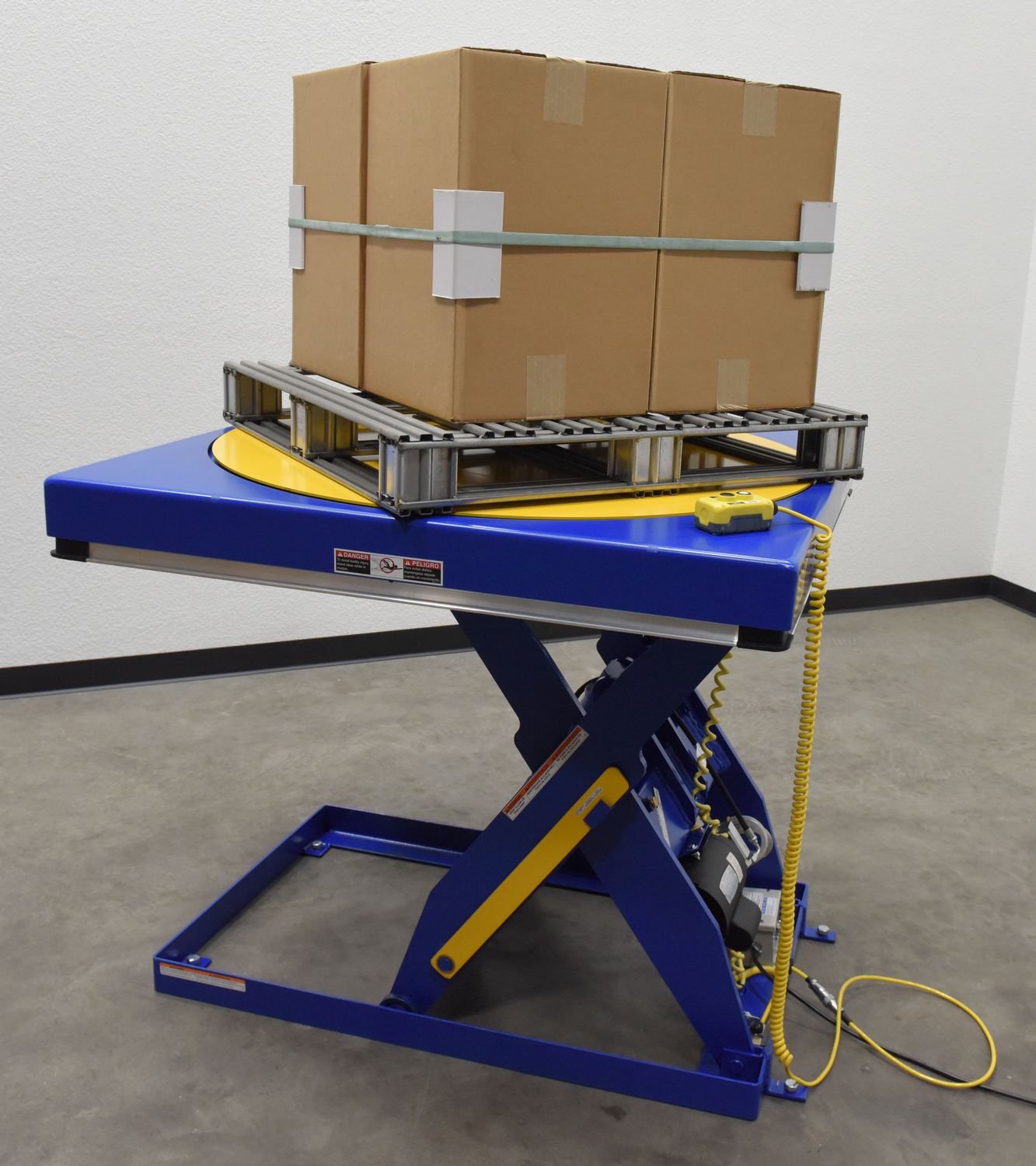

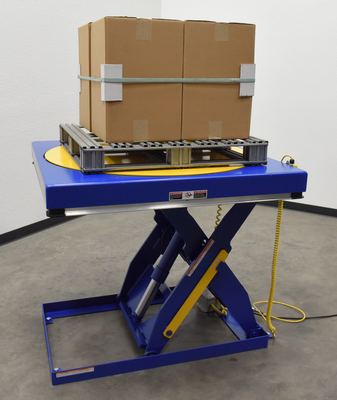

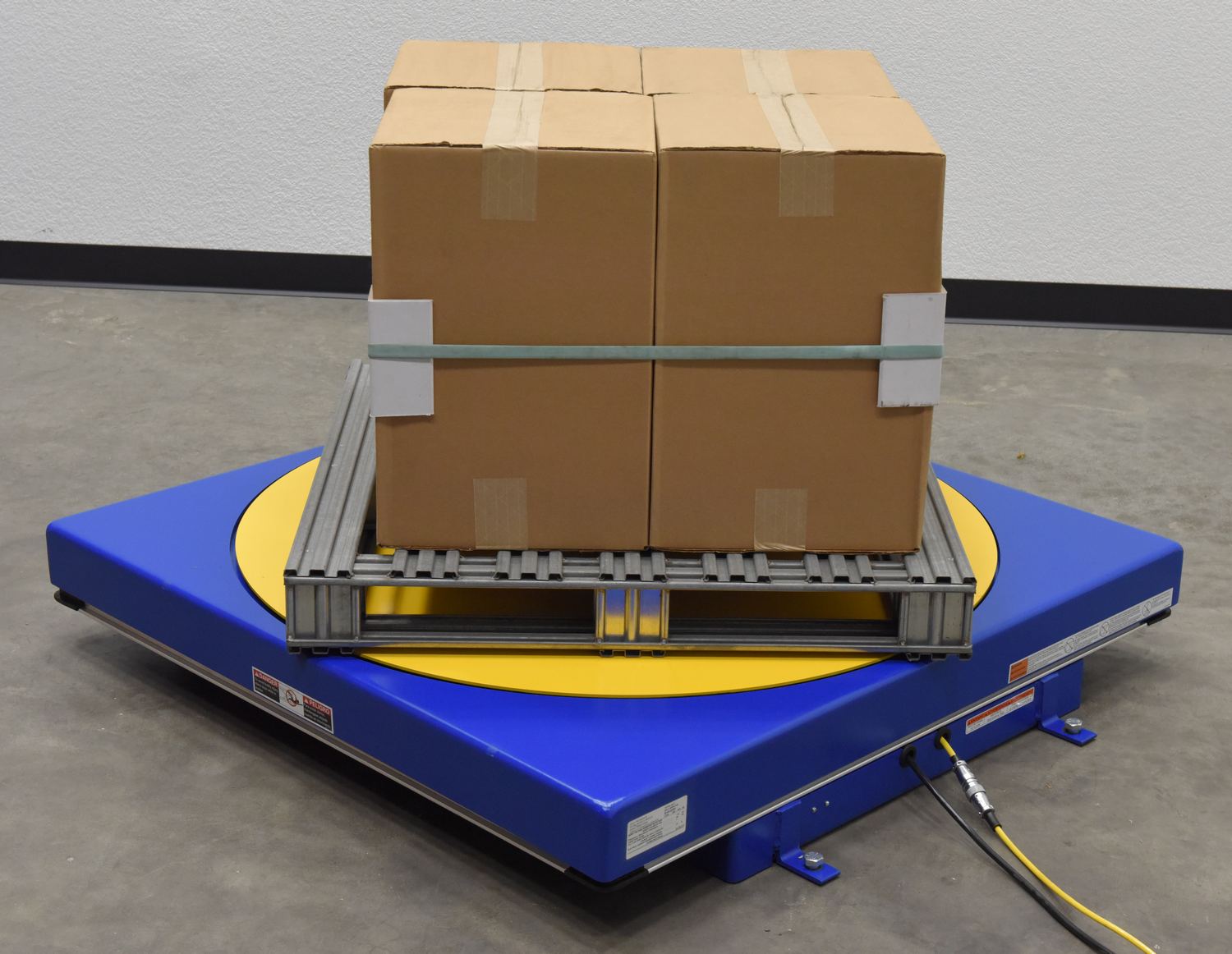

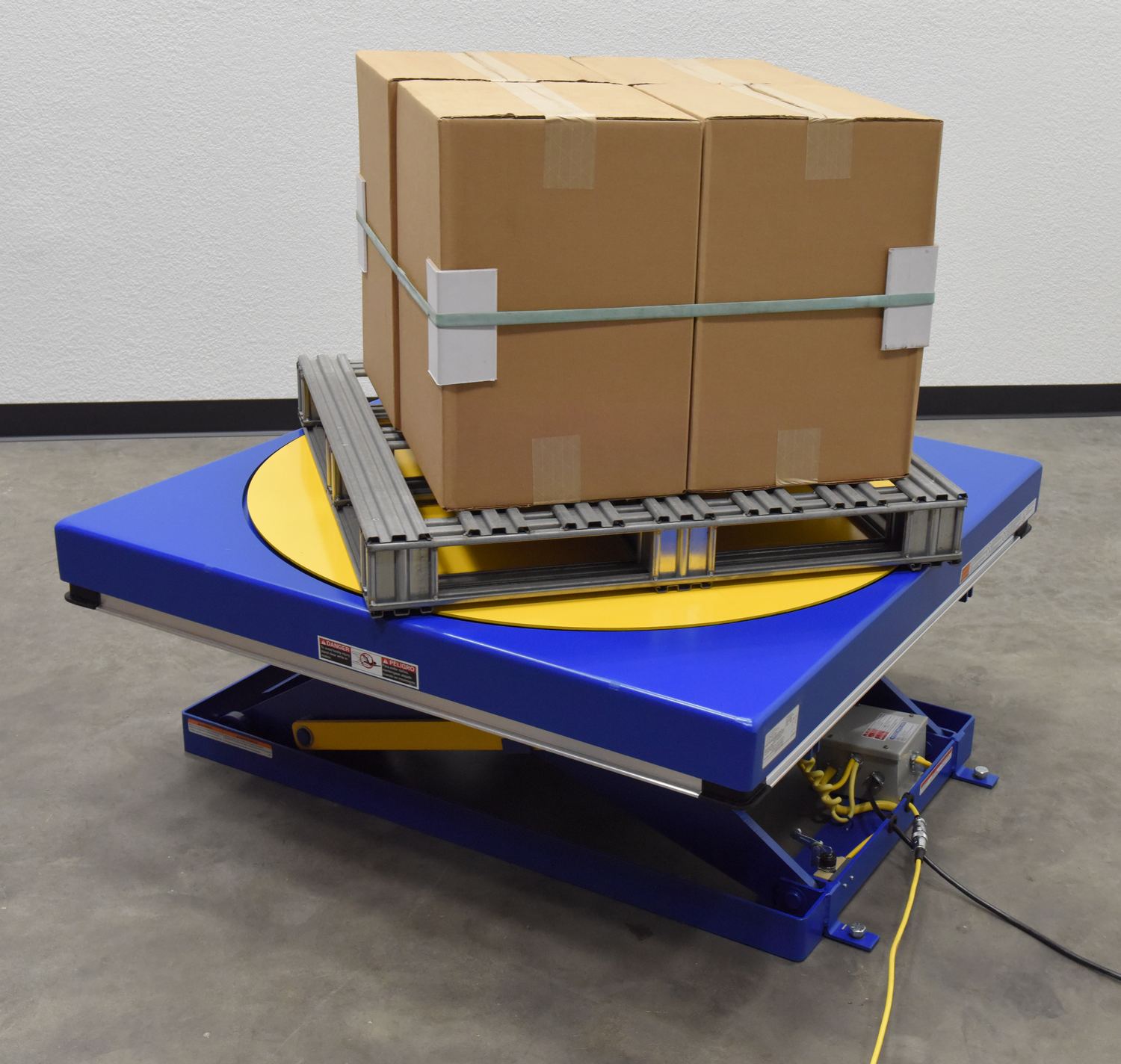

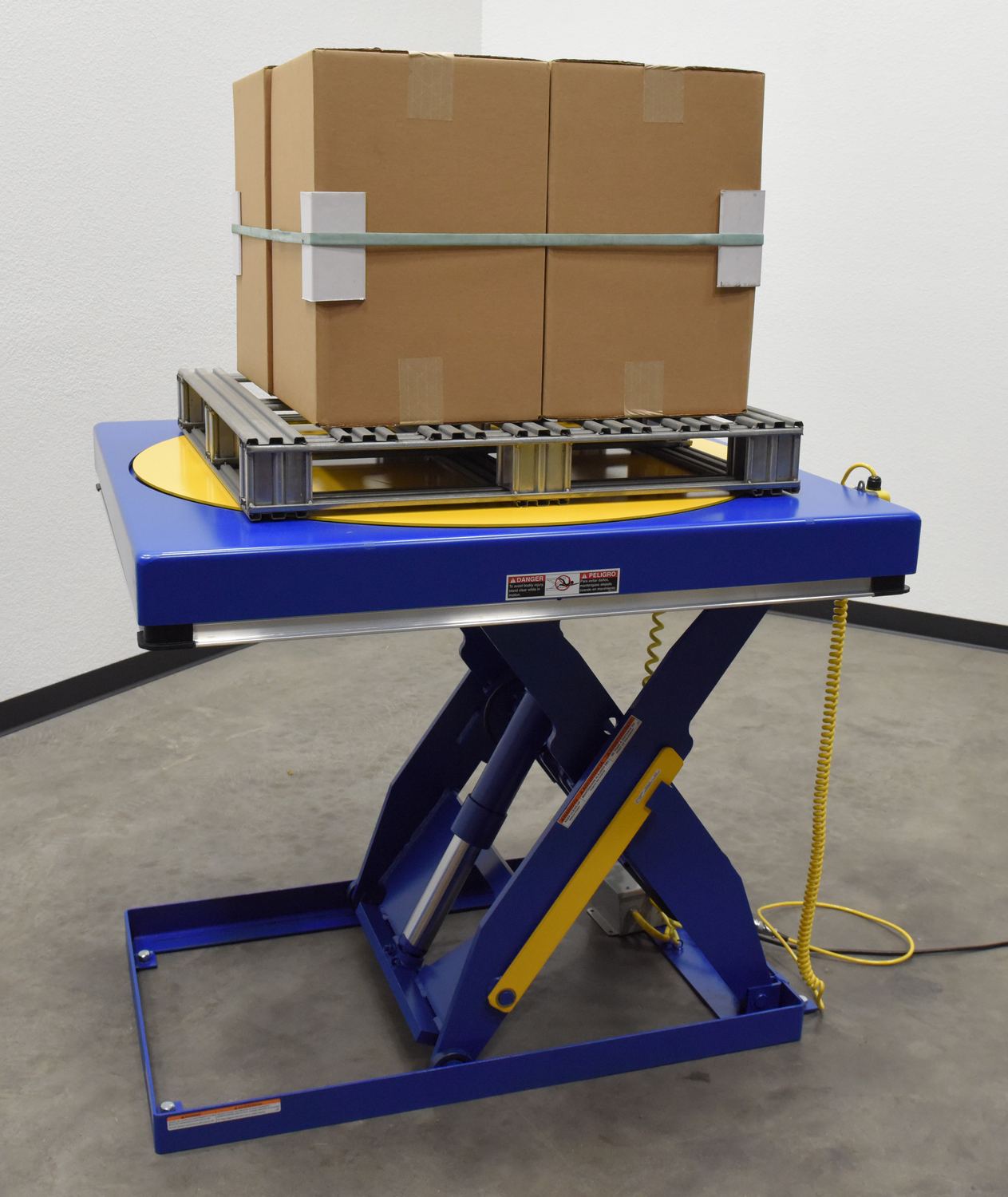

Manual built-in carousels provide a factory-installed rotating platform option for compatible scissor lift tables, helping operators position pallets, boxes, crates, and work-in-process loads without repeatedly walking around the table. The flush mounted carousel rotates 360 degrees, supporting faster access to all sides of the load during assembly, packaging, inspection, and material handling tasks.

360 Degree Manual Rotation

The manual carousel design allows loads to be turned smoothly by hand for improved ergonomic access and workflow efficiency. By rotating the load instead of repositioning the operator, facilities can reduce unnecessary reaching, stepping, and handling during repetitive workstation applications.

Lift Table Compatibility

This family includes factory-installed carousel options for EHLT, EHLTD, EHLTX, PST, and AHLT series scissor lift tables. The option is available with new lift table purchases only and requires a minimum 48 inch x 48 inch platform size.

Capacity and Application Details

The standard carousel has a 45 inch diameter, supports up to 4,000 lb. capacity, and adds approximately 1 inch to the scissor table service range. Other carousel sizes may be available for applications requiring different platform layouts or load positioning needs.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Manual Built In Carousel For Scissor Tables
Model	Image	Model Used With	Weight (lbs)

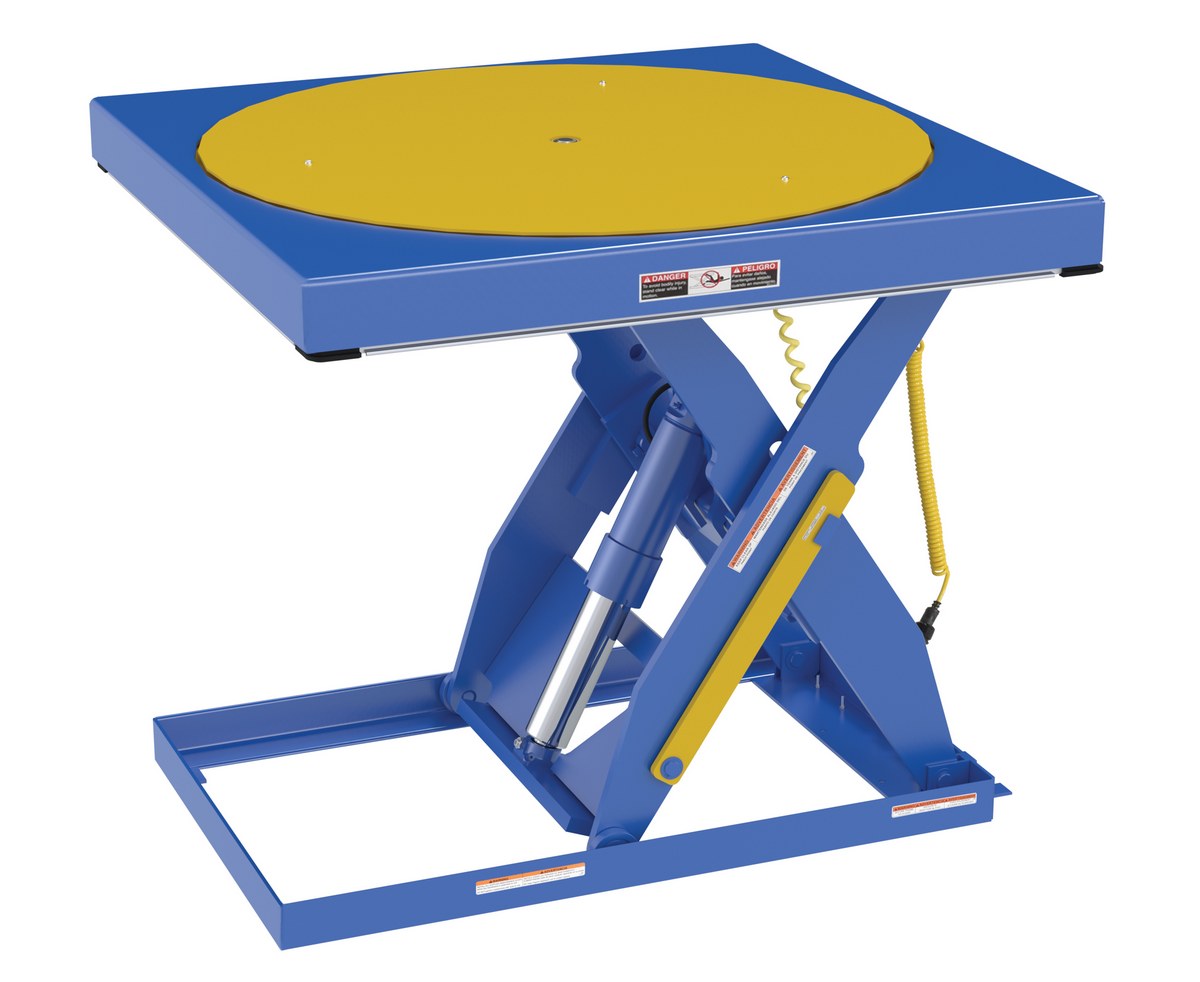

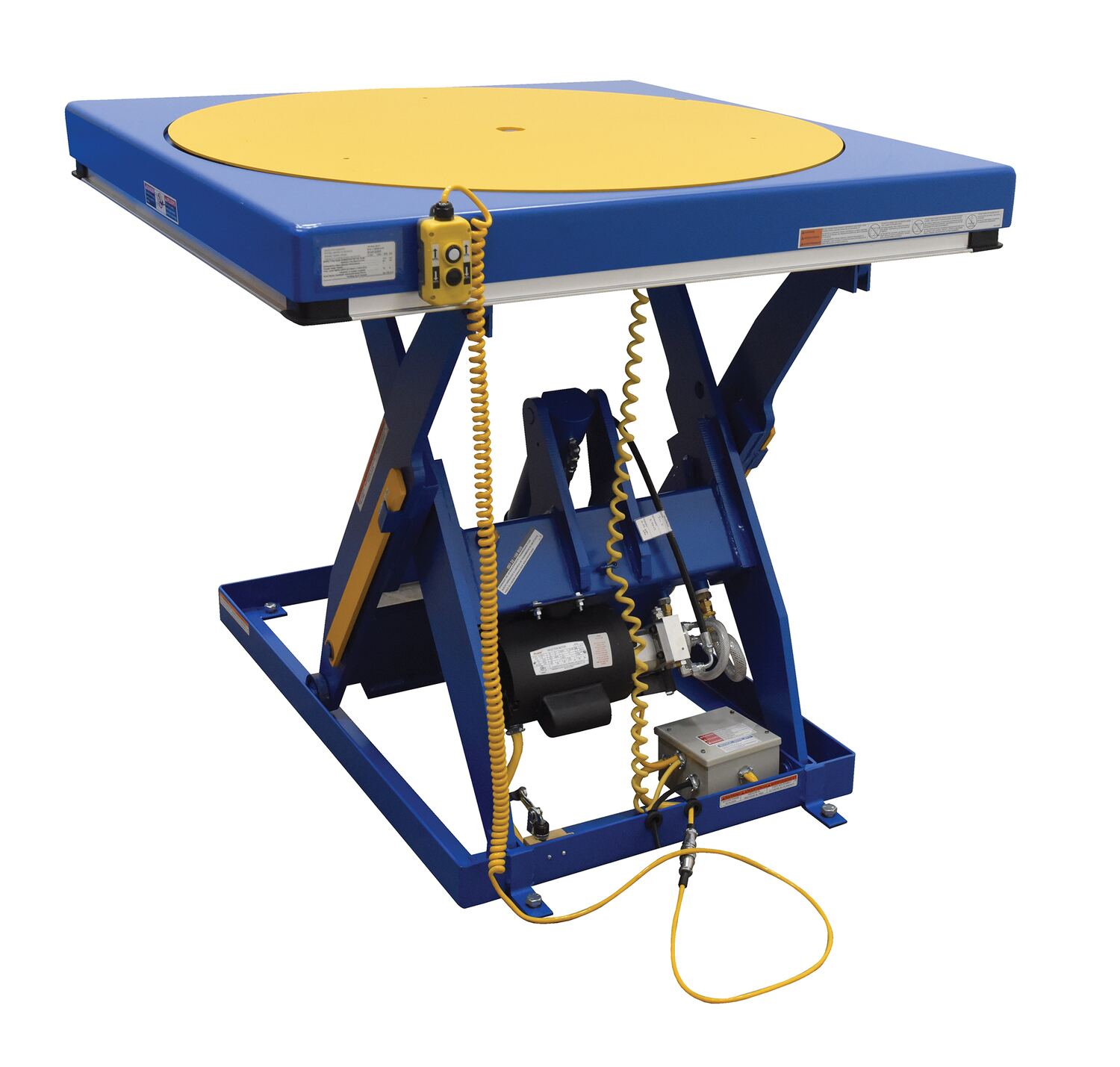

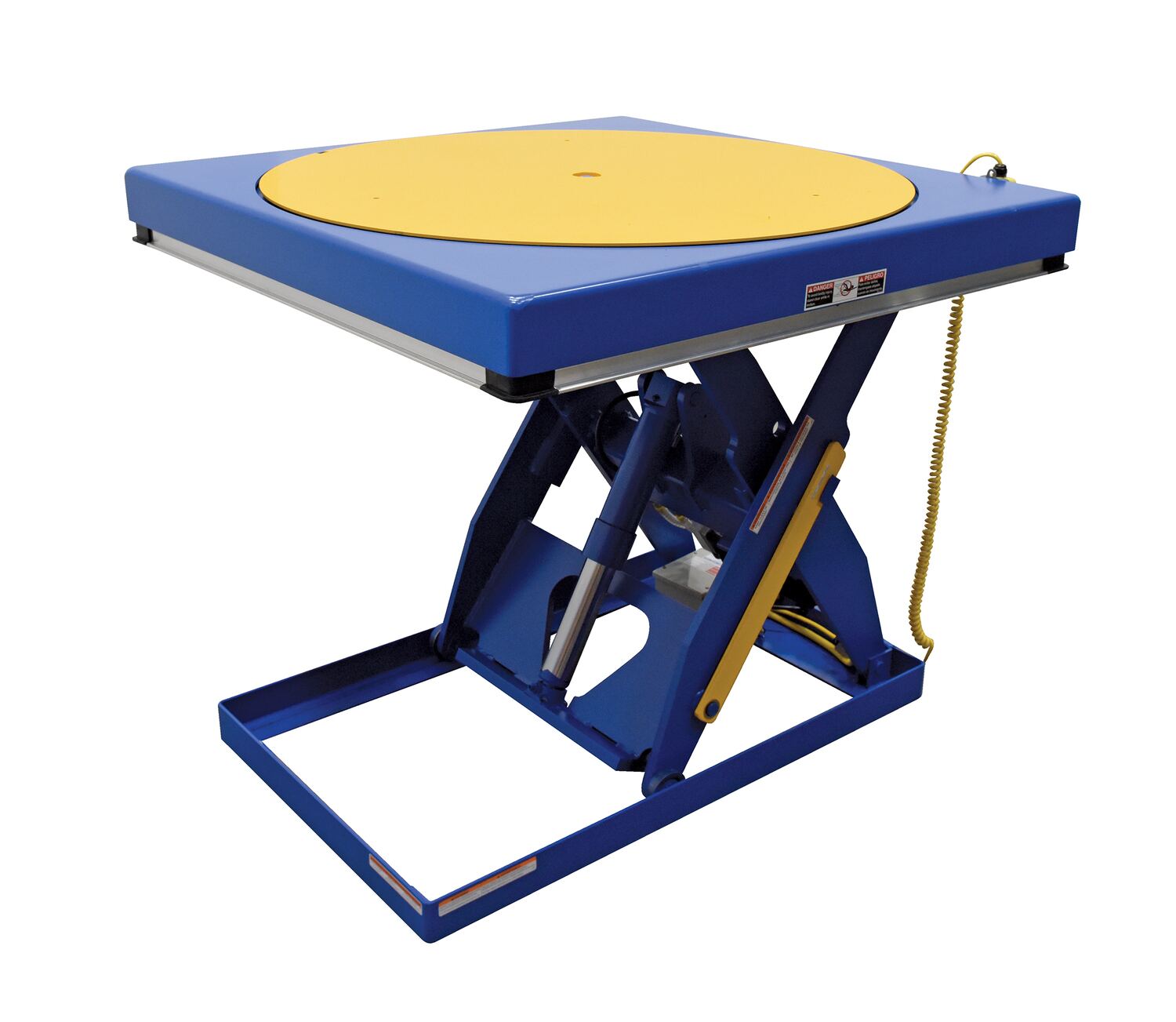

EHLT-ROTATE		SERIES EHLT; LIFT TABLE	350

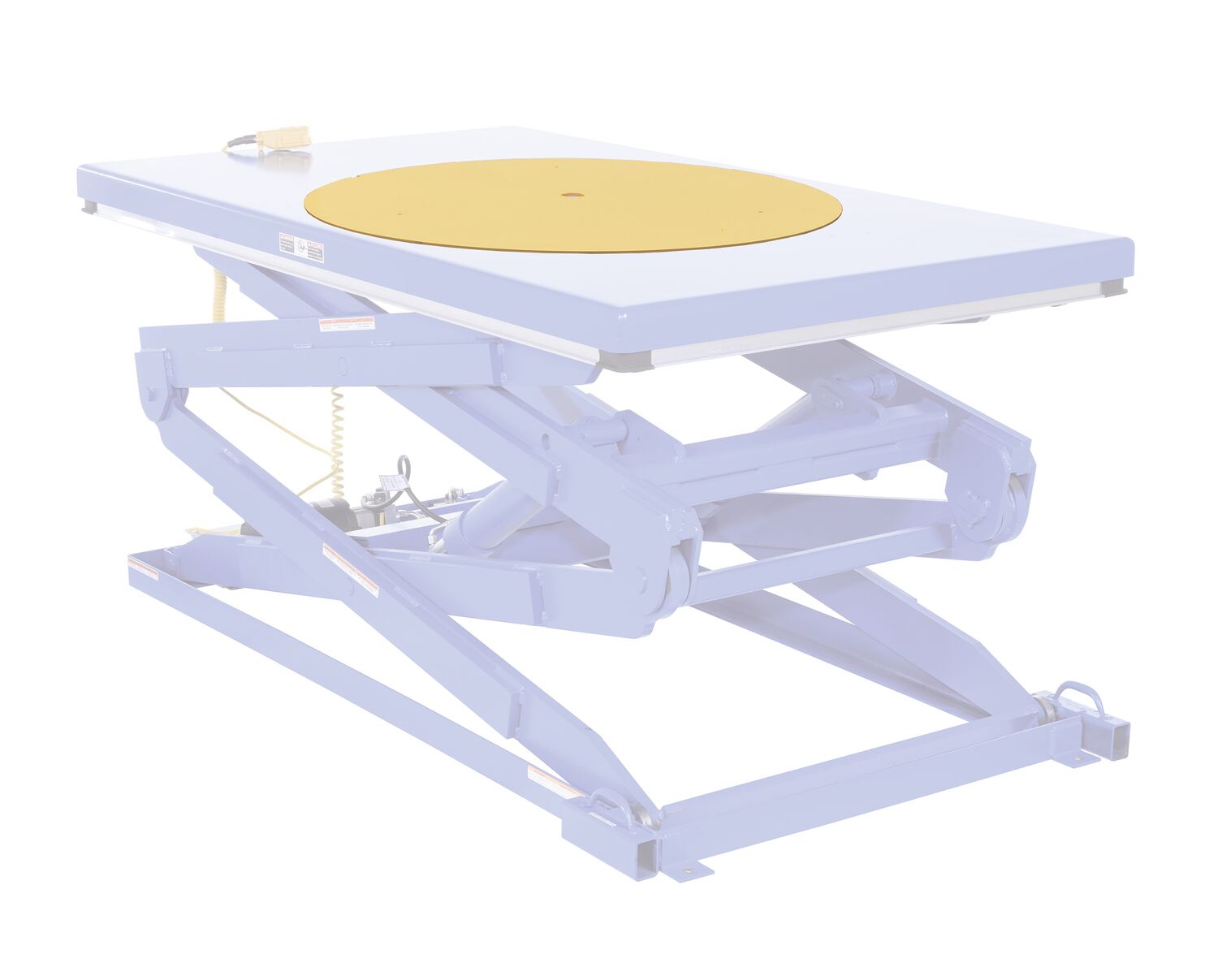

EHLTD-ROTATE		SERIES EHLTD; DOUBLE LIFT TABLE	350

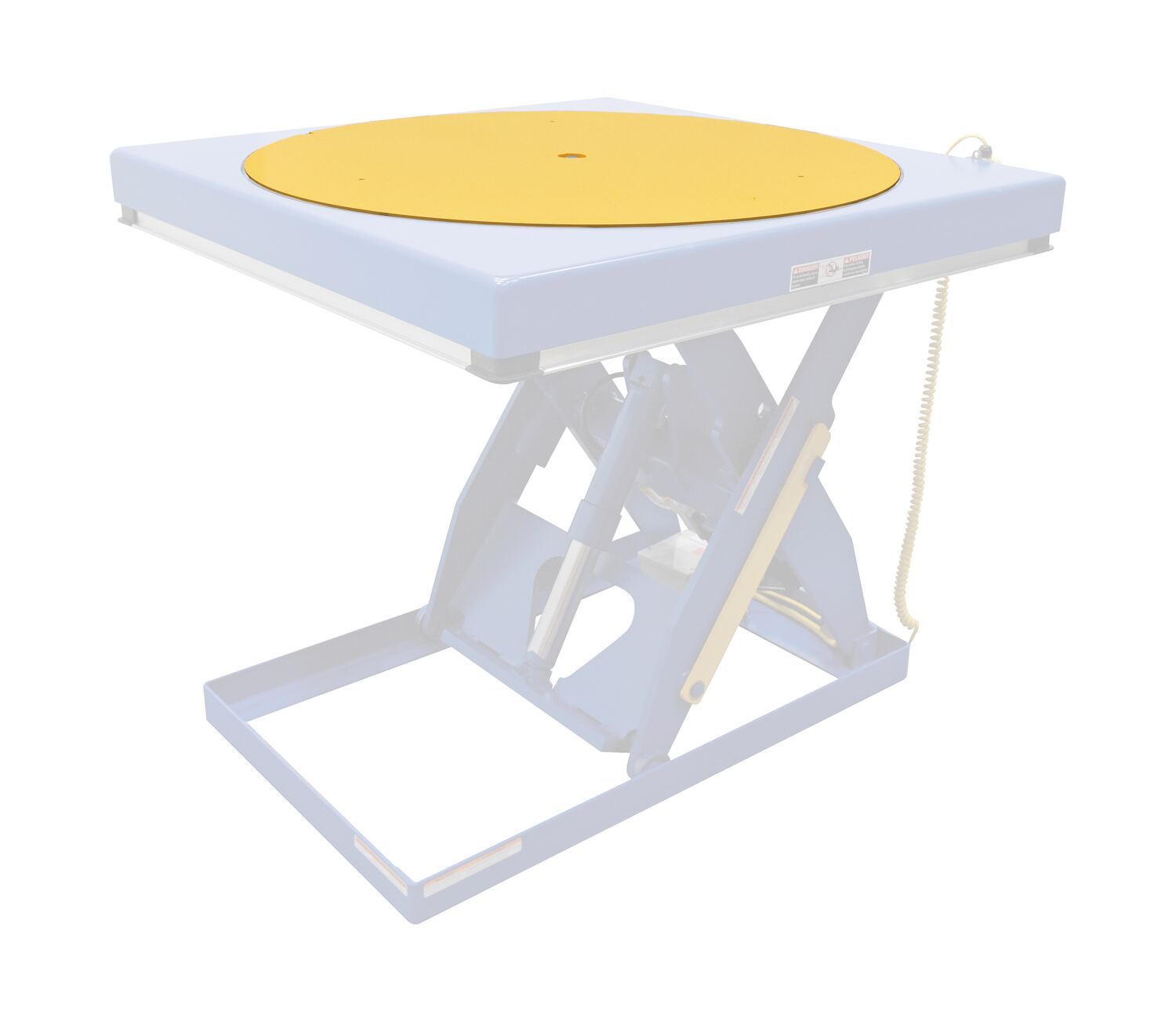

EHLTX-ROTATE		SERIES EHLTX; LOW PROFILE LIFT TABLE	350

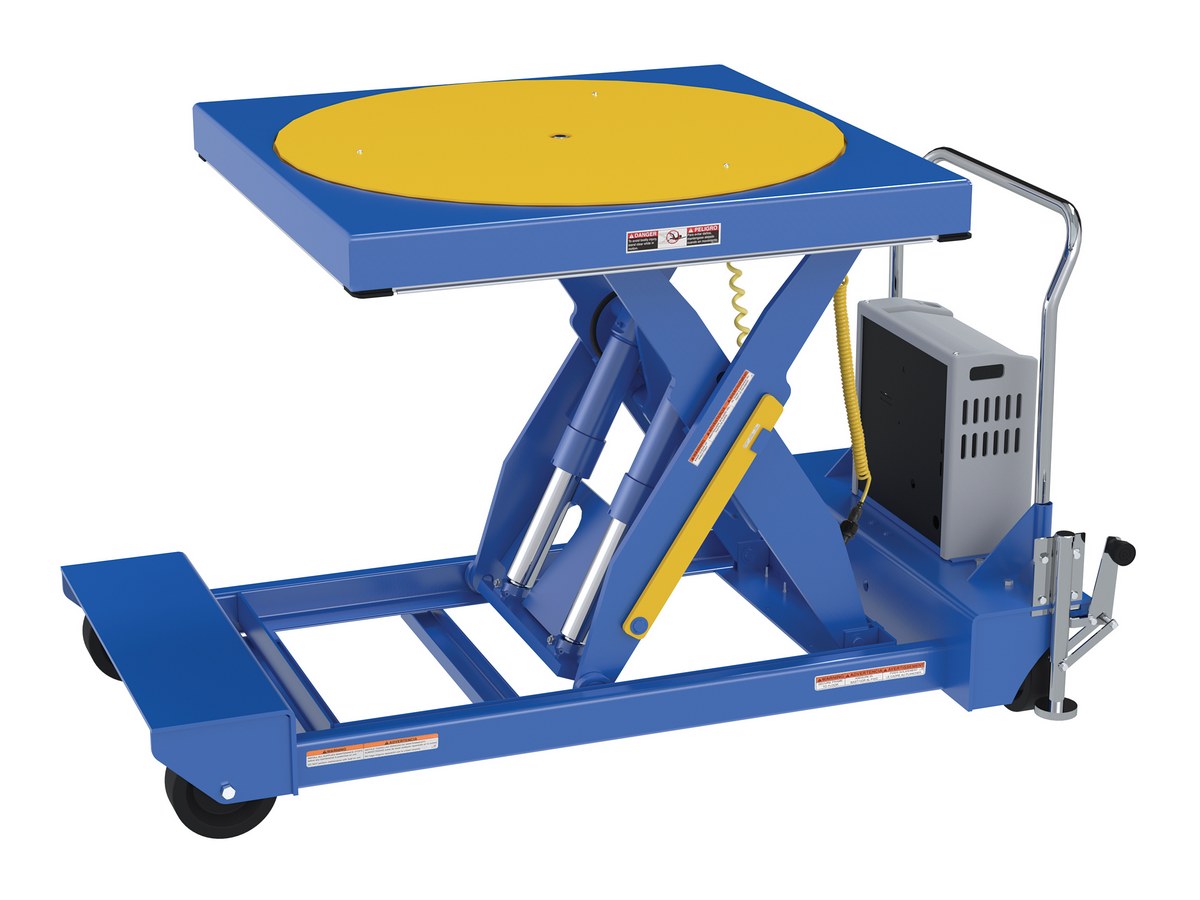

PST-ROTATE		SERIES PST; PORTABLE LIFT TABLE	350
AHLT-ROTATE		SERIES AHLT; Air Hydraulic LIFT TABLE	350

KEY: = Approval Drawing — = Warranty — = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below

For More Details of the Option Click the Red Model Button

Model	Details	Icons	Wt.
AHLT-ROTATE	Factory Installed Steel Built-In Flush Mounted Manual Carous…	90 Days Limited Warranty	350
EHLT-ROTATE	Factory Installed Steel Manual Carousel For EHLT Models Blue	90 Days Limited Warranty	350
EHLTD-ROTATE	Factory Installed Steel Manual Carousel For EHLTD Models Blu…	1 Year Limited Warranty	350
EHLTX-ROTATE	Factory Installed Steel Manual Carousel For EHLTX Models Blu…	90 Days Limited Warranty	350
PST-ROTATE	Factory Installed Manual Carousel For Portable Scissor Lift …	90 Days Limited Warranty	350
