Product Family Overview


Polyurethane (SI) Casters
SERIES: CST-F34-SI

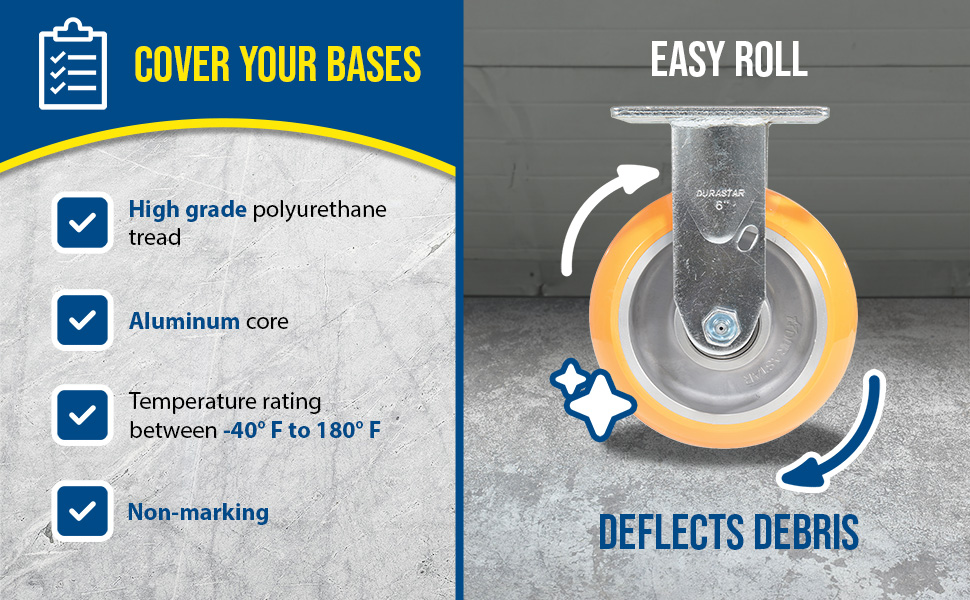

Constructed of proprietary, high-grade elastic polyurethane and coupled with 6203 premium precision ball bearings for added strength and durability. The upgraded tread provides a longer life, reduces the force required for movement, rejects debris, and offers exceptional floor preservation. Orange tread color. 85 shore a. Wheel core is constructed of high-grade, light-weight, water resistant aluminum.

  • Non-marking high-quality proprietary tread
  • Smooth Ride Performance
  • Rejects Debris
  • Reduces Push/Pull Force Required For Movement
  • High Capacity
  • Ergonomic Donut Design
  • Light Weight, Rust Resistant Aluminum Core
  • Premium sealed precision ball bearings

Constructed of proprietary, high-grade elastic polyurethane and coupled with 6203 premium precision ball bearings for added strength and durability. The upgraded tread provides a longer life, reduces the force required for movement, rejects debris, and offers exceptional floor preservation. Orange tread color. 85 shore a. Wheel core is constructed of high-grade, light-weight, water resistant aluminum.

  • Non-marking high-quality proprietary tread
  • Smooth Ride Performance
  • Rejects Debris
  • Reduces Push/Pull Force Required For Movement
  • High Capacity
  • Ergonomic Donut Design
  • Light Weight, Rust Resistant Aluminum Core
  • Premium sealed precision ball bearings

Additional Models In This Family

CST-F34-4X2SI-SWB

model CST-F34-4X2SI-SWB

CST-F34-4X2SI-SWTB1

model CST-F34-4X2SI-SWTB1

CST-F34-6X2SI-R

model CST-F34-6X2SI-R

CST-F34-6X2SI-S

model CST-F34-6X2SI-S

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size
Type Capacity
(lbs.)
Overall
Height
Top Plate
Size
Net Wt.
(lbs)

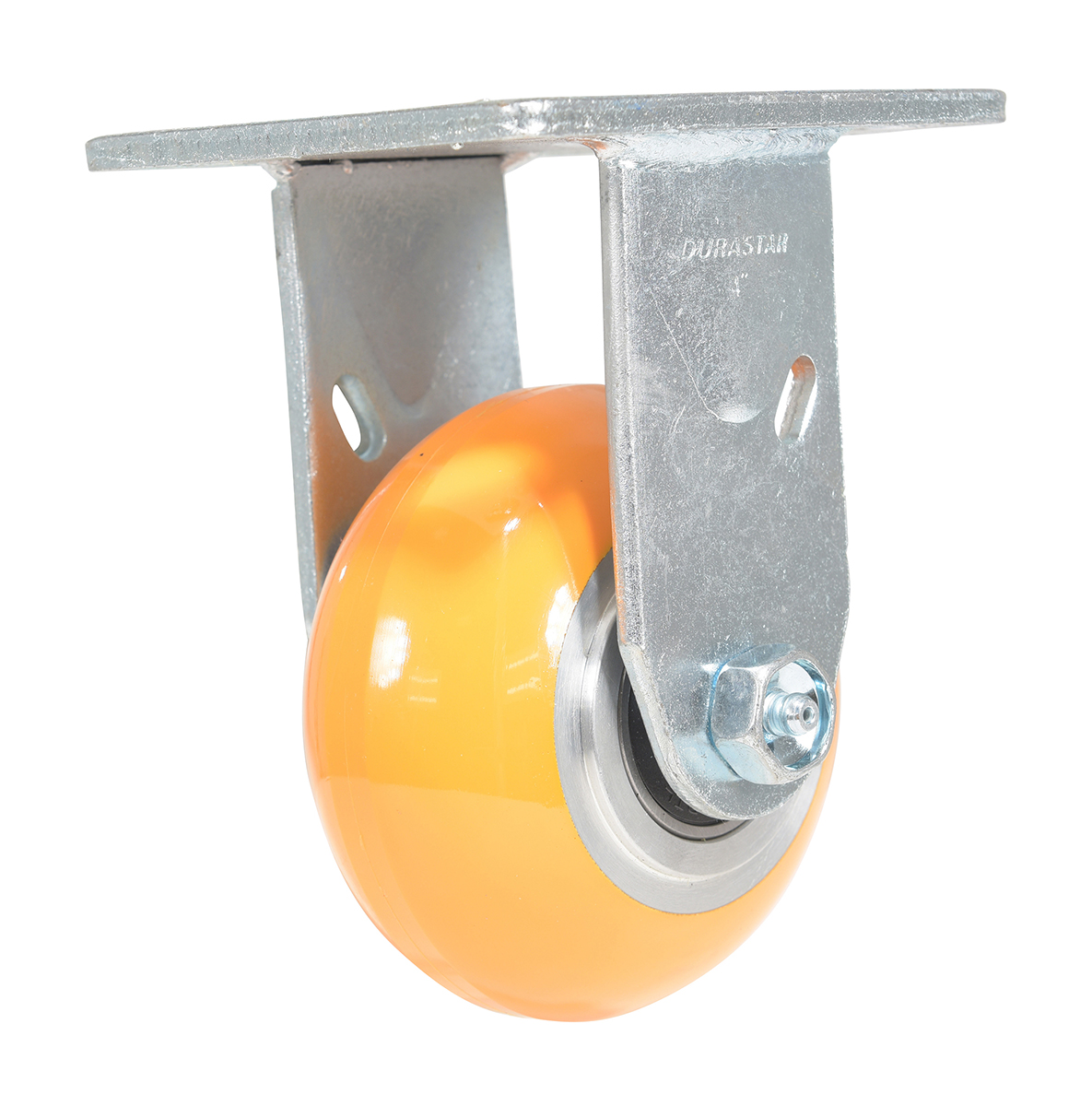

CST-F34-4X2SI-R CST-F34-4X2SI-R1 YEAR Limited Warranty4 x 2RIGID10005-3/4 4 x 4-1/23.4
CST-F34-5X2SI-R CST-F34-5X2SI-R1 YEAR Limited Warranty5 x 2RIGID12006-1/2 4 x 4-1/23.95

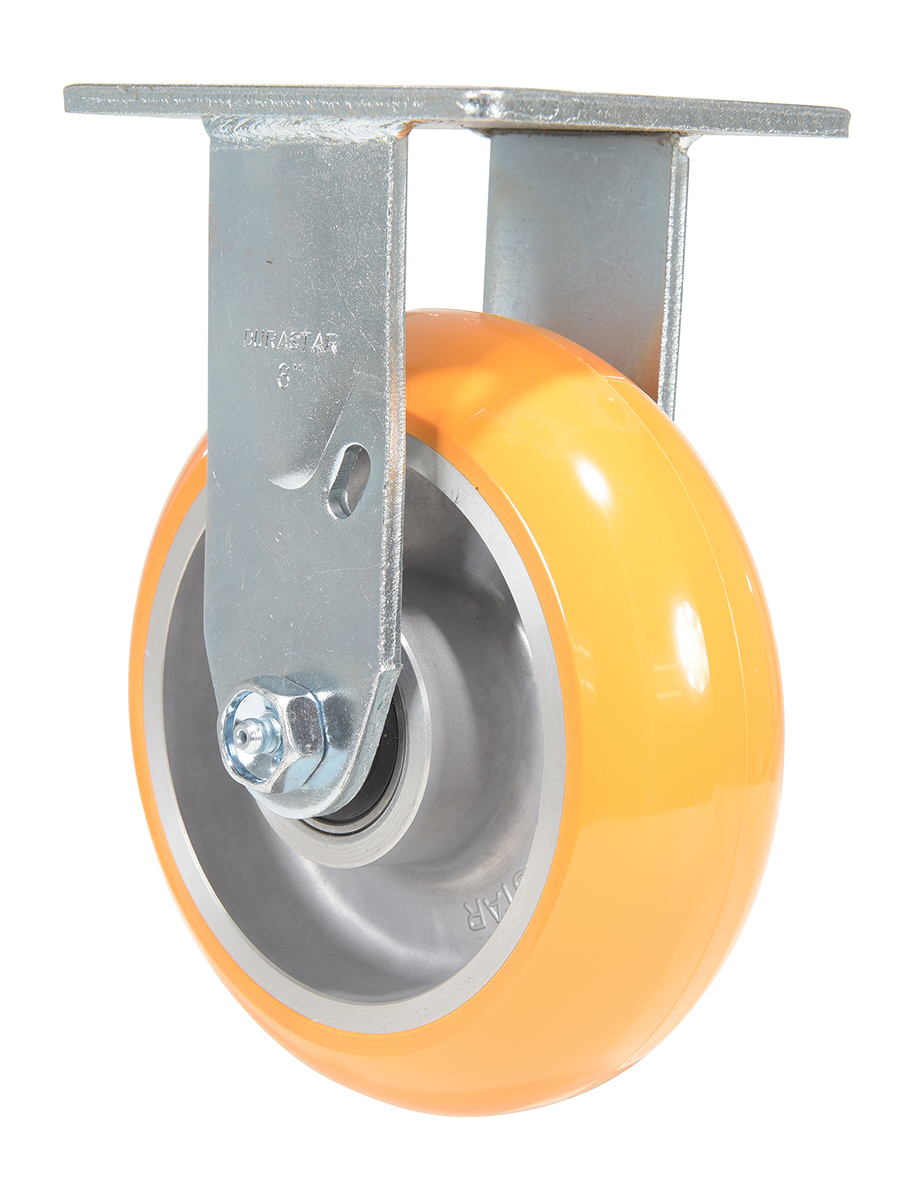

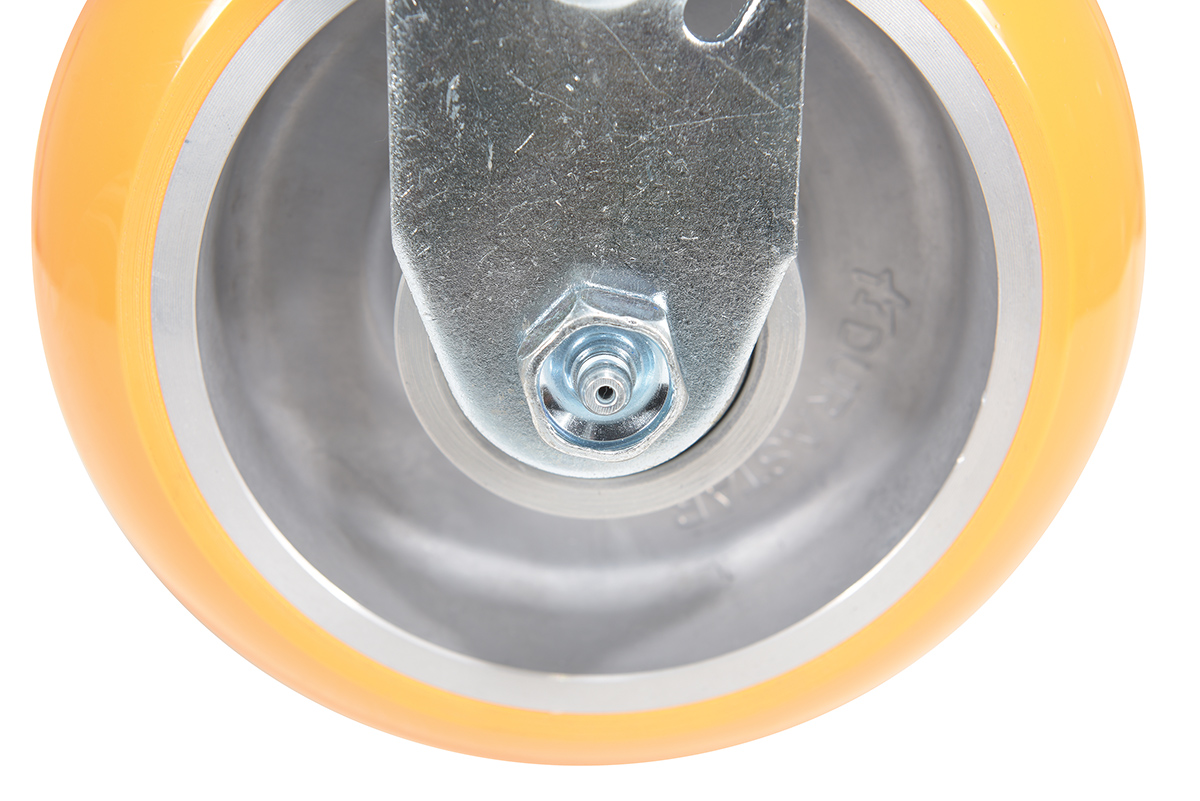

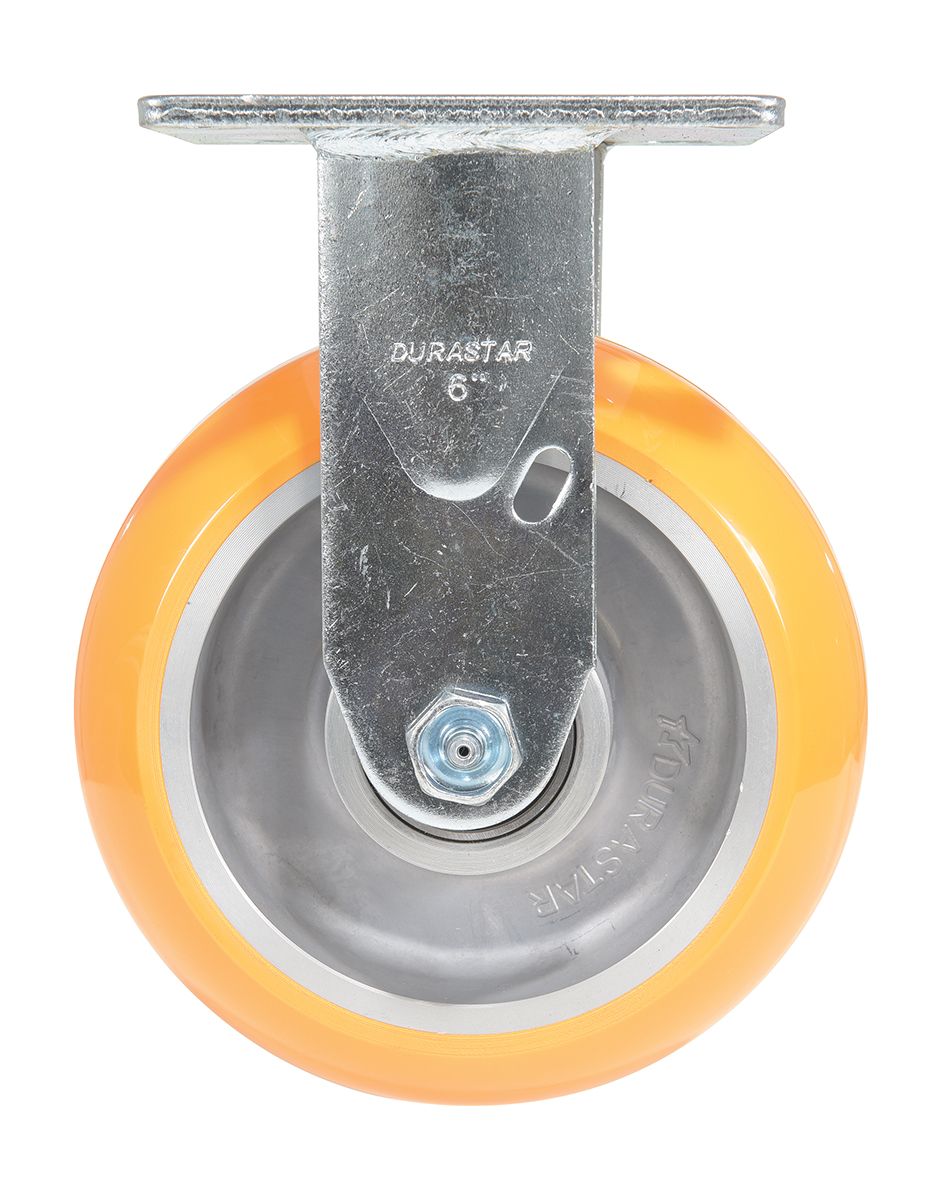

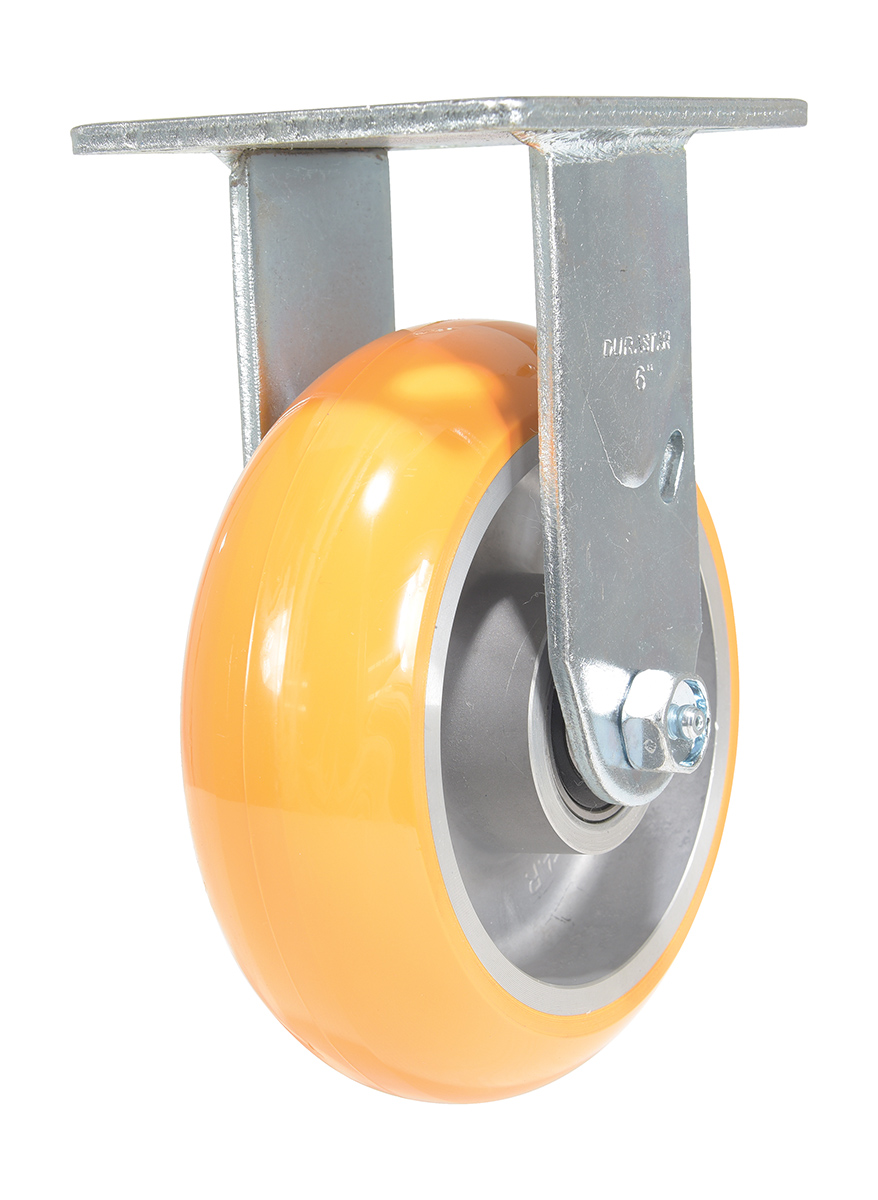

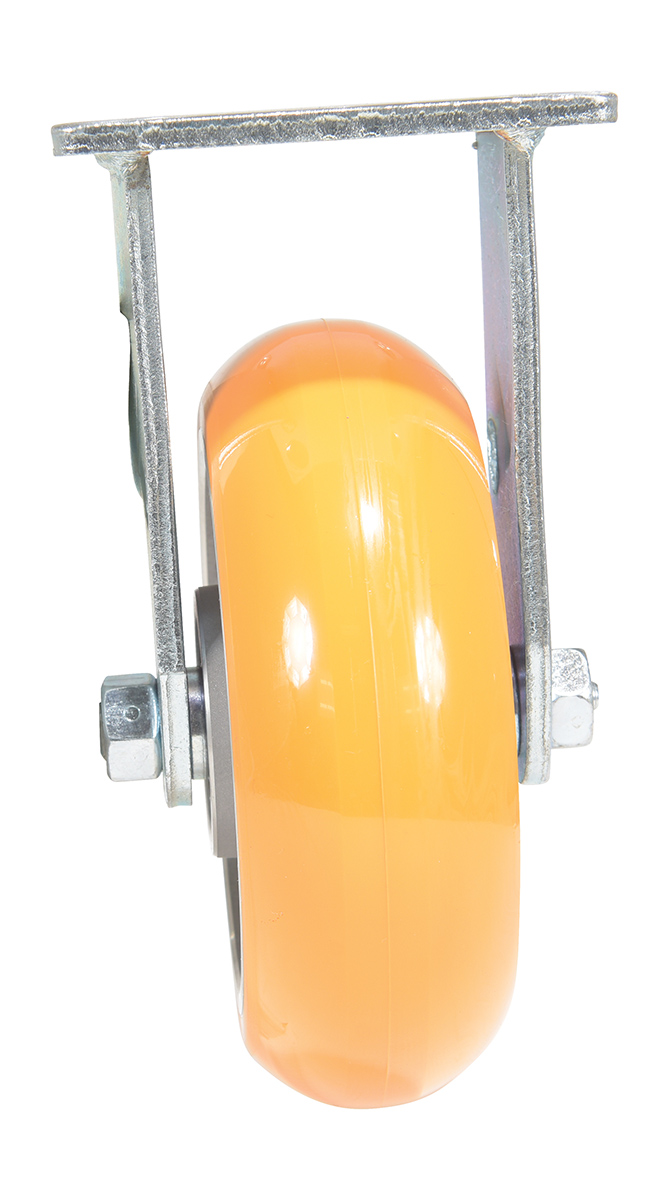

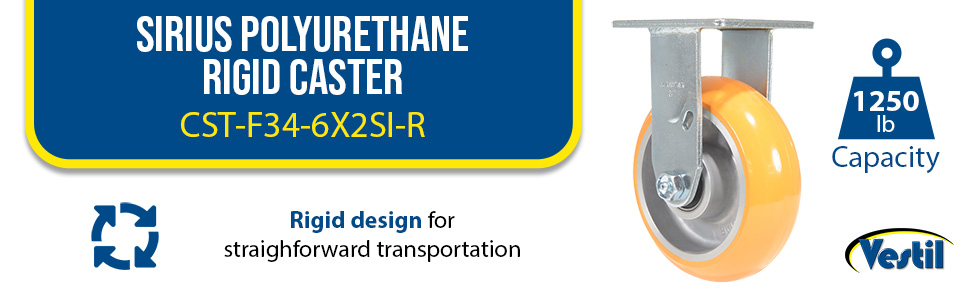

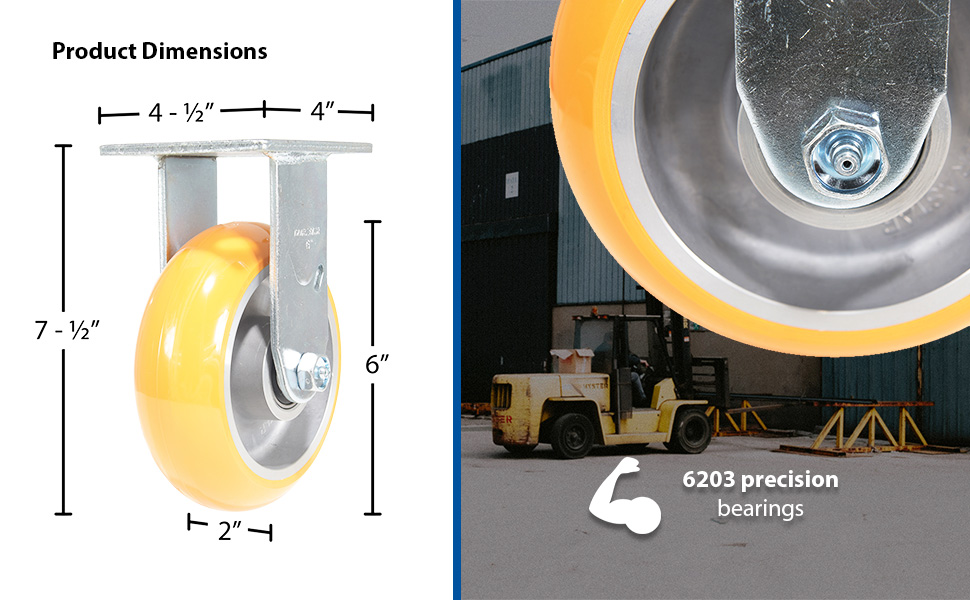

CST-F34-6X2SI-R CST-F34-6X2SI-R1 YEAR Limited Warranty6 x 2RIGID12507-1/2 4 x 4-1/24.42

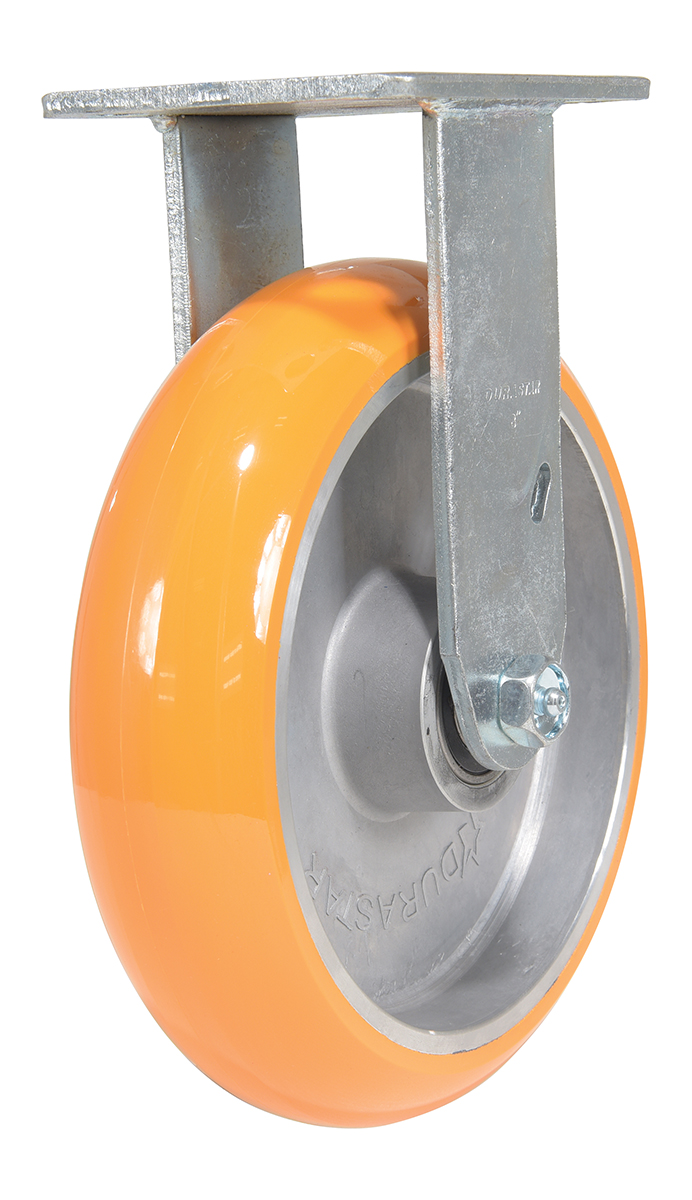

CST-F34-8X2SI-R CST-F34-8X2SI-R1 YEAR Limited Warranty8 x 2RIGID12509-3/8 4 x 4-1/25.65

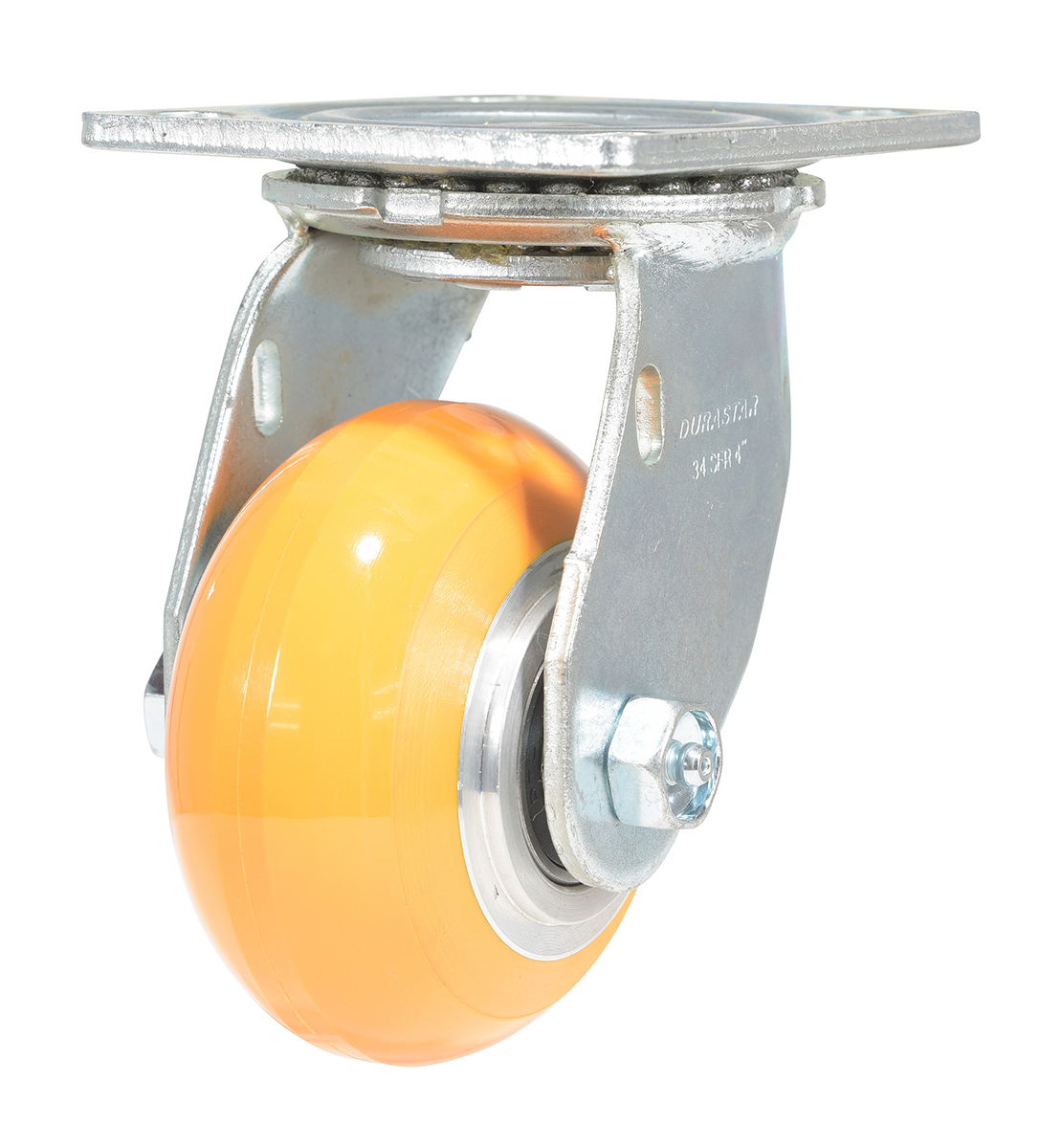

CST-F34-4X2SI-S CST-F34-4X2SI-S1 YEAR Limited Warranty4 x 2SWIVEL10005-3/4 4 x 4-1/24.15
CST-F34-5X2SI-S CST-F34-5X2SI-S1 YEAR Limited Warranty5 x 2SWIVEL12006-1/2 4 x 4-1/24.72

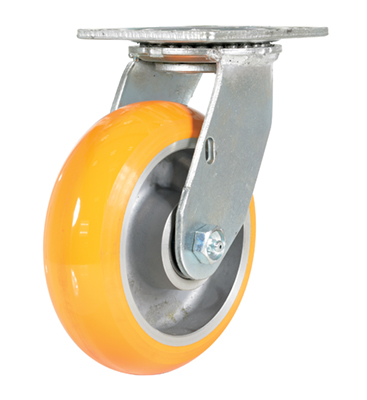

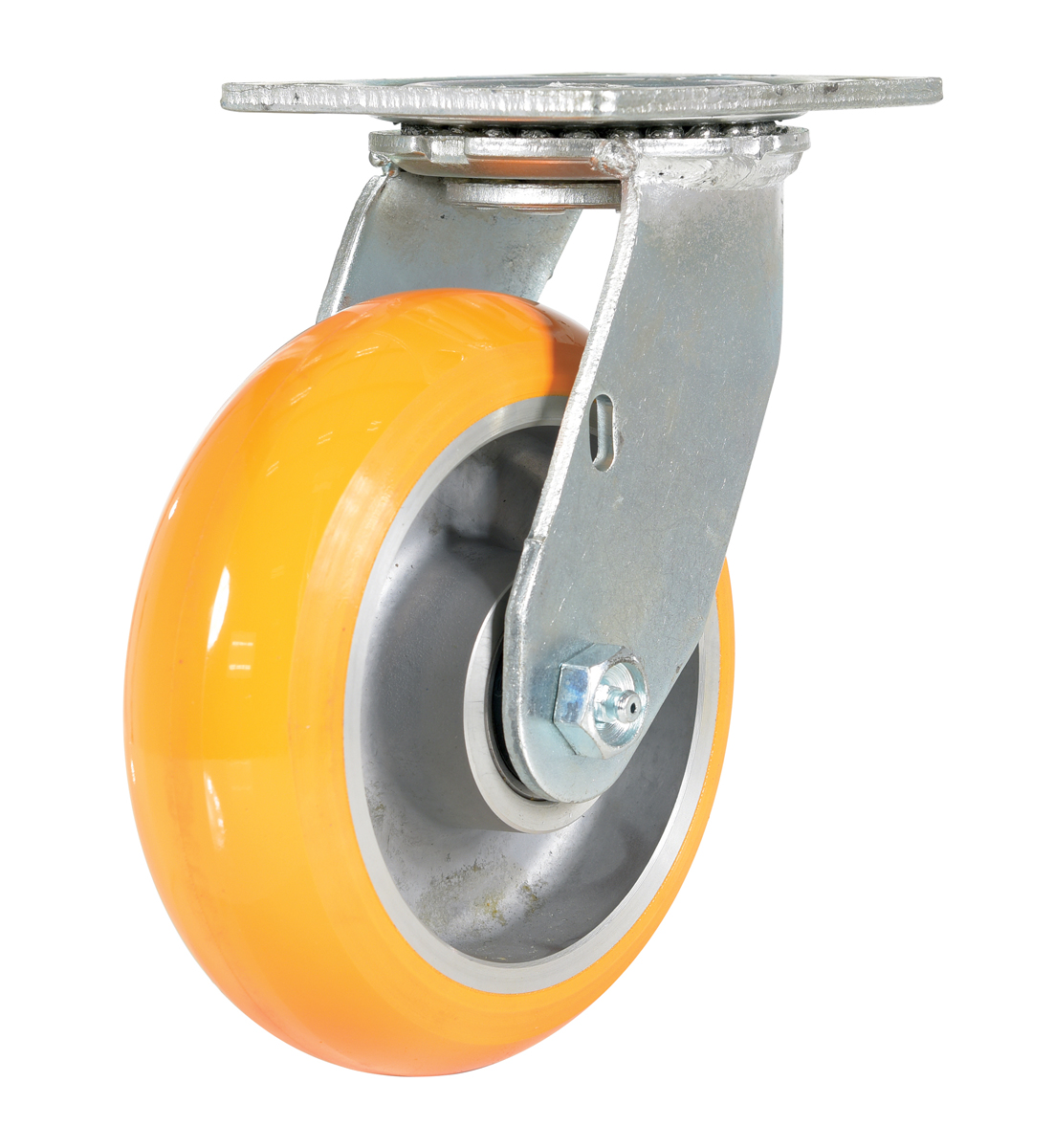

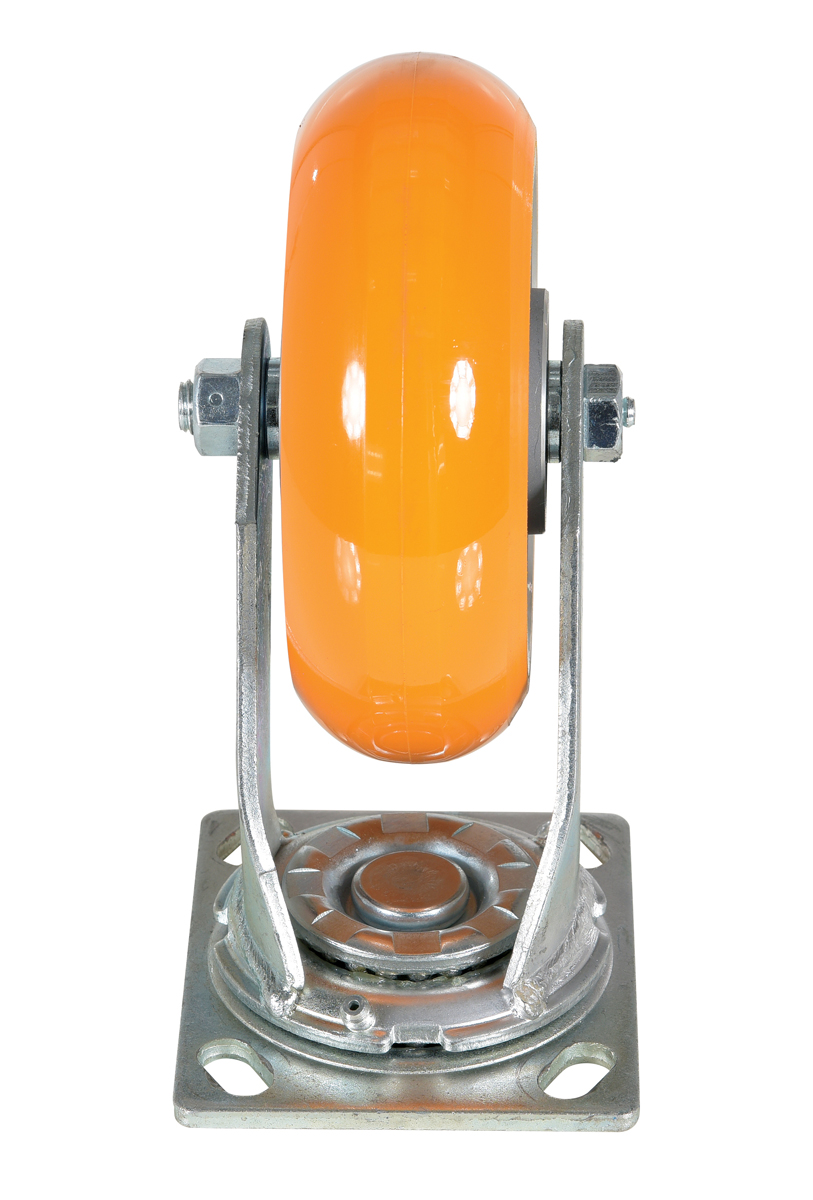

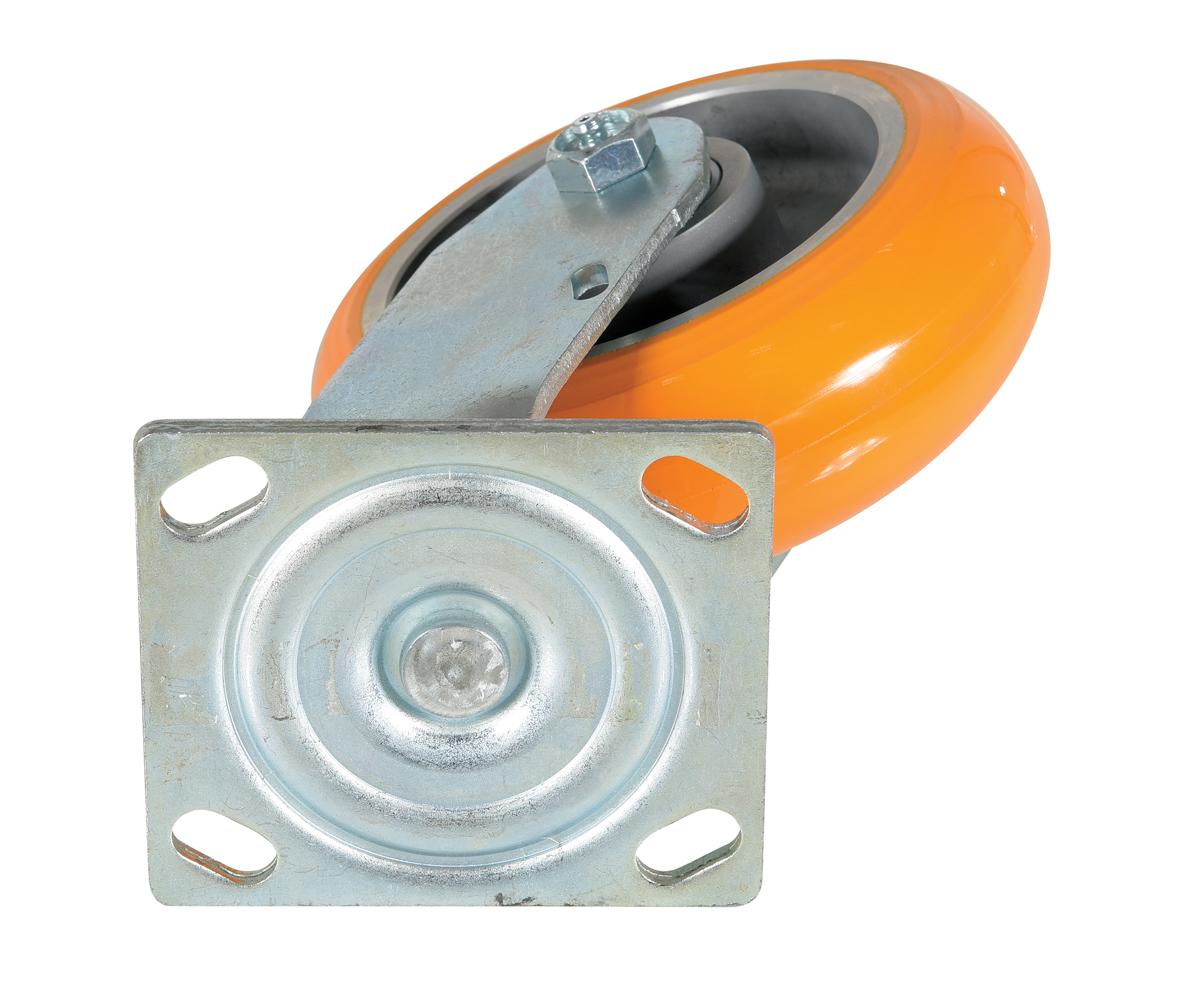

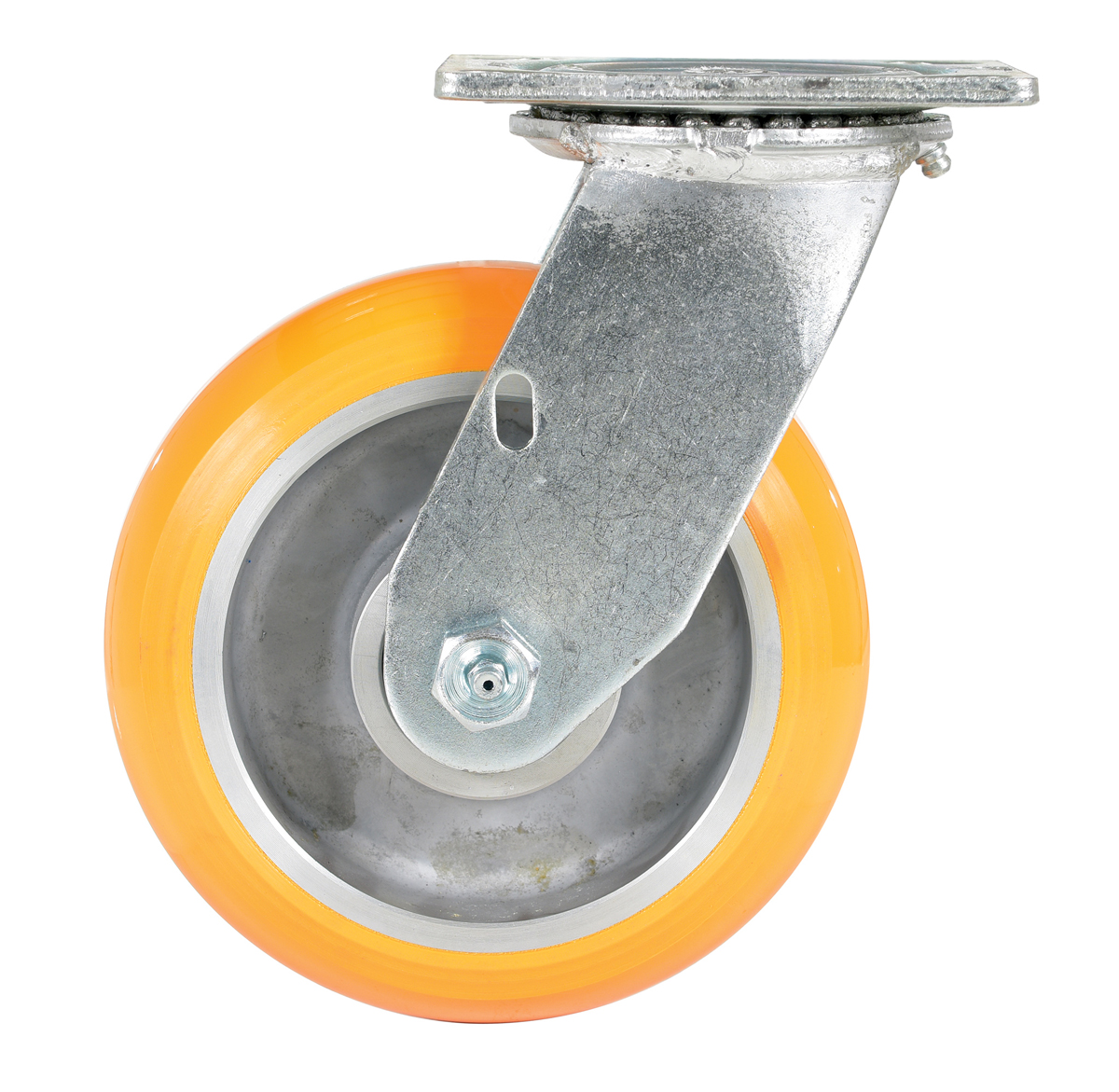

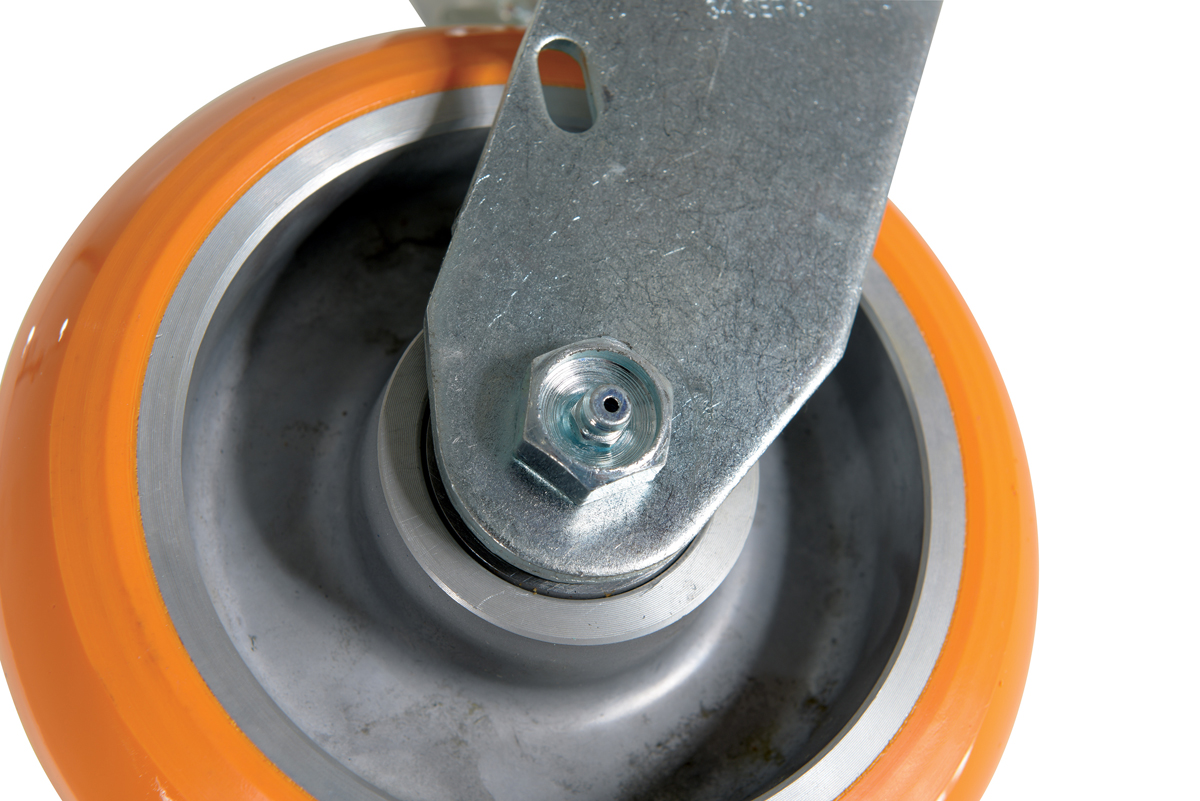

CST-F34-6X2SI-S CST-F34-6X2SI-S1 YEAR Limited Warranty6 x 2SWIVEL12507-1/2 4 x 4 1/25.21

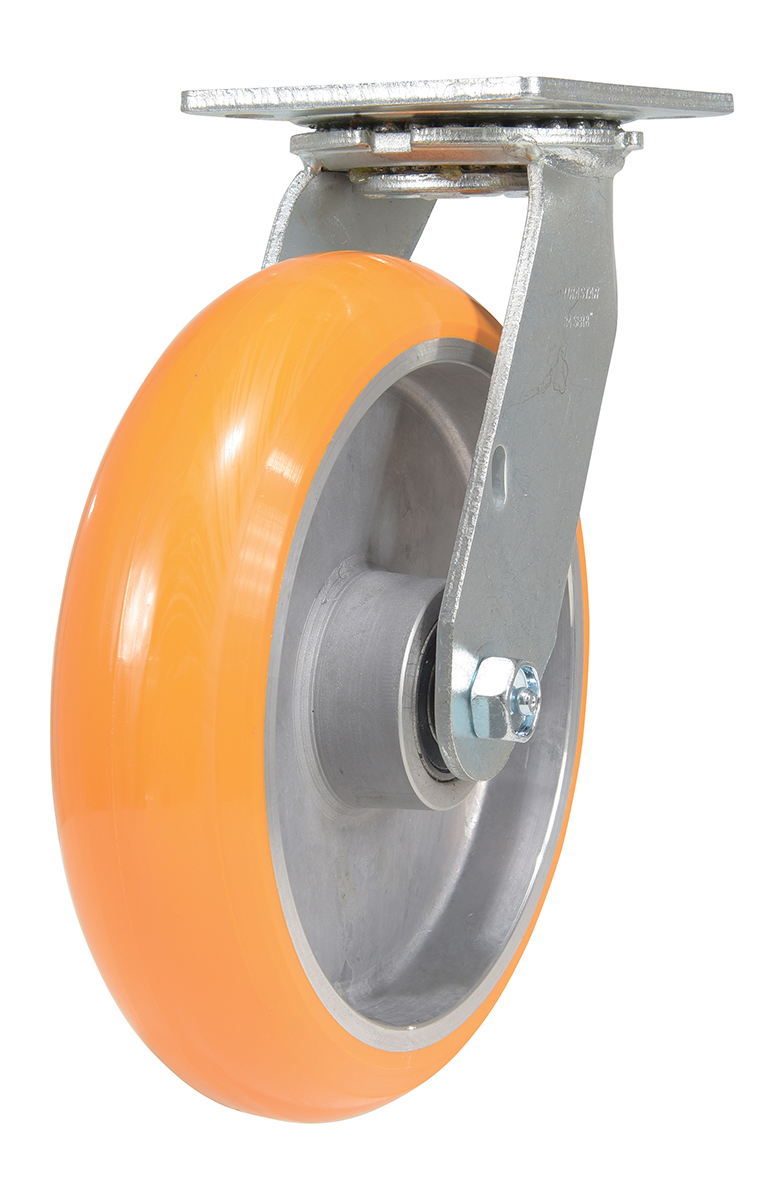

CST-F34-8X2SI-S CST-F34-8X2SI-S1 YEAR Limited Warranty8 x 2SWIVEL12507-1/2 4 x 4-1/26.55

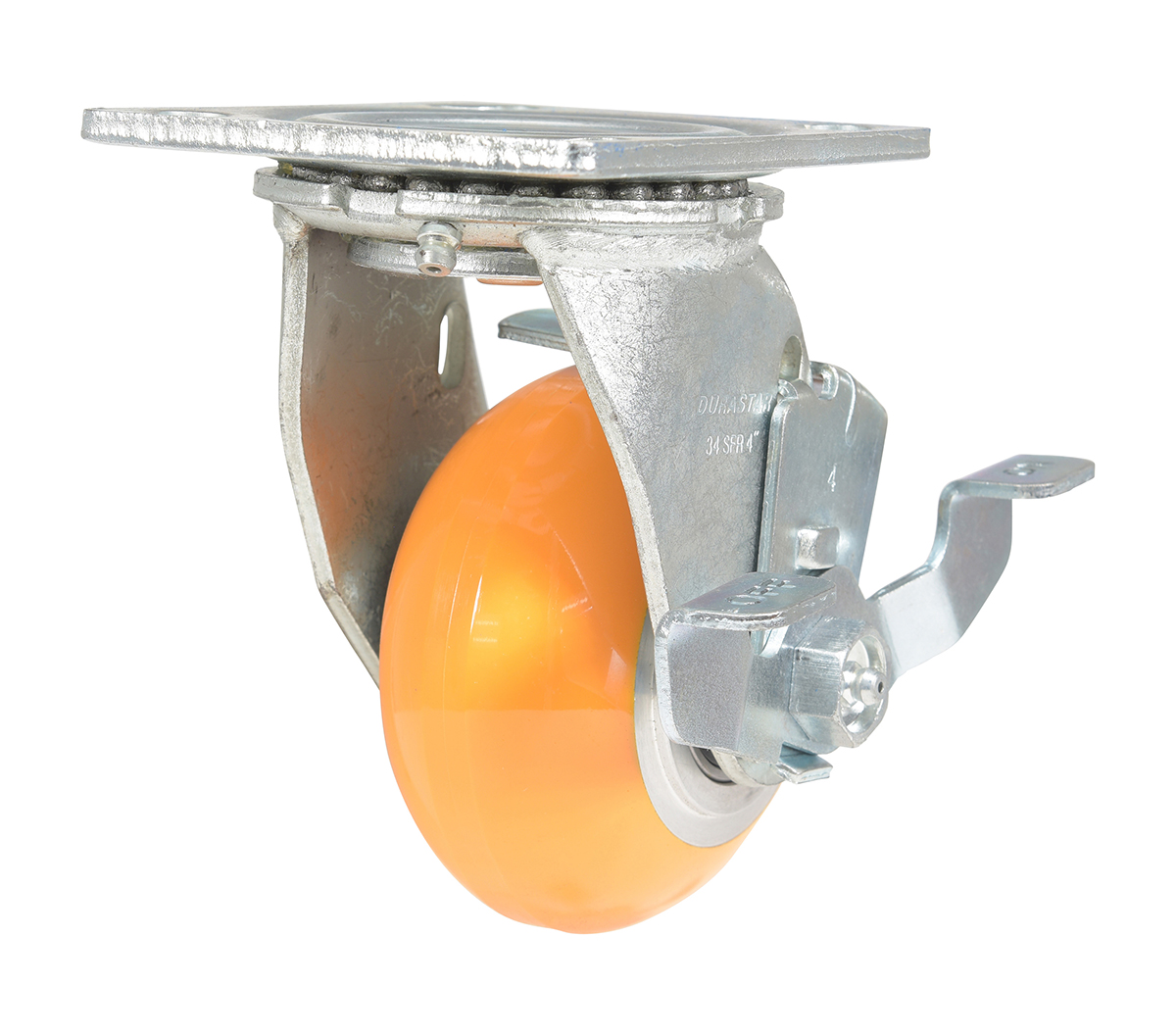

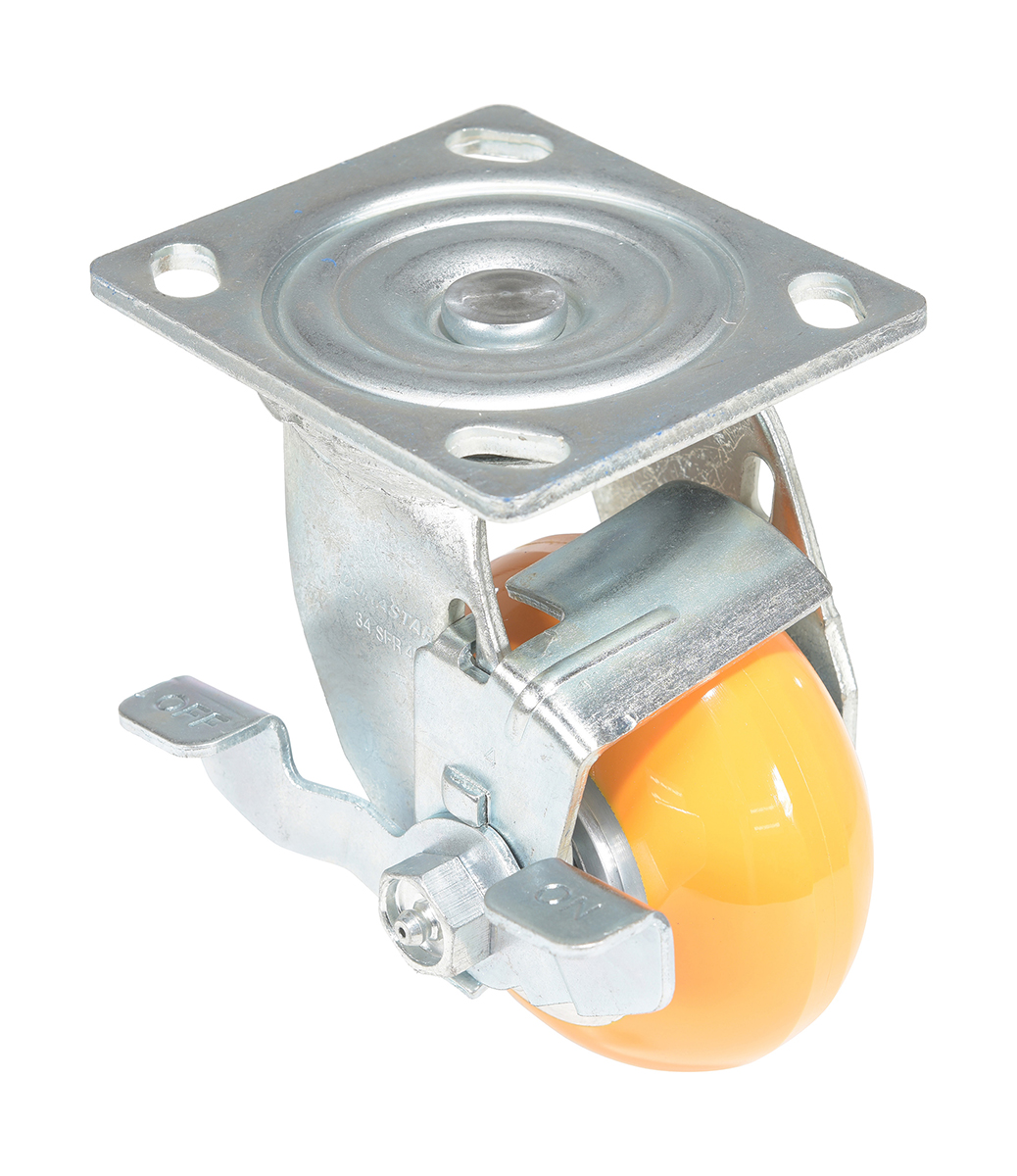

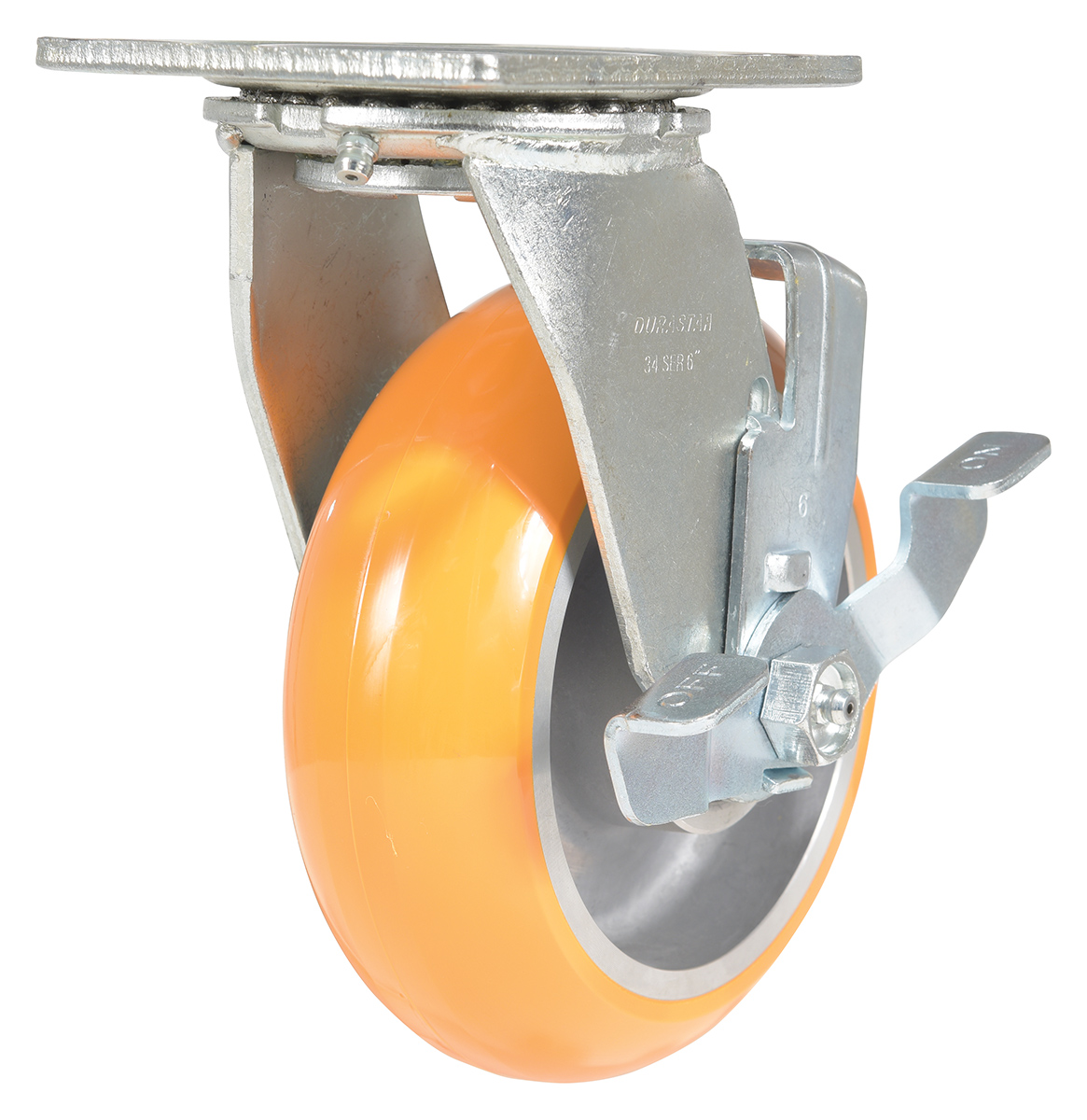

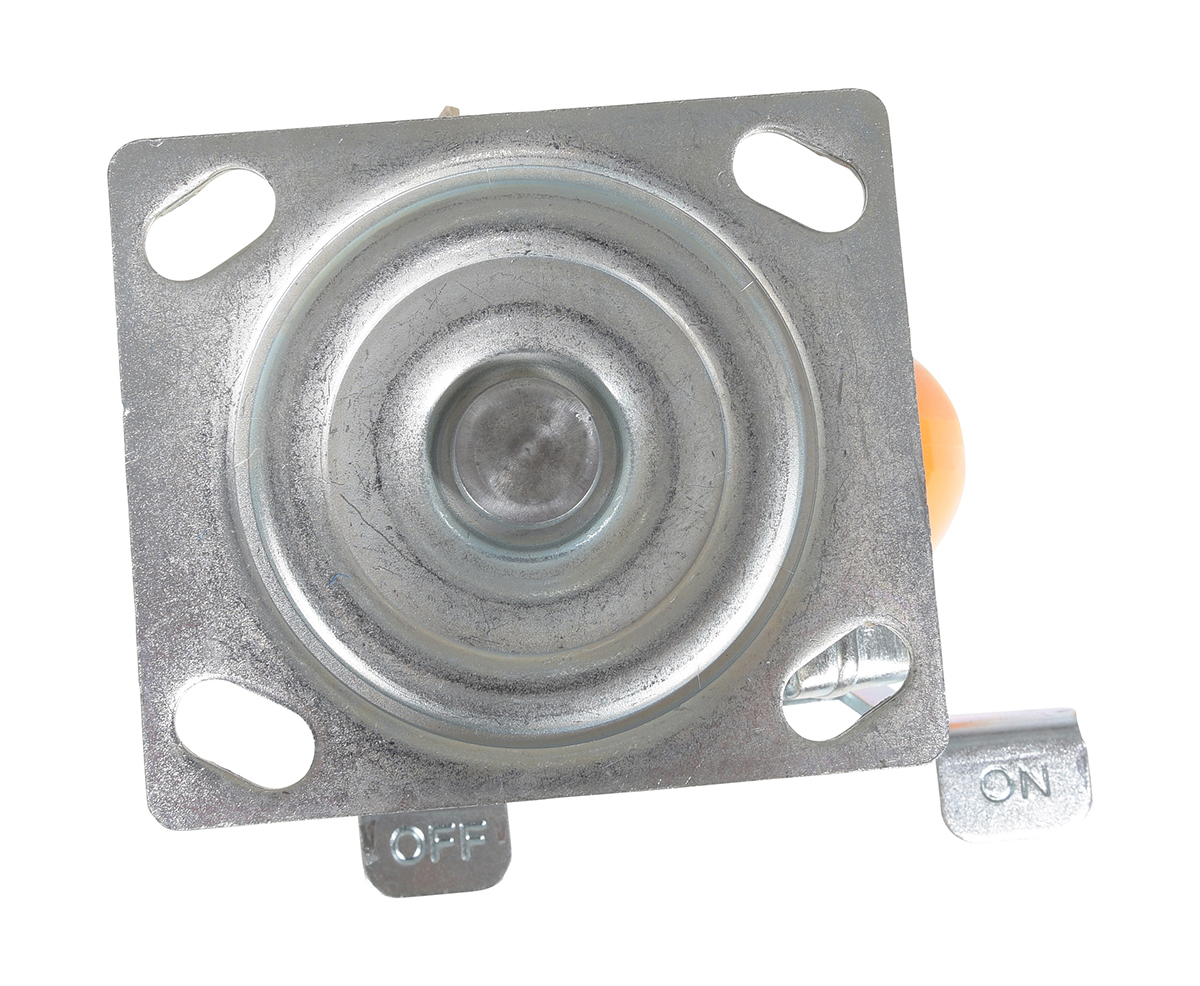

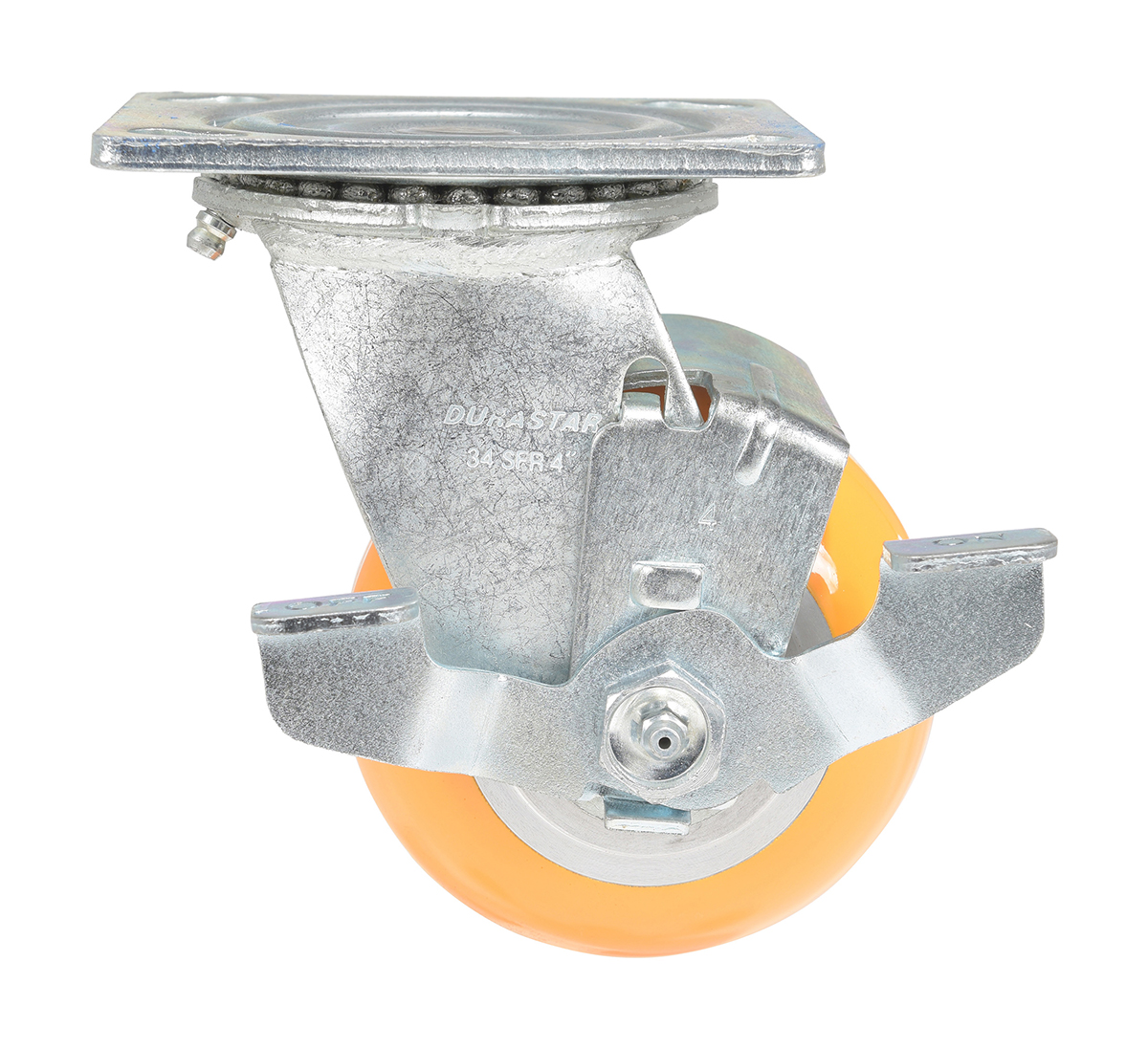

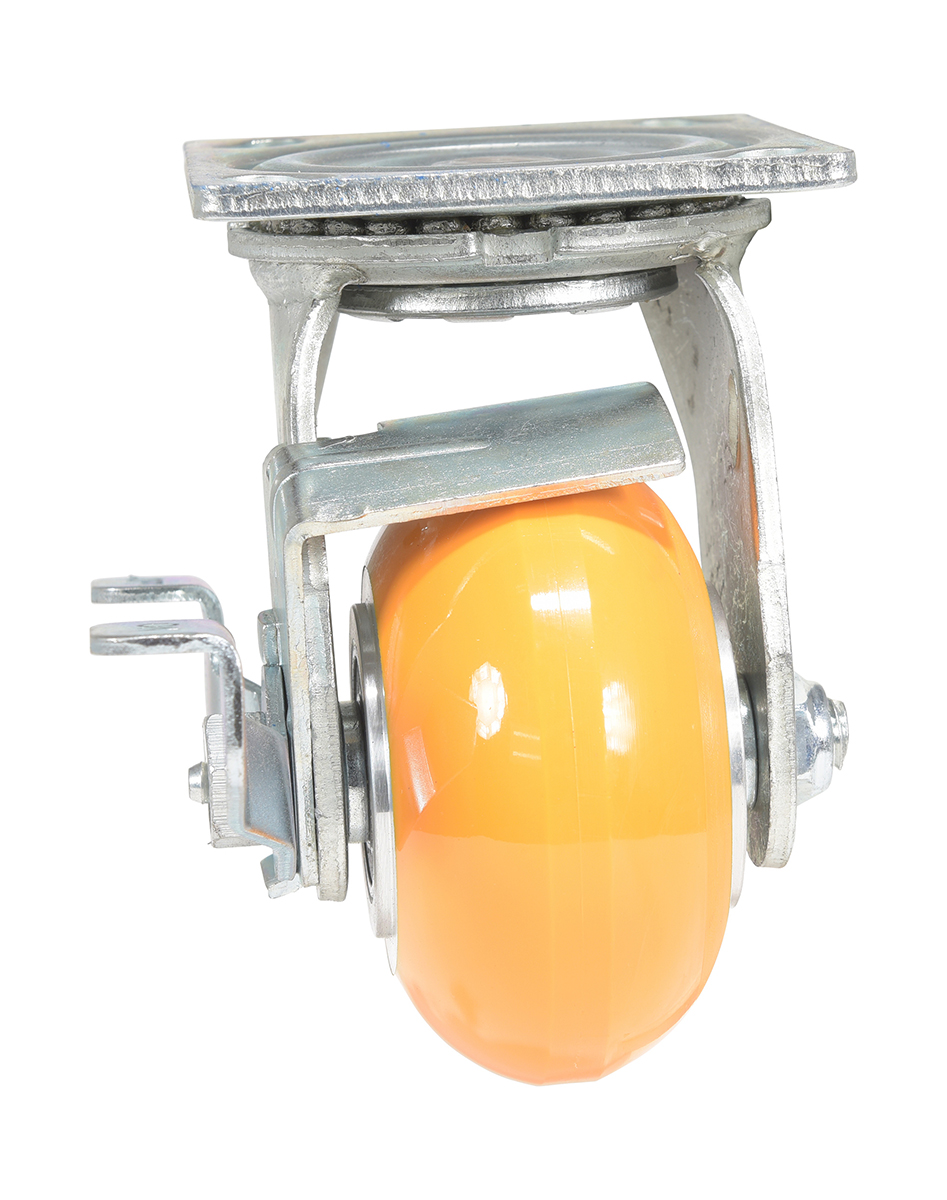

CST-F34-4X2SI-SWB CST-F34-4X2SI-SWB1 YEAR Limited Warranty4 x 2SWIVEL W/BRAKE10005-3/4 4 x 4-1/24.51
CST-F34-5X2SI-SWB CST-F34-5X2SI-SWB1 YEAR Limited Warranty5 x 2SWIVEL W/BRAKE12006-1/2 4 x 4-1/25.095

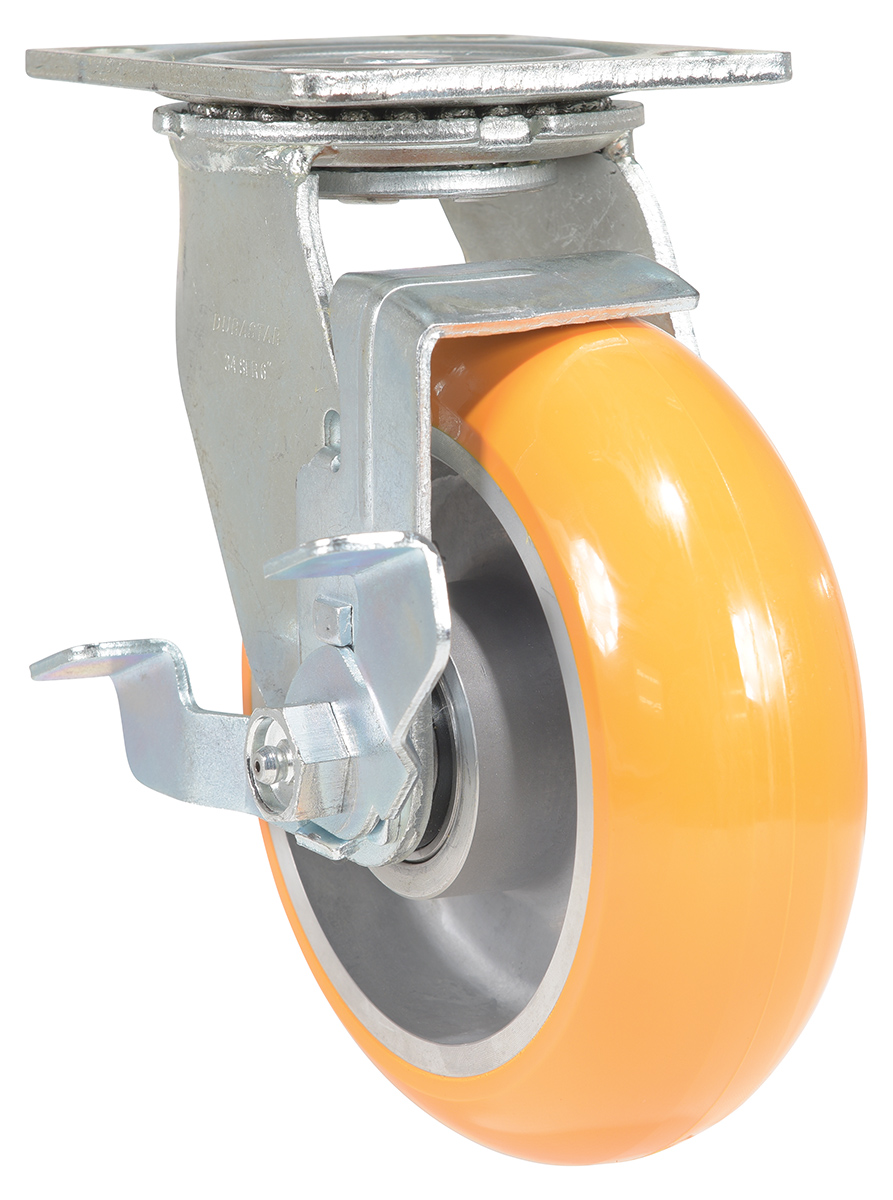

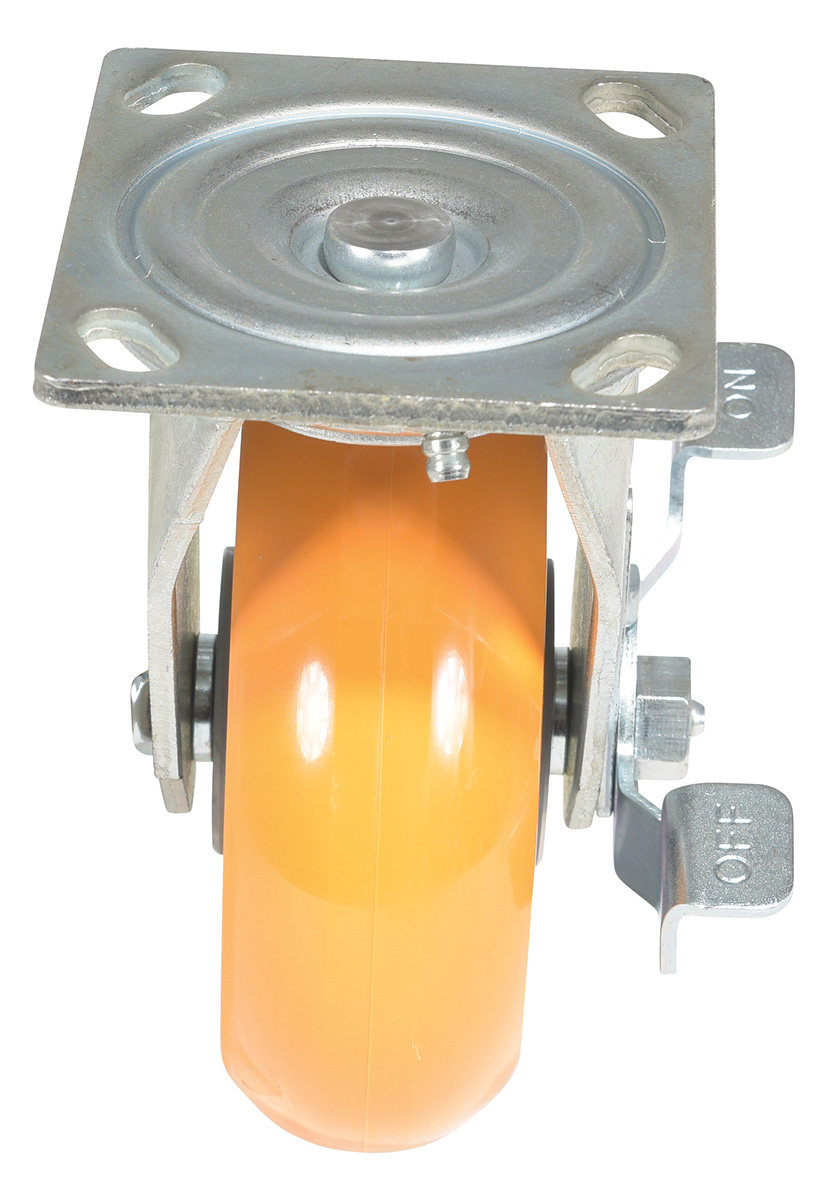

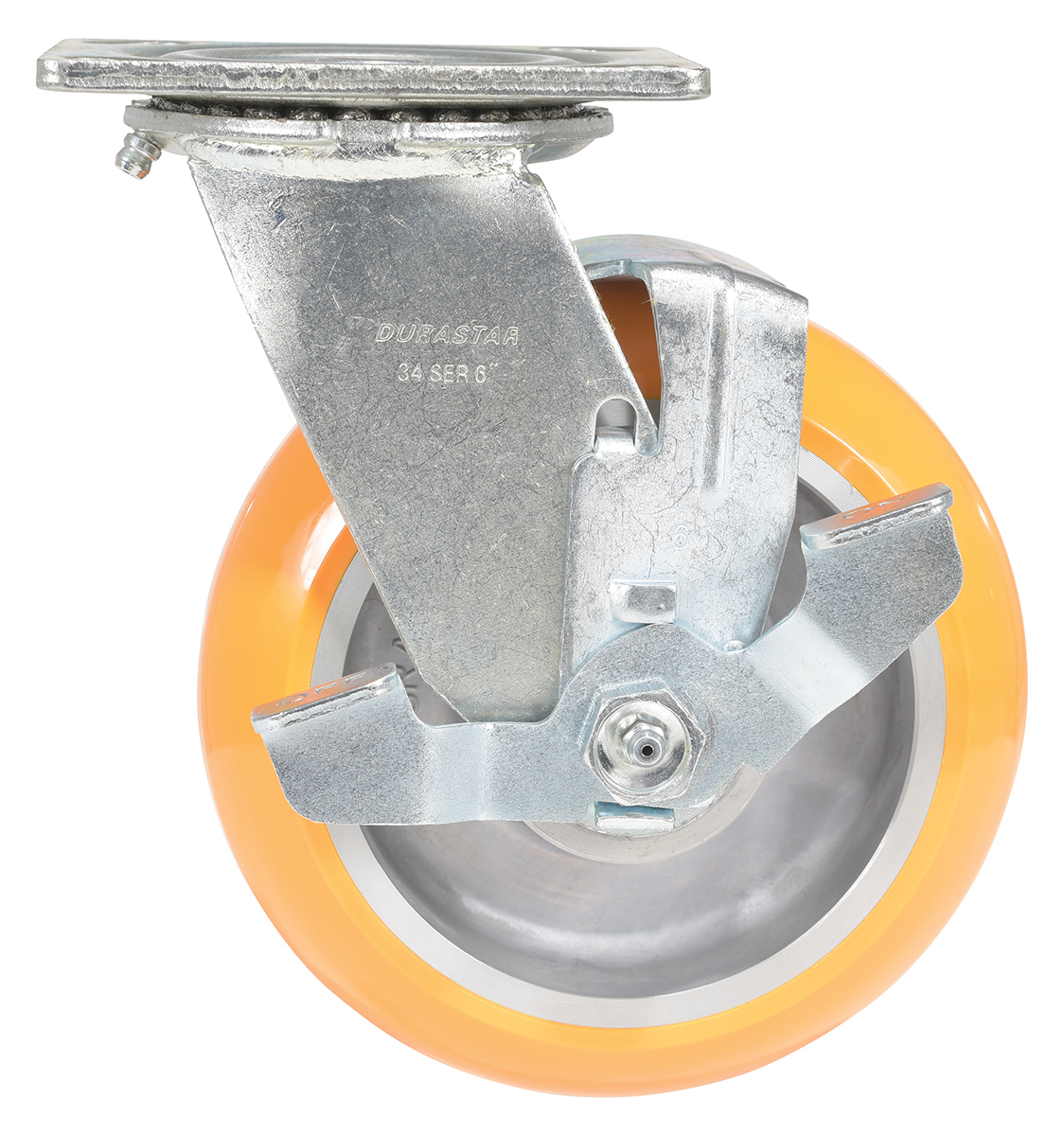

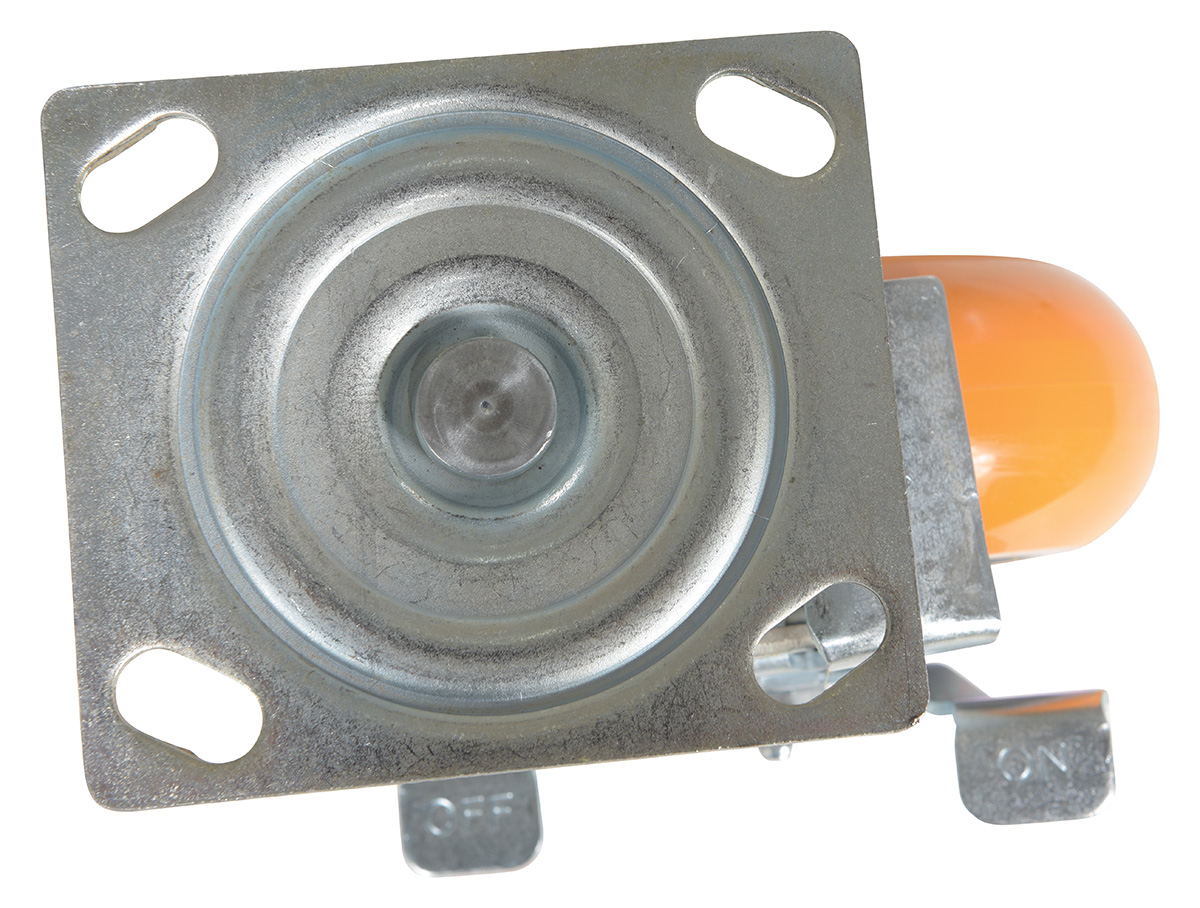

CST-F34-6X2SI-SWB CST-F34-6X2SI-SWB1 YEAR Limited Warranty6 x 2SWIVEL W/BRAKE12507-1/2 4 x 4-1/25.58

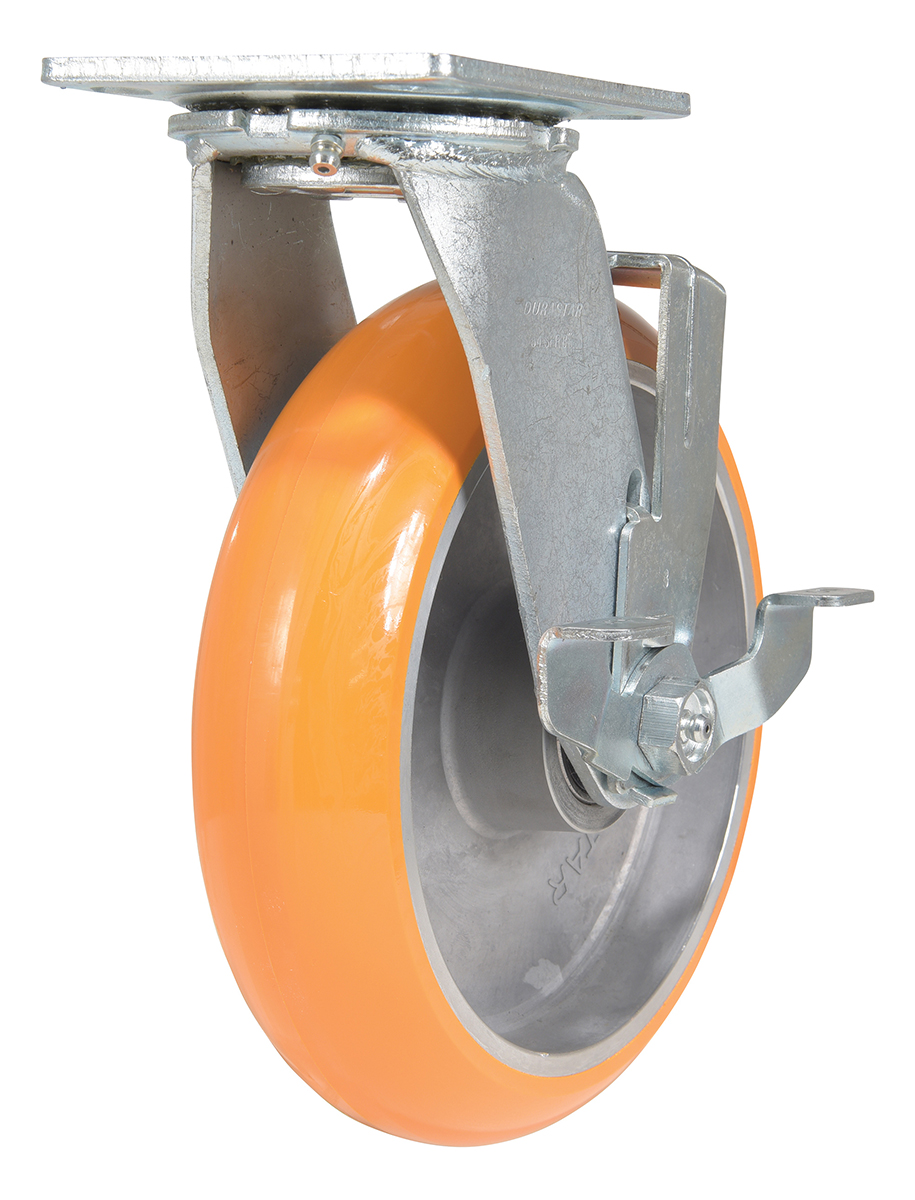

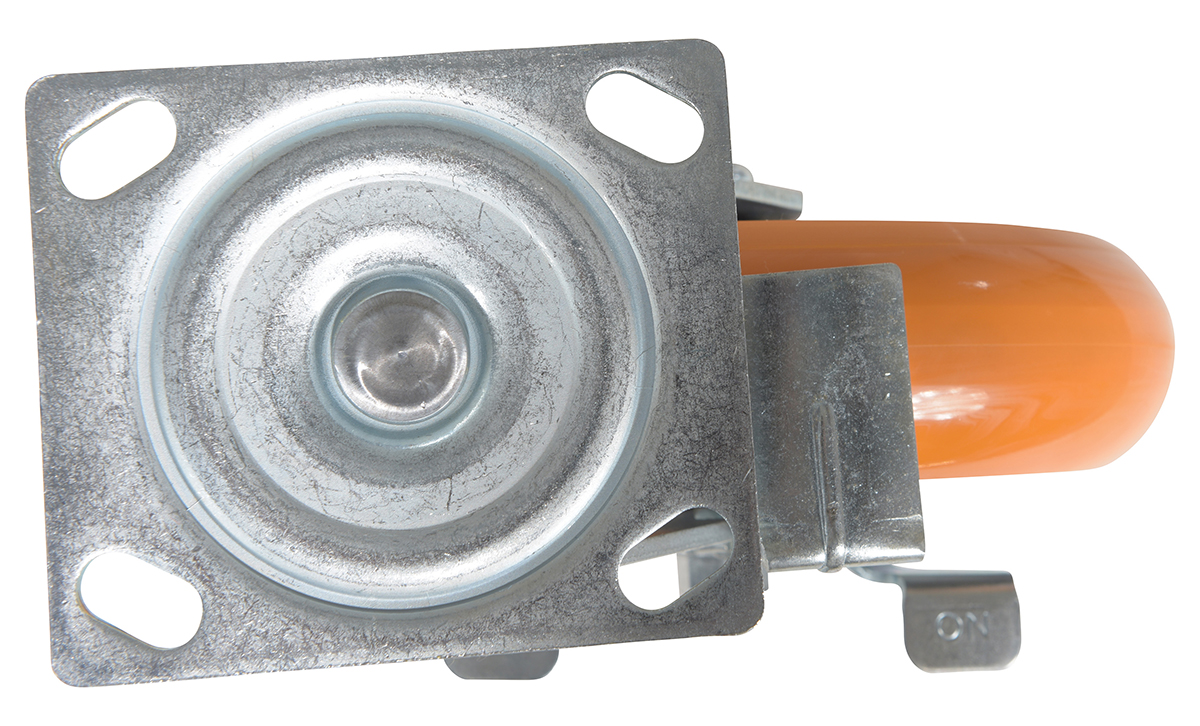

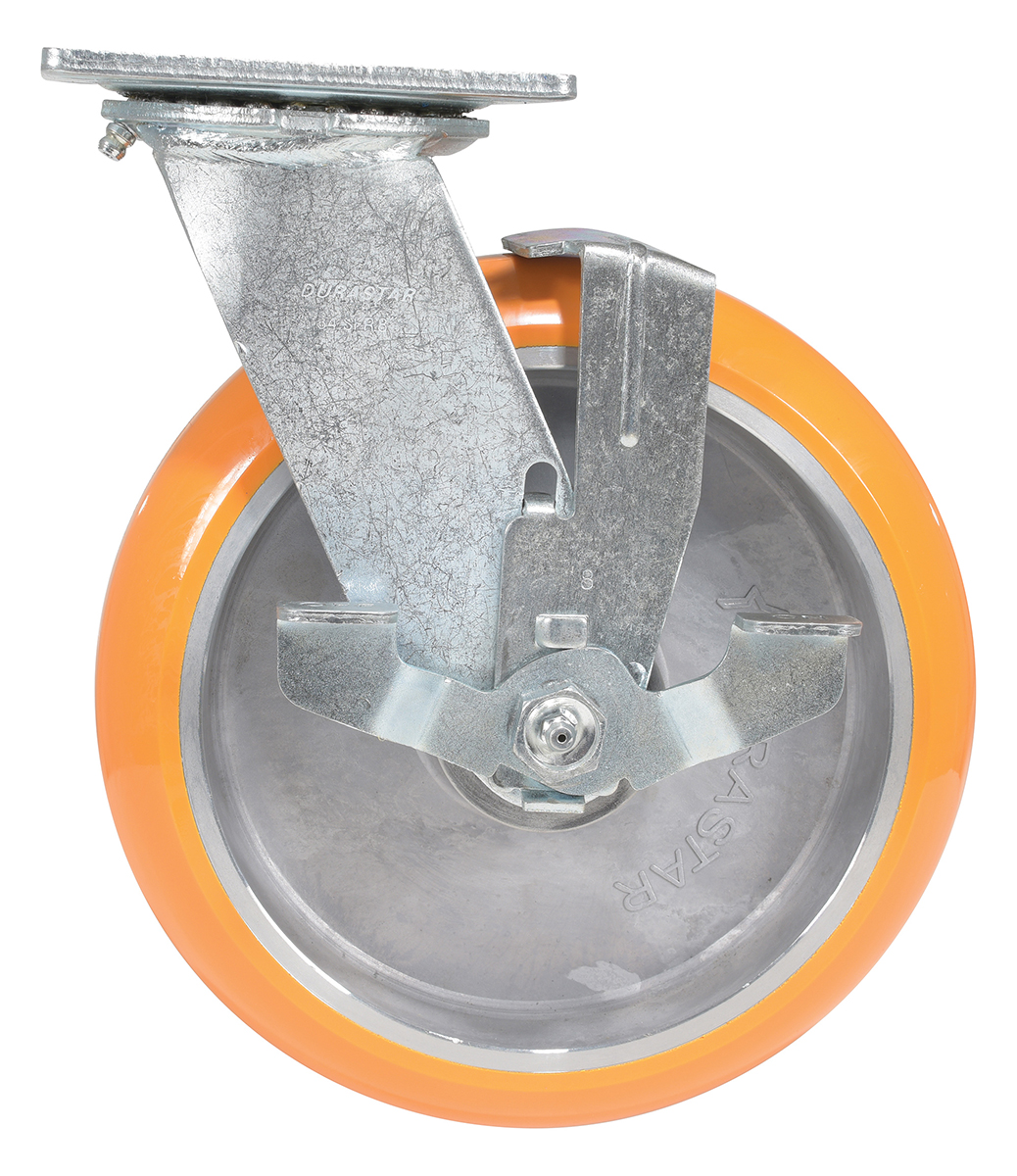

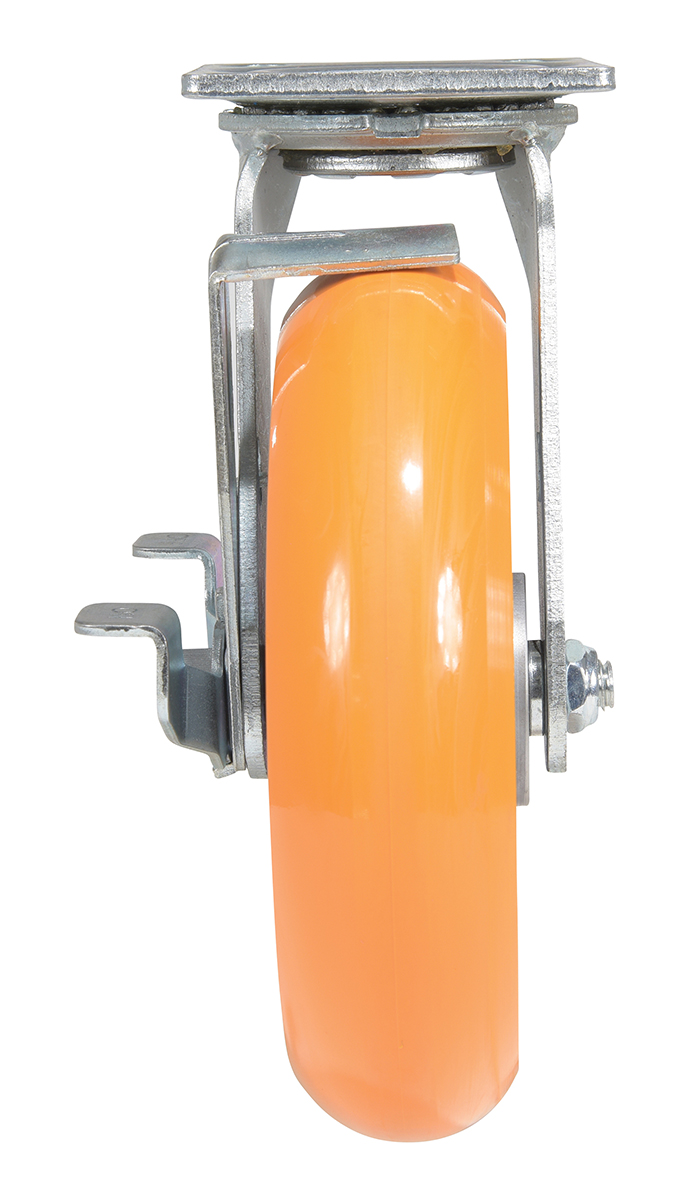

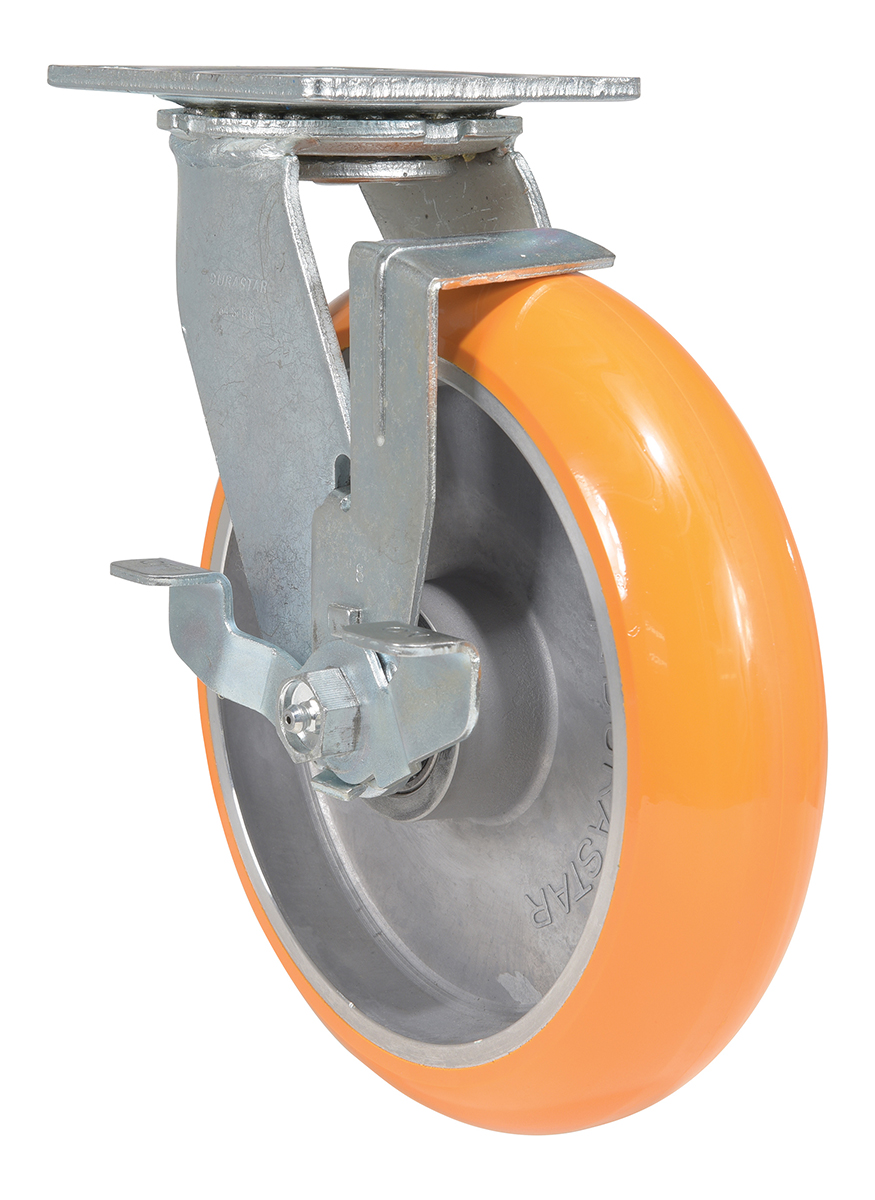

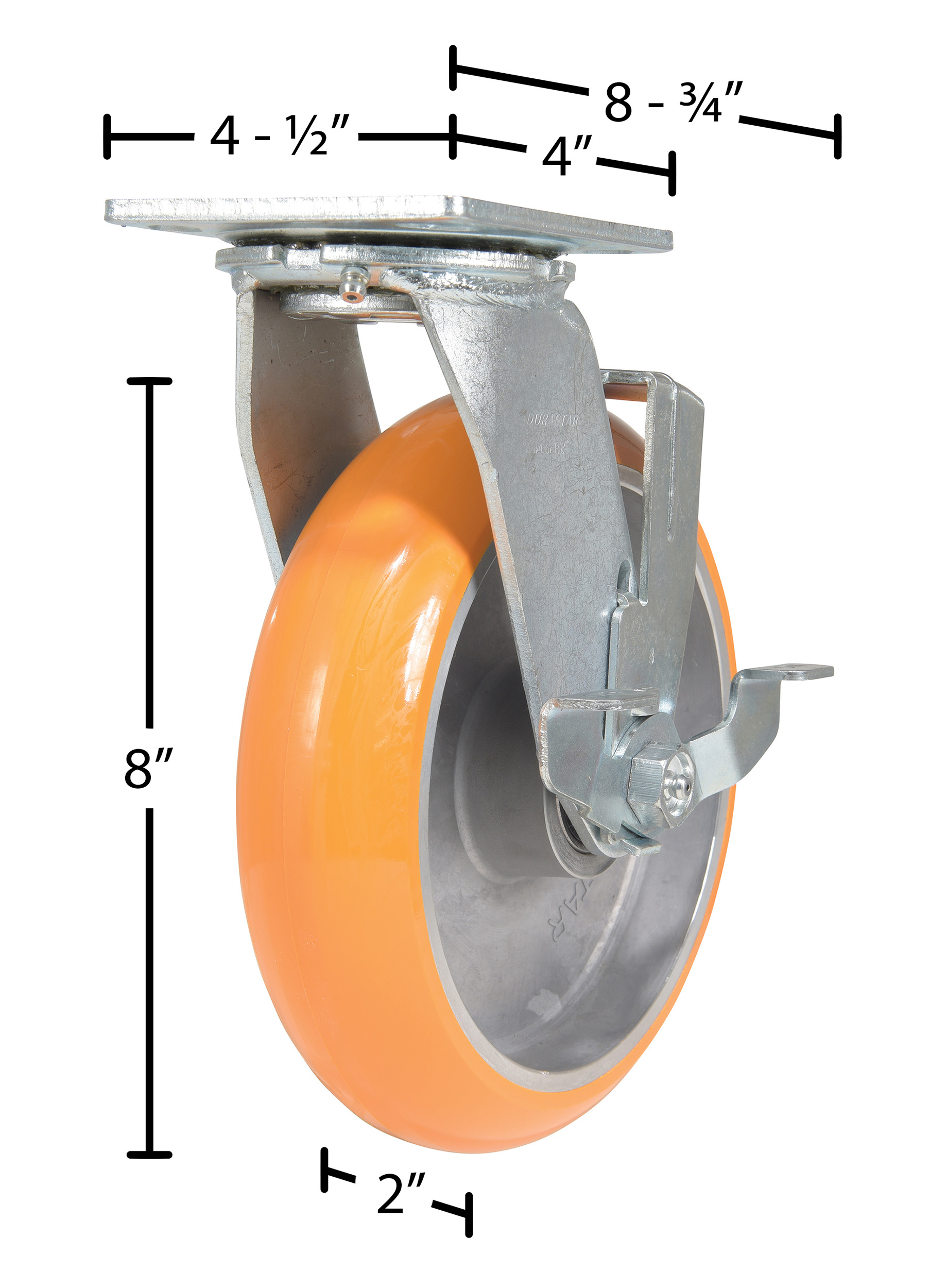

CST-F34-8X2SI-SWB CST-F34-8X2SI-SWB1 YEAR Limited Warranty8 x 2SWIVEL W/BRAKE12509-3/8 4 x 4-1/26.95

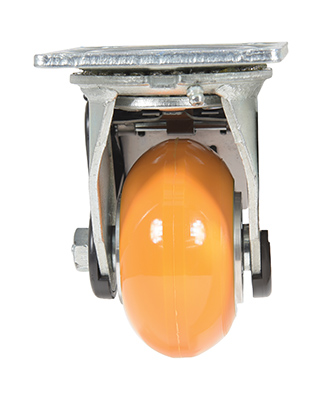

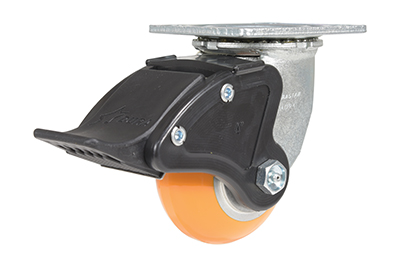

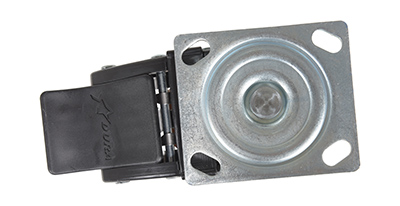

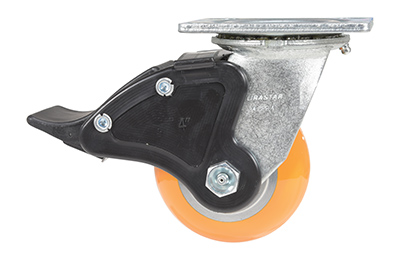

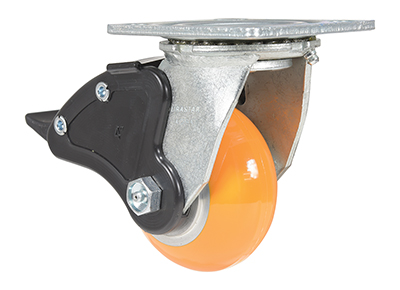

CST-F34-4X2SI-SWTB1 CST-F34-4X2SI-SWTB11 YEAR Limited Warranty4 x 2Swivel w/Total Brake10005-3/4 4 x 4-1/24.67
CST-F34-5X2SI-SWTB1 CST-F34-5X2SI-SWTB11 YEAR Limited Warranty5 x 2Swivel w/Total Brake12006-1/2 4 x 4-1/25.3

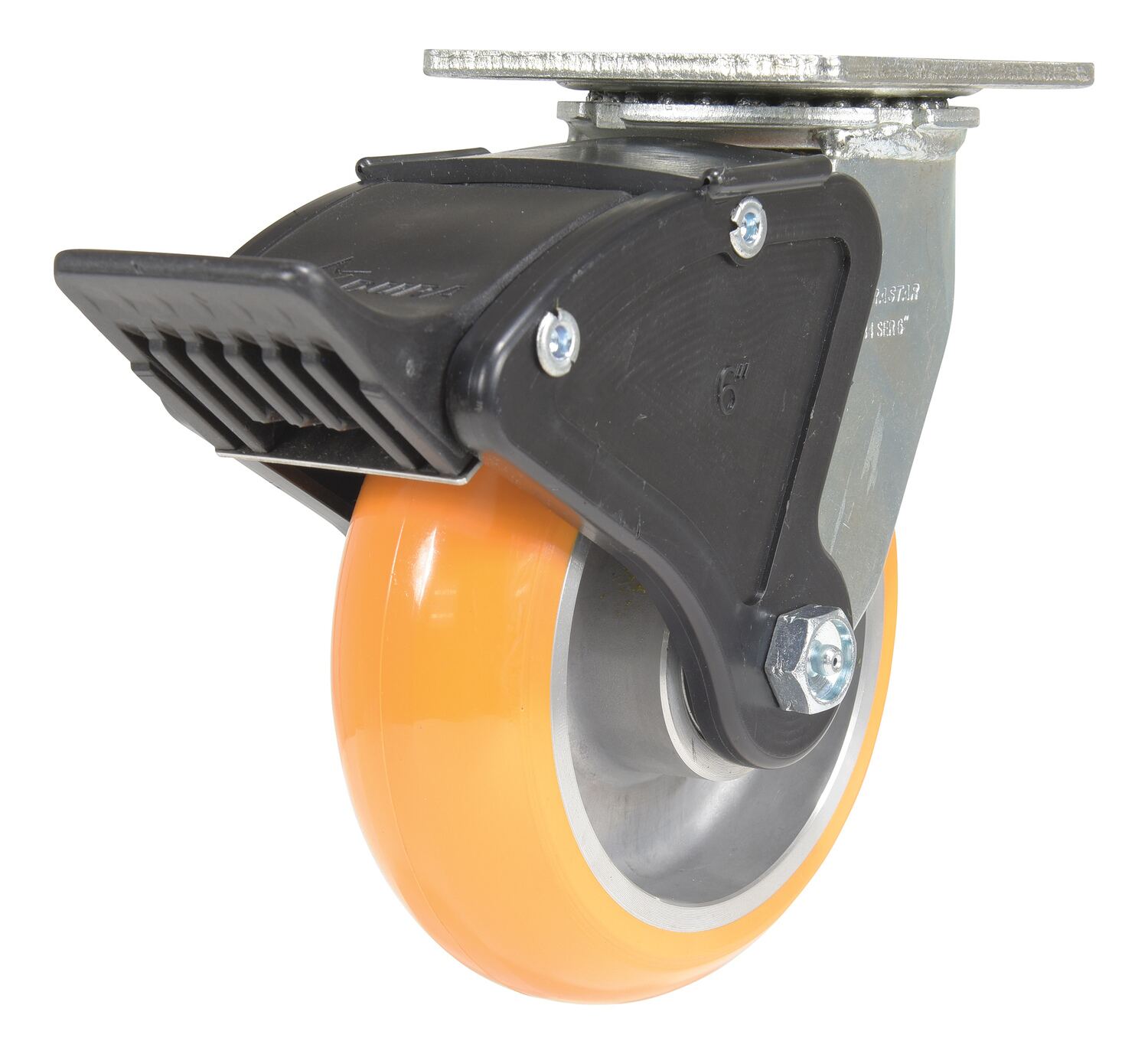

CST-F34-6X2SI-SWTB1 CST-F34-6X2SI-SWTB11 YEAR Limited Warranty6 x 2Swivel w/Total Brake12507-1/4 4 x 4-1/25.84

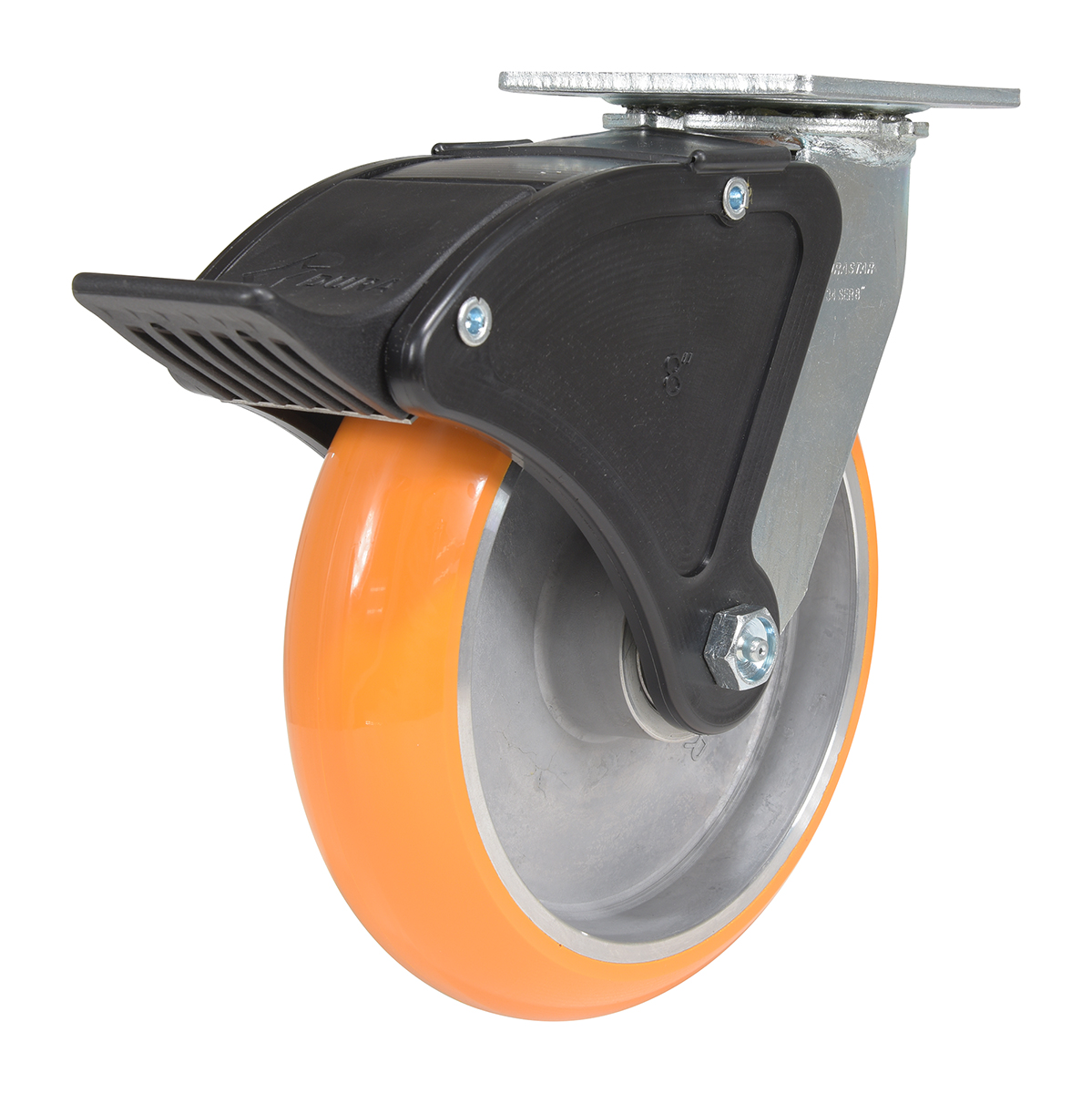

CST-F34-8X2SI-SWTB1 CST-F34-8X2SI-SWTB11 YEAR Limited Warranty8 x 2Swivel w/Total Brake12509-3/8 4 x 4-1/27.24

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty


Polyurethane (SI) Casters PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products


Q: What casters do best in environments with debris?

A: The F34 series with SI tread, the F40 series, the FC47 series or the JKING series do well in environments with debris.
