TPR (Thermoplastic Rubber) Casters
| Model | Image | PDFs | Caster Size |
Type | Capacity (lbs.) |
Overall Height |
Top Plate Size |
Net Wt. (lbs) |
|---|---|---|---|---|---|---|---|---|

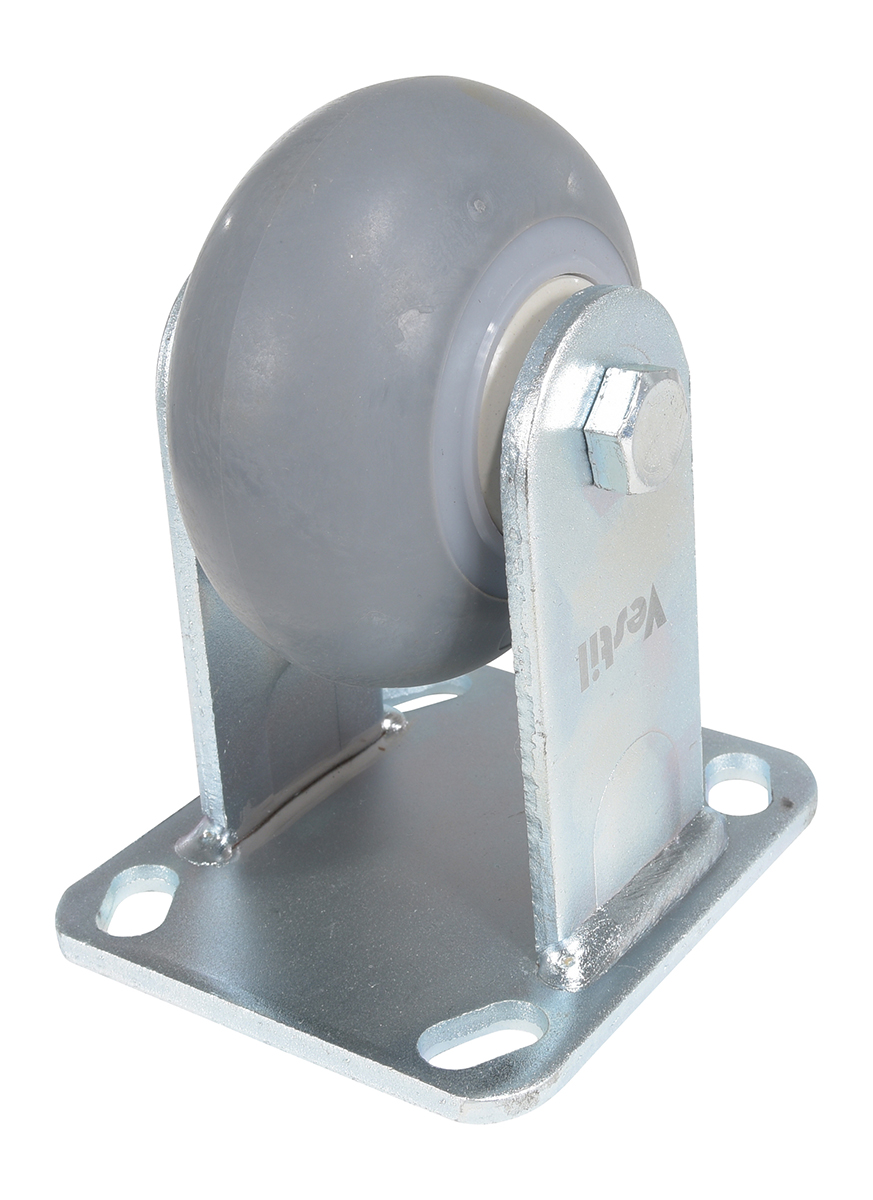

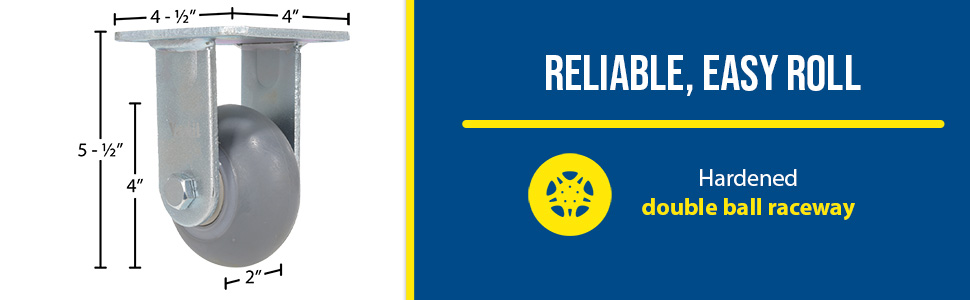

| CST-VE-4X2TPR-R |  | 1 YEAR Limited Warranty | 4 x 2 | RIGID | 485 | 5-1/2 | 4 x 4-1/2 | 4 |

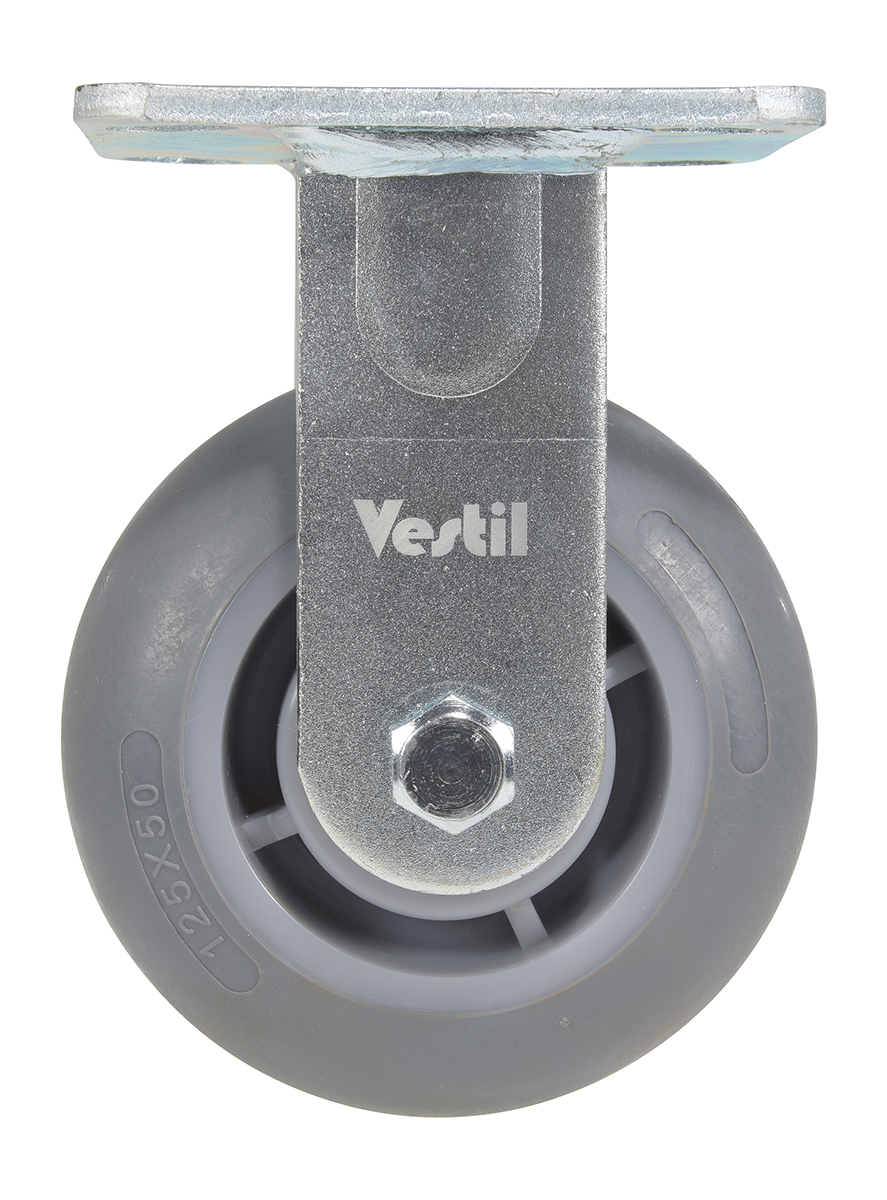

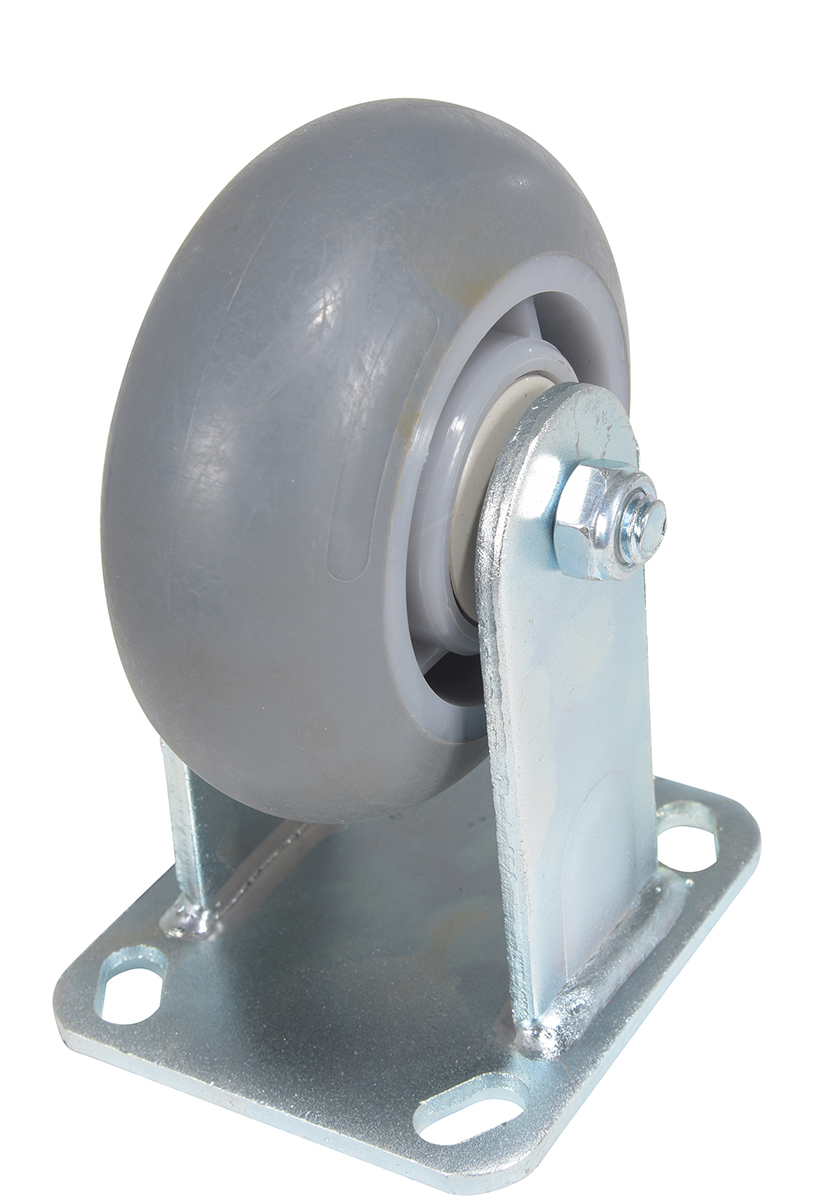

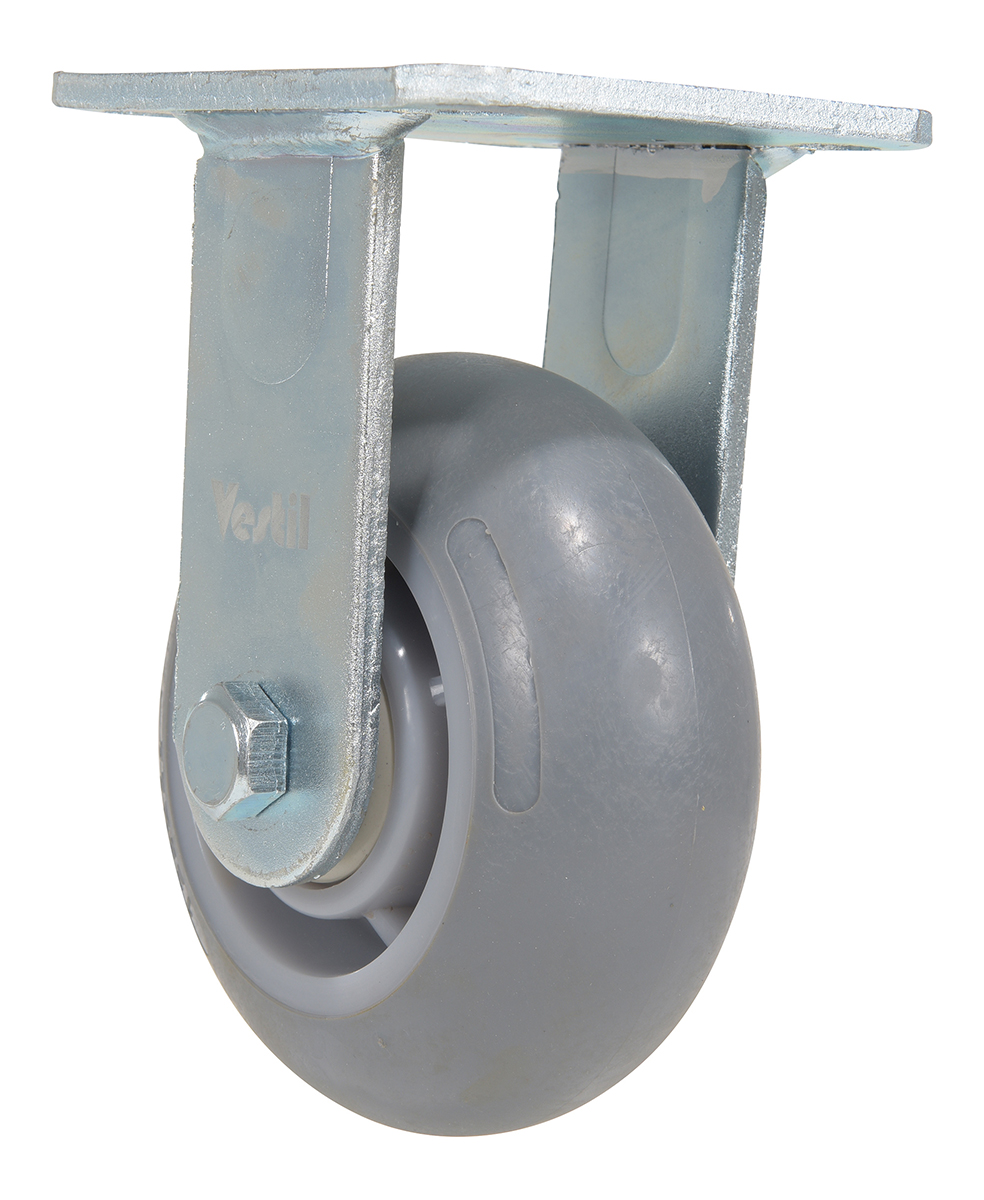

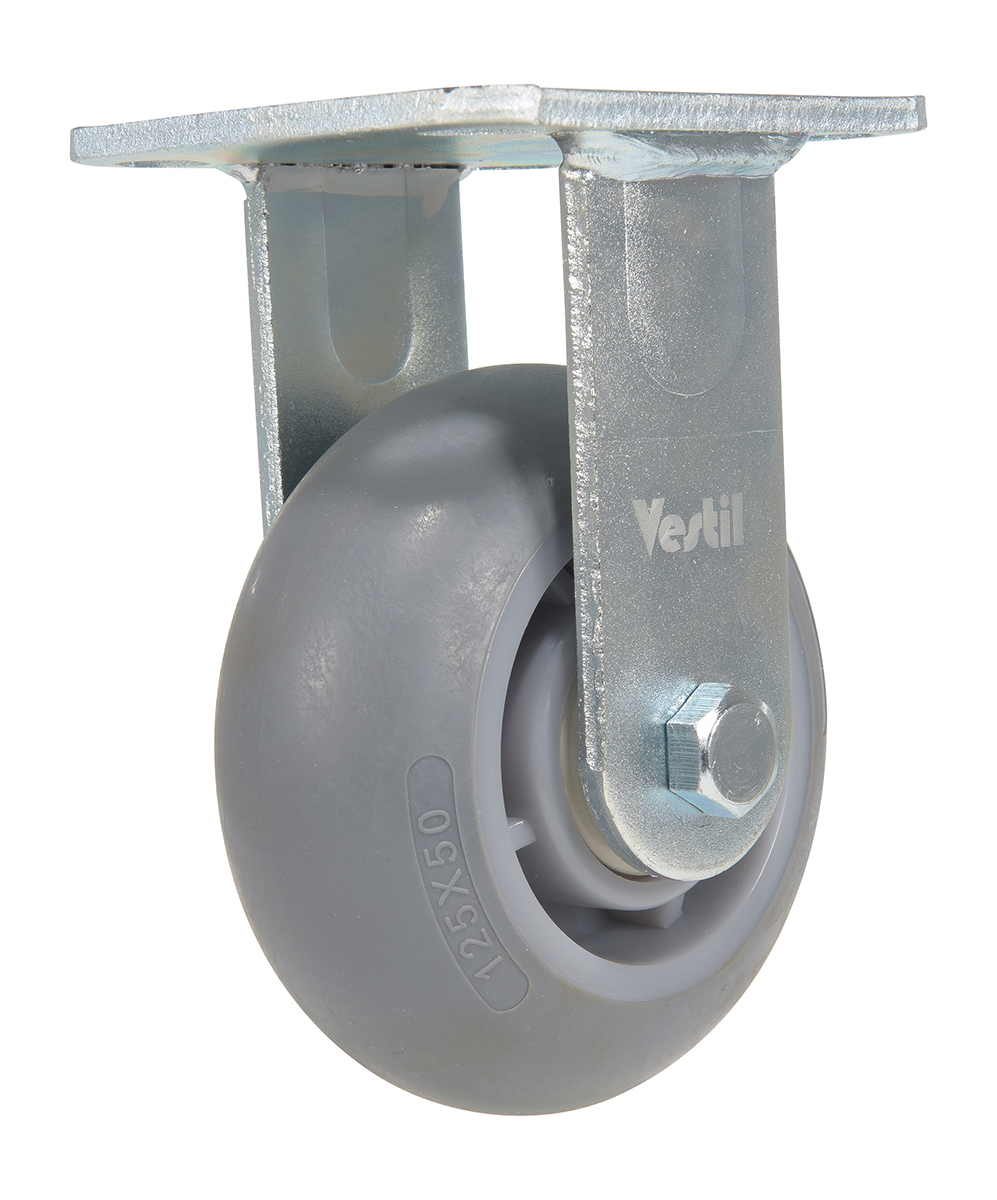

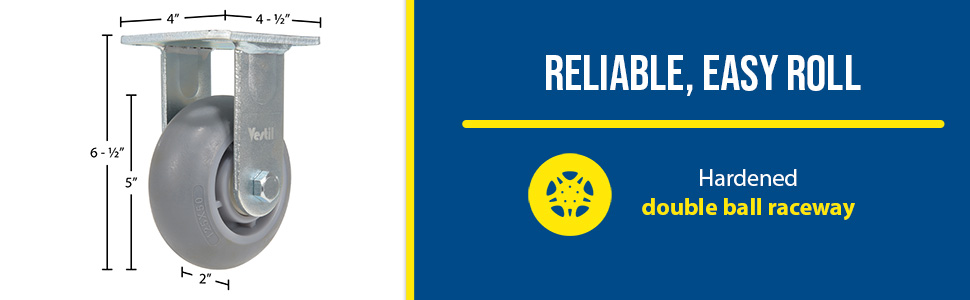

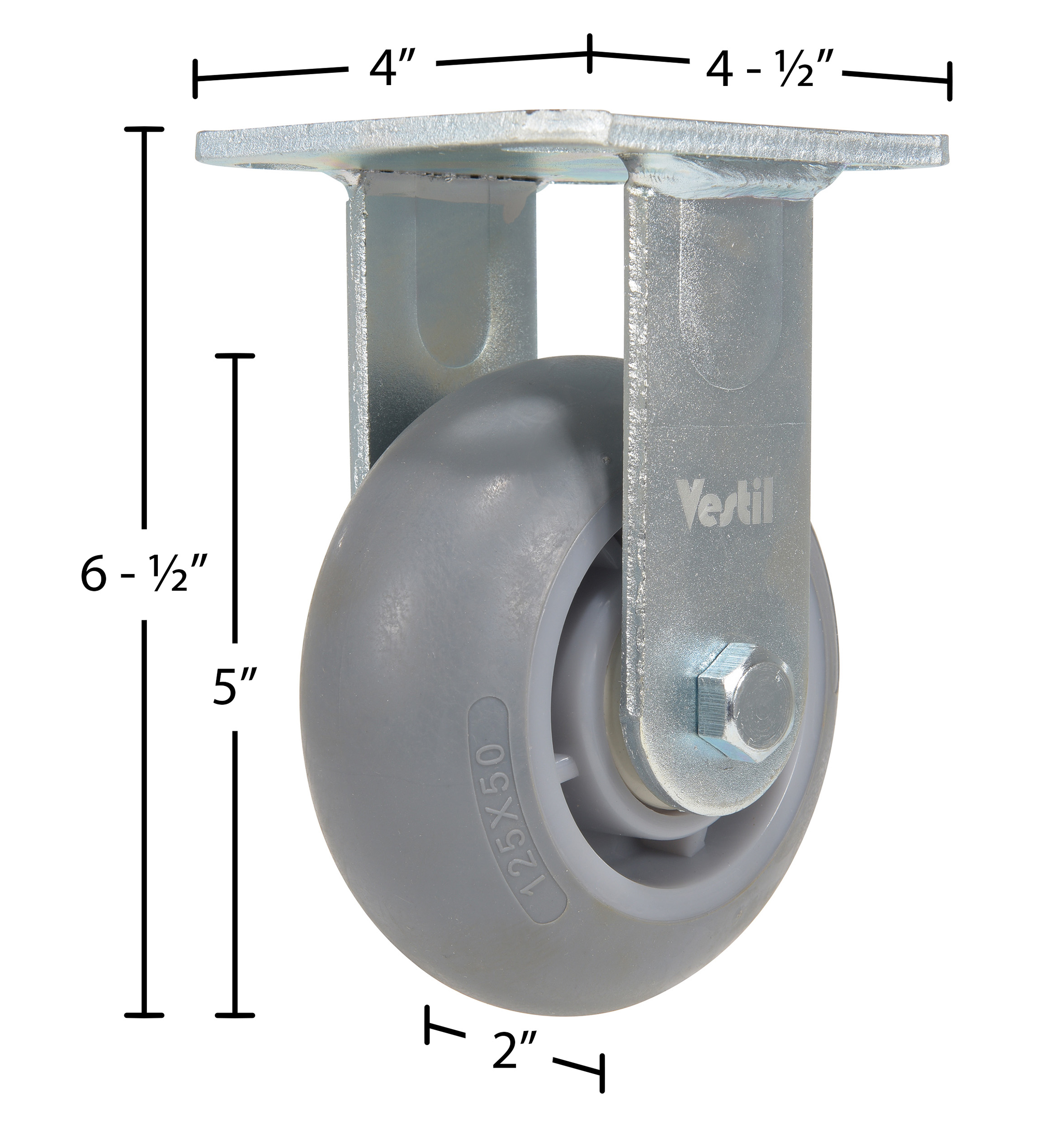

| CST-VE-5X2TPR-R |  | 1 YEAR Limited Warranty | 5 x 2 | RIGID | 551 | 6-1/2 | 4 x 4-1/2 | 5 |

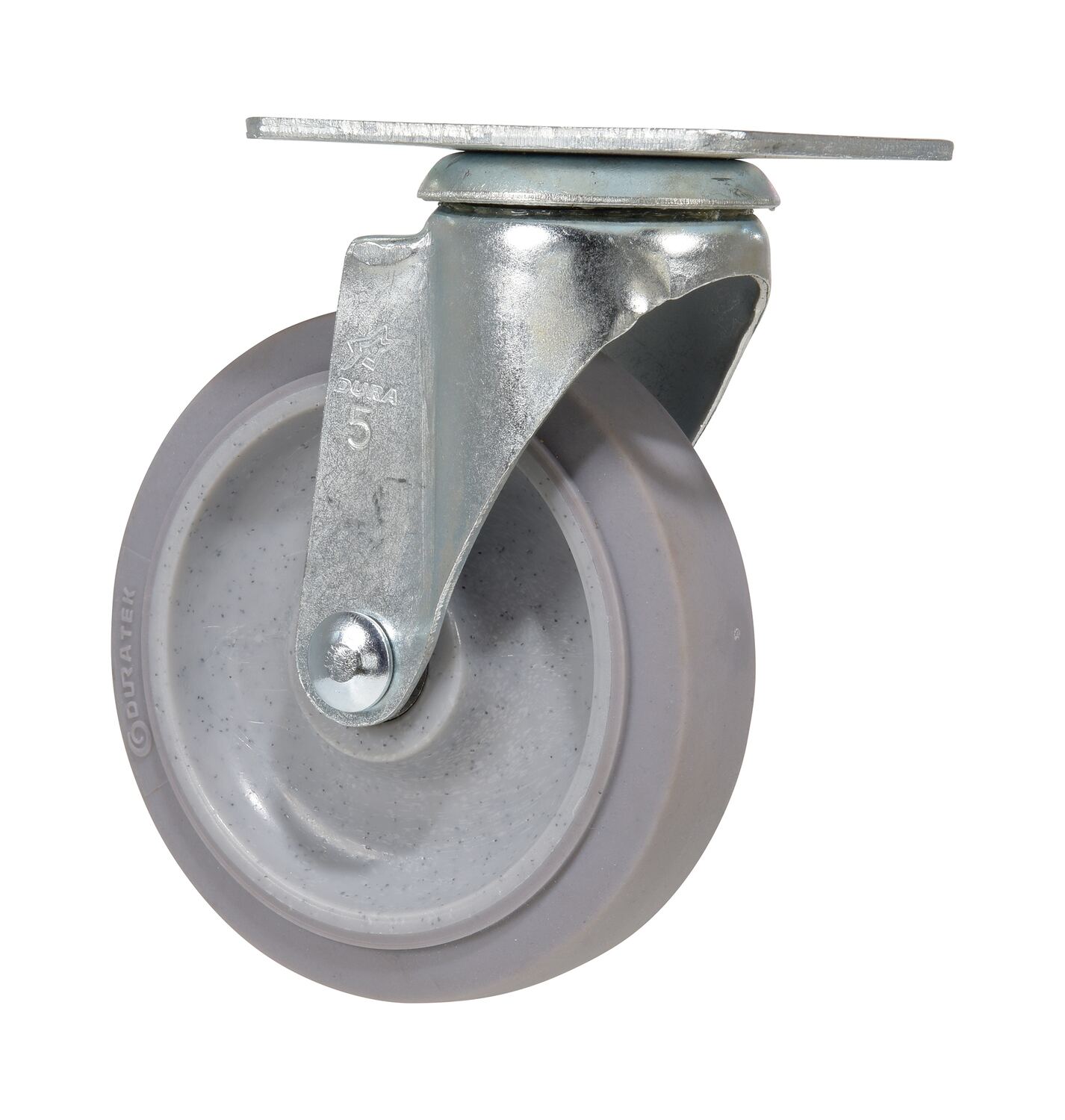

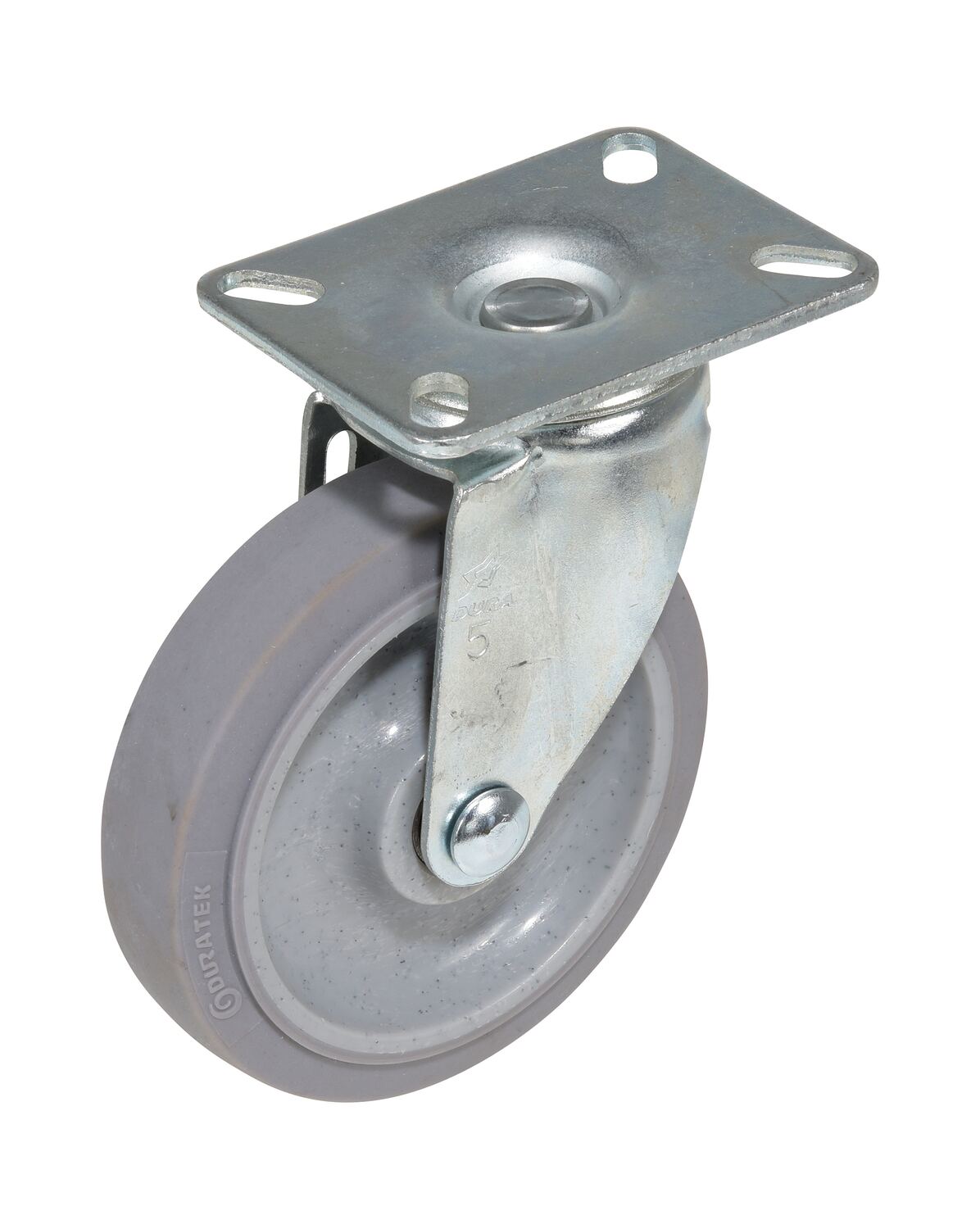

| CST-F-5X1TPR-S |  | 1 Year Limited Warranty | 5" x 1-1/4" | Swivel | 325 | 6.125 | 4-1/8" x 3-1/8" | 4 |

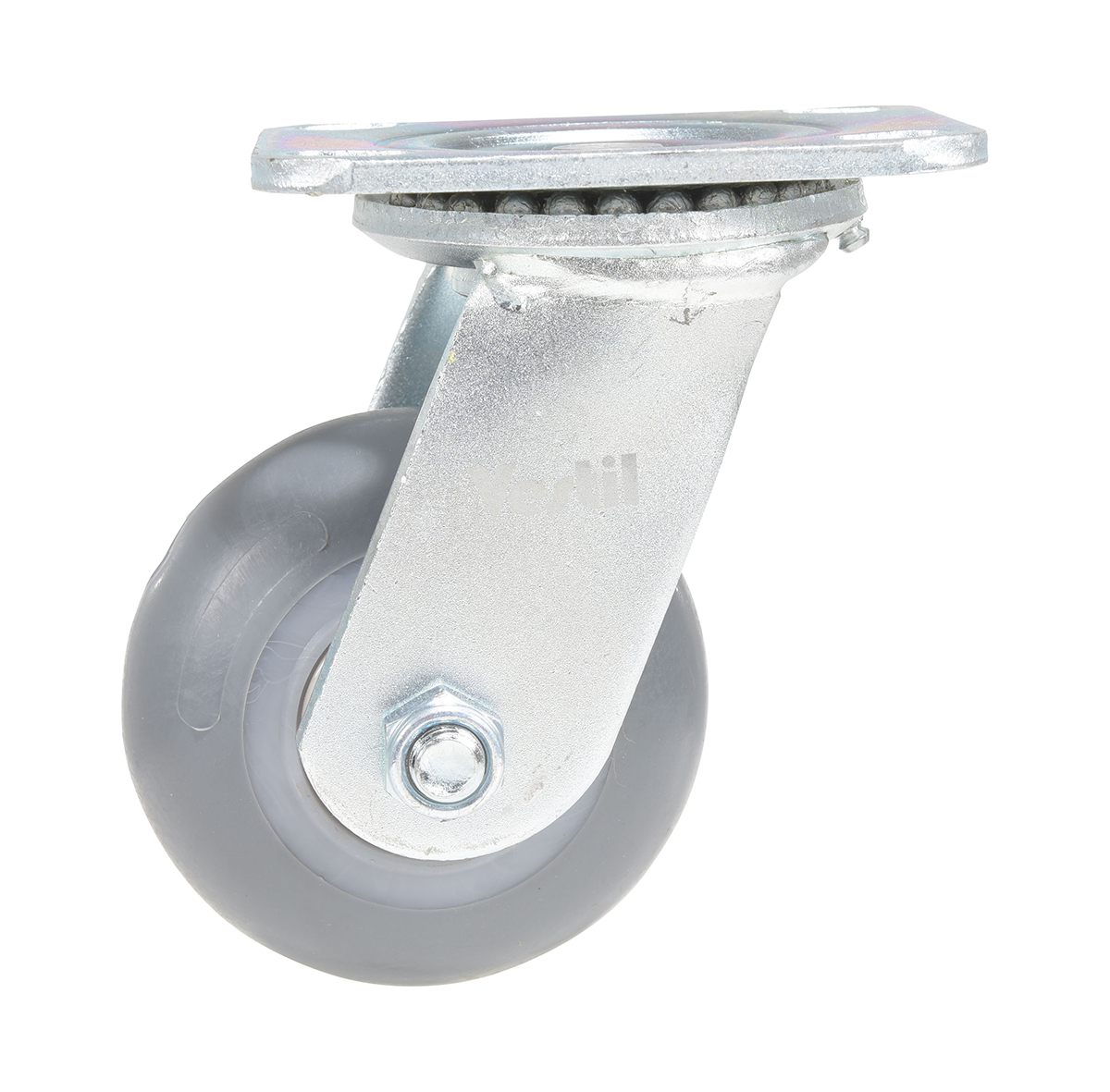

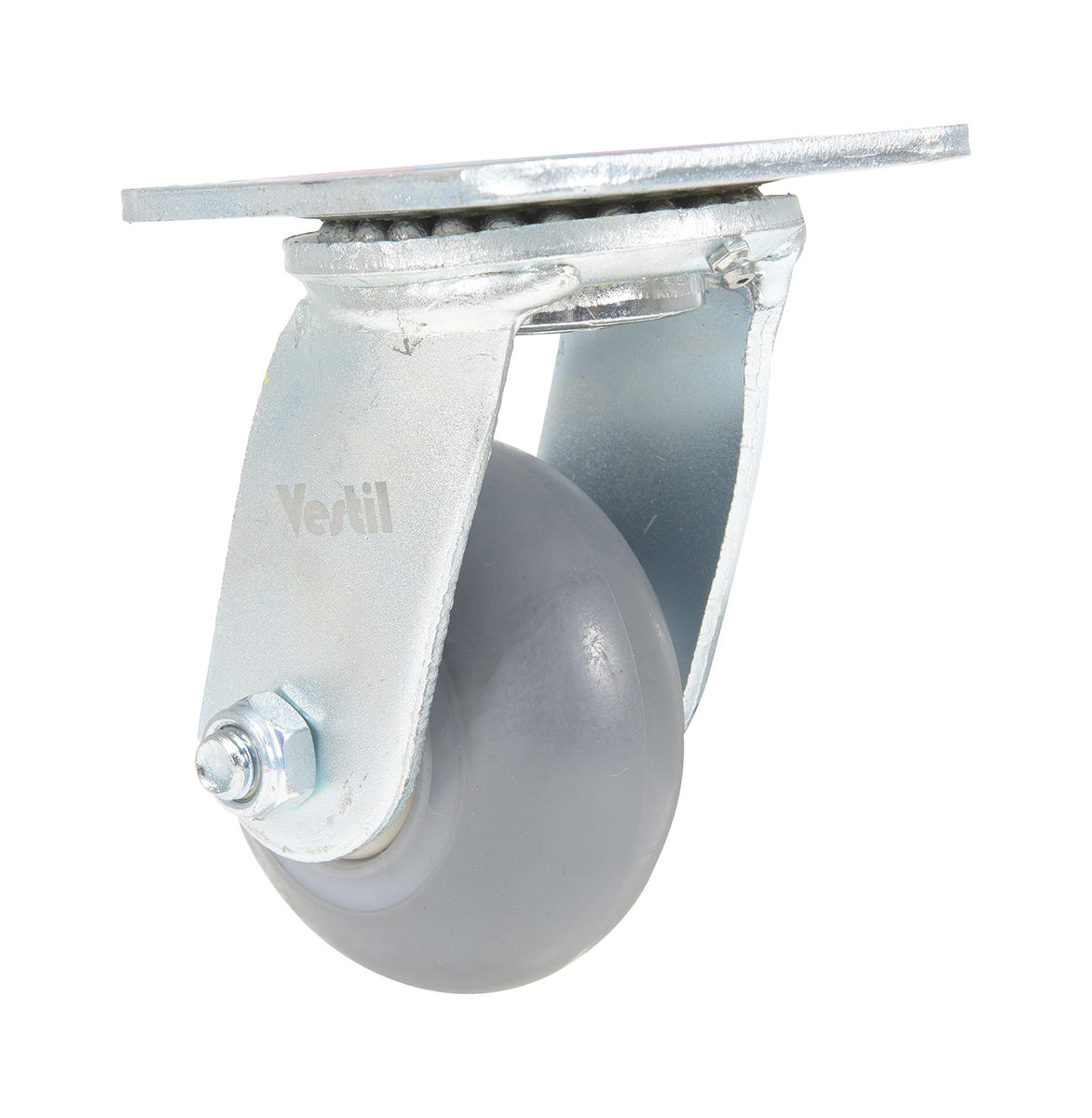

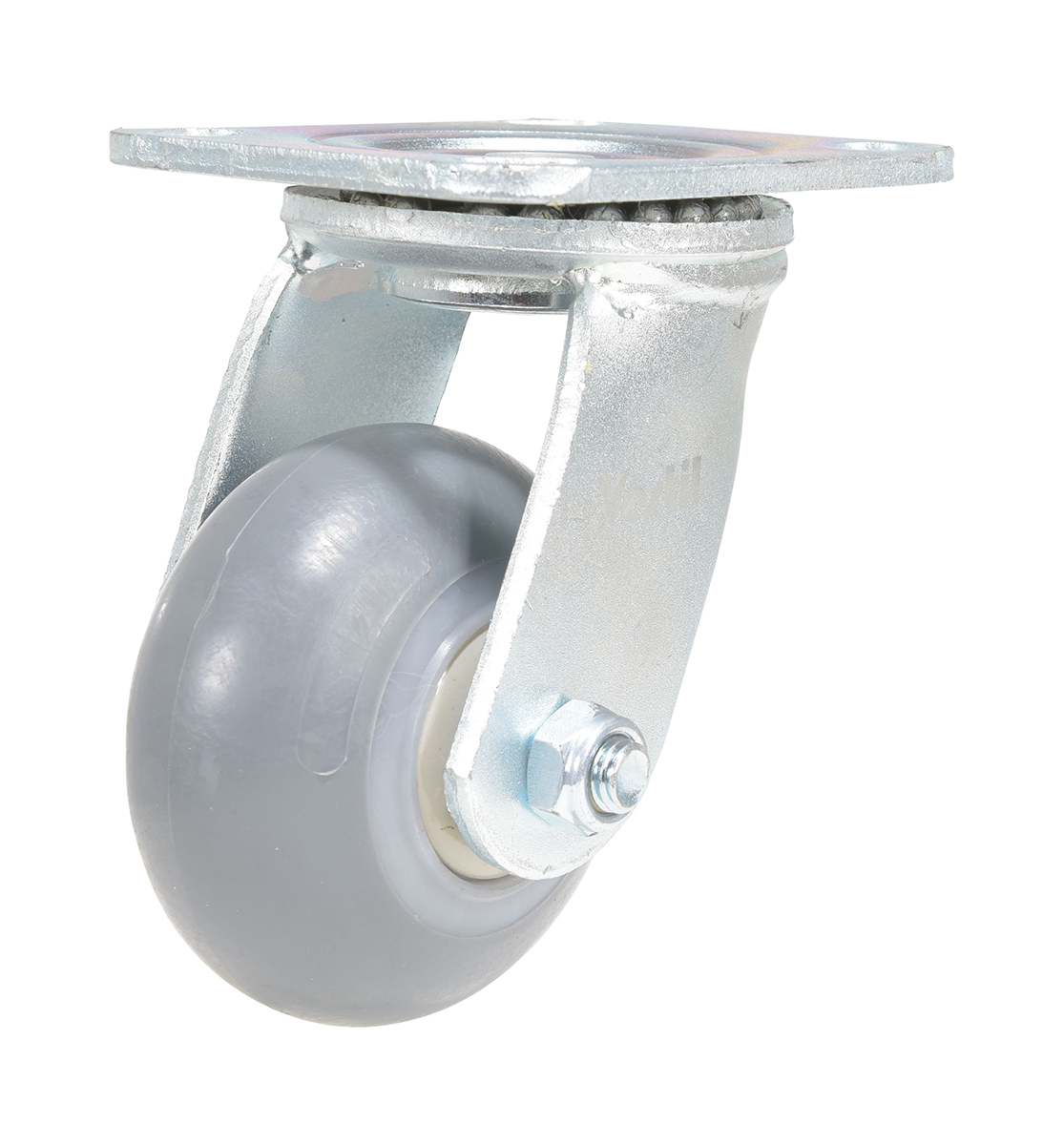

| CST-VE-4X2TPR-S |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL | 485 | 5-1/2 | 4 x 4-1/2 | 5 |

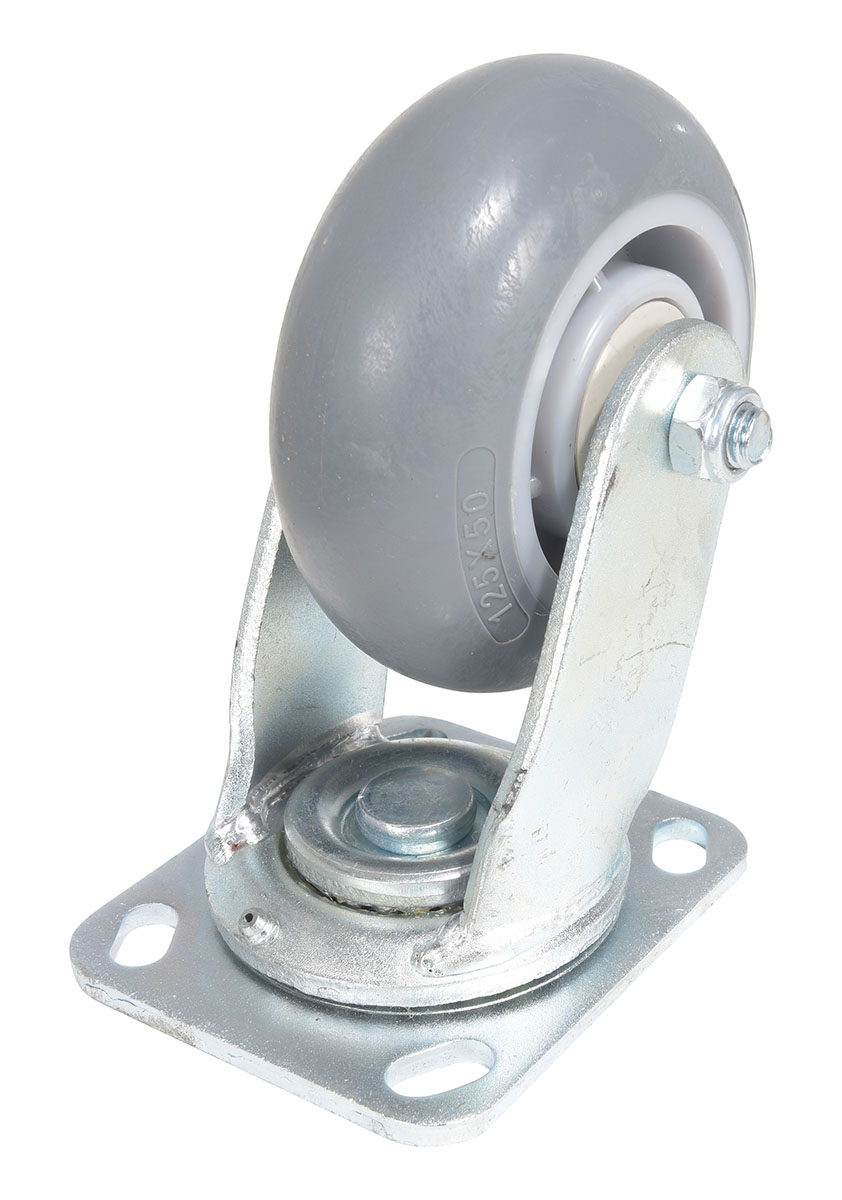

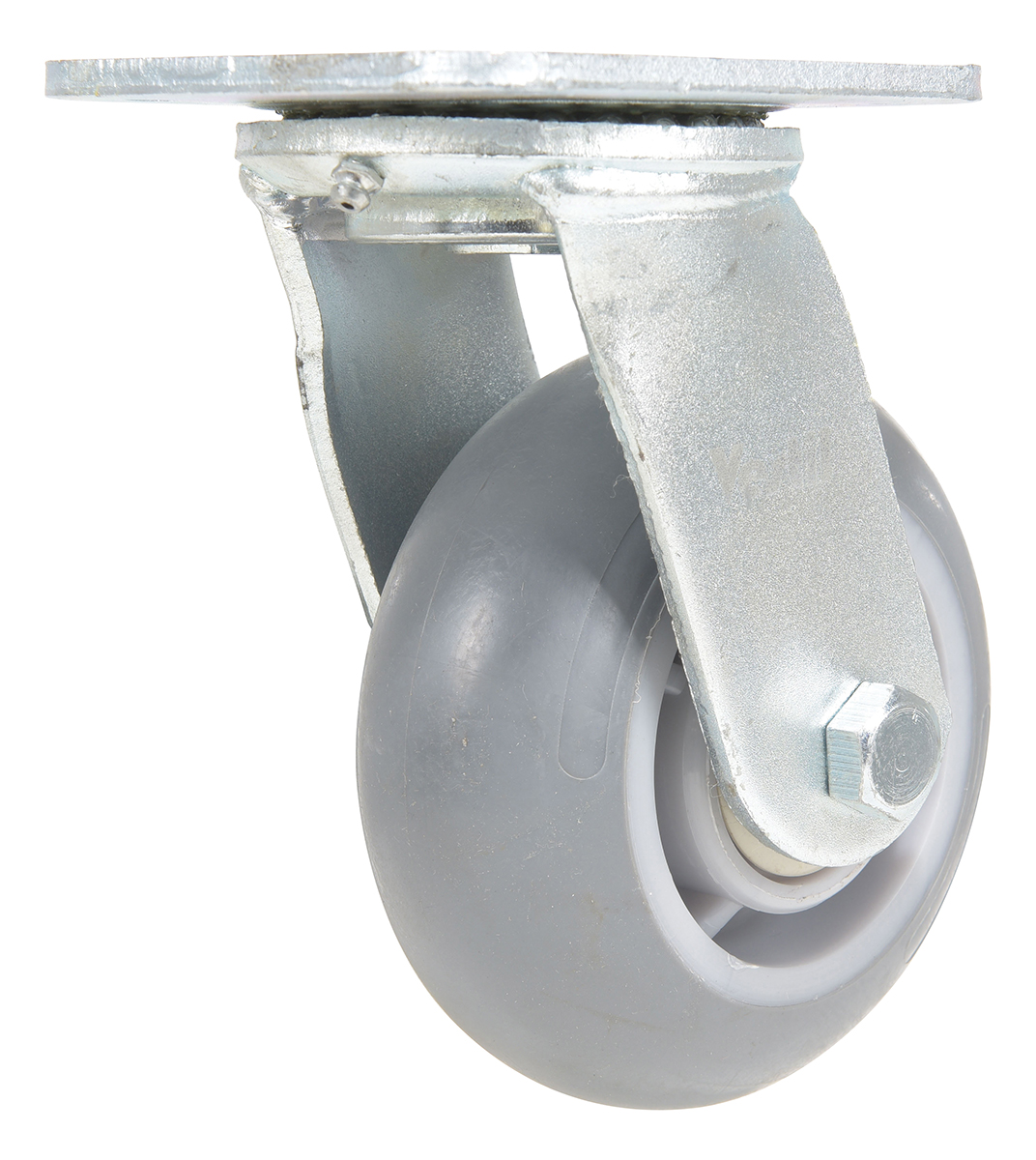

| CST-VE-5X2TPR-S |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL | 551 | 6-1/2 | 4 x 4-1/2 | 5 |

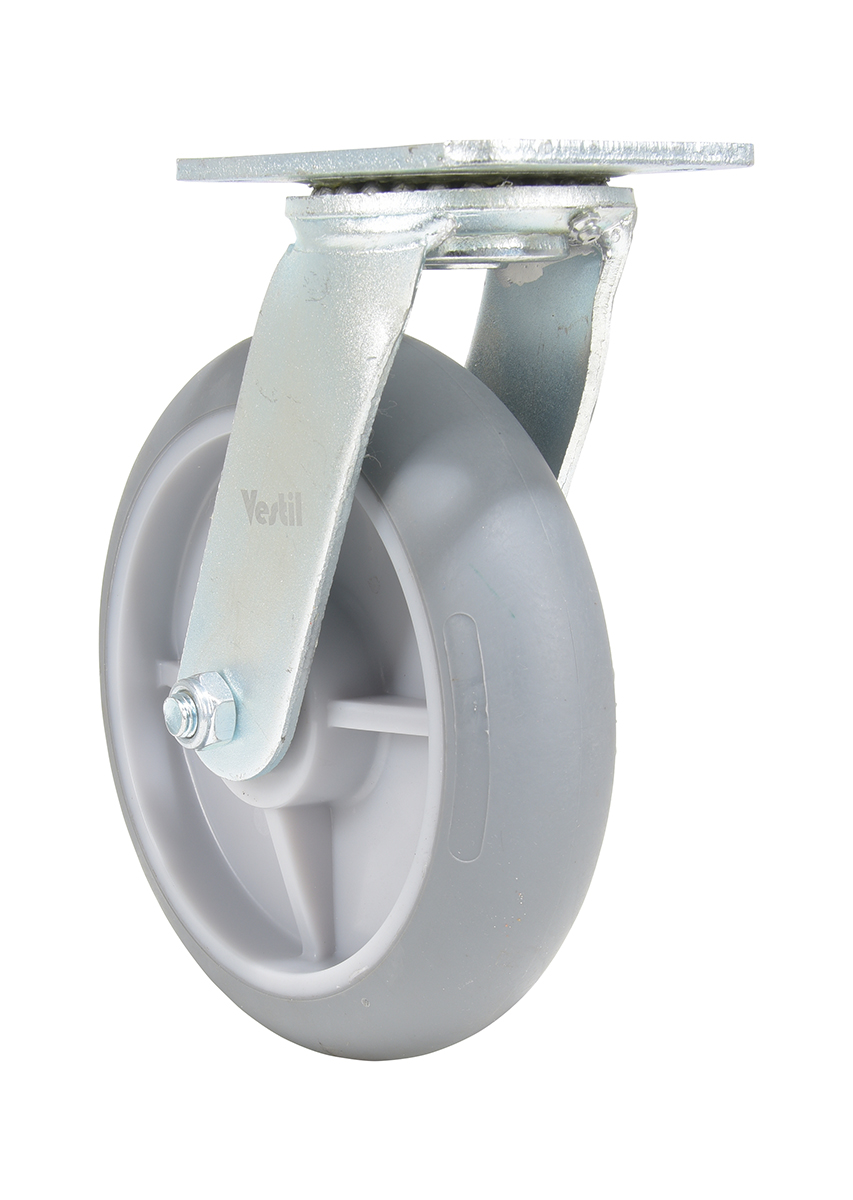

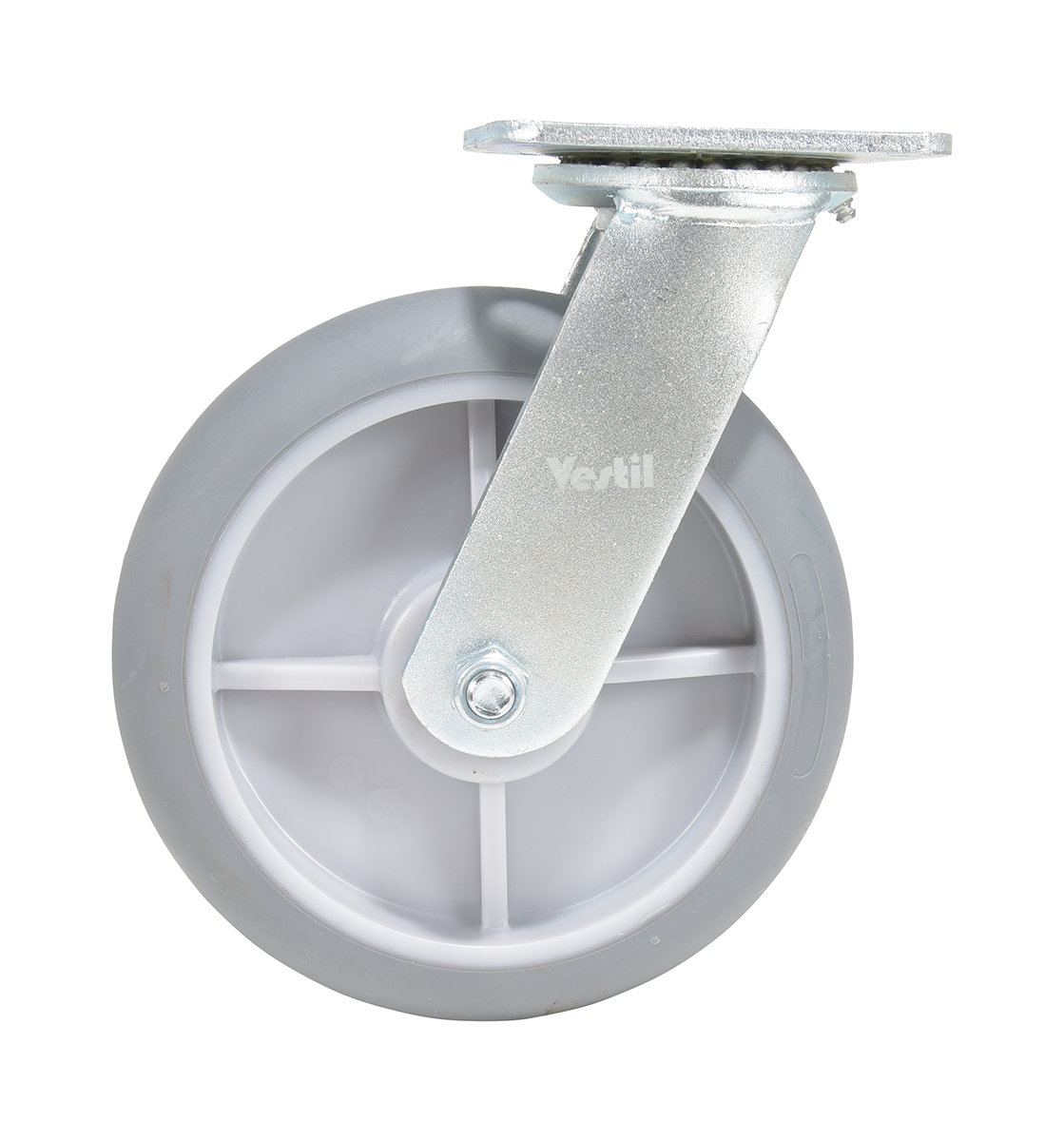

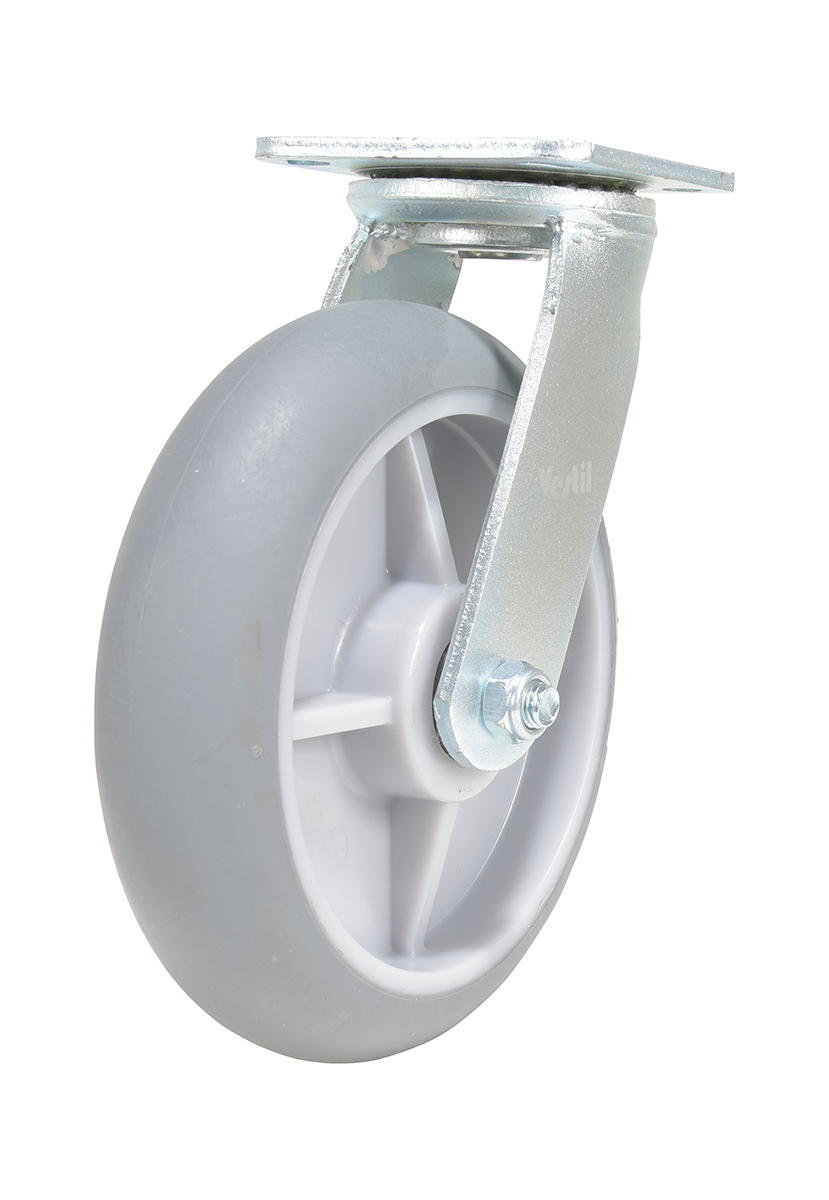

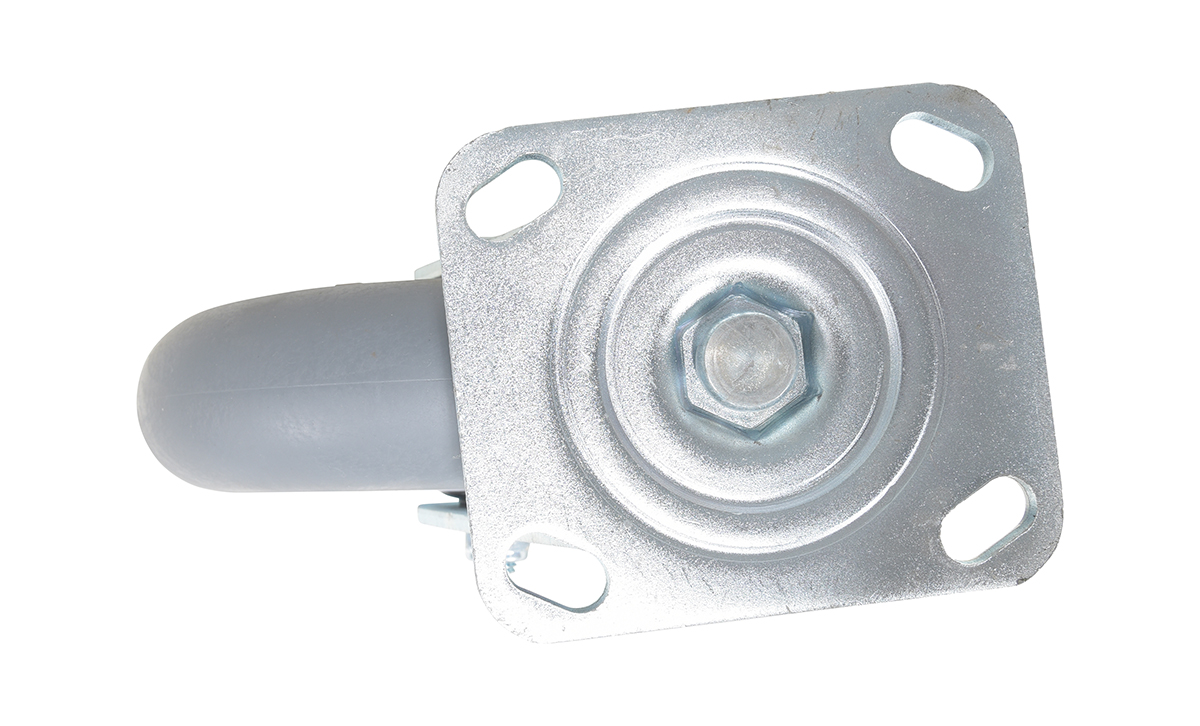

| CST-VE-8X2TPR-S |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL | 705 | 9-1/2 | 4 x 4-1/2 | 7 |

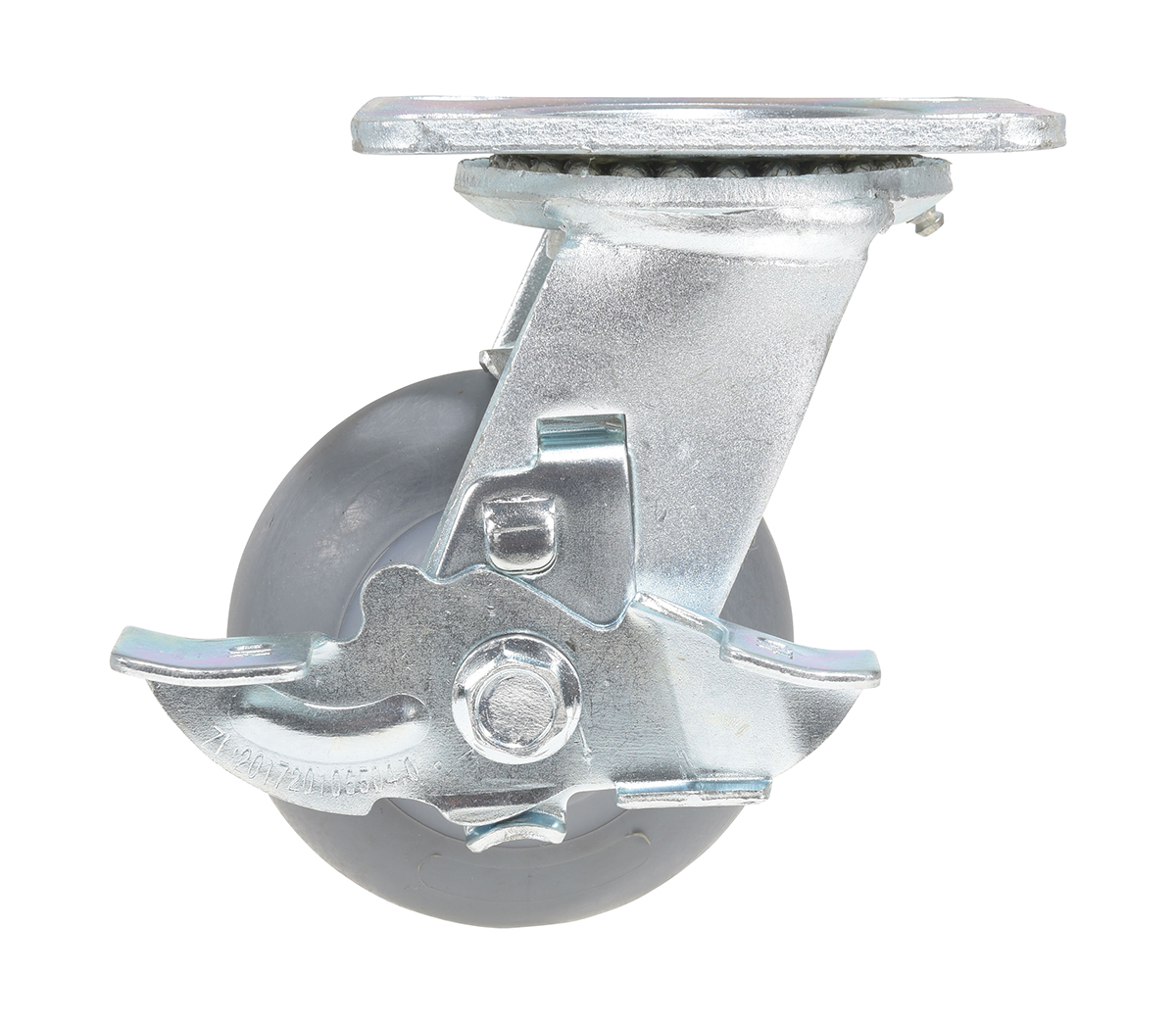

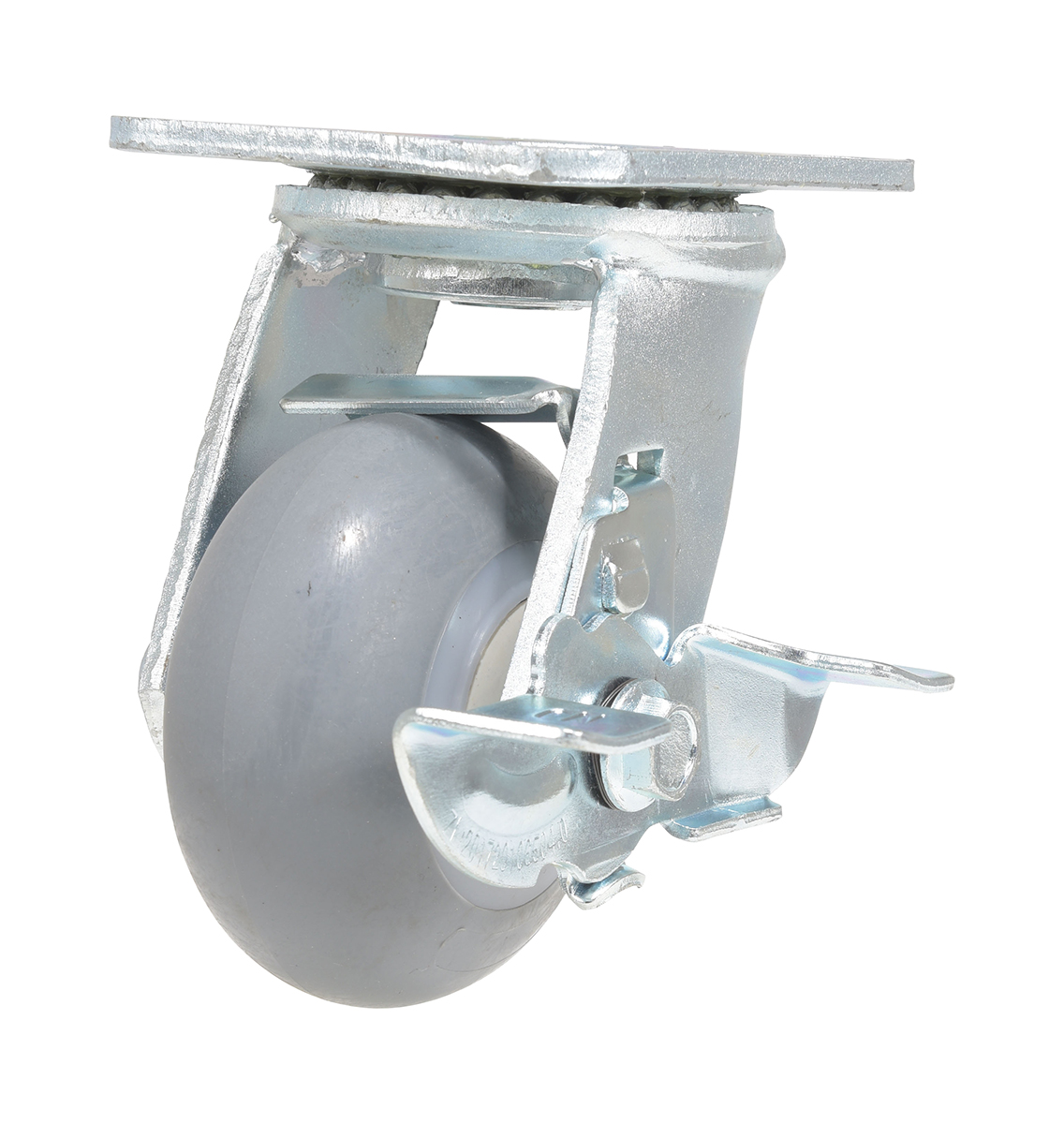

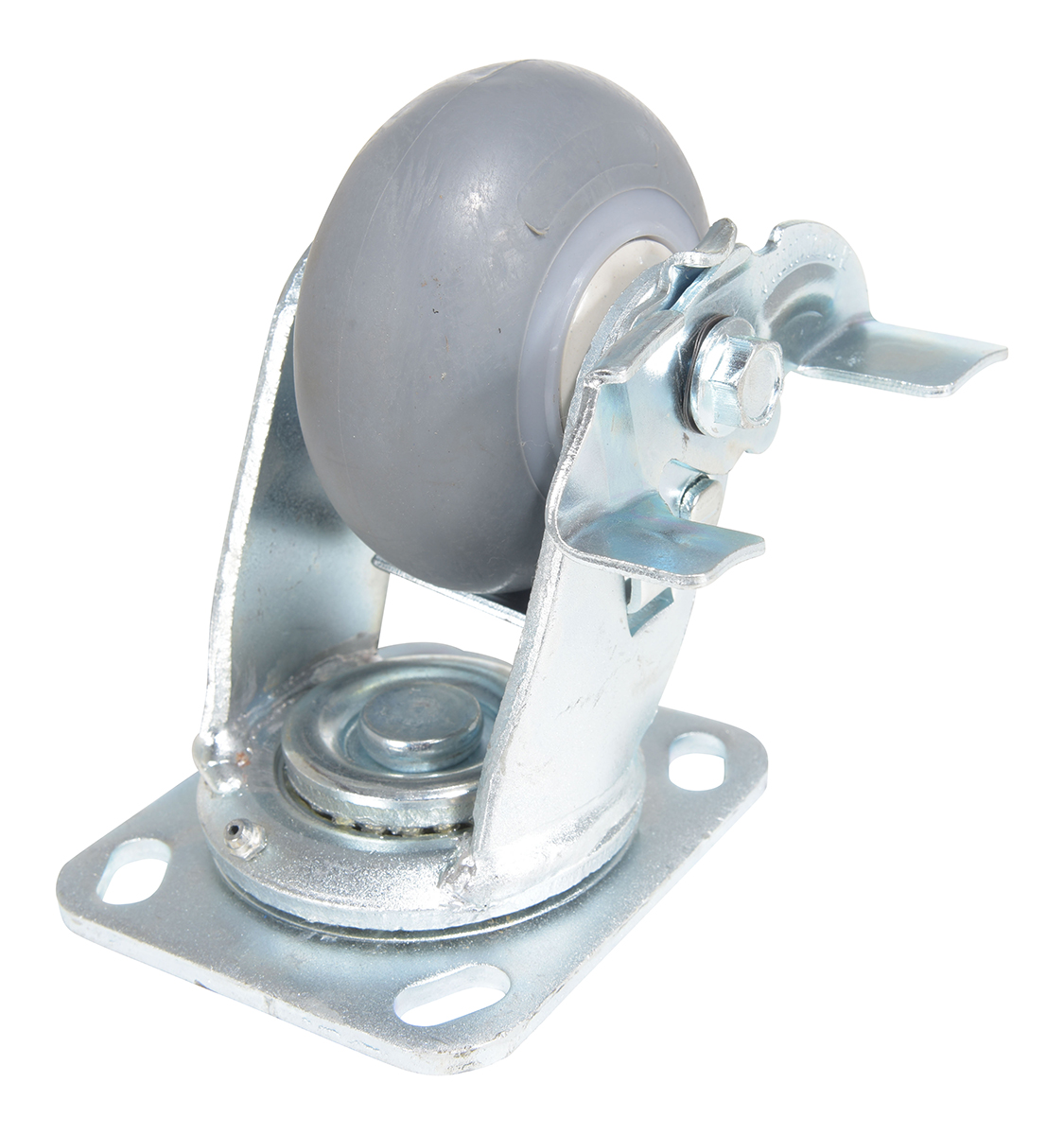

| CST-VE-4X2TPR-SWB |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL W/BRAKE | 485 | 5-1/2 | 4 x 4-1/2 | 5 |

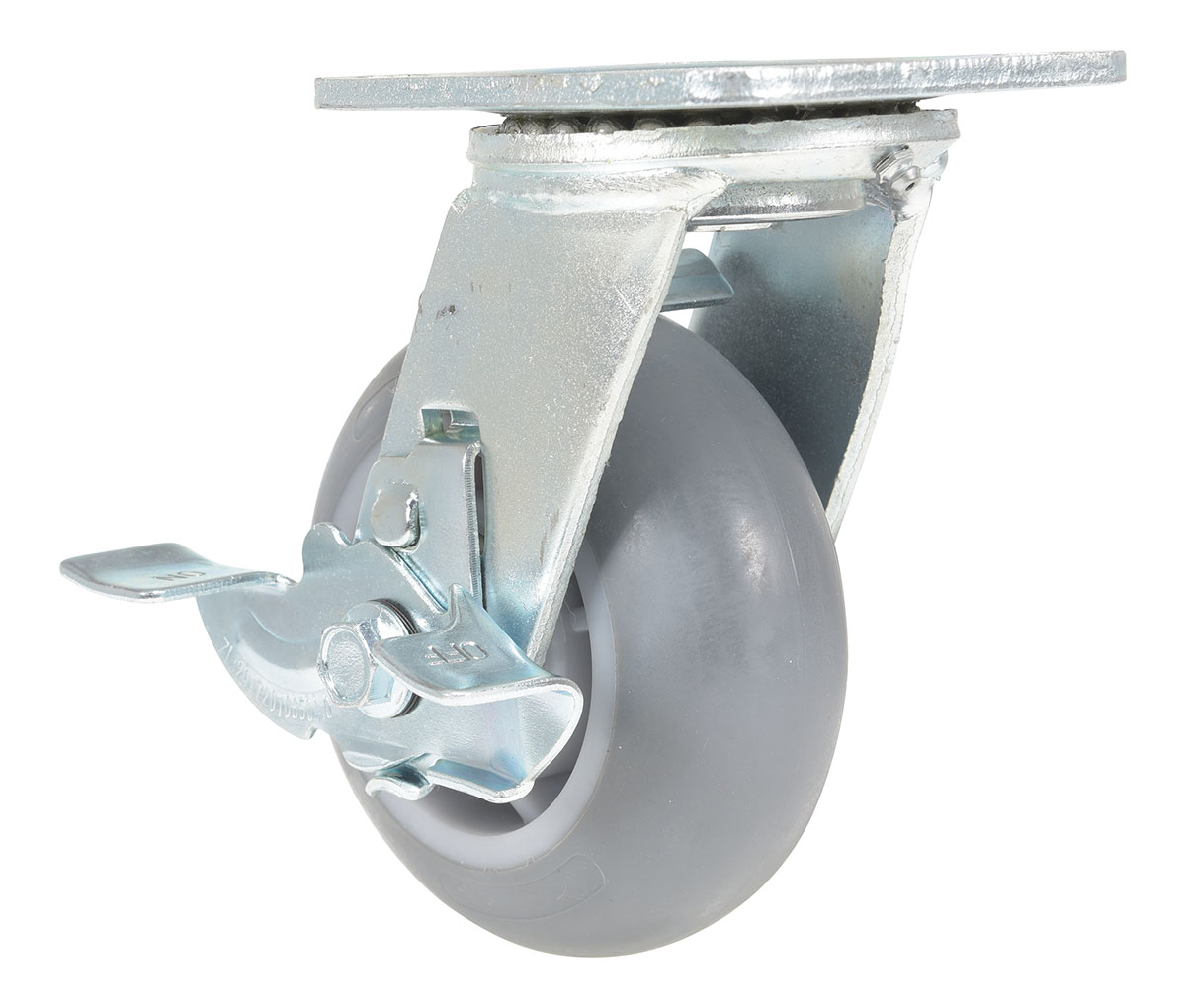

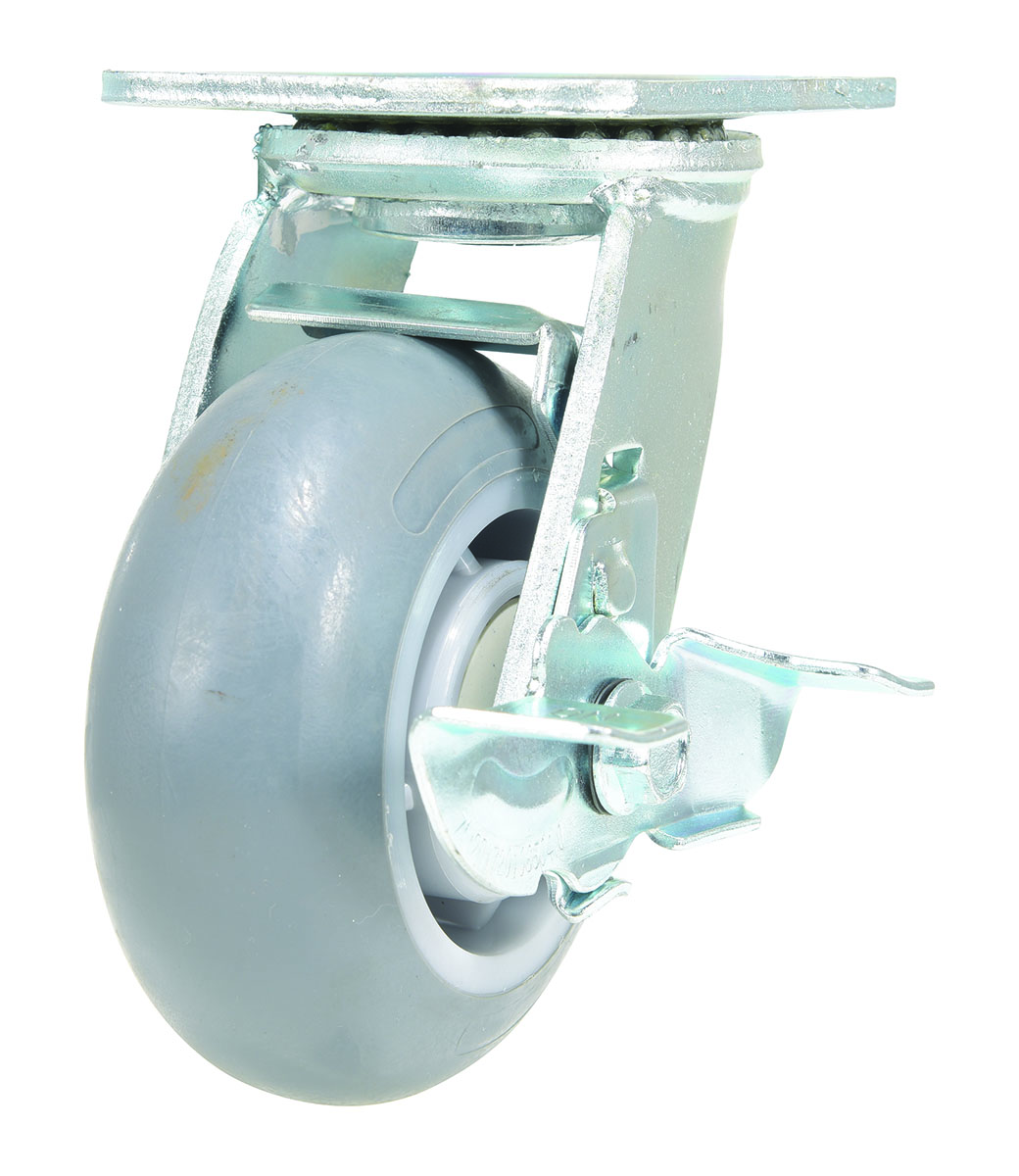

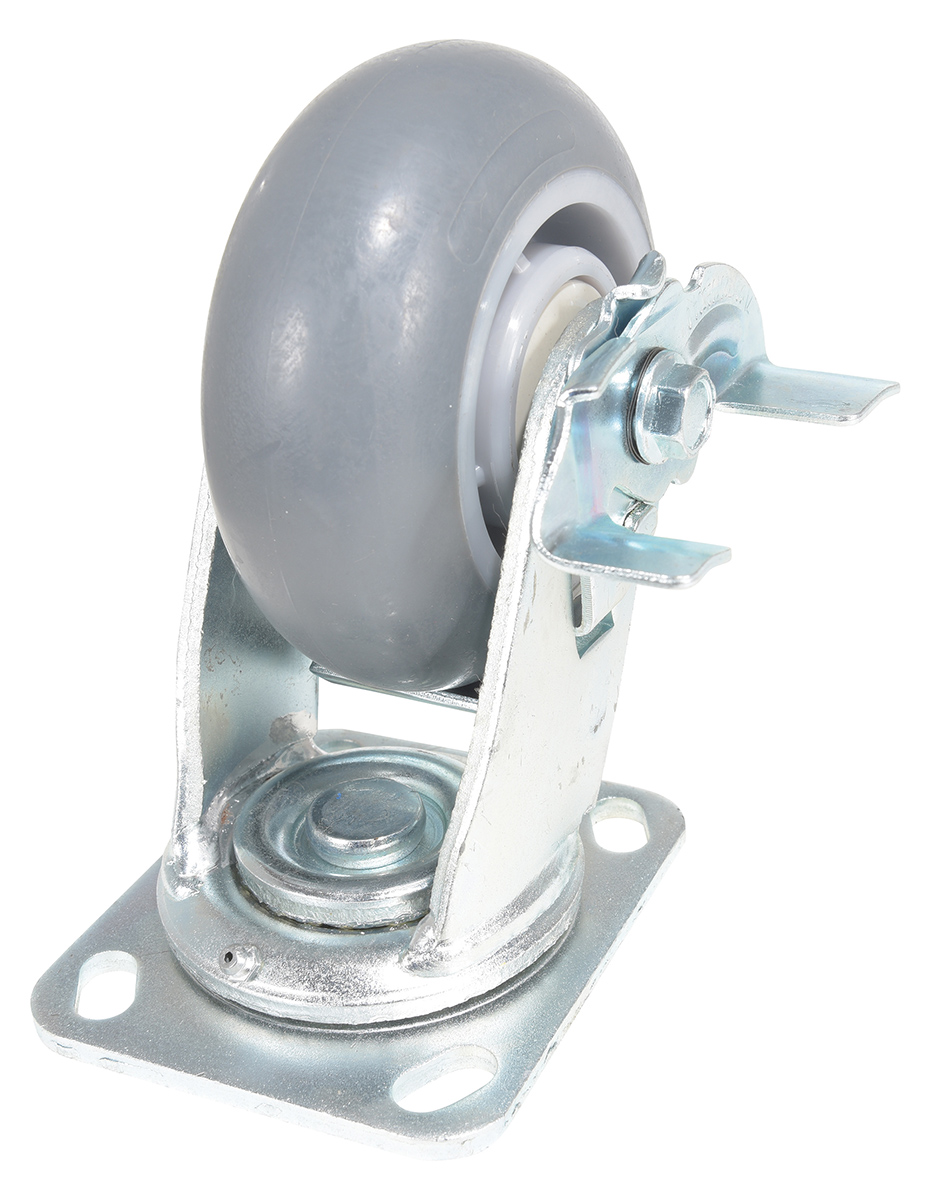

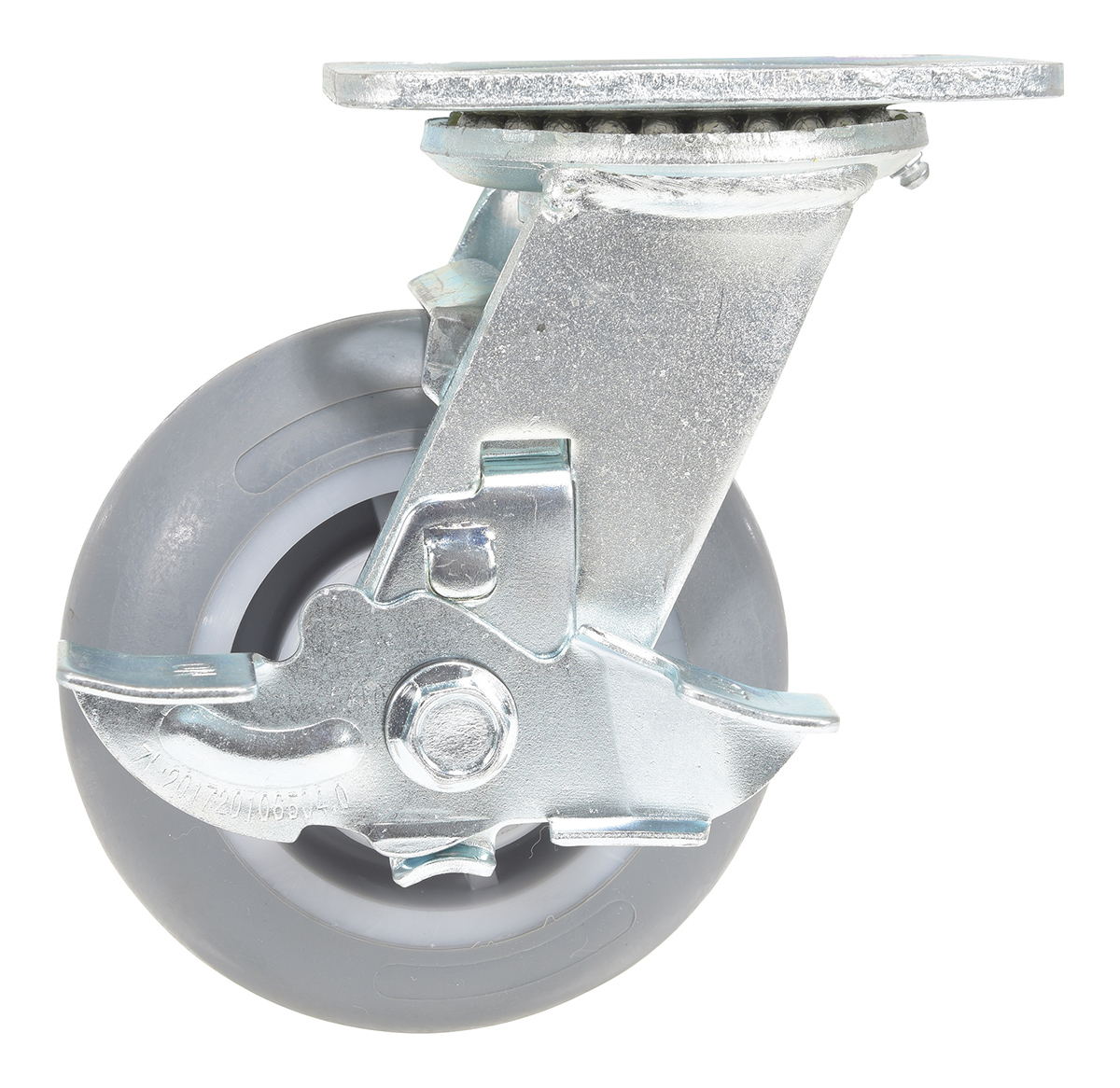

| CST-VE-5X2TPR-SWB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/BRAKE | 551 | 6-1/2 | 4 x 4-1/2 | 6 |

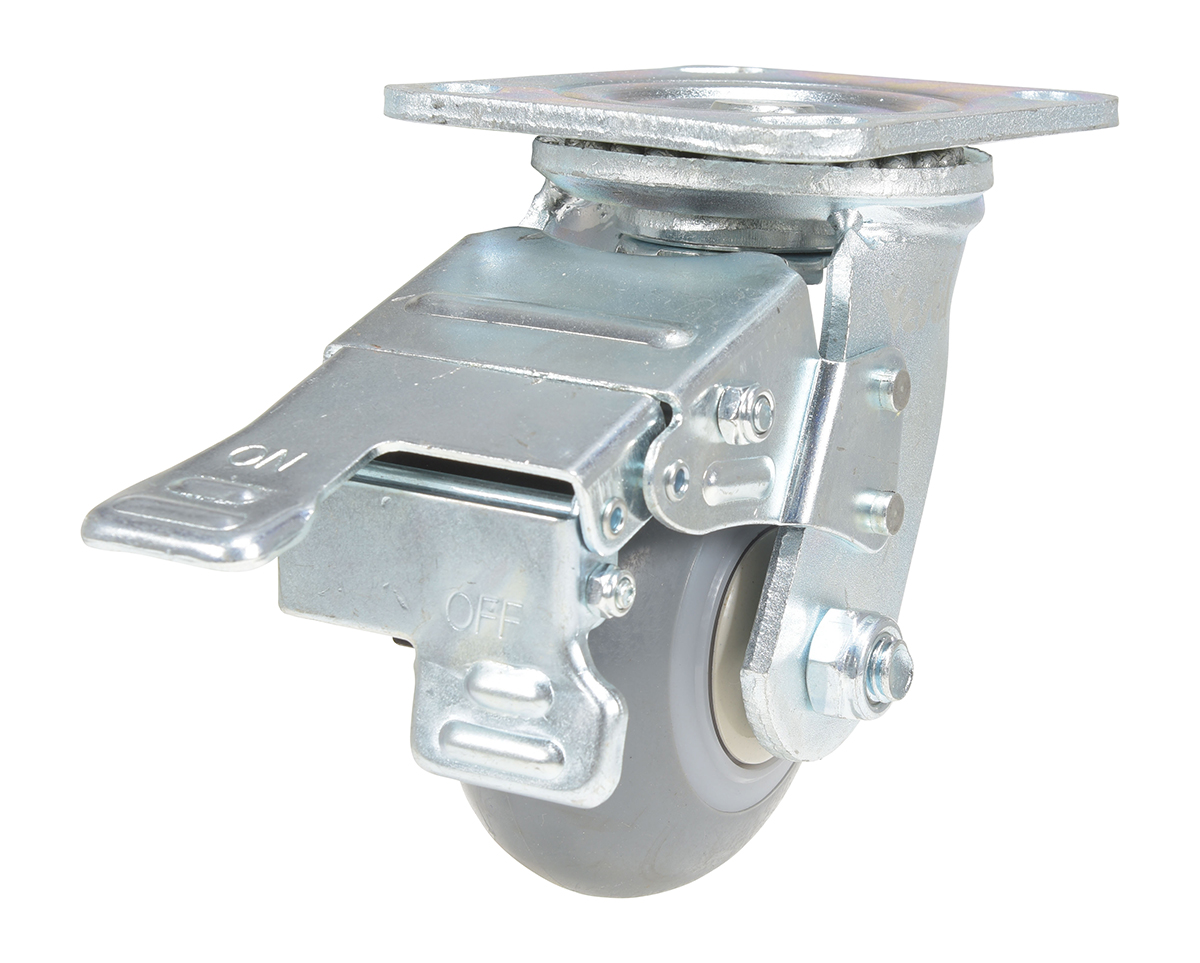

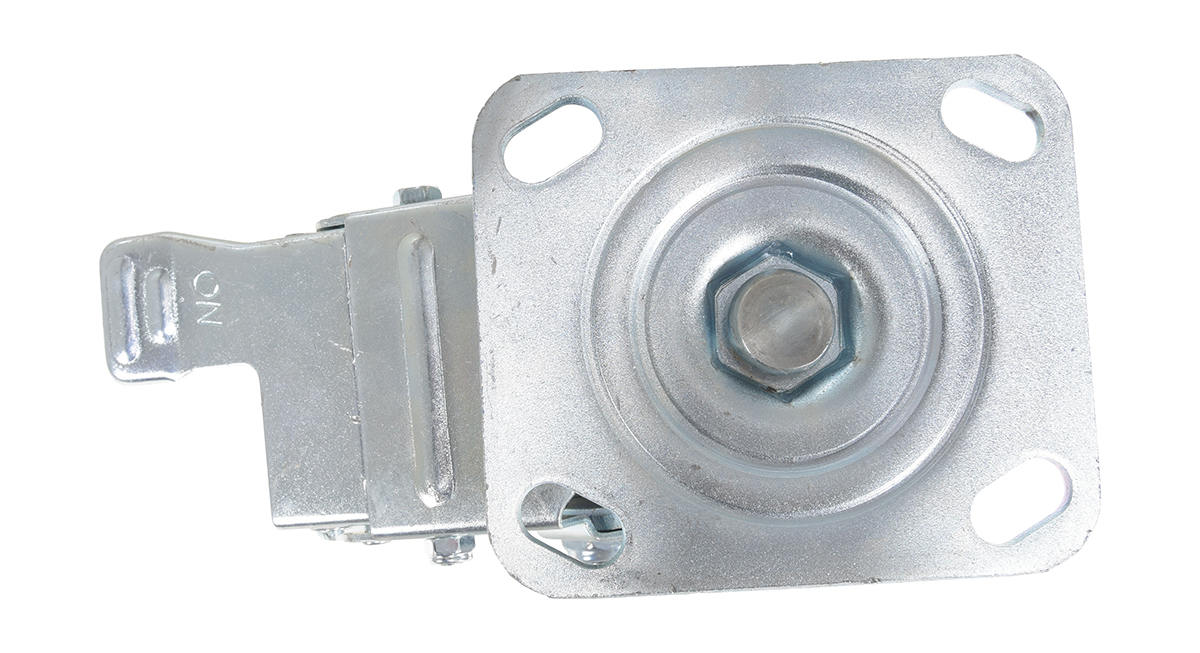

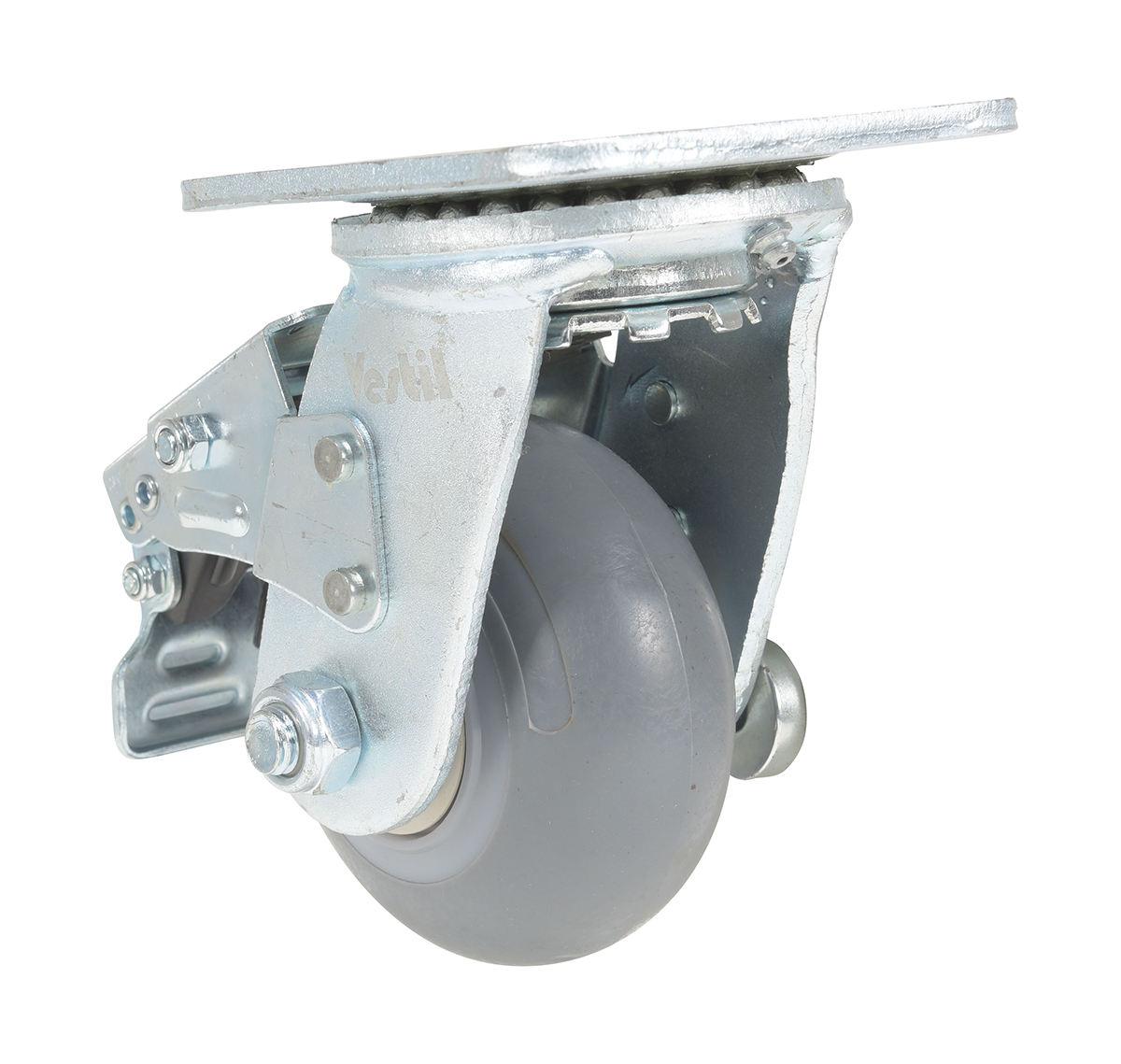

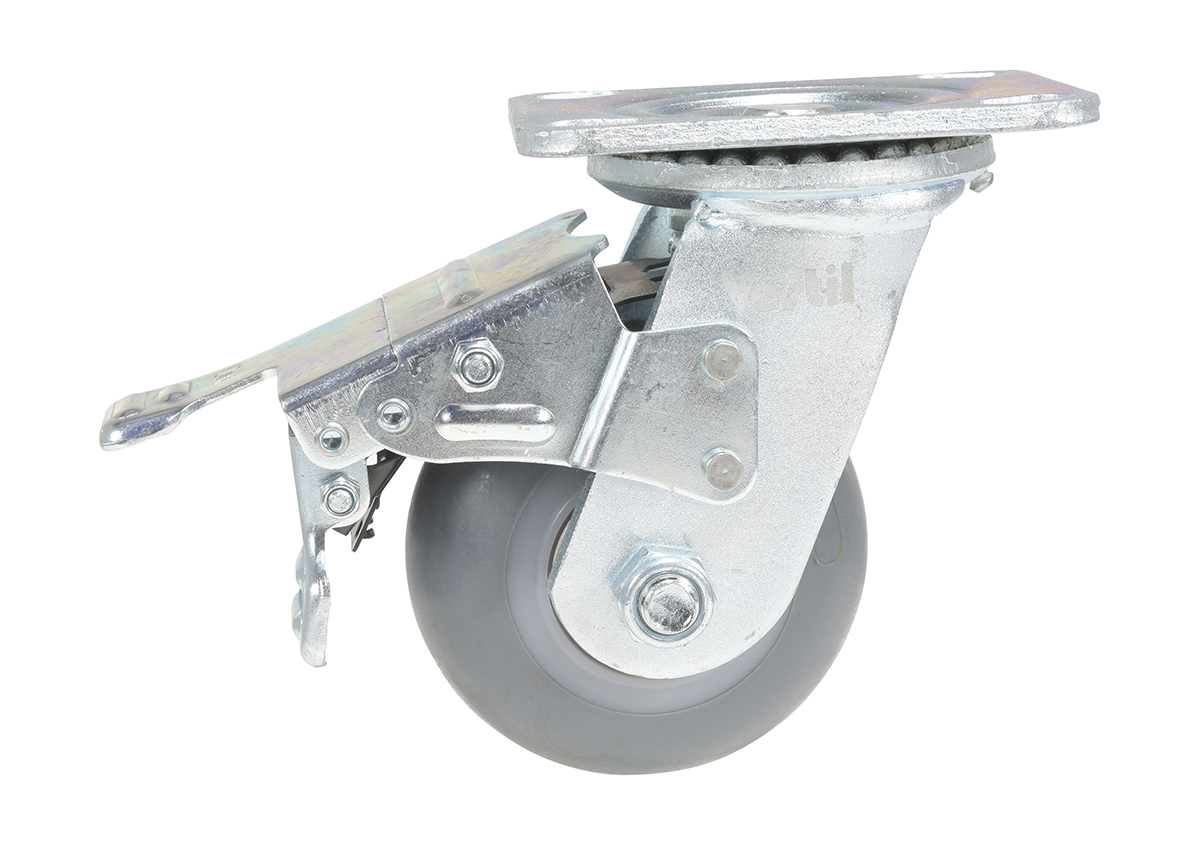

| CST-VE-4X2TPR-SWTB |  | 1 YEAR Limited Warranty | 4 x 2 | SWIVEL W/TOTAL BRAKE | 485 | 5-1/2 | 4 x 4-1/2 | 6 |

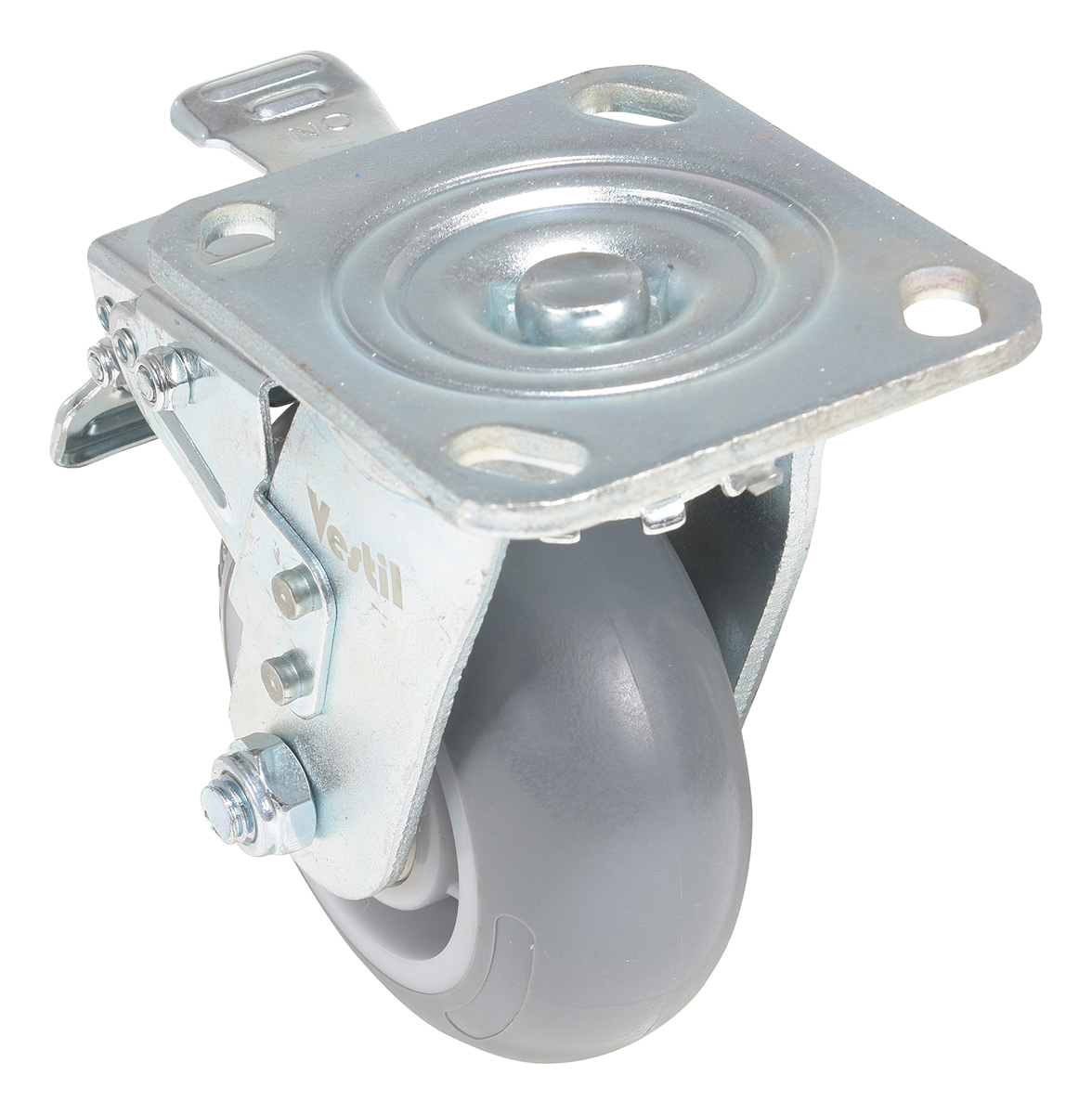

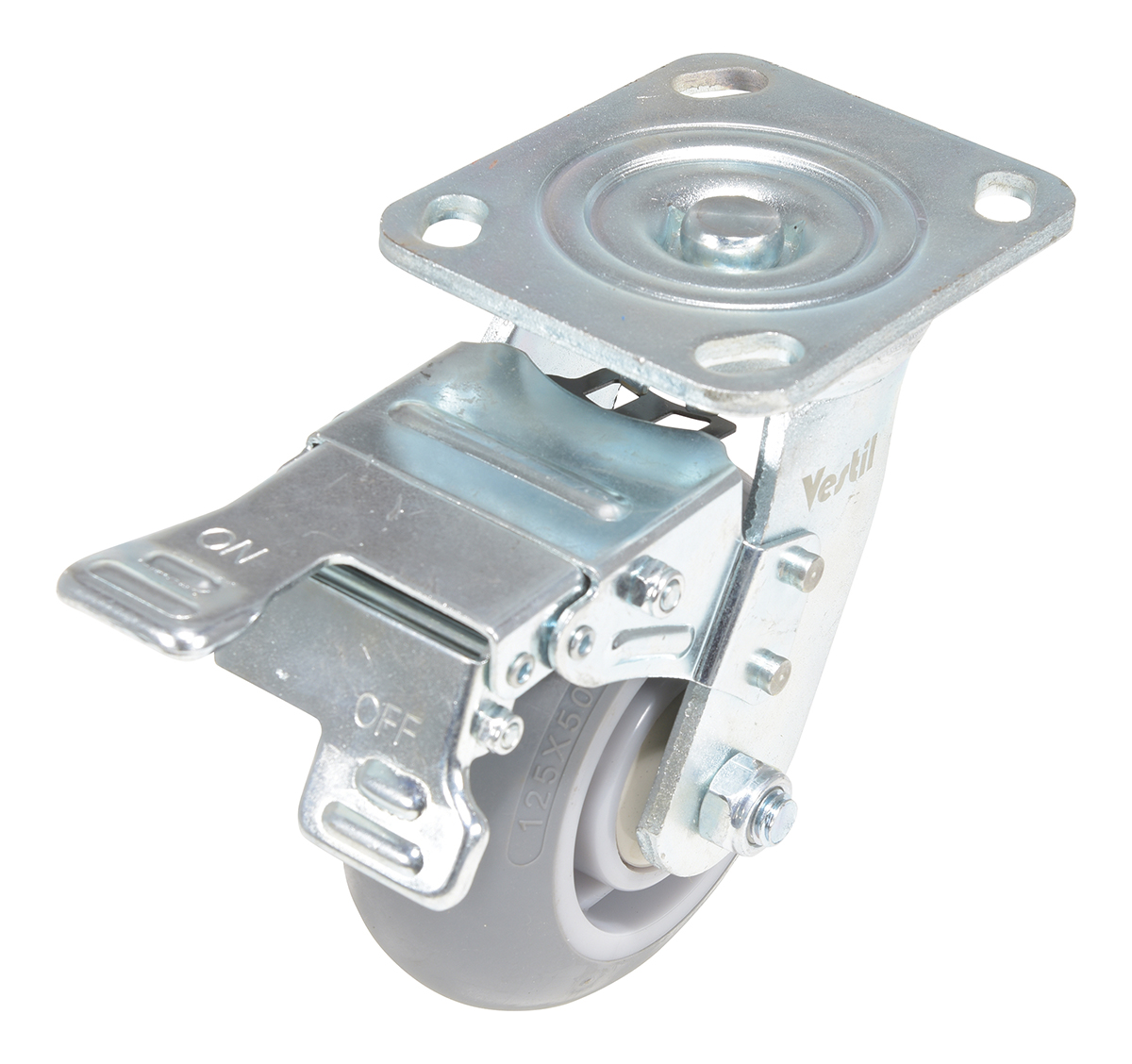

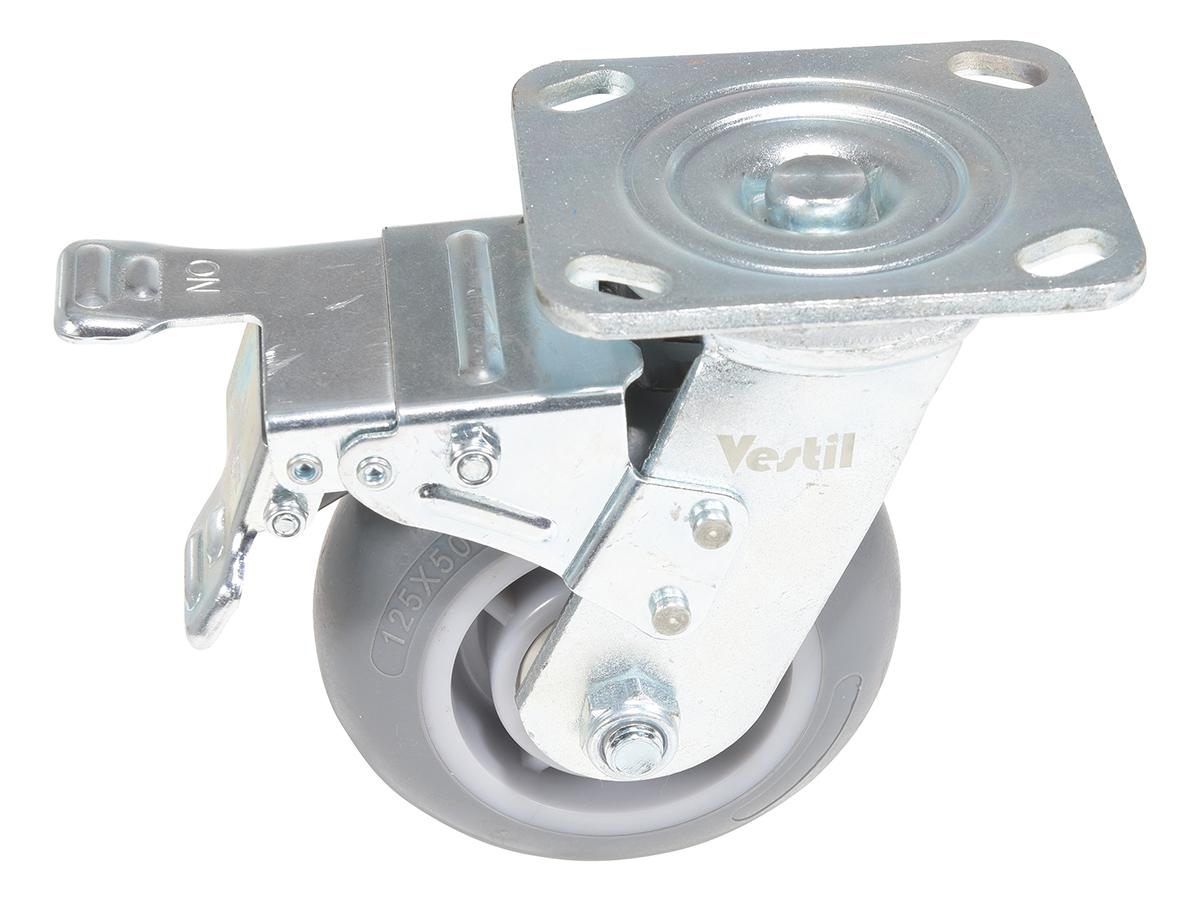

| CST-VE-5X2TPR-SWTB |  | 1 YEAR Limited Warranty | 5 x 2 | SWIVEL W/TOTAL BRAKE | 551 | 6-1/2 | 4 x 4-1/2 | 6 |

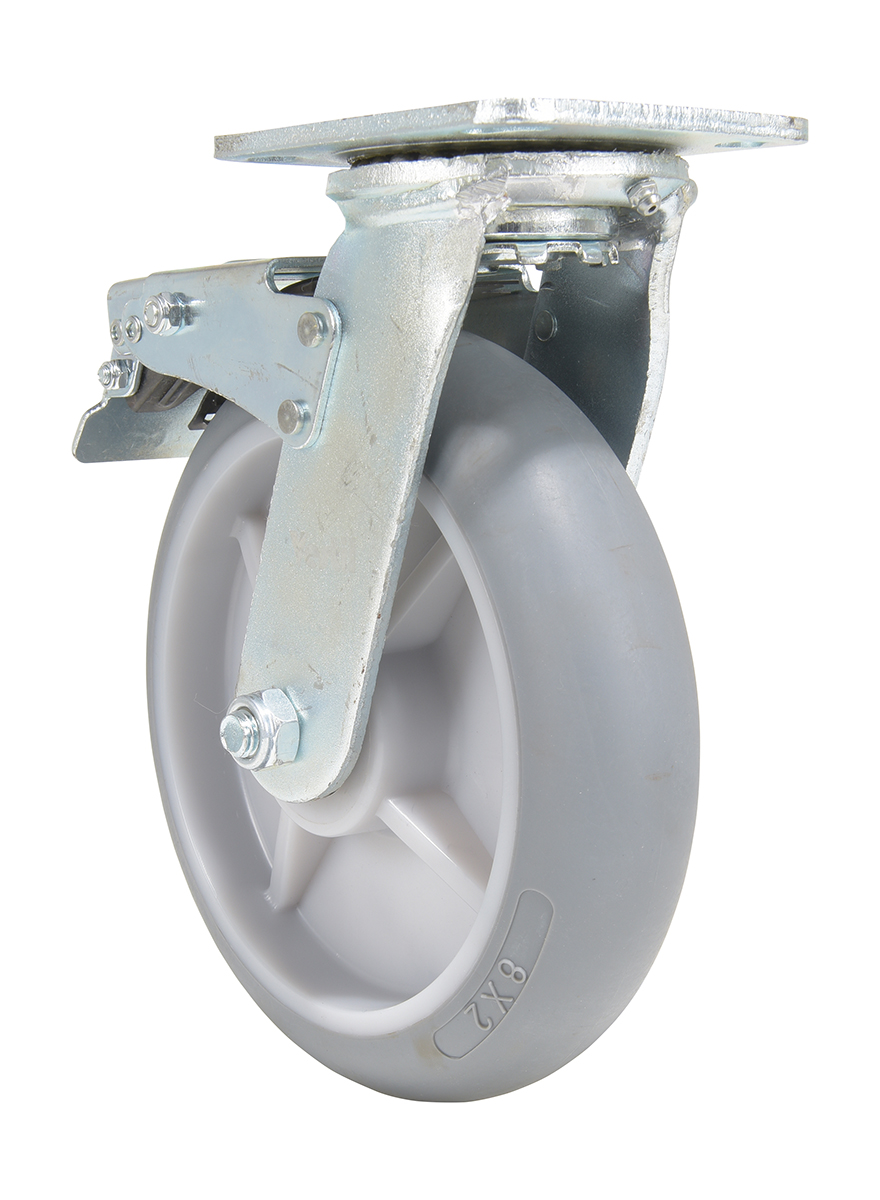

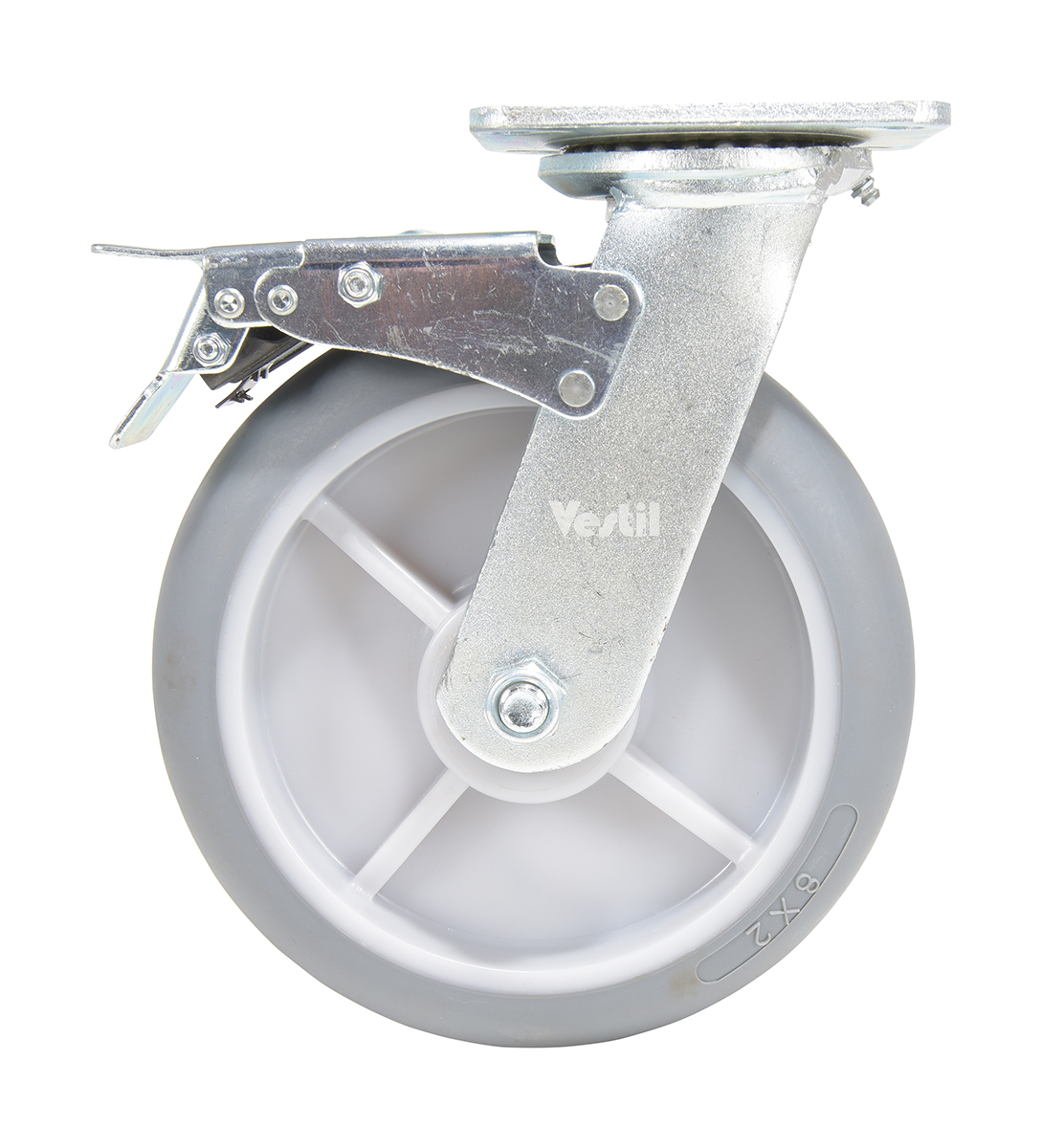

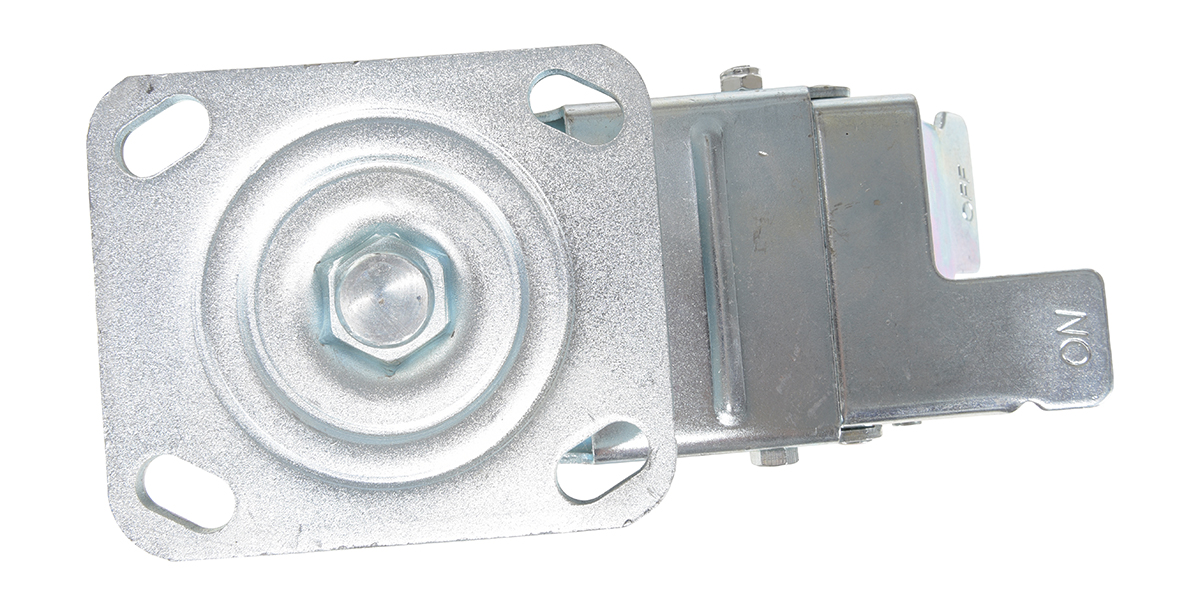

| CST-VE-8X2TPR-SWTB |  | 1 YEAR Limited Warranty | 8 x 2 | SWIVEL W/TOTAL BRAKE | 705 | 9-1/2 | 4 x 4-1/2 | 8 |
KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

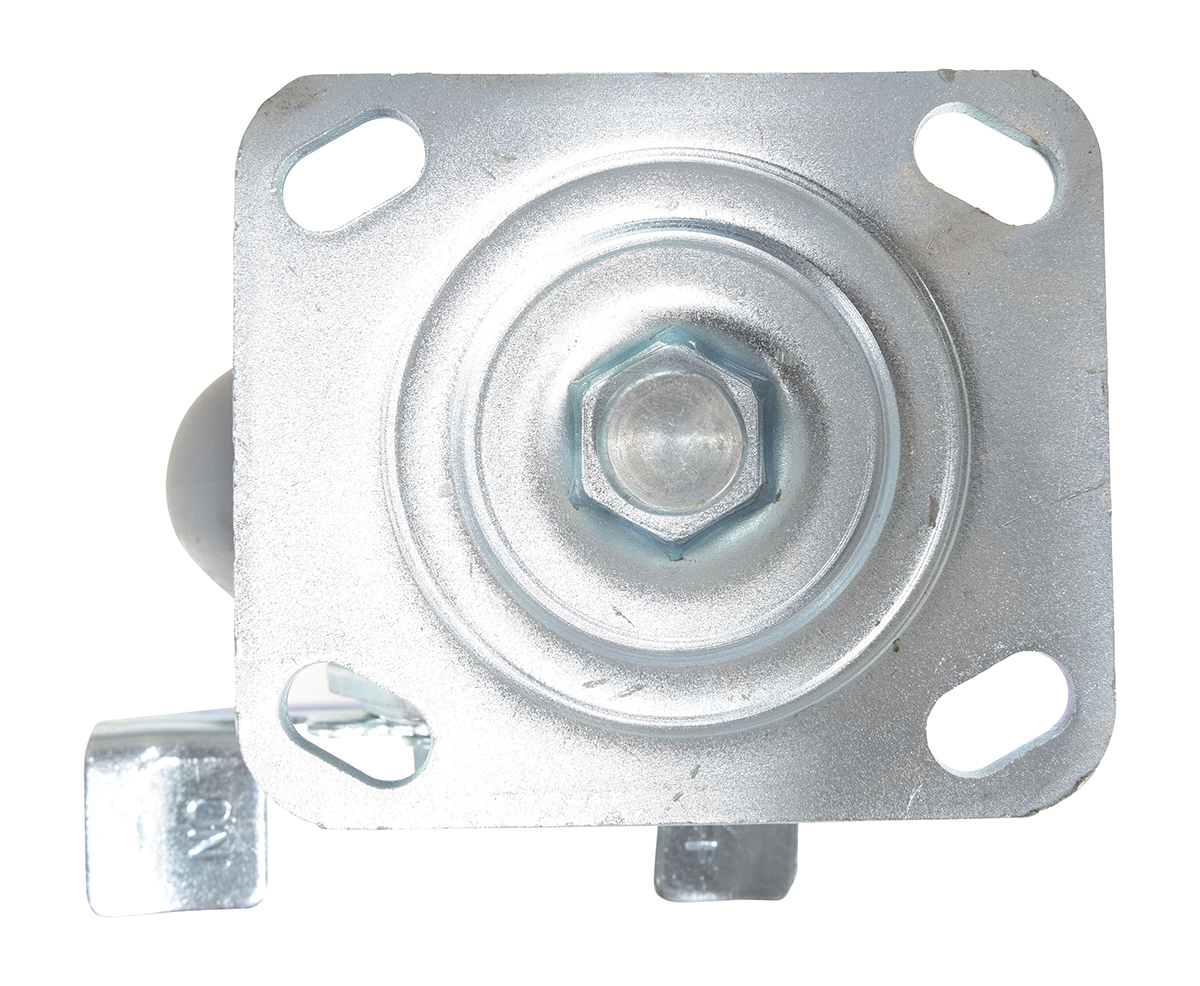

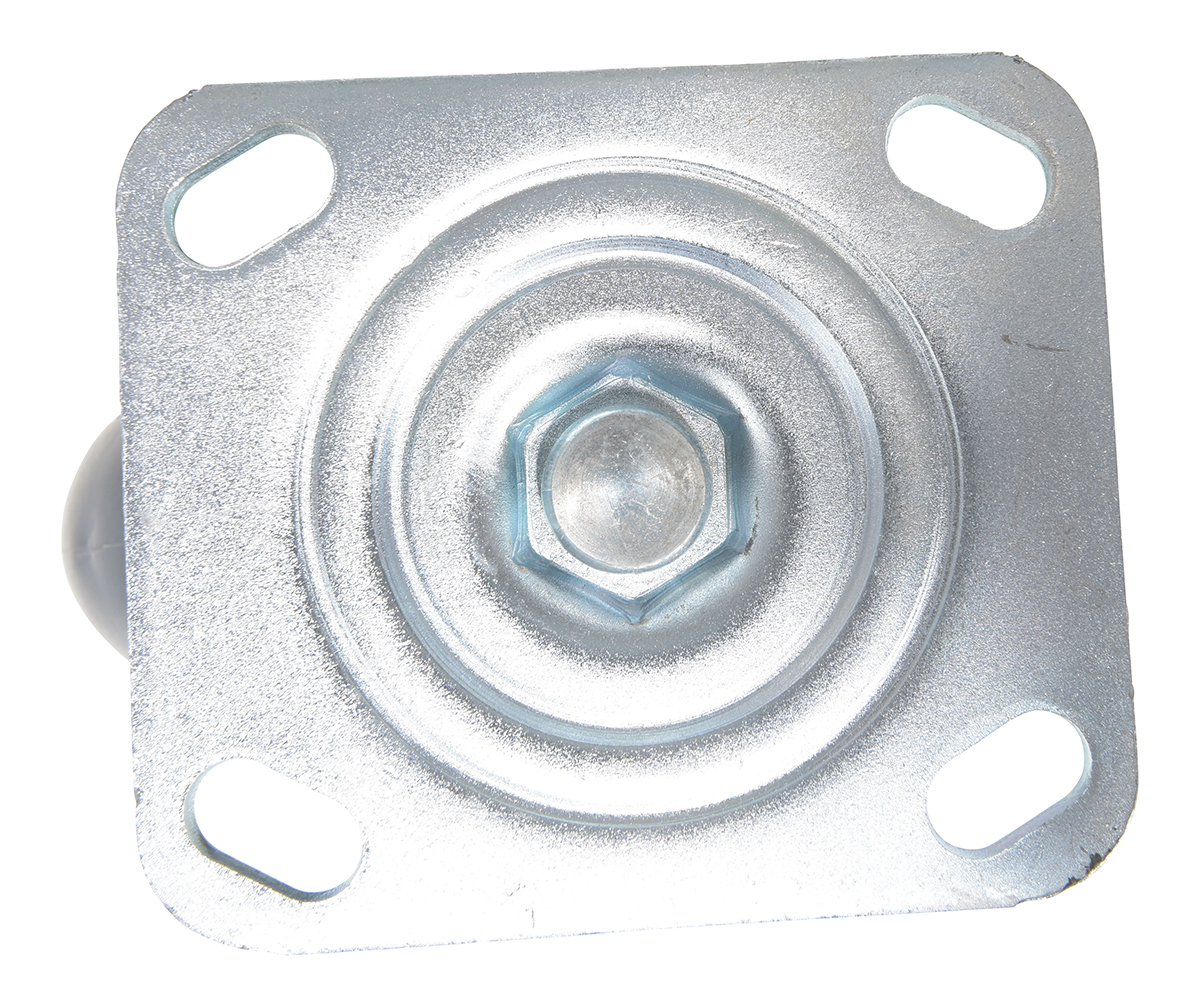

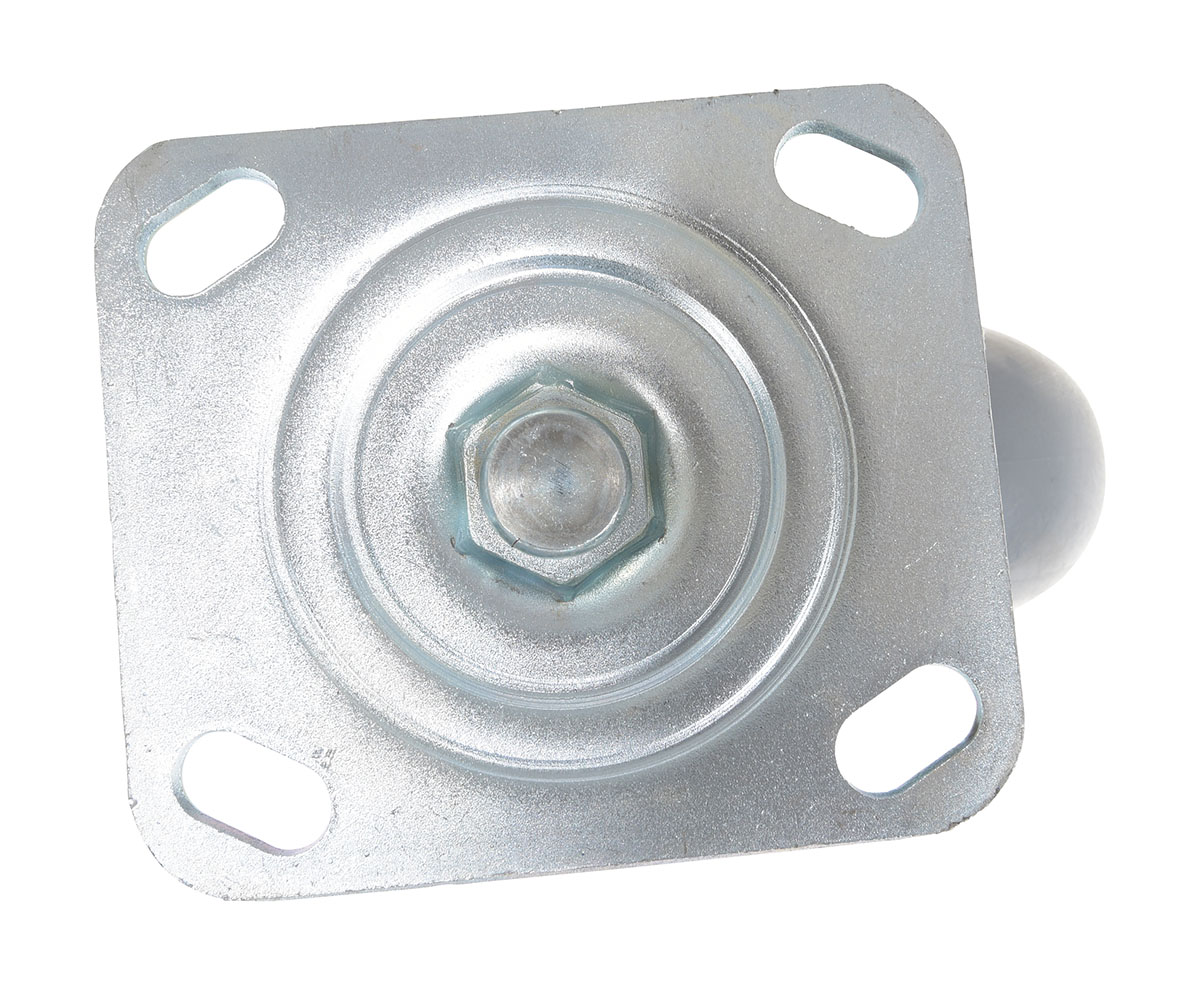

A: The mounting plate is 4.5" wide x 4" long.
|
|||||||
TPR (Thermoplastic Rubber) Cas... |
|||||||
 |
|||||||
Thermoplastic rubber (tpr) provides a smooth quiet ride with a non-marking tread. It offers exceptional floor preservation and is resistant to most chemicals.
|
|||||||
|
|
|||||||
|
|||||||
