Pallet Master/Servers

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

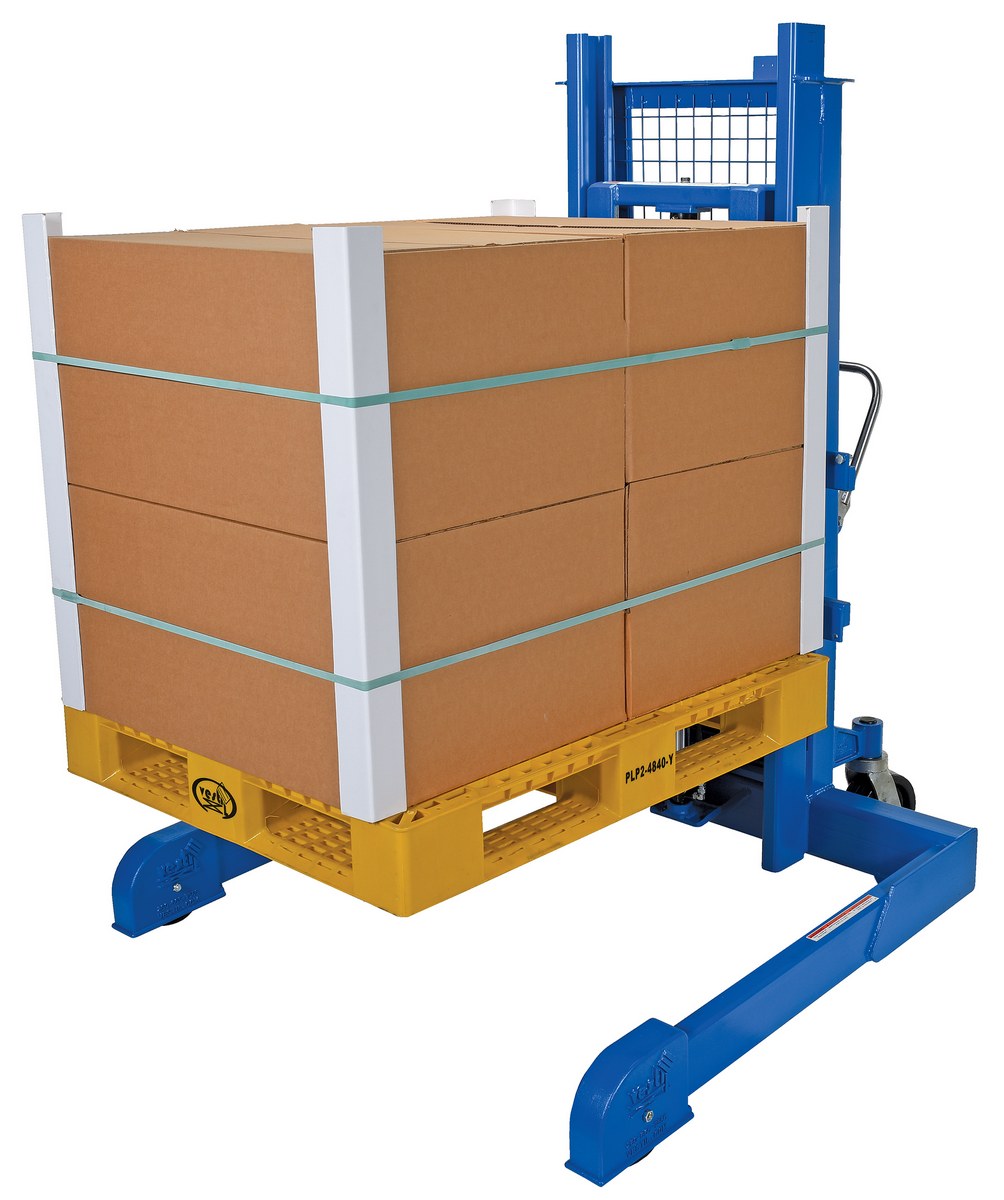

PMPS-50-AIR_E.jpg PMPS-50-AIR_A.jpg PMPS-50-AIR_B.jpg PMPS-50-AIR_C.jpg

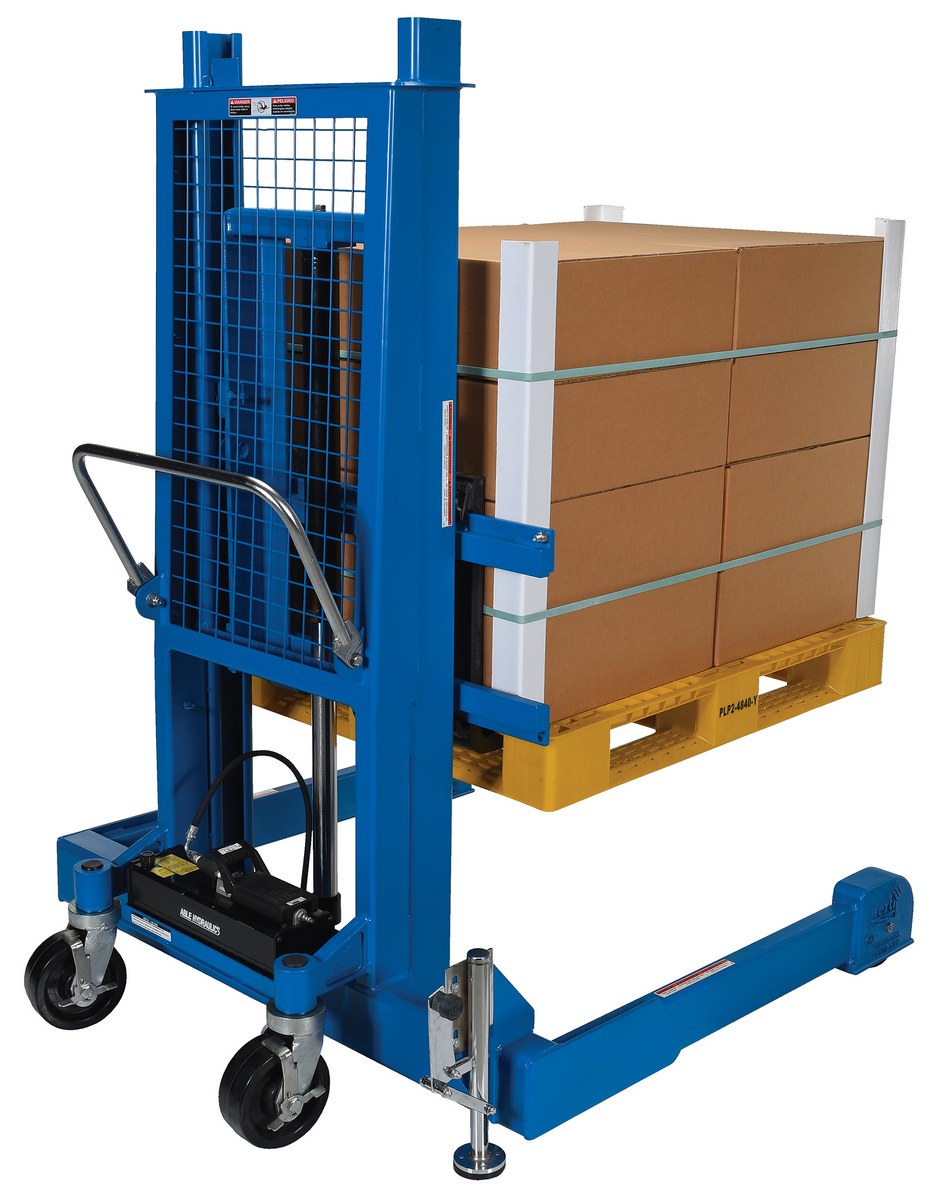

PMPS-50-AIR_D.jpg PMPS-50-AIR_F.jpg
Pallet Master/Servers

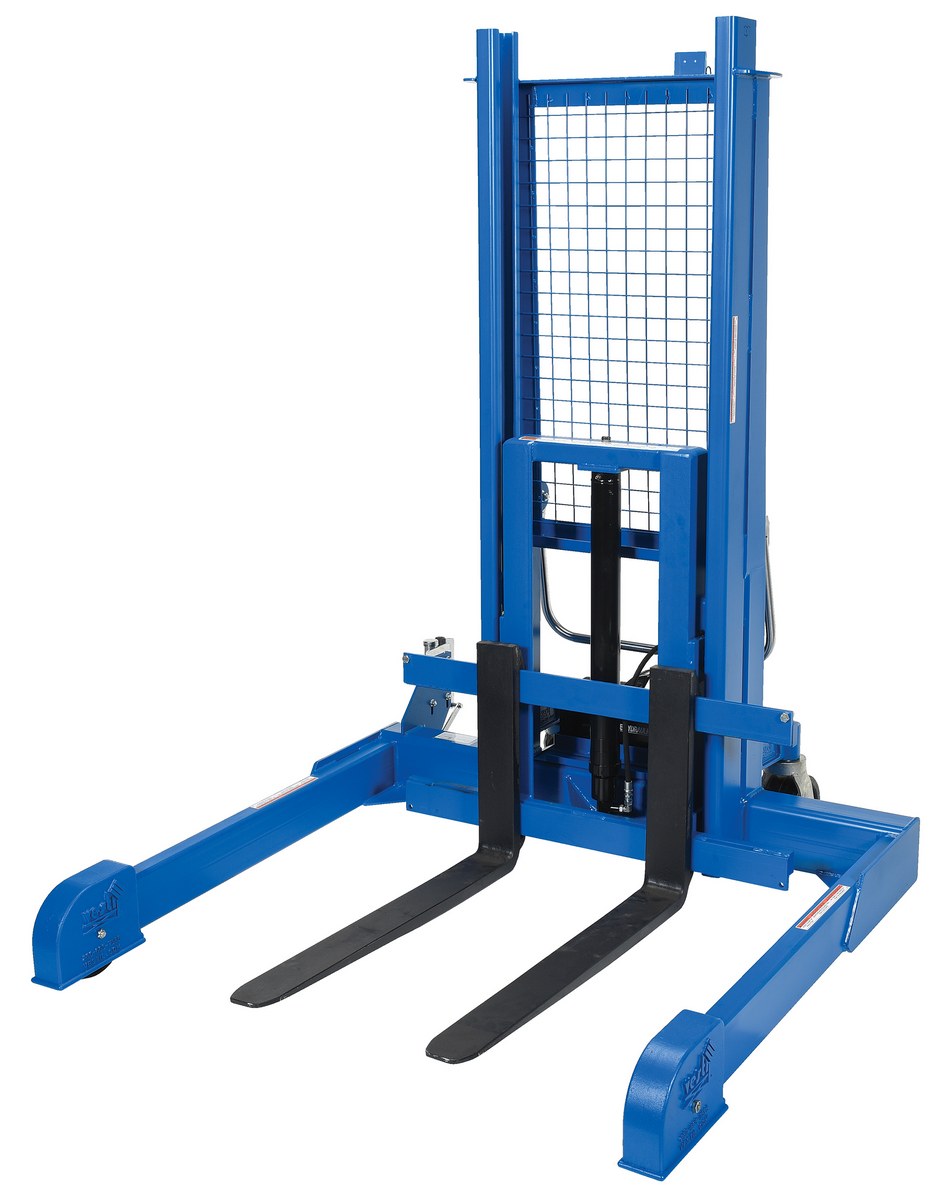

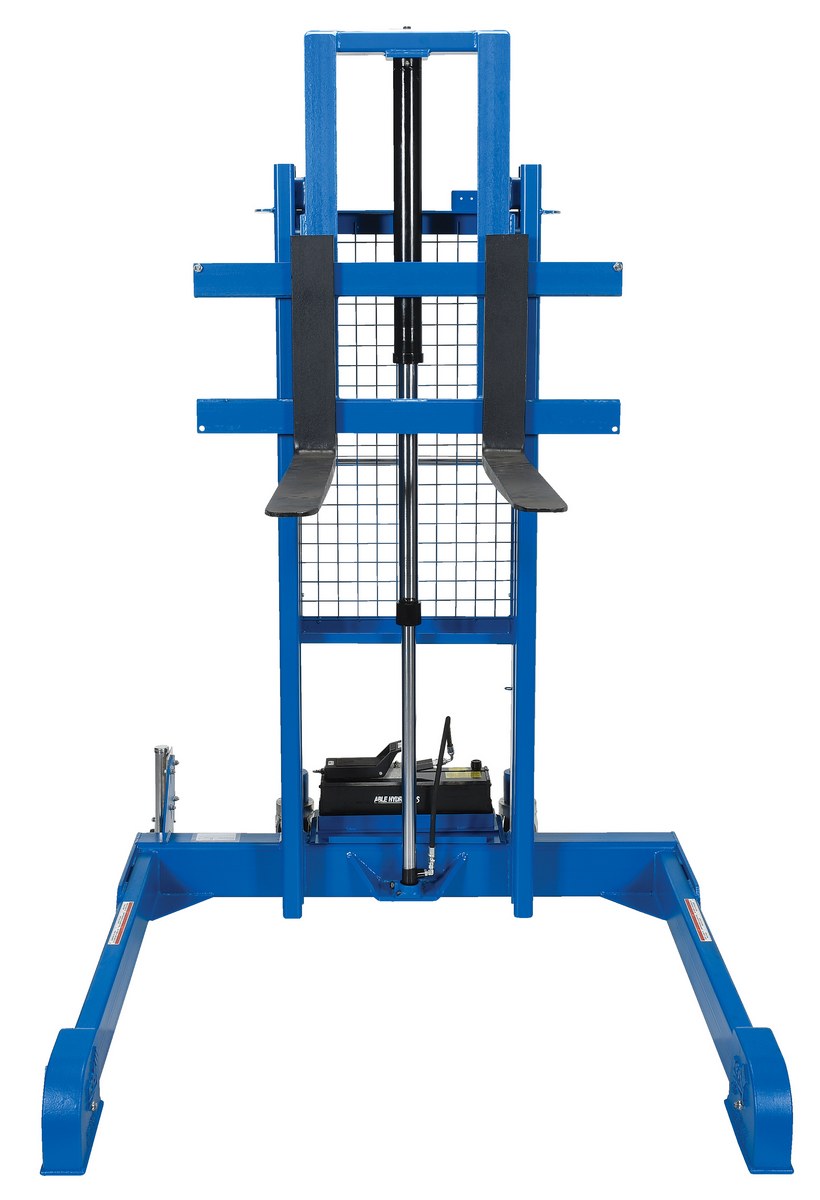

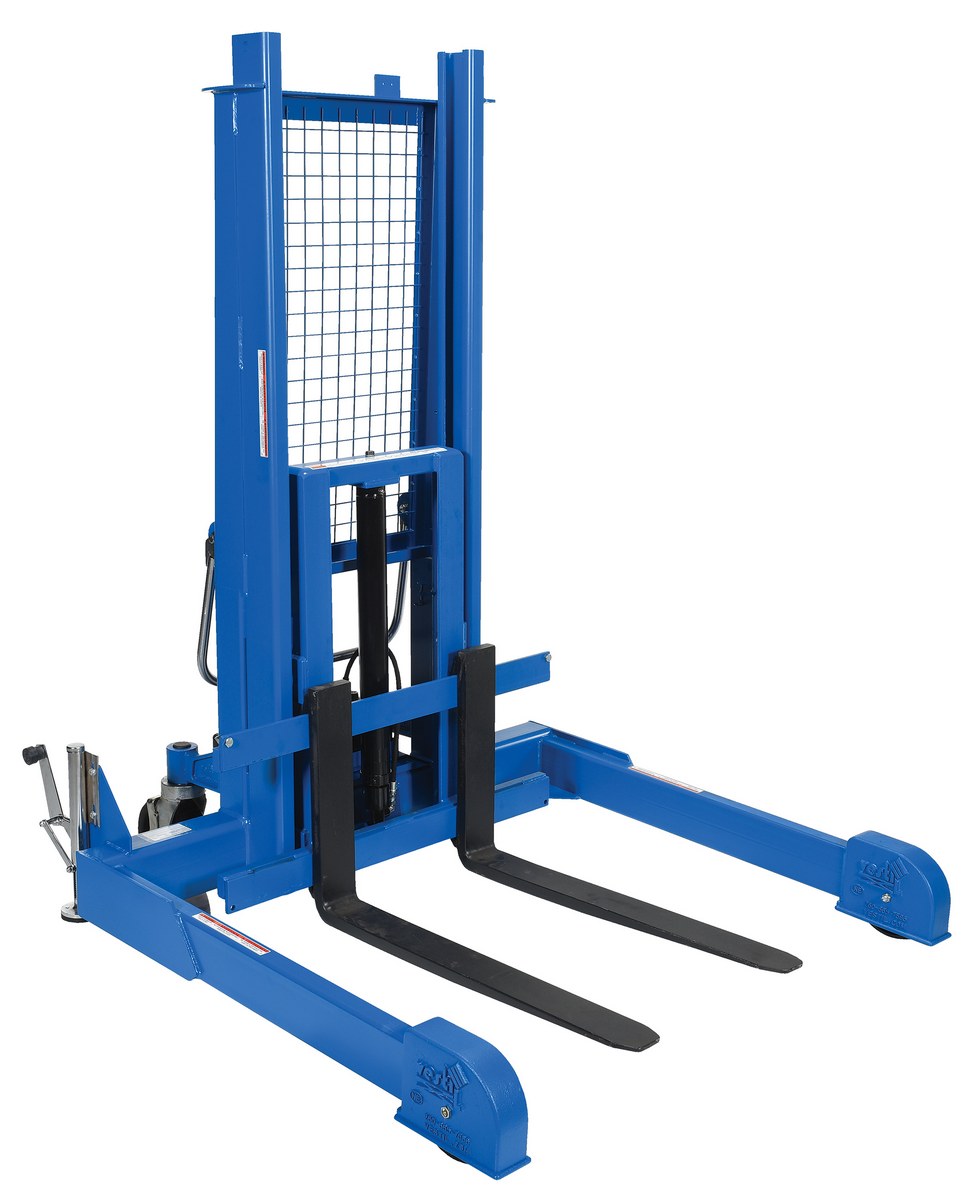

model: PMPS-50-AIR



Featured Ergonomic Solutions


Hydra Carts
Low Profile Electric/Hydraulic Scissor Lift Tables
Pallet Truck Roll Adapters
Air Hydraulic Carts
Linear Actuated Elevating Carts
Hinge & Sliding Tilt Tables
Tilt Master & Tilt Master Straddle
Rough Terrain Tilting Electric Pallet Truck
Folding Arm Chair
model chart

Product Family Overview

Print Friendly
Pallet Master/Servers
SERIES: PMPS,LL-PMPS

The Pallet Master/Servers, are designed to be used when a fork truck is not available. The Pallet Master/Servers can handle pallets and skids both with and without an understructure. Capacity rated is at 18" regardless of fork length. The forks are 36" long for handling a wide variety of pallet sizes. Move the unit around easily on 8" x 3" (8" x 2" locking standard on LL-PMPS) phenolic swivel rear casters Floor lock standard on PMPS series. Handle height is 36". Outriggers are adjustable on series LL-PMPS, inside straddle width is adjustable between 34" to 50-1/2".

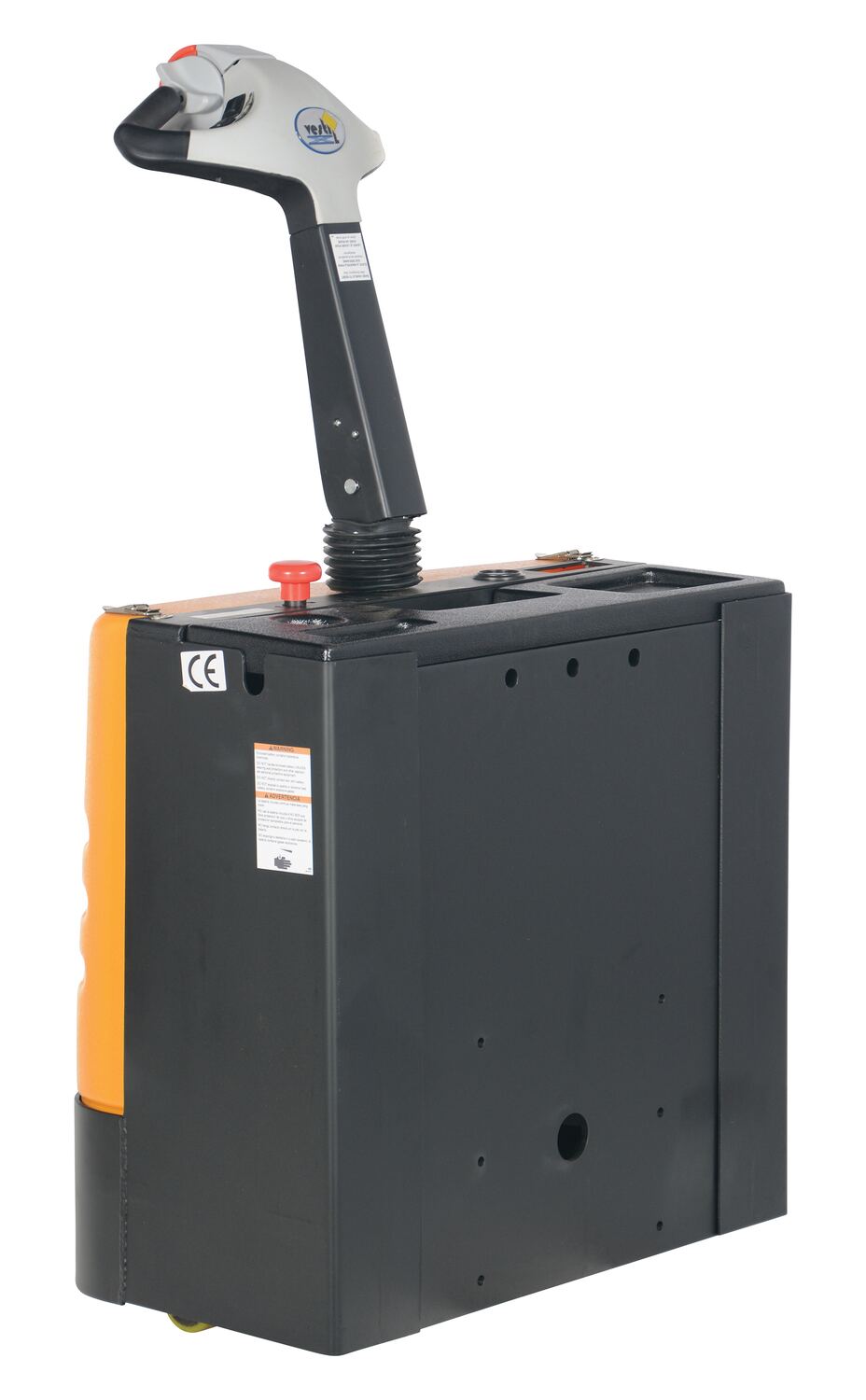

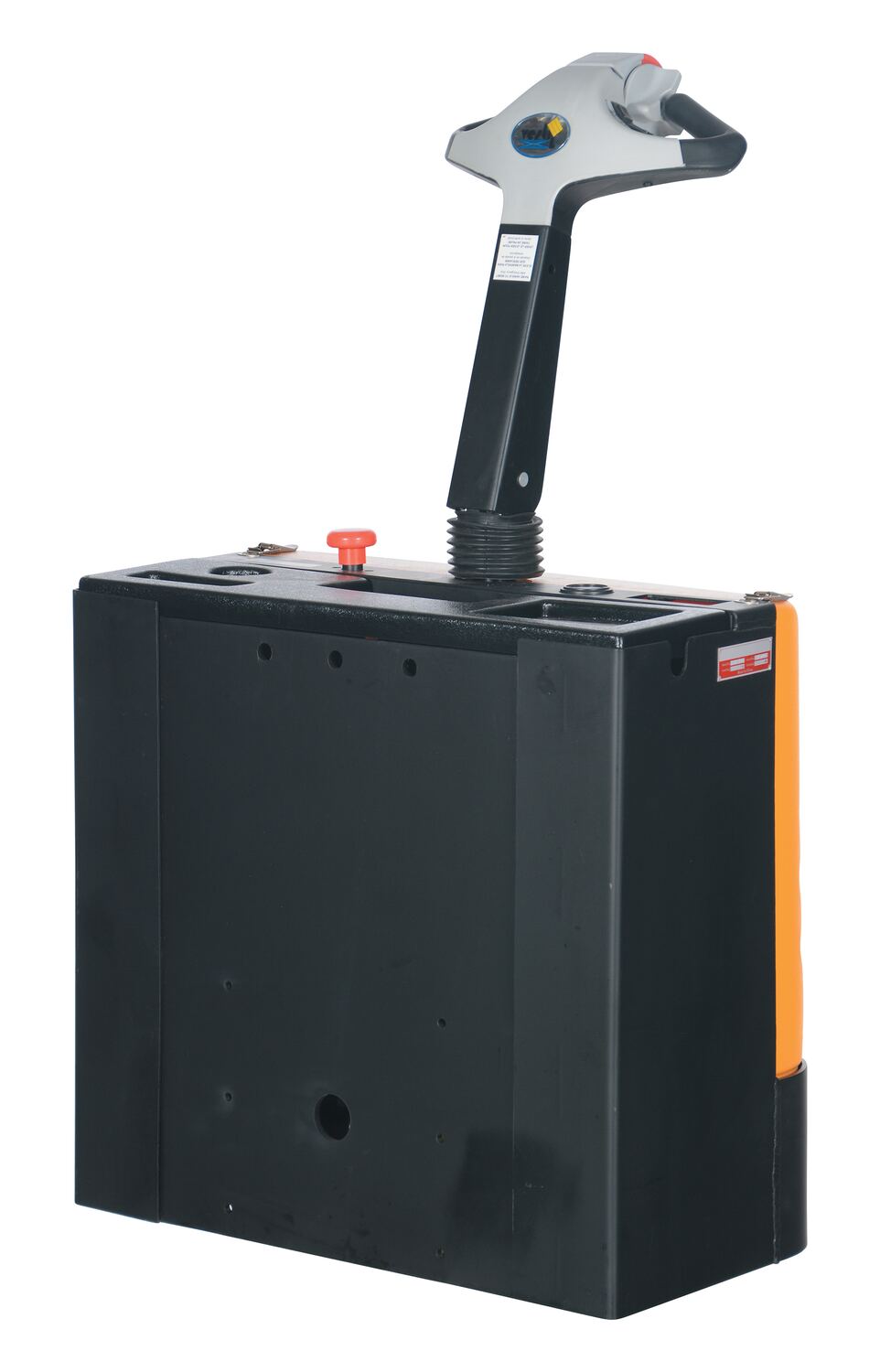

PTDS-E -- Power Traction Drive option reduce worker fatigue and injury. An alternative to costly fork trucks, the PTDS-E includes combination throttle / direction controller and auto reverse emergency "belly" switch. This state of the art option allows a single operator to safely and easily move products. Maximum speed is 2.5 m.p.h. 24V DC system.

Three Power Options to choose from:

  • Suffix-AC is 115V 1 phase power with a push-button hand control
  • Suffix-DC includes one (1) 12V battery, push-button hand control, an on-board charger and battery charege indicator gauge.

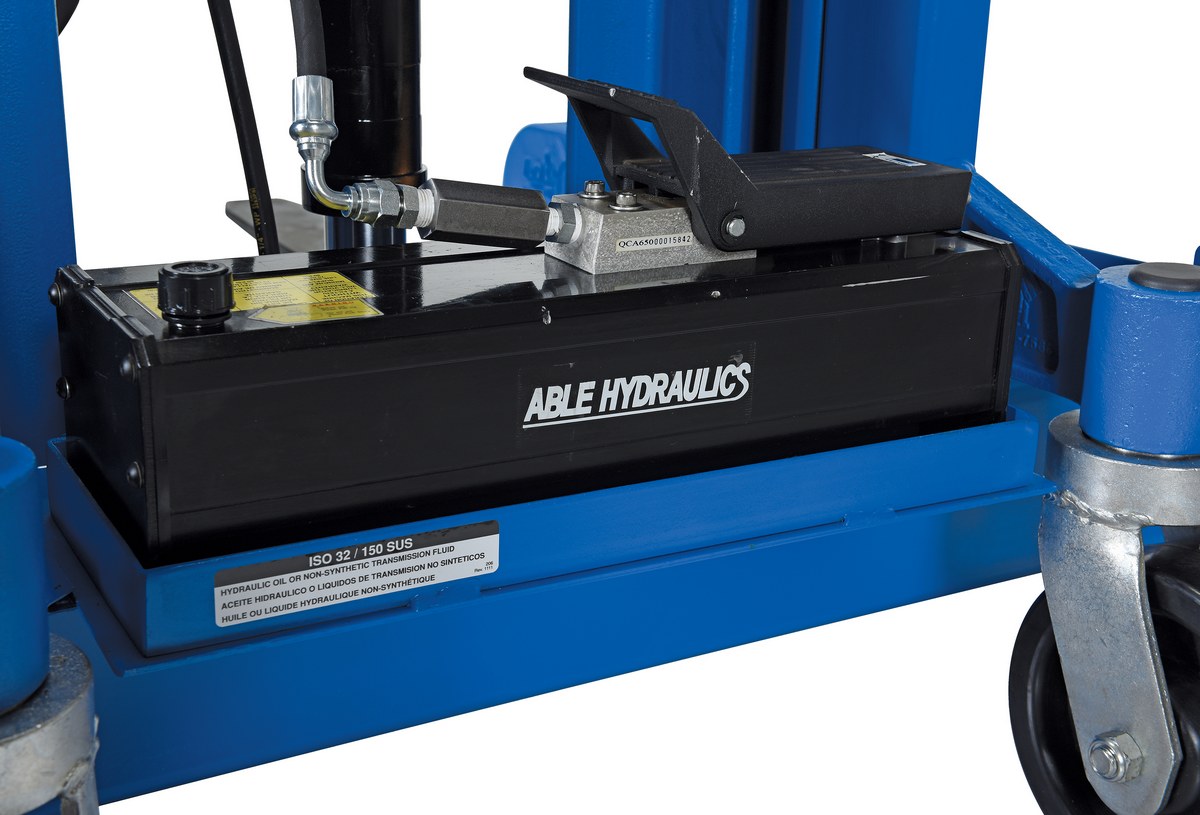

  • Suffix-AIR feautres reciprocating air/oil power with a heel/toe foot treadle control/

The Pallet Master/Servers, are designed to be used when a fork truck is not available. The Pallet Master/Servers can handle pallets and skids both with and without an understructure. Capacity rated is at 18" regardless of fork length. The forks are 36" long for handling a wide variety of pallet sizes. Move the unit around easily on 8" x 3" (8" x 2" locking standard on LL-PMPS) phenolic swivel rear casters Floor lock standard on PMPS series. Handle height is 36". Outriggers are adjustable on series LL-PMPS, inside straddle width is adjustable between 34" to 50-1/2".

PTDS-E -- Power Traction Drive option reduce worker fatigue and injury. An alternative to costly fork trucks, the PTDS-E includes combination throttle / direction controller and auto reverse emergency "belly" switch. This state of the art option allows a single operator to safely and easily move products. Maximum speed is 2.5 m.p.h. 24V DC system.

Three Power Options to choose from:

  • Suffix-AC is 115V 1 phase power with a push-button hand control
  • Suffix-DC includes one (1) 12V battery, push-button hand control, an on-board charger and battery charege indicator gauge.
  • Suffix-AIR feautres reciprocating air/oil power with a heel/toe foot treadle control/

Other Stackers

 Powered Stacker with Power Drive, Power Lift, & Power Fork Reach Powered All Terrain Stackers and Pallet Trucks Narrow Mast Stackers with Powered Drive and Powered Lift Narrow Mast Stackers with Powered Lift

Additional Models In This Family
view entire Image Gallery

LL-PMPS-50-AIR

LL-PMPS-50-AIR

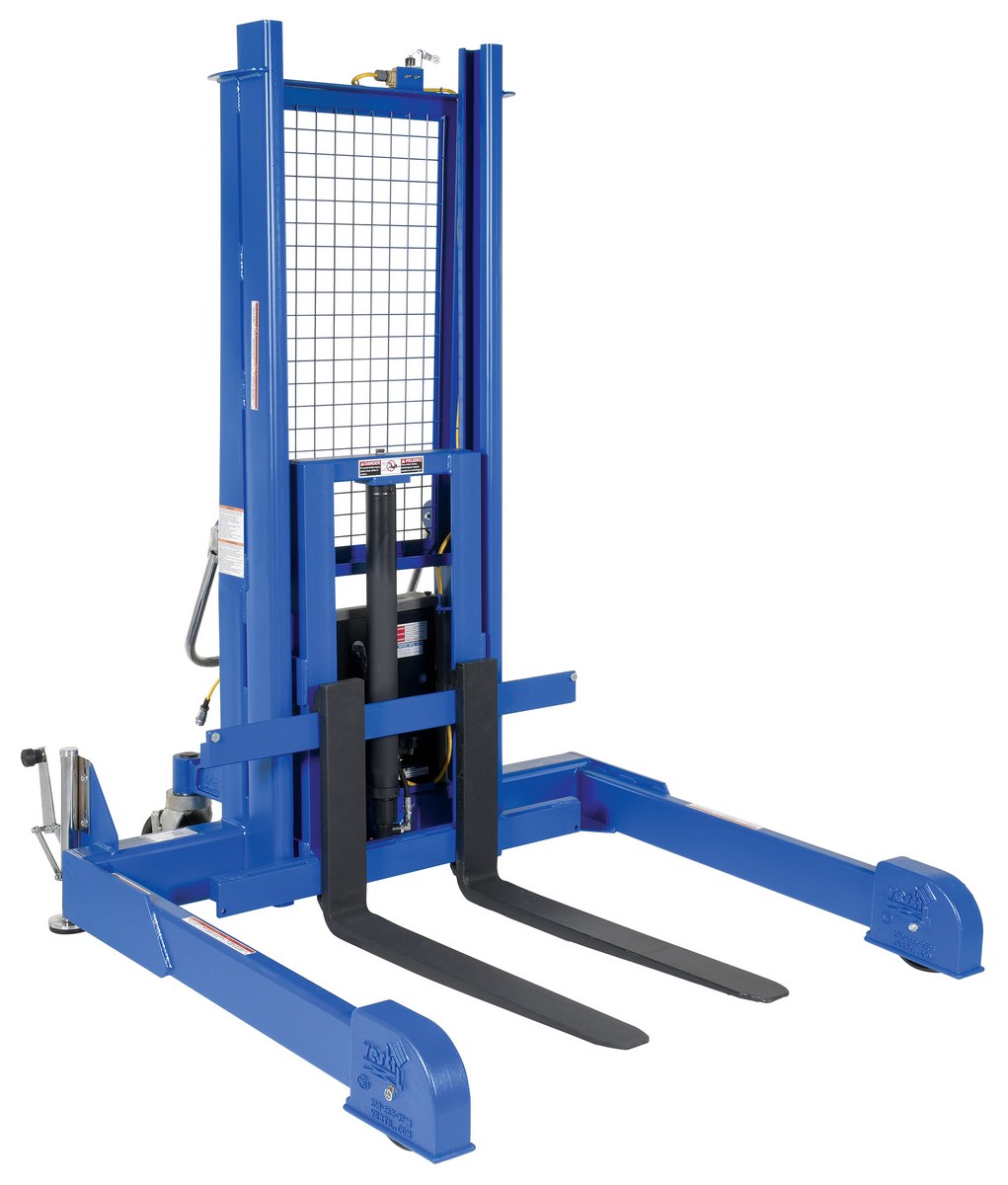

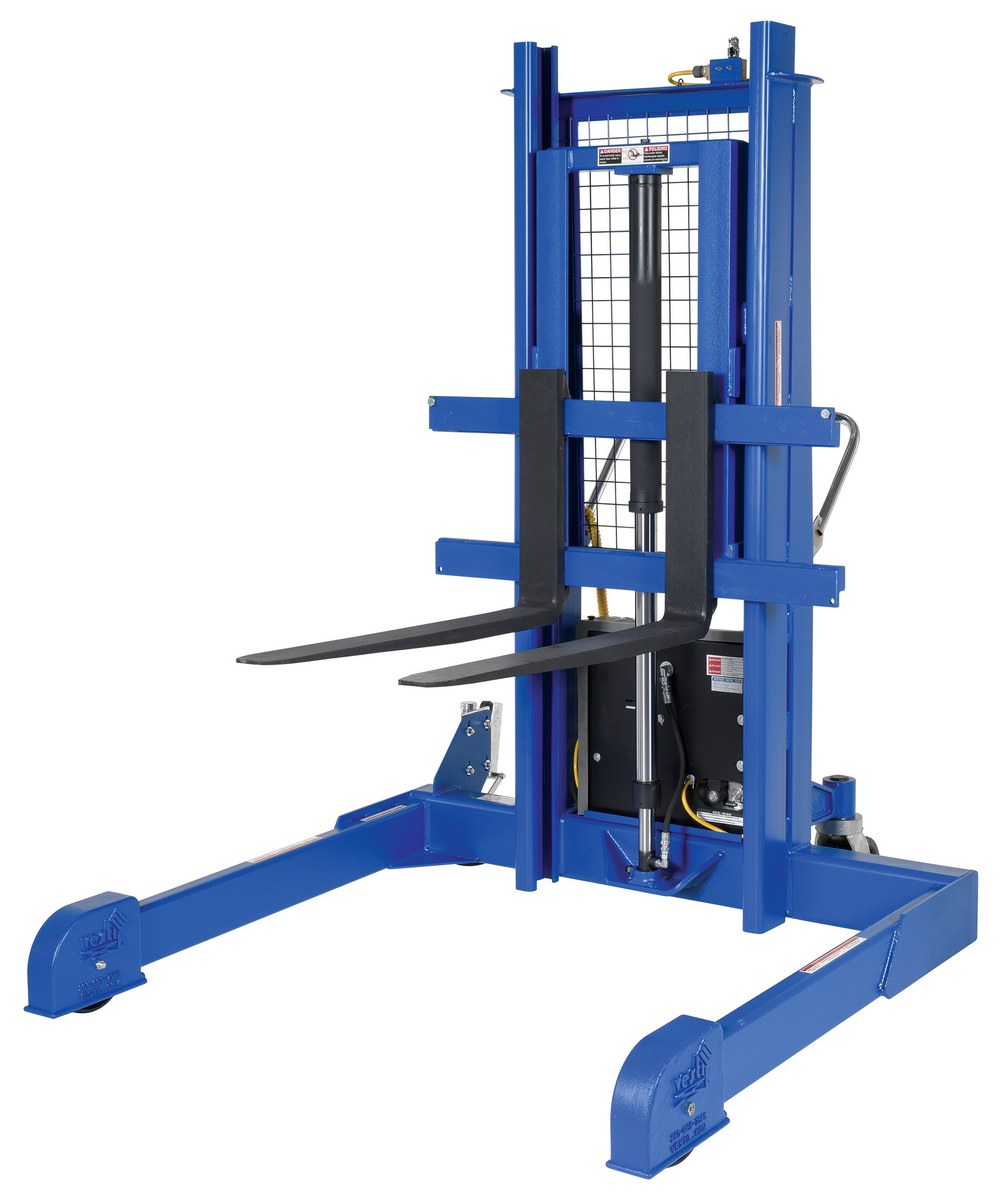

PMPS-50-AC

PMPS-50-AC

PMPS-50-AC

PMPS-50-AC

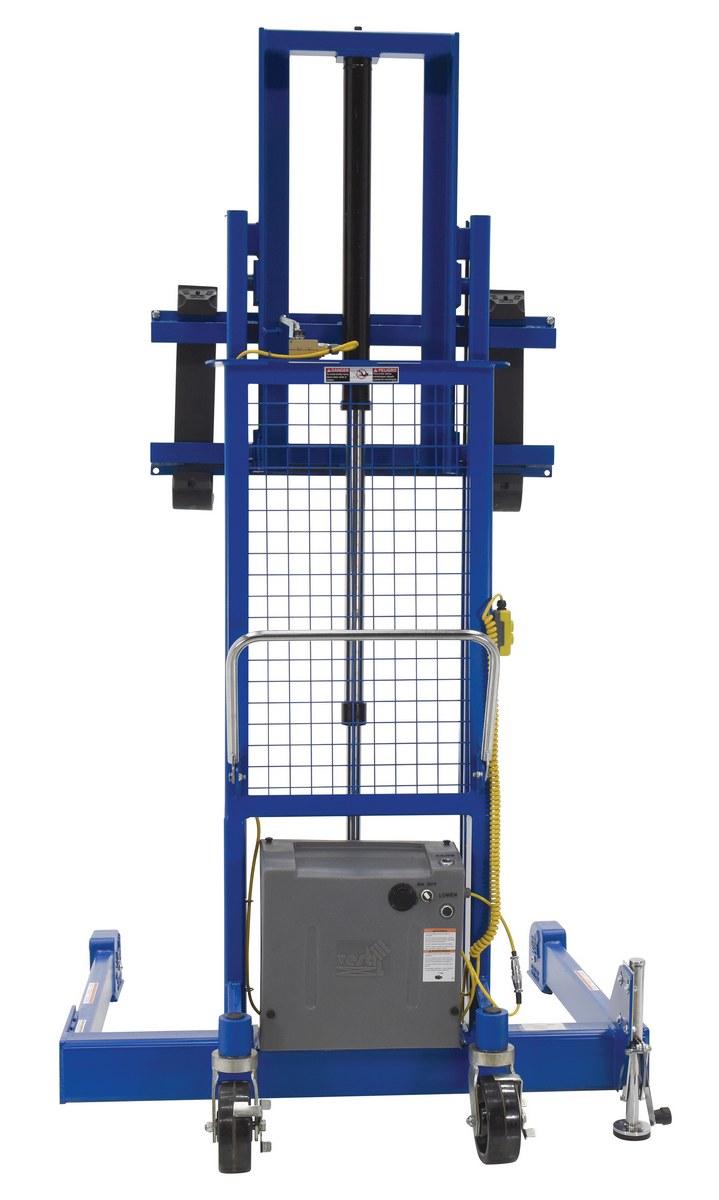

PMPS-60-DC

PMPS-60-DC

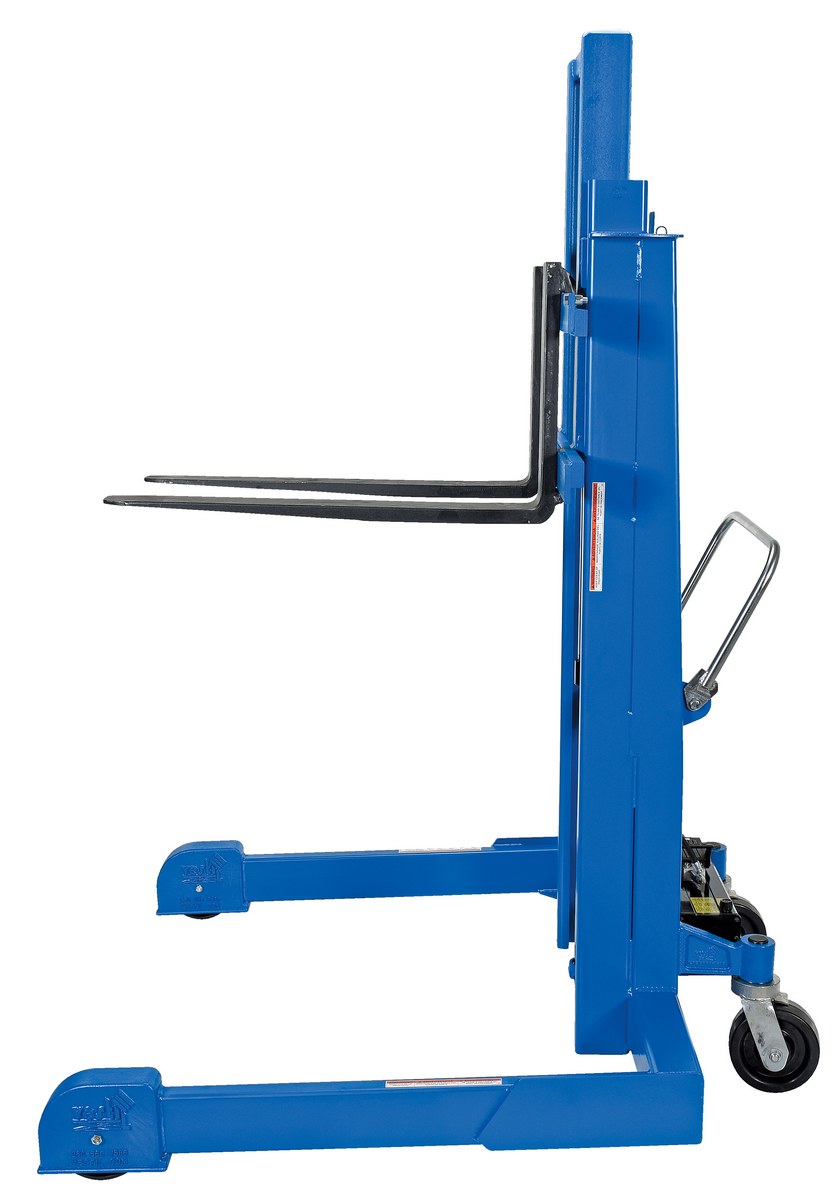

PMPS-50-AIR

PMPS-50-AIR

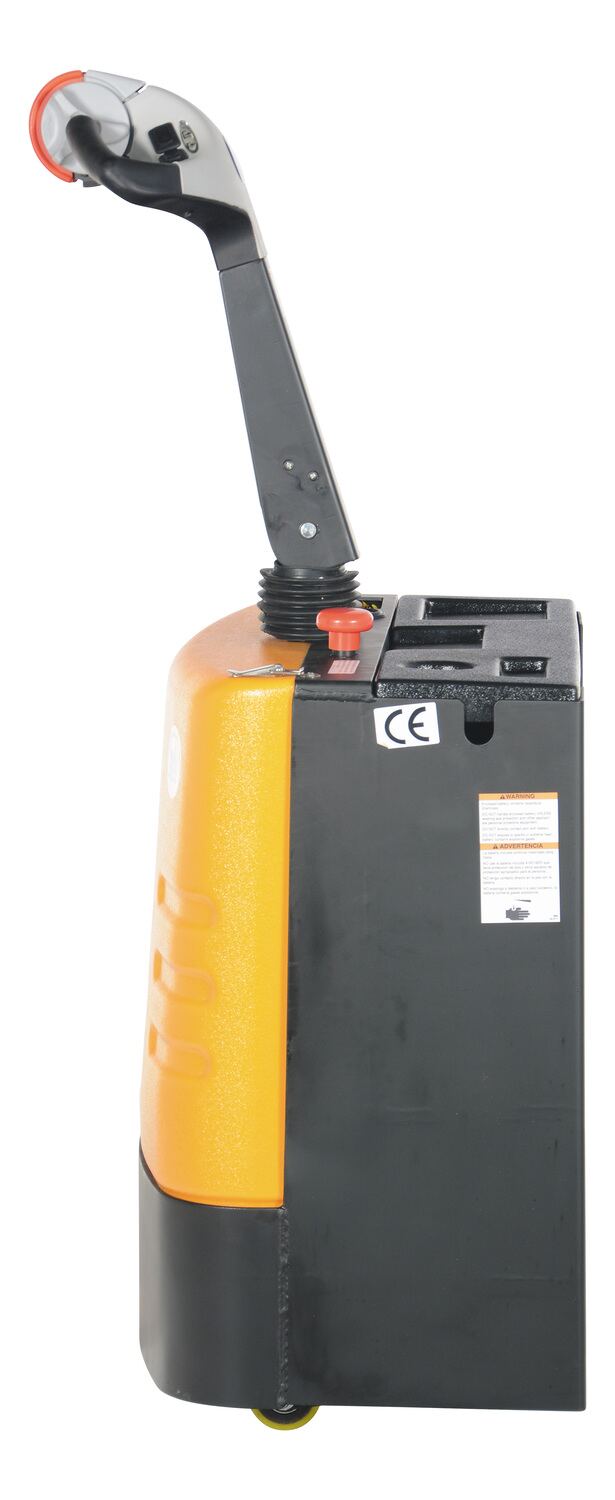

PMPS-PTDS-E

PMPS-PTDS-E

PMPS-60-AIR

PMPS-60-AIR

PMPS-PTDS-E

PMPS-PTDS-E

PMPS-PTDS-E

PMPS-PTDS-E

PMPS-50-AIR

PMPS-50-AIR

LL-PMPS-72-DC

LL-PMPS-72-DC

LL-PMPS-60-DC

LL-PMPS-60-DC

LL-PMPS-72-AC

LL-PMPS-72-AC

PMPS-PTDS-E

PMPS-PTDS-E

PMPS-50-AC

PMPS-50-AC

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
LL-PMPS-50-AC
LL-PMPS-50-AC1 Year Limited WarrantySteel Pallet Master/Server AC Powered 50 In. Raised Height 1200 Lb. Capacity BlueUniform Capacity (lb.): 1200
Operation: 115V/Phase 1 AC		860
LL-PMPS-50-AIR
LL-PMPS-50-AIR1 Year Limited WarrantySteel Pallet Master/Server Reciprocating Air/Oil Powered 50 In. Raised Height 1200 Lb. Capacity BlueUniform Capacity (lb.): 1200
Operation: Reciprocating Air/Oil		860
LL-PMPS-50-DC LL-PMPS-50-DC1 Year Limited WarrantySteel Pallet Master/Server DC Powered 50 In. Raised Height 1200 Lb. Capacity BlueUniform Capacity (lb.): 1200
Operation: (1) 12V DC		836
LL-PMPS-60-AC
LL-PMPS-60-AC1 Year Limited WarrantySteel Pallet Master/Server AC Powered 60 In. Raised Height 1200 Lb. Capacity BlueUniform Capacity (lb.): 1200
Operation: 115V/Phase 1 AC		886
LL-PMPS-60-AIR
LL-PMPS-60-AIR1 Year Limited WarrantySteel Pallet Master/Server Reciprocating Air/Oil Powered 60 In. Raised Height 1200 Lb. Capacity BlueUniform Capacity (lb.): 1200
Operation: Reciprocating Air/Oil		875
LL-PMPS-60-DC LL-PMPS-60-DC1 Year Limited WarrantySteel Pallet Master/Server DC Powered 60 In. Raised Height 1200 Lb. Capacity BlueUniform Capacity (lb.): 1200
Operation: (1) 12V DC		852
LL-PMPS-72-AC
LL-PMPS-72-AC1 Year Limited WarrantySteel Pallet Master/Server AC Powered 72 In. Raised Height 1200 Lb. Capacity BlueUniform Capacity (lb.): 1200
Operation: 115V/Phase 1 AC		910
LL-PMPS-72-AIR
LL-PMPS-72-AIR1 Year Limited WarrantySteel Pallet Master/Server Reciprocating Air/Oil Powered 72 In. Raised Height 1200 Lb. Capacity BlueUniform Capacity (lb.): 1200
Operation: Reciprocating Air/Oil		910
LL-PMPS-72-DC LL-PMPS-72-DC1 Year Limited WarrantySteel Pallet Master/Server DC Powered 72 In. Raised Height 1200 Lb. Capacity BlueUniform Capacity (lb.): 1200
Operation: (1) 12V DC		1048
PMPS-50-AC
PMPS-50-AC1 Year Limited WarrantySteel Pallet Master/Server Stacker 115 Volt AC Powered 50 In. Raised Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Operation: 115V AC		1055
PMPS-50-AIR
PMPS-50-AIR1 Year Limited WarrantySteel Pallet Master/Server Stacker Reciprocating Air/Oil Powered 50 In. Raised Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Operation: Reciprocating Air/Oil		962

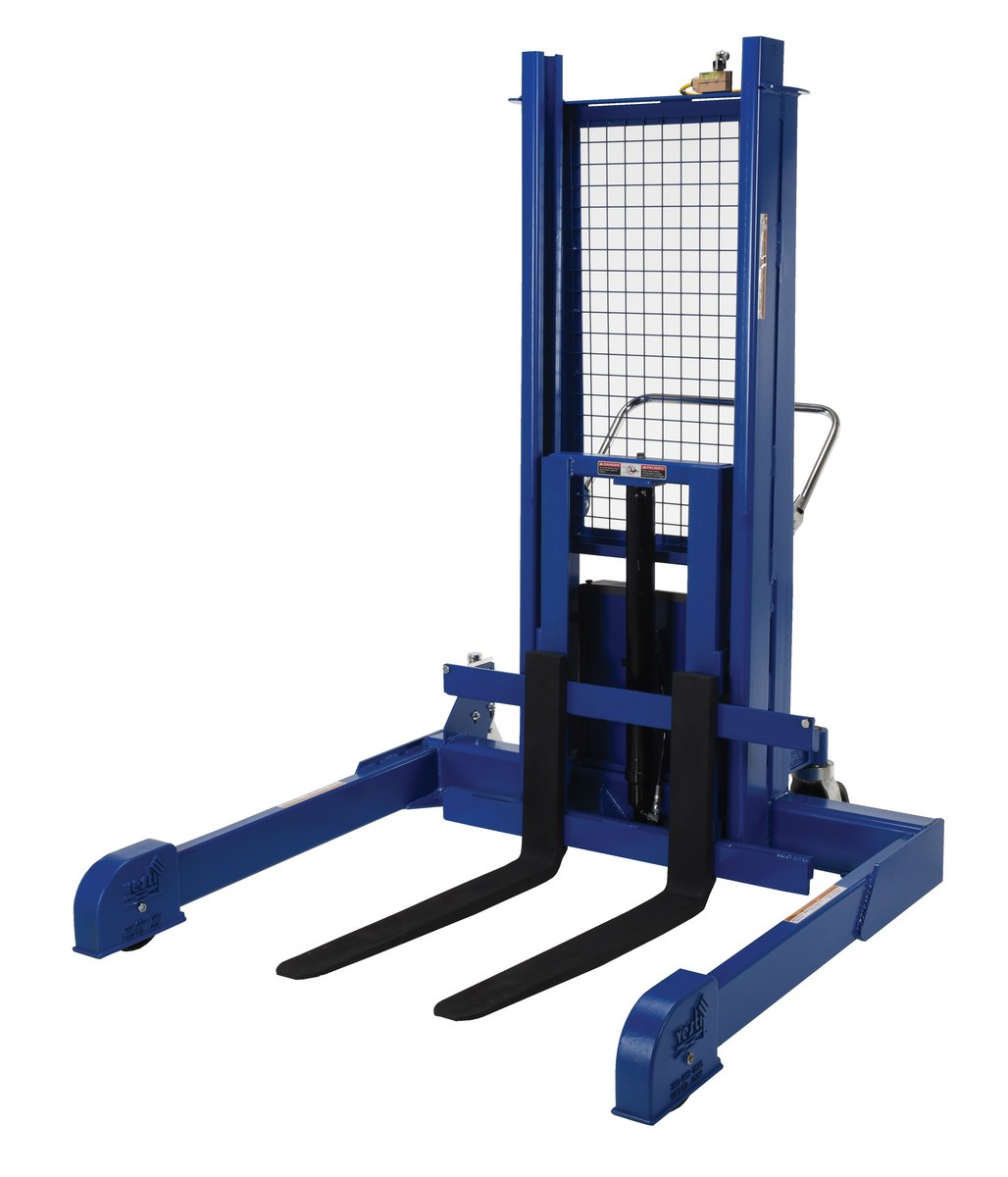

PMPS-50-DC PMPS-50-DC1 Year Limited WarrantySteel Pallet Master/Server Stacker 12 Volt DC Powered 50 In. Raised Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Operation: (1) 12V DC		1173
PMPS-60-AC
PMPS-60-AC1 Year Limited WarrantySteel Pallet Master/Server Stacker 115 Volt AC Powered 60 In. Raised Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Operation: 115V AC		1065
PMPS-60-AIR
PMPS-60-AIR1 Year Limited WarrantySteel Pallet Master/Server Stacker Reciprocating Air/Oil Powered 60 In. Raised Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Operation: Reciprocating Air/Oil		1029

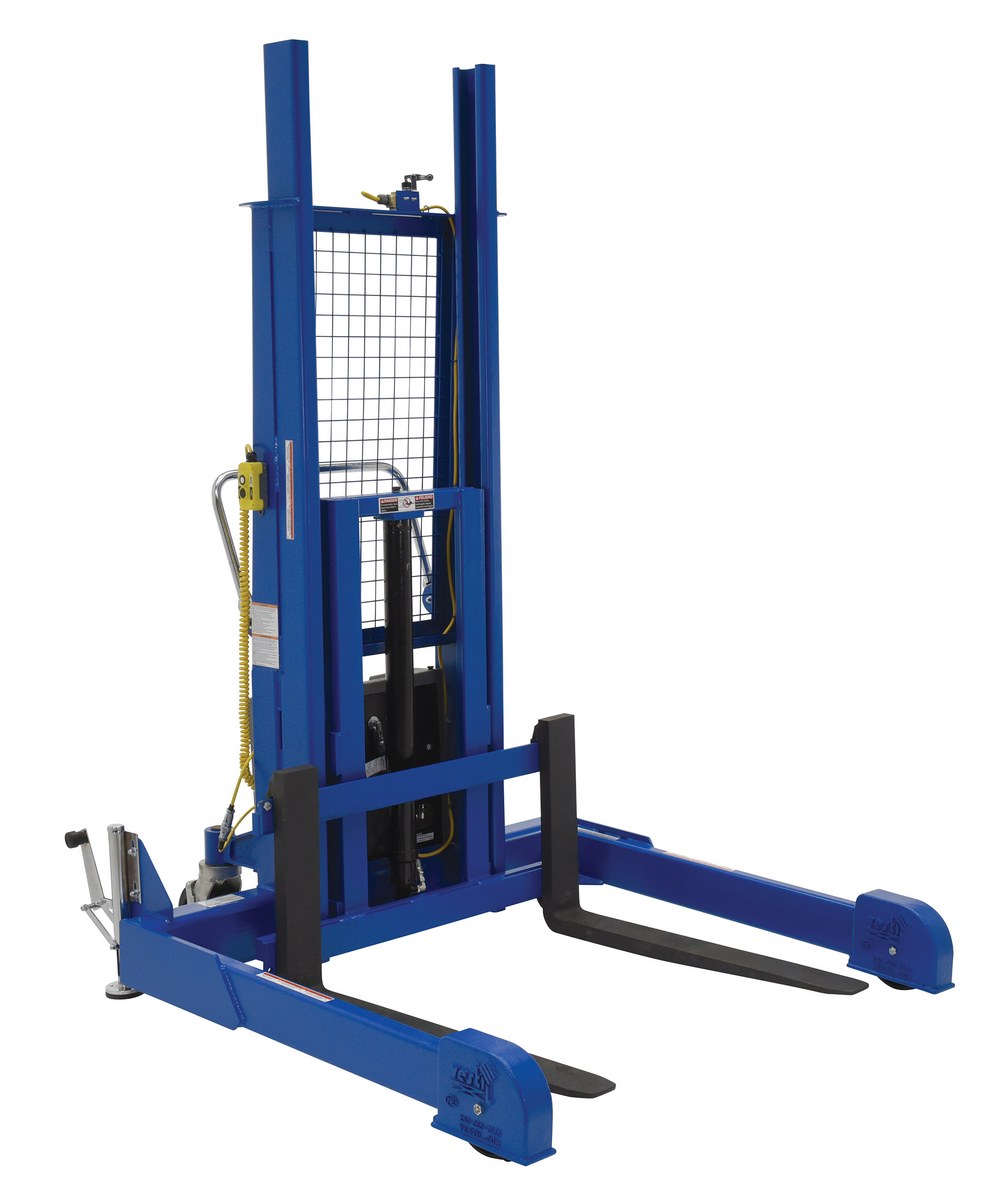

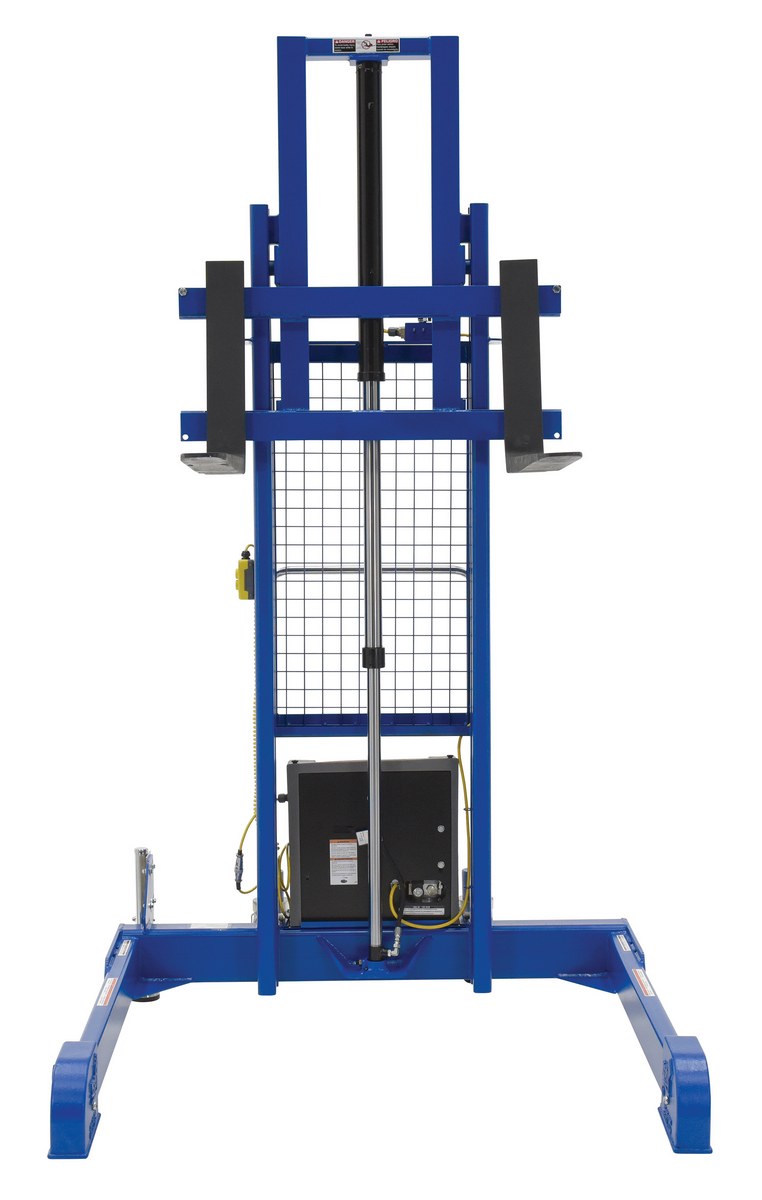

PMPS-60-DC PMPS-60-DC1 Year Limited WarrantySteel Pallet Master/Server Stacker 12 Volt DC Powered 60 In. Raised Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Operation: (1) 12V DC		1060

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

LL-PMPS-50-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1200
Operation: 115V/Phase 1 AC
Uniform Capacity (lb.): 1200
Operation: 115V/Phase 1 AC

LL-PMPS-50-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1200
Operation: Reciprocating Air/Oil
Uniform Capacity (lb.): 1200
Operation: Reciprocating Air/Oil

LL-PMPS-50-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1200
Operation: (1) 12V DC
Uniform Capacity (lb.): 1200
Operation: (1) 12V DC

LL-PMPS-60-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1200
Operation: 115V/Phase 1 AC
Uniform Capacity (lb.): 1200
Operation: 115V/Phase 1 AC

LL-PMPS-60-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1200
Operation: Reciprocating Air/Oil
Uniform Capacity (lb.): 1200
Operation: Reciprocating Air/Oil

LL-PMPS-60-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1200
Operation: (1) 12V DC
Uniform Capacity (lb.): 1200
Operation: (1) 12V DC

LL-PMPS-72-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1200
Operation: 115V/Phase 1 AC
Uniform Capacity (lb.): 1200
Operation: 115V/Phase 1 AC

LL-PMPS-72-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1200
Operation: Reciprocating Air/Oil
Uniform Capacity (lb.): 1200
Operation: Reciprocating Air/Oil

LL-PMPS-72-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1200
Operation: (1) 12V DC
Uniform Capacity (lb.): 1200
Operation: (1) 12V DC

PMPS-50-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Operation: 115V AC
Uniform Capacity (lb.): 4000
Operation: 115V AC

PMPS-50-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Operation: Reciprocating Air/Oil
Uniform Capacity (lb.): 4000
Operation: Reciprocating Air/Oil

PMPS-50-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Operation: (1) 12V DC
Uniform Capacity (lb.): 4000
Operation: (1) 12V DC

PMPS-60-AC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Operation: 115V AC
Uniform Capacity (lb.): 4000
Operation: 115V AC

PMPS-60-AIR
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Operation: Reciprocating Air/Oil
Uniform Capacity (lb.): 4000
Operation: Reciprocating Air/Oil

PMPS-60-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Operation: (1) 12V DC
Uniform Capacity (lb.): 4000
Operation: (1) 12V DC
For More Details of the Option Click the Red Model Button
PMPS-48FORK 90 Days Limited WarrantySteel 48 In. Length Forks For PMPS Models BlackUniform Capacity at 24 In. Load Center (lb.): 3200
Sizes: Based on Customer Use (Heavy, Medium, Light)		200
PMPS-DCR 1 Year Limited WarrantyFactory Installed Steel Drum Carrier/Rotator 800 Lb. Capacity For Pallet Master/Server Stacker UnitsSize: Fabricated to Fit Unit
Uniform Capacity (lb.): 800		239
PMPS-PTDS-E PMPS-PTDS-E1 Year Limited WarrantyFactory Installed Power Traction Drive System For Pallet Master/Server Stacker Units Black / YellowMaximum Speed (mph.): 2.5
Power: 24V DC		517

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Pallet Master/Servers PDF's will open in a new window when clicked.

Manuals


PMPS
Owners Manual

LL-PMPS
Owners Manual

AUTOSHIFTER
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


LL-PMPS-50-AC

LL-PMPS-50-AIR

LL-PMPS-50-DC

LL-PMPS-60-AC

LL-PMPS-60-AIR

LL-PMPS-60-DC

LL-PMPS-72-AC

LL-PMPS-72-AIR

LL-PMPS-72-DC

PMPS-50-AC

PMPS-50-AIR

PMPS-50-DC

PMPS-60-AC

PMPS-60-AIR

PMPS-60-DC

Testing Certificates


LL-PMPS-50-AC

LL-PMPS-50-AIR

LL-PMPS-50-DC

LL-PMPS-60-AC

LL-PMPS-60-AIR

LL-PMPS-60-DC

LL-PMPS-72-AC

LL-PMPS-72-AIR

LL-PMPS-72-DC

PMPS-48FORK

PMPS-50-AC

PMPS-50-AIR

PMPS-50-DC

PMPS-60-AC

PMPS-60-AIR

PMPS-60-DC

PMPS-DCR

PMPS-PTDS-E

SDS Sheets

Hydraulic Oil SDS Sheet for: LL-PMPS-50-AC
Hydraulic Oil SDS Sheet for: LL-PMPS-50-AIR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: LL-PMPS-50-DC
Hydraulic Oil SDS Sheet for: LL-PMPS-50-DC
Hydraulic Oil SDS Sheet for: LL-PMPS-60-AC
Hydraulic Oil SDS Sheet for: LL-PMPS-60-AIR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: LL-PMPS-60-DC
Hydraulic Oil SDS Sheet for: LL-PMPS-60-DC
Hydraulic Oil SDS Sheet for: LL-PMPS-72-AC
Hydraulic Oil SDS Sheet for: LL-PMPS-72-AIR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: LL-PMPS-72-DC
Hydraulic Oil SDS Sheet for: LL-PMPS-72-DC
Hydraulic Oil SDS Sheet for: PMPS-50-AC
Hydraulic Oil SDS Sheet for: PMPS-50-AIR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PMPS-50-DC
Hydraulic Oil SDS Sheet for: PMPS-50-DC
Hydraulic Oil SDS Sheet for: PMPS-60-AC
Hydraulic Oil SDS Sheet for: PMPS-60-AIR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PMPS-60-DC
Hydraulic Oil SDS Sheet for: PMPS-60-DC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: PMPS-PTDS-E
Hydraulic Oil SDS Sheet for: PMPS-PTDS-E

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Counter-Balanced Pallet Master/Servers
Product

Counter-Balanced Pallet Master/Servers

Counter-Balanced Stackers
Product

Counter-Balanced Stackers

Manual & Electric Stackers
Product

Manual & Electric Stackers

Combination Hand Pump and Electric Stackers
Product

Combination Hand Pump and Electric Stackers

Narrow Mast Stackers with Powered Lift
Product

Narrow Mast Stackers with Powered Lift

Electric Stackers (Pramac)
Product

Electric Stackers (Pramac)

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Pallet Master/Servers




The Pallet Master/Servers, are designed to be used when a fork truck is not available. The Pallet Master/Servers can handle pallets and skids both with and without an understructure. Capacity rated is at 18" regardless of fork length. The forks are 36" long for handling a wide variety of pallet sizes. Move the unit around easily on 8" x 3" (8" x 2" locking standard on LL-PMPS) phenolic swivel rear casters Floor lock standard on PMPS series. Handle height is 36". Outriggers are adjustable on series LL-PMPS, inside straddle width is adjustable between 34" to 50-1/2".

PTDS-E -- Power Traction Drive option reduce worker fatigue and injury. An alternative to costly fork trucks, the PTDS-E includes combination throttle / direction controller and auto reverse emergency "belly" switch. This state of the art option allows a single operator to safely and easily move products. Maximum speed is 2.5 m.p.h. 24V DC system.

Three Power Options to choose from:

  • Suffix-AC is 115V 1 phase power with a push-button hand control
  • Suffix-DC includes one (1) 12V battery, push-button hand control, an on-board charger and battery charege indicator gauge.
  • Suffix-AIR feautres reciprocating air/oil power with a heel/toe foot treadle control/

Model # Description Attributes Net Wt.
(lbs)
LL-PMPS-50-AC LL-PMPS-50-ACSteel Pallet Master/Server AC Powered 50 In. Raised Height 1200 Lb. Capacity BlueUniform Capacity (lb.): 1200
Operation: 115V/Phase 1 AC		860
LL-PMPS-50-AIR LL-PMPS-50-AIRSteel Pallet Master/Server Reciprocating Air/Oil Powered 50 In. Raised Height 1200 Lb. Capacity BlueUniform Capacity (lb.): 1200
Operation: Reciprocating Air/Oil		860
LL-PMPS-50-DC LL-PMPS-50-DCSteel Pallet Master/Server DC Powered 50 In. Raised Height 1200 Lb. Capacity BlueUniform Capacity (lb.): 1200
Operation: (1) 12V DC		836
LL-PMPS-60-AC LL-PMPS-60-ACSteel Pallet Master/Server AC Powered 60 In. Raised Height 1200 Lb. Capacity BlueUniform Capacity (lb.): 1200
Operation: 115V/Phase 1 AC		886
LL-PMPS-60-AIR LL-PMPS-60-AIRSteel Pallet Master/Server Reciprocating Air/Oil Powered 60 In. Raised Height 1200 Lb. Capacity BlueUniform Capacity (lb.): 1200
Operation: Reciprocating Air/Oil		875
LL-PMPS-60-DC LL-PMPS-60-DCSteel Pallet Master/Server DC Powered 60 In. Raised Height 1200 Lb. Capacity BlueUniform Capacity (lb.): 1200
Operation: (1) 12V DC		852
LL-PMPS-72-AC LL-PMPS-72-ACSteel Pallet Master/Server AC Powered 72 In. Raised Height 1200 Lb. Capacity BlueUniform Capacity (lb.): 1200
Operation: 115V/Phase 1 AC		910
LL-PMPS-72-AIR LL-PMPS-72-AIRSteel Pallet Master/Server Reciprocating Air/Oil Powered 72 In. Raised Height 1200 Lb. Capacity BlueUniform Capacity (lb.): 1200
Operation: Reciprocating Air/Oil		910
LL-PMPS-72-DC LL-PMPS-72-DCSteel Pallet Master/Server DC Powered 72 In. Raised Height 1200 Lb. Capacity BlueUniform Capacity (lb.): 1200
Operation: (1) 12V DC		1048

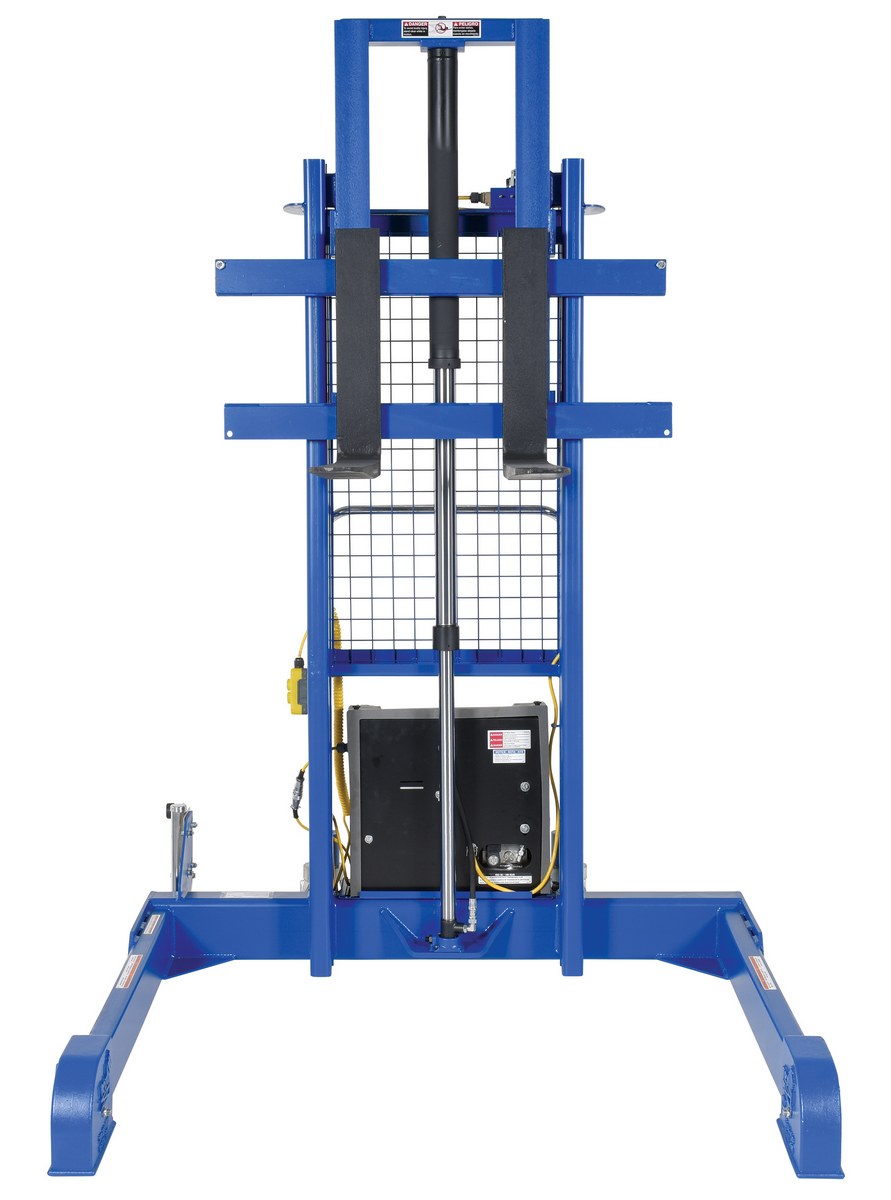

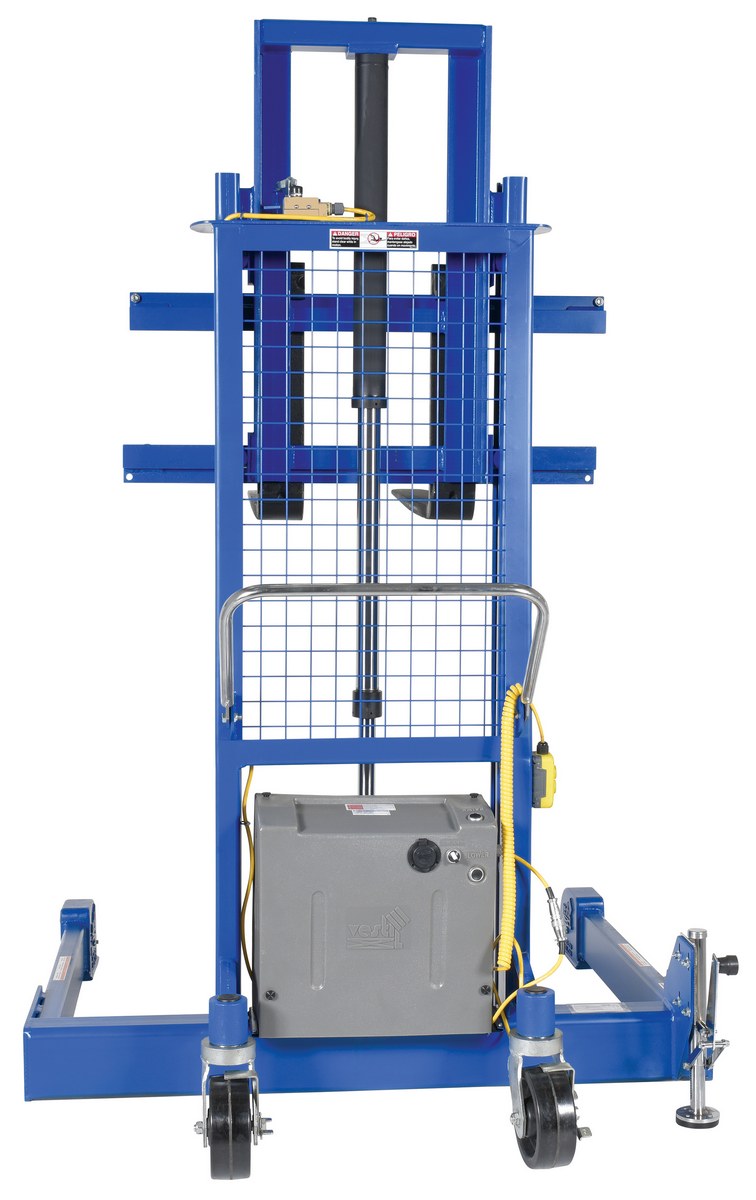

PMPS-50-AC PMPS-50-ACSteel Pallet Master/Server Stacker 115 Volt AC Powered 50 In. Raised Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Operation: 115V AC		1055

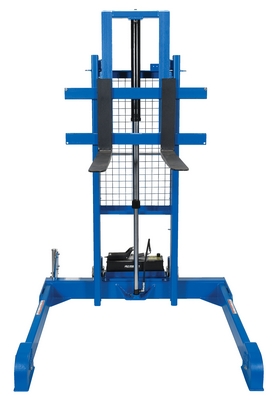

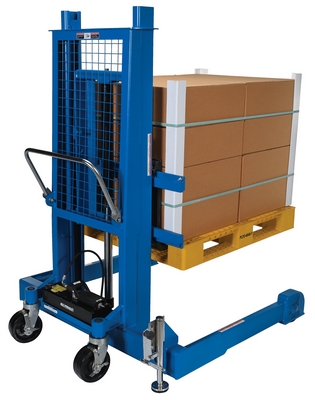

PMPS-50-AIR PMPS-50-AIRSteel Pallet Master/Server Stacker Reciprocating Air/Oil Powered 50 In. Raised Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Operation: Reciprocating Air/Oil		962

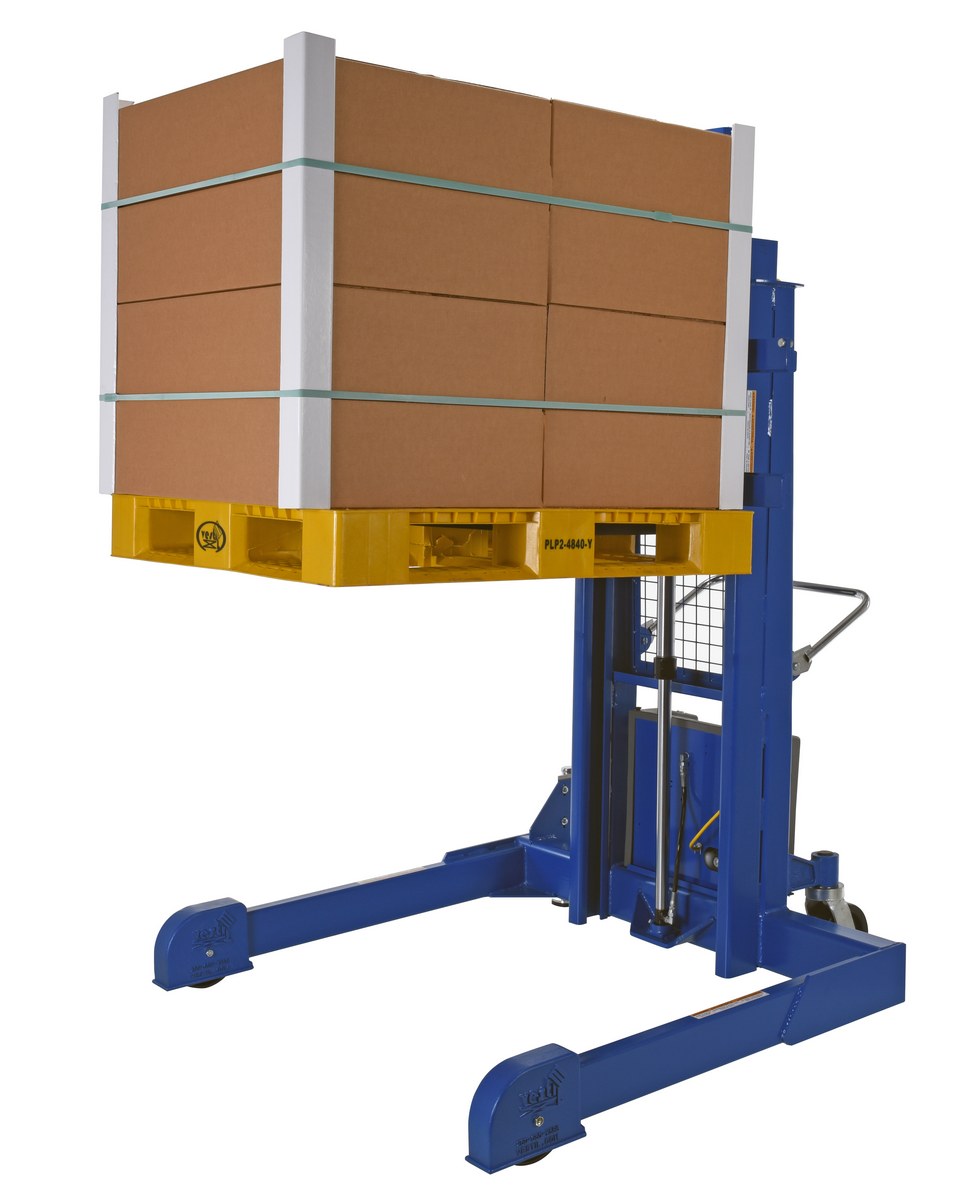

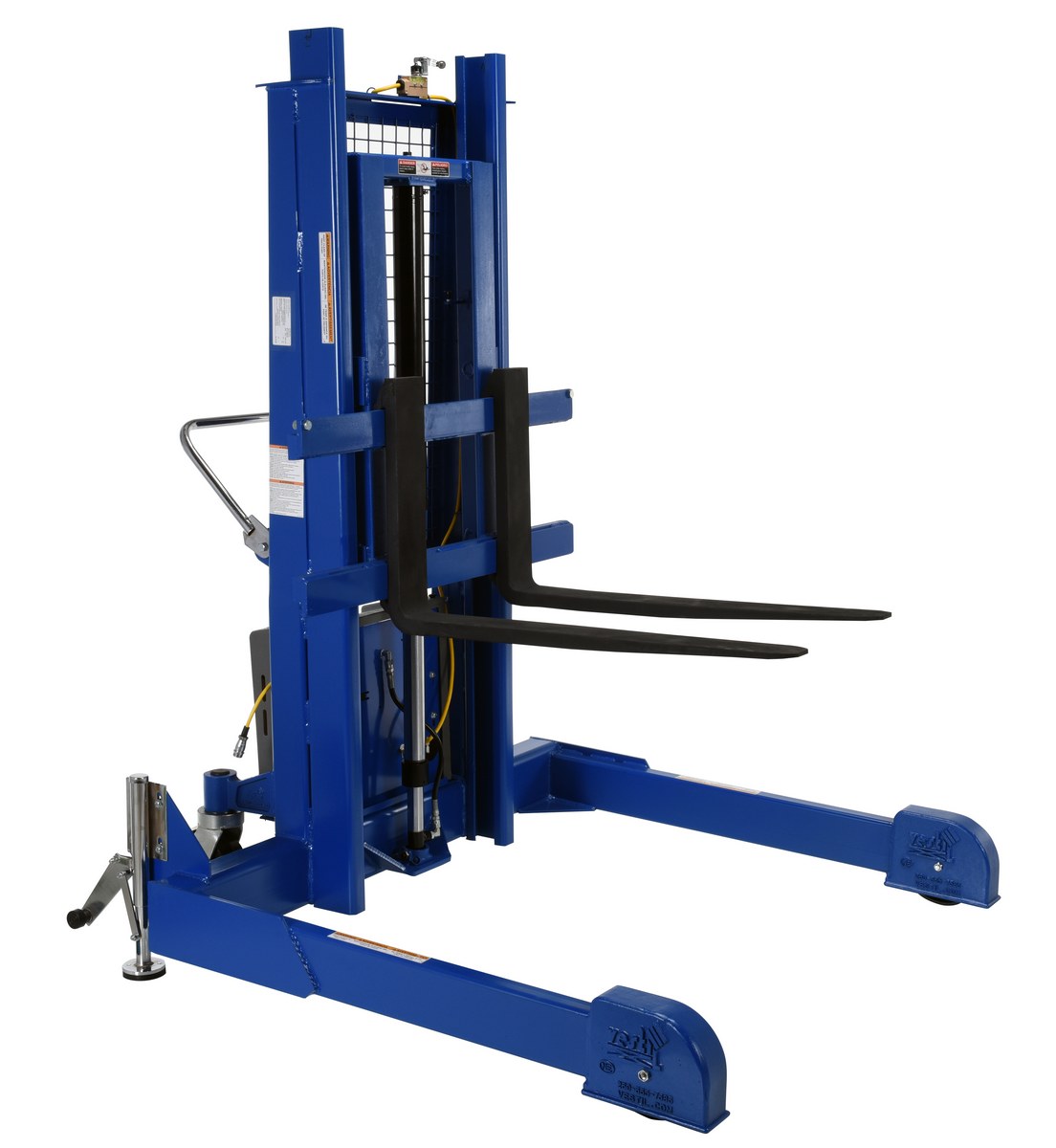

PMPS-50-DC PMPS-50-DCSteel Pallet Master/Server Stacker 12 Volt DC Powered 50 In. Raised Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Operation: (1) 12V DC		1173

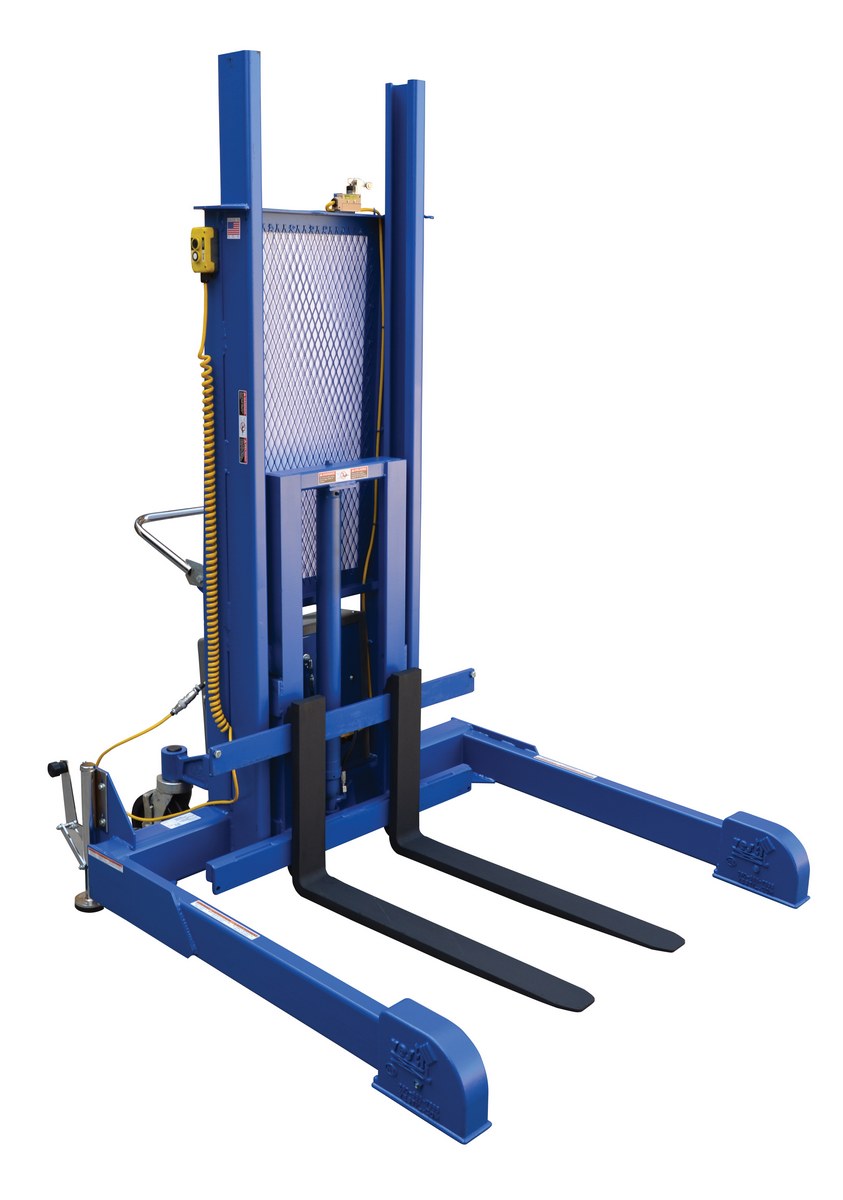

PMPS-60-AC PMPS-60-ACSteel Pallet Master/Server Stacker 115 Volt AC Powered 60 In. Raised Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Operation: 115V AC		1065
PMPS-60-AIR PMPS-60-AIRSteel Pallet Master/Server Stacker Reciprocating Air/Oil Powered 60 In. Raised Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Operation: Reciprocating Air/Oil		1029
PMPS-60-DC PMPS-60-DCSteel Pallet Master/Server Stacker 12 Volt DC Powered 60 In. Raised Height 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Operation: (1) 12V DC		1060

Options


.

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
