Product Family Overview


Stacker with Powered Lift
SERIES: SL

Semi-Electric Stackers with Powered Lift will raise and lower loads quickly and easily. Manual push operation stackers are made using high quality material and parts. All models are easily maneuverable using the standard pulling handle. Stackers are highly efficient and durable. Semi-electric stackers use (1) 12V. Integral battery charger and battery level gauge. Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h. PTDS includes: Combination throttle / direction butterfly style controller, An adjustable steering yoke, An auto reverse emergency "belly switch", (1) 12V battery.


Drum Roll Reel Forks

Semi-Electric Stackers with Powered Lift will raise and lower loads quickly and easily. Manual push operation stackers are made using high quality material and parts. All models are easily maneuverable using the standard pulling handle. Stackers are highly efficient and durable. Semi-electric stackers use (1) 12V. Integral battery charger and battery level gauge. Reduce worker fatigue and injury with the Power Traction Drive System. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. Maximum speed is 2.5 m.p.h. PTDS includes: Combination throttle / direction butterfly style controller, An adjustable steering yoke, An auto reverse emergency "belly switch", (1) 12V battery.


Drum Roll Reel Forks

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

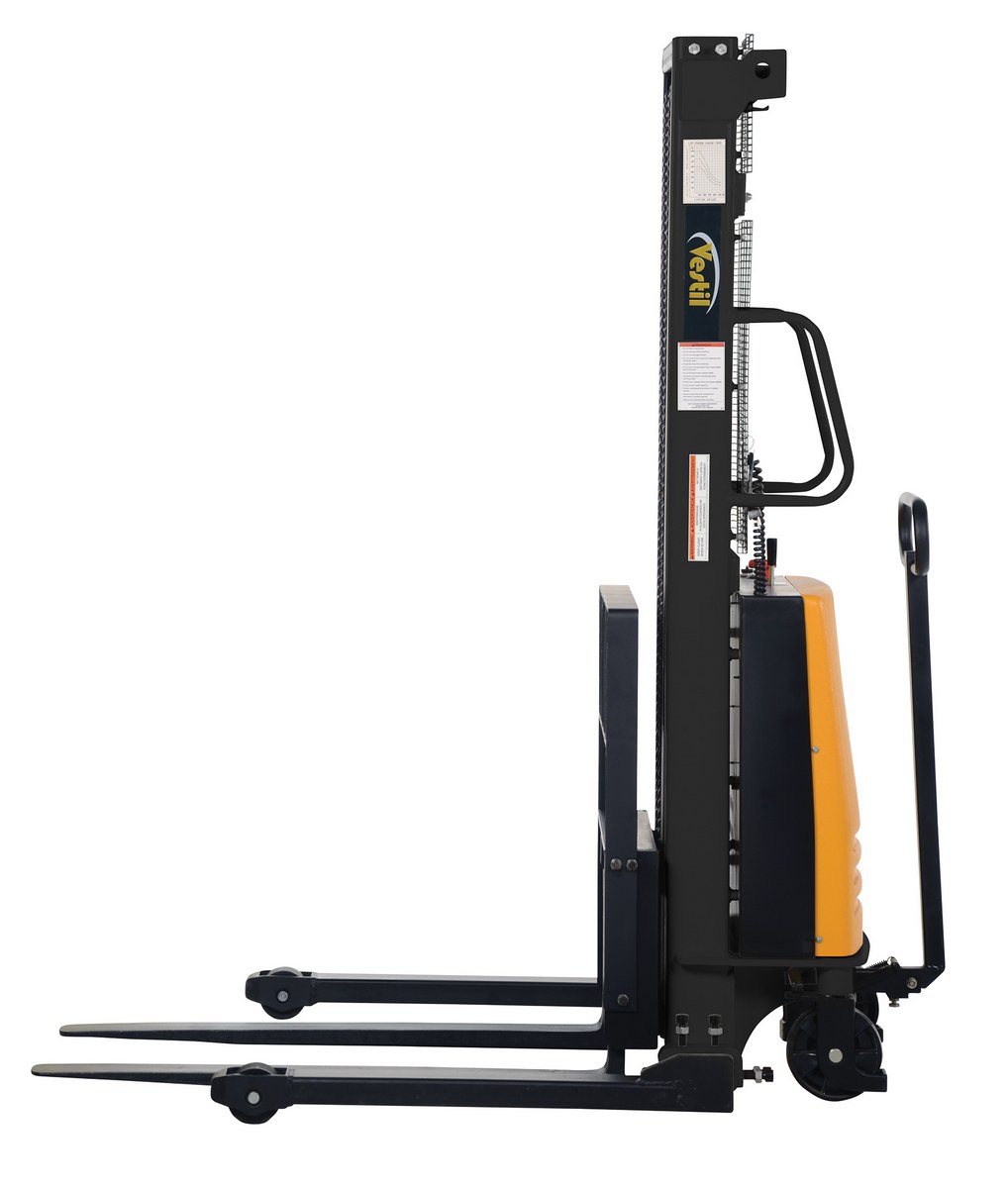

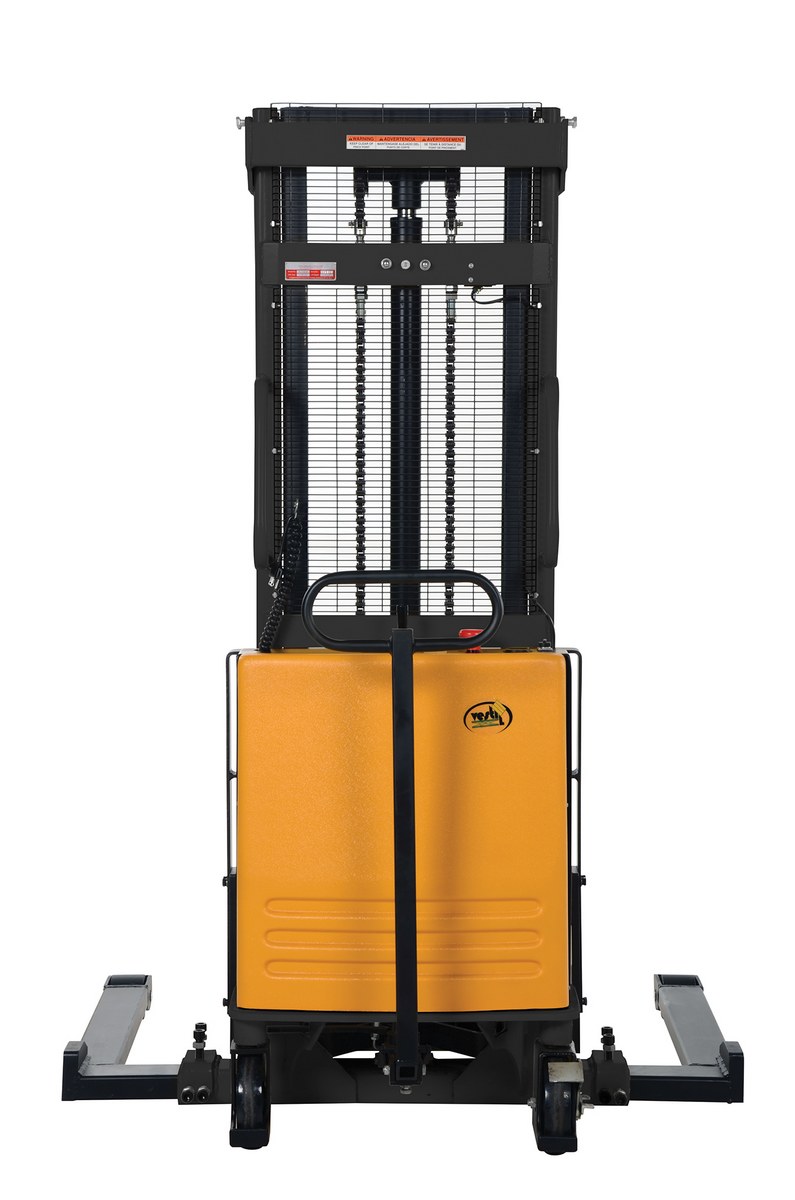

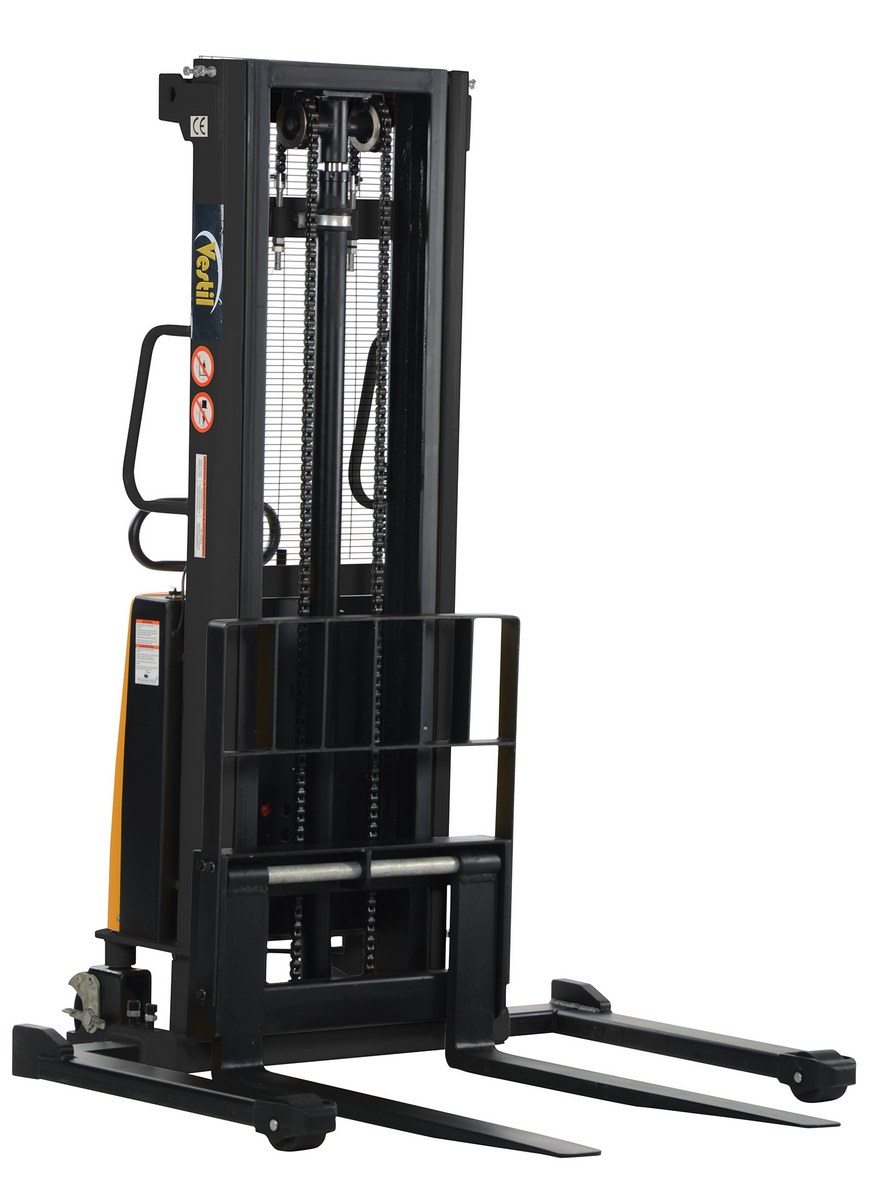

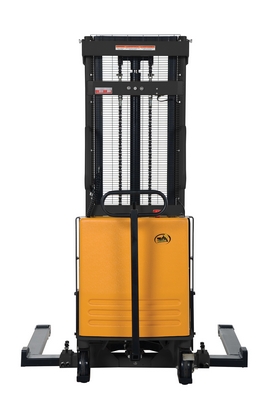

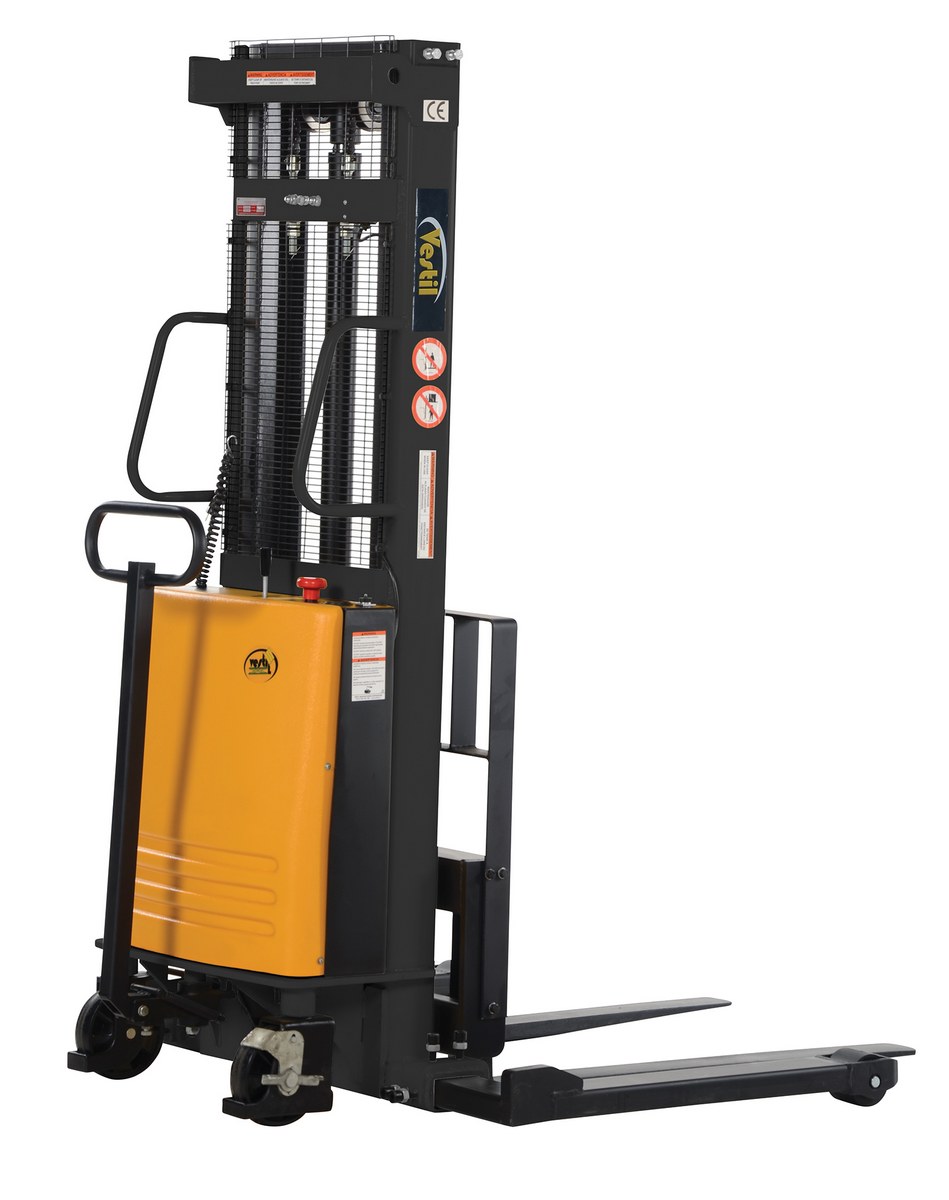

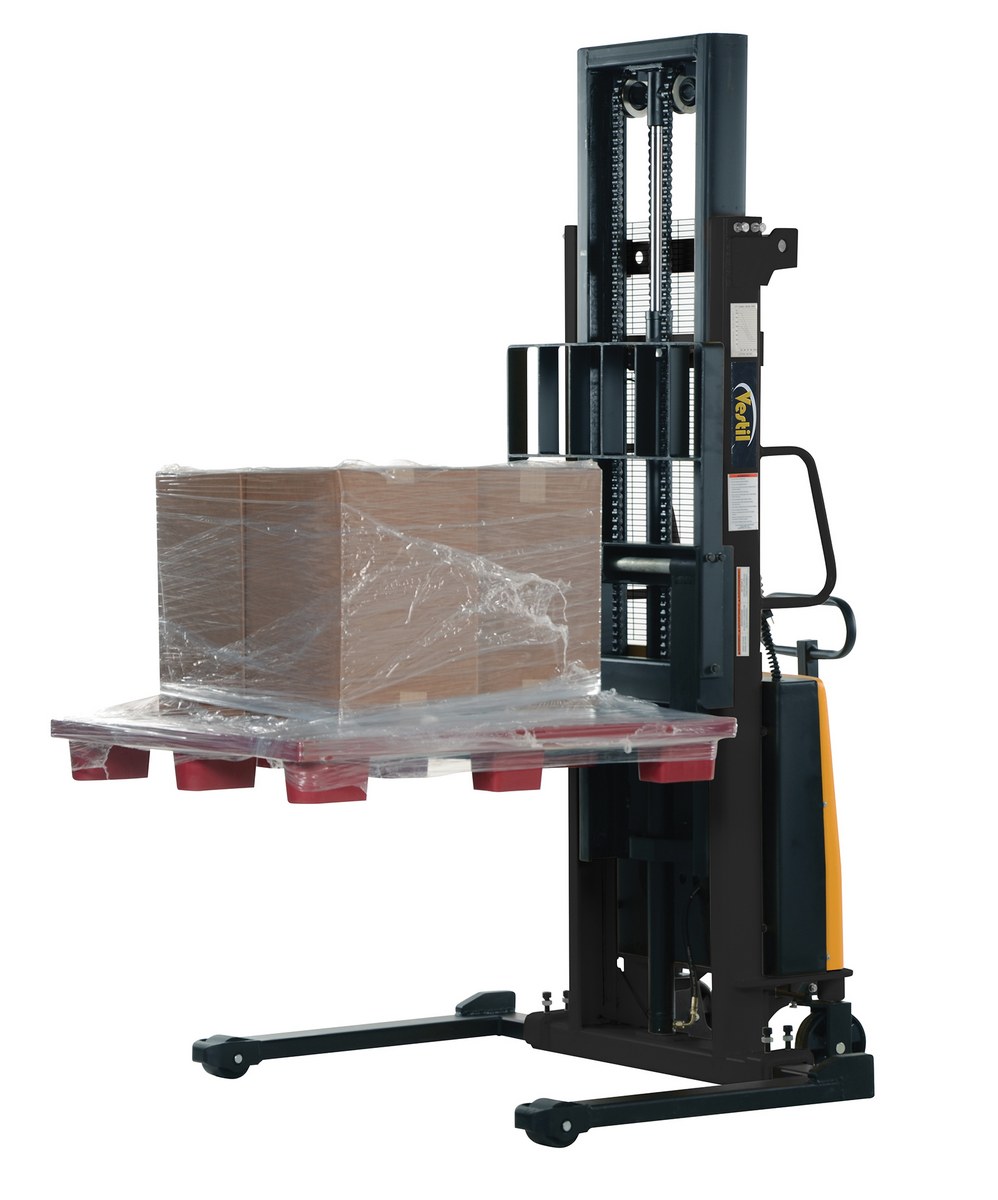

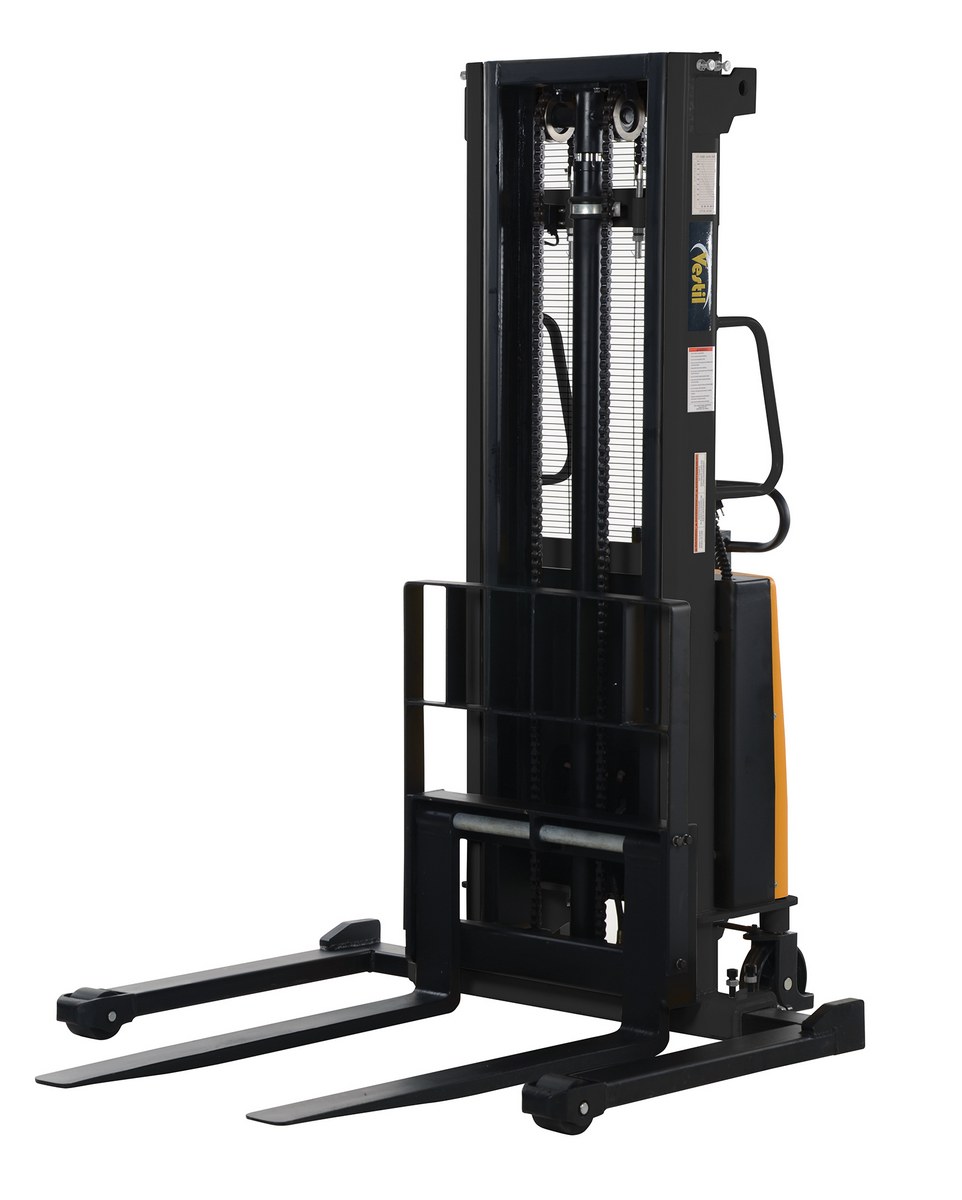

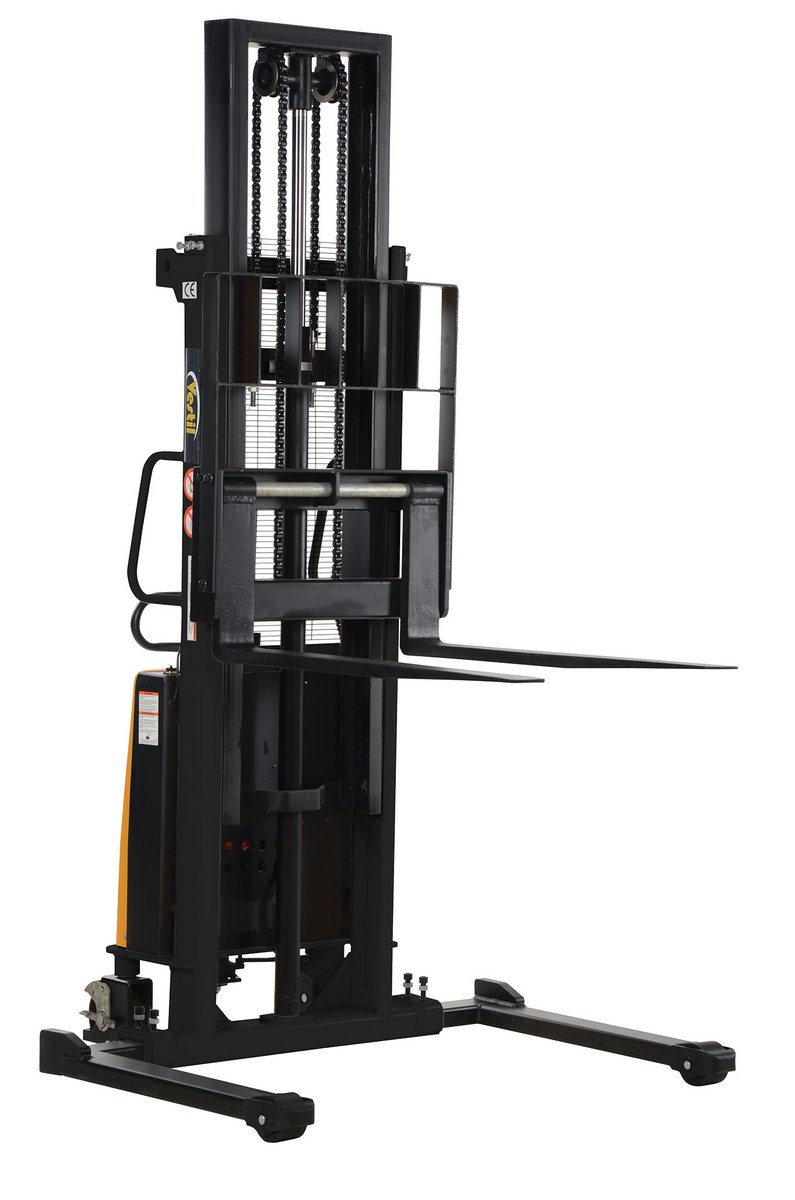

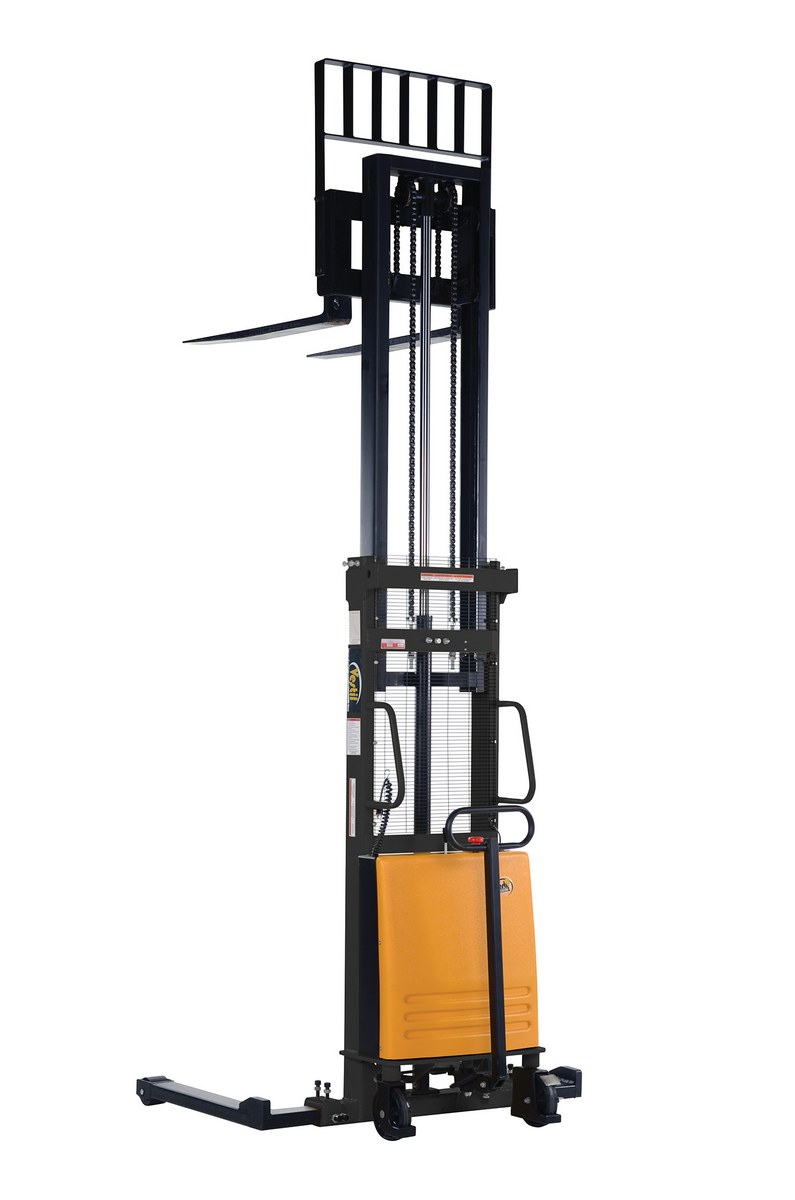

SL-118-AA SL-118-AA1 Year Limited WarrantySteel Adjustable Stacker with Powered Lift 118 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
1130
SL-118-AA-PTDS
SL-118-AA-PTDS90 days Limited WarrantySteel Adjustable Stacker with Power Traction Drive System 118 In. Raised Height 2,000 Lb. Capacity Black / YellowPower Source: Electric - Corded
Weight Capacity (lbs): 2000
1252

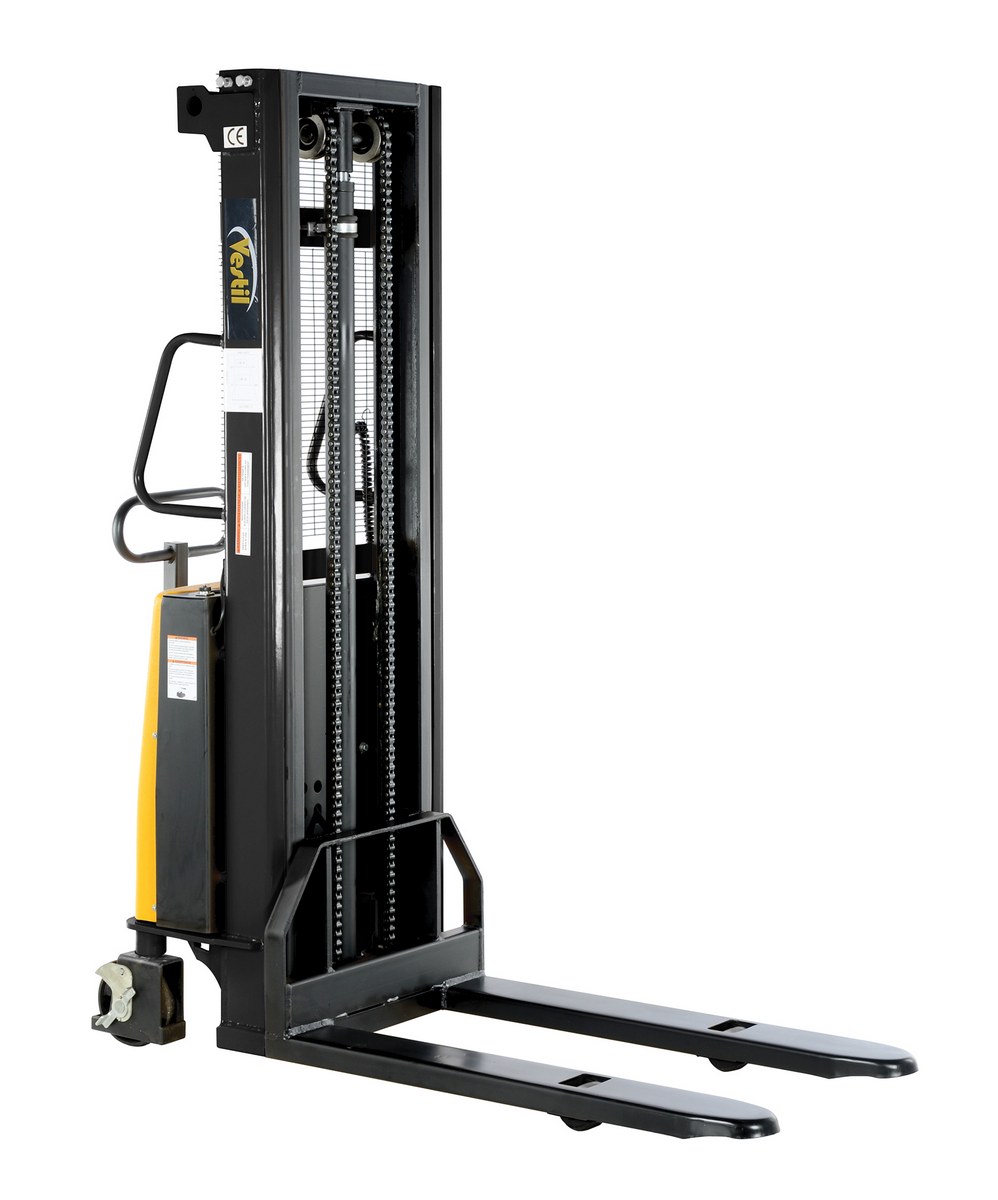

SL-118-FF
SL-118-FF1 Year Limited WarrantySteel Fixed Stacker with Powered Lift 118 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
954

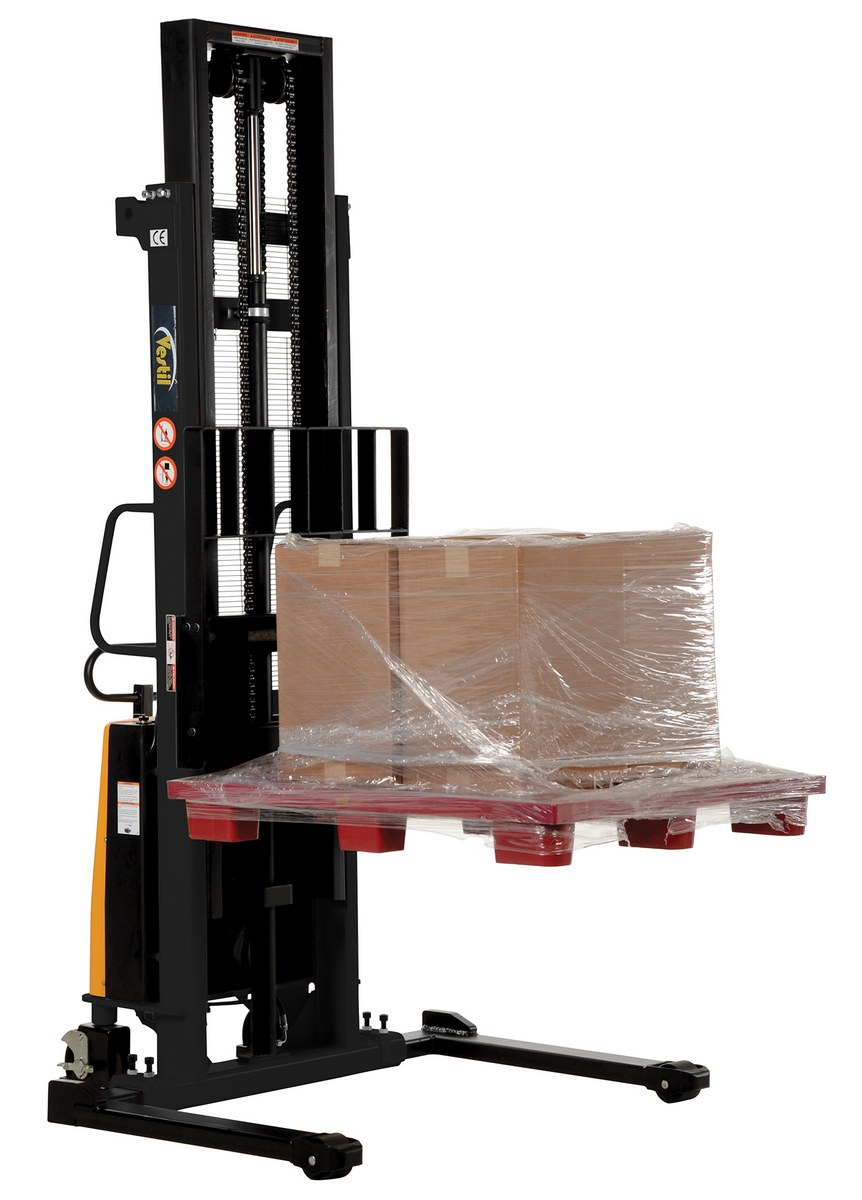

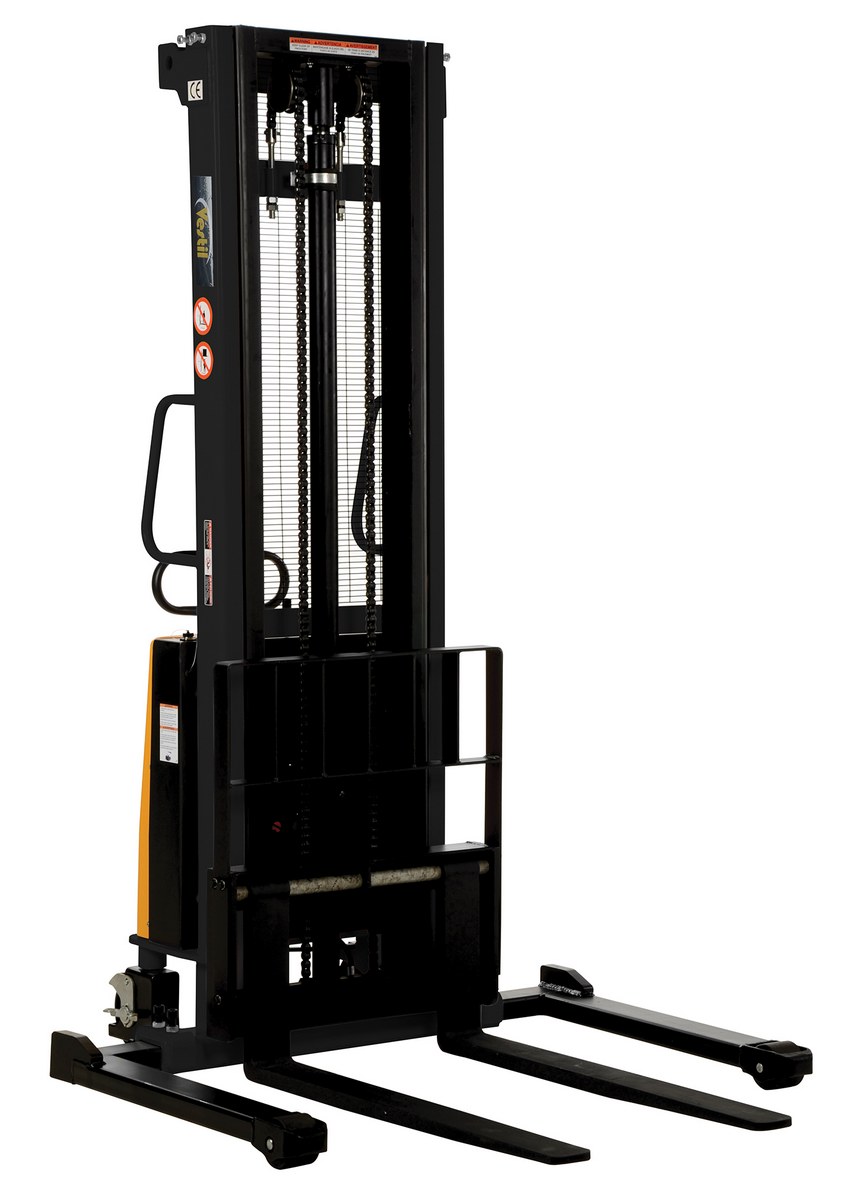

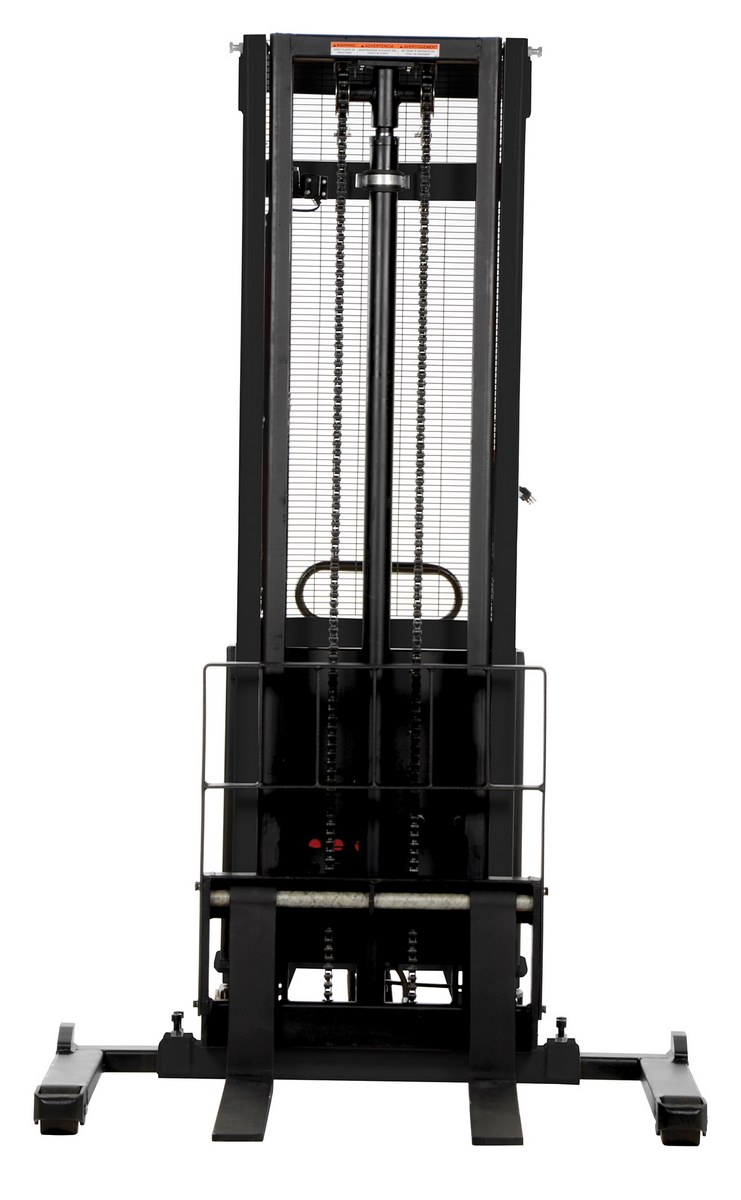

SL-137-AA SL-137-AA1 Year Limited WarrantySteel Adjustable Stacker with Powered Lift 137 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.) at 0-62 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
1182

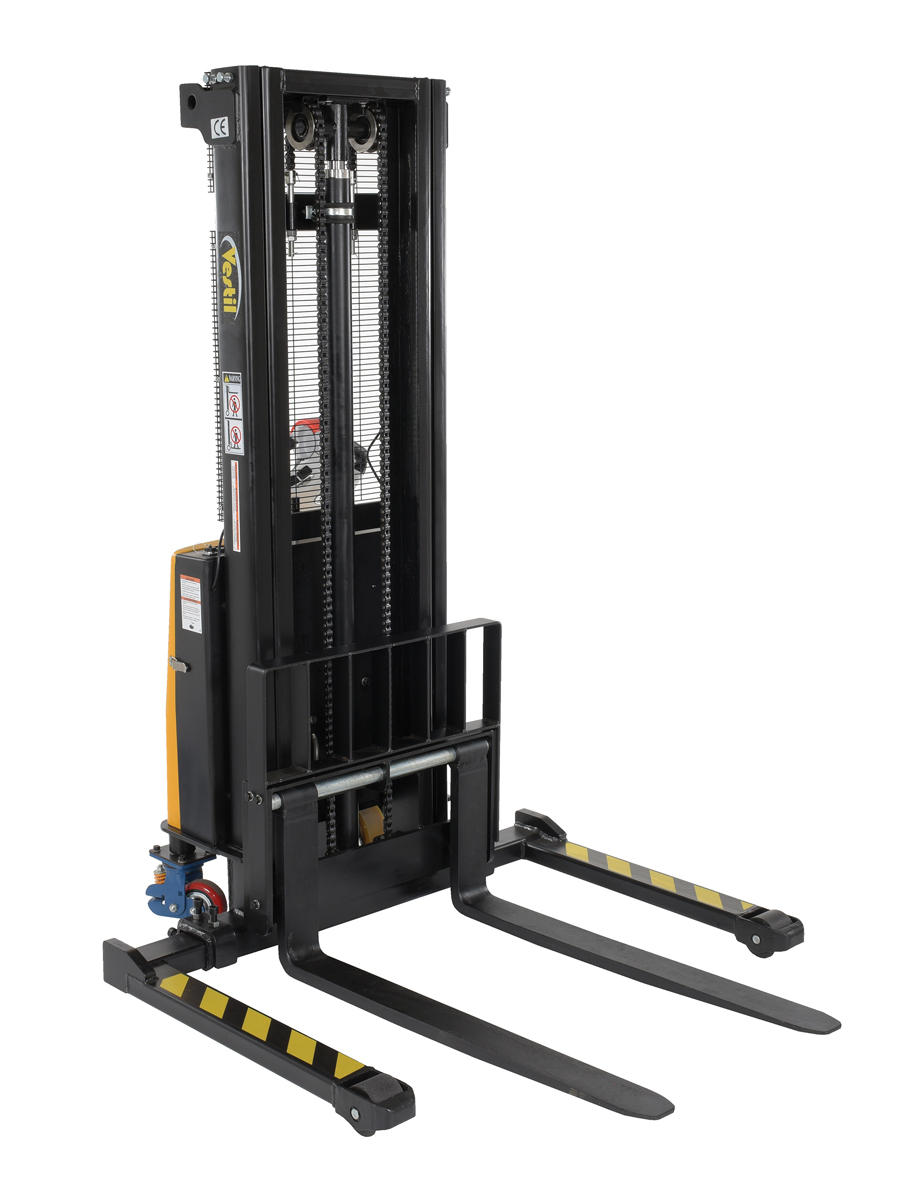

SL-137-AA-PTDS
SL-137-AA-PTDS90 days Limited WarrantySteel Adjustable Stacker with Power Traction Drive System 137 In. Raised Height 2,000 Lb. Capacity Black / YellowPower Source: Electric - Corded
Weight Capacity (lbs): 2000
1378

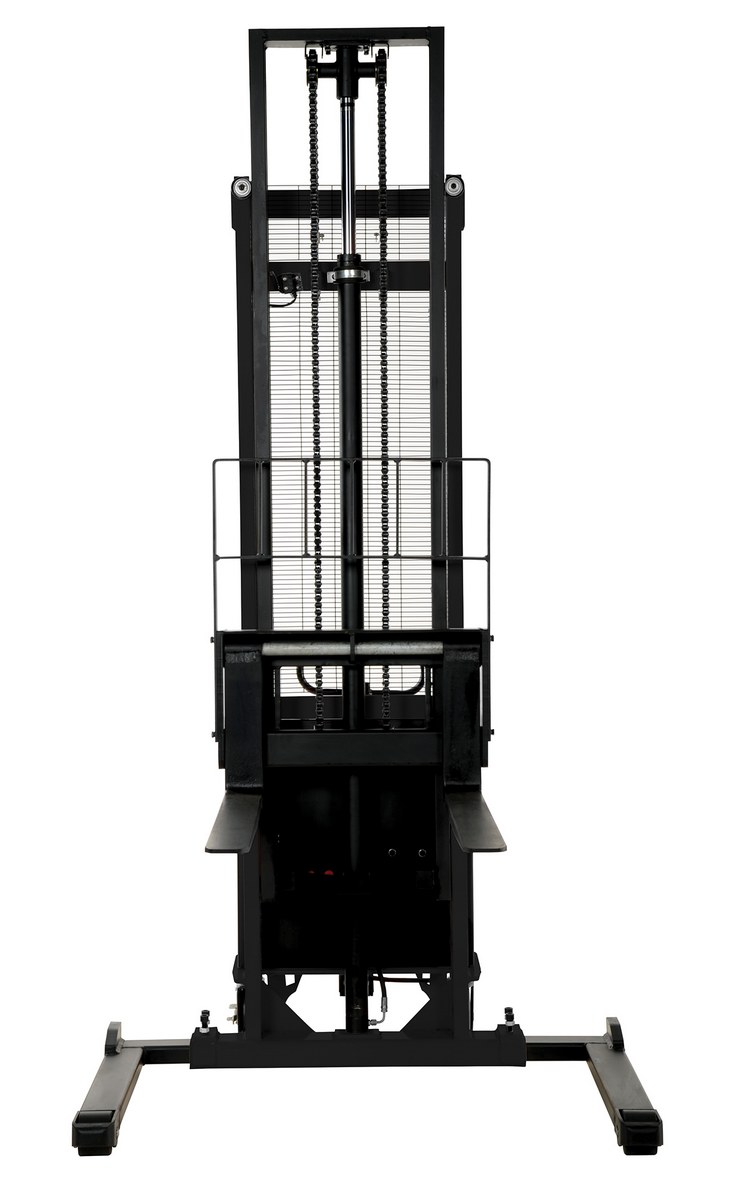

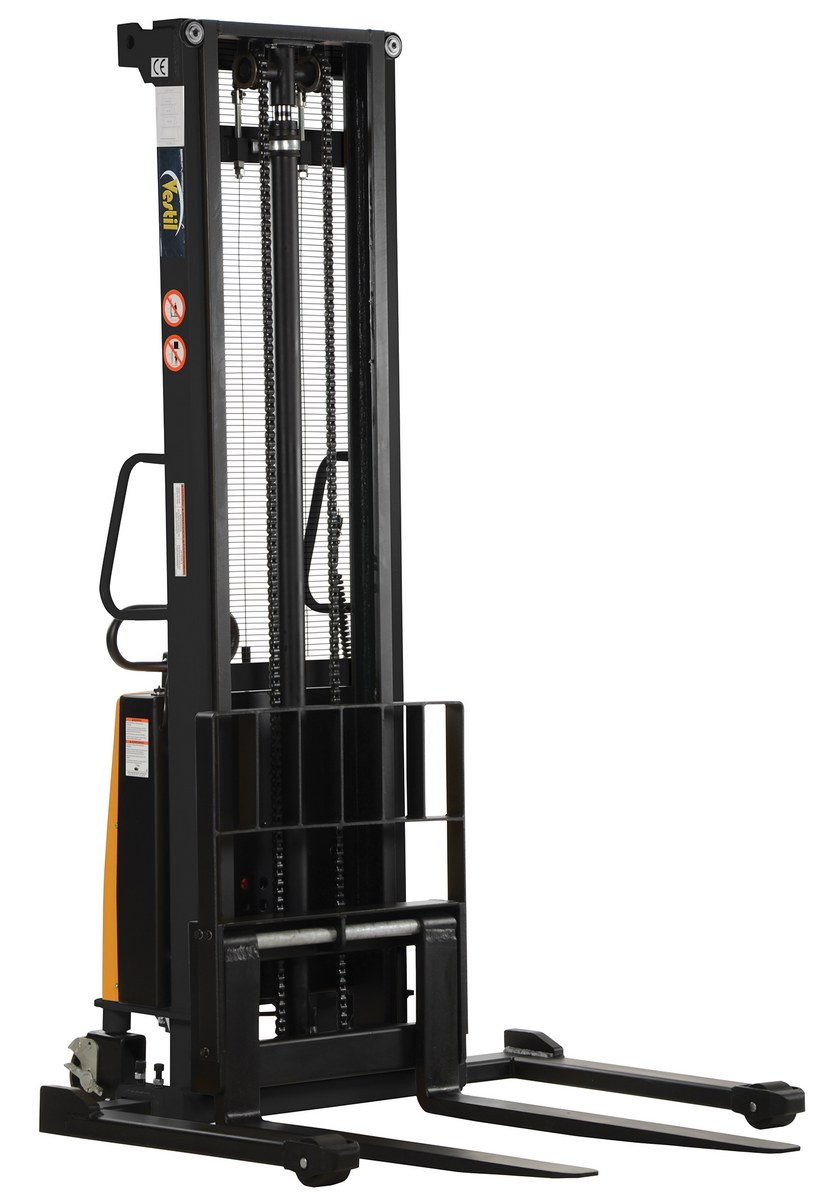

SL-150-AA SL-150-AA1 Year Limited WarrantySteel Adjustable Stacker with Powered Lift 150 In. Raised Height 2,000 Lb. Capacity Black / YellowUniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
1192

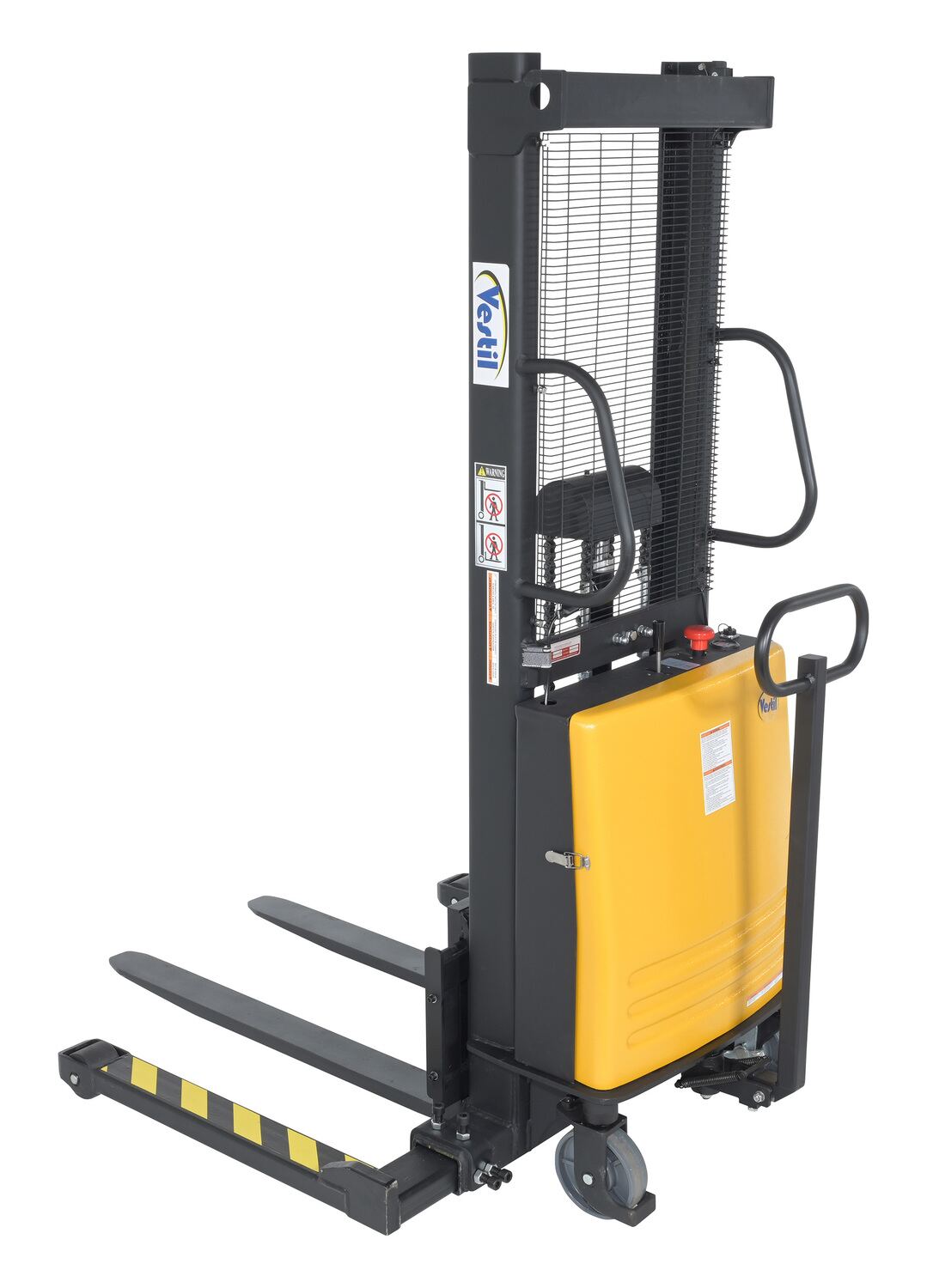

SL-63-AA SL-63-AA1 Year Limited WarrantySteel Adjustable Stacker with Powered Lift 63 In. Raised Height 2,000 Lb. Capacity Black/YellowUniform Capacity (lb.) at 0-63 (in.): 2,000
Raised Height (in.): 63
948
SL-63-AA-PTDS
SL-63-AA-PTDS90 days Limited WarrantySteel Adjustable Stacker with Power Traction Drive System 63 In. Raised Height 2,000 Lb. Capacity Black/YellowPower Source: Electric - Corded
Weight Capacity (lbs): 2000
1094

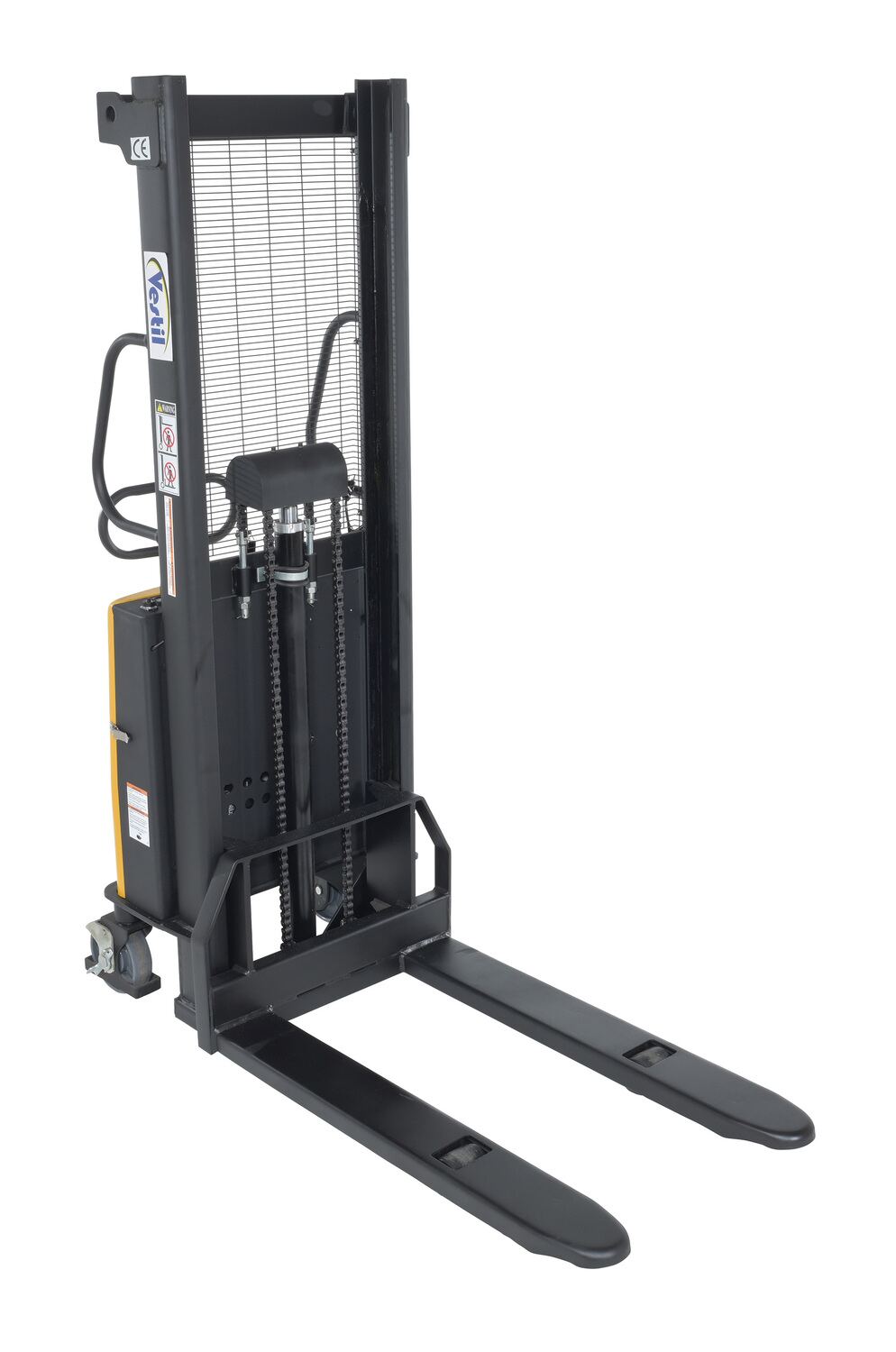

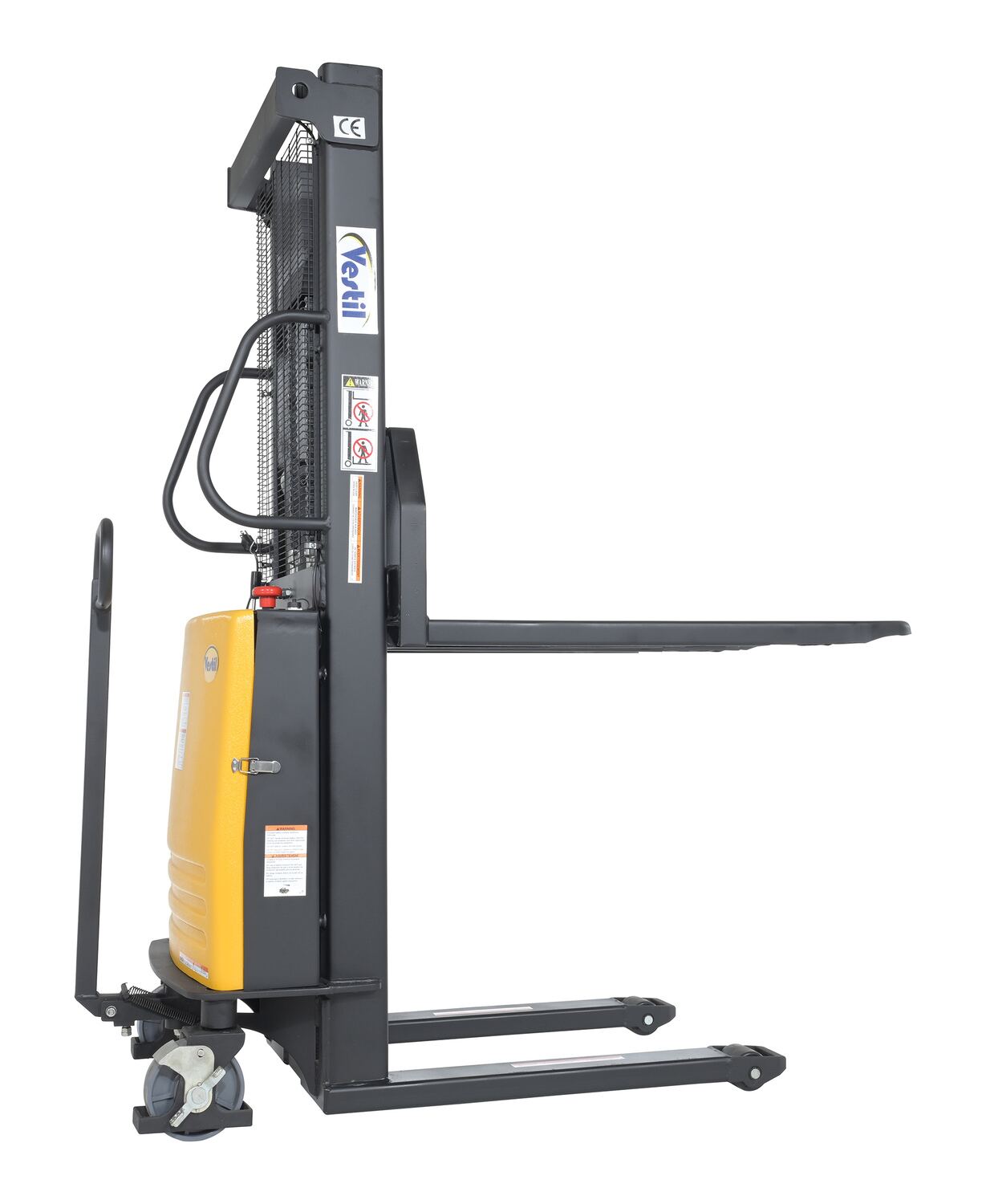

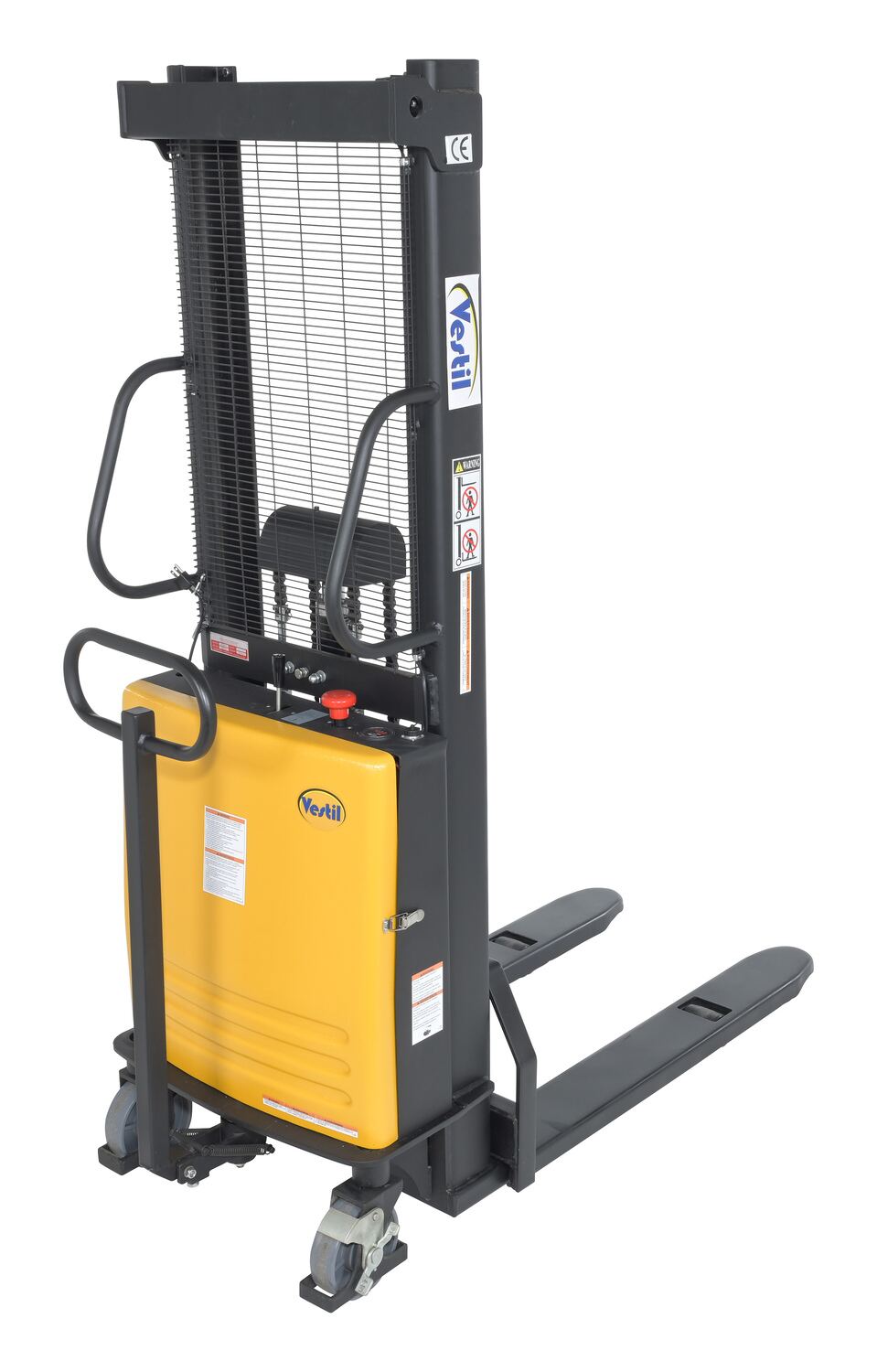

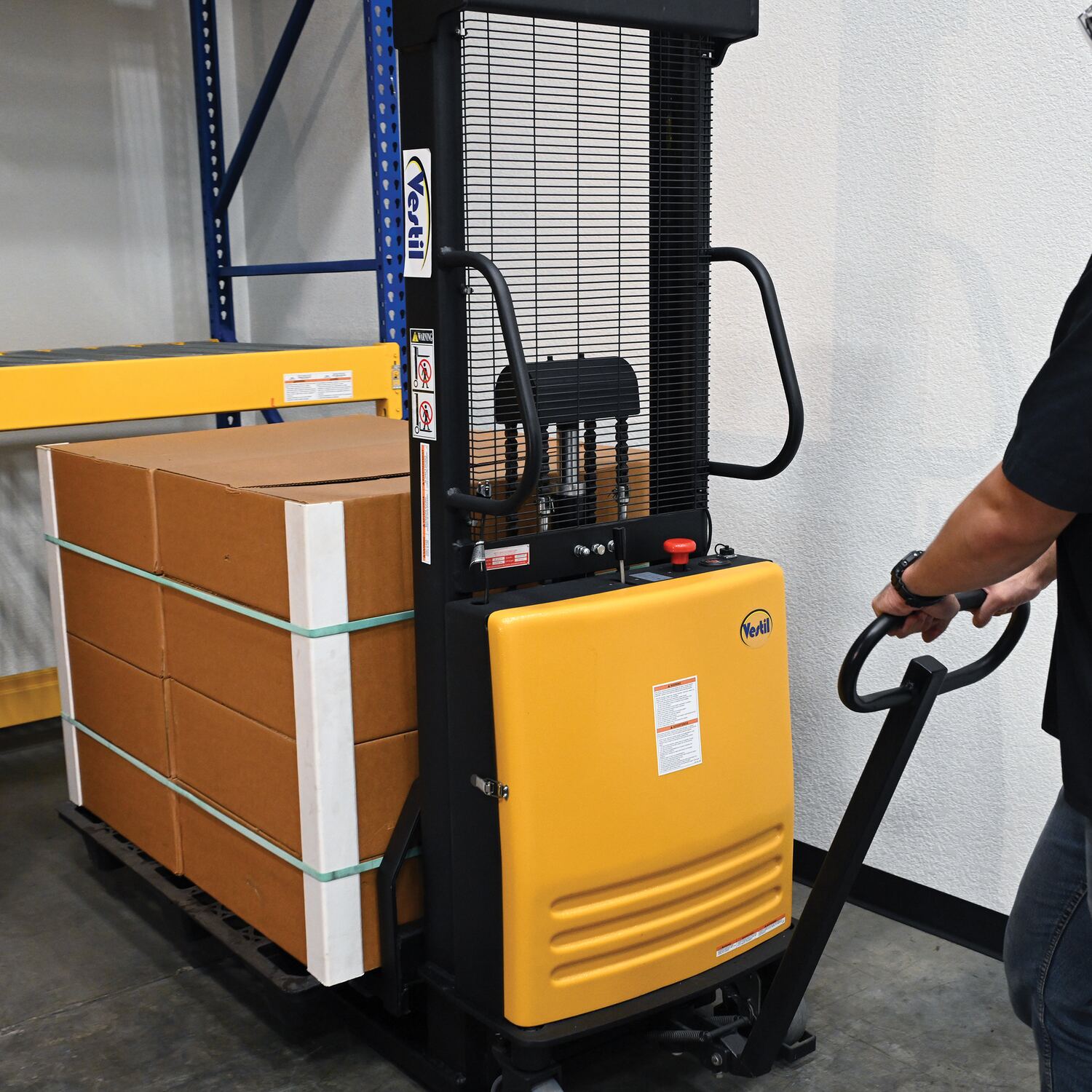

SL-63-FF
SL-63-FF1 Year Limited WarrantySteel Fixed Stacker with Powered Lift 63 In. Raised Height 2,000 Lb. Capacity YellowUniform Capacity (lb.) at 0-63 (in.): 2,000
Raised Height (in.): 63
668

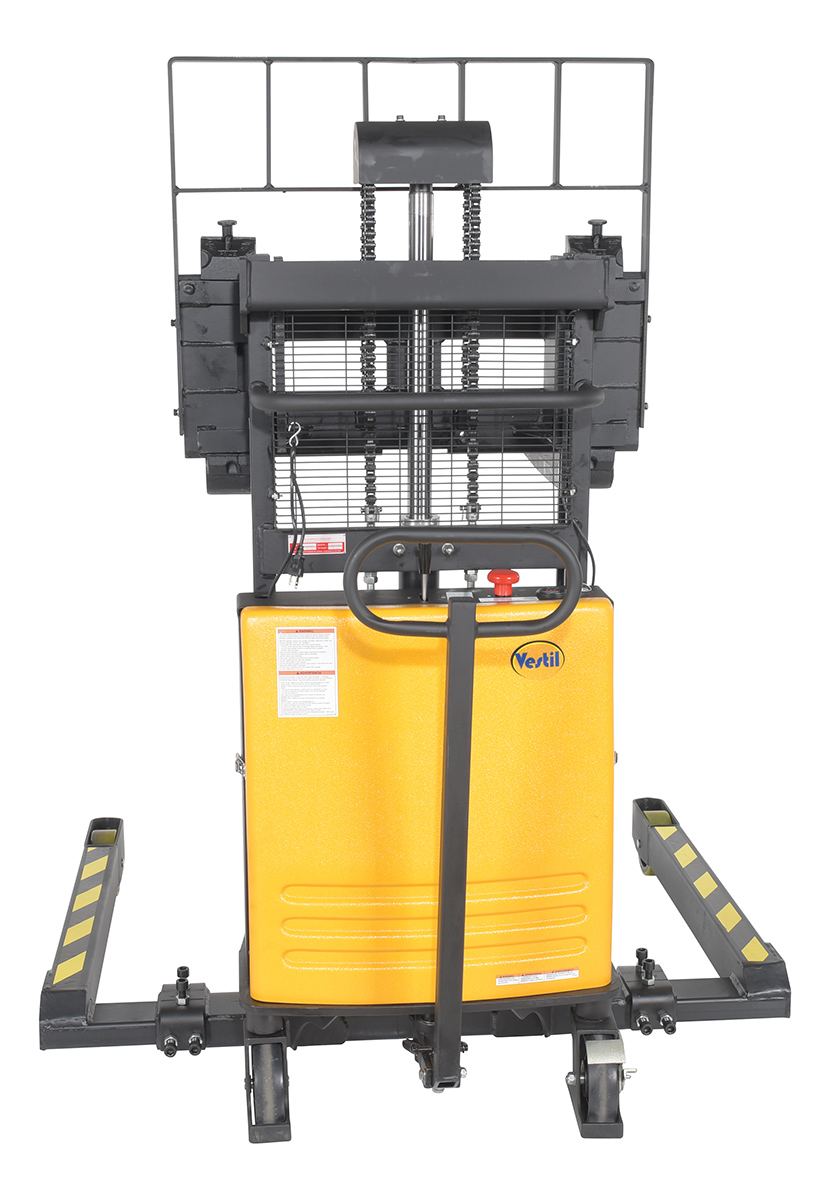

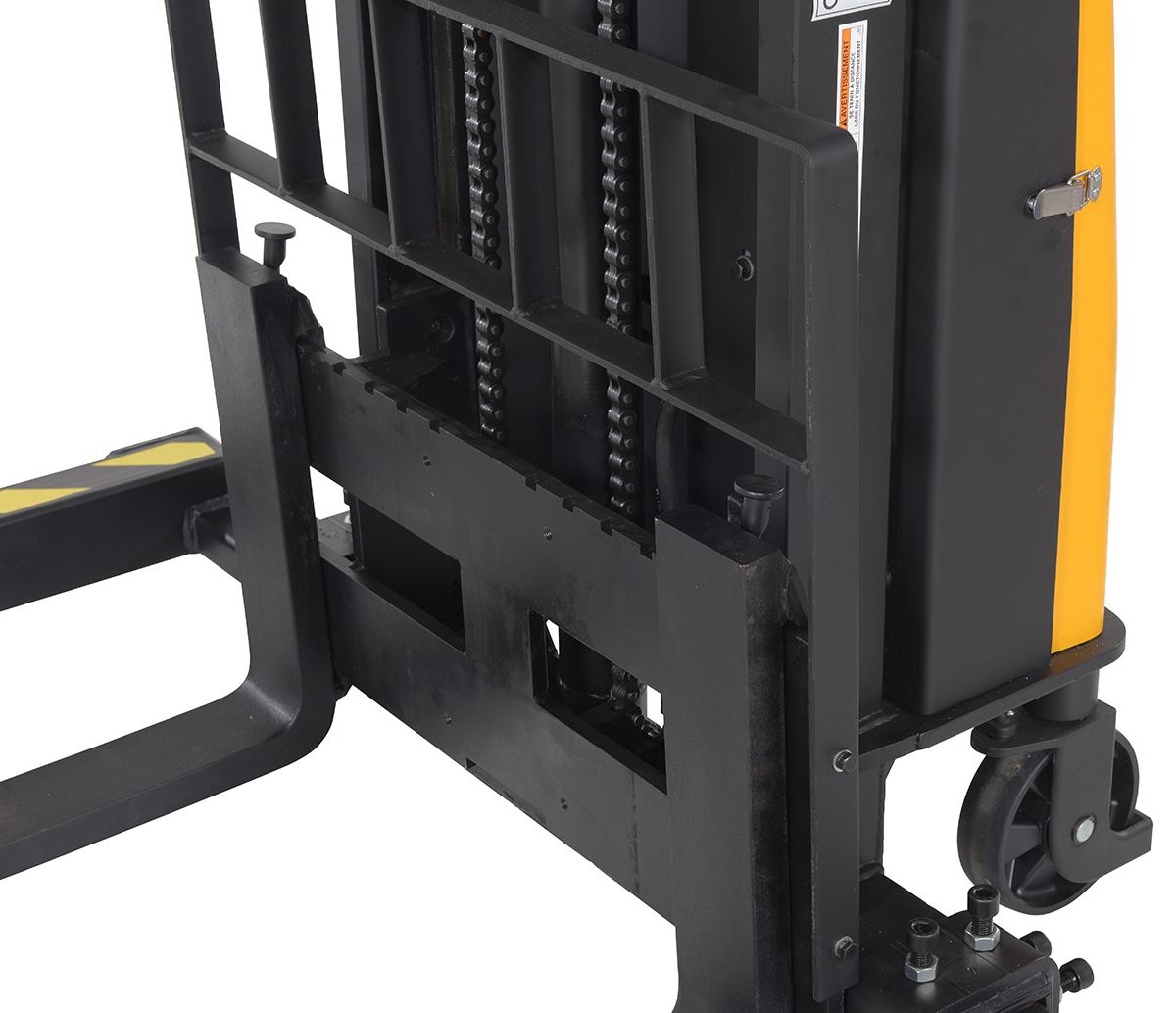

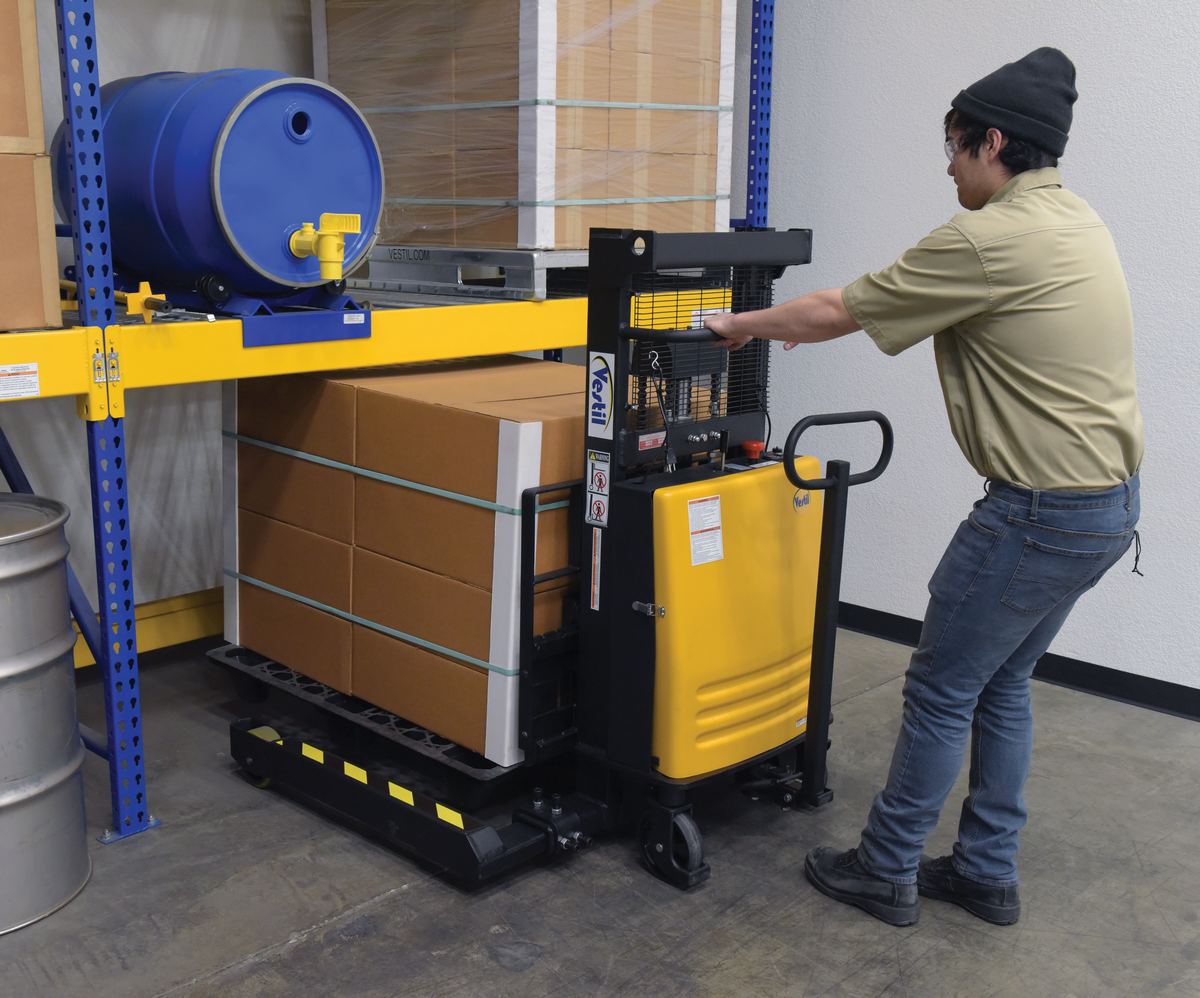

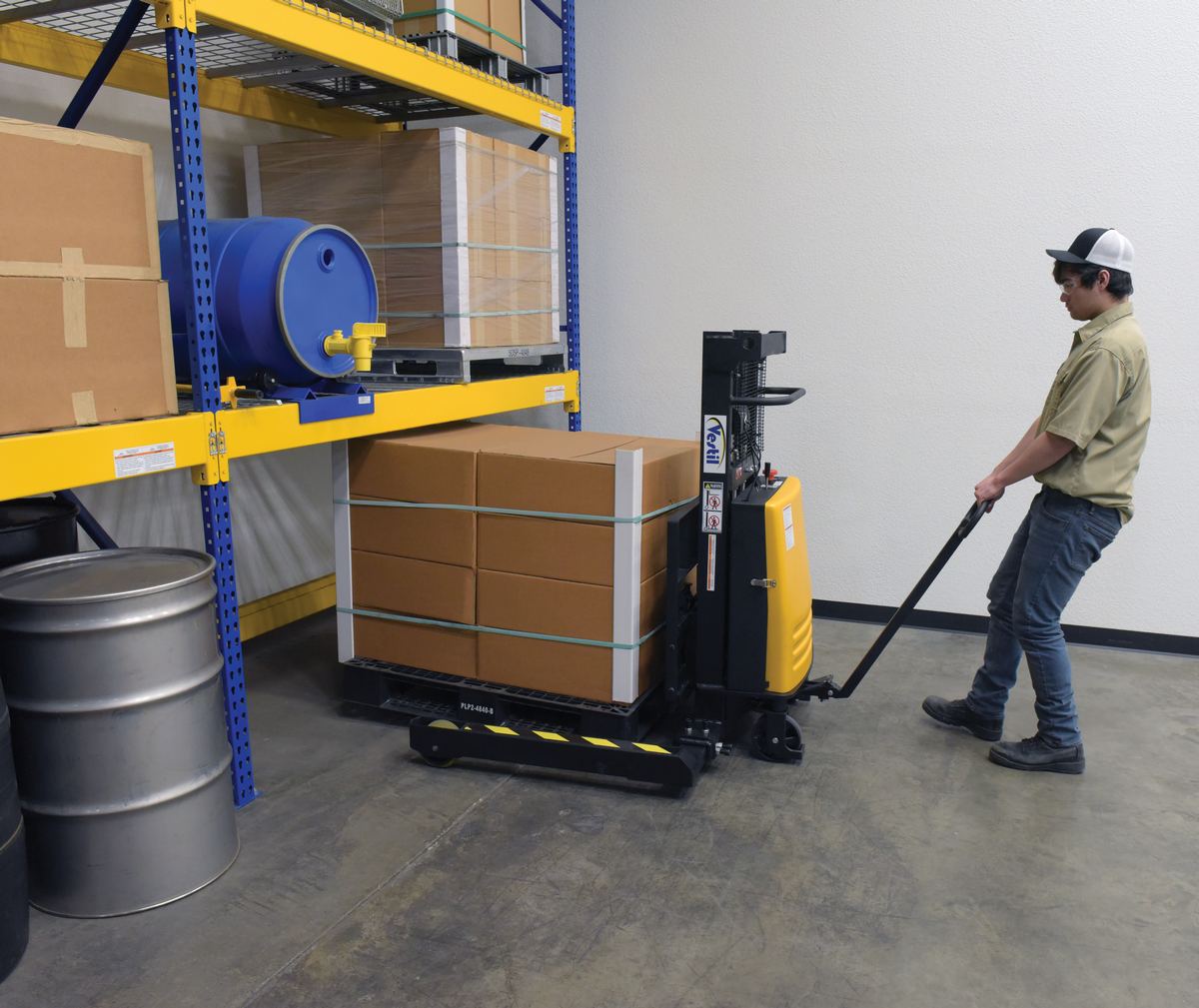

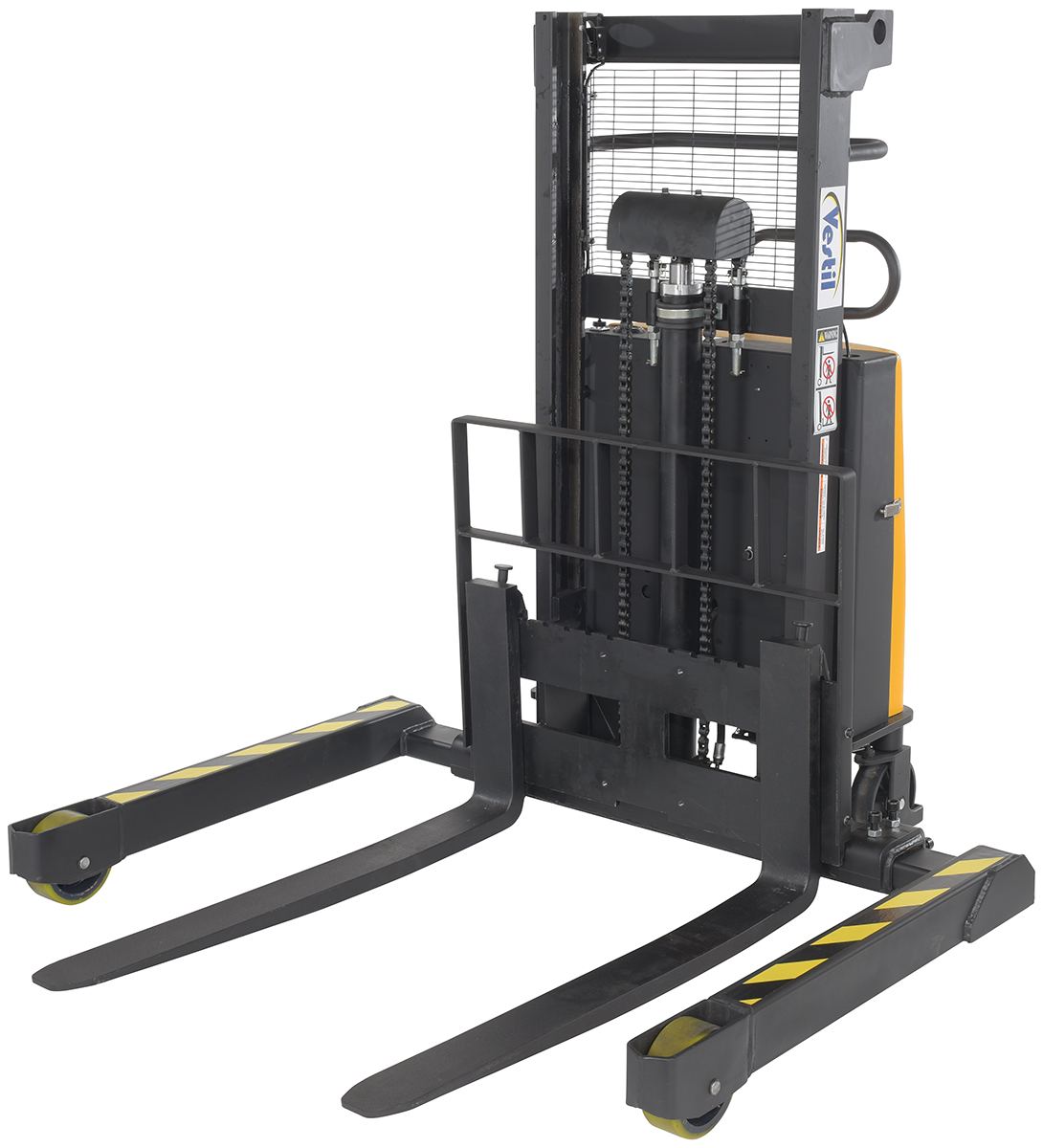

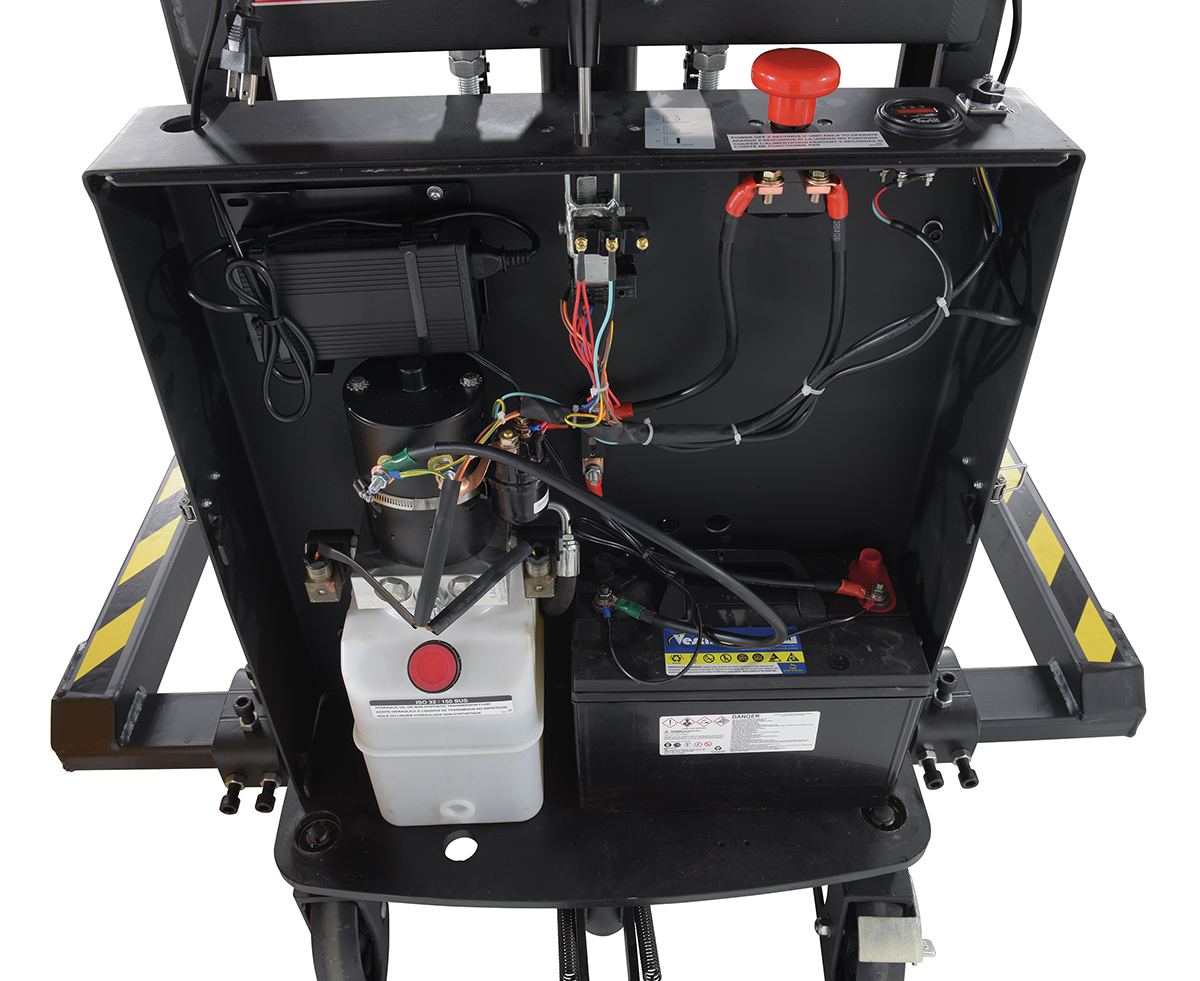

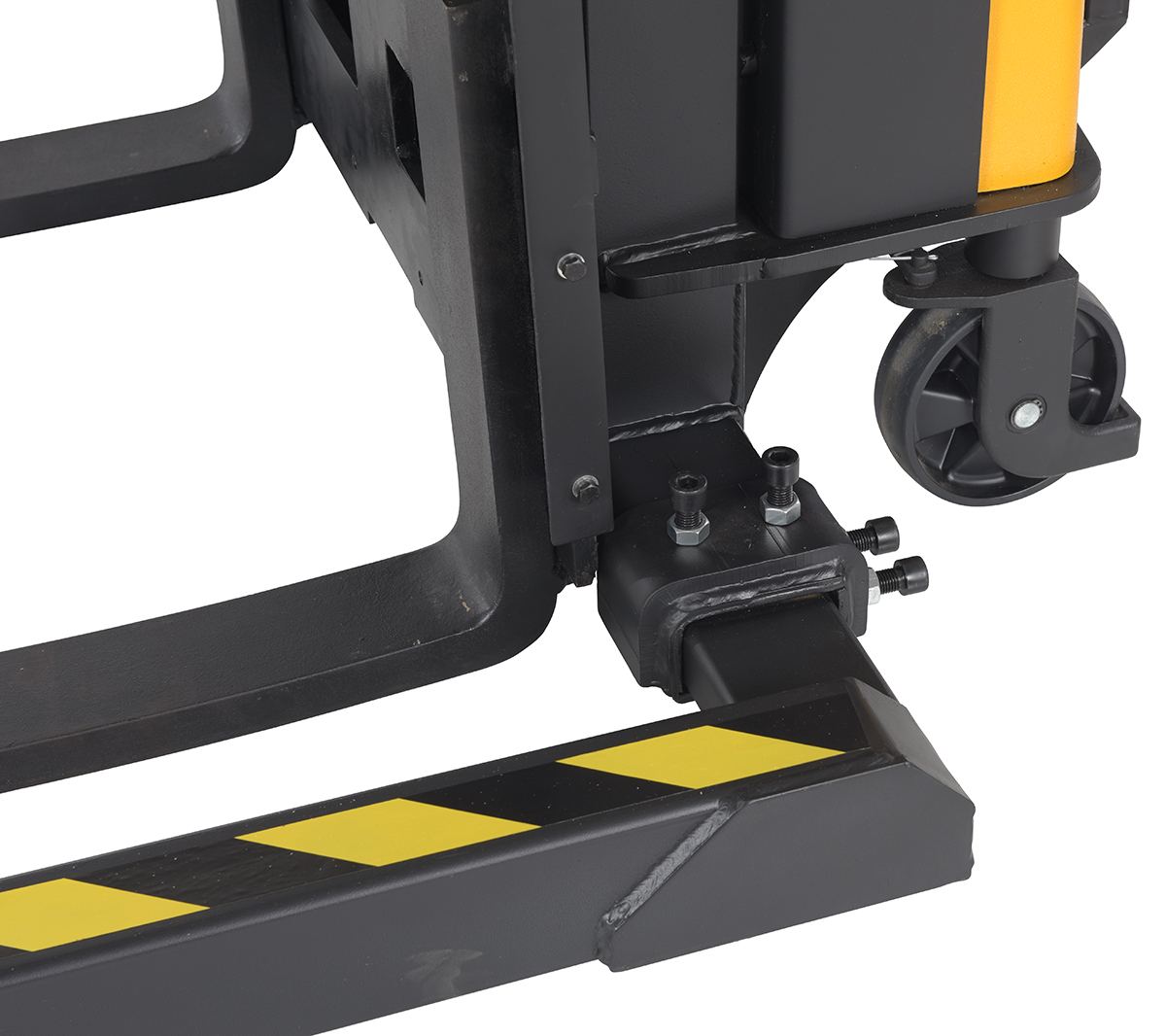

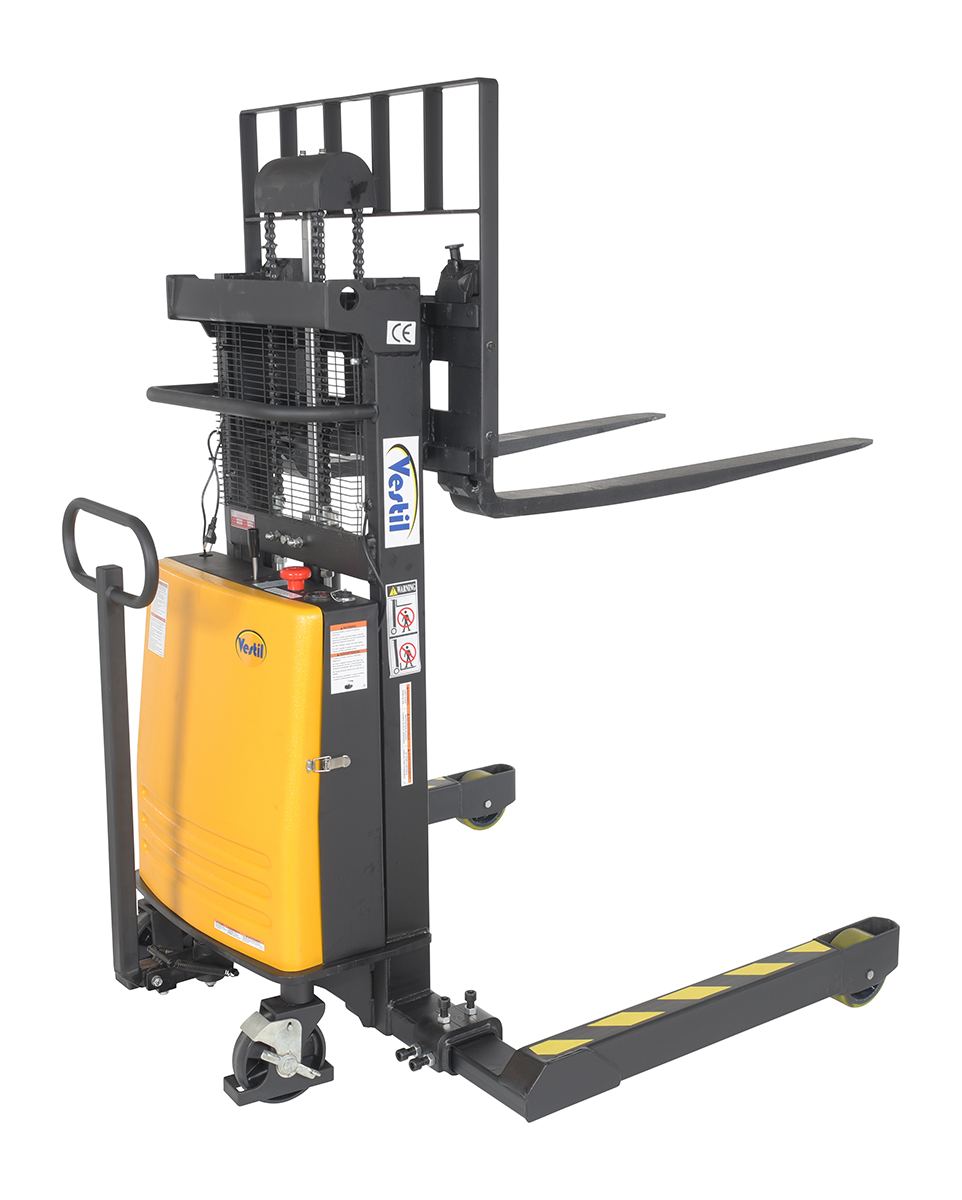

SL3-36-AA SL3-36-AA1 Year Limited WarrantySteel Adjustable Stacker with Powered Lift 36 In. Raised Height 3,000 Lb. Capacity BlackUniform Capacity (lb.): 3000
Lowered Height (in.): 2.125"
786

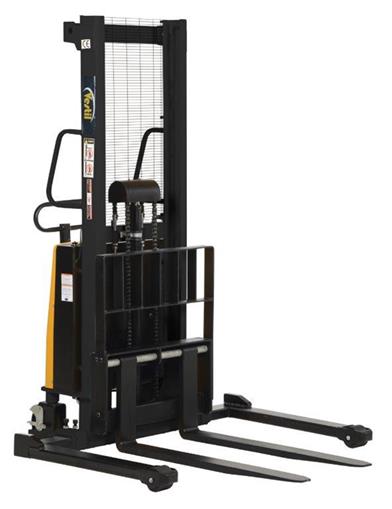

SL3-63-AA SL3-63-AA1 Year Limited WarrantySteel Adjustable Stacker with Powered Lift 63 In. Raised Height 3,000 Lb. Capacity BlackUniform Capacity (lb.): 3000
Lowered Height (in.): 2.125"
786

* Uniform Capacity at specific raised height

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SL-118-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500

SL-118-AA-PTDS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Power Source: Electric - Corded
Weight Capacity (lbs): 2000
Power Source: Electric - Corded
Weight Capacity (lbs): 2000

SL-118-FF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500

SL-137-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-62 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
Uniform Capacity (lb.) at 0-62 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500

SL-137-AA-PTDS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Power Source: Electric - Corded
Weight Capacity (lbs): 2000
Power Source: Electric - Corded
Weight Capacity (lbs): 2000

SL-150-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Uniform Capacity (lb.) at 63-118 (in.): 1,500

SL-63-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Raised Height (in.): 63
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Raised Height (in.): 63

SL-63-AA-PTDS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Power Source: Electric - Corded
Weight Capacity (lbs): 2000
Power Source: Electric - Corded
Weight Capacity (lbs): 2000

SL-63-FF
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Raised Height (in.): 63
Uniform Capacity (lb.) at 0-63 (in.): 2,000
Raised Height (in.): 63

SL3-36-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Lowered Height (in.): 2.125"
Uniform Capacity (lb.): 3000
Lowered Height (in.): 2.125"

SL3-63-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Lowered Height (in.): 2.125"
Uniform Capacity (lb.): 3000
Lowered Height (in.): 2.125"
For More Details of the Option Click the Red Model Button

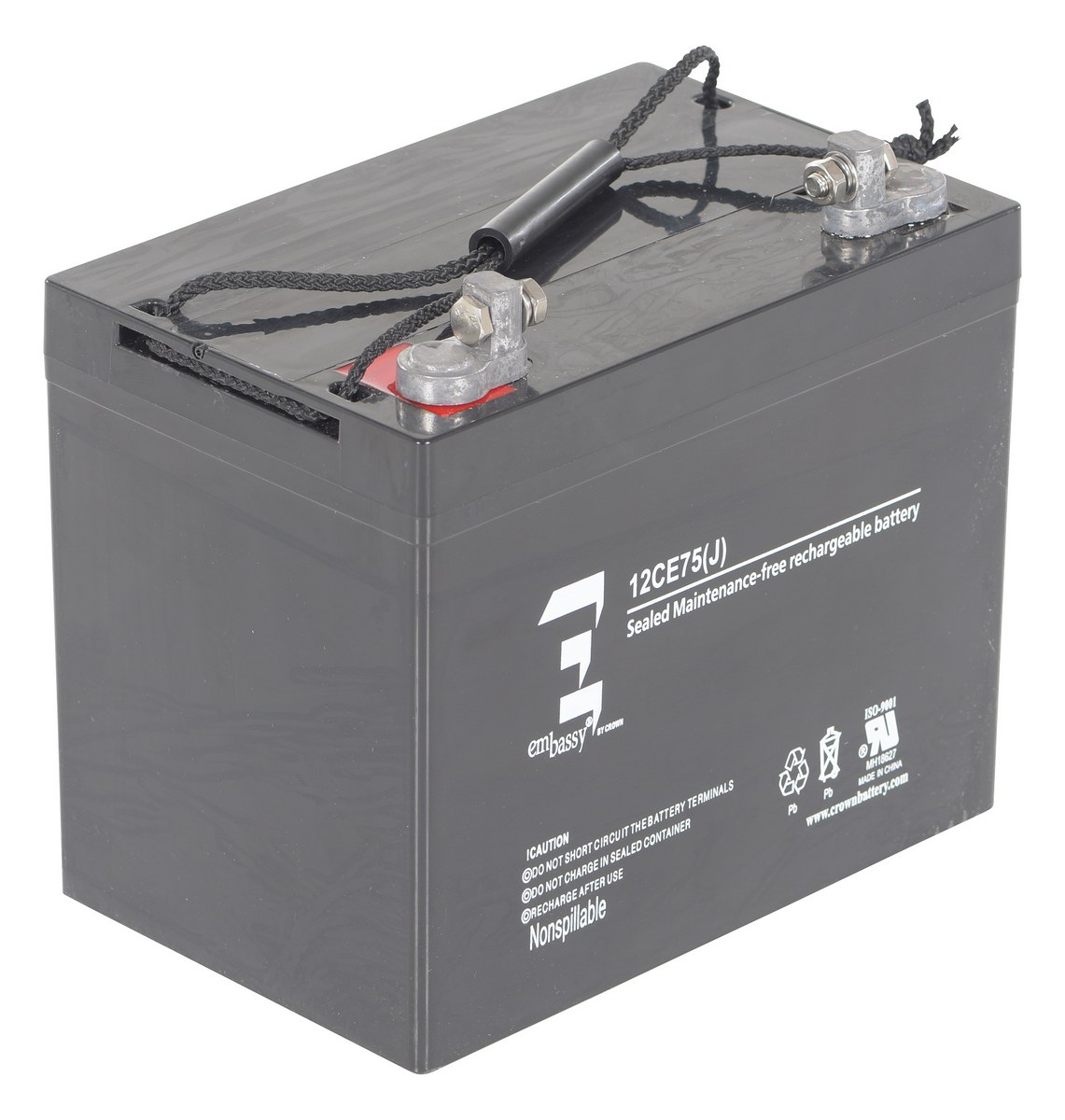

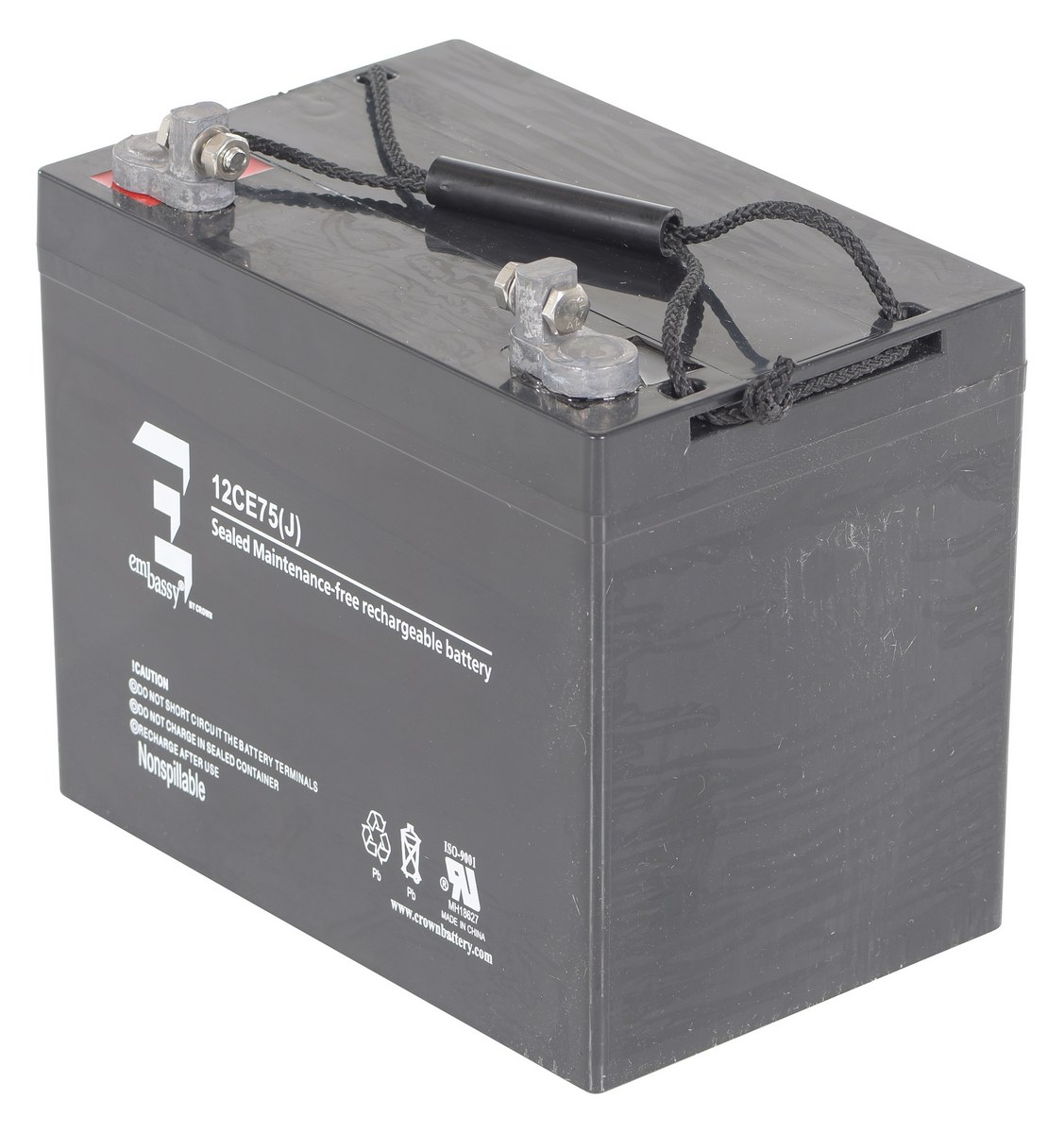

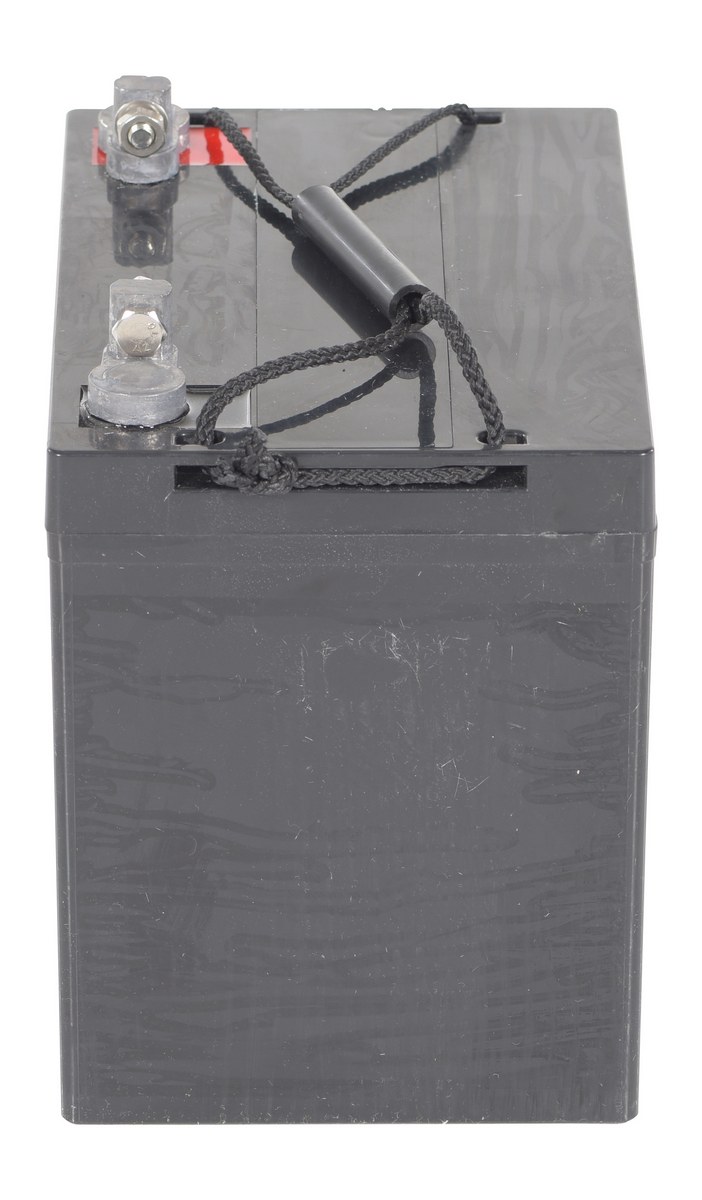

AGM-UPG-1-12V AGM-UPG-1-12V90 Days Limited WarrantyFactory Installed AGM Upgrade Quantity 1-12 Volt 75Ah BatteryBattery Quantity: 1
Volts: 12
60

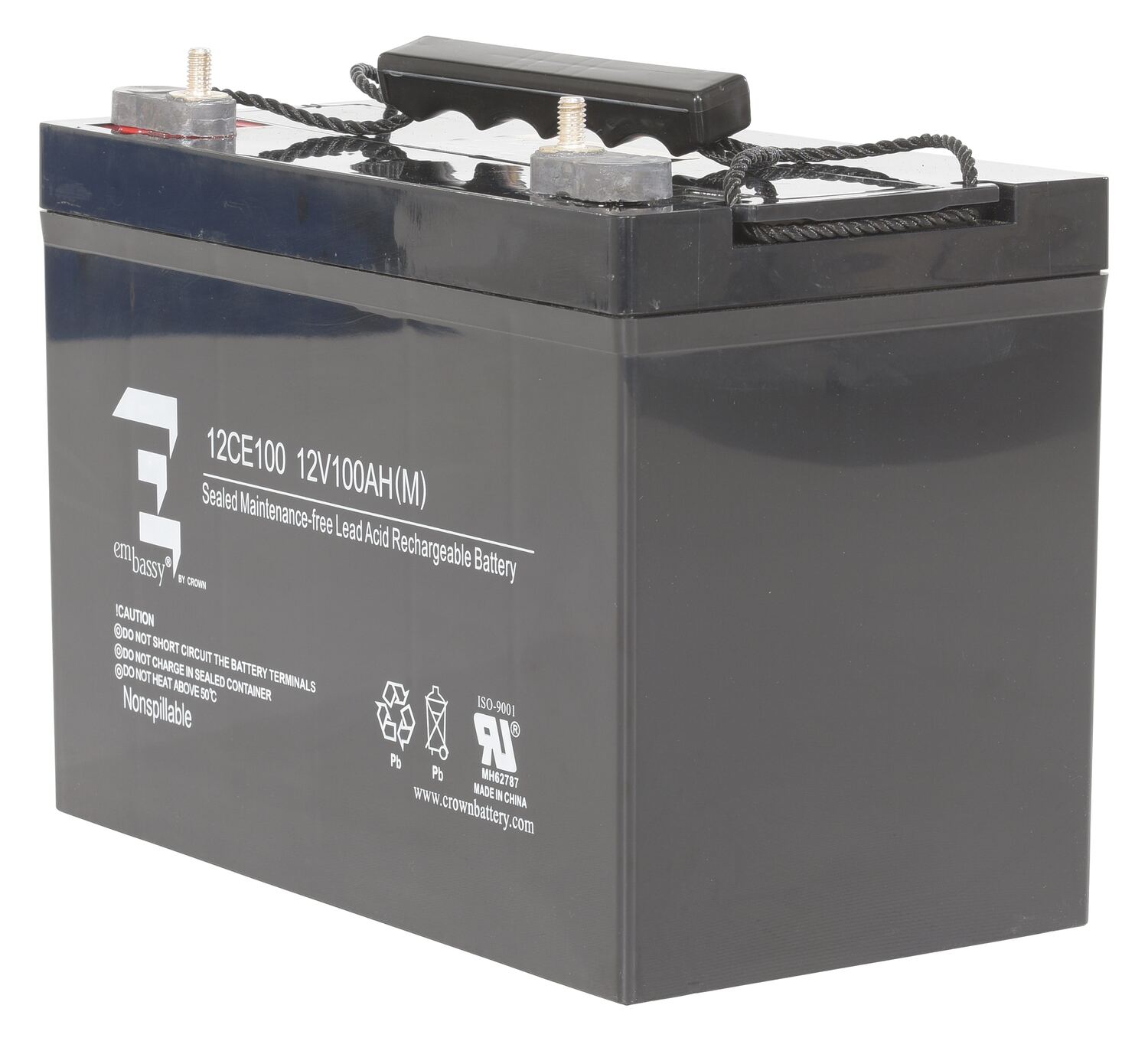

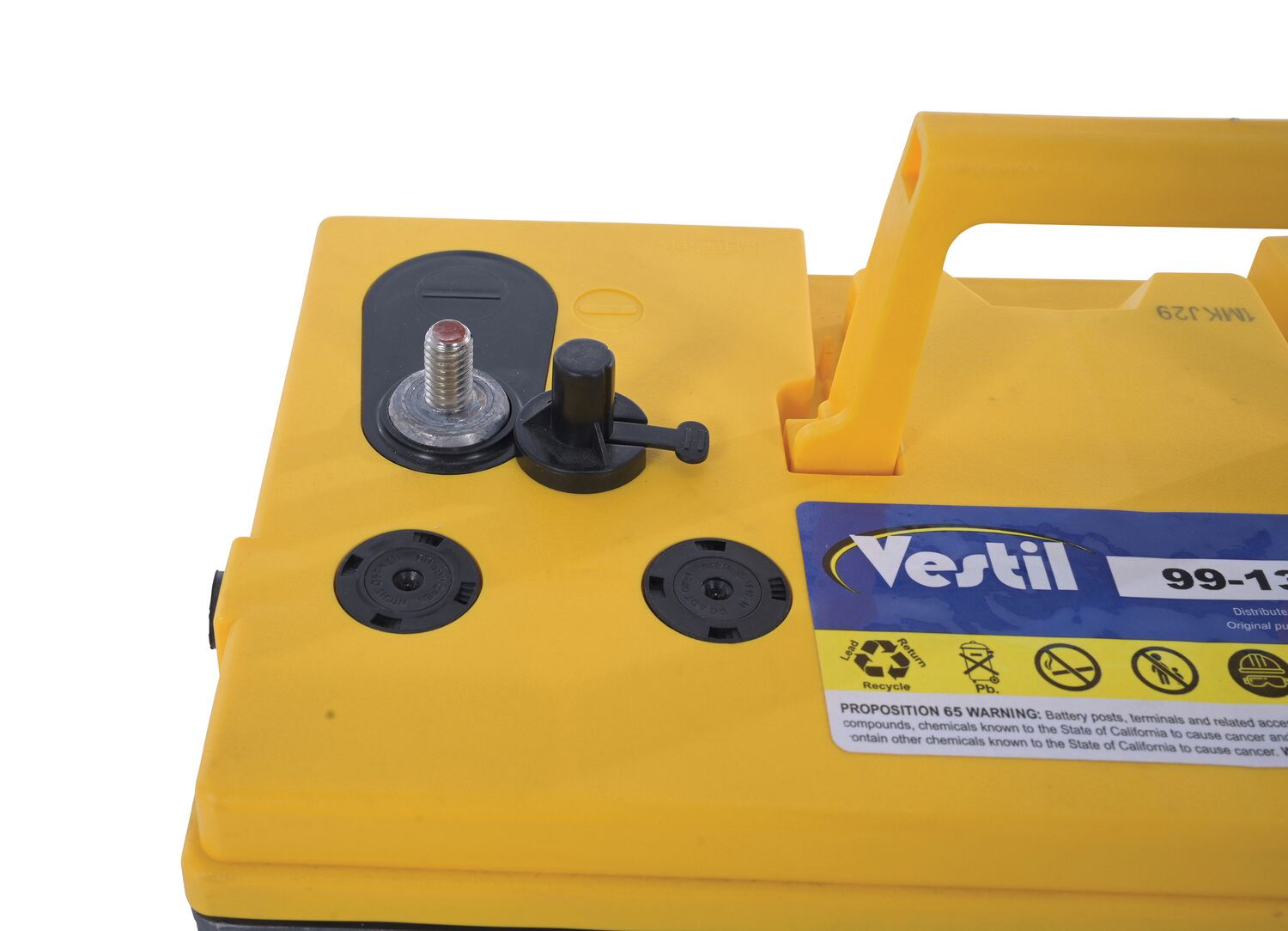

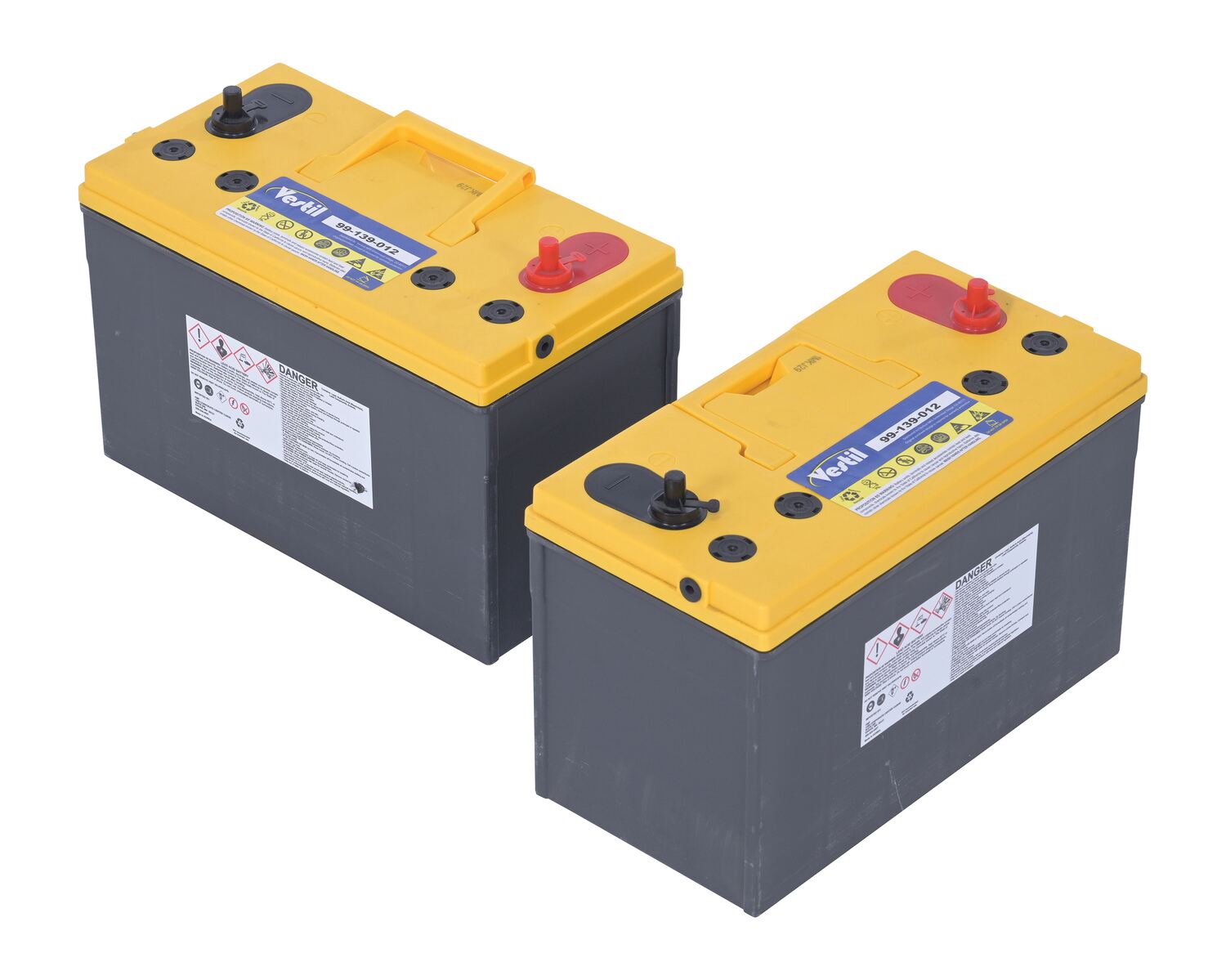

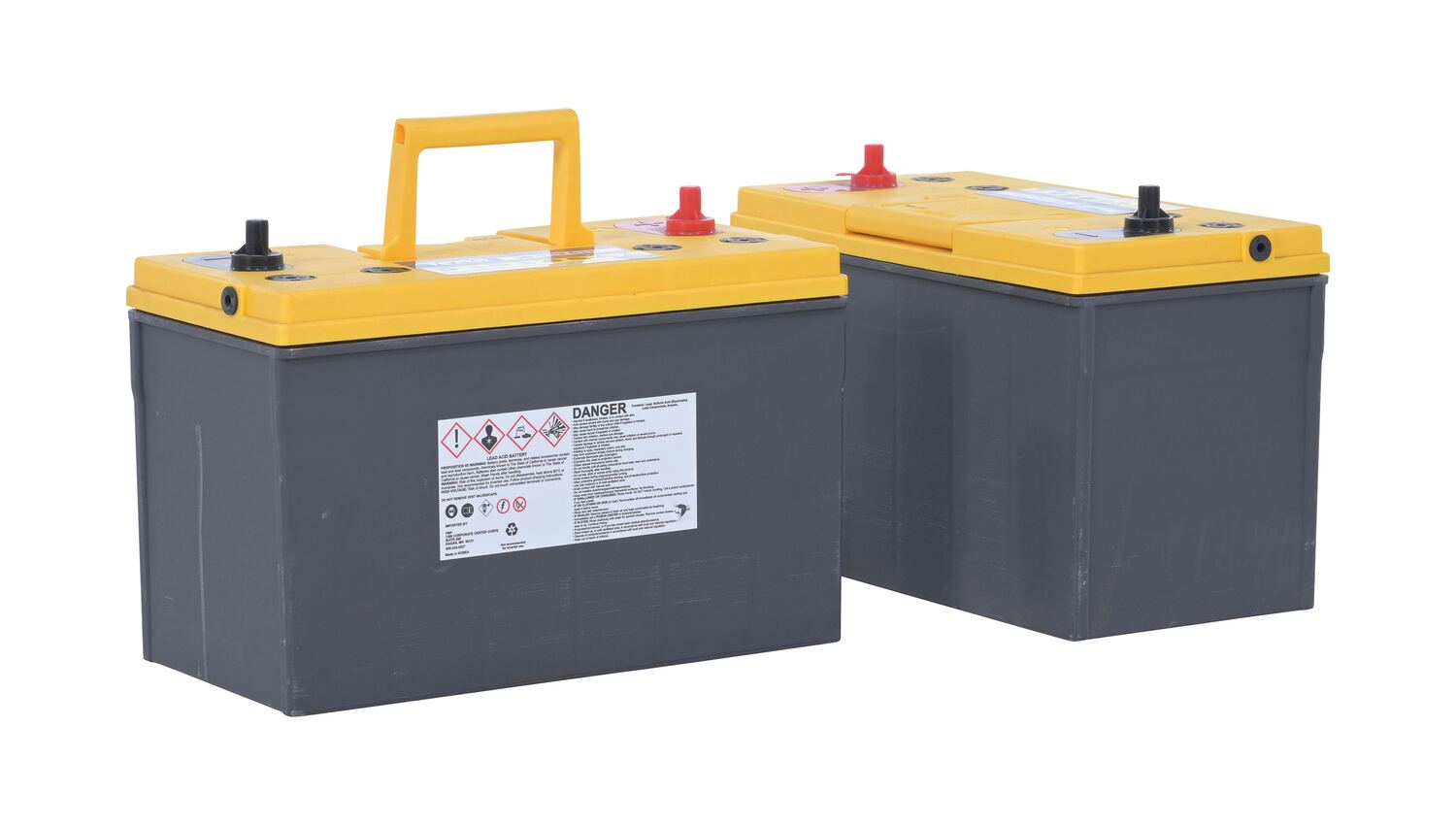

AGM-UPG-SL AGM-UPG-SL90 Days Limited WarrantyFactory Installed AGM Upgrade Quantity 1-12 Volt 100Ah BatteryBattery Quantity: 1
Volts: 12
68

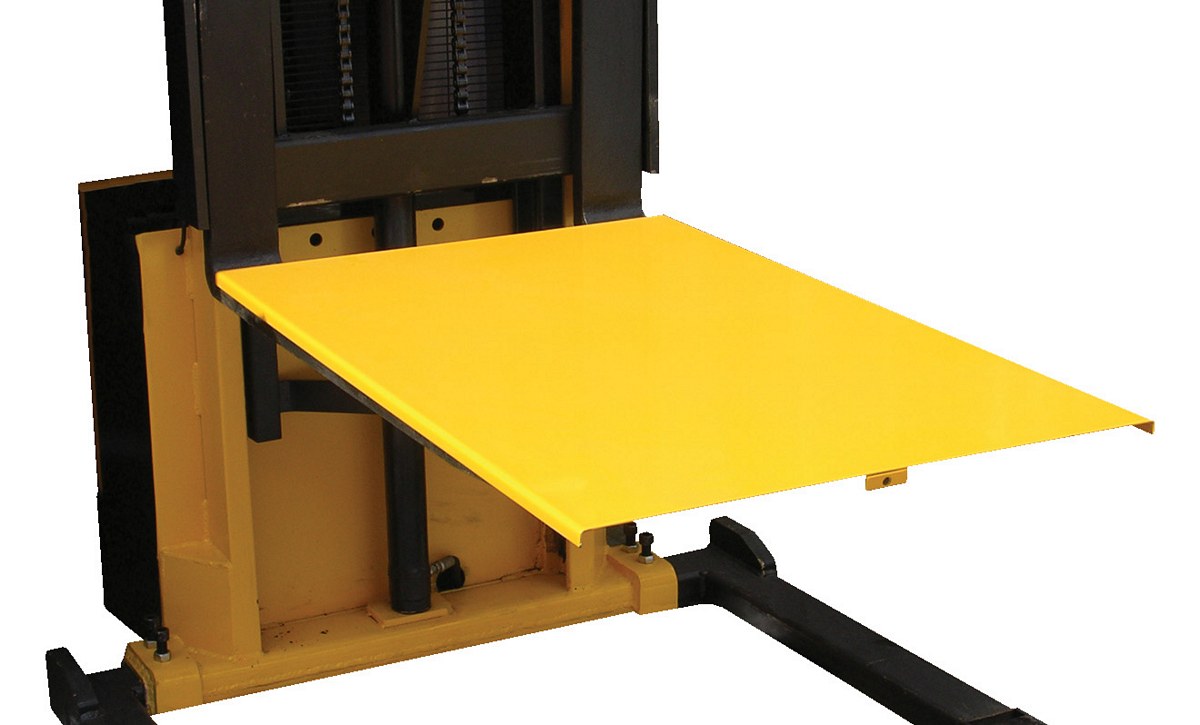

SL-DK SL-DK30 Days Limited WarrantySteel Solid Platform 45 In. x 27-3/4 In. x 3-3/4 In. 2000 Lb. Capacity For SNM Models YellowMaximum Capacity when Installed on Forks (lb.): 2,000
46

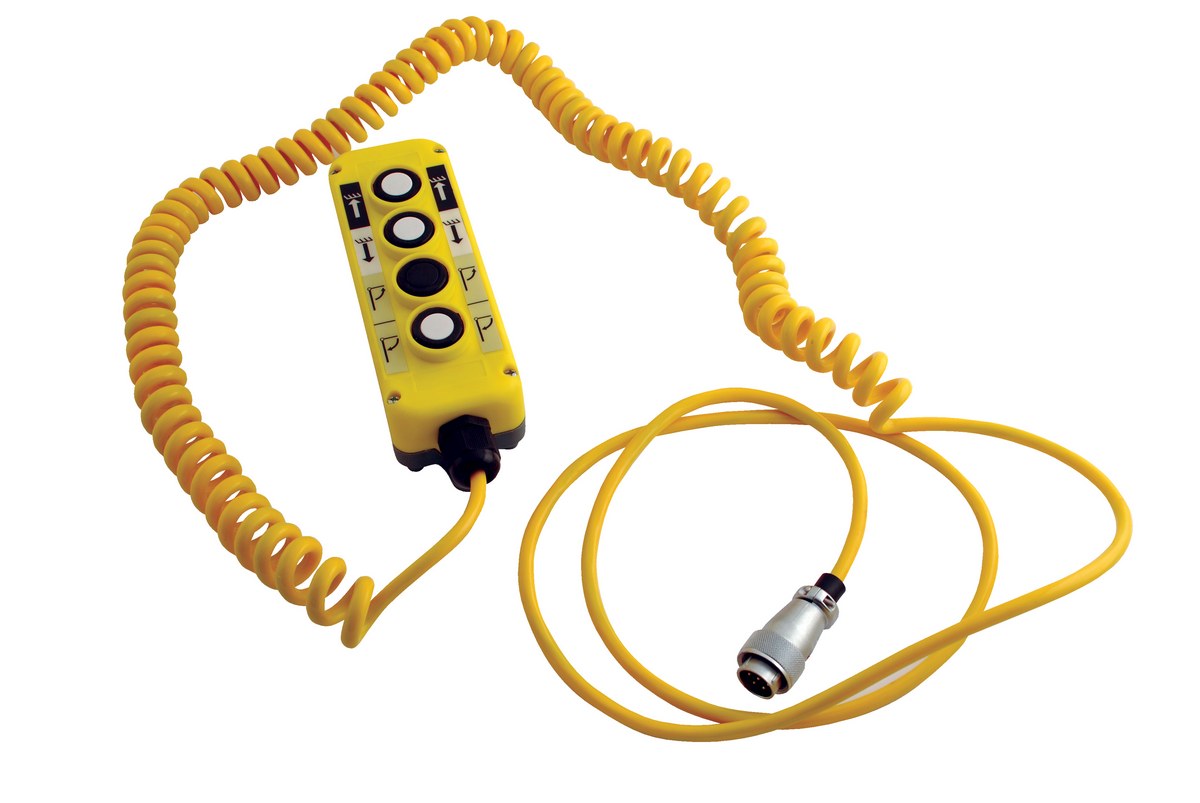

SL-HC SL-HC90 Days Limited WarrantyHand Control Pendant For Stacker Powered Lift ModelsCable Length (ft): 8
Number of Buttons: 4
3
Model Image Description Capacity Wt (lbs.)
SL-AA-DRR-FK Drum/Roll/Reel Forks 1200 140
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Stacker with Powered Lift PDF's will open in a new window when clicked.

Manuals


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


SL-118-AA

SL-118-FF

SL-137-AA

SL-137-AA-PTDS

SL-150-AA

SL-63-AA

SL-63-FF

SL-DK

SL-HC

SL-PTDS

SL3-36-AA

SL3-63-AA

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-118-AA
Hydraulic Oil SDS Sheet for: SL-118-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-118-AA-PTDS
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-118-FF
Hydraulic Oil SDS Sheet for: SL-118-FF
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-118-PDGR
Hydraulic Oil SDS Sheet for: SL-118-PDGR
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-137-AA
Hydraulic Oil SDS Sheet for: SL-137-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-137-AA-PTDS
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-150-AA
Hydraulic Oil SDS Sheet for: SL-150-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL3-36-AA
Hydraulic Oil SDS Sheet for: SL3-36-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL3-63-AA
Hydraulic Oil SDS Sheet for: SL3-63-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-63-AA
Hydraulic Oil SDS Sheet for: SL-63-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-63-AA-PTDS
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SL-63-FF
Hydraulic Oil SDS Sheet for: SL-63-FF

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: Can the forks on this unit be adjusted to move odd size pallets?

A: The SL-137-AA has adjust able forks from 8 in wide to 26 3/4 in wide.
