DC Powered Hydraulic Elevating Carts

- - - -

Description
Model Chart
PDF's
Image Gallery

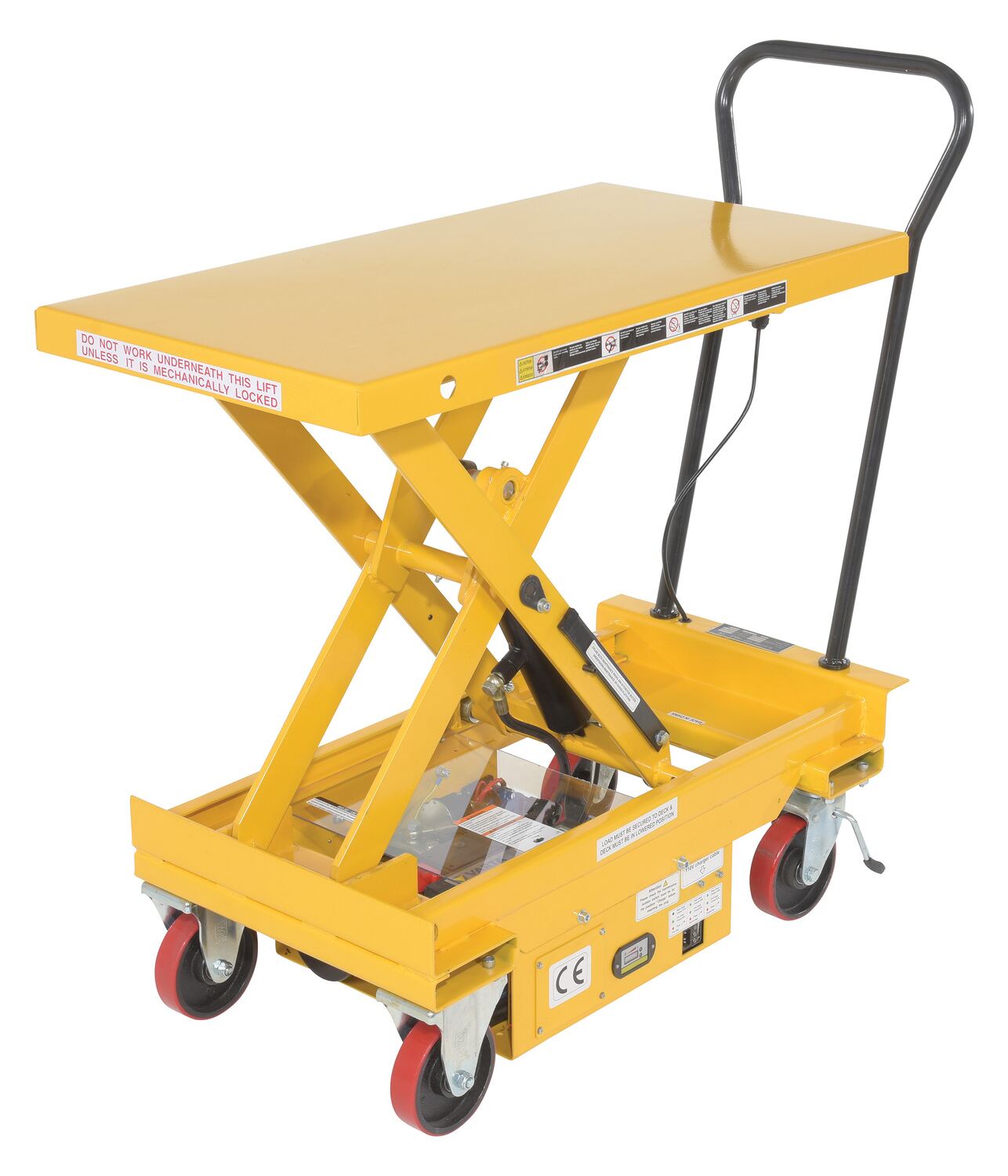

CART-1000-DC_D.jpg CART-1000-DC_A.jpg CART-1000-DC_B.jpg CART-1000-DC_C.jpg

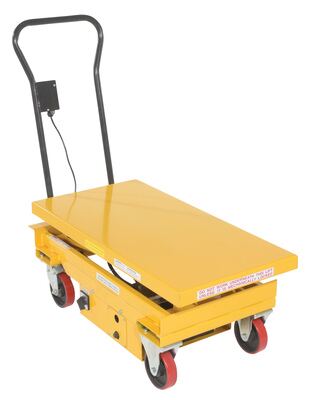

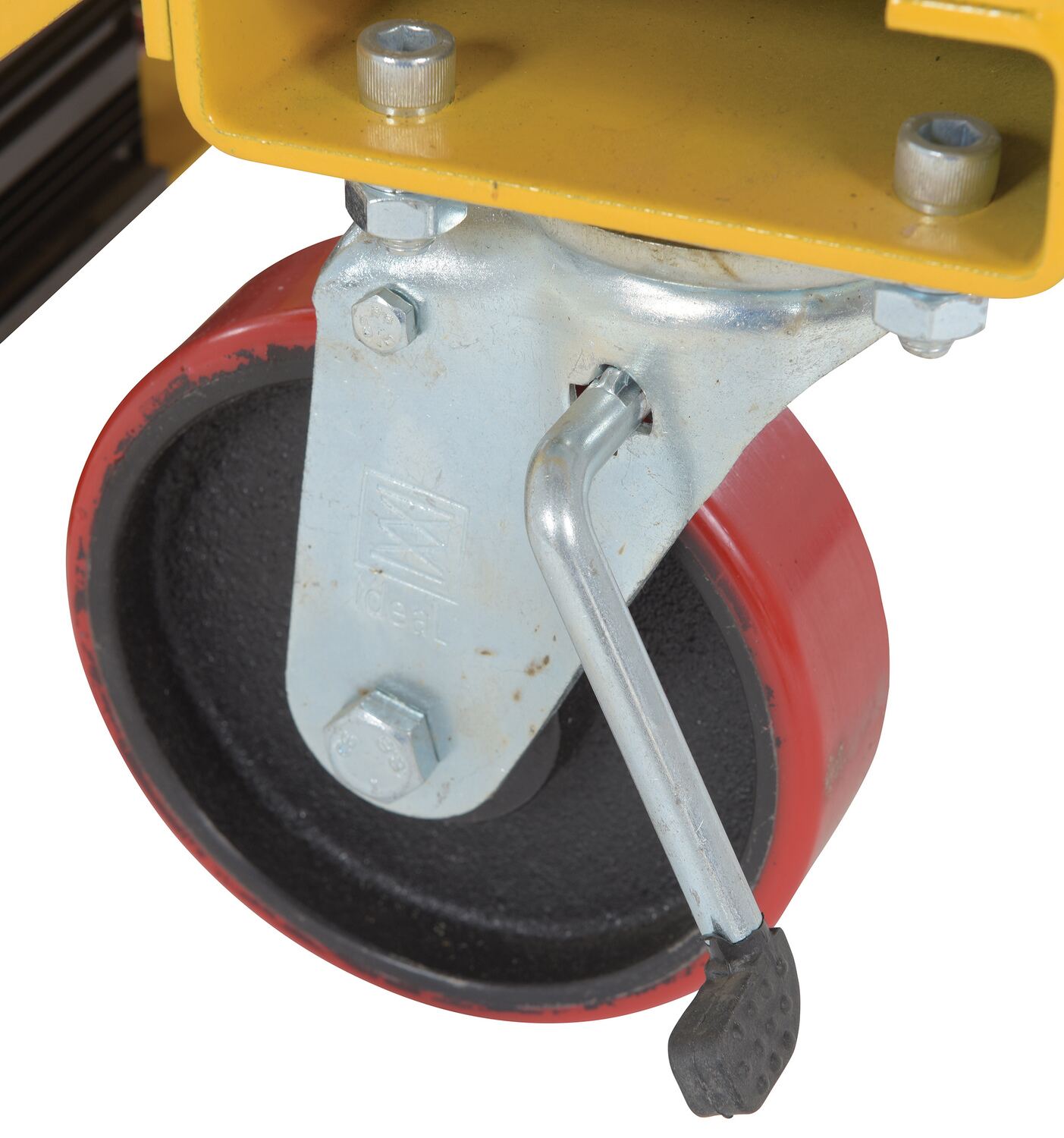

CART-1000-DC_E.jpg CART-1000-DC_F.jpg CART-1000-DC_G.jpg CART-1000-DC_H.jpg
DC Powered Hydraulic Elevating Carts

model: CART-1000-DC



Featured Ergonomic Solutions


Economical Powered Lift Table
Pallet Jockeys for "Walkie" Trucks
Electric Powered Stacker
Hydraulic Post Tables w/ Rounded Tops
Linear Actuated Elevating Cart (partially stainless steel)
Hand Winch Lift Trucks
Pallet Trucks (Pallet Jacks)
Manual & Electric Stackers
Portable Aluminum Load Lifter
model chart

Product Family Overview

Print Friendly
DC Powered Hydraulic Elevating Carts
SERIES: CART-DC

These carts are ideal for quick lifting and ergonomic material handling. Battery-powered units allow operators to raise and lower platform with the push of a button. *Units roll on two (2) rigid and two (2) swivel polyurethane casters while the others roll on 5" poly-on-steel casters. Includes one (1) 12V battery and an on-board charger.

These carts are ideal for quick lifting and ergonomic material handling. Battery-powered units allow operators to raise and lower platform with the push of a button. *Units roll on two (2) rigid and two (2) swivel polyurethane casters while the others roll on 5" poly-on-steel casters. Includes one (1) 12V battery and an on-board charger.

Other Elevating Lift Carts

 Adjustable Pallet Stands Auto-Shift Hydraulic Elevating Carts Pneumatic Tire Elevating Carts Foot Pump & Powered Scissor Lift Tables

Additional Models In This Family
view entire Image Gallery

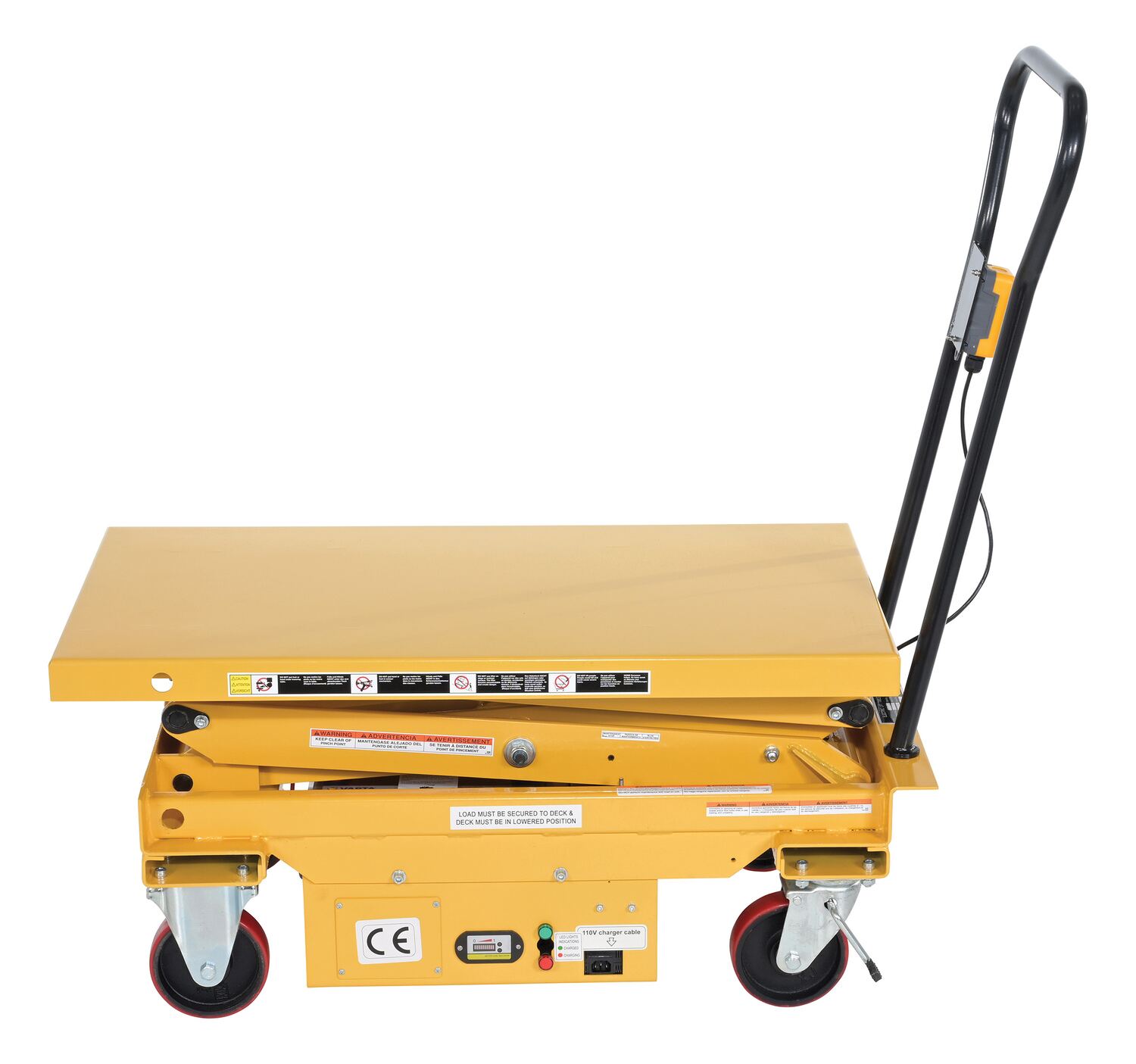

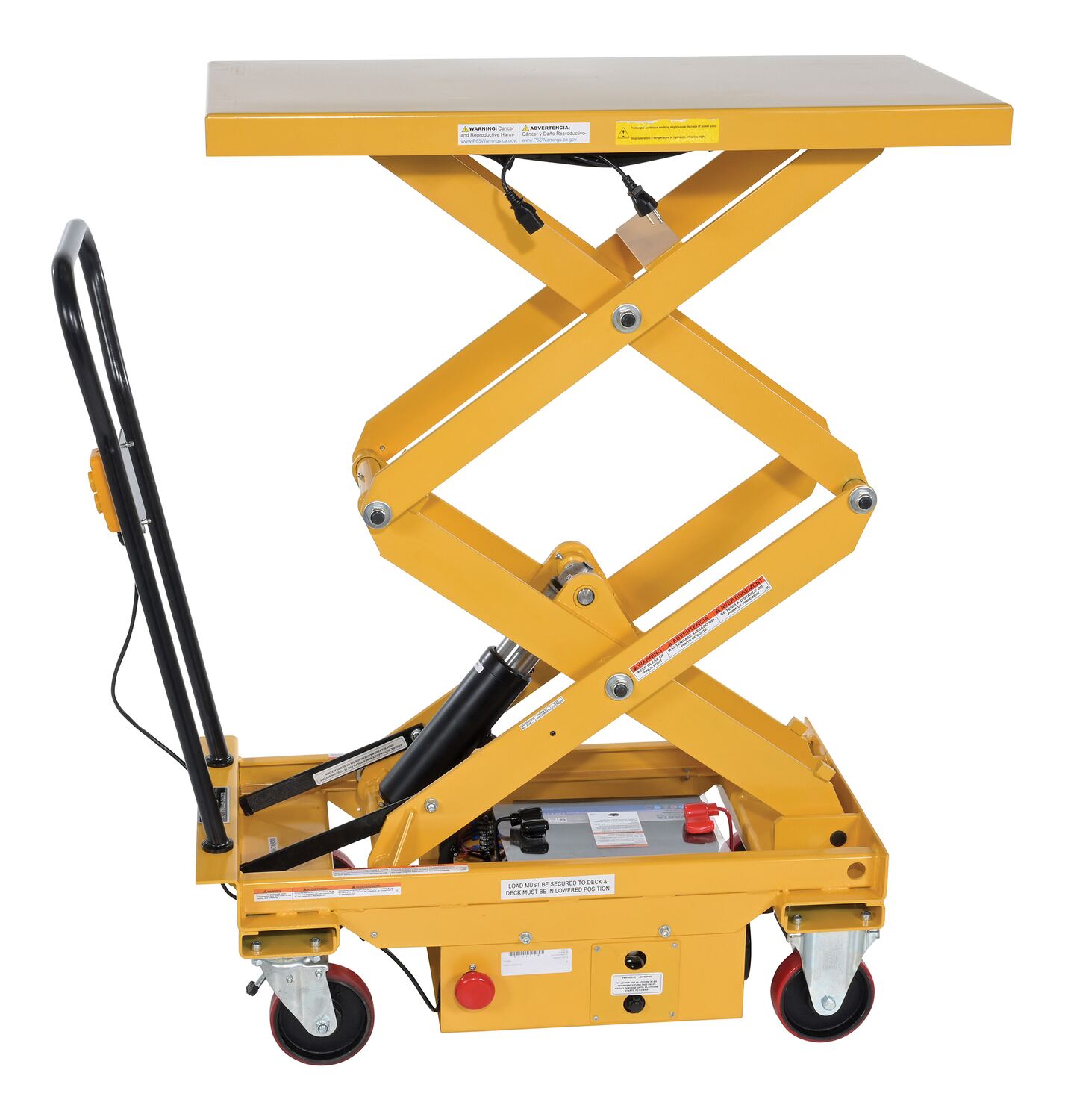

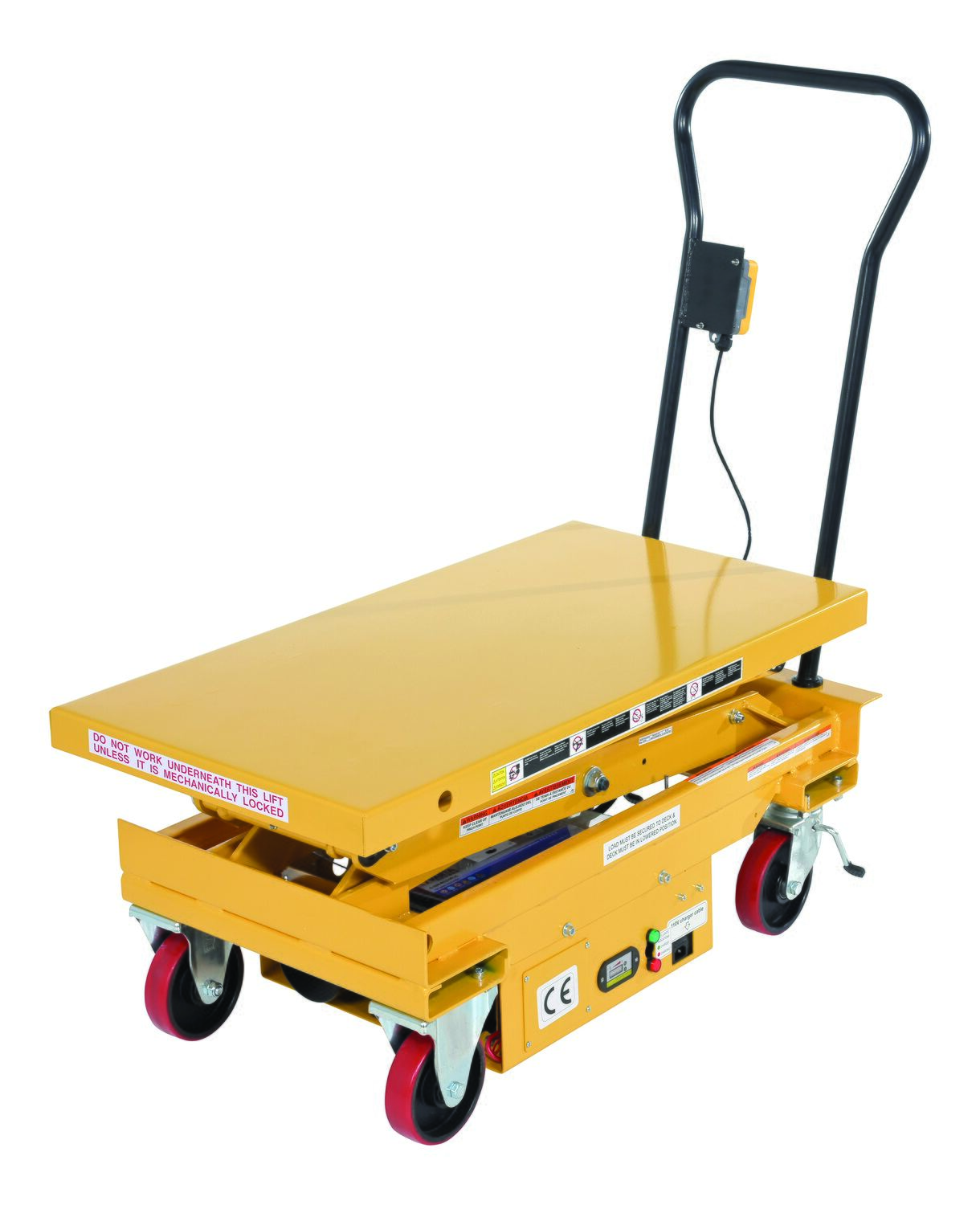

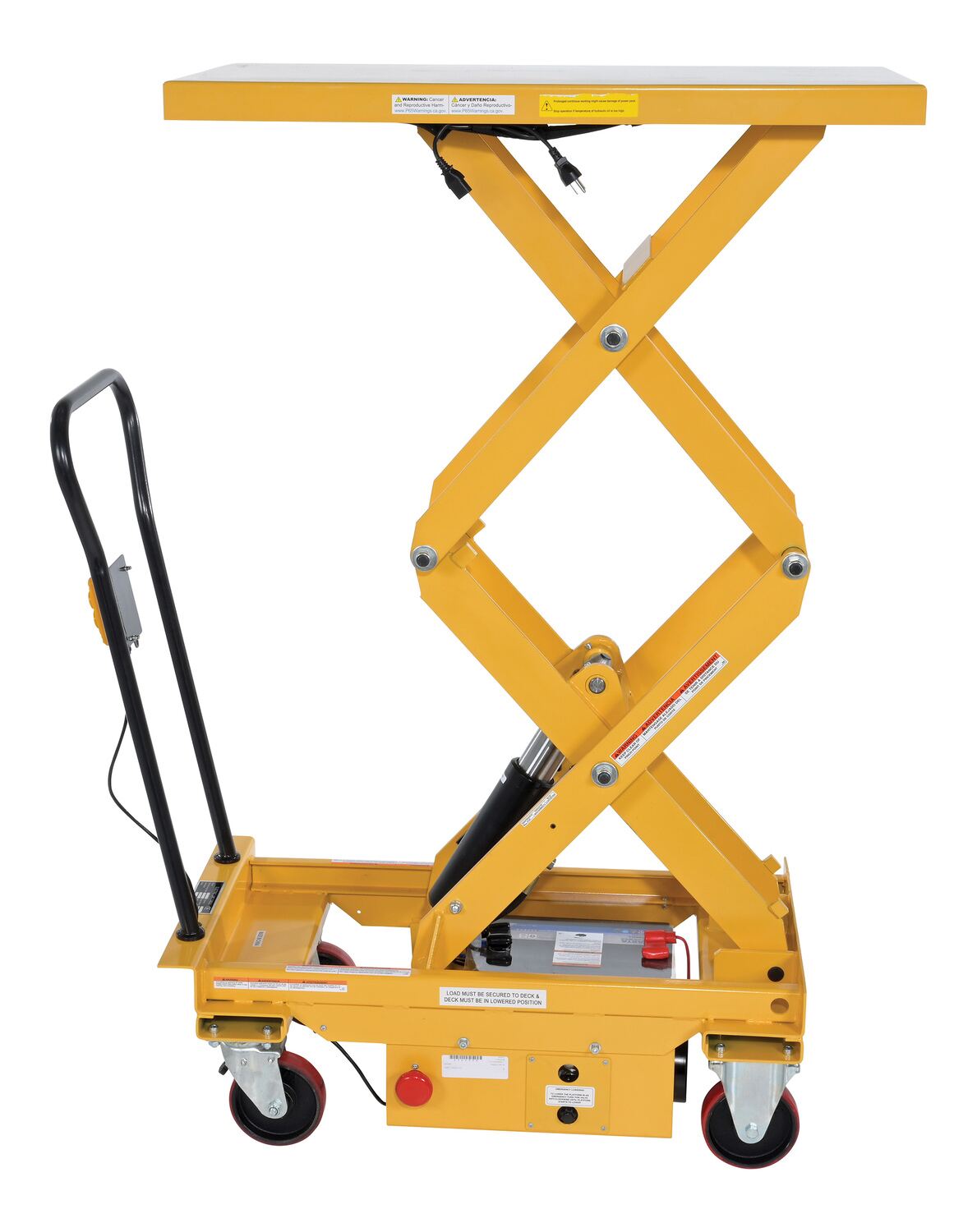

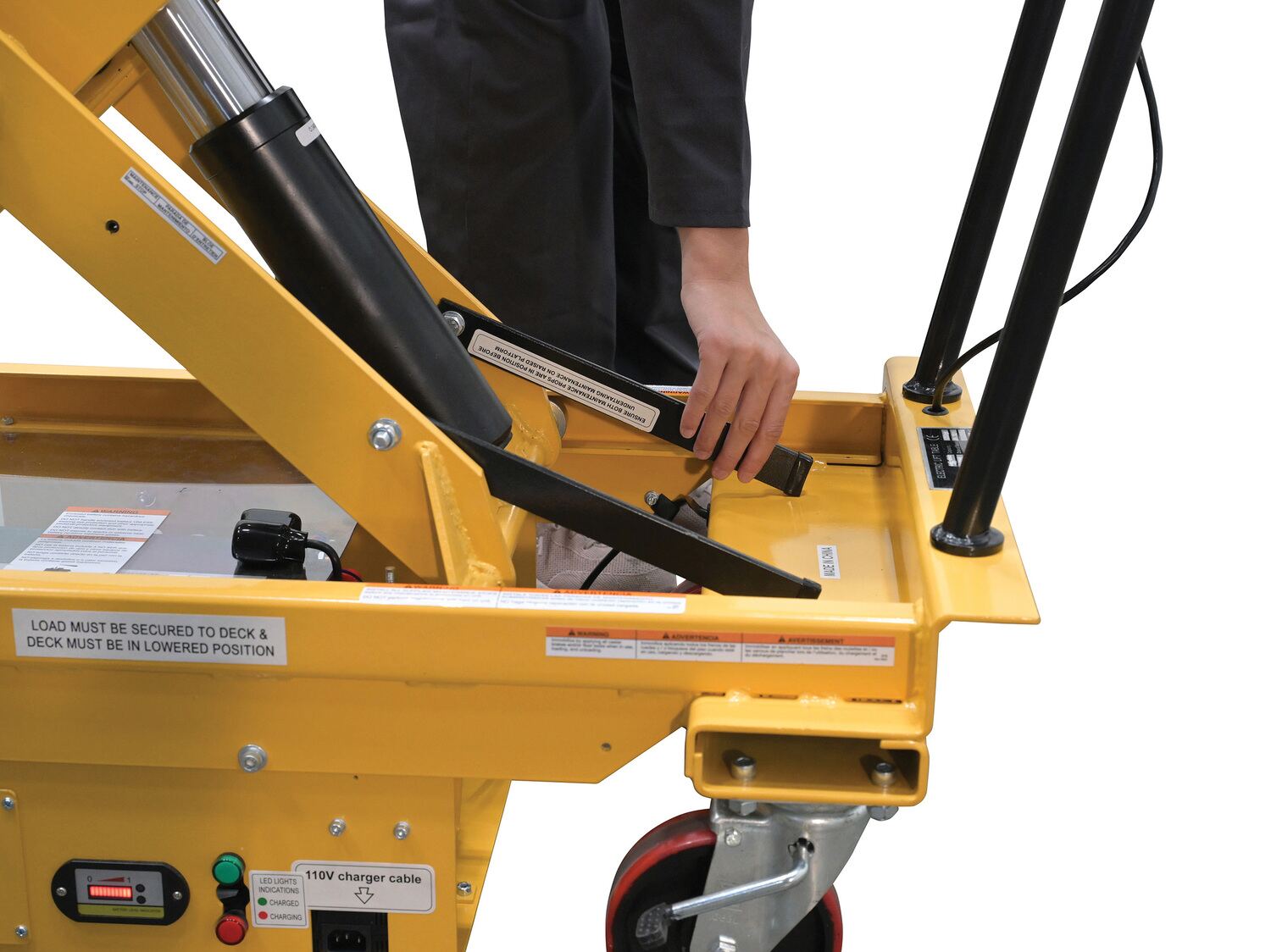

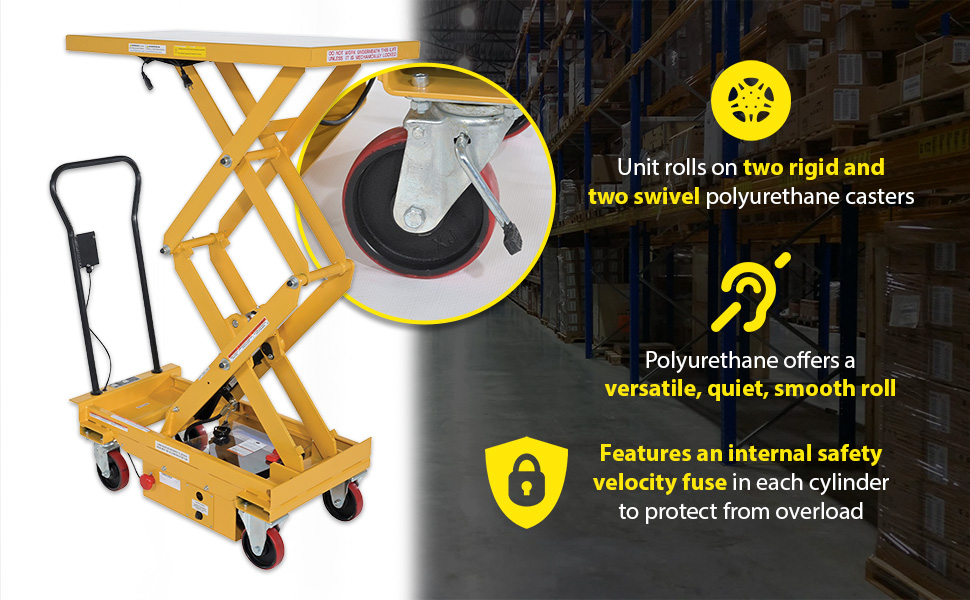

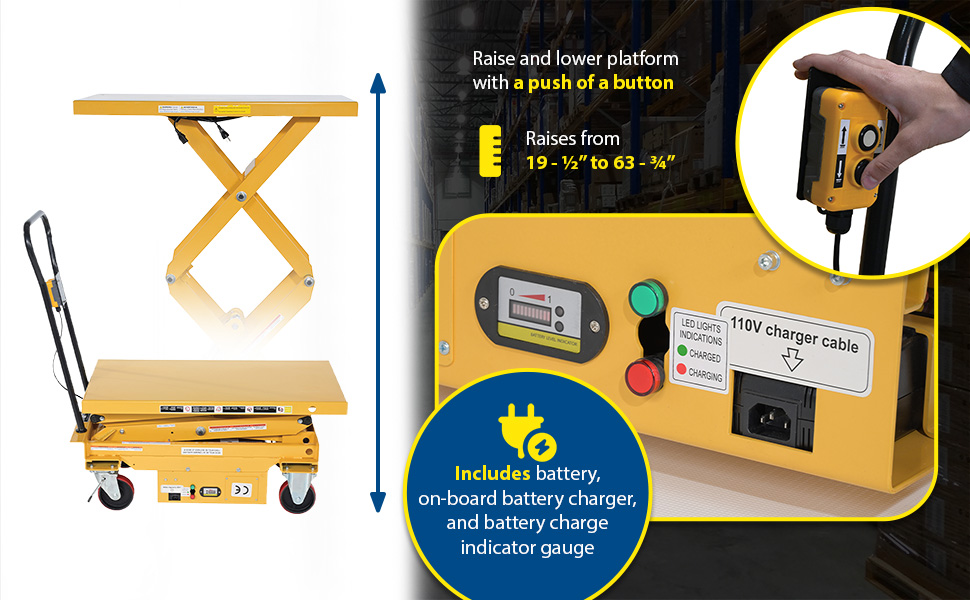

CART-1000D-DC

CART-1000D-DC

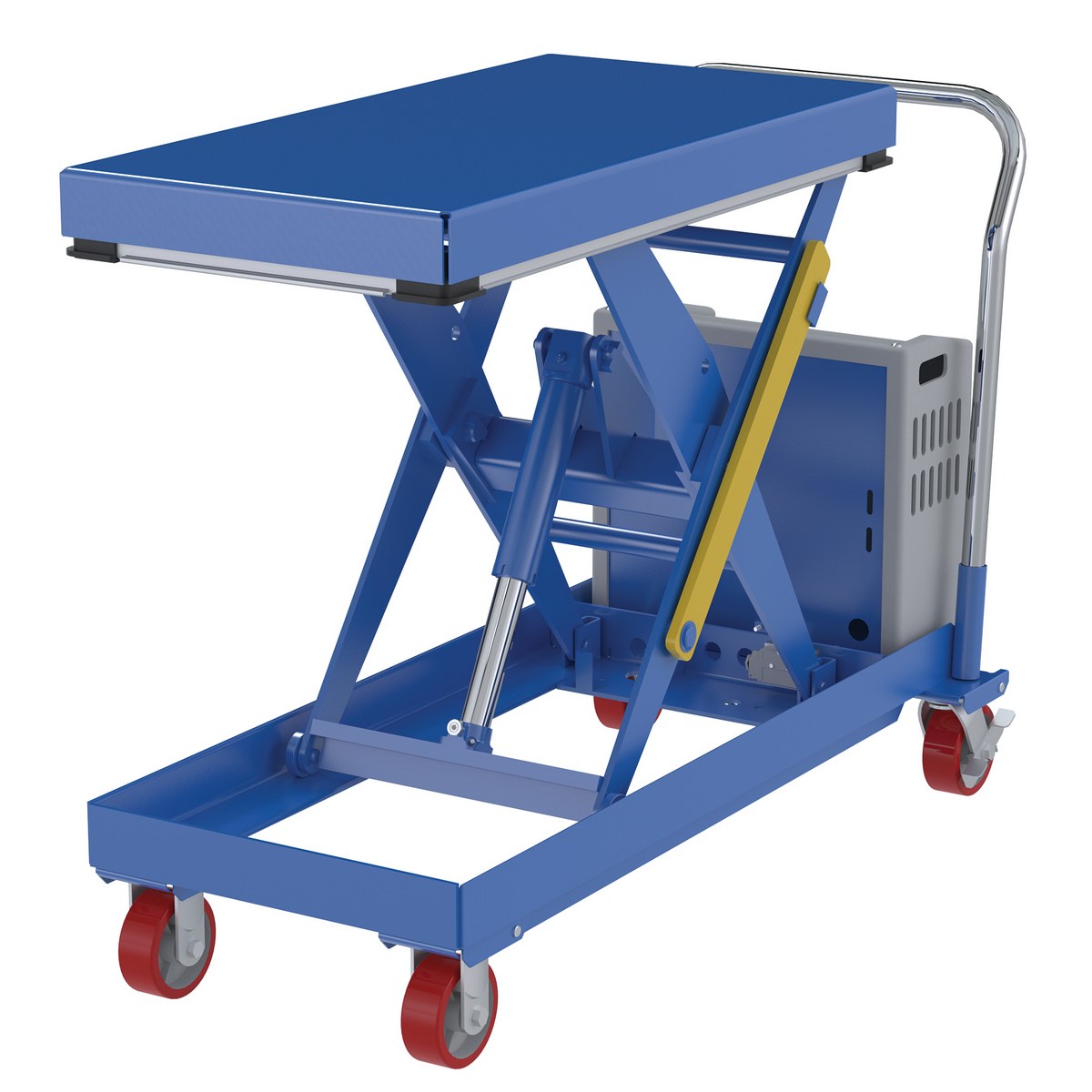

CART-1000-2040-DC

CART-1000-2040-DC

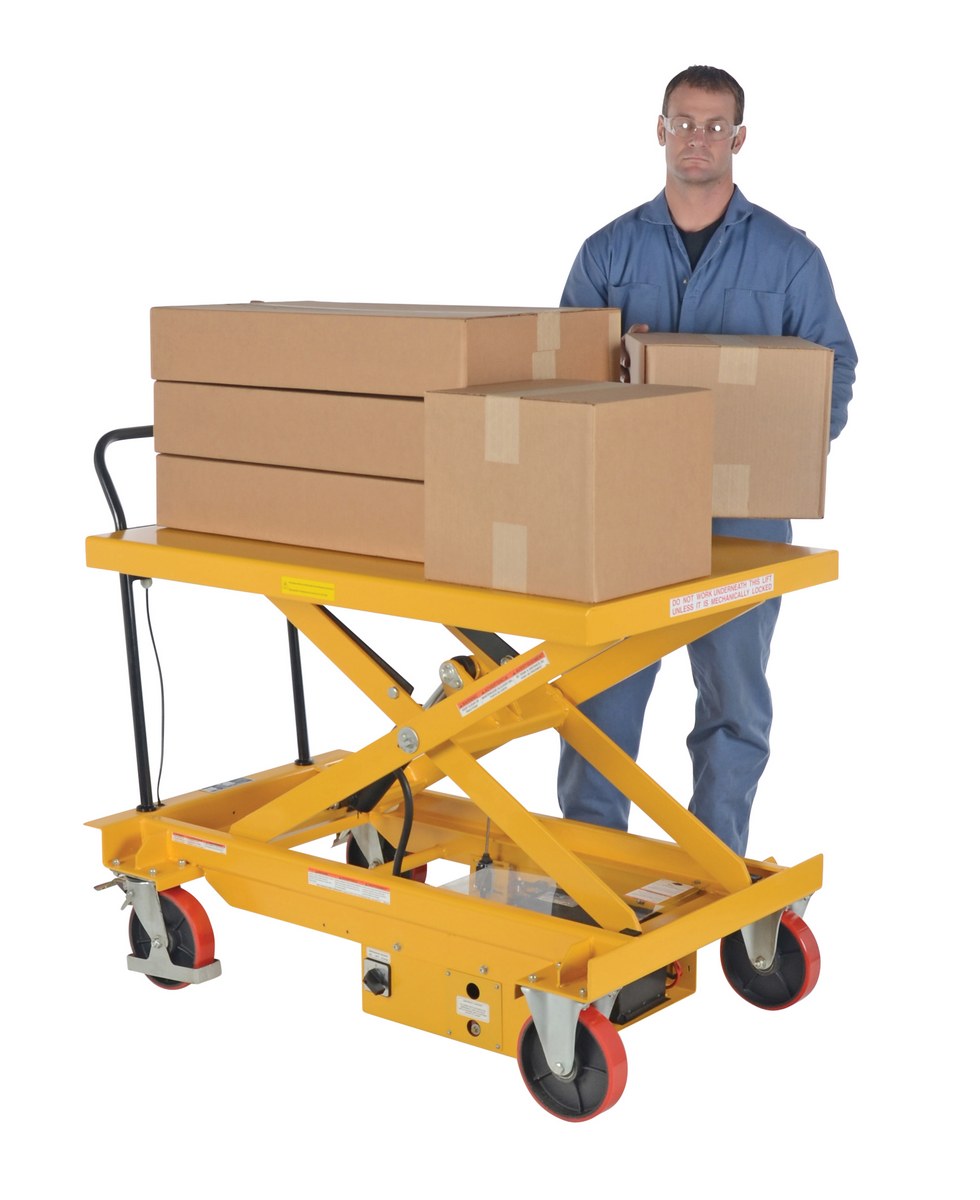

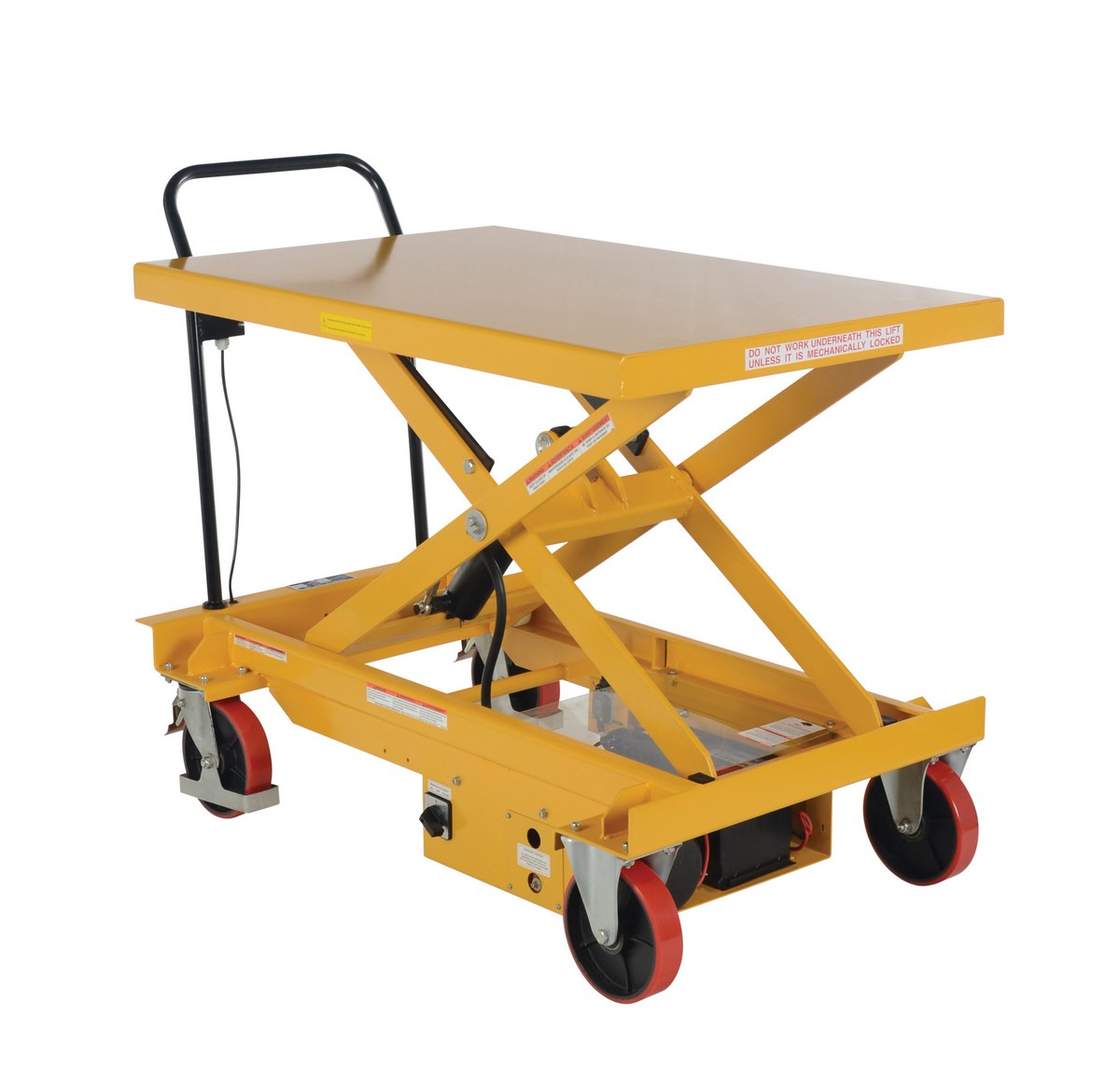

CART-1000-WD-DC

CART-1000-WD-DC

CART-1000-WD-DC

CART-1000-WD-DC

CART-1000-WD-DC

CART-1000-WD-DC

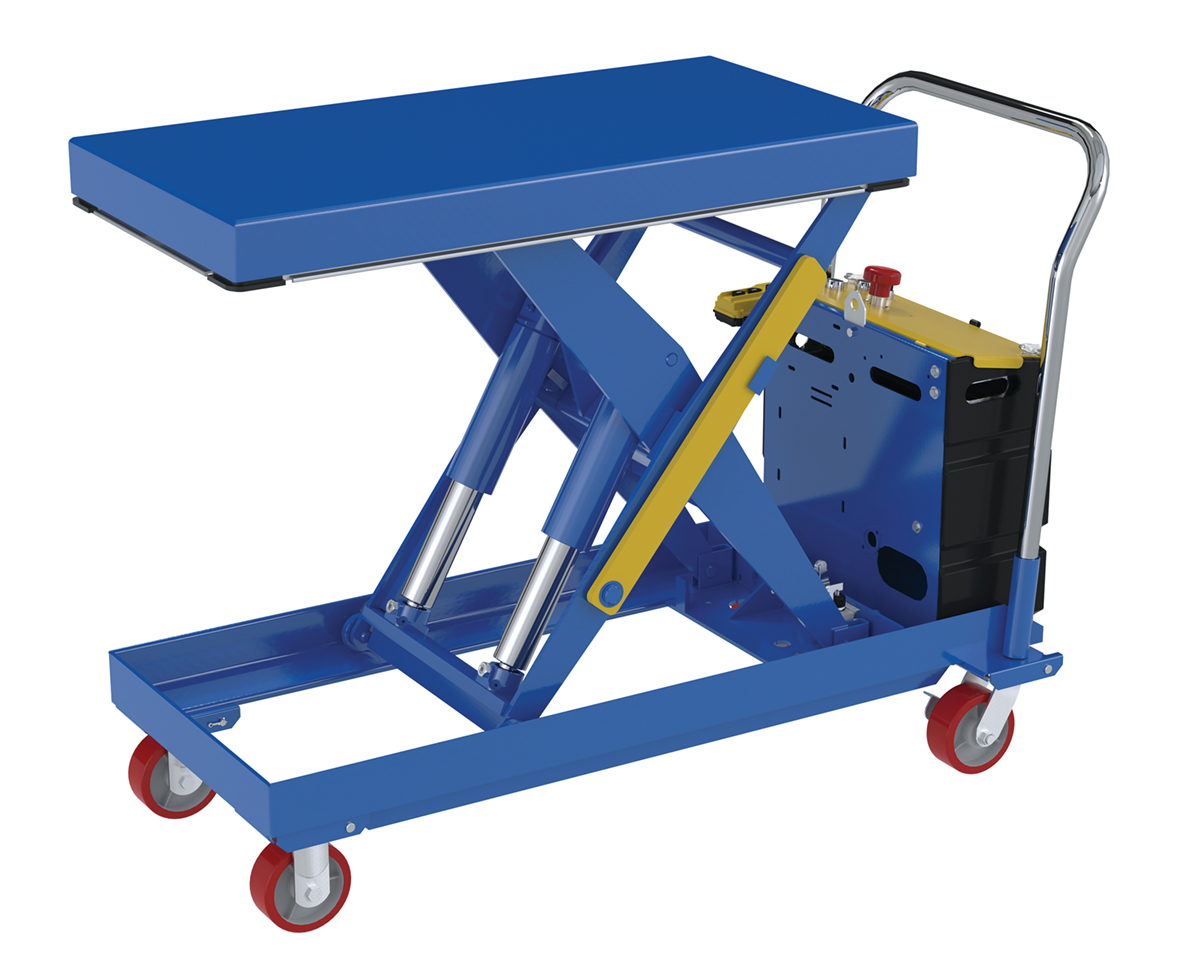

CART-2500-2040-DC

CART-2500-2040-DC

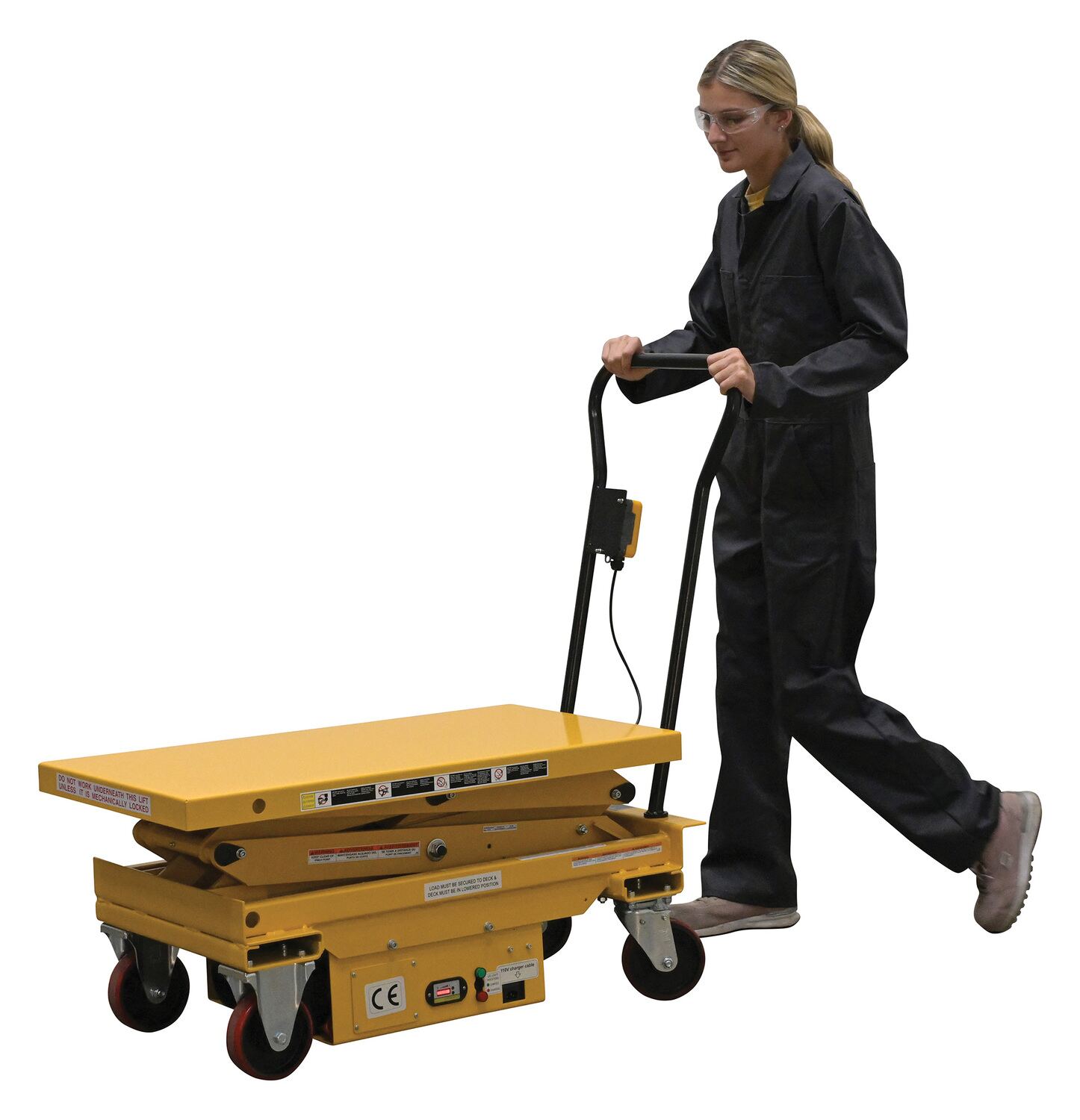

CART-1000D-DC

CART-1000D-DC

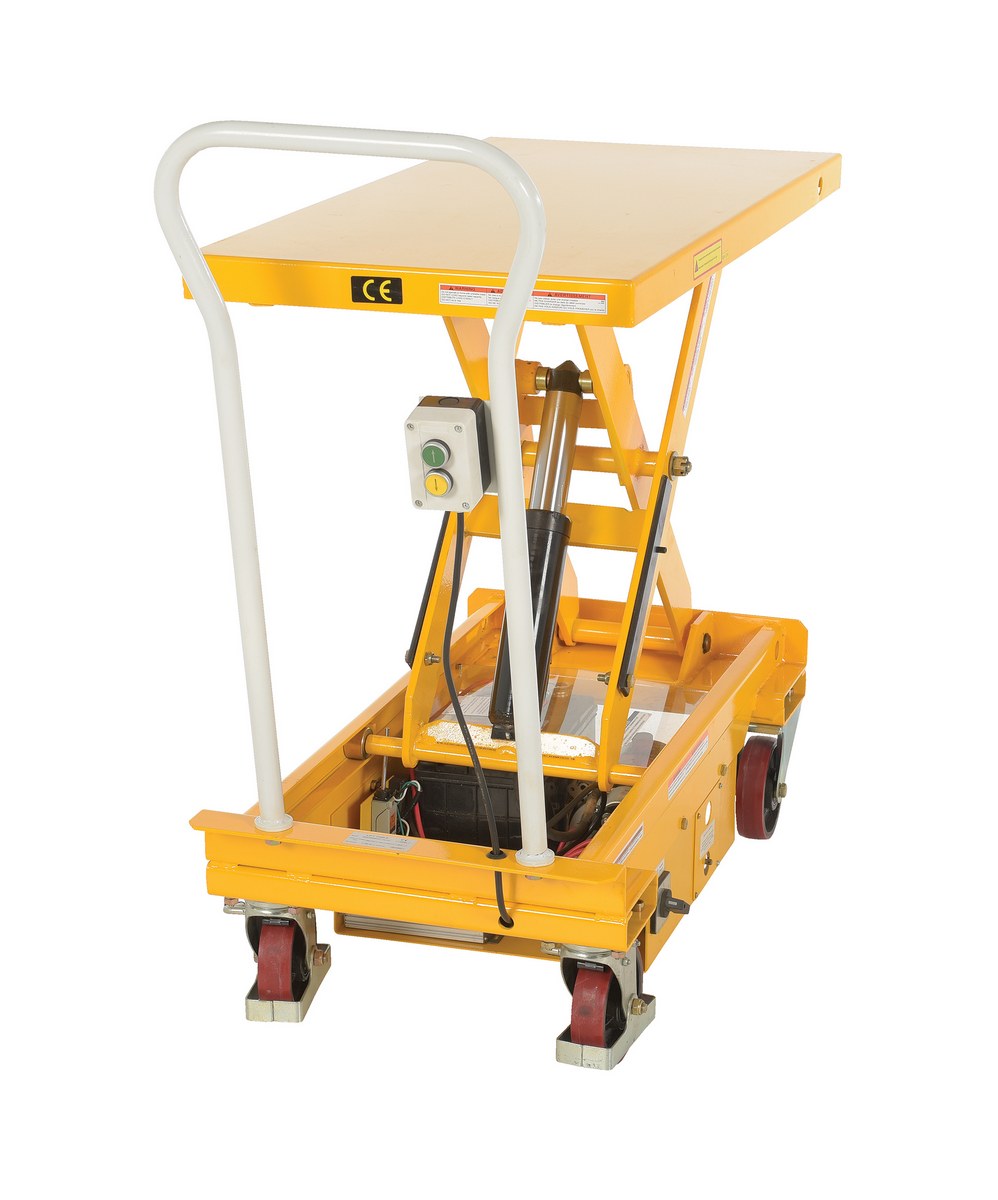

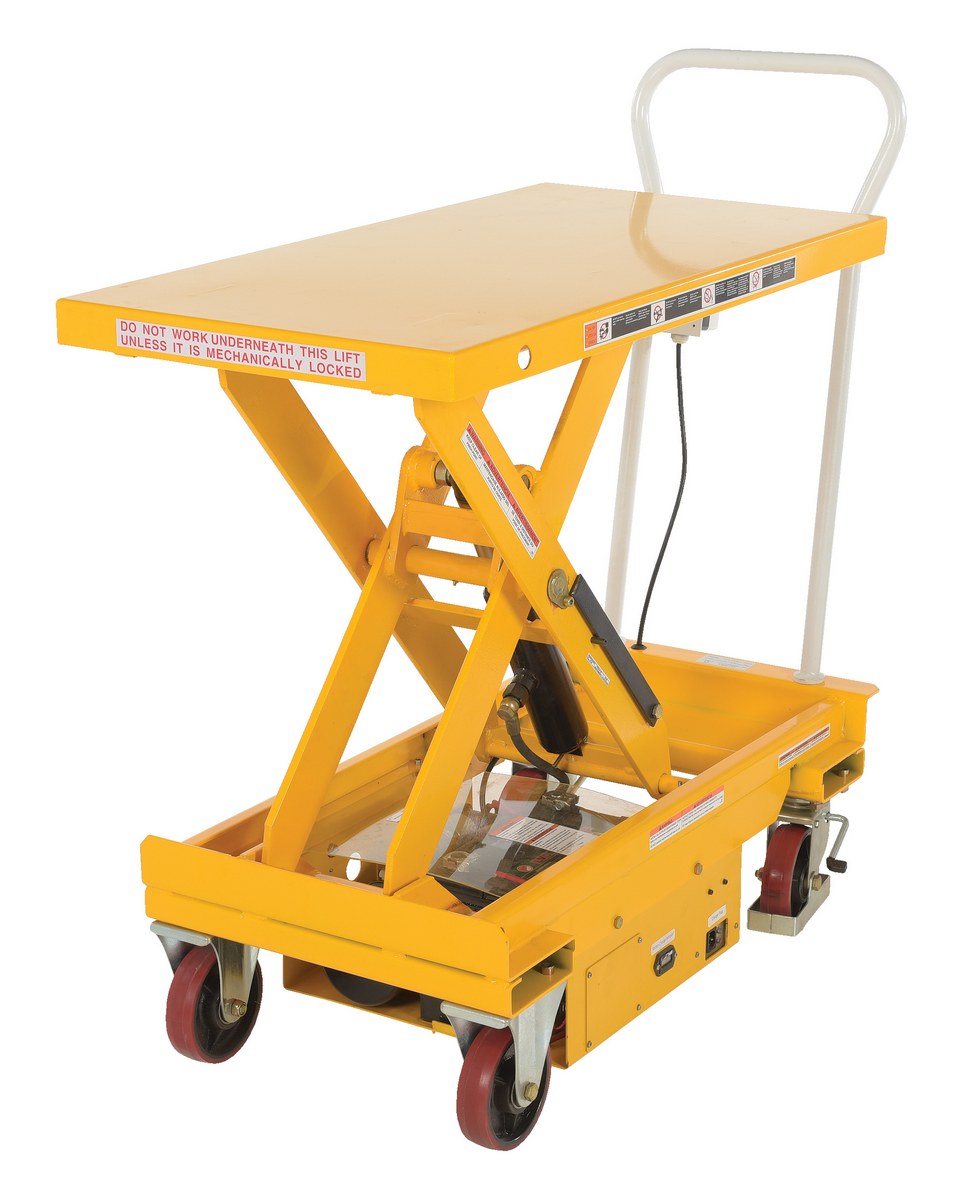

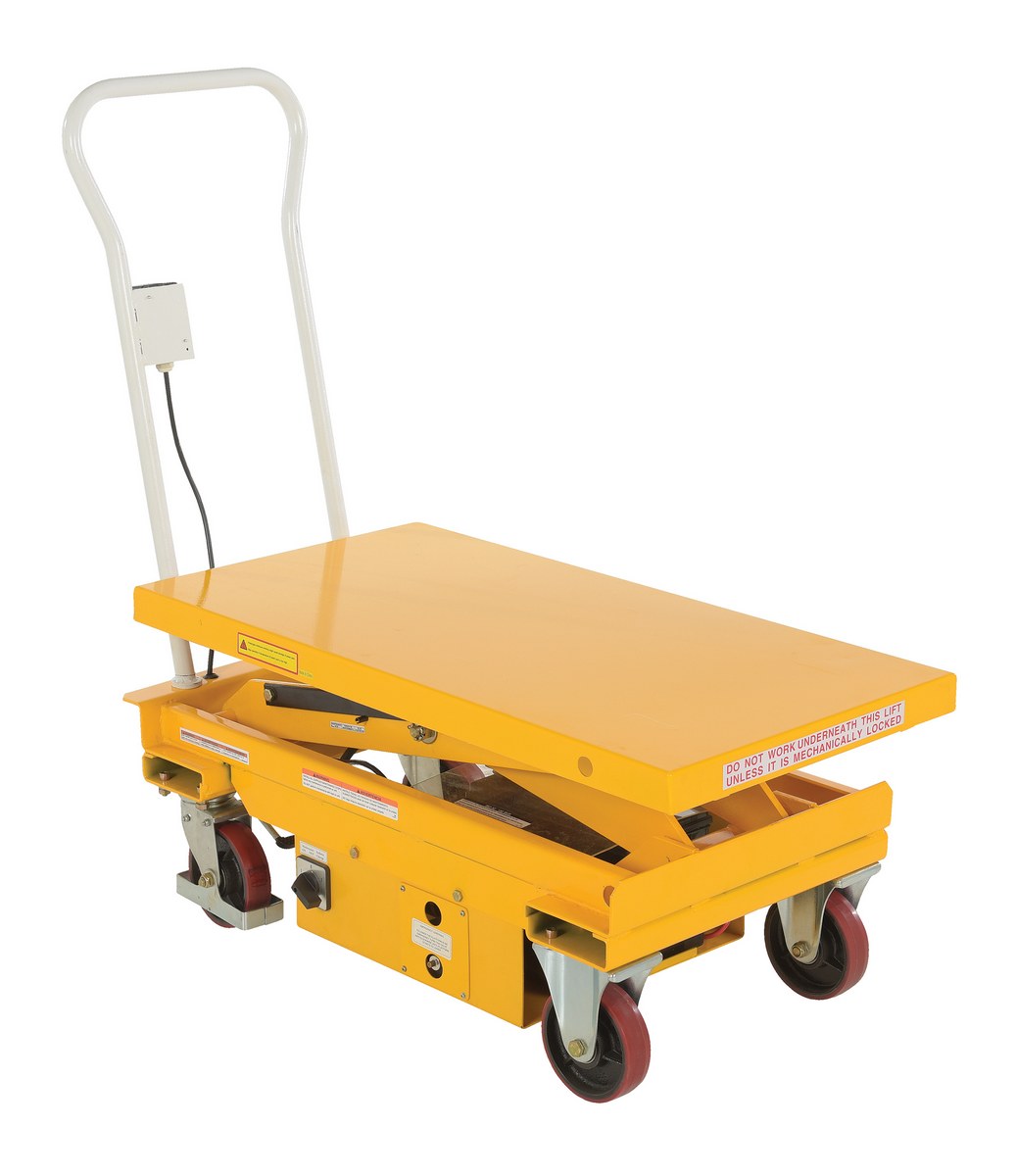

CART-2000-DC-C

CART-2000-DC-C

CART-2000-DC-C

CART-2000-DC-C

CART-2000-DC-C

CART-2000-DC-C

CART-1000-WD-DC

CART-1000-WD-DC

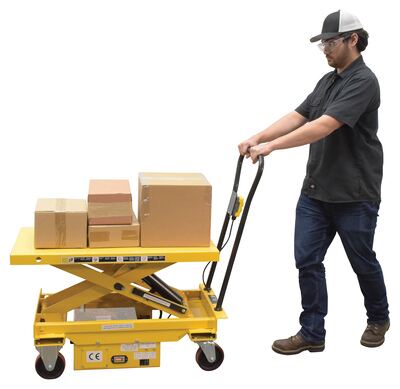

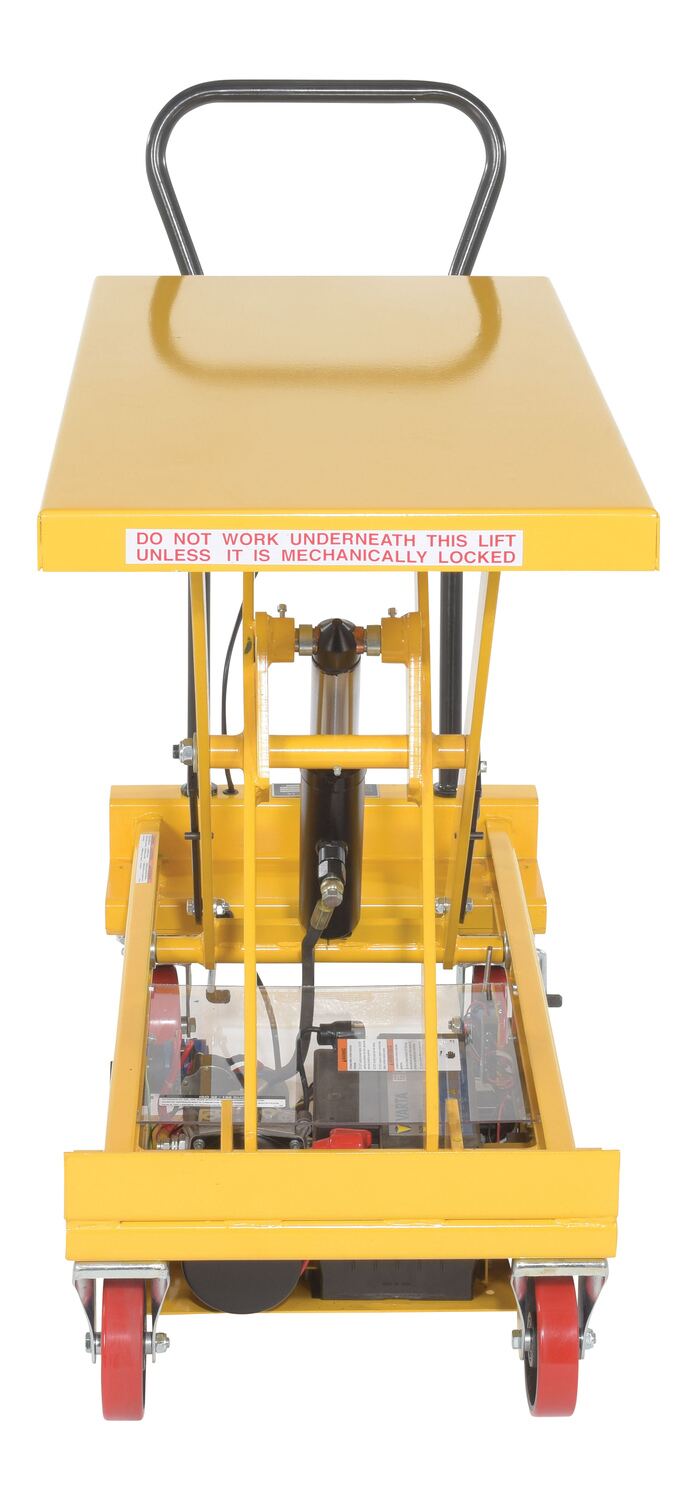

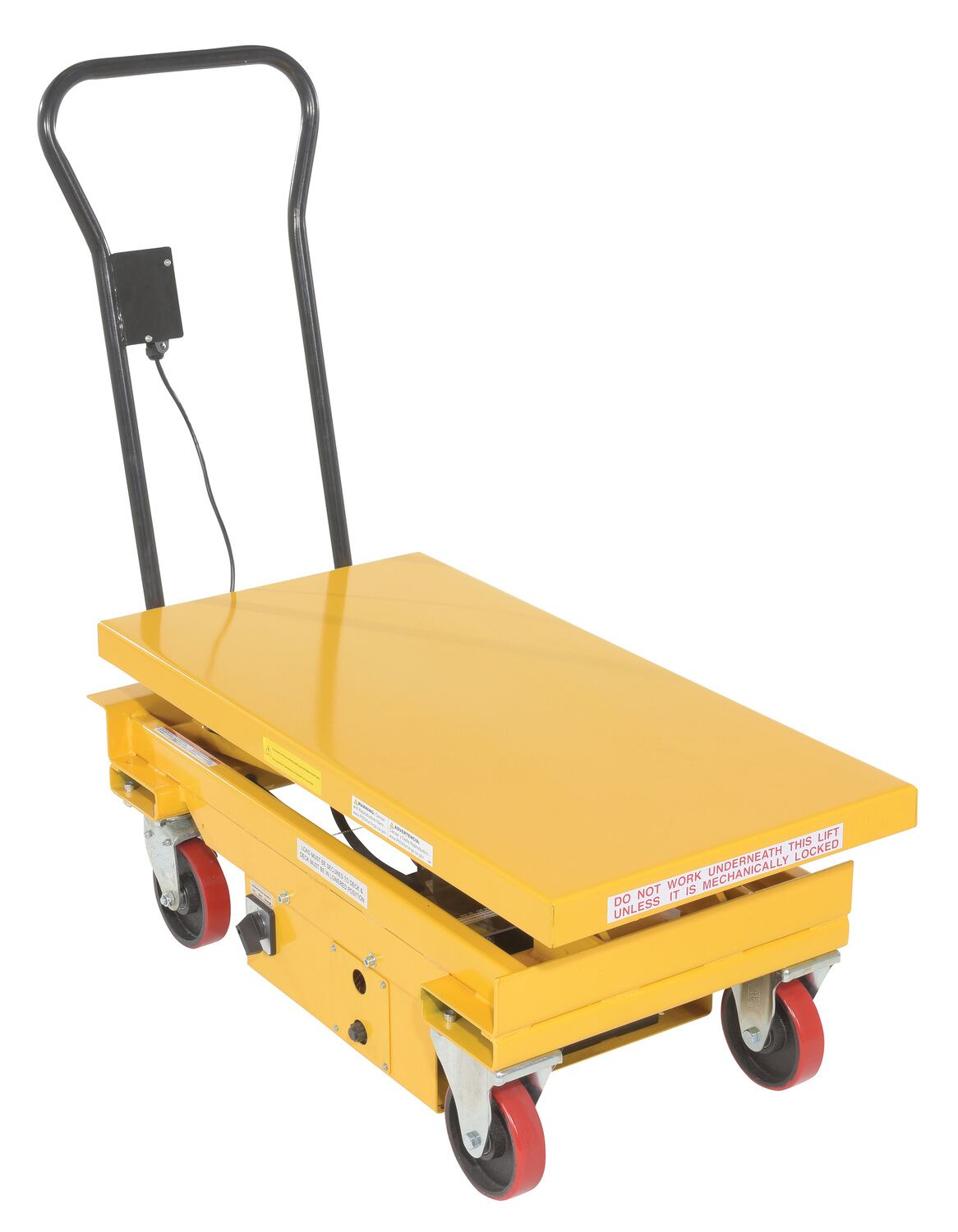

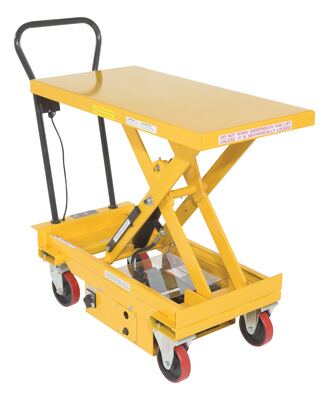

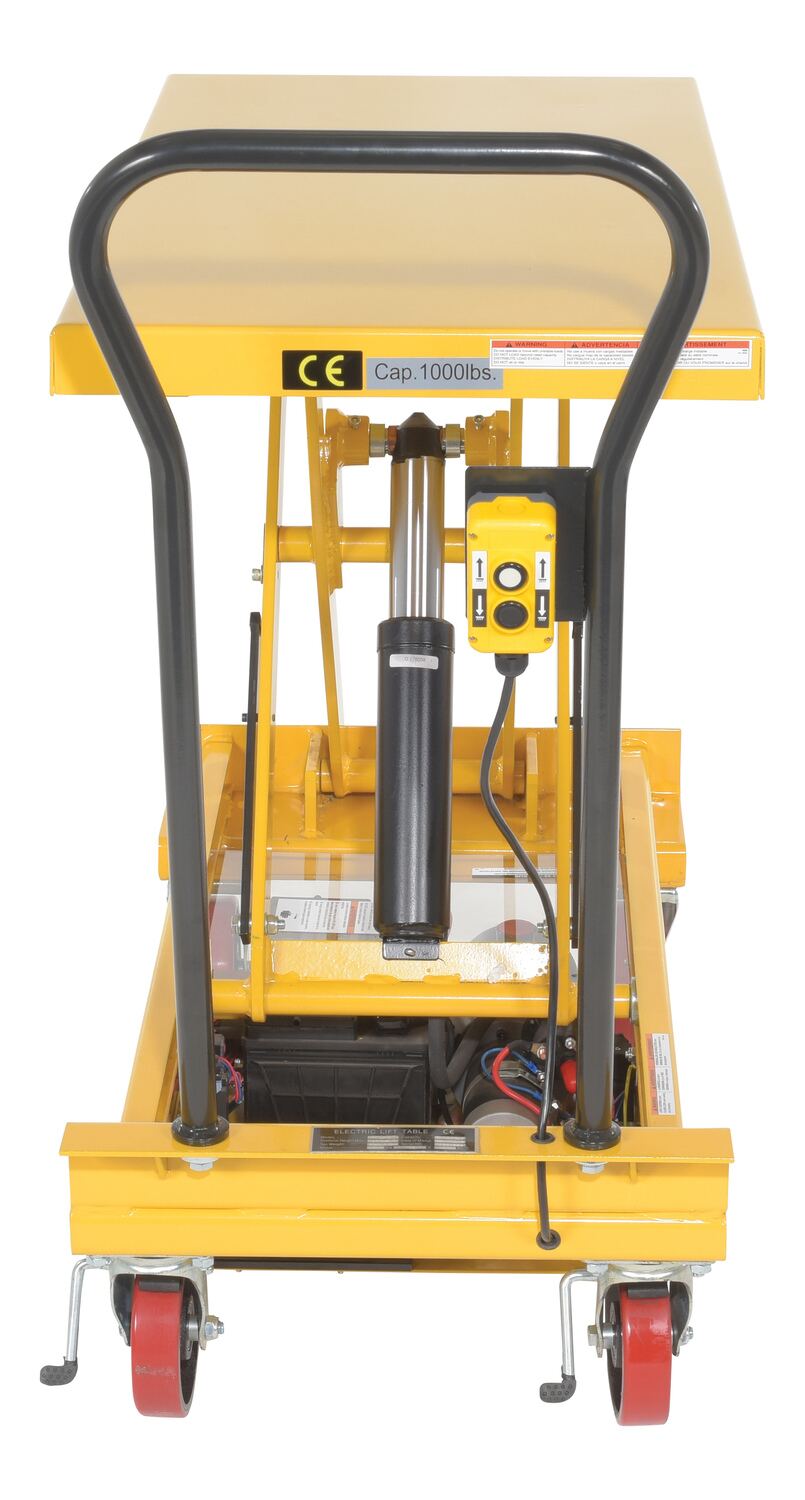

CART-1000-DC

CART-1000-DC

CART-1000D-DC

CART-1000D-DC

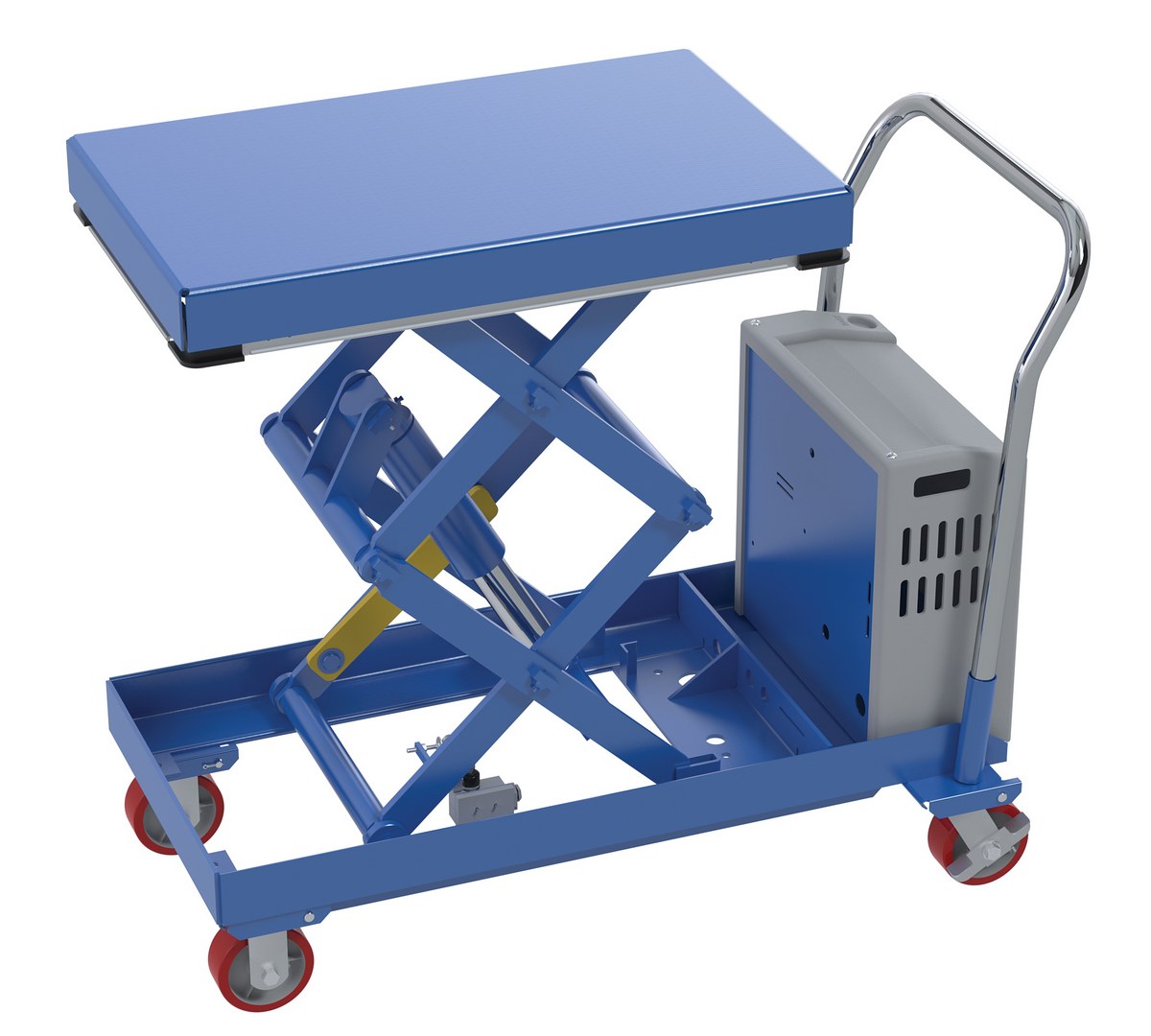

CARTD-1000-2033-DC

CARTD-1000-2033-DC

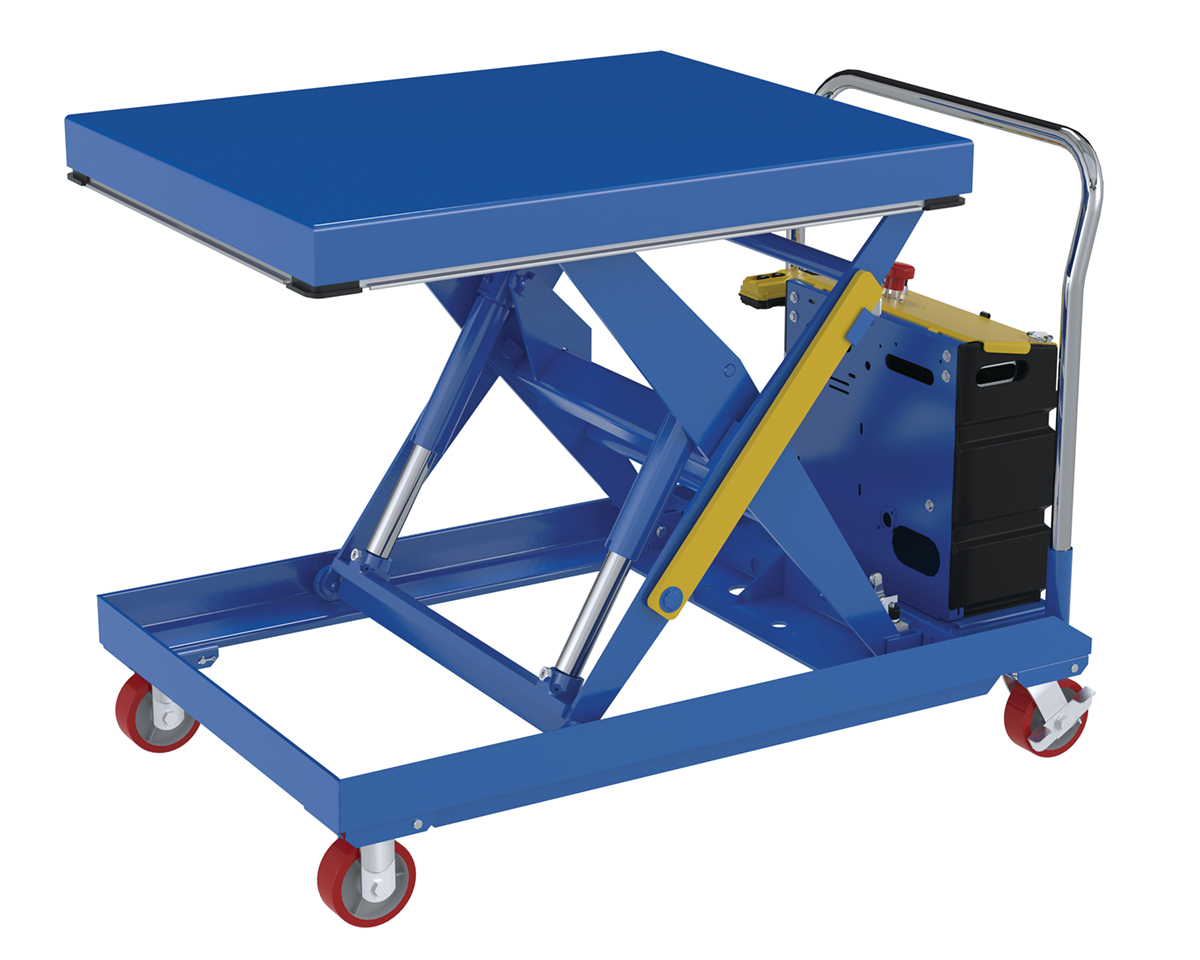

CART-2000-3240-DC

CART-2000-3240-DC

model chart
How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
CART-1000-2040-DC CART-1000-2040-DC1 Year Limited WarrantySteel 12V DC Powered Hydraulic Elevating Cart 20 In. x 40 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8		413
CART-1000-DC CART-1000-DC1 Year Limited WarrantySteel DC Powered Hydraulic Single Scissor Cart 20-1/2 In. x 39-3/4 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1000
Platform Width (in.): 20-1/2		450

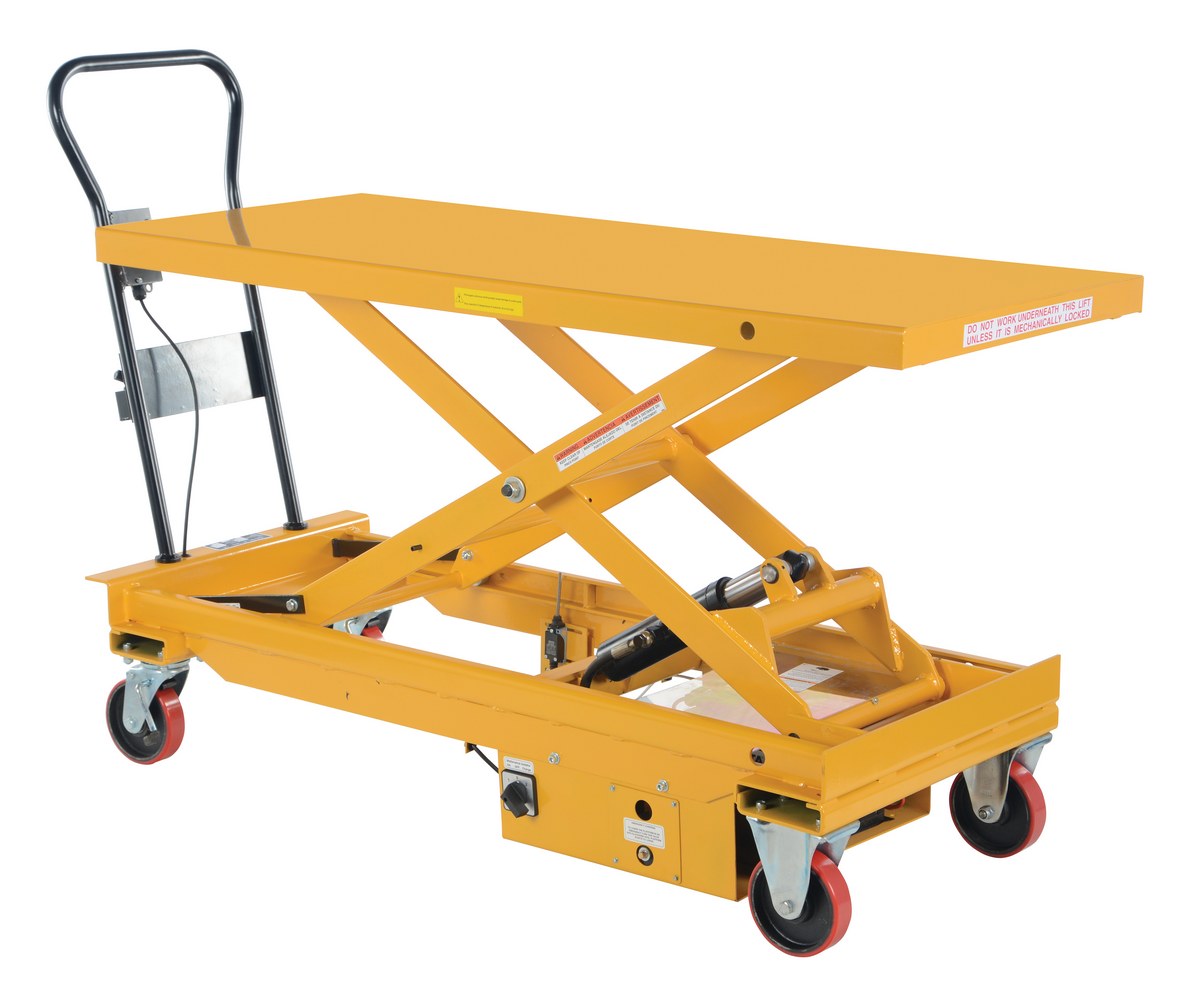

CART-1000-LD-DC CART-1000-LD-DC1 Year Limited WarrantySteel DC Powered Hydraulic Single Scissor Cart 24-1/2 In. x 60 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1000
Platform Width (in.): 24-1/2		509
CART-1000-WD-DC CART-1000-WD-DC1 Year Limited WarrantySteel DC Power Hydraulic Single Scissor Cart 47-1/4 In. x 31-1/2 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1000
Platform Width (in.): 31-1/2		498
CART-1000D-DC CART-1000D-DC1 Year Limited WarrantySteel DC Powered Hydraulic Double Scissor Cart 20-1/2 In. x 39-3/4 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1000
Platform Width (in.): 20-1/2		489

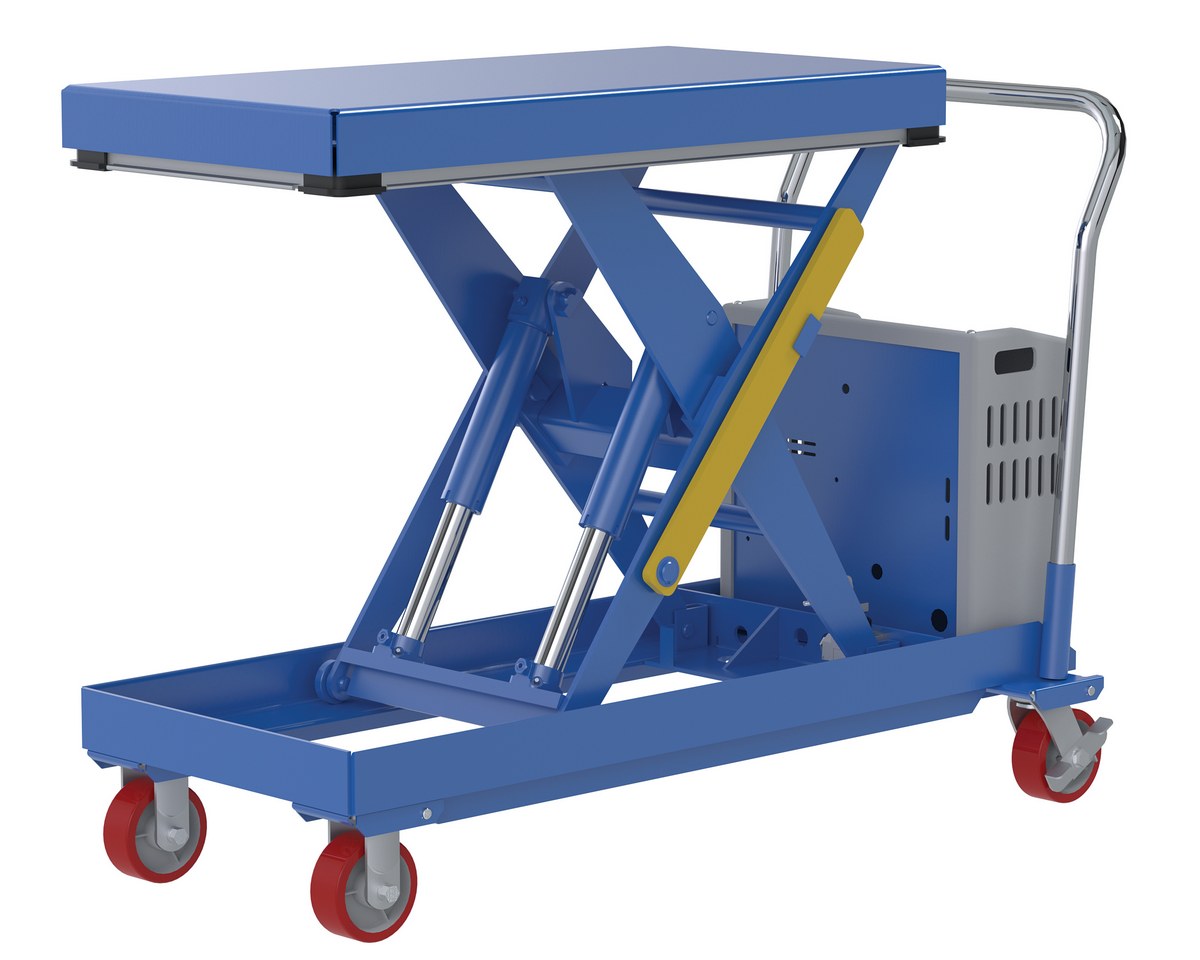

CART-2000-2040-DC CART-2000-2040-DC1 Year Limited WarrantySteel 12V DC Powered Hydraulic Elevating Cart 20 In. x 40 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8		393
CART-2000-3240-DC CART-2000-3240-DC1 Year Limited WarrantySteel 12V DC Powered Hydraulic Elevating Cart 32 In. x 40 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8		478

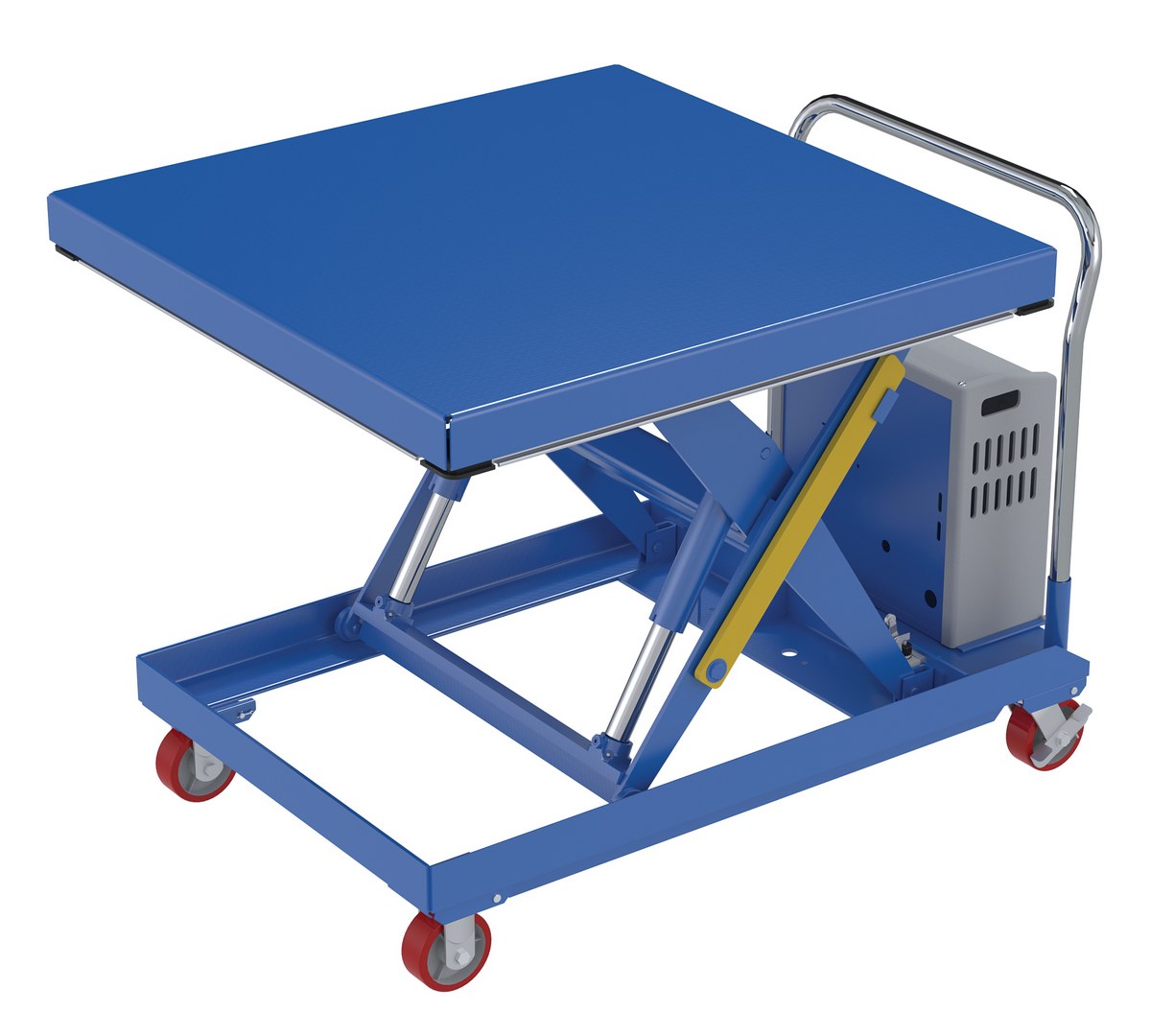

CART-2000-4242-DC CART-2000-4242-DC1 Year Limited WarrantySteel 12V DC Powered Hydraulic Elevating Cart 42 In. x 42 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8		528
CART-2000-DC-C CART-2000-DC-C1 Year Limited WarrantySteel Hydraulic Elevating Cart 20 In. x 40 In. 2000 Lb. Capacity YellowUniform Capacity (lb.): 2000
Platform Width (in.): 20		315
CART-2500-2040-DC CART-2500-2040-DC1 Year Limited WarrantySteel 12V DC Hydraulic Elevating Cart 20 In. x 40 In. 2500 Lb. Capacity BlueUniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8		436
CART-500-2033-DC CART-500-2033-DC1 Year Limited WarrantySteel 12V DC Hydraulic Elevating Cart 20 In. x 33 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 20-3/8		355
CARTD-1000-2033-DC CARTD-1000-2033-DC1 Year Limited WarrantySteel 12V DC Hydraulic Elevating Cart 20 In. x 33 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8		364

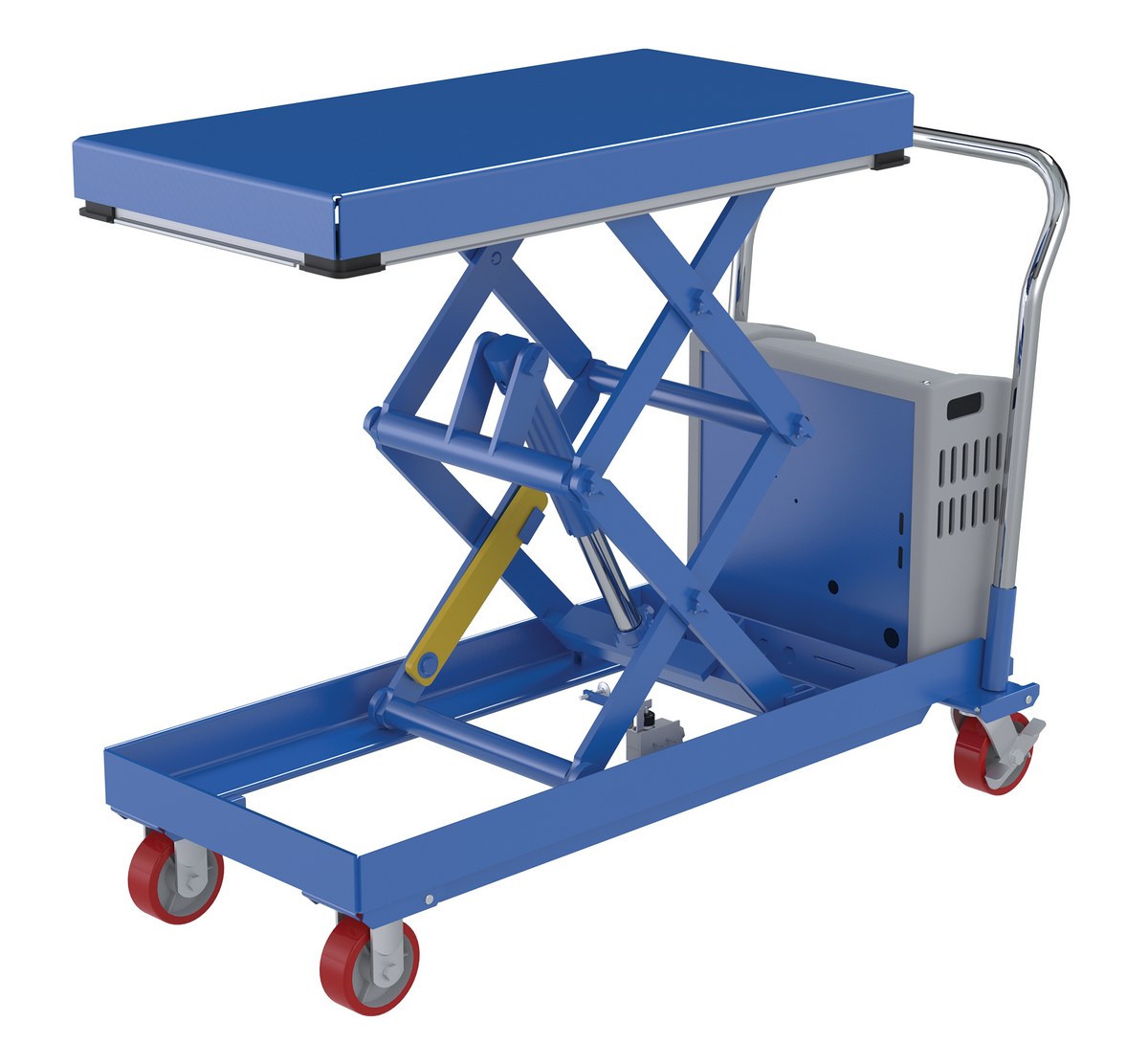

CARTD-750-2040-DC CARTD-750-2040-DC1 Year Limited WarrantySteel 12V DC Hydraulic Elevating Cart 20 In. x 40 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20-3/8		358

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

CART-1000-2040-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8

CART-1000-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-1/2
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-1/2

CART-1000-LD-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 24-1/2
Uniform Capacity (lb.): 1000
Platform Width (in.): 24-1/2

CART-1000-WD-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 31-1/2
Uniform Capacity (lb.): 1000
Platform Width (in.): 31-1/2

CART-1000D-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-1/2
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-1/2

CART-2000-2040-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8

CART-2000-3240-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8

CART-2000-4242-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8
Uniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8

CART-2000-DC-C
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 20
Uniform Capacity (lb.): 2000
Platform Width (in.): 20

CART-2500-2040-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8

CART-500-2033-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 500
Platform Width (in.): 20-3/8

CARTD-1000-2033-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8

CARTD-750-2040-DC
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 750
Platform Width (in.): 20-3/8
Uniform Capacity (lb.): 750
Platform Width (in.): 20-3/8
DC Powered Hydraulic Elevating Carts PDF's will open in a new window when clicked.

Manuals


CART-1000-DC
Owners Manual

CART-1000D-DC
Owners Manual

CART-SCTAB
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


CART-1000-2040-DC

CART-1000-DC

CART-1000-LD-DC

CART-1000-WD-DC

CART-1000D-DC

CART-2000-2040-DC

CART-2000-3240-DC

CART-2000-4242-DC

CART-2500-2040-DC

CART-500-2033-DC

CARTD-1000-2033-DC

CARTD-750-2040-DC

Testing Certificates


CART-1000-2040-DC

CART-1000-DC

CART-1000-LD-DC

CART-1000-WD-DC

CART-1000D-DC

CART-2000-2040-DC

CART-2000-3240-DC

CART-2000-4242-DC

CART-2000-DC-C

CART-2500-2040-DC

CART-500-2033-DC

CARTD-1000-2033-DC

CARTD-750-2040-DC

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-1000-2040-DC
Hydraulic Oil SDS Sheet for: CART-1000-2040-DC
Lead Acid Battery SDS Sheet for: CART-1000-DC
Hydraulic Oil SDS Sheet for: CART-1000-DC
Lead Acid Battery SDS Sheet for: CART-1000D-DC
Hydraulic Oil SDS Sheet for: CART-1000D-DC

Lead Acid Battery SDS Sheet for: CART-1000-LD-DC
Hydraulic Oil SDS Sheet for: CART-1000-LD-DC

Lead Acid Battery SDS Sheet for: CART-1000-WD-DC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-2000-2040-DC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-2000-3240-DC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-2000-4242-DC
Valve-Regulated Lead Acid Batteries SDS Sheet for: CART-2000-DC-C
Hydraulic Oil SDS Sheet for: CART-2000-DC-C
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-2500-2040-DC
Hydraulic Oil SDS Sheet for: CART-2500-2040-DC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CART-500-2033-DC
Hydraulic Oil SDS Sheet for: CART-500-2033-DC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CARTD-1000-2033-DC
Hydraulic Oil SDS Sheet for: CARTD-1000-2033-DC
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: CARTD-750-2040-DC
Hydraulic Oil SDS Sheet for: CARTD-750-2040-DC

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: On the CART-1000-LD-DC what is the raise and lower time?

A: The raise time is 15 seconds. The lower time is 13 seconds.

Q: Is the battery charger UL listed?

A: Yes the battery charger is UL listed.

Q: What is the amp draw of the hydraulic system on CART-1000-DC?

A: 148 amps with load and 54 amps without load.

Q: What force is required to begin pushing/moving CART-1000D-DC when it is loaded?

A: 70 lbs.




Related or Similar Products:

DC Powered and Manual Scissor Carts
Product

DC Powered and Manual Scissor Carts

Auto-Shift Hydraulic Elevating Carts
Product

Auto-Shift Hydraulic Elevating Carts

DC Powered Hydraulic Elevating Carts
Product

DC Powered Hydraulic Elevating Carts

Powered Drive and Powered Lift Hydraulic Scissor Carts
Product

Powered Drive and Powered Lift Hydraulic Scissor Carts

Traction Drive Electric Hydraulic Elevating Carts
Product

Traction Drive Electric Hydraulic Elevating Carts

Auto-Shift Hydraulic Elevating Carts
Product

Auto-Shift Hydraulic Elevating Carts

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





DC Powered Hydraulic Elevating...




These carts are ideal for quick lifting and ergonomic material handling. Battery-powered units allow operators to raise and lower platform with the push of a button. *Units roll on two (2) rigid and two (2) swivel polyurethane casters while the others roll on 5" poly-on-steel casters. Includes one (1) 12V battery and an on-board charger.


Model # Description Attributes Net Wt.
(lbs)
CART-1000-2040-DC CART-1000-2040-DCSteel 12V DC Powered Hydraulic Elevating Cart 20 In. x 40 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8		413
CART-1000-DC CART-1000-DCSteel DC Powered Hydraulic Single Scissor Cart 20-1/2 In. x 39-3/4 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1000
Platform Width (in.): 20-1/2		450
CART-1000-LD-DC CART-1000-LD-DCSteel DC Powered Hydraulic Single Scissor Cart 24-1/2 In. x 60 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1000
Platform Width (in.): 24-1/2		509
CART-1000-WD-DC CART-1000-WD-DCSteel DC Power Hydraulic Single Scissor Cart 47-1/4 In. x 31-1/2 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1000
Platform Width (in.): 31-1/2		498
CART-1000D-DC CART-1000D-DCSteel DC Powered Hydraulic Double Scissor Cart 20-1/2 In. x 39-3/4 In. 1000 Lb. Capacity YellowUniform Capacity (lb.): 1000
Platform Width (in.): 20-1/2		489
CART-2000-2040-DC CART-2000-2040-DCSteel 12V DC Powered Hydraulic Elevating Cart 20 In. x 40 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 20-3/8		393
CART-2000-3240-DC CART-2000-3240-DCSteel 12V DC Powered Hydraulic Elevating Cart 32 In. x 40 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 32-3/8		478
CART-2000-4242-DC CART-2000-4242-DCSteel 12V DC Powered Hydraulic Elevating Cart 42 In. x 42 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 42-3/8		528
CART-2000-DC-C CART-2000-DC-CSteel Hydraulic Elevating Cart 20 In. x 40 In. 2000 Lb. Capacity YellowUniform Capacity (lb.): 2000
Platform Width (in.): 20		315
CART-2500-2040-DC CART-2500-2040-DCSteel 12V DC Hydraulic Elevating Cart 20 In. x 40 In. 2500 Lb. Capacity BlueUniform Capacity (lb.): 2500
Platform Width (in.): 20-3/8		436
CART-500-2033-DC CART-500-2033-DCSteel 12V DC Hydraulic Elevating Cart 20 In. x 33 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Platform Width (in.): 20-3/8		355
CARTD-1000-2033-DC CARTD-1000-2033-DCSteel 12V DC Hydraulic Elevating Cart 20 In. x 33 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Platform Width (in.): 20-3/8		364
CARTD-750-2040-DC CARTD-750-2040-DCSteel 12V DC Hydraulic Elevating Cart 20 In. x 40 In. 750 Lb. Capacity BlueUniform Capacity (lb.): 750
Platform Width (in.): 20-3/8		358

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
