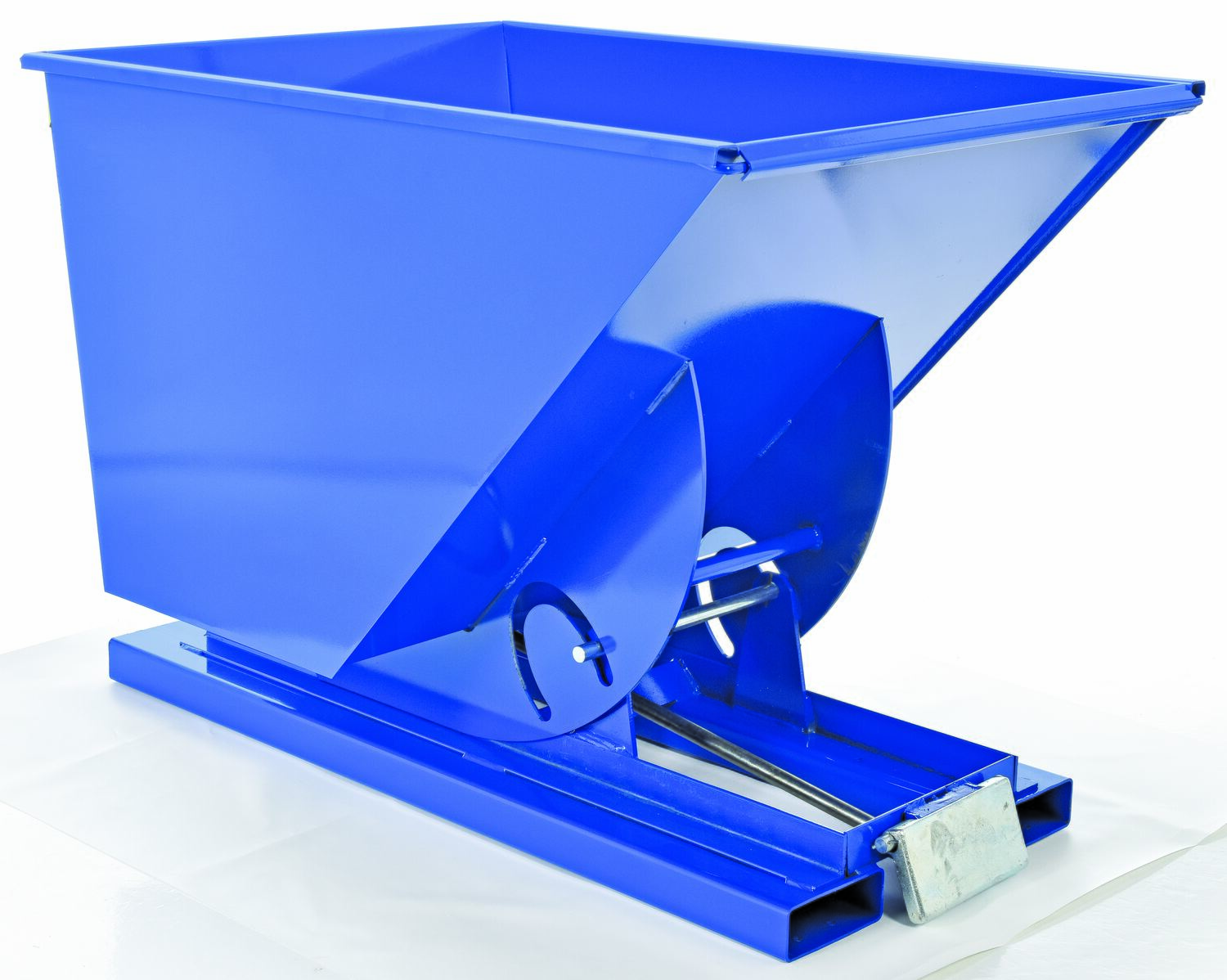

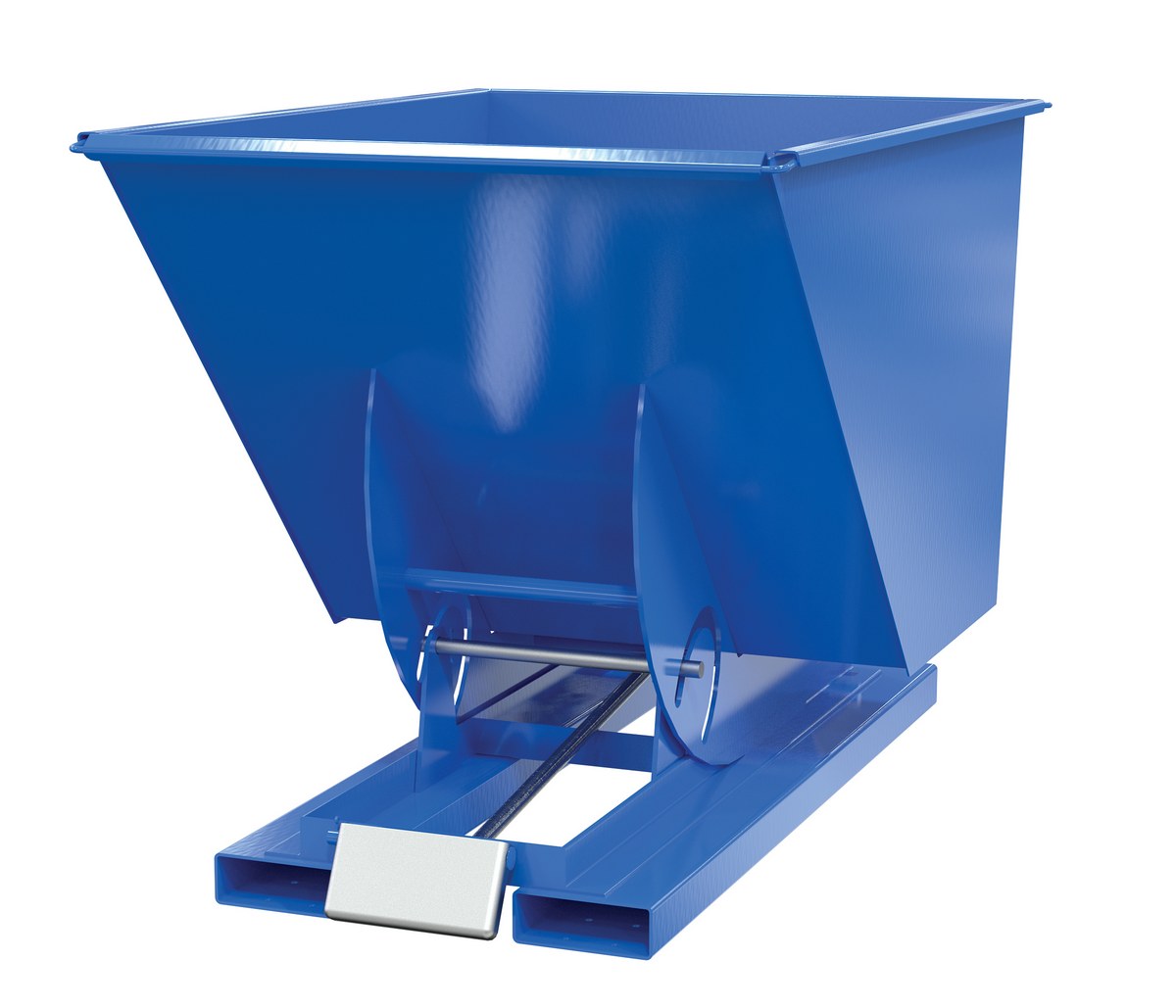

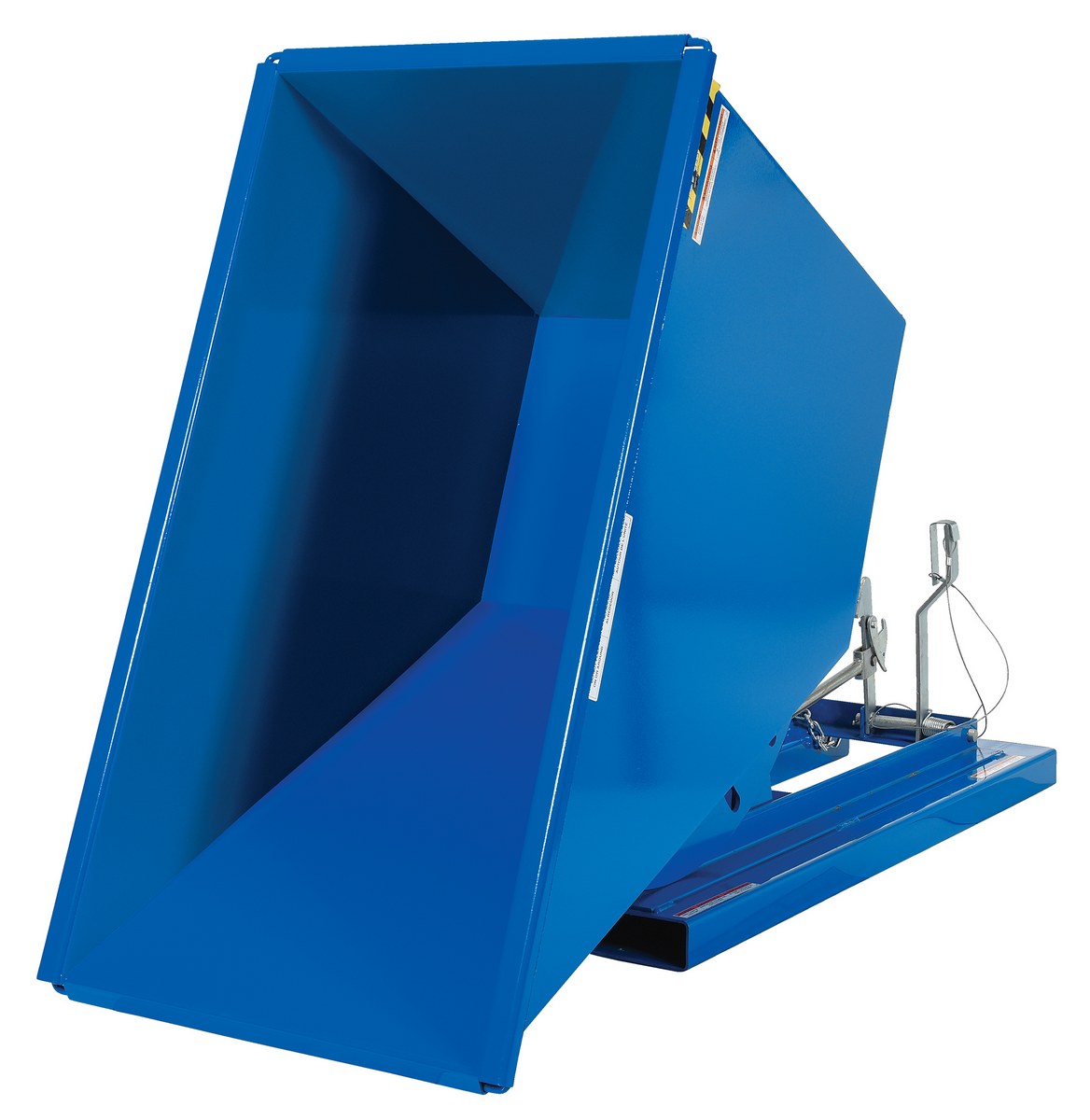

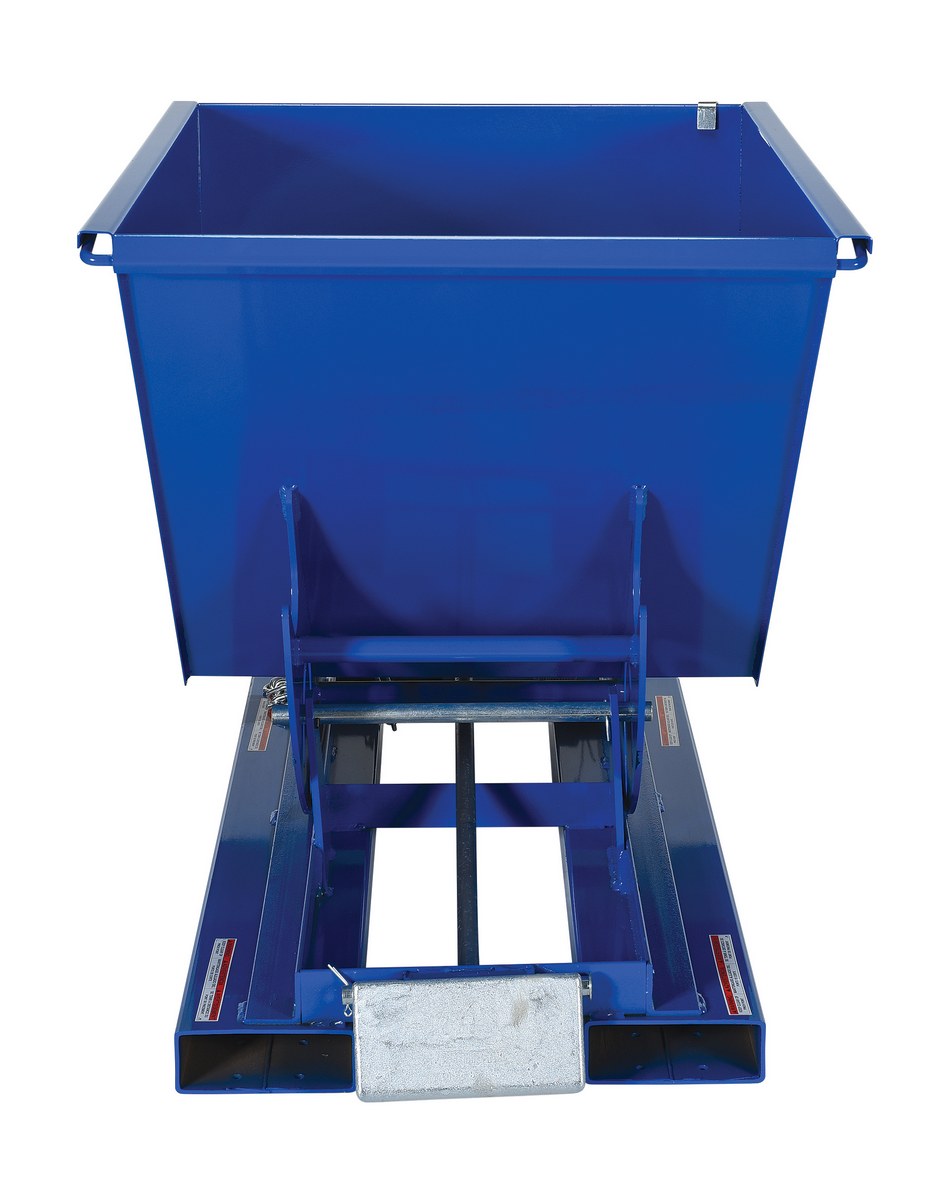

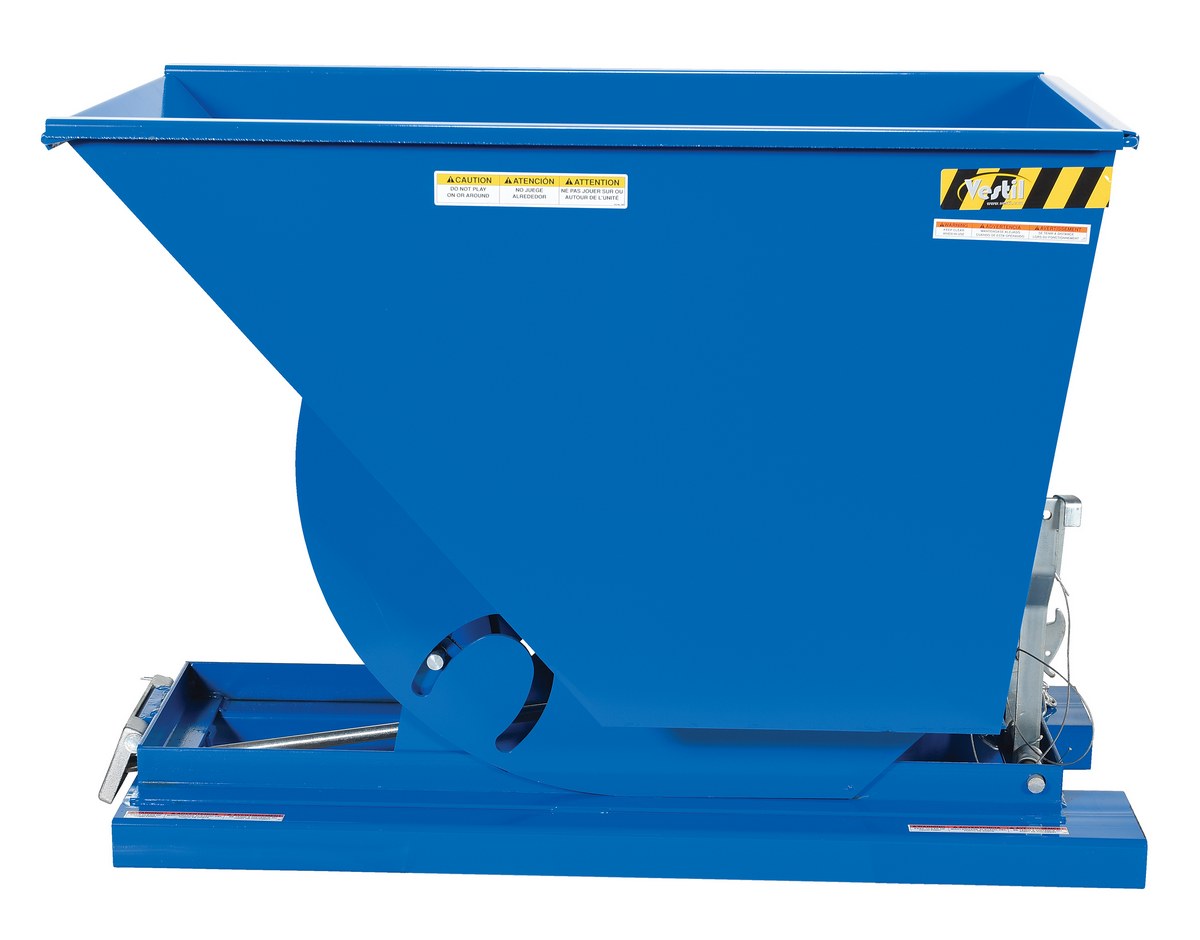

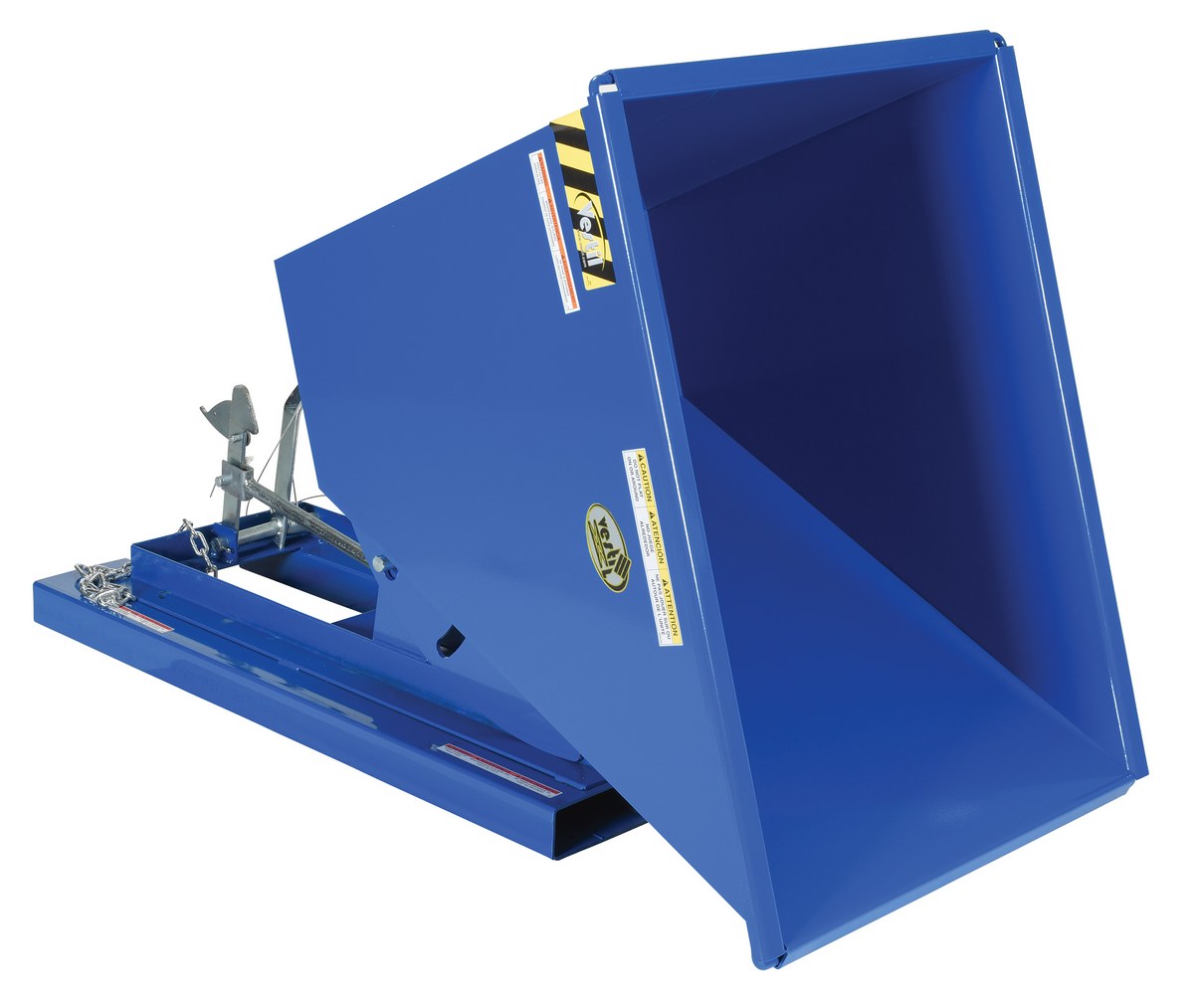

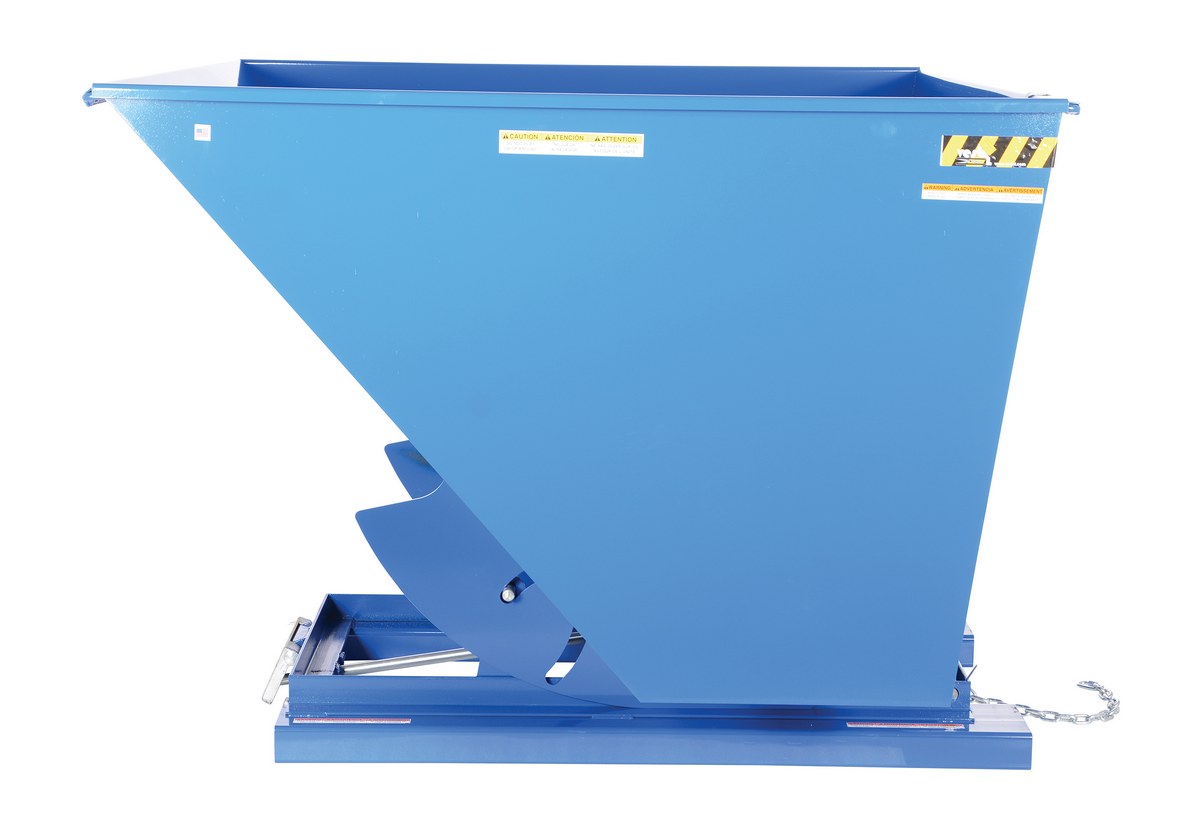

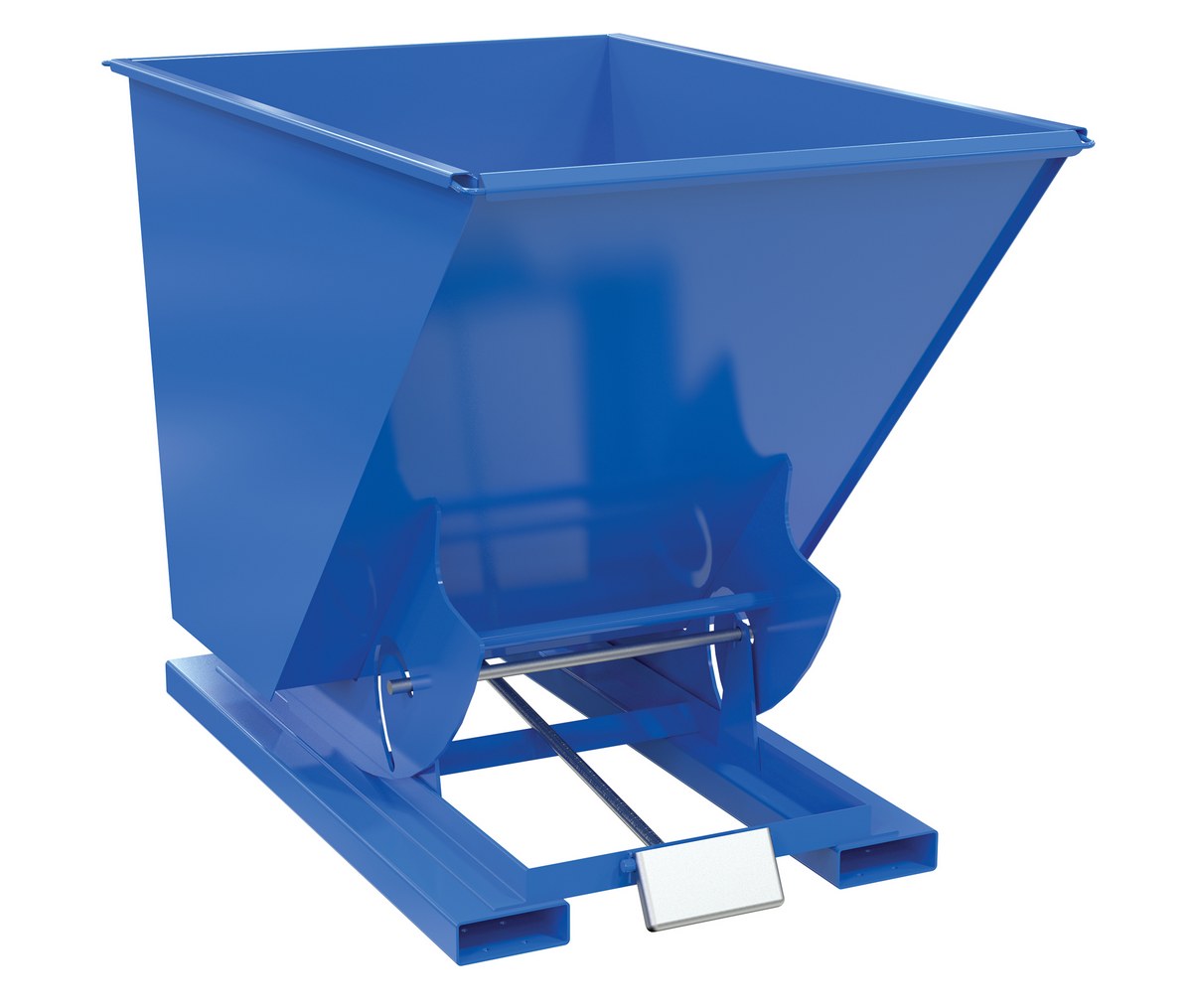

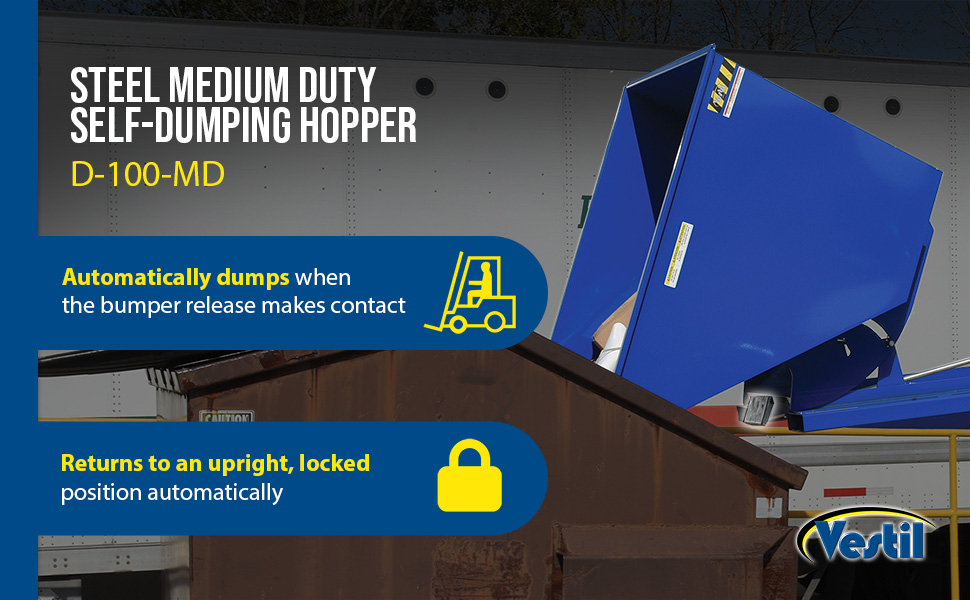

D Style - Self-Dumping Steel Hoppers with Bumper Release (D)

13 Sizes 3 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel
D-25-(strength)	.25 Cubic Yard
D-33-(strength)	.33 Cubic Yard
D-50-(strength)	.50 Cubic Yard
D-75-(strength)	.75 Cubic Yard
D-100-(strength)	1 Cubic Yard
D-150-(strength)	1.5 Cubic Yard
D-200-(strength)	2 Cubic Yard
D-250-(strength)	2.5 Cubic Yard
D-300-(strength)	3 Cubic Yard
D-350-(strength)	3.5 Cubic Yard
D-400-(strength)	4 Cubic Yard
D-450-(strength)	4.5 Cubic Yard
D-500-(strength)	5 Cubic Yard

13 Sizes
3 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel

D-25-(strength)

.25 Cubic Yard

D-33-(strength)

.33 Cubic Yard

D-50-(strength)

.50 Cubic Yard

D-75-(strength)

.75 Cubic Yard

D-100-(strength)

1 Cubic Yard

D-150-(strength)

1.5 Cubic Yard

D-200-(strength)

2 Cubic Yard

D-250-(strength)

2.5 Cubic Yard

D-300-(strength)

3 Cubic Yard

D-350-(strength)

3.5 Cubic Yard

D-400-(strength)

4 Cubic Yard

D-450-(strength)

4.5 Cubic Yard

D-500-(strength)

5 Cubic Yard

13 Sizes 3 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel
D-25-(strength)	.25 Cubic Yard
D-33-(strength)	.33 Cubic Yard
D-50-(strength)	.50 Cubic Yard
D-75-(strength)	.75 Cubic Yard
D-100-(strength)	1 Cubic Yard
D-150-(strength)	1.5 Cubic Yard
D-200-(strength)	2 Cubic Yard
D-250-(strength)	2.5 Cubic Yard
D-300-(strength)	3 Cubic Yard
D-350-(strength)	3.5 Cubic Yard
D-400-(strength)	4 Cubic Yard
D-450-(strength)	4.5 Cubic Yard
D-500-(strength)	5 Cubic Yard

13 Sizes
3 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel

D-25-(strength)

.25 Cubic Yard

D-33-(strength)

.33 Cubic Yard

D-50-(strength)

.50 Cubic Yard

D-75-(strength)

.75 Cubic Yard

D-100-(strength)

1 Cubic Yard

D-150-(strength)

1.5 Cubic Yard

D-200-(strength)

2 Cubic Yard

D-250-(strength)

2.5 Cubic Yard

D-300-(strength)

3 Cubic Yard

D-350-(strength)

3.5 Cubic Yard

D-400-(strength)

4 Cubic Yard

D-450-(strength)

4.5 Cubic Yard

D-500-(strength)

5 Cubic Yard

Model #		Description	Attributes	Net Wt. (lbs)
D-100-HD	90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 1 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Steel (gauge): 8	580

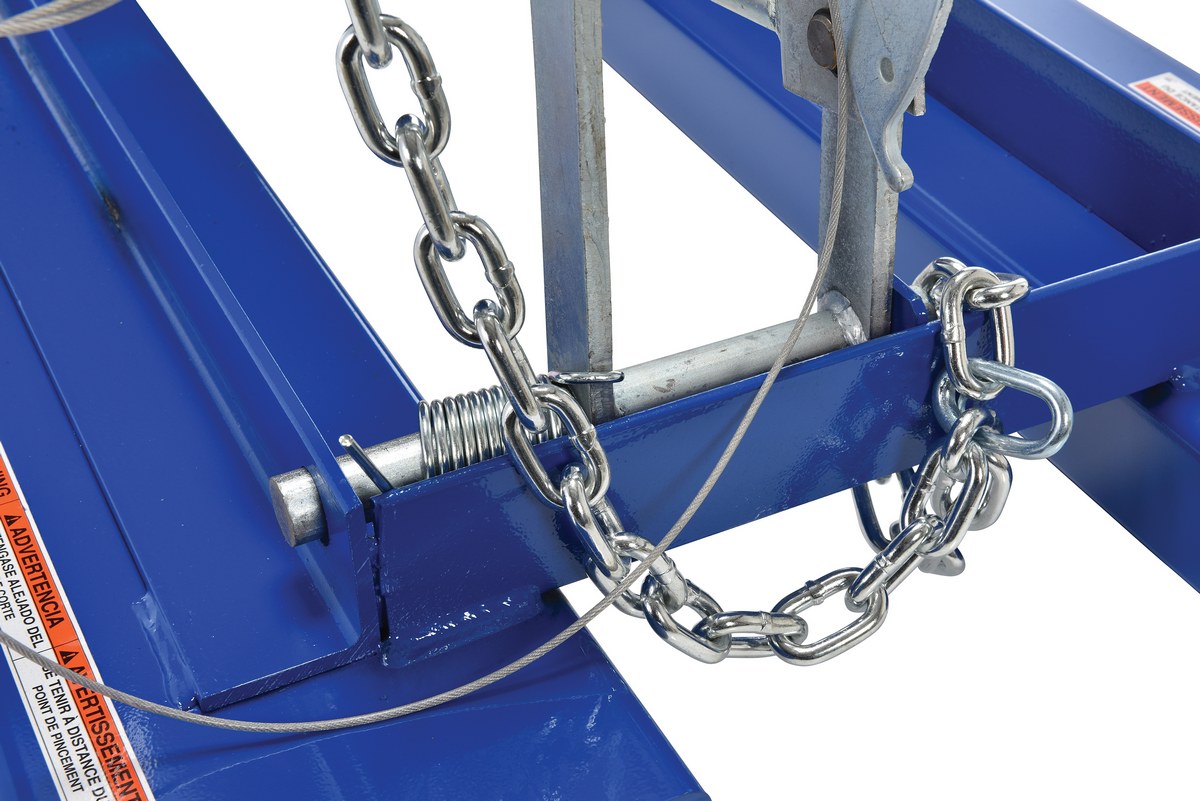

D-100-LD	90 Days Limited Warranty	Steel Light Duty Self Dumping Hopper 1 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Steel (gauge): 12	460
D-100-MD	90 Days Limited Warranty	Steel Medium Duty Self Dumping Hopper 1 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Steel (gauge): 10	545
D-150-HD	90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 1-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	708
D-150-LD	90 Days Limited Warranty	Steel Light Duty Self Dumping Hopper 1-1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	565

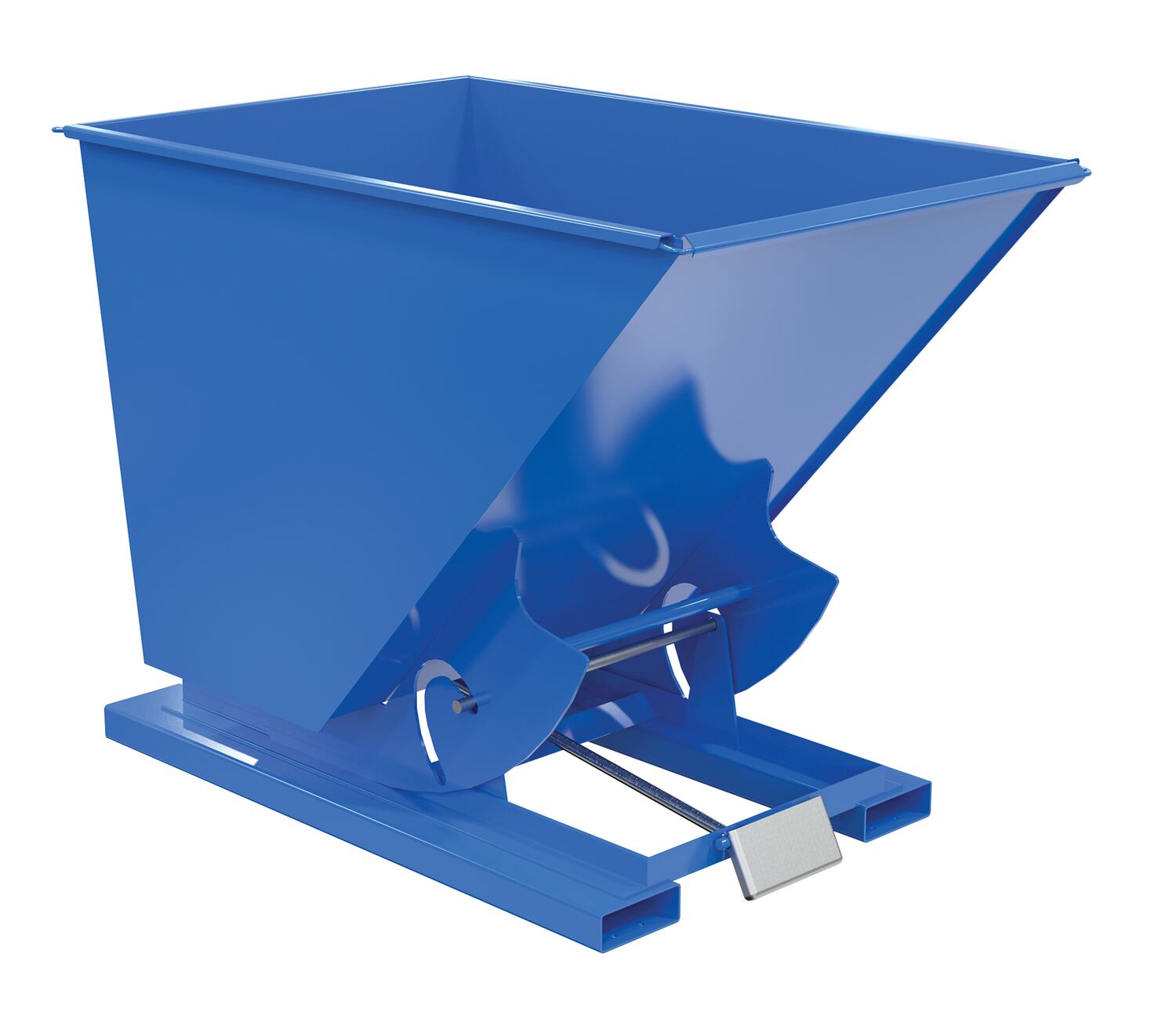

D-150-MD	90 Days Limited Warranty	Steel Medium Duty Self Dumping Hopper 1-1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	700
D-200-HD	90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	775
D-200-LD	90 Days Limited Warranty	Steel Light Duty Self Dumping Hopper 2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	620
D-200-MD	90 Days Limited Warranty	Steel Medium Duty Self Dumping Hopper 2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	695

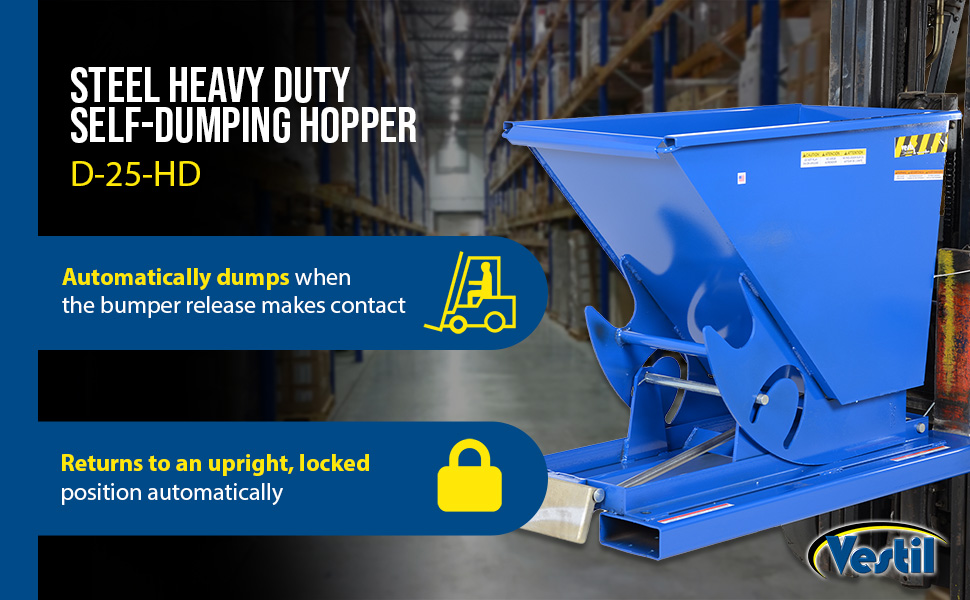

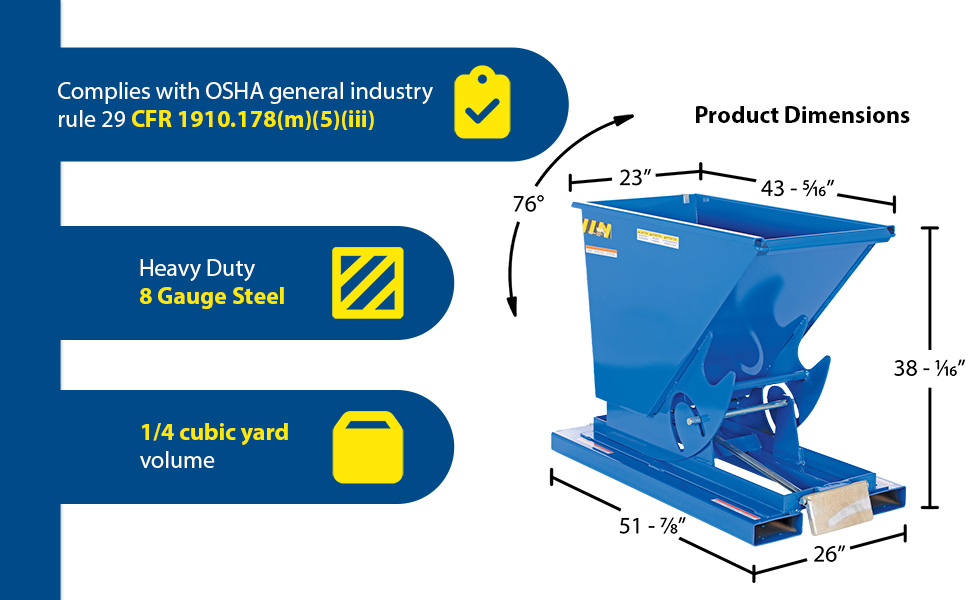

D-25-HD	90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 1/4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	386

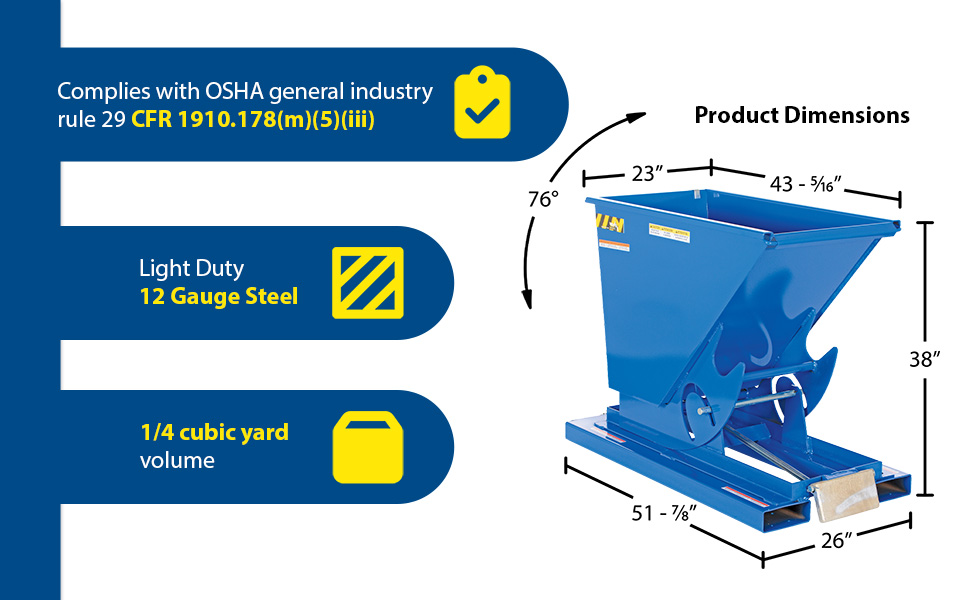

D-25-LD	90 Days Limited Warranty	Steel Light Duty Self Dumping Hopper 1/4 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	341

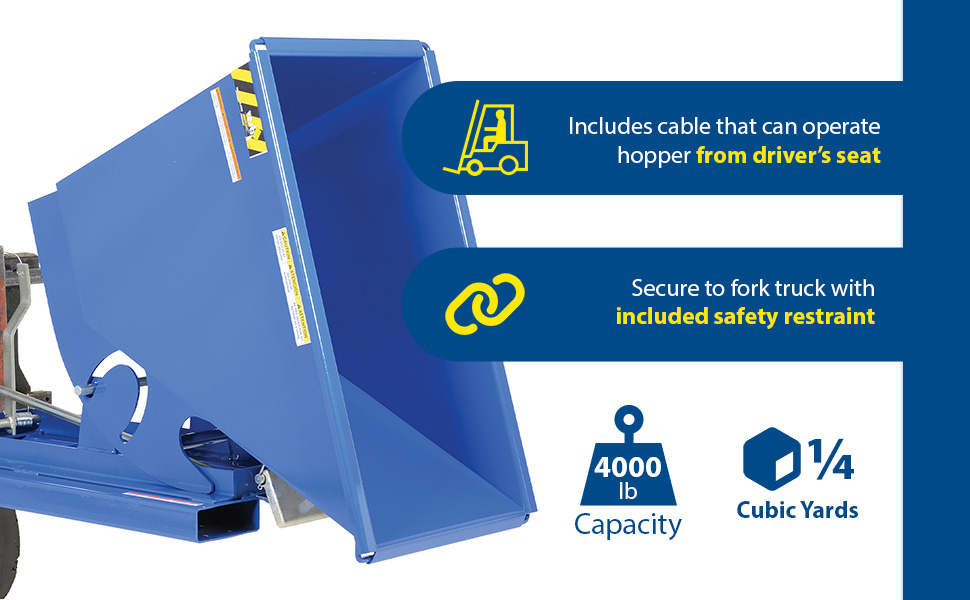

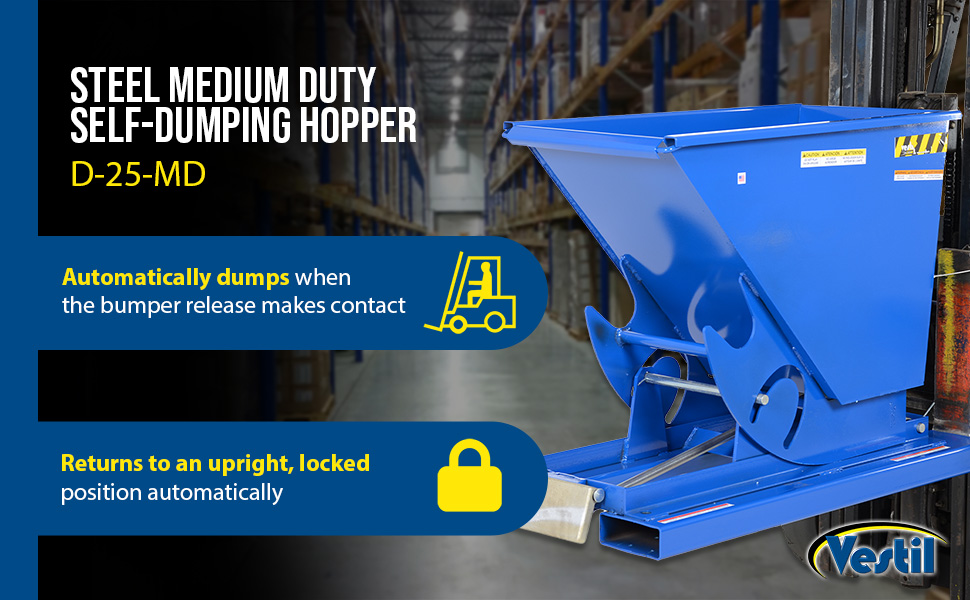

D-25-MD	90 Days Limited Warranty	Steel Medium Duty Self Dumping Hopper 1/4 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	386

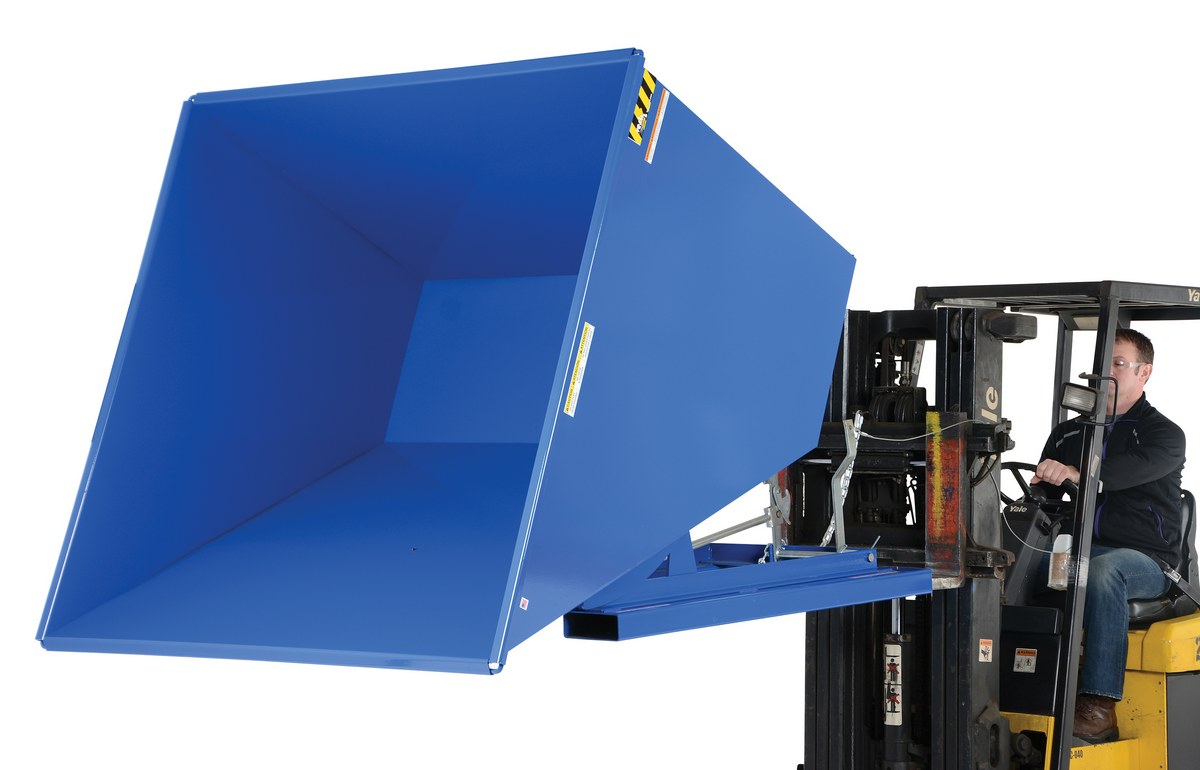

D-250-HD	90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 2-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	850

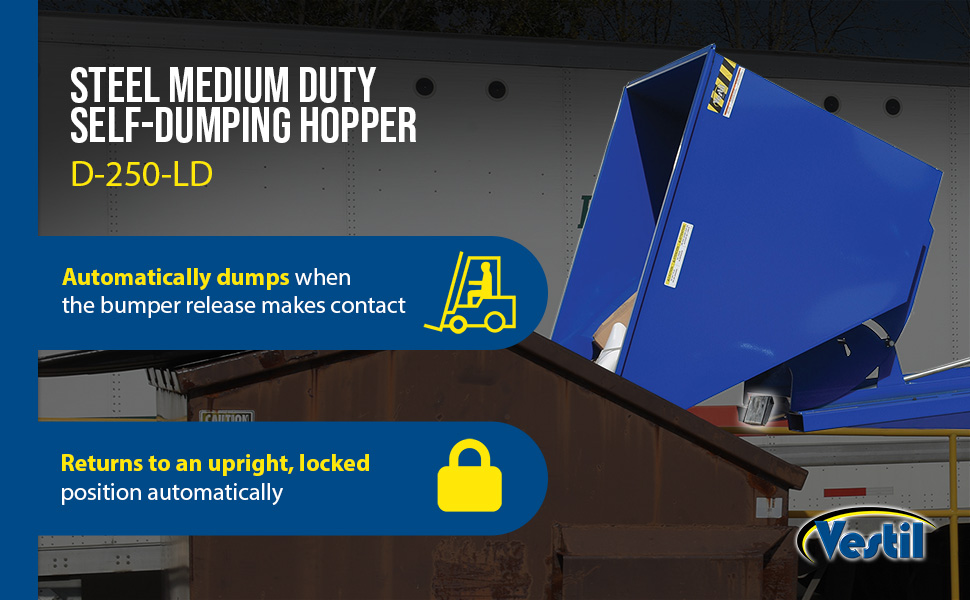

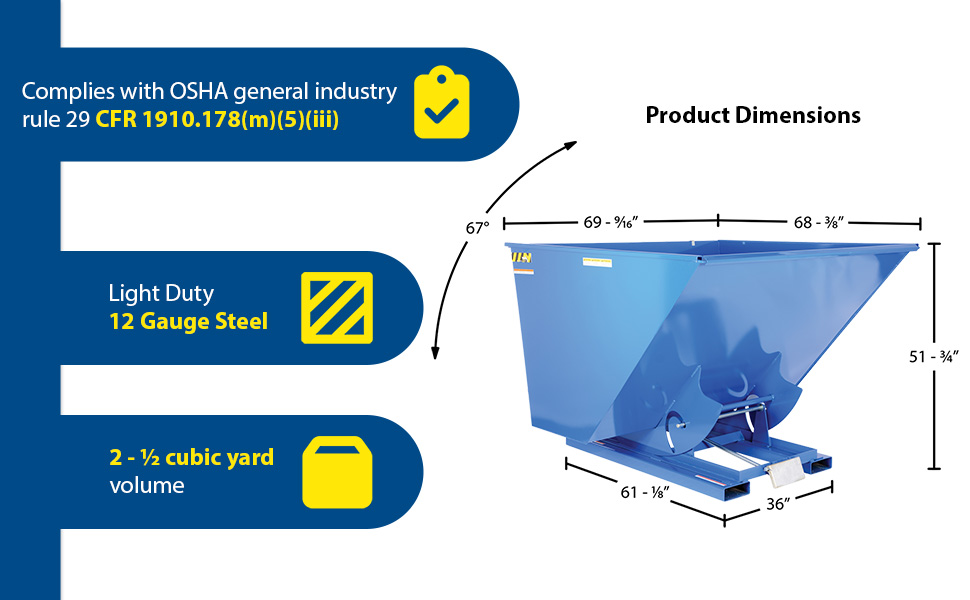

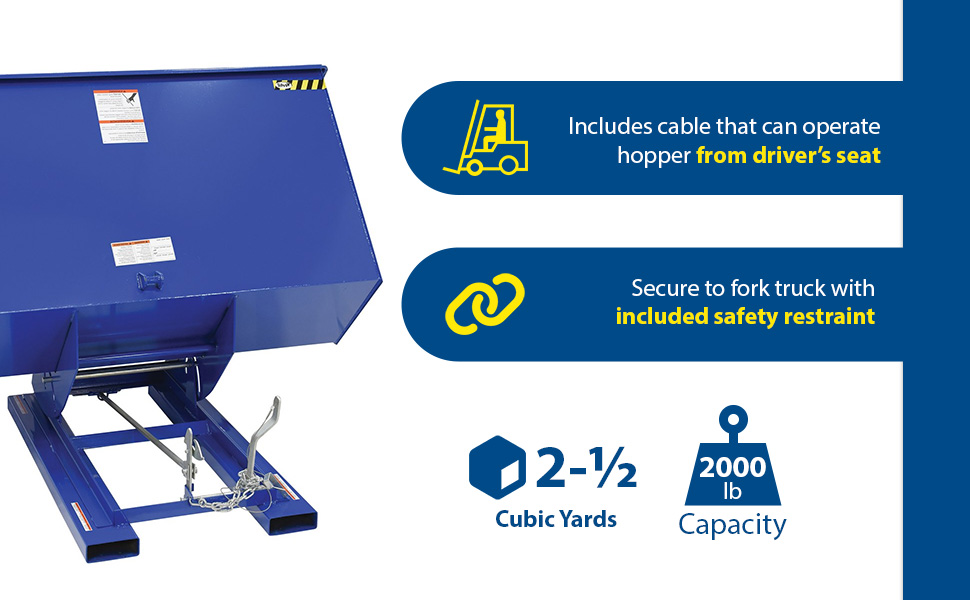

D-250-LD	90 Days Limited Warranty	Steel Light Duty Self Dumping Hopper 2-1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	850
D-250-MD	90 Days Limited Warranty	Steel Medium Duty Self Dumping Hopper 2-1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	850

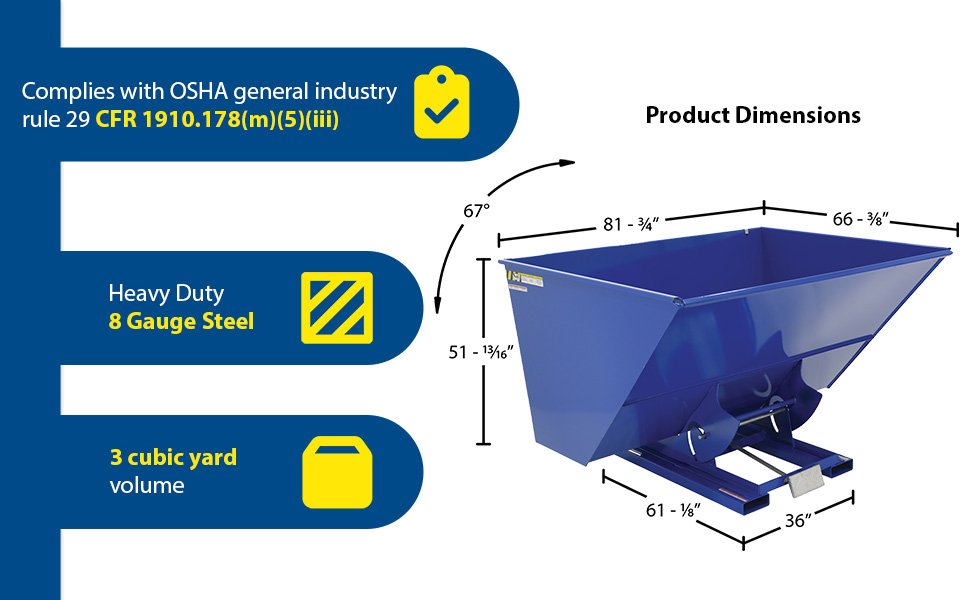

D-300-HD	90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 3 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	922

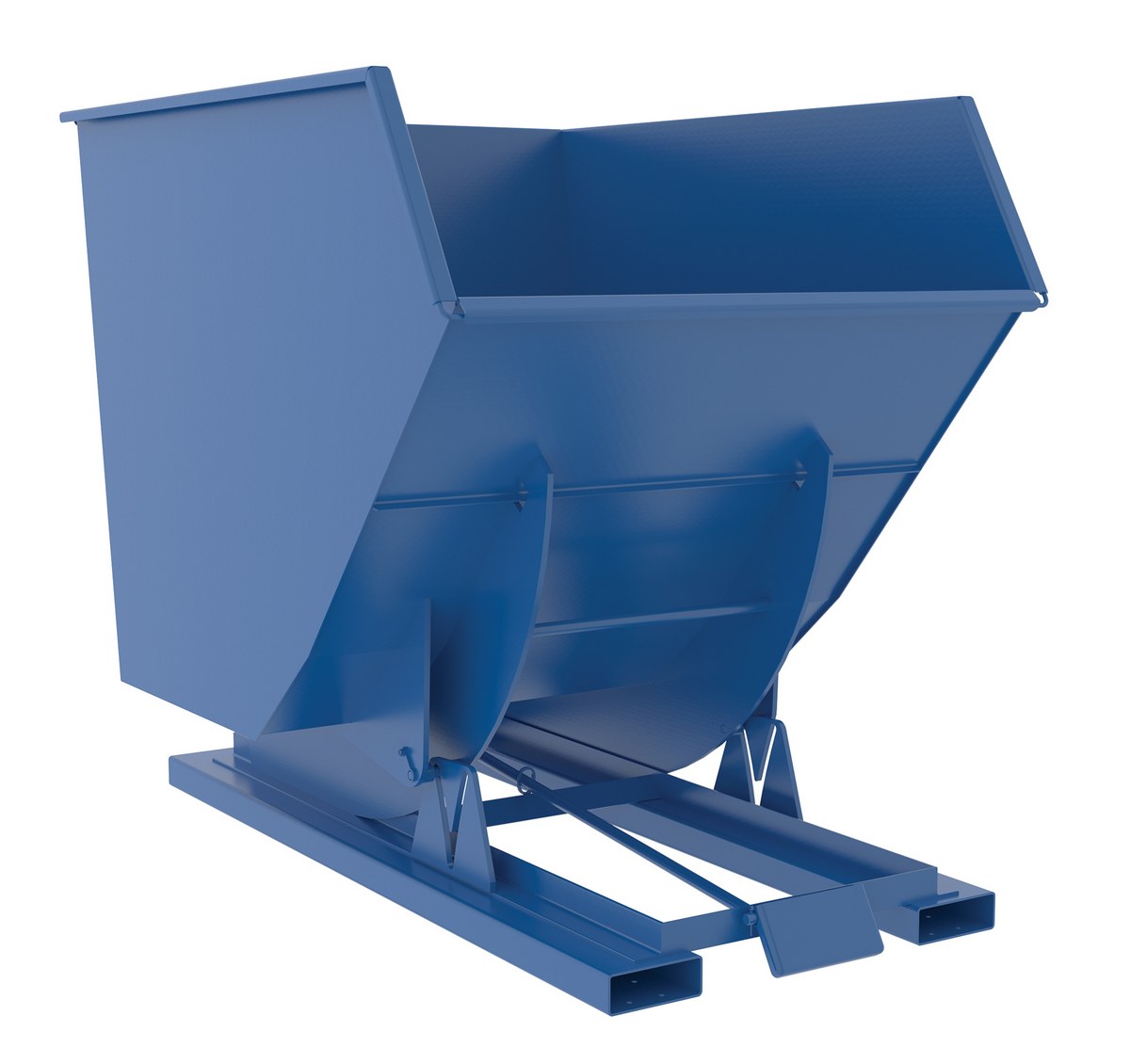

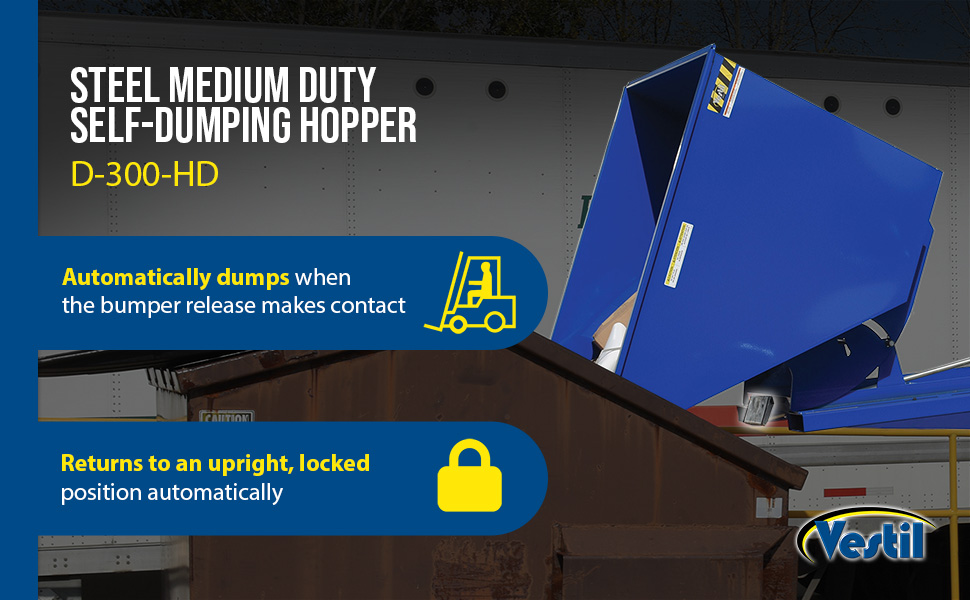

D-300-HD-NA	90 Days Limited Warranty	Steel Heavy Duty Narrow Self Dumping Hopper 3 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	1016
D-300-LD	90 Days Limited Warranty	Steel Light Duty Self Dumping Hopper 3 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	922

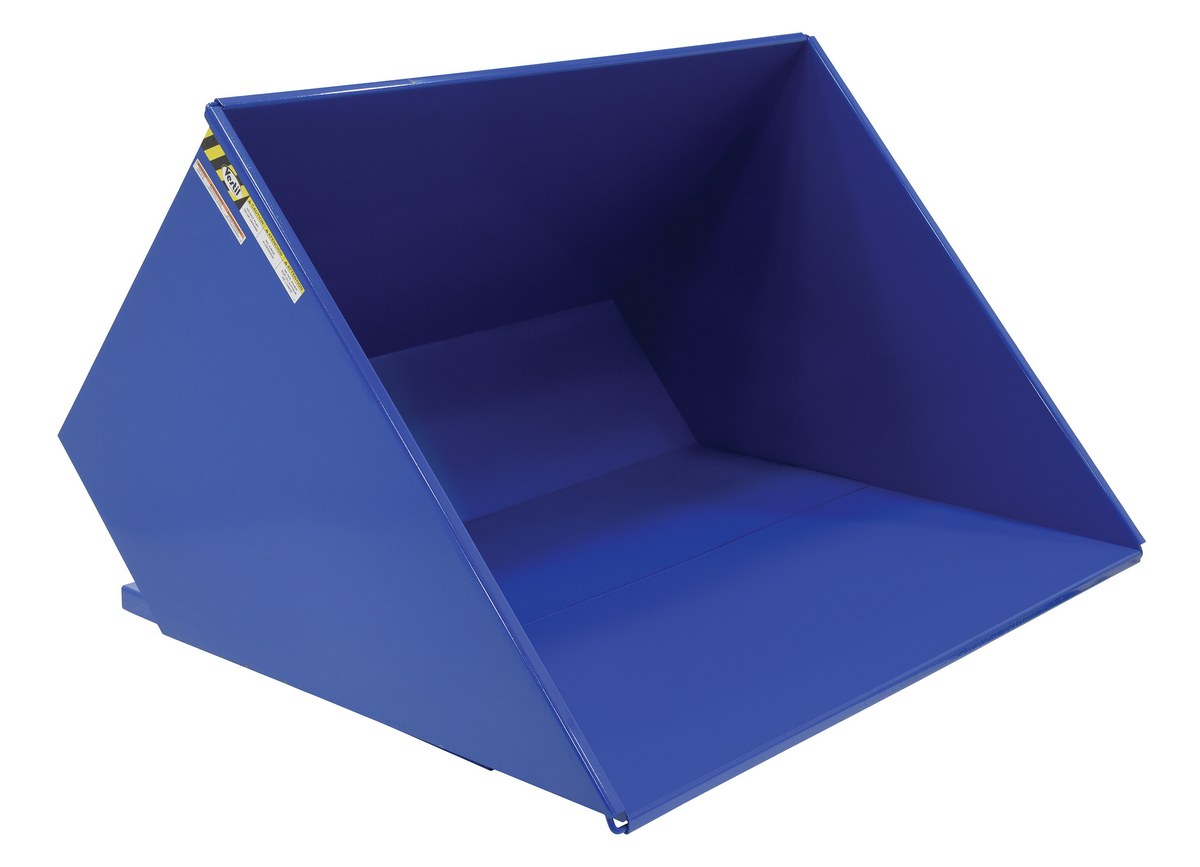

D-300-MD	90 Days Limited Warranty	Steel Medium Duty Self Dumping Hopper 3 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	922
D-33-HD	90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 1/3 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	386
D-33-LD	90 Days Limited Warranty	Steel Light Duty Self Dumping Hopper 1/3 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	341
D-33-MD	90 Days Limited Warranty	Steel Medium Duty Self Dumping Hopper 1/3 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	386
D-350-HD	90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 3-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	1076

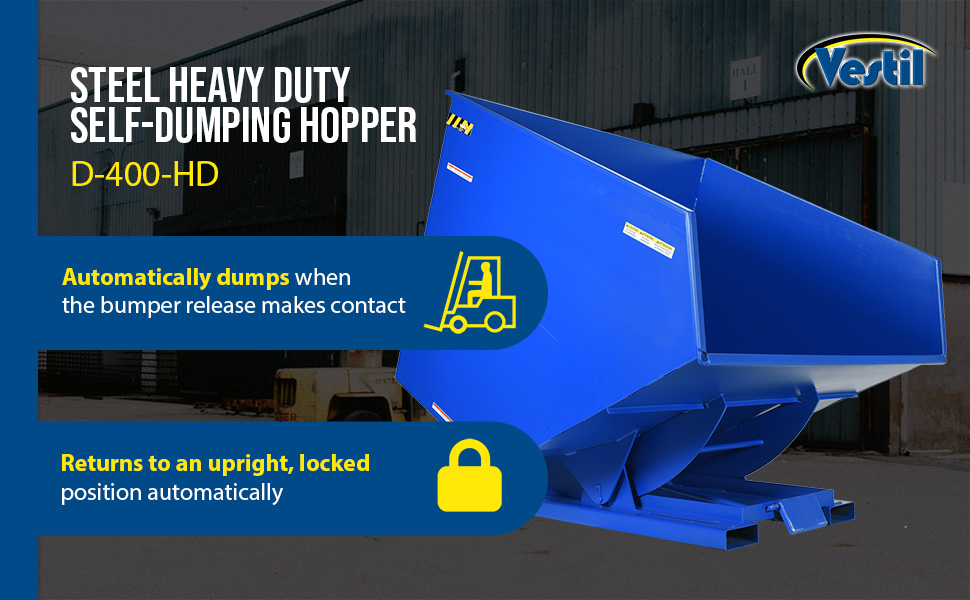

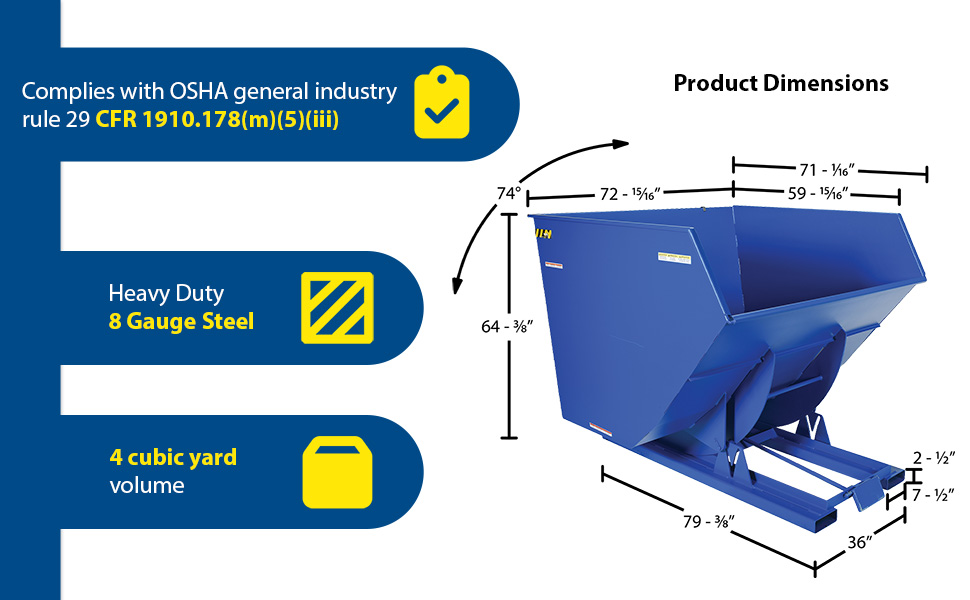

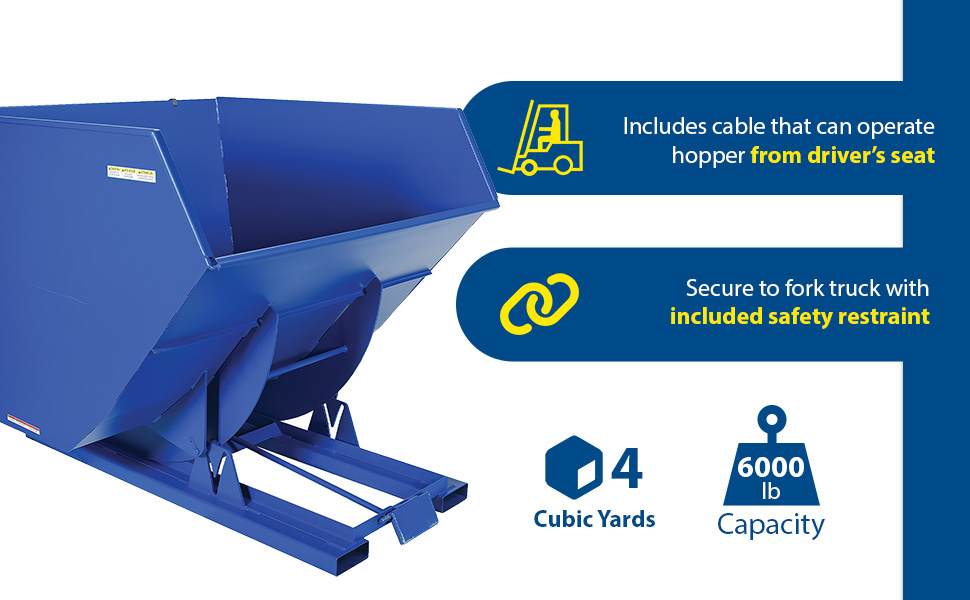

D-400-HD	90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	1140
D-50-HD	90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	336
D-50-LD	90 Days Limited Warranty	Steel Light Duty Self Dumping Hopper 1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	364
D-50-MD	90 Days Limited Warranty	Steel Medium Duty Self Dumping Hopper 1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	435

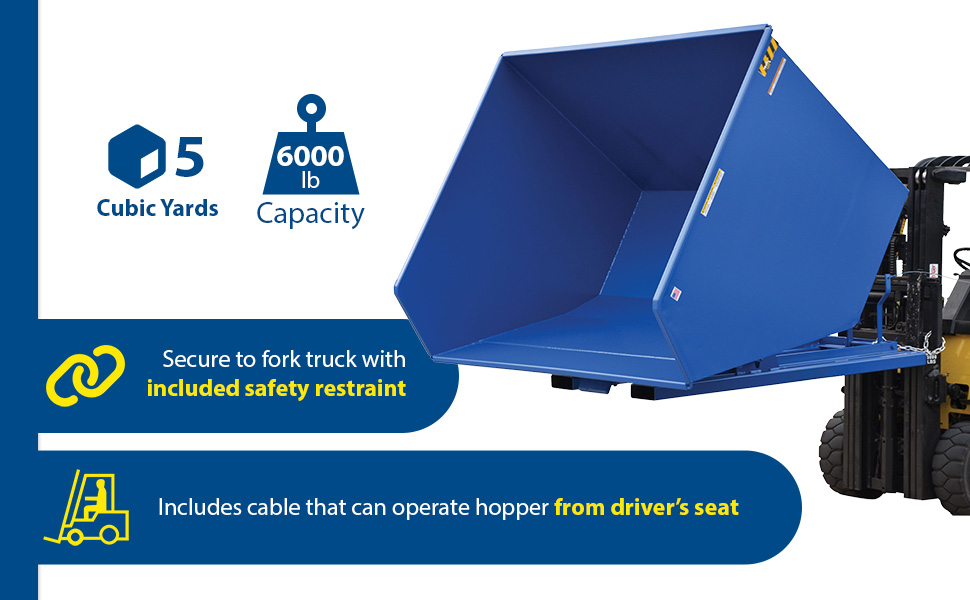

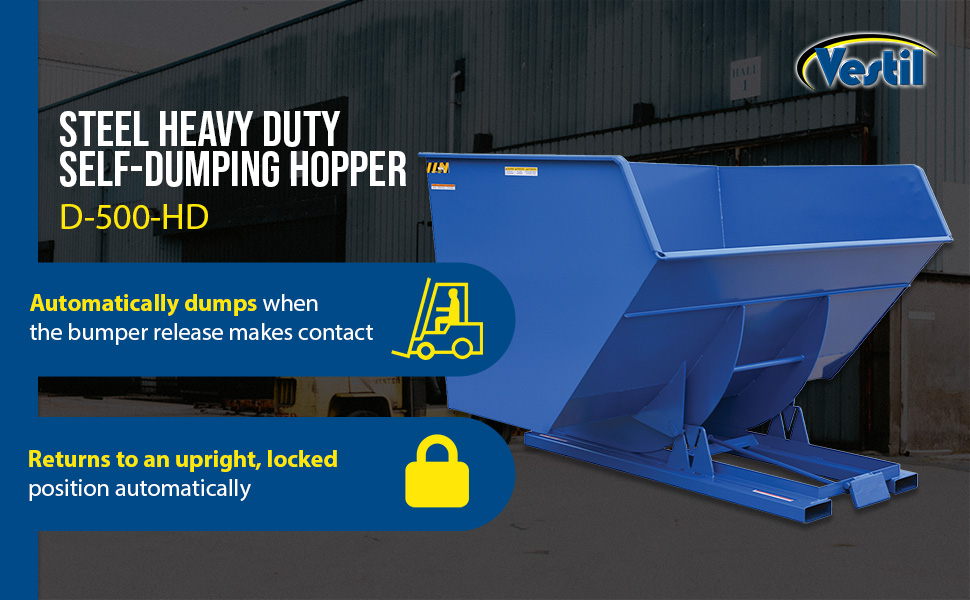

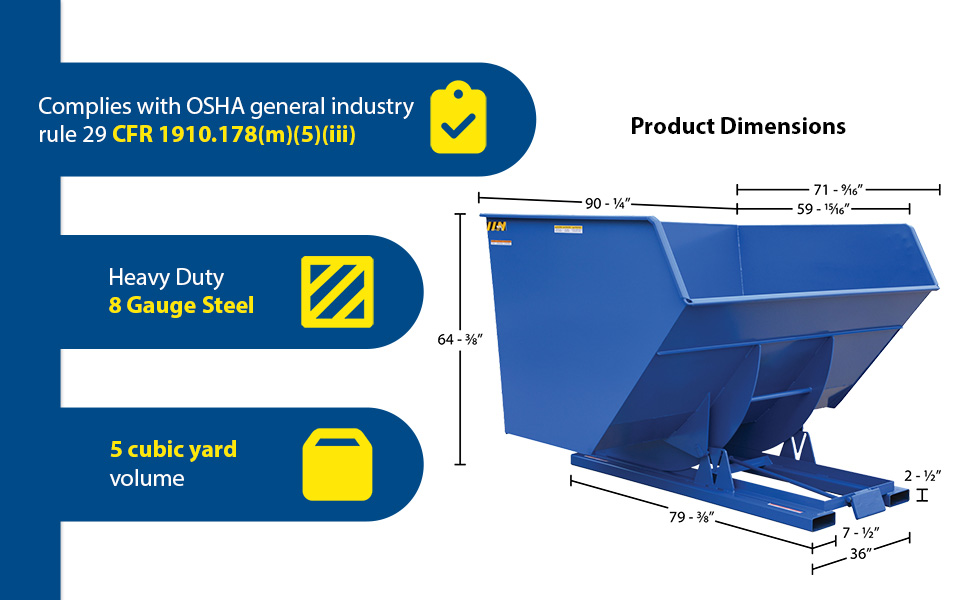

D-500-HD	90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 5 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	1250
D-75-HD	90 Days Limited Warranty	Steel Heavy Duty Self Dumping Hopper 3/4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Steel (gauge): 8	541
D-75-LD	90 Days Limited Warranty	Steel Light Duty Self Dumping Hopper 3/4 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Steel (gauge): 12	449
D-75-MD	90 Days Limited Warranty	Steel Medium Duty Self Dumping Hopper 3/4 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4,000 Steel (gauge): 10	543

Model #

Description

Attributes

Net Wt.
(lbs)

90 Days Limited Warranty

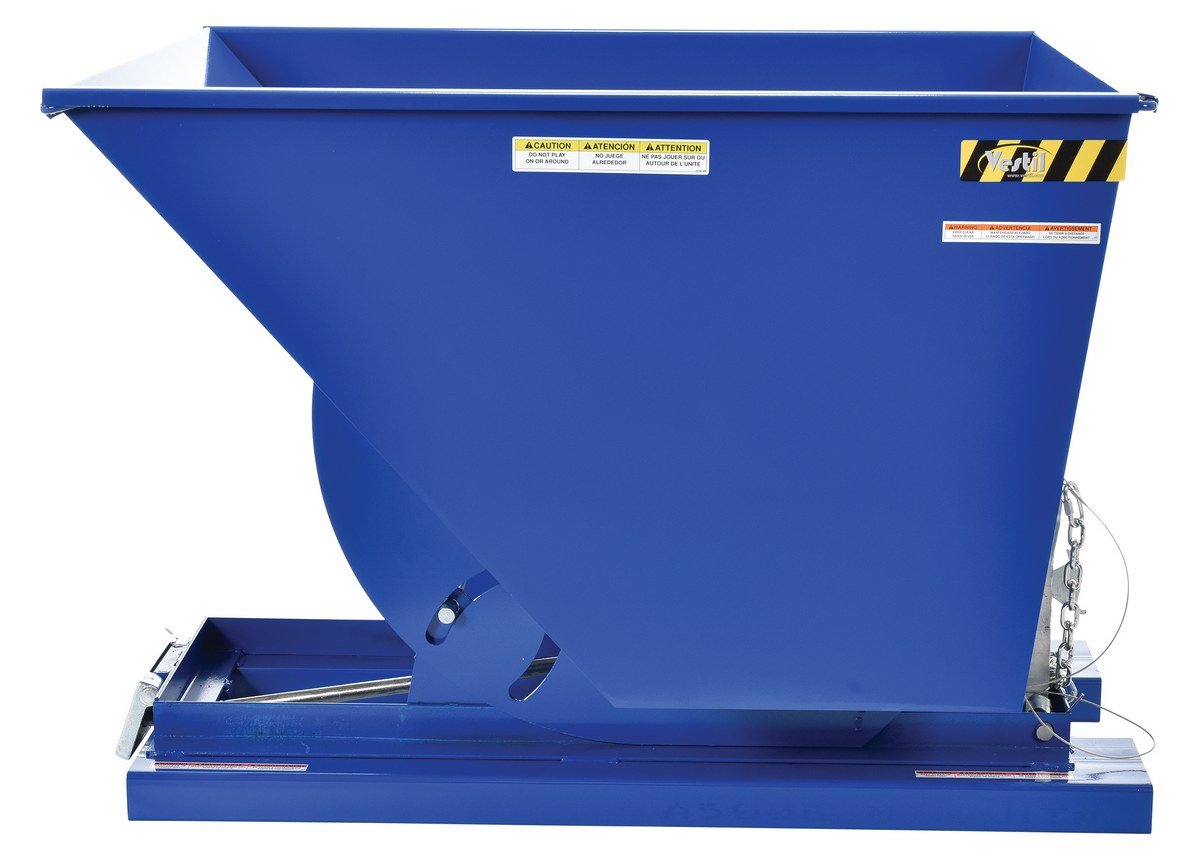

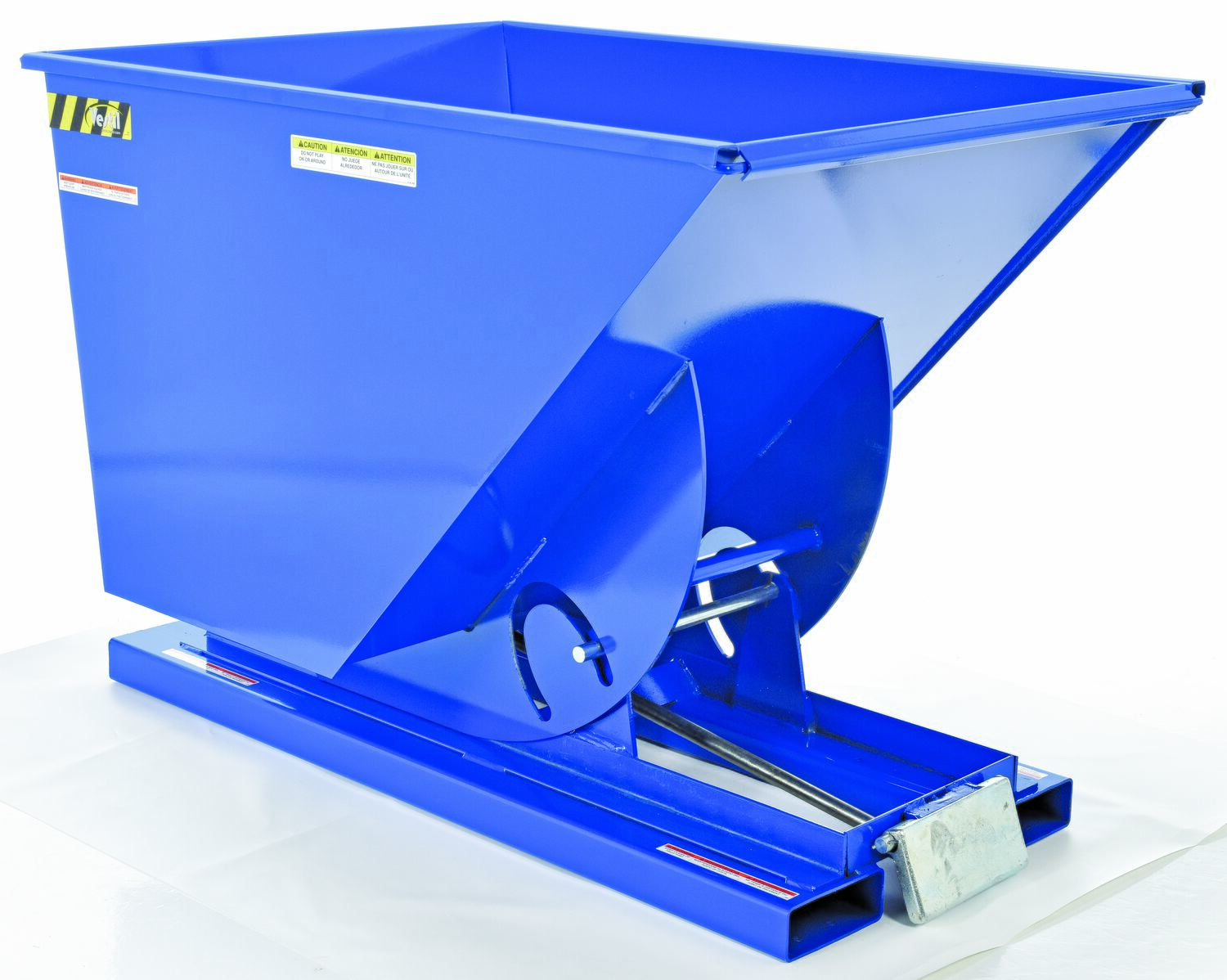

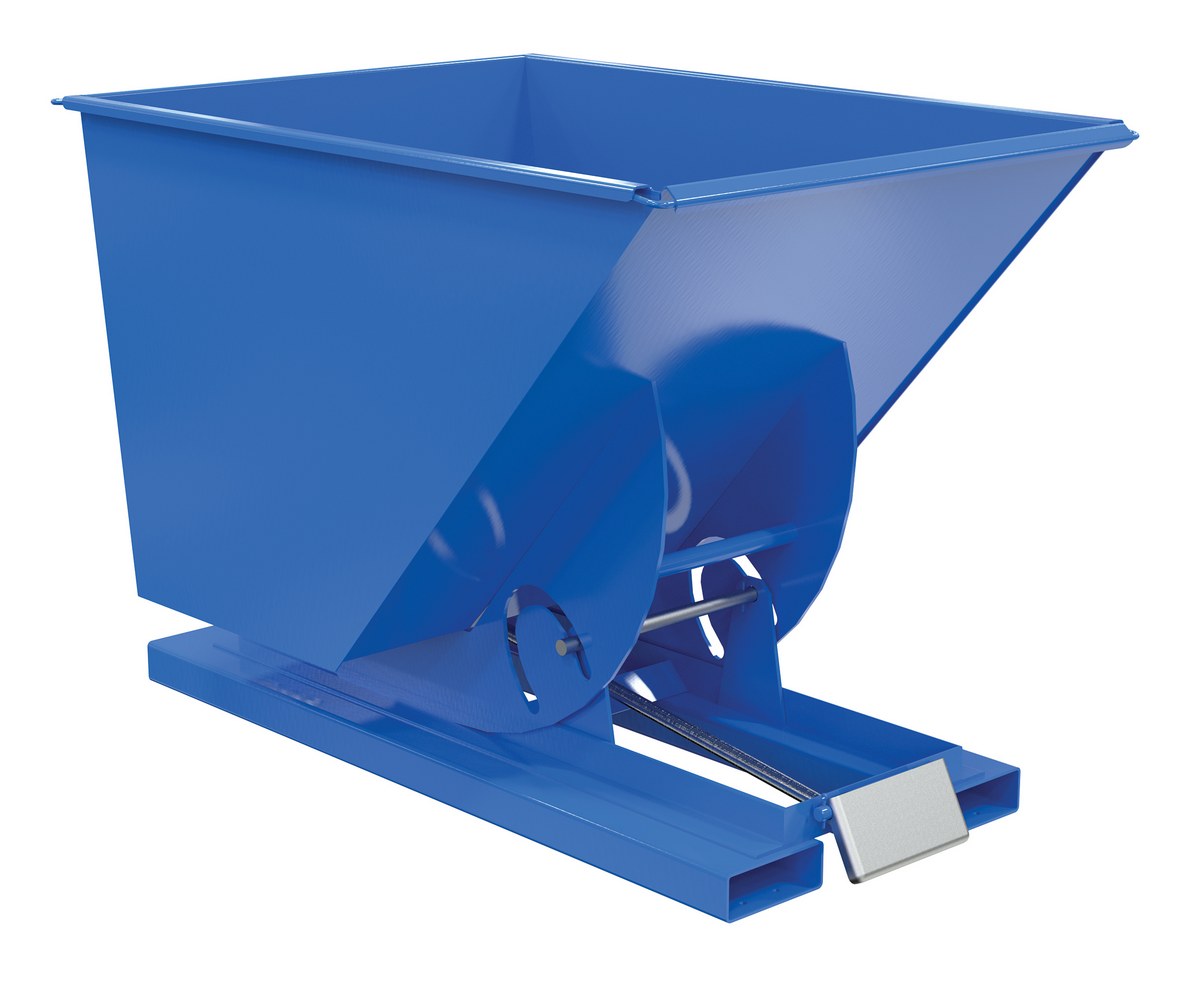

Steel Heavy Duty Self Dumping Hopper 1 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6000
Steel (gauge): 8

580

90 Days Limited Warranty

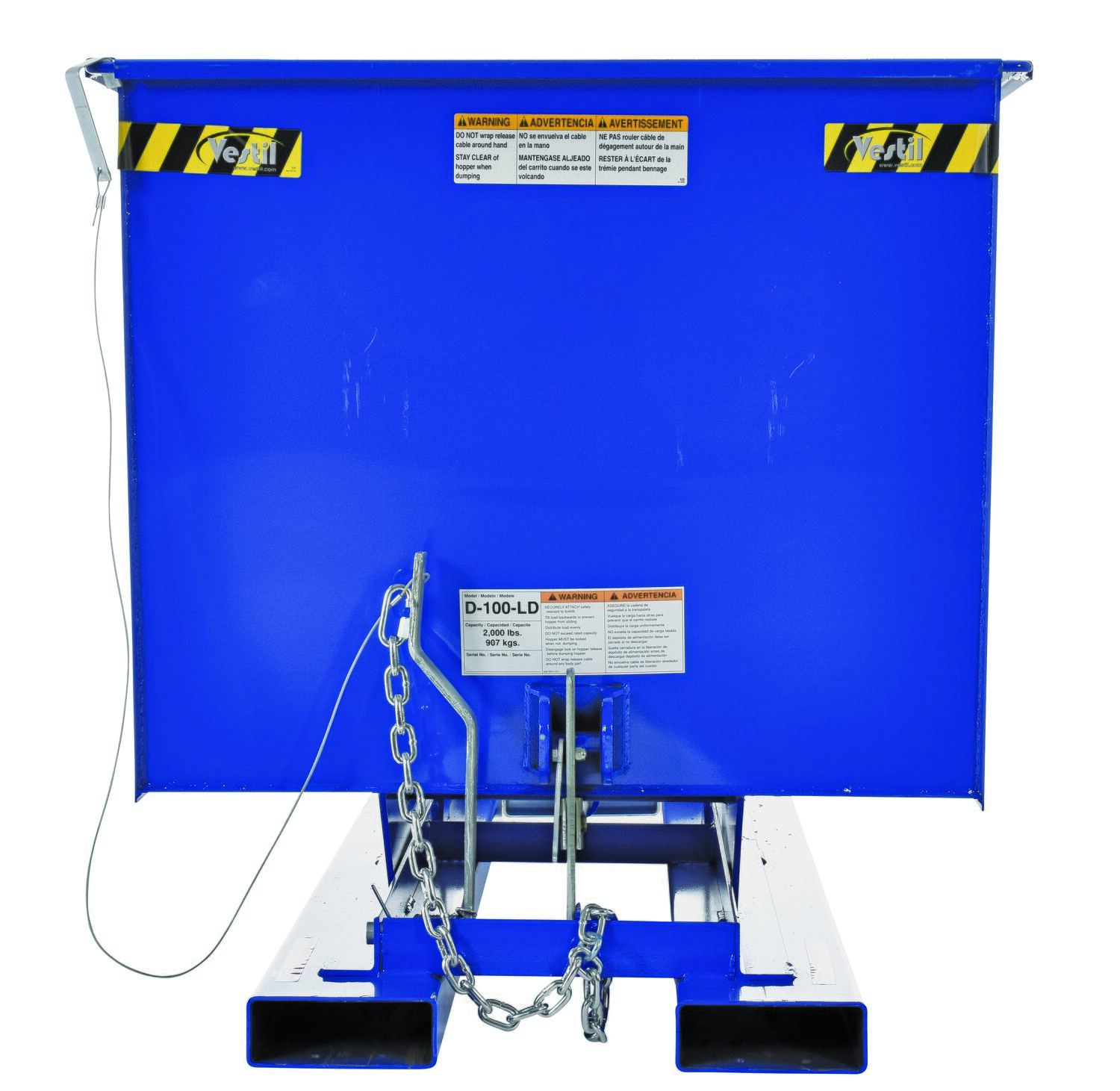

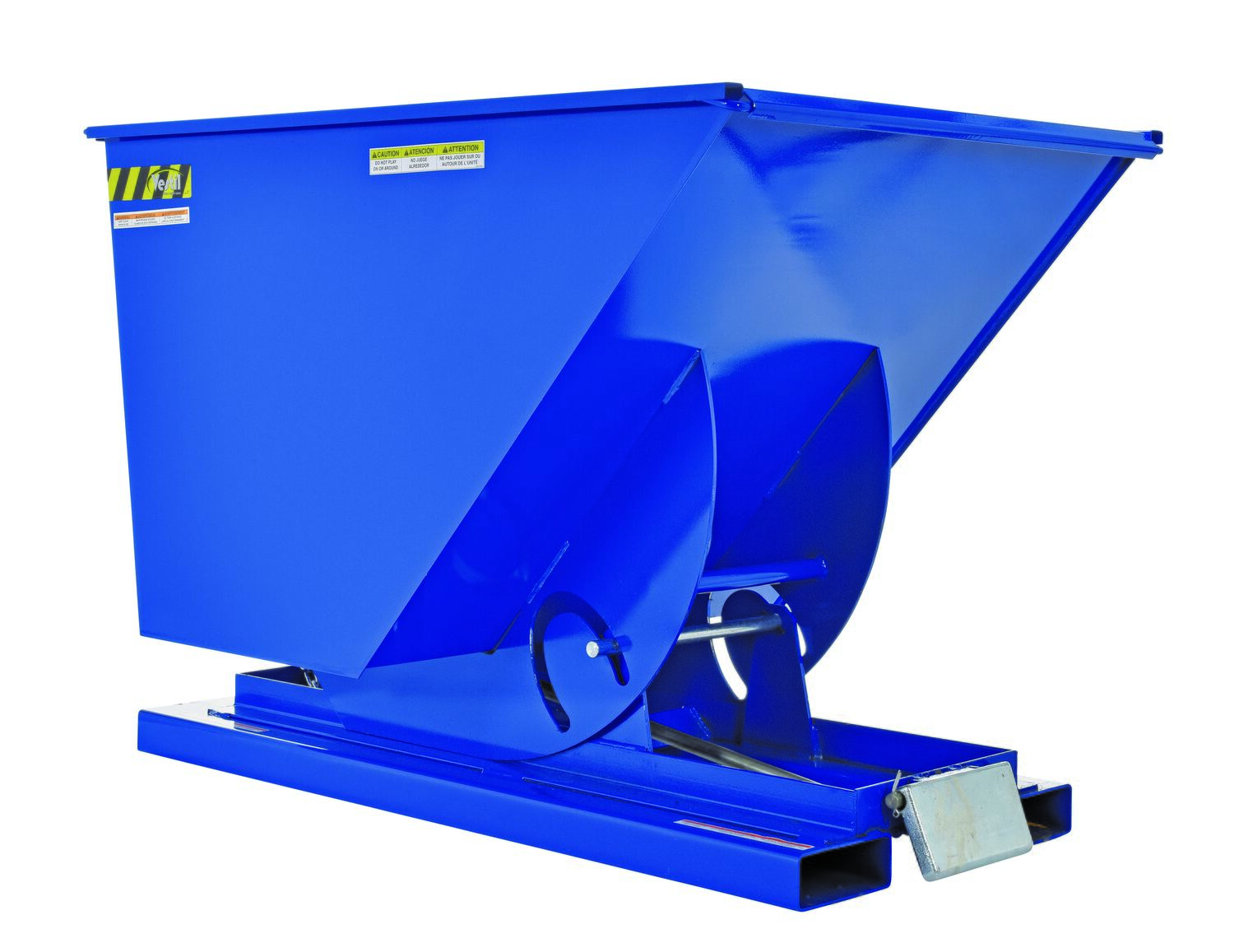

Steel Light Duty Self Dumping Hopper 1 Cubic Yard 2000 Lb. Capacity Blue

Uniform Capacity (lb.): 2000
Steel (gauge): 12

460

90 Days Limited Warranty

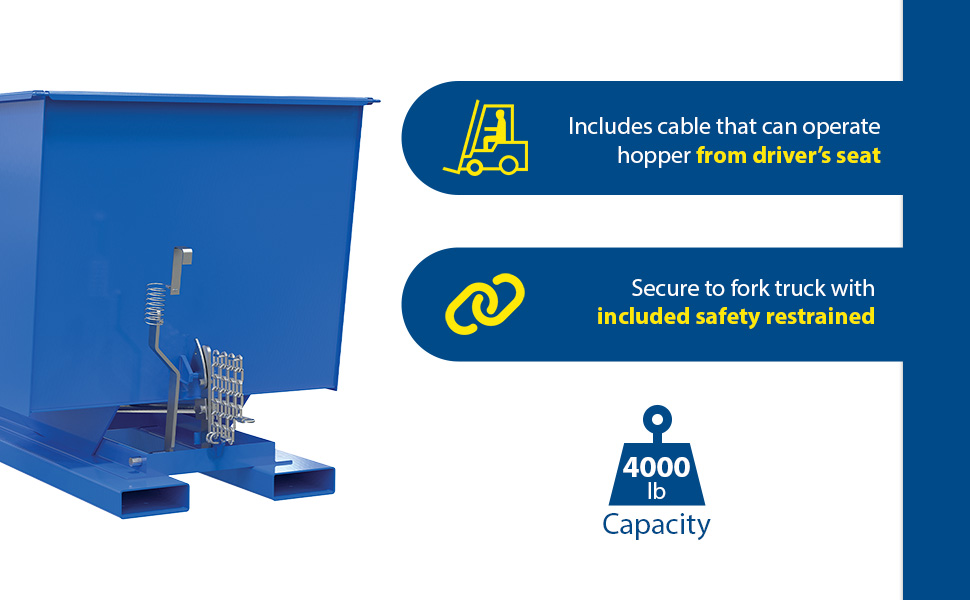

Steel Medium Duty Self Dumping Hopper 1 Cubic Yard 4000 Lb. Capacity Blue

Uniform Capacity (lb.): 4000
Steel (gauge): 10

545

90 Days Limited Warranty

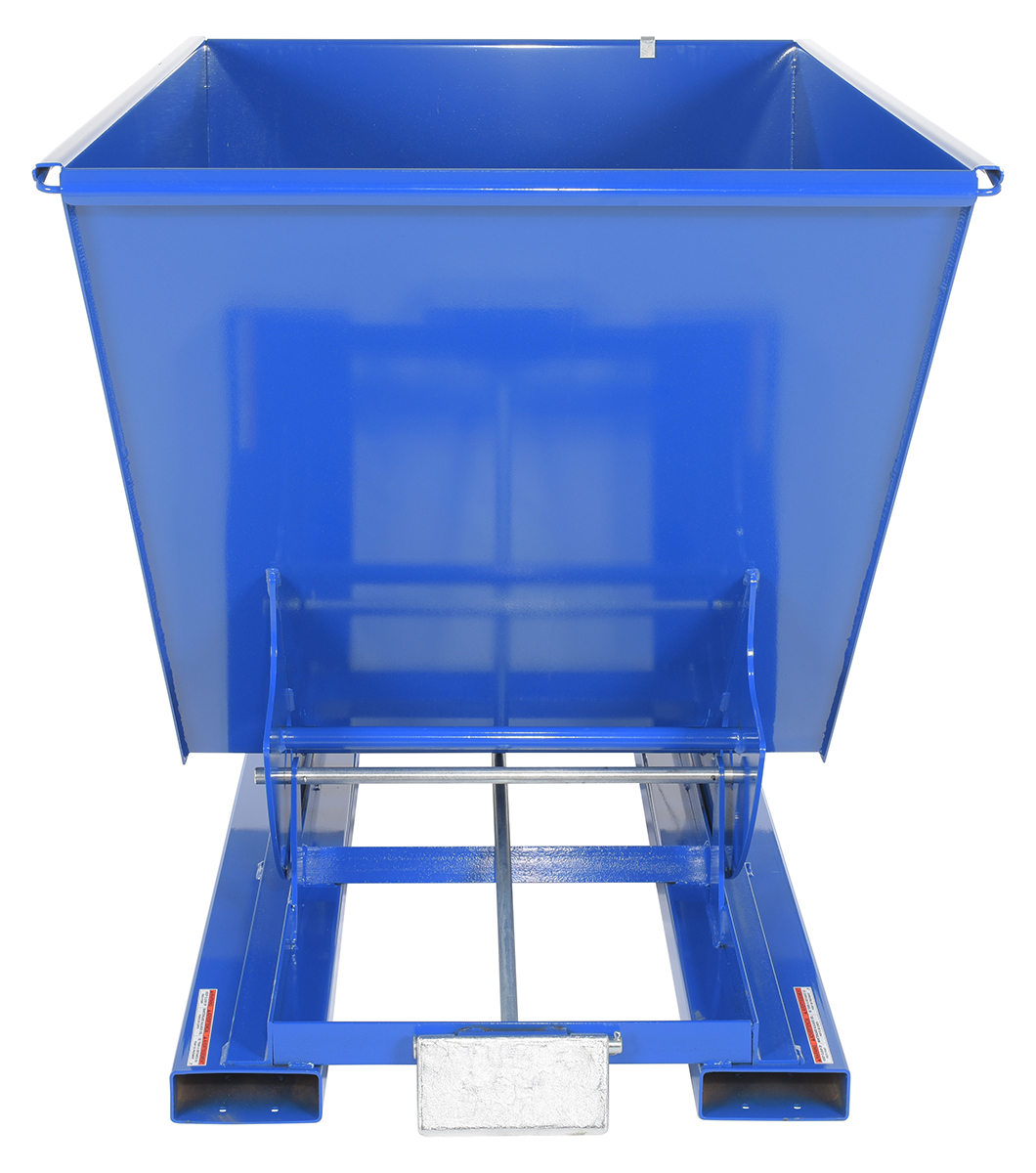

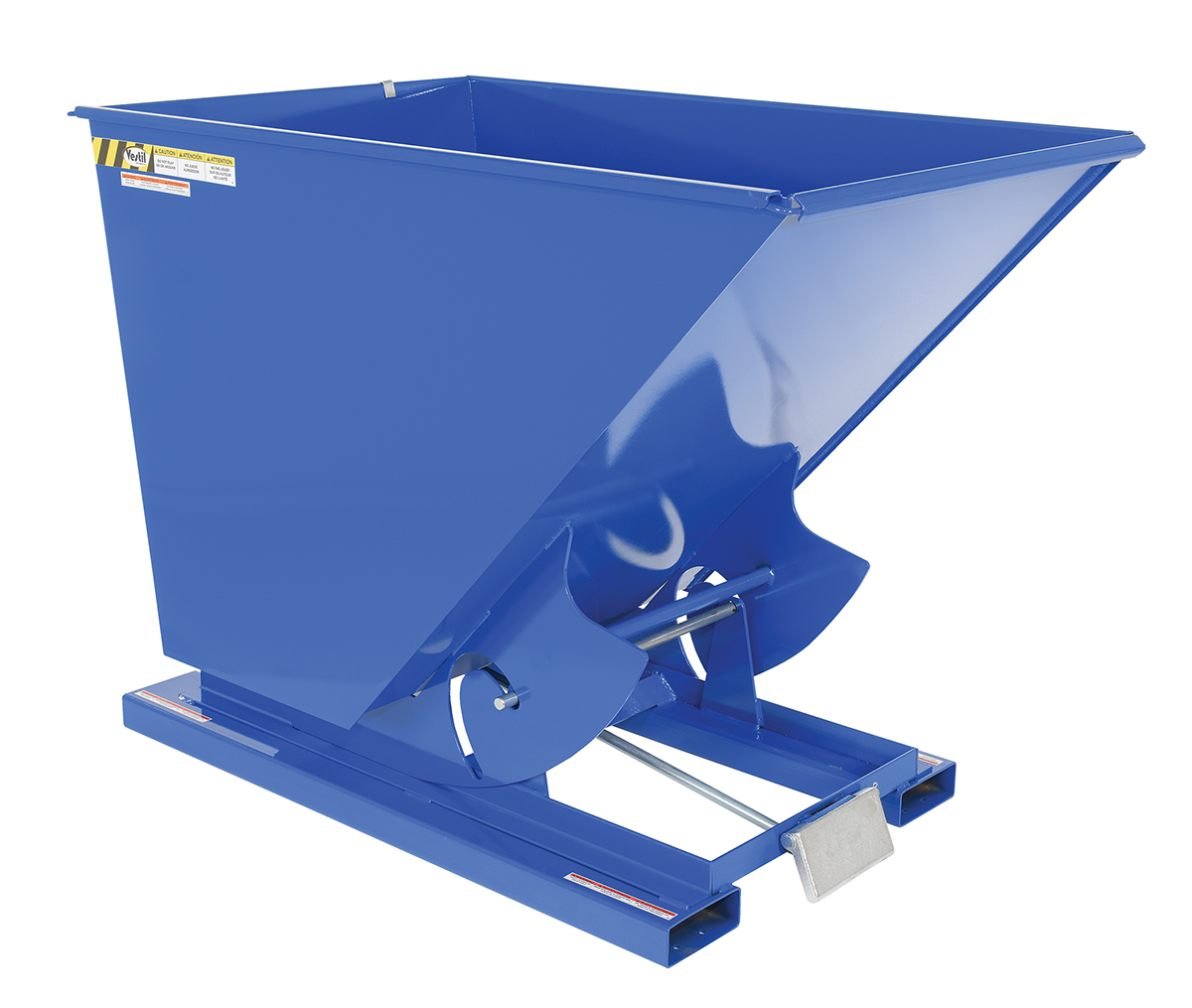

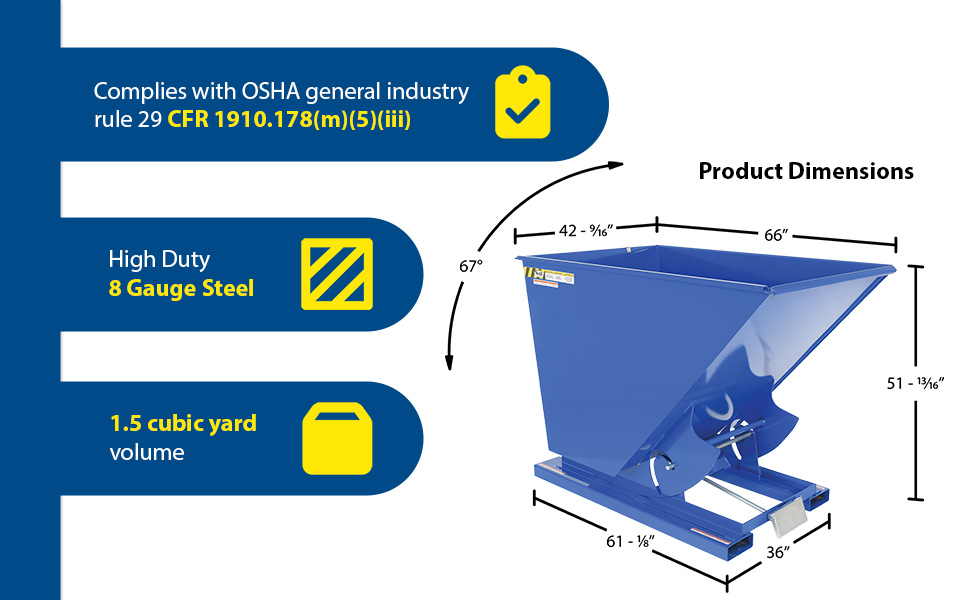

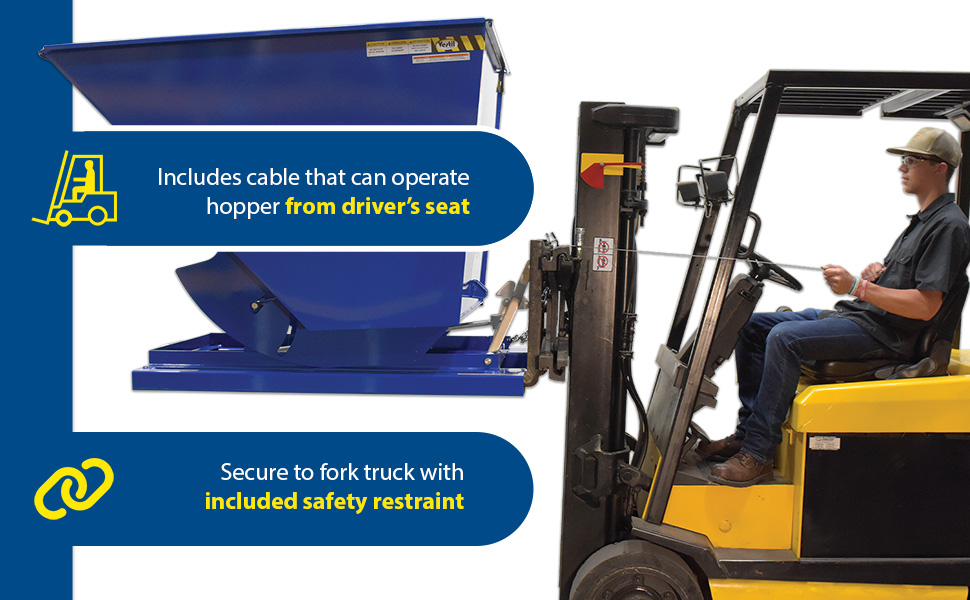

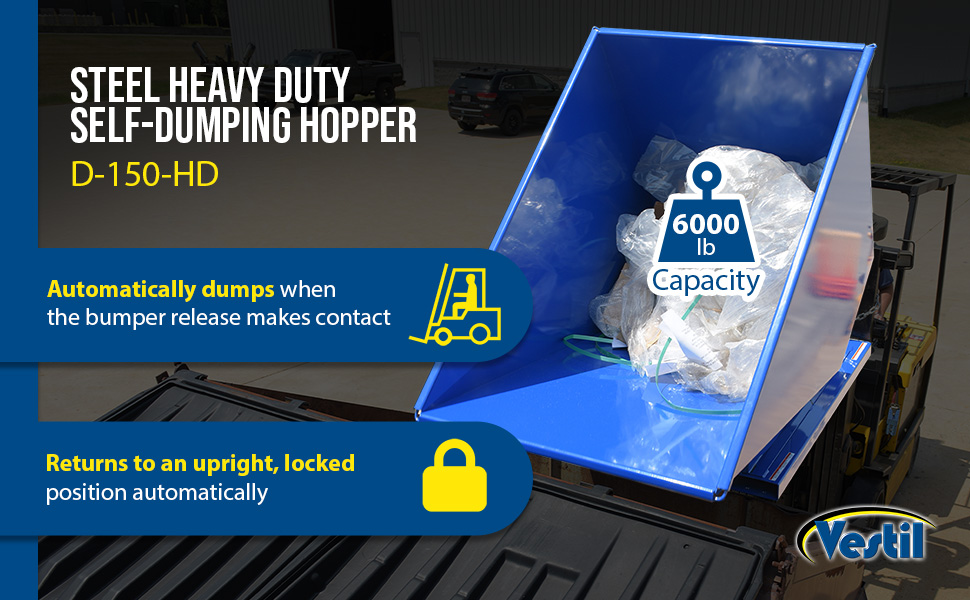

Steel Heavy Duty Self Dumping Hopper 1-1/2 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

708

90 Days Limited Warranty

Steel Light Duty Self Dumping Hopper 1-1/2 Cubic Yard 2000 Lb. Capacity Blue

Uniform Capacity (lb.): 2,000
Steel (gauge): 12

565

90 Days Limited Warranty

Steel Medium Duty Self Dumping Hopper 1-1/2 Cubic Yard 4000 Lb. Capacity Blue

Uniform Capacity (lb.): 4,000
Steel (gauge): 10

700

90 Days Limited Warranty

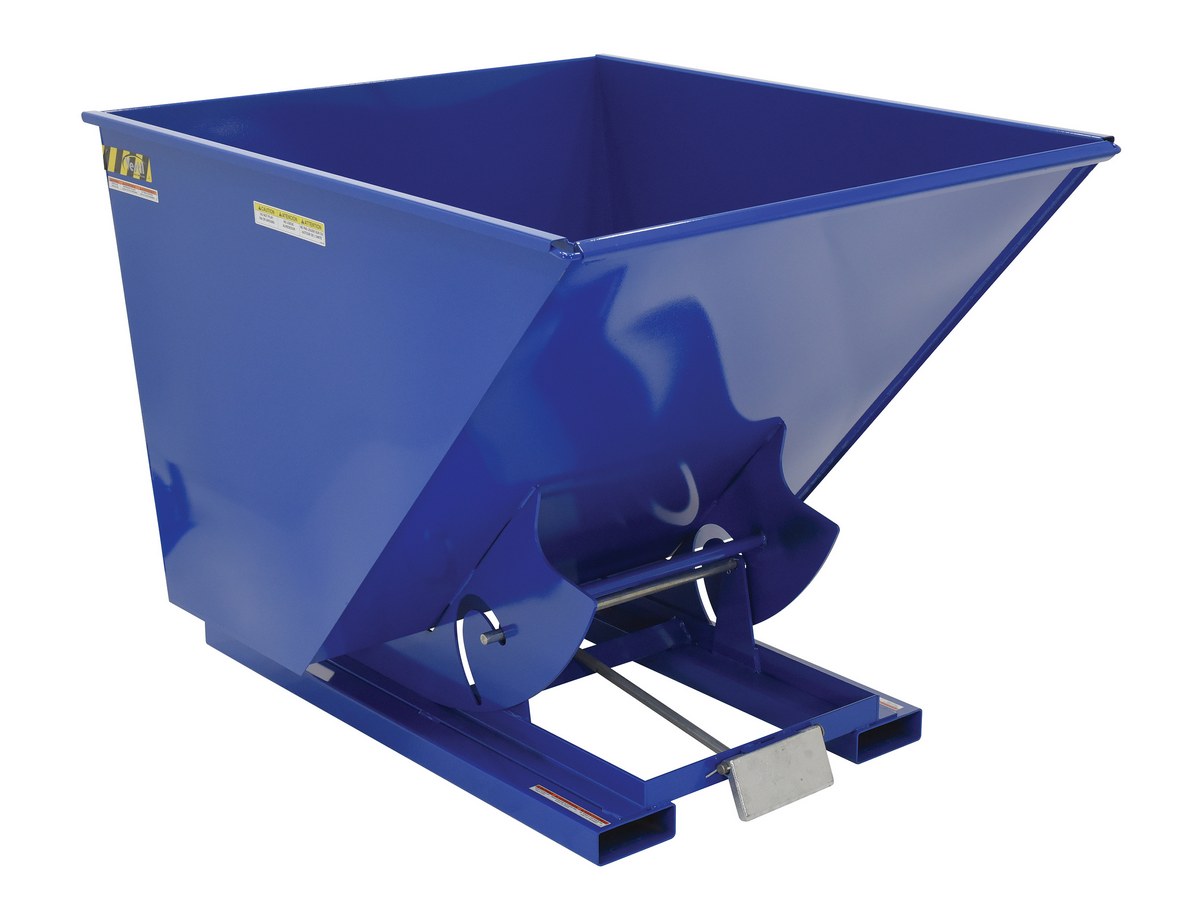

Steel Heavy Duty Self Dumping Hopper 2 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

775

90 Days Limited Warranty

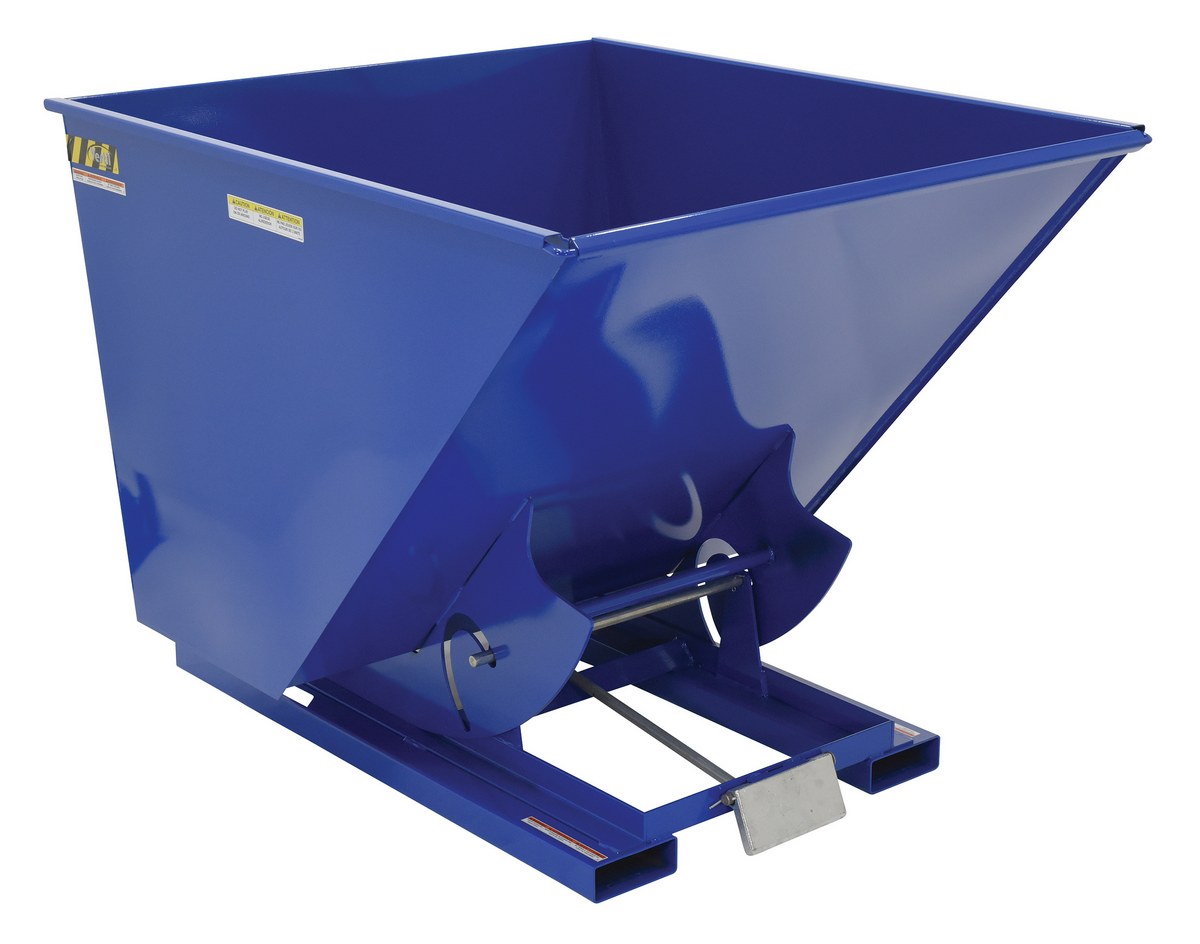

Steel Light Duty Self Dumping Hopper 2 Cubic Yard 2000 Lb. Capacity Blue

Uniform Capacity (lb.): 2,000
Steel (gauge): 12

620

90 Days Limited Warranty

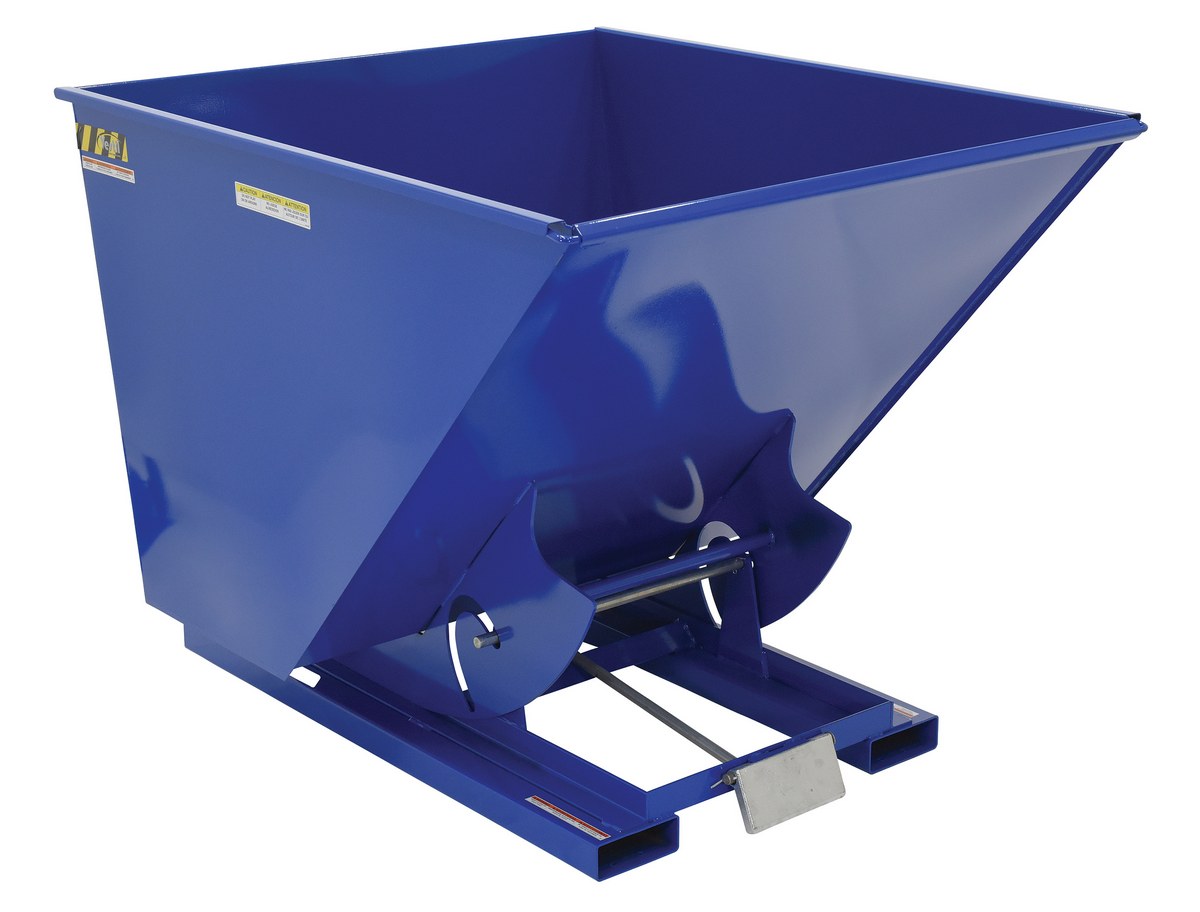

Steel Medium Duty Self Dumping Hopper 2 Cubic Yard 4000 Lb. Capacity Blue

Uniform Capacity (lb.): 4,000
Steel (gauge): 10

695

90 Days Limited Warranty

Steel Heavy Duty Self Dumping Hopper 1/4 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

386

90 Days Limited Warranty

Steel Light Duty Self Dumping Hopper 1/4 Cubic Yard 2000 Lb. Capacity Blue

Uniform Capacity (lb.): 2,000
Steel (gauge): 12

341

90 Days Limited Warranty

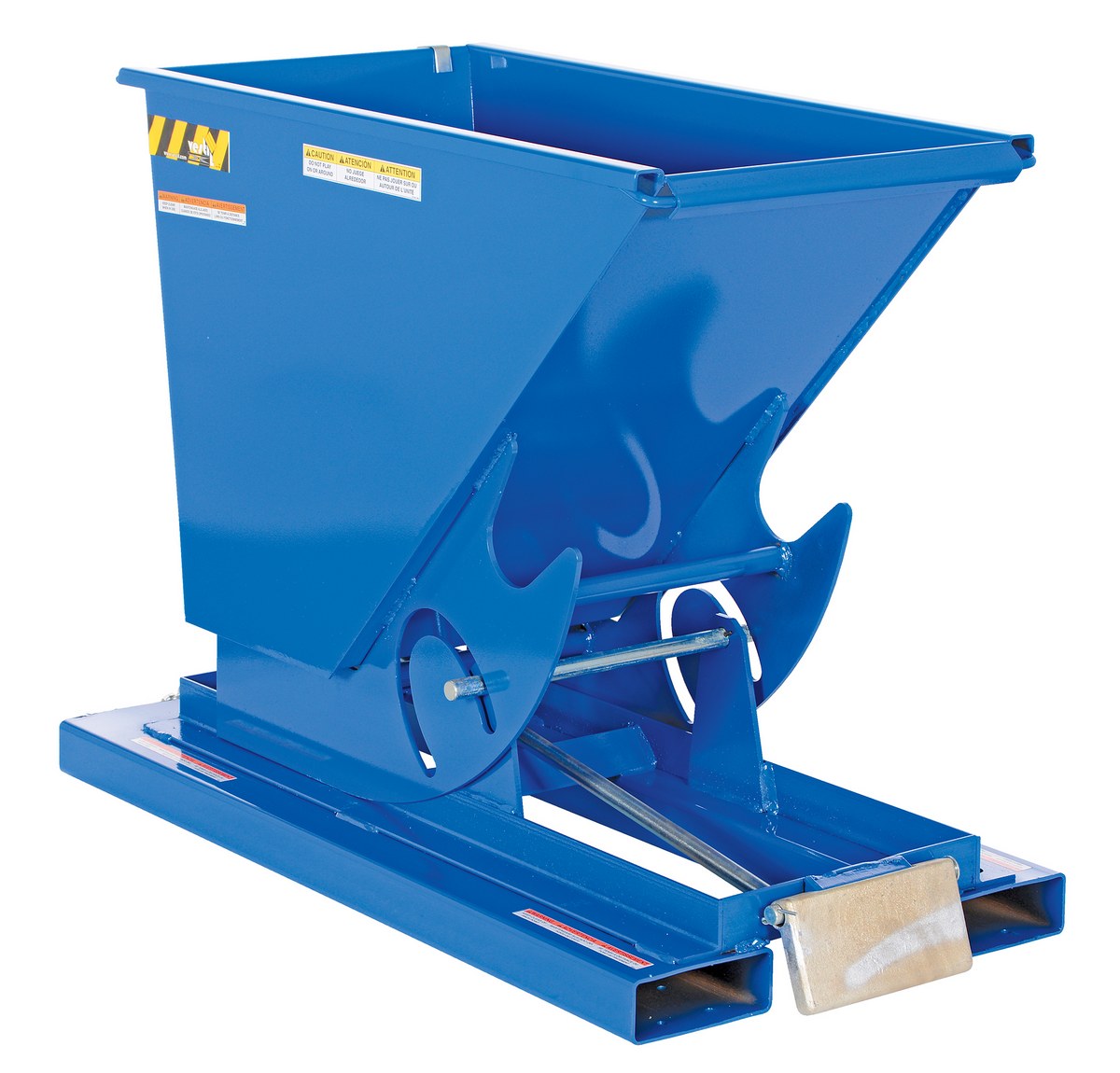

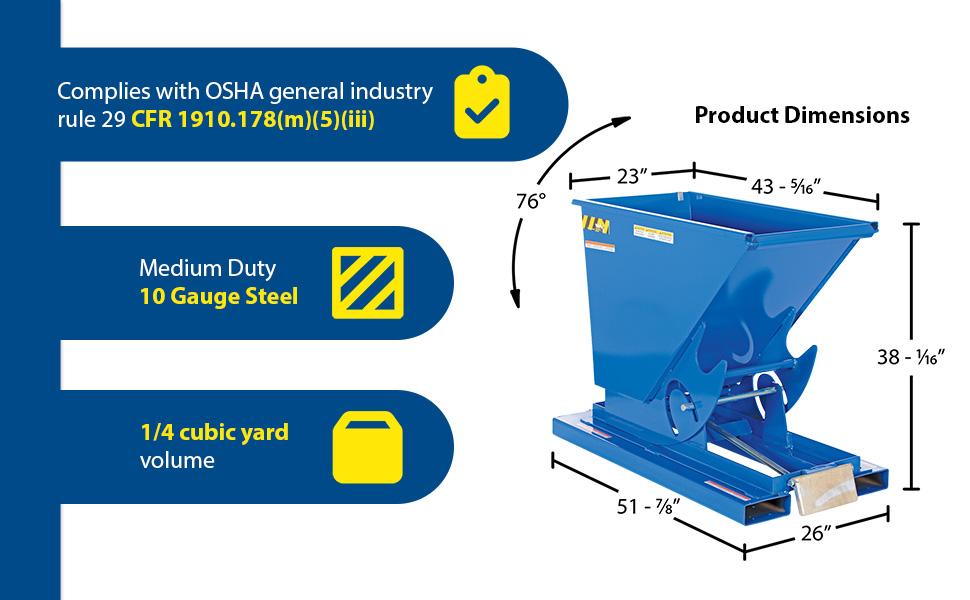

Steel Medium Duty Self Dumping Hopper 1/4 Cubic Yard 4000 Lb. Capacity Blue

Uniform Capacity (lb.): 4,000
Steel (gauge): 10

386

90 Days Limited Warranty

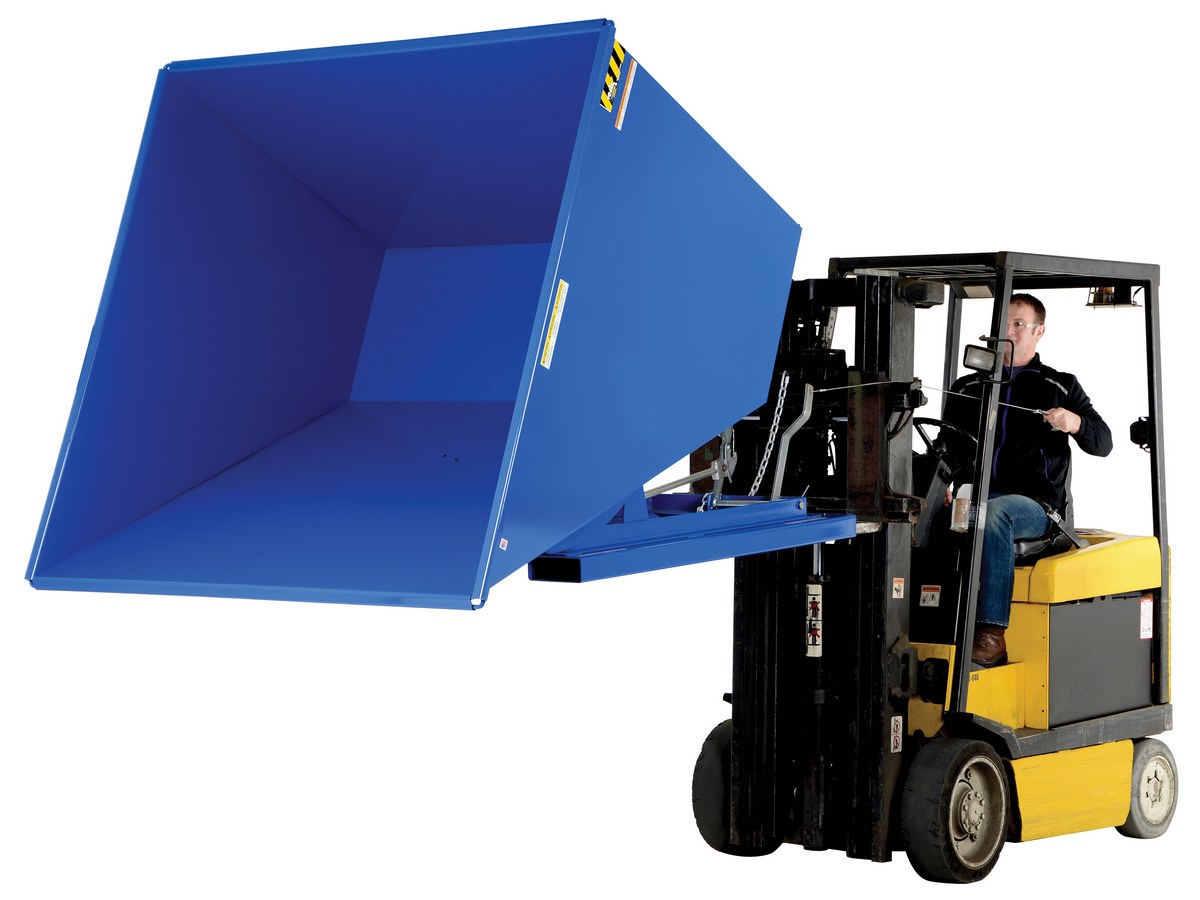

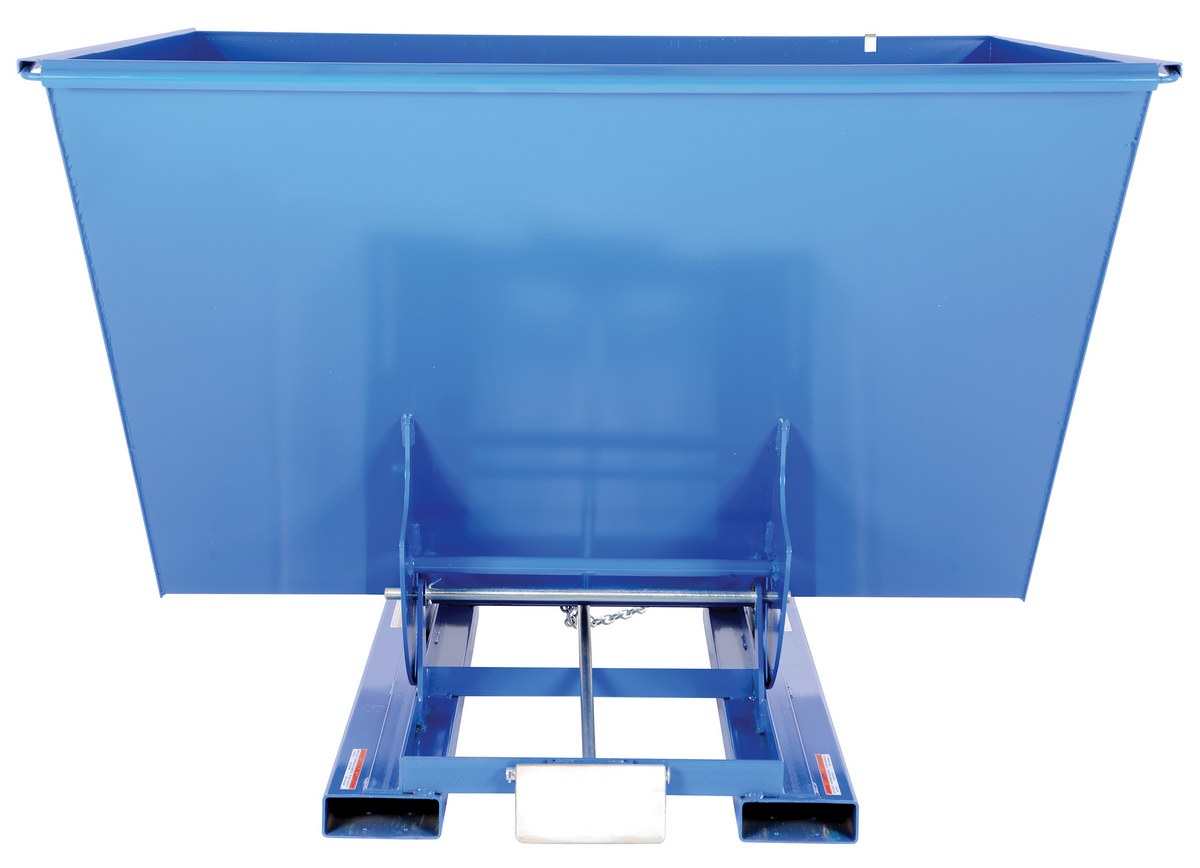

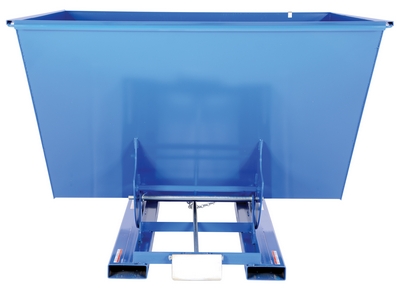

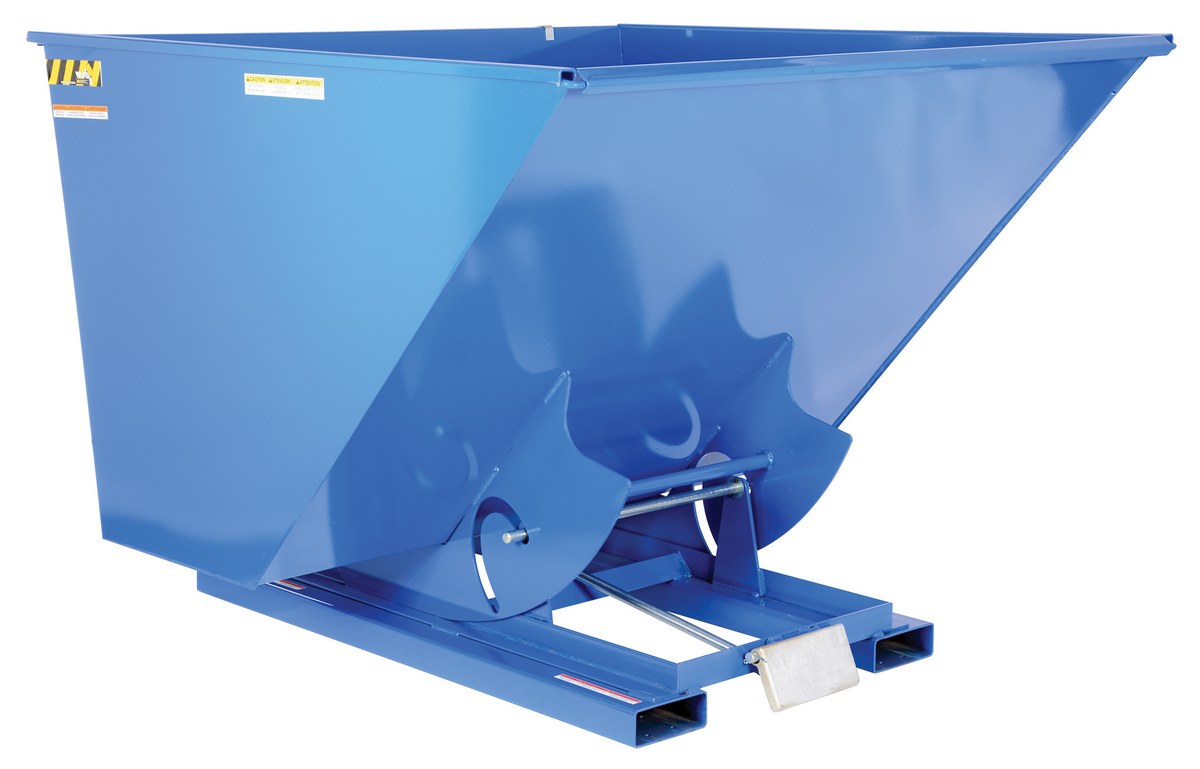

Steel Heavy Duty Self Dumping Hopper 2-1/2 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

850

90 Days Limited Warranty

Steel Light Duty Self Dumping Hopper 2-1/2 Cubic Yard 2000 Lb. Capacity Blue

Uniform Capacity (lb.): 2,000
Steel (gauge): 12

850

90 Days Limited Warranty

Steel Medium Duty Self Dumping Hopper 2-1/2 Cubic Yard 4000 Lb. Capacity Blue

Uniform Capacity (lb.): 4,000
Steel (gauge): 10

850

90 Days Limited Warranty

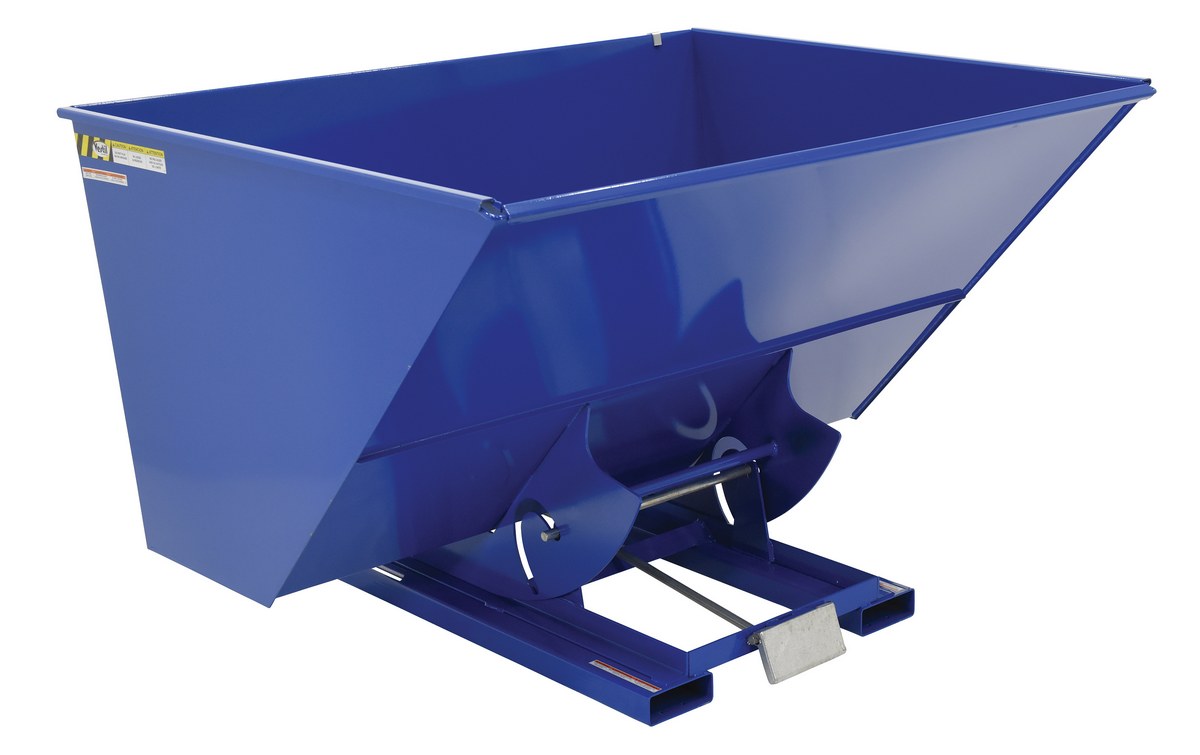

Steel Heavy Duty Self Dumping Hopper 3 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

922

90 Days Limited Warranty

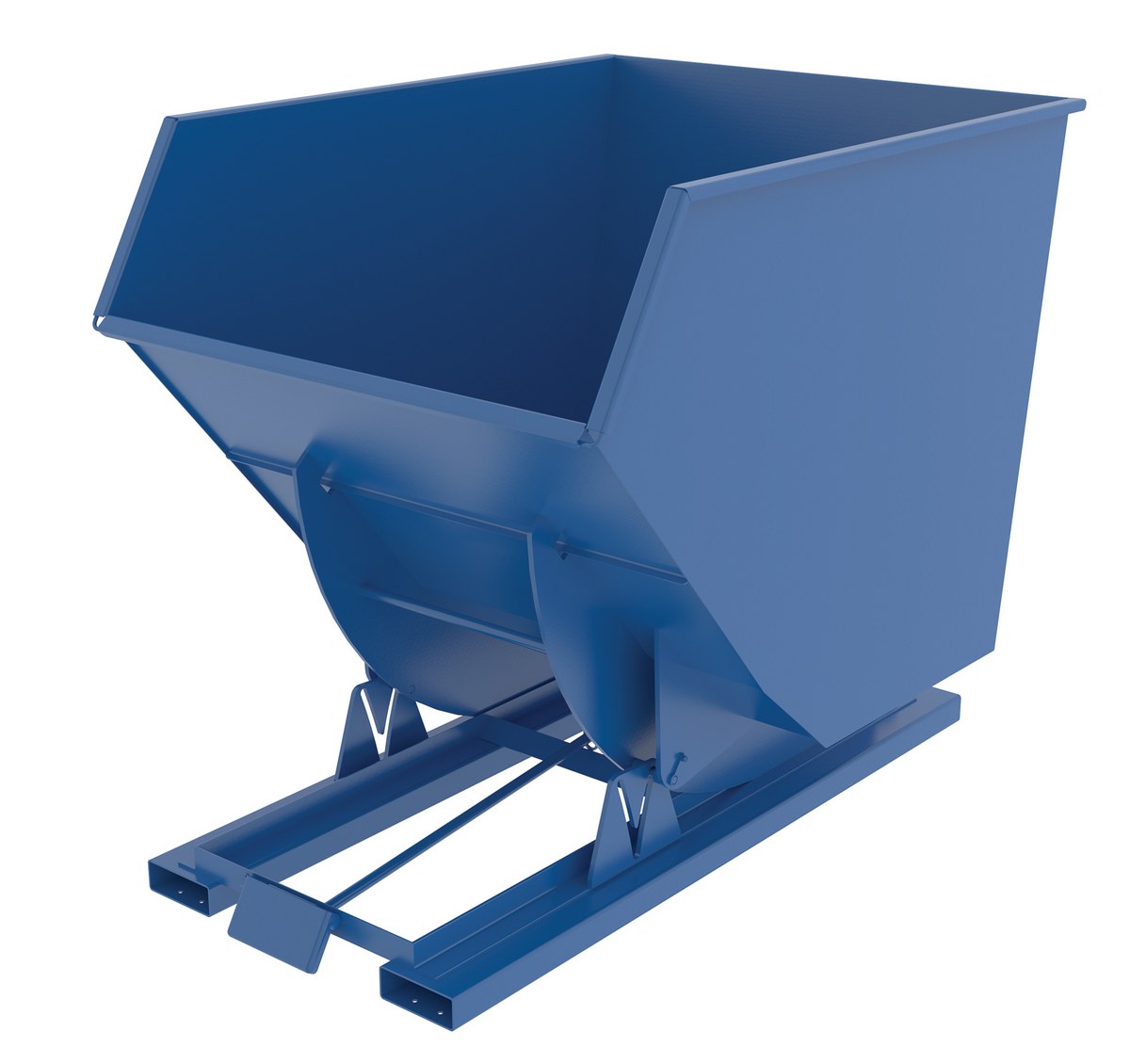

Steel Heavy Duty Narrow Self Dumping Hopper 3 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

1016

90 Days Limited Warranty

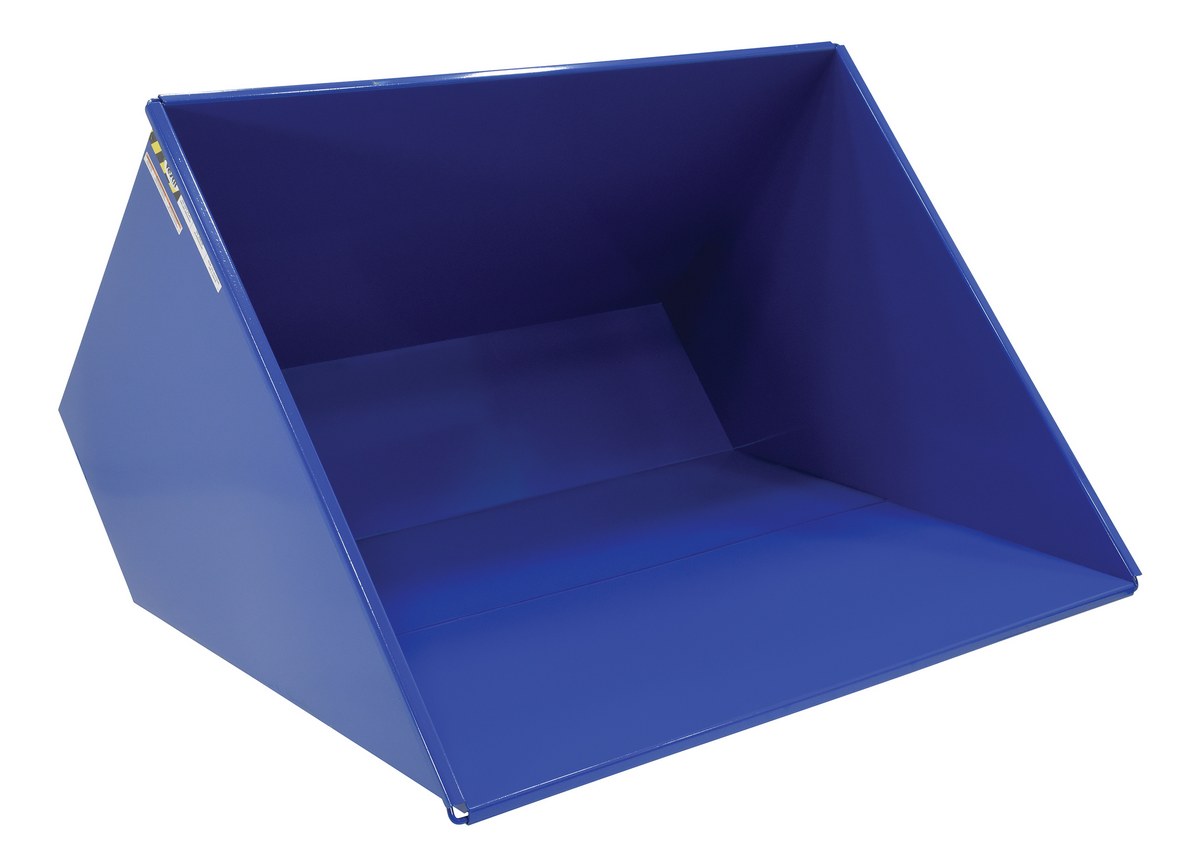

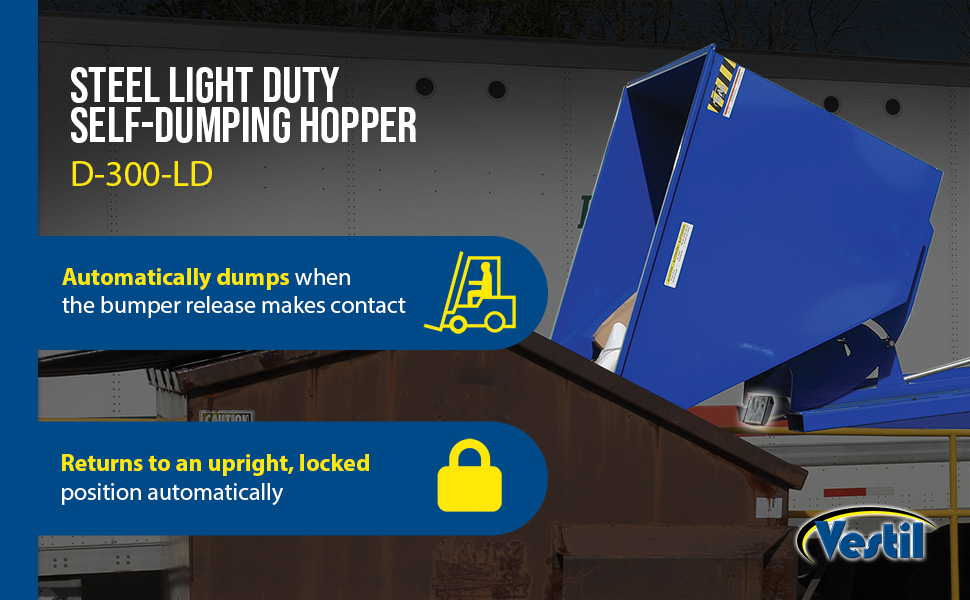

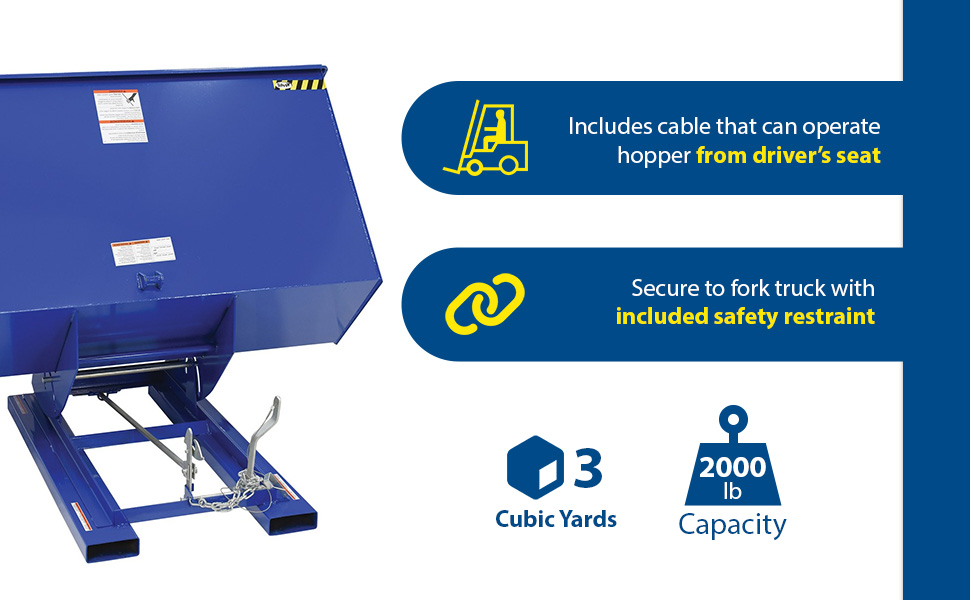

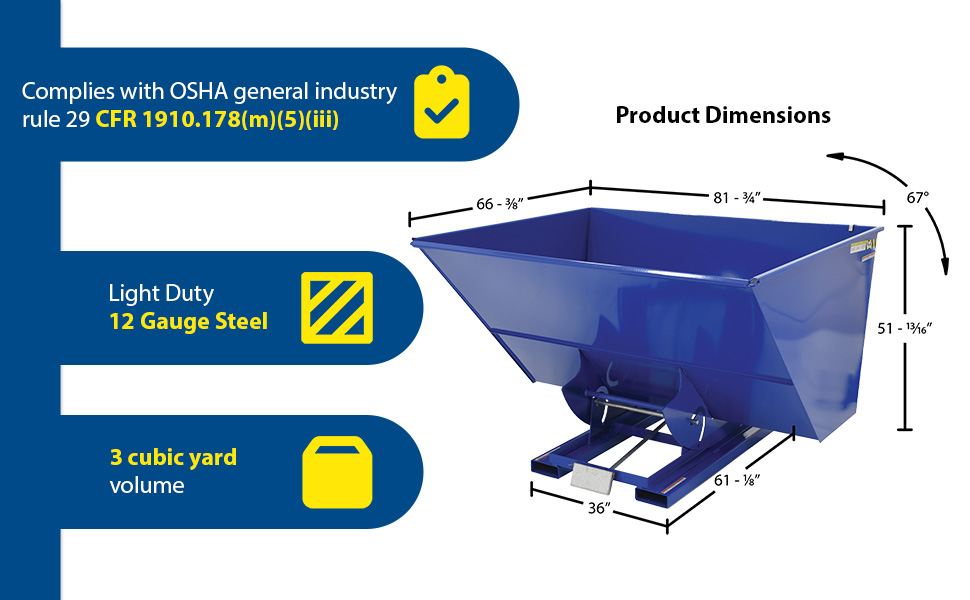

Steel Light Duty Self Dumping Hopper 3 Cubic Yard 2000 Lb. Capacity Blue

Uniform Capacity (lb.): 2,000
Steel (gauge): 12

922

90 Days Limited Warranty

Steel Medium Duty Self Dumping Hopper 3 Cubic Yard 4000 Lb. Capacity Blue

Uniform Capacity (lb.): 4,000
Steel (gauge): 10

922

90 Days Limited Warranty

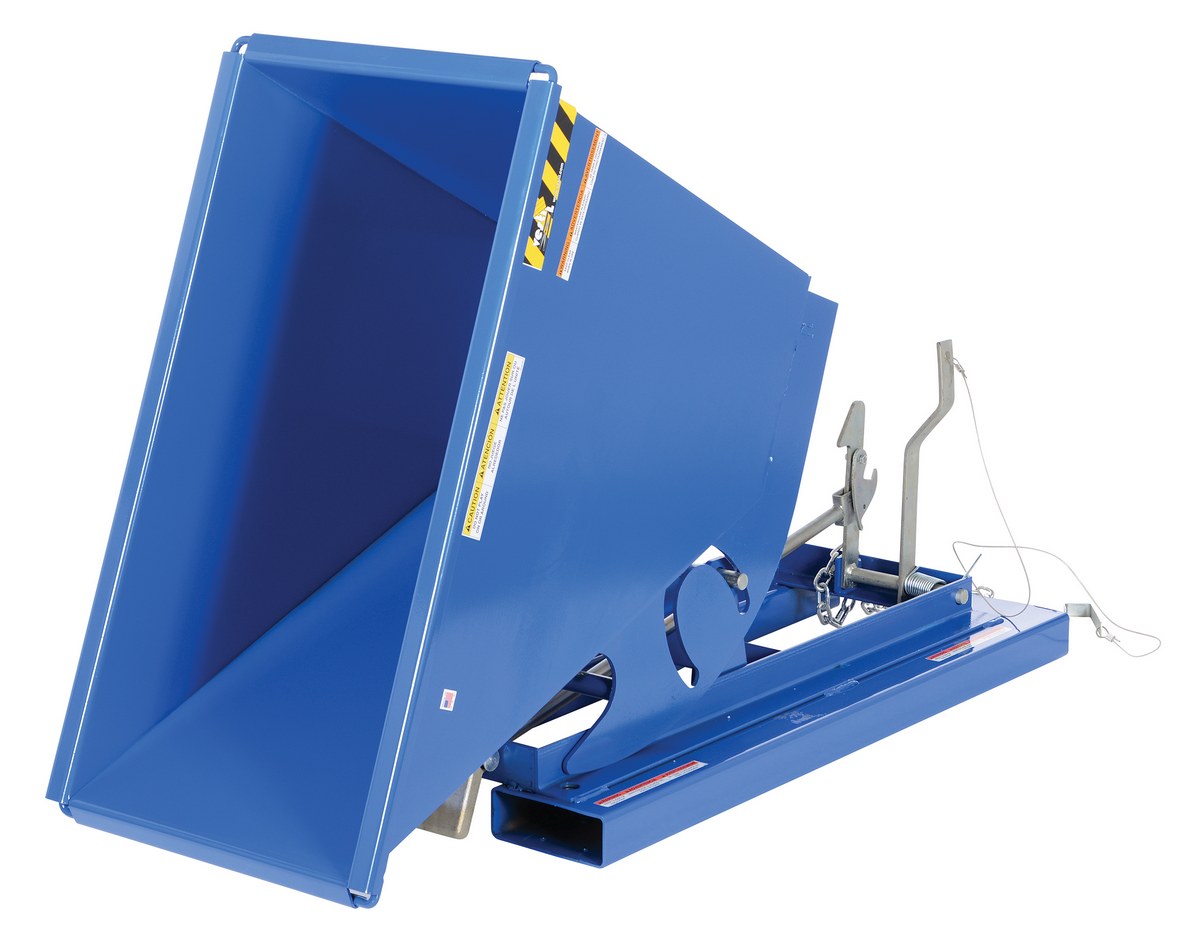

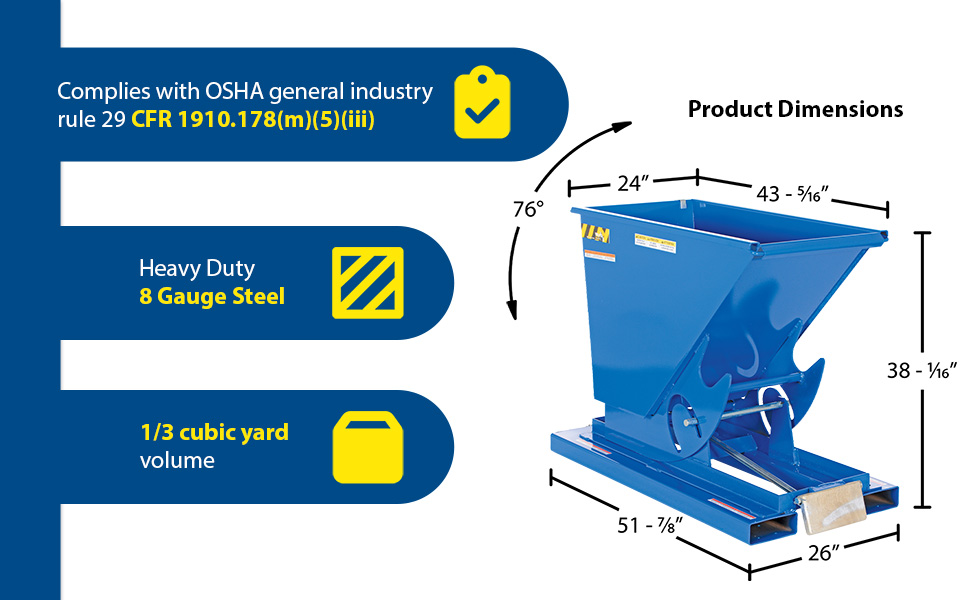

Steel Heavy Duty Self Dumping Hopper 1/3 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

386

90 Days Limited Warranty

Steel Light Duty Self Dumping Hopper 1/3 Cubic Yard 2000 Lb. Capacity Blue

Uniform Capacity (lb.): 2,000
Steel (gauge): 12

341

90 Days Limited Warranty

Steel Medium Duty Self Dumping Hopper 1/3 Cubic Yard 4000 Lb. Capacity Blue

Uniform Capacity (lb.): 4,000
Steel (gauge): 10

386

90 Days Limited Warranty

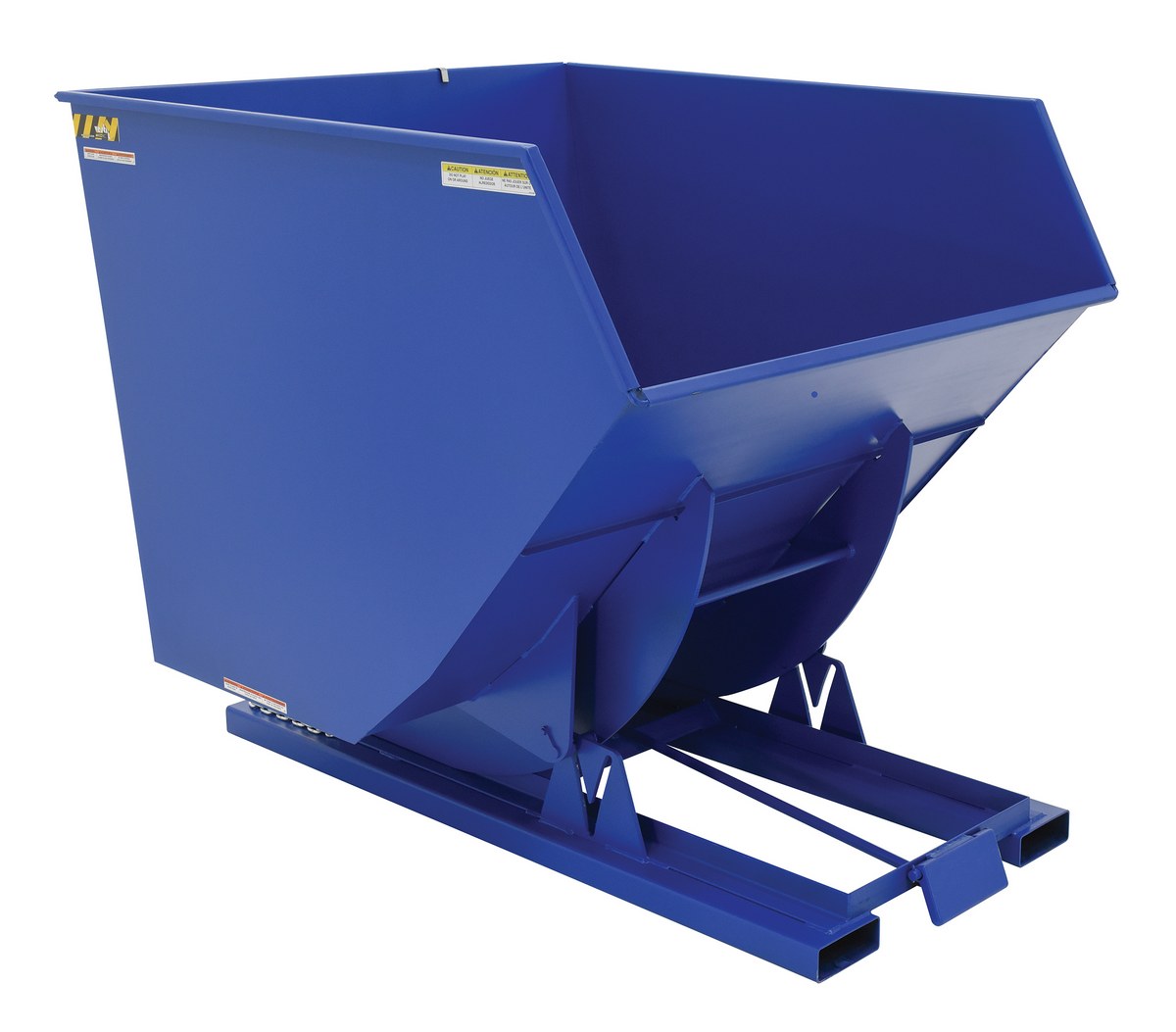

Steel Heavy Duty Self Dumping Hopper 3-1/2 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

1076

90 Days Limited Warranty

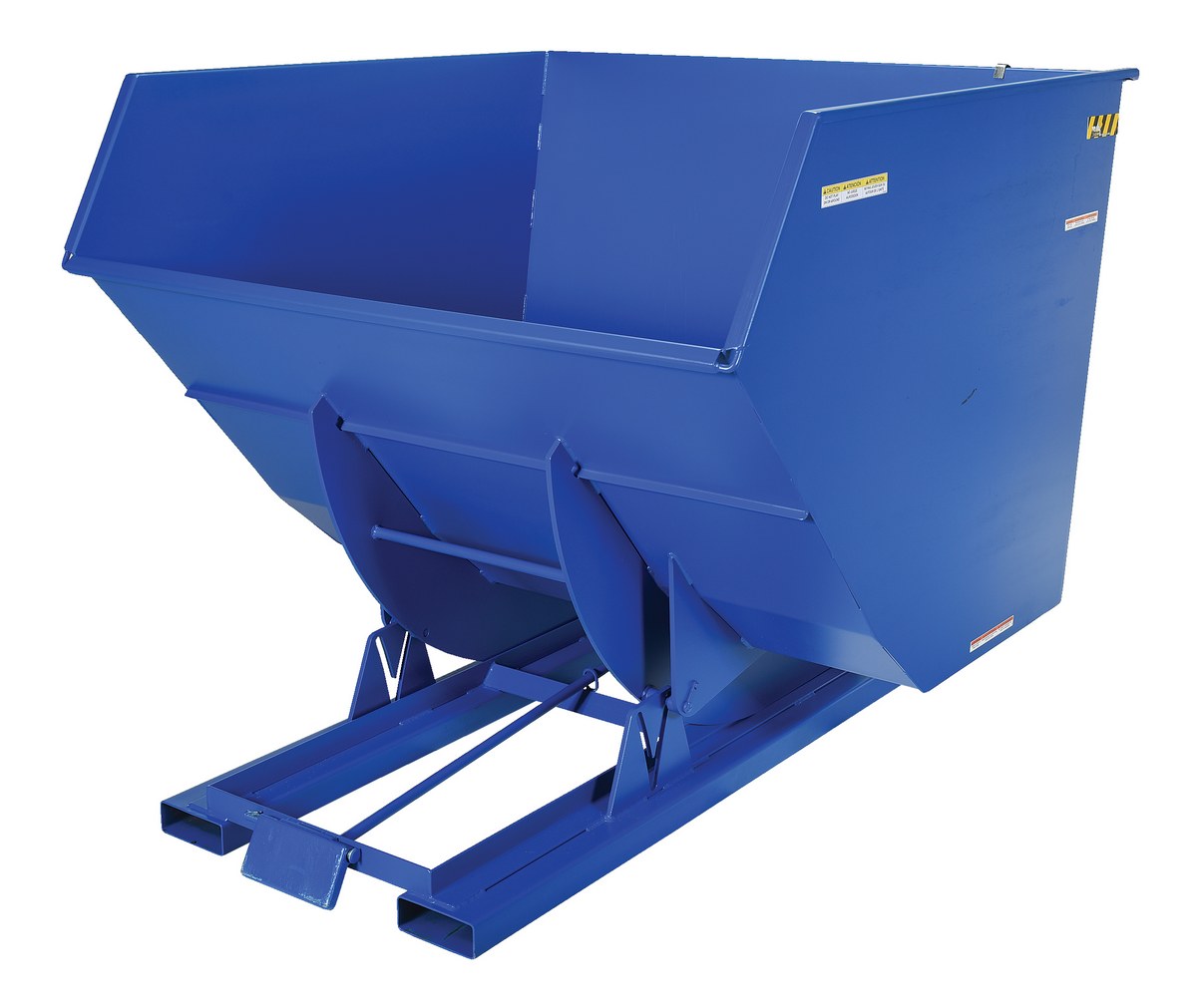

Steel Heavy Duty Self Dumping Hopper 4 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

1140

90 Days Limited Warranty

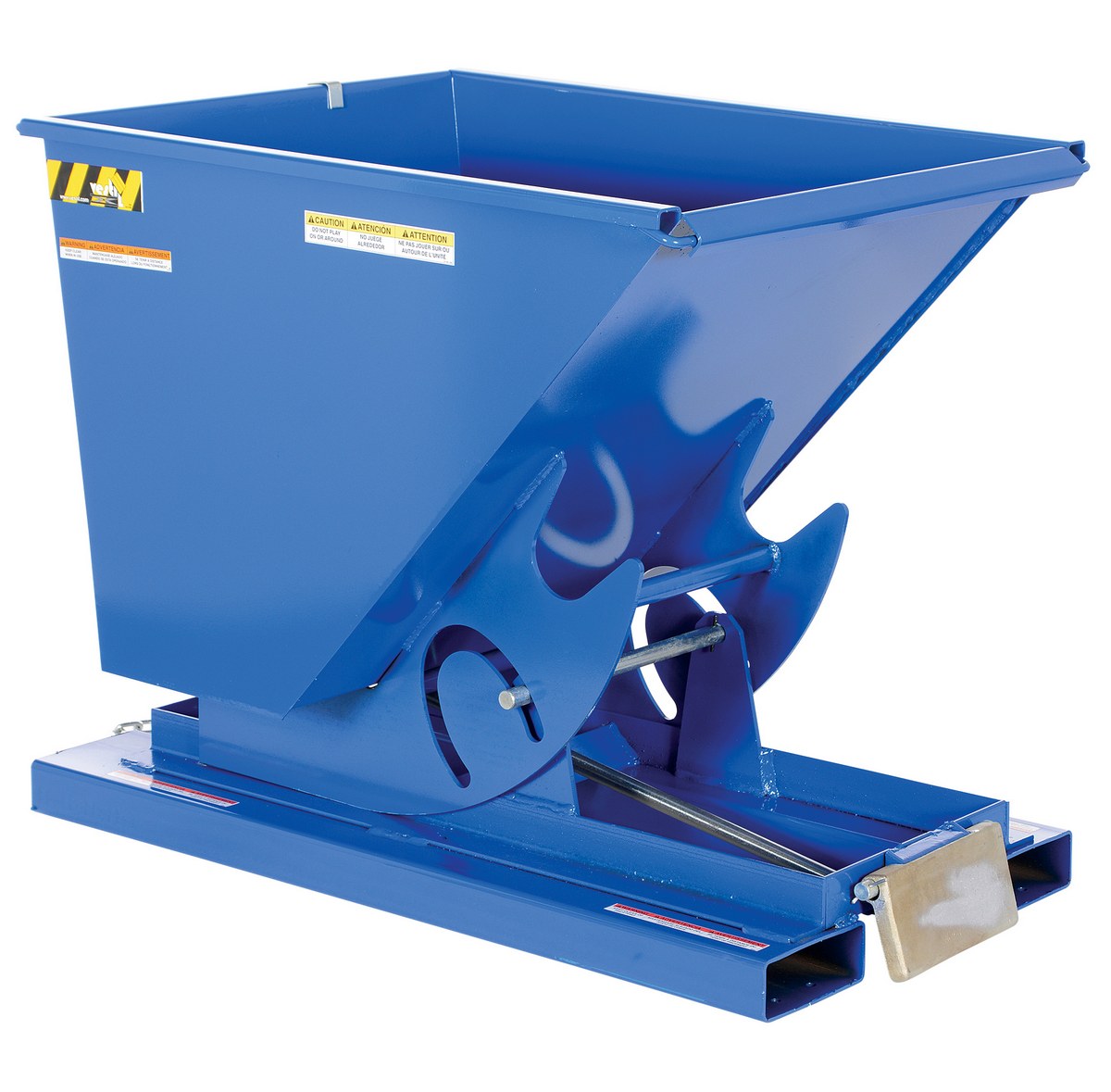

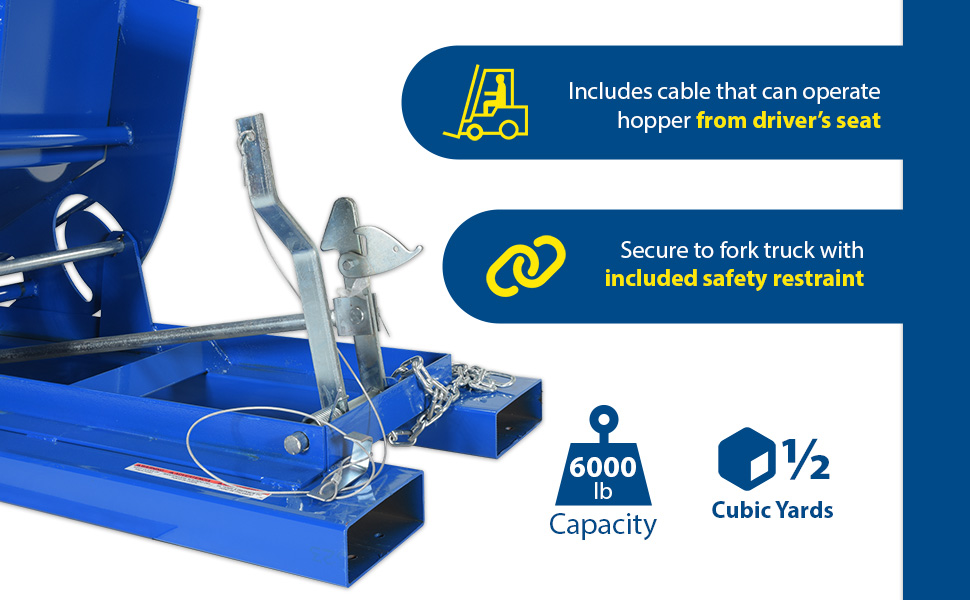

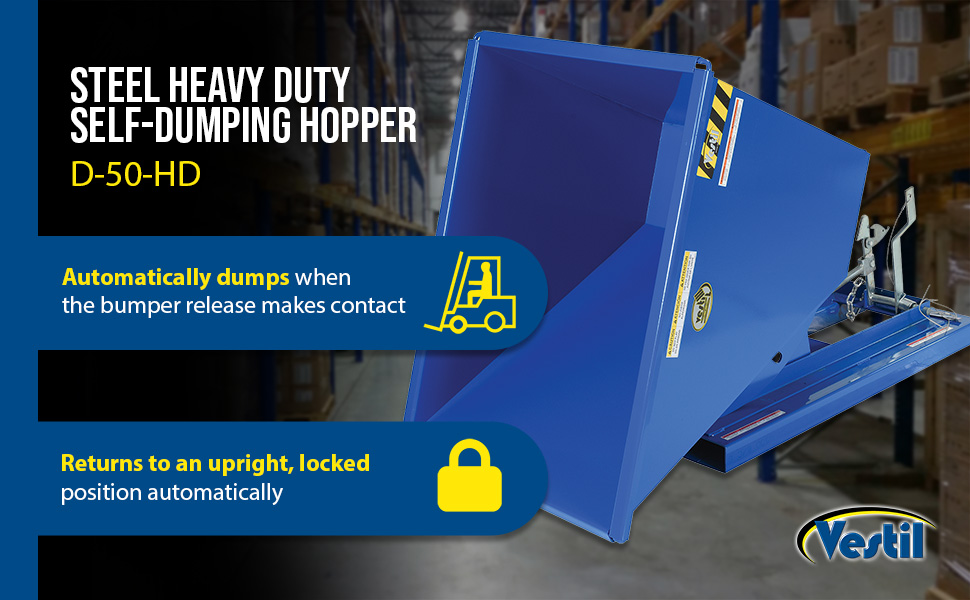

Steel Heavy Duty Self Dumping Hopper 1/2 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

336

90 Days Limited Warranty

Steel Light Duty Self Dumping Hopper 1/2 Cubic Yard 2000 Lb. Capacity Blue

Uniform Capacity (lb.): 2,000
Steel (gauge): 12

364

90 Days Limited Warranty

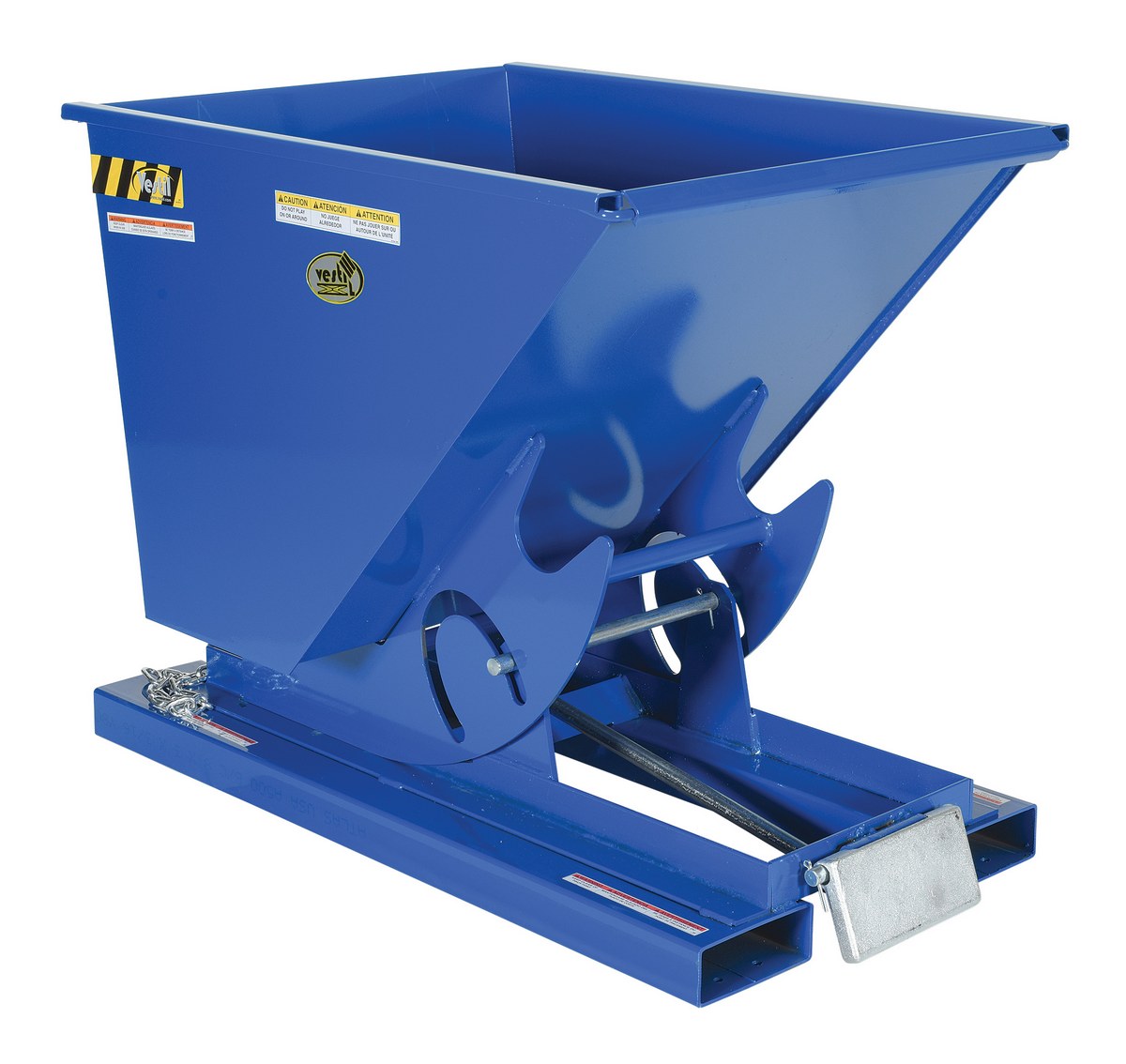

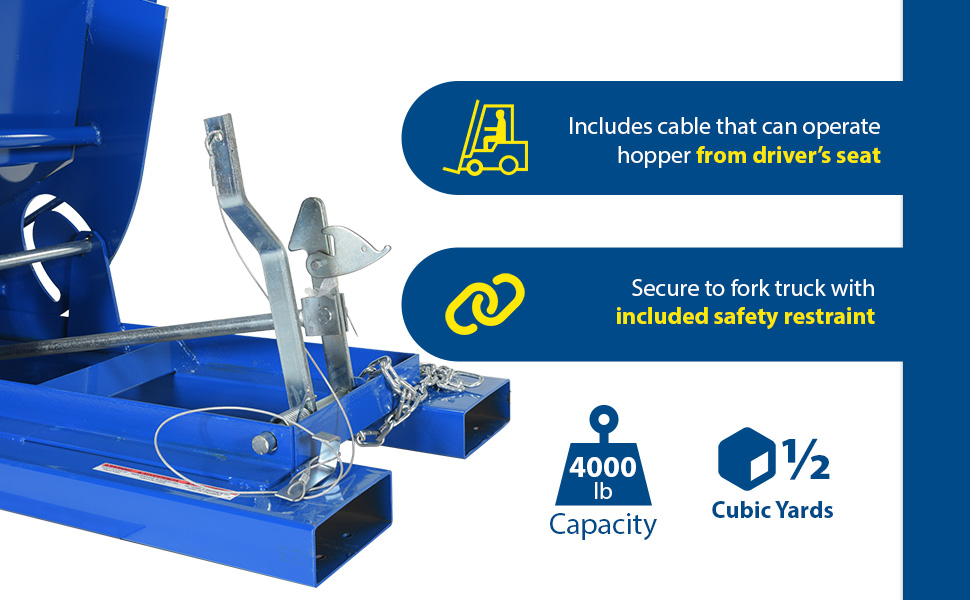

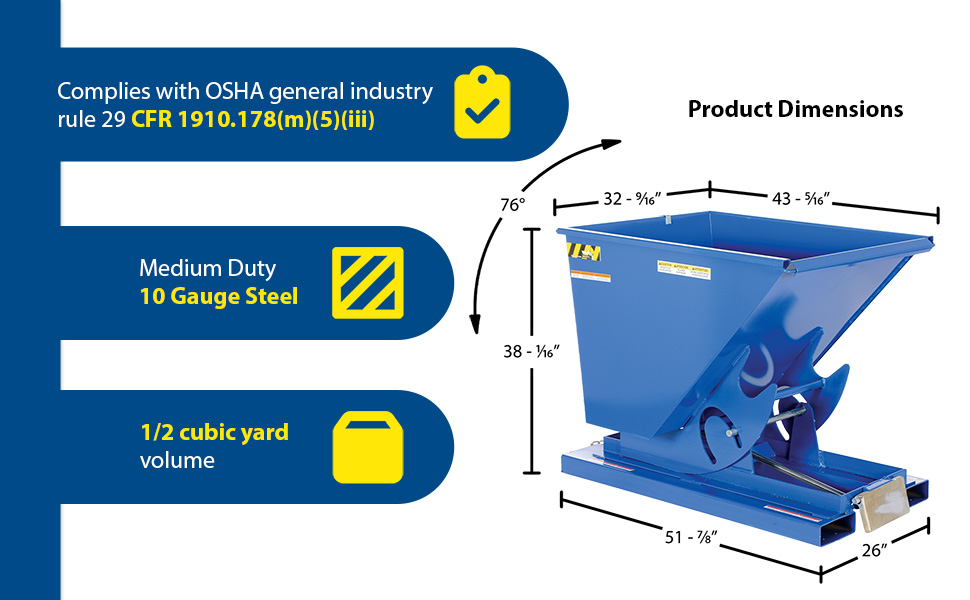

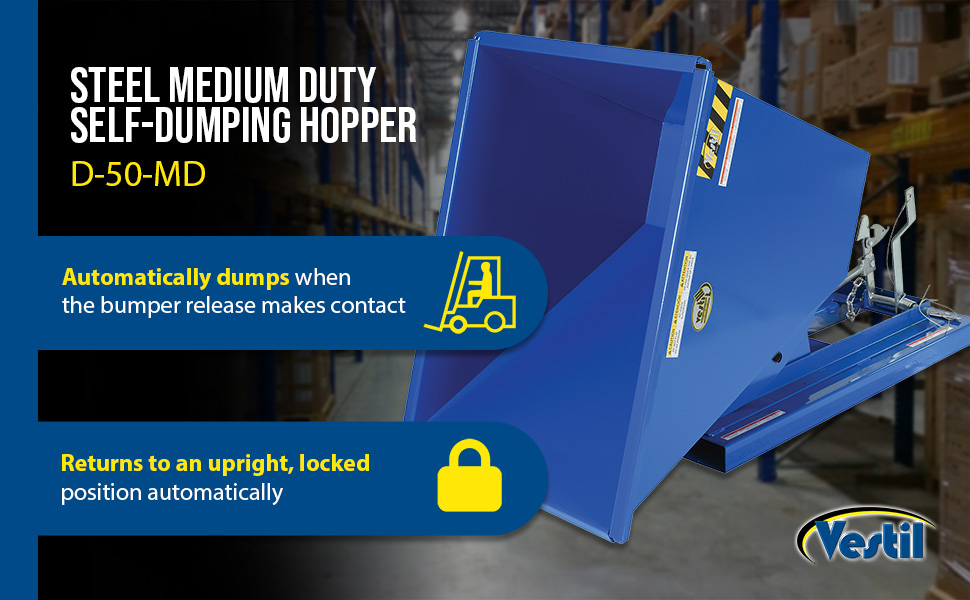

Steel Medium Duty Self Dumping Hopper 1/2 Cubic Yard 4000 Lb. Capacity Blue

Uniform Capacity (lb.): 4,000
Steel (gauge): 10

435

90 Days Limited Warranty

Steel Heavy Duty Self Dumping Hopper 5 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

1250

90 Days Limited Warranty

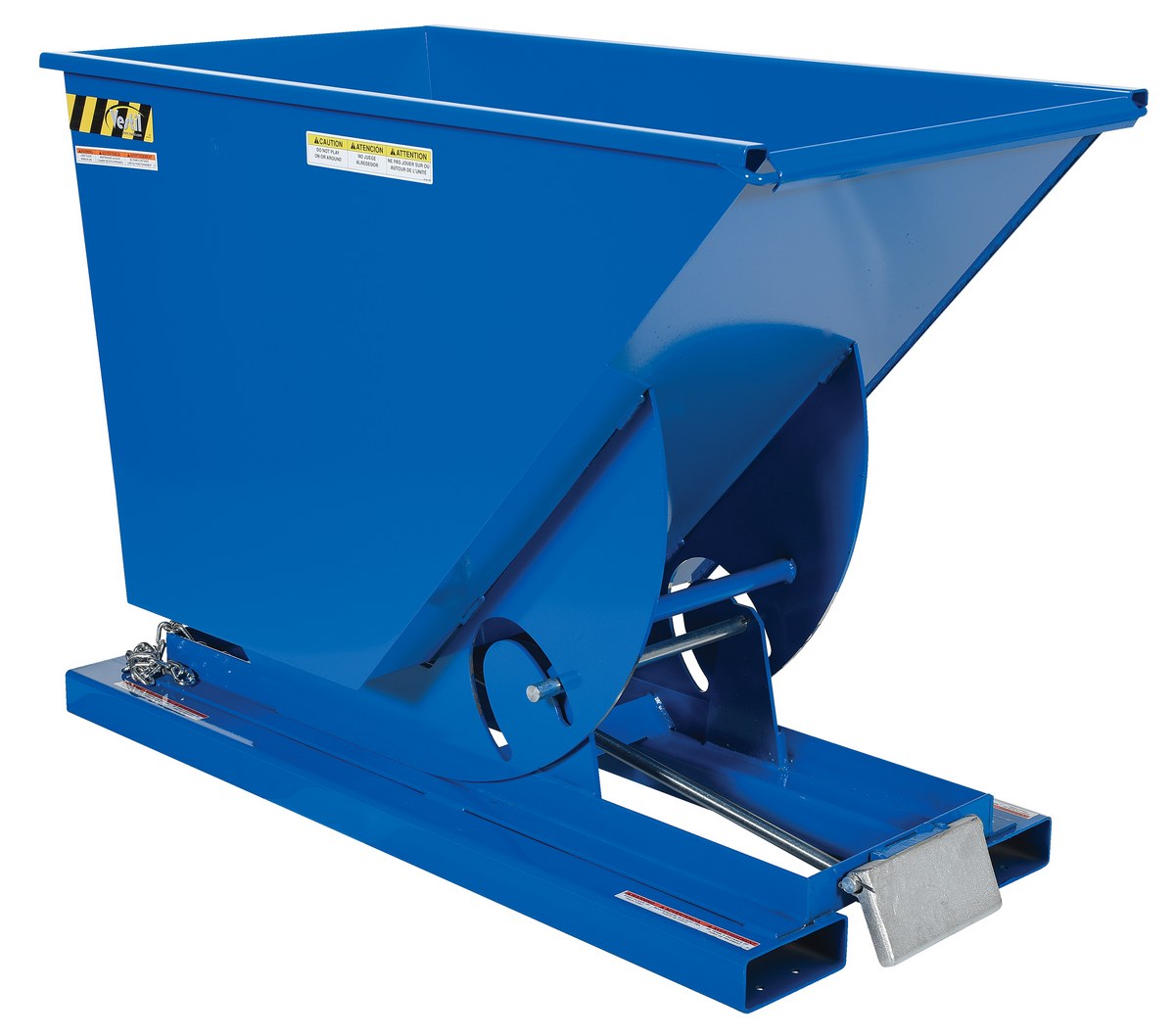

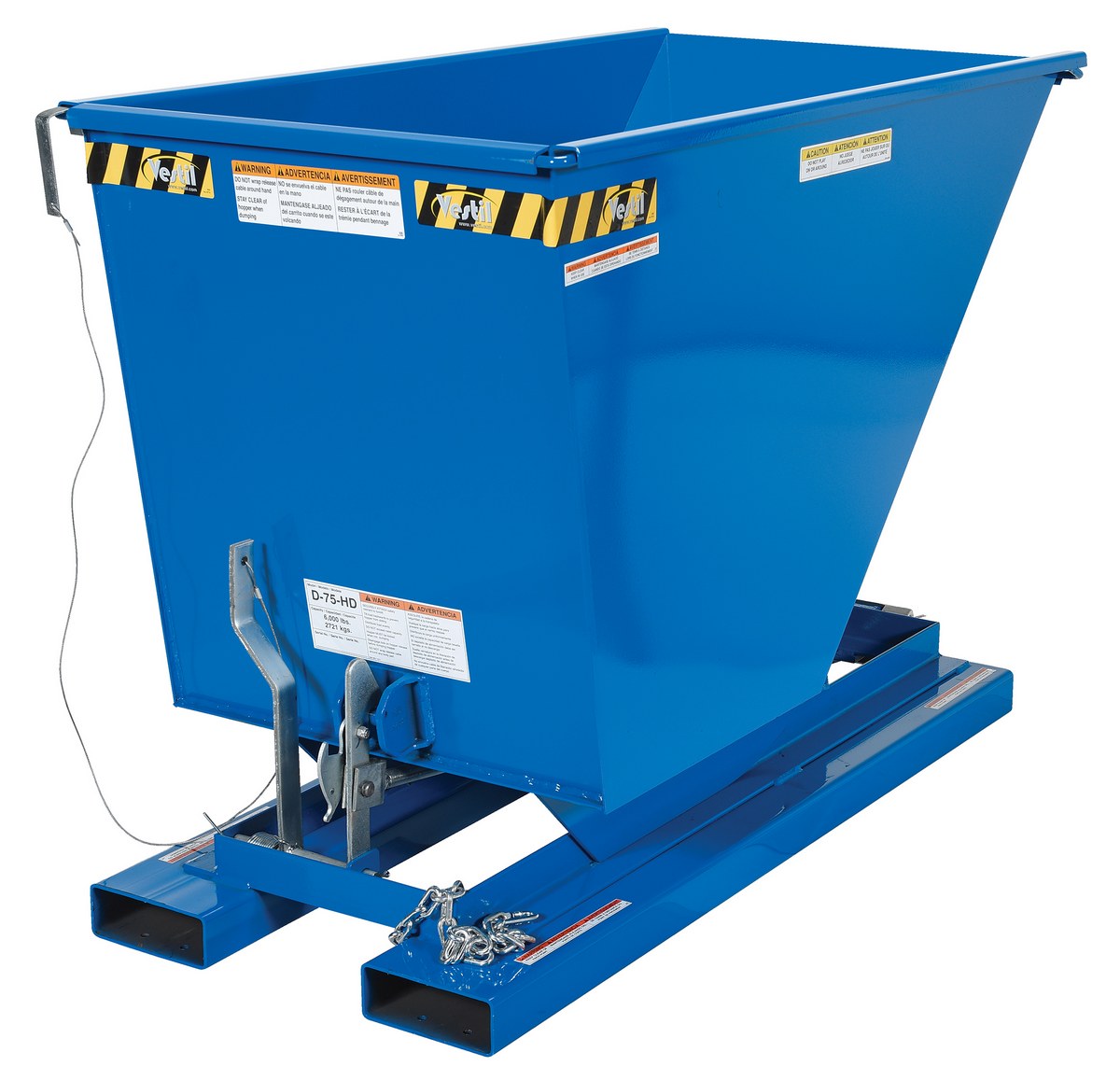

Steel Heavy Duty Self Dumping Hopper 3/4 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

541

90 Days Limited Warranty

Steel Light Duty Self Dumping Hopper 3/4 Cubic Yard 2000 Lb. Capacity Blue

Uniform Capacity (lb.): 2,000
Steel (gauge): 12

449

90 Days Limited Warranty

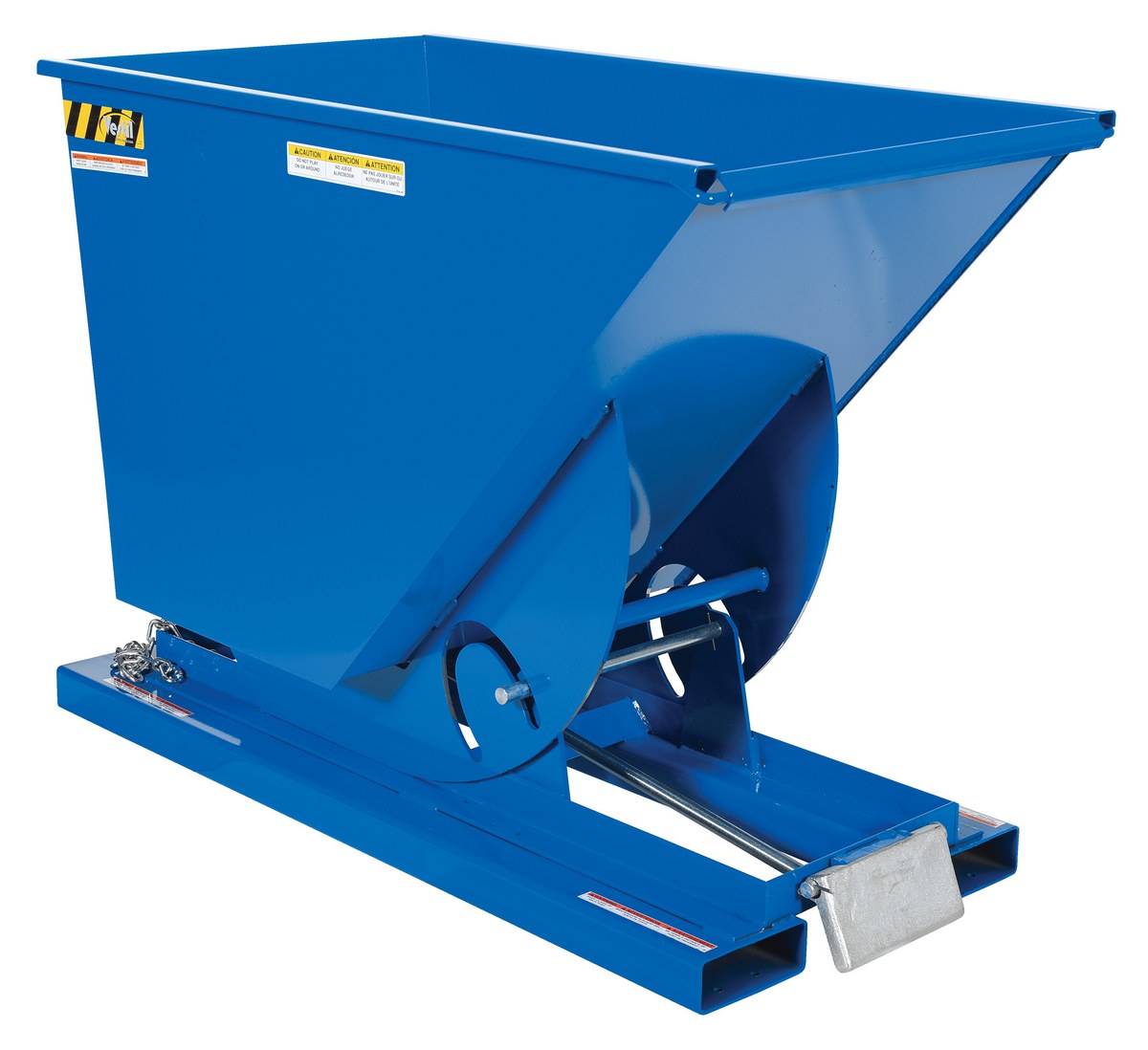

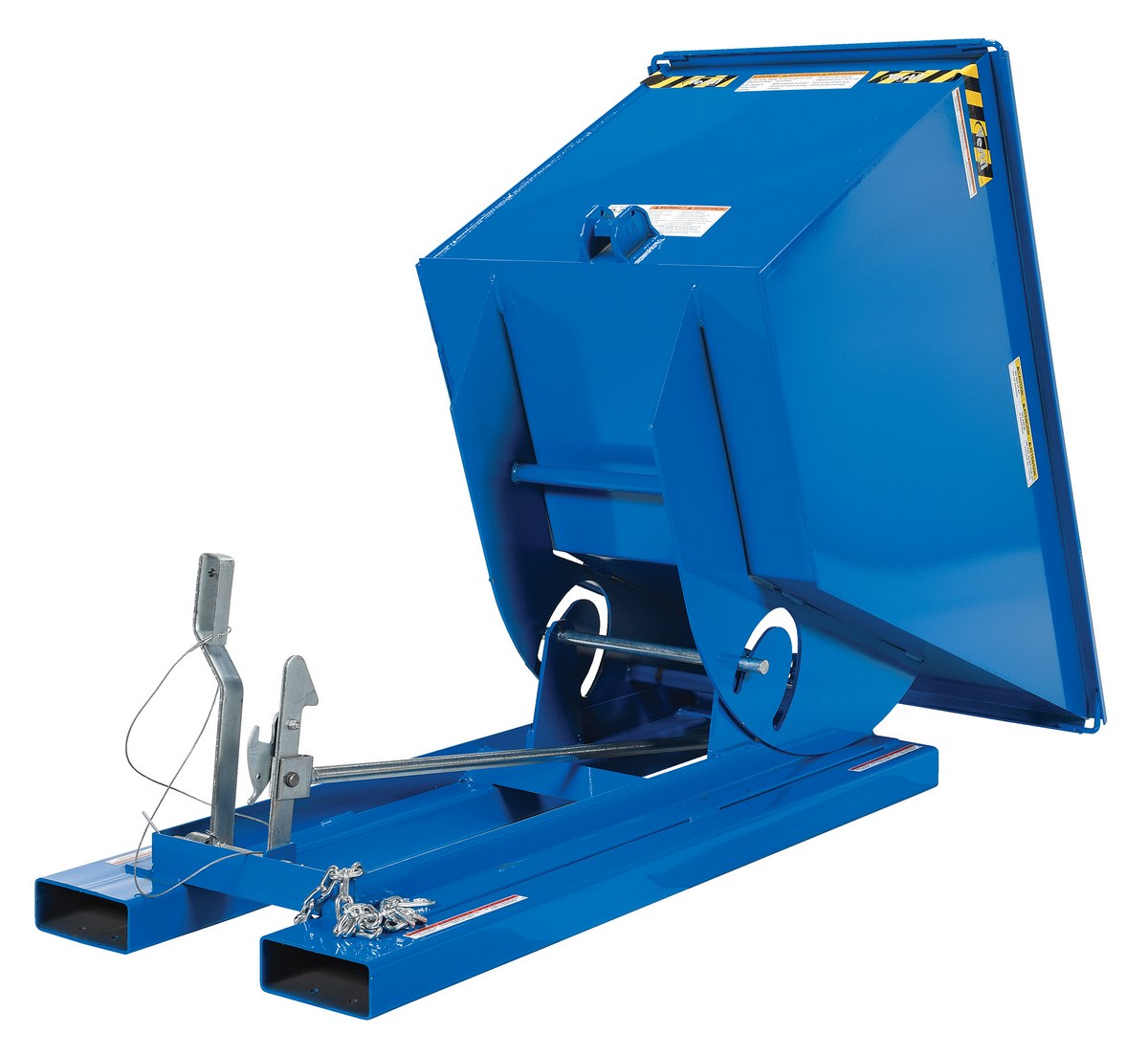

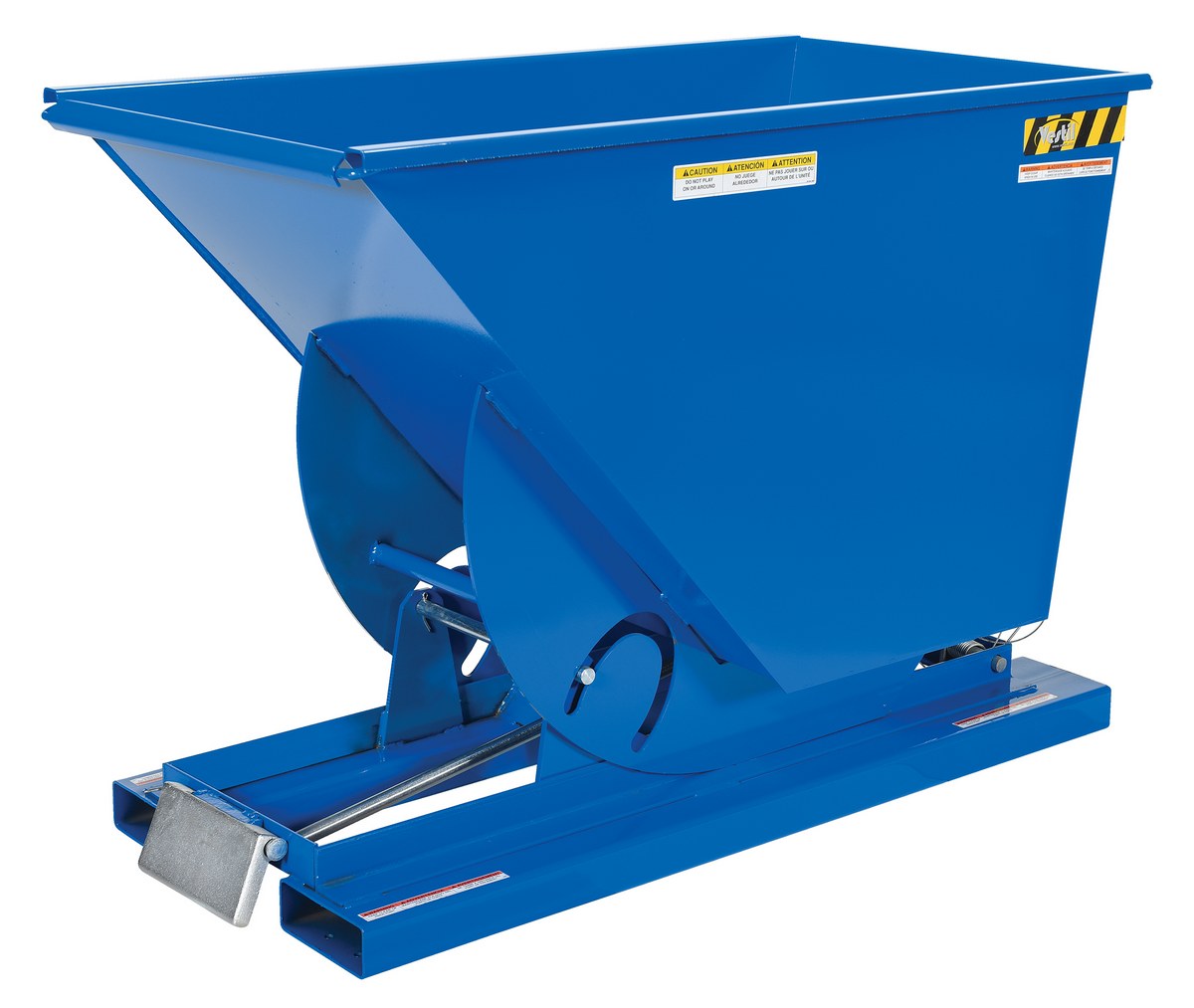

Steel Medium Duty Self Dumping Hopper 3/4 Cubic Yard 4000 Lb. Capacity Blue

Uniform Capacity (lb.): 4,000
Steel (gauge): 10

543

For More Details of the Option Click the Red Model Button

D-150-EXT-SMY	90 Days Limited Warranty	Steel Mesh D-150 Series Side Extensions 64-15/16 In. x 43-1/8 In. x 15-11/16 In. Yellow	Hardware: Included Usable Width (in.): 40	37
D-200-EXT-SMY	90 Days Limited Warranty	Steel Mesh D-200 Series Side Extension 64-15/16 In. x 56-1/8 In. x 15-11/16 In. Yellow	Hardware: Included Usable Width (in.): 53	40
D-250-EXT-SMY	90 Days Limited Warranty	Steel Mesh D-250 Series Side Extensions 64-15/16 In. x 69-1/8 In. x 15-11/16 In. Yellow	Hardware: Included Usable Width (in.): 66	45
D-300-EXT-SMY	90 Days Limited Warranty	Steel Mesh D-350 Series Side Extensions 64-15/16 In. x 81-5/16 In. x 15-11/16 In. Yellow	Hardware: Included Usable Width (in.): 78-3/16	50

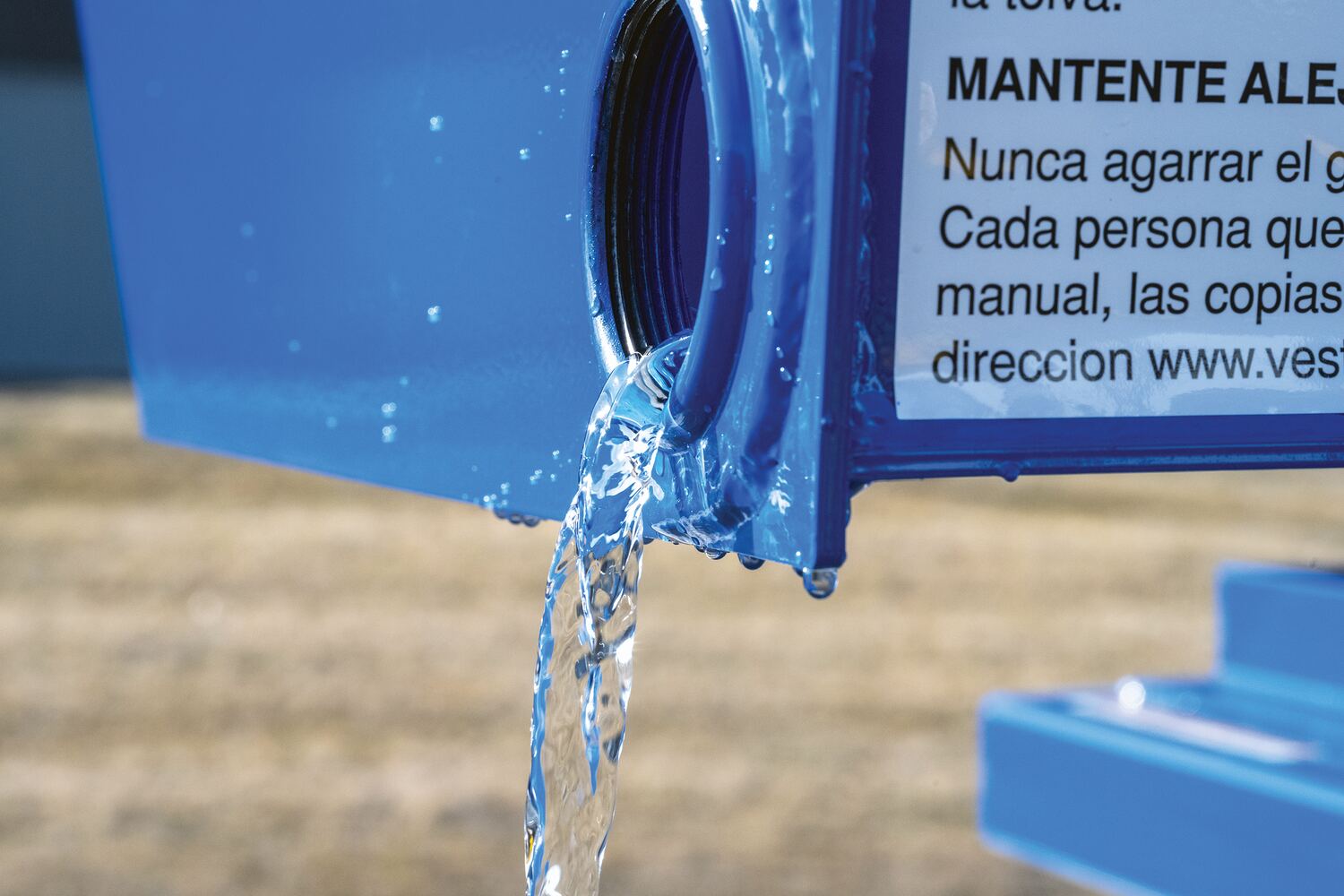

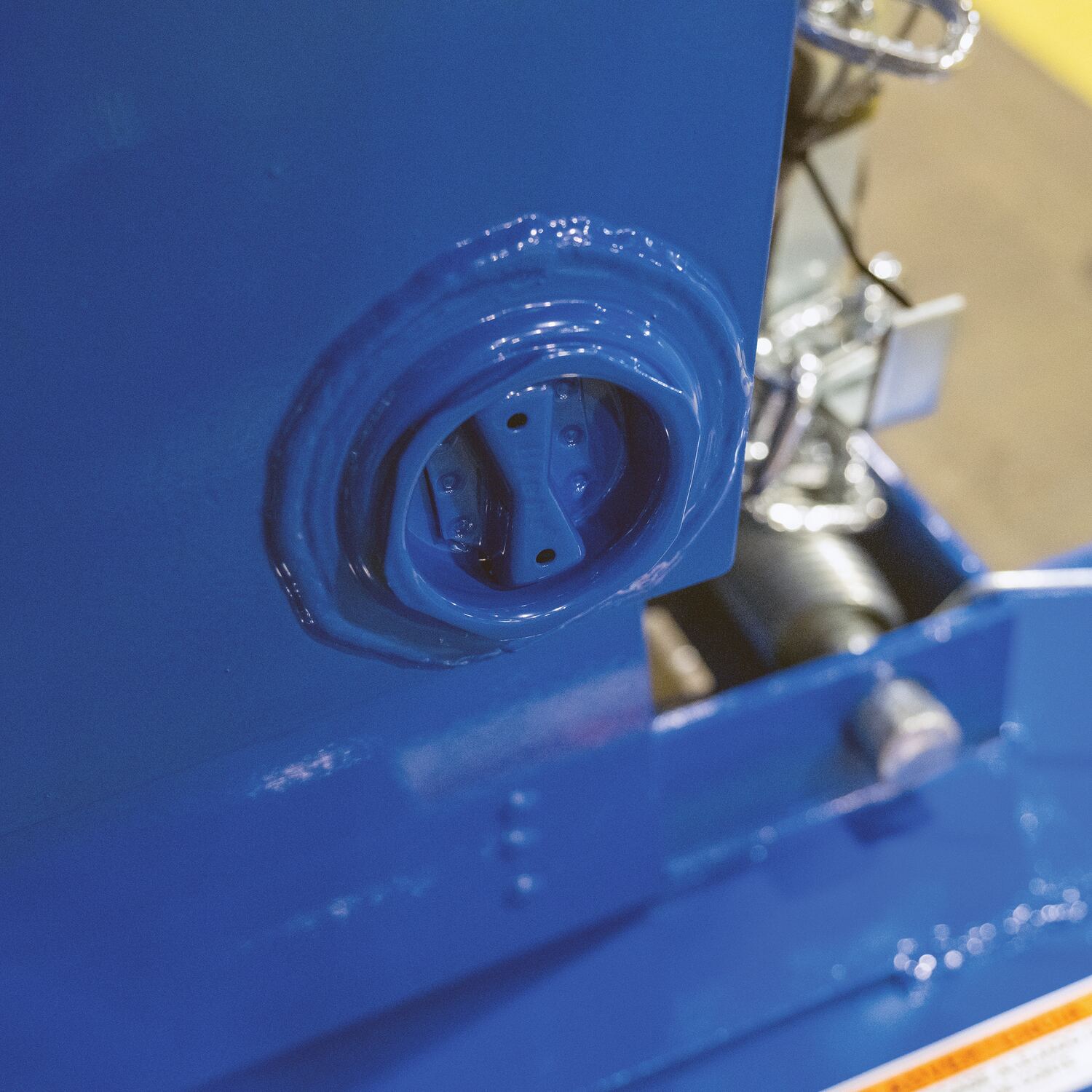

D-DPLG-2	30 Days Limited Warranty	Factory Installed Welded Steel 2 In. Threaded Drain Plug Left Corner For D Style Hoppers	Drain Size (in): 2 Nominal Fitting Connection Size - 1: 2"	2

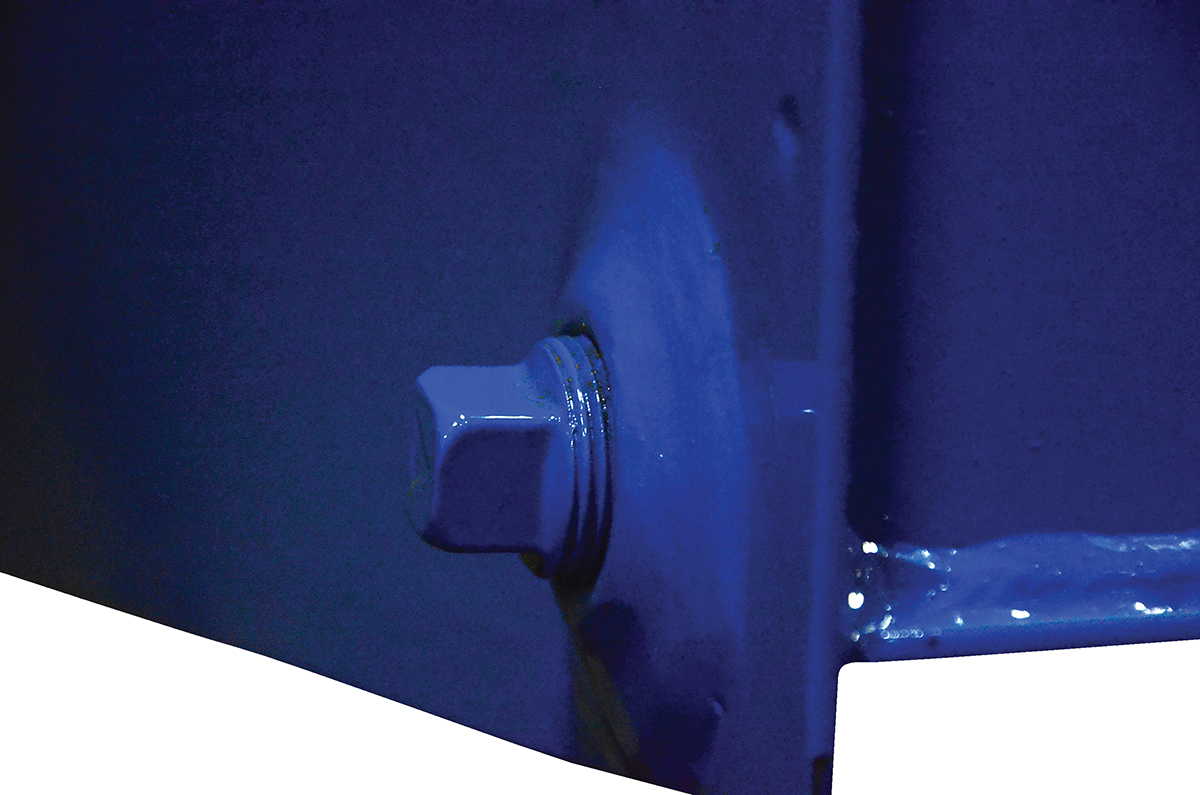

D-DPLG-75	30 Days Limited Warranty	Factory Installed Welded Steel 3/4 In. Threaded Drain Plug Left Corner For D Style Hoppers	Drain Size (in): .75 Nominal Fitting Connection Size - 1: 3/4	1

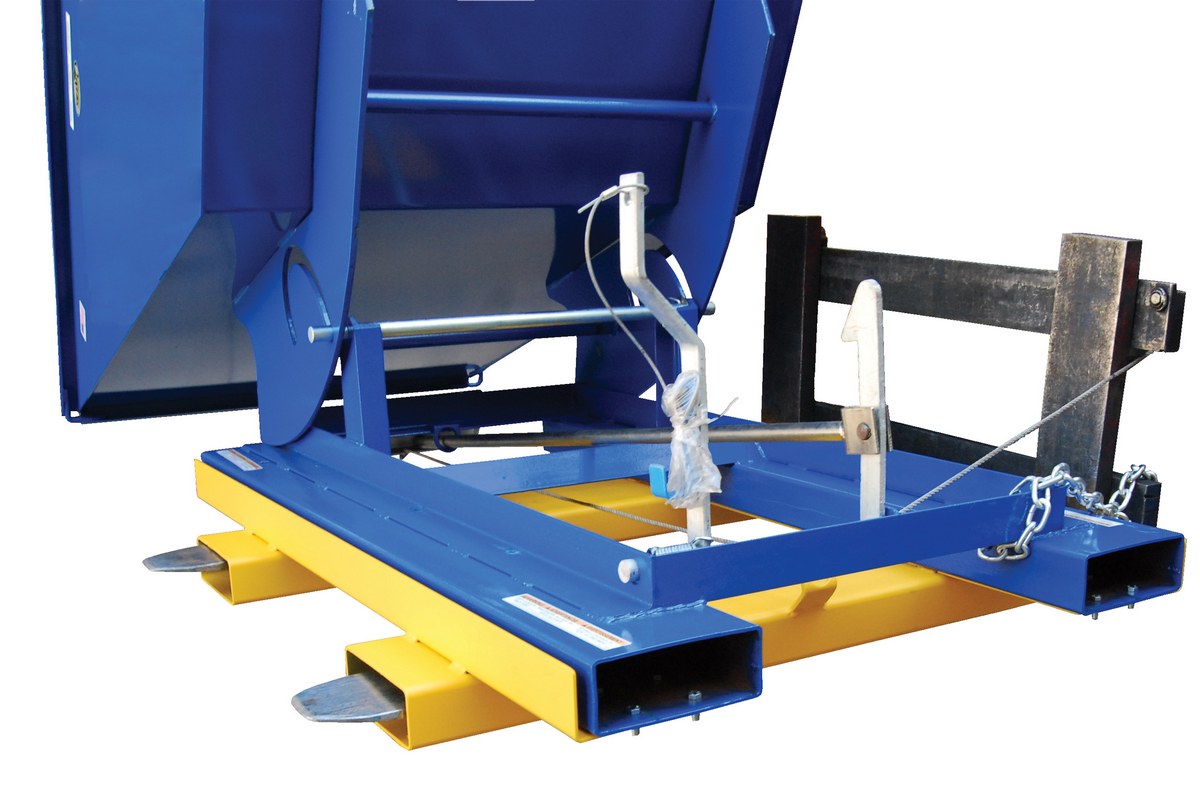

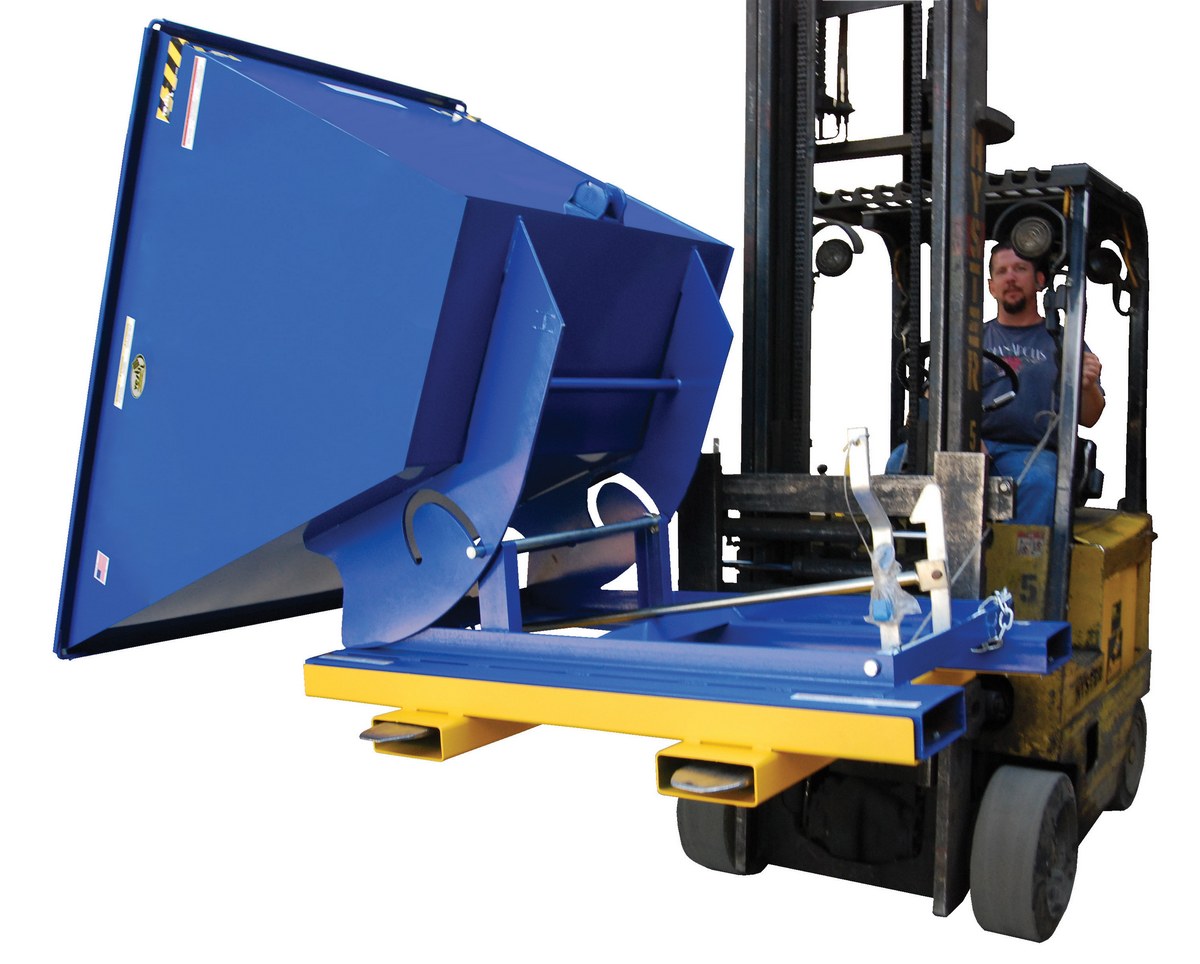

D-TILT	90 Days Limited Warranty	Steel Sideways Tilt Fork Attachment For D Style Hoppers Yellow	Uniform Capacity (lb.): 2,000 Added Height to Hopper (in.): 3-5/16	130

Model Number	Image	Description	Wt. (lbs.)
Caster Options		Caster options for D style hoppers	-
Optional Lids		Lid options for D style hoppers	-
LEKP		Welded leak proof Option	5
LUG		(4) Lifting Lugs (Welded) One on Each Corner	23
*D-DPLG-75 and D-DPLG-2 options includes leak proof chute welds

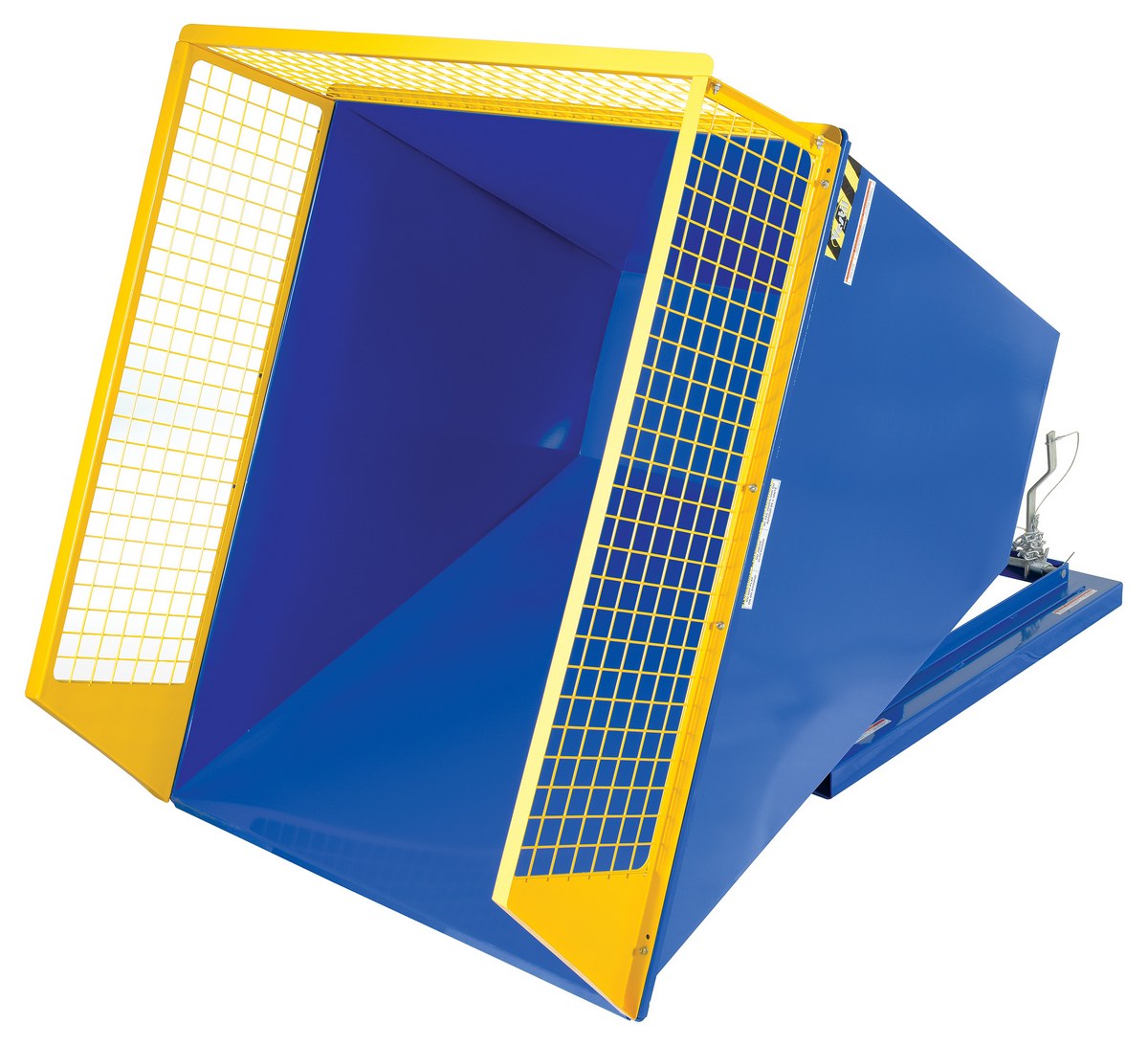

OPTION: D-150-EXT-SMY

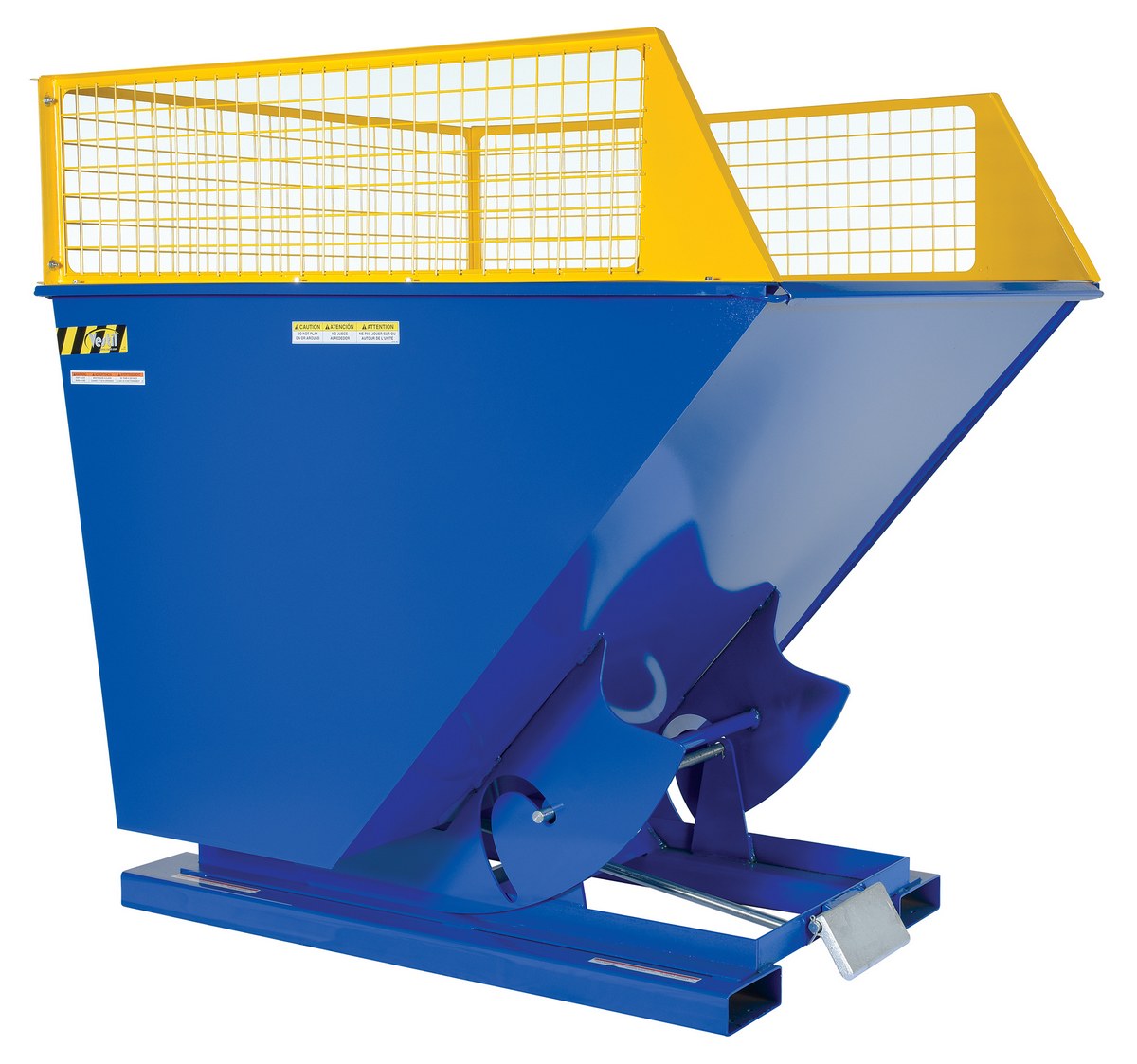

Side Extensions, are great addition for material handling and construction facilities. The extended sides are constructed of steel mesh for high strength durability during transference of goods, while the yellow painted finish delivers great visibility.

Side Extensions For "D" Style Hoppers
Model Number	Extension Height	Works With Hopper Series	Wt. (lbs.)
D-150-EXT-SMY	15-11/16"	D-150	37
D-200-EXT-SMY	15-11/16"	D-200	40
D-250-EXT-SMY	15-11/16"	D-250	45
D-300-EXT-SMY	15-11/16"	D-300	50

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

D Style - Self-Dumping Steel Hoppers with Bumper Release PDF's will open in a new window when clicked.

Manuals

D
Owners Manual

Hopper Spring Replacement
Owners Manual

D-GAL
Owners Manual

Survey Sheets

No Survey Sheets For This Product

Approval Drawings

D-100-HD

D-100-LD

D-100-MD

D-150-EXT-SMY

D-150-HD

D-150-LD

D-150-MD

D-200-EXT-SMY

D-200-HD

D-200-LD

D-200-MD

D-25-HD

D-25-LD

D-25-MD

D-250-EXT-SMY

D-250-HD

D-250-LD

D-250-MD

D-300-EXT-SMY

D-300-HD

D-300-HD-NA

D-300-LD

D-300-MD

D-33-HD

D-33-LD

D-33-MD

D-350-HD

D-400-HD

D-50-HD

D-50-LD

D-50-MD

D-500-HD

D-75-HD

D-75-LD

D-75-MD

D-TILT

Testing Certificates

D-100-HD

D-100-LD

D-100-MD

D-150-EXT-SMY

D-150-HD

D-150-LD

D-150-MD

D-200-EXT-SMY

D-200-HD

D-200-LD

D-200-MD

D-25-HD

D-25-LD

D-25-MD

D-250-EXT-SMY

D-250-HD

D-250-LD

D-250-MD

D-300-EXT-SMY

D-300-HD

D-300-HD-NA

D-300-LD

D-300-MD

D-33-HD

D-33-LD

D-33-MD

D-350-HD

D-400-HD

D-50-HD

D-50-LD

D-50-MD

D-500-HD

D-75-HD

D-75-LD

D-75-MD

D-DPLG-2

D-TILT

SDS Sheets

No SDS Sheets For This Product

Other PDF's

Specialty Hopper Colors Product Mailing Brochure

Extra Large Self-Dumping Hoppers Mailing Brochure

Directory Links Of Available PDF's For All Products

Reference#: CF-6539 Steel Hopper Lids

Reference#: CF-6539 Steel Hopper Lids
Special Steel Hopper Lids for D Style Hoppers

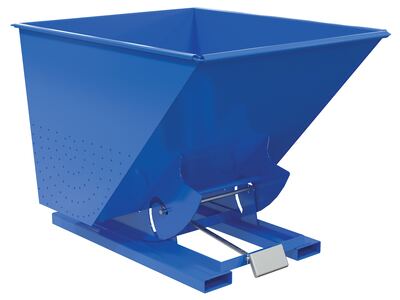

Reference#: CF-5670 Dewatering Hoppers

Reference#: CF-5670 Dewatering Hoppers
Hopper with special holes drilled in the sides to allow liquid to drain out of the contained area.

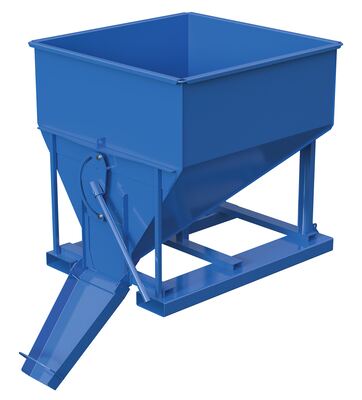

Reference #: CF-5998 Concrete Hopper

Reference #: CF-5998 Concrete Hopper
Special Concrete Hopper

For more Specialty Designs similar to these... Click Here

Q: I'm looking at the self dumping hopper . Does it come with casters?

A: Casters are available for the D- Style Self-Dumping Hopper. Please see the hopper home page for multiple options.

Q: Can the size of the self dumping hopper be modified?

A: We may be able to modify the width of the hopper. We are not able to modify the length. Please contact a sales associate for details.

Q: What does the "LD" mean on the hopper?

A: LD is "light duty" 12 gauge steel, 2,000 lb. capacity. MD is "medium duty" 10 gauge steel, 4,000 lb. capacity. HD is "heavy duty" 8 gauge steel , 6,000 lb. capacity.

Q: What is the bolt hole pattern for the casters?

A: The pattern gets punched at the front and back of each fork tube for the casters. The hole diameter is 7/16".

Q: Can the hoppers be used with a telehandler?

A: We do NOT recommend using the hopper with a telehandler. These hoppers are designed for use with powered fork lift trucks.

Q: What caster should I purchase for the hopper?

A: The mold on rubber and poly on steel casters with their soft tread are quiet and ideal for uneven floors. The glass filled nylon casters provide a smoother roll. The semi-steel and ductile steel casters are the most durable. Your sales associate can help you match the capacity and size of the caster kits to your hopper.

Q: What is the capacity of the lifting lugs?

A: The capacity of the lifting lug is compatible with the capacity of the hopper.

Q: I see under the options tab the D-TILT. Does that have to be installed at the time I order a hopper?

A: The D-TILT can be customer/field installed.

Related or Similar Products:

Product

Low Profile D-Style Self Dumping Hoppers

Product

Casters For Self-Dumping Hoppers (D & H)

Product

Heavy-Duty Poly Lids for D & H series Hoppers

Product

H Style - Low Profile 90 degrees Self-Dumping Steel Hoppers

Product

D-Style Hoppers, No Bump & Dump

Product

DC Power Trash Can Dumper

13 Sizes
3 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel

D-25-(strength)

.25 Cubic Yard

D-33-(strength)

.33 Cubic Yard

D-50-(strength)

.50 Cubic Yard

D-75-(strength)

.75 Cubic Yard

D-100-(strength)

1 Cubic Yard

D-150-(strength)

1.5 Cubic Yard

D-200-(strength)

2 Cubic Yard

D-250-(strength)

2.5 Cubic Yard

D-300-(strength)

3 Cubic Yard

D-350-(strength)

3.5 Cubic Yard

D-400-(strength)

4 Cubic Yard

D-450-(strength)

4.5 Cubic Yard

D-500-(strength)

5 Cubic Yard

Model #

Description

Attributes

Net Wt.
(lbs)

D-100-HD

Steel Heavy Duty Self Dumping Hopper 1 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6000
Steel (gauge): 8

580

D-100-LD

Steel Light Duty Self Dumping Hopper 1 Cubic Yard 2000 Lb. Capacity Blue

Uniform Capacity (lb.): 2000
Steel (gauge): 12

460

D-100-MD

Steel Medium Duty Self Dumping Hopper 1 Cubic Yard 4000 Lb. Capacity Blue

Uniform Capacity (lb.): 4000
Steel (gauge): 10

545

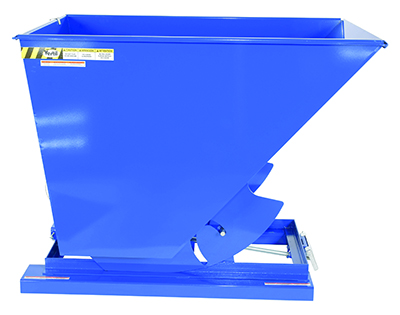

D-150-HD

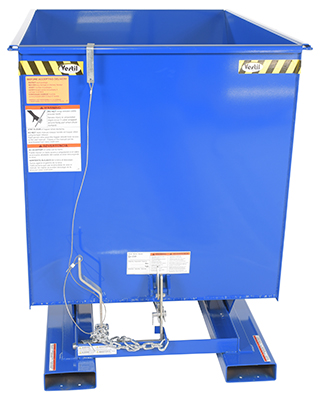

Steel Heavy Duty Self Dumping Hopper 1-1/2 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

708

D-150-LD

Steel Light Duty Self Dumping Hopper 1-1/2 Cubic Yard 2000 Lb. Capacity Blue

Uniform Capacity (lb.): 2,000
Steel (gauge): 12

565

D-150-MD

Steel Medium Duty Self Dumping Hopper 1-1/2 Cubic Yard 4000 Lb. Capacity Blue

Uniform Capacity (lb.): 4,000
Steel (gauge): 10

700

D-200-HD

Steel Heavy Duty Self Dumping Hopper 2 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

775

D-200-LD

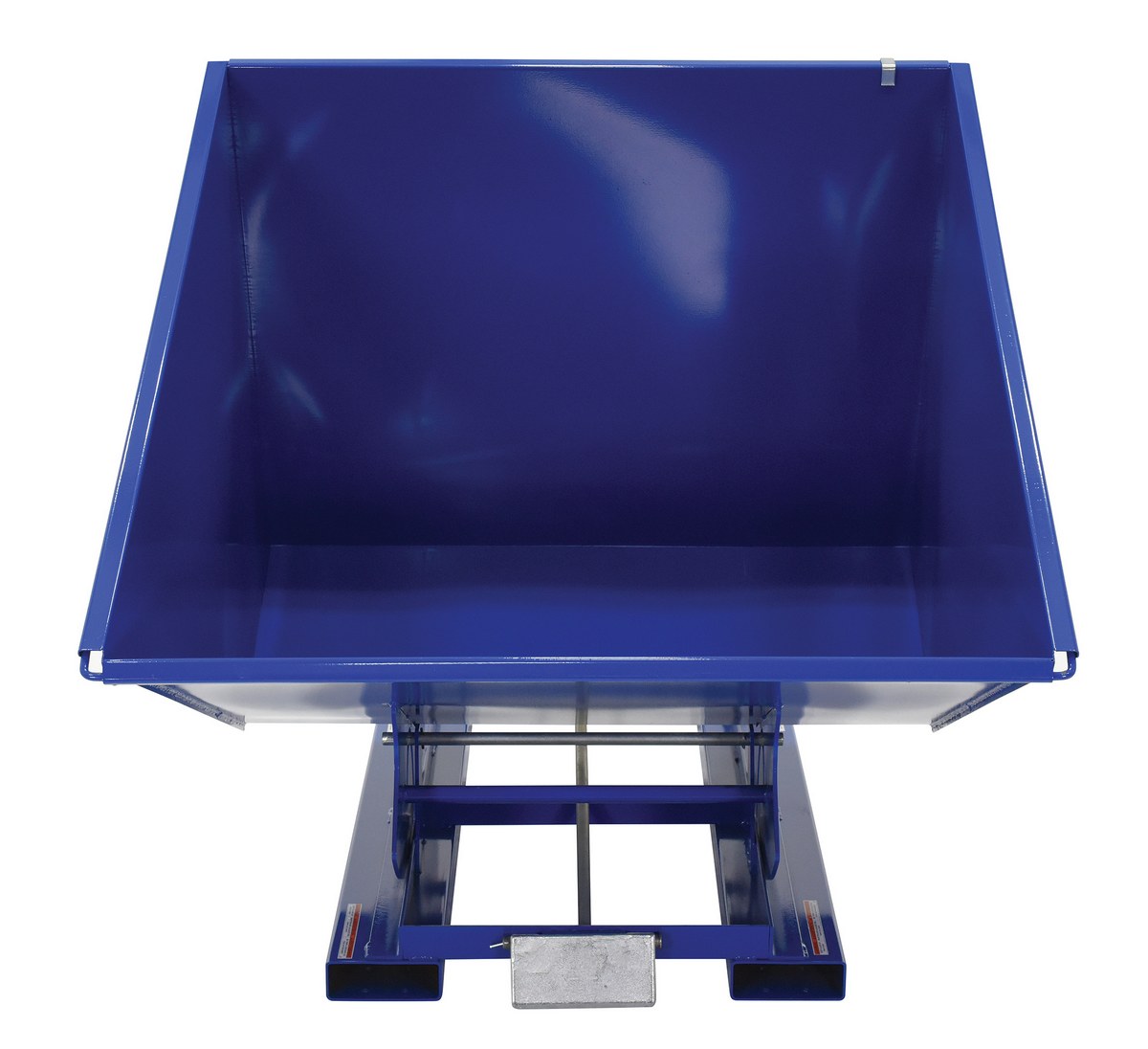

Steel Light Duty Self Dumping Hopper 2 Cubic Yard 2000 Lb. Capacity Blue

Uniform Capacity (lb.): 2,000
Steel (gauge): 12

620

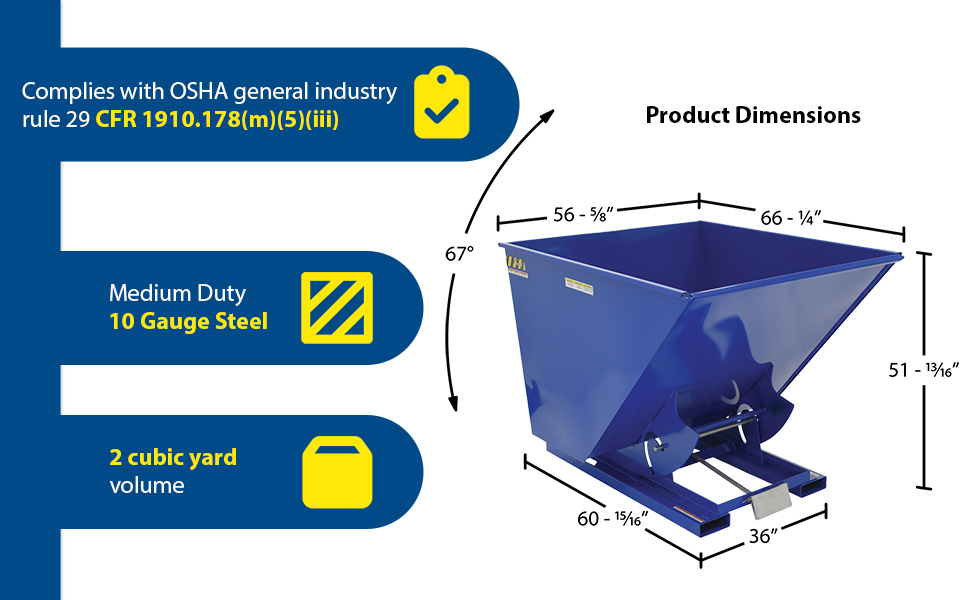

D-200-MD

Steel Medium Duty Self Dumping Hopper 2 Cubic Yard 4000 Lb. Capacity Blue

Uniform Capacity (lb.): 4,000
Steel (gauge): 10

695

D-25-HD

Steel Heavy Duty Self Dumping Hopper 1/4 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

386

D-25-LD

Steel Light Duty Self Dumping Hopper 1/4 Cubic Yard 2000 Lb. Capacity Blue

Uniform Capacity (lb.): 2,000
Steel (gauge): 12

341

D-25-MD

Steel Medium Duty Self Dumping Hopper 1/4 Cubic Yard 4000 Lb. Capacity Blue

Uniform Capacity (lb.): 4,000
Steel (gauge): 10

386

D-250-HD

Steel Heavy Duty Self Dumping Hopper 2-1/2 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

850

D-250-LD

Steel Light Duty Self Dumping Hopper 2-1/2 Cubic Yard 2000 Lb. Capacity Blue

Uniform Capacity (lb.): 2,000
Steel (gauge): 12

850

D-250-MD

Steel Medium Duty Self Dumping Hopper 2-1/2 Cubic Yard 4000 Lb. Capacity Blue

Uniform Capacity (lb.): 4,000
Steel (gauge): 10

850

D-300-HD

Steel Heavy Duty Self Dumping Hopper 3 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

922

D-300-HD-NA

Steel Heavy Duty Narrow Self Dumping Hopper 3 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

1016

D-300-LD

Steel Light Duty Self Dumping Hopper 3 Cubic Yard 2000 Lb. Capacity Blue

Uniform Capacity (lb.): 2,000
Steel (gauge): 12

922

D-300-MD

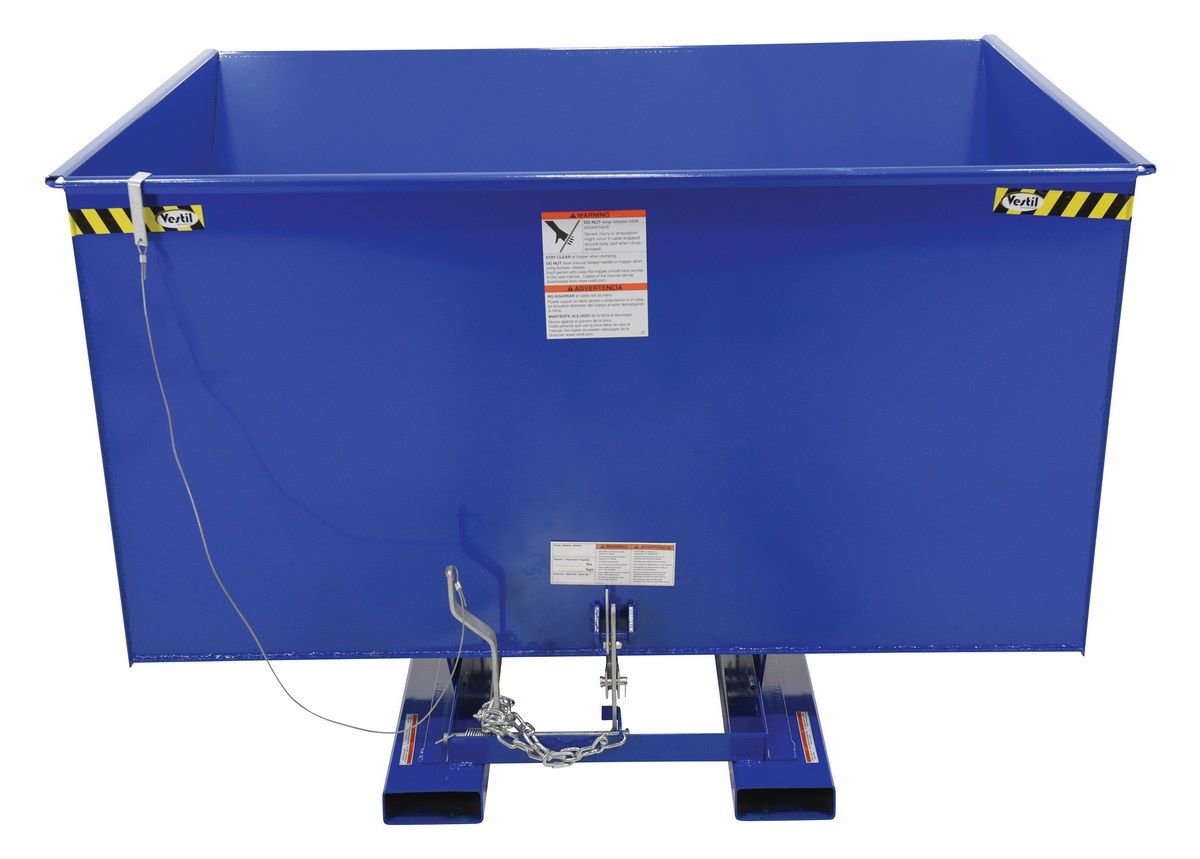

Steel Medium Duty Self Dumping Hopper 3 Cubic Yard 4000 Lb. Capacity Blue

Uniform Capacity (lb.): 4,000
Steel (gauge): 10

922

D-33-HD

Steel Heavy Duty Self Dumping Hopper 1/3 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

386

D-33-LD

Steel Light Duty Self Dumping Hopper 1/3 Cubic Yard 2000 Lb. Capacity Blue

Uniform Capacity (lb.): 2,000
Steel (gauge): 12

341

D-33-MD

Steel Medium Duty Self Dumping Hopper 1/3 Cubic Yard 4000 Lb. Capacity Blue

Uniform Capacity (lb.): 4,000
Steel (gauge): 10

386

D-350-HD

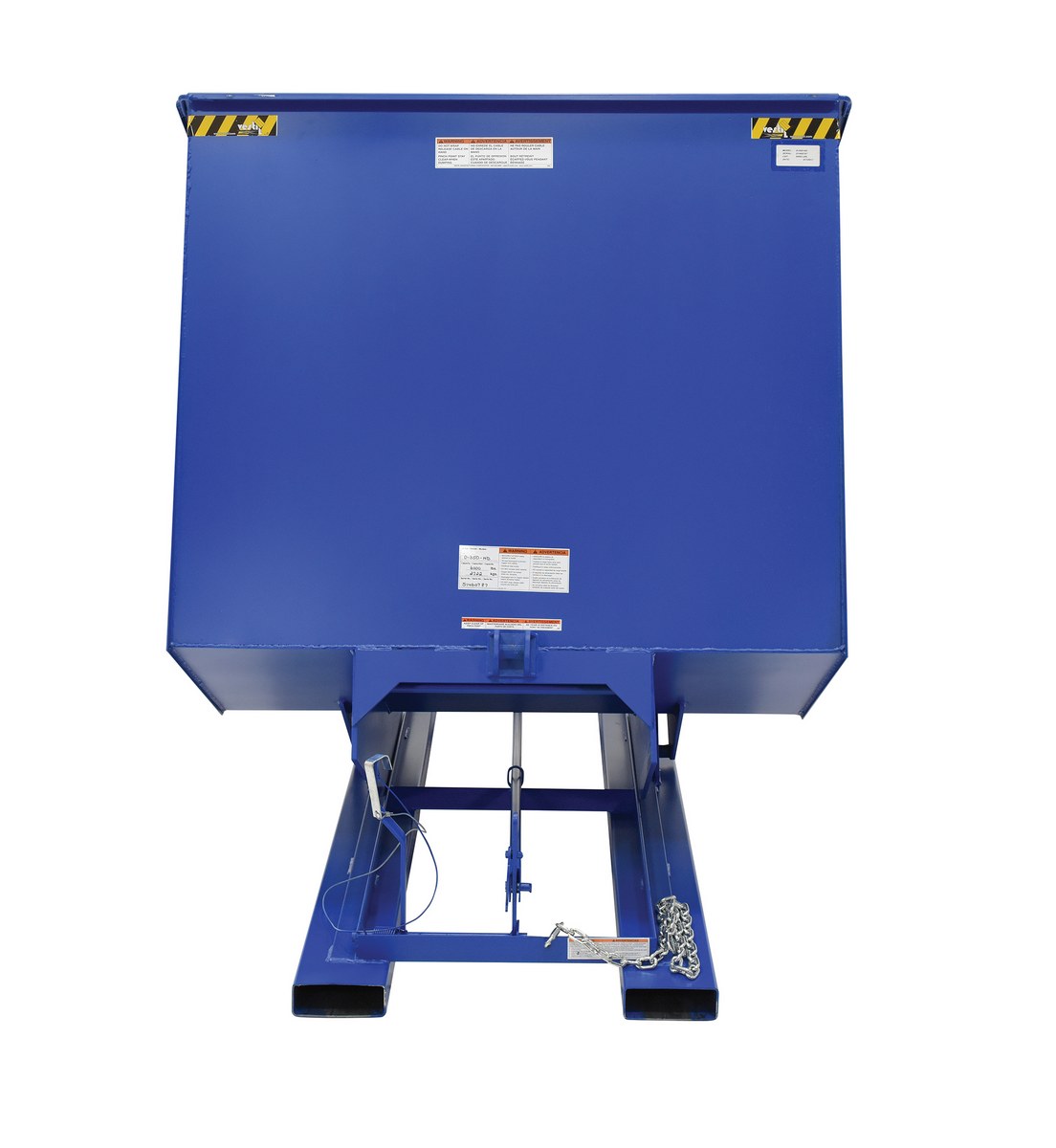

Steel Heavy Duty Self Dumping Hopper 3-1/2 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

1076

D-400-HD

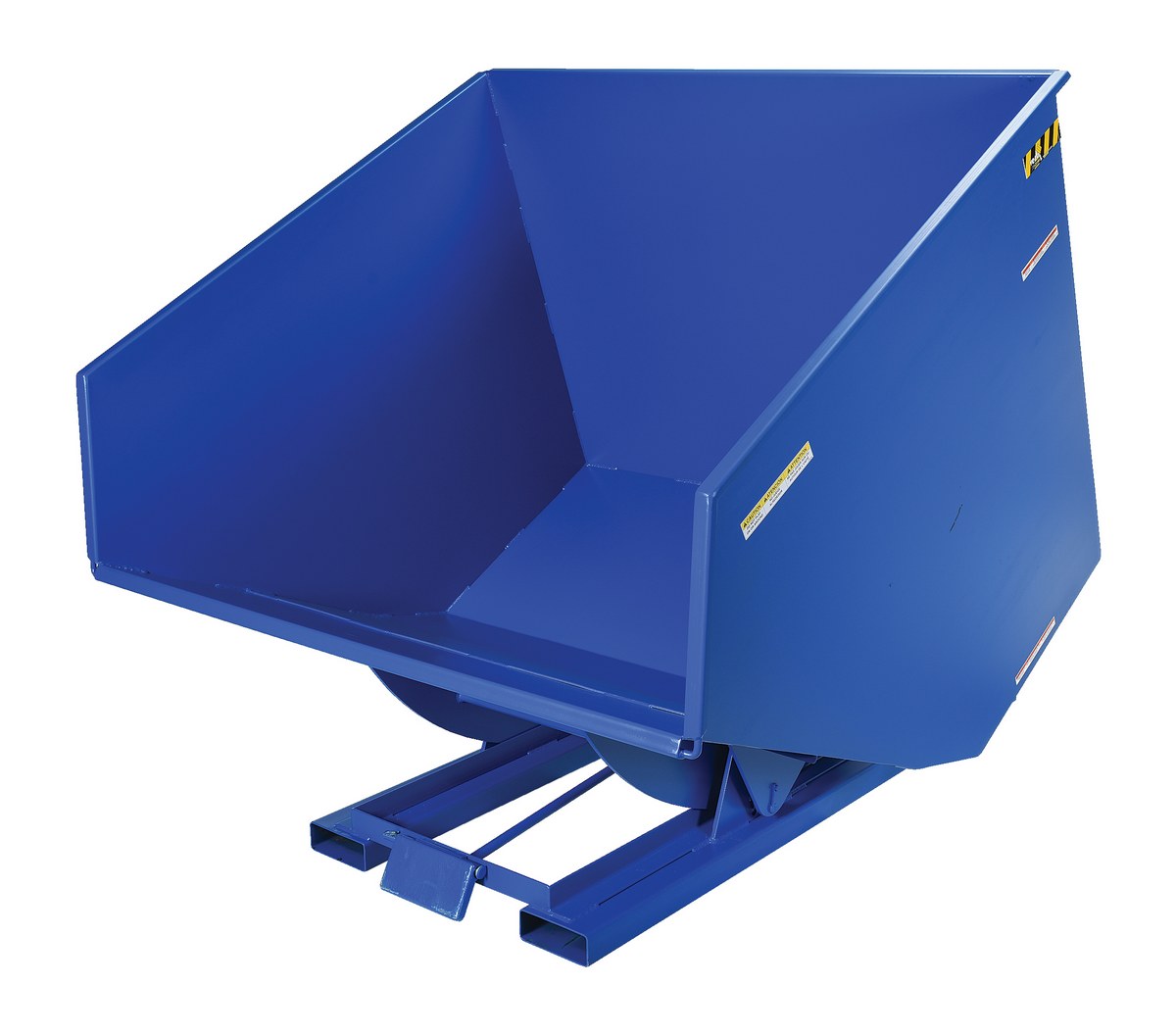

Steel Heavy Duty Self Dumping Hopper 4 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

1140

D-50-HD

Steel Heavy Duty Self Dumping Hopper 1/2 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

336

D-50-LD

Steel Light Duty Self Dumping Hopper 1/2 Cubic Yard 2000 Lb. Capacity Blue

Uniform Capacity (lb.): 2,000
Steel (gauge): 12

364

D-50-MD

Steel Medium Duty Self Dumping Hopper 1/2 Cubic Yard 4000 Lb. Capacity Blue

Uniform Capacity (lb.): 4,000
Steel (gauge): 10

435

D-500-HD

Steel Heavy Duty Self Dumping Hopper 5 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

1250

D-75-HD

Steel Heavy Duty Self Dumping Hopper 3/4 Cubic Yard 6000 Lb. Capacity Blue

Uniform Capacity (lb.): 6,000
Steel (gauge): 8

541

D-75-LD

Steel Light Duty Self Dumping Hopper 3/4 Cubic Yard 2000 Lb. Capacity Blue

Uniform Capacity (lb.): 2,000
Steel (gauge): 12

449

D-75-MD

Steel Medium Duty Self Dumping Hopper 3/4 Cubic Yard 4000 Lb. Capacity Blue

Uniform Capacity (lb.): 4,000
Steel (gauge): 10

543

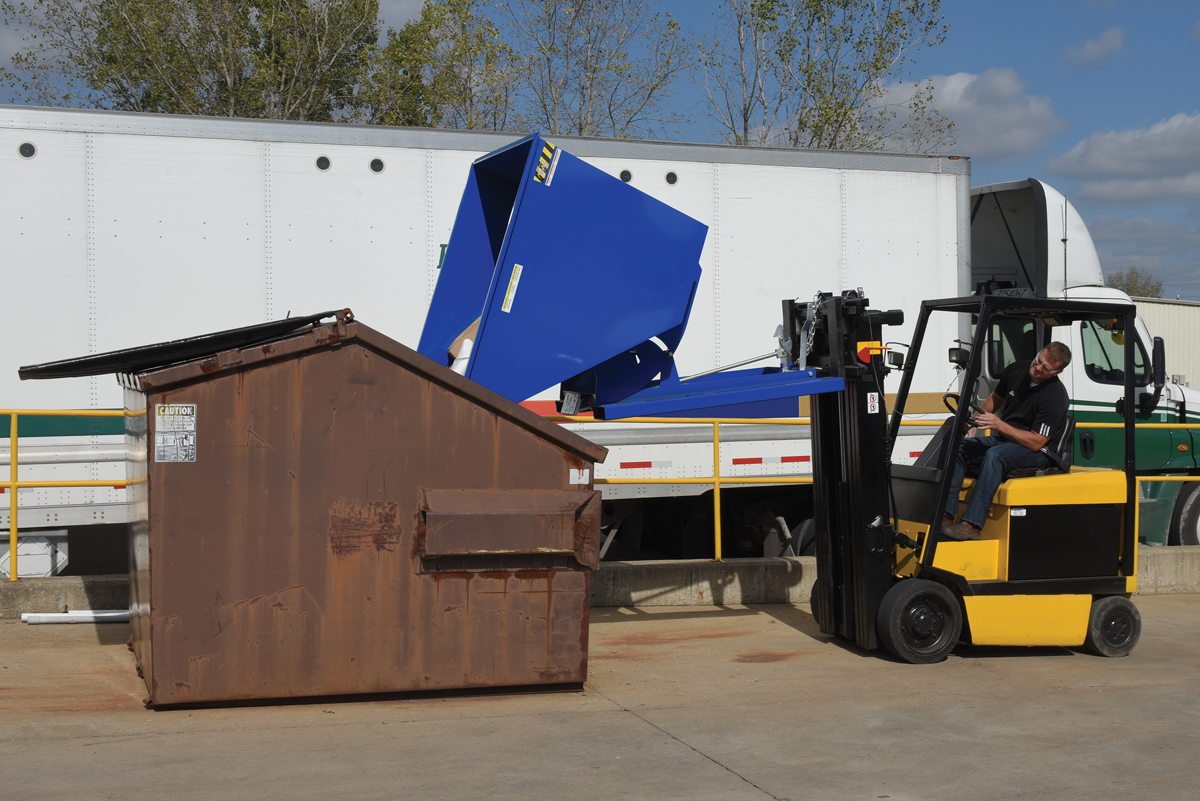

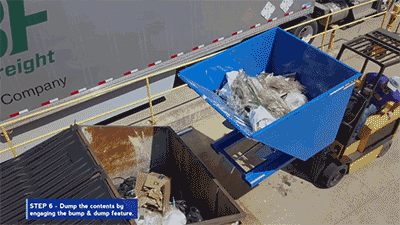

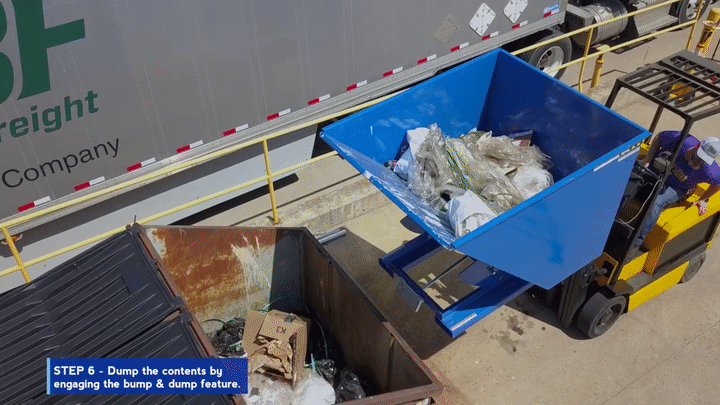

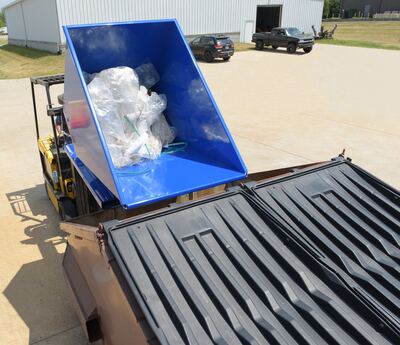

Automatic bumper release dumps when it contacts the side of the dumpster	Returns to upright and locked position automatically

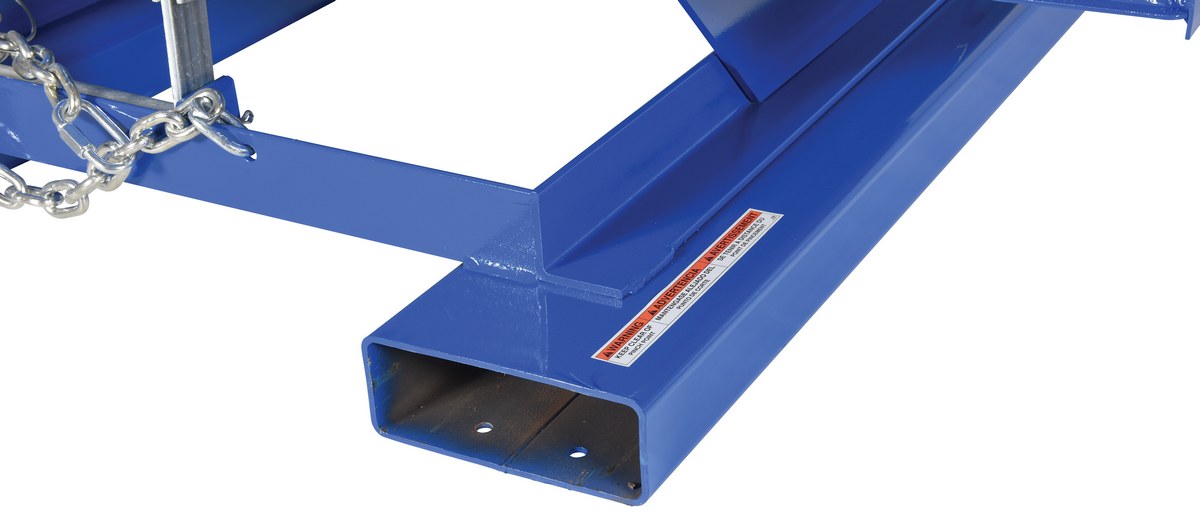

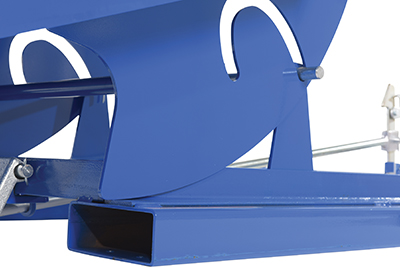

Full-length fork tubes provide a solid base	Safety restraint secures the hopper to the fork truck

Automatic bumper release dumps when it contacts the side of the dumpster	Returns to upright and locked position automatically
Full-length fork tubes provide a solid base	Safety restraint secures the hopper to the fork truck

Welcome To Vestil Manufacturing Online!

SEARCH FOR A PRODUCT OR KEYWORD

CONTACT INFO

D Style - Self-Dumping Steel Hoppers with Bumper Release

D Style - Self-Dumping Steel Hoppers with Bumper Release

Featured Fork Truck Attachments

Product Family Overview

Other Hoppers

Additional Models In This Family
view entire Image Gallery

Check Out All Of Our Specialty Colors Available!

Model Specific Details

For More Details of the Option Click the Red Model Button

Manuals

Survey Sheets

Approval Drawings

Testing Certificates

SDS Sheets

Other PDF's

Directory Links Of Available PDF's For All Products

Q: I'm looking at the self dumping hopper . Does it come with casters?

Q: Can the size of the self dumping hopper be modified?

Q: What does the "LD" mean on the hopper?

Q: What is the bolt hole pattern for the casters?

Q: Can the hoppers be used with a telehandler?

Q: What caster should I purchase for the hopper?

Q: What is the capacity of the lifting lugs?

Q: I see under the options tab the D-TILT. Does that have to be installed at the time I order a hopper?

Related or Similar Products:

Low Profile D-Style Self Dumping Hoppers

Casters For Self-Dumping Hoppers (D & H)

Heavy-Duty Poly Lids for D & H series Hoppers

H Style - Low Profile 90 degrees Self-Dumping Steel Hoppers

D-Style Hoppers, No Bump & Dump

DC Power Trash Can Dumper

D Style - Self-Dumping Steel H...

Options

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com

Welcome To Vestil Manufacturing Online!

SEARCH FOR A PRODUCT OR KEYWORD

CONTACT INFO

D Style - Self-Dumping Steel Hoppers with Bumper Release

D Style - Self-Dumping Steel Hoppers with Bumper Release

Featured Fork Truck Attachments

Product Family Overview

Other Hoppers

Additional Models In This Family view entire Image Gallery

Check Out All Of Our Specialty Colors Available!

Model Specific Details

For More Details of the Option Click the Red Model Button

Manuals

Survey Sheets

Approval Drawings

Testing Certificates

SDS Sheets

Other PDF's

Directory Links Of Available PDF's For All Products

Q: I'm looking at the self dumping hopper . Does it come with casters?

Q: Can the size of the self dumping hopper be modified?

Q: What does the "LD" mean on the hopper?

Q: What is the bolt hole pattern for the casters?

Q: Can the hoppers be used with a telehandler?

Q: What caster should I purchase for the hopper?

Q: What is the capacity of the lifting lugs?

Q: I see under the options tab the D-TILT. Does that have to be installed at the time I order a hopper?

Freight Quote

Parts Request

Ask An Expert

Find A Distributor

PROP 65 Warning

Related or Similar Products:

Low Profile D-Style Self Dumping Hoppers

Casters For Self-Dumping Hoppers (D & H)

Heavy-Duty Poly Lids for D & H series Hoppers

H Style - Low Profile 90 degrees Self-Dumping Steel Hoppers

D-Style Hoppers, No Bump & Dump

DC Power Trash Can Dumper

D Style - Self-Dumping Steel H...

Options

Our Customer Service Associates Are Here To Assist You!Call Vestil At 260-665-7586 Or info@vestil.com

Additional Models In This Family
view entire Image Gallery

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
