Vestil Manufacturing Corporation is an industry leader in the manufacturing and distributing of industrial material handling equipment. We feature over 1,000 different product lines, many of which are in stock and ready for immediate shipment.

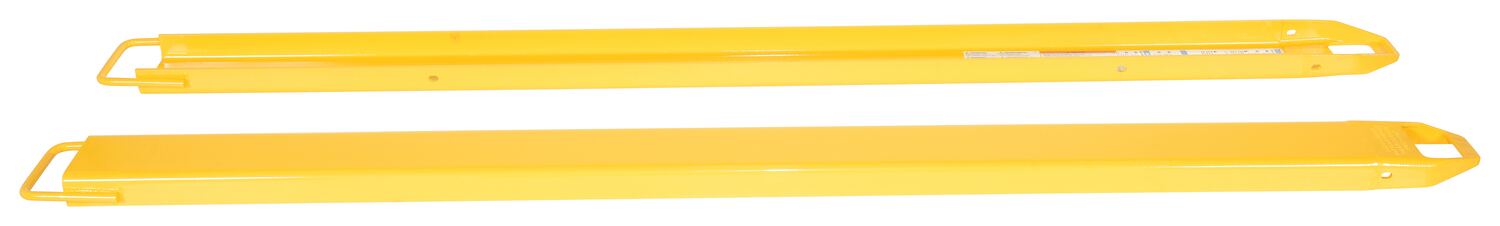

Loop-Style Fork Extensions| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|
| FE-4-42 |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 42 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 42 | 270 | ||

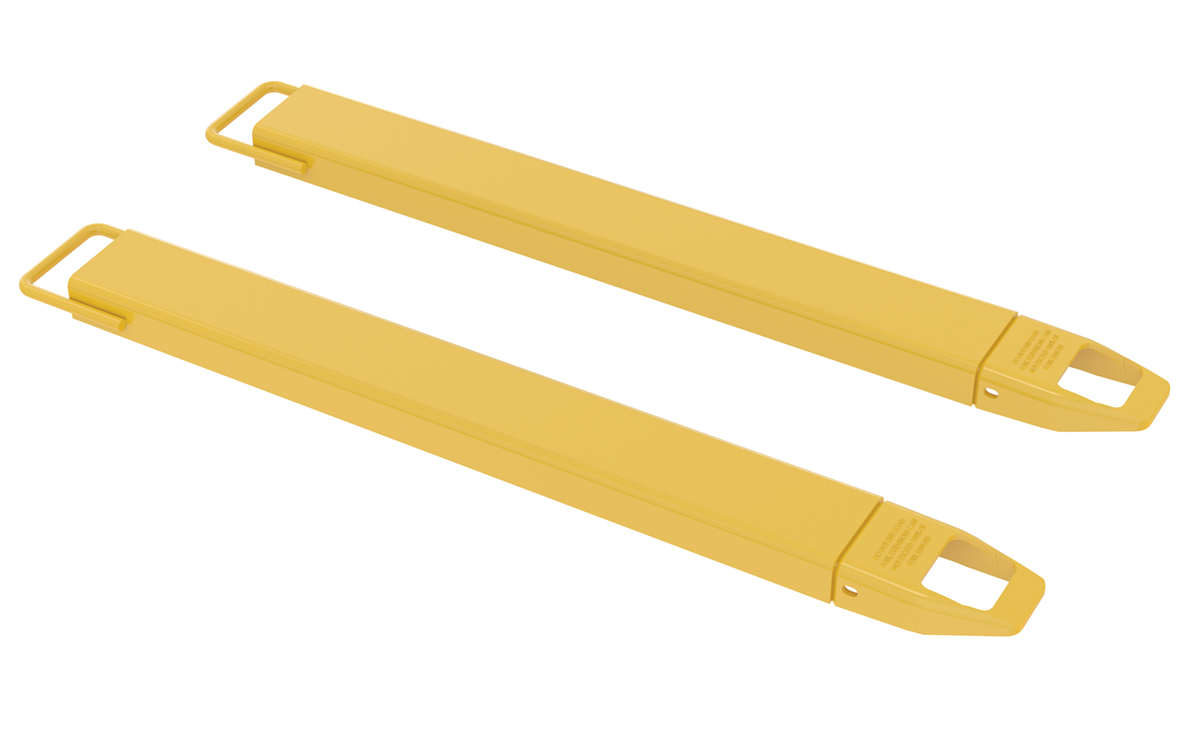

| FE-4-48 |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 48 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 48 | 276 | ||
| FE-4-54 |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 54 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 54 | 284 | ||

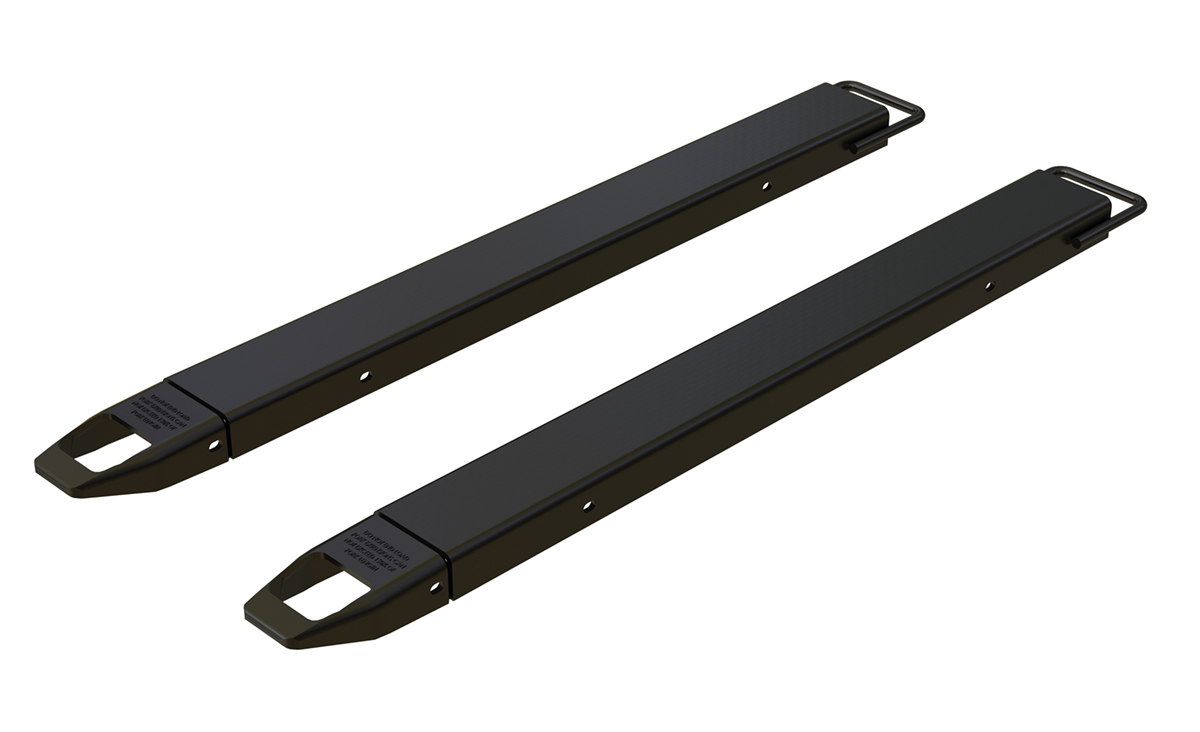

| FE-4-54-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 54 In. 4000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 54 | 286 | ||
| FE-4-60 |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 60 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4000 Usable Length (in.): 60 | 294 | ||
| FE-4-63 |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 63 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 63 | 298 | ||

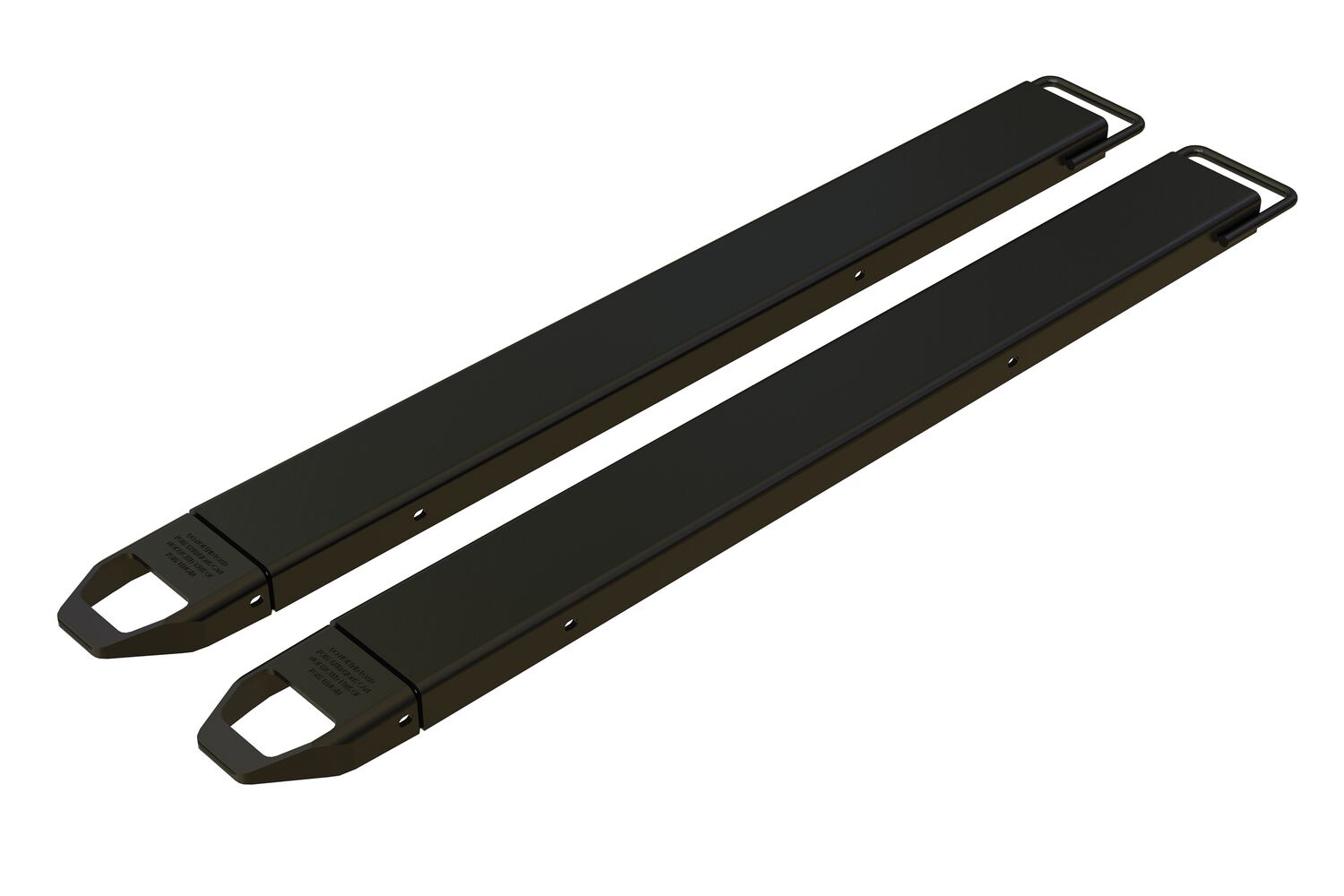

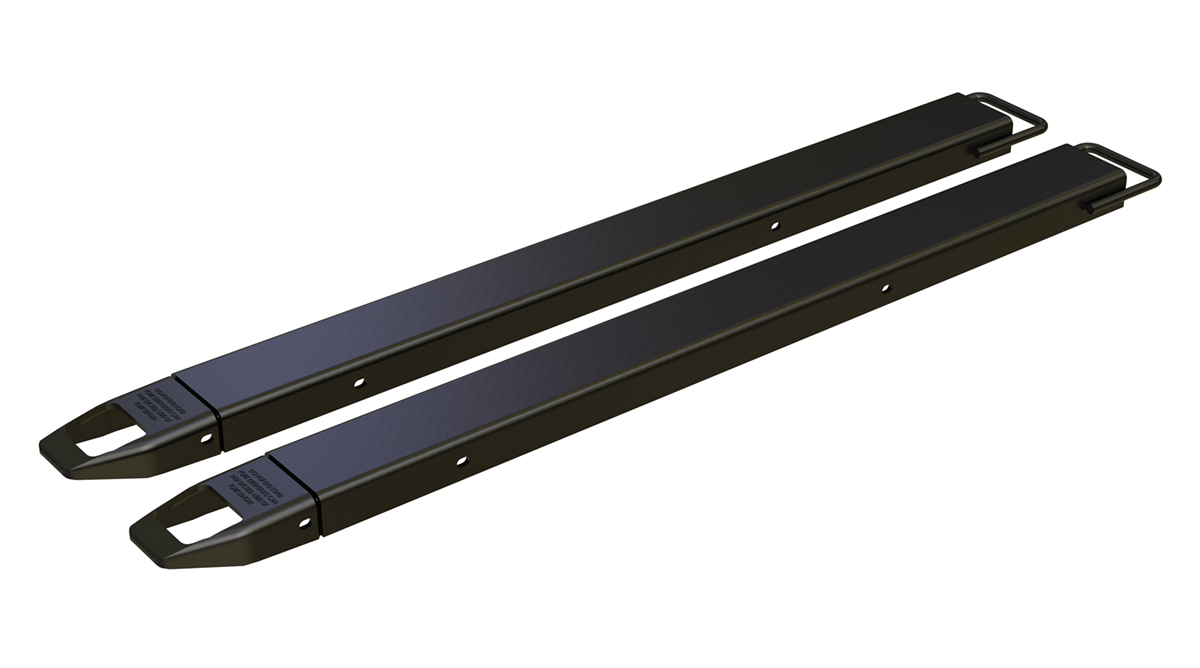

| FE-4-63-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 63 In. 4000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 63 | 298 | ||

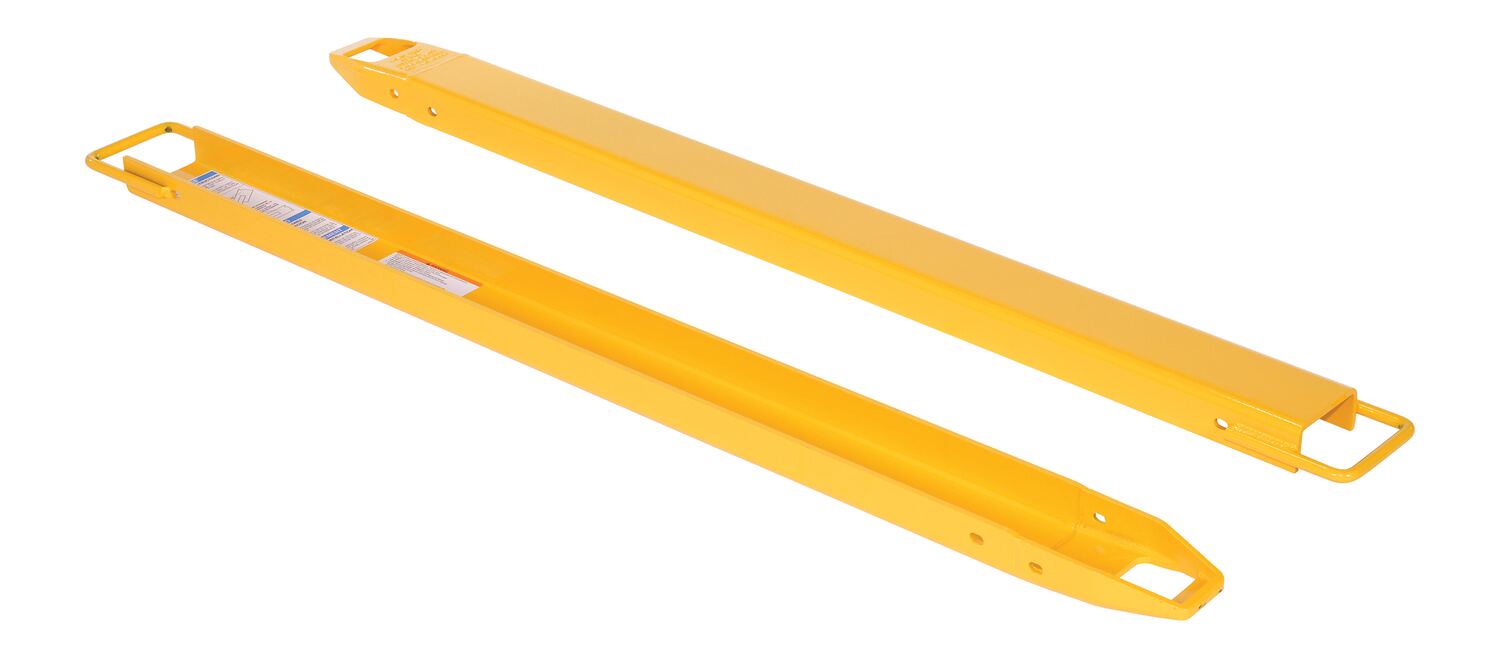

| FE-4-66 |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 66 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 66 | 2102 | ||

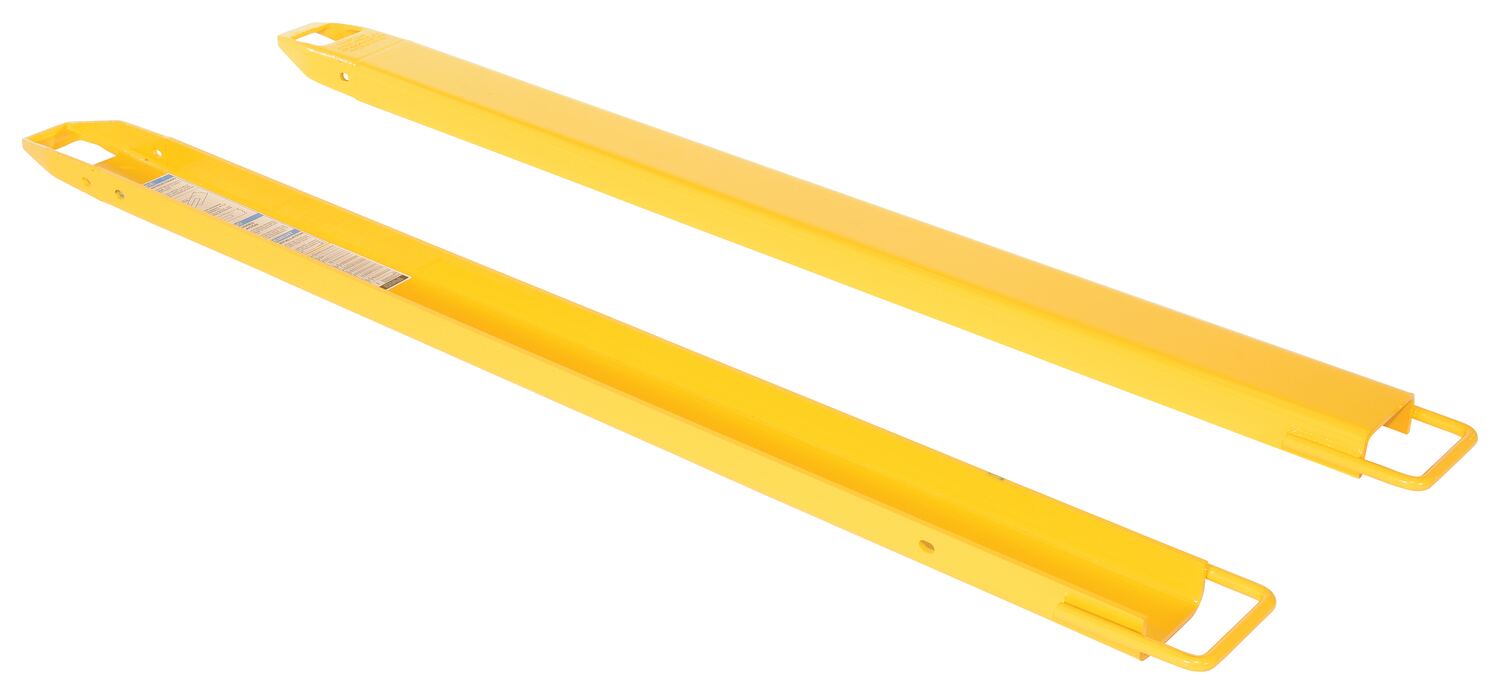

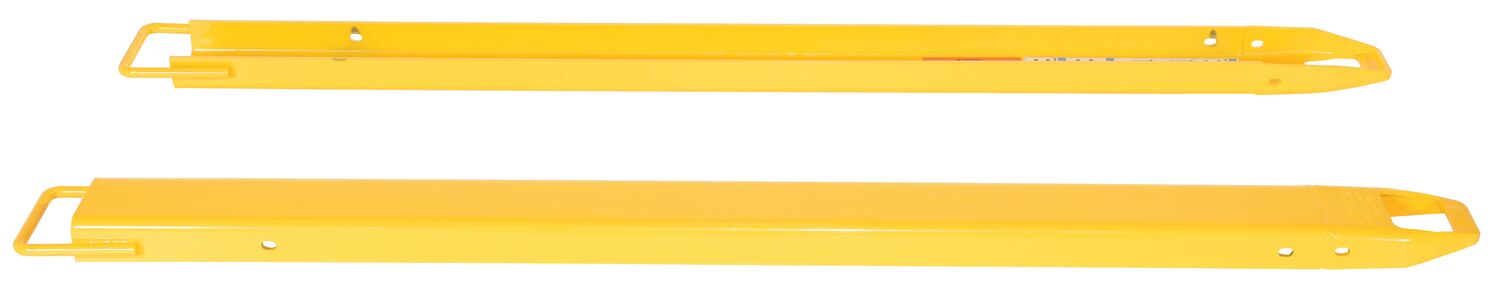

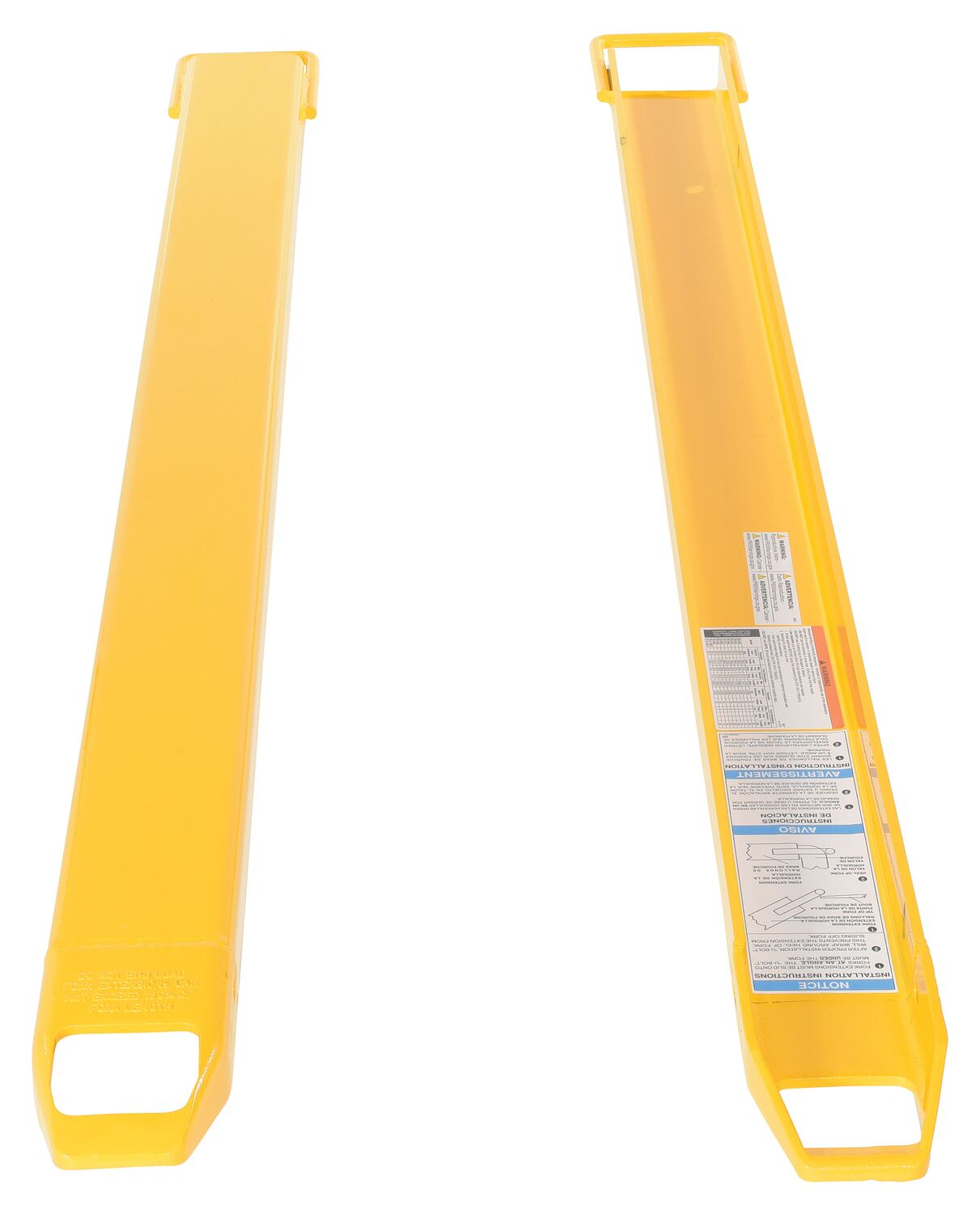

| FE-4-72 |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 72 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 72 | 2114 | ||

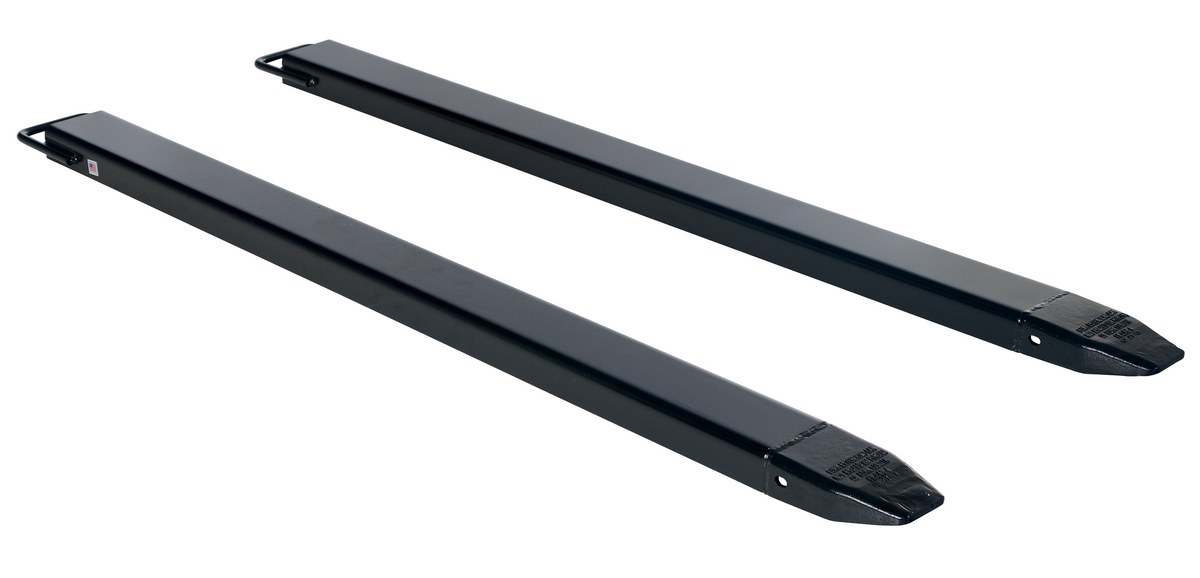

| FE-4-72-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 72 In. 4000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 72 | 2114 | ||

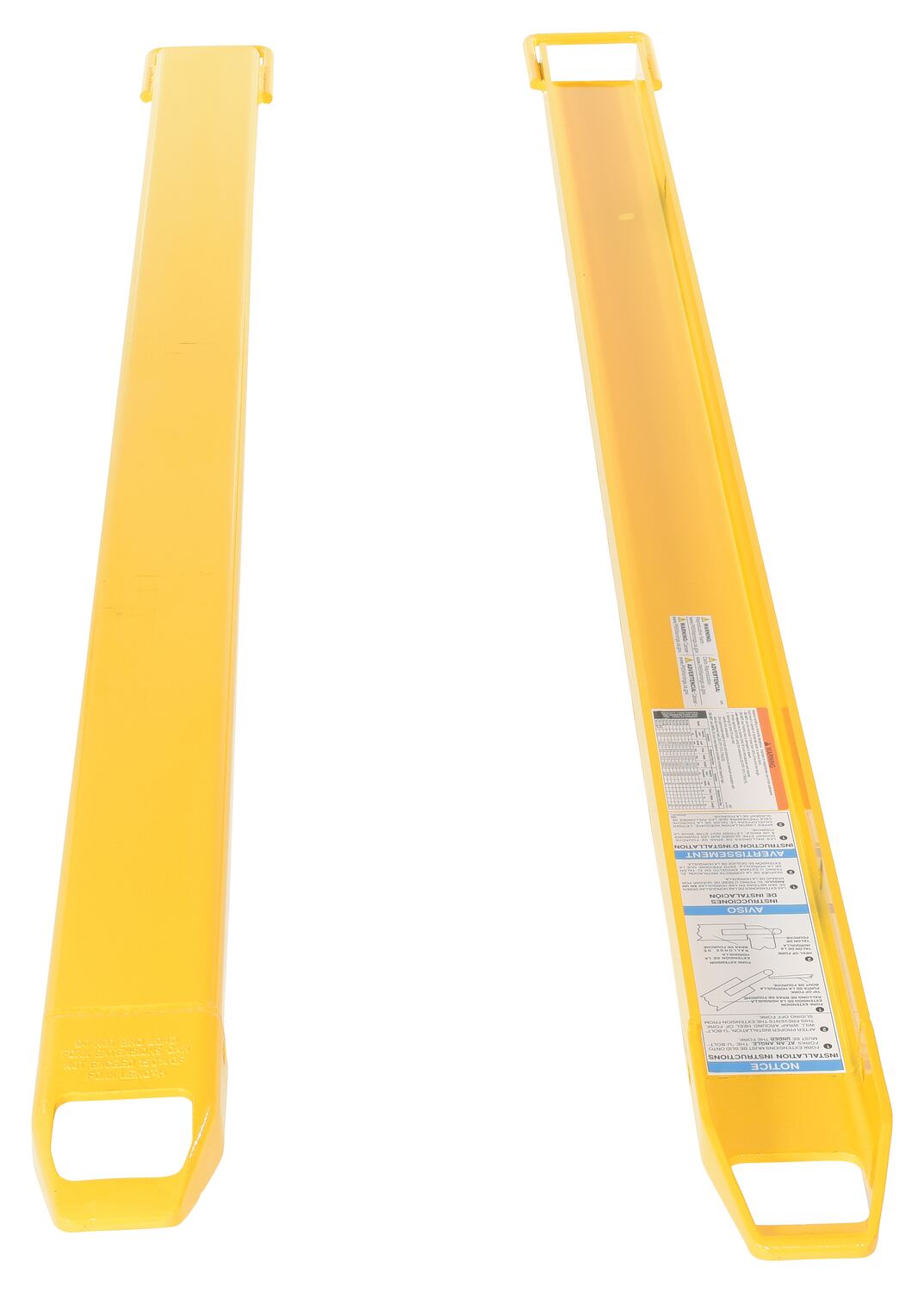

| FE-4-84 |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 84 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 84 | 145 | ||

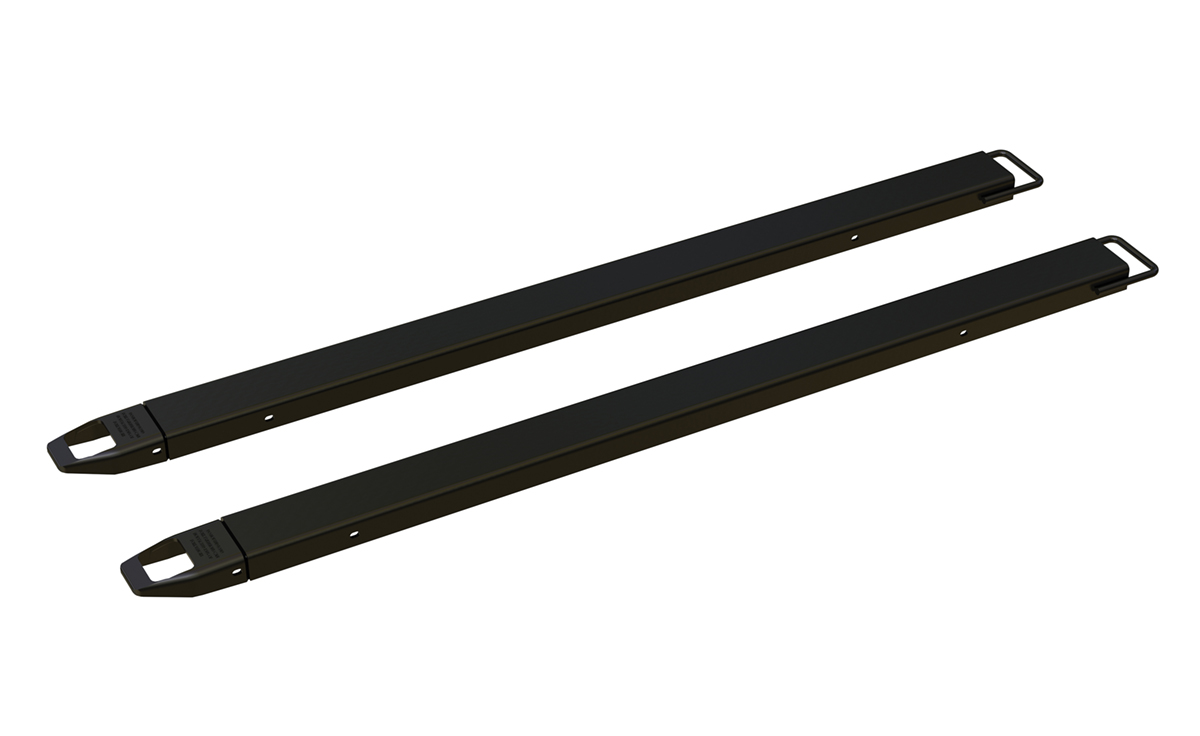

| FE-4-84-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 84 In. 4000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 84 | 145 | ||

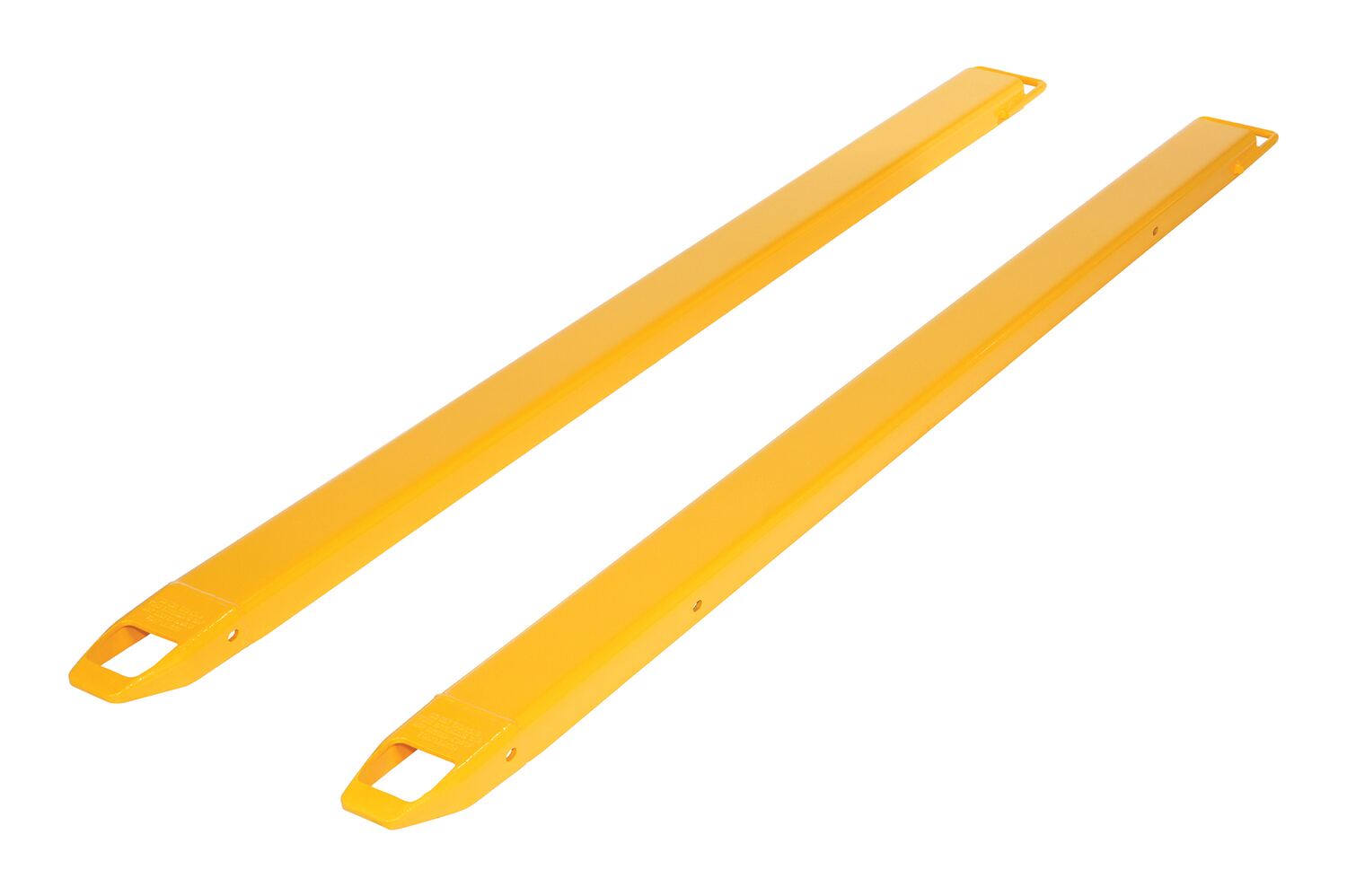

| FE-4-90 |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 90 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 90 | 166 | ||
| FE-4-96 |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 96 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 96 | 172 | ||
| FE-4-96-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 4 In. x 96 In. 4000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 96 | 172 | ||
| FE-5-48 |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 48 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 48 | 286 | ||
| FE-5-54 |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 54 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 54 | 296 | ||
| FE-5-54-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 54 In. 4,000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 54 | 296 | ||

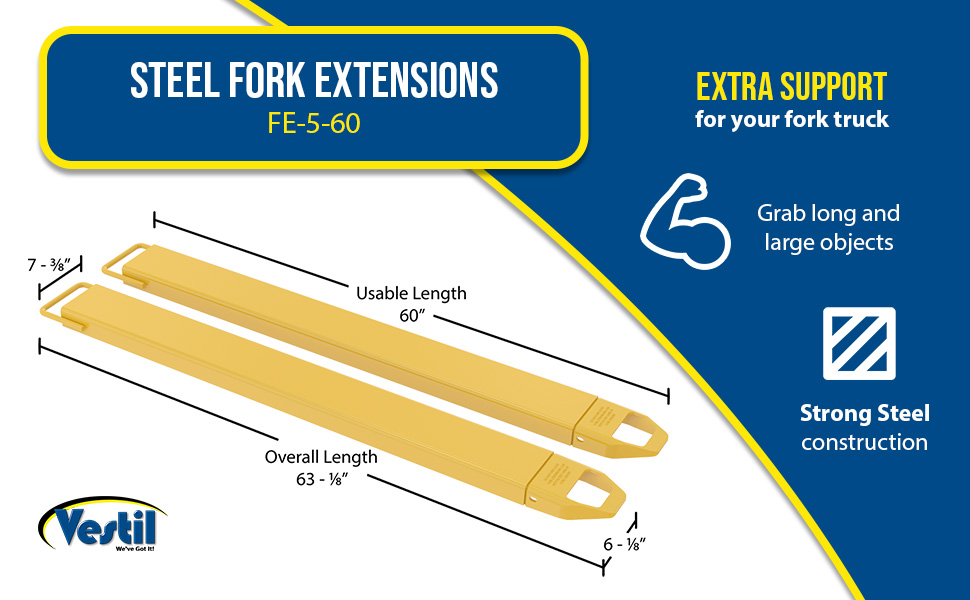

| FE-5-60 |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 60 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4000 Usable Length (in.): 60 | 2106 | ||
| FE-5-63 |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 63 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 63 | 2110 | ||
| FE-5-63-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 63 In. 4,000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 63 | 2110 | ||
| FE-5-66 |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 66 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 66 | 2116 | ||
| FE-5-72 | POPULAR |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 72 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 72 | 2128 | |
| FE-5-72-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 72 In. 4,000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 72 | 2128 | ||

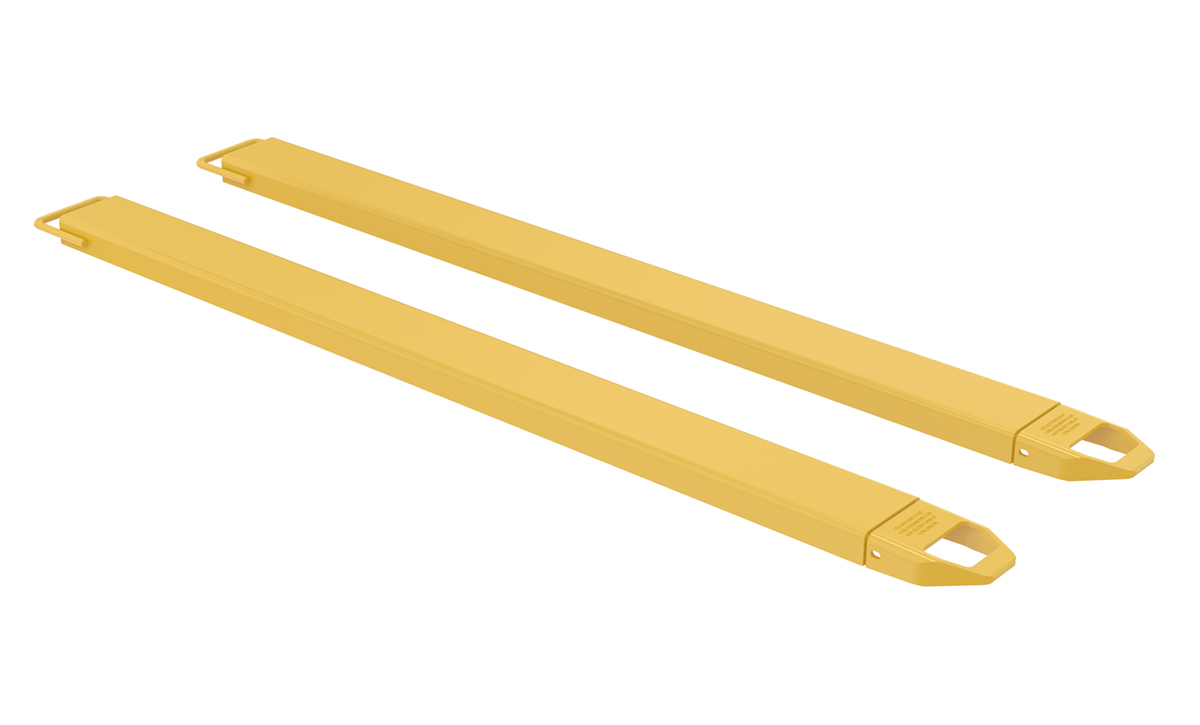

| FE-5-84 |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 84 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 84 | 168 | ||
| FE-5-84-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 84 In. 4,000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 84 | 168 | ||
| FE-5-90 |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 90 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 90 | 179 | ||
| FE-5-96 |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 96 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 96 | 191 | ||
| FE-5-96-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 5 In. x 96 In. 4,000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 96 | 191 | ||
| FE-6-48 |  | 90 Days Limited Warranty | Steel Fork Extensions 6 In. x 48 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 48 | 294 | ||

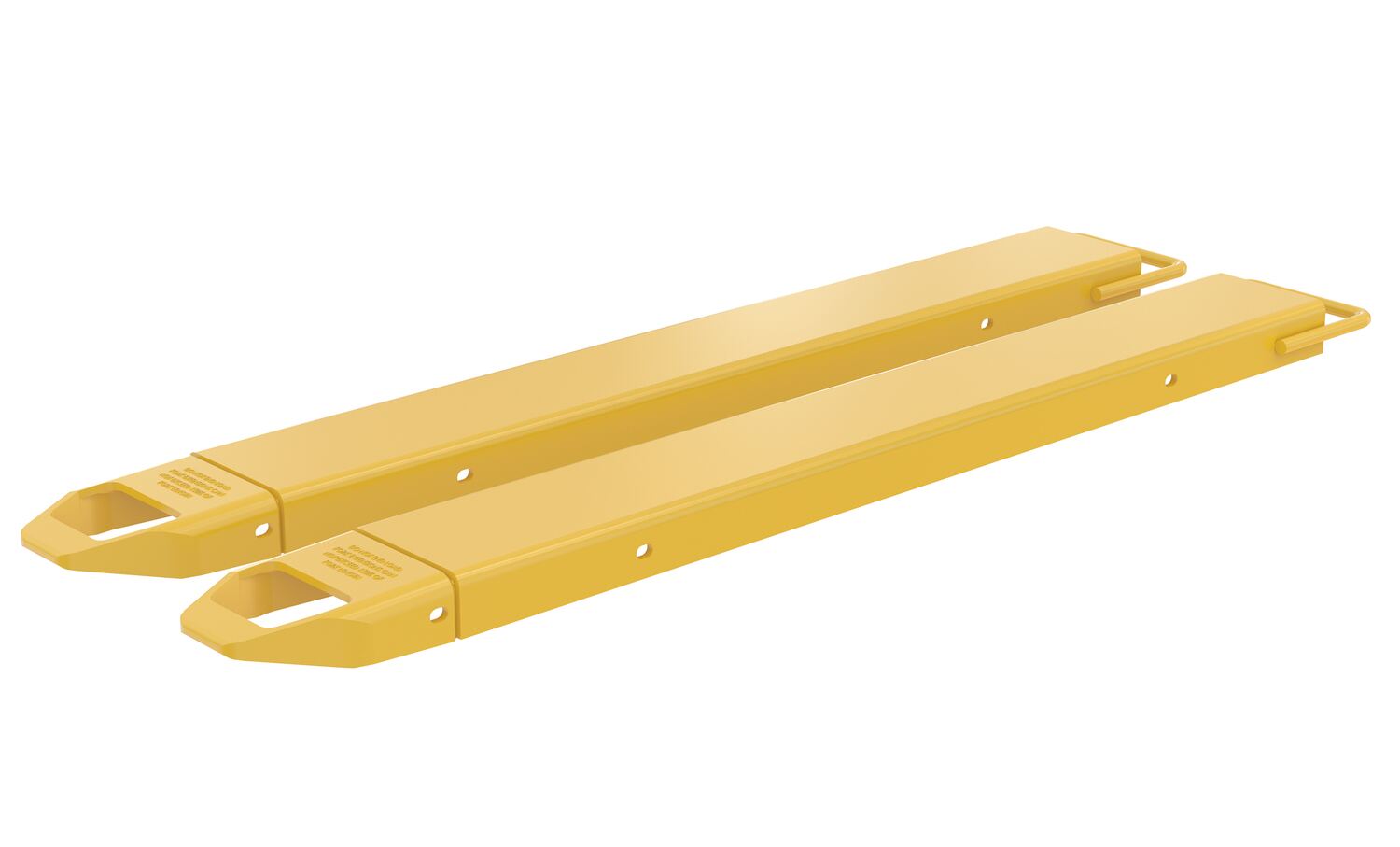

| FE-6-54 |  | 90 Days Limited Warranty | Steel Fork Extensions 6 In. x 54 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 54 | 2104 | ||

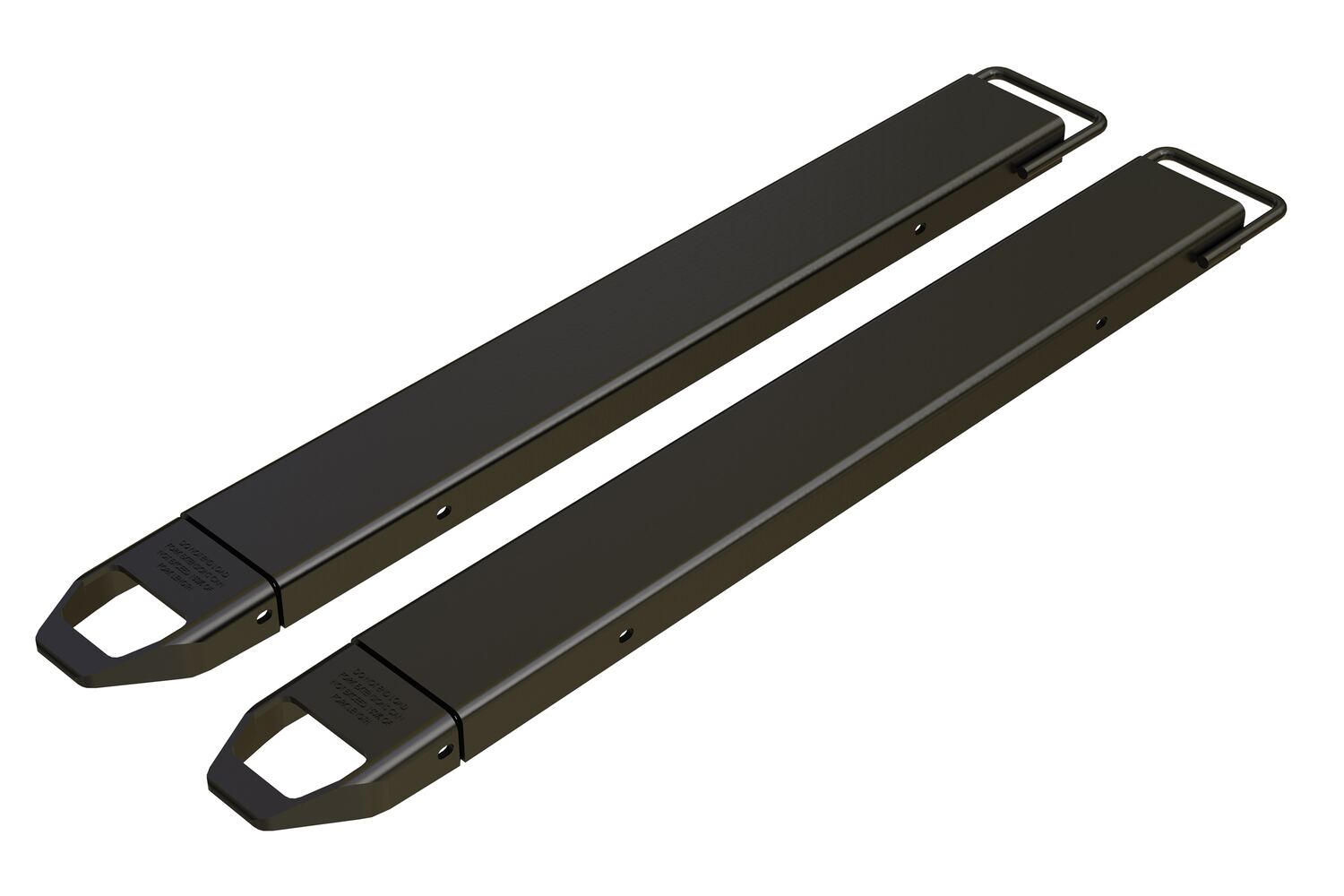

| FE-6-54-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 6 In. x 54 In. 4,000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 54 | 2104 | ||

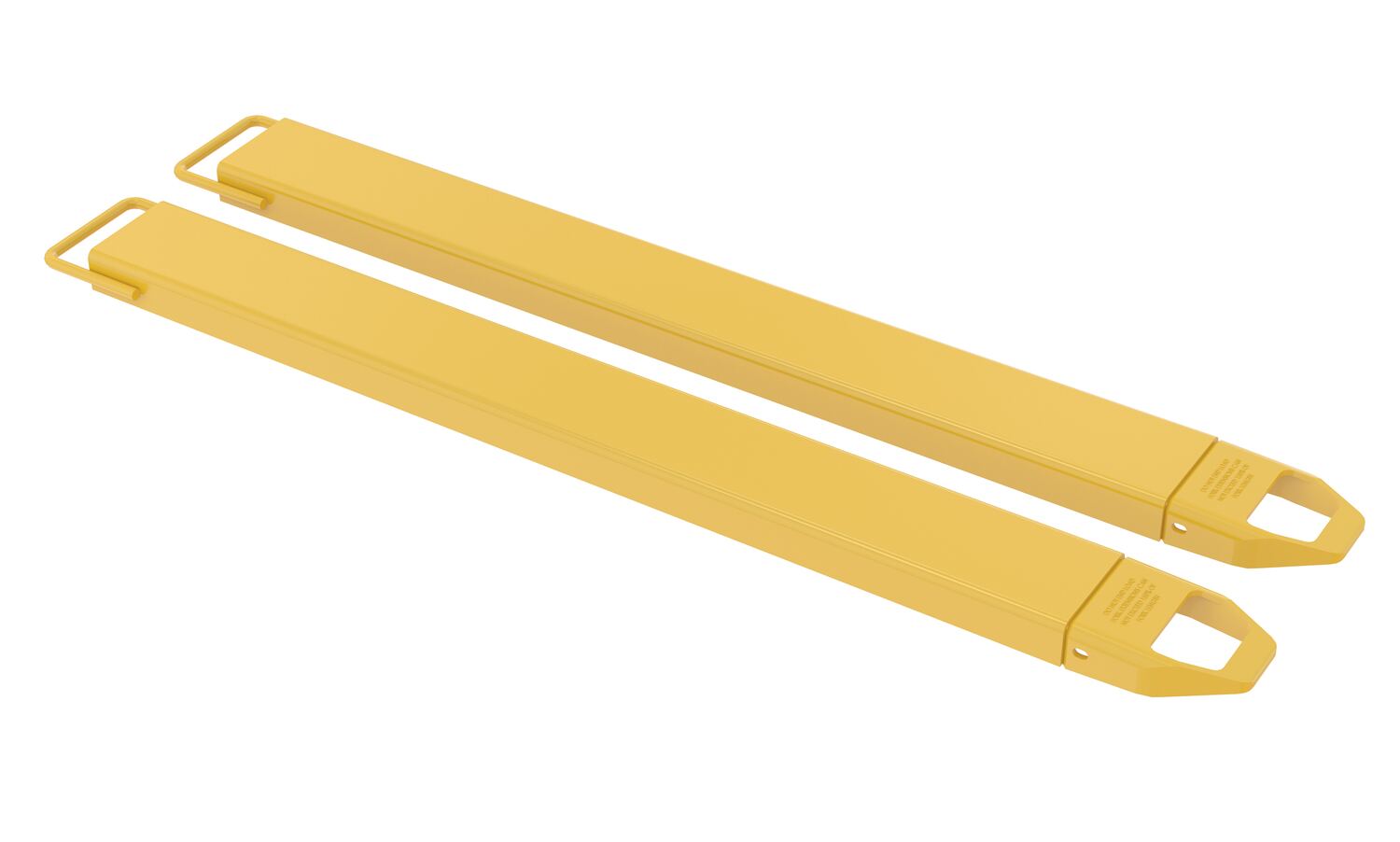

| FE-6-60 |  | 90 Days Limited Warranty | Steel Fork Extensions 6 In. x 63 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4000 Usable Length (in.): 60 | 2112 | ||
| FE-6-63 |  | 90 Days Limited Warranty | Steel Fork Extensions 6 In. x 63 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 63 | 2116 | ||
| FE-6-63-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 6 In. x 63 In. 4,000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 63 | 2116 | ||
| FE-6-66 |  | 90 Days Limited Warranty | Steel Fork Extensions 6 In. x 66 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 66 | 2128 | ||
| FE-6-72 |  | 90 Days Limited Warranty | Steel Fork Extensions 6 In. x 72 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 72 | 2134 | ||

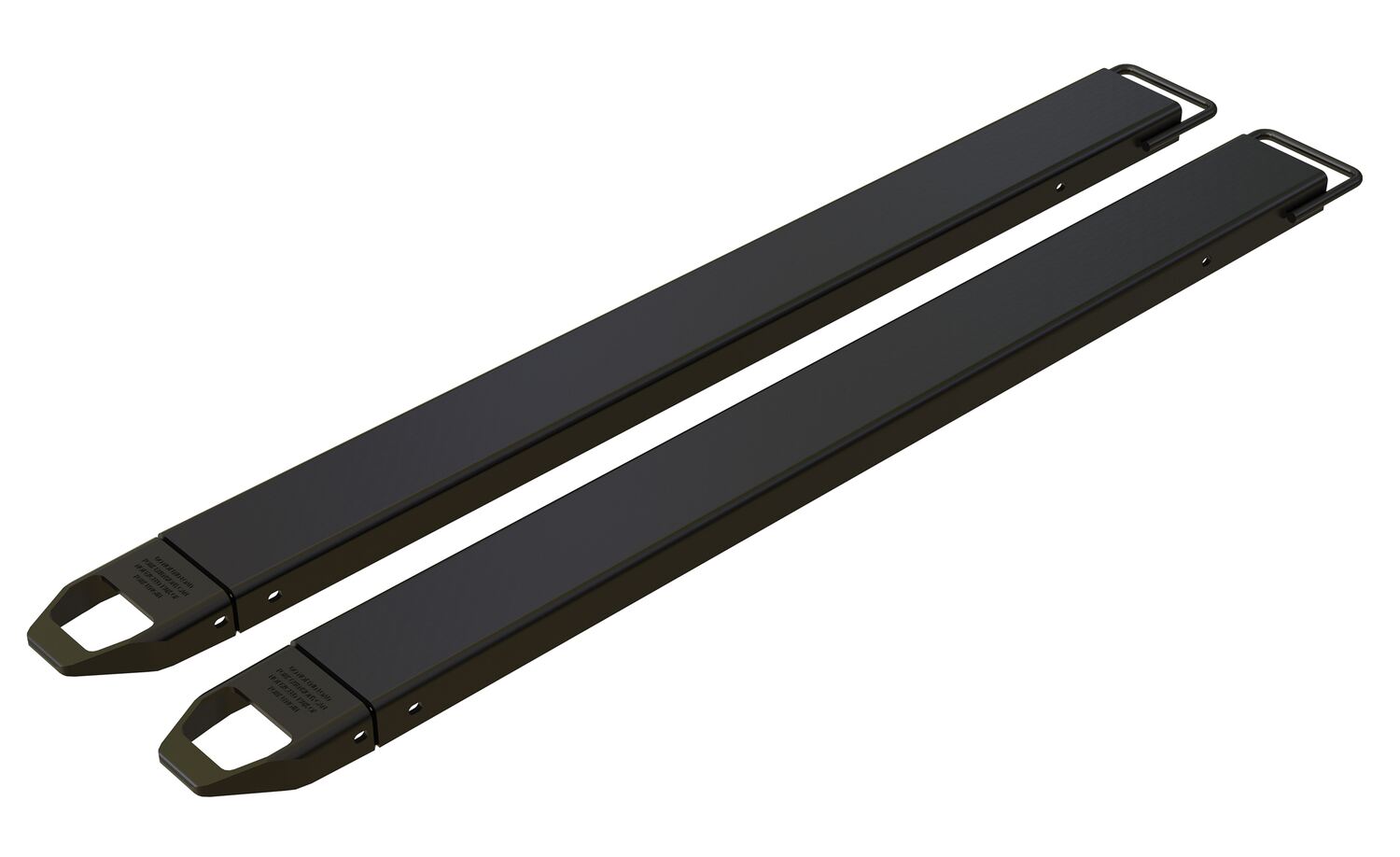

| FE-6-72-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 6 In. x 72 In. 4,000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 72 | 2134 | ||
| FE-6-84 |  | 90 Days Limited Warranty | Steel Fork Extensions 6 In. x 84 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 84 | 174 | ||

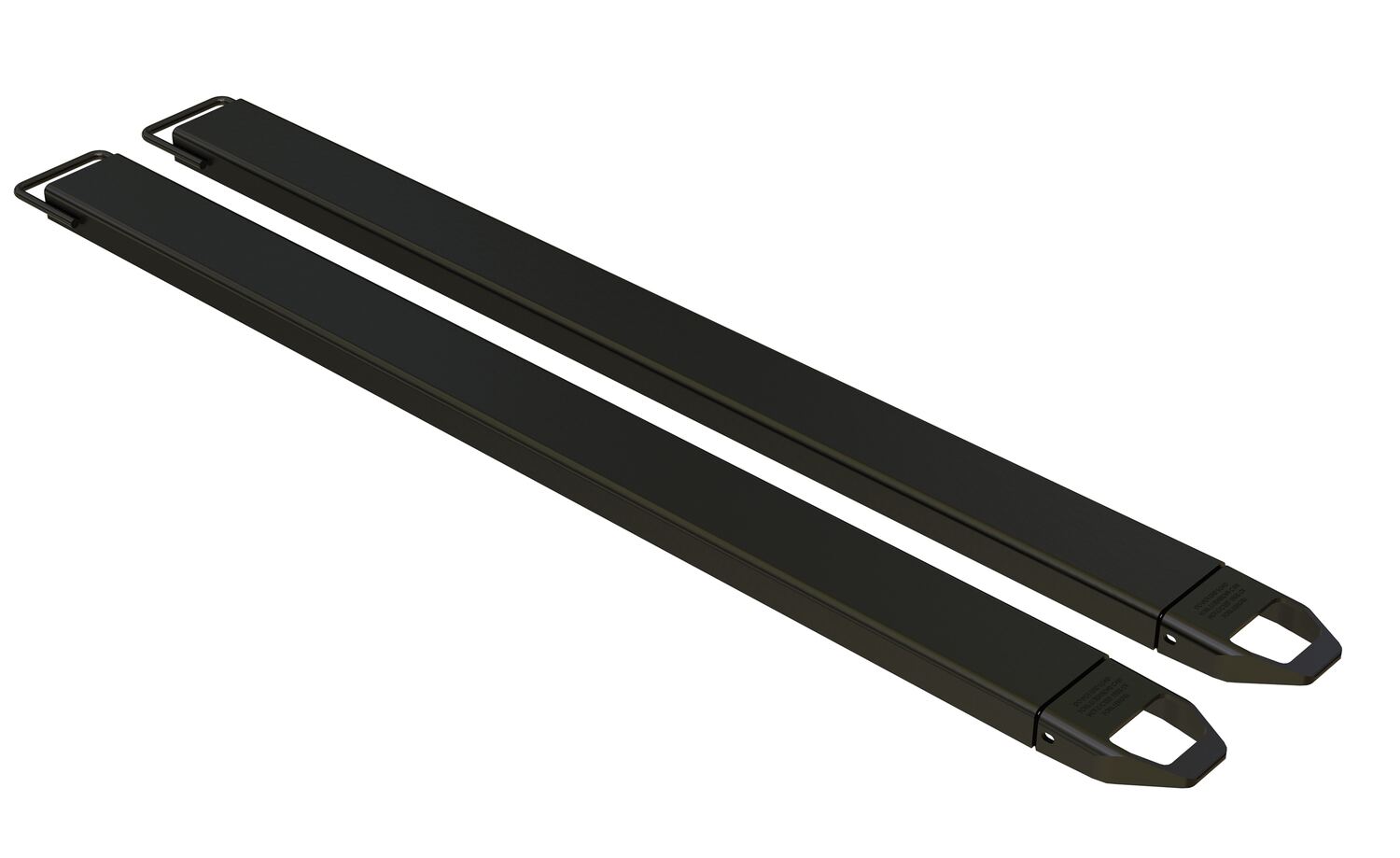

| FE-6-84-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 6 In. x 84 In. 4,000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 84 | 174 | ||
| FE-6-90 |  | 90 Days Limited Warranty | Steel Fork Extensions 6 In. x 90 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 90 | 196 | ||

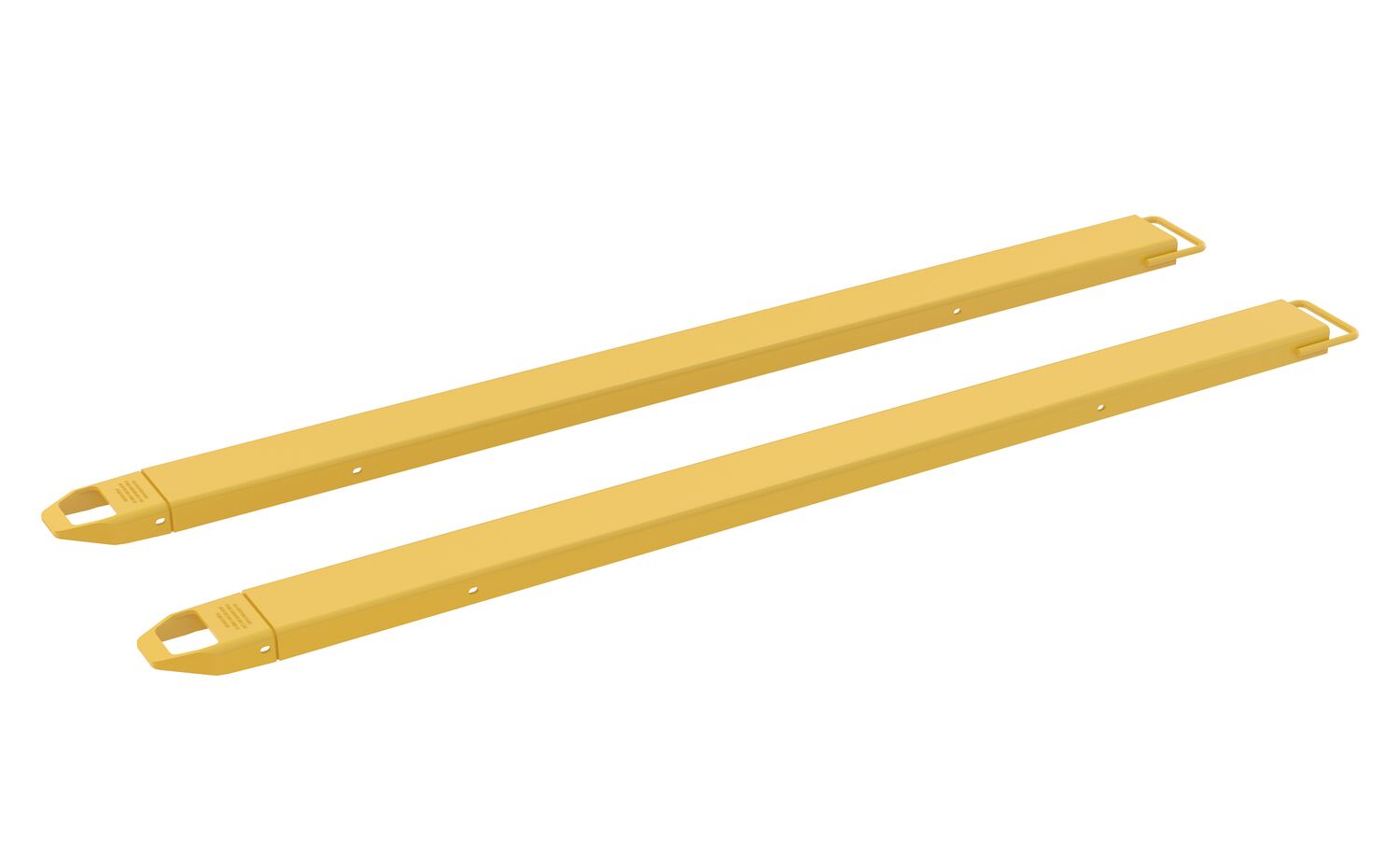

| FE-6-96 |  | 90 Days Limited Warranty | Steel Fork Extensions 6 In. x 96 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 96 | 204 | ||

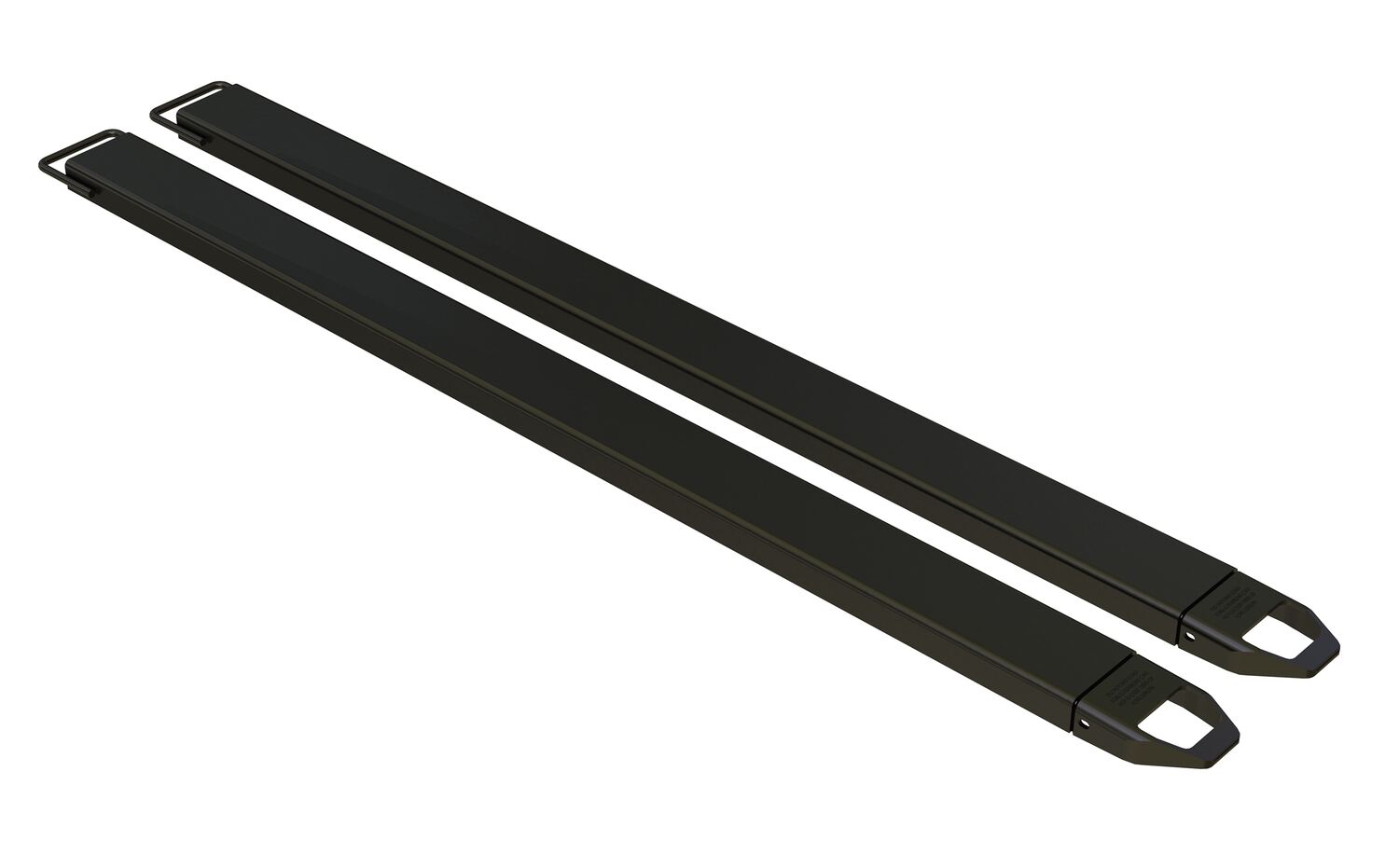

| FE-6-96-BK |  | 90 Days Limited Warranty | Steel Fork Extensions 6 In. x 96 In. 4,000 Lb. Capacity Black | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 96 | 204 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: Standard, the fork extensions are sold in pairs. We do offer individual fork extensions with -EACH as the suffix.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Loop-Style Fork Extensions |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

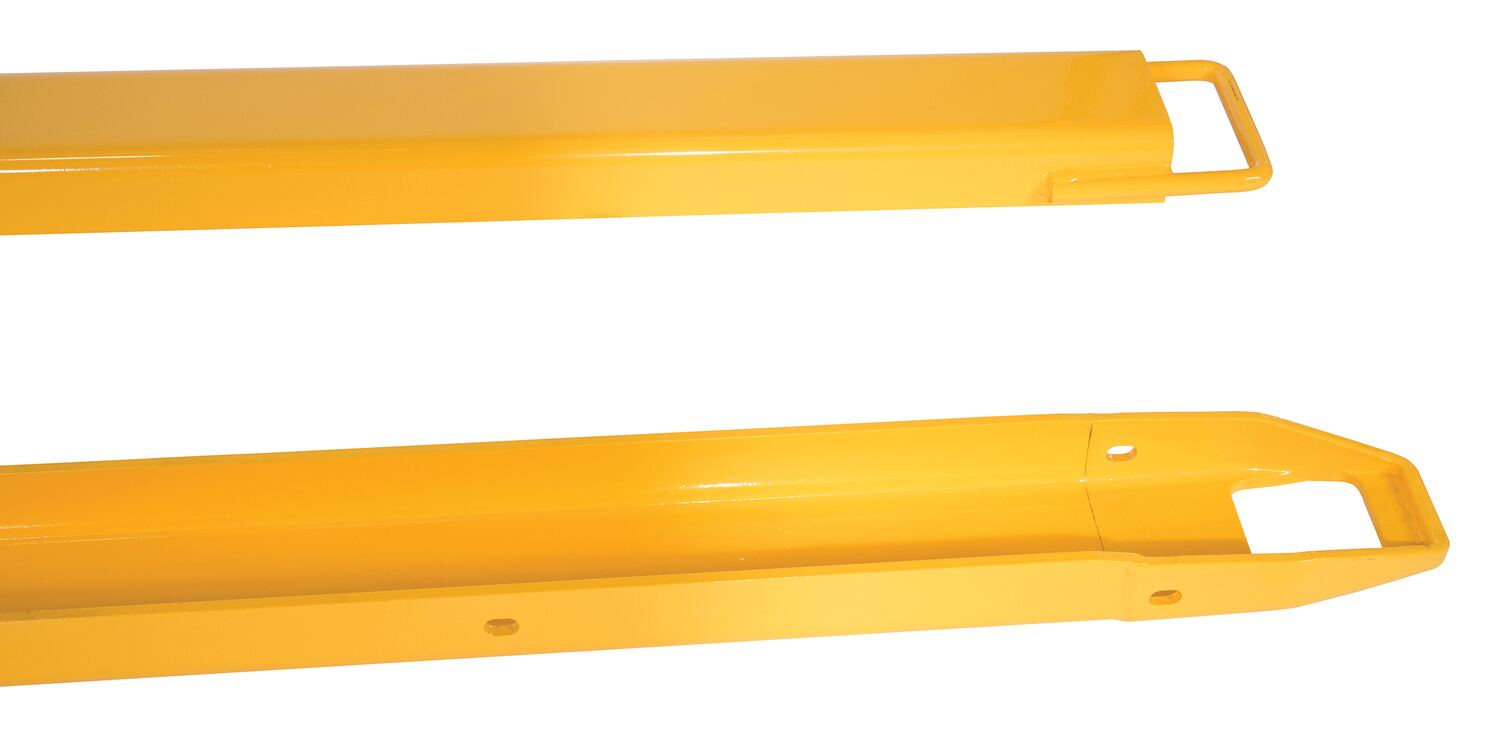

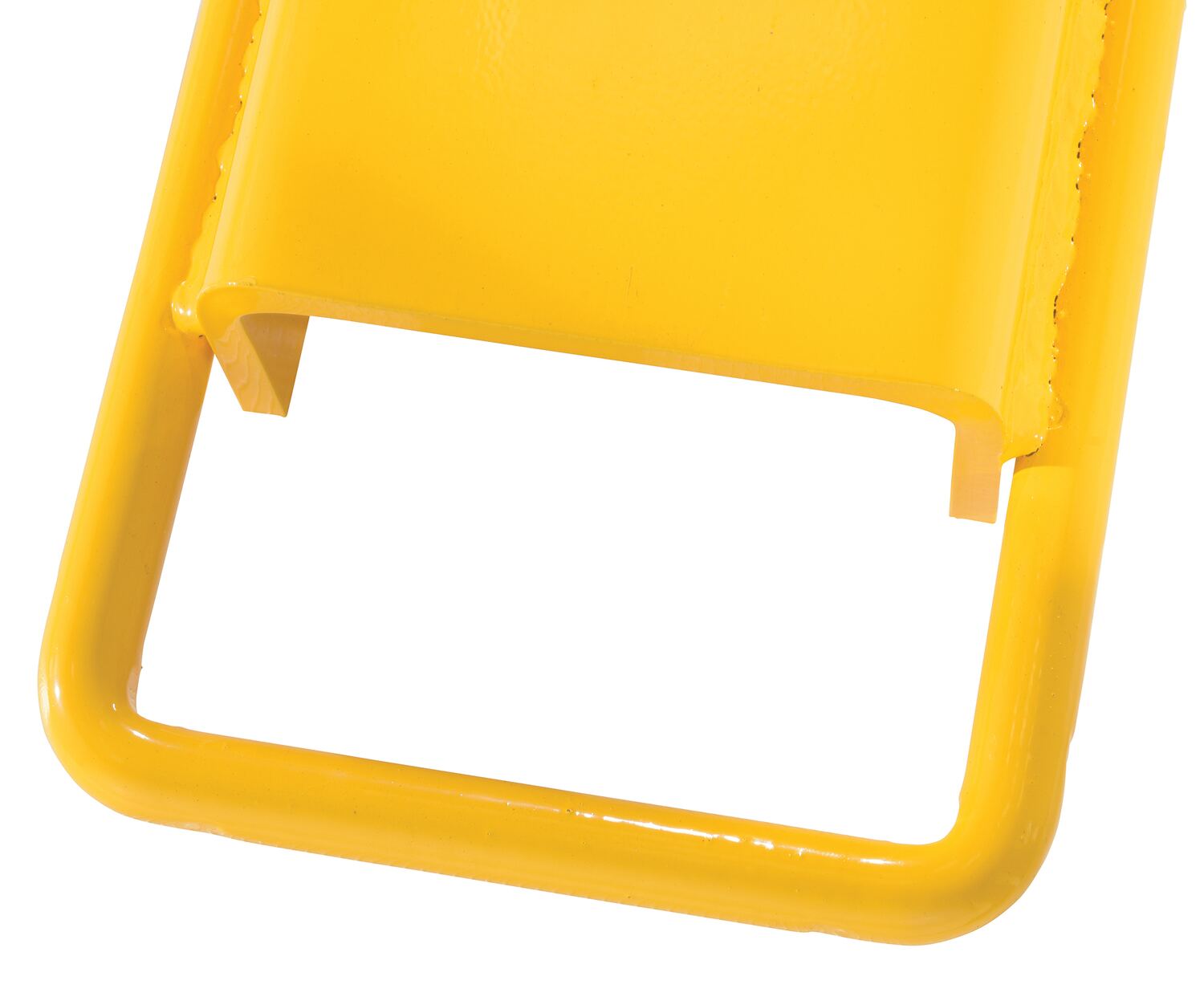

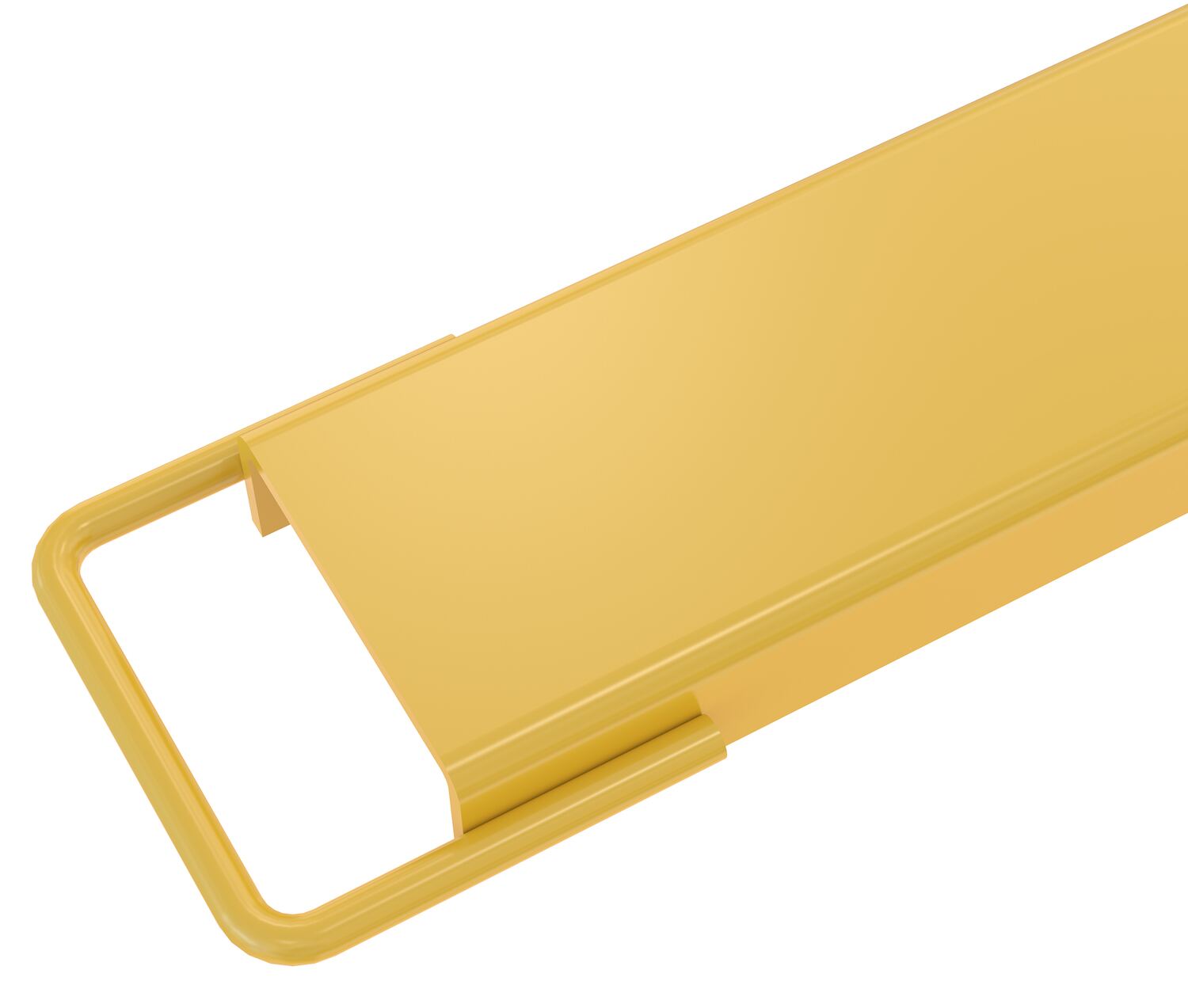

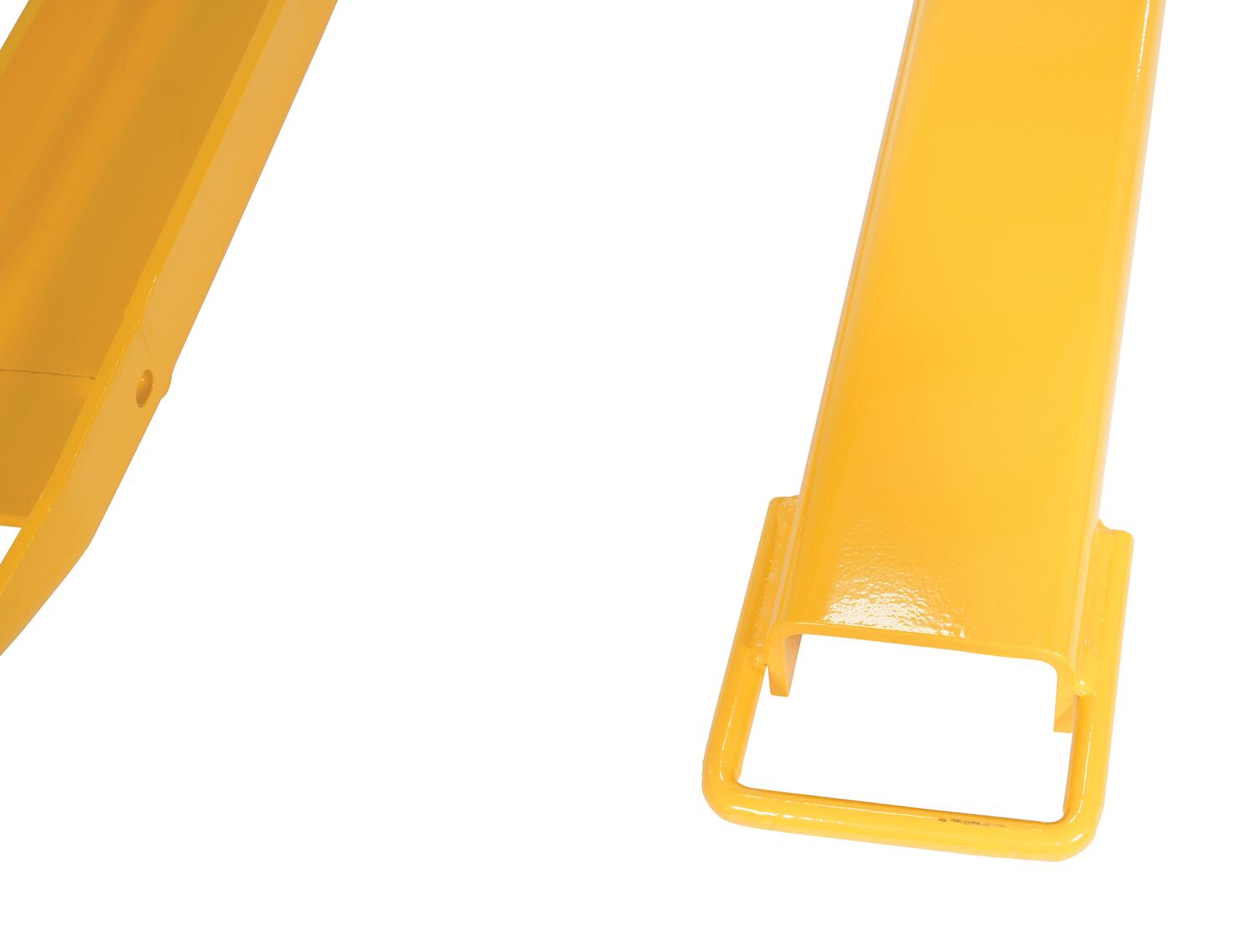

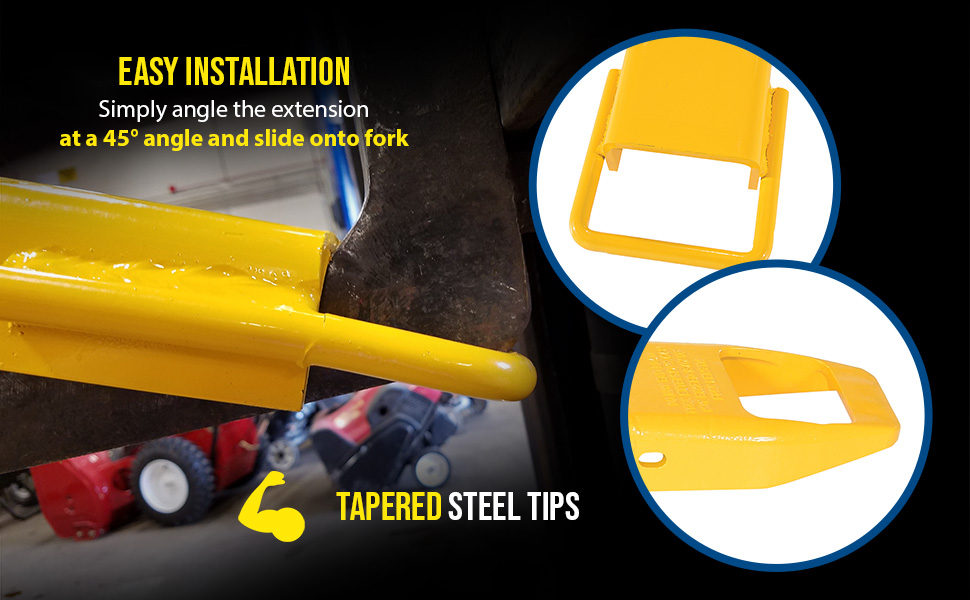

HOW TO USE / INSTALLATION Insert loop at the tip of the fork and slide it up at a 45 degree angle then lay it down over the existing fork. To be used with class 2 and class 3 forks only. Check Out Vestil's Other Fork Extension Styles:
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Our Customer Service Associates Are Here To Assist You! |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

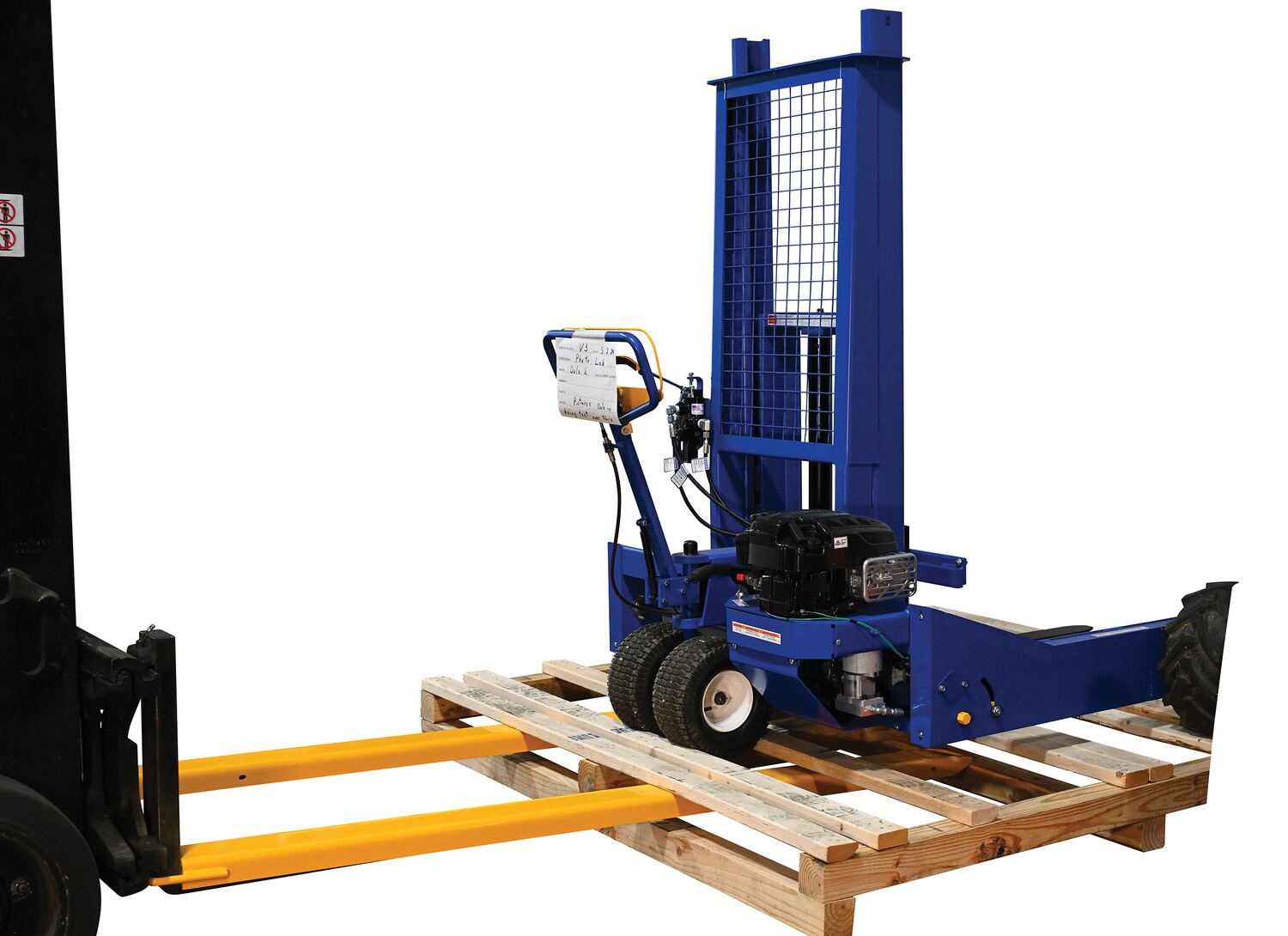

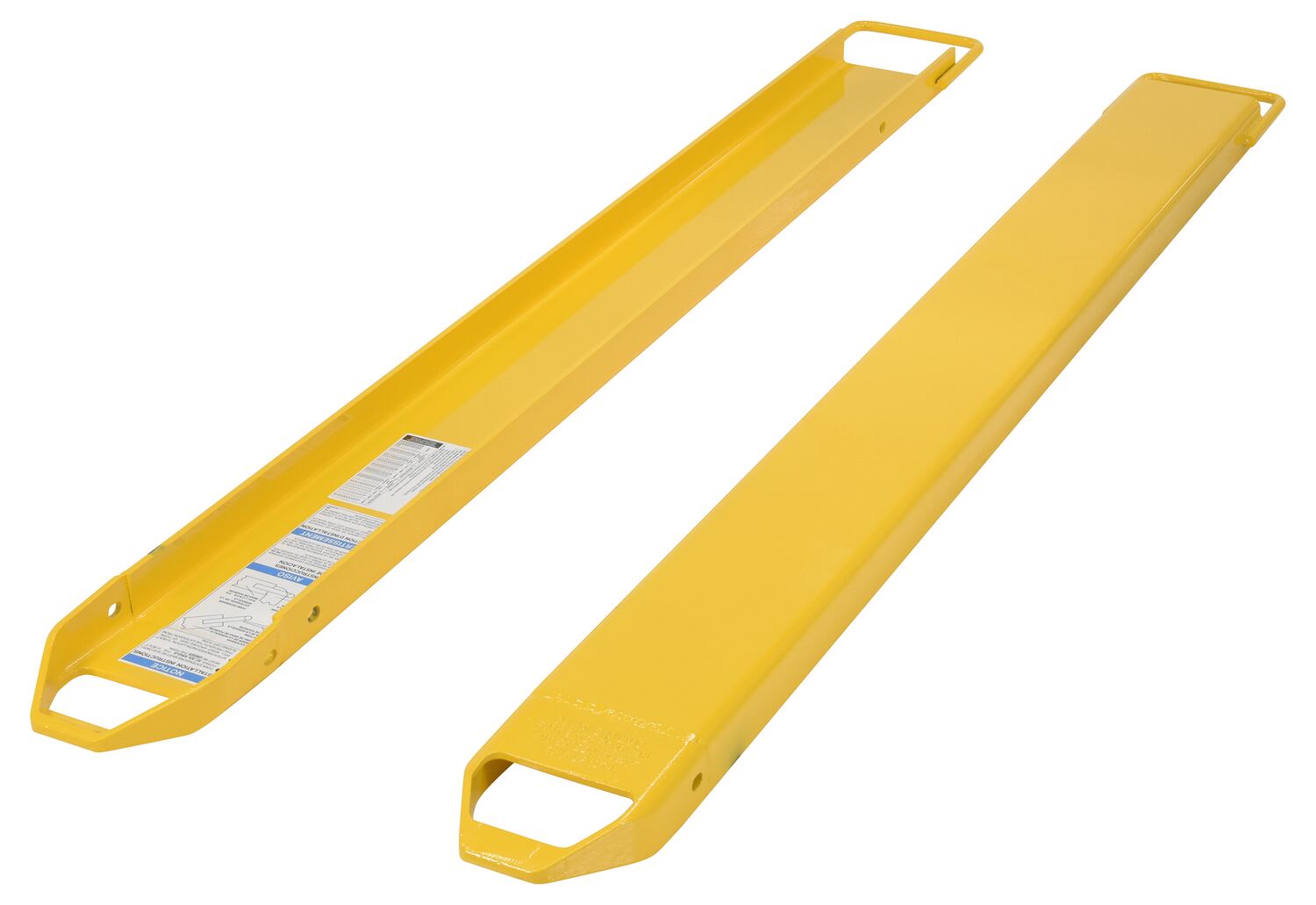

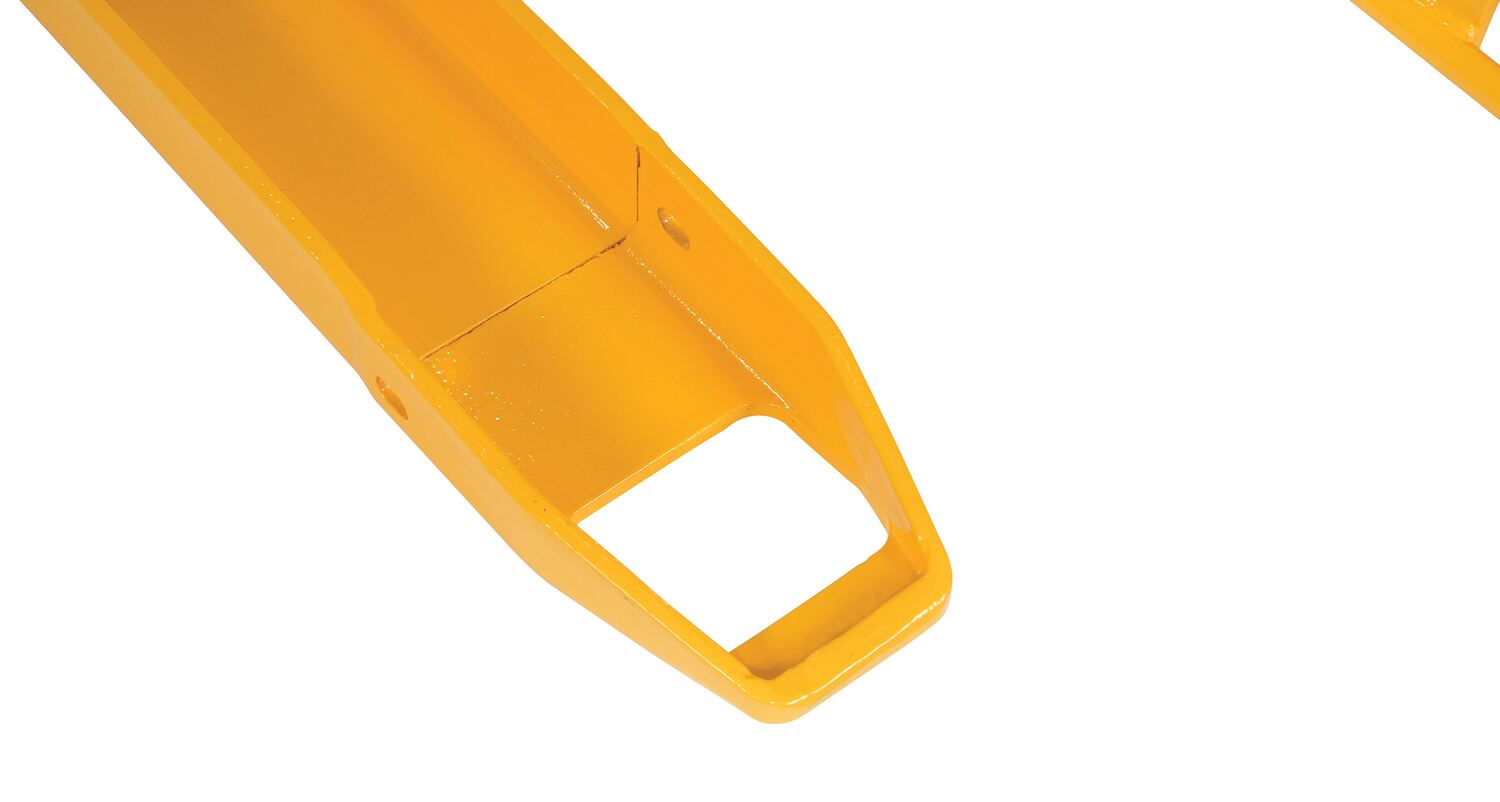

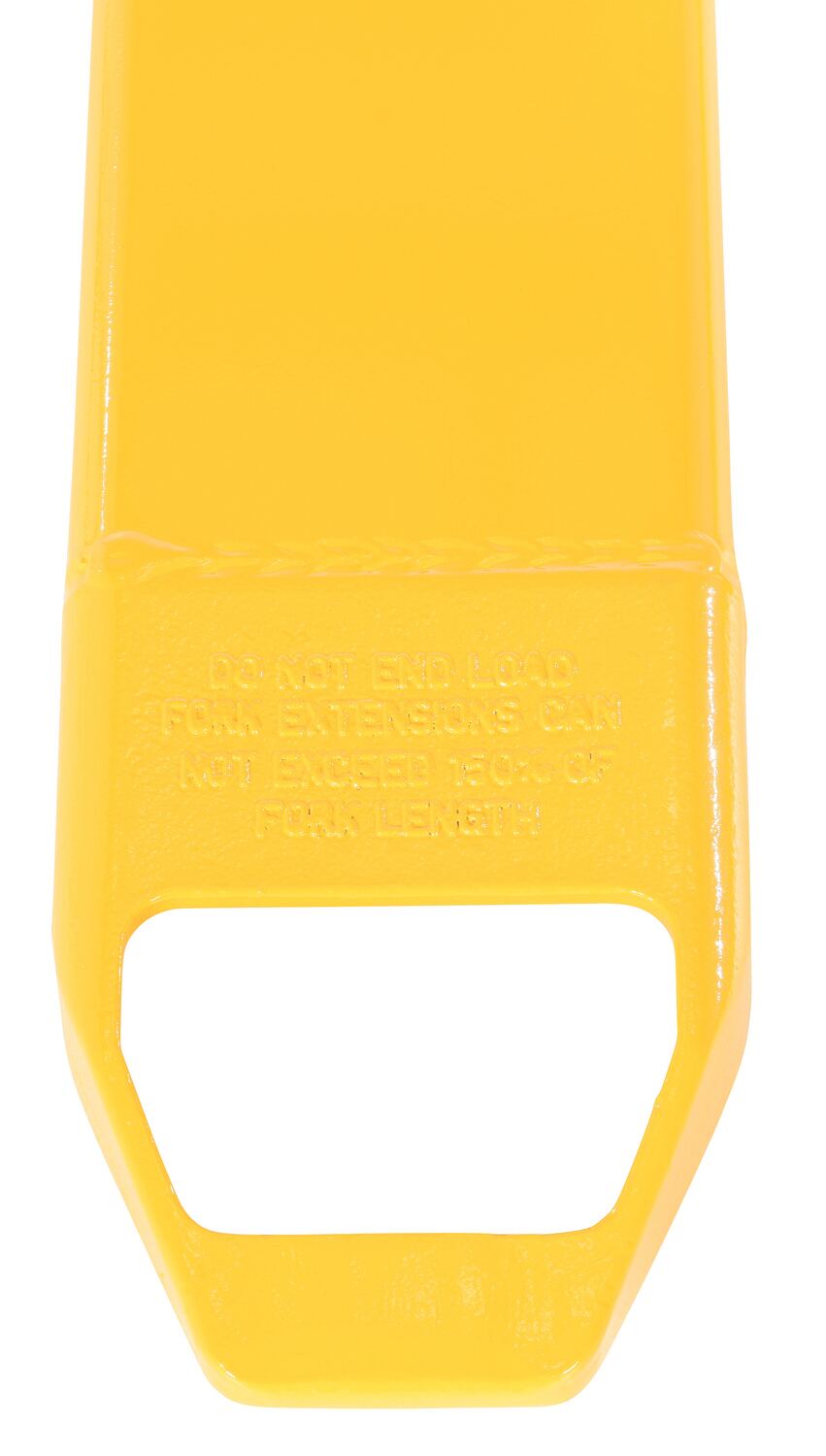

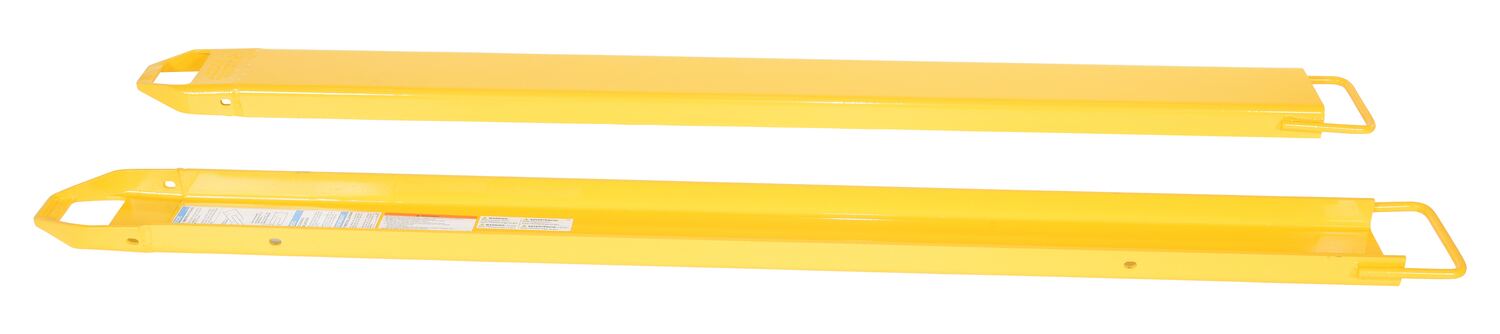

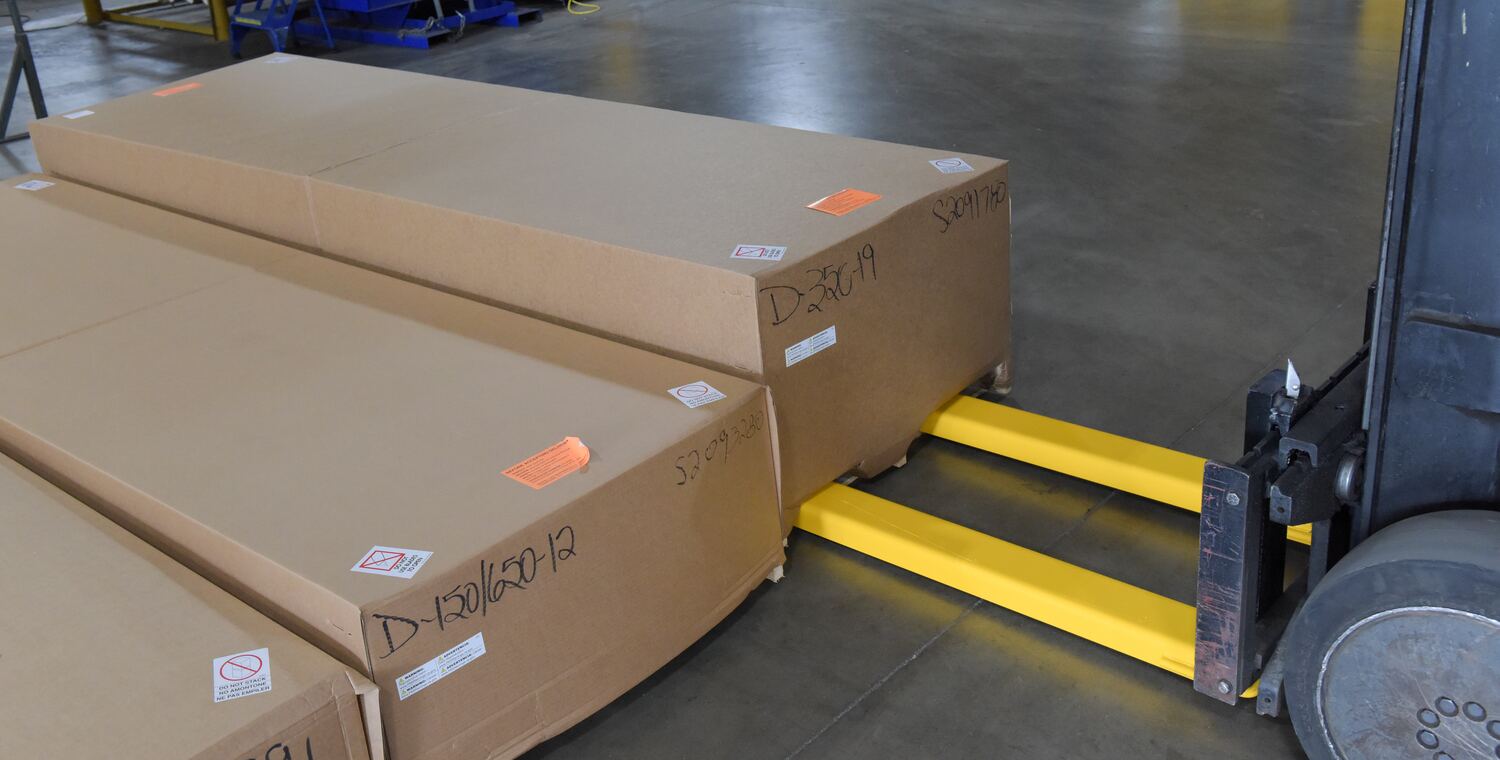

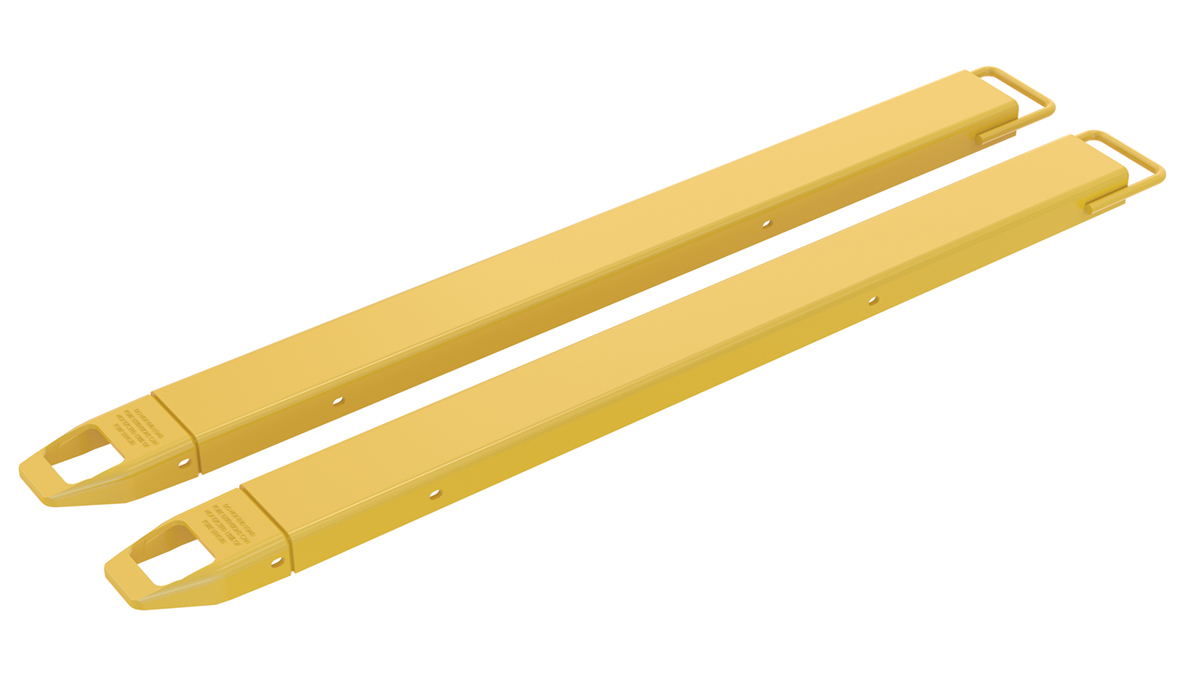

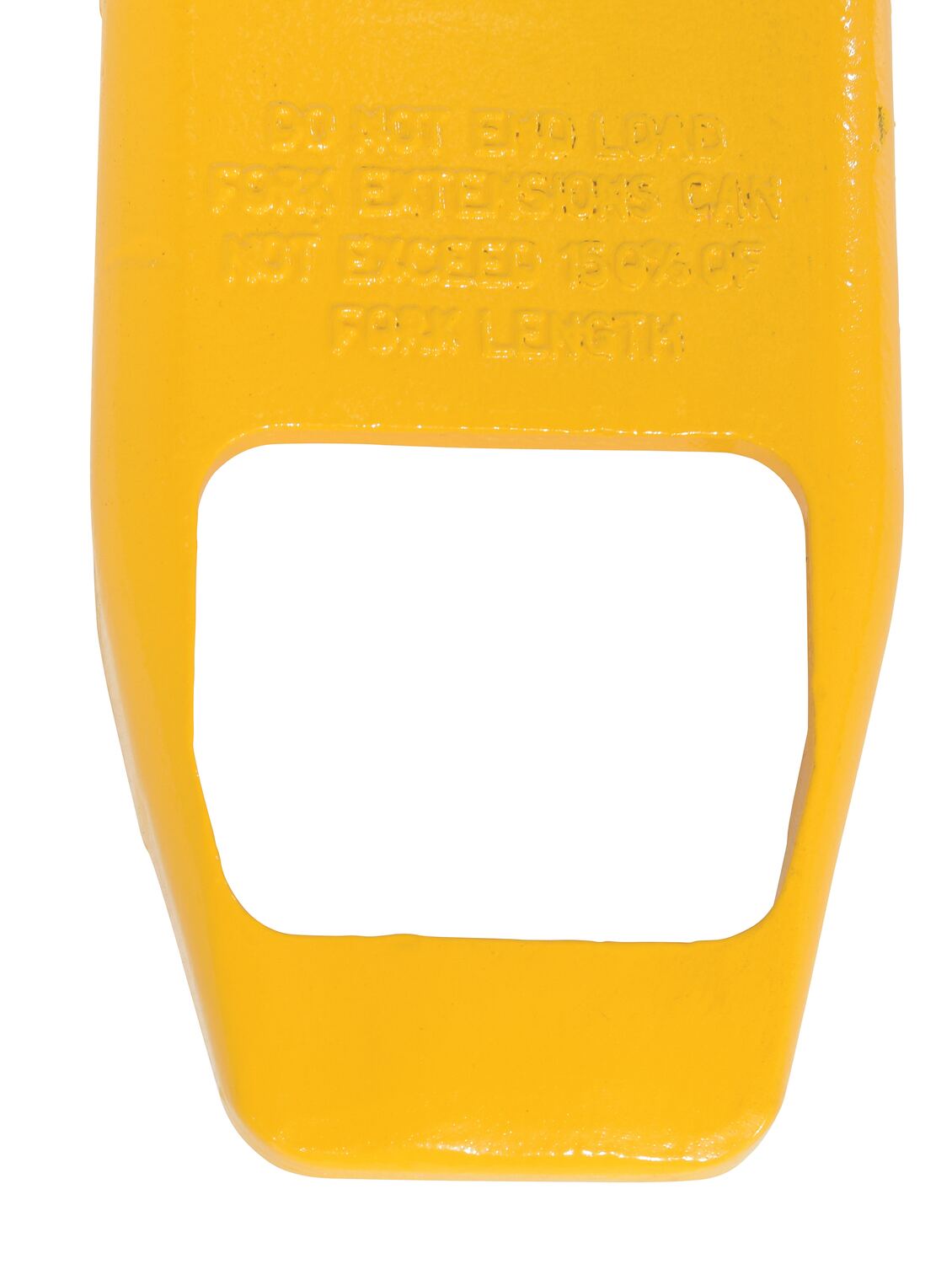

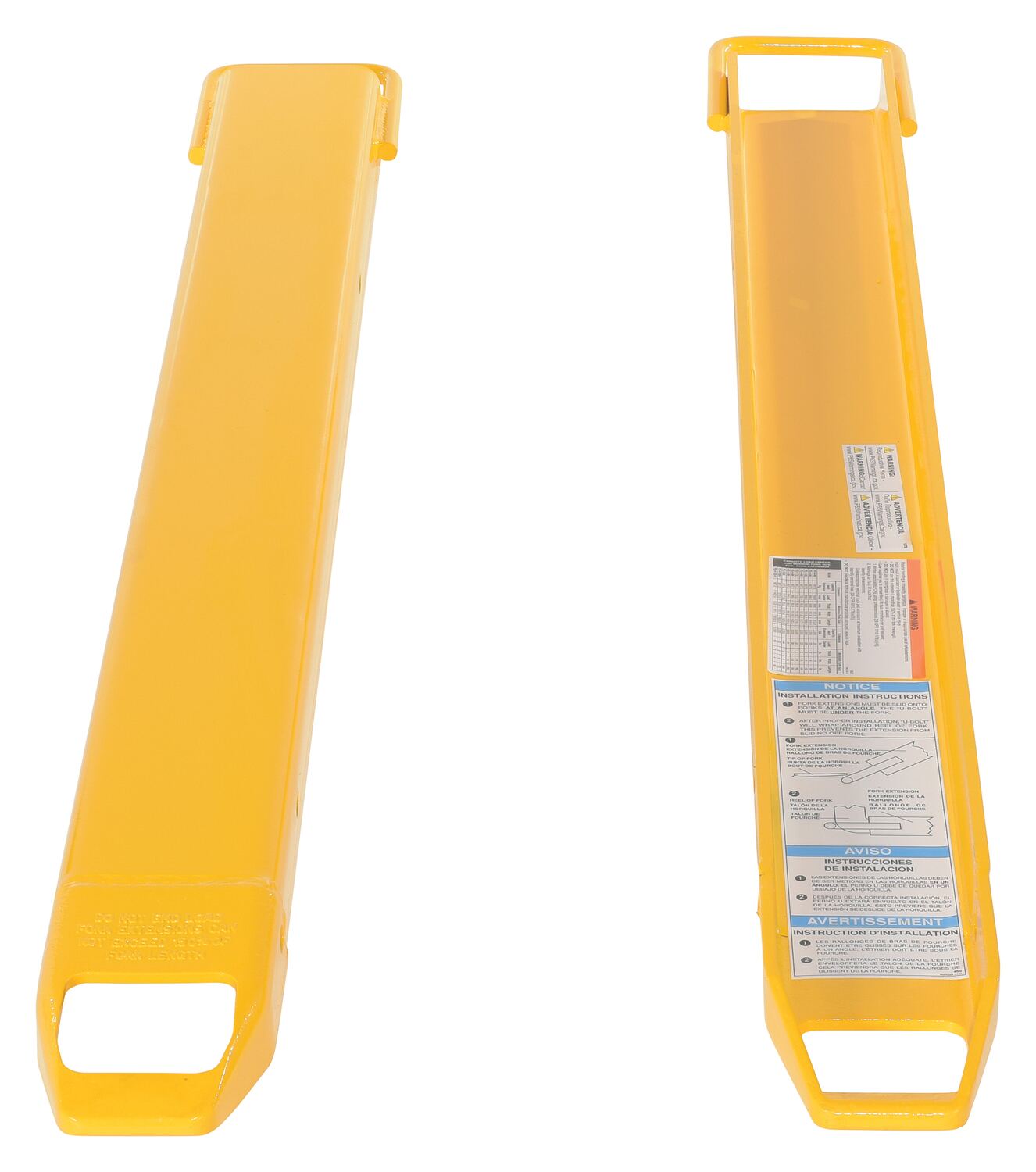

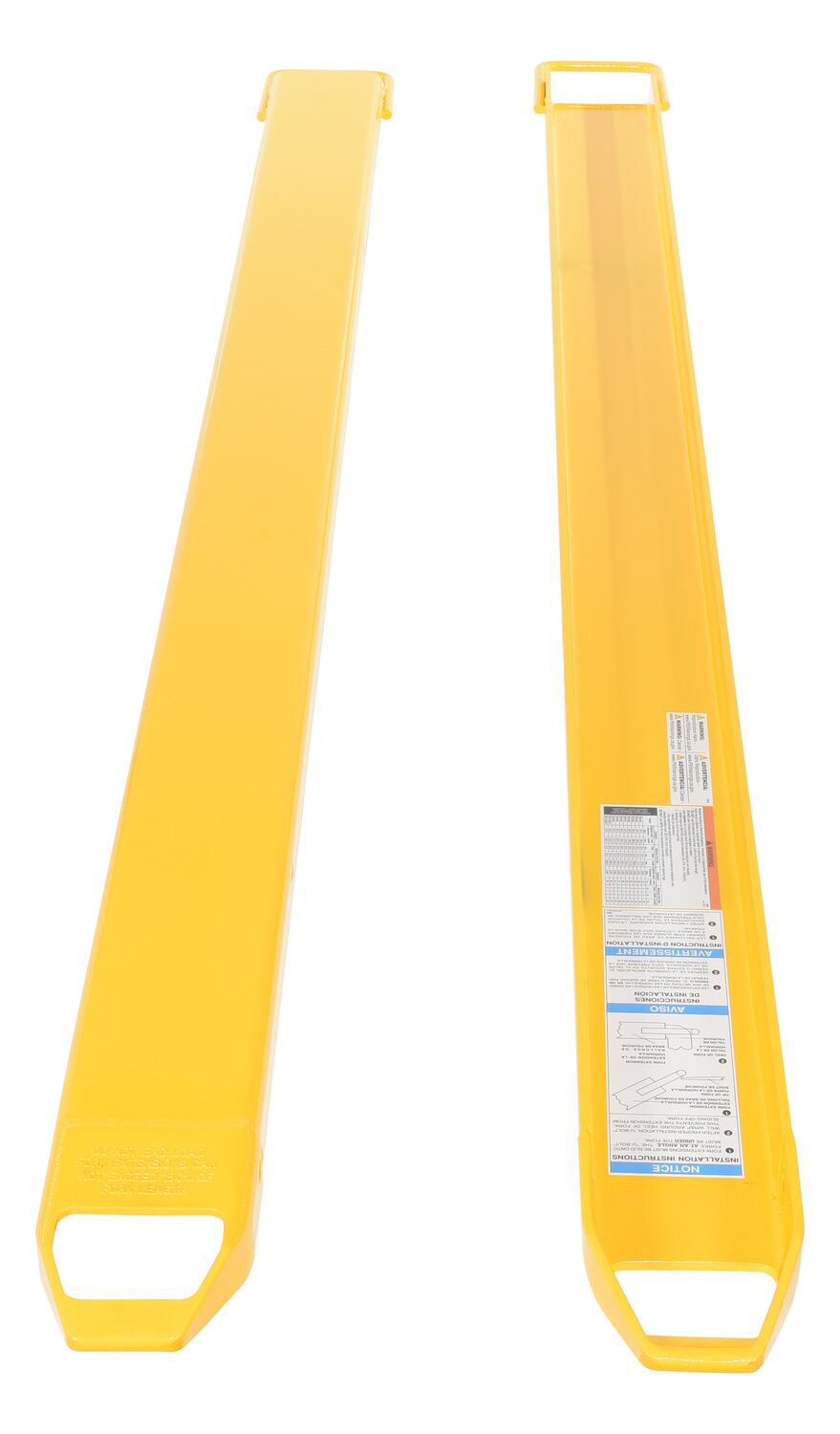

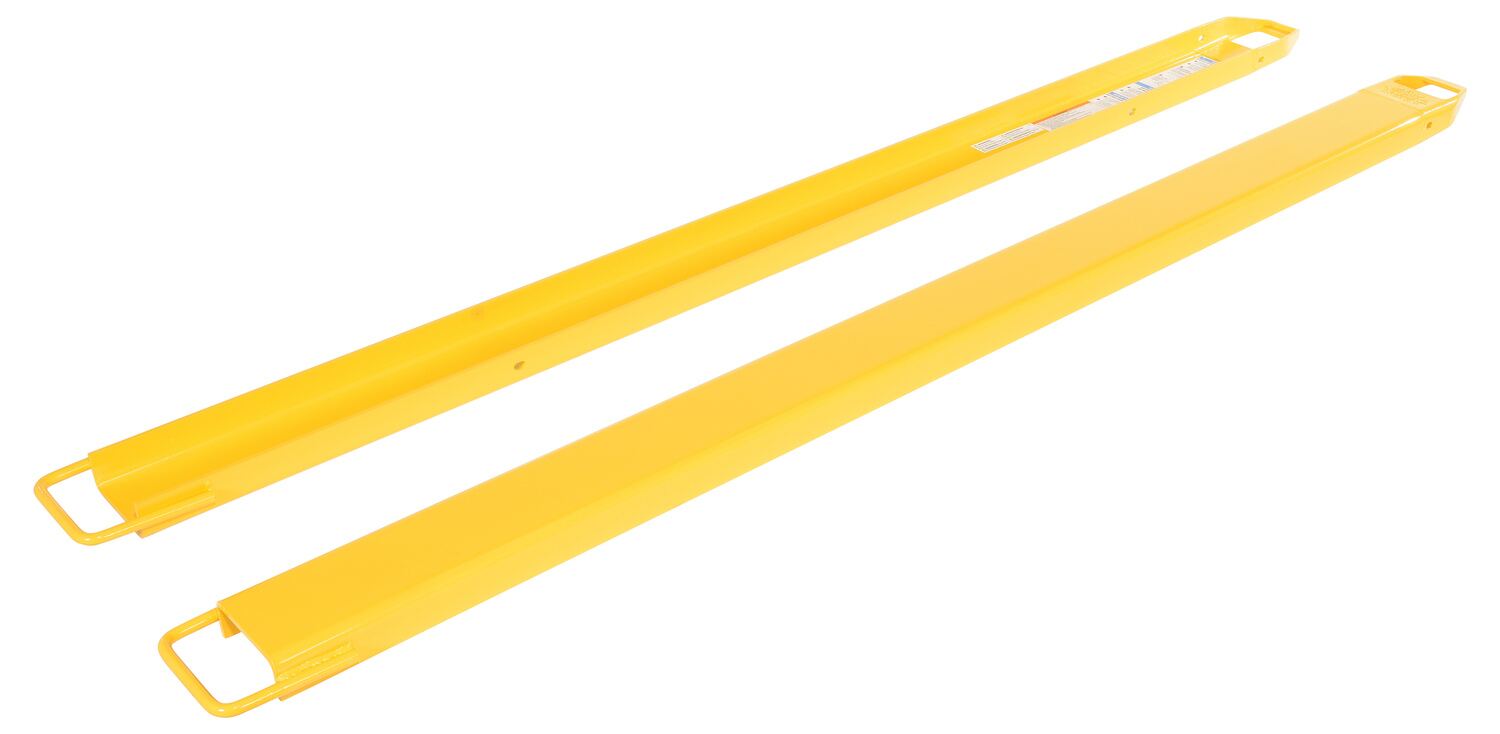

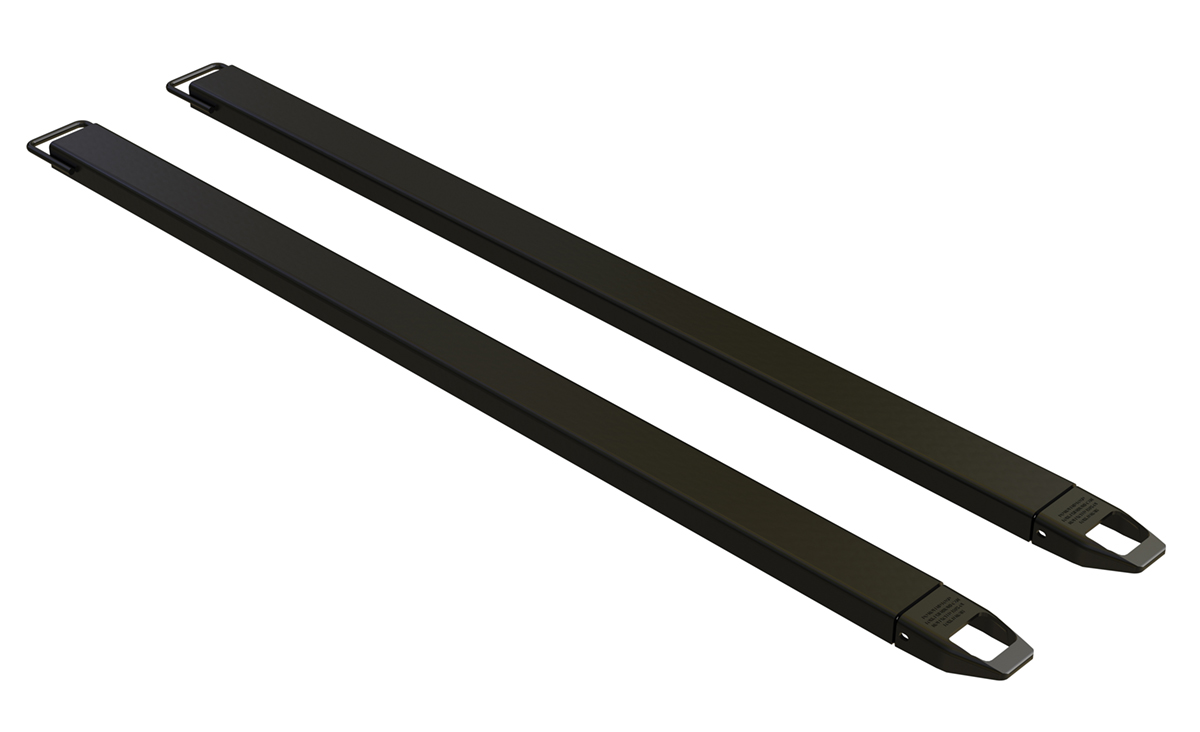

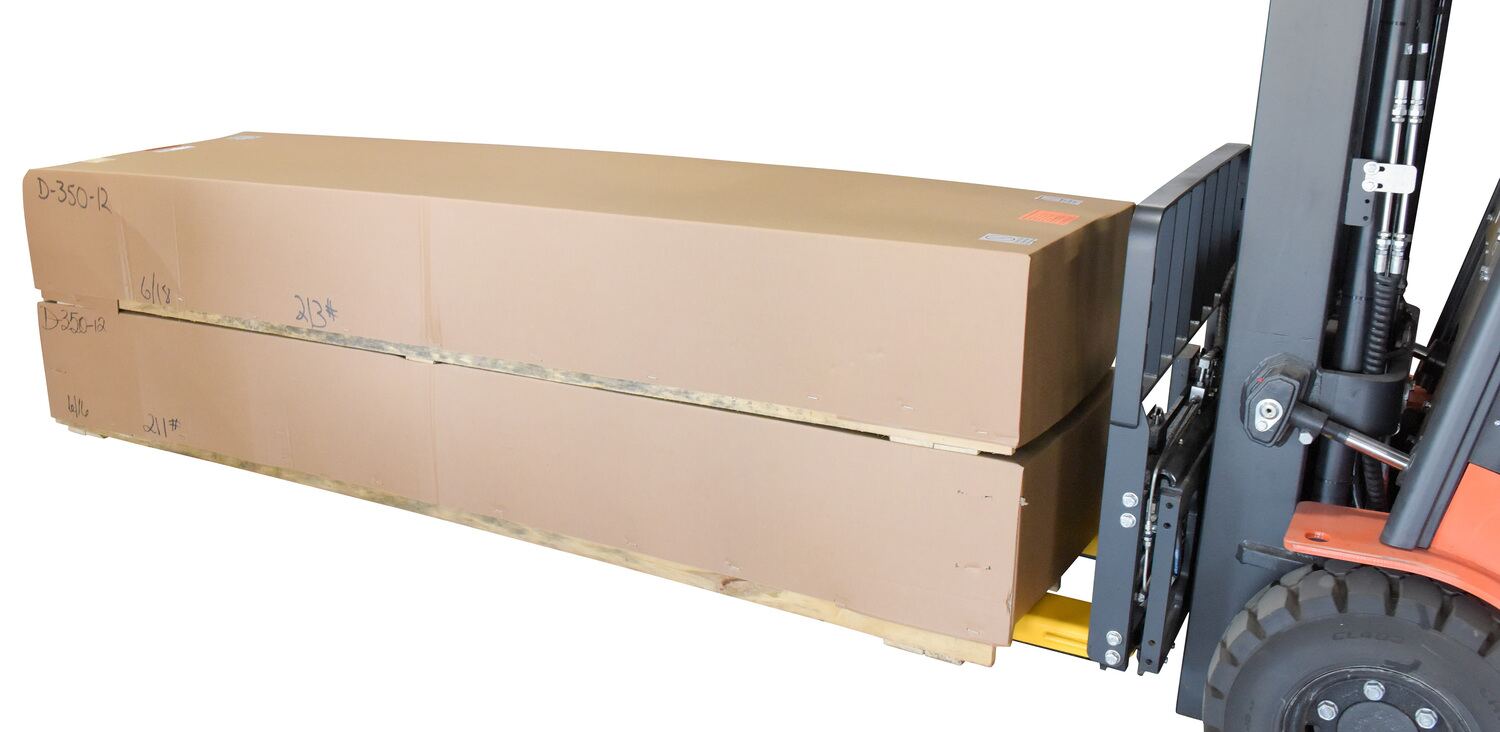

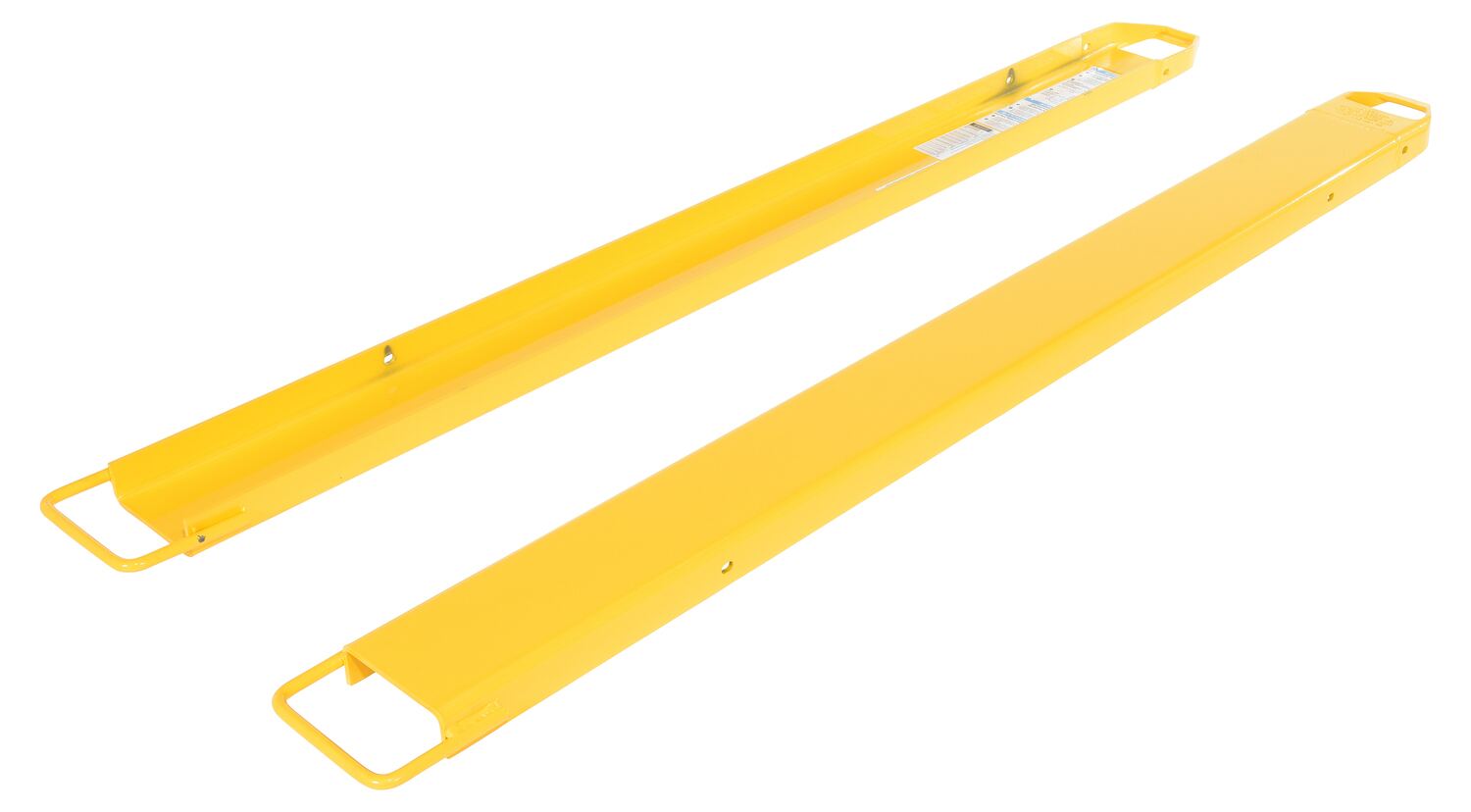

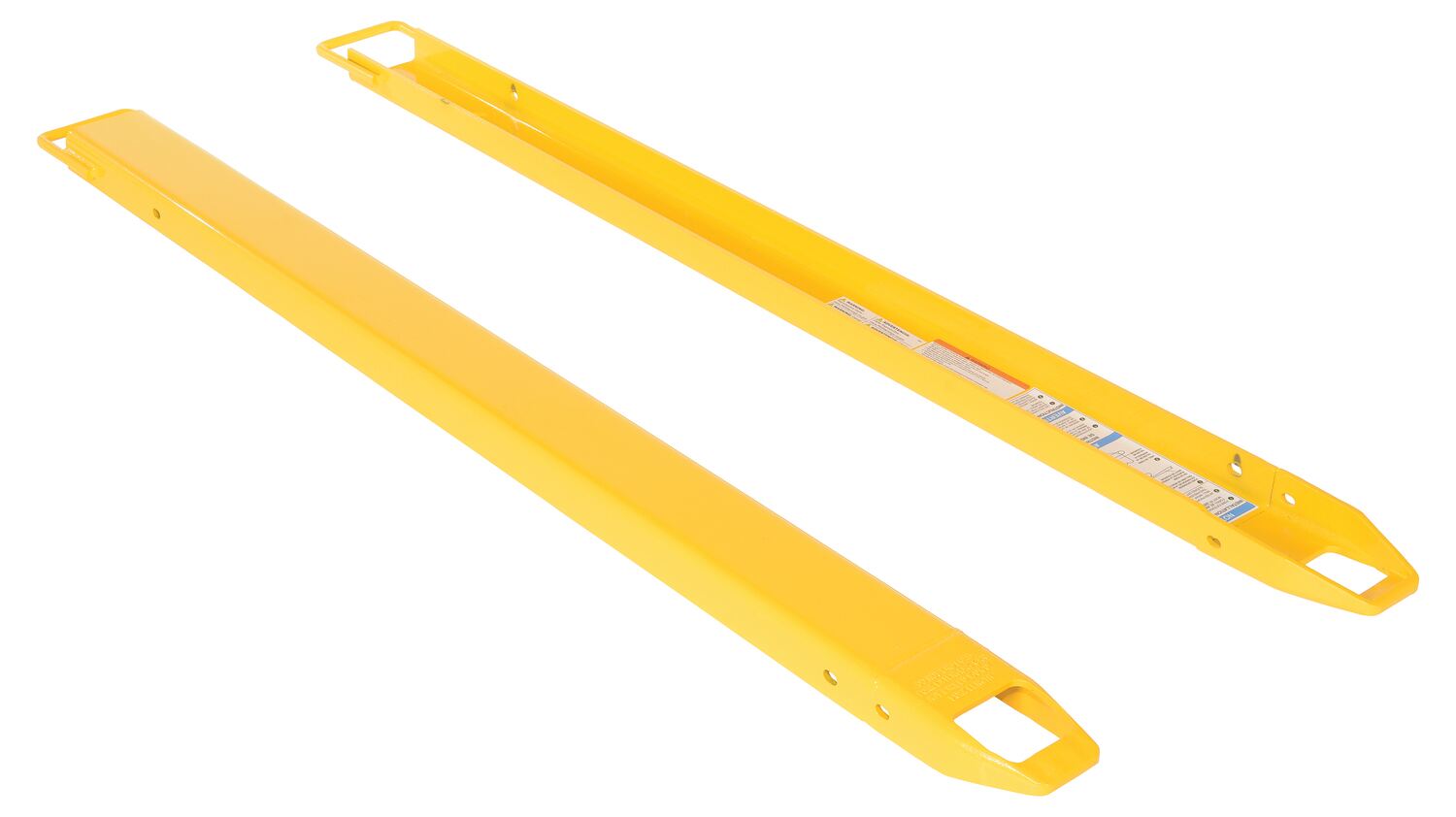

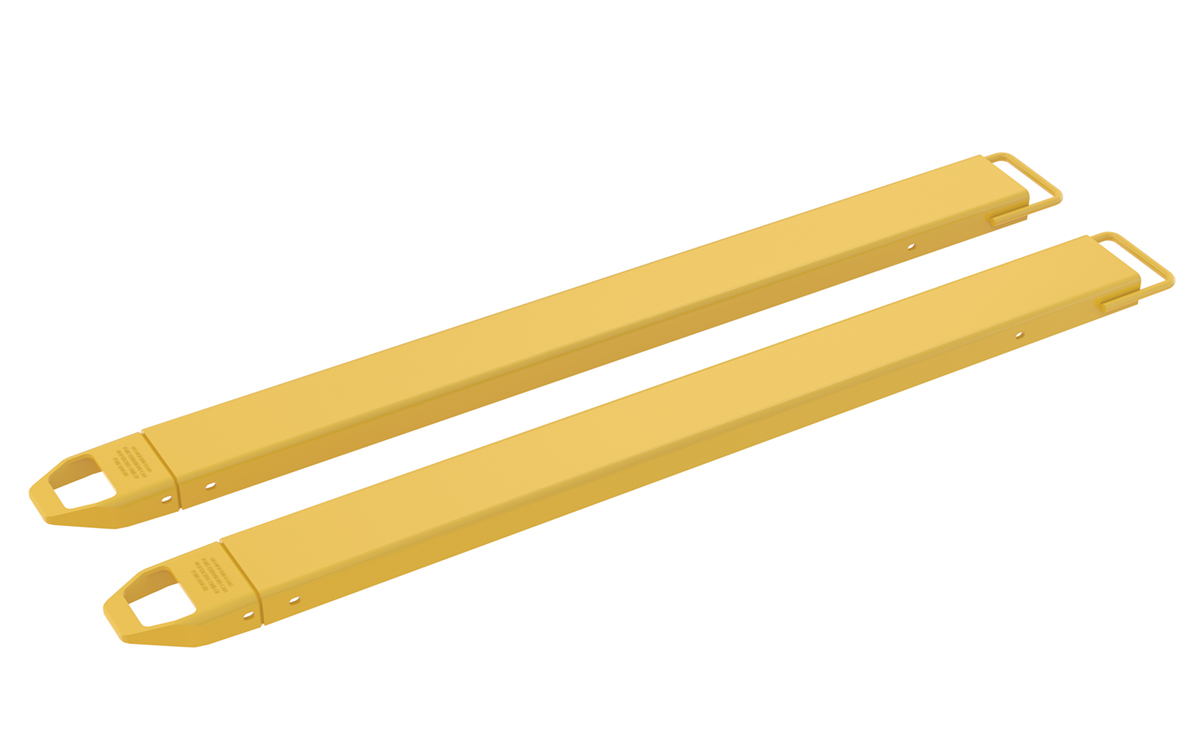

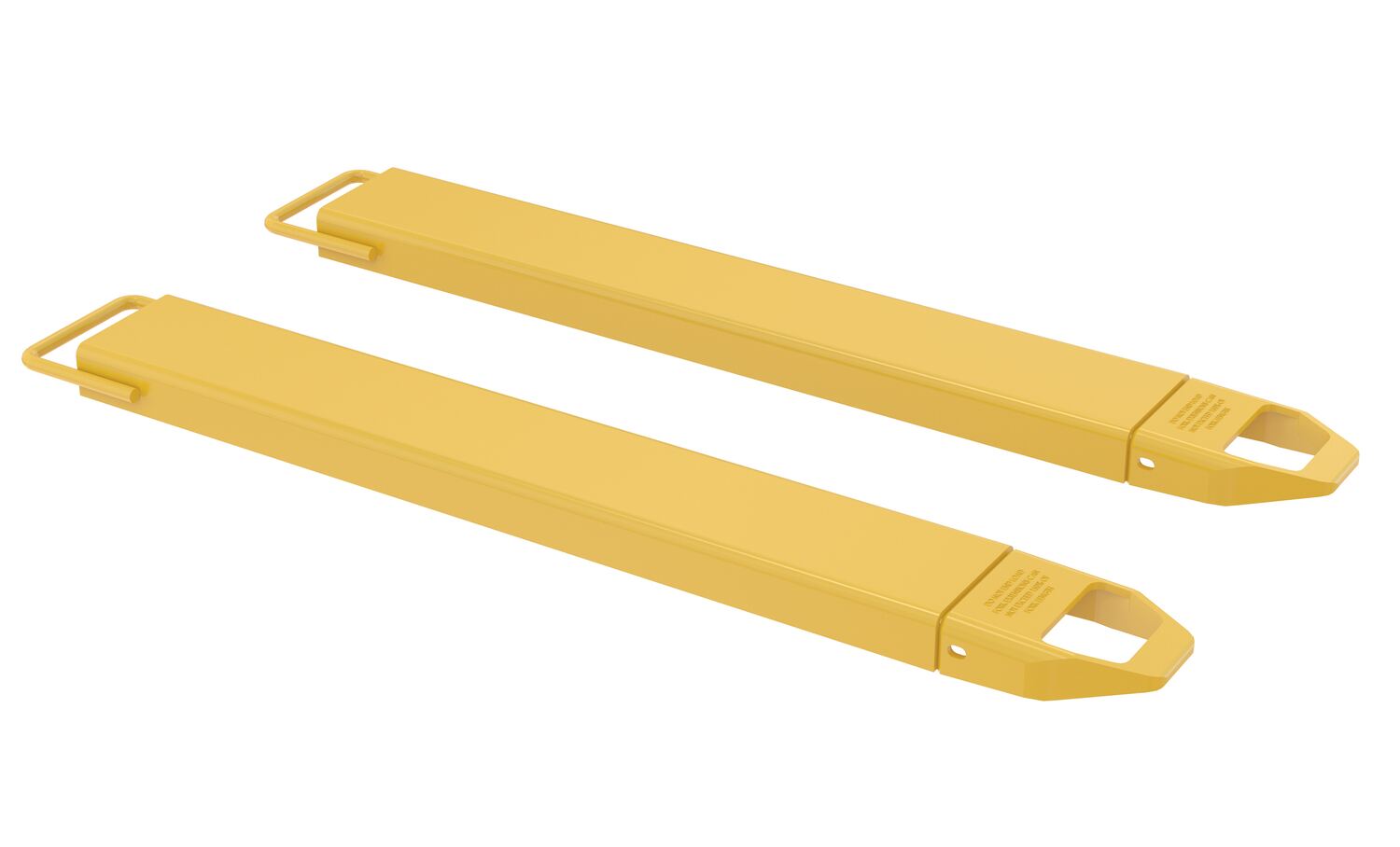

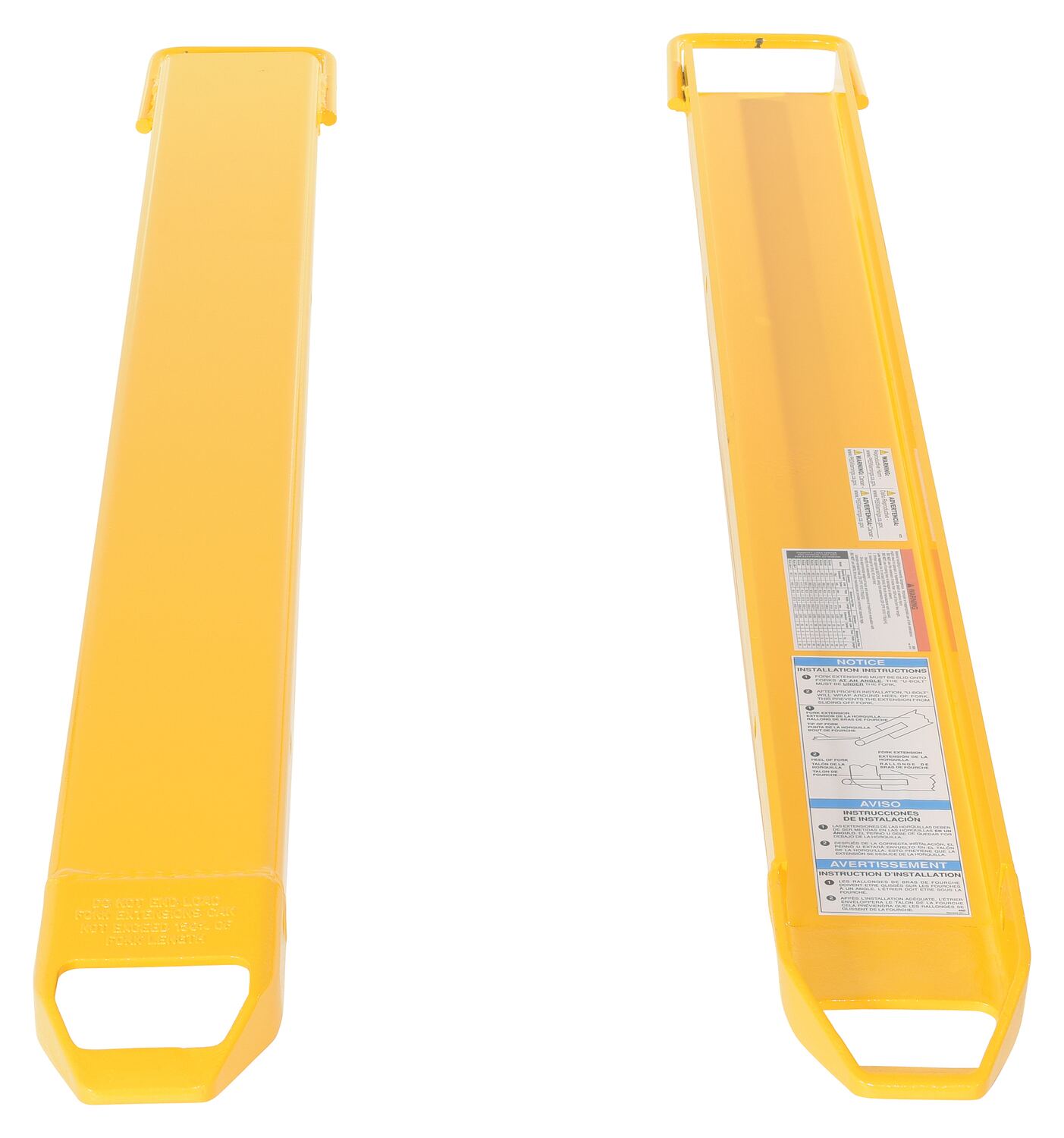

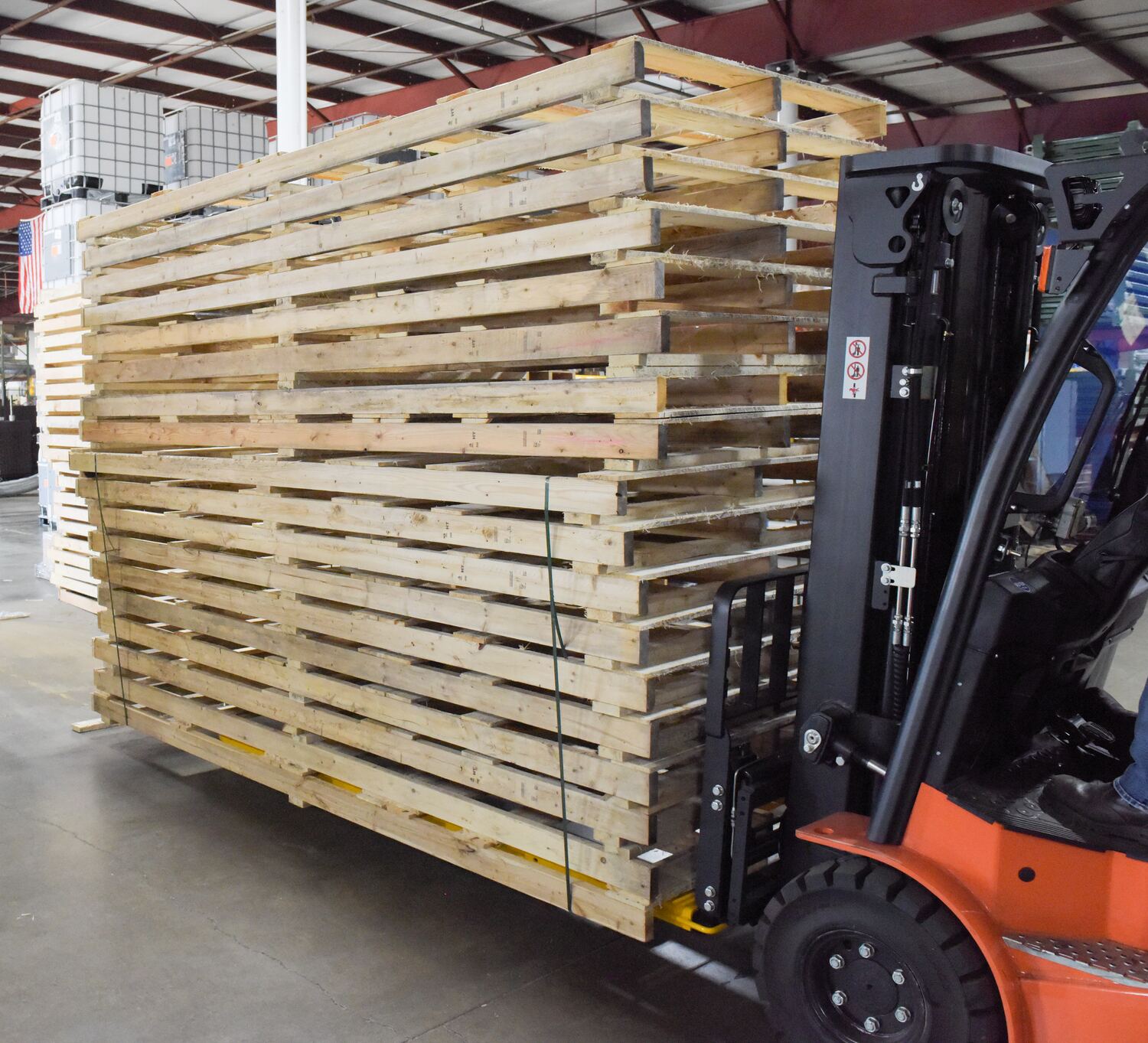

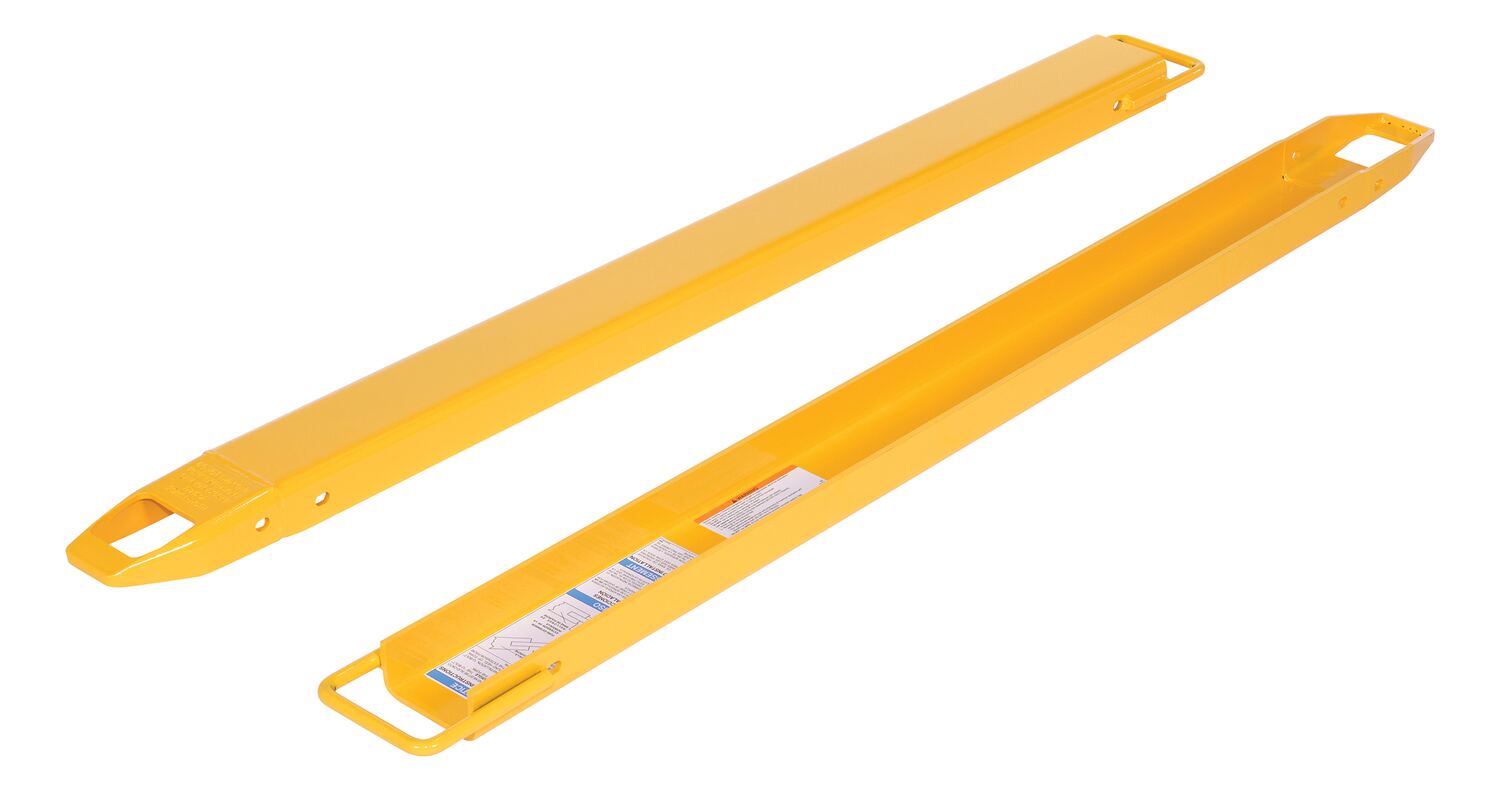

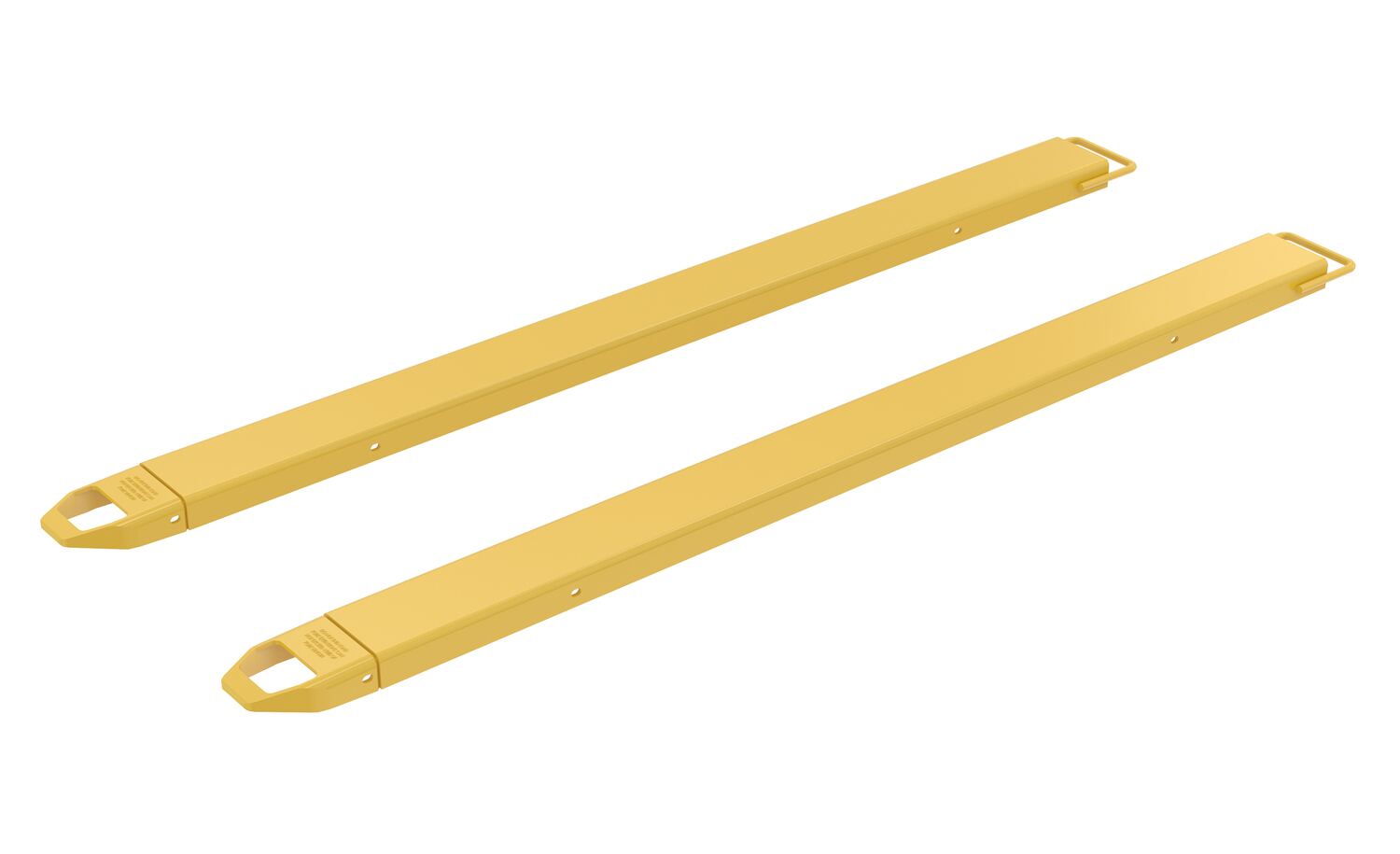

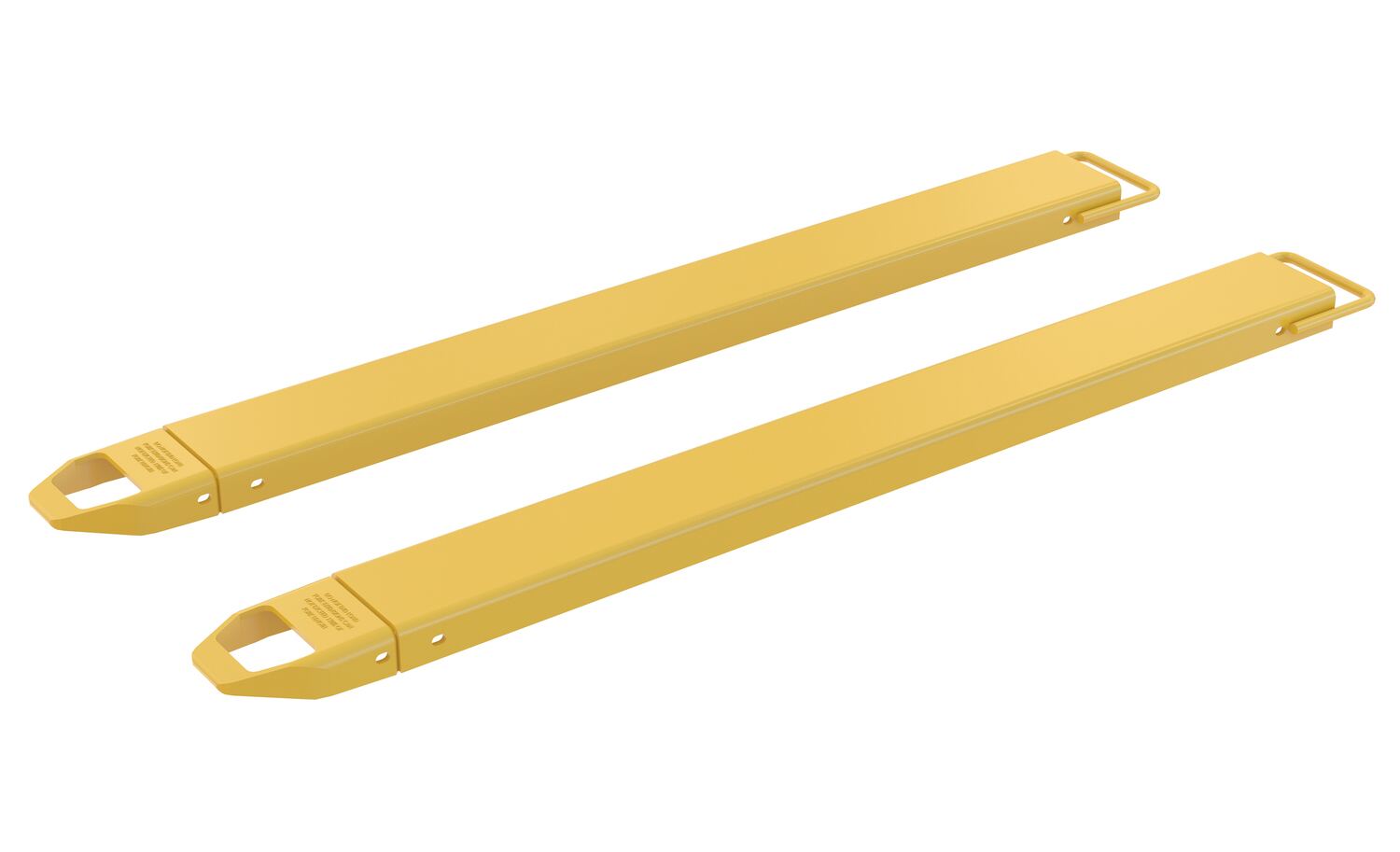

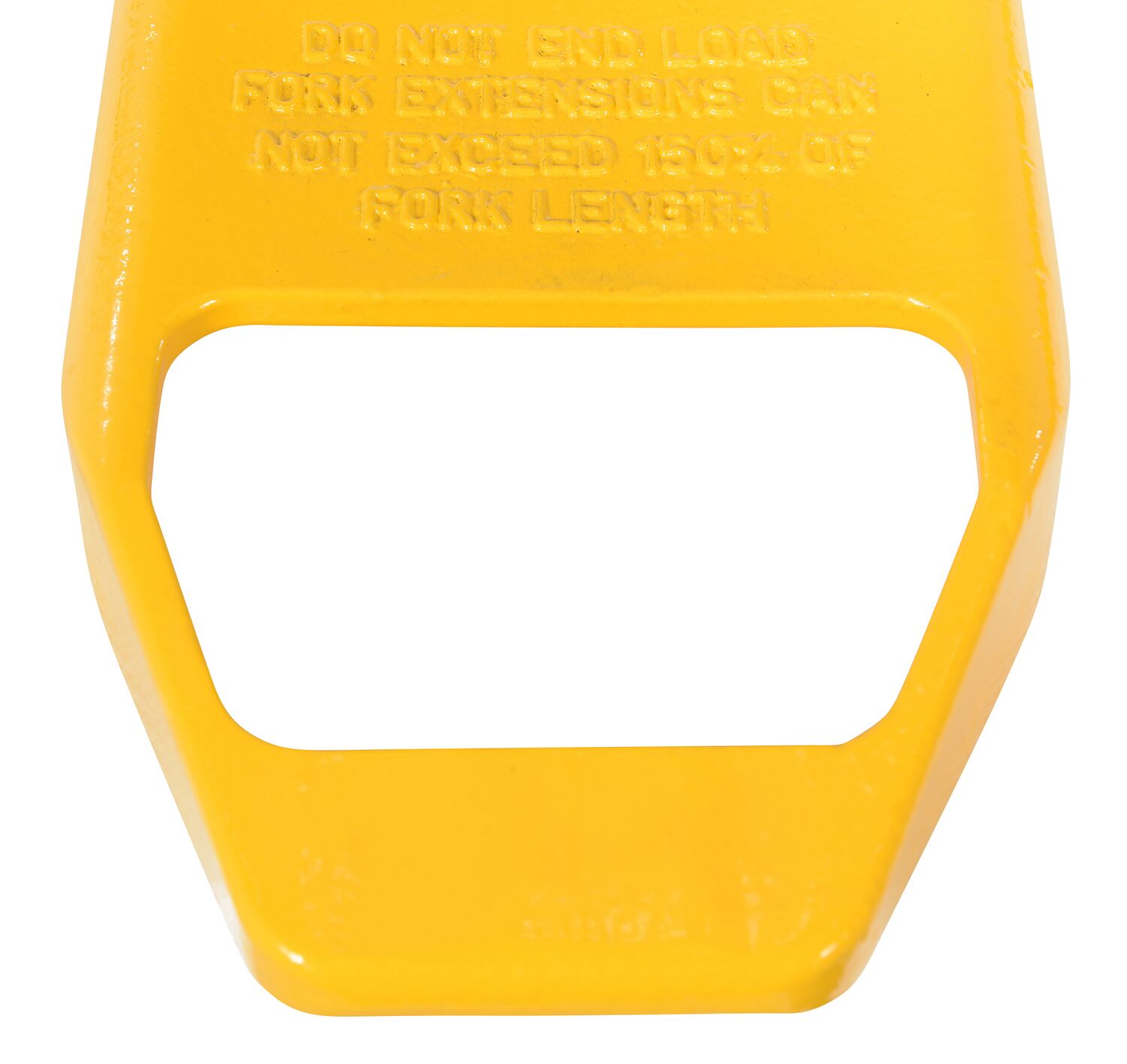

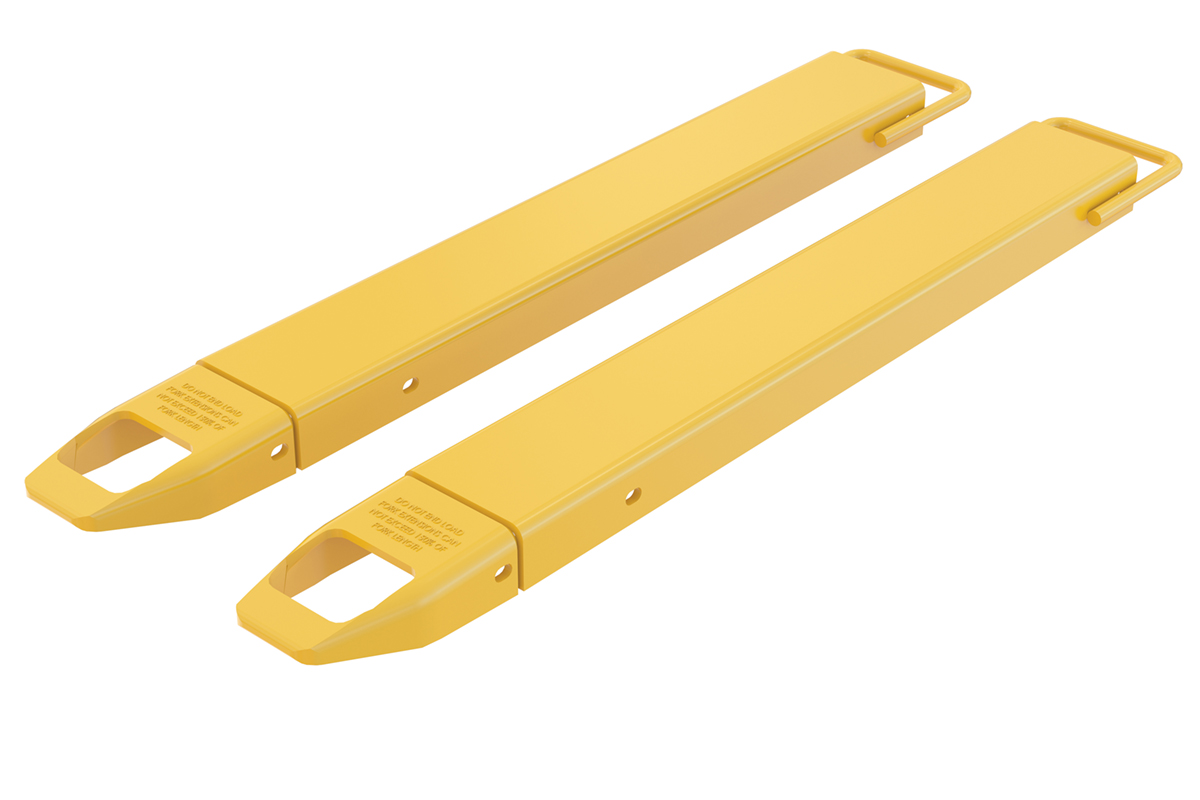

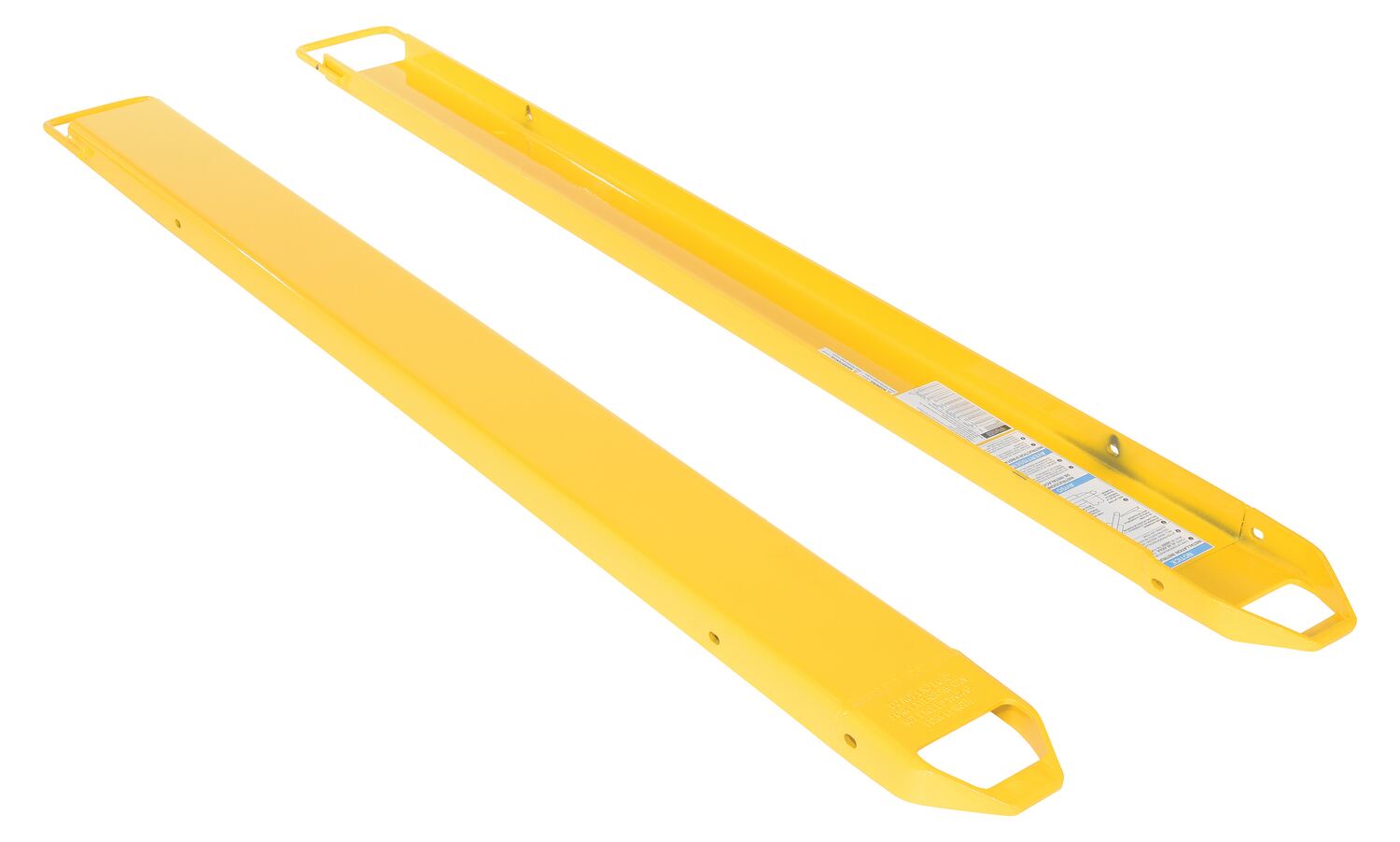

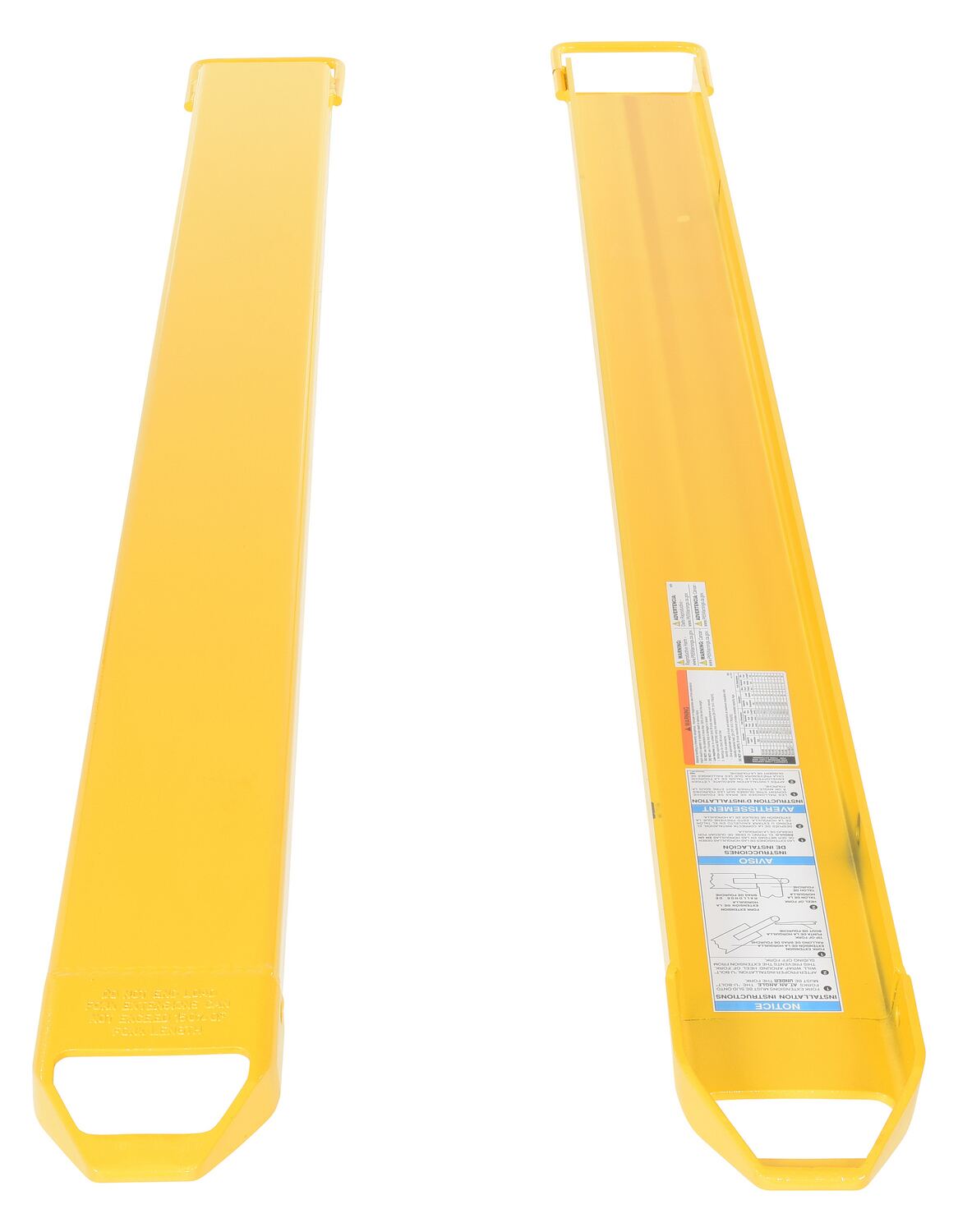

Provide the extra support needed to lift long or large objects with a fork truck. All model are designed of a welded steel construction. Models with prefix FE-4, FE-5 and FE-6 have cast steel tips, while models with prefix FE-7 and FE-8 have a tapered cut front end. Loop style prevents fork extensions from sliding off forks during use. Baked-in powder coat finish for added toughness. OSHA regulations require that extensions are no more than 150% of the existing fork length. (e.g. 48" existing forks, the fork extension should not exceed 72"). Maximum uniform capacity is 4,000 pounds evenly distributed per pair.
