Pin Style Fork Extensions| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

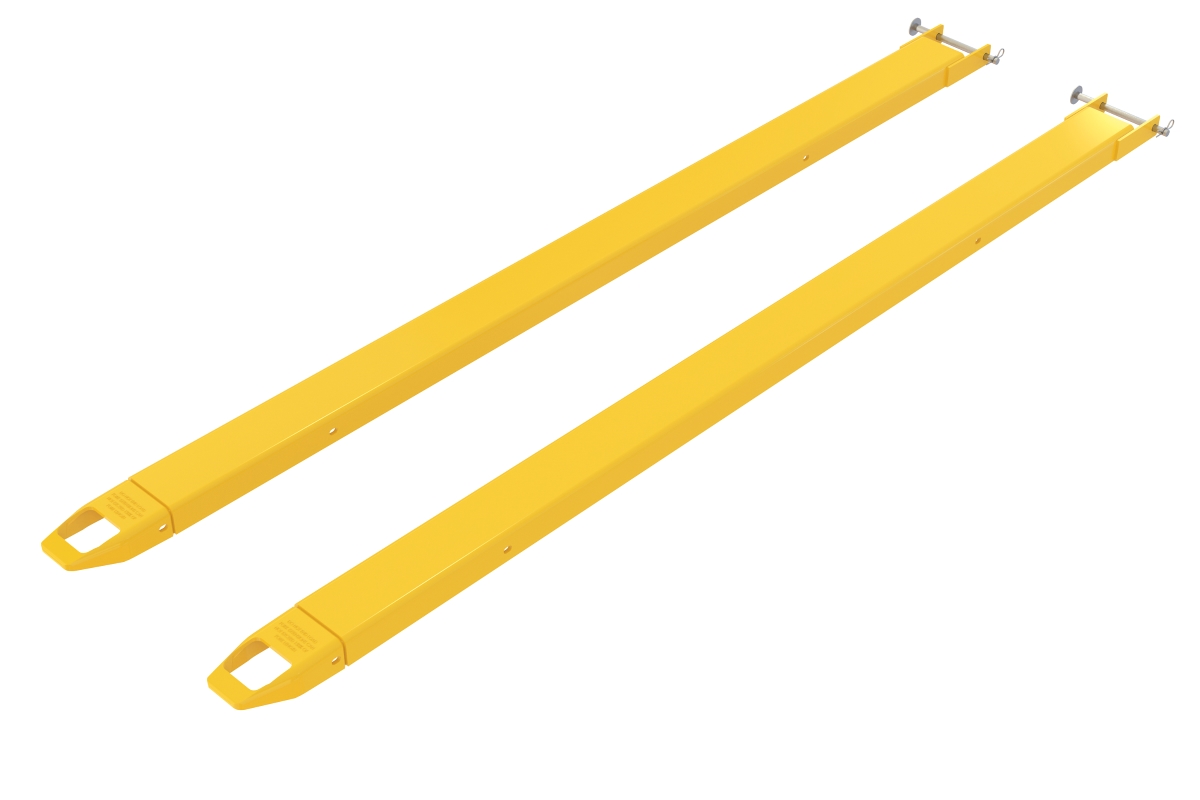

| FE-4-108-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 4 In. x 108 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 108 | 182 | ||

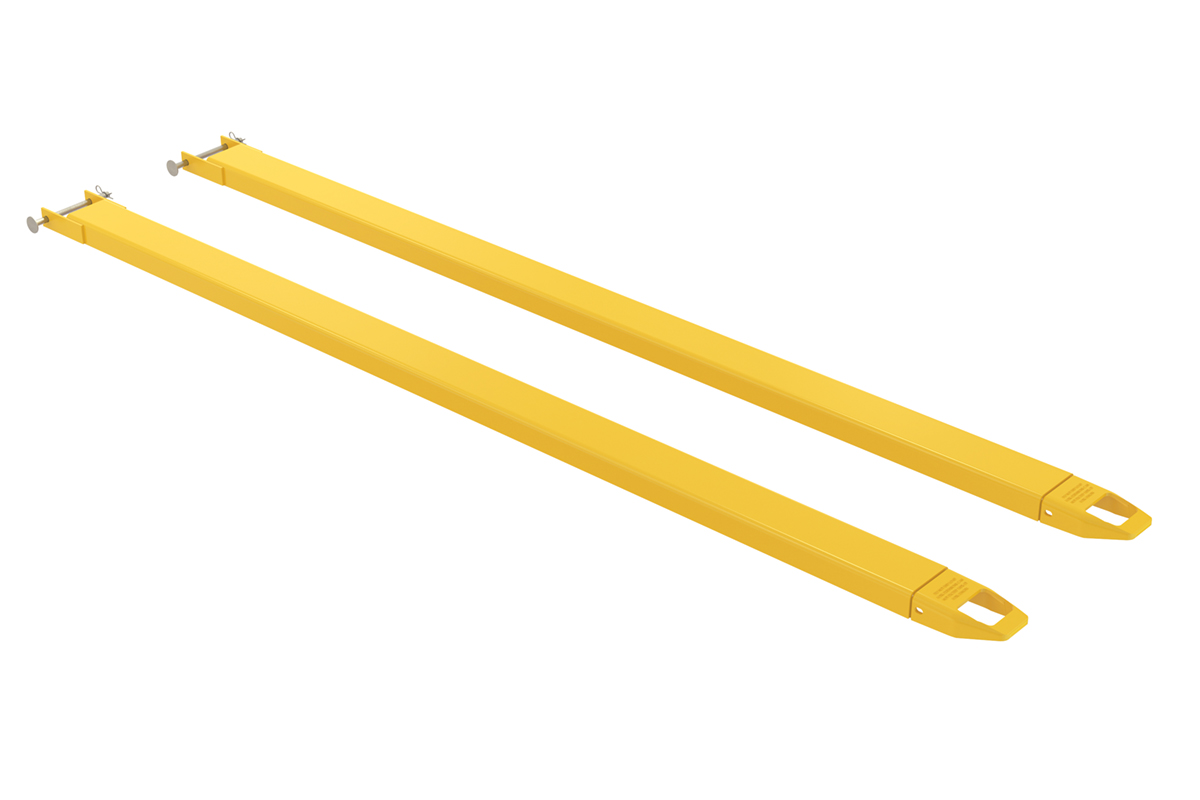

| FE-4-120-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 4 In. x 120 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 120 | 208 | ||

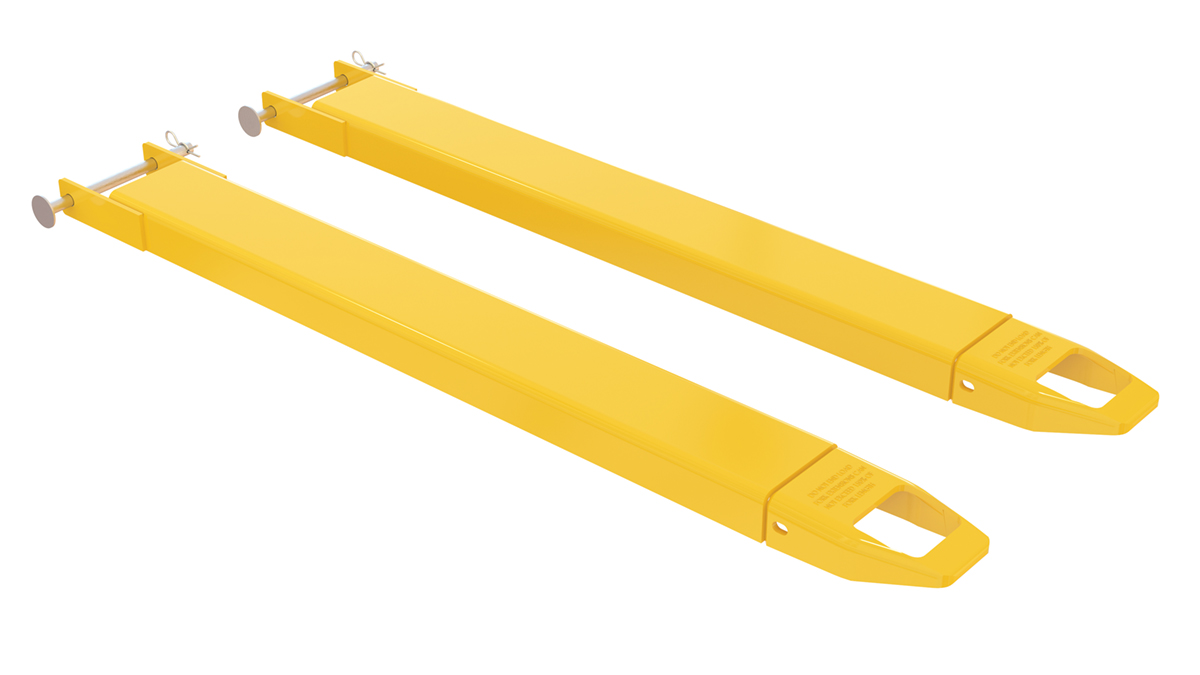

| FE-4-48-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 4 In. x 48 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 48 | 280 | ||
| FE-4-54-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 4 In. x 54 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 54 | 284 | ||

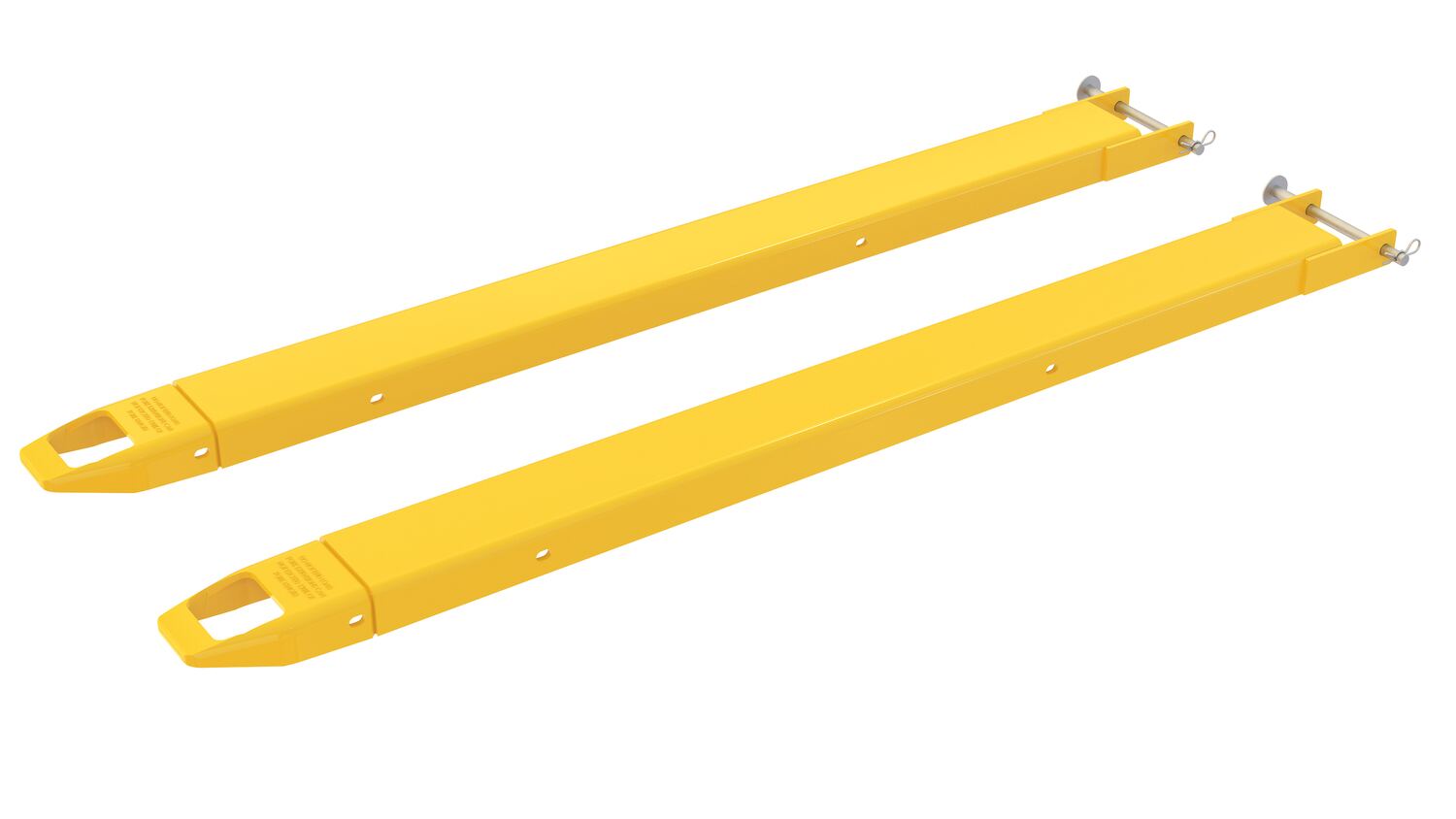

| FE-4-60-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 4 In. x 60 In. 4000 Lb. Capacity Yellow | Capacity Per Pair Evenly Distributed (lb.): 4000 Overall Width With Retaining Pin (in.): 9-1/2 | 294 | ||

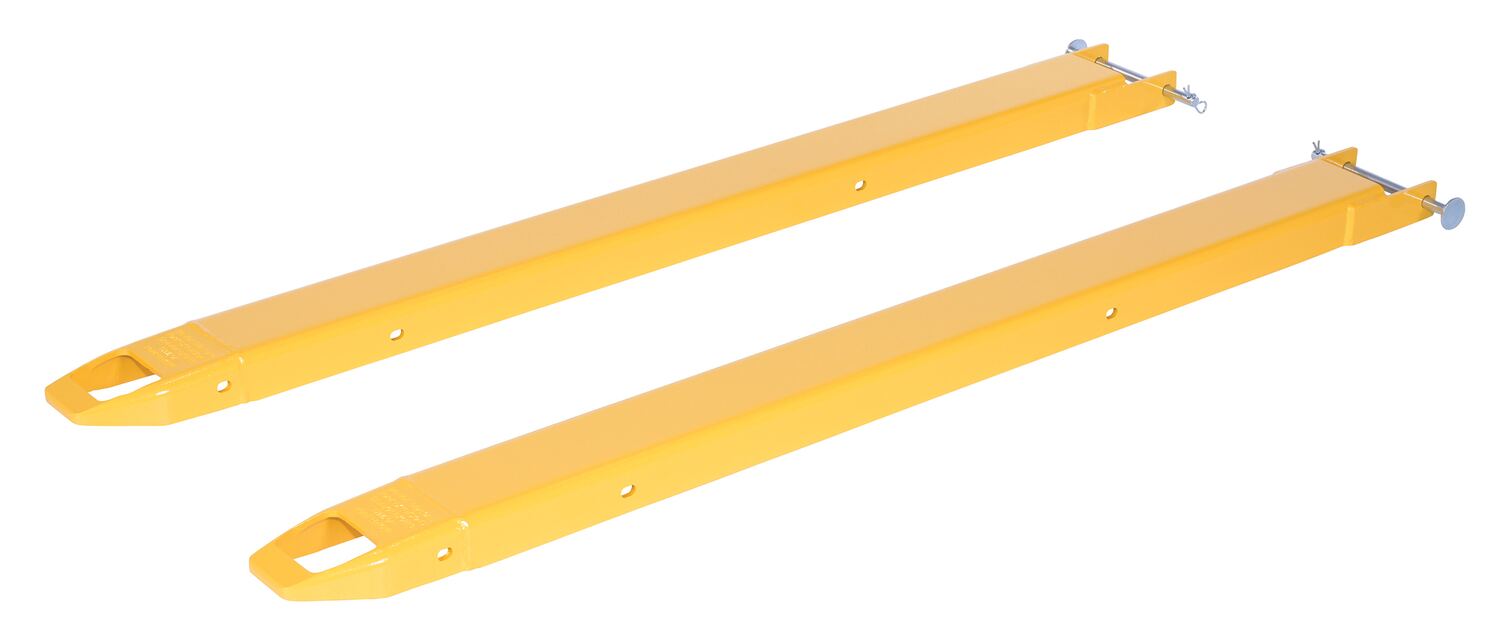

| FE-4-63-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 4 In. x 63 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 63 | 298 | ||
| FE-4-66-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 4 In. x 66 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 66 | 2102 | ||

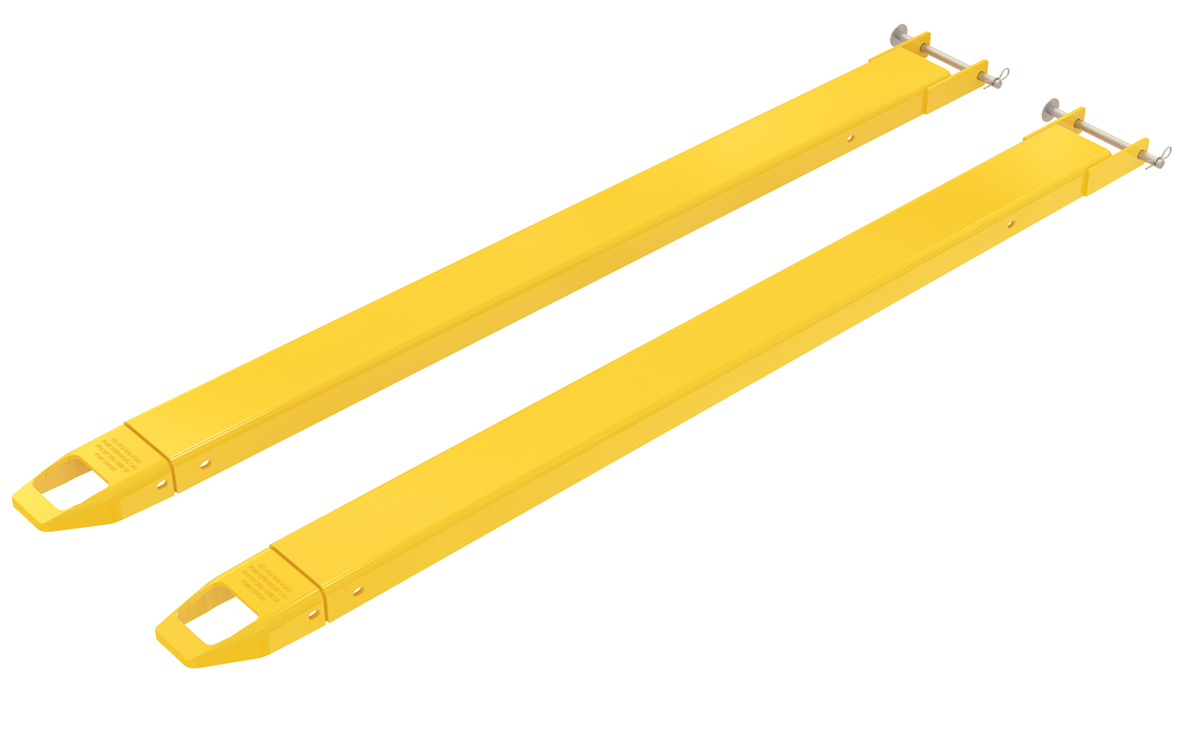

| FE-4-72-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 4 In. x 72 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 72 | 2114 | ||
| FE-4-84-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 4 In. x 84 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 84 | 154 | ||

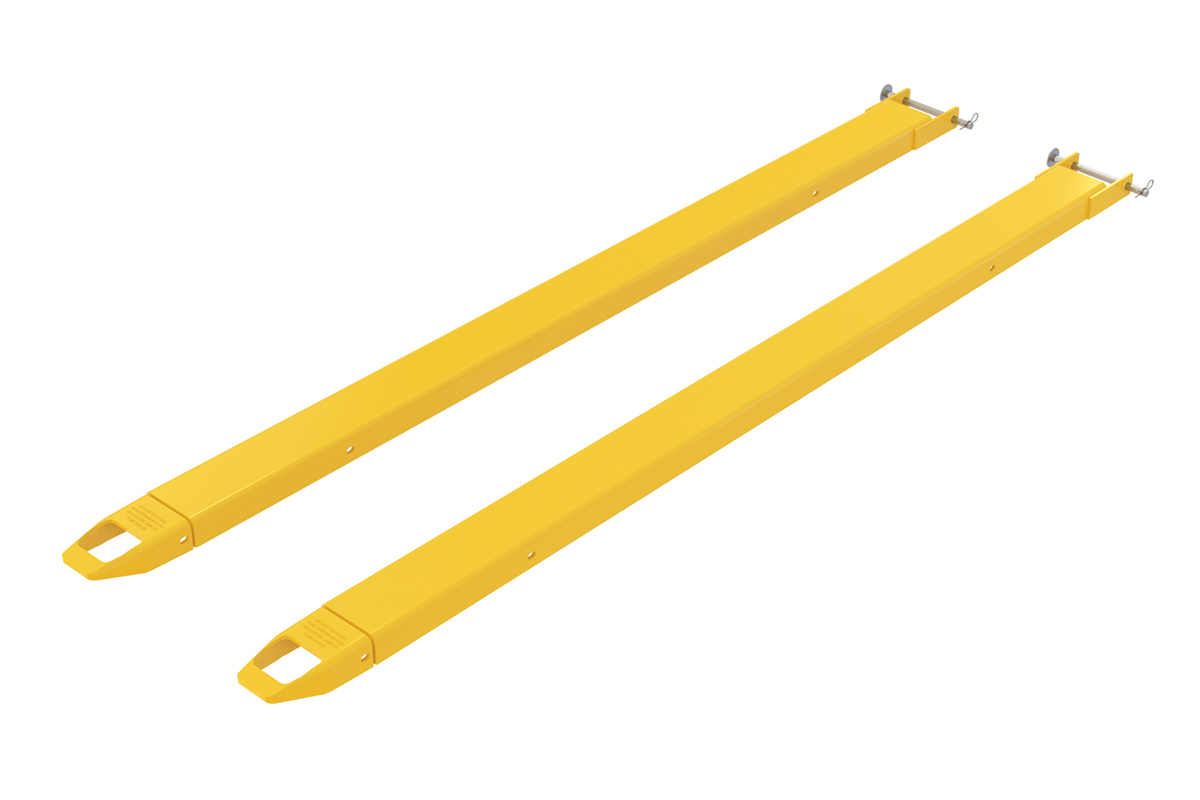

| FE-4-90-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 4 In. x 90 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 90 | 167 | ||

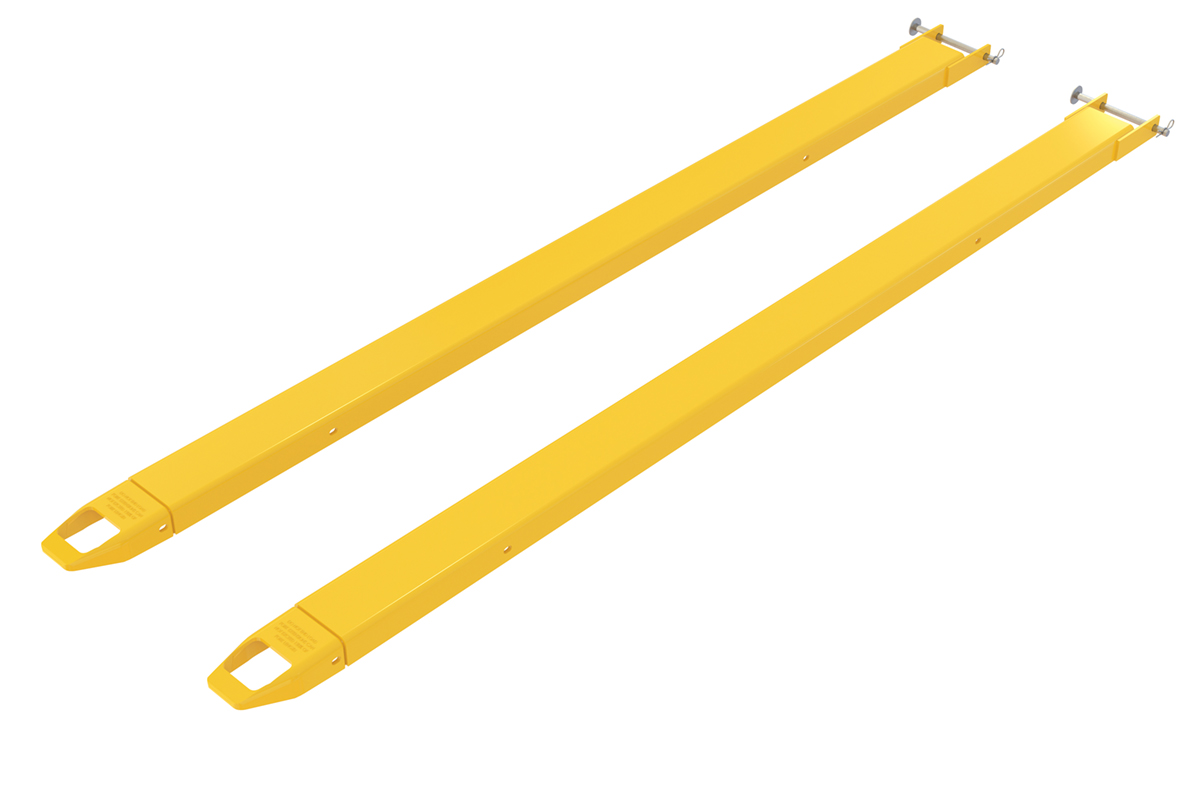

| FE-4-96-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 4 In. x 96 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 96 | 172 | ||

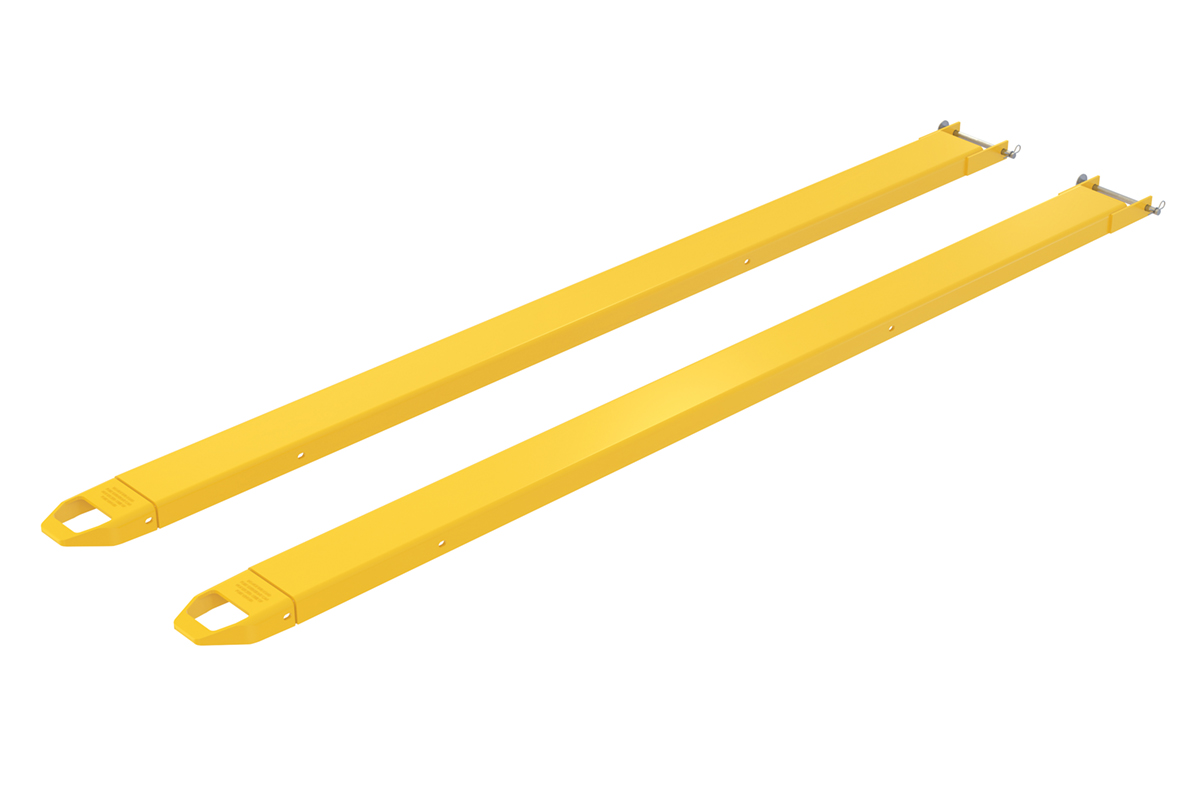

| FE-5-108-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 5 In. x 108 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 108 | 214 | ||

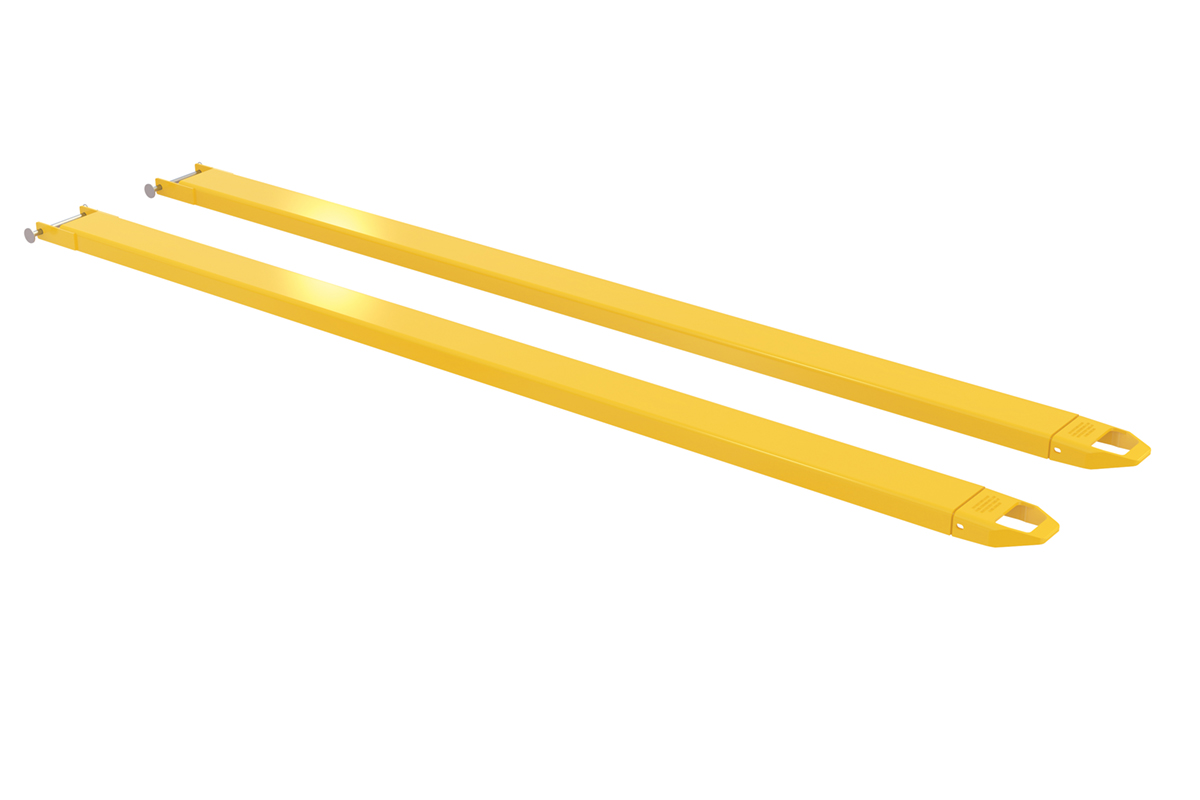

| FE-5-120-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 5 In. x 120 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 120 | 226 | ||
| FE-5-48-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 5 In. x 48 In. 4000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 48 | 286 | ||

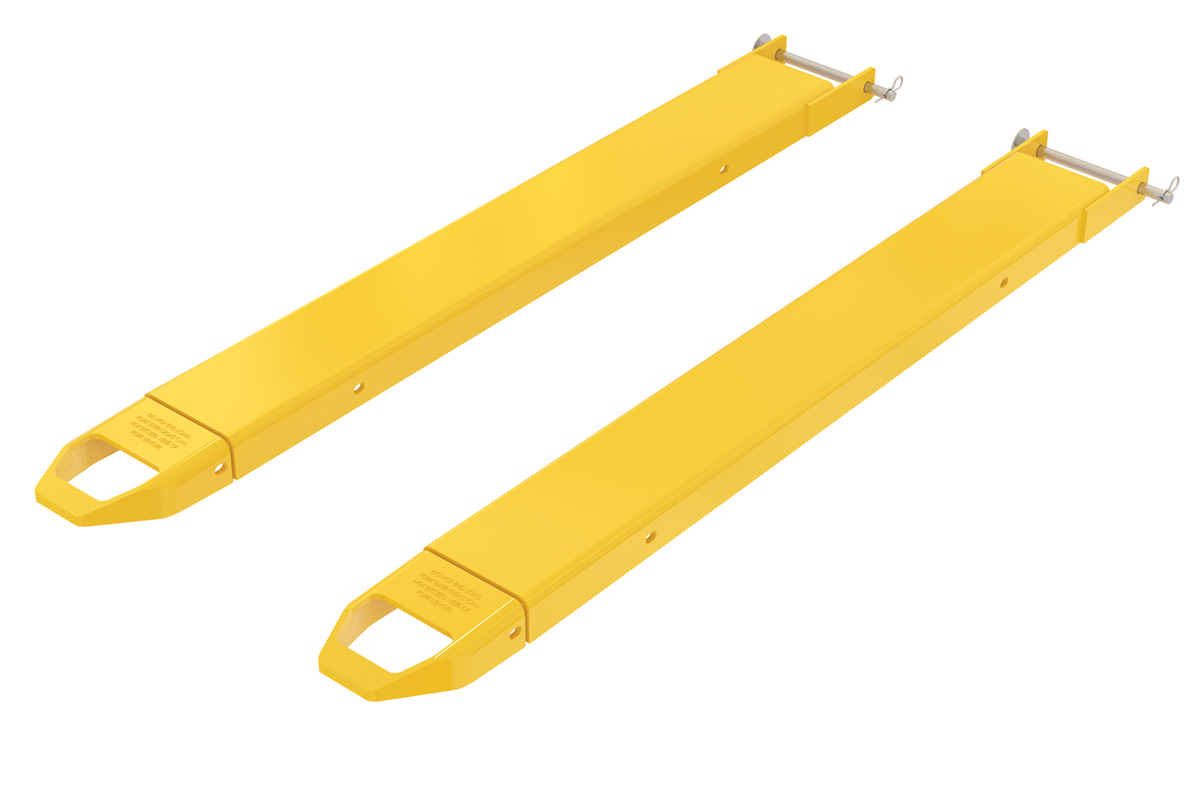

| FE-5-54-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 5 In. x 54 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 54 | 296 | ||

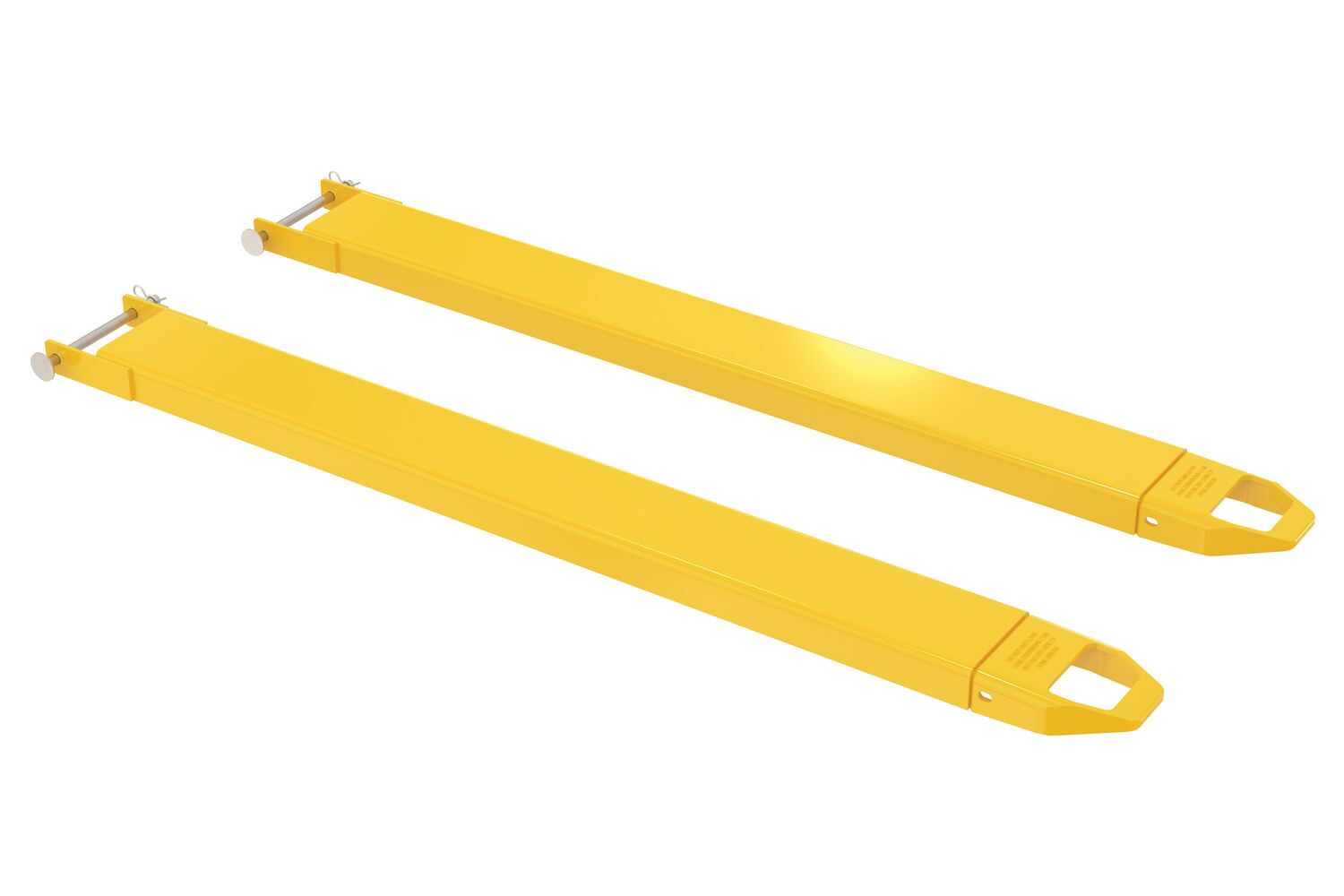

| FE-5-60-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 5 In. x 60 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4000 Usable Length (in.): 60 | 2106 | ||
| FE-5-63-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 5 In. x 63 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 63 | 2110 | ||
| FE-5-66-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 5 In. x 66 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 66 | 2116 | ||
| FE-5-72-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 5 In. x 72 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 72 | 2128 | ||

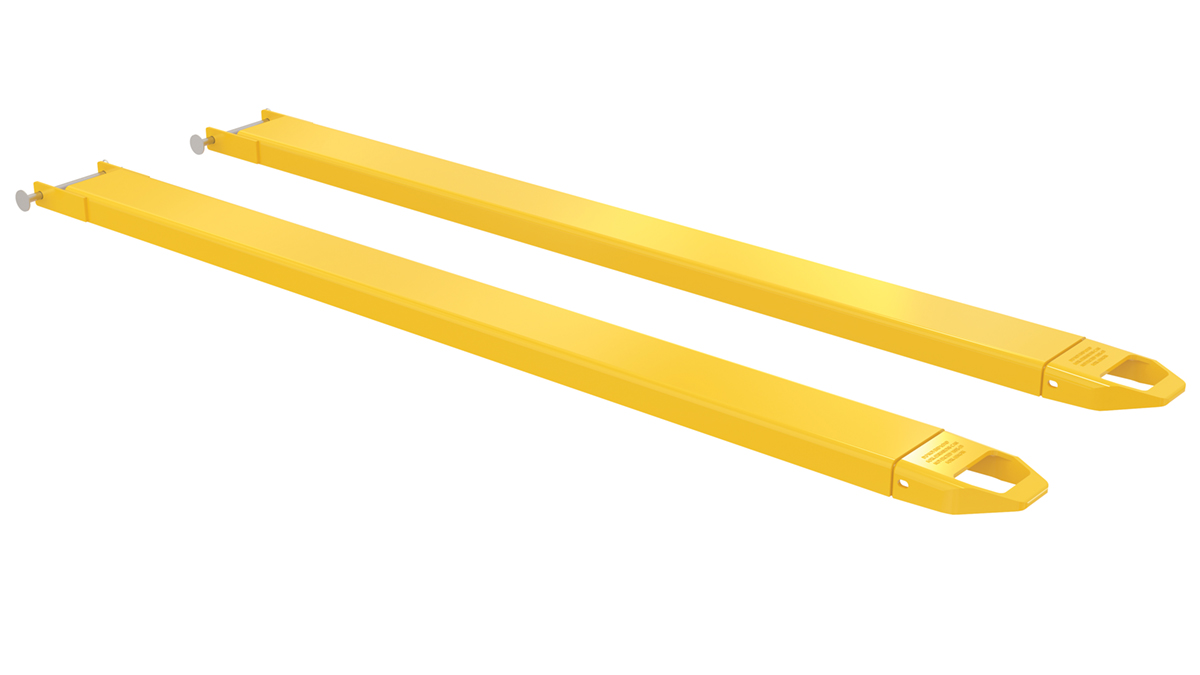

| FE-5-84-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 5 In. x 84 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 84 | 161 | ||
| FE-5-90-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 5 In. x 90 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 90 | 185 | ||
| FE-5-96-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 5 In. x 96 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 96 | 192 | ||
| FE-6-108-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 6 In. x 108 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 108 | 216 | ||
| FE-6-120-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 6 In. x 120 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 120 | 244 | ||
| FE-6-48-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 6 In. x 48 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 48 | 294 | ||
| FE-6-54-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 6 In. x 54 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 54 | 2104 | ||
| FE-6-60-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 6 In. x 60 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4000 Usable Length (in.): 60 | 2112 | ||
| FE-6-63-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 6 In. x 63 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 63 | 2116 | ||
| FE-6-66-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 6 In. x 66 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 66 | 2128 | ||

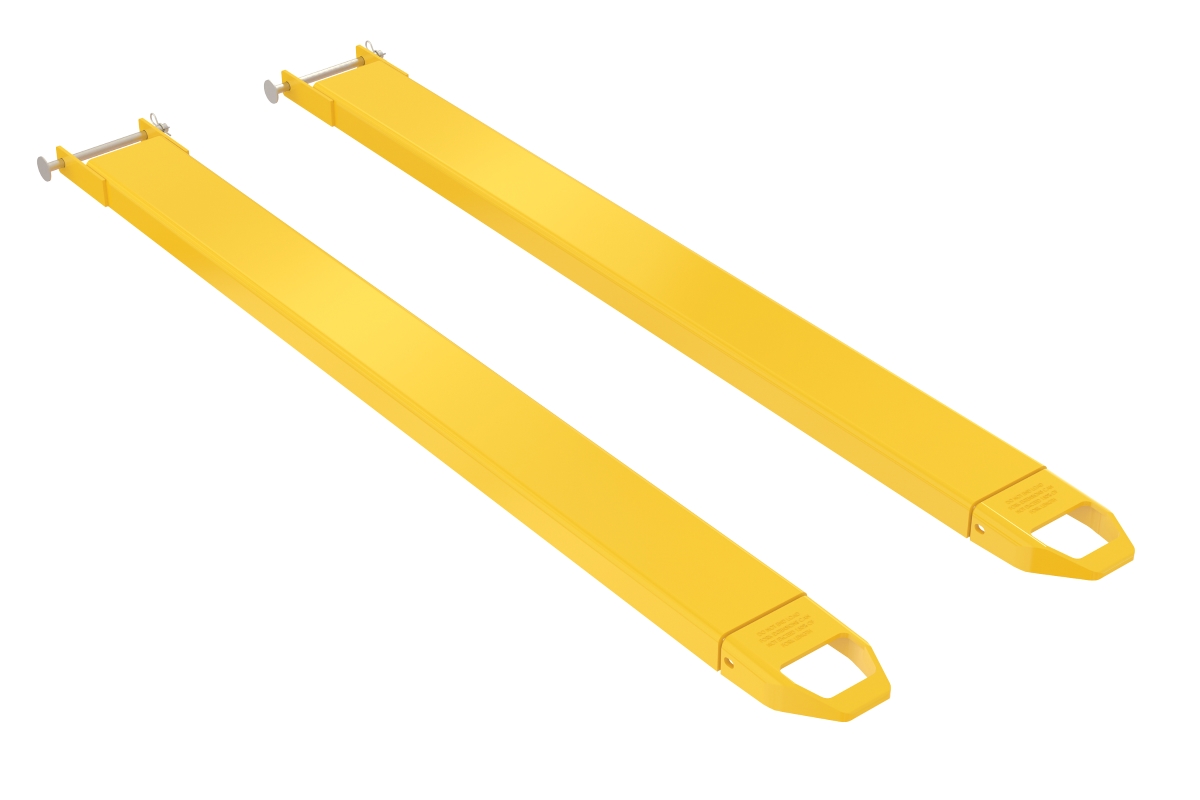

| FE-6-72-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 6 In. x 72 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 72 | 2134 | ||
| FE-6-84-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 6 In. x 84 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 84 | 174 | ||

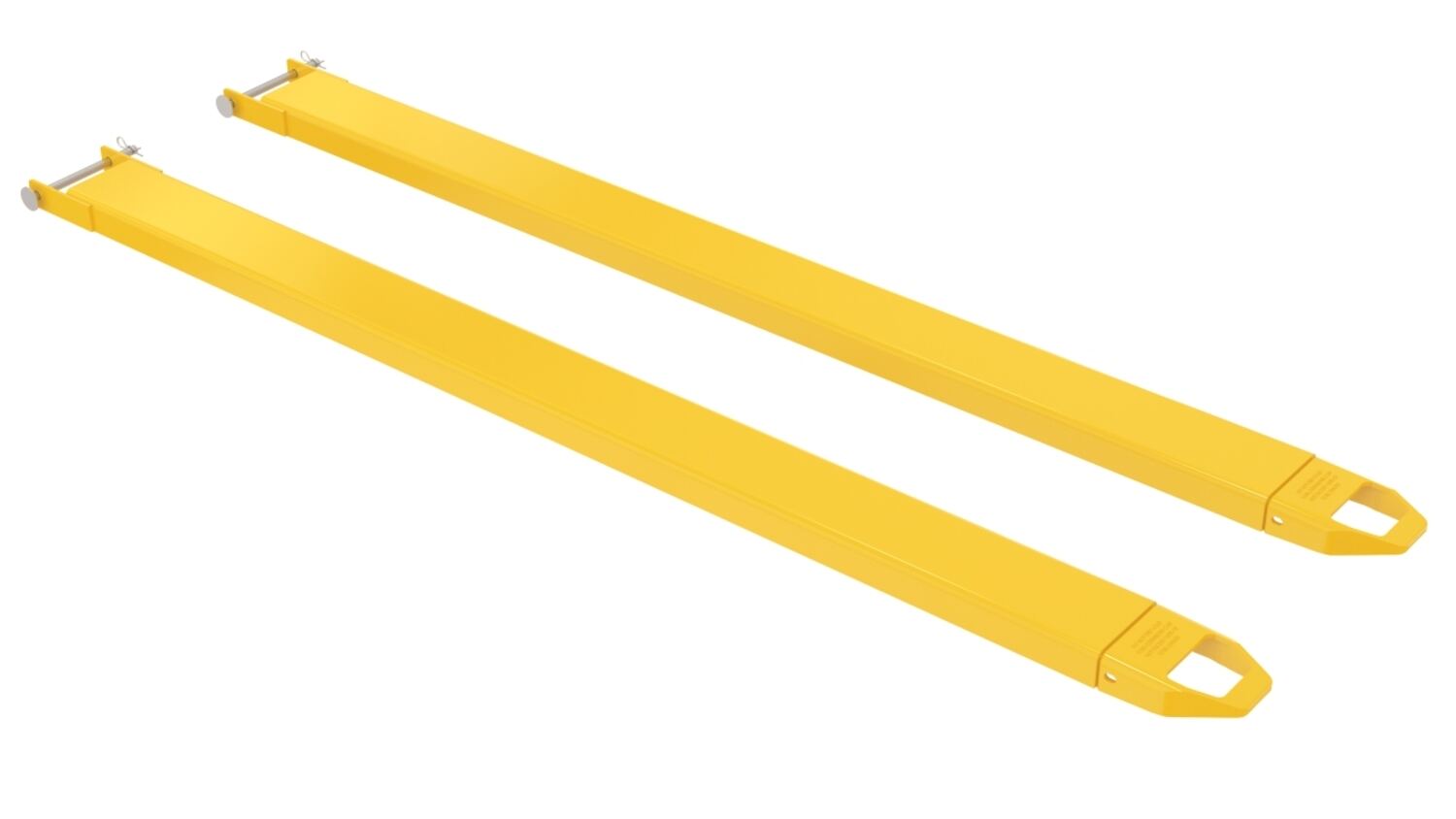

| FE-6-90-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 6 In. x 90 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 90 | 196 | ||
| FE-6-96-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 6 In. x 96 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 96 | 204 | ||

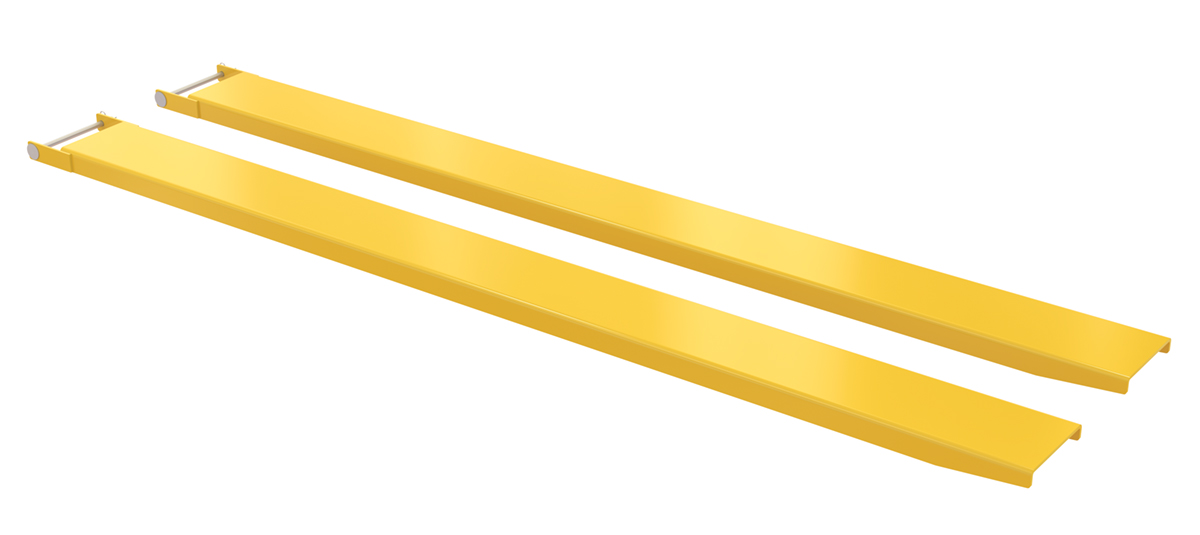

| FE-7-108-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 7 In. x 108 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 108 | 231 | ||

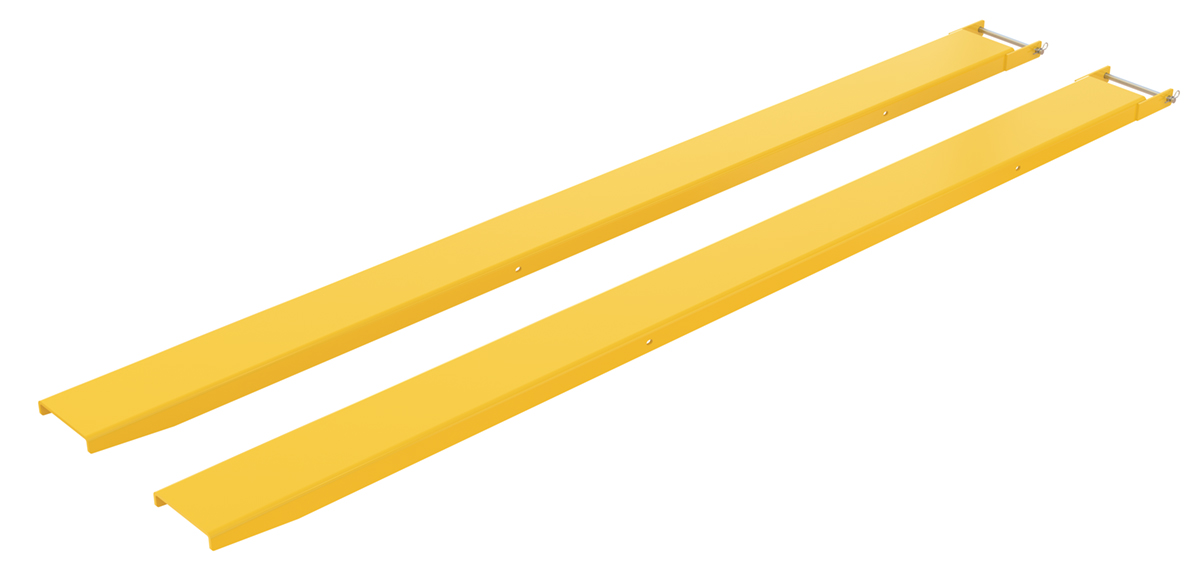

| FE-7-120-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 7 In. x 120 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 120 | 270 | ||
| FE-7-48-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 7 In. x 48 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 48 | 2104 | ||
| FE-7-54-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 7 In. x 54 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 54 | 2116 | ||
| FE-7-63-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 7 In. x 63 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 63 | 2134 | ||
| FE-7-66-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 7 In. x 66 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 66 | 2144 | ||

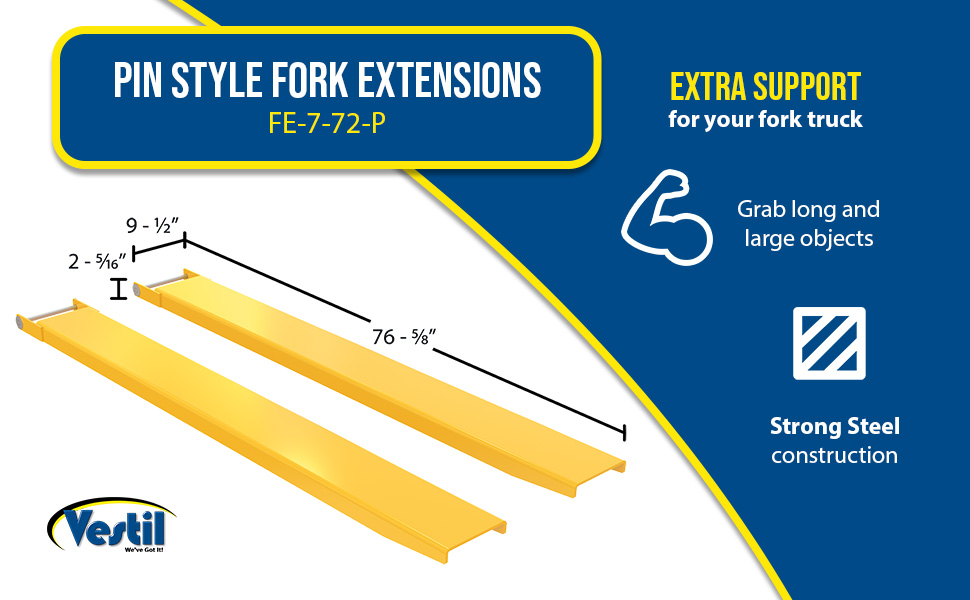

| FE-7-72-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 7 In. x 72 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 72 | 2156 | ||
| FE-7-84-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 7 In. x 84 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 84 | 192 | ||

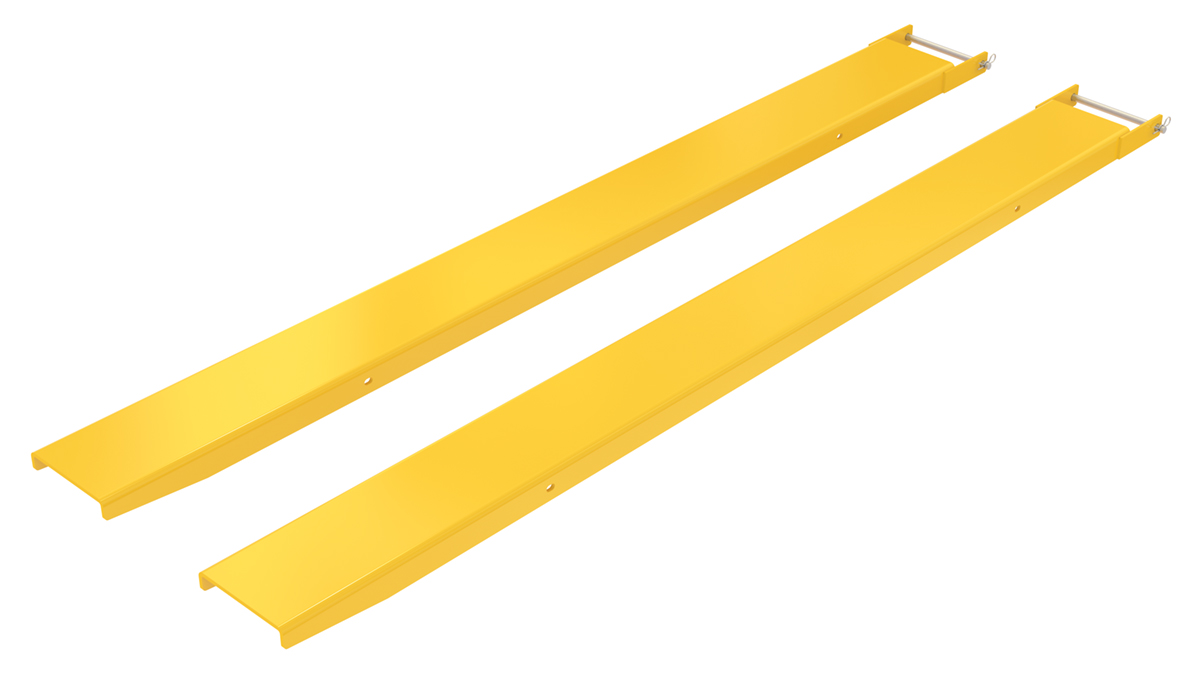

| FE-7-90-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 7 In. x 90 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 90 | 216 | ||
| FE-7-96-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 7 In. x 96 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 96 | 230 | ||
| FE-8-108-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 8 In. x 108 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 108 | 282 | ||

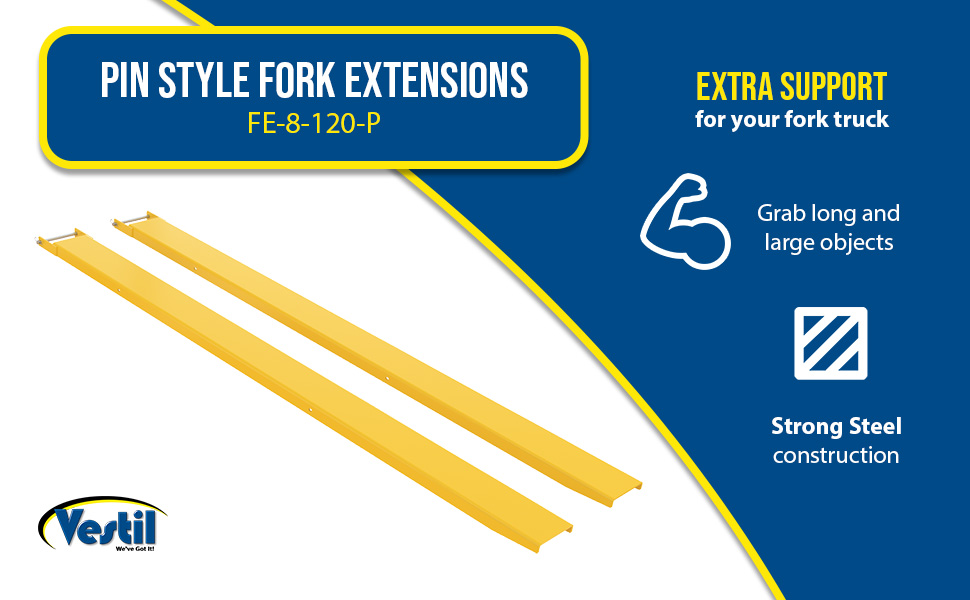

| FE-8-120-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 8 In. x 120 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 120 | 312 | ||

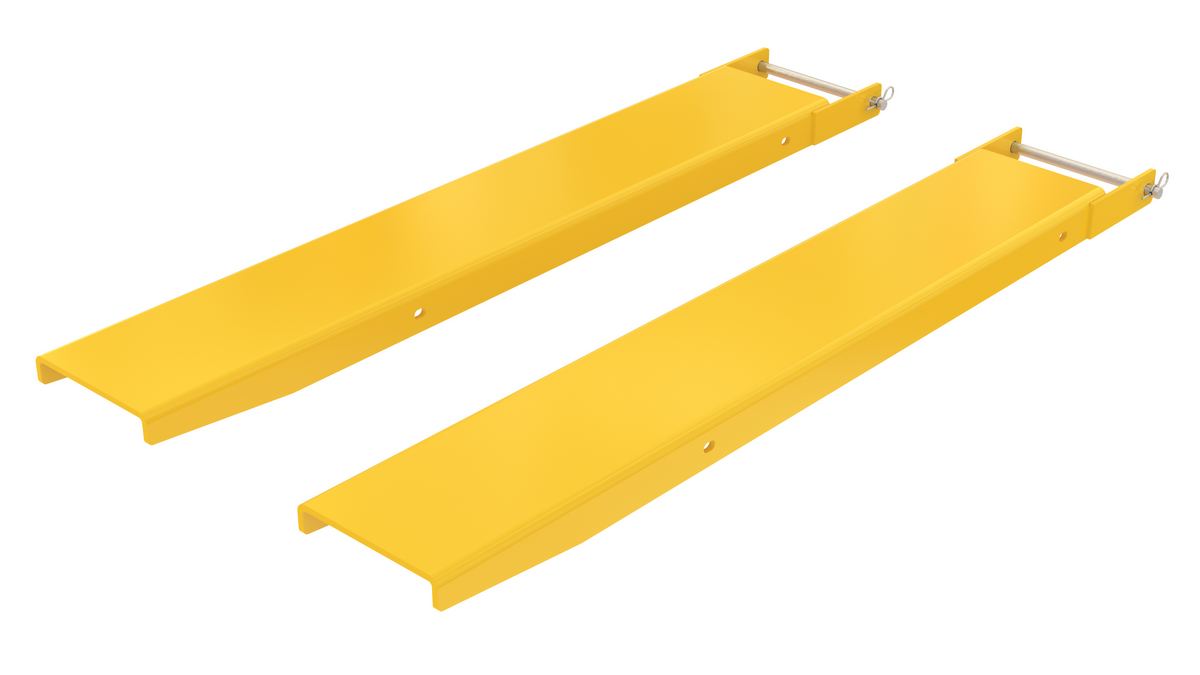

| FE-8-48-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 8 In. x 48 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 48 | 2114 | ||

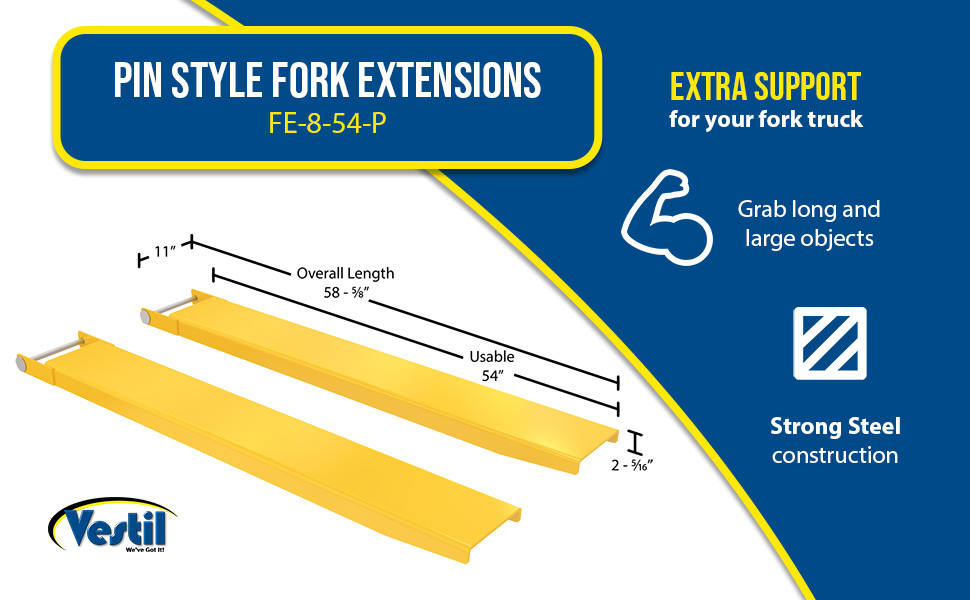

| FE-8-54-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 8 In. x 54 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 54 | 2124 | ||
| FE-8-63-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 8 In. x 63 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 63 | 2136 | ||
| FE-8-66-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 8 In. x 66 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 66 | 2156 | ||

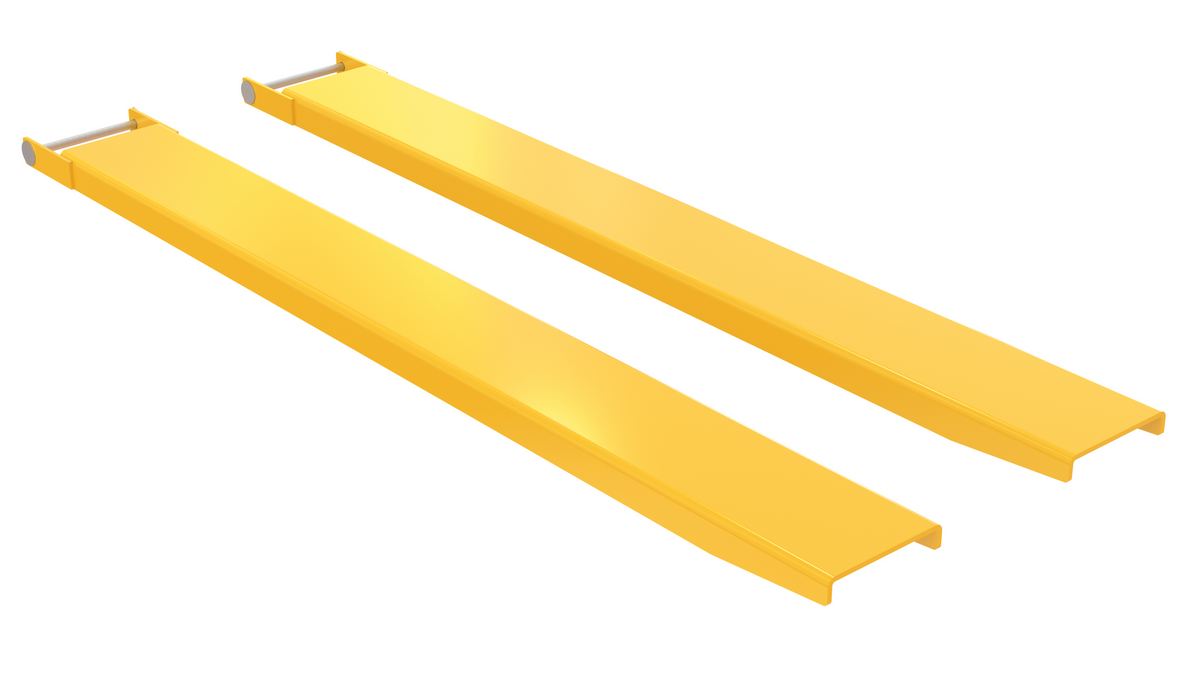

| FE-8-72-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 8 In. x 72 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 72 | 180 | ||
| FE-8-84-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 8 In. x 84 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 84 | 208 | ||
| FE-8-90-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 8 In. x 90 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 90 | 212 | ||
| FE-8-96-P |  | 90 Days Limited Warranty | Steel Pin Style Fork Extensions 8 In. x 96 In. 4,000 Lb. Capacity Yellow | Uniform Capacity Per Pair (lb.): 4,000 Usable Length (in.): 96 | 268 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
A: Standard, the fork extensions are sold in pairs. We do offer individual fork extensions with -EACH as the suffix.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pin Style Fork Extensions |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

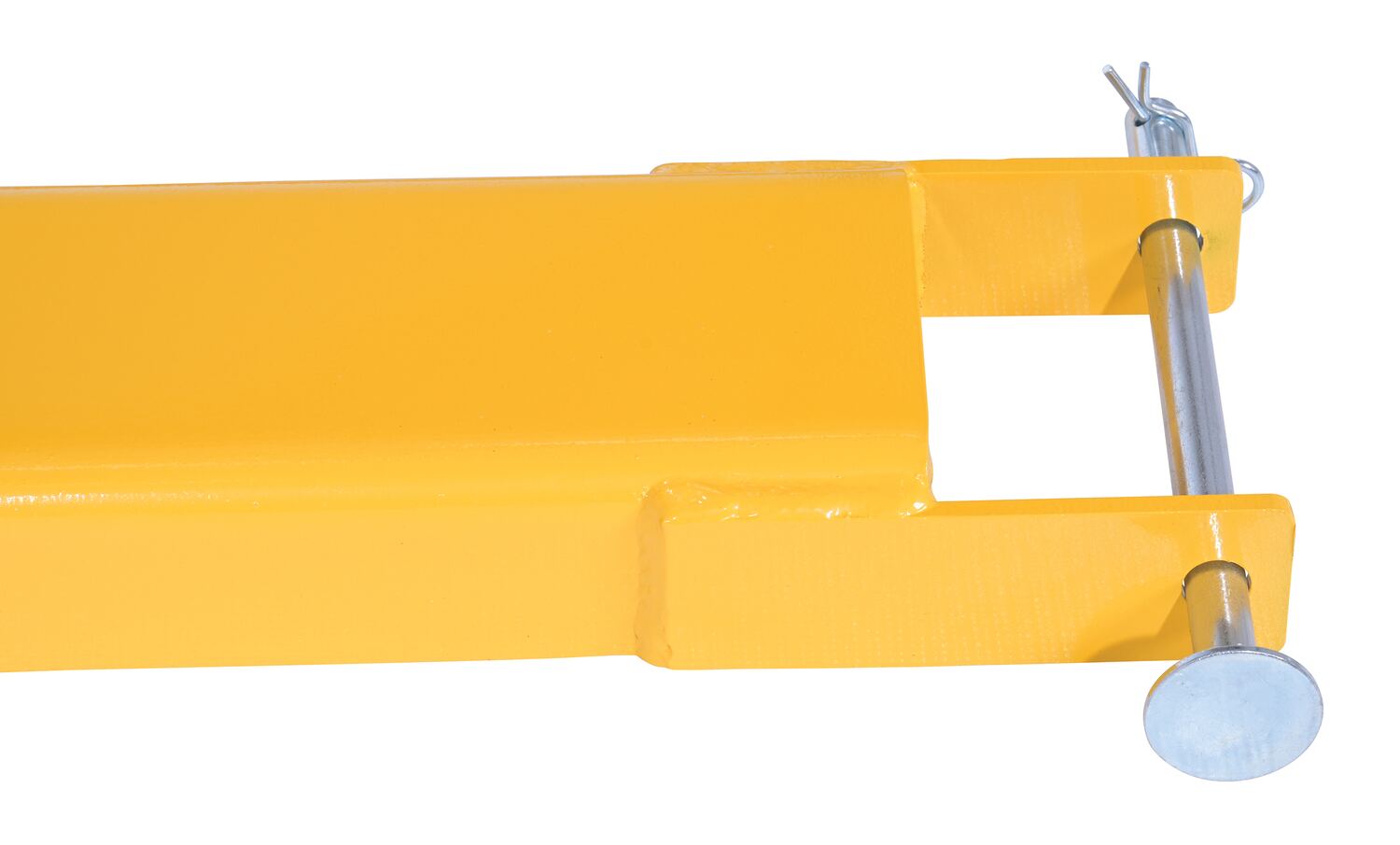

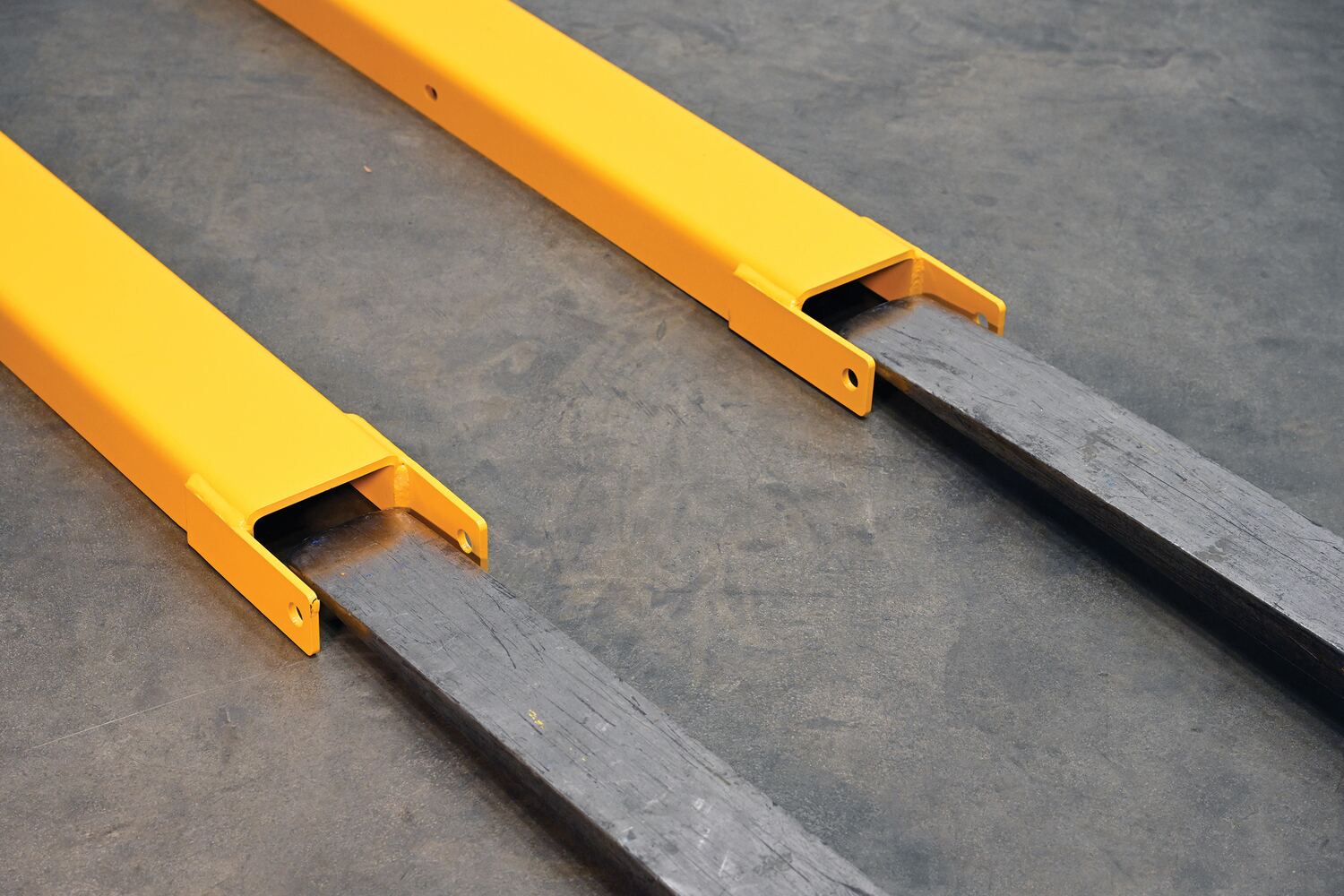

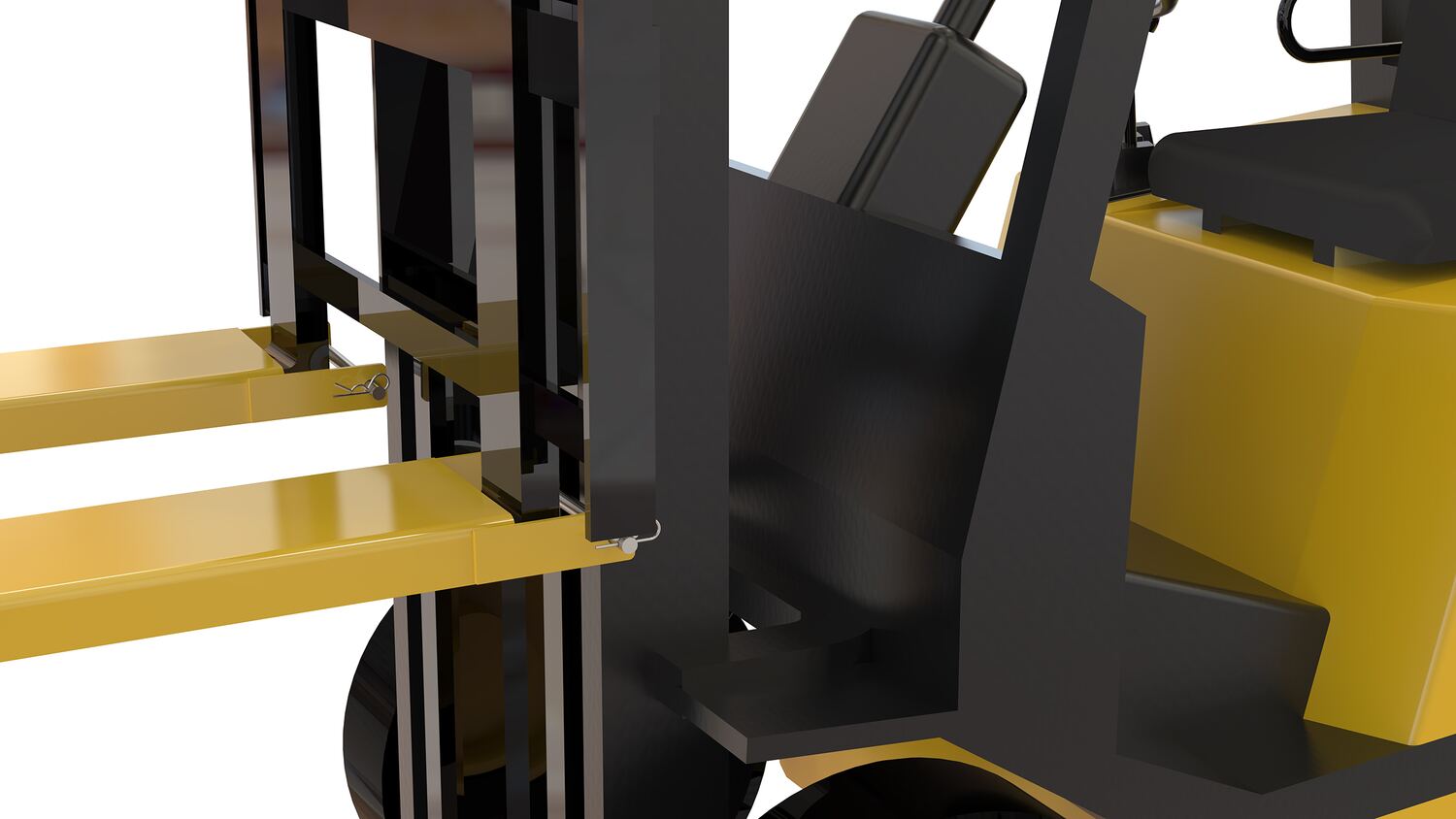

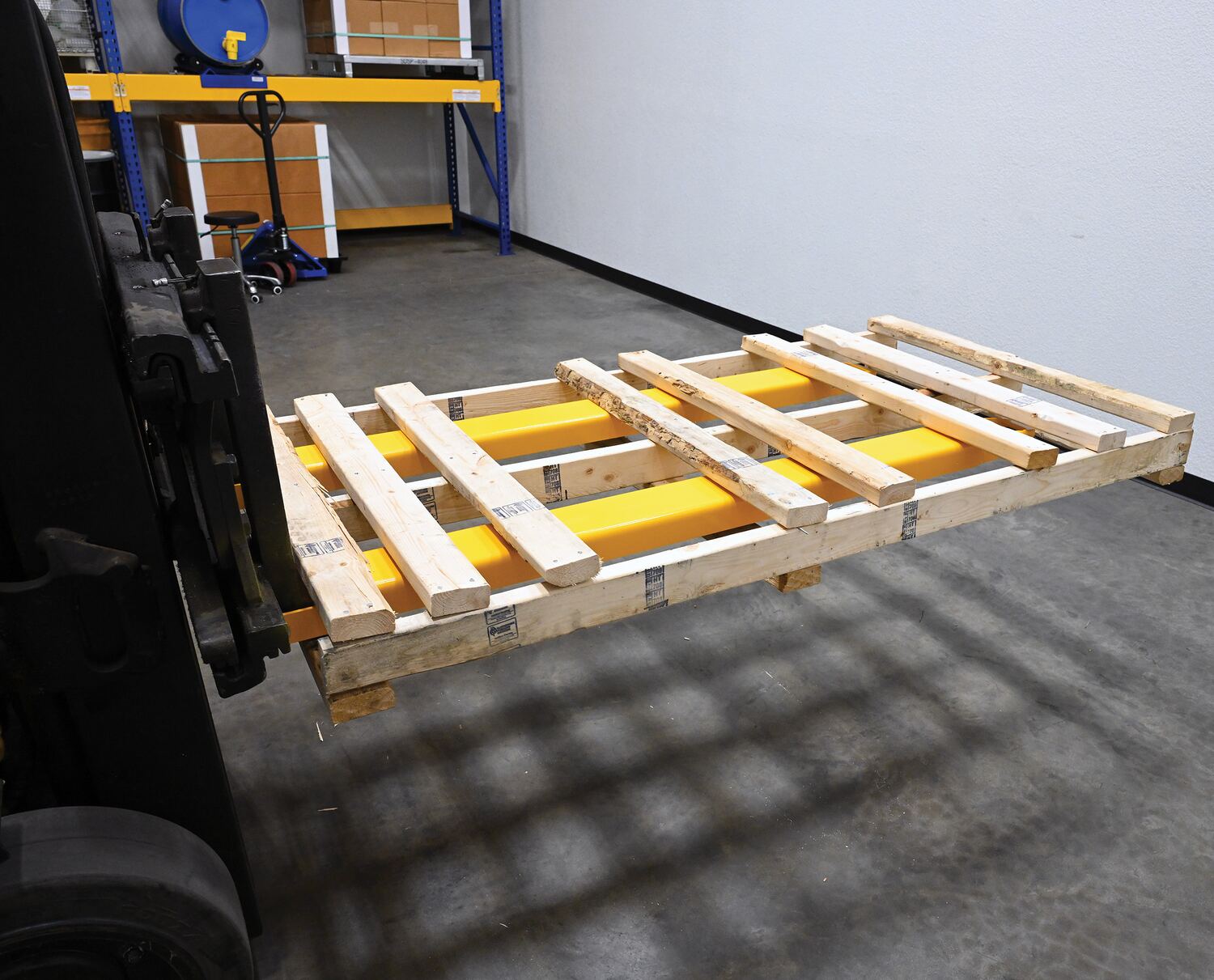

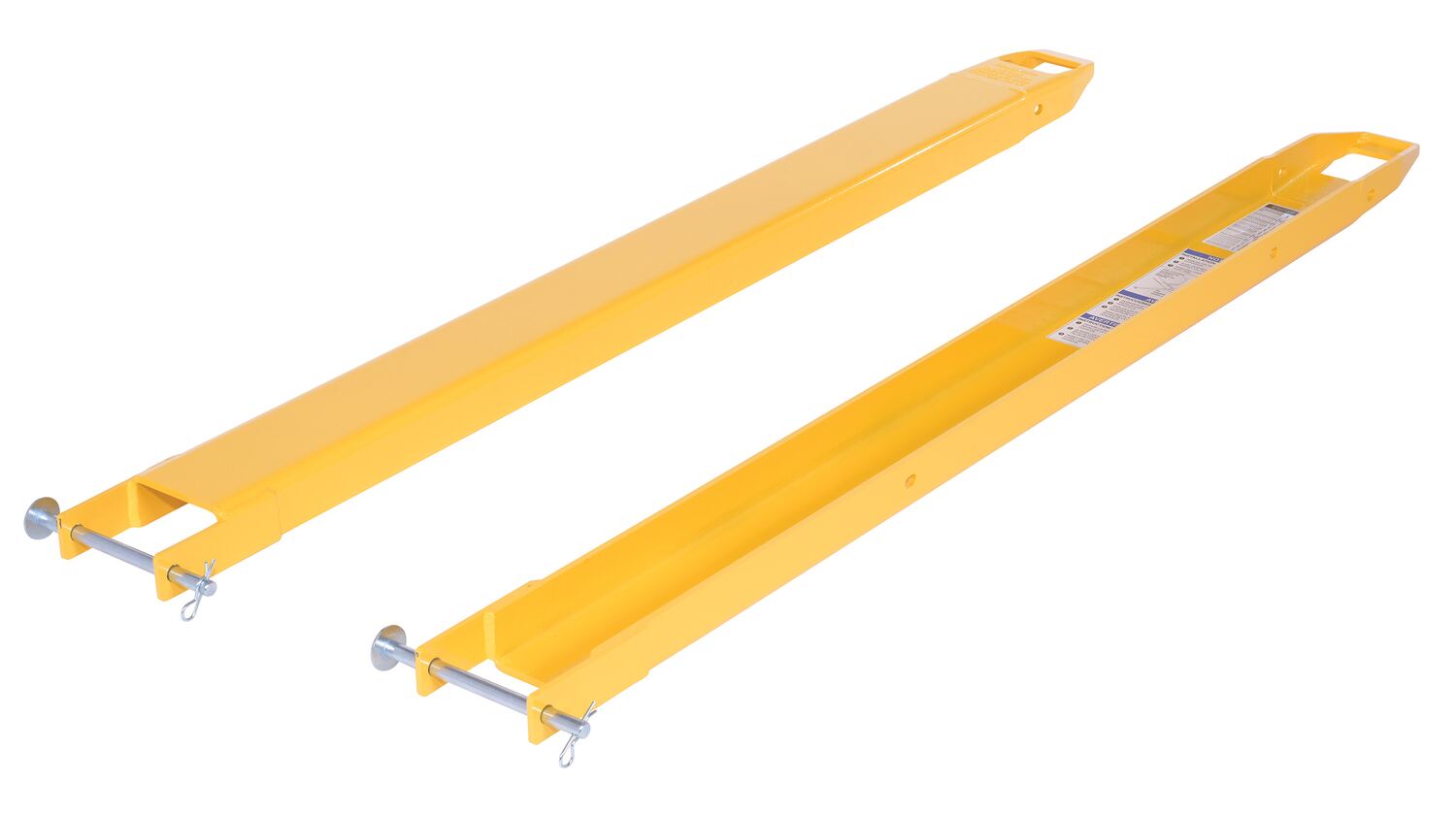

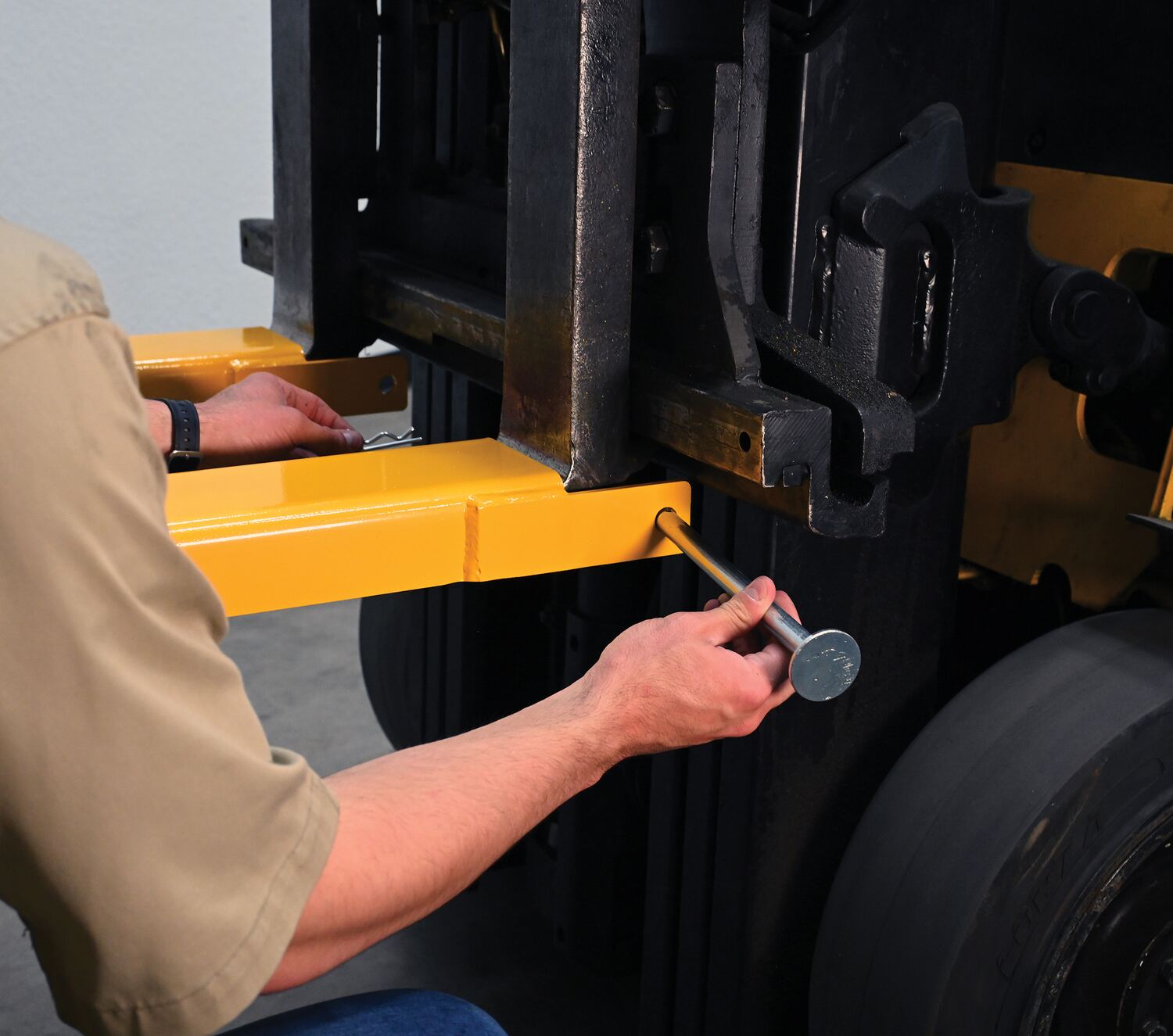

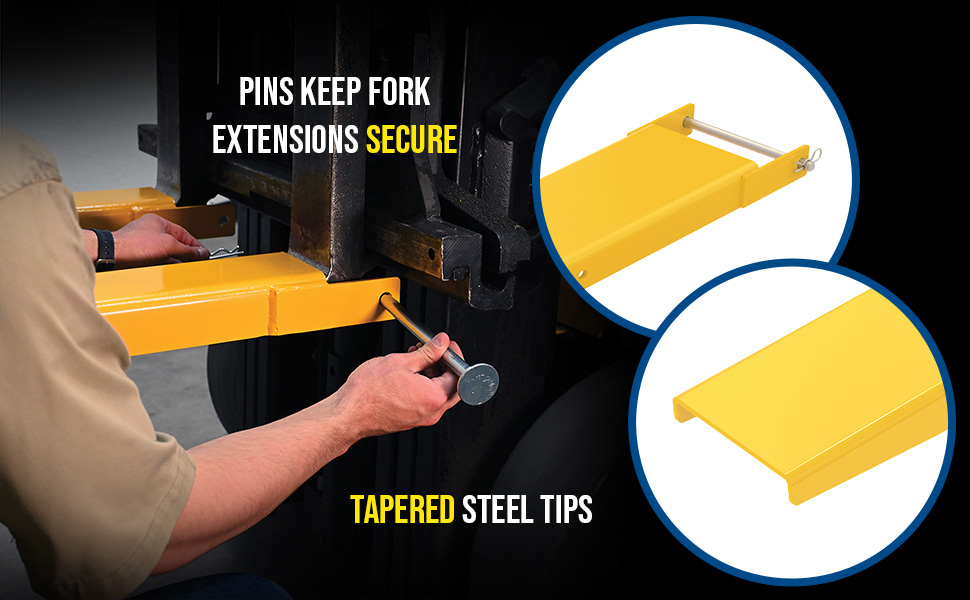

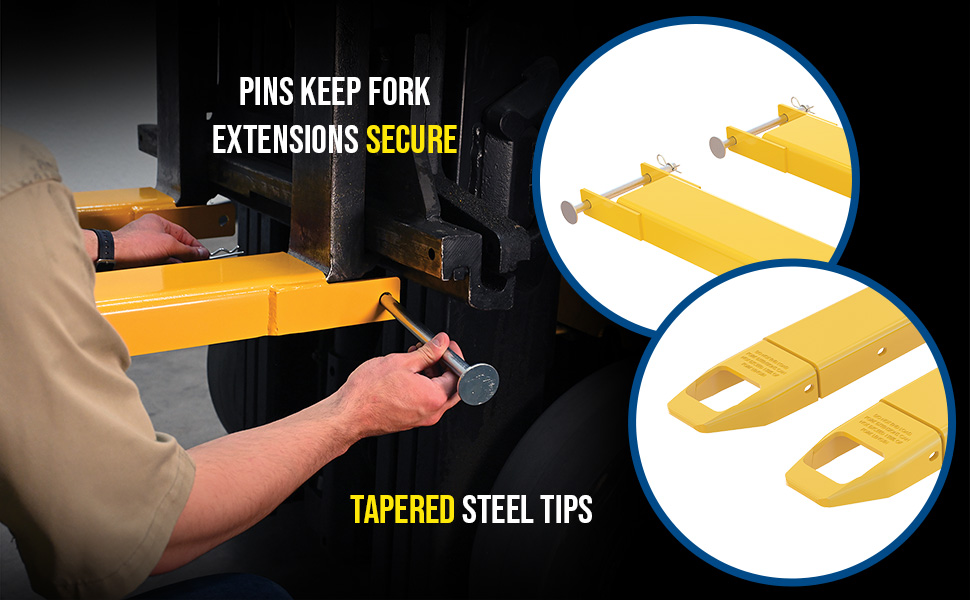

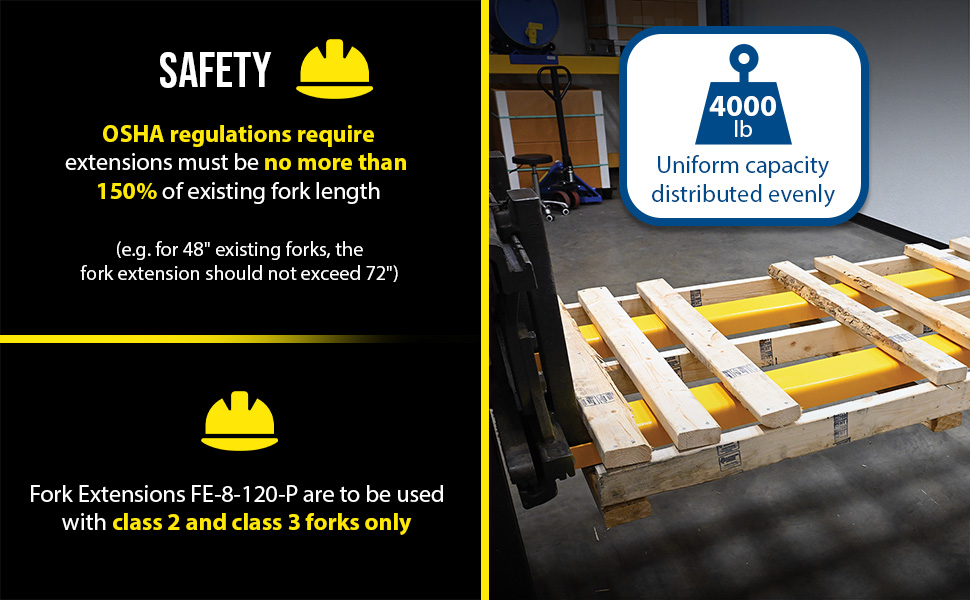

HOW TO USE / INSTALLATION Remove pin and lay extension over fork or drive fork truck into the extension. Re-insert the pin behind the heel of the fork to secure extension. To be used with class 2 and class 3 forks only. Check Out Vestil's Other Fork Extension Styles:
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Our Customer Service Associates Are Here To Assist You! |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

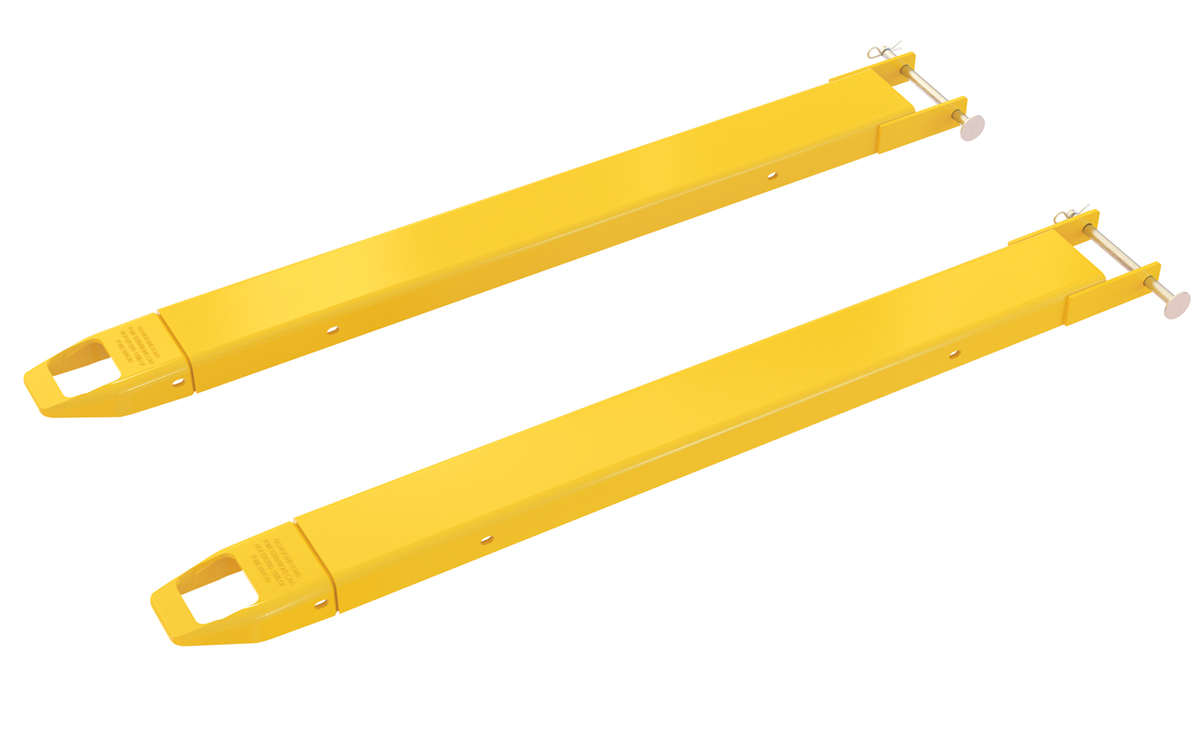

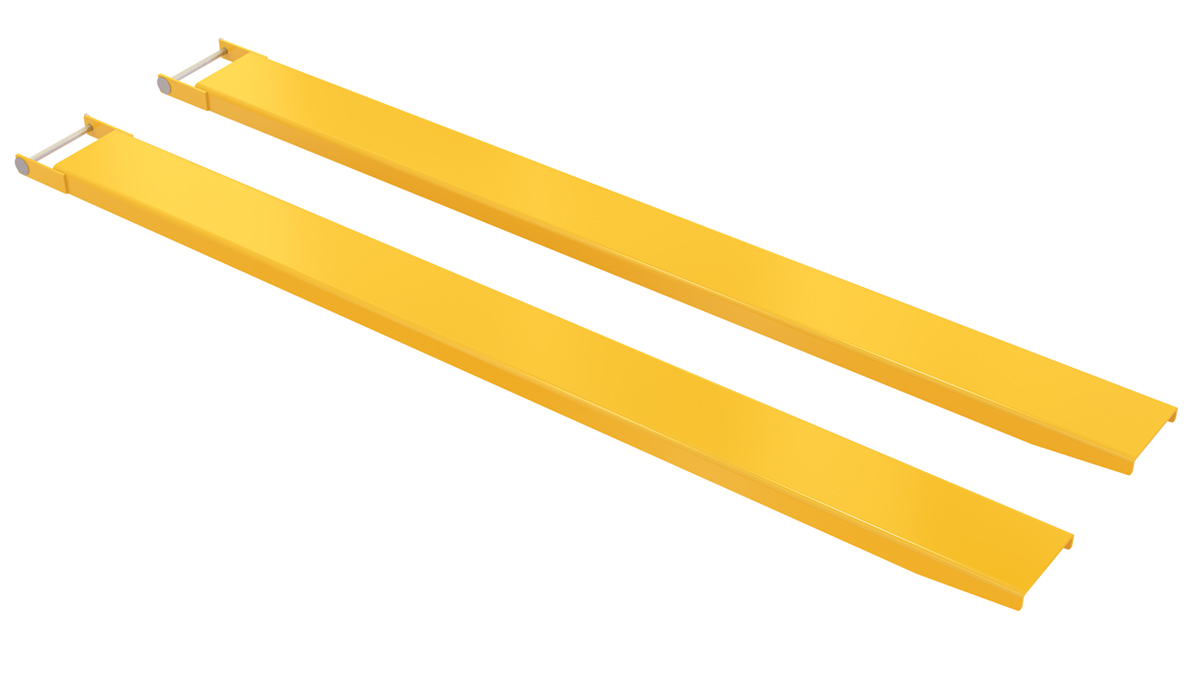

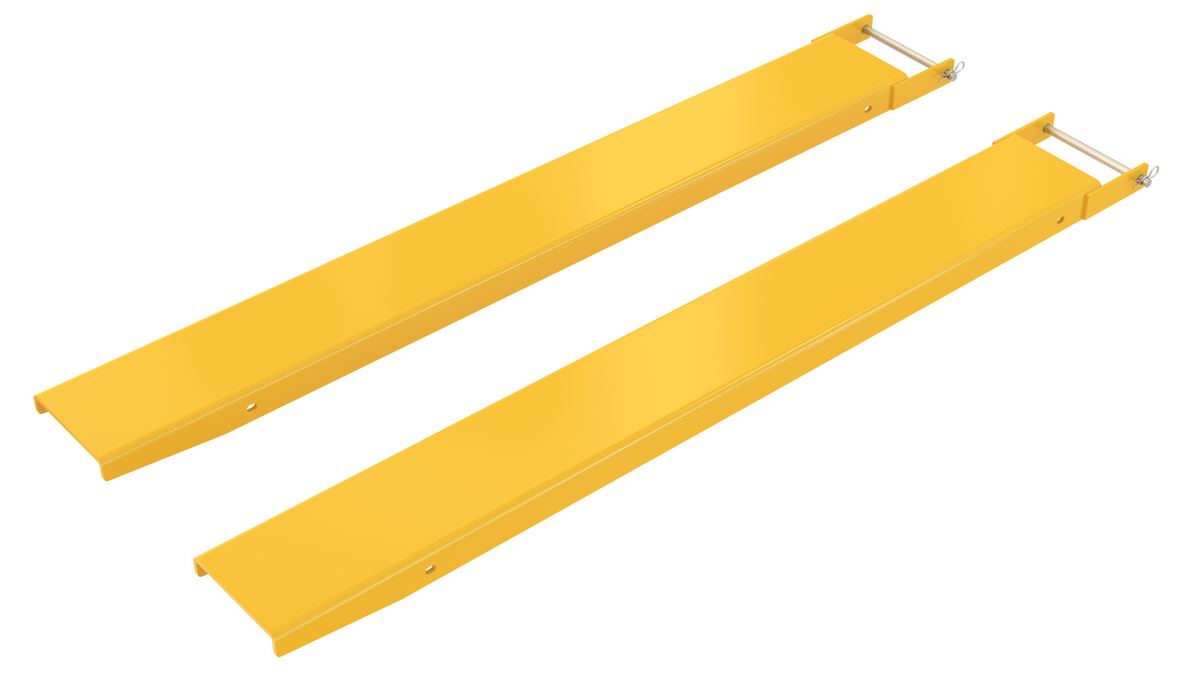

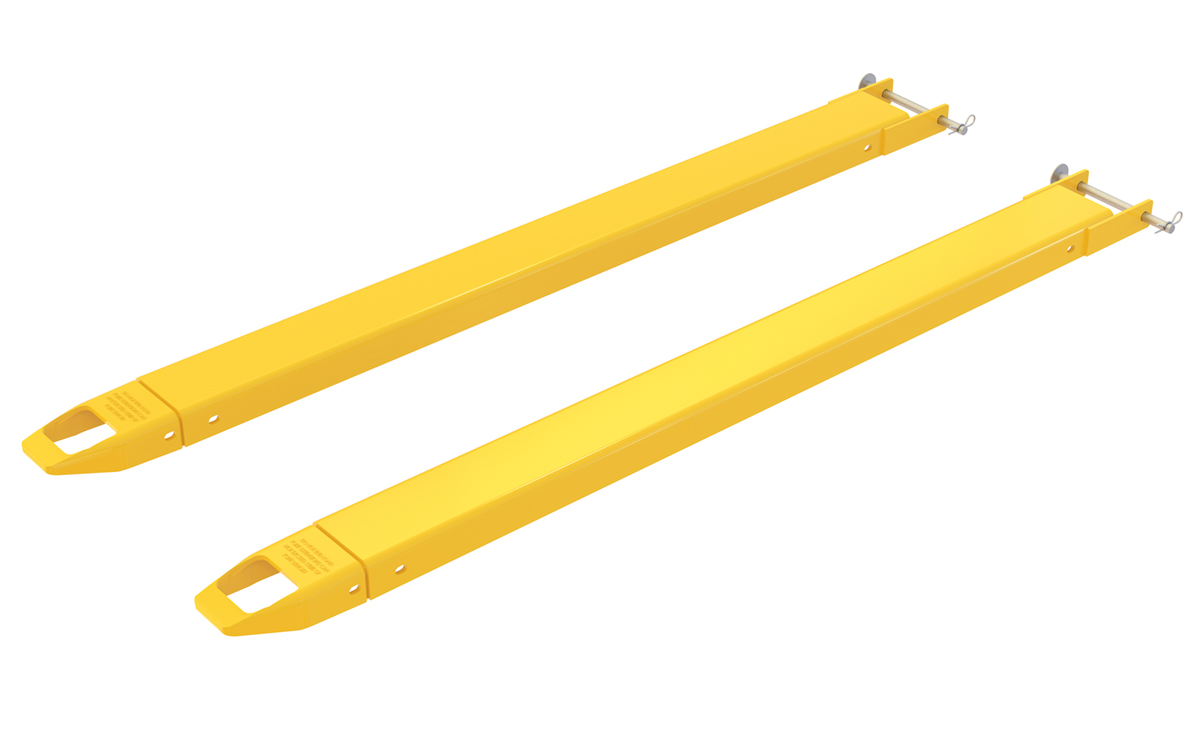

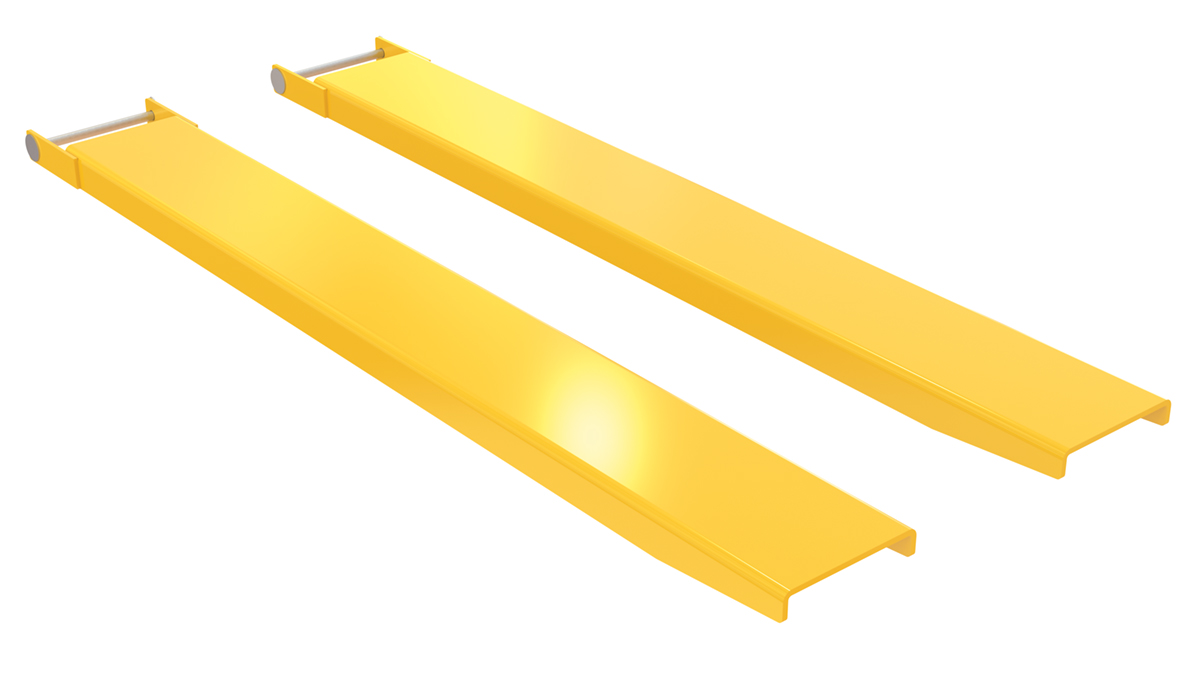

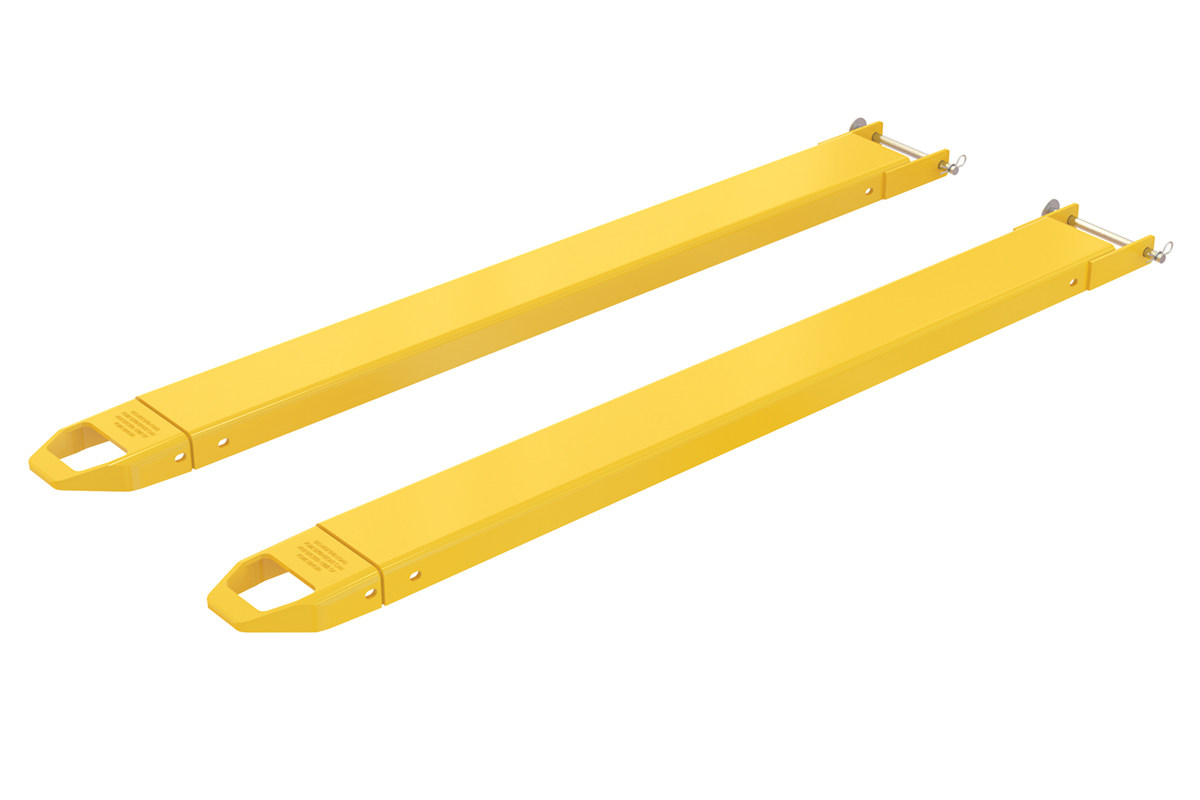

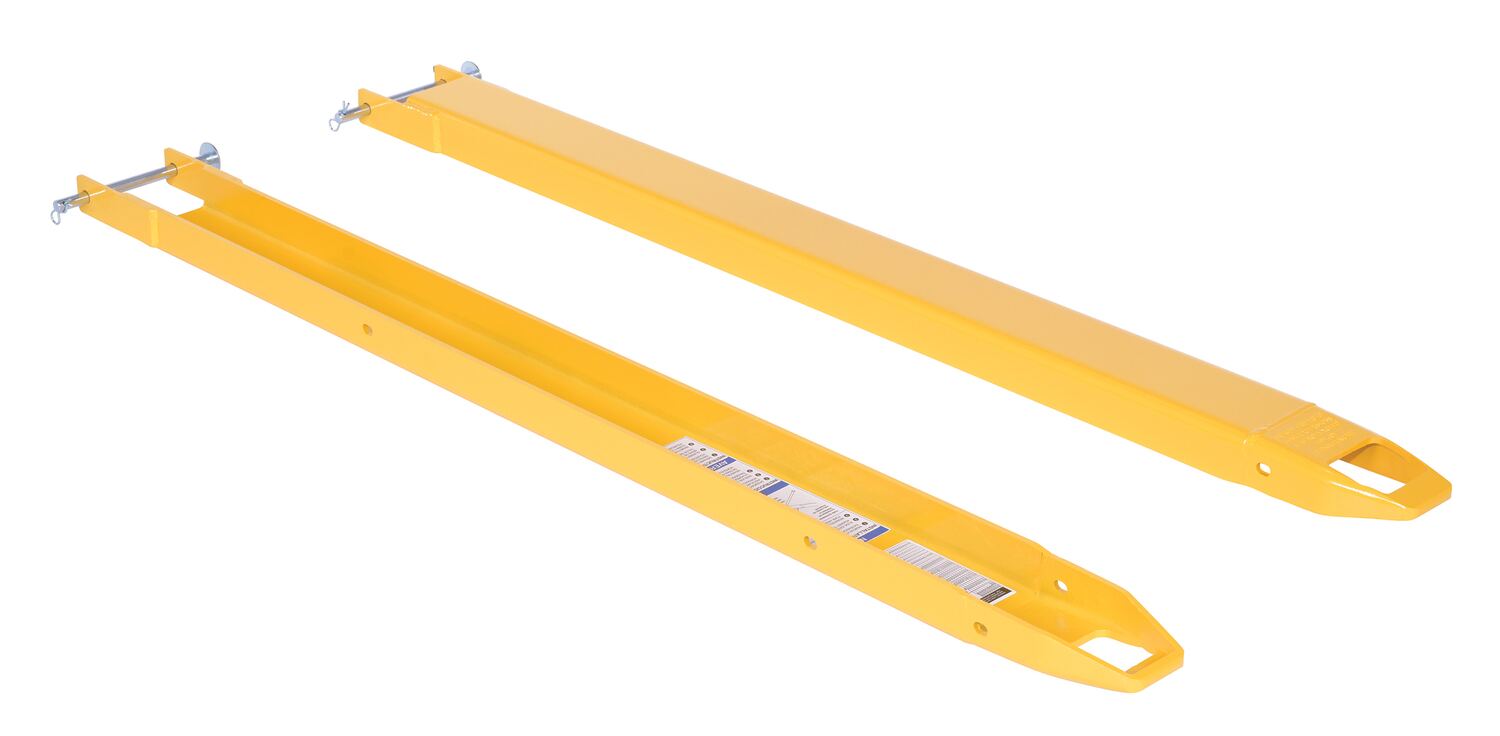

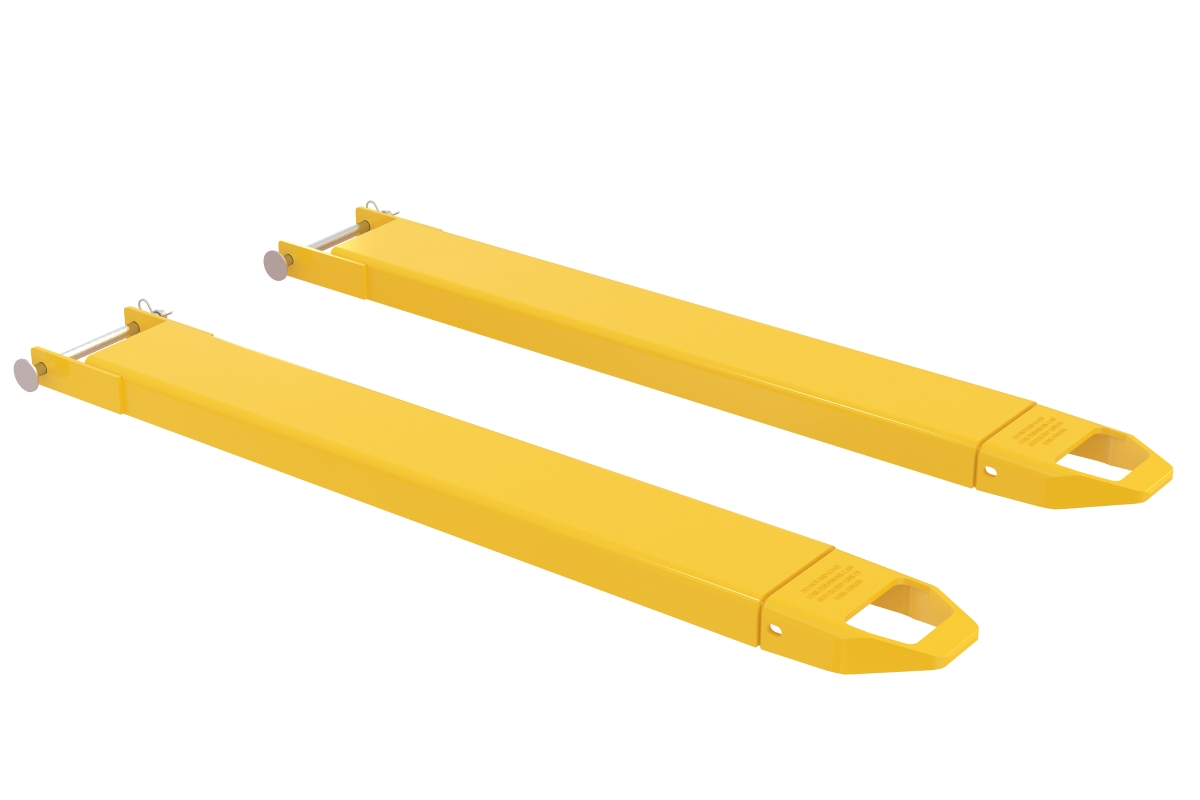

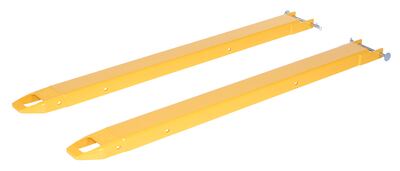

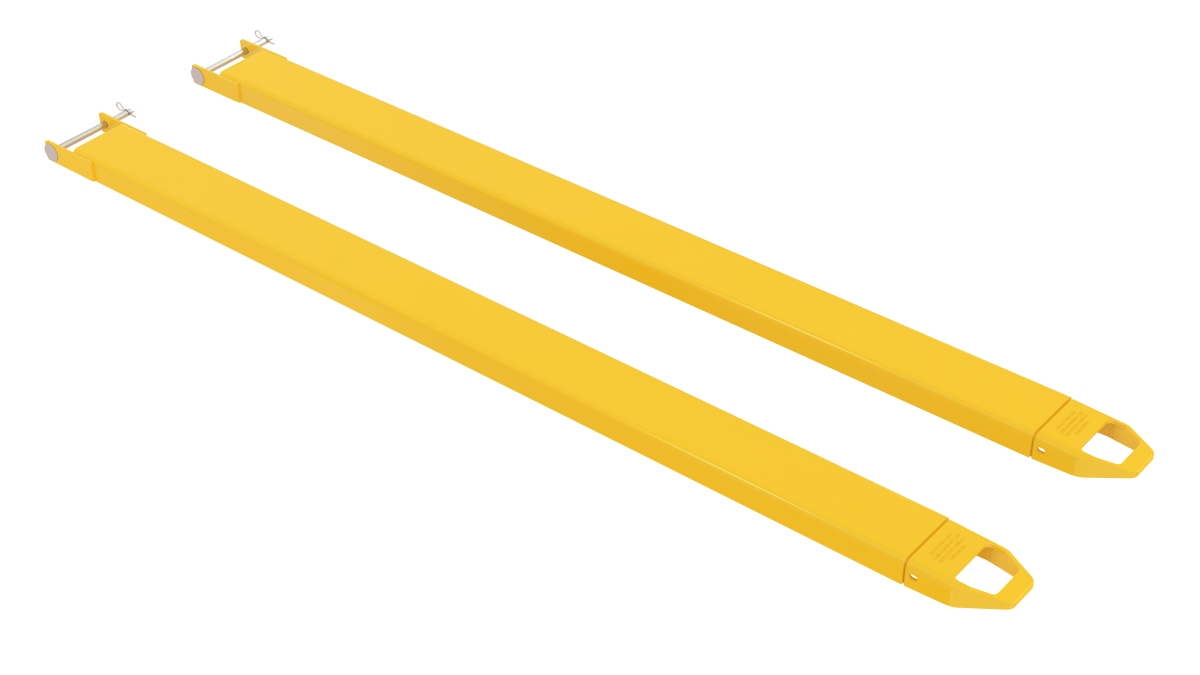

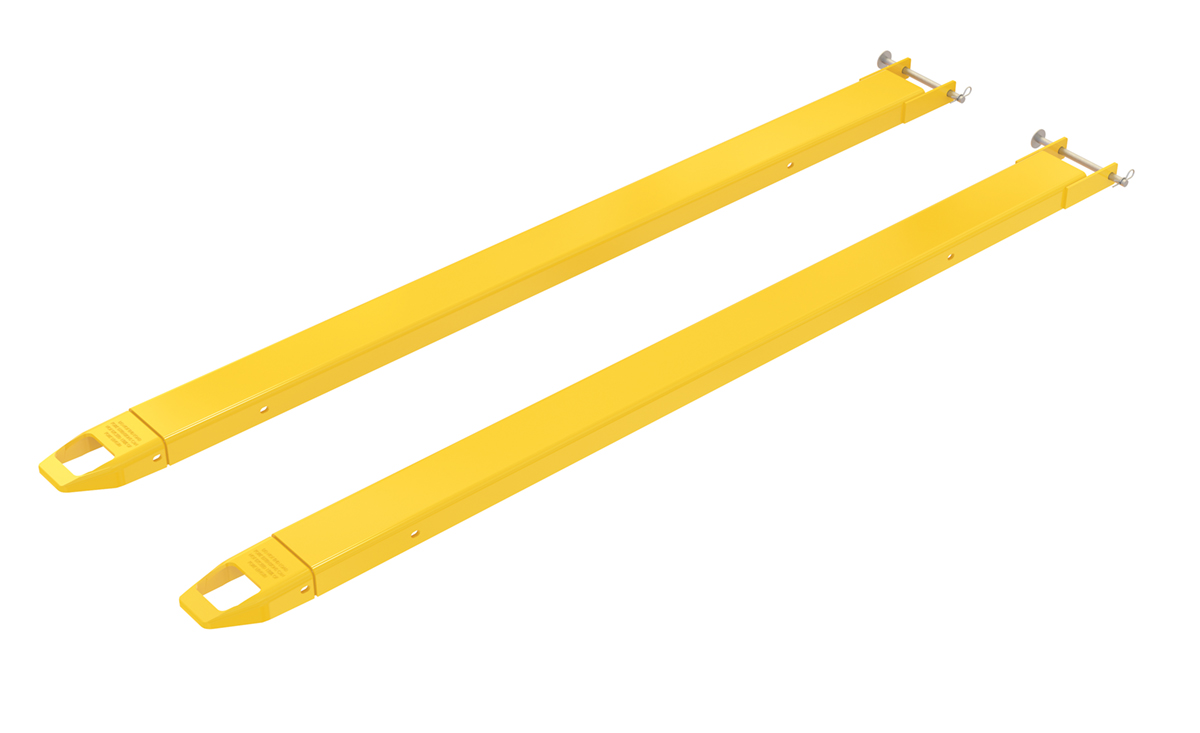

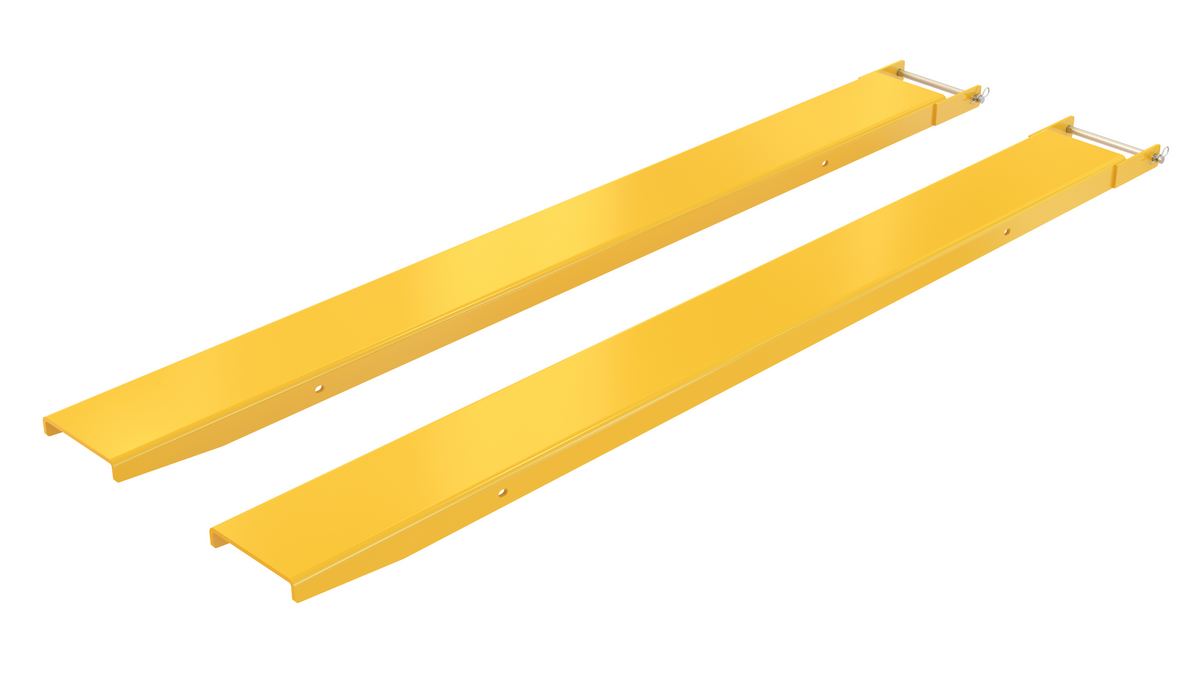

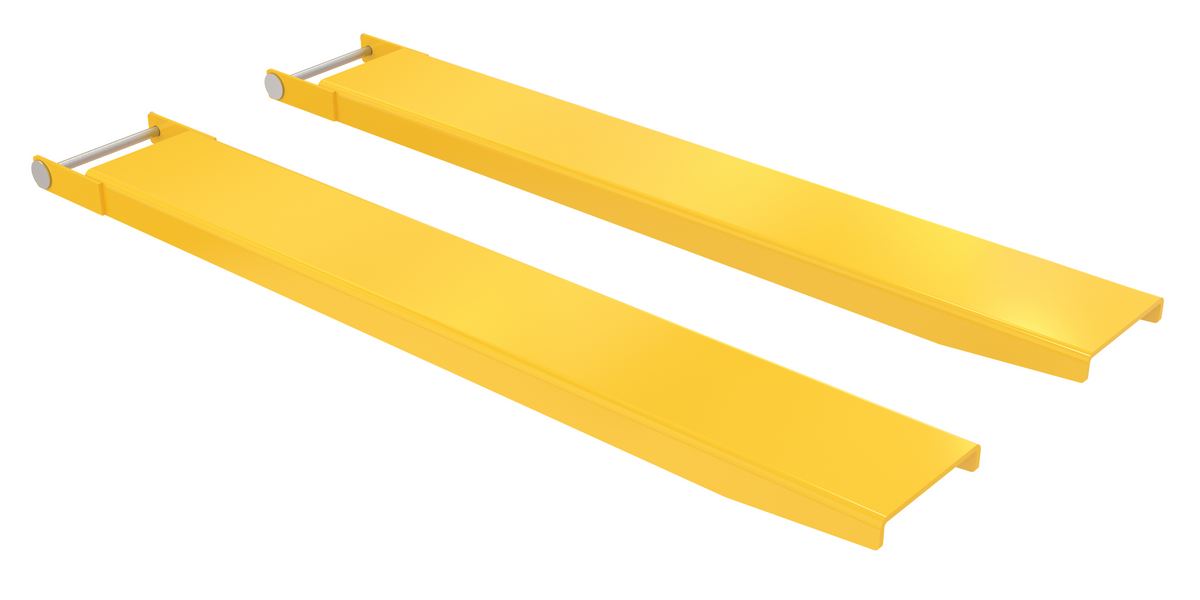

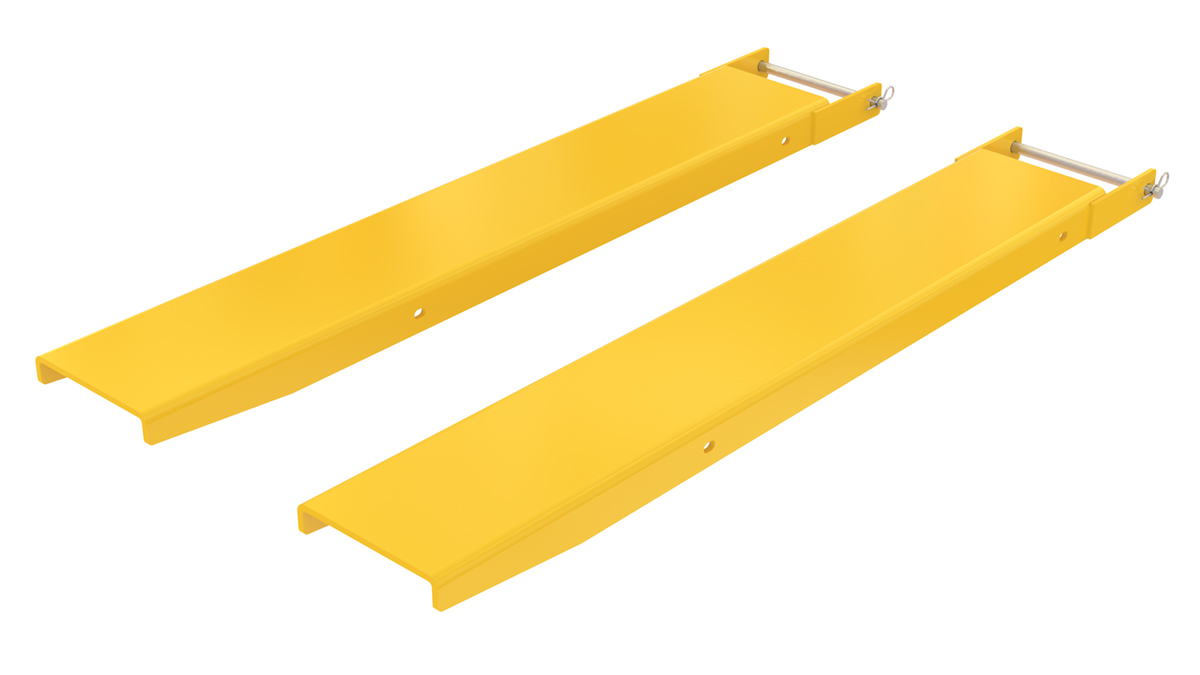

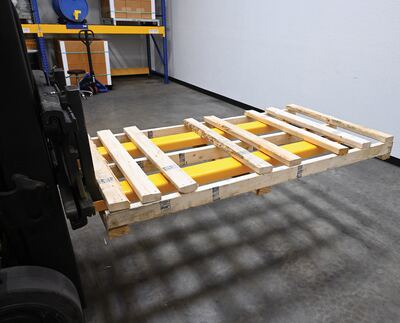

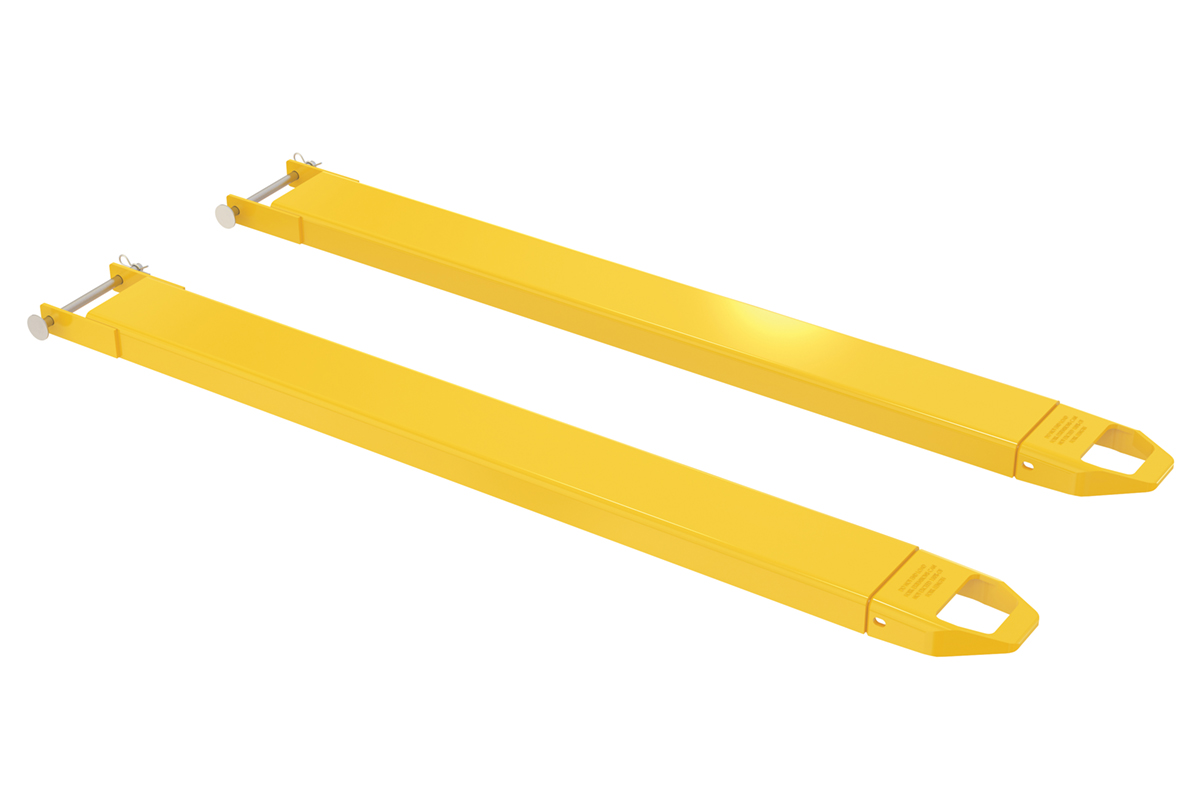

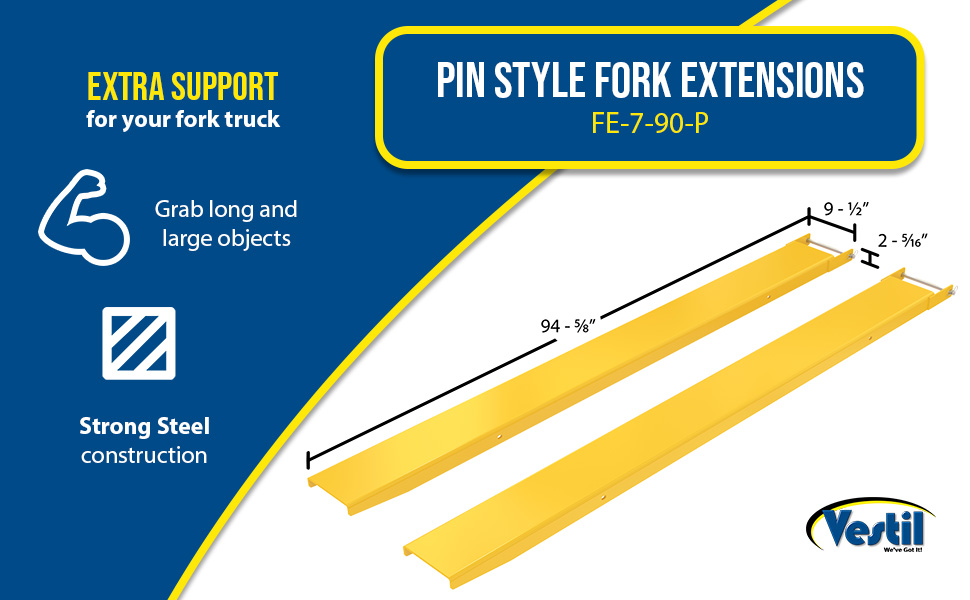

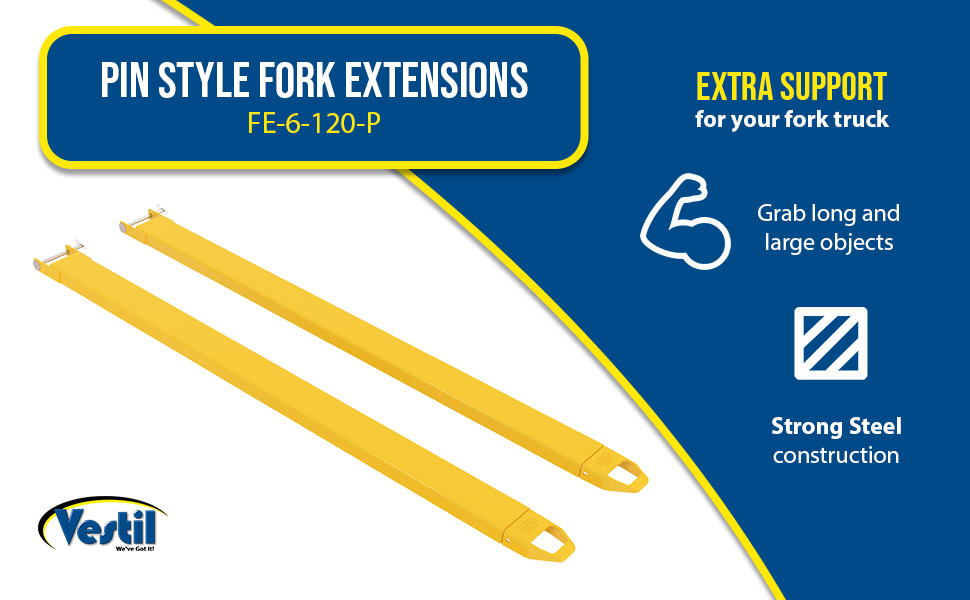

Provide the extra support needed to lift long or large objects with a fork truck. All model are designed of a welded steel construction. Models with prefix FE-4, FE-5 & FE-6 have cast steel tips, while models with prefix FE-7 and FE-8 have a tapered cut front end. Baked-in powder coat finish for added toughness. OSHA regulations require that extensions are no more than 150% of the existing fork length. (e.g. 48" existing forks, the fork extension should not exceed 72"). Maximum uniform capacity is 4,000 pounds evenly distributed per pair.
