Product Family Overview

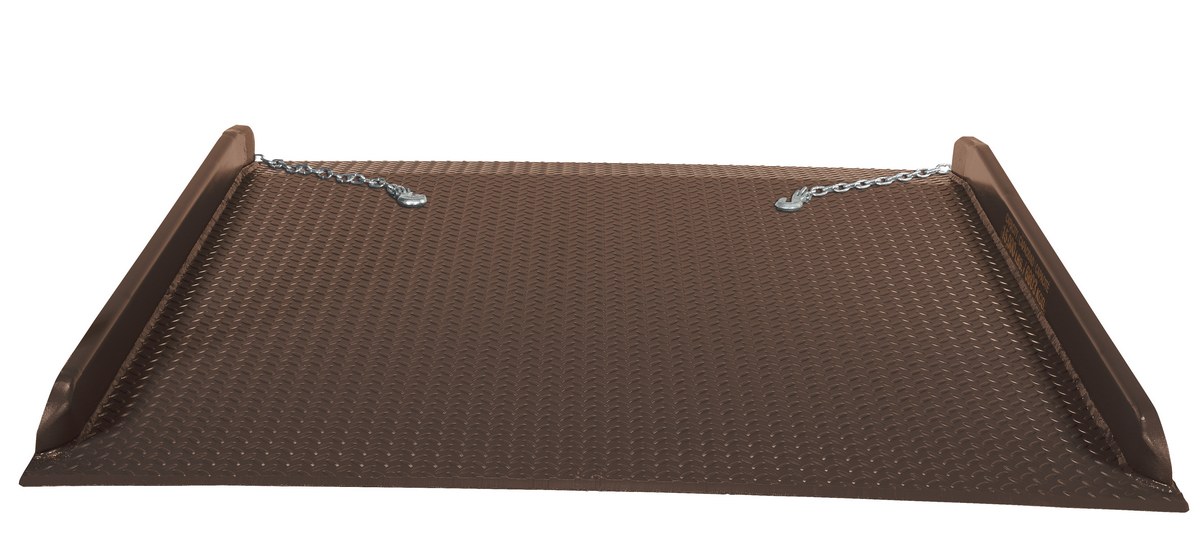

Steel Container Ramps with Side Rails
SERIES: CRS

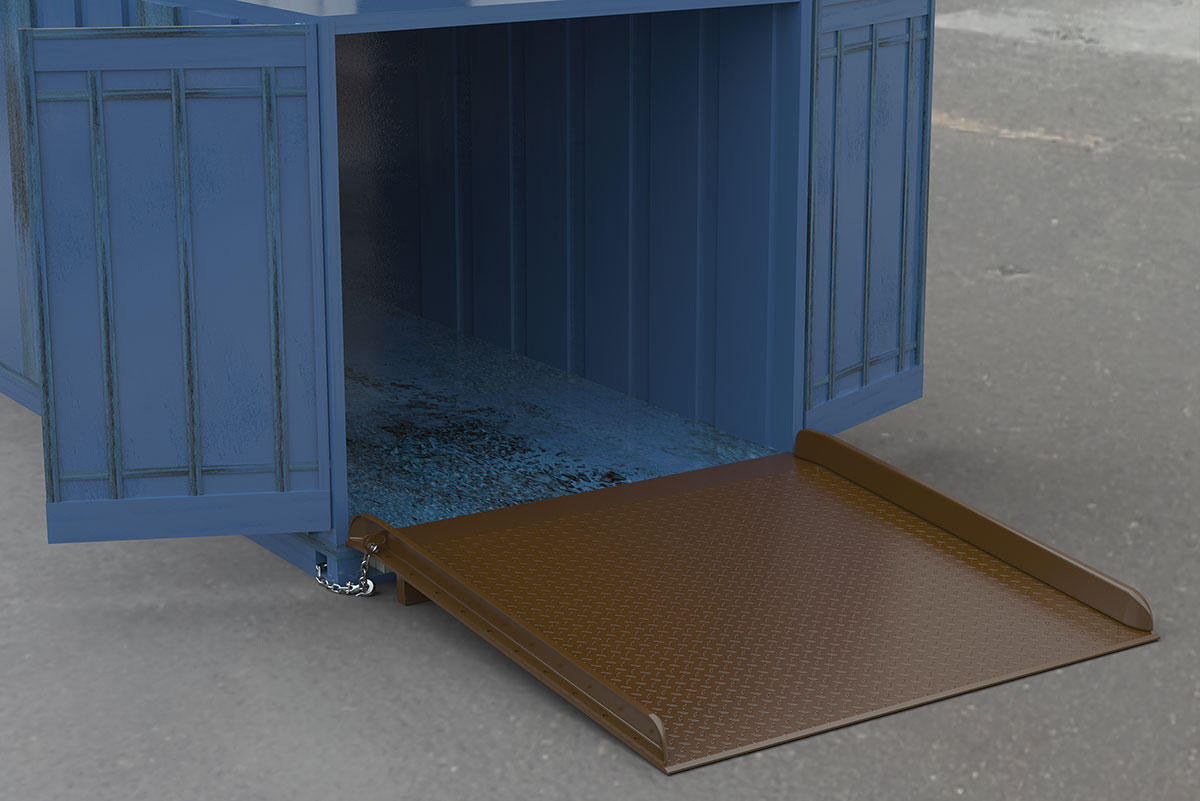

A CRS container ramp is the perfect asset for loading and unloading products over uneven surfaces. The steel construction is long lasting and durable throughout harsh working conditions and inclement weather. The raised tread plate platform surface enables the user to have sure footing and minimize worker injury during use. The beveled edges on both ends allow smooth entry/exit by limiting the surface of height difference during transition. Side curbs also play a large role in the user safety by helping to maintain a safe alignment of goods as they pass from one area to another. Pick-up chains are included for simple transference of unit to different areas around the workplace. A range of large capacity designs are available to best suit your specific needs.

  • Side barriers for clear ramp safety
  • Compact for storage
  • Robust construction for longer term use
  • Easy access to a variety of settings

A CRS container ramp is the perfect asset for loading and unloading products over uneven surfaces. The steel construction is long lasting and durable throughout harsh working conditions and inclement weather. The raised tread plate platform surface enables the user to have sure footing and minimize worker injury during use. The beveled edges on both ends allow smooth entry/exit by limiting the surface of height difference during transition. Side curbs also play a large role in the user safety by helping to maintain a safe alignment of goods as they pass from one area to another. Pick-up chains are included for simple transference of unit to different areas around the workplace. A range of large capacity designs are available to best suit your specific needs.

  • Side barriers for clear ramp safety
  • Compact for storage
  • Robust construction for longer term use
  • Easy access to a variety of settings

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
CRS-6060-15 CRS-6060-1590 Days Limited WarrantySteel Container Ramps with Side Rails 60 In. x 60 In. 15000 Lb. Capacity BrowUniform Capacity (lb.): 15000
Dockplate Thickness (in.): 3/8
448
CRS-6060-20 CRS-6060-2090 Days Limited WarrantySteel Container Ramps with Side Rails 60 In. x 60 In. 20000 Lb. Capacity BrowUniform Capacity (lb.): 20000
Dockplate Thickness (in.): 1/2
700
CRS-7272-20 CRS-7272-2090 Days Limited WarrantySteel Container Ramps with Side Rails 72 In. x 72 In. 20000 Lb. Capacity BrowUniform Capacity (lb.): 20000
Dockplate Thickness (in.): 1/2
824
CRS-8472-20 CRS-8472-2090 Days Limited WarrantySteel Container Ramps with Side Rails 84 In. x 72 In. 20000 Lb. Capacity BrowUniform Capacity (lb.): 20000
Dockplate Thickness (in.): 1/2
946

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

CRS-6060-15
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 15000
Dockplate Thickness (in.): 3/8
Uniform Capacity (lb.): 15000
Dockplate Thickness (in.): 3/8

CRS-6060-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Dockplate Thickness (in.): 1/2
Uniform Capacity (lb.): 20000
Dockplate Thickness (in.): 1/2

CRS-7272-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Dockplate Thickness (in.): 1/2
Uniform Capacity (lb.): 20000
Dockplate Thickness (in.): 1/2

CRS-8472-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 20000
Dockplate Thickness (in.): 1/2
Uniform Capacity (lb.): 20000
Dockplate Thickness (in.): 1/2

Steel Container Ramps with Side Rails PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


CRS-6060-15

CRS-6060-20

CRS-7272-20

CRS-8472-20

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Steel Container Ramps with Sid...




A CRS container ramp is the perfect asset for loading and unloading products over uneven surfaces. The steel construction is long lasting and durable throughout harsh working conditions and inclement weather. The raised tread plate platform surface enables the user to have sure footing and minimize worker injury during use. The beveled edges on both ends allow smooth entry/exit by limiting the surface of height difference during transition. Side curbs also play a large role in the user safety by helping to maintain a safe alignment of goods as they pass from one area to another. Pick-up chains are included for simple transference of unit to different areas around the workplace. A range of large capacity designs are available to best suit your specific needs.

  • Side barriers for clear ramp safety
  • Compact for storage
  • Robust construction for longer term use
  • Easy access to a variety of settings


Model # Description Attributes Net Wt.
(lbs)
CRS-6060-15 CRS-6060-15Steel Container Ramps with Side Rails 60 In. x 60 In. 15000 Lb. Capacity BrowUniform Capacity (lb.): 15000
Dockplate Thickness (in.): 3/8
448
CRS-6060-20 CRS-6060-20Steel Container Ramps with Side Rails 60 In. x 60 In. 20000 Lb. Capacity BrowUniform Capacity (lb.): 20000
Dockplate Thickness (in.): 1/2
700
CRS-7272-20 CRS-7272-20Steel Container Ramps with Side Rails 72 In. x 72 In. 20000 Lb. Capacity BrowUniform Capacity (lb.): 20000
Dockplate Thickness (in.): 1/2
824
CRS-8472-20 CRS-8472-20Steel Container Ramps with Side Rails 84 In. x 72 In. 20000 Lb. Capacity BrowUniform Capacity (lb.): 20000
Dockplate Thickness (in.): 1/2
946
