SCALE-MU-3636-5-BL

Printer Friendly
Available
SCALE-MU-3636-5-BL
SCALE-MU-3636-5-BL

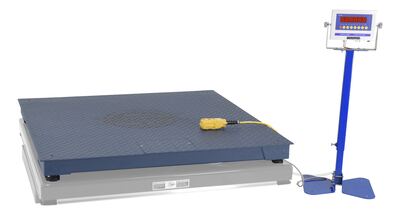

Steel Integral Scissor Lift Table Scale Option 36 x 36 5000 Lb. Capacity Blue

Creating efficient shipping and receiving areas just got easier! With the addition of a scale fixed directly onto the scissor lift surface, weighing and lifting products is significantly streamlined. The scale fits squarely onto the scissor lift platform with no overhang. A functional weight readout screen mounted to a stabilizing pedestal is also included. Approximately 4-1/4" is added to the overall height to the scissor lift table when scale is in place. No holes or bolting required! Instead of the scale attaching directly to the scissor lift table, it sits within retainer brackets on the scissor lift table, holding the scale safely in place.

  • Retainer brackets factory installed, if ordered with scissor table
  • Zero and tare weight functions
  • No holes or bolting required
  • Tread plate surface
Assembled Wt.(lbs.): 100 Assembled Size: 36"W x 36"L x 4.25"H

Total Ship Wt.(lbs.): 228 (only 1 package) Package 1 Size: 36"W x 36"D x 5"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 5,000 Platform Size (in.): 36 x 36 Overall Height (in.): 4-1/4
Scale Functions: zero weight, tare weight Weight Units: Pounds, Kilograms Power: 110VAC
Legal for Trade?: Yes

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

90 Days Limited Warranty

Details For Model: SCALE-MU-3636-5-BL
Available
SCALE-MU-3636-5-BL

Steel Integral Scissor Lift Table Scale Option 36 x 36 5000 Lb. Capacity Blue

Creating efficient shipping and receiving areas just got easier! With the addition of a scale fixed directly onto the scissor lift surface, weighing and lifting products is significantly streamlined. The scale fits squarely onto the scissor lift platform with no overhang. A functional weight readout screen mounted to a stabilizing pedestal is also included. Approximately 4-1/4" is added to the overall height to the scissor lift table when scale is in place. No holes or bolting required! Instead of the scale attaching directly to the scissor lift table, it sits within retainer brackets on the scissor lift table, holding the scale safely in place.

  • Retainer brackets factory installed, if ordered with scissor table
  • Zero and tare weight functions
  • No holes or bolting required
  • Tread plate surface
Dimensions: 36"W x 36"L x 4.25"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 228 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 5,000 Platform Size (in.): 36 x 36 Overall Height (in.): 4-1/4
Scale Functions: zero weight, tare weight Weight Units: Pounds, Kilograms Power: 110VAC
Legal for Trade?: Yes
