Model Details

SME-12

SME-12

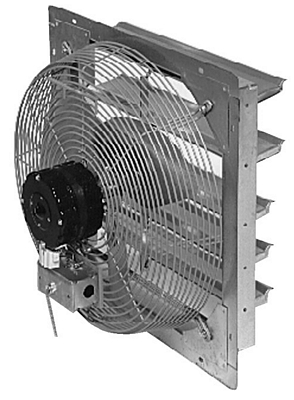

Shutter Mounted Exhaust Fan 12 In. Blade Diameter Silver

The shutter mounted exhaust fan offers inside-building installation only with vents outside. Eliminate need for external framing and shutter. Ideally suited for thin wall buildings. This fan is totally enclosed and permanently lubricated. Pull chain switch. No cord. Junction box provided for direct wiring. Meets OSHA standards.

  • Shutter mounted exhaust fan eliminates the need for external framing and shutter
  • Includes a 1/12 Horsepower motor with 115 voltage 1 phase 1.1 Amps power supply
  • Fan is completely enclosed and permanently lubricated for maximum efficiency
  • Includes a junction box for direct wiring in order to meet OSHA 1910 212(a)(5) standards
Total Ship Wt.(lbs.): 16 (only 1 package) Size: 15.1875"W x 8.5"L x 15.1875"H Color: Silver Non-Returnable

Blade Diameter (in.): 12 Motor Horsepower: 1/12 Amps High: 1.1
CFM High: 825 CFM Medium: 710 CFM Low: 560
Voltage/Phase: 115V/1PH OSHA: 1910.212(a)(5)

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?

Parcel - Can Go UPS

Image Gallery

PDF Documents

Details For Model: SME-12


SME-12

Shutter Mounted Exhaust Fan 12 In. Blade Diameter Silver

The shutter mounted exhaust fan offers inside-building installation only with vents outside. Eliminate need for external framing and shutter. Ideally suited for thin wall buildings. This fan is totally enclosed and permanently lubricated. Pull chain switch. No cord. Junction box provided for direct wiring. Meets OSHA standards.

  • Shutter mounted exhaust fan eliminates the need for external framing and shutter
  • Includes a 1/12 Horsepower motor with 115 voltage 1 phase 1.1 Amps power supply
  • Fan is completely enclosed and permanently lubricated for maximum efficiency
  • Includes a junction box for direct wiring in order to meet OSHA 1910 212(a)(5) standards
Dimensions: 15.1875"W x 8.5"L x 15.1875"H Sell UOM: EA-Each Color: Silver
Material: Steel UPC: 691215036429 GTIN: 00691215036429
Warranty: -- Shipping Weight: 16 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Blade Diameter (in.): 12 Motor Horsepower: 1/12 Amps High: 1.1
CFM High: 825 CFM Medium: 710 CFM Low: 560
Voltage/Phase: 115V/1PH OSHA: 1910.212(a)(5)
