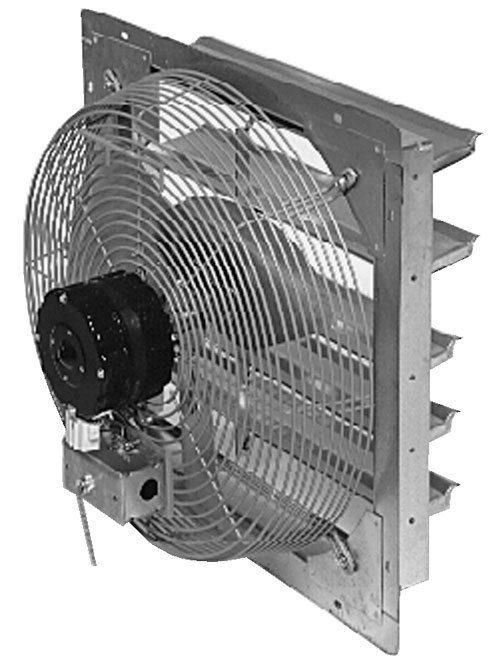

Shutter Mounted Exhaust Fans
SERIES: SME

Inside-building installation only with vents outside. Eliminate need for external framing and shutter. Ideally suited for thin wall buildings. Units are 115V, 1 phase totally enclosed and permanently lubricated. Pull chain switch. No cord. Junction box provided for direct wiring. Meets OSHA standards.

Inside-building installation only with vents outside. Eliminate need for external framing and shutter. Ideally suited for thin wall buildings. Units are 115V, 1 phase totally enclosed and permanently lubricated. Pull chain switch. No cord. Junction box provided for direct wiring. Meets OSHA standards.




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)
SME-12 1 Year Limited WarrantyShutter Mounted Exhaust Fan 12 In. Blade Diameter SilverBlade Diameter (in.): 12
Motor Horsepower: 1/12
16
SME-18 1 Year Limited WarrantyShutter Mounted Exhaust Fan 18 In. Blade Diameter SilverBlade Diameter (in.): 18
Motor Horsepower: 1/8
25
SME-24 1 Year Limited WarrantyShutter Mounted Exhaust Fan 24 In. Blade Diameter SilverBlade Diameter (in.): 24
Motor Horsepower: 1/4
41
SME-30 1 Year Limited WarrantyShutter Mounted Exhaust Fan 30 In. Blade Diameter SilverBlade Diameter (in.): 30
Motor Horsepower: 1/4
50

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

Shutter Mounted Exhaust Fan 12 In. Blade Diameter Silver


Unit: EACH
Size: 15.1875W x 8.5L x 15.1875H
Weight: 16
1 Year Limited Warranty
Blade Diameter (in.): 12
Motor Horsepower: 1/12
Blade Diameter (in.): 12
Motor Horsepower: 1/12

Shutter Mounted Exhaust Fan 18 In. Blade Diameter Silver


Unit: EACH
Size: 22W x 13L x 23H
Weight: 25
1 Year Limited Warranty
Blade Diameter (in.): 18
Motor Horsepower: 1/8
Blade Diameter (in.): 18
Motor Horsepower: 1/8

Shutter Mounted Exhaust Fan 24 In. Blade Diameter Silver


Unit: EACH
Size: 28W x 13L x 28H
Weight: 41
1 Year Limited Warranty
Blade Diameter (in.): 24
Motor Horsepower: 1/4
Blade Diameter (in.): 24
Motor Horsepower: 1/4

Shutter Mounted Exhaust Fan 30 In. Blade Diameter Silver


Unit: EACH
Size: 34W x 13L x 34H
Weight: 50
1 Year Limited Warranty
Blade Diameter (in.): 30
Motor Horsepower: 1/4
Blade Diameter (in.): 30
Motor Horsepower: 1/4


Shutter Mounted Exhaust Fans PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products





We will continue adding new product images to each gallery as they become available. Check back soon.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Shutter Mounted Exhaust Fans




Inside-building installation only with vents outside. Eliminate need for external framing and shutter. Ideally suited for thin wall buildings. Units are 115V, 1 phase totally enclosed and permanently lubricated. Pull chain switch. No cord. Junction box provided for direct wiring. Meets OSHA standards.


Shutter Mounted Exhaust Fans
Model Image PDFs Blade Size Hp of Motor AMPS High CFM High CFM MED CFM
Low
Wt. (lbs)
SME-12 Warranty PDF 12" 1/12 1.1 825 710 560 16
SME-18 Warranty PDF 18" 1/8 2.2 2300 2100 1850 25
SME-24 Warranty PDF 24" 1/4 2.5 3400 -- 2770 41
SME-30 Warranty PDF 30" 1/4 2.7 3950 -- 3080 50
