Variable Speed Air Curtains
SERIES: ACURT

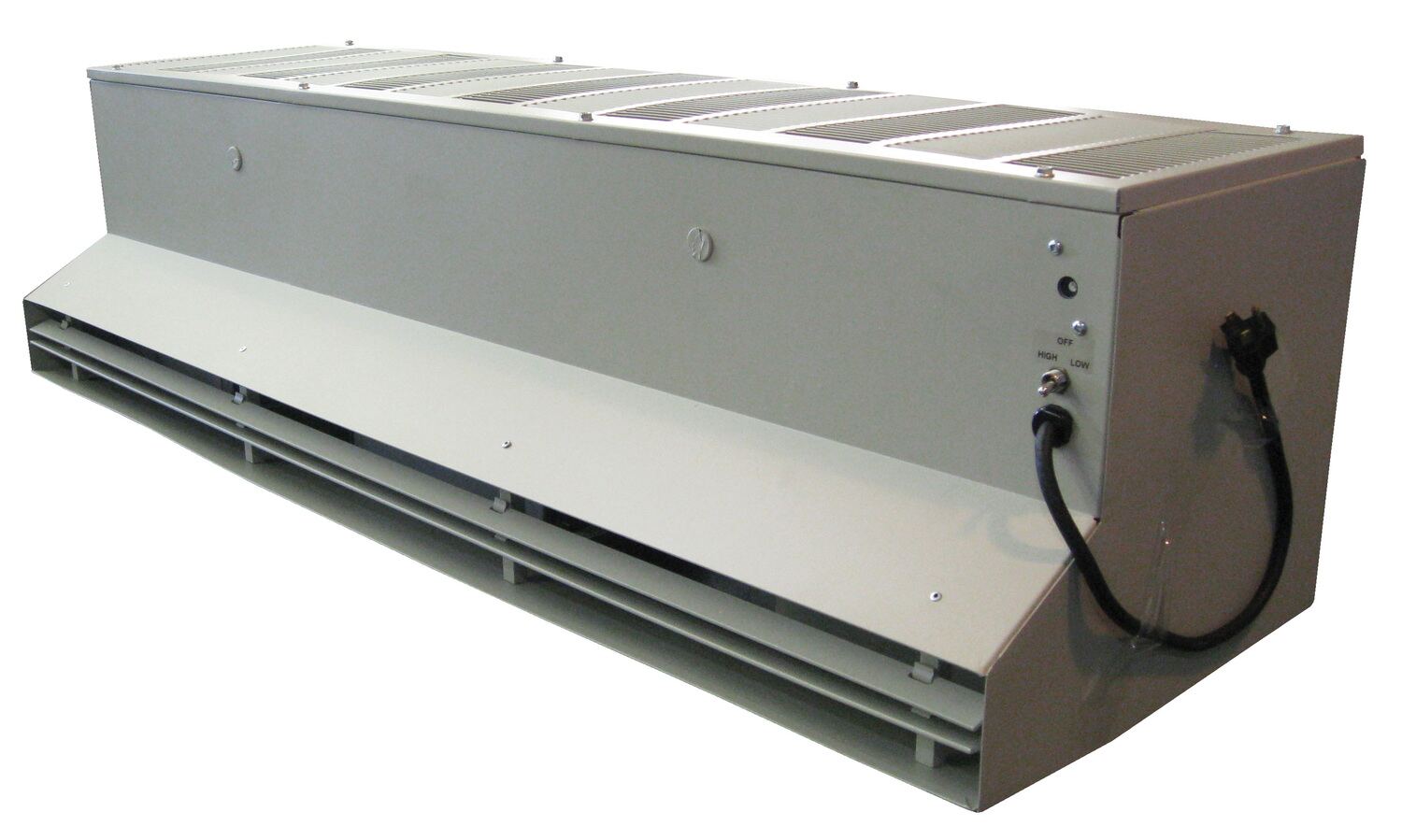

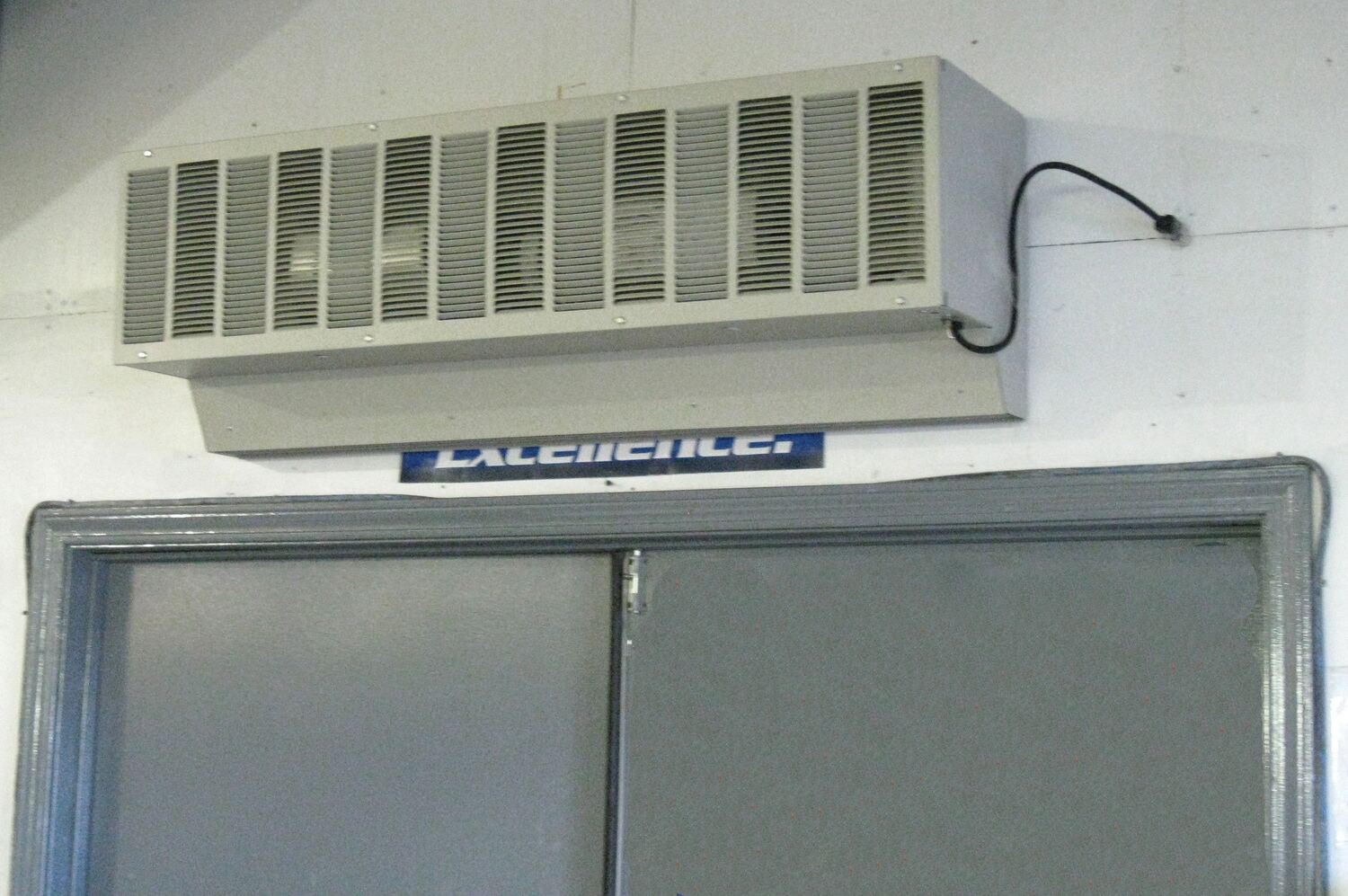

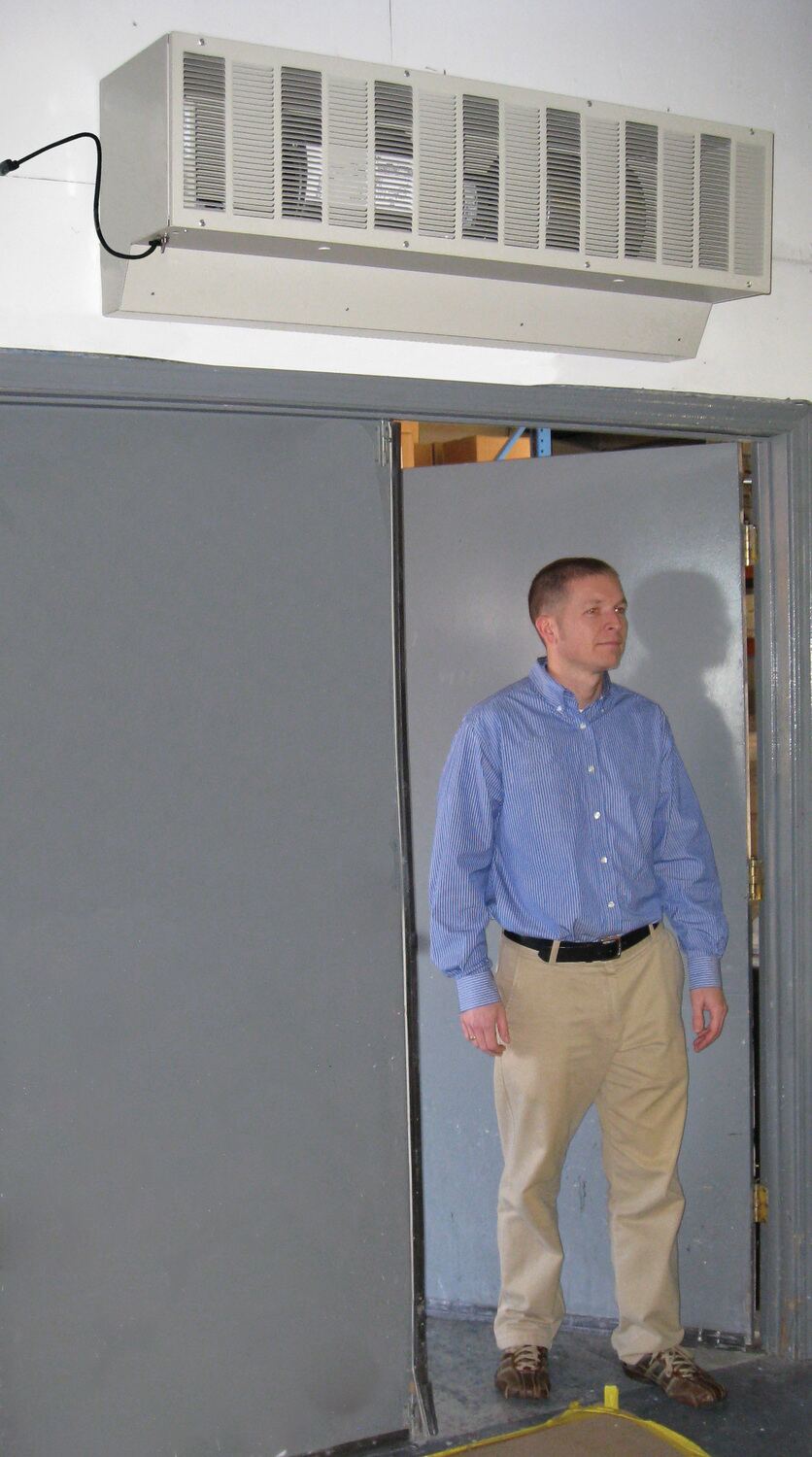

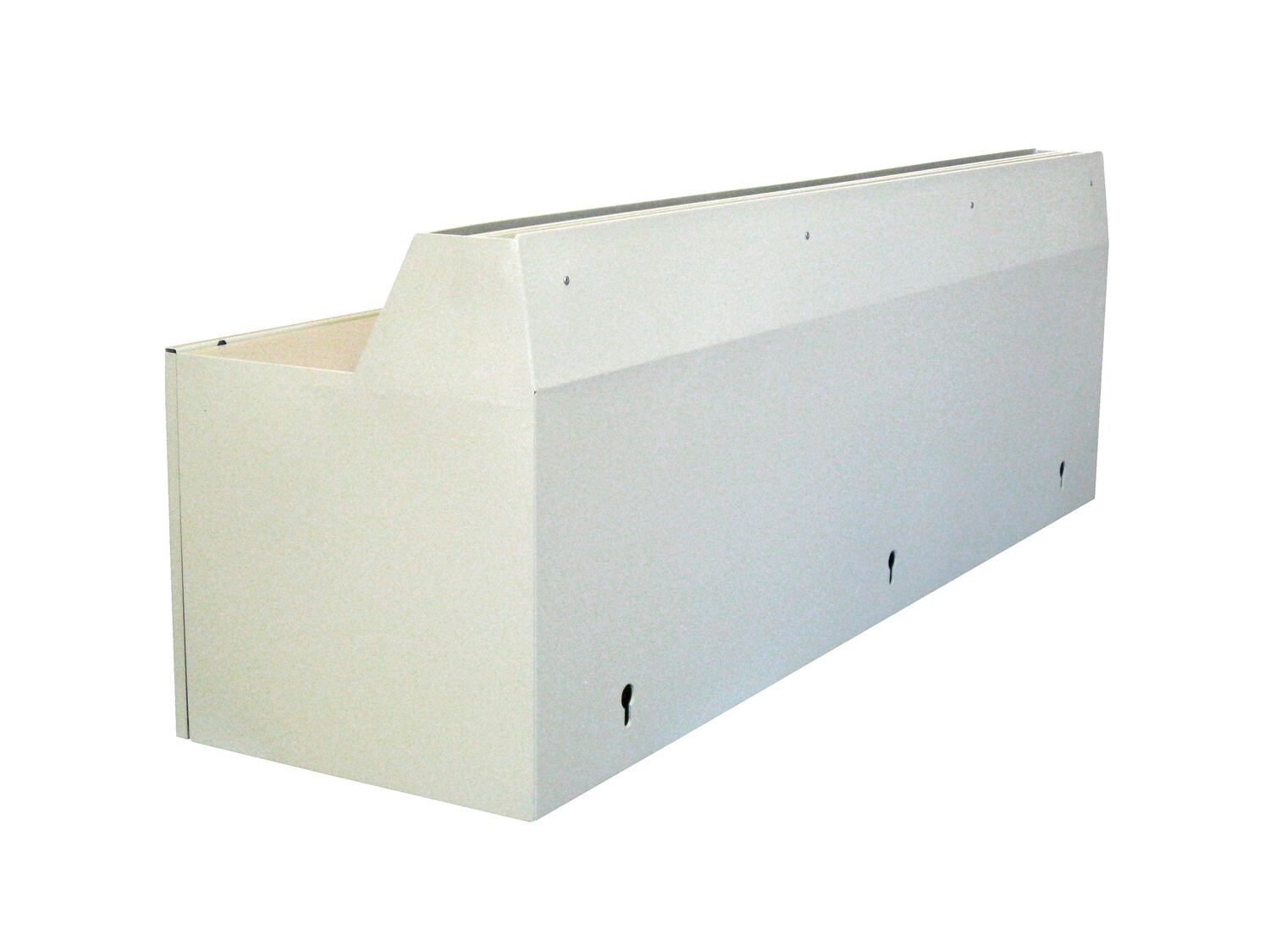

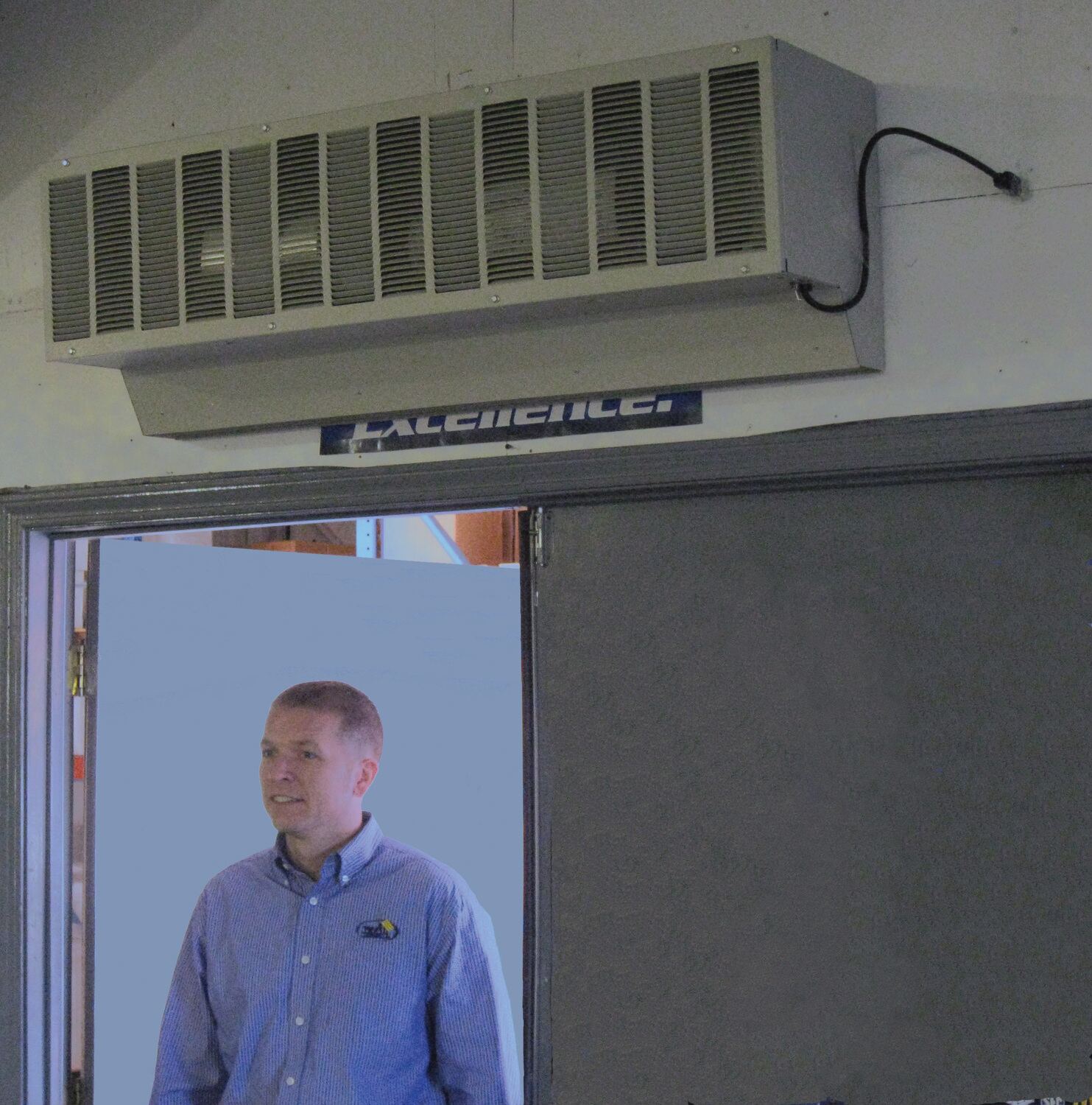

These Heavy Duty Air Curtains can be used above entry doors and industrial warehouse doors to prevent loss of cool air and maintain a clean environment. These curtains contain a heavy duty 20 gauge rigid steel cabinets, with baked on epoxy powder coat paint for durability. Motor is a heavy duty, PSC, direct drive high efficiency and signed for use with SCR controllers. Motors are permanently lubricated for long life and have thermal over load protection. SCR speed controller supplied on all units compatible with the motor with low end adjustment for air volume control and savings in power consumption. These heavy duty units have a 3/4 HP motor, and can go up to a 12' high doorway.

These Heavy Duty Air Curtains can be used above entry doors and industrial warehouse doors to prevent loss of cool air and maintain a clean environment. These curtains contain a heavy duty 20 gauge rigid steel cabinets, with baked on epoxy powder coat paint for durability. Motor is a heavy duty, PSC, direct drive high efficiency and signed for use with SCR controllers. Motors are permanently lubricated for long life and have thermal over load protection. SCR speed controller supplied on all units compatible with the motor with low end adjustment for air volume control and savings in power consumption. These heavy duty units have a 3/4 HP motor, and can go up to a 12' high doorway.




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart on this page. Not an entire site search.
Model Image PDFs Description Attributes Net Wt.
(lbs)
ACURT-108 1 Year Limited WarrantySteel Heavy Duty Air Curtain 108 In. x 12 In. 3/4 Horsepower SilverSteel Gauge: 20
Motor Horsepower: 3/4
77
ACURT-120 1 Year Limited WarrantySteel Heavy Duty Air Curtain 120 In. x 12 In. 3/4 Horsepower SilverSteel Gauge: 20
Motor Horsepower: 3/4
85
ACURT-36 1 Year Limited WarrantySteel Heavy Duty Air Curtain 36 In. x 12 In. 3/4 Horsepower SilverSteel Gauge: 20
Motor Horsepower: 3/4
77
ACURT-48 1 Year Limited WarrantySteel Heavy Duty Air Curtain 48 In. x 12 In. 3/4 Horsepower SilverSteel Gauge: 20
Motor Horsepower: 3/4
85
ACURT-60 1 Year Limited WarrantySteel Heavy Duty Air Curtain 60 In. x 12 In. 3/4 Horsepower SilverSteel Gauge: 20
Motor Horsepower: 3/4
93
ACURT-72 1 Year Limited WarrantySteel Heavy Duty Air Curtain 72 In. x 12 In. 3/4 Horsepower SilverSteel Gauge: 20
Motor Horsepower: 3/4
77
ACURT-96 1 Year Limited WarrantySteel Heavy Duty Air Curtain 96 In. x 12 In. 3/4 Horsepower SilverSteel Gauge: 20
Motor Horsepower: 3/4
85

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty

Steel Heavy Duty Air Curtain 108 In. x 12 In. 3/4 Horsepower Silver


Unit: EACH
Size: 108W x 13L x 16H
Weight: 77
1 Year Limited Warranty
Steel Gauge: 20
Motor Horsepower: 3/4
Steel Gauge: 20
Motor Horsepower: 3/4

Steel Heavy Duty Air Curtain 120 In. x 12 In. 3/4 Horsepower Silver


Unit: EACH
Size: 120W x 13L x 16H
Weight: 85
1 Year Limited Warranty
Steel Gauge: 20
Motor Horsepower: 3/4
Steel Gauge: 20
Motor Horsepower: 3/4

Steel Heavy Duty Air Curtain 36 In. x 12 In. 3/4 Horsepower Silver


Unit: EACH
Size: 36W x 13L x 16H
Weight: 77
1 Year Limited Warranty
Steel Gauge: 20
Motor Horsepower: 3/4
Steel Gauge: 20
Motor Horsepower: 3/4

Steel Heavy Duty Air Curtain 48 In. x 12 In. 3/4 Horsepower Silver


Unit: EACH
Size: 48W x 13L x 16H
Weight: 85
1 Year Limited Warranty
Steel Gauge: 20
Motor Horsepower: 3/4
Steel Gauge: 20
Motor Horsepower: 3/4

Steel Heavy Duty Air Curtain 60 In. x 12 In. 3/4 Horsepower Silver


Unit: EACH
Size: 60W x 13L x 16H
Weight: 93
1 Year Limited Warranty
Steel Gauge: 20
Motor Horsepower: 3/4
Steel Gauge: 20
Motor Horsepower: 3/4

Steel Heavy Duty Air Curtain 72 In. x 12 In. 3/4 Horsepower Silver


Unit: EACH
Size: 72W x 13L x 16H
Weight: 77
1 Year Limited Warranty
Steel Gauge: 20
Motor Horsepower: 3/4
Steel Gauge: 20
Motor Horsepower: 3/4

Steel Heavy Duty Air Curtain 96 In. x 12 In. 3/4 Horsepower Silver


Unit: EACH
Size: 96W x 13L x 16H
Weight: 85
1 Year Limited Warranty
Steel Gauge: 20
Motor Horsepower: 3/4
Steel Gauge: 20
Motor Horsepower: 3/4


Variable Speed Air Curtains PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products





We will continue adding new product images to each gallery as they become available. Check back soon.


Q: Is there an option to blow warm air instead of cool air with the air curtain ?

A: There is not an option on the air curtain to blow warm air.


Q: Can the air curtain be installed outside ?

A: The air curtain is designed for indoor use only.






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Variable Speed Air Curtains




These Heavy Duty Air Curtains can be used above entry doors and industrial warehouse doors to prevent loss of cool air and maintain a clean environment. These curtains contain a heavy duty 20 gauge rigid steel cabinets, with baked on epoxy powder coat paint for durability. Motor is a heavy duty, PSC, direct drive high efficiency and signed for use with SCR controllers. Motors are permanently lubricated for long life and have thermal over load protection. SCR speed controller supplied on all units compatible with the motor with low end adjustment for air volume control and savings in power consumption. These heavy duty units have a 3/4 HP motor, and can go up to a 12' high doorway.



Heavy Duty Air Curtains

Model
Number
Image PDFs Description Dimensions CFM Volts Wt.
(lbs)
ACURT-36 Warranty PDF 3/4 HP Heavy Duty Air Curtain 36"Wx12'H
Doorway
2672 High
819 Low
115V 77
ACURT-48 Warranty PDF 3/4 HP Heavy Duty Air Curtain 48"Wx12'H
Doorway
4611 High
906 Low
115V 85
ACURT-60 Warranty PDF 3/4 HP Heavy Duty Air Curtain 60"Wx12'H
Doorway
5763 High
1126 Low
115V 93
ACURT-72 Warranty PDF 3/4 HP Heavy Duty Air Curtain 72"Wx12'H
Doorway (2 ACURT-36 's)
5344 High
1638 Low
115V 154
ACURT-96 Warranty PDF 3/4 HP Heavy Duty Air Curtain 96"Wx12'H
Doorway (2 ACURT-48's)
9222 High
1812 Low
115V 170
ACURT-108 Warranty PDF 3/4 HP Heavy Duty Air Curtain 108"Wx12'H
Doorway (3 ACURT-36 's)
8016 High
2457 Low
115V 231
ACURT-120 Warranty PDF 3/4 HP Heavy Duty Air Curtain 120"Wx12'H
Doorway (1 ACURT-48 & 2 ACURT-36's)
9955 High
2544 Low
115V 239
