Infrared Heaters

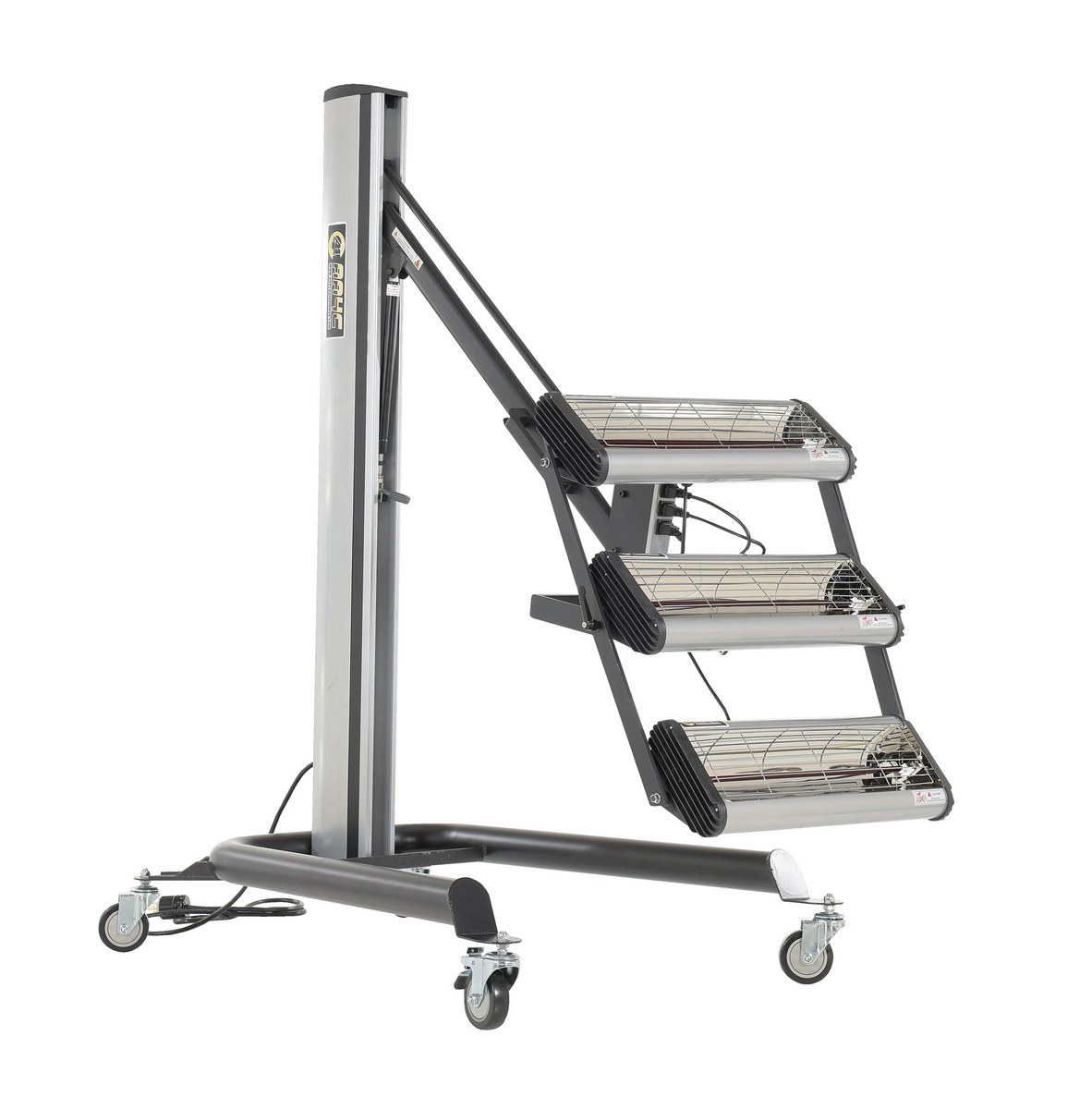

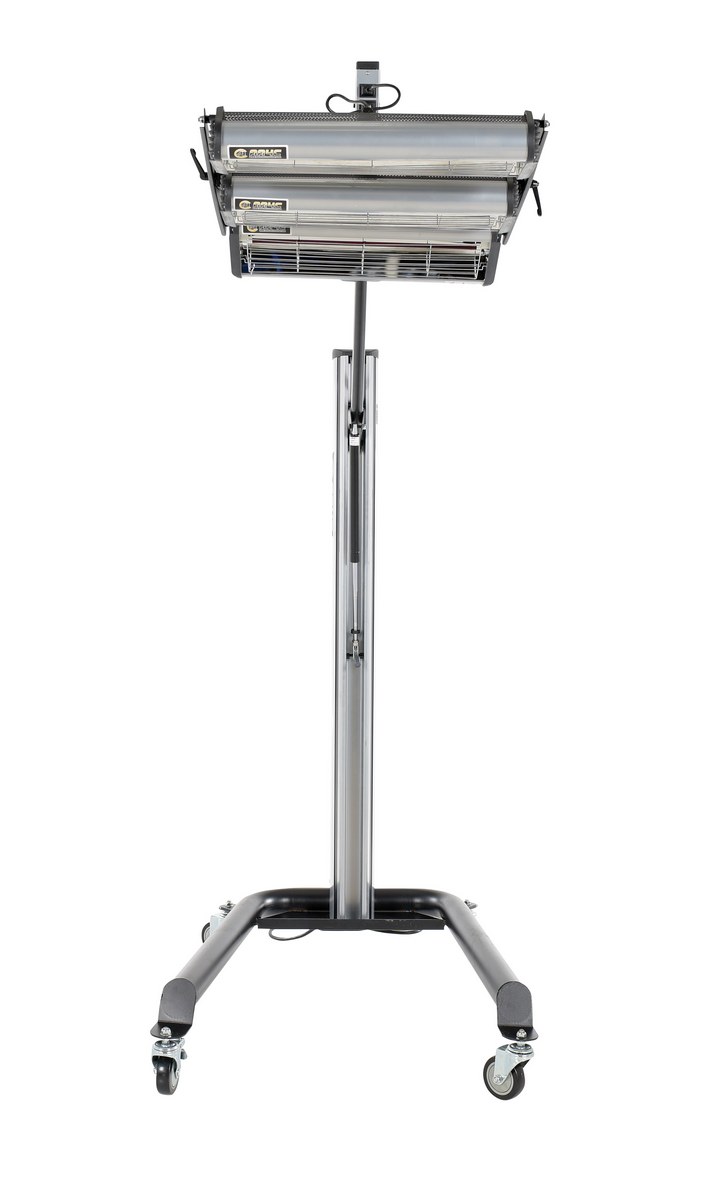

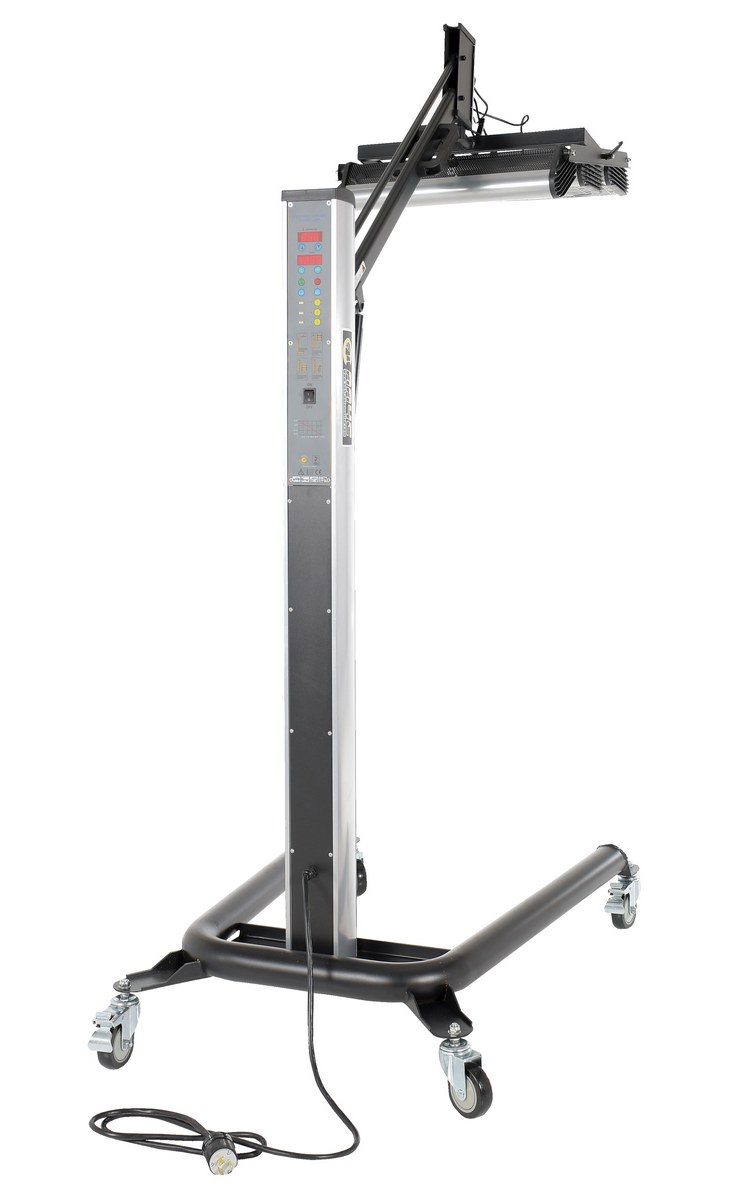

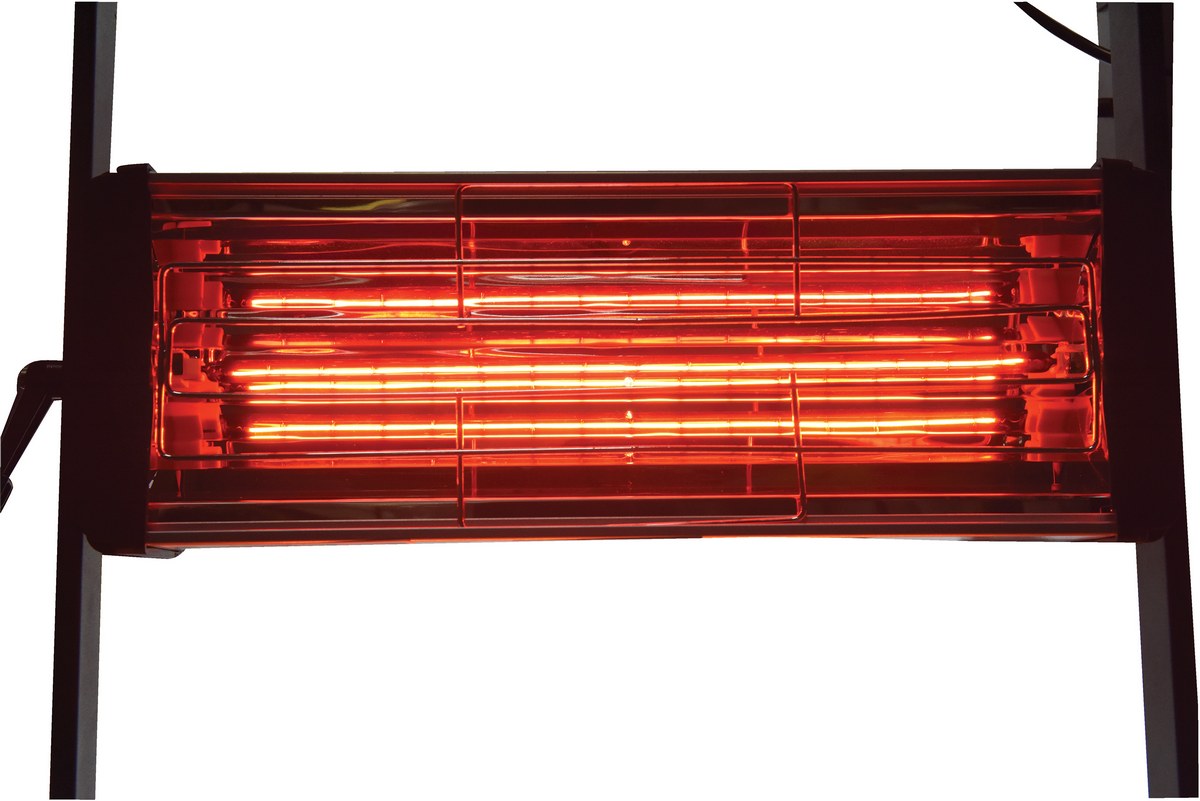

model: HEAT-3P-230-1

HEAT-3P-230-1_A.jpg HEAT-3P-230-1_D.jpg HEAT-3P-230-1_B.jpg HEAT-3P-230-1_C.jpg More Images +
Infrared Heaters
SERIES: HEAT

An infrared heater provides beneficial warmth to a variety of industrial areas. A simple to use control panel allows the function and heat settings to be utilized in the best possible way for maximum efficiency. An adjustable heater arm gives the user the ability to maneuver the heating elements into a position that best fits the type of surface that is being heated. Unit includes casters to easily maneuver the unit to and around the work area. A robust structural construction endures work place conditions that are continually changing. HEAT-3P-230-1 has a 0-99 minute timer, while
HEAT-4P-230-1 and HEAT-6P-230-1 both have a 0-60 minute timer.

  • (4)swivel 4"x1" poly on poly casters
  • Cord Length: 7'
  • HZ/Voltage/Phase: 60/220/1

Infrared Heaters

model: HEAT-3P-230-1

Model # Description Attributes Net Wt.
(lbs)

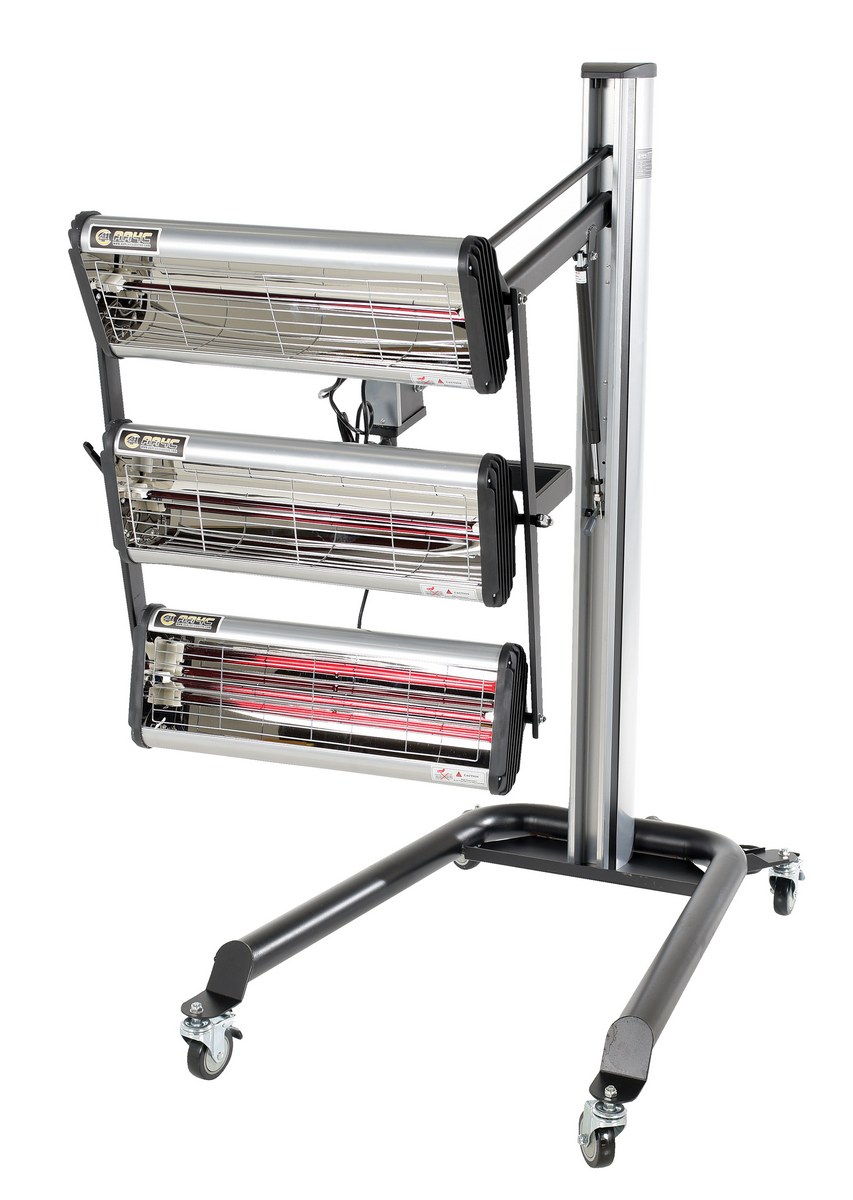

HEAT-3P-230-1 HEAT-3P-230-190 Days Limited WarrantySteel Infrared Heater 3 Panel 230 Volt 1 Phase Black/SilverLowered Height (in.): 16-3/8
Raised Height (in.): 95-3/8		183

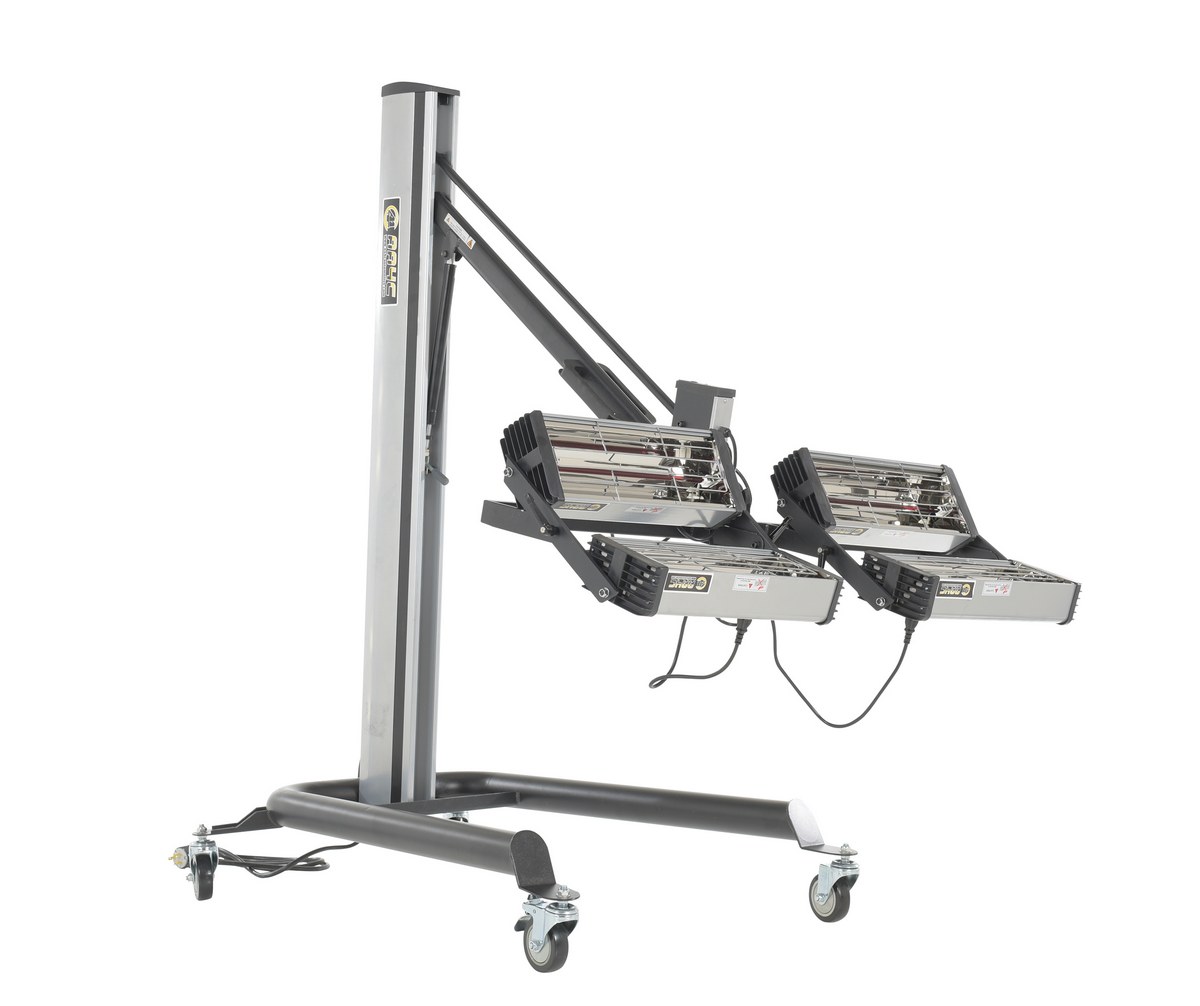

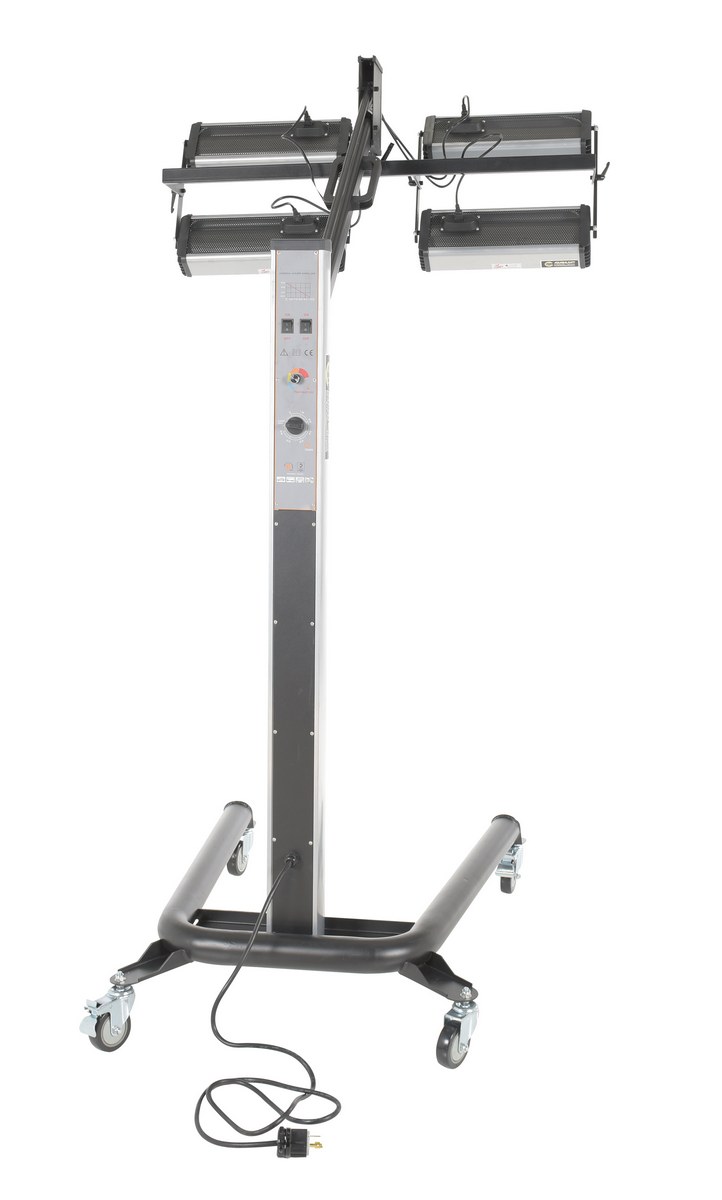

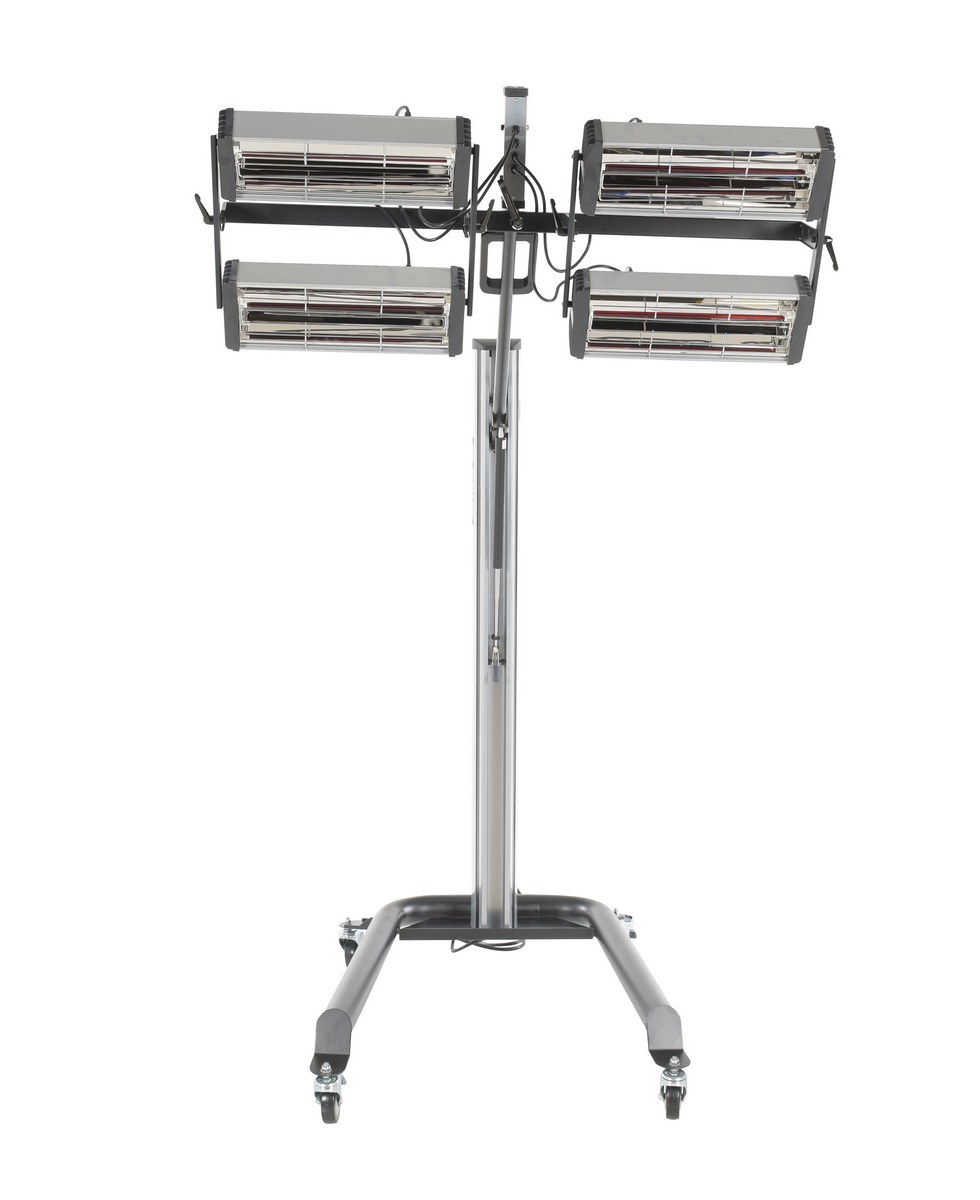

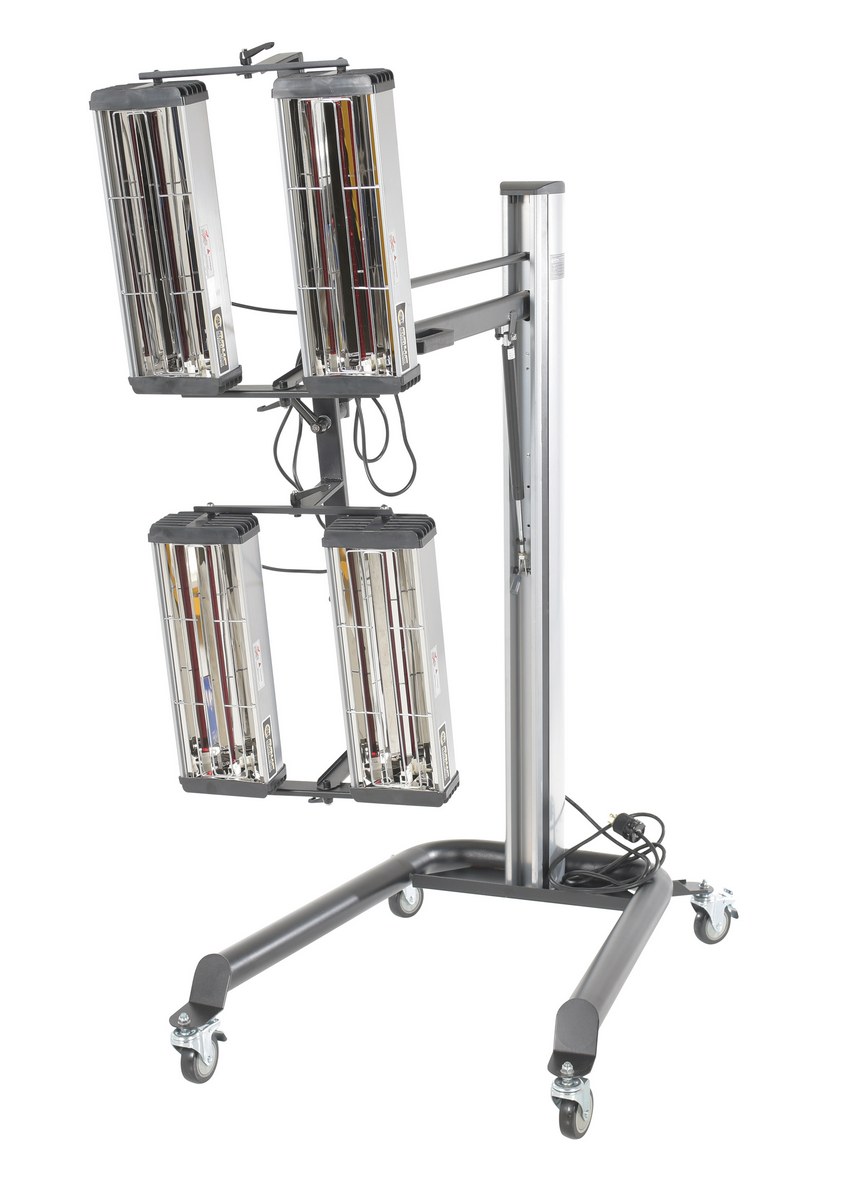

HEAT-4P-230-1 HEAT-4P-230-190 Days Limited WarrantySteel Infrared Heater 4 Panel 230 Volt 1 Phase Black/SilverLowered Height (in.): 9-3/8
Raised Height (in.): 87-3/8		223

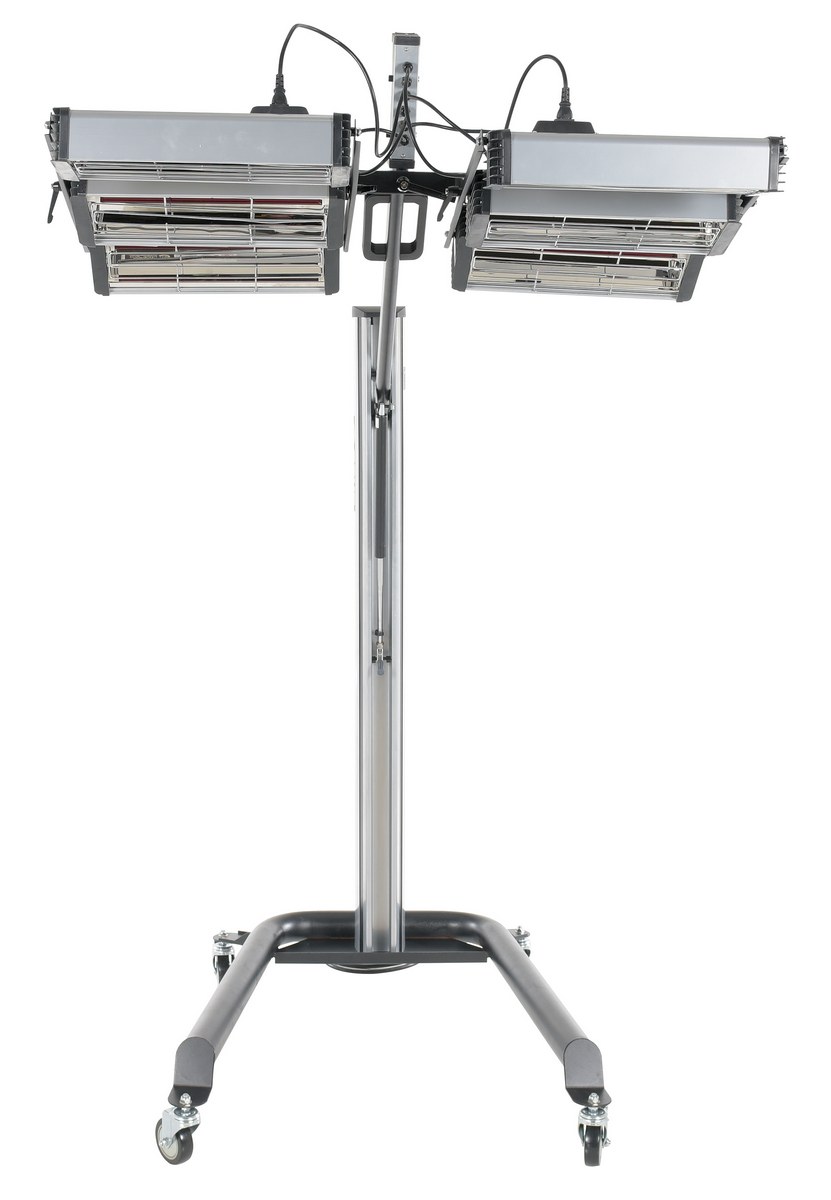

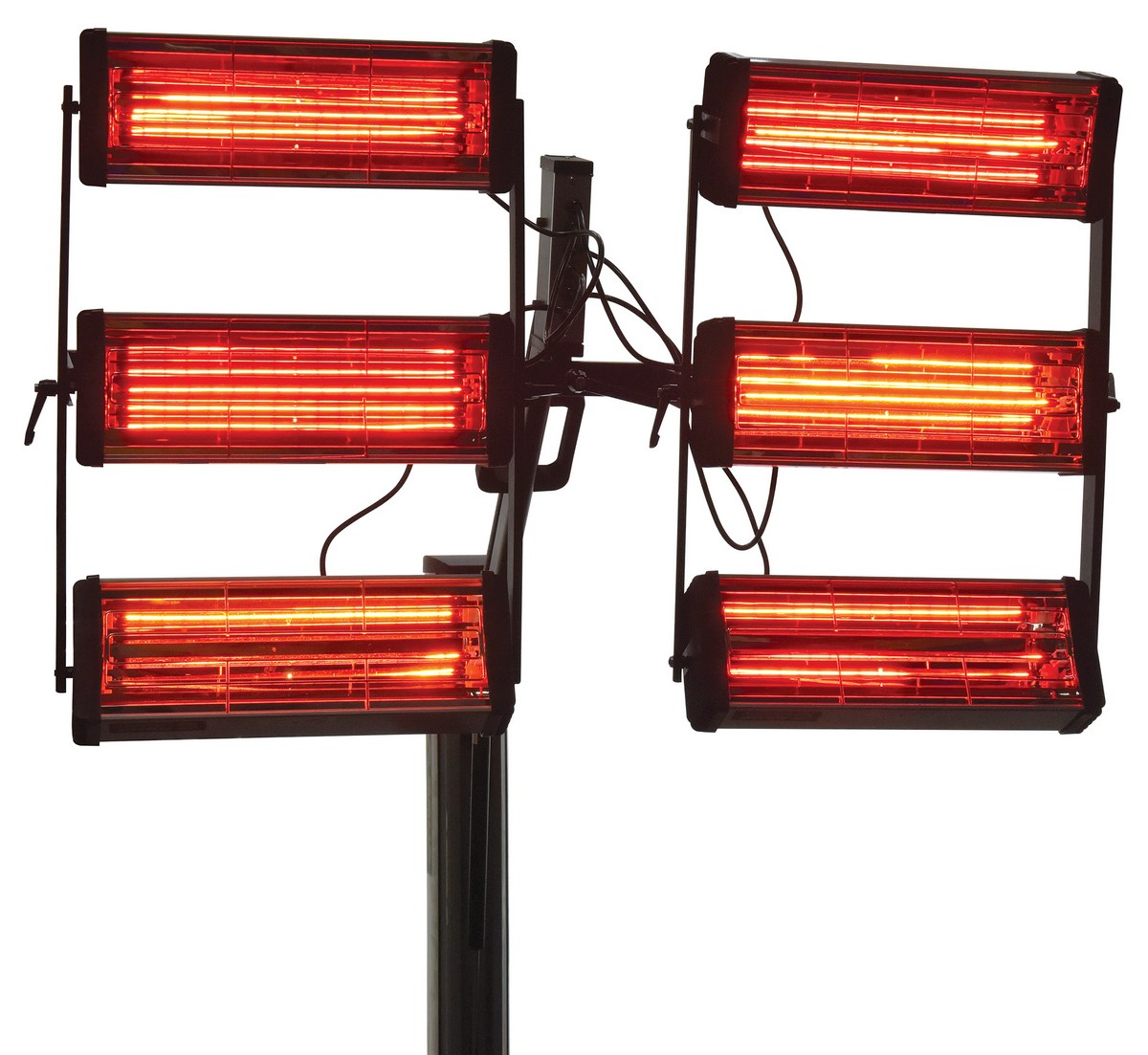

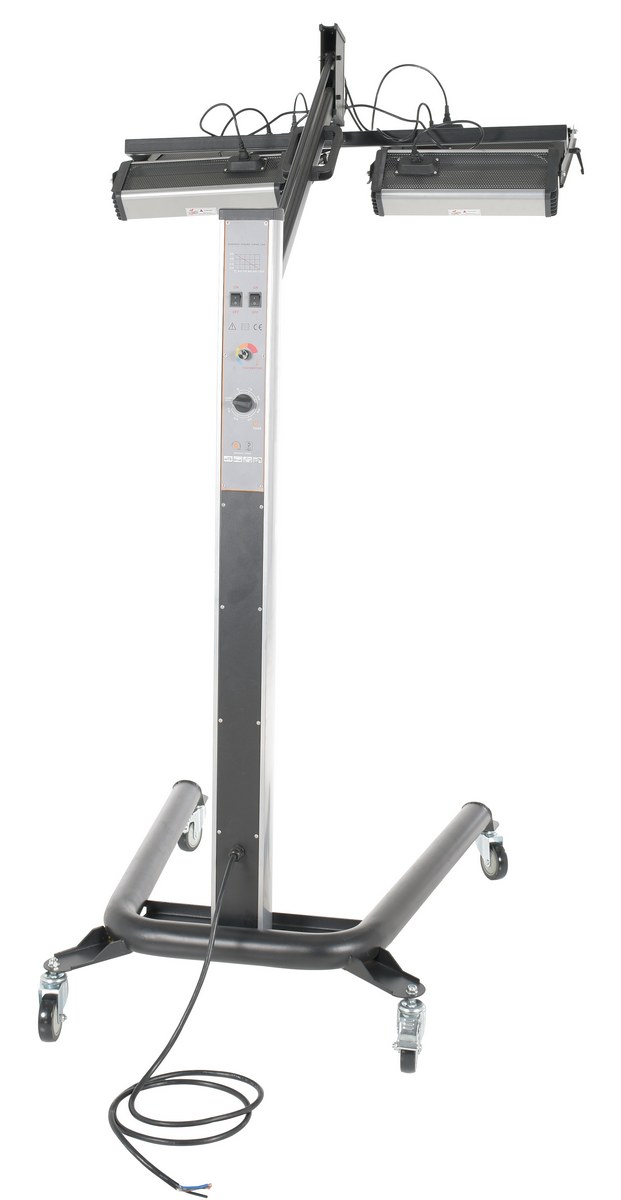

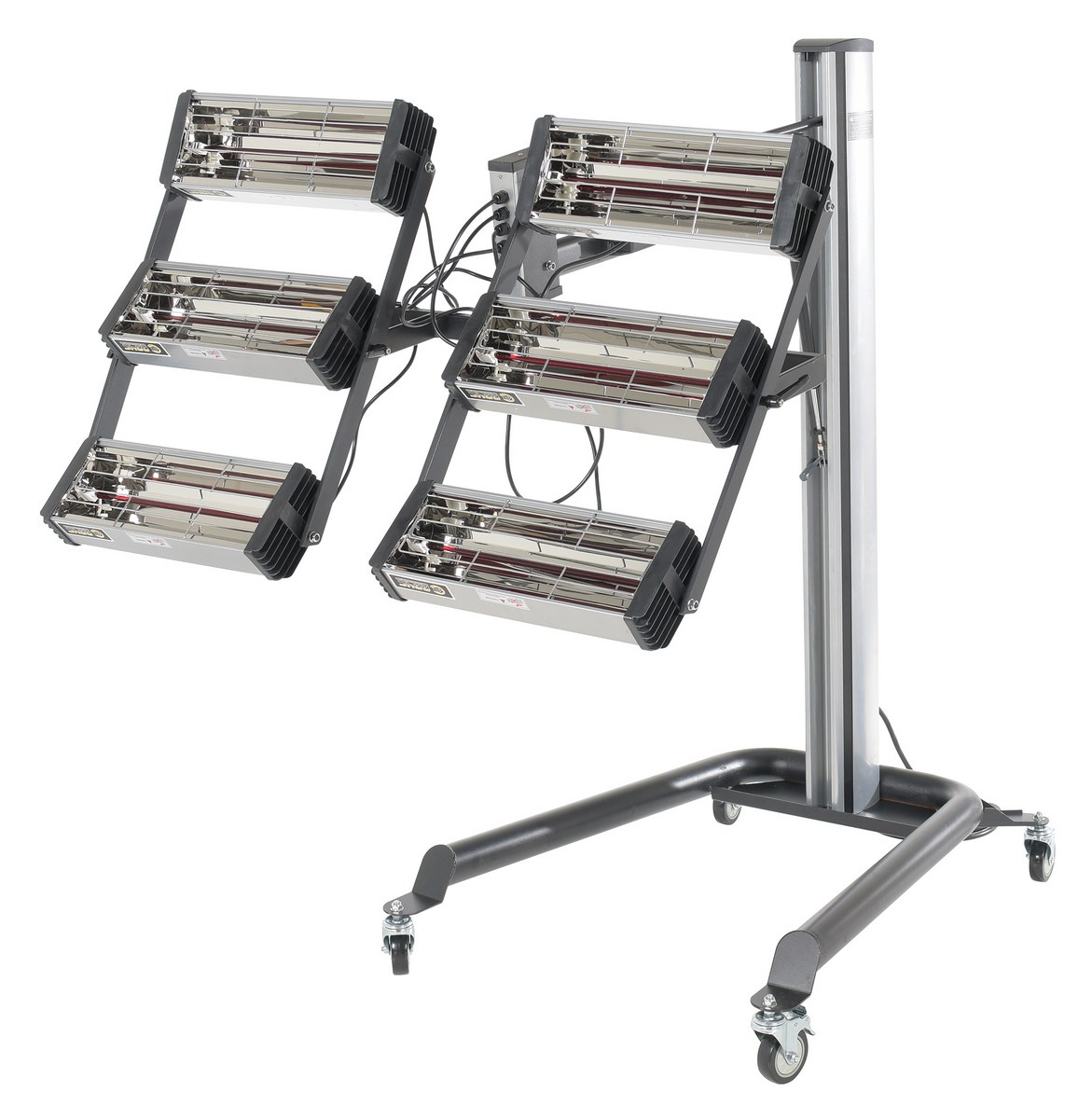

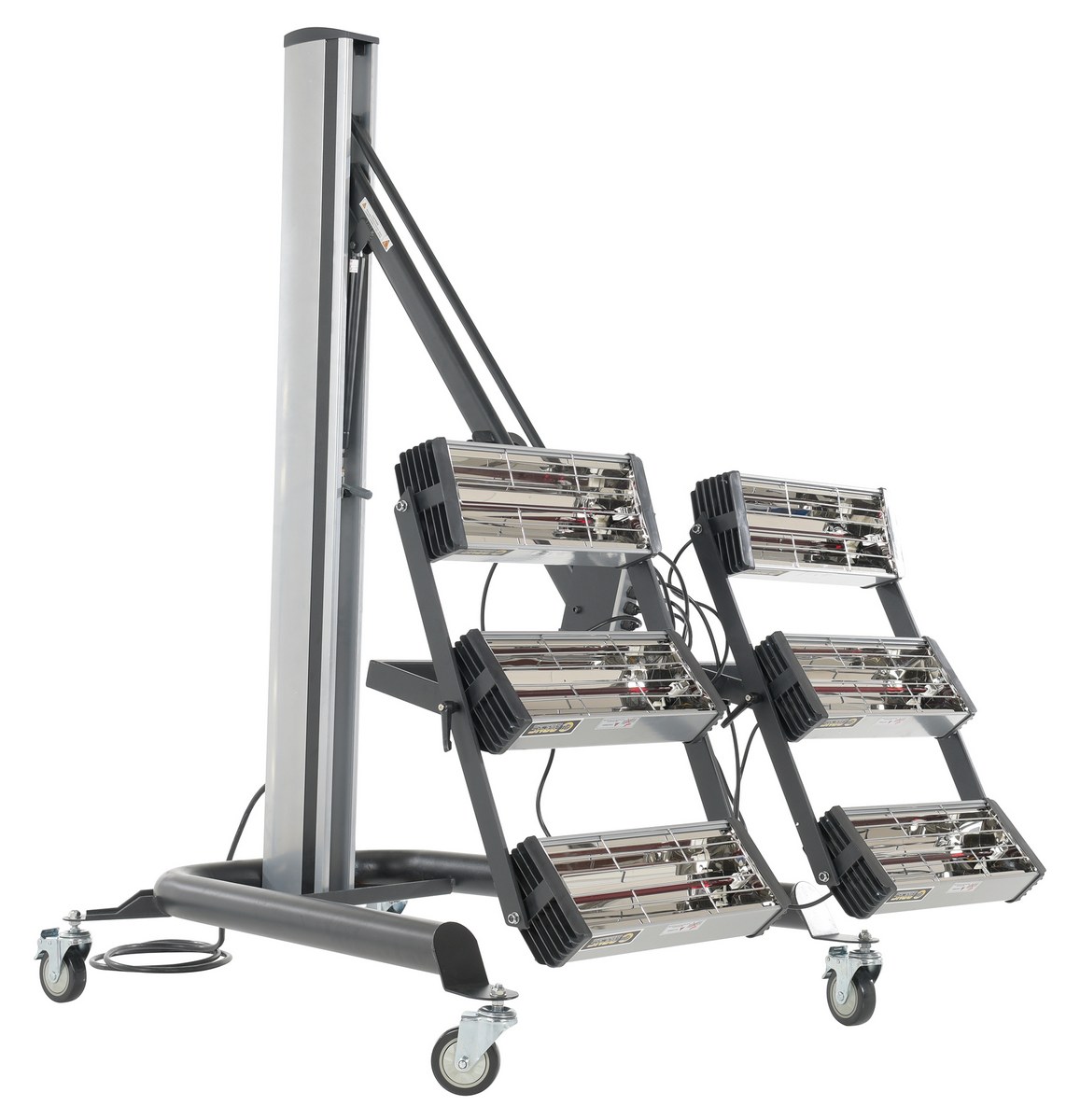

HEAT-6P-230-1 HEAT-6P-230-190 Days Limited WarrantySteel Infrared Heater 6 Panel 230 Volt 1 Phase Black/SilverLowered Height (in.): 6-3/8
Raised Height (in.): 78-3/8		230

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= Dimension Image = Works w/ Skid Only = Flatbed Truck Required

HEAT-3P-230-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Lowered Height (in.): 16-3/8
Raised Height (in.): 95-3/8
Lowered Height (in.): 16-3/8
Raised Height (in.): 95-3/8

HEAT-4P-230-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Lowered Height (in.): 9-3/8
Raised Height (in.): 87-3/8
Lowered Height (in.): 9-3/8
Raised Height (in.): 87-3/8

HEAT-6P-230-1
Unit:
Size: W x L x H
Weight:
Limited Warranty
Lowered Height (in.): 6-3/8
Raised Height (in.): 78-3/8
Lowered Height (in.): 6-3/8
Raised Height (in.): 78-3/8
PDFs will open in a new window when clicked.

Manuals

HEAT-3P-230-1

HEAT-4P-230-1

HEAT-6P-230-1

Survey Sheets

No Survey Sheets For This Product

Engineering Drawings

No Approval Drawings For This Product

Testing Certificates

HEAT-3P-230-1

HEAT-4P-230-1

HEAT-6P-230-1

SDS Sheets

No SDS Sheets For This Product

Other PDFs

No "Other PDFs" For This Product







Visit Our Youtube Channel For All Available Videos For All Products
What is the temperature range for model HEAT-6P-230-1?
Temperature range HEAT-6P-230-1 is 113-167° F.
How is the temperature controlled within a range for HEAT-6P-230-1?

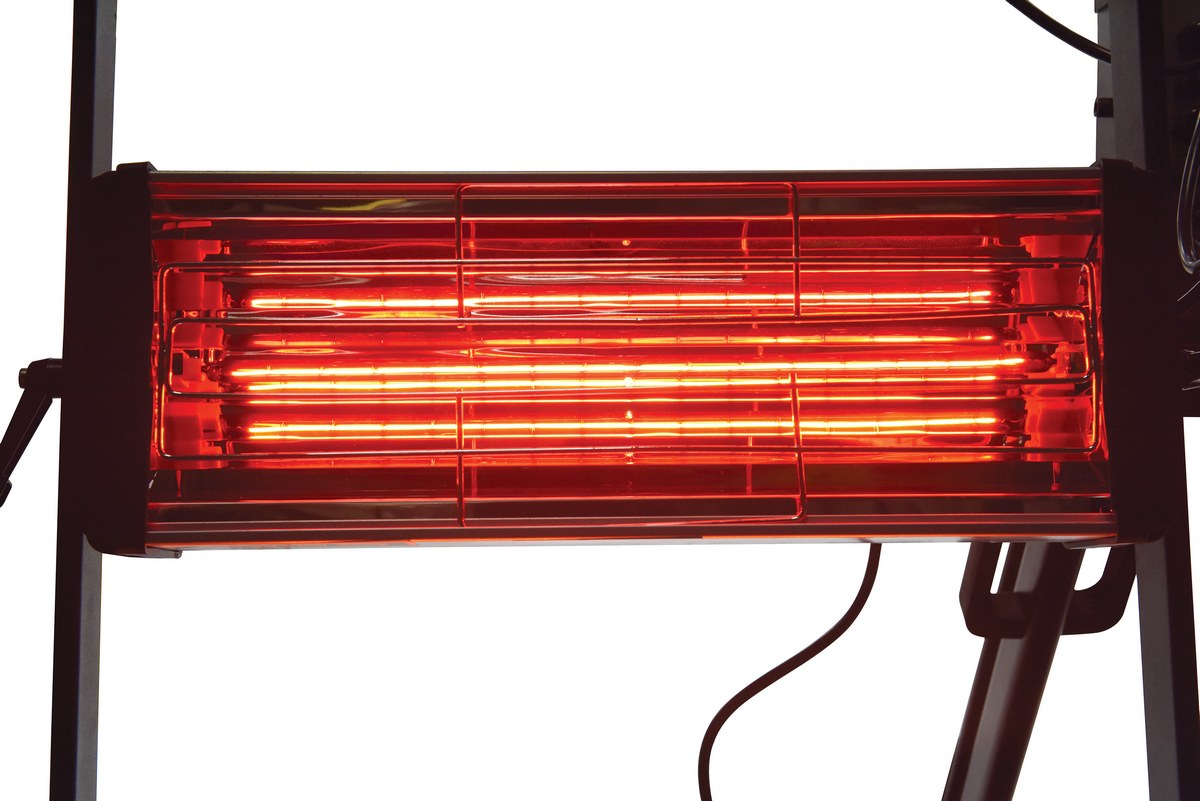

The temperature is controlled through a light adjustment, the brighter the light, the higher the temperature.
Can this heater run for longer than 50 hours continuously?
It is not recommended to run the heater continuously for 50 hours. Recommend continuous usage is one hour. The operation can be resumed after 15 minutes.
What is the temperature range for model HEAT-3P-230-1?
Temperature range for HEAT-3P-230-1 is 104-158 degrees F.
Will the Infrared Heaters heat an entire room?
The Infrared Heaters will only heat what is in front of them- not the whole room.
How close does something have to be for the Infrared Heaters to be effective?
HEAT-3P-230-1: 32X48 sq.in / HEAT-6P-230-1: 48X63 sq.in
