Rug Rams/Carpet Poles
Product Family Overview

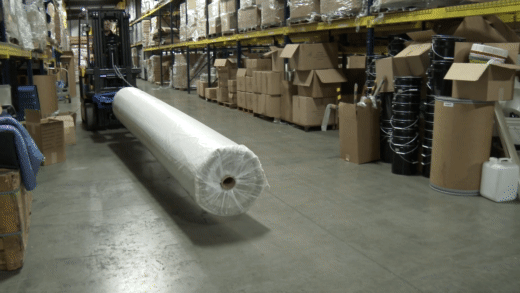

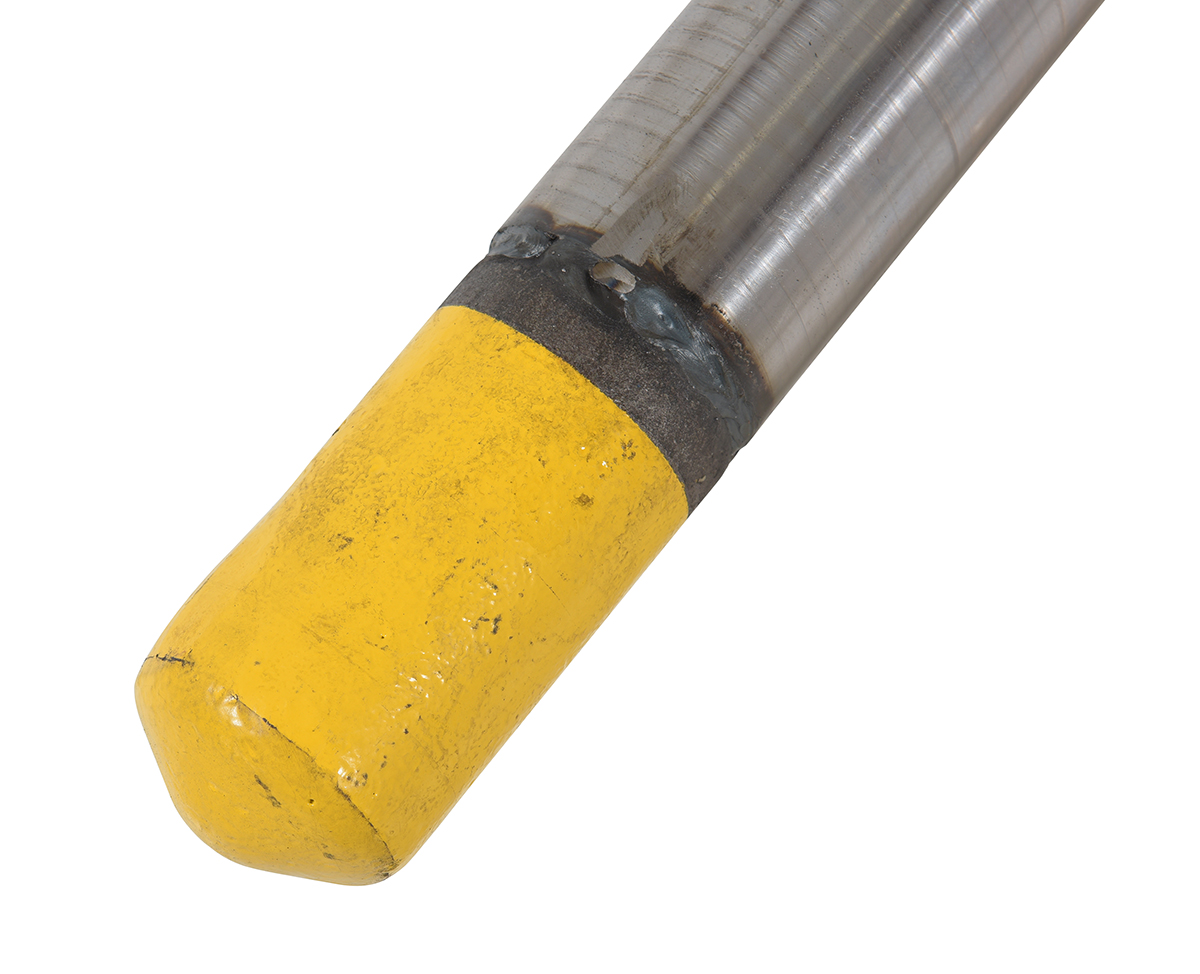

Rug Rams/Carpet PolesTransport rolls of carpet with our sturdy Rug Rams/Carpet Poles. Available in either carriage or fork mounted style. 2-3/4" diameter high strength, rotatable, replaceable pole has tapered tip. All units are made of steel construction and painted blue.

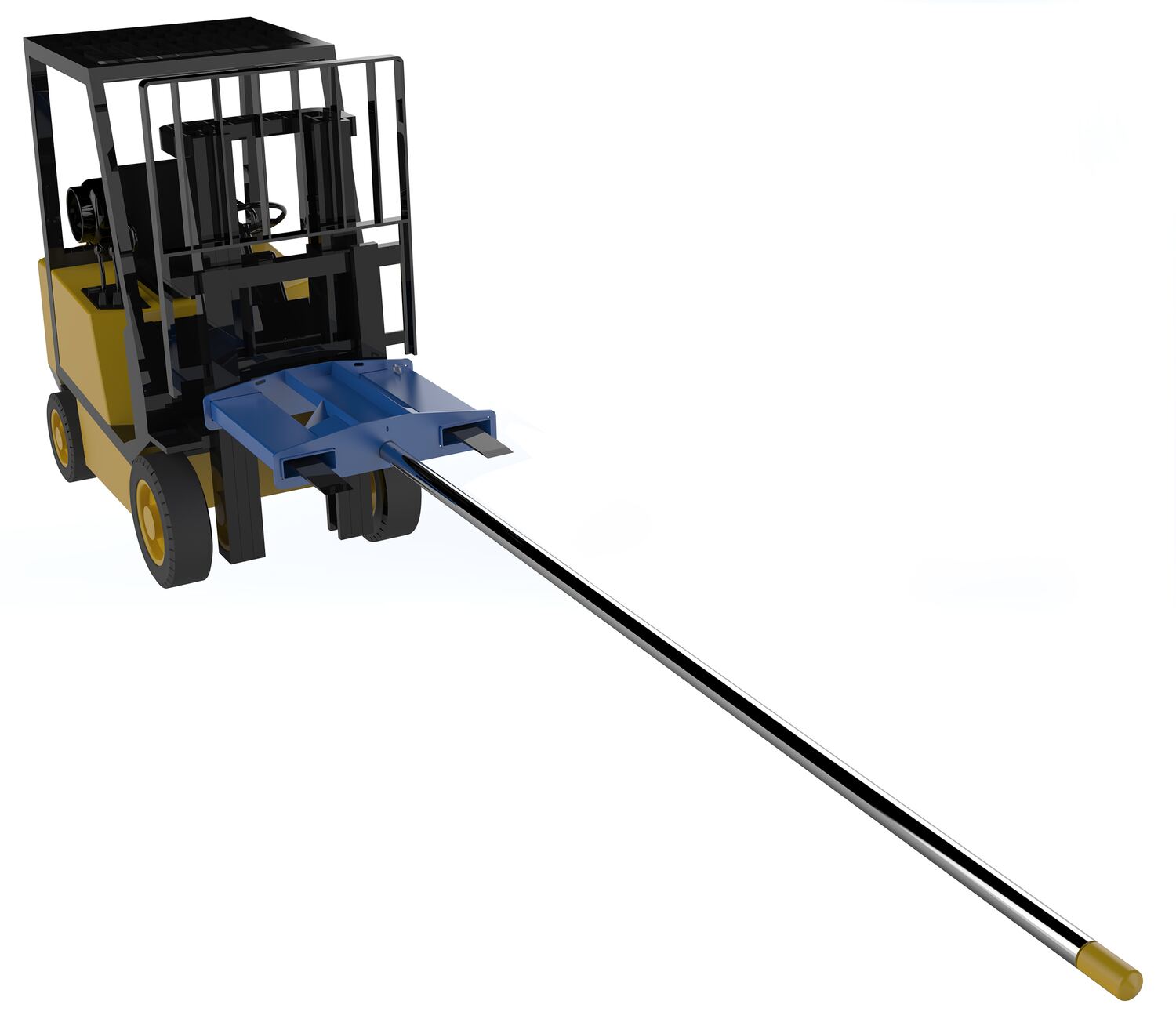

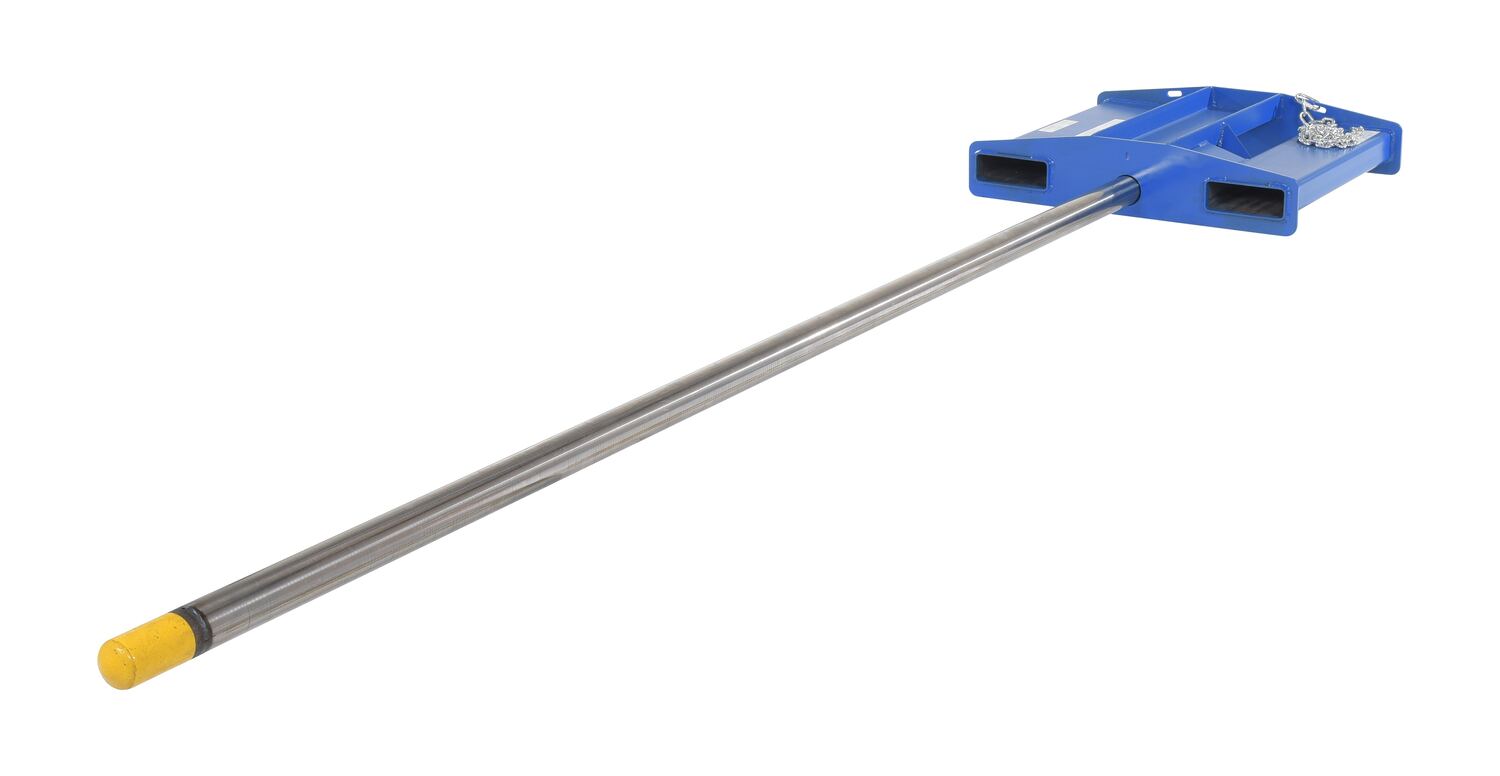

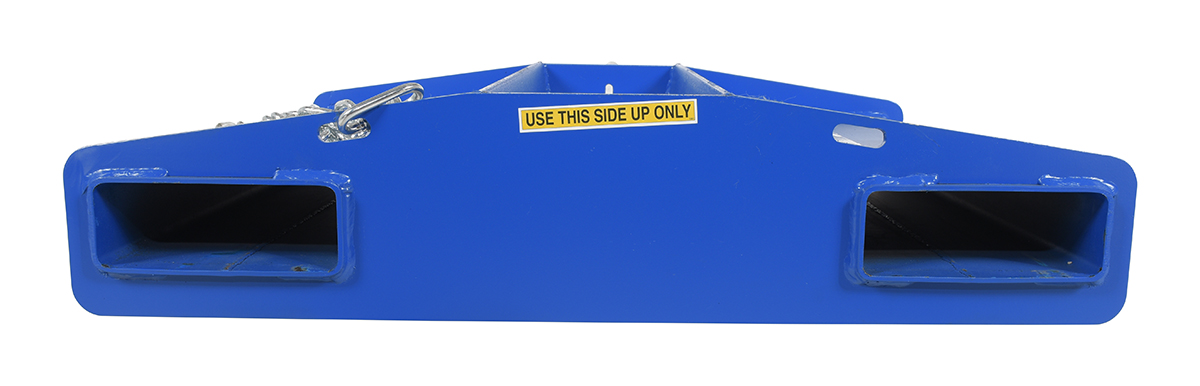

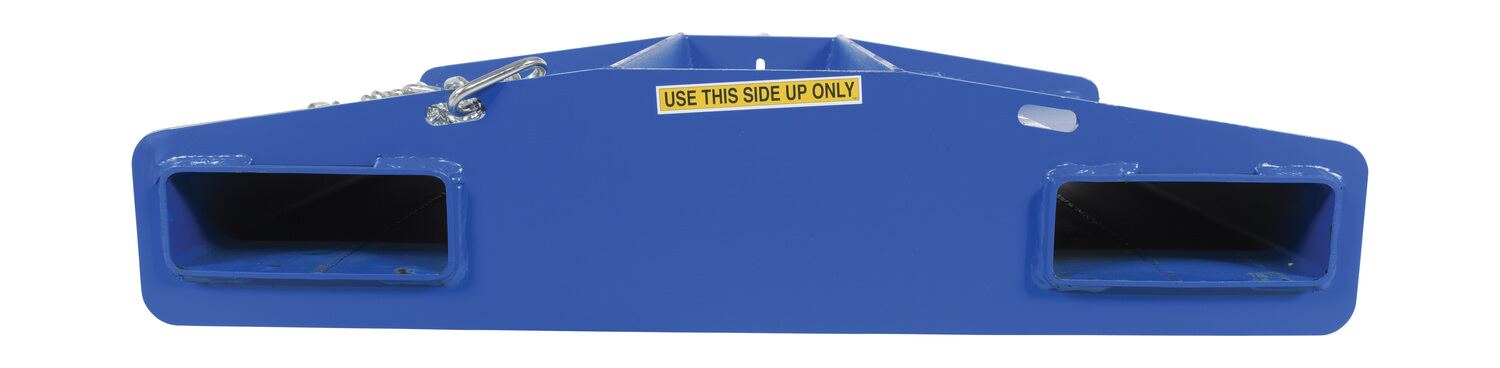

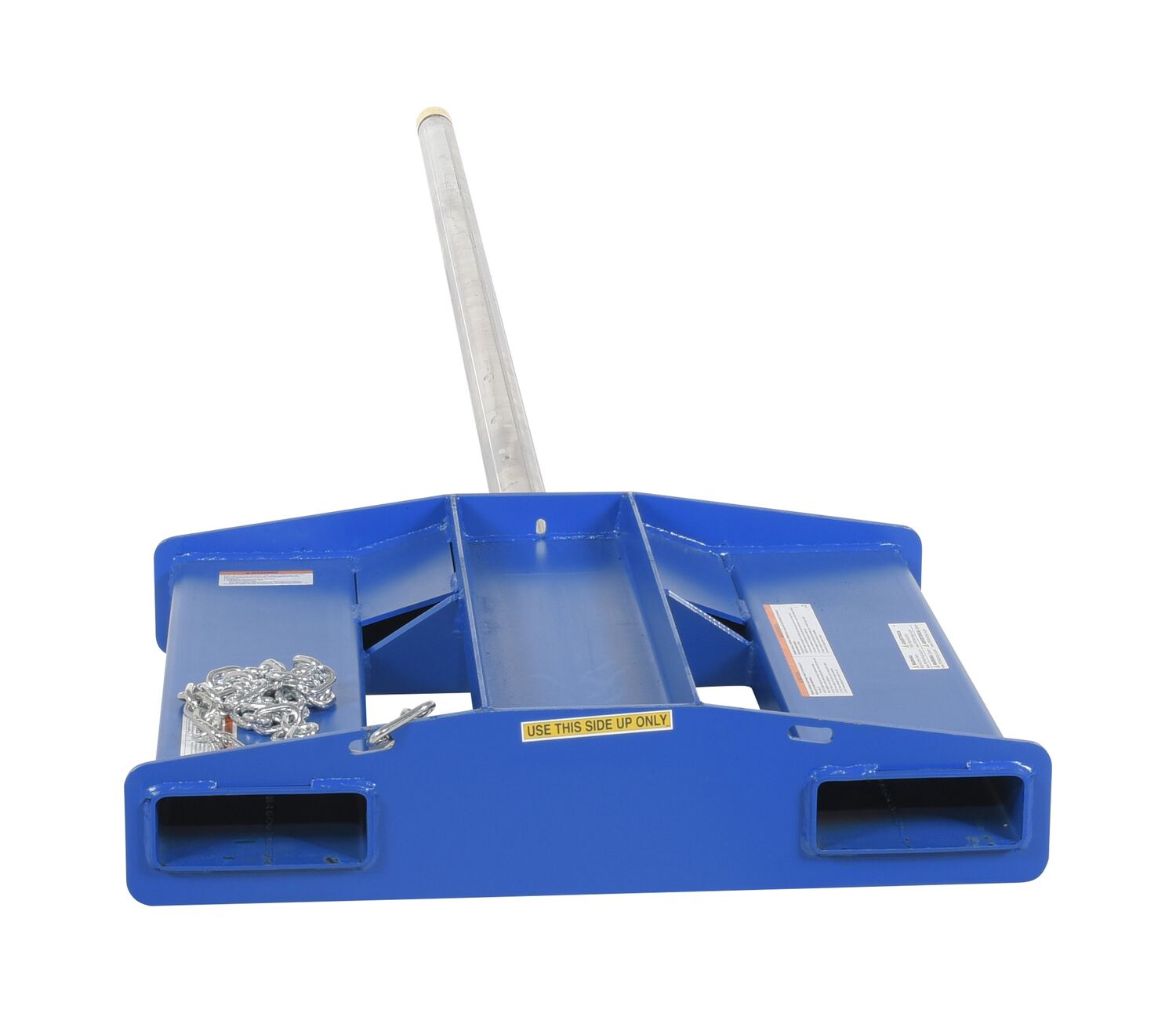

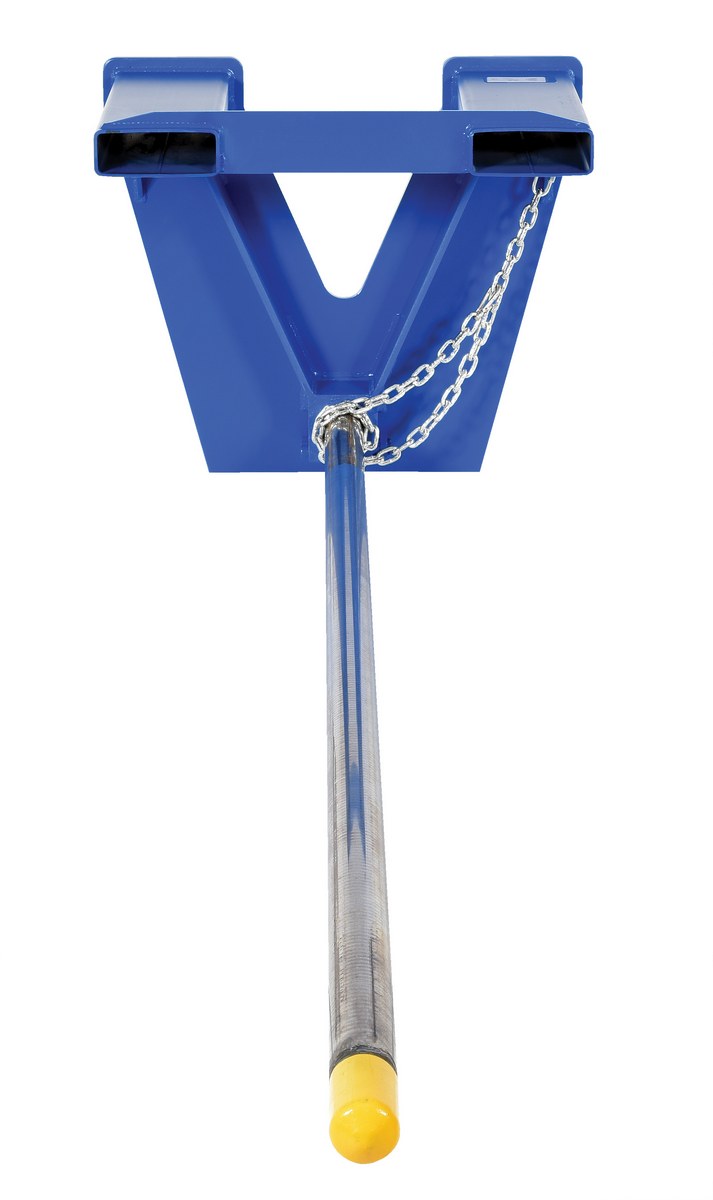

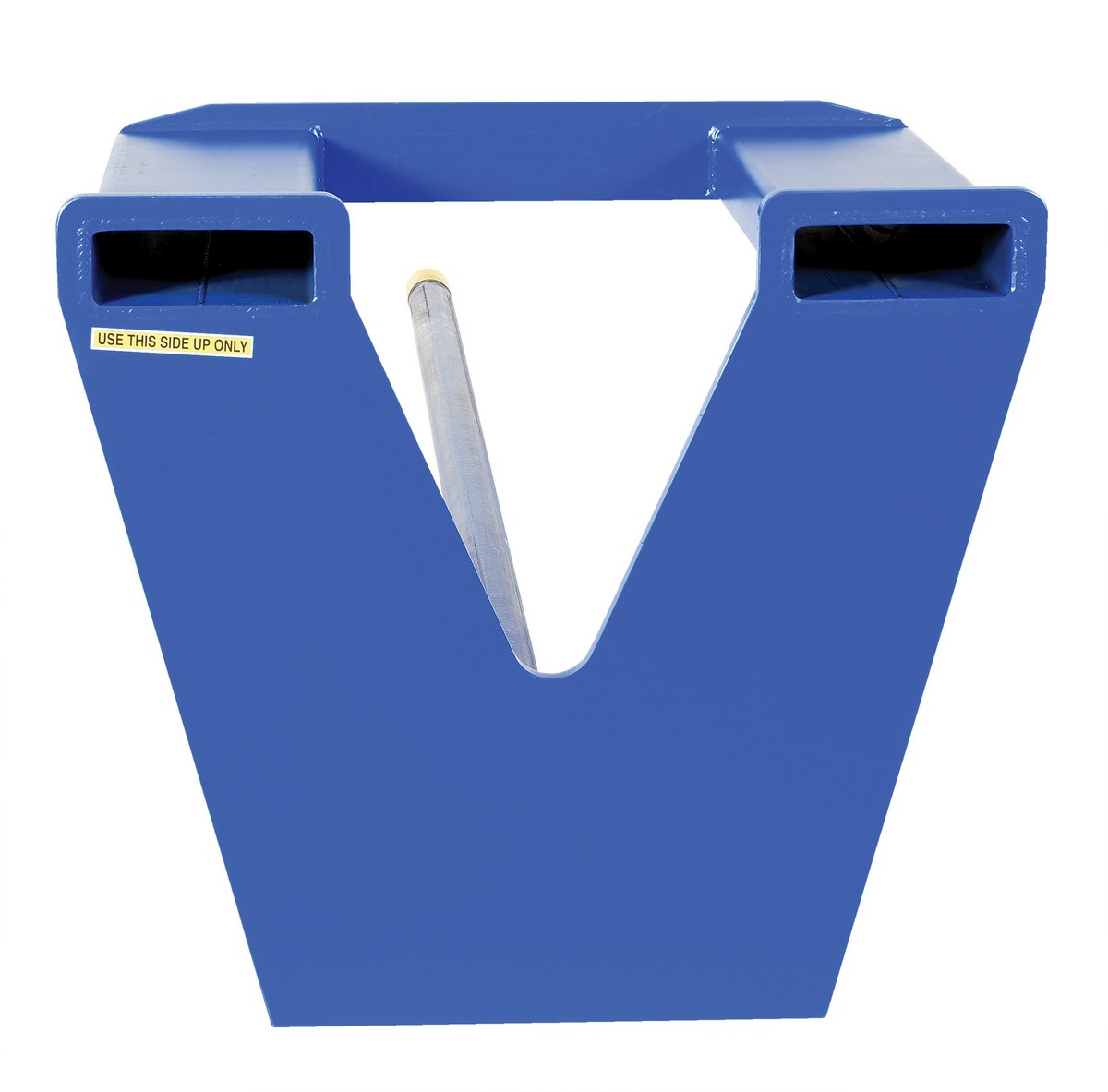

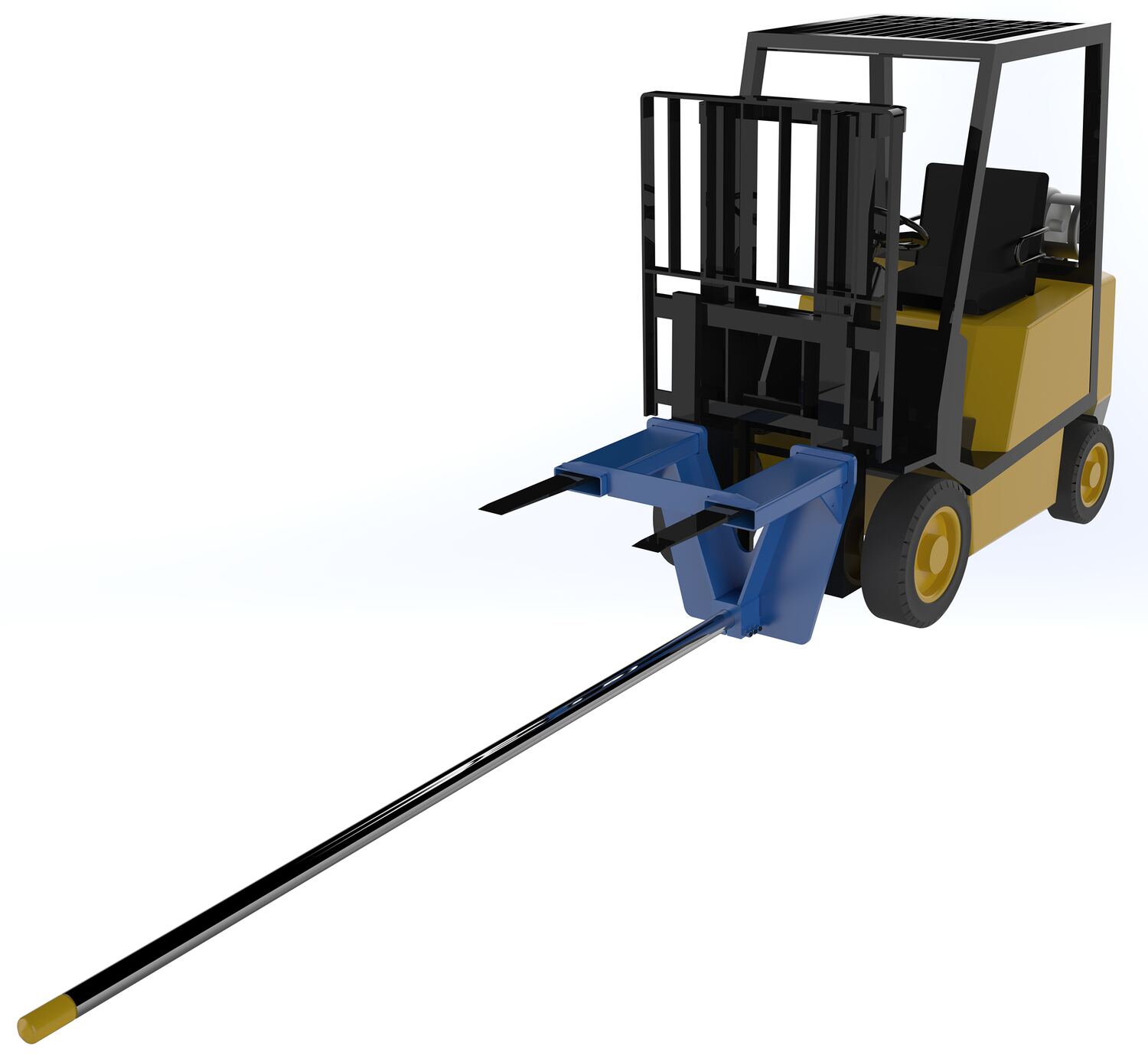

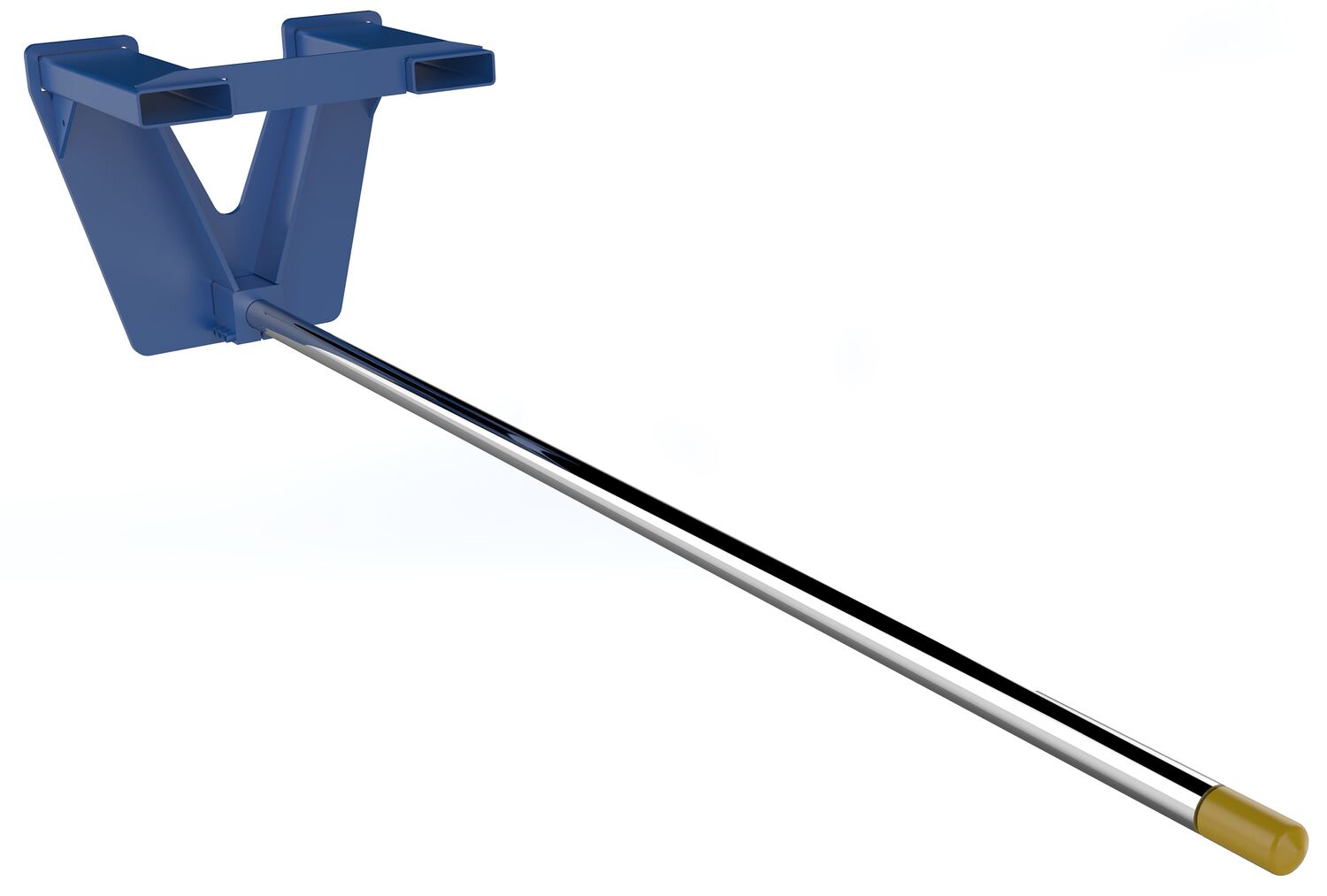

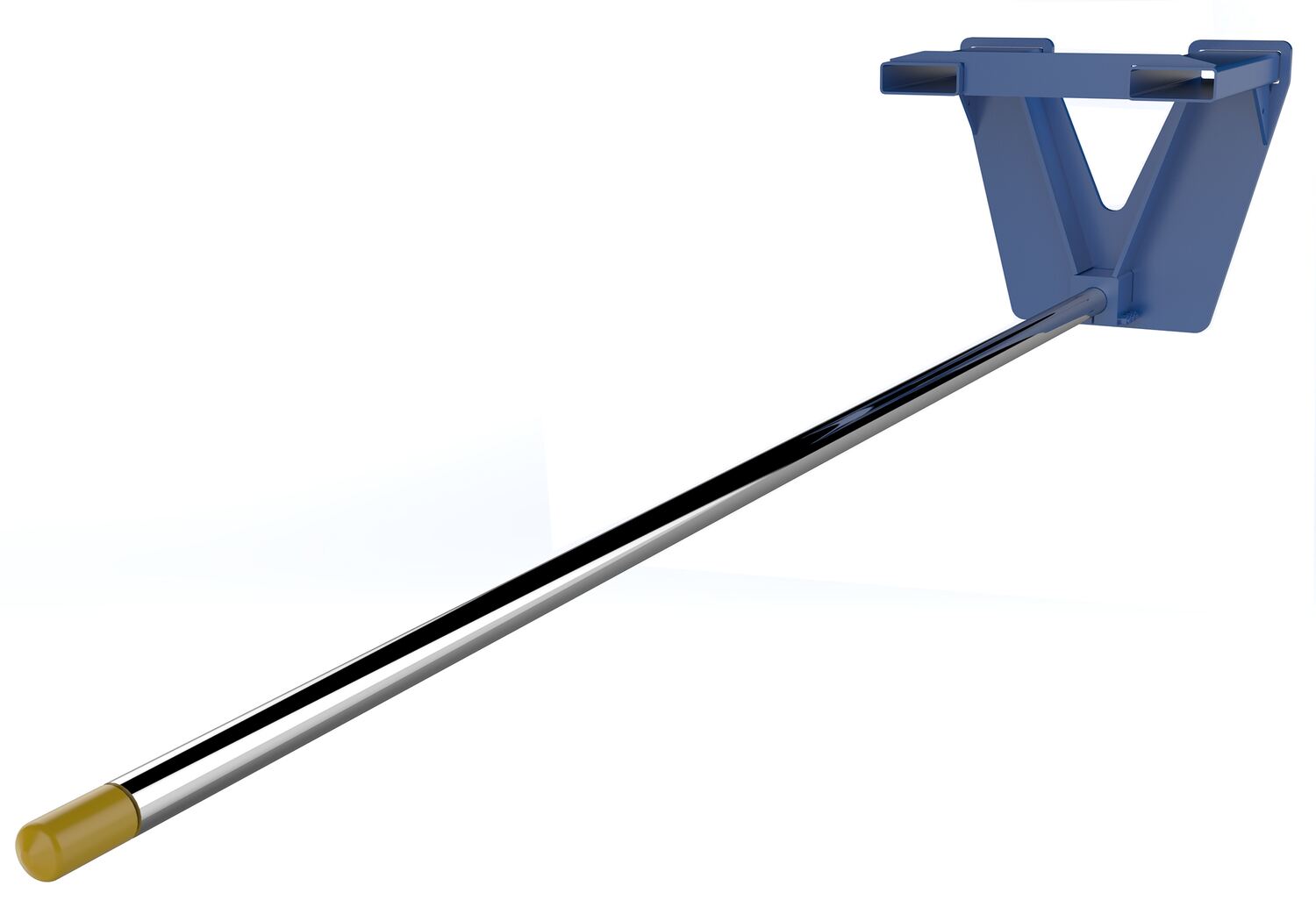

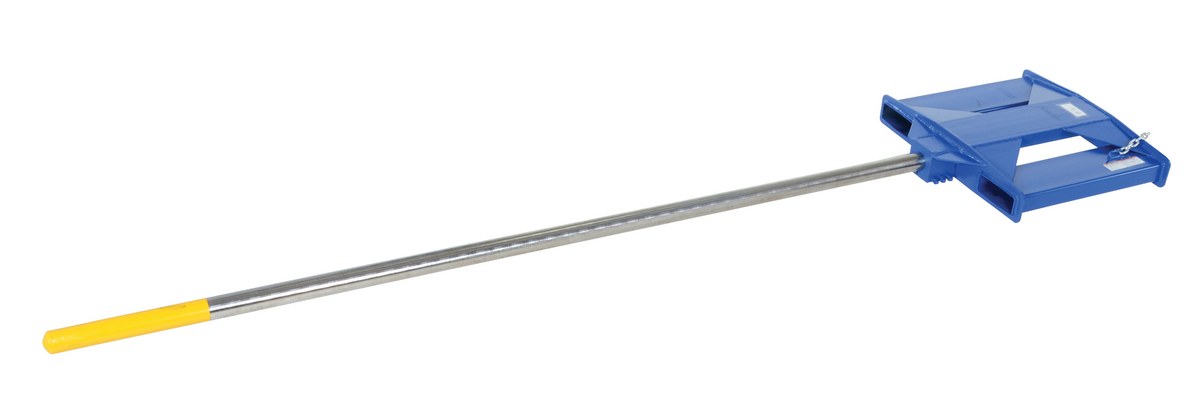

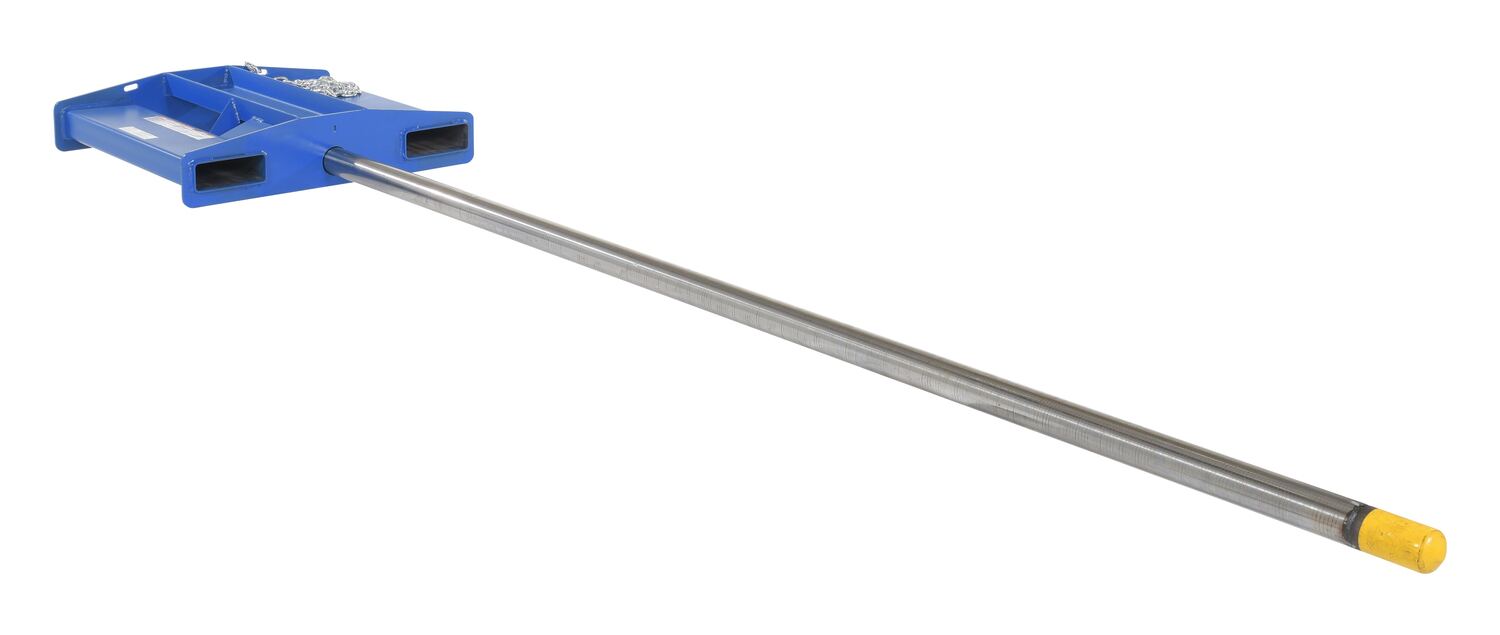

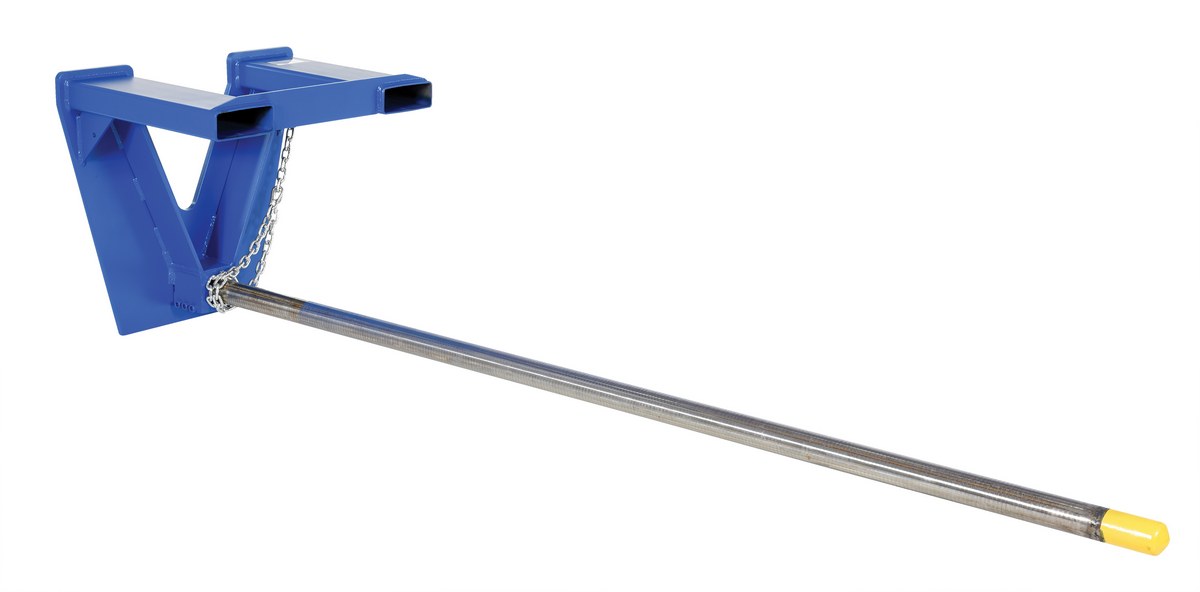

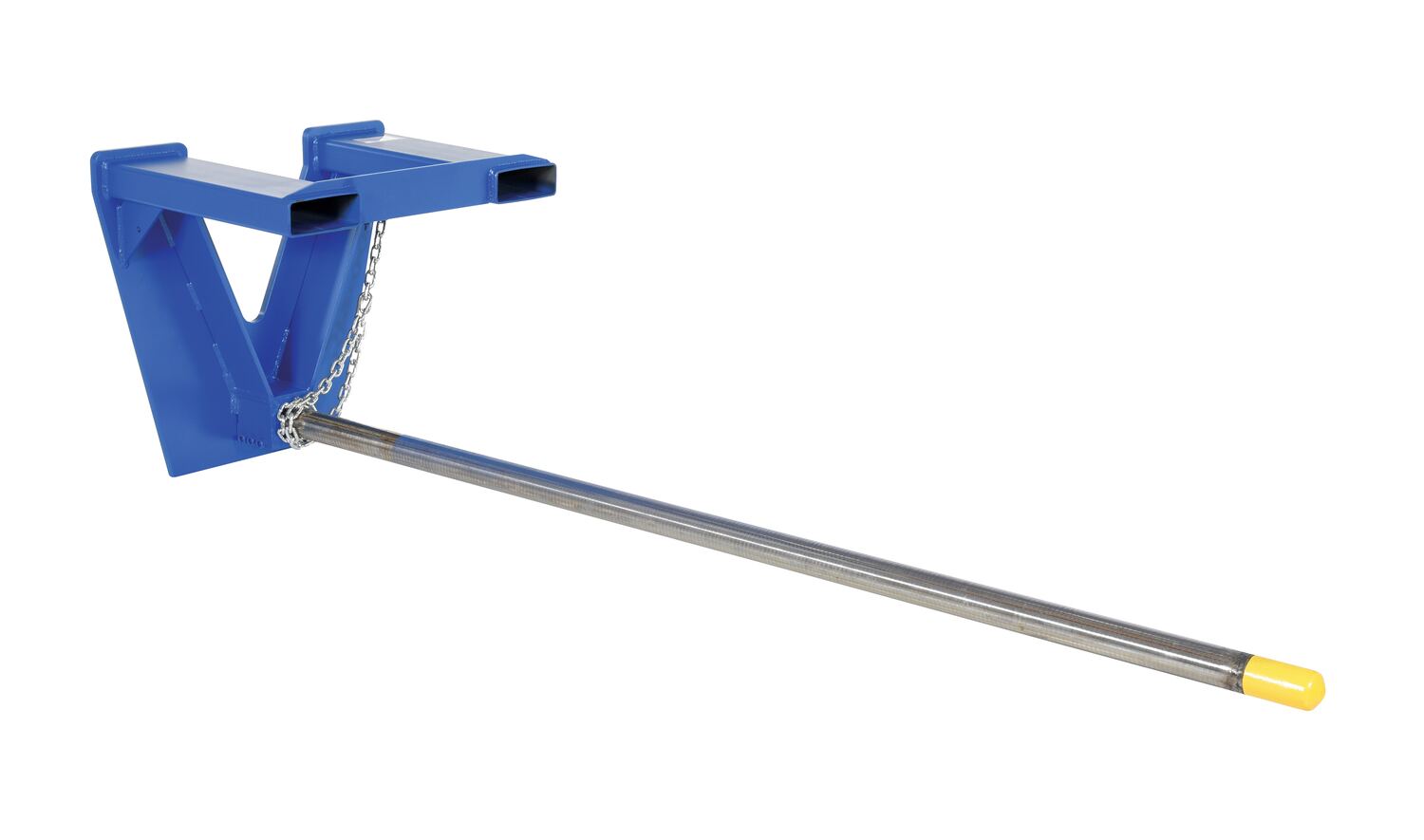

Fork Mounted Rug Rams feature 7-1/2"W x 2-1/2"H fork pockets on models CRP, 7-5/8"Wx2-5/8"H on CRF models, with 24" centers. Safety chain is included to secure unit to fork truck.

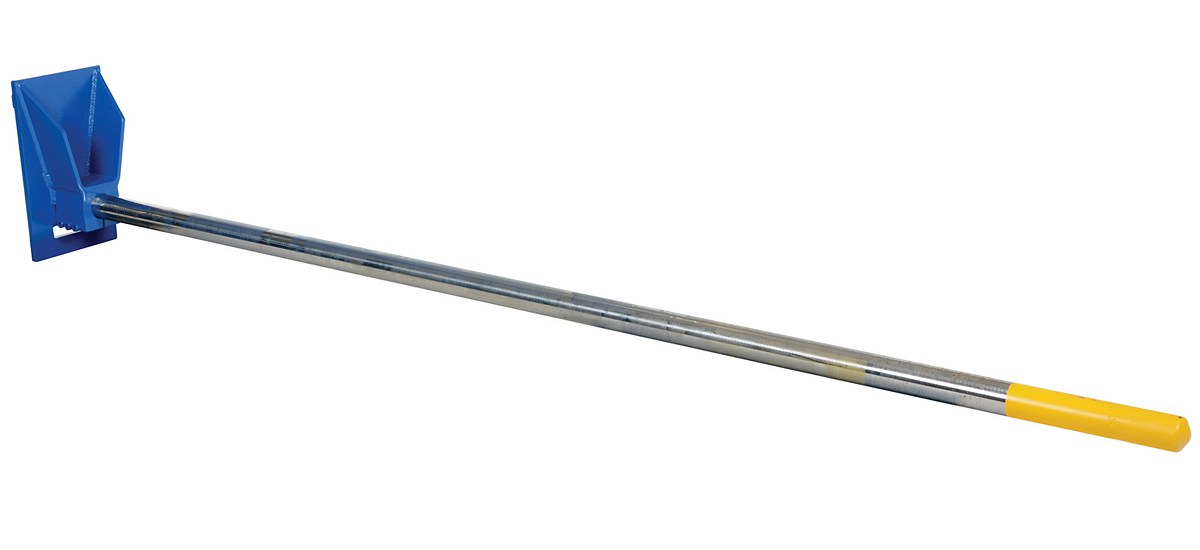

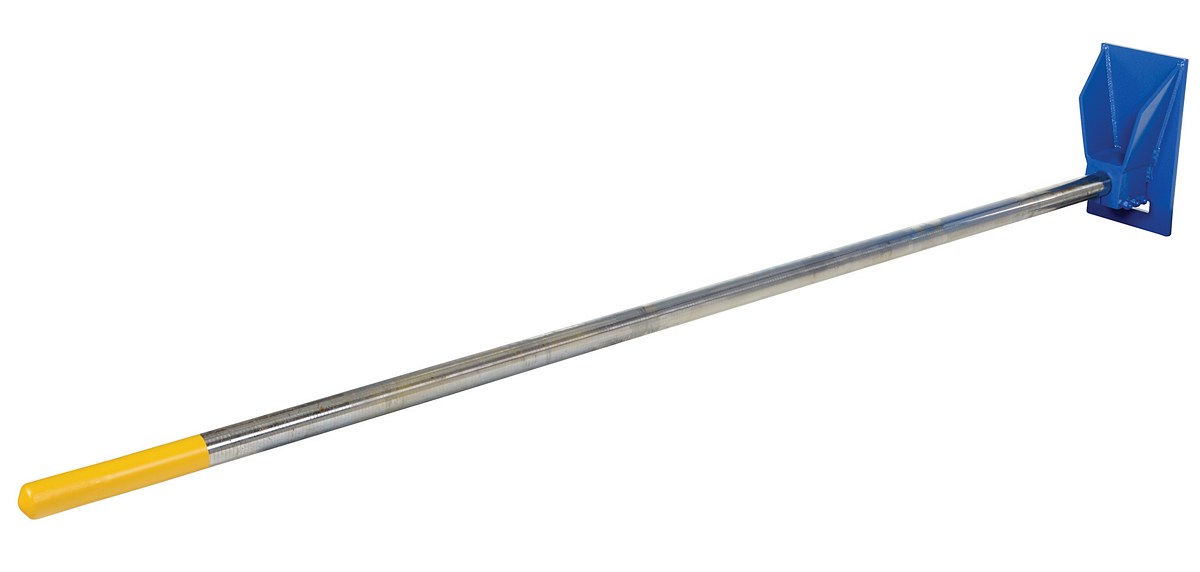

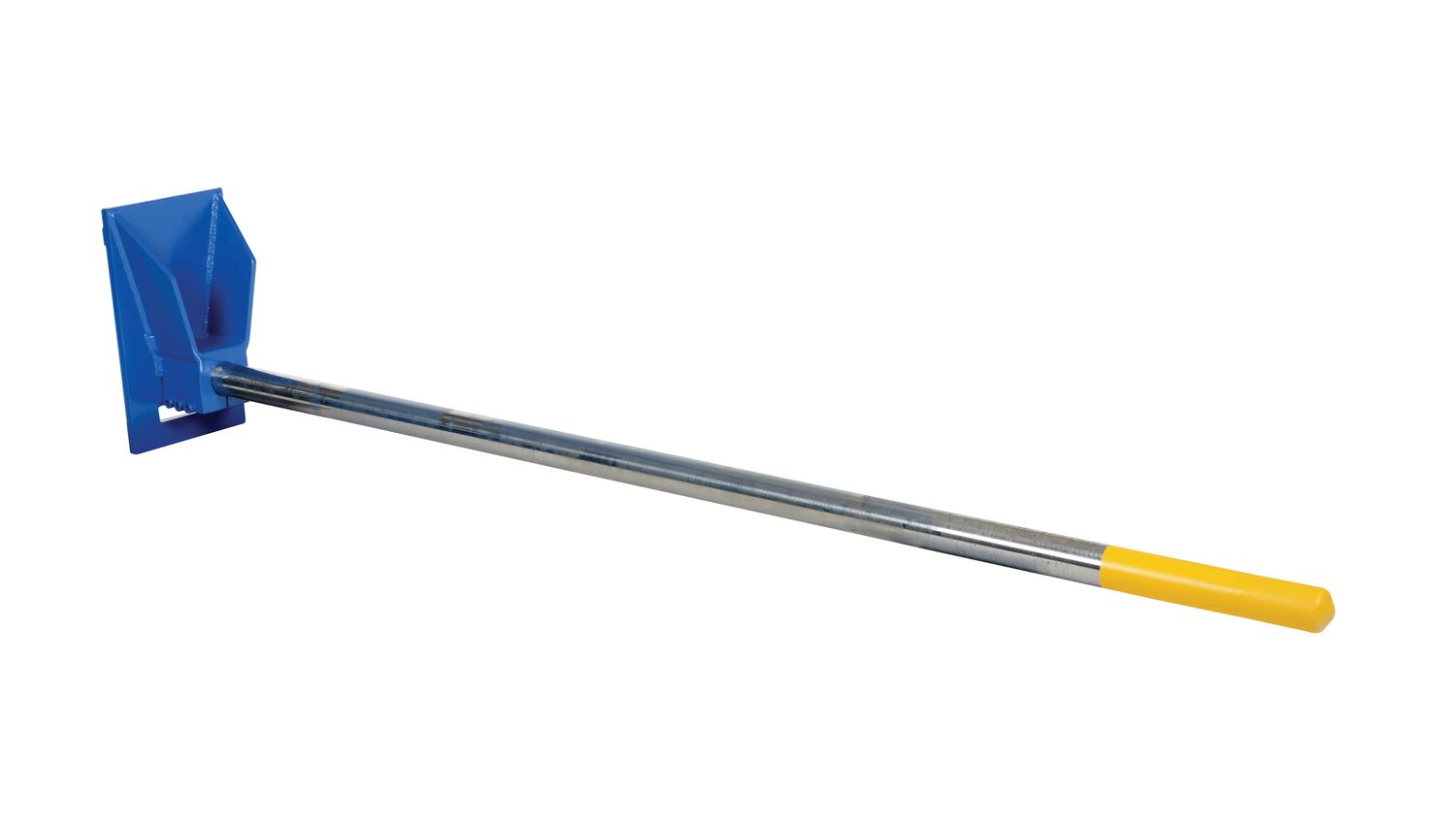

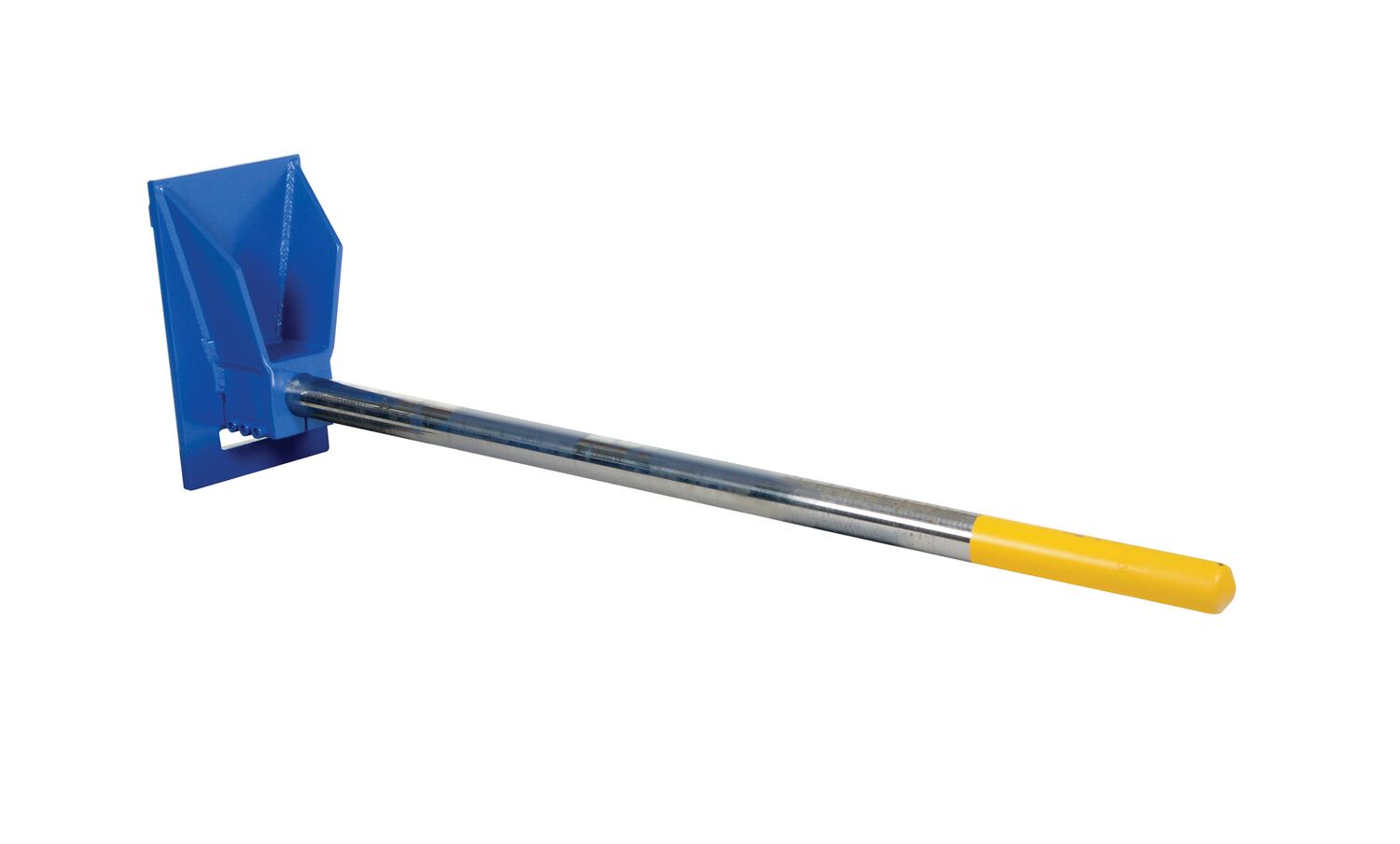

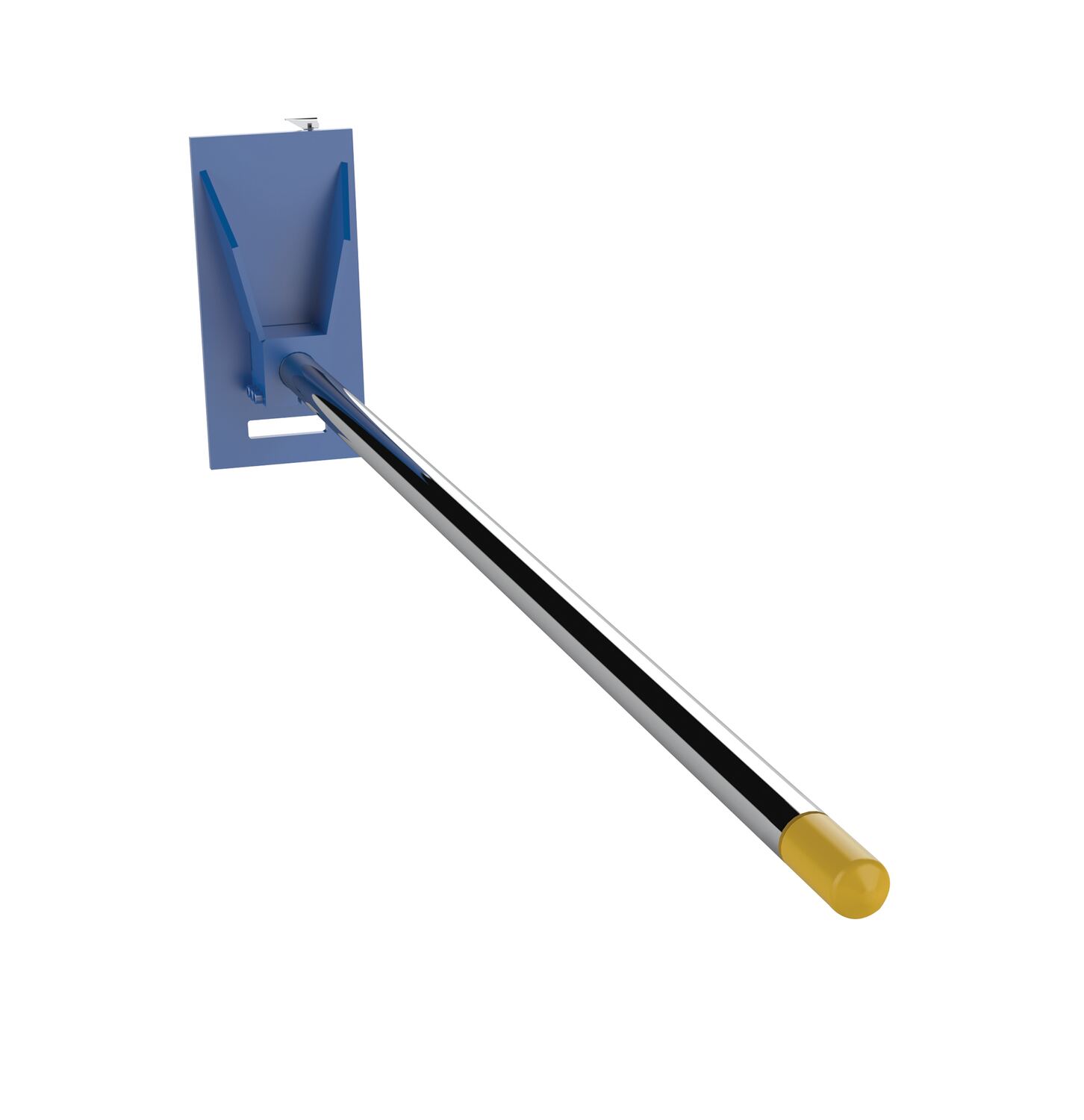

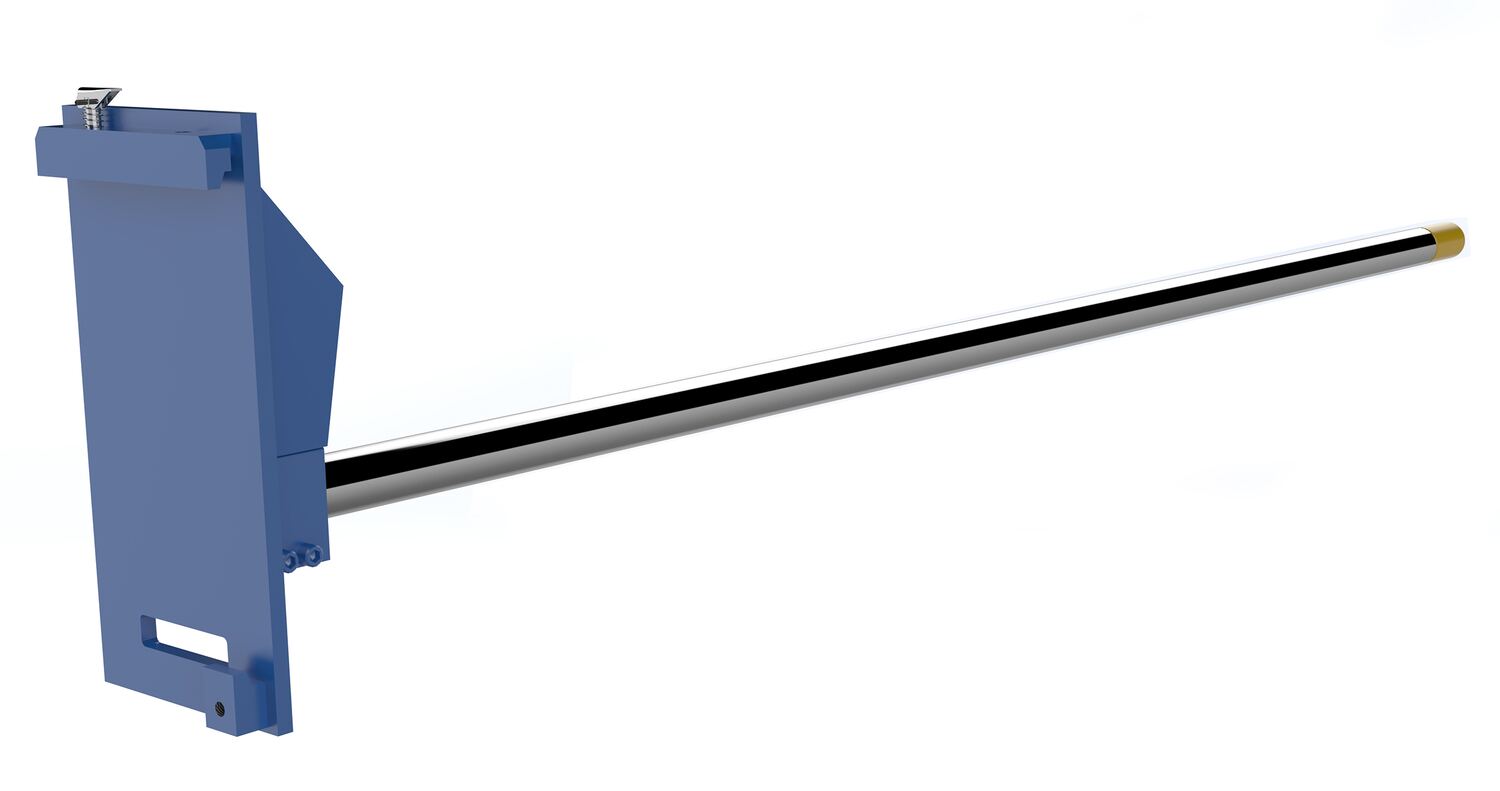

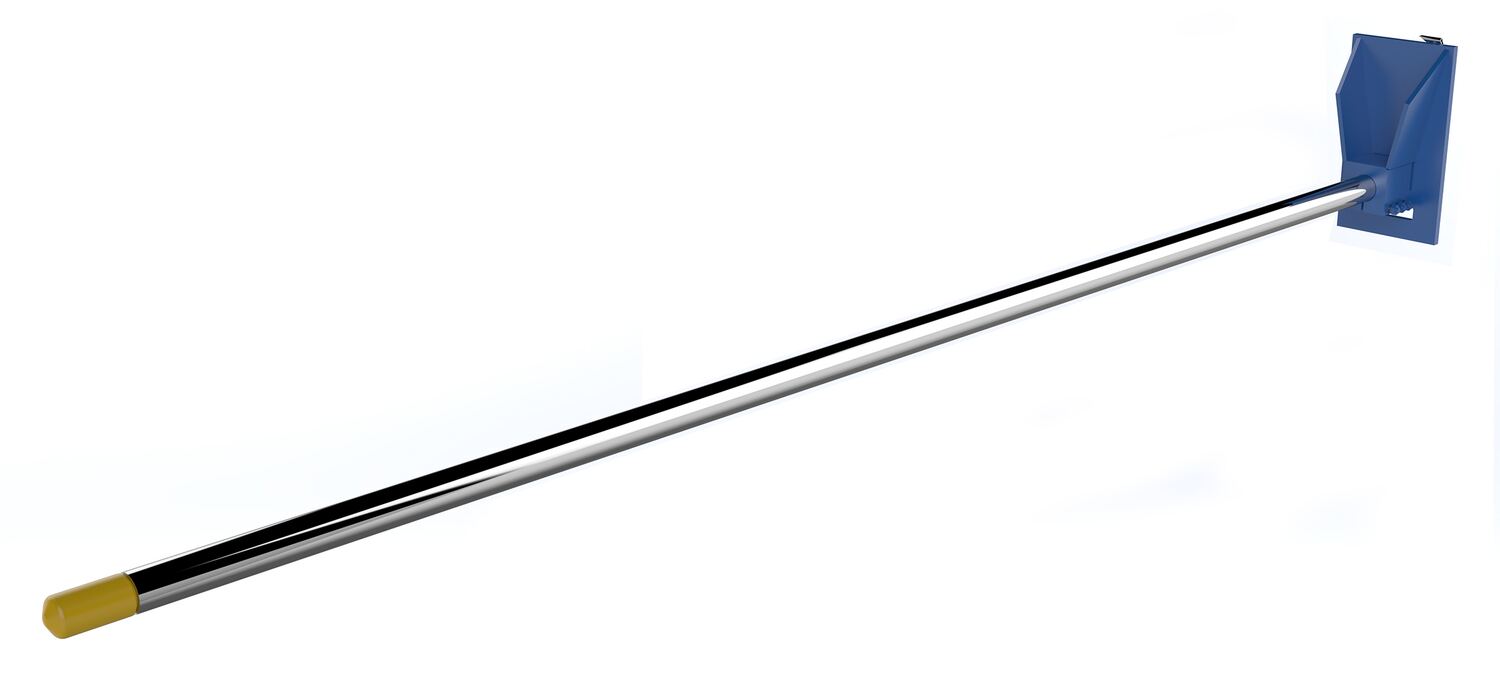

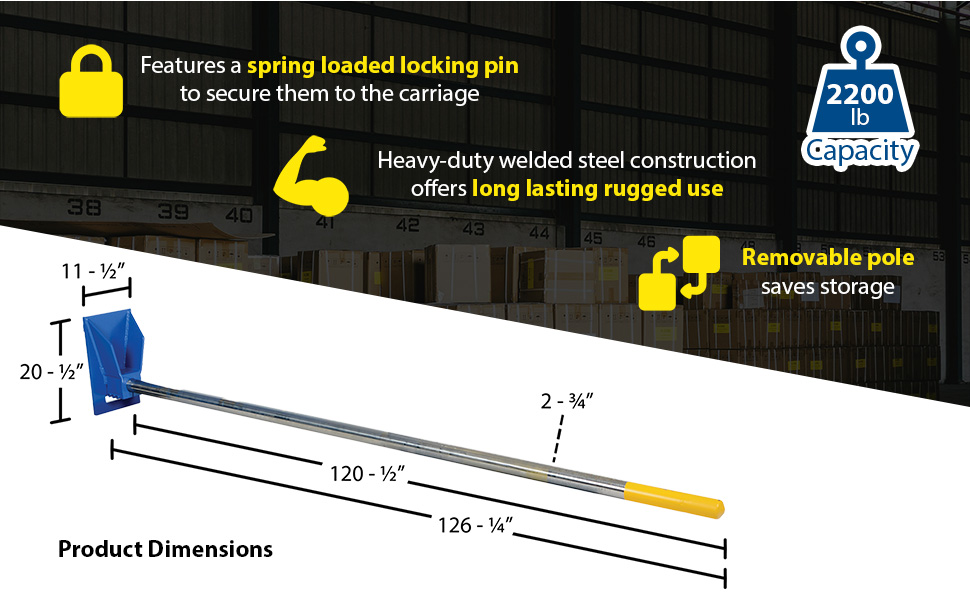

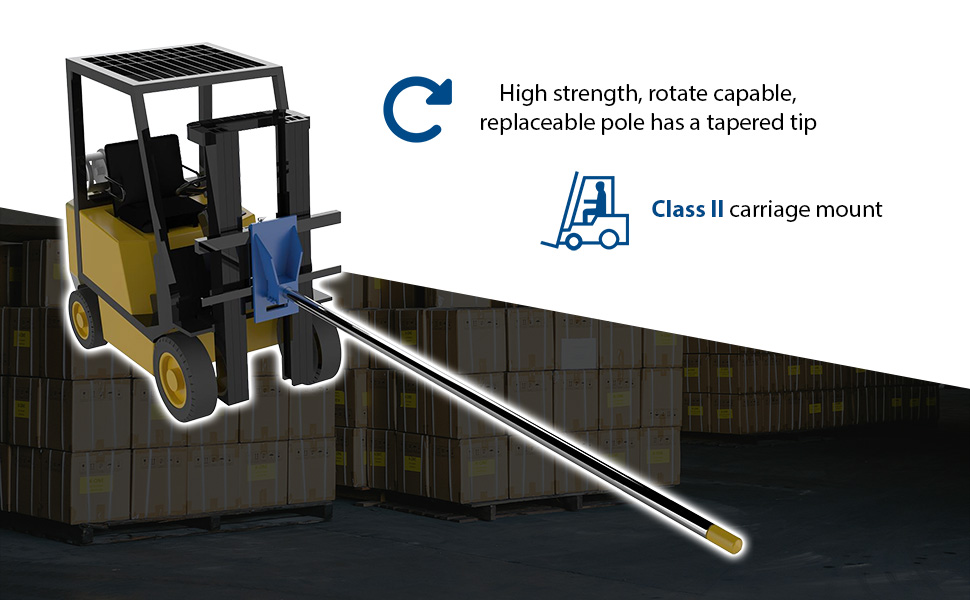

Carriage Mounted Rug Rams are available in class II or III mount and feature a spring loaded locking pin to secure them to the carriage.
| Rug Ram Pole Length | Recommended Carpet Roll Length |
| 48" Models | Recommended to be used for 4 foot (or shorter) carpet rolls |
| 60" Models | Recommended to be used for 5 foot (or shorter) carpet rolls |
| 96" Models | Recommended to be used for 8 foot (or shorter) carpet rolls |
| 108" Models | Recommended to be used for 9 foot (or shorter) carpet rolls |
| 120" Models | Recommended to be used for 10 foot (or shorter) carpet rolls |
| 144" Models | Recommended to be used for 12 foot (or shorter) carpet rolls |

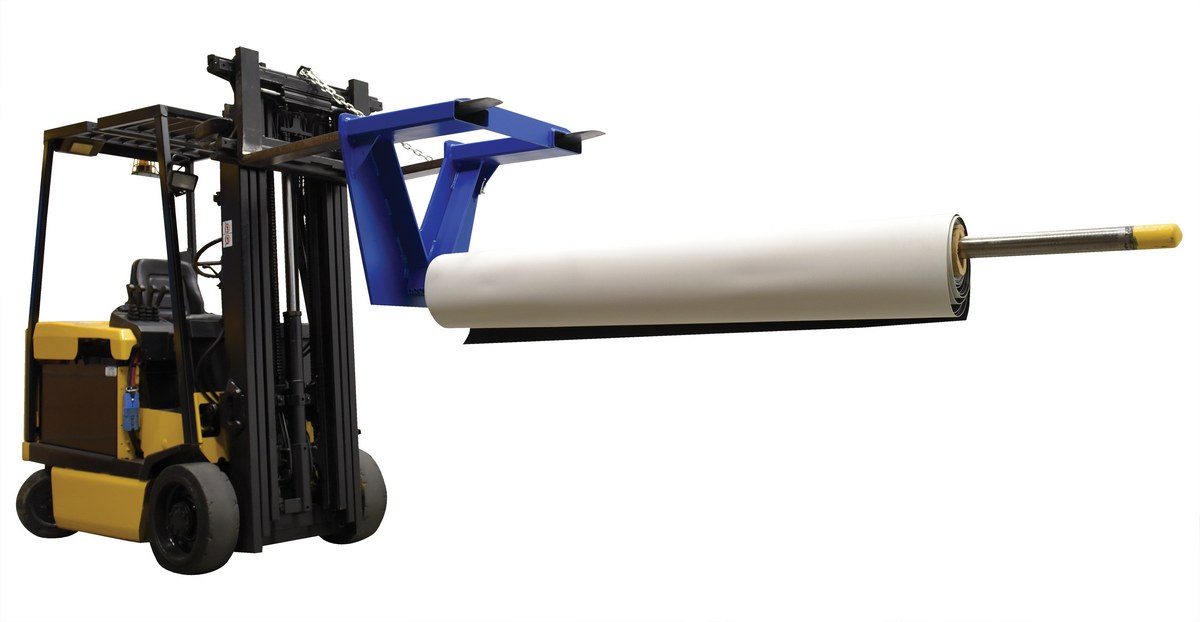

The carpet roll must not hang over the end of the pole. Carpet rolls must be loaded onto the pole having full contact with the mounting frame
Additional Models In This Family
CR-108-2
CR-108-2
CR-120-2
CRP-108
CR-120-3
CRF-120
CRP-108
CRF-144
CRP-120
CRF-144
CR-96-2
CRF-108
CRF-48
CRF-144
CR-144-2
Model Specific Details
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
| Model # | Description | Attributes | Net Wt. (lbs) | ||||
|---|---|---|---|---|---|---|---|
| CR-108-2 |  | 90 Days Limited Warranty | Steel Carriage Mount Class II Rug Ram Boom 108 In. 2500 Lb. Capacity Blue/Silver | Uniform Capacity (lb.): 2,500 Pole Diameter (in.): 2-3/4 | 287 | ||
| CR-108-3 |  | 90 Days Limited Warranty | Steel Carriage Mount Class III Rug Ram Boom 108 In. 2500 Lb. Capacity Blue/Silver | Uniform Capacity (lb.): 2,500 Pole Diameter (in.): 2-3/4 | 296 | ||
| CR-120-2 |  | 90 Days Limited Warranty | Steel Carriage Mount Class II Rug Ram Boom 120 In. 2200 Lb. Capacity Blue/Silver | Uniform Capacity (lb.): 2,200 Pole Diameter (in.): 2-3/4 | 310 | ||

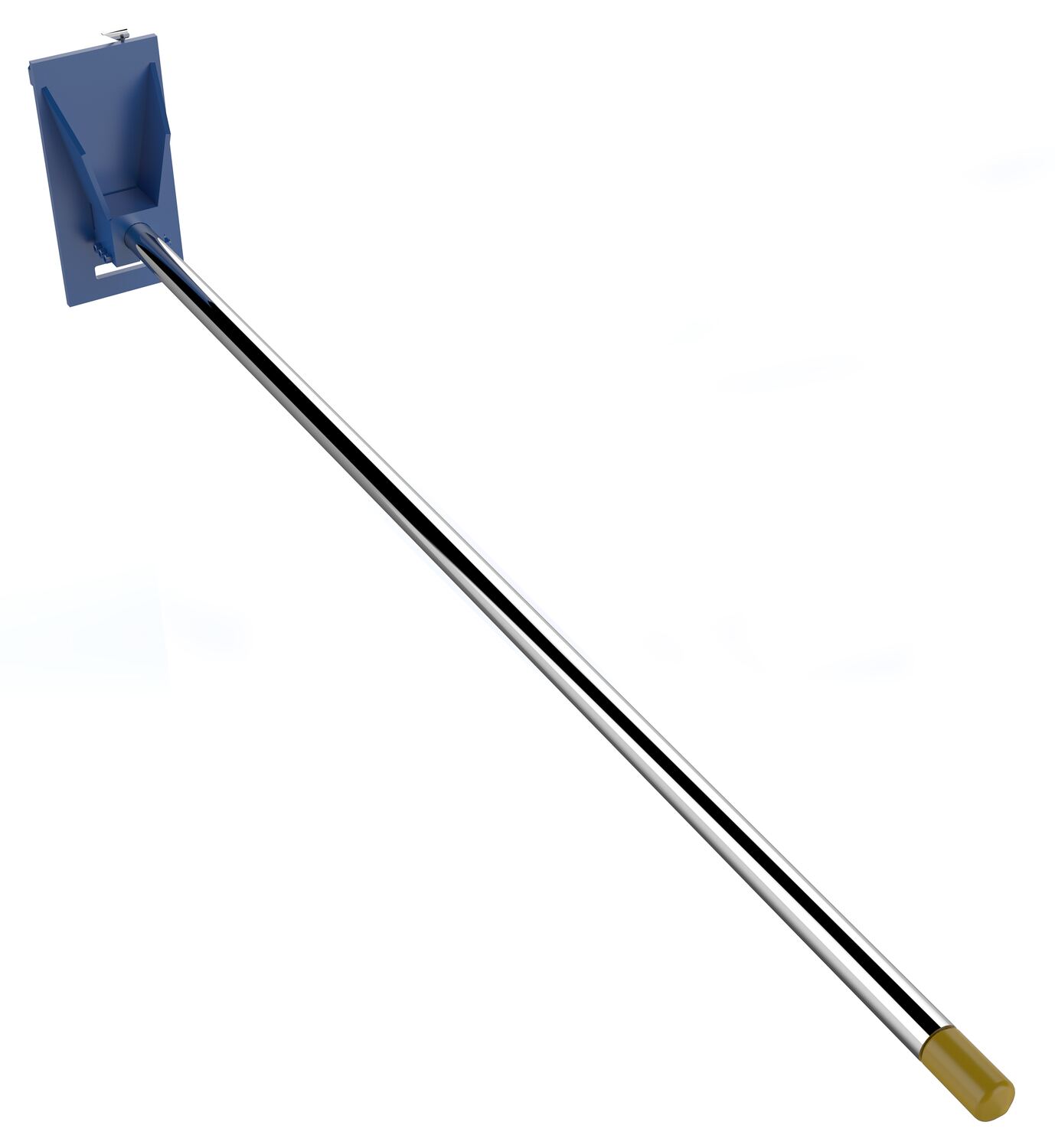

| CR-120-3 | | 90 Days Limited Warranty | Steel Carriage Mount Class III Rug Ram Boom 120 In. 2500 Lb. Capacity Blue/Silver | Uniform Capacity (lb.): 2,200 Pole Diameter (in.): 2-3/4 | 316 | ||
| CR-144-2 | | 90 Days Limited Warranty | Steel Carriage Mount Class II Rug Ram Boom 144 In. 1800 Lb. Capacity Blue/Silver | Uniform Capacity (lb.): 1,800 Pole Diameter (in.): 2-3/4 | 342 | ||

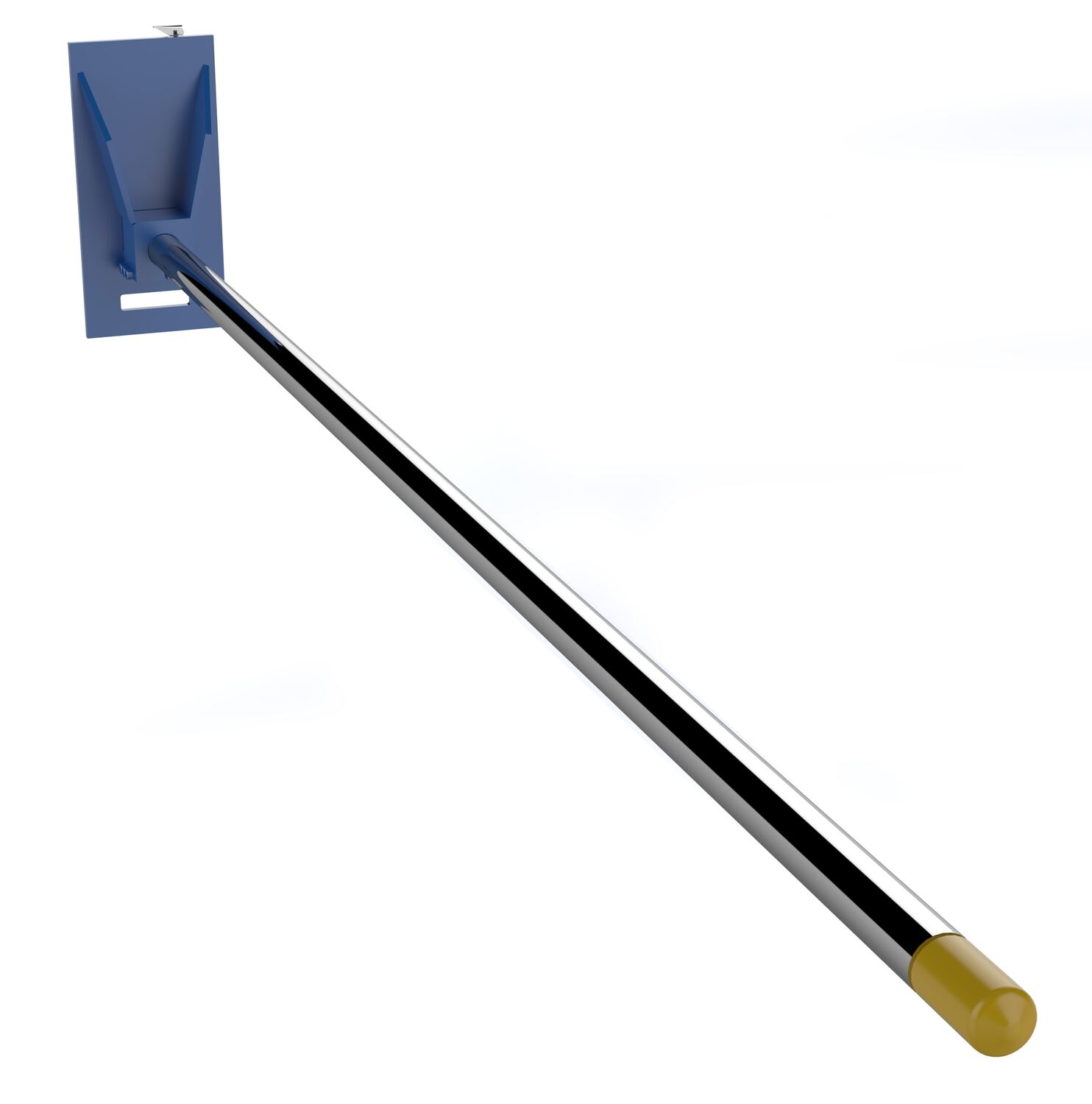

| CR-144-3 |  | 90 Days Limited Warranty | Steel Carriage Mount Class III Rug Ram Boom 144 In. 1800 Lb. Capacity Blue/Silver | Uniform Capacity (lb.): 1,800 Pole Diameter (in.): 2-3/4 | 478 | ||

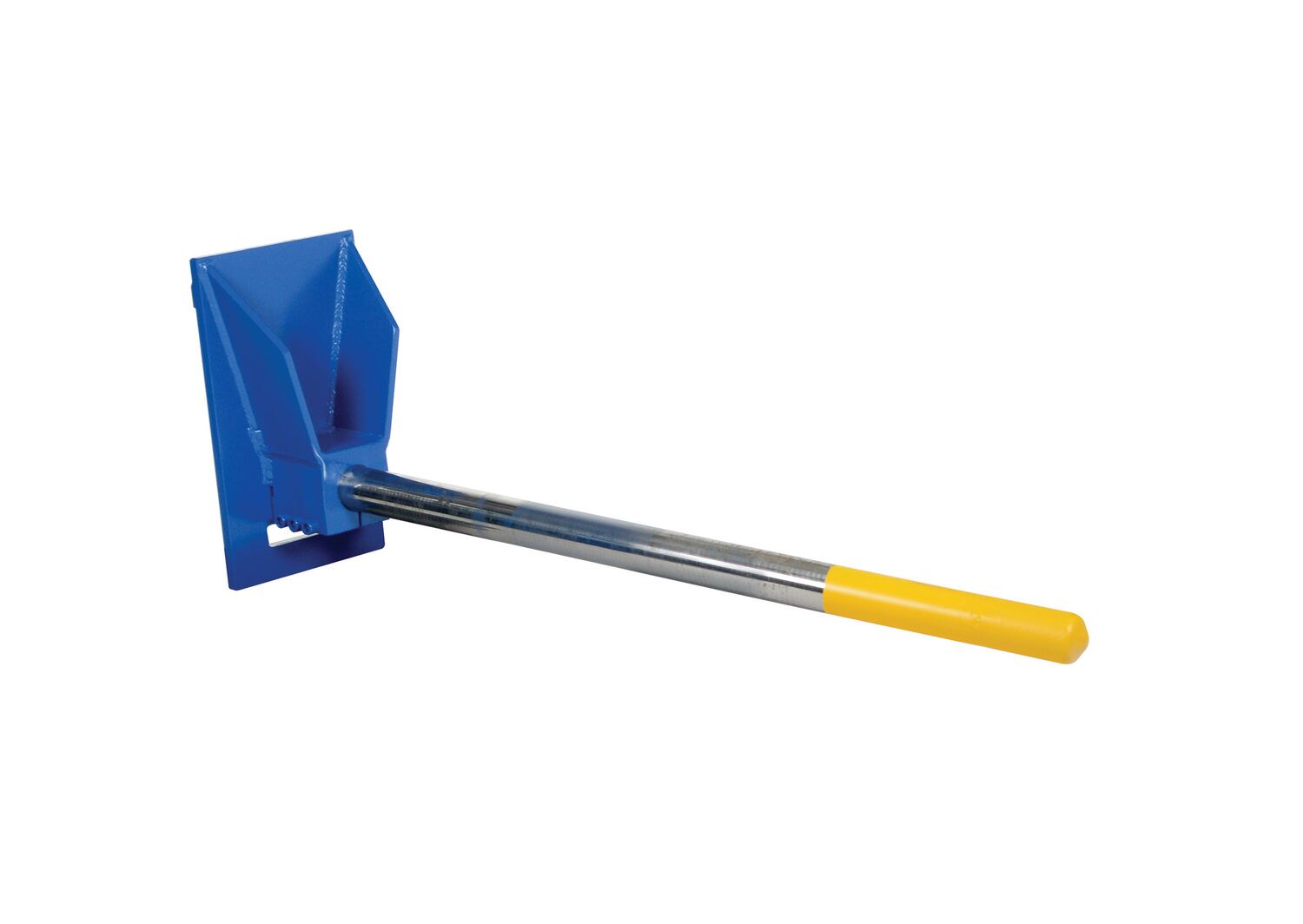

| CR-48-2 | NEW |  | 90 Days Limited Warranty | Steel Rug Ram Boom Carriage Mount Class 2 48" Long 2500 Lb. Capacity Blue | Uniform Capacity (lb.): 2,500 Pole Diameter (in.): 2-3/4 | 180 | |
| CR-48-3 | NEW |  | 90 Days Limited Warranty | Steel Rug Ram Boom Carriage Mount Class 3 48" Long 2500 Lb. Capacity Blue | Uniform Capacity (lb.): 2,500 Pole Diameter (in.): 2-3/4 | 197 | |
| CR-60-2 | NEW |  | 90 Days Limited Warranty | Steel Rug Ram Boom Carriage Mount Class 2 60" Long 2500 Lb. Capacity Blue | Uniform Capacity (lb.): 2,500 Pole Diameter (in.): 2-3/4 | 201 | |

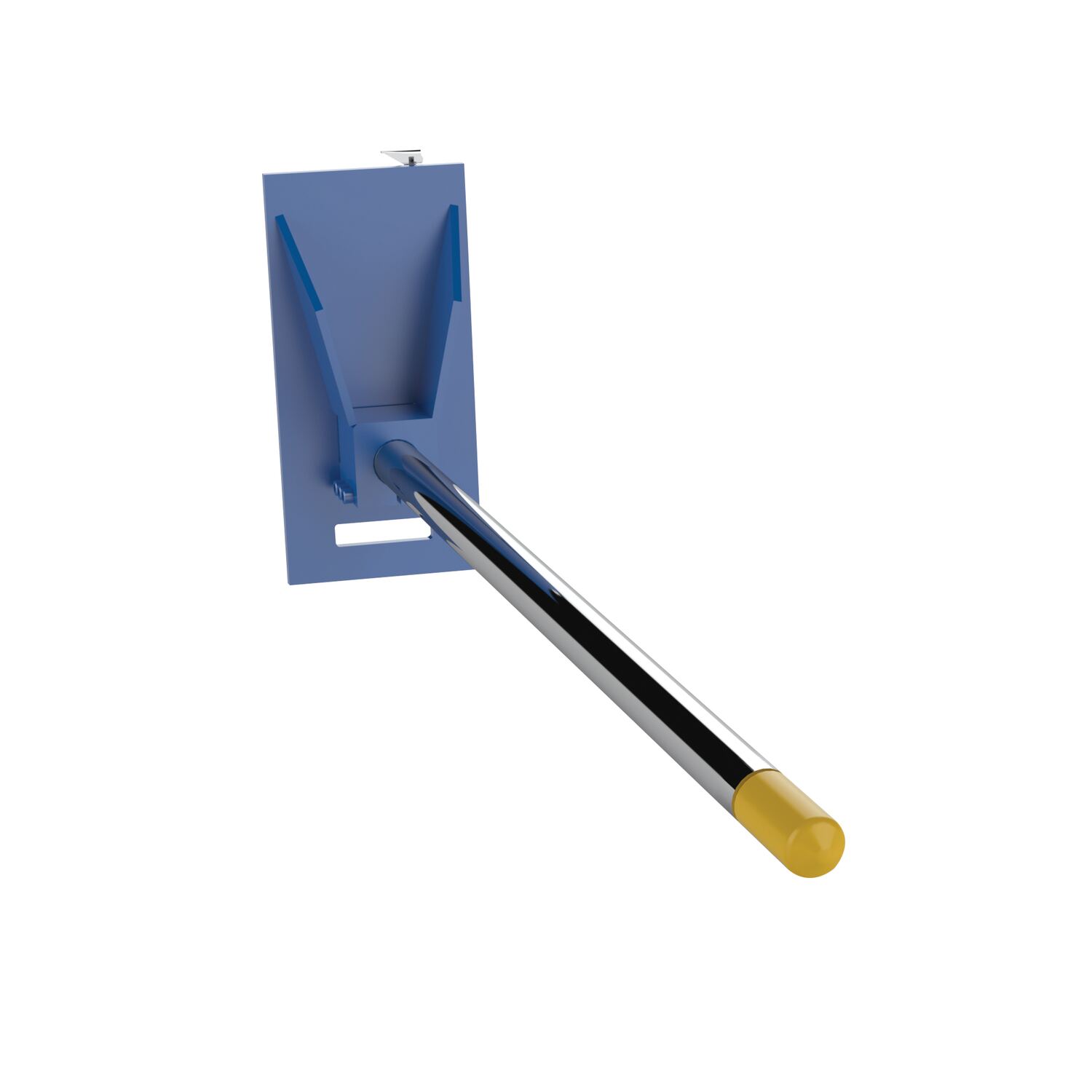

| CR-60-3 | NEW |  | 90 Days Limited Warranty | Steel Rug Ram Boom Carriage Mount Class 3 60" Long 2500 Lb. Capacity Blue | Uniform Capacity (lb.): 2,500 Pole Diameter (in.): 2-3/4 | 217 | |
| CR-96-2 | NEW | | 90 Days Limited Warranty | Steel Rug Ram Boom Carriage Mount Class 2 96" Long 2500 Lb. Capacity Blue | Uniform Capacity (lb.): 2,500 Pole Diameter (in.): 2-3/4 | 261 | |
| CR-96-3 | NEW |  | 90 Days Limited Warranty | Steel Rug Ram Boom Carriage Mount Class 3 96" Long 2500 Lb. Capacity Blue | Uniform Capacity (lb.): 2,500 Pole Diameter (in.): 2-3/4 | 278 | |
| CRF-108 | POPULAR | | 90 Days Limited Warranty | Steel Fork Mounted Rug Ram Boom 108 In. 2500 Lb. Capacity Blue/Silver | Uniform Capacity (lb.): 2,500 Pole Diameter (in.): 2-3/4 | 389 | |
| CRF-120 |  | 90 Days Limited Warranty | Steel Fork Mounted Rug Ram Boom 120 In. 2200 Lb. Capacity Blue/Silver | Uniform Capacity (lb.): 2,200 Pole Diameter (in.): 2-3/4 | 424 | ||
| CRF-144 |  | 90 Days Limited Warranty | Steel Fork Mounted Rug Ram Boom 144 In. 1800 Lb. Capacity Blue/Silver | Uniform Capacity (lb.): 1,800 Pole Diameter (in.): 2-3/4 | 450 | ||

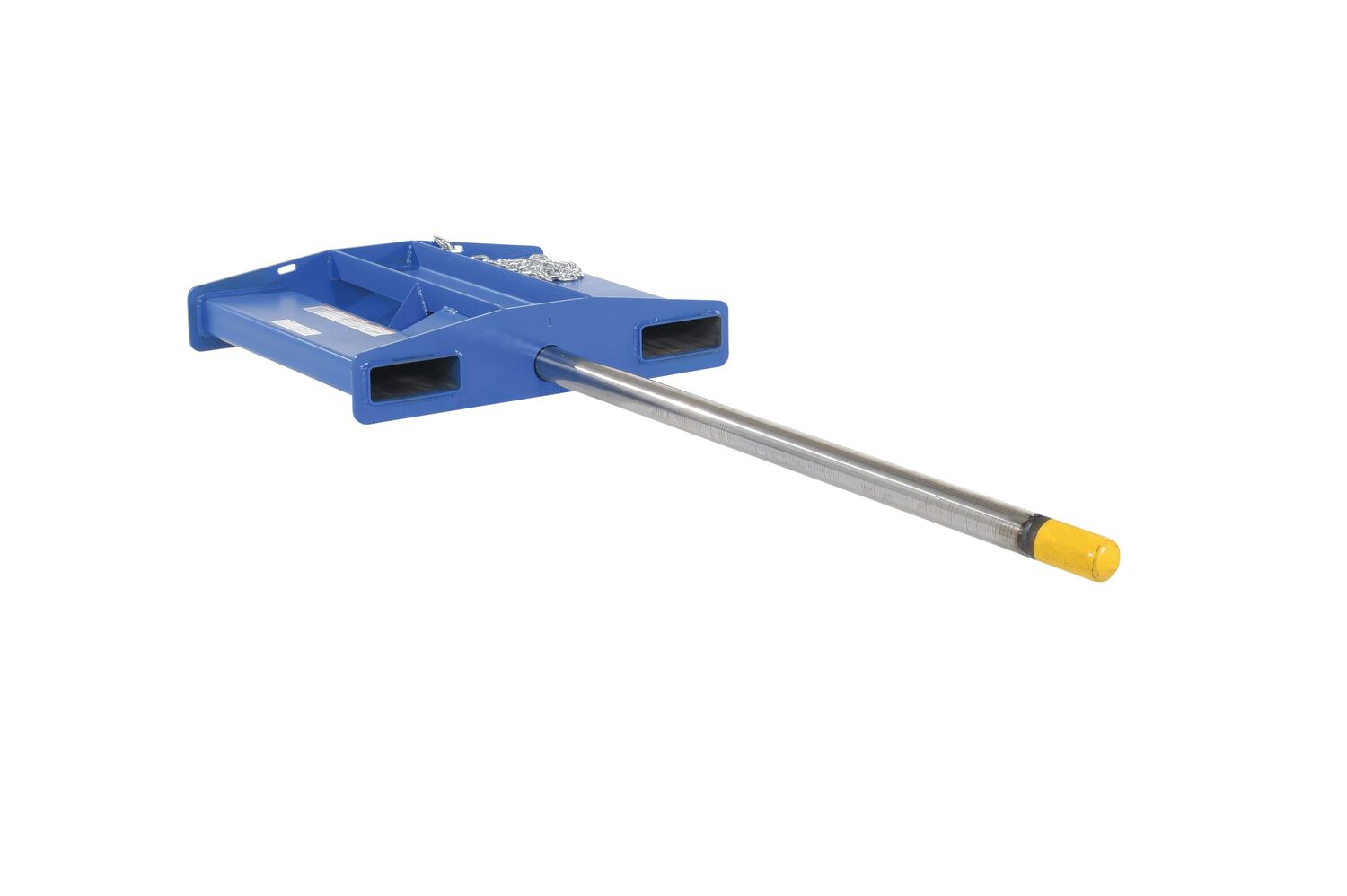

| CRF-48 | NEW | | 90 Days Limited Warranty | Steel Rug Ram Boom Fork Mounted 48" Long 2500 Lb. Capacity Blue | Uniform Capacity (lb.): 2,500 Pole Diameter (in.): 2-3/4 | 276 | |

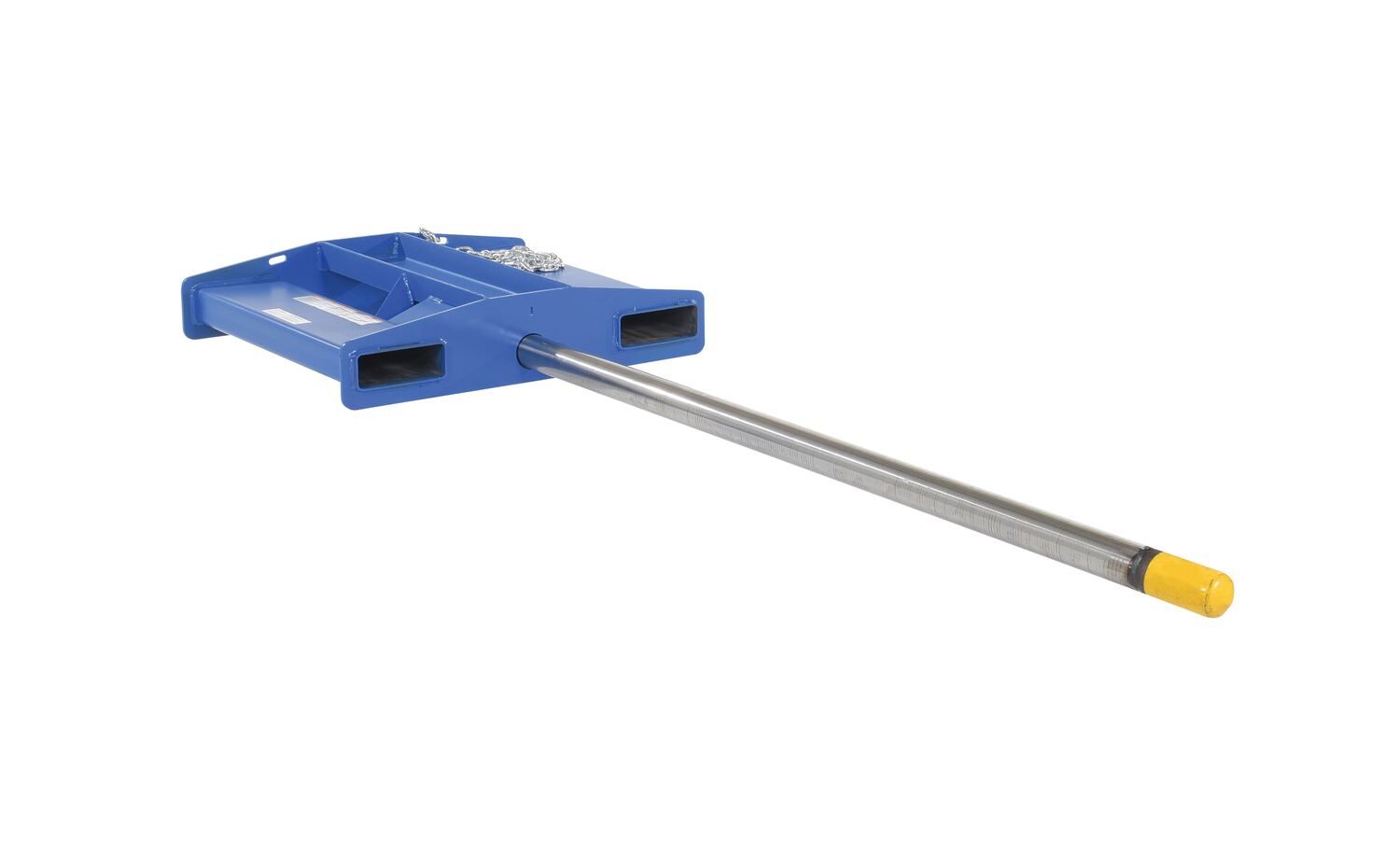

| CRF-60 | NEW |  | 90 Days Limited Warranty | Steel Rug Ram Boom Fork Mounted 60" Long 2500 Lb. Capacity Blue | Uniform Capacity (lb.): 2,500 Pole Diameter (in.): 2-3/4 | 296 | |

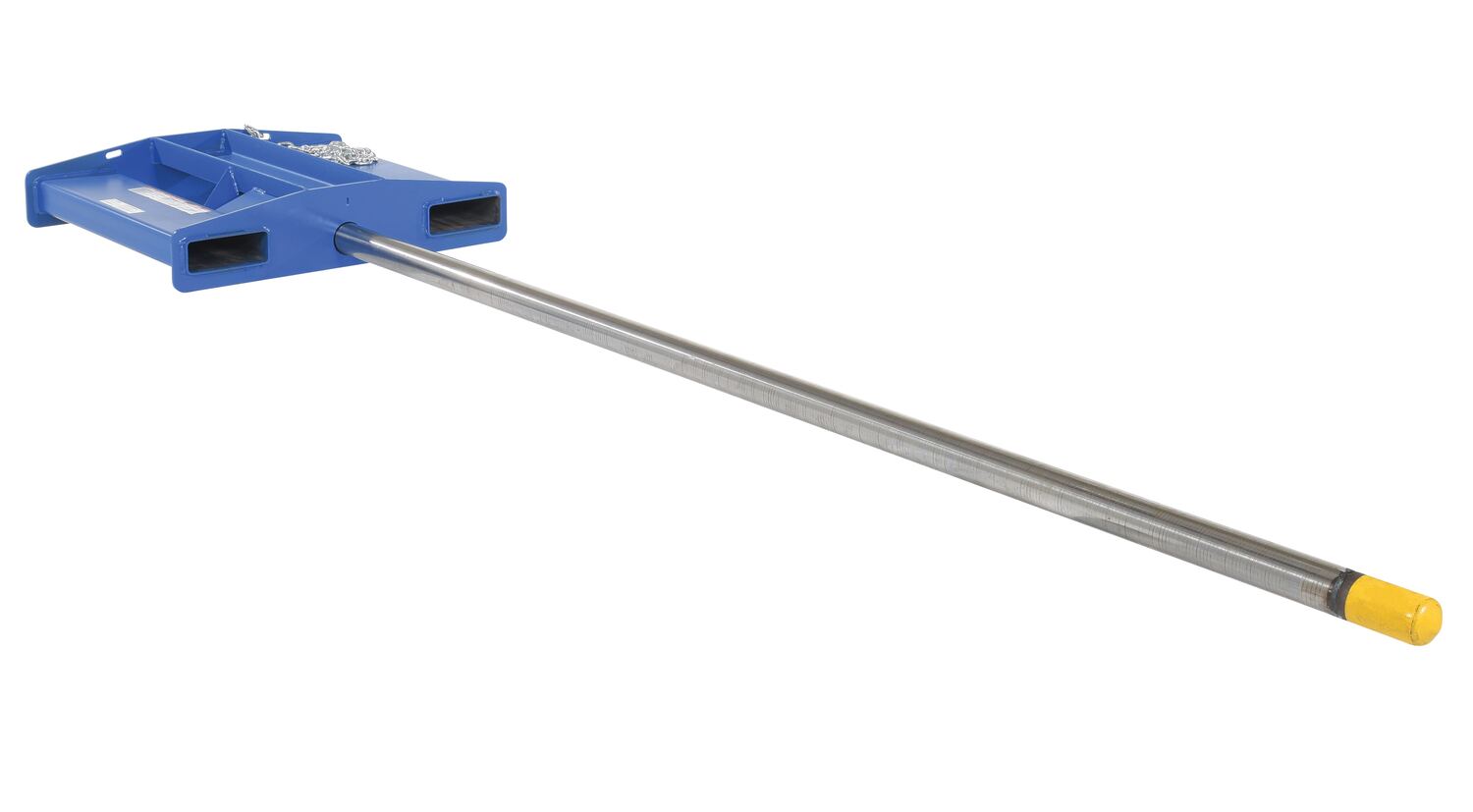

| CRF-96 | NEW |  | 90 Days Limited Warranty | Steel Rug Ram Boom Fork Mounted 96" Long 2500 Lb. Capacity Blue | Uniform Capacity (lb.): 2,500 Pole Diameter (in.): 2-3/4 | 356 | |

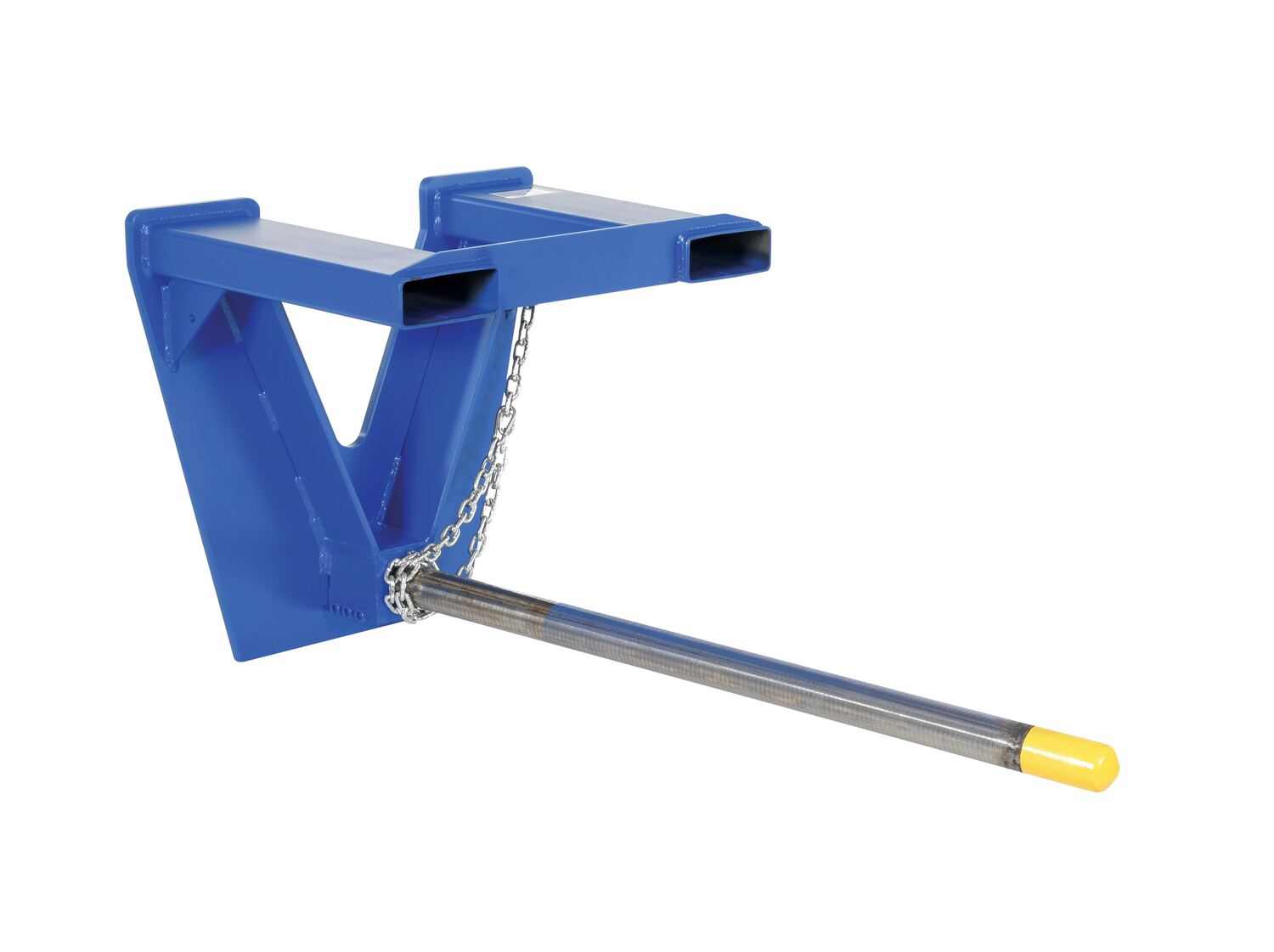

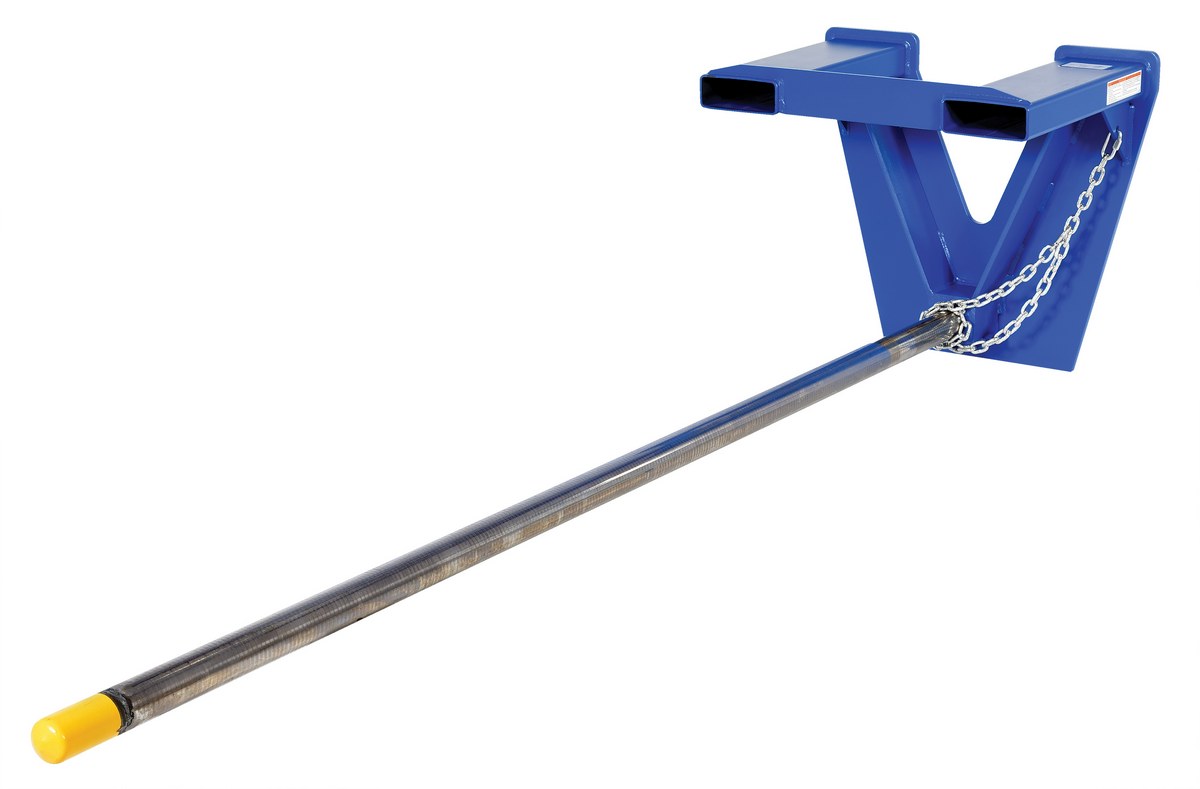

| CRP-108 |  | 90 Days Limited Warranty | Steel Fork Mounted Inverted Rug Ram Boom 108 In 2500 Lb. Capacity Blue/Silver | Uniform Capacity (lb.): 2,500 Pole Diameter (in.): 2-3/4 | 466 | ||
| CRP-120 |  | 90 Days Limited Warranty | Steel Fork Mounted Inverted Rug Ram Boom 120 In 2200 Lb. Capacity Blue/Silver | Uniform Capacity (lb.): 2,200 Pole Diameter (in.): 2-3/4 | 488 | ||
| CRP-144 |  | 90 Days Limited Warranty | Steel Fork Mounted Inverted Rug Ram Boom 144 In 1800 Lb. Capacity Blue/Silver | Uniform Capacity (lb.): 1,800 Pole Diameter (in.): 2-3/4 | 528 | ||
| CRP-48 | NEW |  | 90 Days Limited Warranty | Steel Rug Ram Boom Fork Mounted Inverted 48" Long 2500 Lb. Capacity Blue | Uniform Capacity (lb.): 2,500 Pole Diameter (in.): 2-3/4 | 358 | |

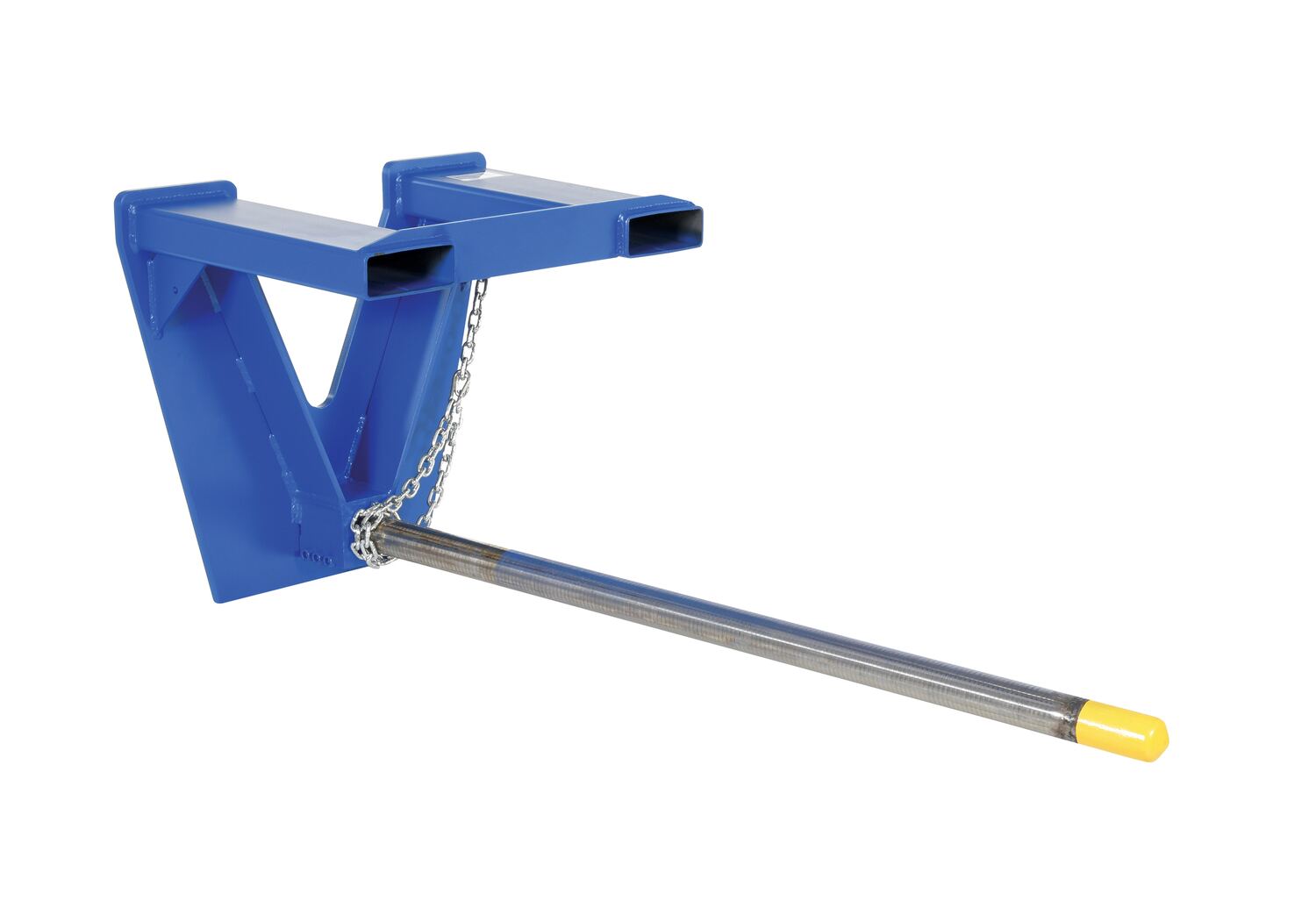

| CRP-60 | NEW |  | 90 Days Limited Warranty | Steel Rug Ram Boom Fork Mounted Inverted 60" Long 2500 Lb. Capacity Blue | Uniform Capacity (lb.): 2,500 Pole Diameter (in.): 2-3/4 | 378 | |
| CRP-96 | NEW |  | 90 Days Limited Warranty | Steel Rug Ram Boom Fork Mounted Inverted 96" Long 2500 Lb. Capacity Blue | Uniform Capacity (lb.): 2,500 Pole Diameter (in.): 2-3/4 | 439 |
Showing 1 to 24 of 24 entries
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,200
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 1,800
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Q: I'm not able to find the size of carpet pole I need. Are there additional length poles?
A: The carpet poles are available in lengths of 40" to 144". Please contact a sales associate for details.
Q: Do you have a carpet pole diameter larger than 2 3/4"?
A: We do not have alternate carpet pole sizes.
Q: I see the pole diameter is 2 3/4". Is that a solid pole or hollow?
A: The carpet pole/rug rams poles are solid.
Q: What kind of steel is the pole on your CR, CRF and CRP carpet poles?
A: Stress proof steel, 1144 ASTM A311-B
