Extra Travel Tri-Post Jibs

- - - -

Description
Model Chart
PDF's
Image Gallery

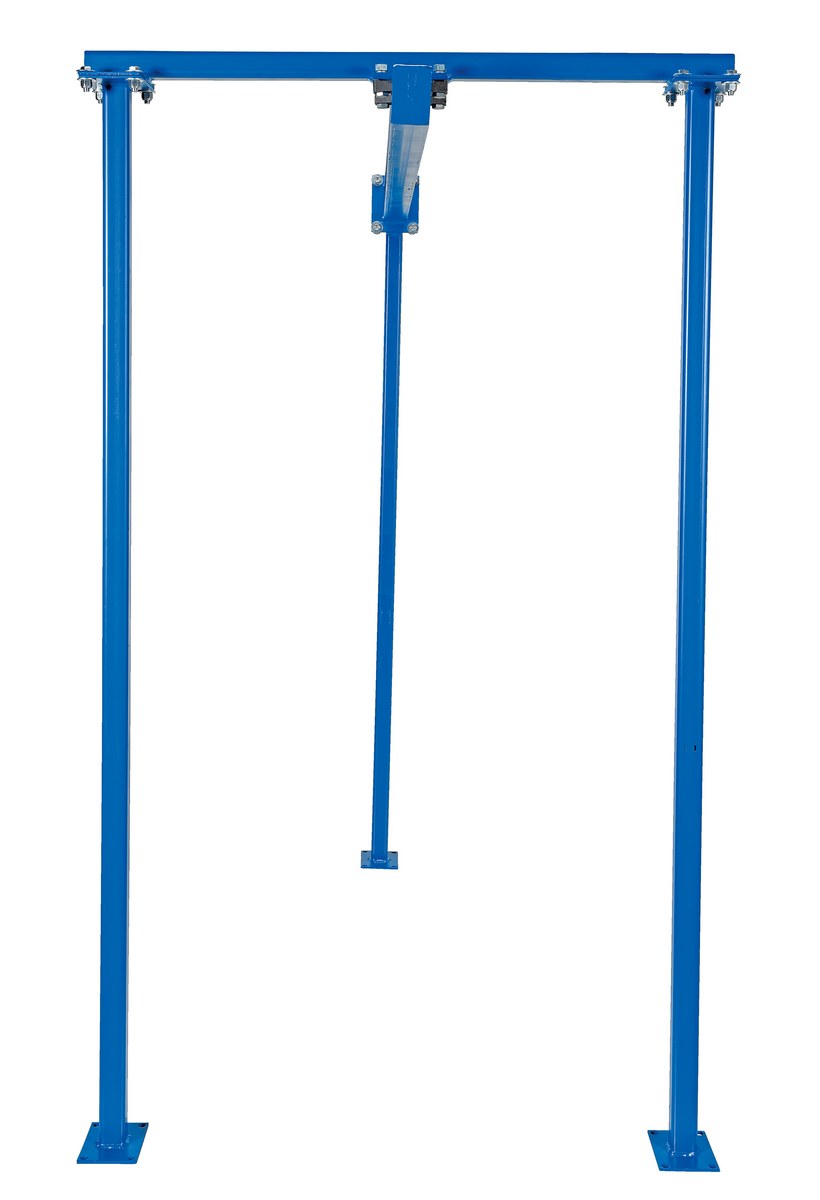

TJIB-6_A.jpg TJIB-6_B.jpg TJIB-6_C.jpg TJIB-6_D.jpg
TJIB-6_E.jpg TJIB-6_1.jpg TJIB-6_2.jpg TJIB-6_3.jpg

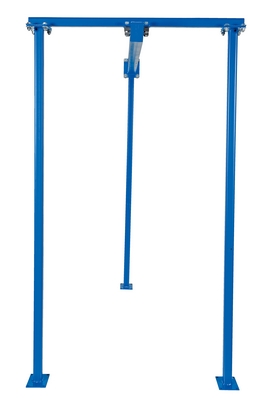

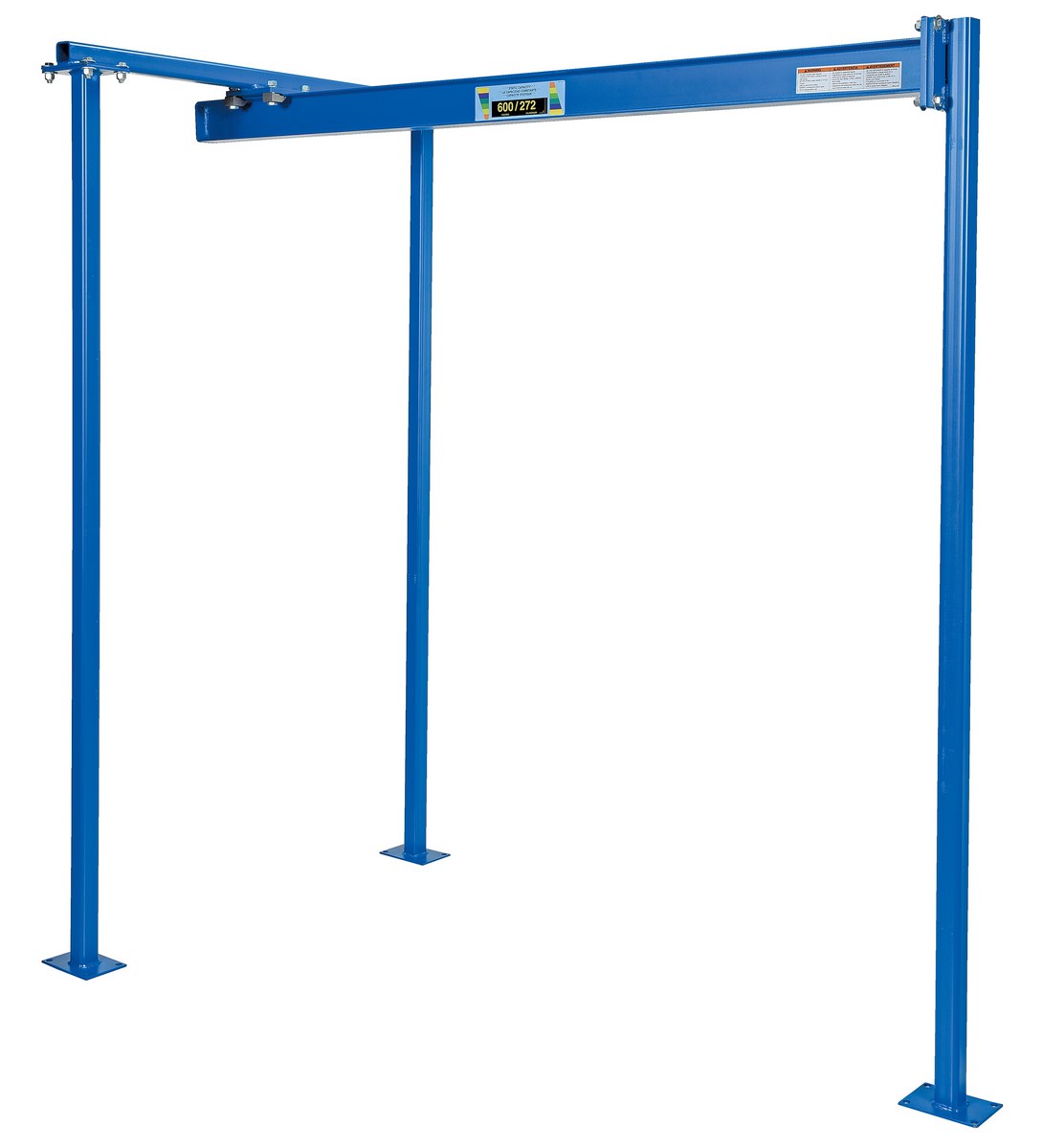

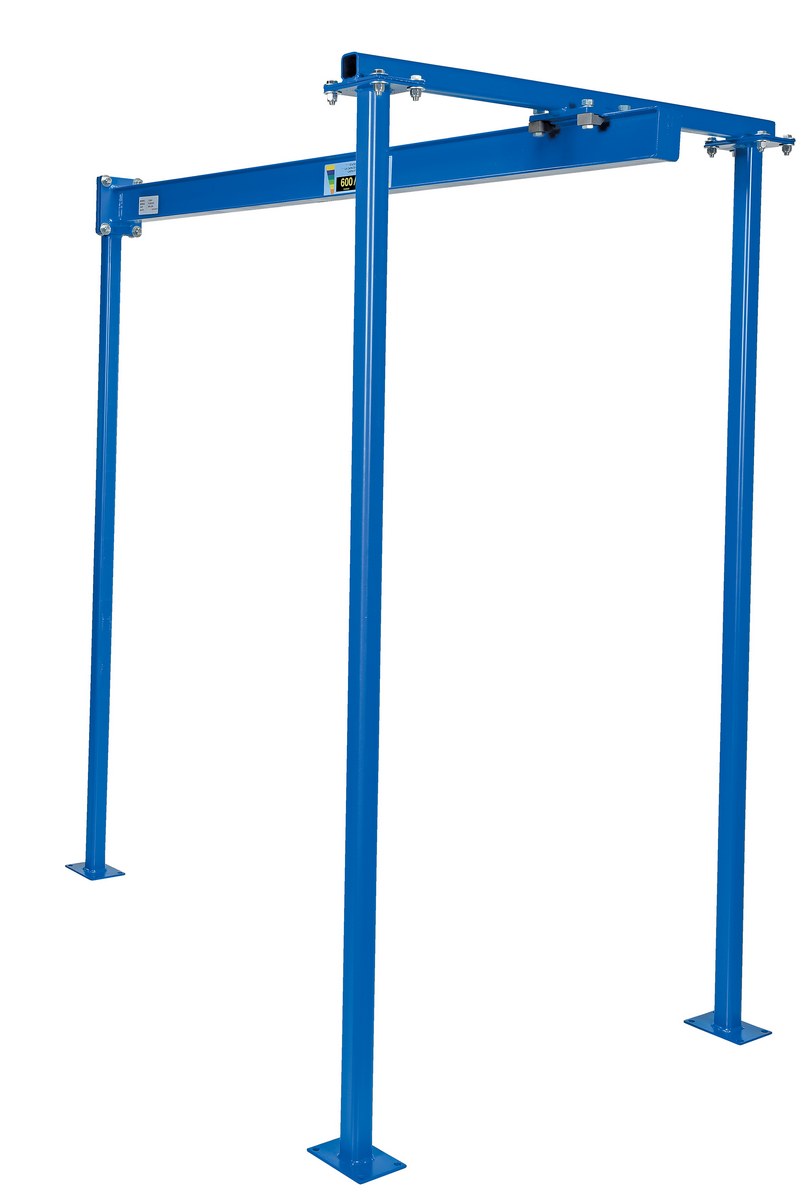

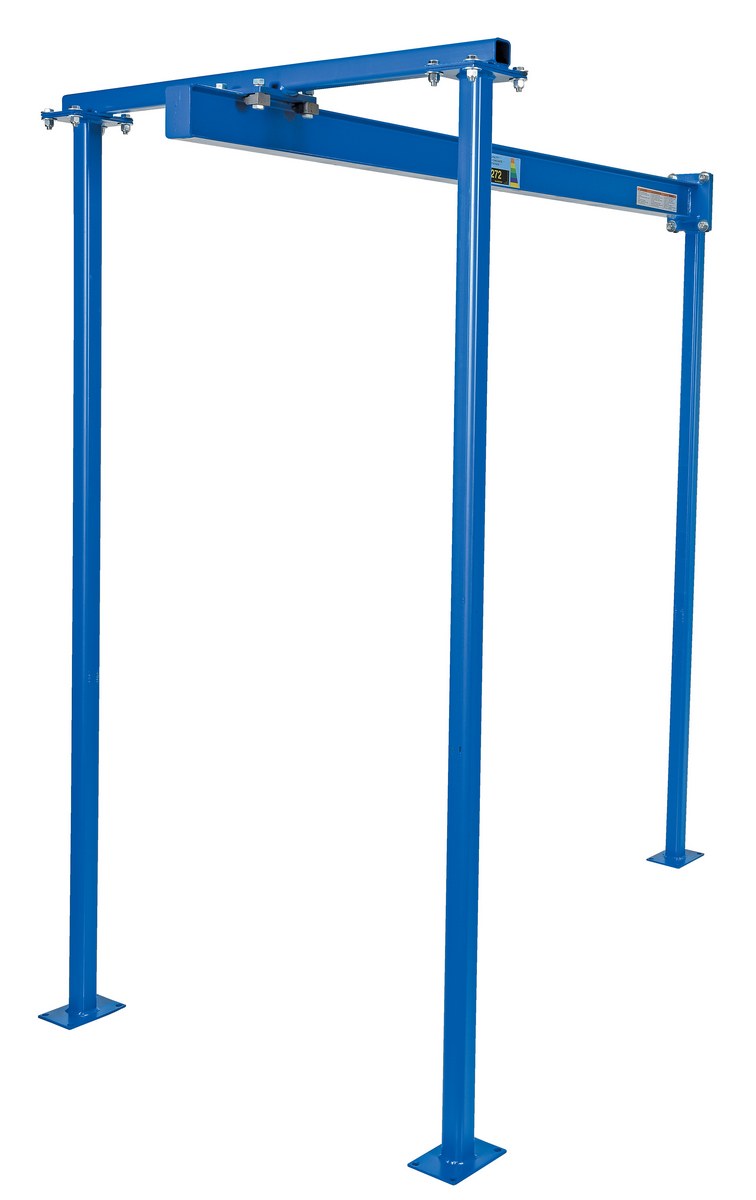

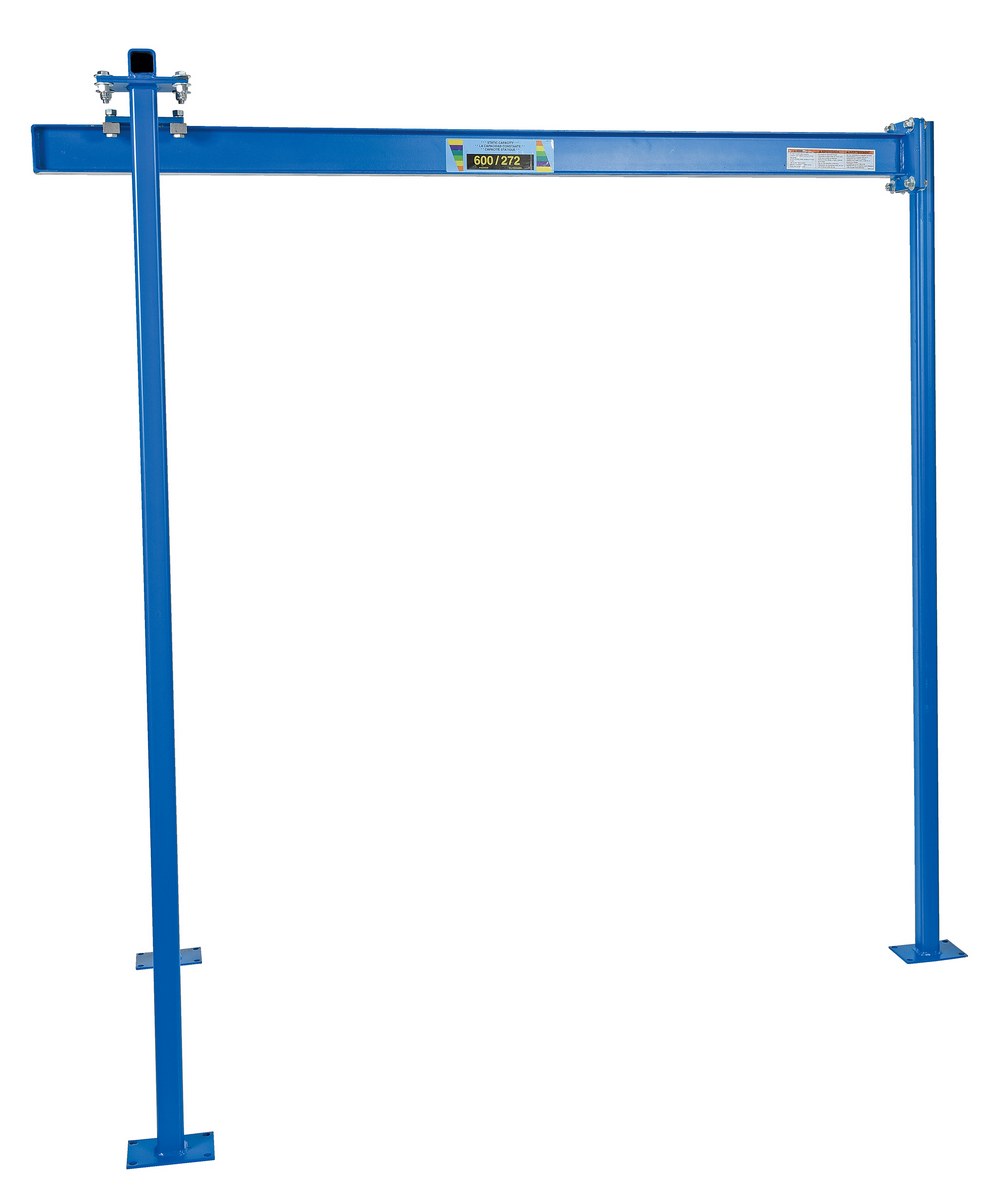

Extra Travel Tri-Post Jibs

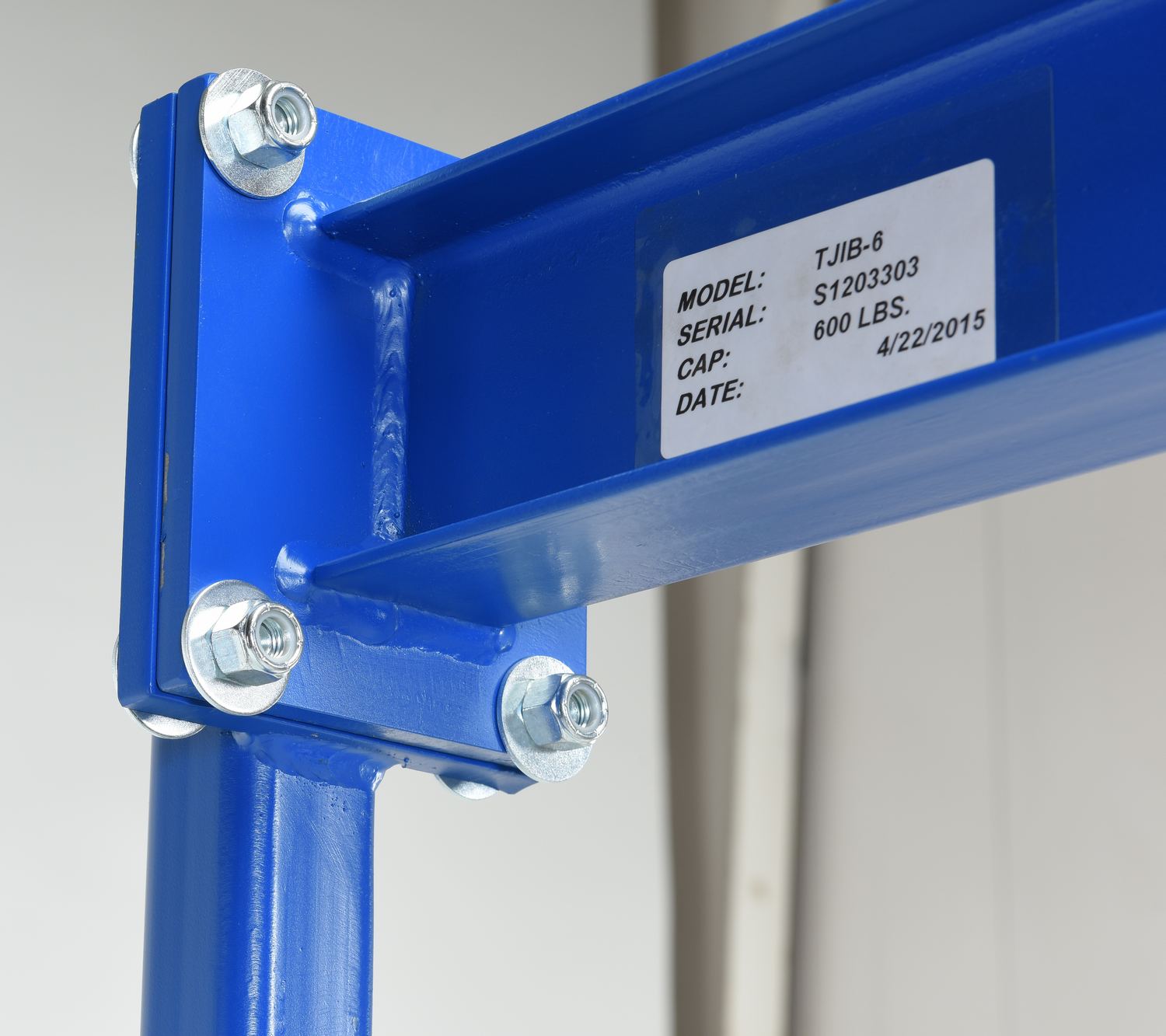

model: TJIB-6



Featured Overhead Lifting


Portable Jib Cranes
Overhead Self Dumping Bin
Shop Crane Engine Hoists
Low Profile Manual Trollies
Adjustable Height Aluminum Gantry Cranes with Total Locking Casters
Magnetic Lifters
Hoist Trailer
Air Balance Jib Lifters
Adjustable Steel Gantry Cranes with Total Locking Casters
model chart

Product Family Overview

Print Friendly
Extra Travel Tri-Post Jibs
SERIES: TJIB

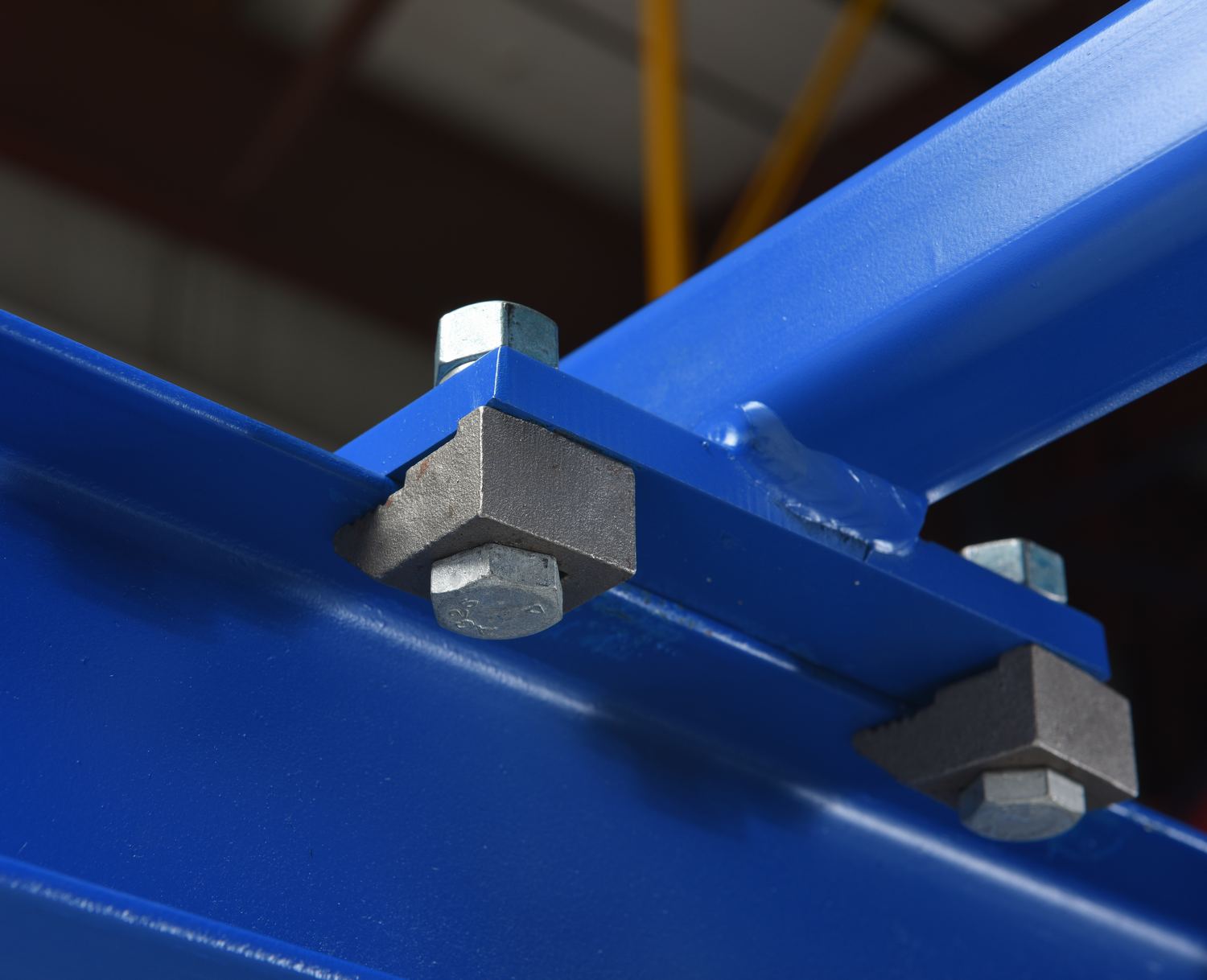

This unique jib was designed for use in workstations. Place over the top of your workbench. Extra travel fixed-height I-beam overhangs workbench to allow lifting of products from cart to bench. I-Beam flange is 2.66" and the height is 4.00". Usable I-beam length is 79-3/4". Hoists & Trollies can be ordered seperately. Steel construction with painted blue finish.

  • Tri-Post jib was designed for use in workstations
  • Place over the top of your workbench for various applications
  • Fixed-height I-beam overhangs allow lifting of products from cart to bench

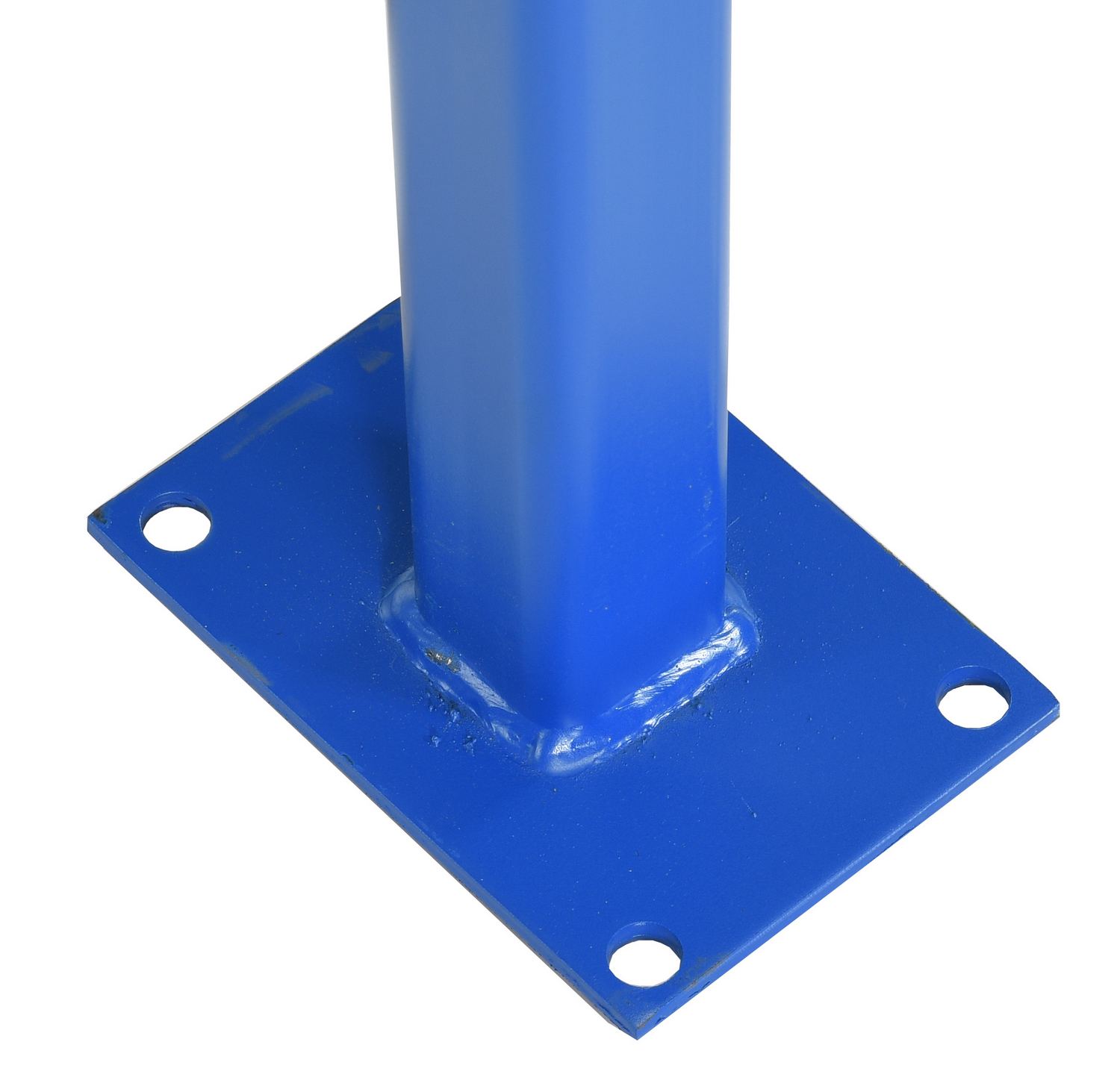

  • Steel construction for heavy-duty strength and durability

This unique jib was designed for use in workstations. Place over the top of your workbench. Extra travel fixed-height I-beam overhangs workbench to allow lifting of products from cart to bench. I-Beam flange is 2.66" and the height is 4.00". Usable I-beam length is 79-3/4". Hoists & Trollies can be ordered seperately. Steel construction with painted blue finish.

  • Tri-Post jib was designed for use in workstations
  • Place over the top of your workbench for various applications
  • Fixed-height I-beam overhangs allow lifting of products from cart to bench
  • Steel construction for heavy-duty strength and durability

Other Jib Cranes

 Portable Offset Jib Cranes Extra Travel Tri-Post Jibs Wall Jibs Mini Overhead Cantilever Jibs

How To Order
Share:

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
TJIB-10 TJIB-101 Year Limited WarrantySteel Travel Tri-Post Jib 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Under I-Beam Clearance (in.): 76		285
TJIB-20 TJIB-201 Year Limited WarrantySteel Travel Tri-Post Jib 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Under I-Beam Clearance (in.): 76		321
TJIB-3 TJIB-31 Year Limited WarrantySteel Travel Tri-Post Jib 300 Lb. Capacity BlueUniform Capacity (lb.): 300
Under I-Beam Clearance (in.): 76-1/2		238
TJIB-6 TJIB-61 Year Limited WarrantySteel Travel Tri-Post Jib 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Under I-Beam Clearance (in.): 76-1/2		245

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

TJIB-10
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Under I-Beam Clearance (in.): 76
Uniform Capacity (lb.): 1,000
Under I-Beam Clearance (in.): 76

TJIB-20
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Under I-Beam Clearance (in.): 76
Uniform Capacity (lb.): 2,000
Under I-Beam Clearance (in.): 76

TJIB-3
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 300
Under I-Beam Clearance (in.): 76-1/2
Uniform Capacity (lb.): 300
Under I-Beam Clearance (in.): 76-1/2

TJIB-6
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 600
Under I-Beam Clearance (in.): 76-1/2
Uniform Capacity (lb.): 600
Under I-Beam Clearance (in.): 76-1/2
Extra Travel Tri-Post Jibs PDF's will open in a new window when clicked.

Manuals


TJIB
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


TJIB-10

TJIB-20

TJIB-3

TJIB-6

Testing Certificates


TJIB-10

TJIB-20

TJIB-3

TJIB-6

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Related or Similar Products:

Adjustable Height Aluminum Gantry Cranes
Product

Adjustable Height Aluminum Gantry Cranes

Adjustable Height Aluminum Gantry Cranes with Pneumatic Casters
Product

Adjustable Height Aluminum Gantry Cranes with Pneumatic Casters

Fixed Height Aluminum Gantry Cranes
Product

Fixed Height Aluminum Gantry Cranes

Self-Supporting Bridge Cranes
Product

Self-Supporting Bridge Cranes

Work Area Portable Steel Gantry Cranes
Product

Work Area Portable Steel Gantry Cranes

Mini Overhead Cantilever Jibs
Product

Mini Overhead Cantilever Jibs

Some of our products may be temporarily unavailable due to supply chain disruptions. Contact our Sales Department for help with finding alternate product solutions. We apologize for the inconvenience.

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Extra Travel Tri-Post Jibs




This unique jib was designed for use in workstations. Place over the top of your workbench. Extra travel fixed-height I-beam overhangs workbench to allow lifting of products from cart to bench. I-Beam flange is 2.66" and the height is 4.00". Usable I-beam length is 79-3/4". Hoists & Trollies can be ordered seperately. Steel construction with painted blue finish.

  • Tri-Post jib was designed for use in workstations
  • Place over the top of your workbench for various applications
  • Fixed-height I-beam overhangs allow lifting of products from cart to bench
  • Steel construction for heavy-duty strength and durability

Model # Description Attributes Net Wt.
(lbs)
TJIB-10 TJIB-10Steel Travel Tri-Post Jib 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Under I-Beam Clearance (in.): 76		285
TJIB-20 TJIB-20Steel Travel Tri-Post Jib 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Under I-Beam Clearance (in.): 76		321
TJIB-3 TJIB-3Steel Travel Tri-Post Jib 300 Lb. Capacity BlueUniform Capacity (lb.): 300
Under I-Beam Clearance (in.): 76-1/2		238
TJIB-6 TJIB-6Steel Travel Tri-Post Jib 600 Lb. Capacity BlueUniform Capacity (lb.): 600
Under I-Beam Clearance (in.): 76-1/2		245
