Tie Rod Jibs| Model # | Description | Attributes |
Net Wt. (lbs) |
|---|
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required
|
|||||||||||||||||||||||||||
Tie Rod Jibs |
|||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||

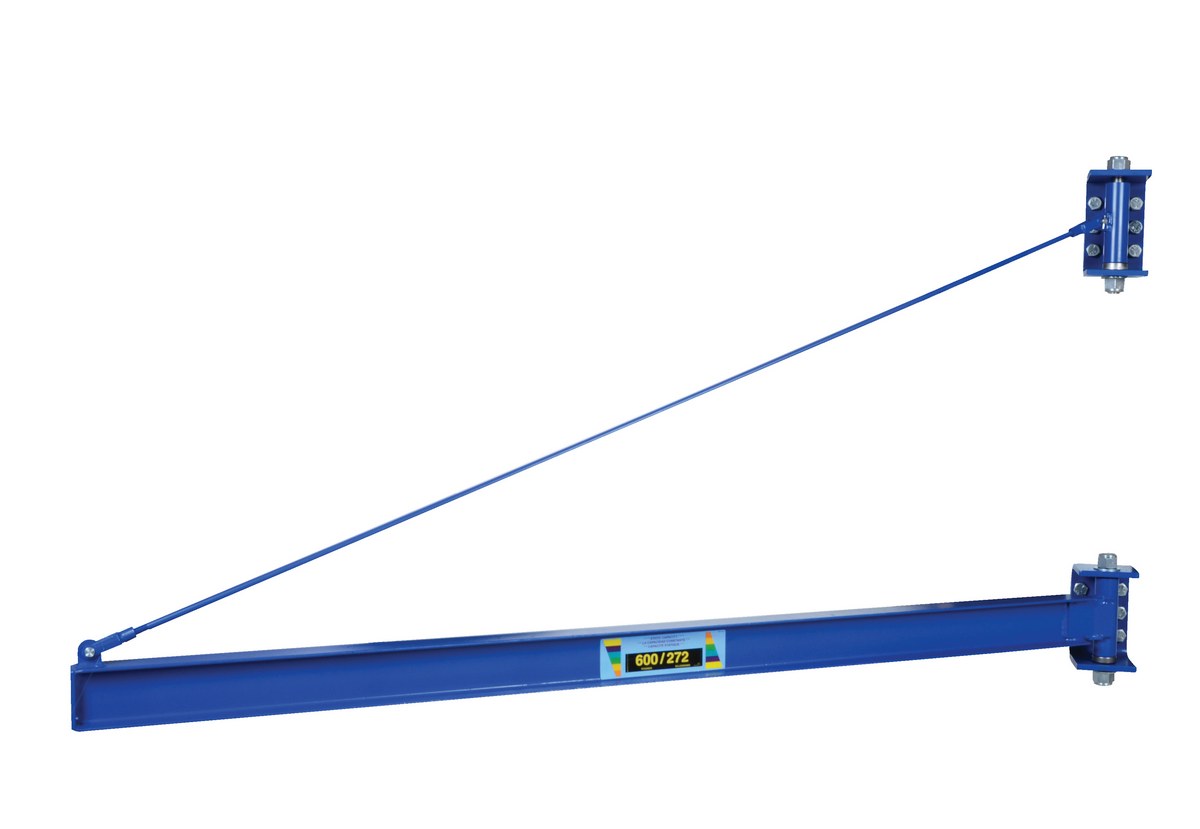

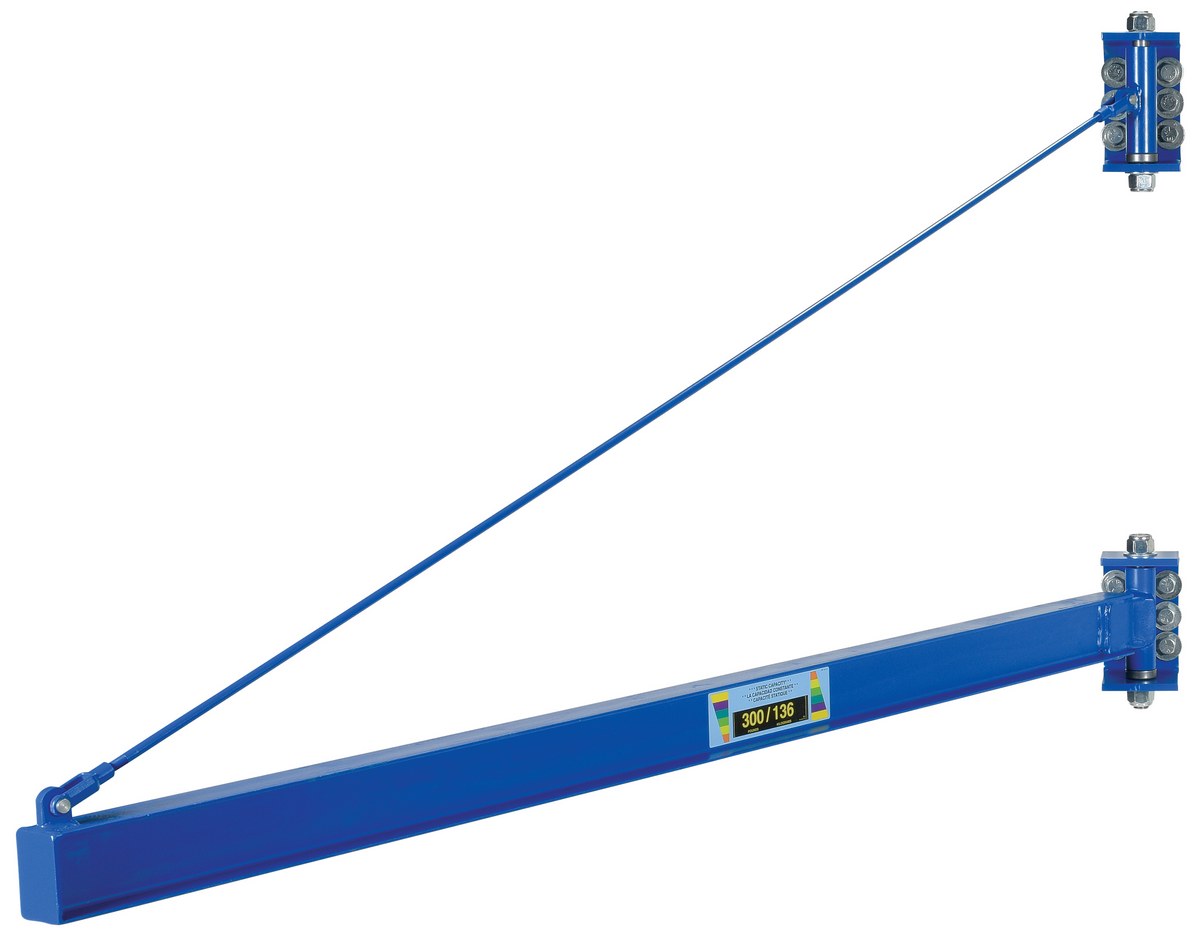

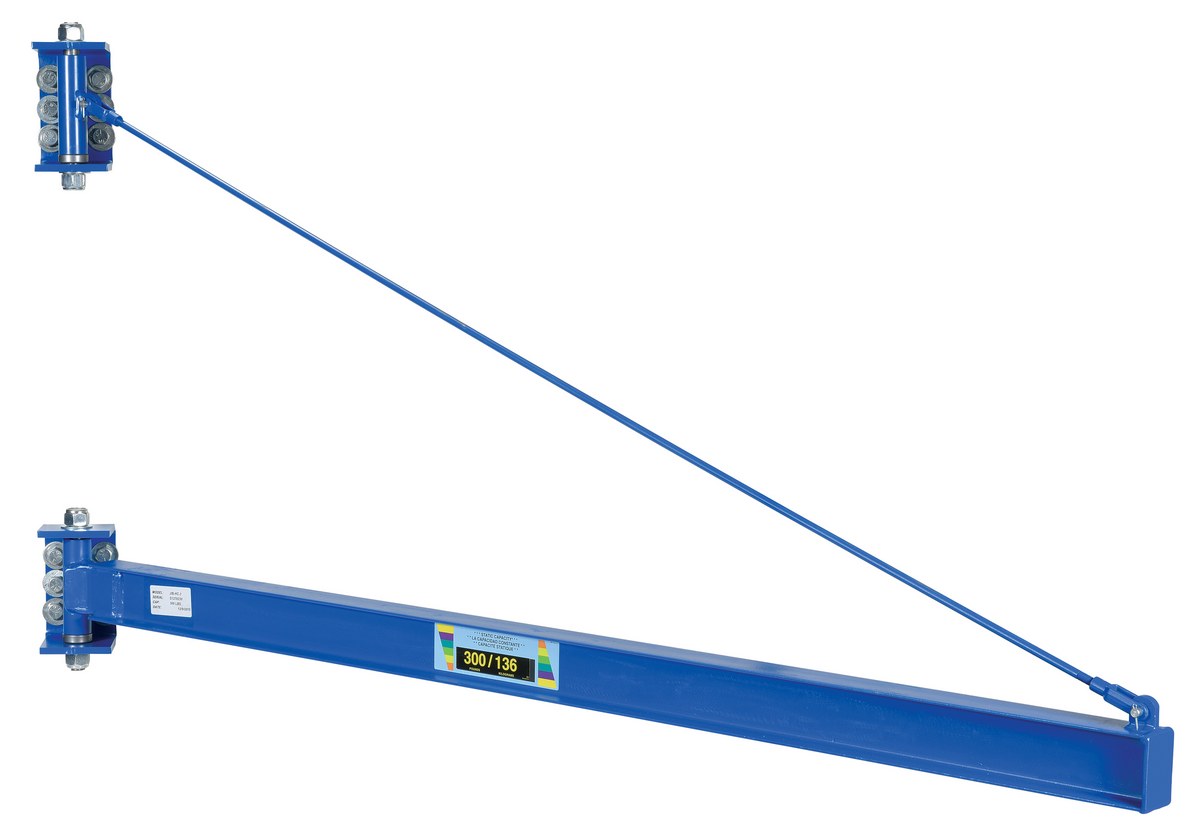

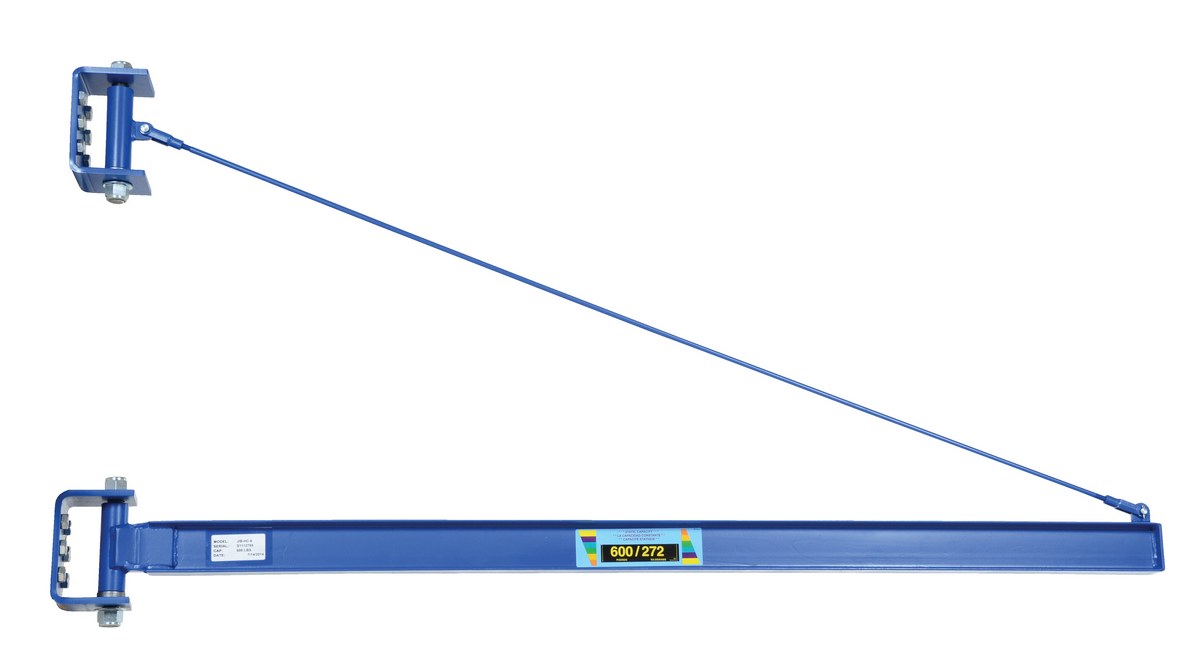

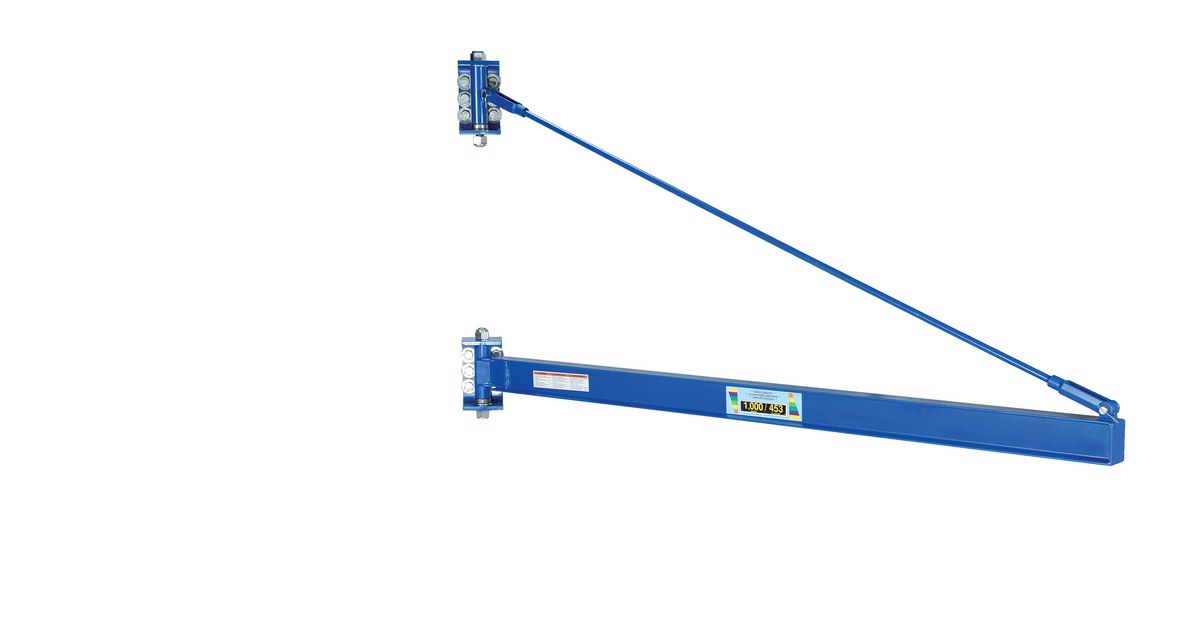

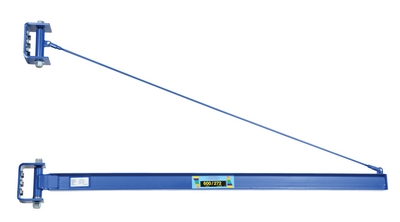

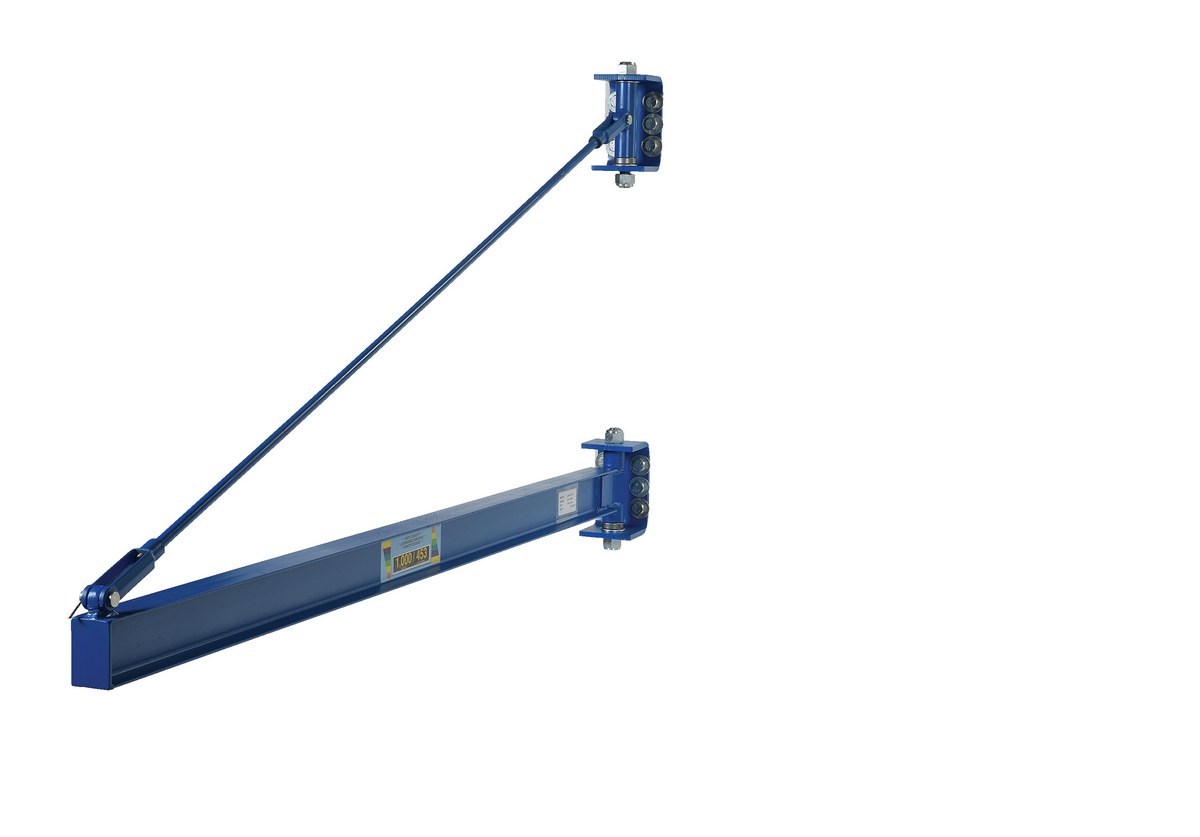

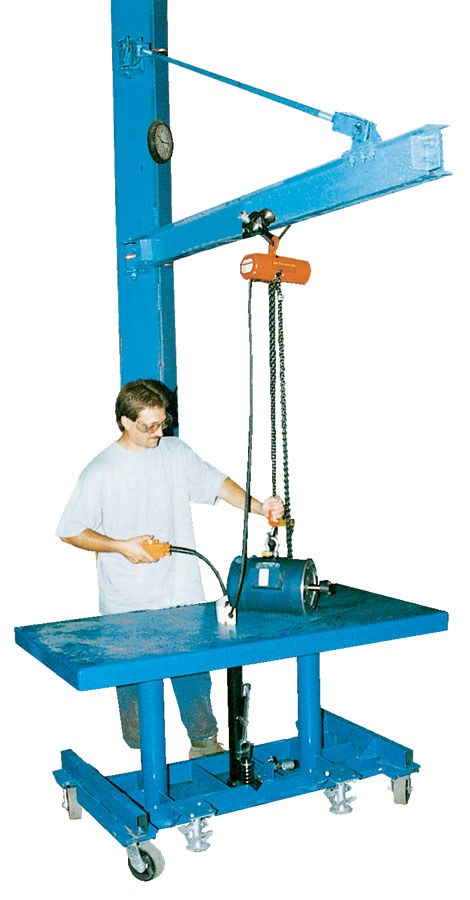

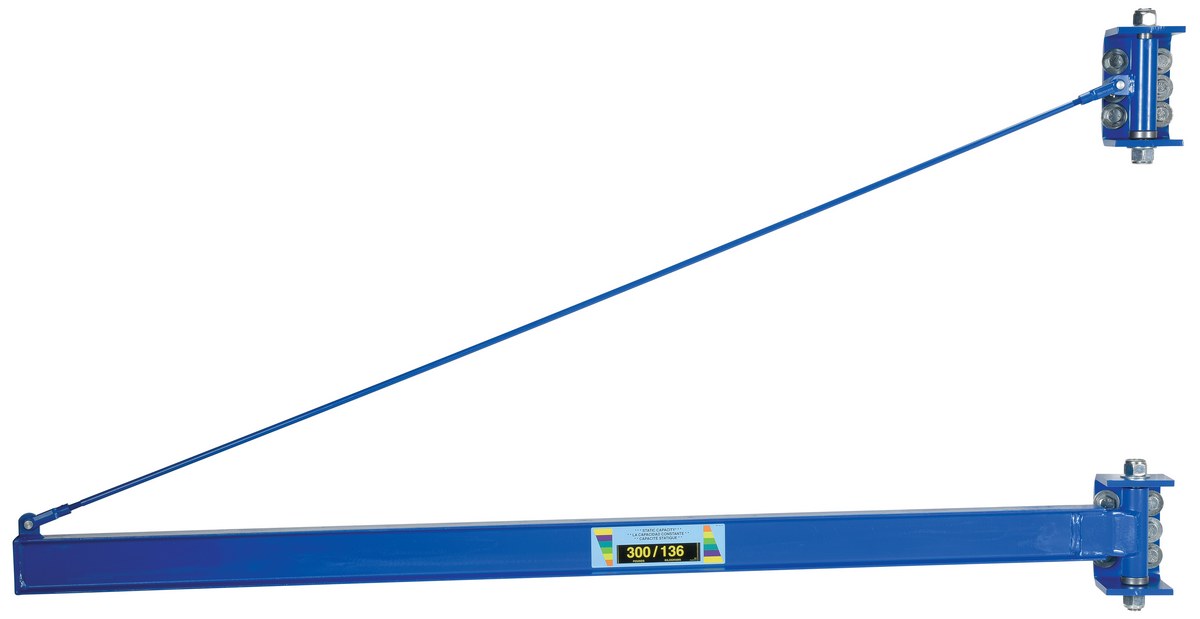

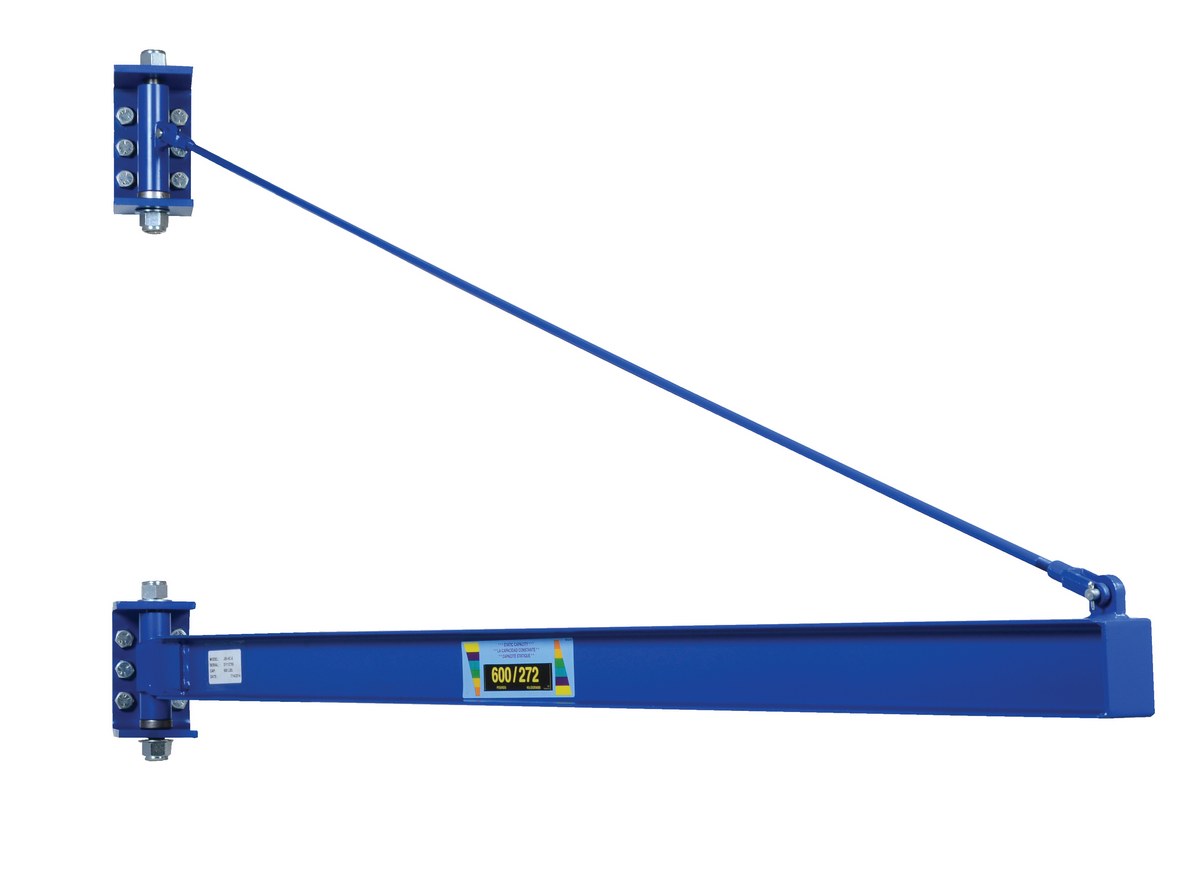

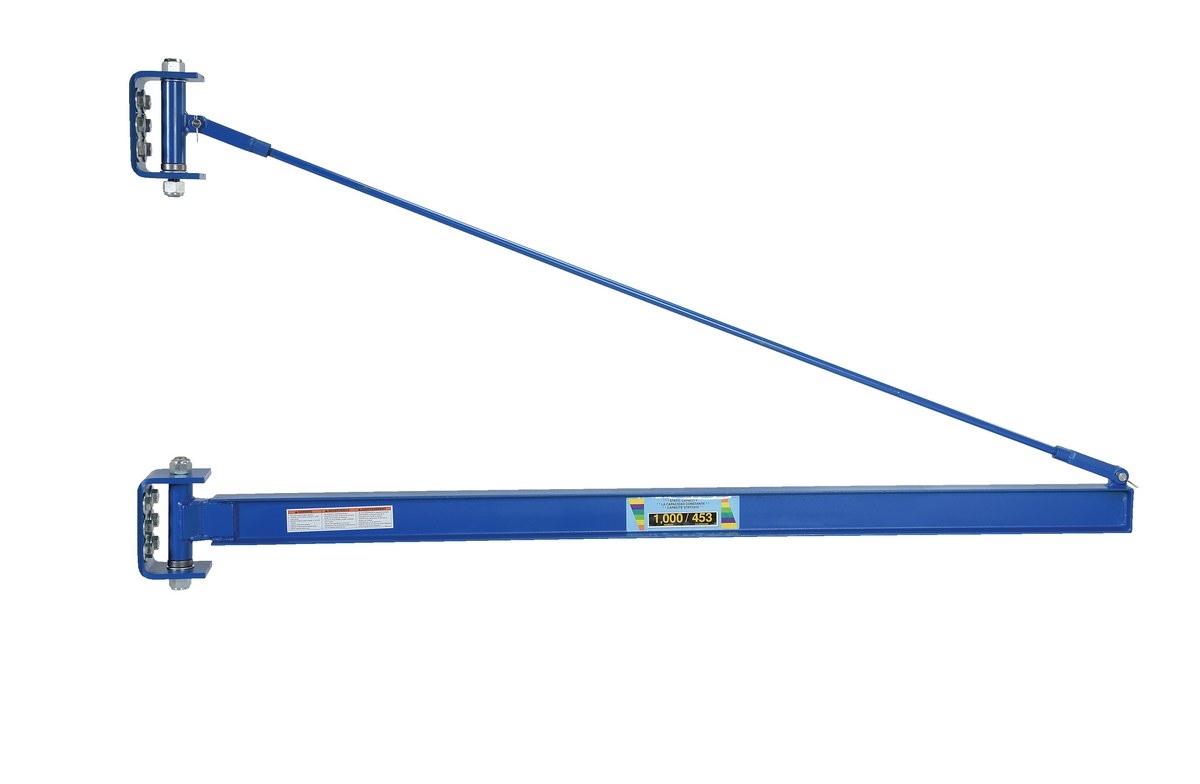

Wall Mounted Tie Rod Jib Cranes for High Ceiling Workstation LiftingTie rod jib cranes provide a space-saving overhead lifting solution for facilities that need better hook coverage without using floor-mounted supports. Designed to mount to walls or structural columns, these jib cranes help utilize open air space above workstations, maintenance areas, assembly cells, and production zones while keeping valuable floor space clear. 180 Degree Work Area CoverageThe I-beam rotates 180 degrees, allowing operators to position loads across a broad work area for lifting, transfer, and placement tasks. The tie rod support design is well suited for high ceiling applications where overhead clearance is available and workstation access is important. Capacity and Beam DesignThis family includes 300 lb., 600 lb., 1,000 lb., and 2,000 lb. capacity models with an 86 inch overall length and 79-3/4 inch usable I-beam length. I-beam flange configurations vary by capacity to support the required load rating and compatible trolley selection. Hoists & Trollies can be ordered seperately. Steel Construction and InstallationAll steel construction and a durable blue painted finish provide long service life in industrial environments. These wall or column mounted jib cranes are designed for use with compatible hoists and trolleys, which are sold separately. Wall mounting hardware is also sold separately and should be selected based on the installation structure and application requirements. Wall Mounting Hardware sold seperately |
|||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
