Product Family Overview


Polyurethane with Thread Guard Casters
SERIES: CST-E6-PUP

Polyurethane casters are the perfect asset for an assortment of commercial and non-commercial settings. The large capacity diminishes the number of trips needed to be taken while reducing the amount of physical labor needed to transport products. The polyurethane construction lessens the amount of noise caused through travel across rough surfaces. It is resistant to a variety of chemicals. Swivel design allows the user to maneuver and change directions instantaneously. Orange tread color. Wheel core is made of polypropylene. 95 +/-5 Shore A. Made in China.

  • Thread Guard Provides Added Protection Against Debris & Corrosion
  • Resistant to a Variety of Chemicals
  • Precision Ball Bearing
  • Hardened Bearing Raceway
  • Anti-Corrosive Paint Finish
  • S and SWTB have Swivel Rig Zerk Fitting

Polyurethane casters are the perfect asset for an assortment of commercial and non-commercial settings. The large capacity diminishes the number of trips needed to be taken while reducing the amount of physical labor needed to transport products. The polyurethane construction lessens the amount of noise caused through travel across rough surfaces. It is resistant to a variety of chemicals. Swivel design allows the user to maneuver and change directions instantaneously. Orange tread color. Wheel core is made of polypropylene. 95 +/-5 Shore A. Made in China.

  • Thread Guard Provides Added Protection Against Debris & Corrosion
  • Resistant to a Variety of Chemicals
  • Precision Ball Bearing
  • Hardened Bearing Raceway
  • Anti-Corrosive Paint Finish
  • S and SWTB have Swivel Rig Zerk Fitting

Additional Models In This Family

Model Specific Details




All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is for Casters within the Model Chart on this page. Not an entire site search.
Model Image PDFs Caster
Size
Type Capacity
(lbs.)
Overall
Height
Top Plate
Size
Net Wt.
(lbs)

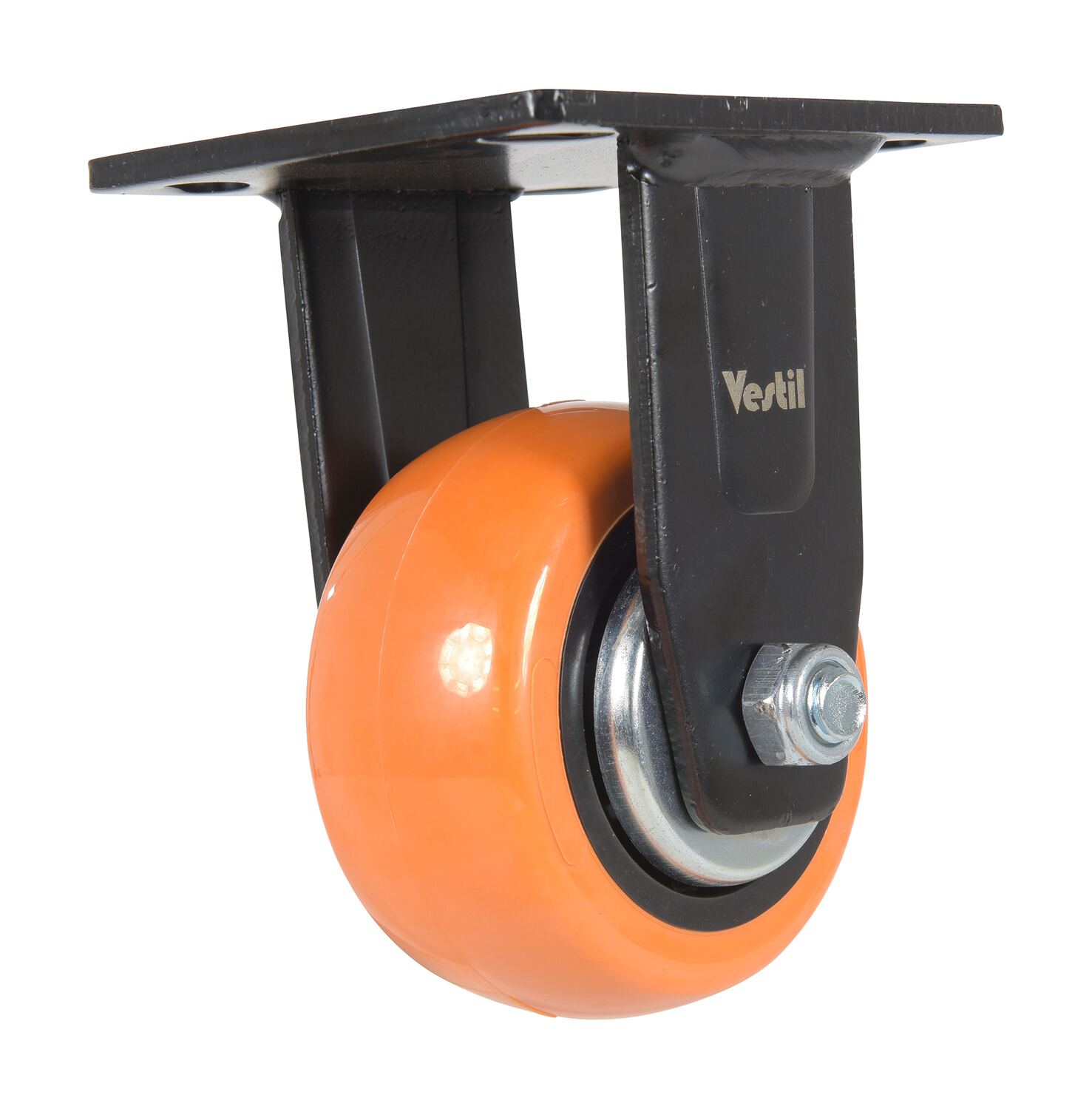

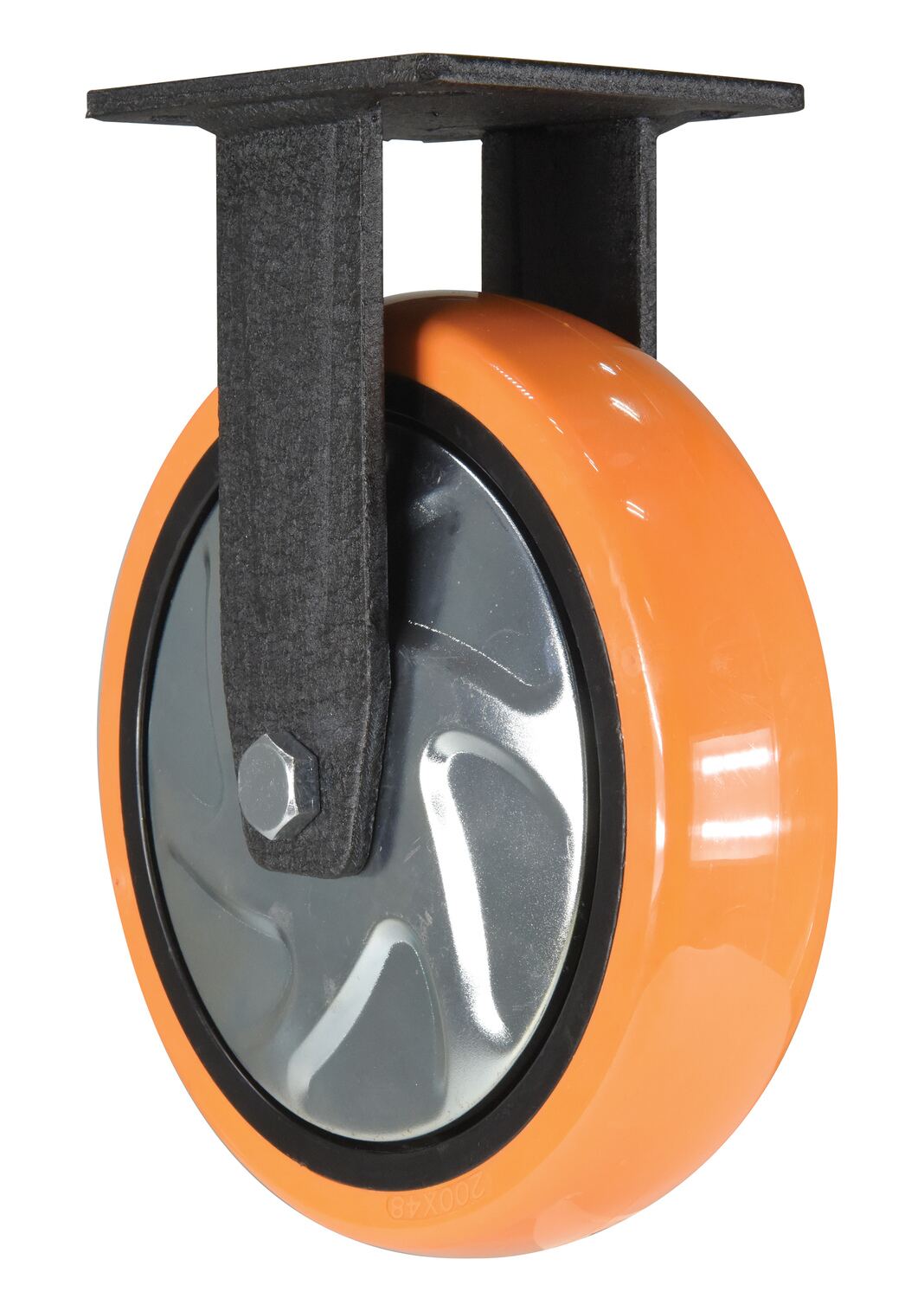

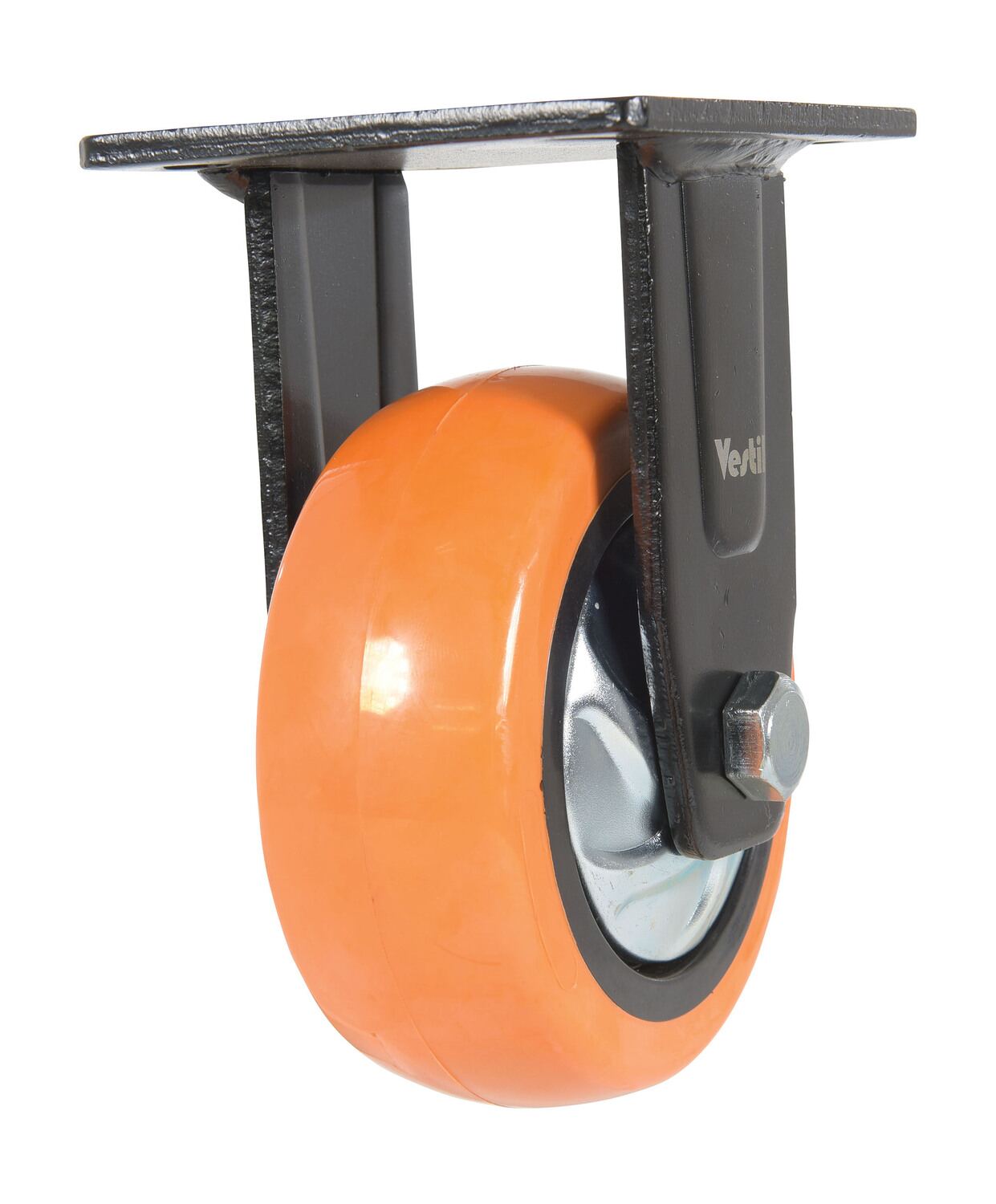

CST-E6-4X2PUP-R CST-E6-4X2PUP-R1 YEAR Limited Warranty4 x 2RIGID5515-5/8 4 x 4-1/23.1

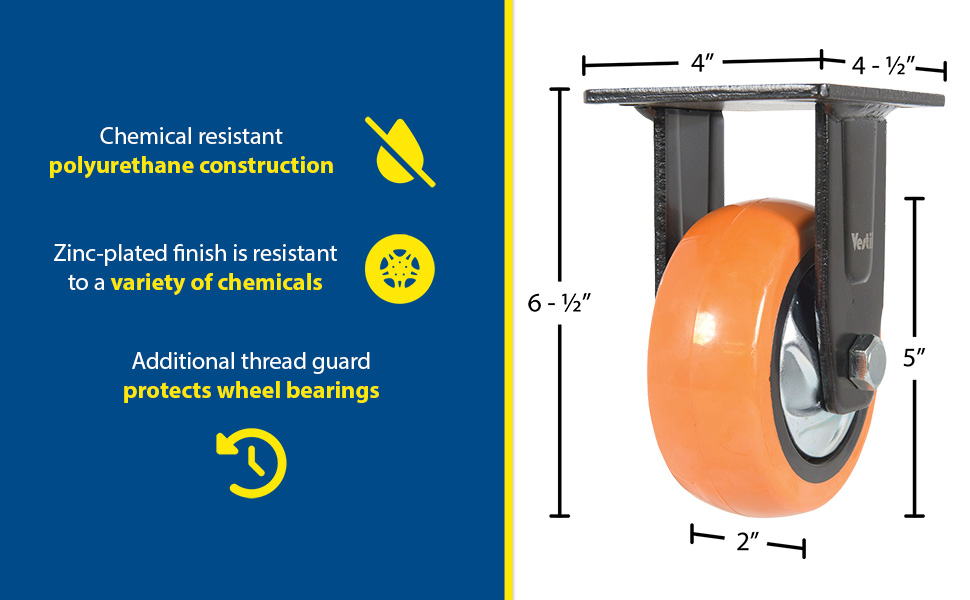

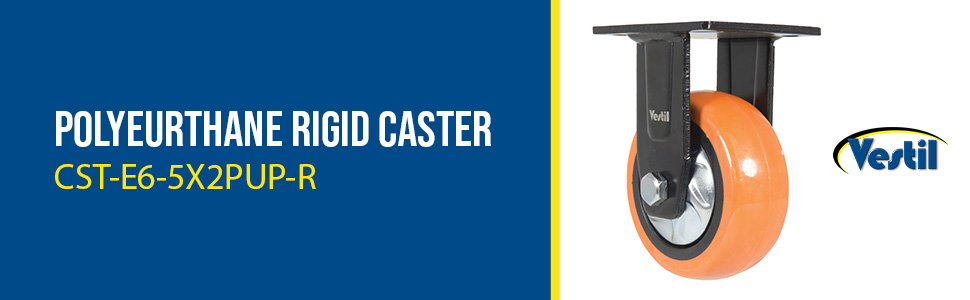

CST-E6-5X2PUP-R CST-E6-5X2PUP-R1 YEAR Limited Warranty5 x 2RIGID6396-1/2 4 x 4-1/23.7
CST-E6-6X2PUP-R CST-E6-6X2PUP-R1 YEAR Limited Warranty6 x 2RIGID8377-1/2 4 x 4-1/24.2

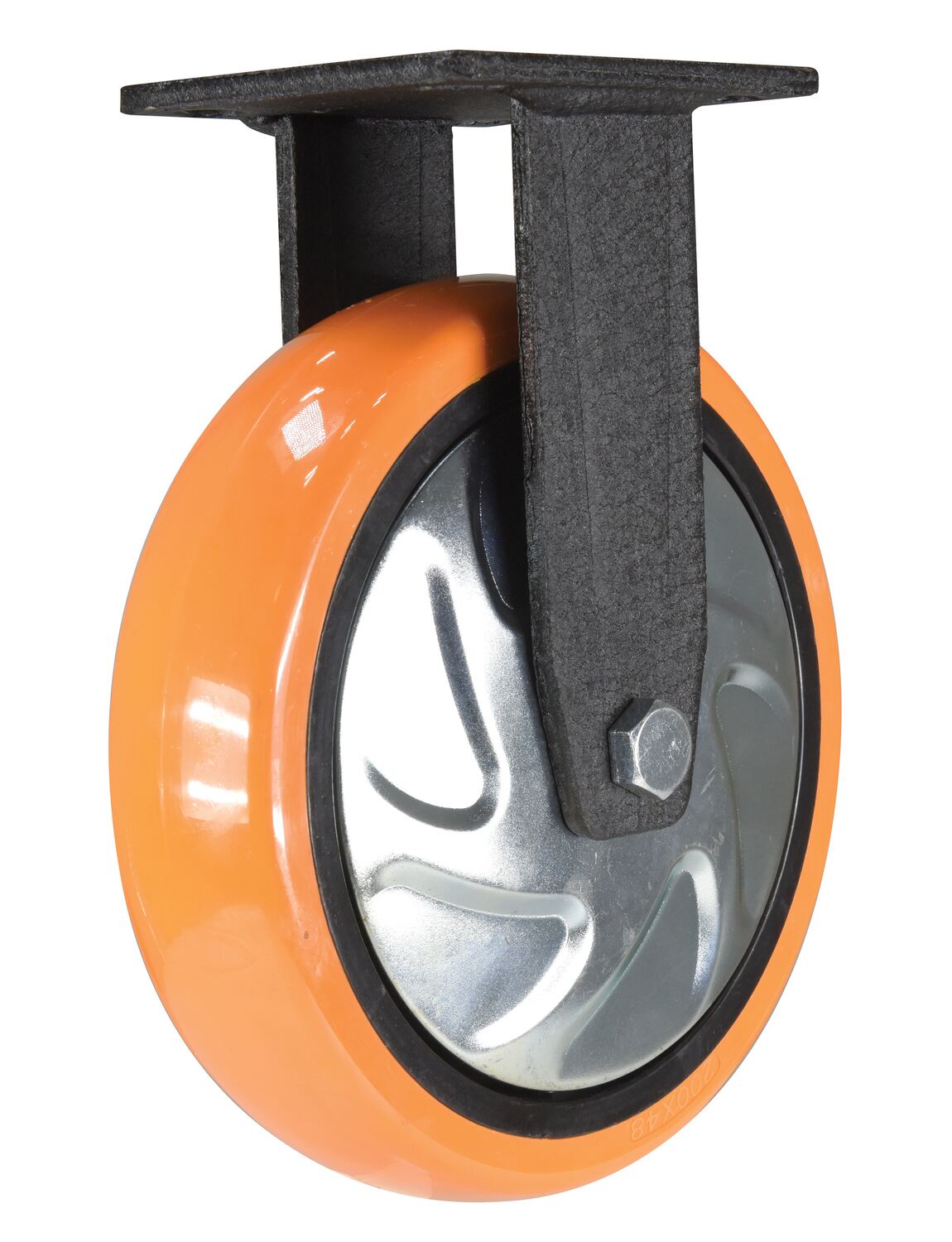

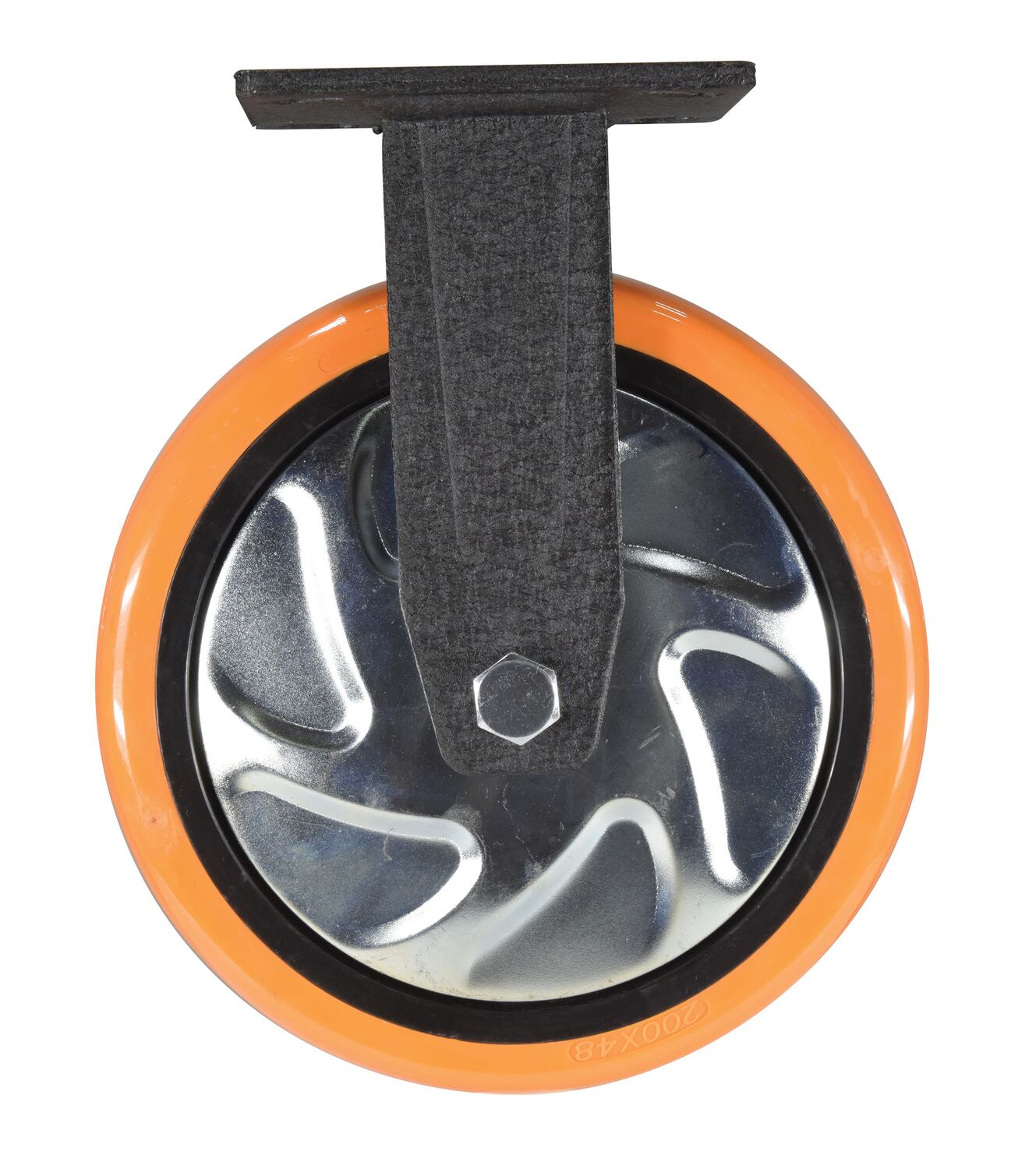

CST-E6-8X2PUP-R CST-E6-8X2PUP-R1 YEAR Limited Warranty8 x 2RIGID9259-1/2 4 x 4-1/25.5

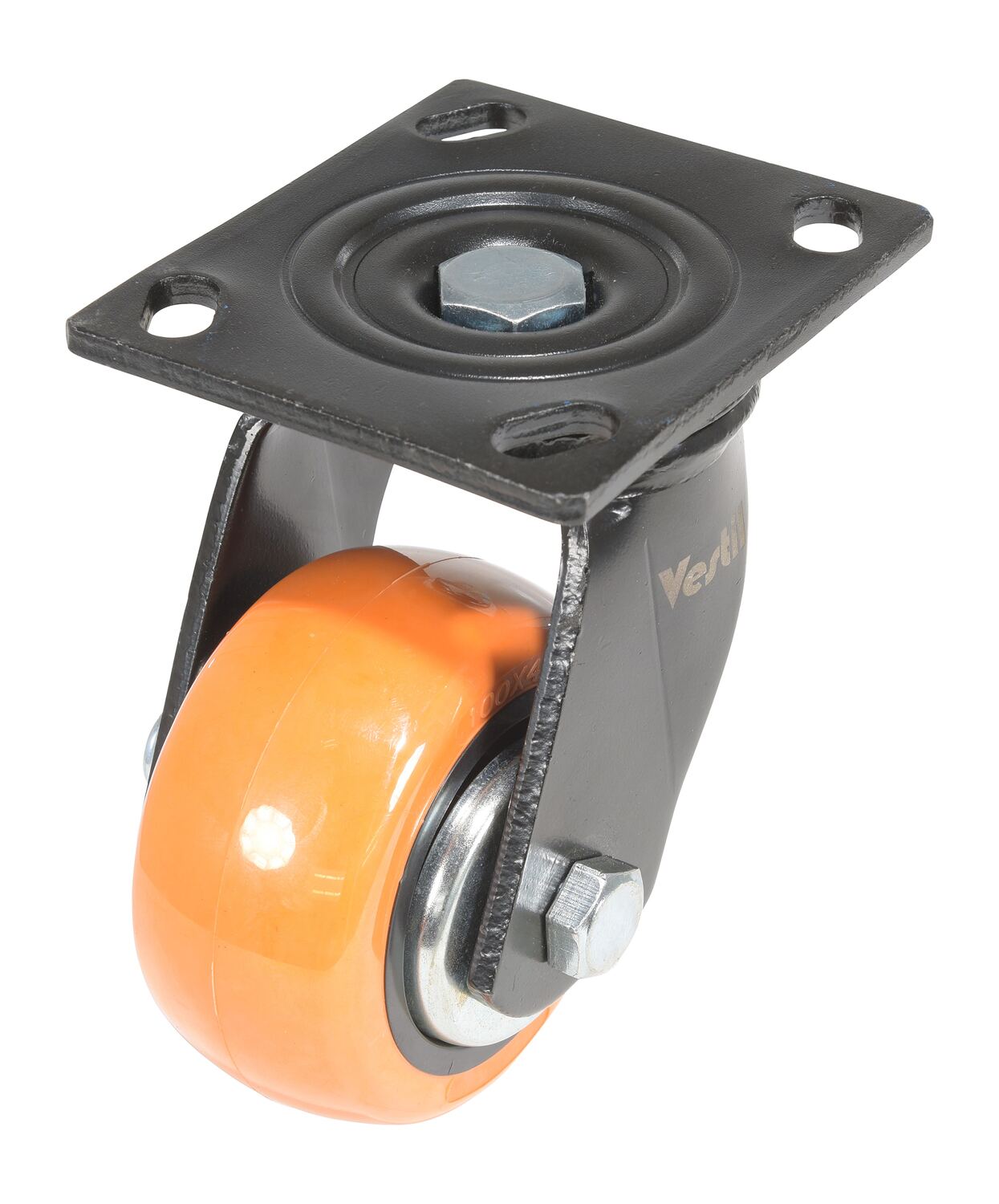

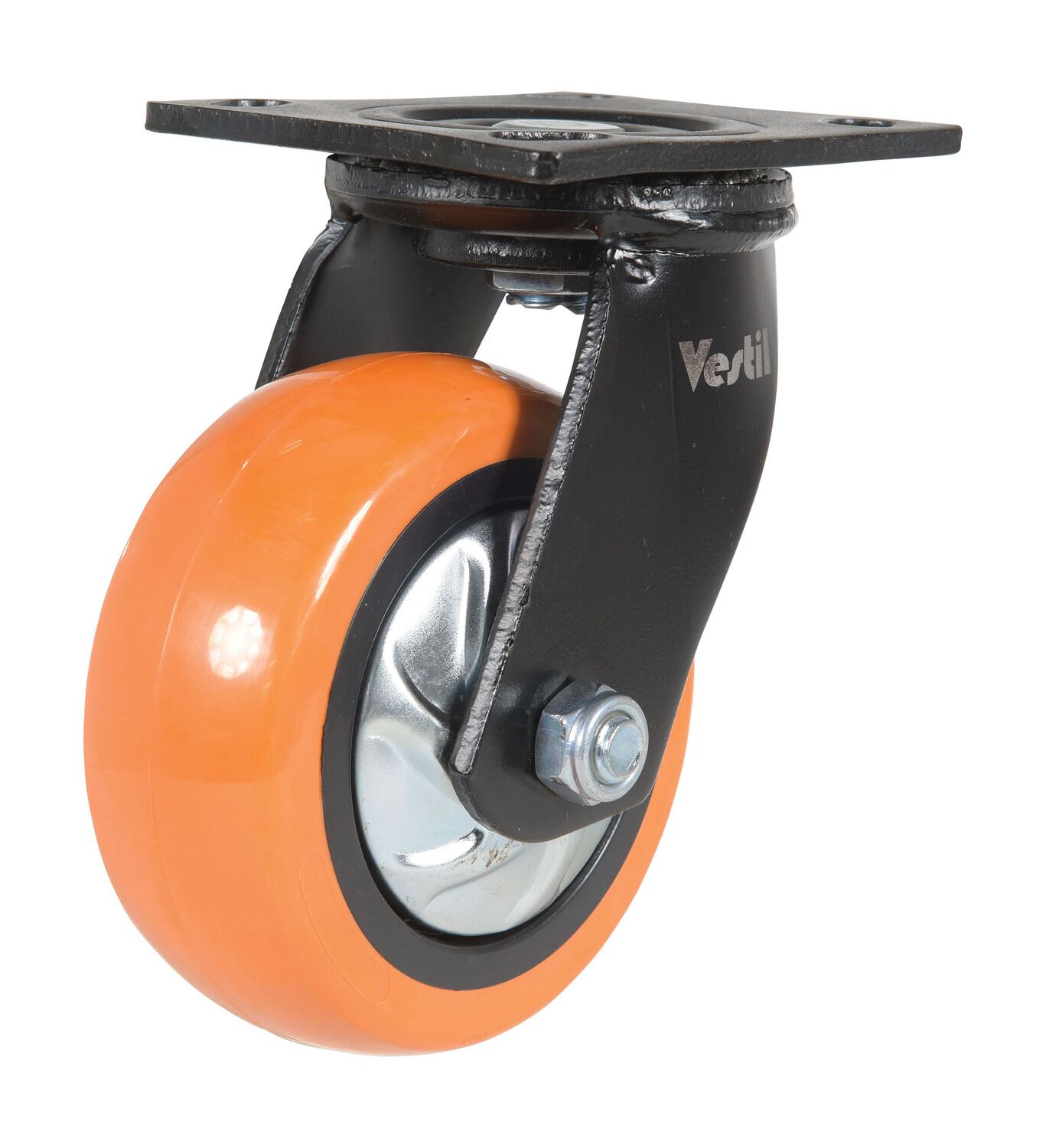

CST-E6-4X2PUP-S CST-E6-4X2PUP-S1 YEAR Limited Warranty4 x 2SWIVEL5515-5/8 4 x 4-1/24.1
CST-E6-5X2PUP-S CST-E6-5X2PUP-S1 YEAR Limited Warranty5 x 2SWIVEL6396-1/2 4 x 4-1/24.7

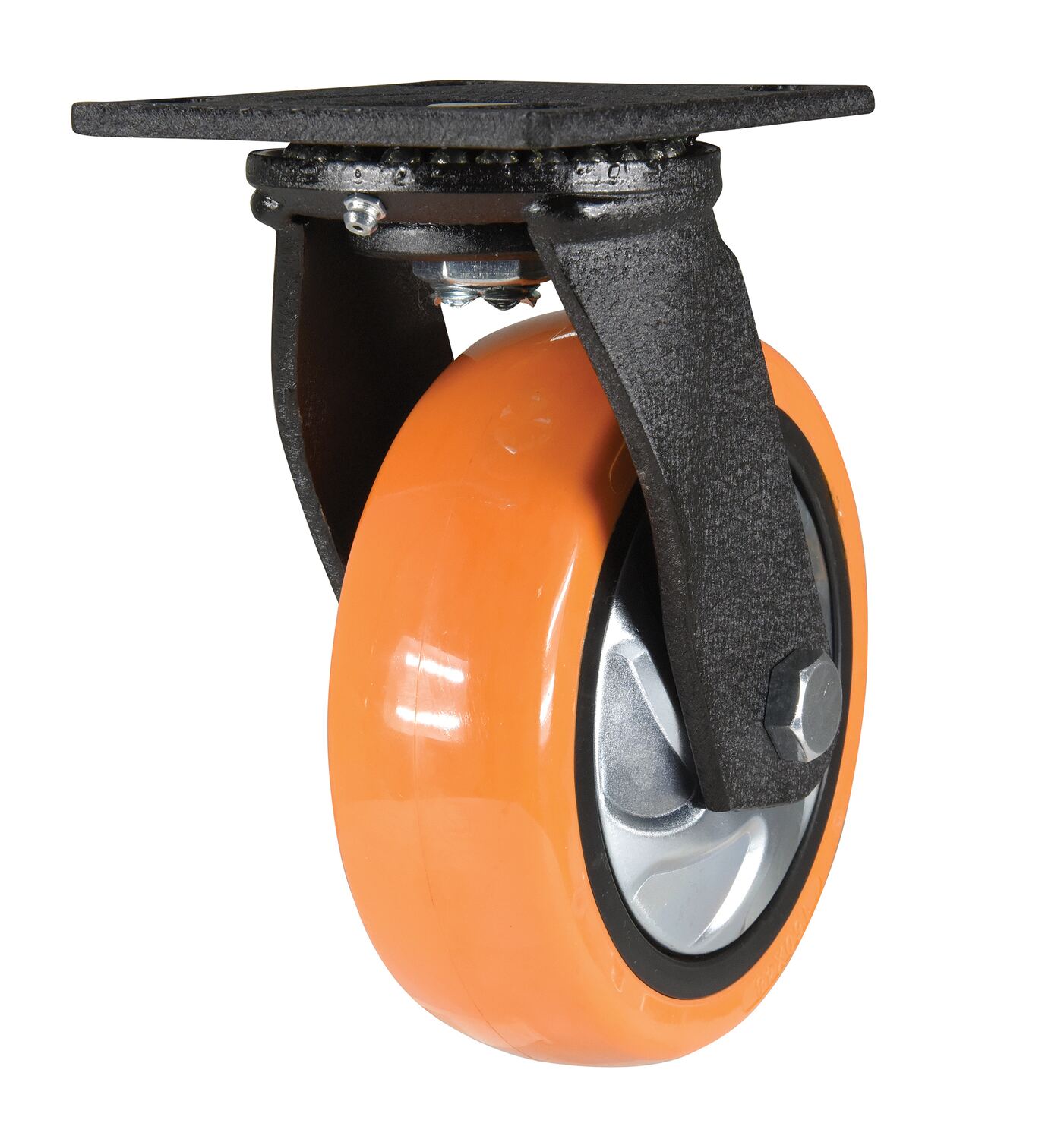

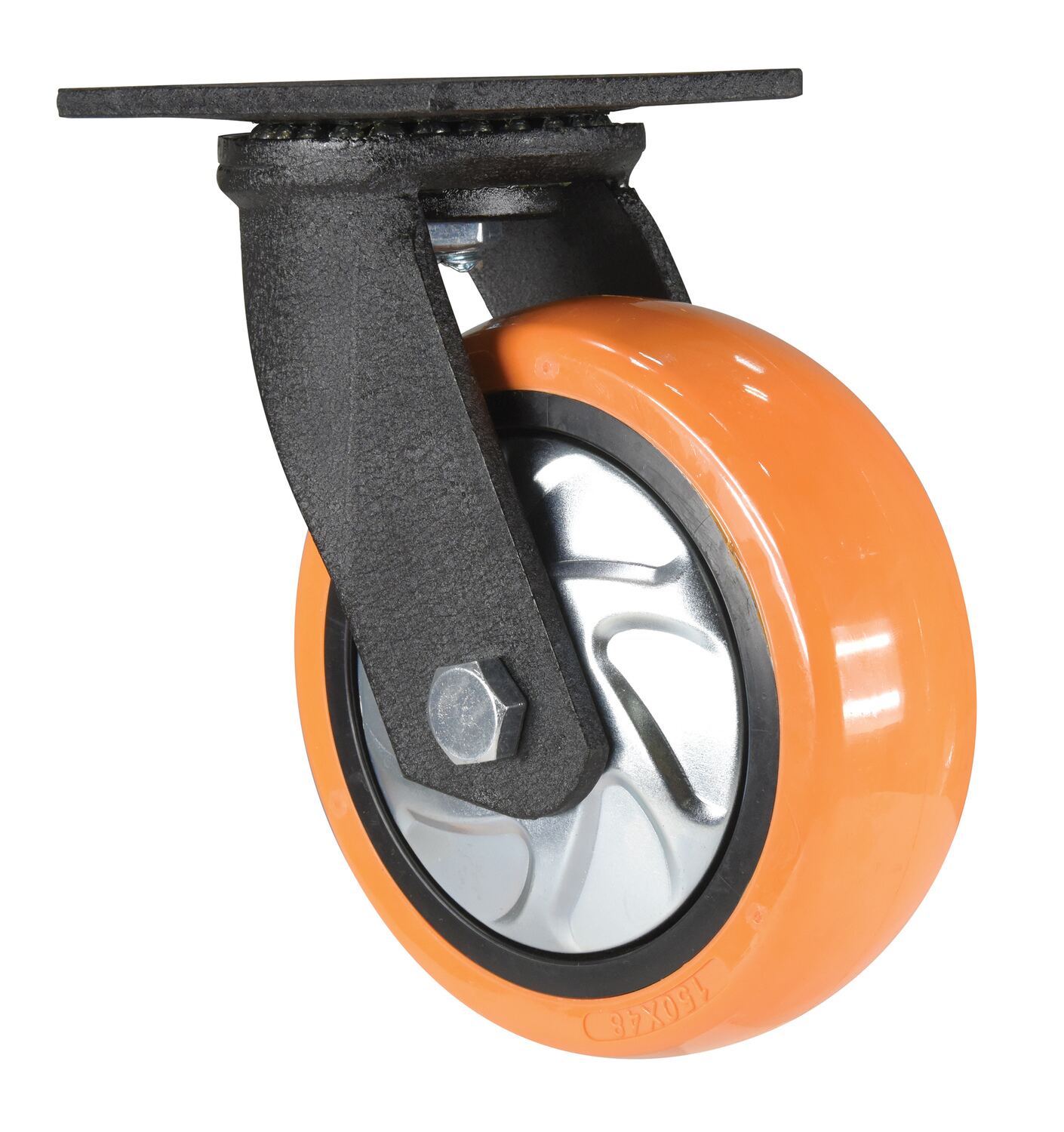

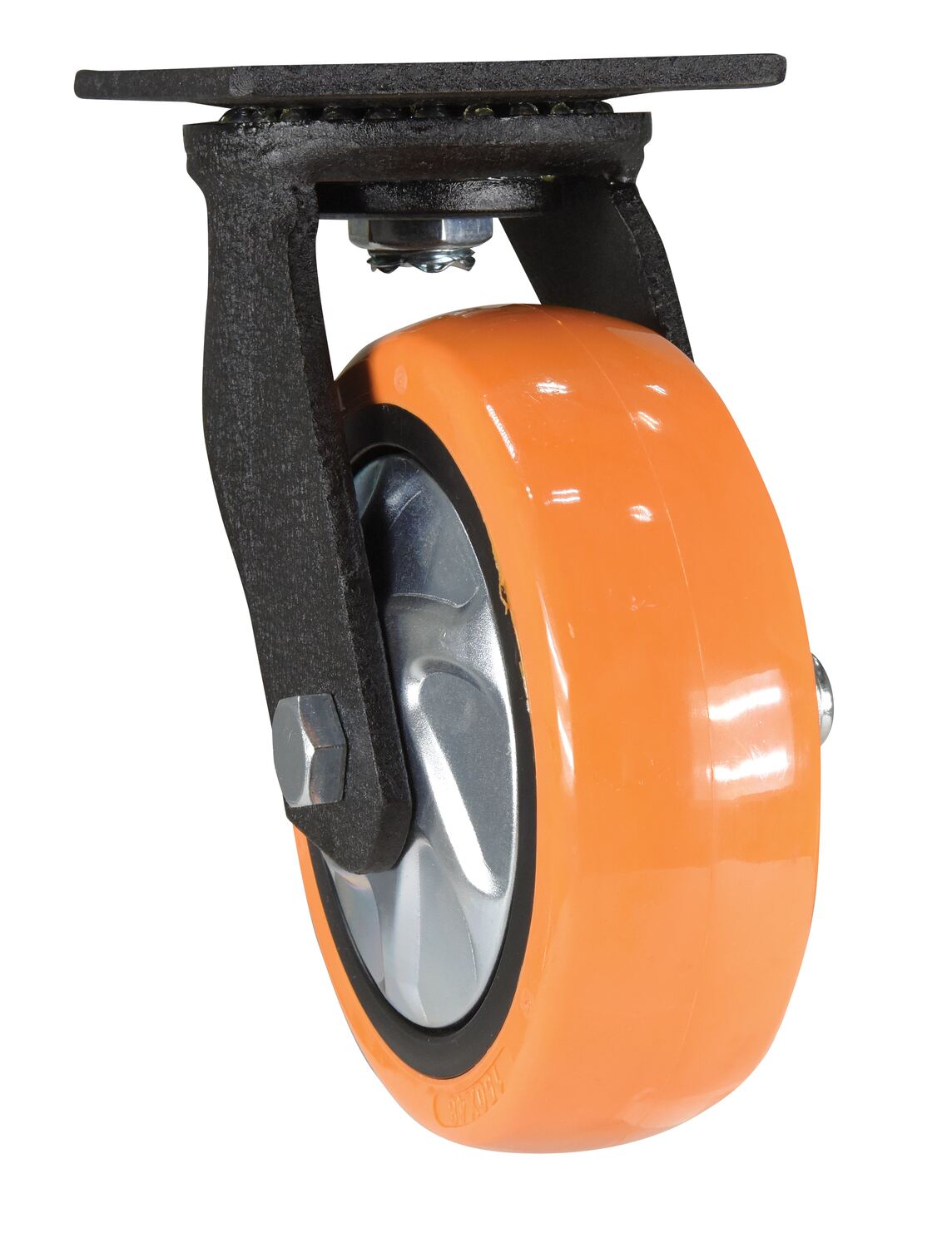

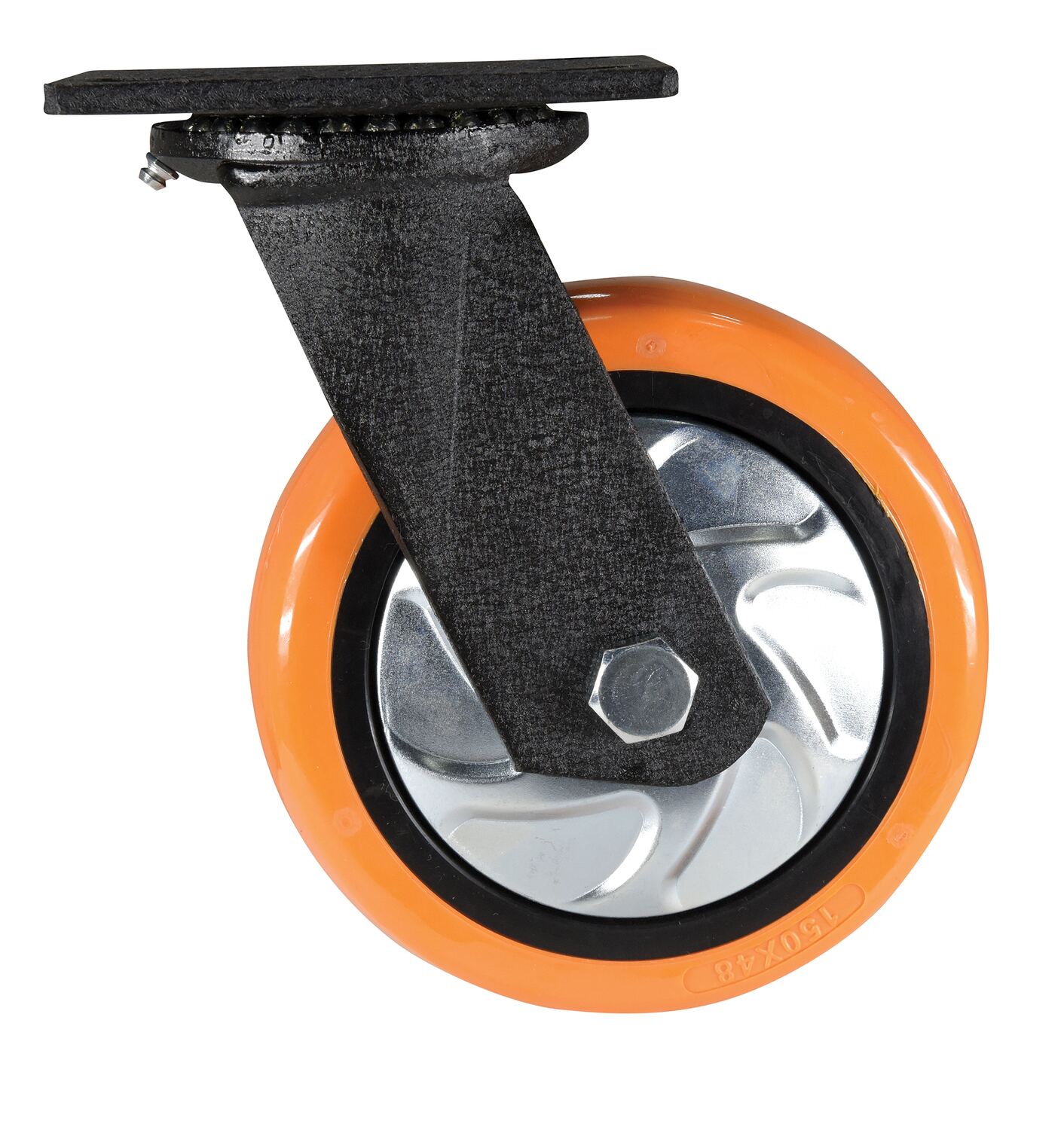

CST-E6-6X2PUP-S CST-E6-6X2PUP-S1 YEAR Limited Warranty6 x 2SWIVEL8377-1/2 4 x 4-1/25.3

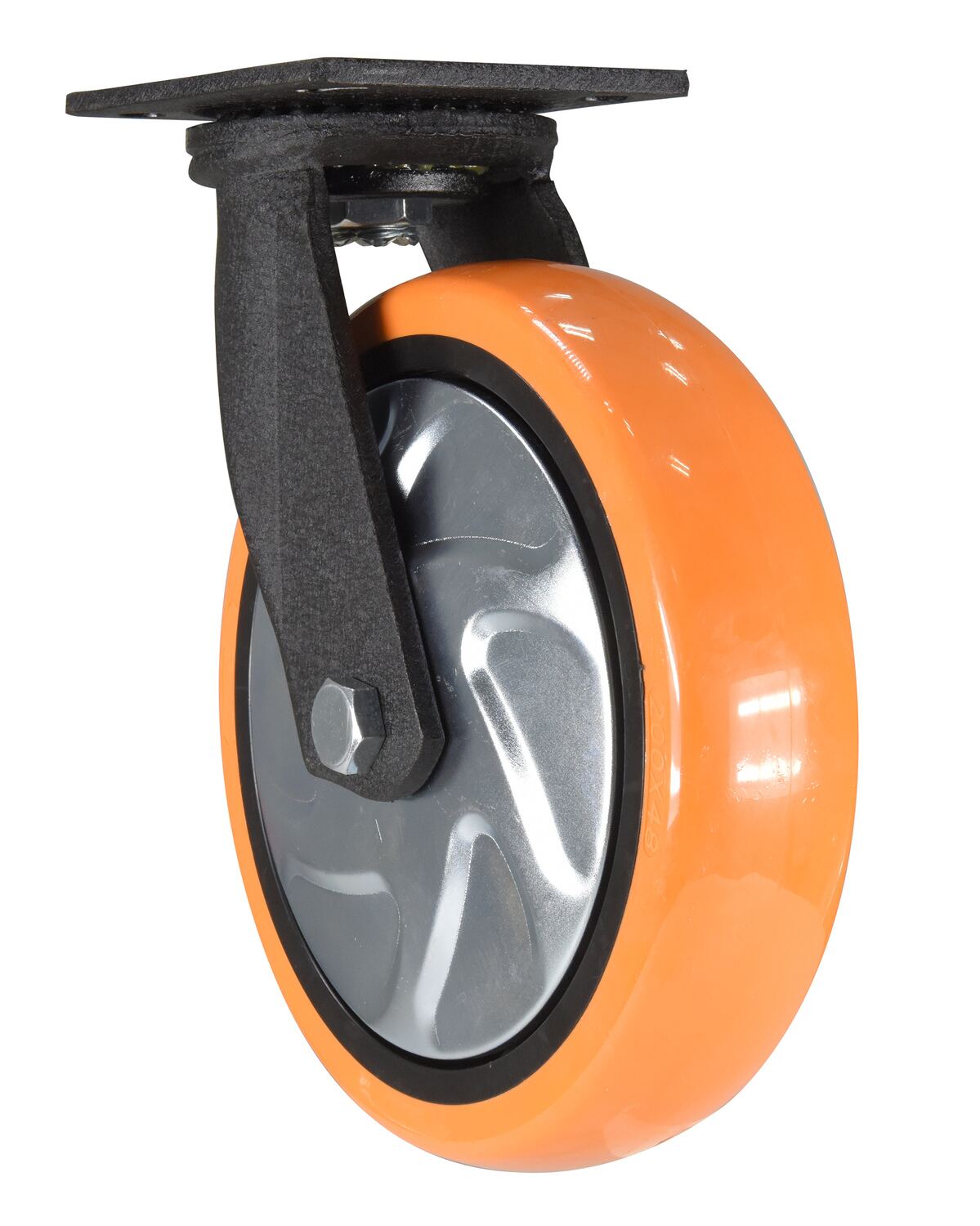

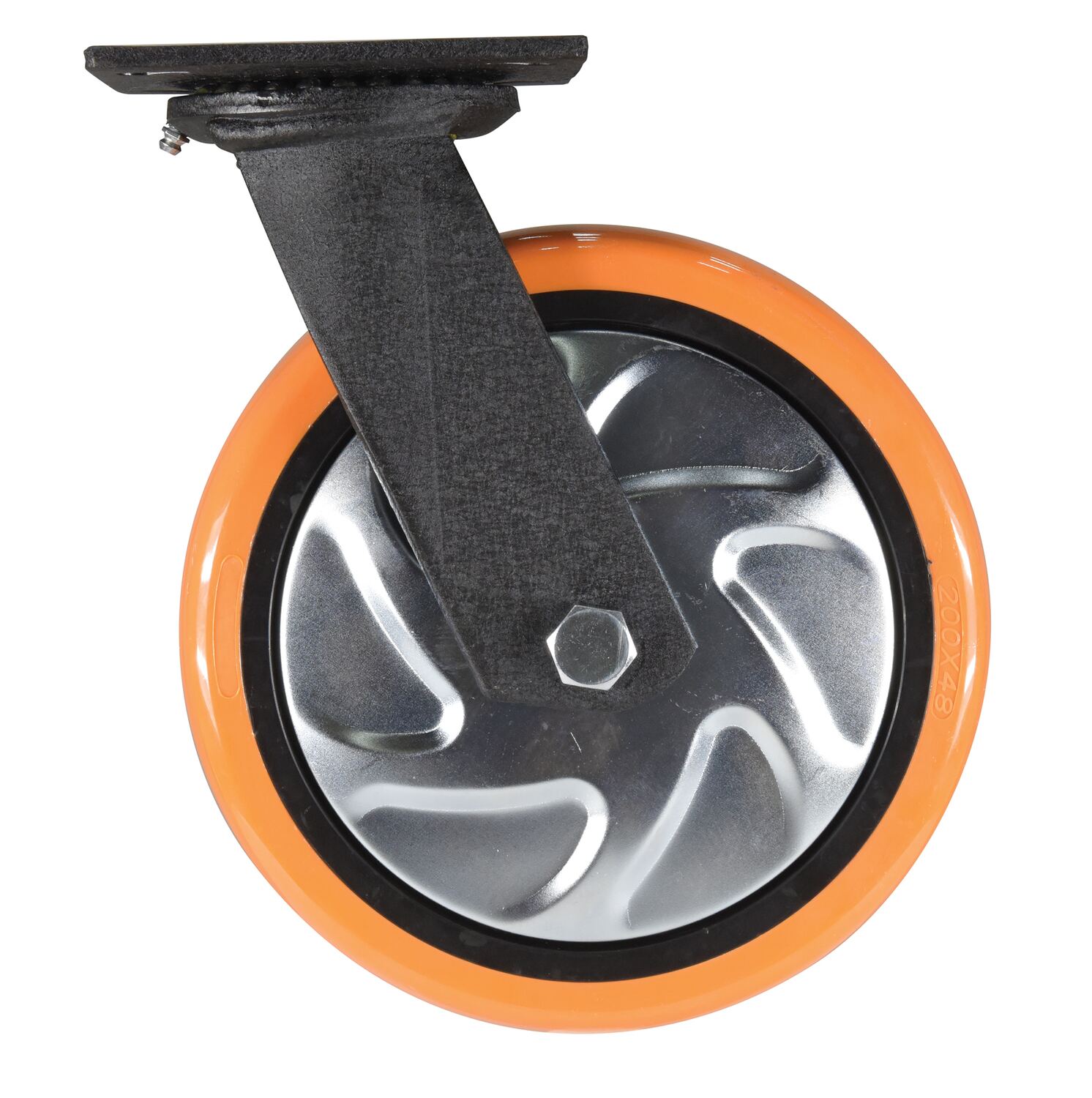

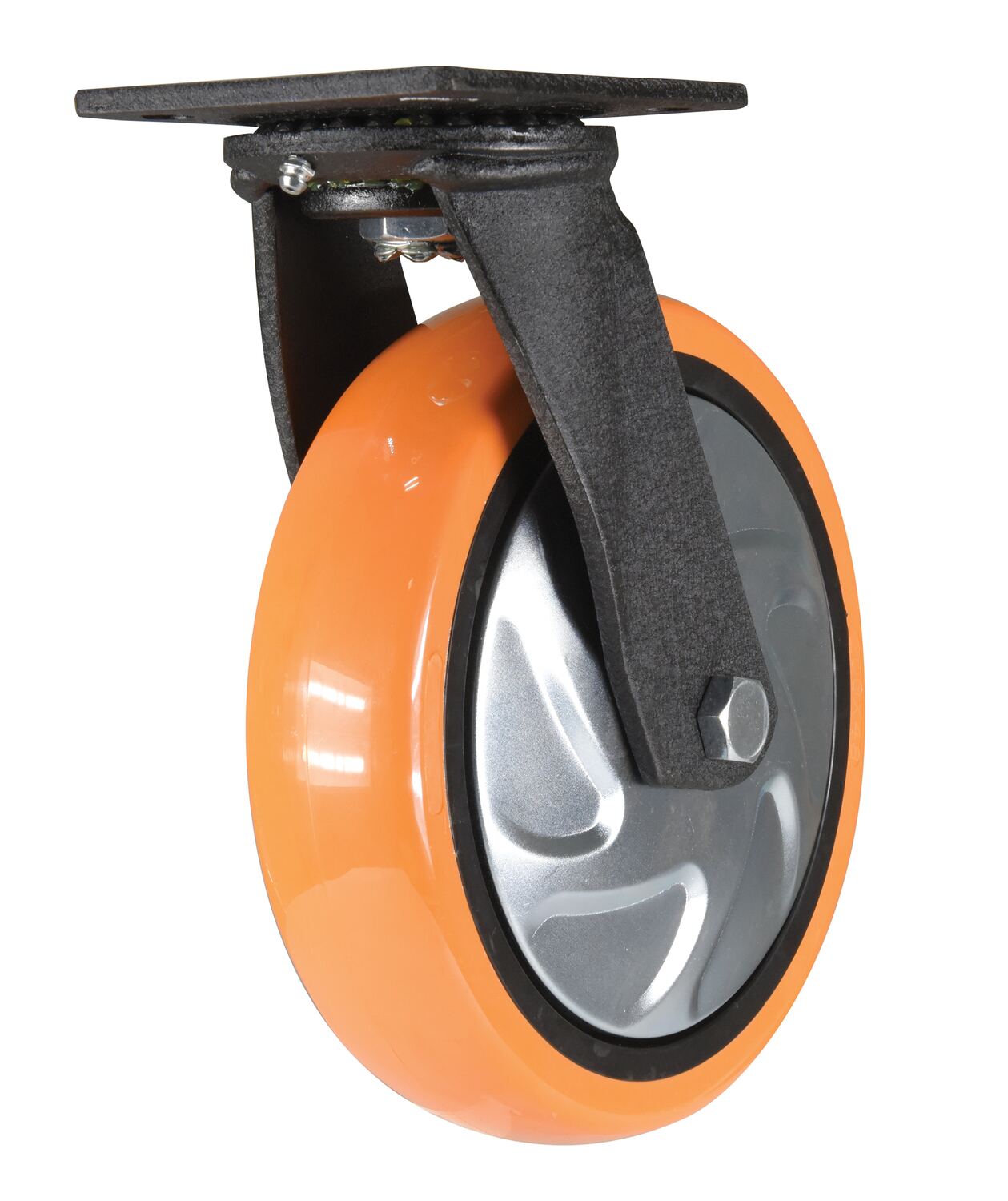

CST-E6-8X2PUP-S CST-E6-8X2PUP-S1 YEAR Limited Warranty8 x 2SWIVEL9259-1/2 4 x 4-1/26.6

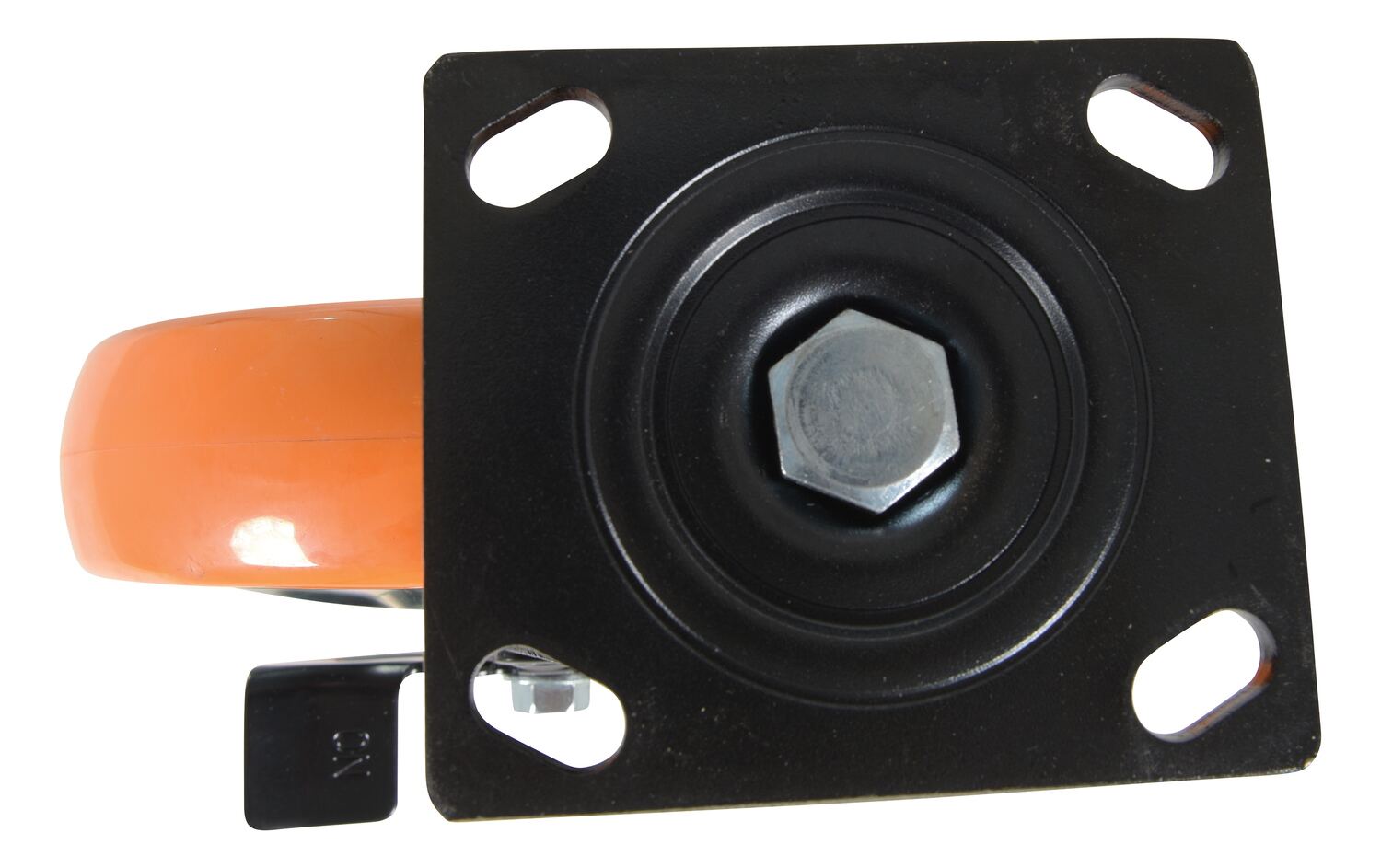

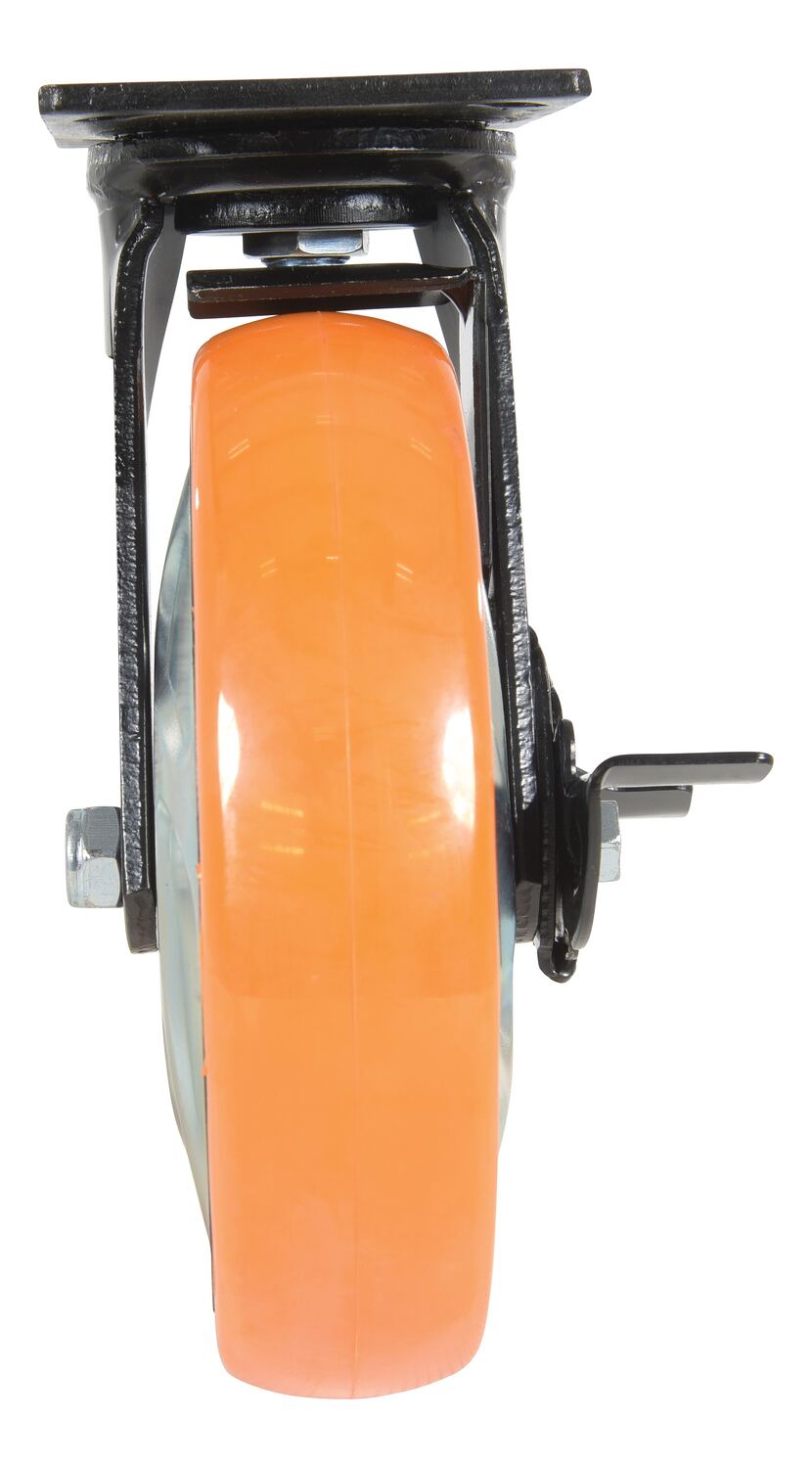

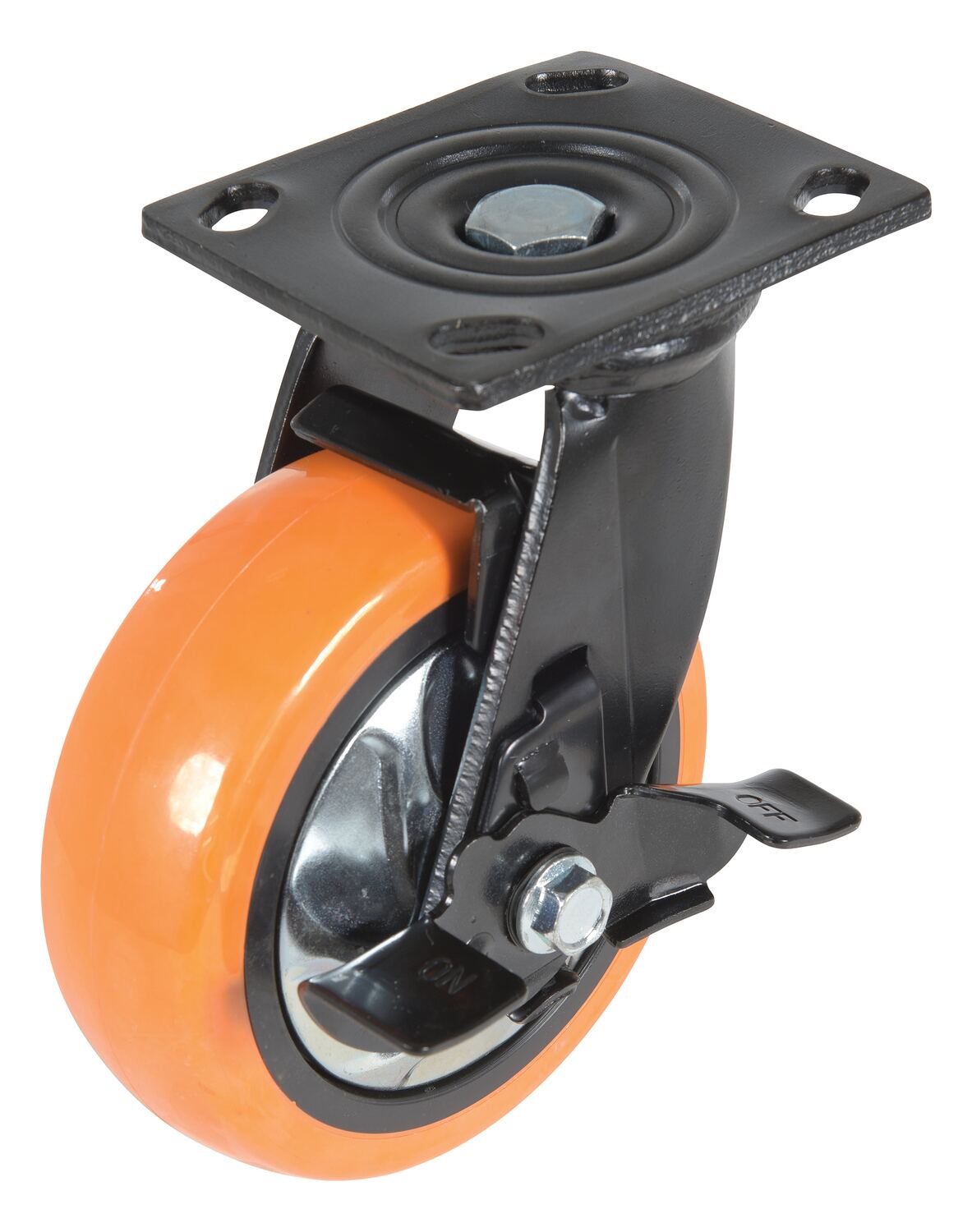

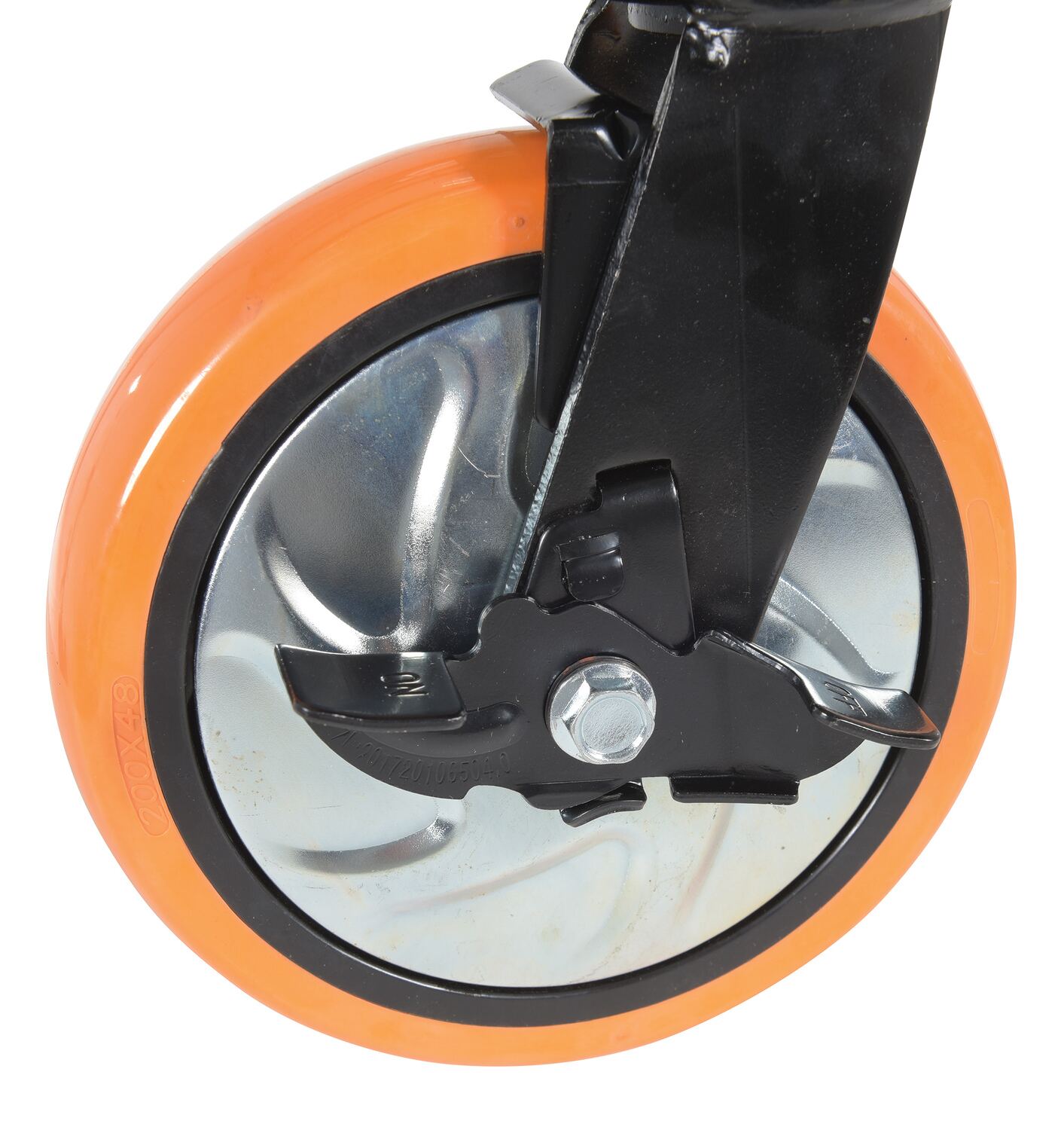

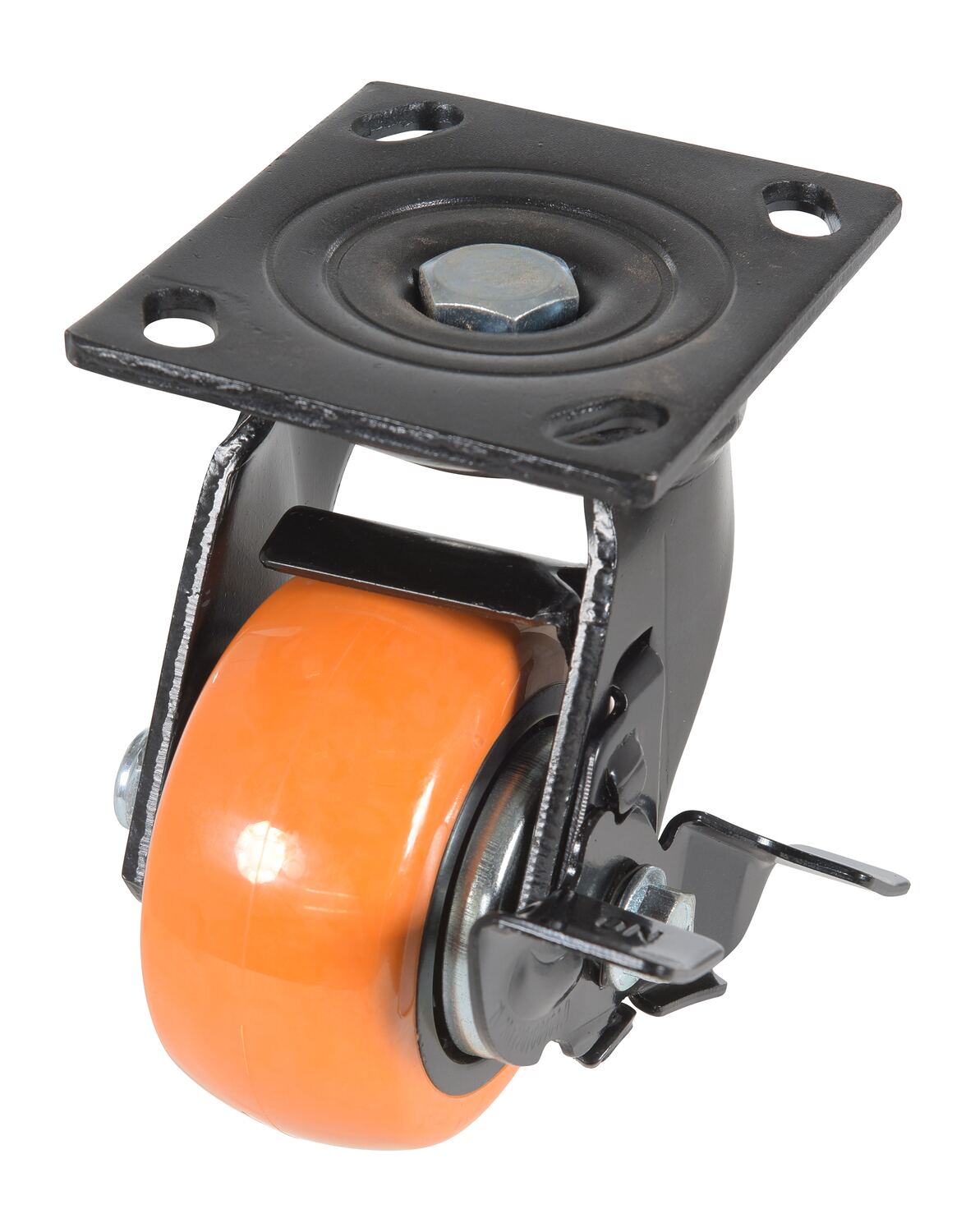

CST-E6-4X2PUP-SWB CST-E6-4X2PUP-SWB1 YEAR Limited Warranty4 x 2SWIVEL W/BRAKE5515-5/8 4 x 4-1/24.4

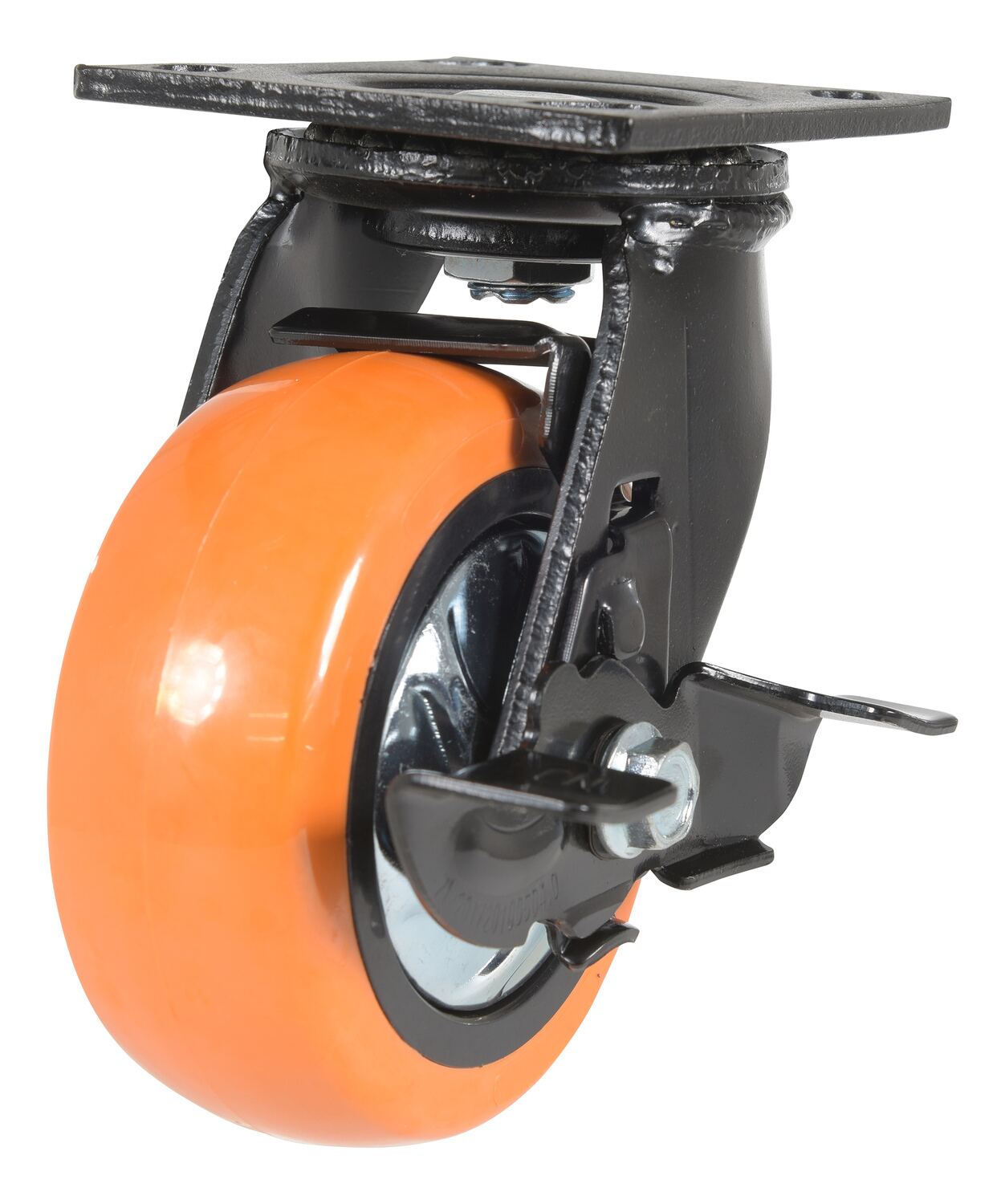

CST-E6-5X2PUP-SWB CST-E6-5X2PUP-SWB1 YEAR Limited Warranty5 x 2SWIVEL W/BRAKE6396-1/2 4 x 4-1/25
CST-E6-6X2PUP-SWB CST-E6-6X2PUP-SWB1 YEAR Limited Warranty6 x 2SWIVEL W/BRAKE8377-1/2 4 x 4-1/25.5

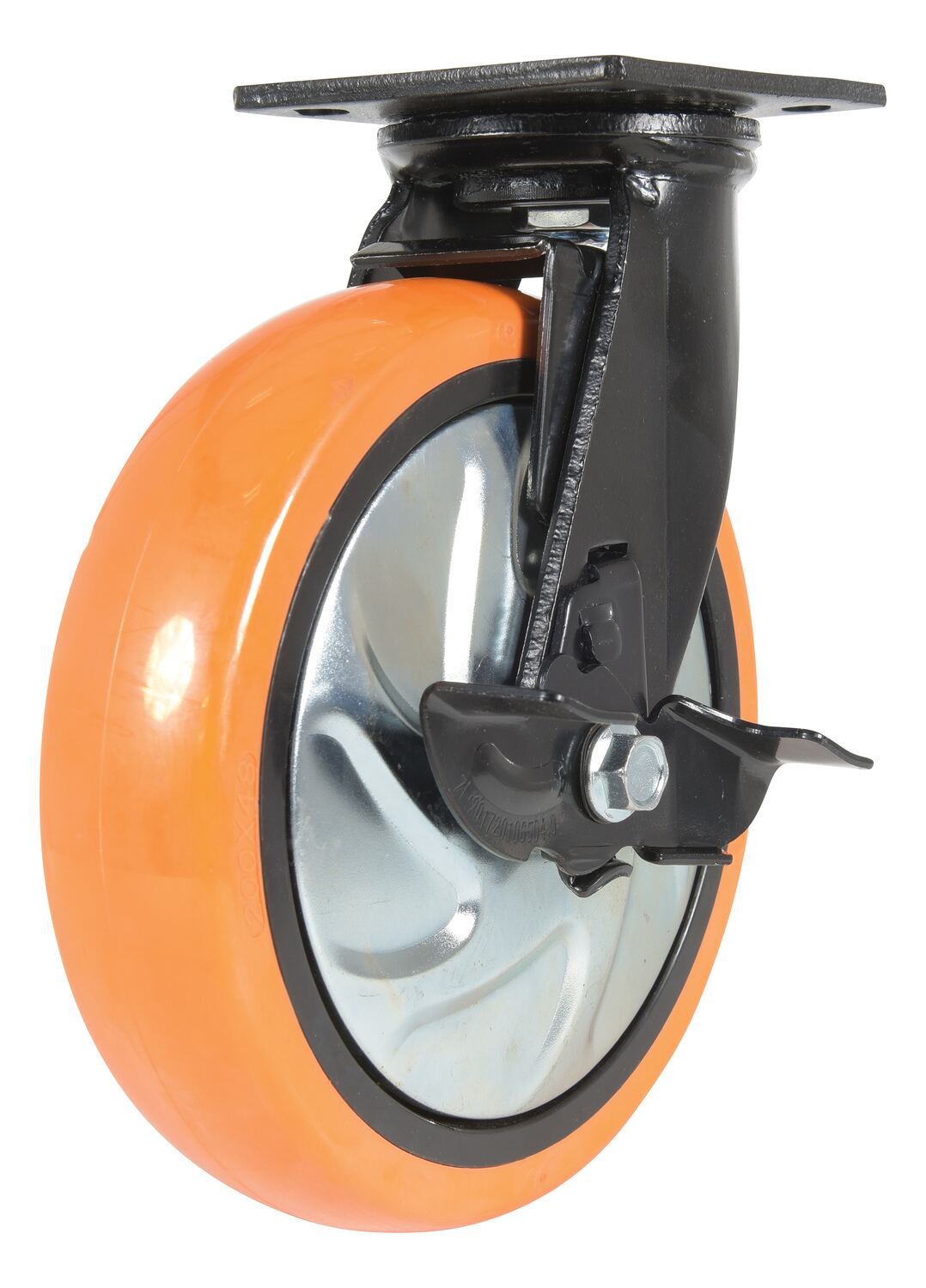

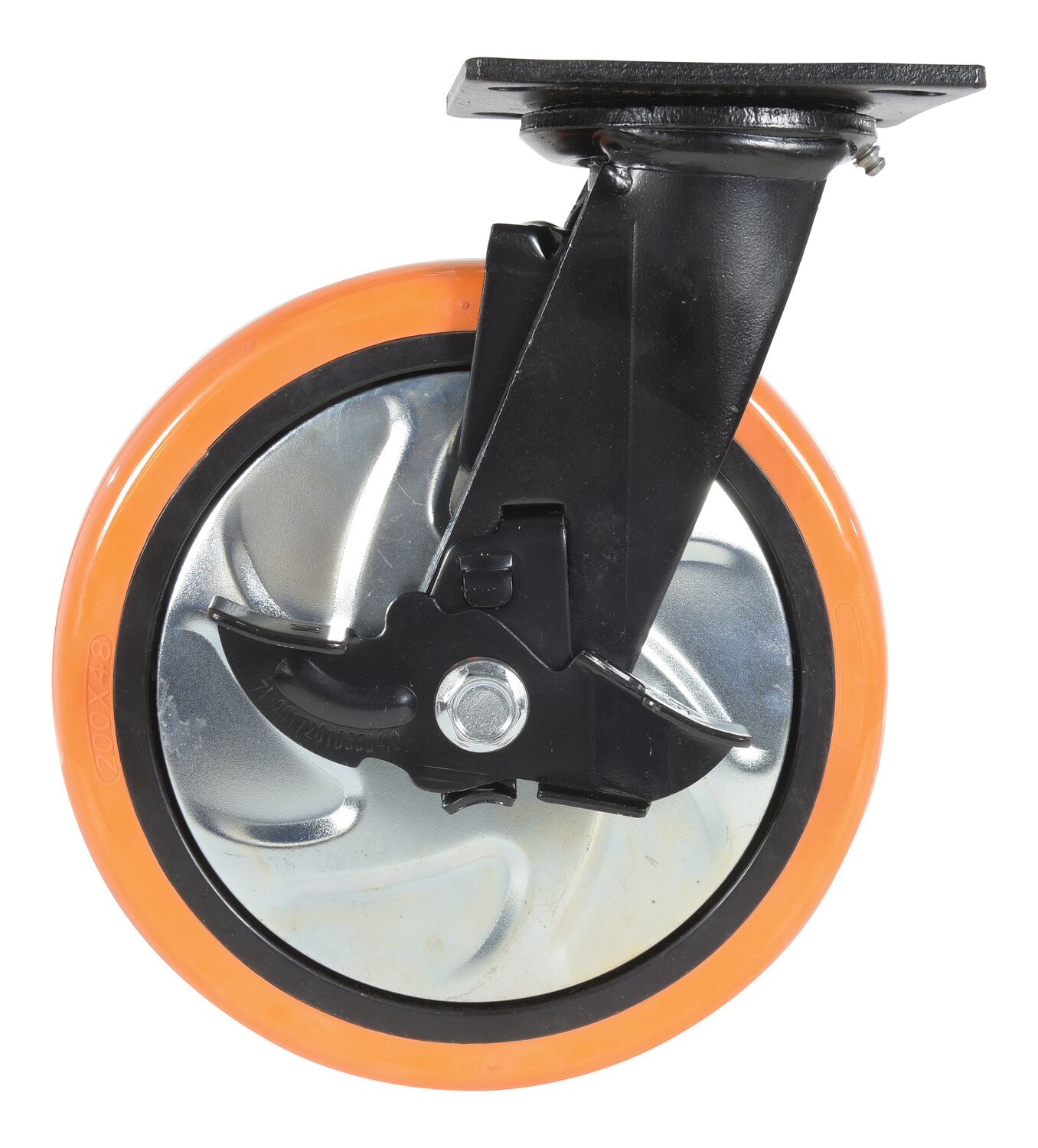

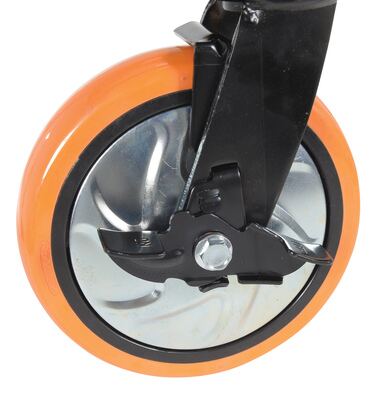

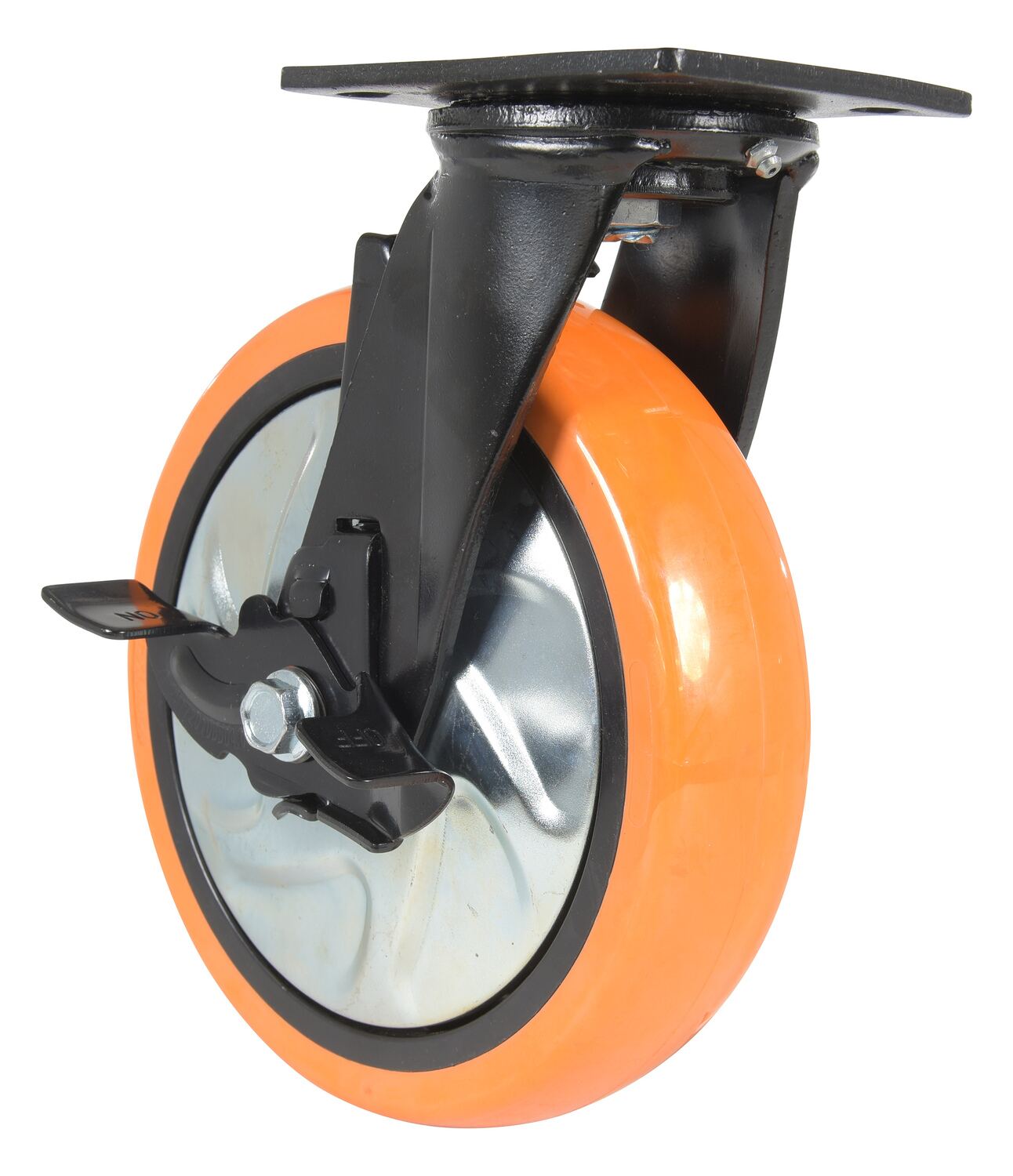

CST-E6-8X2PUP-SWB CST-E6-8X2PUP-SWB1 YEAR Limited Warranty8 x 2SWIVEL W/BRAKE9259-1/2 4 x 4-1/26.9

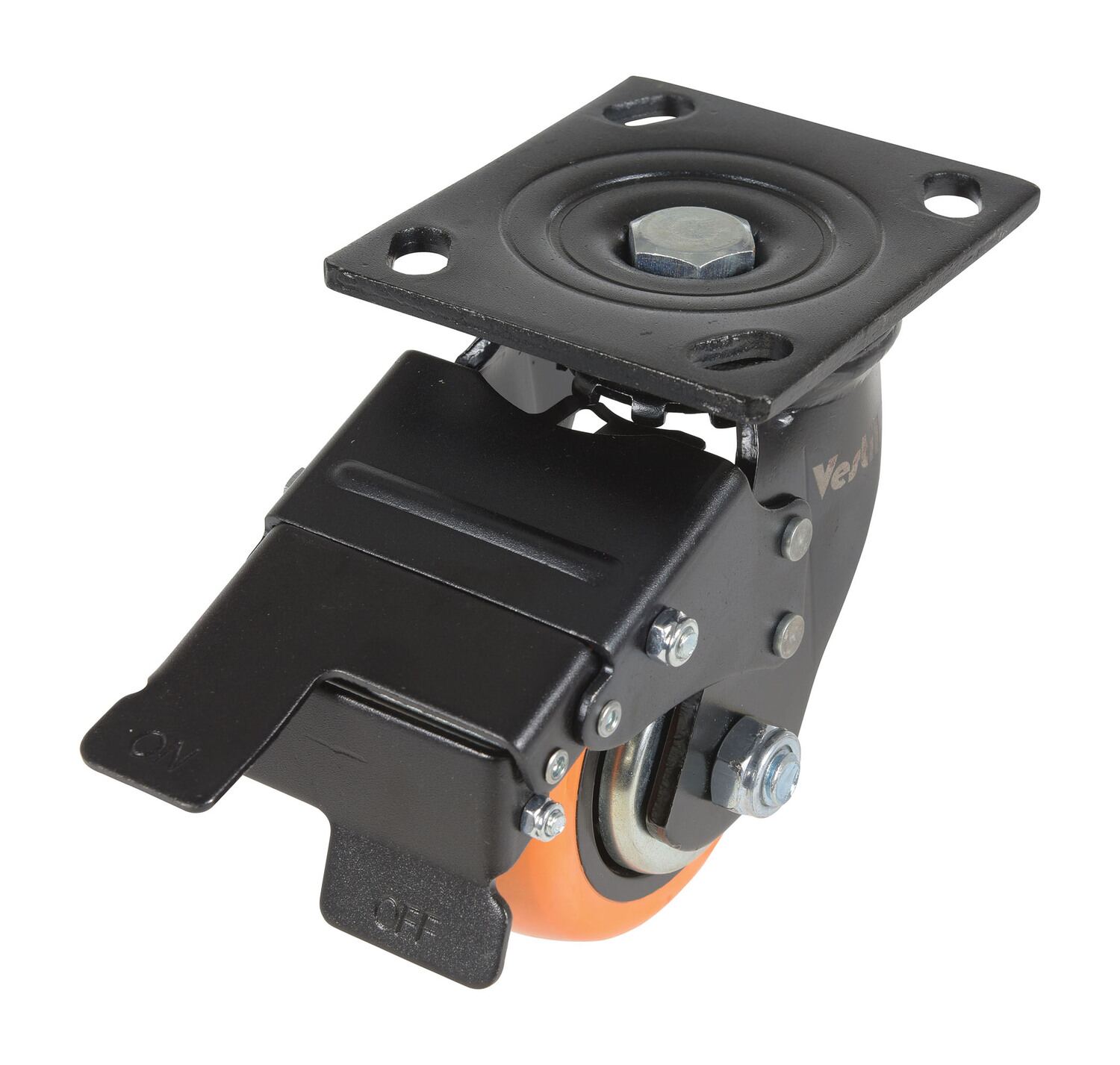

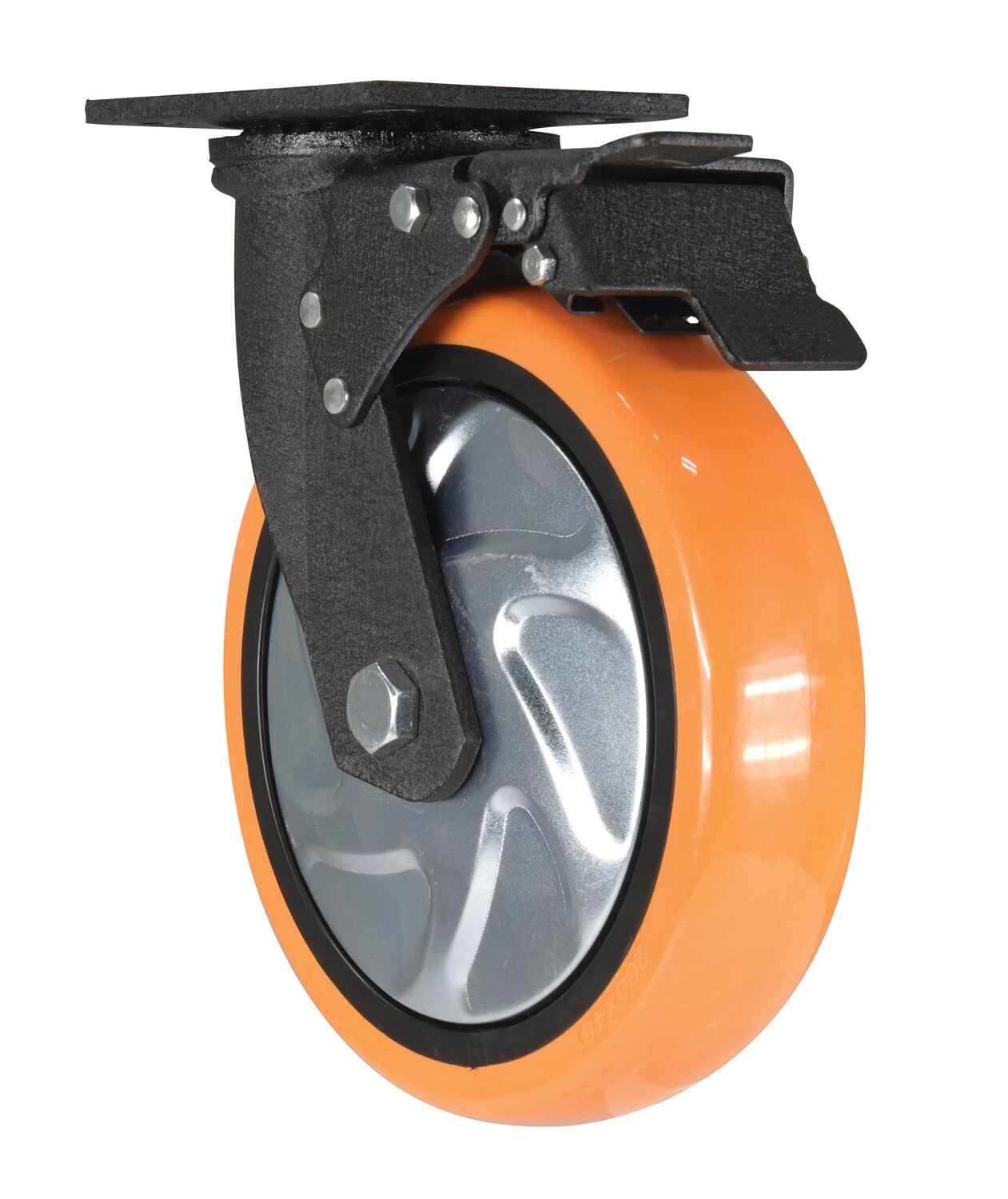

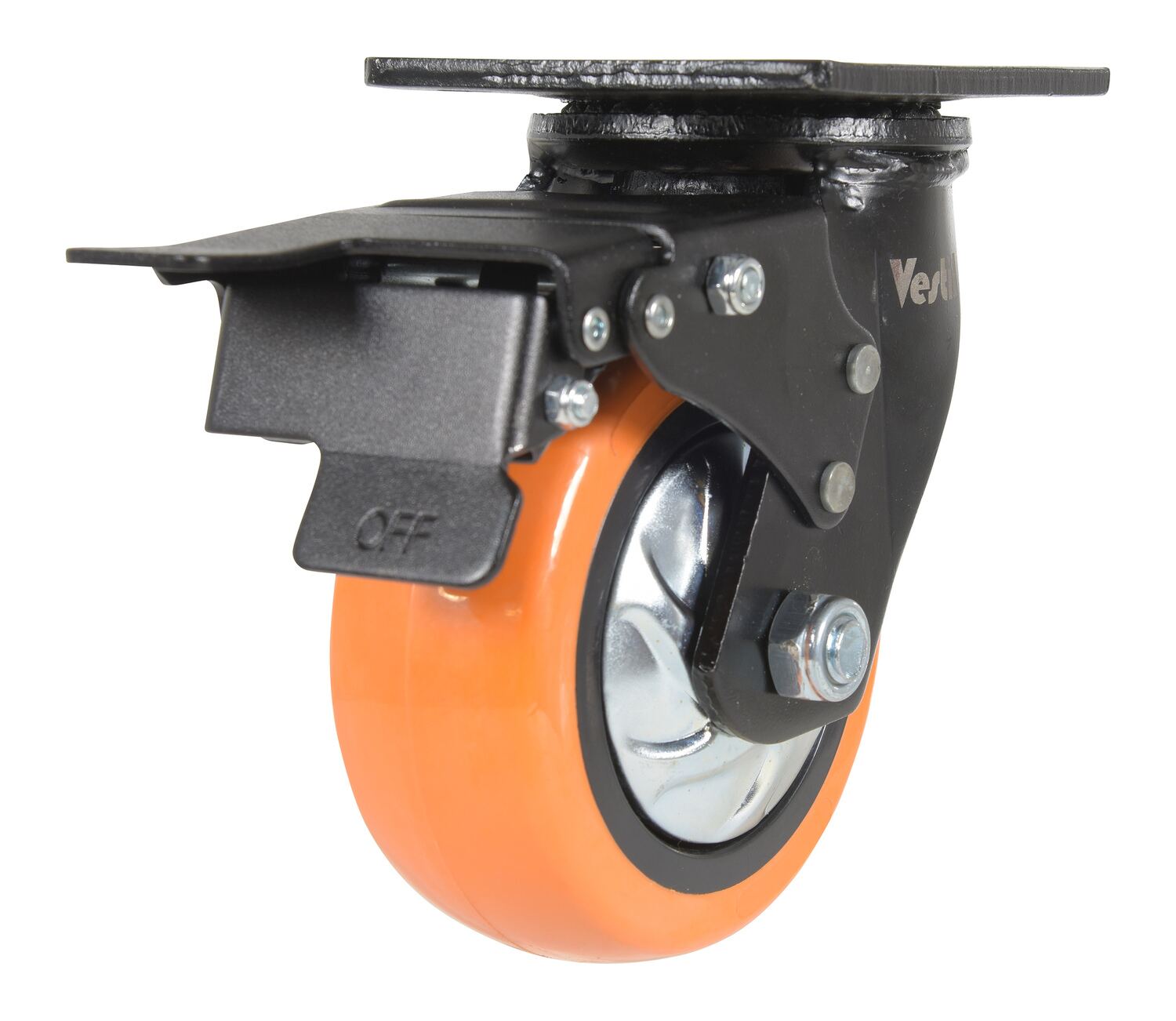

CST-E6-4X2PUP-SWTB CST-E6-4X2PUP-SWTB1 YEAR Limited Warranty4 x 2SWIVEL W/TOTAL BRAKE5515-5/8 4 x 4-1/25.2
CST-E6-5X2PUP-SWTB CST-E6-5X2PUP-SWTB1 YEAR Limited Warranty5 x 2SWIVEL W/TOTAL BRAKE6396-1/2 4 x 4-1/25.7

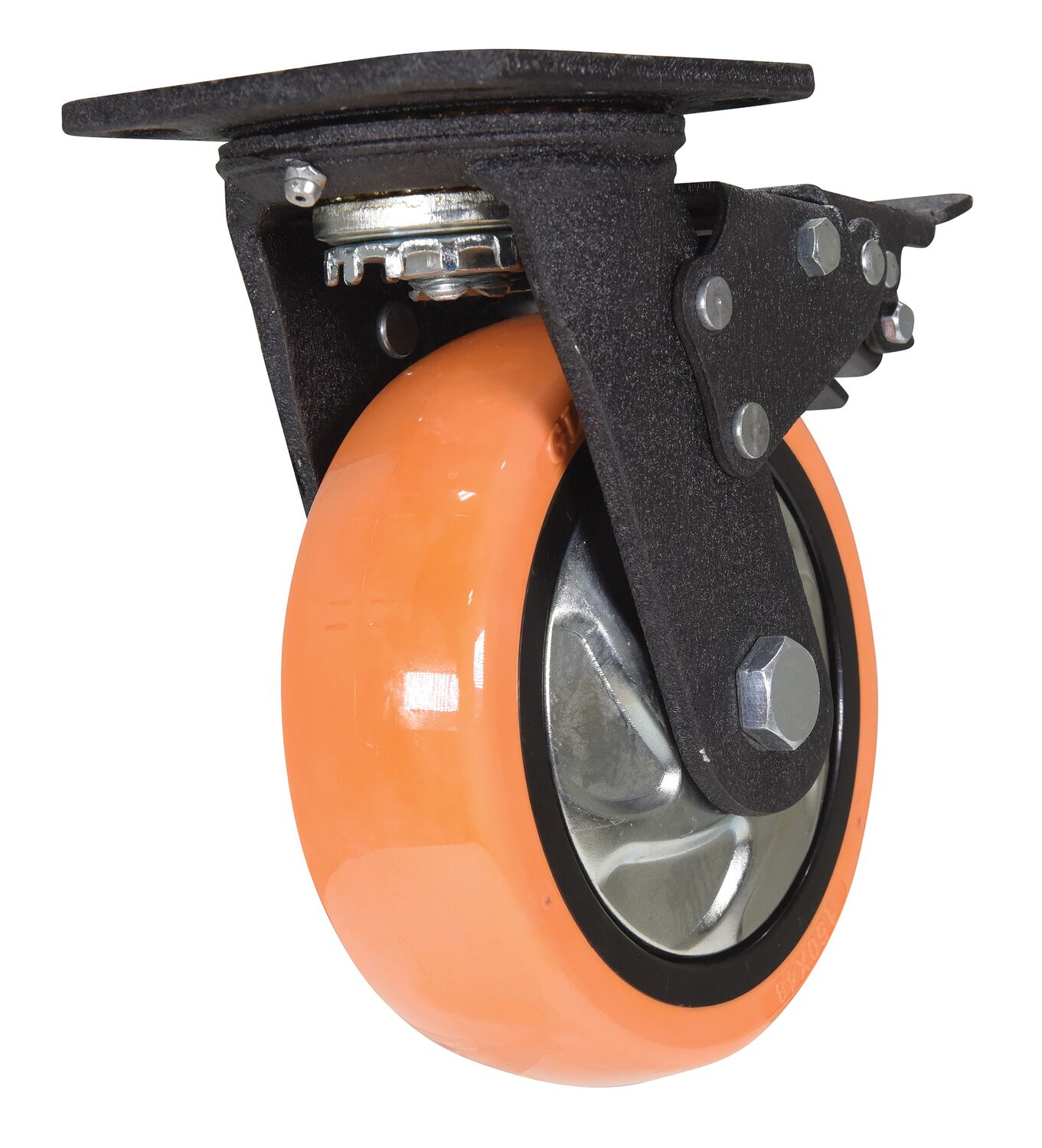

CST-E6-6X2PUP-SWTB CST-E6-6X2PUP-SWTB1 YEAR Limited Warranty6 x 2SWIVEL W/TOTAL BRAKE8377-1/2 4 x 4-1/26.2

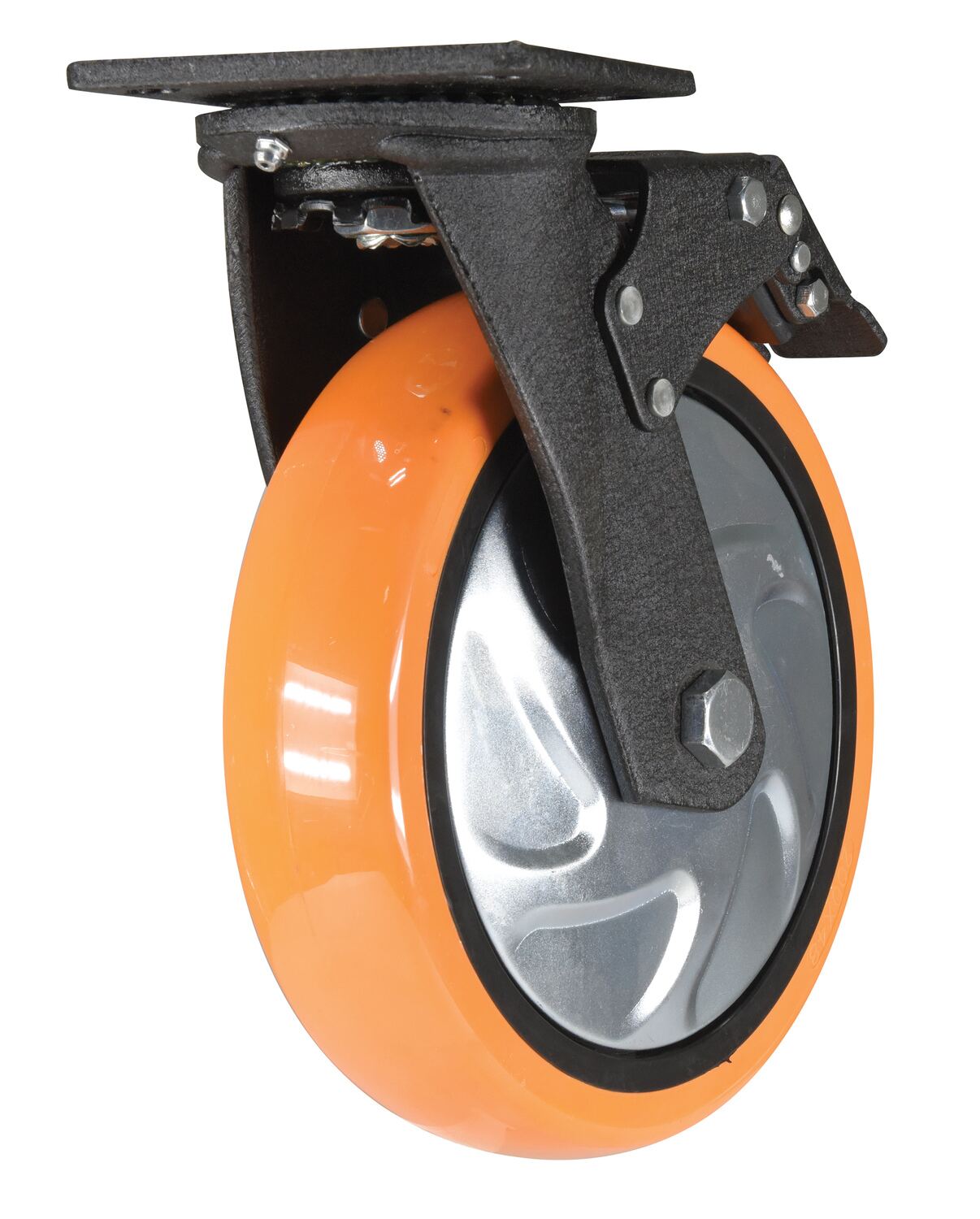

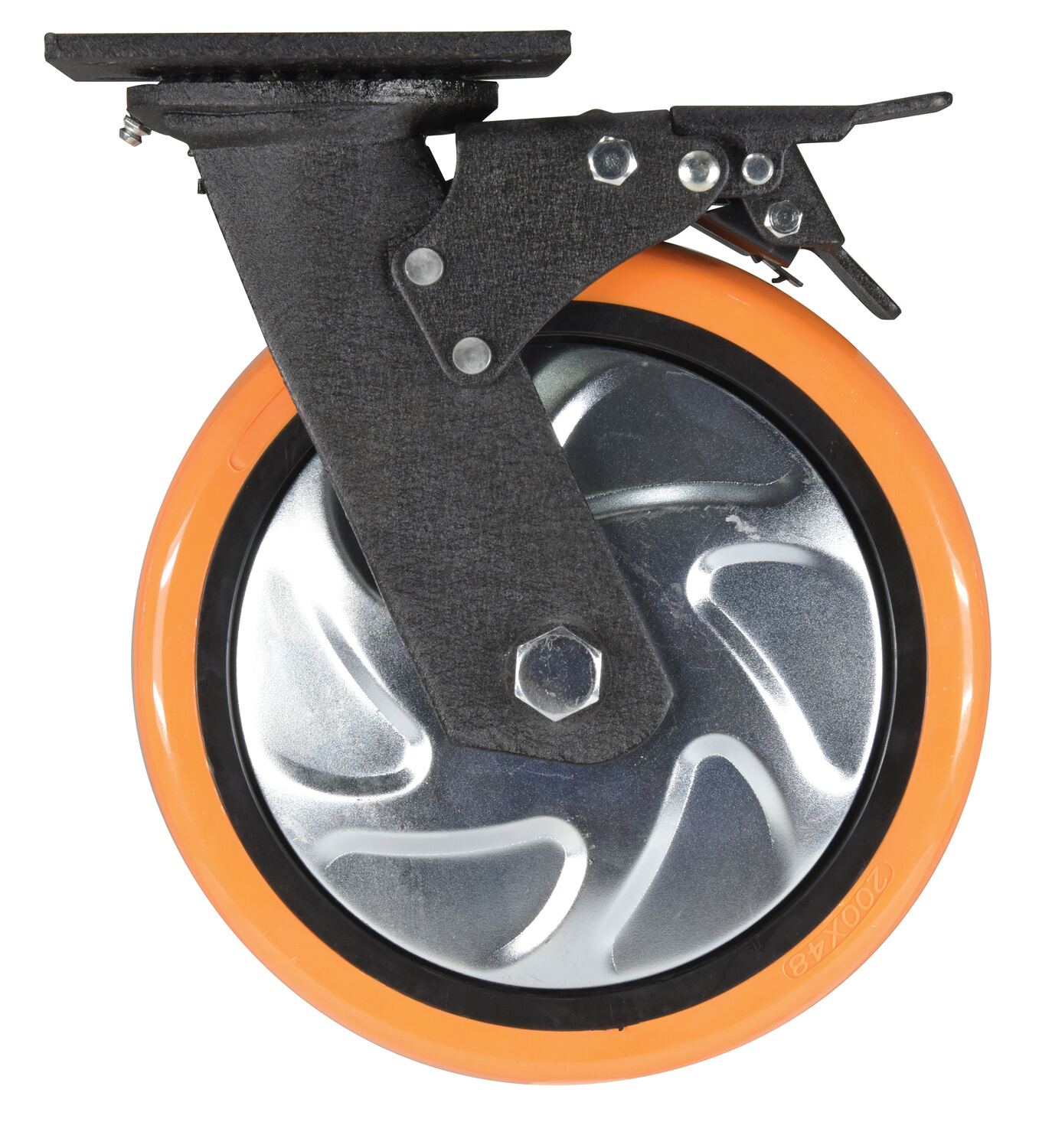

CST-E6-8X2PUP-SWTB CST-E6-8X2PUP-SWTB1 YEAR Limited Warranty8 x 2SWIVEL W/TOTAL BRAKE9259-1/2 4 x 4-1/27.7

KEY: = Click For Expanded Model Details -- = Approval Drawing -- = Testing Certificate -- Warranty


Polyurethane with Thread Guard Casters PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates

No Testing Certificates For This Product

SDS Sheets

No SDS Sheets For This Product

Other PDF's


Directory Links Of Available PDF's For All Products


Q: What is the best economical caster?

A: The CST-E6 series is the best economical caster.
