Portable Offset Jib Cranes

Print Friendly

Model Chart
PDF's
Options
Image Gallery
FEATURED Portable Offset Jib Cranes

model: JIB-CBX-25-8-10

JIB-CBX-25-8-10_A.jpg More Images +
Portable Offset Jib Cranes
SERIES: JIB-CBX   14Products 4Options
Custom Fabrication

Portable Offset Jib Cranes for Fork Truck Movable Overhead Lifting

Portable offset jib cranes provide a flexible overhead lifting solution for workstations, maintenance areas, production floors, warehouses, and material handling facilities. The offset base design creates a larger usable work area beneath the I-beam, making it easier to lift, position, and transfer loads where a centered base would interfere with the work zone.

360 Degree Load Positioning

The fixed length I-beam pivots 360 degrees for full access around the crane. This allows operators to position loads across a wider working radius, improving efficiency during repair, assembly, loading, and equipment handling tasks. Hoists & Trollies can be ordered seperately.

Fork Truck Portable Base Design

Built-in fork pockets allow the crane to be transported by fork truck between work areas. Models are available with empty bases for field filling with concrete or concrete-filled bases for immediate use. Additional 18 inch and 36 inch offset bases are available for select applications.

Capacities and Construction

This family includes 250 lb., 500 lb., and 1,000 lb. capacity models with 8 foot and 10 foot I-beam lengths and 10 foot under I-beam height. Steel construction and a durable blue painted finish provide long-lasting performance for industrial lifting applications. These units are not designed for use as fork truck attachments.

Portable Offset Jib Cranes

model: JIB-CBX-25-8-10

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
JIB-CBX-100-8-10
JIB-CBX-100-8-10-BC
JIB-CBX-18-B
JIB-CBX-18-BC
JIB-CBX-25-10-10
JIB-CBX-25-10-10-BC
JIB-CBX-25-8-10
JIB-CBX-25-8-10-BC
JIB-CBX-36-B
JIB-CBX-36-BC
JIB-CBX-50-10-10
JIB-CBX-50-10-10-BC
JIB-CBX-50-8-10
JIB-CBX-50-8-10-BC
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

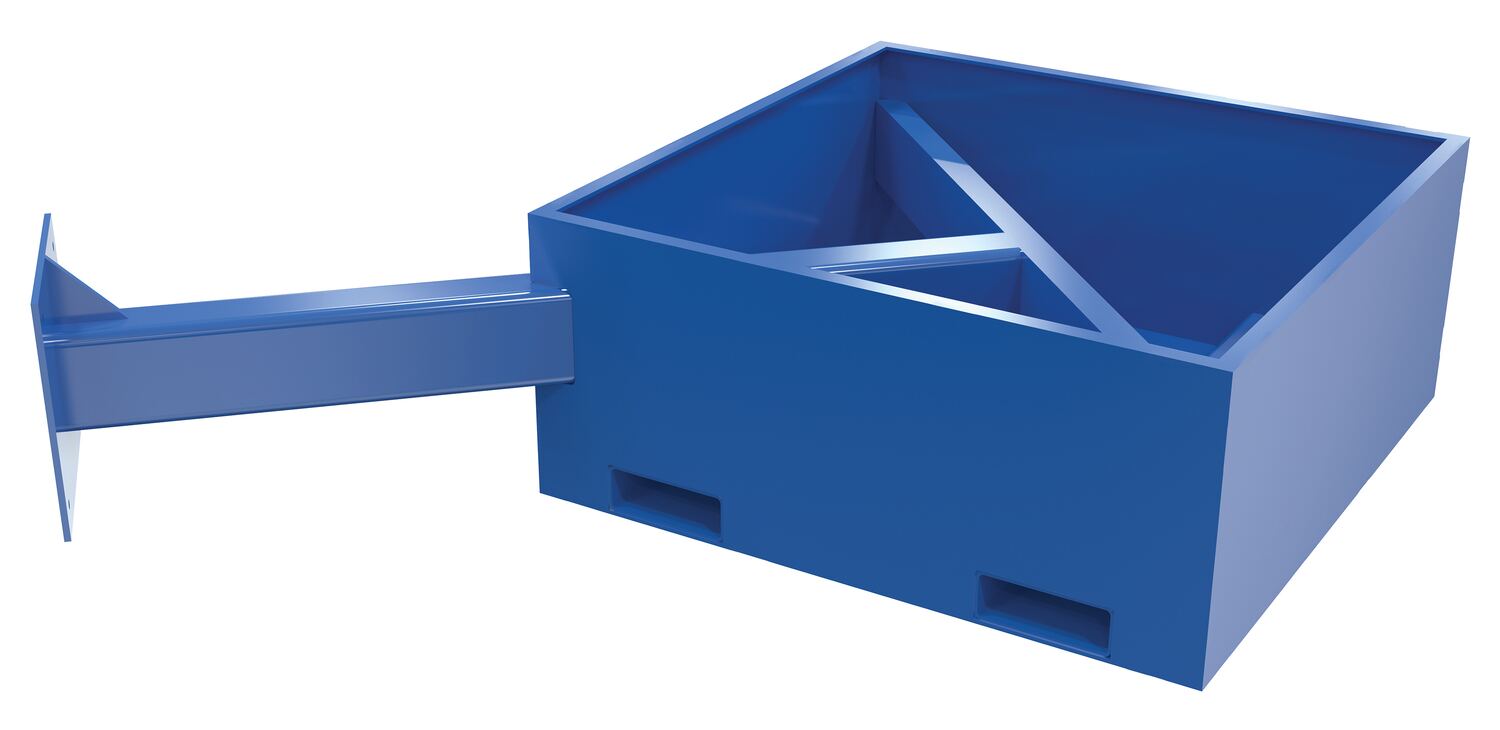

JIB-CBX-18-B JIB-CBX-18-B Steel Offset Empty Concrete Base 18 In. Height For JIB Crane… 1 Year Limited Warranty 532

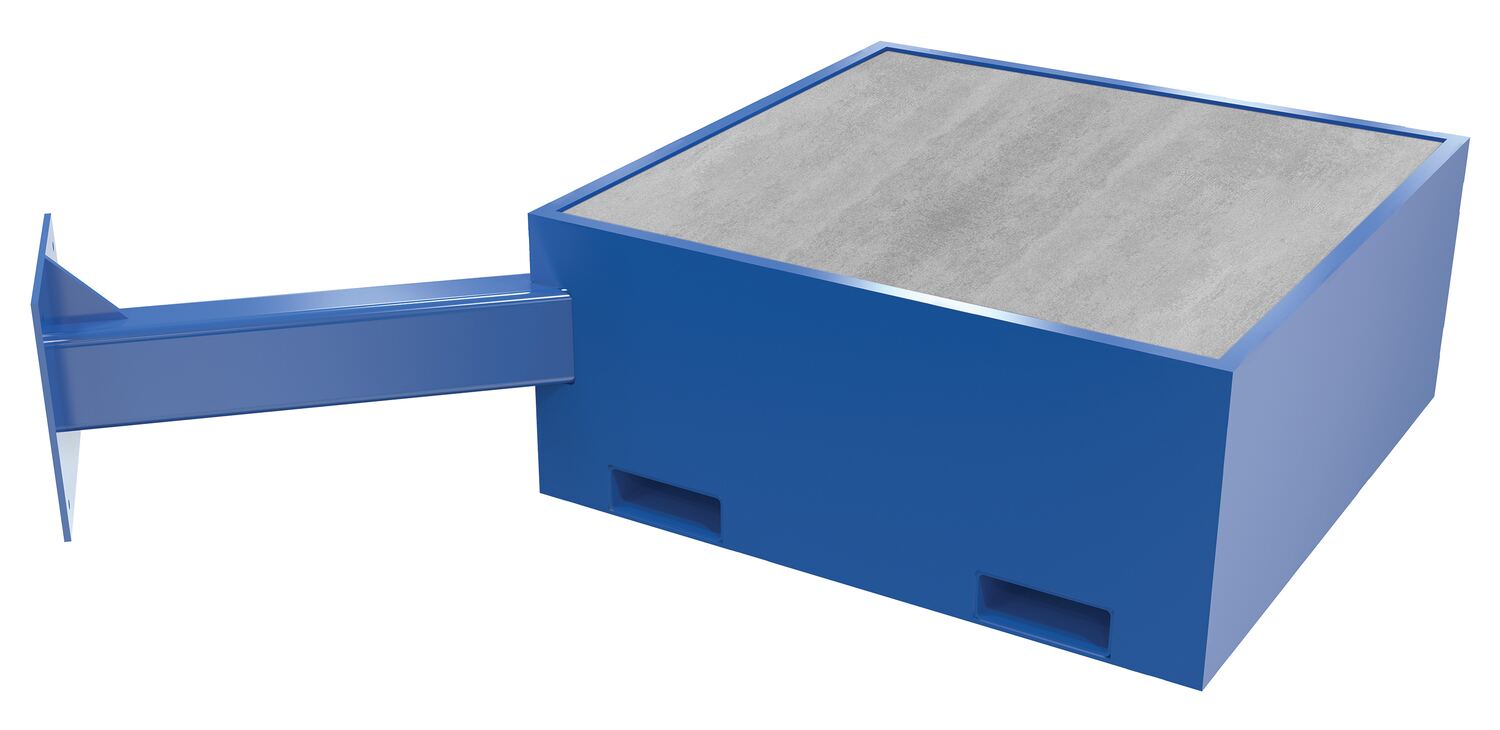

JIB-CBX-18-BC JIB-CBX-18-BC Steel Offset Concrete Filled Base 18 In. Height For JIB Cran… 1 Year Limited Warranty 2870

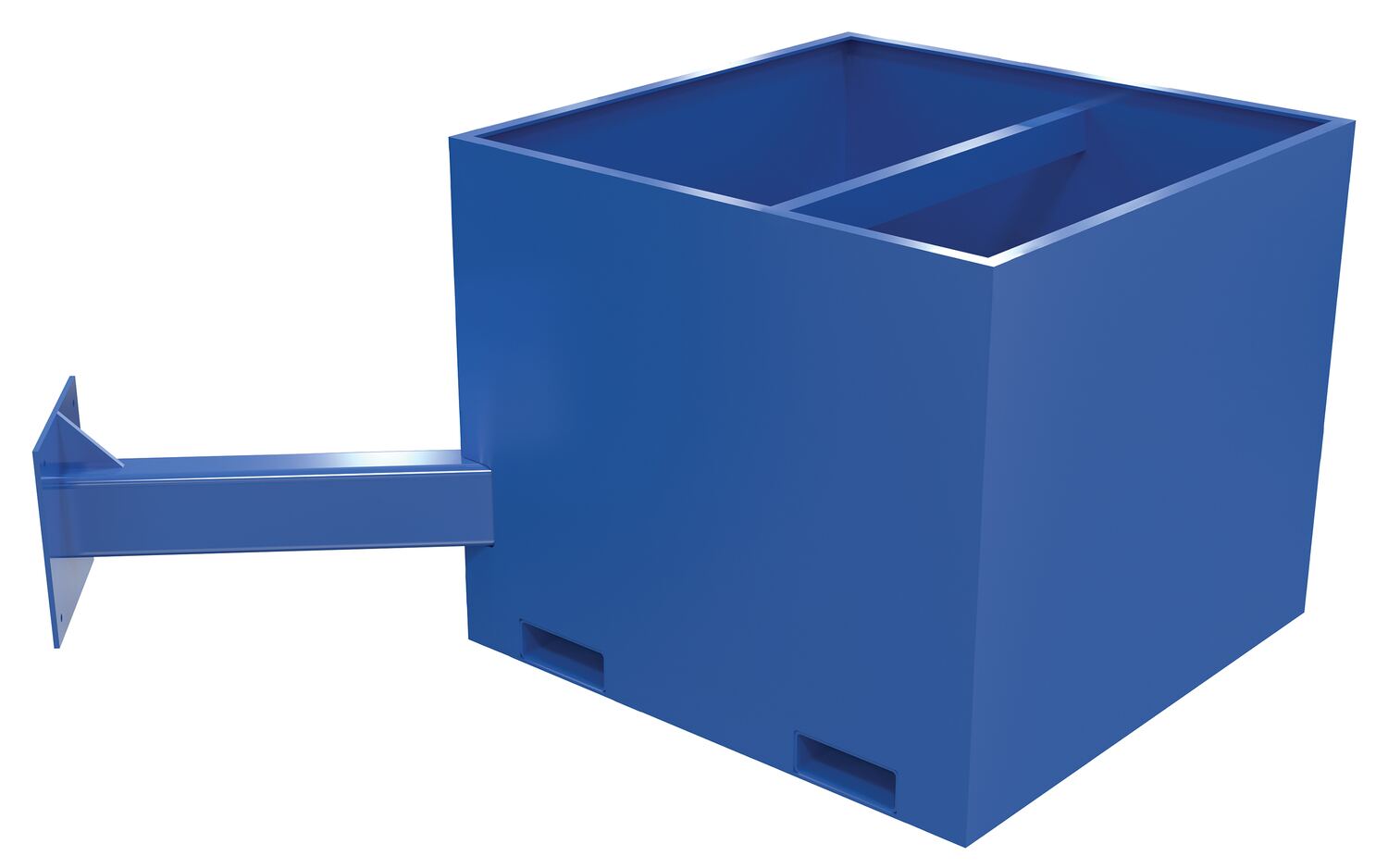

JIB-CBX-36-B JIB-CBX-36-B Steel Offset Empty Concrete Base 36 In. Height For JIB Crane… 1 Year Limited Warranty 655

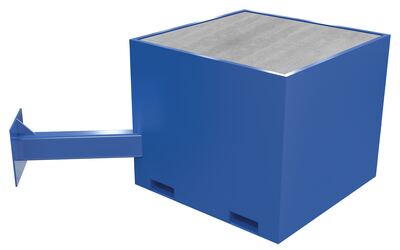

JIB-CBX-36-BC JIB-CBX-36-BC Steel Offset Concrete Filled Base 36 In. Height For JIB Cran… 1 Year Limited Warranty 5449

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Owner's Manuals

1
JIB-CBX, MANUAL
Open Manual

Survey Sheets

0
No survey sheets for this product family.

Approval Drawings

14
JIB-CBX-100-8-10
Open Drawing
JIB-CBX-100-8-10-BC
Open Drawing
JIB-CBX-18-B
Open Drawing
JIB-CBX-18-BC
Open Drawing
JIB-CBX-25-10-10
Open Drawing
JIB-CBX-25-10-10-BC
Open Drawing
JIB-CBX-25-8-10
Open Drawing
JIB-CBX-25-8-10-BC
Open Drawing
JIB-CBX-36-B
Open Drawing
JIB-CBX-36-BC
Open Drawing
JIB-CBX-50-10-10
Open Drawing
JIB-CBX-50-10-10-BC
Open Drawing
JIB-CBX-50-8-10
Open Drawing
JIB-CBX-50-8-10-BC
Open Drawing

Testing Certificates

14
JIB-CBX-100-8-10
Open Certificate
JIB-CBX-100-8-10-BC
Open Certificate
JIB-CBX-18-B
Open Certificate
JIB-CBX-18-BC
Open Certificate
JIB-CBX-25-10-10
Open Certificate
JIB-CBX-25-10-10-BC
Open Certificate
JIB-CBX-25-8-10
Open Certificate
JIB-CBX-25-8-10-BC
Open Certificate
JIB-CBX-36-B
Open Certificate
JIB-CBX-36-BC
Open Certificate
JIB-CBX-50-10-10
Open Certificate
JIB-CBX-50-10-10-BC
Open Certificate
JIB-CBX-50-8-10
Open Certificate
JIB-CBX-50-8-10-BC
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Label Page PDFs

10
JIB-CBX-100-8-10
JIB-CB
Open Label PDF
JIB-CBX-100-8-10-BC
JIB-CB
Open Label PDF
JIB-CBX-25-10-10
JIB-CB
Open Label PDF
JIB-CBX-25-10-10-BC
JIB-CB
Open Label PDF
JIB-CBX-25-8-10
JIB-CB
Open Label PDF
JIB-CBX-25-8-10-BC
JIB-CB
Open Label PDF
JIB-CBX-50-10-10
JIB-CB
Open Label PDF
JIB-CBX-50-10-10-BC
JIB-CB
Open Label PDF
JIB-CBX-50-8-10
JIB-CB
Open Label PDF
JIB-CBX-50-8-10-BC
JIB-CB
Open Label PDF

Other PDFs

0
No other PDFs for this product family.

Related or Similar Products:

More From Jib Cranes





Portable Offset Jib Cranes




Portable Offset Jib Cranes for Fork Truck Movable Overhead Lifting

Portable offset jib cranes provide a flexible overhead lifting solution for workstations, maintenance areas, production floors, warehouses, and material handling facilities. The offset base design creates a larger usable work area beneath the I-beam, making it easier to lift, position, and transfer loads where a centered base would interfere with the work zone.

360 Degree Load Positioning

The fixed length I-beam pivots 360 degrees for full access around the crane. This allows operators to position loads across a wider working radius, improving efficiency during repair, assembly, loading, and equipment handling tasks. Hoists & Trollies can be ordered seperately.

Fork Truck Portable Base Design

Built-in fork pockets allow the crane to be transported by fork truck between work areas. Models are available with empty bases for field filling with concrete or concrete-filled bases for immediate use. Additional 18 inch and 36 inch offset bases are available for select applications.

Capacities and Construction

This family includes 250 lb., 500 lb., and 1,000 lb. capacity models with 8 foot and 10 foot I-beam lengths and 10 foot under I-beam height. Steel construction and a durable blue painted finish provide long-lasting performance for industrial lifting applications. These units are not designed for use as fork truck attachments.


Model # Description Attributes Net Wt.
(lbs)

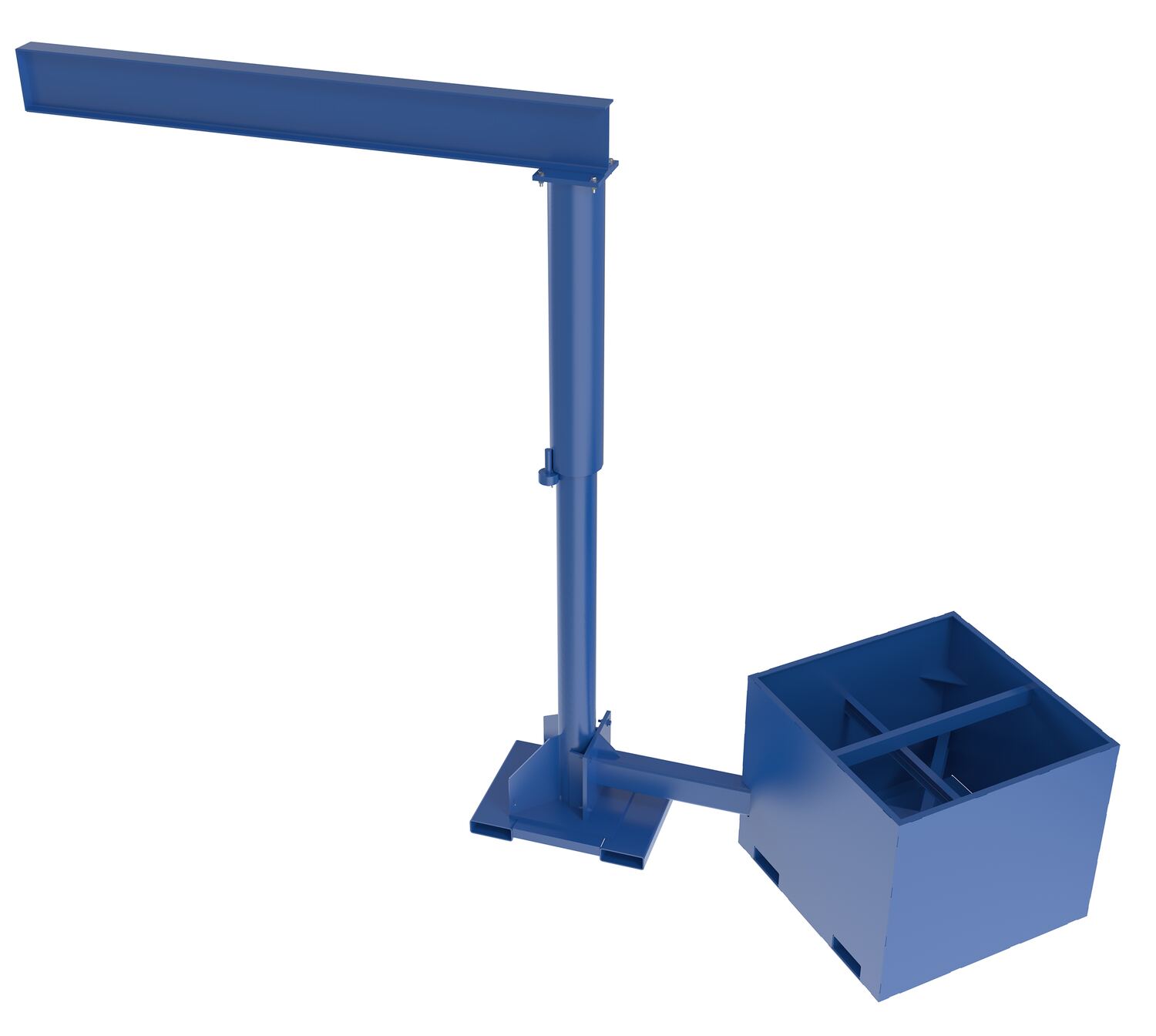

JIB-CBX-100-8-10 JIB-CBX-100-8-10Steel Portable Offset Jib Crane with Empty Base 8 Ft. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Length (in): 96		756

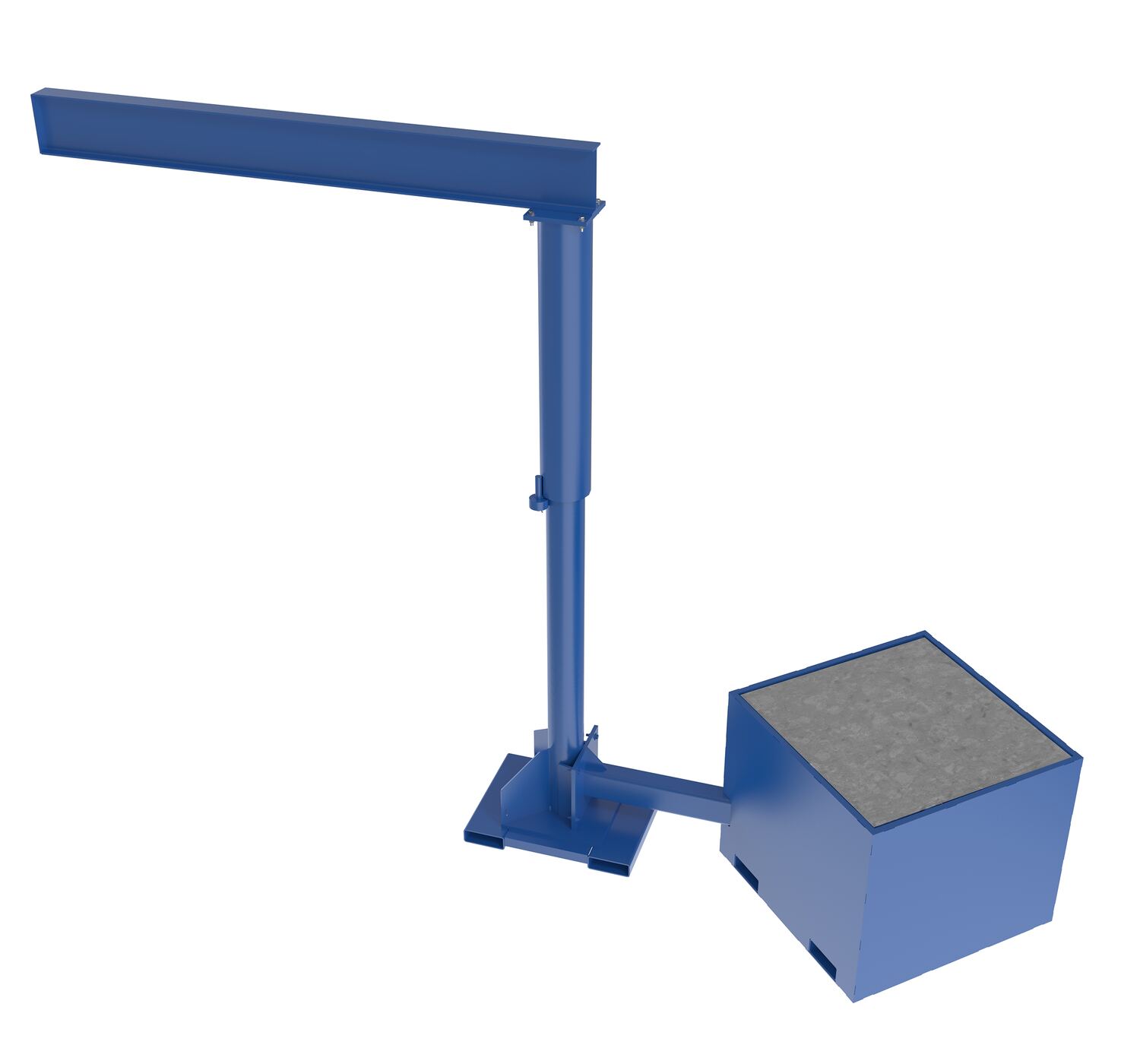

JIB-CBX-100-8-10-BC JIB-CBX-100-8-10-BCSteel Portable Offset Jib Crane with Filled Base 8 Ft. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Length (in): 96		734

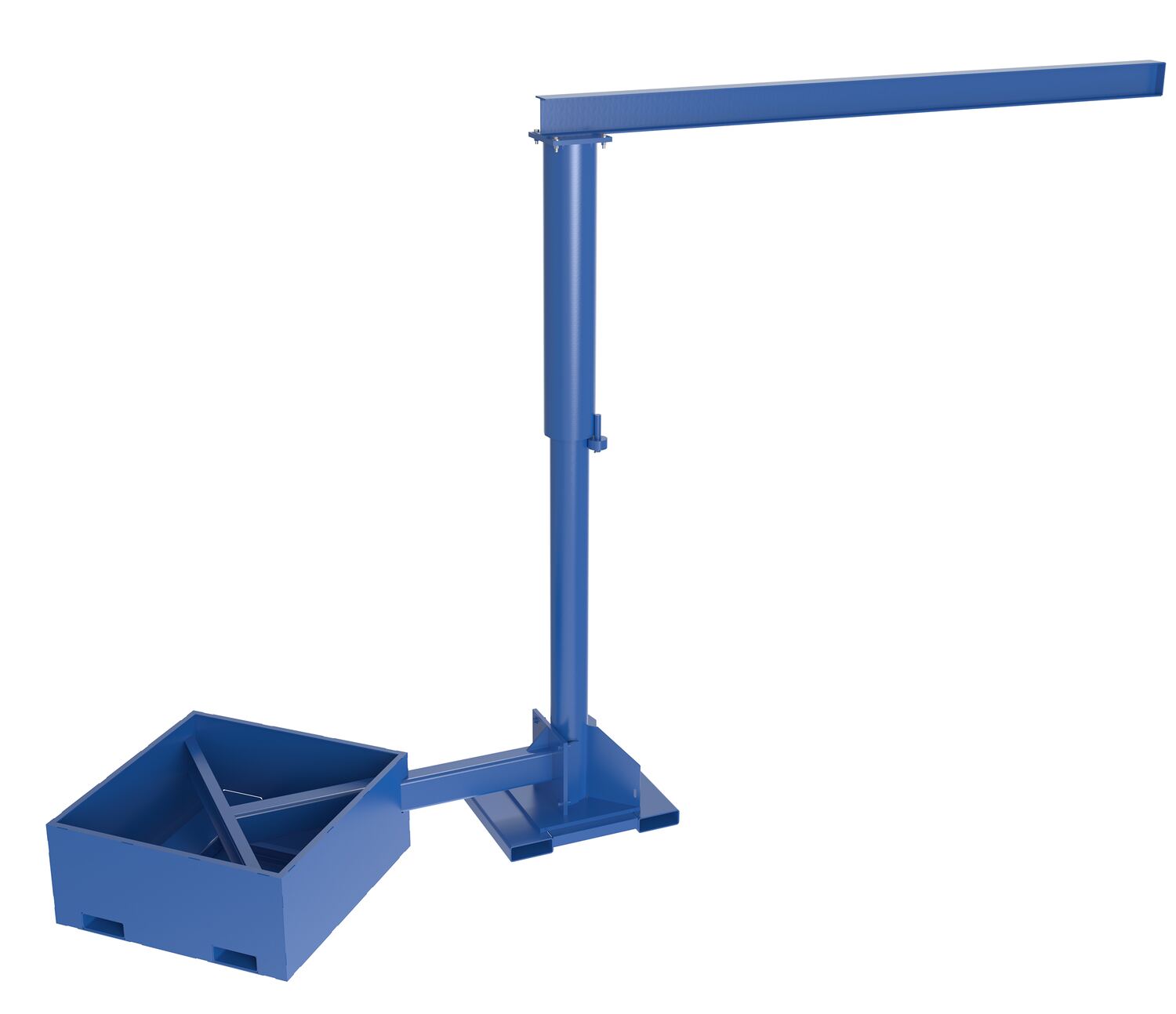

JIB-CBX-25-10-10 JIB-CBX-25-10-10Steel Portable Offset Jib Crane with Empty Base 10 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 120		2318
JIB-CBX-25-10-10-BC JIB-CBX-25-10-10-BCSteel Portable Offset Jib Crane with Filled Base 10 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 120		700

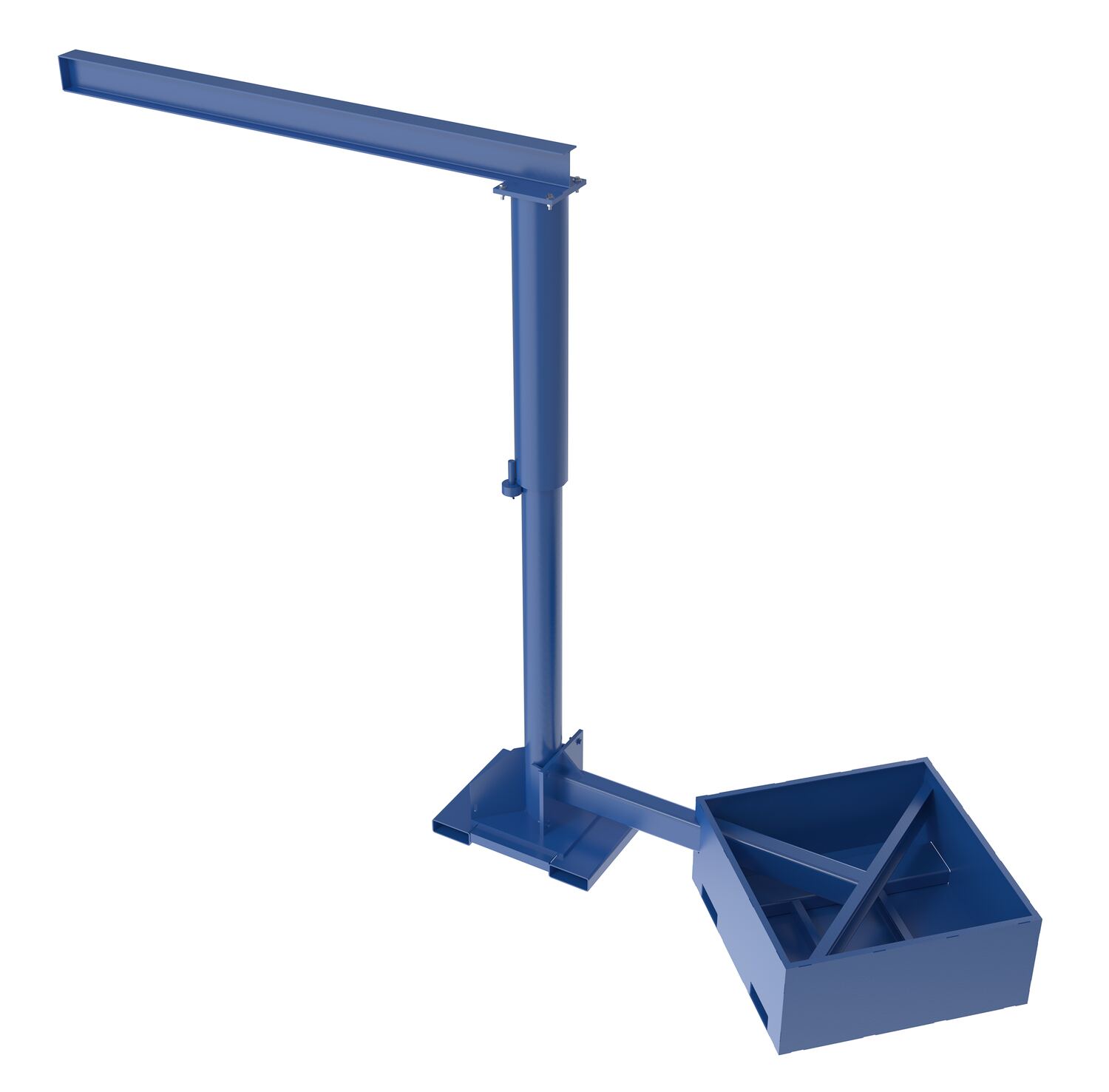

JIB-CBX-25-8-10 JIB-CBX-25-8-10Steel Portable Offset Jib Crane with Empty Base 8 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 96		700

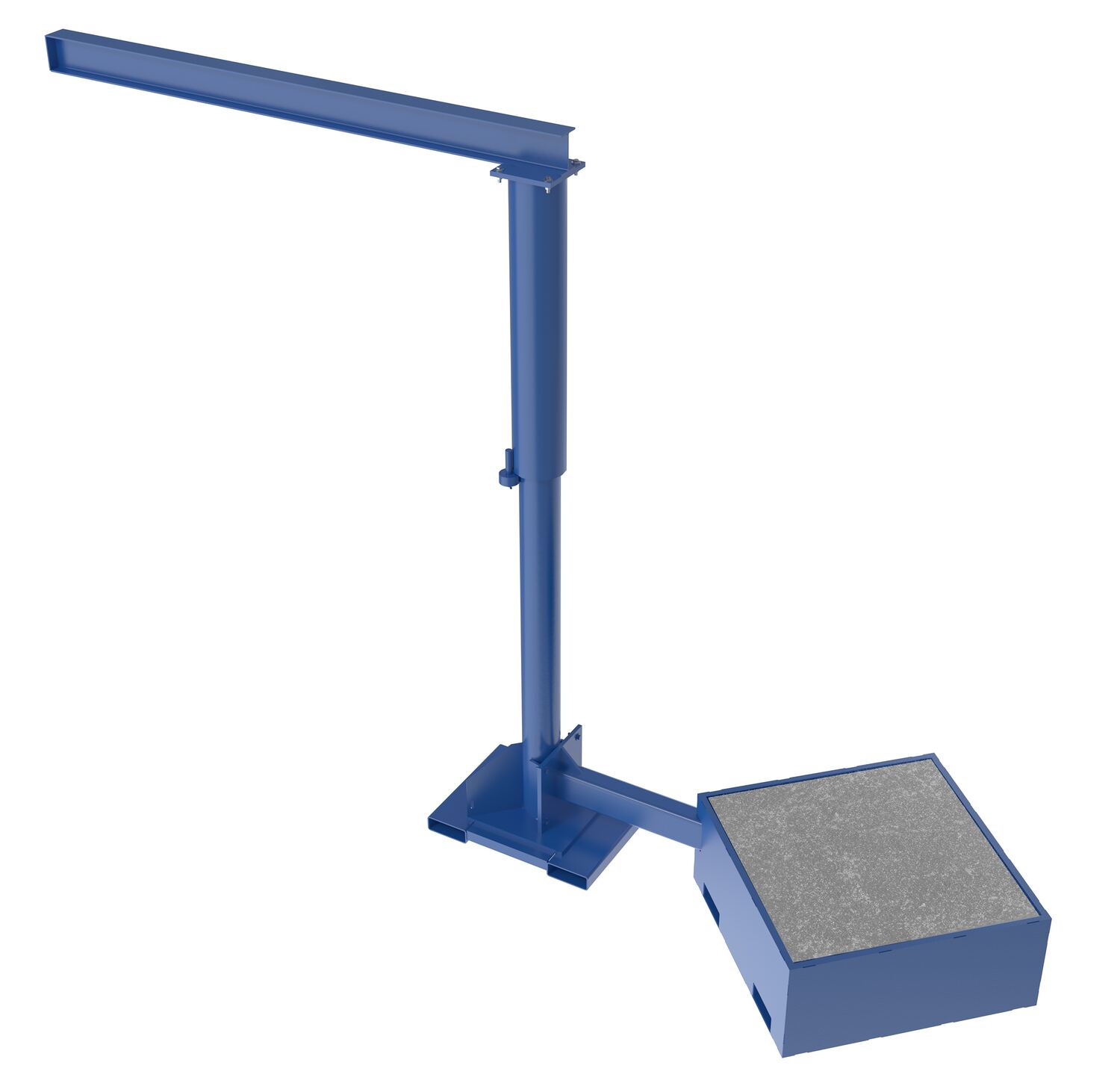

JIB-CBX-25-8-10-BC JIB-CBX-25-8-10-BCSteel Portable Offset Jib Crane with Filled Base 8 Ft. I-Beam 250 Lb. Capacity BlueUniform Capacity (lb.): 250
Overall I-Beam Length (in): 96		679

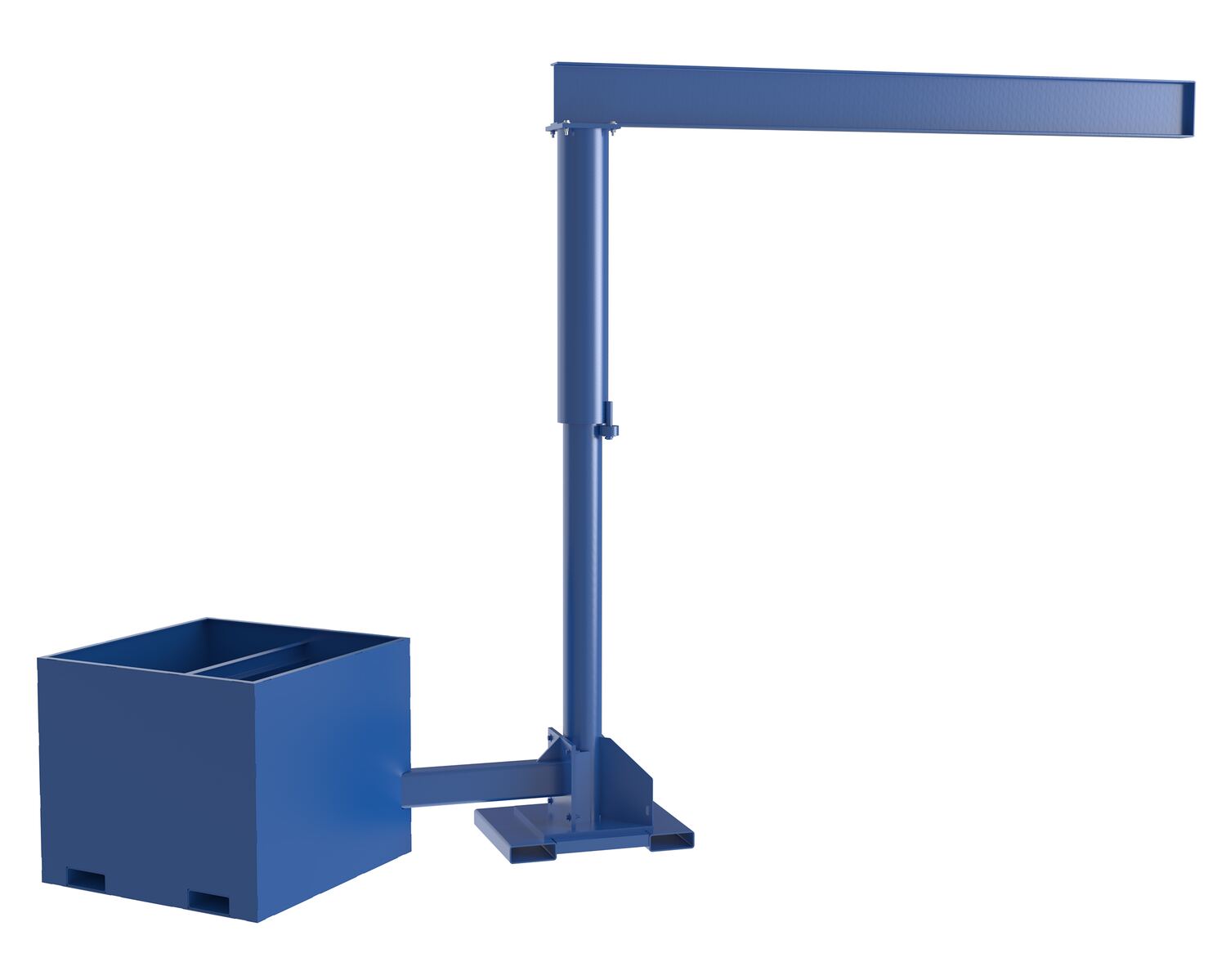

JIB-CBX-50-10-10 JIB-CBX-50-10-10Steel Portable Offset Jib Crane with Empty Base 10 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 120		2102

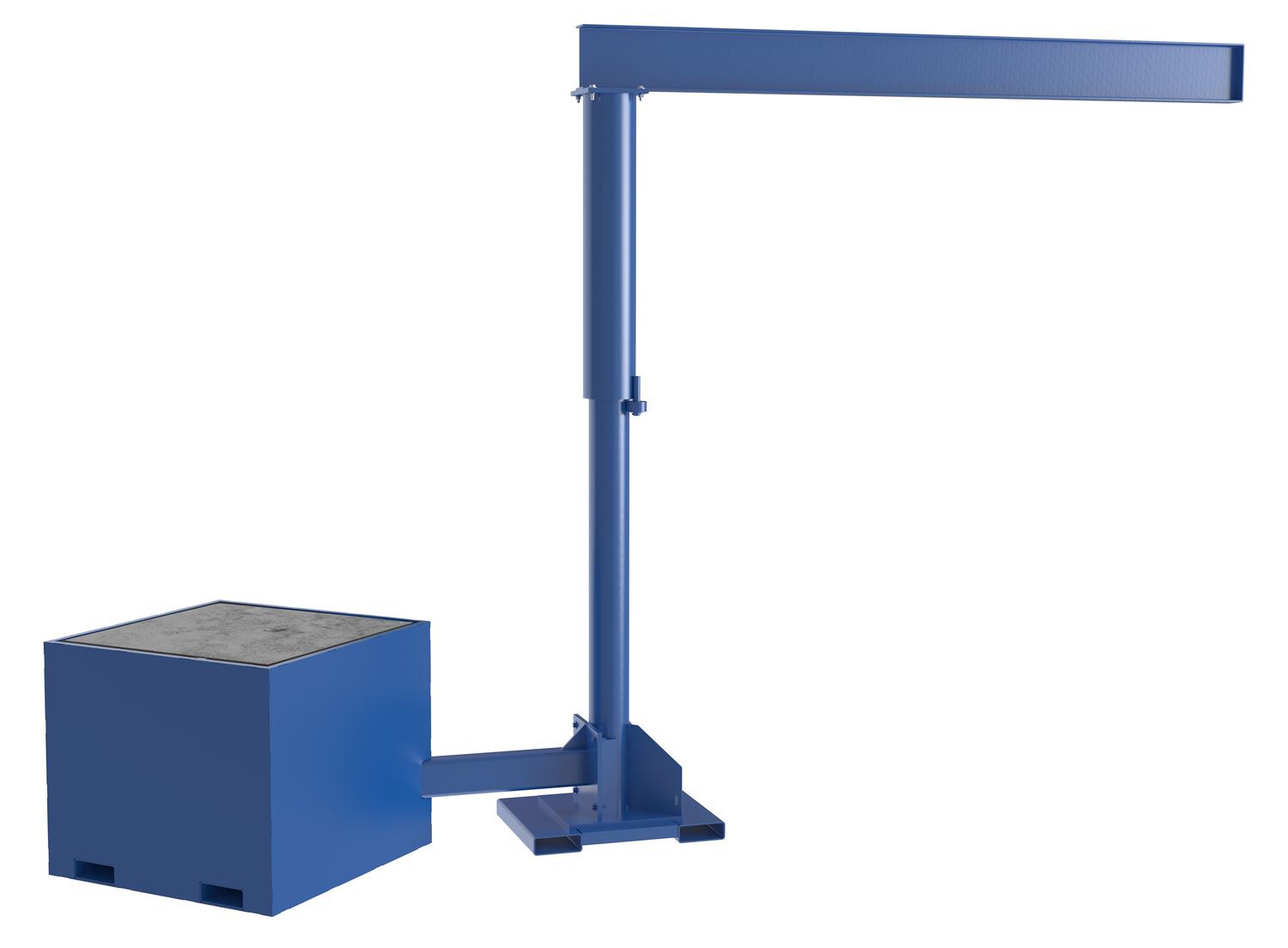

JIB-CBX-50-10-10-BC JIB-CBX-50-10-10-BCSteel Portable Offset Jib Crane with Filled Base 10 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 120		775

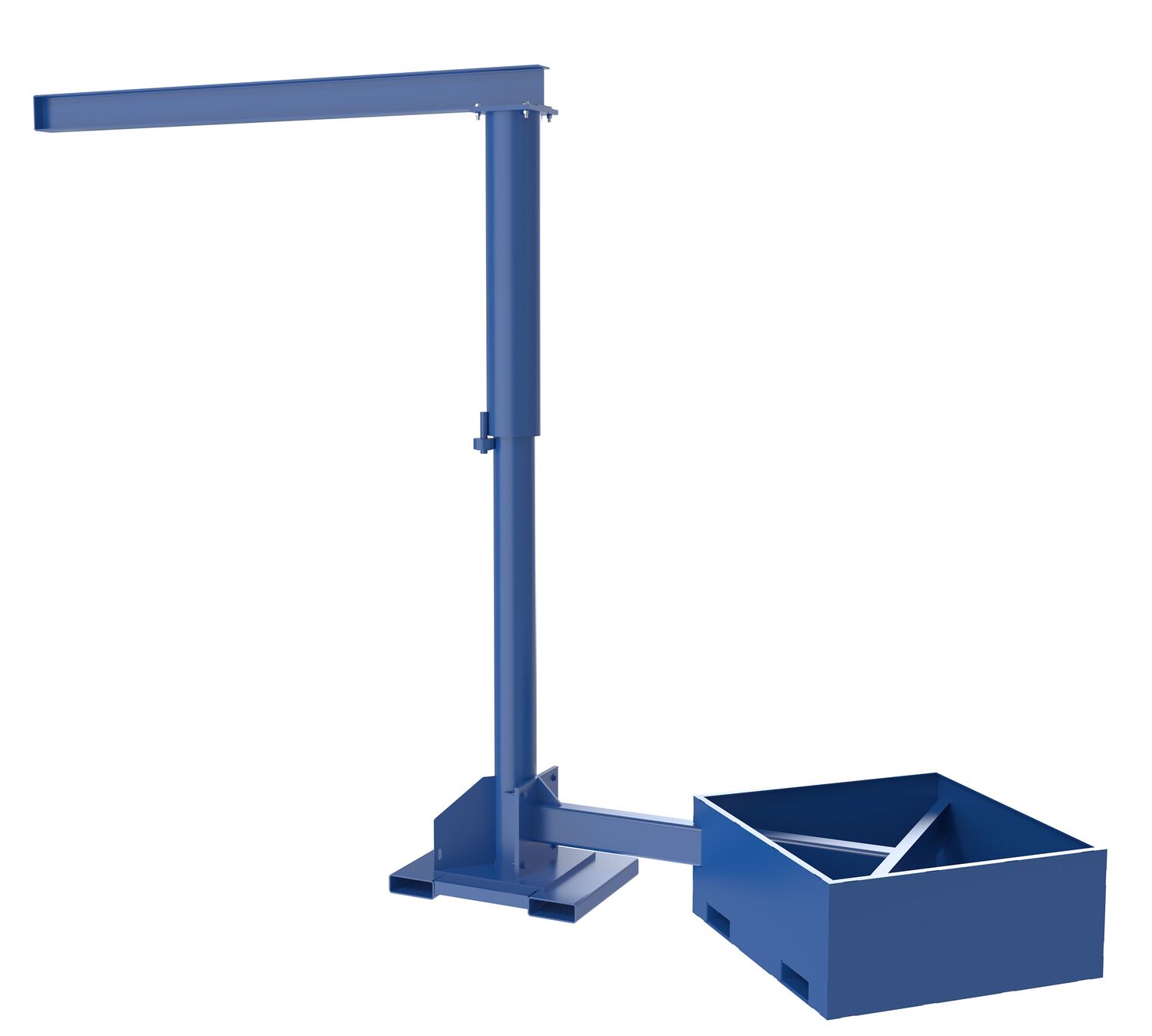

JIB-CBX-50-8-10 JIB-CBX-50-8-10Steel Portable Offset Jib Crane with Empty Base 8 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 96		296

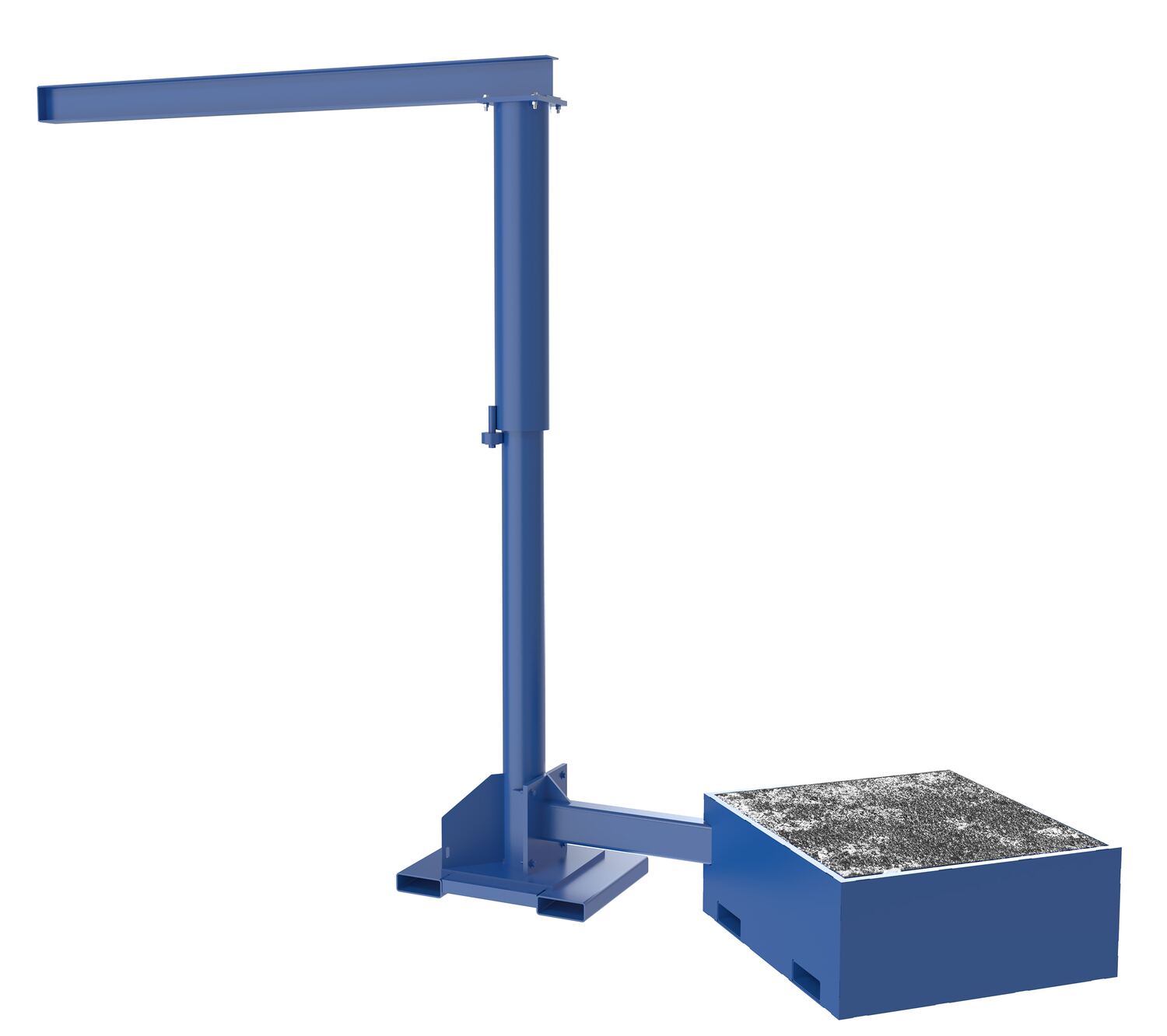

JIB-CBX-50-8-10-BC JIB-CBX-50-8-10-BCSteel Portable Offset Jib Crane with Filled Base 8 Ft. I-Beam 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Overall I-Beam Length (in): 96		709
